Shark NV22 User manual

Owner’s Guide
Manual del usuario
Guide d’utilisation
NV22L | NV22LB
NV22LC | NV22LWM
NV22LCO | NV22W
NV22L_IB_100204.indd 1 10-02-08 8:49 AM

English
Contents
Thank you for
purchasing the
Shark® Navigator
Upright Vacuum.
Important Safety Instructions 2
Getting Started 4
Using the Vacuum 6
Transporting the Vacuum 7
Cleaning with the Vacuum Accessories 8
Emptying the Dust Cup Assembly 10
Proper Care of Your Vacuum 11
Troubleshooting 12
Checking for Blockages 13
Maintenance 14
Warranty and Registration 16
1
www.sharkclean.com 1
TOLL FREE: 1-800 798-7398
TECHNICAL SPECIFICATIONS
Voltage: 120V.
Watts: 1200W
Amps: 10A
Hertz: 60Hz
NV22L_IB_100204.indd 2-1 10-02-08 8:49 AM

2 TOLL FREE: 1-800-798-7398 3www.sharkclean.com
English
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS For Household Use Only
General Electrical Safety:
Unplug from electrical outlet when not in use and before servicing.
DO NOT use vacuum with a damaged cord or plug.
DO NOT pull or carry vacuum by the cord.
DO NOT unplug by pulling on cord; to unplug, grasp the plug, not the cord.
DO NOT handle plug or vacuum cleaner with wet hands.
DO NOT run the vacuum over the power cord.
DO NOT use the cord as a handle.
DO NOT close a door on the cord.
DO NOT pull cord around sharp corners.
DO NOT leave appliance when plugged in.
Keep cord away from heated surfaces.
Turn off all controls before plugging or unplugging vacuum cleaner.
Hose Attachments:
DO NOT use if air flow is restricted; if the air paths, the hose or the extension
tube become blocked, turn the vacuum cleaner off. Remove all obstructions
before you turn on the unit again.
Keep the end of the hose, wands and other openings away from face and body.
Keep rotating brush and suction openings away from hair, face, fingers,
uncovered feet or loose clothing.
Only use manufacturer’s recommended attachments.
General Use:
Use only as described in this manual.
DO NOT put any objects into openings.
Keep your work area well lit.
Keep the vacuum moving over the carpet surface at all times to avoid damaging
the carpet fibers.
DO NOT place vacuum on unstable surfaces such as chairs or tables.
DO NOT allow young children to operate the vacuum or use as a toy.
DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors or
submerged in water. Return to EURO-PRO Operating LLC for examination, repair
or adjustment.
When using an electrical appliance, basic
safety precautions should always be
observed, including the following:
READ ALL INSTRUCTIONS BEFORE
USING YOUR SHARK® NAVIGATOR
UPRIGHT VACUUM.
WARNING:
To reduce the risk of electric shock,
the two-pronged power cord plug
is polarized [one prong is larger
than the other]; it will fit into the
outlet only one way. DO NOT
force into outlet or try to modify
to fit.
Cyclonic Chamber/Dust Cup/Filters:
Before turning on the vacuum:
• Make sure that dust cup, cyclonic chamber and all filters are in place after
routine maintenance.
• Make sure that all components and filters are thoroughly dry after routine
cleaning.
• Only use filters and accessories provided by EURO-PRO Operating LLC
[Failure to do so will void the warranty.]
General Cleaning:
DO NOT run the vacuum over large-sized objects.
DO NOT pick up hard or sharp objects such as glass, nails, screws or coins that
could damage the vacuum cleaner.
DO NOT pick up smoking or burning objects such as hot coals, cigarette butts or
matches.
DO NOT pick up flammable or combustible materials such as lighter fluid,
gasoline, kerosene or use in areas where they may be present.
DO NOT pick up toxic solutions such as chlorine bleach, ammonia or drain
cleaner.
DO NOT use in an enclosed space where vapors are present from paint, paint
thinner, moth-proofing substances, flammable dust or other explosive or toxic
materials.
DO NOT vacuum up any liquids.
DO NOT immerse vacuum cleaner in water or other liquids.
DO NOT use outdoors or on wet surfaces; use only on dry surfaces.
Use extra care when cleaning on stairs.
32
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY.
DO NOT USE OUTDOORS OR ON WET SURFACES:
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS For Household Use Only
General Electrical Safety:
Unplug from electrical outlet when not in use and before servicing.
DO NOT use vacuum with a damaged cord or plug.
DO NOT pull or carry vacuum by the cord.
DO NOT unplug by pulling on cord; to unplug, grasp the plug, not the cord.
DO NOT handle plug or vacuum cleaner with wet hands.
DO NOT run the vacuum over the power cord.
DO NOT use the cord as a handle.
DO NOT close a door on the cord.
DO NOT pull cord around sharp corners.
DO NOT leave appliance when plugged in.
Keep cord away from heated surfaces.
Turn off all controls before plugging or unplugging vacuum cleaner.
Hose Attachments:
DO NOT use if air flow is restricted; if the air paths, the hose or the extension
tube become blocked, turn the vacuum cleaner off. Remove all obstructions
before you turn on the unit again.
Keep the end of the hose, wands and other openings away from face and body.
Keep rotating brush and suction openings away from hair, face, fingers,
uncovered feet or loose clothing.
Only use manufacturer’s recommended attachments.
General Use:
Use only as described in this manual.
DO NOT put any objects into openings.
Keep your work area well lit.
Keep the vacuum moving over the carpet surface at all times to avoid damaging
the carpet fibers.
DO NOT place vacuum on unstable surfaces such as chairs or tables.
DO NOT allow young children to operate the vacuum or use as a toy.
DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors or
submerged in water. Return to EURO-PRO Operating LLC for examination, repair
or adjustment.
When using an electrical appliance, basic
safety precautions should always be
observed, including the following:
READ ALL INSTRUCTIONS BEFORE
USING YOUR SHARK® NAVIGATOR
UPRIGHT VACUUM.
WARNING:
To reduce the risk of electric shock,
the two-pronged power cord plug
is polarized [one prong is larger
than the other]; it will fit into the
outlet only one way. DO NOT
force into outlet or try to modify
to fit.
Cyclonic Chamber/Dust Cup/Filters:
Before turning on the vacuum:
• Make sure that dust cup, cyclonic chamber and all filters are in place after
routine maintenance.
• Make sure that all components and filters are thoroughly dry after routine
cleaning.
• Only use filters and accessories provided by EURO-PRO Operating LLC
[Failure to do so will void the warranty.]
General Cleaning:
DO NOT run the vacuum over large-sized objects.
DO NOT pick up hard or sharp objects such as glass, nails, screws or coins that
could damage the vacuum cleaner.
DO NOT pick up smoking or burning objects such as hot coals, cigarette butts or
matches.
DO NOT pick up flammable or combustible materials such as lighter fluid,
gasoline, kerosene or use in areas where they may be present.
DO NOT pick up toxic solutions such as chlorine bleach, ammonia or drain
cleaner.
DO NOT use in an enclosed space where vapors are present from paint, paint
thinner, moth-proofing substances, flammable dust or other explosive or toxic
materials.
DO NOT vacuum up any liquids.
DO NOT immerse vacuum cleaner in water or other liquids.
DO NOT use outdoors or on wet surfaces; use only on dry surfaces.
Use extra care when cleaning on stairs.
32
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY.
DO NOT USE OUTDOORS OR ON WET SURFACES:
NV22L_IB_100204.indd 2-3 10-02-08 8:49 AM

4 TOLL FREE: 1-800-798-7398 5www.sharkclean.com
English
Along with your upright unit, you will find the
following components:
a Handle Assembly
b Cleaning Attachments
c Extra Filters
d Super Stretch Hose
e Floor Power Nozzle
f Vacuum Body
g Cleaning Wand
h Pet Hair Power Brush
i 24" Crevice Tool
* Note: Model NV22LWM has a different Pet Hair
Power Brush from what is depicted above and does not
include the 24" Crevice Tool.
Optional tools are available for sale for any NV22
model: 1-800-798-7398.
Your Shark® Navigator Upright is
easy to assemble:
1 Lay your vacuum body on a level
surface.
2 Slide the electrical connection from
the power nozzle into the main body
to click into place.
3 Connect the hose from the main
body to the power nozzle; push with
a slight turning motion to create
a snug fit.
4 Slide the handle assembly into the
upright unit aligning the hose hook
on the handle assembly with the
power cord hooks on the back of
the unit.
5 Secure the handle assembly in place
with included nut/bolt (shipped
attached to handle assembly).
6 Place the vacuum in the upright
position.
7 Store the Crevice Tool, Dusting
Brush and Cleaning Wand on
the unit.
8 Attach the Super Stretch Hose:
a) Snap hose into swivel connector
b) Route under anti-tip hook
c) Route over upper hose holder
d) Press securely onto cleaning wand
IMPORTANT:
To prevent vacuum
from tipping, secure
hose under the
anti-tip hose hook.
IMPORTANT:
For suction to reach the Floor Power
Nozzle, the Cleaning Wand and
Super Stretch Hose must be attached
securely on the vacuum body.
9 When storing your vacuum, wind
cord around the two cord holders
and secure with cord clip:
• Quick Cord release at the top of
the unit – place in the upright
position.
• Second holder near the base –
turn until it is pointing down.
To release the cord, turn the Quick
Cord release to the left or right.
54
Getting Started
g
h
i
2
3
4
5
9
7
8
a
b
c
d
Along with your upright unit, you will find the
following components:
a Handle Assembly
b Cleaning Attachments
c Extra Filters
d Super Stretch Hose
e Floor Power Nozzle
f Vacuum Body
g Cleaning Wand
h Pet Hair Power Brush
i 24" Crevice Tool
* Note: Model NV22LWM has a different Pet Hair
Power Brush from what is depicted above and does not
include the 24" Crevice Tool.
Optional tools are available for sale for any NV22
model: 1-800-798-7398.
Your Shark® Navigator Upright is
easy to assemble:
1 Lay your vacuum body on a level
surface.
2 Slide the electrical connection from
the power nozzle into the main body
to click into place.
3 Connect the hose from the main
body to the power nozzle; push with
a slight turning motion to create
a snug fit.
4 Slide the handle assembly into the
upright unit aligning the hose hook
on the handle assembly with the
power cord hooks on the back of
the unit.
5 Secure the handle assembly in place
with included nut/bolt (shipped
attached to handle assembly).
6 Place the vacuum in the upright
position.
7 Store the Crevice Tool, Dusting
Brush and Cleaning Wand on
the unit.
8 Attach the Super Stretch Hose:
a) Snap hose into swivel connector
b) Route under anti-tip hook
c) Route over upper hose holder
d) Press securely onto cleaning wand
IMPORTANT:
To prevent vacuum
from tipping, secure
hose under the
anti-tip hose hook.
IMPORTANT:
For suction to reach the Floor Power
Nozzle, the Cleaning Wand and
Super Stretch Hose must be attached
securely on the vacuum body.
9 When storing your vacuum, wind
cord around the two cord holders
and secure with cord clip:
• Quick Cord release at the top of
the unit – place in the upright
position.
• Second holder near the base –
turn until it is pointing down.
To release the cord, turn the Quick
Cord release to the left or right.
54
Getting Started
g
h
i
2
3
4
5
9
7
8
a
b
c
d
NV22L_IB_100204.indd 4-5 10-02-08 8:49 AM

6 TOLL FREE: 1-800-798-7398 7www.sharkclean.com
English
1
Carpets
Bare Floors / Tools
4
1
2
Off
Indicator Light
76
Using the Vacuum
Transporting the Vacuum
1 Start with the Power Switch in the
“O Off” position.
2 Place your foot on the Floor Power
Nozzle and pull handle towards you.
3 Set the Power Switch to desired
cleaning setting.
Your Shark® Navigator Upright Vacuum is a
versatile tool that can be used to clean
bare floor surfaces or carpets – with the
click of a switch.
Stand the vacuum into the upright position.
Plug in the vacuum.
4 When cleaning bare floors:
Select the “I On” position for
suction only cleaning to avoid
scattering dirt while cleaning.
When cleaning carpets:
Ensure you have pulled the handle
towards you and select the
“II Brush Roll On” position to
agitate the carpet fibers for
deeper cleaning performance.
IMPORTANT: To protect your
carpets, the Brush Roll will only turn
on when you have pulled the handle
back towards you and released the
Floor Power Nozzle.
IMPORTANT: Your Brush Roll
Indicator Light will illuminate solid
green when brush roll is on,
or solid red if there is a
blockage. This feature is designed
to protect your Lifetime Belt that
powers your Brush Roll. See
Checking for Blockages
on page 13.
NOTE: The height of your power
nozzle has been optimized for easy
pushing and superior cleaning on
all floor types, so there is no need
to make any height adjustments
as you transition to different floor
& carpet types.
1 To roll the vacuum:
Hold the handle from either
direction, and tilt unit back
on wheels.
2 To carry the vacuum:
With the unit in the standing
position, lift by the Dust Cup
Assembly Handle (carry handle).
CAUTION:
When lifting or carrying,
DO NOT press Dust Cup
Assembly release button.
Stand the vacuum into the upright position.
Unplug the vacuum.
Wind cord around the two cord holders.
Secure Super Stretch Hose in place.
1
Carpets
Bare Floors / Tools
4
1
2
Off
Indicator Light
76
Using the Vacuum
Transporting the Vacuum
1 Start with the Power Switch in the
“O Off” position.
2 Place your foot on the Floor Power
Nozzle and pull handle towards you.
3 Set the Power Switch to desired
cleaning setting.
Your Shark® Navigator Upright Vacuum is a
versatile tool that can be used to clean
bare floor surfaces or carpets – with the
click of a switch.
Stand the vacuum into the upright position.
Plug in the vacuum.
4 When cleaning bare floors:
Select the “I On” position for
suction only cleaning to avoid
scattering dirt while cleaning.
When cleaning carpets:
Ensure you have pulled the handle
towards you and select the
“II Brush Roll On” position to
agitate the carpet fibers for
deeper cleaning performance.
IMPORTANT: To protect your
carpets, the Brush Roll will only turn
on when you have pulled the handle
back towards you and released the
Floor Power Nozzle.
IMPORTANT: Your Brush Roll
Indicator Light will illuminate solid
green when brush roll is on,
or solid red if there is a
blockage. This feature is designed
to protect your Lifetime Belt that
powers your Brush Roll. See
Checking for Blockages
on page 13.
NOTE: The height of your power
nozzle has been optimized for easy
pushing and superior cleaning on
all floor types, so there is no need
to make any height adjustments
as you transition to different floor
& carpet types.
1 To roll the vacuum:
Hold the handle from either
direction, and tilt unit back
on wheels.
2 To carry the vacuum:
With the unit in the standing
position, lift by the Dust Cup
Assembly Handle (carry handle).
CAUTION:
When lifting or carrying,
DO NOT press Dust Cup
Assembly release button.
Stand the vacuum into the upright position.
Unplug the vacuum.
Wind cord around the two cord holders.
Secure Super Stretch Hose in place.
NV22L_IB_100204.indd 6-7 10-02-08 8:49 AM

8 TOLL FREE: 1-800-798-7398 9www.sharkclean.com
English
98
Cleaning with the Vacuum Accessories
Before cleaning with your accessories:
Stand vacuum into upright position.
Secure Super Stretch Hose in the
anti-tip hose hook to prevent tipping.
Select the “I On” position for
suction only cleaning.
DO NOT pull vacuum cleaner
around by the hose.
DO NOT overextend the hose.
Vacuum Accessories
Your vacuum comes with a Super Stretch
Hose and Cleaning Wand. Use one or
the other to attach your cleaning
accessories.
Crevice Tool – this tool is used for
cleaning between cushions, under
radiators and baseboards, or hard-
to-reach crevices and corners.
Dusting Brush – this tool is used to dust a variety of surfaces from
furniture and window blinds to lamp shades and book shelves, as well
as remove dirt and pet hair from upholstery surfaces and stairs.
1 Using the Super Stretch Hose:
Stand the vacuum into upright
position.
Remove the hose from the
Cleaning Wand.
Push the selected tool into the
hose connector.
2 Using the Cleaning Wand:
Stand the vacuum into upright
position.
Remove the Cleaning Wand (with
hose attached) from the unit.
Push the selected tool into the end
of the Cleaning Wand.
*
Note: for model NV22LWM, your Shark
®
comes with a Pet Hair Power Brush that is
different from what is depicted here.
Pet Hair Power Brush – this unique tool has dual felt strips
along the cleaning surface that are designed for heavy-duty pet
hair removal from carpeted stairs and upholstery.
*
Note: for model NV22L / NV22LB / NV22LC / NV22LCO, your Shark
®
comes with an
extra 24” crevice tool.
24” Crevice Tool – allows you to reach deep into
narrow cleaning spaces.
To order additional parts and accessories, go to www.sharkclean.com or call
1-800-798-7398.
Note: some parts may be available at your local Shark
®
retailer.
1
2
IMPORTANT:
To prevent vacuum
from tipping, secure
hose under the
anti-tip hose hook.
98
Cleaning with the Vacuum Accessories
Before cleaning with your accessories:
Stand vacuum into upright position.
Secure Super Stretch Hose in the
anti-tip hose hook to prevent tipping.
Select the “I On” position for
suction only cleaning.
DO NOT pull vacuum cleaner
around by the hose.
DO NOT overextend the hose.
Vacuum Accessories
Your vacuum comes with a Super Stretch
Hose and Cleaning Wand. Use one or
the other to attach your cleaning
accessories.
Crevice Tool – this tool is used for
cleaning between cushions, under
radiators and baseboards, or hard-
to-reach crevices and corners.
Dusting Brush – this tool is used to dust a variety of surfaces from
furniture and window blinds to lamp shades and book shelves, as well
as remove dirt and pet hair from upholstery surfaces and stairs.
1 Using the Super Stretch Hose:
Stand the vacuum into upright
position.
Remove the hose from the
Cleaning Wand.
Push the selected tool into the
hose connector.
2 Using the Cleaning Wand:
Stand the vacuum into upright
position.
Remove the Cleaning Wand (with
hose attached) from the unit.
Push the selected tool into the end
of the Cleaning Wand.
*
Note: for model NV22LWM, your Shark
®
comes with a Pet Hair Power Brush that is
different from what is depicted here.
Pet Hair Power Brush – this unique tool has dual felt strips
along the cleaning surface that are designed for heavy-duty pet
hair removal from carpeted stairs and upholstery.
*
Note: for model NV22L / NV22LB / NV22LC / NV22LCO, your Shark
®
comes with an
extra 24” crevice tool.
24” Crevice Tool – allows you to reach deep into
narrow cleaning spaces.
To order additional parts and accessories, go to www.sharkclean.com or call
1-800-798-7398.
Note: some parts may be available at your local Shark
®
retailer.
1
2
IMPORTANT:
To prevent vacuum
from tipping, secure
hose under the
anti-tip hose hook.
NV22L_IB_100204.indd 8-9 10-02-08 8:49 AM

10 TOLL FREE: 1-800-798-7398 11www.sharkclean.com
English
1
1
2
2
3
10

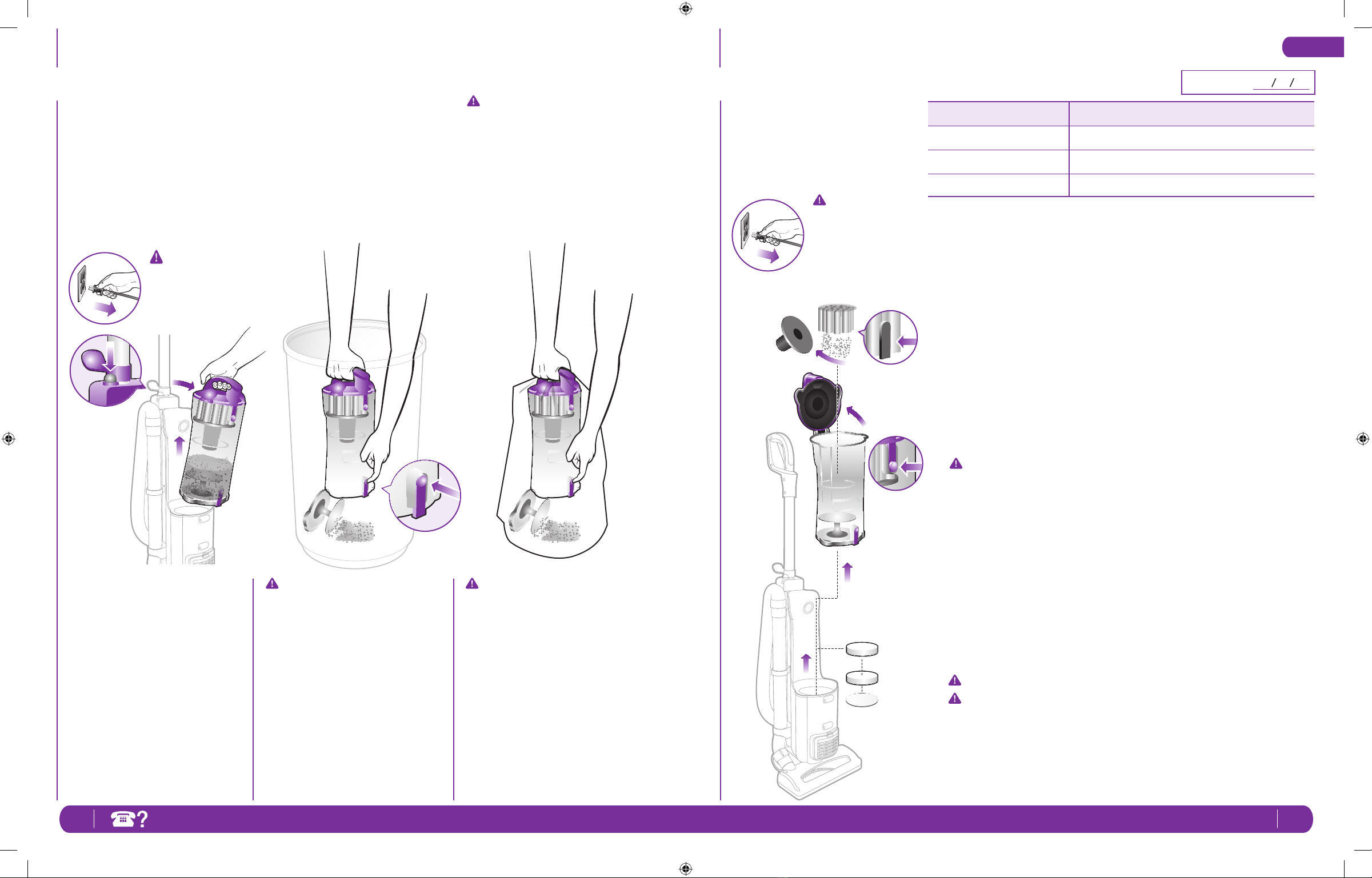

Emptying the Dust Cup Assembly
To empty the Dust Cup Assembly:
1 Grip carry handle and press the
Dust Cup release button to remove
Dust Cup Assembly
2 Option A: for Quick Empty:
Insert Dust Cup Assembly deep
inside trash receptacle to contain
dust and debris.
Press the Dust Cup Door release
button; tap container gently to
dislodge and release dust
and debris.
Snap door in place.
Important: If the Dust Cup Door
does not swing open after pressing
the release button, push the door
open using the bottom door tabs.
3 Option B: For Allergy Sufferers:
Wrap a trash bag around the Dust
Cup Assembly leaving space at the
bottom for the door to swing open.
Locate the Dust Cup Door release
button within the trash bag and
press to release as you shake the
dust cup to empty dust and debris.
Snap the bottom door in place.
Note: Option B can also be
performed outside of the home to
further minimize releasing dust back
into the air. Carry just the Dust Cup
Assembly and trash bag outside.
Note: Some dust and debris may
remain in the top of your dust cup
assembly on or near the metal
screen. It is not necessary to
completely remove this material
before continuing to vacuum;
Shark® advanced cyclonic action
will sweep the metal screen clean
once you begin to refill your
dust cup.
For best results empty the Dust Cup
Assembly after each use; empty several
times during prolonged usage.
Or empty the Dust Cup Assembly when
it reaches the MAX fill line; NEVER
OVER-FILL THE DUST CUP.
Stand vacuum into upright position.
Turn vacuum off.
CAUTION:
Unplug the vacuum;
failure to do so
might result in
electric shock.
Proper Care of Your Shark® Upright Vacuum
1 Cleaning the Cyclonic Chamber:
Option A: Quick Empty
Press the Cyclonic Chamber release button at the top of the Dust Cup Assembly
and lift open the Dust Cup lid.
Remove the Cyclonic Chamber from the Dust Cup Assembly.
Insert the Cyclonic Chamber deep inside trash receptacle to contain dust.
Press the Cyclonic Chamber Release Button to open and remove the bottom door.
Tap clean the open Cyclonic Chamber to release dust and then attach and close
bottom door.
Important: Be careful not to damage the metal screen on the bottom of the
Cyclonic Chamber when emptying. Tearing or changing the shape of this screen
may disrupt the advanced cyclonic action and decrease the performance of
your Dust Cup – requiring more frequent emptying of the Cyclonic Chamber.
Return Cyclonic Chamber to Dust Cup Assembly and close Dust Cup lid.
DO NOT operate your vacuum without the Cyclonic Chamber in place.
Doing so would require more frequent washing of the foam filers, and could
decrease the life of your vacuum.
Option B: Allergy Sufferers
Carry the Dust Cup Assembly and a trash bag outside of your home.
Follow the instructions above for Option A, but instead of inserting Cyclonic
Chamber into a trash receptacle wrap the trash bag around the Cyclonic Chamber.
2 Washing the Foam and Felt Filters:
Remove the Foam and the Felt Filters from the Filter Holder.
Rinse in lukewarm water until the water runs clear.
Squeeze filters and let air dry for 24 hours before replacing; do not use hair
dryer or other heating methods to dry. Insert the included replacement filters
while others are drying.
DO NOT operate the vacuum without ALL the filters in place.
DO NOT operate the vacuum with WET filters.
Note: Your 2 white foams and other filters will discolor over time; this is normal
and will not affect the performance of the filters.
Note: It is NOT recommended to rinse the woven exhaust filter located on the front
of the unit. This filter will continue to last the lifetime of your vacuum.
To order additional parts and accessories, go to www.sharkclean.com
or call 1-800-798-7398.
For proper care, consult the table to the
right for the maintenance schedule of
your Cyclonic Chamber and Filters.
Lock vacuum into upright position.
Turn vacuum off.
CAUTION:
Unplug the vacuum;
failure to do so
might result in
electric shock.
Remove Dust Cup Assembly.
Component Maintenance Schedule
Date Purchased:
1 Cyclonic Chamber Empty every 3 months, under normal use
2 Foam Filters (2)
Felt Filter
Wash every 3 months, under normal use
Wash every 12 months, under normal use
11
1
1
2
2
3
10
Emptying the Dust Cup Assembly
To empty the Dust Cup Assembly:
1 Grip carry handle and press the
Dust Cup release button to remove
Dust Cup Assembly
2 Option A: for Quick Empty:
Insert Dust Cup Assembly deep
inside trash receptacle to contain
dust and debris.
Press the Dust Cup Door release
button; tap container gently to
dislodge and release dust
and debris.
Snap door in place.
Important: If the Dust Cup Door
does not swing open after pressing
the release button, push the door
open using the bottom door tabs.
3 Option B: For Allergy Sufferers:
Wrap a trash bag around the Dust
Cup Assembly leaving space at the
bottom for the door to swing open.
Locate the Dust Cup Door release
button within the trash bag and
press to release as you shake the
dust cup to empty dust and debris.
Snap the bottom door in place.
Note: Option B can also be
performed outside of the home to
further minimize releasing dust back
into the air. Carry just the Dust Cup
Assembly and trash bag outside.
Note: Some dust and debris may
remain in the top of your dust cup
assembly on or near the metal
screen. It is not necessary to
completely remove this material
before continuing to vacuum;
Shark® advanced cyclonic action
will sweep the metal screen clean
once you begin to refill your
dust cup.
For best results empty the Dust Cup
Assembly after each use; empty several
times during prolonged usage.
Or empty the Dust Cup Assembly when
it reaches the MAX fill line; NEVER
OVER-FILL THE DUST CUP.
Stand vacuum into upright position.
Turn vacuum off.
CAUTION:
Unplug the vacuum;
failure to do so
might result in
electric shock.
Proper Care of Your Shark® Upright Vacuum
1 Cleaning the Cyclonic Chamber:
Option A: Quick Empty
Press the Cyclonic Chamber release button at the top of the Dust Cup Assembly
and lift open the Dust Cup lid.
Remove the Cyclonic Chamber from the Dust Cup Assembly.
Insert the Cyclonic Chamber deep inside trash receptacle to contain dust.
Press the Cyclonic Chamber Release Button to open and remove the bottom door.
Tap clean the open Cyclonic Chamber to release dust and then attach and close
bottom door.
Important: Be careful not to damage the metal screen on the bottom of the
Cyclonic Chamber when emptying. Tearing or changing the shape of this screen
may disrupt the advanced cyclonic action and decrease the performance of
your Dust Cup – requiring more frequent emptying of the Cyclonic Chamber.
Return Cyclonic Chamber to Dust Cup Assembly and close Dust Cup lid.
DO NOT operate your vacuum without the Cyclonic Chamber in place.
Doing so would require more frequent washing of the foam filers, and could
decrease the life of your vacuum.
Option B: Allergy Sufferers
Carry the Dust Cup Assembly and a trash bag outside of your home.
Follow the instructions above for Option A, but instead of inserting Cyclonic
Chamber into a trash receptacle wrap the trash bag around the Cyclonic Chamber.
2 Washing the Foam and Felt Filters:
Remove the Foam and the Felt Filters from the Filter Holder.
Rinse in lukewarm water until the water runs clear.
Squeeze filters and let air dry for 24 hours before replacing; do not use hair
dryer or other heating methods to dry. Insert the included replacement filters
while others are drying.
DO NOT operate the vacuum without ALL the filters in place.
DO NOT operate the vacuum with WET filters.
Note: Your 2 white foams and other filters will discolor over time; this is normal
and will not affect the performance of the filters.
Note: It is NOT recommended to rinse the woven exhaust filter located on the front
of the unit. This filter will continue to last the lifetime of your vacuum.
To order additional parts and accessories, go to www.sharkclean.com
or call 1-800-798-7398.
For proper care, consult the table to the
right for the maintenance schedule of
your Cyclonic Chamber and Filters.
Lock vacuum into upright position.
Turn vacuum off.
CAUTION:
Unplug the vacuum;
failure to do so
might result in
electric shock.
Remove Dust Cup Assembly.
Component Maintenance Schedule
Date Purchased:
1 Cyclonic Chamber Empty every 3 months, under normal use
2 Foam Filters (2)
Felt Filter
Wash every 3 months, under normal use
Wash every 12 months, under normal use
11
NV22L_IB_100204.indd 10-11 10-02-08 8:49 AM

12 TOLL FREE: 1-800-798-7398 13www.sharkclean.com
English
12
Troubleshooting
Checking for Blockages
1 Dust Cup Air Duct:
Stand vacuum into upright position.
Remove Dust Cup Assembly and empty Dust Cup,
if necessary.
Disconnect the Super Stretch Hose.
Check Air Duct behind Dust Cup for clogs; clear before
replacing Dust Cup Assembly.
2 Intake Opening behind the Brush Roll:
Lay the vacuum flat to expose Brush Roll.
Check opening behind the Brush Roll for clogs.
Clear the opening.
Clear the Brush Roll; use scissors to carefully cut away
threads, hair or other debris that might be trapped in
the bristles.
3 Floor Power Nozzle Hose Connector:
Lay vacuum flat.
Remove Nozzle Hose and check for clogs.
Push the Hose Connector back onto the Floor Power Nozzle.
4 Hose:
Stand vacuum upright.
Remove hose from both the unit and Cleaning Wand ends.
Inspect both ends and the length of the hose for clogs.
Return the hose to the unit
Blockages may cause your vacuum to
overheat and shut down. If so, clear the
blockages, then follow the instructions
for Resetting the Motor Thermostat
on page 14.
WARNING: Never insert sharp
objects into any opening to clear an
obstruction.
IMPORTANT: Damages caused
while clearing or attempting to clear
blockages are not covered under
your product’s limited warranty.
Unplug the
vacuum before
checking for
blockages.
Reassemble all parts securely before
operating vacuum.
WARNING: to reduce the risk of electric shock,
the power cord must be disconnected before
performing maintenance/troubleshooting checks.
Vacuum will not run.
Vacuum is not picking up dirt.
Vacuum pushes scatter rugs (lightweight, movable rugs) on
Power Switch position “II – Brush Roll on.”
Brush roll does not turn on.
Vacuum turns off on its own.
Airflow is restricted.
Check to see if plugged in properly.
Check circuit breaker/fuse.
Check On/Off switch.
If vacuum still does not run, see Resetting the Motor
Thermostat on page 14.
Check the Dust Cup.
Check the Foam Filters.
If the Dust Cup and Filter don’t require cleaning, check for
blockages, see Checking for Blockages on the next page.
Move Power Switch setting to position “I – suction only” to
disengage the Brush Roll.
Pull handle toward you and release the Floor Power Nozzle to
disengage the auto-off feature.
Select Power Switch position “II – Brush Roll on.”
If red light is illuminated on the Floor Power Nozzle, see
Checking for Blockages on next page.
Motor Thermostat needs to be reset; see Resetting the Motor
Thermostat on page 14.
Check for blockages; see Checking for Blockages on
next page.
Check attachments for suction strength; clear blockages,
as required.
Clean the Dust Cup, Cyclonic Chamber and the Foam Filters.
Problem Suggested Action
13
12
Troubleshooting
Checking for Blockages
1 Dust Cup Air Duct:
Stand vacuum into upright position.
Remove Dust Cup Assembly and empty Dust Cup,
if necessary.
Disconnect the Super Stretch Hose.
Check Air Duct behind Dust Cup for clogs; clear before
replacing Dust Cup Assembly.
2 Intake Opening behind the Brush Roll:
Lay the vacuum flat to expose Brush Roll.
Check opening behind the Brush Roll for clogs.
Clear the opening.
Clear the Brush Roll; use scissors to carefully cut away
threads, hair or other debris that might be trapped in
the bristles.
3 Floor Power Nozzle Hose Connector:
Lay vacuum flat.
Remove Nozzle Hose and check for clogs.
Push the Hose Connector back onto the Floor Power Nozzle.
4 Hose:
Stand vacuum upright.
Remove hose from both the unit and Cleaning Wand ends.
Inspect both ends and the length of the hose for clogs.
Return the hose to the unit
Blockages may cause your vacuum to
overheat and shut down. If so, clear the
blockages, then follow the instructions
for Resetting the Motor Thermostat
on page 14.
WARNING: Never insert sharp
objects into any opening to clear an
obstruction.
IMPORTANT: Damages caused
while clearing or attempting to clear
blockages are not covered under
your product’s limited warranty.
Unplug the
vacuum before
checking for
blockages.
Reassemble all parts securely before
operating vacuum.
WARNING: to reduce the risk of electric shock,
the power cord must be disconnected before
performing maintenance/troubleshooting checks.
Vacuum will not run.
Vacuum is not picking up dirt.
Vacuum pushes scatter rugs (lightweight, movable rugs) on
Power Switch position “II – Brush Roll on.”
Brush roll does not turn on.
Vacuum turns off on its own.
Airflow is restricted.
Check to see if plugged in properly.
Check circuit breaker/fuse.
Check On/Off switch.
If vacuum still does not run, see Resetting the Motor
Thermostat on page 14.
Check the Dust Cup.
Check the Foam Filters.
If the Dust Cup and Filter don’t require cleaning, check for
blockages, see Checking for Blockages on the next page.
Move Power Switch setting to position “I – suction only” to
disengage the Brush Roll.
Pull handle toward you and release the Floor Power Nozzle to
disengage the auto-off feature.
Select Power Switch position “II – Brush Roll on.”
If red light is illuminated on the Floor Power Nozzle, see
Checking for Blockages on next page.
Motor Thermostat needs to be reset; see Resetting the Motor
Thermostat on page 14.
Check for blockages; see Checking for Blockages on
next page.
Check attachments for suction strength; clear blockages,
as required.
Clean the Dust Cup, Cyclonic Chamber and the Foam Filters.
Problem Suggested Action
13
NV22L_IB_100204.indd 12-13 10-02-08 8:49 AM

14 TOLL FREE: 1-800-798-7398 15www.sharkclean.com
English
A
Part Part No.
Super Stretch Hose 1114-FC
Dusting Brush & Crevice Tool 1115-FC
Foam & Felt Filters XF22
Turbo brush (1), 1117-FC
Turbo brush (2), 1144-FC
Cleaning Wand 1116-FC
24"Crevice Tool 1124-FC
B
14 15
Maintenance
Resetting the Motor Thermostat
Your Shark® Upright Vacuum is equipped
with a protective Motor Thermostat.
If the motor should overheat, the
thermostat shuts off the power.
To reset the Motor Thermostat:
Move the Power Button to the
“O – Off” position.
Unplug the vacuum.
Check for clogged hose or filter; unclog
hose and replace filter. Refer to
Checking for Blockages on page13.
Wait 45 minutes for vacuum to cool;
then plug in the vacuum.
Turn the Power Switch to the “I – On”
position to start the vacuum.
Note: if vacuum still does not start,
contact Customer Service at:
1-800-798-7398 .
Ordering Replacement Parts
To order additional parts and accessories,
go to www.sharkclean.com or call
1-800-798-7398.
Note: some parts
may be available at your local Shark
®
retailer.
1 Cleaning the Pet Hair
Power Brush - Models NV22L,
NV22LB, NV22LC, NV22LCO,
NV22W
Slide locking latch (A) forward.
Gently tilt brush housing upward
to open.
IMPORTANT: DO NOT force; it will
not open all the way.
Remove debris from turbine wheel
and air passage.
2 Cleaning the Pet Hair
Power Brush - Model NV22LWM
Turn the Turbo Brush over and slide
locking latch (B) forward.
Gently tilt brush housing upward
to open.
Remove debris from turbine wheel
and air passage.
To reassemble, insert the tabs on
the front edge of the cover into the
matching holes in the top half and tilt
the cover back down until it clicks into
place.
A
Part Part No.
Super Stretch Hose 1114-FC
Dusting Brush & Crevice Tool 1115-FC
Foam & Felt Filters XF22
Turbo brush (1), 1117-FC
Turbo brush (2), 1144-FC
Cleaning Wand 1116-FC
24"Crevice Tool 1124-FC
B
14 15
Maintenance
Resetting the Motor Thermostat
Your Shark® Upright Vacuum is equipped
with a protective Motor Thermostat.
If the motor should overheat, the
thermostat shuts off the power.
To reset the Motor Thermostat:
Move the Power Button to the
“O – Off” position.
Unplug the vacuum.
Check for clogged hose or filter; unclog
hose and replace filter. Refer to
Checking for Blockages on page13.
Wait 45 minutes for vacuum to cool;
then plug in the vacuum.
Turn the Power Switch to the “I – On”
position to start the vacuum.
Note: if vacuum still does not start,
contact Customer Service at:
1-800-798-7398 .
Ordering Replacement Parts
To order additional parts and accessories,
go to www.sharkclean.com or call
1-800-798-7398.
Note: some parts
may be available at your local Shark
®
retailer.
1 Cleaning the Pet Hair
Power Brush - Models NV22L,
NV22LB, NV22LC, NV22LCO,
NV22W
Slide locking latch (A) forward.
Gently tilt brush housing upward
to open.
IMPORTANT: DO NOT force; it will
not open all the way.
Remove debris from turbine wheel
and air passage.
2 Cleaning the Pet Hair
Power Brush - Model NV22LWM
Turn the Turbo Brush over and slide
locking latch (B) forward.
Gently tilt brush housing upward
to open.
Remove debris from turbine wheel
and air passage.
To reassemble, insert the tabs on
the front edge of the cover into the
matching holes in the top half and tilt
the cover back down until it clicks into
place.
NV22L_IB_100204.indd 14-15 10-02-08 8:49 AM

English
Owners Name:
Address:
City: Prov.: Postal Code:
Date Purchased:
Name of Store:
Vacuum Model:
16
Warranty and Registration
Your Shark® Upright Vacuum comes
with a Five year limited warranty.
FOR CANADIAN CONSUMERS ONLY
Please fill out and mail the Owner
Registration Card within ten (10) days
of purchase. The registration will enable
us to contact you in the unlikely event of
a product safety notification. By
returning this card you acknowledge to
have read and understood the
instructions for use, and warnings set
forth in the accompanying instructions.
Manufactured by:
EURO-PRO Operating LLC
Copyright© Euro-Pro Operating LLC 2010
Printed in China
EURO-PRO FIVE-YEAR (5) LIMITED WARRANTY
EURO-PRO Operating LLC warrants this product to be free from defects in material and
workmanship for a period of five (5) years from the date of the original purchase, when
utilized for normal household use, subject to the following conditions, exclusions and
exceptions.
If your appliance fails to operate properly while in use under normal household conditions
within the warranty period, return the complete appliance and accessories, freight prepaid
to:
• U.S.: EURO-PRO Operating LLC
For customer service support call 1-800-798-7398
or visit www.sharkclean.com
• Canada: EURO-PRO Operating LLC
4400 Bois Franc, St. Laurent, Québec H4S 1A7
If the appliance is found to be defective in material or workmanship, EURO-PRO
Operating LLC will repair or replace it free of charge. Proof of purchase date and $16.99
to cover the cost of return shipping and handling must be included.*
Non-durable parts including, without limitation, filters, brushes and electrical parts which
normally require replacement are specifically excluded from warranty.
The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair or
replacement of the unit at our option. This warranty does not cover normal wear of parts
and does not apply to any unit that has been tampered with or used for commercial
purposes. This limited warranty does not cover damage caused by misuse, abuse,
negligent handling or damage due to faulty packaging or mishandling in transit. This
warranty does not cover damage or defects caused by or resulting from damages from
shipping or repairs, service or alterations to the product or any of its parts, which have
been performed by a repair person not authorized by EURO-PRO Operating LLC.
This warranty is extended to the original purchaser of the unit and excludes all other legal
and/or conventional warranties. The responsibility of EURO-PRO Operating LLC if any, is
limited to the specific obligations expressly assumed by it under the terms of the limited
warranty. In no event is EURO-PRO Operating LLC liable for incidental or consequential
damages of any nature whatsoever. Some states do not permit the exclusion or limitation
of incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state or province to province.
*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include
proof of purchase date and to attach tag to item before packing with your name,
complete address and phone number with a note giving purchase information, model
number and what you believe is the problem with item. We recommend you insure the
package (as damage in shipping is not covered by your warranty). Mark the outside of
your package “ATTENTION CUSTOMER SERVICE”. We are constantly striving to
improve our products, therefore the specifications contained herein are subject to
change without notice.
Owner Registration Card
FOR CANADIAN CONSUMERS ONLY
Please fill out and mail this sheet within ten (10) days of purchase. The
registration will enable us to contact you in the unlikely event of a product
safety notification. By returning this card you acknowledge to have read
and understood the instructions for use, and warnings set forth in the
accompanying instructions. Mail to the following address:
• Canada: EURO-PRO Operating LLC
4400 Bois Franc, St. Laurent, Québec H4S 1A7
Owners Name:
Address:
City: Prov.: Postal Code:
Date Purchased:
Name of Store:
Vacuum Model:
16
Warranty and Registration
Your Shark® Upright Vacuum comes
with a Five year limited warranty.
FOR CANADIAN CONSUMERS ONLY
Please fill out and mail the Owner
Registration Card within ten (10) days
of purchase. The registration will enable
us to contact you in the unlikely event of
a product safety notification. By
returning this card you acknowledge to
have read and understood the
instructions for use, and warnings set
forth in the accompanying instructions.
Manufactured by:
EURO-PRO Operating LLC
Copyright© Euro-Pro Operating LLC 2010
Printed in China
EURO-PRO FIVE-YEAR (5) LIMITED WARRANTY
EURO-PRO Operating LLC warrants this product to be free from defects in material and
workmanship for a period of five (5) years from the date of the original purchase, when
utilized for normal household use, subject to the following conditions, exclusions and
exceptions.
If your appliance fails to operate properly while in use under normal household conditions
within the warranty period, return the complete appliance and accessories, freight prepaid
to:
• U.S.: EURO-PRO Operating LLC
For customer service support call 1-800-798-7398
or visit www.sharkclean.com
• Canada: EURO-PRO Operating LLC
4400 Bois Franc, St. Laurent, Québec H4S 1A7
If the appliance is found to be defective in material or workmanship, EURO-PRO
Operating LLC will repair or replace it free of charge. Proof of purchase date and $16.99
to cover the cost of return shipping and handling must be included.*
Non-durable parts including, without limitation, filters, brushes and electrical parts which
normally require replacement are specifically excluded from warranty.
The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair or
replacement of the unit at our option. This warranty does not cover normal wear of parts
and does not apply to any unit that has been tampered with or used for commercial
purposes. This limited warranty does not cover damage caused by misuse, abuse,
negligent handling or damage due to faulty packaging or mishandling in transit. This
warranty does not cover damage or defects caused by or resulting from damages from
shipping or repairs, service or alterations to the product or any of its parts, which have
been performed by a repair person not authorized by EURO-PRO Operating LLC.
This warranty is extended to the original purchaser of the unit and excludes all other legal
and/or conventional warranties. The responsibility of EURO-PRO Operating LLC if any, is
limited to the specific obligations expressly assumed by it under the terms of the limited
warranty. In no event is EURO-PRO Operating LLC liable for incidental or consequential
damages of any nature whatsoever. Some states do not permit the exclusion or limitation
of incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state or province to province.
*IMPORTANT: Carefully pack item to avoid damage in shipping. Be sure to include
proof of purchase date and to attach tag to item before packing with your name,
complete address and phone number with a note giving purchase information, model
number and what you believe is the problem with item. We recommend you insure the
package (as damage in shipping is not covered by your warranty). Mark the outside of
your package “ATTENTION CUSTOMER SERVICE”. We are constantly striving to
improve our products, therefore the specifications contained herein are subject to
change without notice.
Owner Registration Card
FOR CANADIAN CONSUMERS ONLY
Please fill out and mail this sheet within ten (10) days of purchase. The
registration will enable us to contact you in the unlikely event of a product
safety notification. By returning this card you acknowledge to have read
and understood the instructions for use, and warnings set forth in the
accompanying instructions. Mail to the following address:
• Canada: EURO-PRO Operating LLC
4400 Bois Franc, St. Laurent, Québec H4S 1A7
TOLL FREE: 1-800-798-739816
NV22L_IB_100204.indd 16-17 10-02-08 8:49 AM
