Sharp AY-XM12CR User manual

MODELS
AY-XM7CR
AY-XM9CR
AY-XM12CR
AY-XM7CR
AY-XM9CR
AY-XM12CR
AY-XPM7CR
AY-XPM9CR
AY-XPM12CR
AE-XM18CR
AE-XM24CR
INDOOR UNIT
ZIMMERGERÄT
UNITE INTERIEURE
UNIDAD INTERIOR
UNITA' INTERNA
UNIDADE INTERIOR
ΕΣΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
BINNEN-UNIT
∑Ç ÜN∑TE
DZENHTZZBQ ;KJR
MULTI SPLIT TYPE
ROOM AIR CONDITIONER
MEHRFACH-AUFTEILUNGS-
ZIMMER-KLIMAGERÄT
CLIMATISEUR DE SALLE
DE TYPE A DIVISION MULTIPLE
ACONDICIONADOR DE AIRE PARA
HABITACIÓN TIPO MULTI DIVISIÓN
TIPO A SEZIONE MULTIPLA
CONDIZIONATORE D'ARIA PER
ABITAZIONI
AR CONDICIONADO DE SALA
DE MÚLTIPLAS UNIDADES
ΣΥΣΚΕΥΗ ΚΛΙΜ∆ΤΙΣΜOΥ ∆ΩΜAΤΙOΥ
ΠOΛΛAΠΛOΥ ∆ΙAIPOYMENOY TYΠOY
MULTI-SPLIT AIRCONDITIONER
MULT∑-SPL∑T KL∑MA
RJVZFNZSQ RJZLBWBJZTH
DJPLEXF VZJUJ;KJXZJUJ
NBGF
OPERATION MANUAL
BEDIENUNGSANLEITUNG
NOTICE D'UTILISATION
MANUAL DE INSTRUCCIONES
MANUALE DI ISTRUZIONE
MANUAL DE INSTRUÇÕES
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
GEBRUIKSAANWIJZING
KULLANMA KILAVUZU
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
OUTDOOR UNIT
AUSSENGERÄT
UNITE EXTERIEURE
UNIDAD EXTERIOR
UNITA' ESTERNA
UNIDADE EXTERIOR
ΕΞΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
BUITEN-UNIT
DIΩ ÜN∑TE
ZFHEÖZBQ ;KJR
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUÊS
ΕΛΛΗΝΙΚΑ
NEDERLANDS
HECCRBQ
TÜRKÇE
R
Air Conditioner
•Uses ozone layer friendly refridgerant R-410A.
•Verwendet das die Ozonschicht schonende
Kühlmittel R-410A.
•Utilise un réfrigérant qui n’attaque pas la couche
d’ozone, le R-410A.
•Utiliza refrigerante R-410A que no daña la capa
de ozono.
•Utilizza il refrigerante R-410A che non danneggia
il buco nell’ozono.
•Usa refrigerante R-410A amigo da camada de
ozono.
•Χρησιµοποιεί ψυκτικ R 410A αβλαβές για το
στρώµα του ζοντος.
•Gebruikt de ozon-vriendelijke koelvloeistof R-
410A.
•Ozon tabakasına zarar vermeyen R- 10A
So©utucu madde kullanılır.
•Использует охладитель R-4 0A безвредный
для озонового слоя.
AY-XPM7CR
AY-XPM9CR
AY-XPM12CR

ENGLISH
E-1
ENGLISH
Thank you for purchasing a SHARP air conditioner. Please read this manual carefully
before operating the product.
•PRECAUTIONS ...........................................E-1
• ADDITIONAL NOTES ON OPERATION ............. E-3
•TIPS ON SAVING ENERGY........................E-3
•PART NAMES..............................................E-4

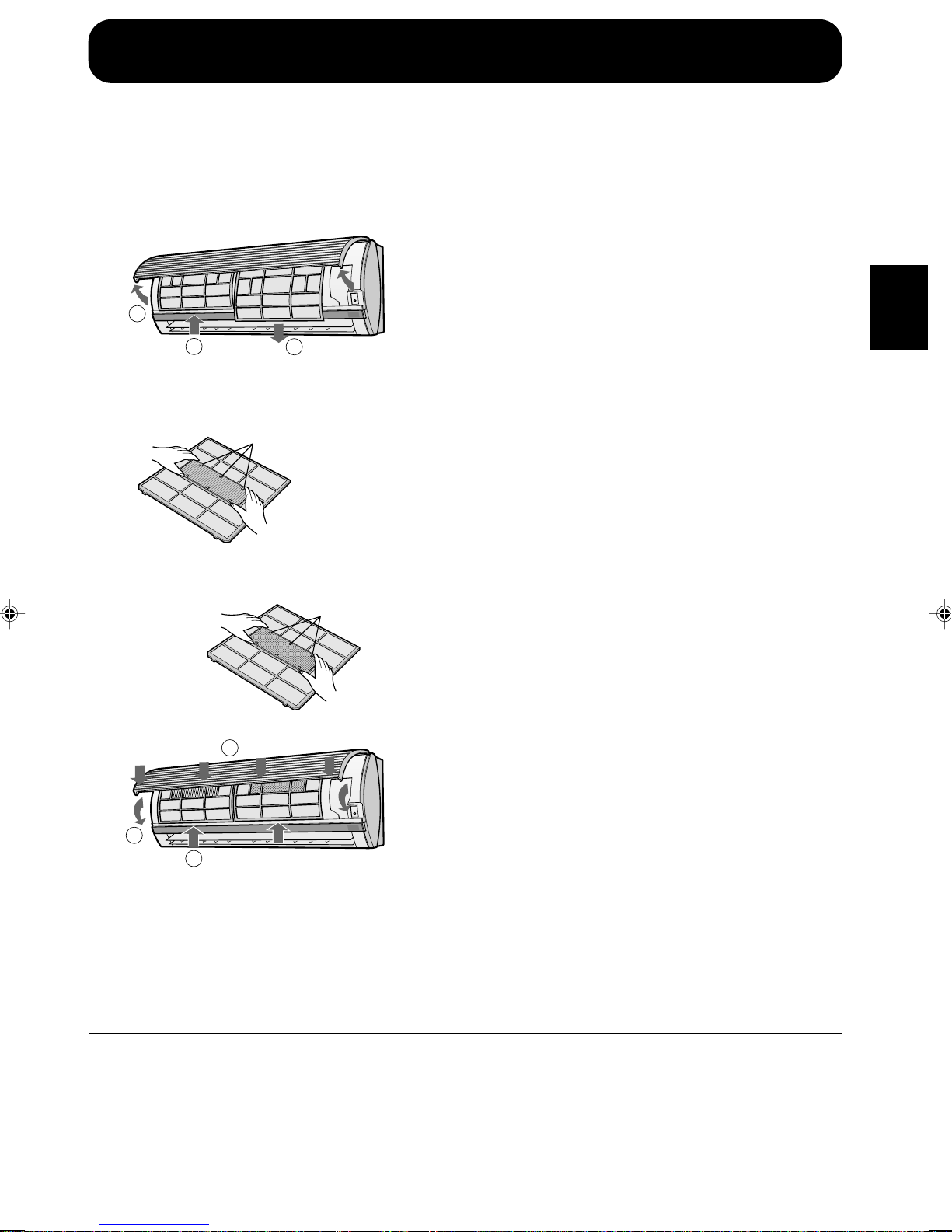

•SETTING DUST COLLECTING FILTER
AND DEODORANT FILTER ........................E-7

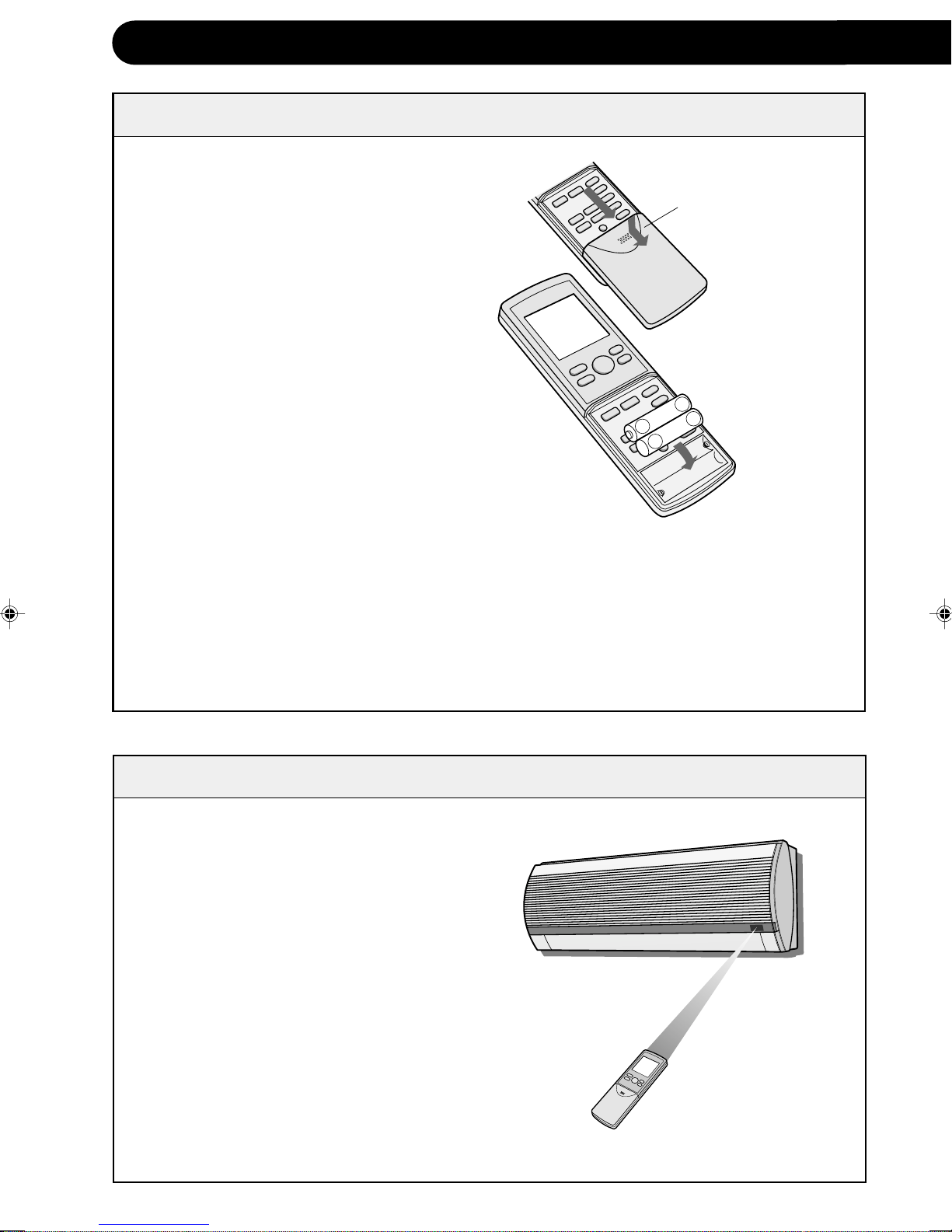

•USING THE REMOTE CONTROL ..............E-8
•BASIC OPERATION ....................................E-10
•ADJUSTING THE AIR FLOW DIRECTION .E-12
•FULL POWER OPERATION .......................E-13
CONTENTS
•ONE-HOUR OFF TIMER ..................... E-13

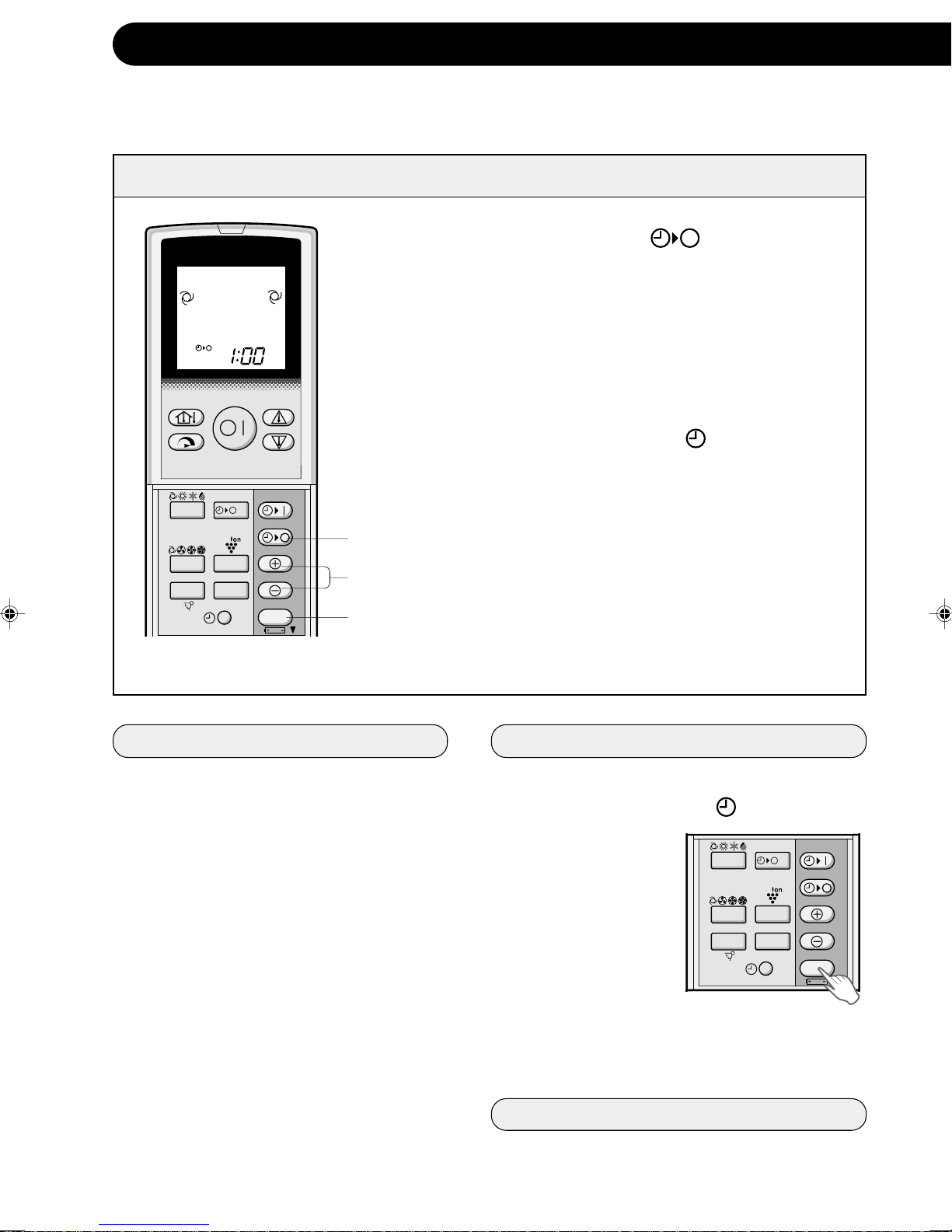

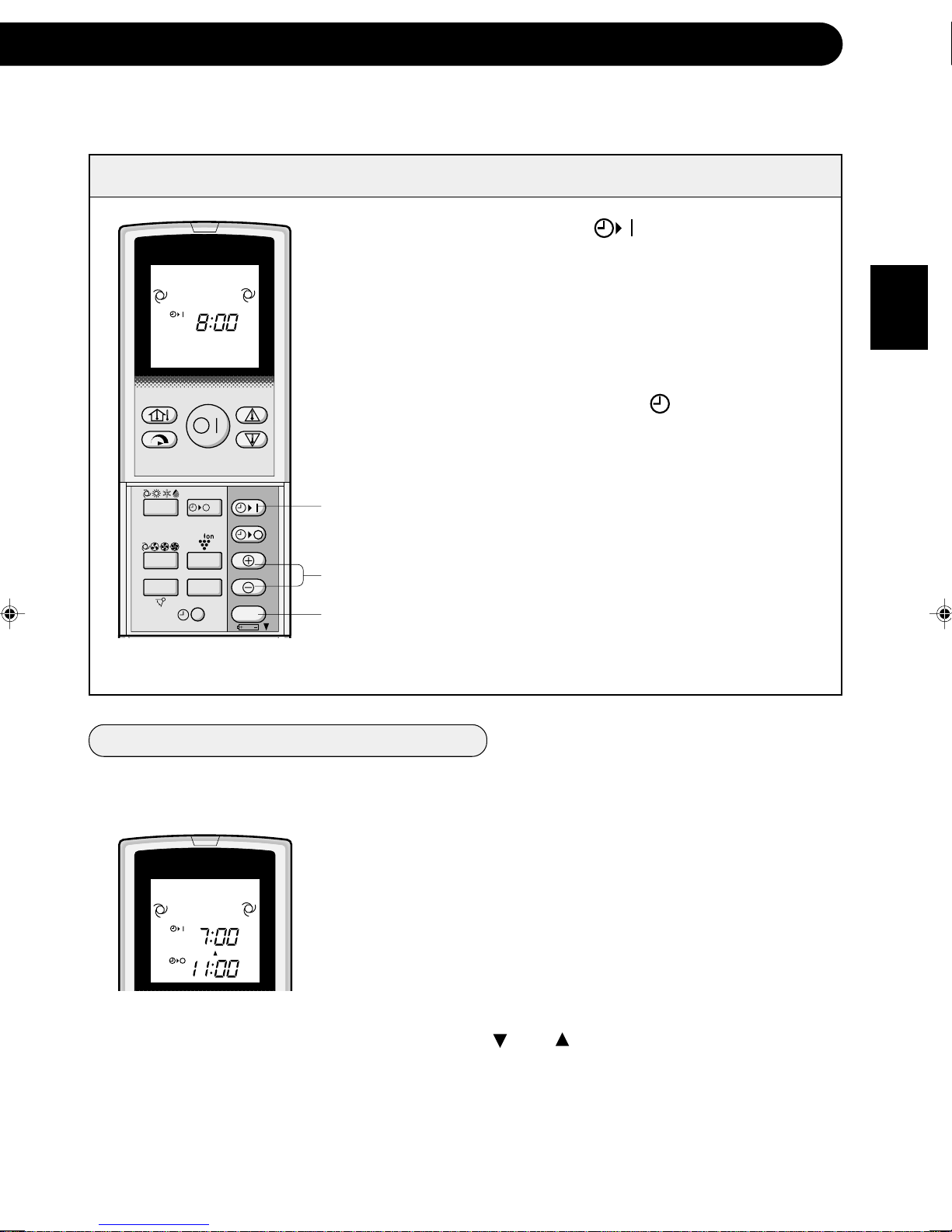

•TIMER OPERATION............................ E-14

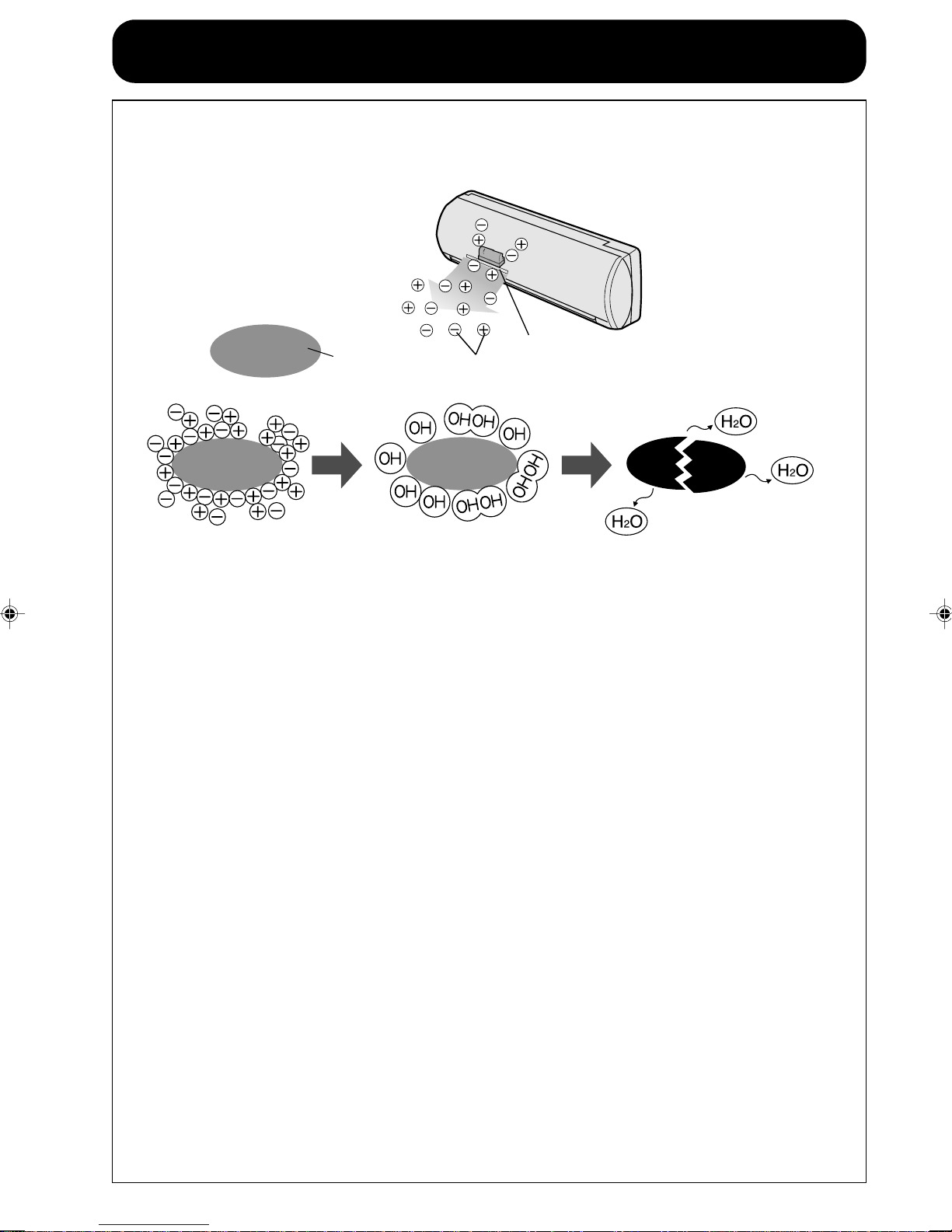

• TIPS ABOUT PLASMACLUSTER
OPERATION................................................ E-16
•PLASMACLUSTER OPERATION ....... E-17
•SELF CLEAN OPERATION................. E-17

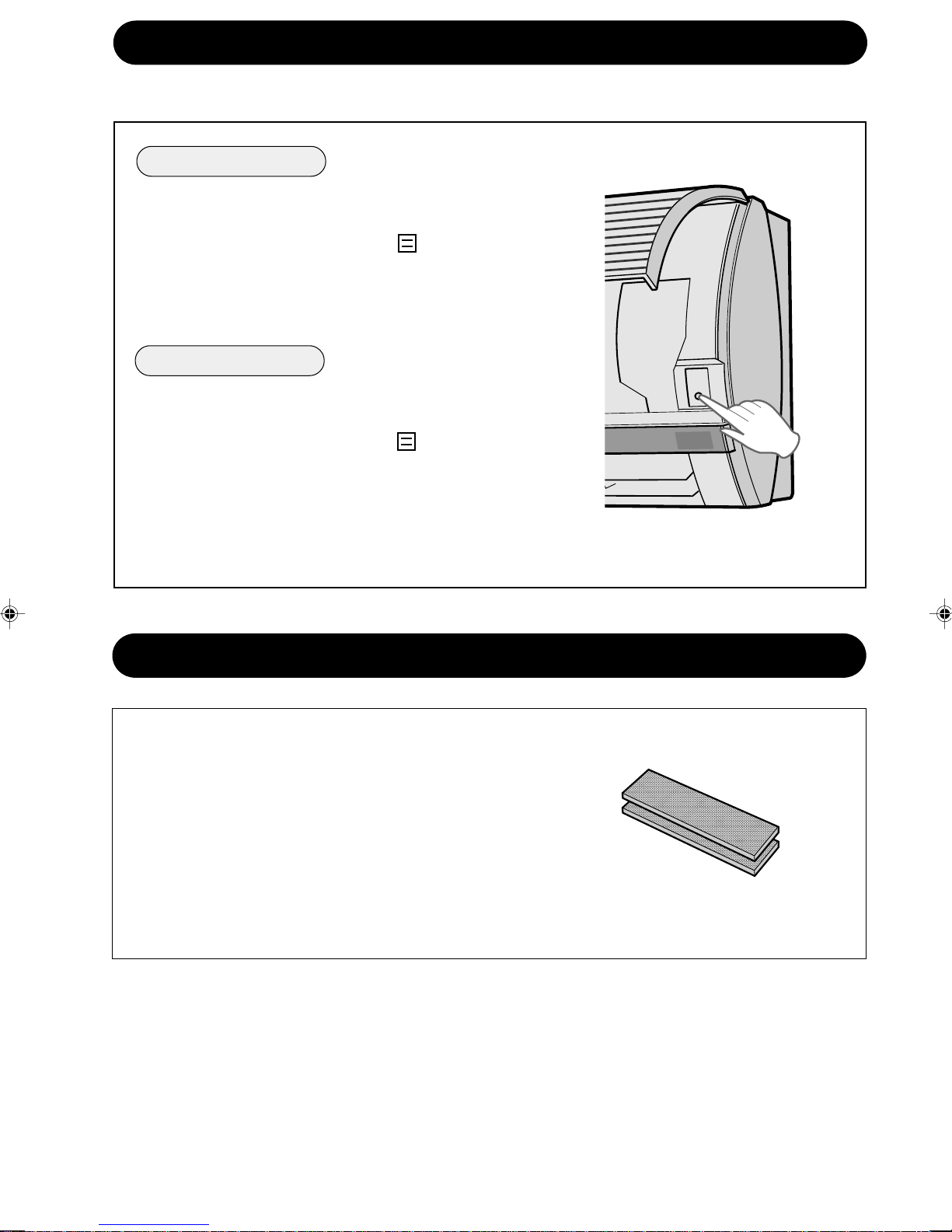

•AUXILIARY MODE .............................. E-18
•OPTION KIT......................................... E-18

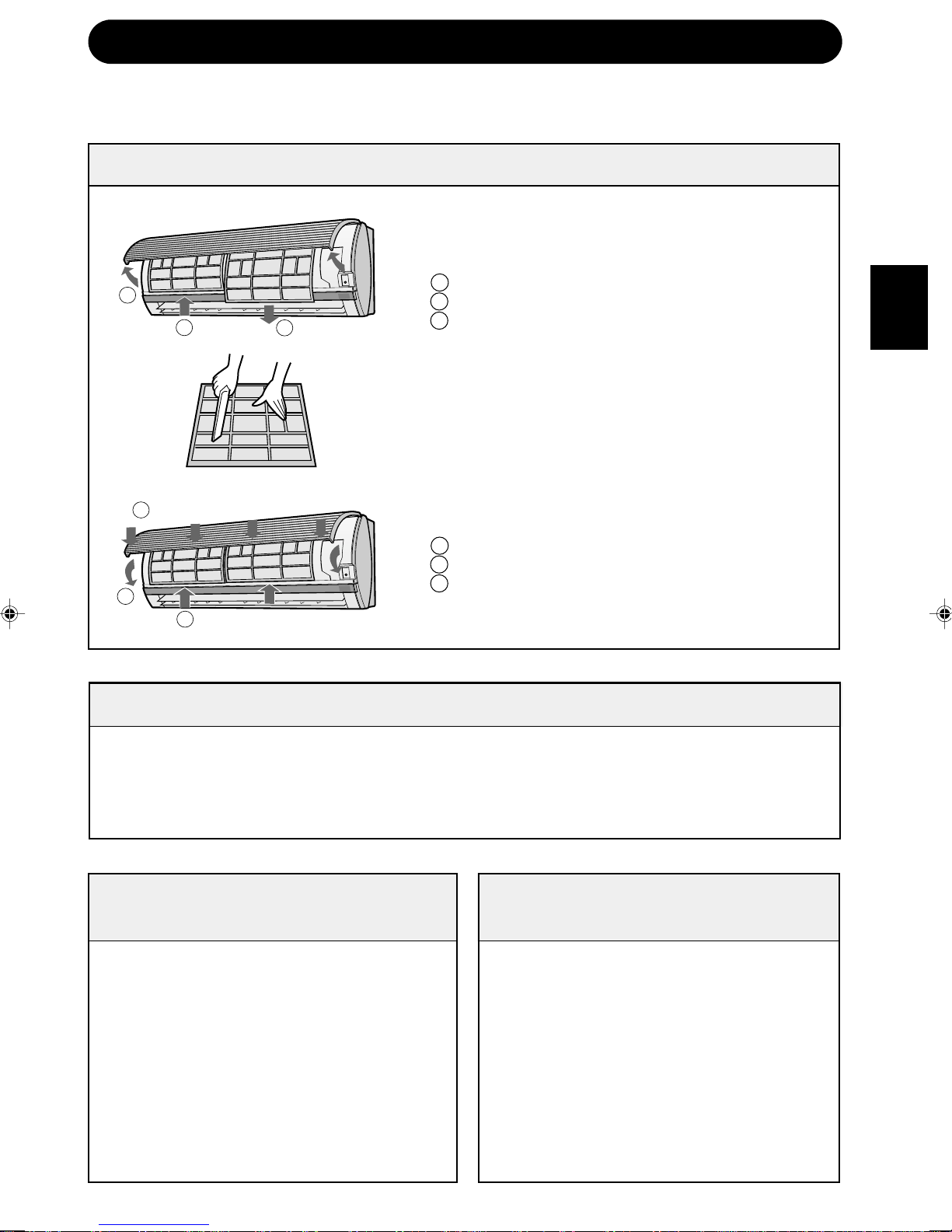

•MAINTENANCE................................... E-19
•BEFORE CALLING FOR SERVICE .... E-22
PRECAUTIONS
WARNINGS FOR USE
1Donotpullordeformthepowersupplycord.Pullingandmisuseofthepowersupplycord
can result in damage to the unit and cause electrical shock.
2Be careful not to expose your body directly to the outlet air for a long time. It may affect
your physical conditions.
3Whenusingtheairconditionerforinfants,children,elderly,bedridden,ordisabledpeople
make sure the room temperature is suitable for those in the room.
4Never insert objects into the unit. Inserting objects can result in injury due to the high
speed rotation of internal fans.
5Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,
waterpipe,lightning rodor telephonegroundingwire. Incompletegroundingmay cause
electric shock.
6If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation
immediately and turn the circuit breaker OFF.
7Follow local rules and regulations for power supply cord cabling. Improper cable
connection can cause the power supply cord, plug and the electrical outlet to overheat
and cause fire.
8Useonlythemanufacture-specifiedpowercordforreplacement.Replacementshouldbe
performed by a qualified technician or a service person.
WARNINGS FOR INSTALLATION / REMOVAL / REPAIR
•Donotattempttoinstall/remove/repairtheunit byyourself.Incorrectworkwillcauseelectric
shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the
installation/removal/repair of the unit.
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/
EEC as amended by 93/68/EEC.

PRECAUTIONS
CAUTIONS FOR USE
1Open a window or door periodically to ventilate the room, especially when using gas
appliances. Insufficient ventilation may cause oxygen shortage.
2Do not operate the buttons with wet hand. It may cause electric shock.
3For safety, turn the circuit breaker off when not using the unit for an extended period of
time.
4Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly
in place.
5Do not put anything on the outdoor unit nor step on it. The object or the person may fall
down or drop, causing injury.
6This unit is designed for residential use. Do not use for other applications such as in a
kennel or greenhouse to raise animals or grow plants.
7Do not place a vessel with water on the unit. If water penetrates into the unit, electrical
insulations may deteriorate and cause electric shock.
8Do not block the air inlets nor outlets of the unit. It may cause insufficient performance
or troubles.
9Be sure to stop the operation and turn the circuit breaker off before performing any
maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10
Do not splash or pour water directly on the unit. Water can cause electrical shock or
equipment damage.
11
This appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
CAUTIONS FOR LOCATION / INSTALLATION
•Make sure to connect the air conditioner to power supply of the rated voltage and
frequency.
Use of a power supply with improper voltage and frequency can result in equipment
damage and possible fire.
•Do not install the unit in a place where inflammable gas may leak. It may cause fire.
Install the unit in a place with minimal dust, fumes and moisture in the air.
•Arrangethedrainhosetoensuresmoothdrainage. Insufficientdrainagemaycausewetting
of the room, furniture etc.
•Make sure a leak breaker or a circuit breaker is installed, depending on the installation
location, to avoid electrical shock.
E-2

ENGLISH
INDOOR TEMP. OUTDOOR TEMP.
COOLING upper limit 32˚C D.B. 43˚C D.B.
23˚C W.B. -
lower limit 21˚C D.B. 21˚C D.B.
15˚C W.B. -
HEATING upper limit 27˚C D.B. 24˚C D.B.
- 18˚C W.B.
lower limit 20˚C D.B. -7˚C D.B.
- -8˚C W.B.
ADDITIONAL NOTES ON OPERATION
OPERATING TEMPERATURE RANGE •The built-in protective de-
vice may prevent the unit
from operating when used
out of this range.
•Condensation may form on
the air outlet if the unit op-
erates continuously in the
COOL or DRY mode when
humidity is over 80 percent.
D.B. = Dry-bulb W.B. = Wet-bulb
PREHEATING FUNCTION
In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on
to prevent cold air from blowing out of the unit.
DE-ICING FUNCTION
•When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an
automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the
inside and outside fans stop operating.
•After de-icing is completed, the unit automatically resumes operation in the HEAT mode.
HEATING EFFICIENCY
•The unit employs a heat pump that draws heat from the outside air and releases it into the room.
The outside air temperature therefore greatly affects the heating efficiency.
•If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
•It takes time to warm up and heat the entire room because of the forced air circulation system.
WHEN POWER FAILURE OCCURS
This air conditioner has a memory function to store settings when a power failure occurs.
After power recovery, the unit will automatically re-start in the same settings which were active before
the power failure, except for timer settings.
If the timers were set before a power failure, they will need to be re-set after power recovery.
E-3
TIPS ON SAVING ENERGY
Below are some simple ways to save energy when you use your air conditioner.
SET THE CORRECT TEMPERATURE
•Setting the thermostat 1°C higher than the desired temperature in the COOL mode and 2°C lower
in the HEAT mode will save approximately 10 percent in power consumption.
•Setting the temperature lower than necessary during cooling operation will result in increased
power consumption.
BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS
•Blocking direct sunlight during cooling operation will reduce power consumption.
•Close the windows and doors during cooling and heating operations.
SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR
CIRCULATION
KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION
MAKE MOST OF THE TIMER OFF FUNCTION
DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN
EXTENDED PERIOD OF TIME
•The indoor unit still consumes a small amount of power when it is not operating.

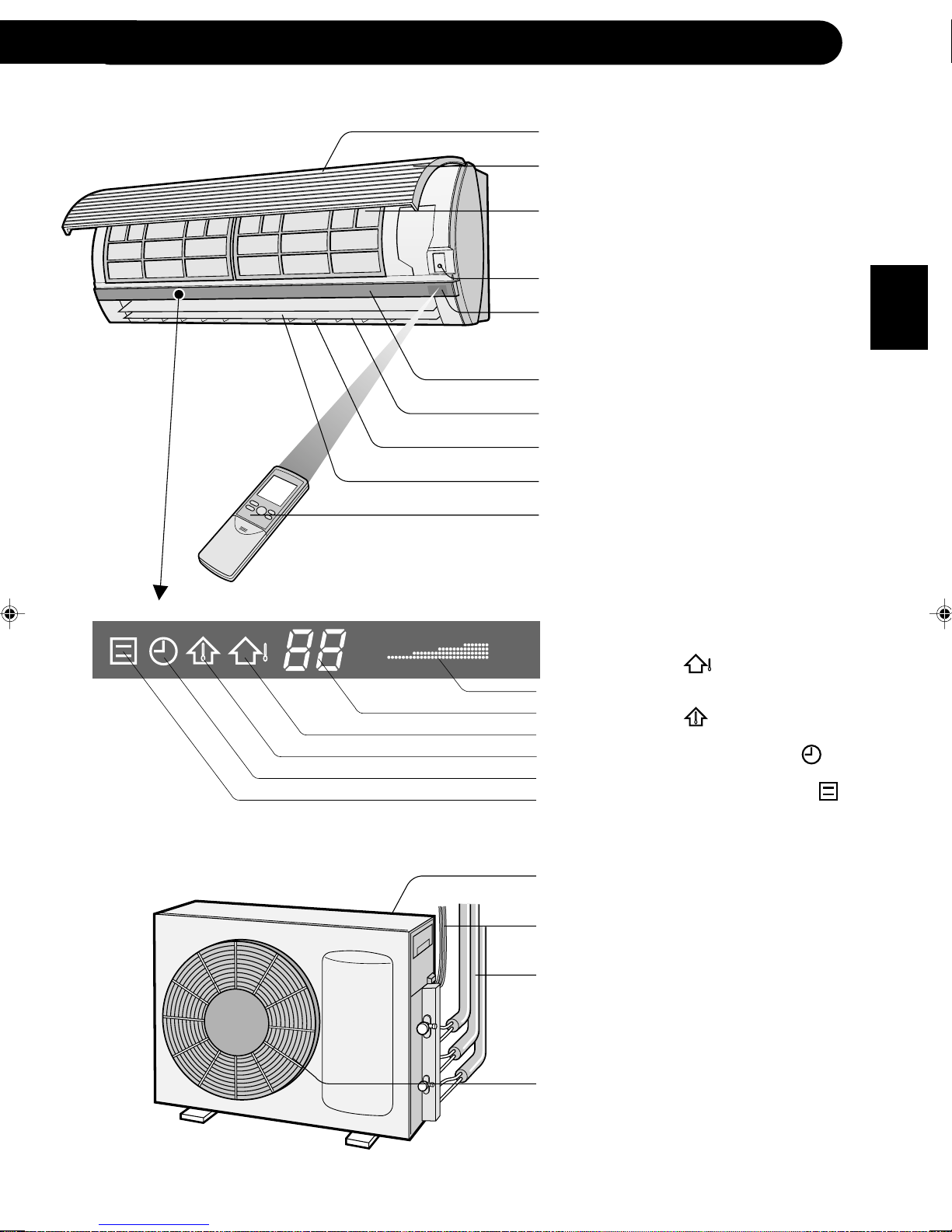

PART NAMES
1DUST COLLECTION FILTER
(non-washable)
2DEODORANT FILTER
(washable)
3Inlet (Air)
4Open Panel
5Air Filters
6AUX. Button
7RECEIVER Window
8Indicator Panel
9Vertical Adjustment Louvres
0Horizontal Adjustment
Louvres
qOutlet (Air)
wRemote Control
eOUTDOOR Temp. Lamp
(green )
rTEMPERATURE INDICATOR
tROOM Temp. Lamp
(green )
yPOWER MONITOR
uPLASMACLUSTER Lamp
(blue,green)
iTIMER Lamp (orange )
oOPERATION Lamp (red )
OUTDOOR UNIT
NOTE: Actual units might vary slightly from those shown above.
INDOOR UNIT
!Inlet (Air)
@Interconnecting
#CordRefrigerant Tube
$Outlet (Air)
E-4
ECO POWER
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
!
@
#
$
(For models AY-XPM7CR, AY-XPM9CR, AY-XPM12CR)
AE-XM18CR

ENGLISH
E-5
1Inlet (Air)
2Open Panel
3Air Filters
4AUX. Button
5RECEIVER Window
6Indicator Panel
7Vertical Adjustment Louvres
8Horizontal Adjustment
Louvres
9Outlet (Air)
0Remote Control
qPOWER MONITOR
wTEMPERATURE INDICATOR
eOUTDOOR Temp. Lamp
(green )
rROOM Temp. Lamp
(green )
tTIMER Lamp (orange )
yOPERATION Lamp (red )
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
(For models AY-XM7CR, AY-XM9CR, AY-XM12CR)
INDOOR UNIT
ECO POWER
OUTDOOR UNIT
!Inlet (Air)
@Interconnecting Cord
#Refrigerant Tube and
$Outlet (Air)
!
@
#
$
AE-XM24CR

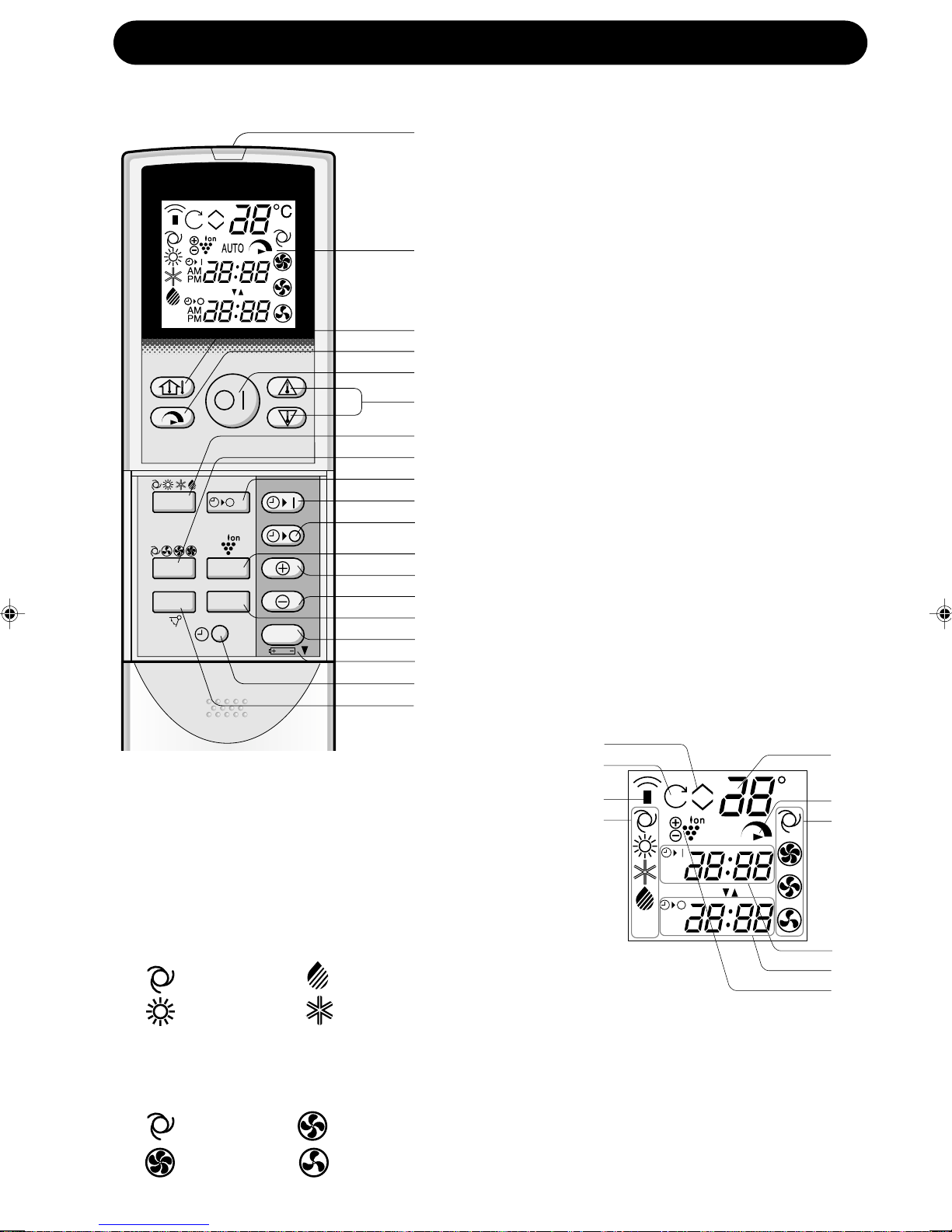

REMOTE CONTROL
1TRANSMITTER
2DISPLAY (Liquid Crystal Display)
3DISPLAY Button
4FULL POWER Button
5ON/OFF Button
6THERMO. (Thermostat) Button
7MODE Button
8FAN Button
9ONE-HOUR OFF TIMER Button
0TIMER ON Button (for setting the timer)
qTIMER OFF Button (for setting the timer)
wPLASMACLUSTER Button
(only for models AY-XPM7CR/AY-XPM9CR/AY-
XPM12CR)
eTIME ADVANCE Button
rTIME REVERSE Button
tSELF CLEAN Button
(only for models AY-XPM7CR/AY-XPM9CR/AY-
XPM12CR)
yTIMER SET/CANCEL Button
uIndicates BATTERY COMPARTMENT is
below this mark
iCLOCK Button
oSWING Button
jTIMER ON INDICATOR/CLOCK
Indicates the on timer preset time or current
time.
kTIMER OFF INDICATOR
Indicates the preset time for off timer or one-
hour off timer.
lPLASMACLUSTER SYMBOL
(only for models AY-XPM7CR/AY-
XPM9CR/AY-XPM12CR)
E-6
pTHERMOSTAT SETTING FOR AUTO AND
DRY MODES
aSELF CLEAN SYMBOL
(only for models AY-XPM7CR/AY-XPM9CR/
AY-XPM12CR)
sTRANSMITTING SYMBOL
dMODE SYMBOLS
: AUTO : DRY
: HEAT : COOL
fTEMPERATURE INDICATOR
FULL POWER SYMBOL
hFAN SPEED SYMBOLS
: AUTO : LOW
: HIGH : SOFT
L.C.D. REMOTE CONTROL DISPLAY
PART NAMES
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
a
s
d
f
h
j
k
l
DISPLAY
FULL
POWER
SWING CLEAN
FAN
MODE
SET/C
1h
C
AM
PM
AM
PM
AUTO

ENGLISH
SETTING DUST COLLECTION FILTER AND DEODORANT FILTER
The dust collection filter and the deodorant filter are packed as accessory of this unit.
During operation of the air conditioner, the filters remove dust and tobacco smoke
from the air and discharges clean air.
1Take out the air filters.
1Open the open panel.
2Push the air filters up slightly to unlock
them.
3Pull the air filters down to remove
them.
2Set the dust collection filter and the deo-
dorant filter under the filter stoppers lo-
cated on the air filter.
3Reinstall the air filters
1Reinstall the air filters in the original
positions.
2Close the open panel.
3Push the arrow-marked of the panel
firmly to lock it in place.
Precautions
• The filters are sealed in a plastic bag to keep their dust collection effect.
Do not open the bag until using the filters. (Otherwise the filters life may get shorter.)
• Do not expose the filters to direct sunlight. (Otherwise they may deteriorate.)
DUST COLLECTION FILTER (gray)
Set the black side facing upward.
Filter stopper
DEODORANT FILTER (green)
Filter stopper
E-7
(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)
1
23
3
1
2

1Remove the remote control
cover.
2Insert batteries in the compart-
ment, making sure the ±and
—polarities are correctly
aligned.
•The display indicates "AM
6:00" when batteries are prop-
erly installed.
3Reinstall the cover.
USING THE REMOTE CONTROL
E-8
NOTES:
•The battery life is approximately one year in normal use.
•When you replace the batteries, always change both batteries, and make sure
they are the same type.
•If the remote control does not operate properly after replacing the batteries, take
out the batteries and reinstall them again after 30 seconds.
•If you will not be using the unit for a long time, remove the batteries from the
remote control.
Point the remote control towards
the unit’s signal receiver window
and press the desired button. The
unit generates a beep when it re-
ceives the signal.
•Make sure there is no curtain or other
object between the remote control and
the unit.
•The remote control can send signals
from up to 7 metres away.
LOADING BATTERIES Use two size-AAA (R03) batteries.
HOW TO USE THE REMOTE CONTROL
Remote control
cover
+
-
+
-

ENGLISH
E-9
CAUTION
•Do not allow the signal receiver window to receive strong direct sunlight, since it can
adversely affect its operation. If the signal receiver window is exposed to direct sunlight,
close a curtain to block the light.
•Using a fluorescent lamp with a quick starter in the same room may interfere with
transmission of the signal.
•The unit can be affected by signals transmitted from the remote control of a television,
VCR or other equipment used in the same room.
•Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit
and remote control from moisture and shock which can discolour or damage them.
SET CURRENT CLOCK TIME
There are two clock modes:
12-hour mode and 24-hour
mode.
1To set to the 12-hour mode, press the
CLOCK button once in the first step.
To set to the 24-hour mode, press the
CLOCK button twice in the first step.
2Press the TIME ADVANCE or REVERSE
button to set the current time.
•Keep the button pressed to advance
or reverse the time display quickly.
3Press the SET/C button.
•The colon (:) blinks to indicate that the
clock is functioning.
NOTE:
•The current time cannot be set when the
timer is operating.
1
2
3
Example: 5 o'clock in the afternoon
Clock Display
12-hour mode PM 5:00
24-hour mode 17:00
SWING CLEAN
FAN
MODE
SET/C
1h
The PLASMACLUSTER and the SELF
CLEAN buttons are provided only on
models AY-XPM7CR/AY-XPM9CR/
AY-XPM12CR.

AM
DISPLAY
FULL
POWER
SWING CLEAN
FAN
MODE
SET/C
1h
Press the THERMO. button to set the de-
sired temperature.
•In the AUTO and
DRY mode, the tem-
perature can be
changed in 1°C
incerments within the
range of 2°C higher
to 2°C lower from the
temperature auto-
matically determined
by the air conditioner.
•In the COOL and HEAT modes, the tempera-
ture can be set within the range of 18 to
32°C.
1
E-10
BASIC OPERATION
2Press the ON/OFF button to start opera-
tion.
•The red OPERATION lamp ( ) on the unit
will light.
3
4
1
4
5
2
3
Press the MODE button to select the op-
eration mode.
AUTO HEAT COOL DRY
5
•In the DRY mode, the fan speed is preset to
AUTO and cannot be changed.
To turn off the unit, press the ON/OFF but-
ton again.
•The red OPERATION lamp ( ) on the unit
will turn off.
Press the FAN button to set the desired fan
speed. AUTO SOFT LOW HIGH
(Example: 1°C higher)
C
C
(Example: 2°C lower)
NOTES:
This air conditioner is a multi-type, and two (or three) indoor units are connected to one outdoor unit.
When the setting mode differs among indoor unit(s), the indoor unit(s) operated later may not work.
•When the indoor unit(s) is/are operating in HEAT mode, the remaining unit(s) can not operate in
COOL or DRY mode.
•When the indoor unit(s) is/are operating in COOL or DRY mode, the remaining unit(s) can not
operate in HEAT mode.
When the mode of the indoor unit(s) later operated is/are different from those which is/are in
operation, 4 seconds later, a long BEEP will be emitted and the temperature indicator on the
indicator panel will indicate" " and the OPERATION lamp and TIMER lamp will blink alternately.
This shows that the later operated unit(s) is/are not working. In such case, change the remote
control's mode and send the same mode signal which the other indoor unit(s) is/are operating in. The
BEEP will be emitted twice from the indoor unit(s) later operated, and the unit(s) will operate.
The PLASMACLUSTER and the
SELF CLEAN buttons are provided
only on models AY-XPM7CR/AY-
XPM9CR/AY-XPM12CR.

ENGLISH
E-11
•During operation, if the outdoor temperature
changes, the temperature settings will auto-
matically slide as shown in the chart.
•Mode of the unit operated first will have
priority over other unit(s) without reference
to the chart.
TIPS ABOUT AUTO MODE
In the AUTO mode, the temperature setting and mode are automatically selected according to
the room temperature and outdoor temperature when the unit is turned on.
Modes and Temperature Settings
TIPS ABOUT INDICATOR PANEL
The indicator panel will change each time you press
the DISPLAY button in the following manner.
The room
temperature and
POWER MONITOR
are displayed.
The outdoor
temperature and
POWER MONITOR
are displayed.
No display.
POWER MONITOR
When the room temperature or the outdoor temperature is displayed, the POWER MONITOR
will light up in 4 levels for COOL and HEAT modes (3 levels for DRY mode), to indicate the
operation power. When the air conditioner is operating at maximum power in the COOL and
HEAT modes, "POWER" will light and "ECO" will turn off on the indicator panel.
NOTES:
•The displayed temperatures are rough estimates and may vary from the actual tempera-
tures.
•Temperature display ranges
Room temperature: 0°C ~ 40°C ( is displayed when less than 0°C and when higher
than 40°C)
Outdoor temperature: -9°C ~ 45°C ( is displayed when less than -9°C and when
higher than 45°C)
•is displayed during the first 120 seconds of operation while the temperatures are being
detected. (Temperature detection may more than 120seconds when other unit(s) is/are
already being operated.)
•is displayed for 5 seconds when the unit is not in operation.
DISPLAY
FULL
POWER
the figures in ( ) are temperature settings
ECO
ECO
Room Temp.
Lamp
Outdoor Temp.
Lamp
temperature
Indiactor
POWER
MONITOR
ECO
ECO
Room Temp. Lamp
Outdoor Temp. Lamp
temperature
Indiactor POWER MONITOR
(AY-XPM7CR/AY-XPM9CR/AY-XPM12CR) (AY-XM7CR/AY-XM9CR/AY-XM12CR)
26
281810034
(¡C)
(¡C)
Cool
(24¡C) Cool
(25¡C)
Heat
(22¡C) Dry
()
Heat
(23¡C)
Heat
(24¡C)
Cool
(26¡C)
outdoor
temp.
indoor temp.
Room Temp.
-2¡C

COOL and DRY modes Horizontal air flow
HEATmode Diagonal air flow
E-12
ADJUSTING THE AIR FLOW DIRECTION
VERTICAL AIR FLOW DIRECTION
The air flow direction is automatically preset in each mode as follows for optimum
comfort:
HOW TO ADJUST THE AIR FLOW DIRECTION
COOL and DRY modes HEAT mode
The adjustment range
is narrower the SWING
range in order to pre-
vent condensation from
dripping.
The range is wide so the
air flow can be directed
toward the floor.
Hold the horizontal adjustment
louvre as shown in the diagram
and adjust the air flow direction.
Press the SWING button on the
remote control once.
•The vertical adjustment louvre
will change its angle continu-
ously.
Press the SWING button again
when the vertical adjustment
louvre is at the desired position.
•The louvre will stop moving within
the range shown in the diagram.
•The adjusted position will be
memorized and will be automati-
cally set to the same position
when operated the next time.
Adjustment range
CAUTION
Never attempt to adjust the vertical adjustment louvres manually.
•Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction
when the remote control is used for the adjustment.
•When the vertical adjustment louvre is positioned at the lowest position in the COOL or
DRY mode for an extended period of time, condensation may result.
Do not adjust the horizontal adjustment louvre extremely to the right or left when operating
the air conditioner with fan speed "SOFT" for an extended period of time.
Condensation may form on the louvres.
HORIZONTAL AIR FLOW DIRECTION

ENGLISH
E-13
FULL POWER OPERATION
In this operation, the air conditioner works at maximum power to makes the room
cool or warm so rapidly that you can use it just after you come home.
1Press the ONE-HOUR OFF TIMER button.
•The remote control displays “”.
•The orange TIMER lamp ( ) on the unit will light up.
•The unit will stop operating after one hour.
TO CANCEL
Press the TIMER CANCEL (SET/C) button.
•The orange TIMER lamp ( ) on the unit will turn off.
Or, turn the unit off by pressing the ON/OFF button.
•The red OPERATION lamp ( ) and the orange
TIMER lamp ( ) on the unit will turn off.
1
When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.
ONE-HOUR OFF TIMER
1To activate the FULL POWER operation, press the
FULL POWER button during operation.
•The remote control will display .
•The temperature display will go off.
TO CANCEL
Press the FULL POWER button again.
•FULL POWER operation will also be cancelled when
the operation mode is changed, or when the unit is
turned off.
NOTE:
•You cannot set the temperature and fan speed during the FULL POWER operation.
NOTES:
•The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF
operations.
•When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will
operate for an hour with the formerly set condition.
•If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER
activates, press the ONE-HOUR OFF TIMER button again during operation.
•If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.
1
PM
DISPLAY
FULL
POWER
FAN
MODE
1h
The PLASMACLUSTER and the
SELF CLEAN buttons are provided
only on models AY-XPM7CR/AY-
XPM9CR/AY-XPM12CR.

AM
DISPLAY
FULL
POWER
SWING CLEAN
FAN
MODE
SET/C
1h
1Press the TIMER OFF ( ) button.
2The TIMER OFF indicator will blink; press the
TIME ADVANCE or REVERSE buttons to set
the desired time. (The time can be set in 10-
minute increments.)
3Point the remote control at the signal receiver
window on the unit and press the TIMER SET
(SET/C) button.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it re-
ceives the signal.
NOTE:
Before setting the timer, make sure the clock is properly set with the current time.
TIMER OPERATION
TIMER OFF
Cancel the TIMER seting first, then set it
again.
TO CHANGE TIME SETTING
TO CANCEL TIMER MODE
Press the TIMER CANCEL (SET/C) button.
•The orange TIMER lamp ( ) on the unit will
turn off.
•The current clock
time will be dis-
played on the re-
mote control.
TIPS ABOUT TIMER OFF OPERATION
When the TIMER OFF mode is set, the
temperature setting is automatically
adjusted to prevent the room from
becoming excessively hot or too cold
while you sleep. (Auto Sleep function)
COOL/DRY MODE:
•One hour after the time operation begins,
the temperature setting rises 1°C higher
than the original thermostat setting.
HEAT MODE:
•One hour after the timer operation begins,
the temperature setting drops 3°C lower
than the original thermostat setting.
2
3
1
NOTE:
•If any TIMER ON, TIMER OFF and ONE-HOUR
OFF TIMER are set, the TIMER CANCEL
button cancels all settings.
E-14
SWING CLEAN
FAN
MODE
SET/C
1h
The PLASMACLUSTER and the SELF CLEAN buttons
are provided only on models AY-XPM7CR/AY-XPM9CR/
AY-XPM12CR.
The PLASMACLUSTER and
the SELF CLEAN buttons are
provided only on models AY-
XPM7CR/AY-XPM9CR/AY-
XPM12CR.

ENGLISH
AM
DISPLAY
FULL
POWER
SWING CLEAN
FAN
MODE
SET/C
1h
1Press the TIMER ON ( ) button.
2The TIMER ON indicator will blink; press the TIME
ADVANCE or REVERSE buttons to set the de-
sired time. (The time can be set in 10-minute
increments.)
3Point the remote control at the signal receiver
window on the unit and press the TIMER SET
(SET/C) button.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it receives
the signal.
4Select the operation condition.
•The unit will turn on prior to the set time to allow
the room to reach the desired temperature by
the programmed time. (Awaking function)
•If unit(s) is/are operated in one mode while
TIMER ON is set with another unit in different
mode, the timer may not activate the required
operation.
Example:
To stop operation at 11:00 p.m. and resume opera-
tion (With the same mode and temperature settings)
to bring the room temperature to the desired level by
7:00 a.m.
1Set the TIMER OFF to 11:00 p.m. during opera-
tion.
2Set the TIMER ON to 7:00 a.m.
The arrow ( or ) between the TIMER ON
indicator and the TIMER OFF indicator shows which
timer will activate first.
E-15
NOTES:
•You cannot programme the ON-TIMER and OFF-TIMER to operate the unit at
different temperatures or other settings.
•Either timer can be programmed to activate prior the other.
You can use the ON and OFF timers in combination.
COMBINED USE OF ON AND OFF TIMERS
2
1
3
TIMER ON
PM
AM
The PLASMACLUSTER and the SELF CLEAN buttons
are provided only on models AY-XPM7CR/AY-XPM9CR/
AY-XPM12CR.

E-16
The ionizer inside the air conditioner will release cluster ions, which are
collective mass of positive and negative ions, into the room.
Theclusterionsreduceairbornemoldfungusanddeodorize/decomposeodor-
causing molecules.
AIR CLEAN OPERATION
Cluster ions released into the air will reduce airborne mold fungus and deodorize/decompose
odor-causing molecules.
REFRESHING OPERATION
It is said that plenty of negative ions exist in places such as waterfalls or forests in natural
environment.Inthisoperationmode,negativeinoswillbereleasedinanincreasedrate,inorder
to bring the room air close to this condition.
PLASMACLUSTER AUTO OPERATION
Dust sensor and odor sensor will detect foul air in the room.
Air Clean Operation will be performed for one minute after the air conditioner is operated to
detect foul air.
AirCleanOperationandRefreshingOperationwillbeselected andbeperformedautomatically
depending on the air foul degree.
AirCleanOperationwillbeperformedwhentheairisdetectedtobefoul,RefreshingOperation
will be performed when the air is clean.
SELF CLEAN OPERATION
Plasmacluster Operation will be performed with FAN or HEAT mode, in order to reduce the
growth of mold fungus, and dry inside of the air conditioner unit.
Utilize the operation at seasonal change over terms.
Mold fungus already grown can not be eliminated by this operation.
TIPS ABOUT DUST SENSOR AND ODOR SENSOR
What does Dust Sensor react to?
•Dustsensorreactstomoldfungus,plants/flowerspollen,deadticks,dust,tobaccosmokeetc.
What does Odor Sensor react to?
•Odor Sensor reacts to tobacco smoke, motor exhaust, odor emitted from animals, etc.
DustandOdorSensoralsomayreact to vapour of insecticides, cosmetics, alcohol, chemicals
and the like, and to extreme change of temperature/humidity.
Ionizer
Cluster ions
Mold fungus
Odor
TIPS ABOUT PLASMACLUSTER OPERATION
(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)

ENGLISH
1Press the SELF CLEAN button when the unit is not
operating.
•The remote control displays " ".
•The red OPERATION lamp ( ) and the blue
PLASMACLUSTER lamp on the unit will light up.
•The unit will stop operation after forty minutes.
•The remaining operation time will be indicated on the
TEMPERATURE INDICATOR of the indoor unit in
minute decrements.
TO CANCEL
Press the SELF CLEAN button.
Or, turn the unit off by pressing the ON/OFF button.
•The red OPERATION lamp ( ),the blue
PLASMACLUSTER lamp and the TEMPERATURE
INDICATOR on the unit will turn off.
E-17
PLASMACLUSTER OPERATION
You can choose PLASMACLUSTER AUTO OPERATION, AIR CLEAN OPERATION or
REFRESHING OPERATION
1When the unit is in operation, press the
PLASMACLUSTER button to select the mode.
PLASMACLUSTER AUTO AIR CLEAN REFRESHING CANCEL
•In the AIR CLEAN operation, the blue
PLASMACLUSTER lamp on the unit will light up.
•In the REFRESHING operation, the green
PLASMACLUSTER lamp on the unit will light up.
TO CANCEL
Press the PLASMACLUSTER button until
PLASMACLUSTER symbol on the remote control
display goes off.
•The PLASMACLUSTER lamp on the unit will turn off.
NOTE:
•You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF
CLEAN operation.
1
SWING CLEAN
FAN
SET/C
AM
NOTES:
•Setting of the PLASMACLUSTER operation will be memorized and will operate in the same
mode, the next time you turn on the air conditioner.
•To turn off the PLASMACLUSTER lamp, press the DISPLAY button.
•When the PLASMACLUSTER button is pressed while the unit is not operating, the
PLASMACLUSTERoperationwillbeperformedwithoutaccompanyingairconditioning mode
(eg. HEATING or COOLING).The mode symbol of the remote control will go off and the fan
speedcannotbesetAUTO.Atthistime,youmayfeelHEATINGisperformedwithunitsinother
rooms.IndoorfanwilldecreaseitsrotatingspeedandwilltureONandOFFdependingonthe
room temperature.
SELF CLEAN OPERATION
1
(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)
(only for models AY-XPM7CR/AY-XPM9CR/AY-XPM12CR)
SWING CLEAN
FAN
MODE
SET/C
1h
AM
AUTO

E-18
AUXILIARY MODE
Use this mode when the remote control is not available.
TO TURN ON
Lift the front panel of the indoor unit and press the
AUX. button on the operation panel.
•The red OPERATION lamp ( ) on the unit will
light and the unit will start operating in the AUTO
mode.
•The fan speed and temperature setting are set
to AUTO.
TO TURN OFF
Press the AUX. button on the operation panel
again.
•The red OPERATION lamp ( ) on the unit will
turn off.
NOTE:
If the AUX. button is pressed during normal opera-
tion, the unit will turn off.
OPTION KIT
Air Purifying Filter
During operation of the air conditioner, the air
purifying filter removes dust and tobacco smoke
from the air and discharges clean air.
The apatite antibacterial material used in the air
purifying filter suppresses activities of adsorbed
viruses and other germs.
The replacement period for the disposable type is
approximately 3~6 months.
Contact your dealer for the purchase of this option.
AUX.
(only for models AY-XM7CR/AY-XM9CR/AY-XM12CR)
Type AZ-F900B

ENGLISH
MAINTENANCE
Be sure to turn off the air conditioner and turn off the circuit breaker before perform-
ing any maintenance.
MAINTENANCE AFTER AIR
CONDITIONER SEASON
1Operate the unit in the COOL
mode, temperature setting 32°C,
for about half a day to allow the
mechanism to thoroughly dry.
2Stop the operation.
Turn off the circuit breaker, if you
have one exclusively for the air
conditioner.
3Clean the filters, then reinstall
them.
MAINTENANCE BEFORE
AIR CONDITIONER SEASON
1Make sure that the air filters are
not dirty.
2Make sure that nothing obstructs
the air inlet or outlet.
3Check the outdoor mounting rack
periodically for wear and to make
sure it is firmly in place.
1TURN OFF THE UNIT
2REMOVE THE FILTERS
1Lift the open panel.
2Push the air filters up slightly to unlock them.
3Pull the air filters down to remove them.
3CLEAN THE FILTERS
Use a vacuum cleaner to remove dust. If the
filters are dirty, wash them with warm water
and a mild detergent. Dry filters in the shade
before reinstalling.
4REINSTALL THE FILTERS
1Reinstall the filters in the original positions.
2Close the front panel.
3Push the arrow-marked of the panel firmly
to lock it in place.
CLEANING THE FILTERS The air filters should be cleaned every two weeks.
CLEANING THE UNIT AND THE REMOTE CONTROL
•Wipe them with a soft cloth.
•Do not directly splash or pour water on them. We can cause electrical shock or
equipment damage.
•Do not use hot water, thinner, abrasive powders or strong solvents.
(for models AY-XM7CR/AY-XM9CR/AY-XM12CR)
1
23
3
1
2
E-19
