Sharp Plasmacluster AE-X30EJ User manual

AY-XP30EJ
AY-XP30EJ AE-X30EJ
R
INDOOR UNIT
SPLIT TYPE
ROOM AIR CONDITIONER
OPERATION MANUAL
OUTDOOR UNIT
*Plasmacluster is a trademark of
Sharp Corporation.
Air Conditioner
AY-XP30EJ_6.5 03.11.25, 2:51 PM1

AY-XP30EJ_6.5 03.11.25, 2:51 PM2

1
ENGLISH
Thank you for purchasing a SHARP air conditioner. Please read this manual carefully
before operating the product.
CONTENTS
PRECAUTIONS
WARNINGS FOR USE
1This model should be installed with a fixed power cord to the meter box.
2Be careful not to expose your body to the outlet air for prolonged periods. It may affect
your physical condition.
3Whenusingtheairconditionerforinfants,children,elderly,bedriddenordisabledpeople
make sure the room temperature is suitable for those in the room.
4Never insert objects into the unit. Inserting objects can result in injury due to the high
speed rotation of the internal fans.
5If anything abnormal with the air conditioner (eg burning smell), stop the opertaion
immediately and turn the circuit breaker off.
6This air conditioner should be installed by a licensed air conditioning contractor in
accordance with AS/NZS 3000:2000 and your electricity suppliers rules.
7There are local council rules regarding maximum allowable noise levels emitted by air
conditioners, your licensed air conditioning contractor will advise you on the correct
location of your outdoor unit.
8Useonlythemanufacture-specifiedpowercordforreplacement.Replacementshouldbe
performed by a service centre approved by SHARP.
WARNINGS FOR INSTALLATION / REMOVAL / REPAIR
For your safety, ensure that your new air conditioner is installed by a licensed air
conditioning contractor in accordance with the AUSTRALIAN/NEW ZEALAND WIRING
RULES.
•Donotattemptto install/remove/repairtheunitby yourself.Incorrectworkwill causeelectric
shock,water leak, fire etc. Consultalicensed air conditioning contractorfor the installation/
removal/repair of the unit.
• PRECAUTIONS ........................................1
• ADDITIONAL NOTES ON OPERATION .... 3
•TIPS ON SAVING ENERGY.....................3
•PART NAMES...........................................4
•USING THE REMOTE CONTROL ...........6
•BASIC OPERATION .................................8
• ADJUSTING THE AIR FLOW DIRECTION ..... 10
•FULL POWER OPERATION ....................11
•ONE-HOUR OFF TIMER ..........................11
• TIPS ABOUT PLASMACLUSTER OPERATION ...... 12
•PLASMACLUSTER OPERATION ................13
•SELF CLEAN OPERATION ..........................13
•TIMER OPERATION.....................................14
•AUXILIARY MODE .......................................16
•MAINTENANCE............................................16
•BEFORE CALLING FOR SERVICE .............18
•SPECIFICATIONS ........................................19
AY-XP30EJ_6.5 03.11.25, 2:51 PM3

PRECAUTIONS
CAUTIONS FOR USE
1If a gas appliance is used in the same room as the air conditioner, ventilate the room
periodically to prevent oxygen depletion.
2For safety, do not touch the unit with wet hands, it may cause an electric shock.
3For safety, turn the circuit breaker off when not using the unit for an extended period of
time.
4For safety, do not place anything on top of the outdoor unit or step on it.
5This unit is designed for residential use. Do not use for other applications such as in a
kennel or greenhouse to raise animals or grow plants.
6Do not block the air inlets or outlets of the unit.
7For safety, be sure to turn the unit off the circuit breaker before performing any
maintenance or cleaning.
8
Do not pour water directly on the unit. Water can cause electrical shock or equipment
failure.
9
This appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
CAUTIONS FOR LOCATION / INSTALLATION
To ensure that your warranty is not cancelled, both the indoor/outdoor units and supply/
interconnecting cables must be installed by a licensed air conditioning contractor.
•The unit is designed to operate on 230-240 VAC, 50Hz
•Do not install the unit where flammable gas may leak. It may cause a fire.
2
AY-XP30EJ_6.5 03.11.25, 2:51 PM4

INDOOR TEMP. OUTDOOR TEMP.
COOLING upper limit 32˚C D.B. 46˚C D.B.
23˚C W.B. -
lower limit 21˚C D.B. 21˚C D.B.
15˚C W.B. -
HEATING upper limit 27˚C D.B. 24˚C D.B.
- 18˚C W.B.
lower limit 20˚C D.B. -8.5˚C D.B.
- -9.5˚C W.B.

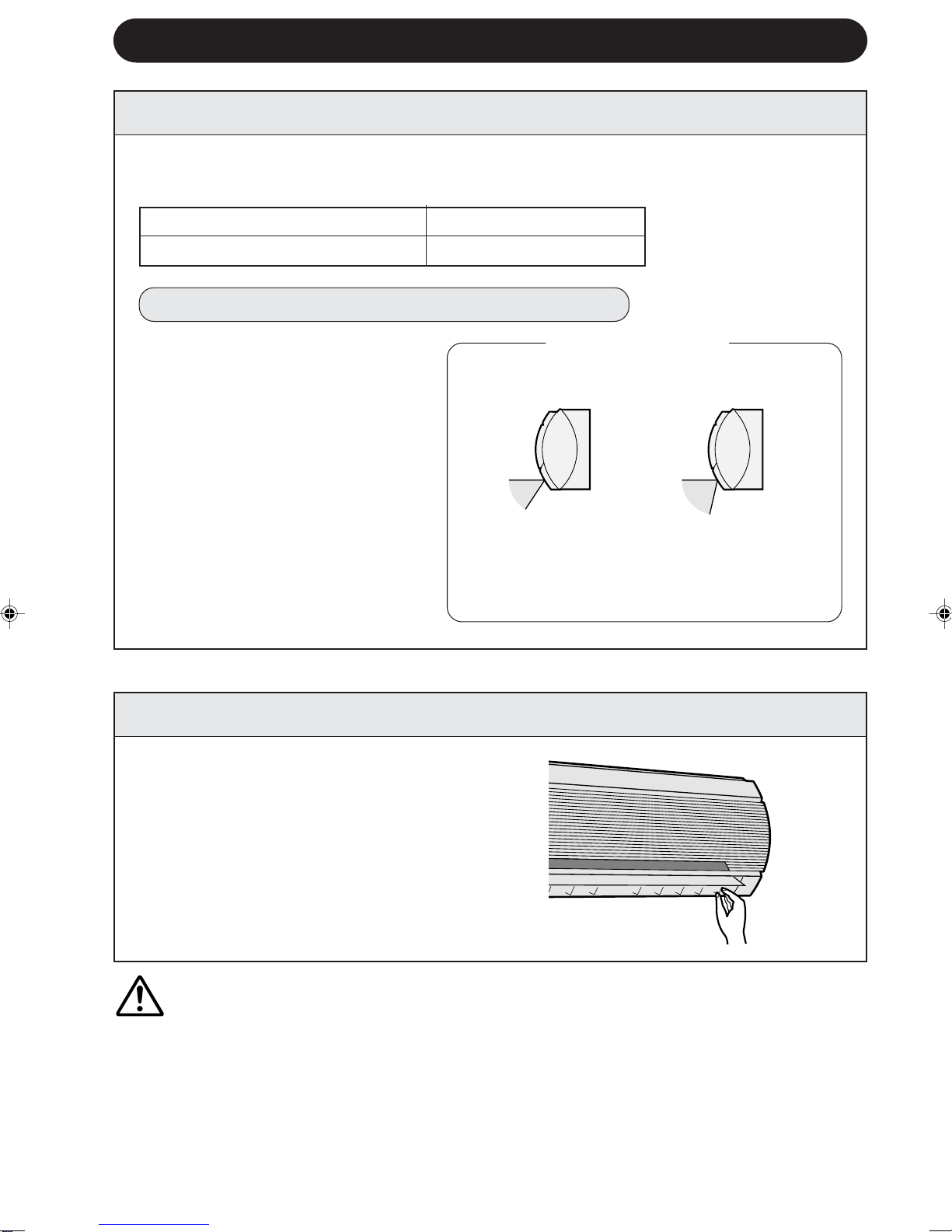

ADDITIONAL NOTES ON OPERATION
OPERATING TEMPERATURE RANGE •The built-in protective
device may prevent the
unit from operating when
used out of this range.
•Condensation may form
on the air outlet if the
unit operates continu-
ously in the COOL or
DRY mode when humid-
ity is over 80 percent.
D.B. = Dry-bulb W.B. = Wet-bulb
WHEN POWER FAILURE OCCURS
This air conditioner has a memory function to store settings when a power failure occurs.
After power recovery, the unit will automatically re-start in the same settings which were active before
the power failure, except for timer settings.
If the timers were set before a power failure, they will need to be re-set after power recovery.
PREHEATING FUNCTION
In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on
to prevent cold air from blowing out of the unit.
DE-ICING FUNCTION
•When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an
automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the
inside and outside fans stop operating.
•After de-icing is completed, the unit automatically resumes operation in the HEAT mode.
HEATING EFFICIENCY
•The unit employs a heat pump that draws heat from the outside air and releases it into the room.
The outside air temperature therefore greatly affects the heating efficiency.
•If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
•It takes time to warm up and heat the entire room because of the forced air circulation system.
3
TIPS ON SAVING ENERGY
Below are some simple ways to save energy when you use your air conditioner.
SET THE CORRECT TEMPERATURE
•Setting the thermostat 1°C higher than the desired temperature in the COOL mode and 2°C lower
in the HEAT mode will save approximately 10 percent in power consumption.
•Setting the temperature lower than necessary during cooling operation will result in increased
power consumption.
BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS
•Blocking direct sunlight during cooling operation will reduce power consumption.
•Close the windows and doors during opeation.
SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR
CIRCULATION
KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION
MAKE MOST OF THE TIMER OFF FUNCTION
DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN
EXTENDED PERIOD OF TIME
•The indoor unit still consumes a small amount of power when it is not operating.
AY-XP30EJ_6.5 03.11.25, 2:51 PM5

PART NAMES
1Inlet (Air)
2Open Panel
3AUX. Button
4Air Filters
5Receiver Window
6Louvre Unit
Open to clean the inside of the air
conditioner.
7Indicator Panel
8Vertical Adjustment Louvres
9Horizontal Adjustment Louvres
0Outlet (Air)
qRemote Control
w FULL POWER Lamp (green )
eSELF CLEAN Lamp (green )
rPLASMACLUSTER Lamp
(blue, green)
tTIMER Lamp (orange )
yOPERATION Lamp (red )
OUTDOOR UNIT
NOTE: Actual units might vary slightly from those shown above.
INDOOR UNIT
1
2
3
4
5
6
7
8
9
0
q
uInlet(Air)
iRefrigerant Tube and
Interconnecting Cord
oDrainage Hose
pOutlet(Air)
4
w
e
r
t
y
u
i
o
p
AY-XP30EJ_6.5 03.11.25, 2:51 PM6

5
air
es
uvres
)
)
)
REMOTE CONTROL
1TRANSMITTER
2DISPLAY (Liquid Crystal Display)
3PLASMACLUSTER Button
4DISPLAY Button
5ON/OFF Button
6THERMO. (Thermostat) Button
7FULL POWER Button
8MODE Button
9ONE-HOUR OFF TIMER Button
0TIMER ON Button (for setting the timer)
qTIMER OFF Button (for setting the timer)
wSELF CLEAN Button
eTIME ADVANCE Button
rTIME REVERSE Button
tFAN Button
yTIMER SET/CANCEL Button
uIndicates BATTERY COMPARTMENT is
below this mark
iCLOCK Button
oSWING Button
kTIMER ON INDICATOR/CLOCK
Indicates the on timer preset time or current
time.
lTIMER OFF INDICATOR
Indicates the preset time for off timer or
one-hour off timer.
pSELF CLEAN SYMBOL
aPLASMACLUSTER SYMBOL
sMODE SYMBOLS
: AUTO : COOL
: HEAT : DRY
dTHERMOSTAT SETTING FOR AUTO AND
DRY MODES
fTEMPERATURE INDICATOR
gTRANSMITTING SYMBOL
hFULL POWER SYMBOL
jFAN SPEED SYMBOLS
: AUTO : LOW
: HIGH : SOFT
L.C.D. REMOTE CONTROL DISPLAY
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
a
s
d
f
g
h
j
k
l
DISPLAY
SWING
CLEAN
FAN
MODE
SET/C
1h
AY-XP30EJ_6.5 03.11.25, 2:51 PM7

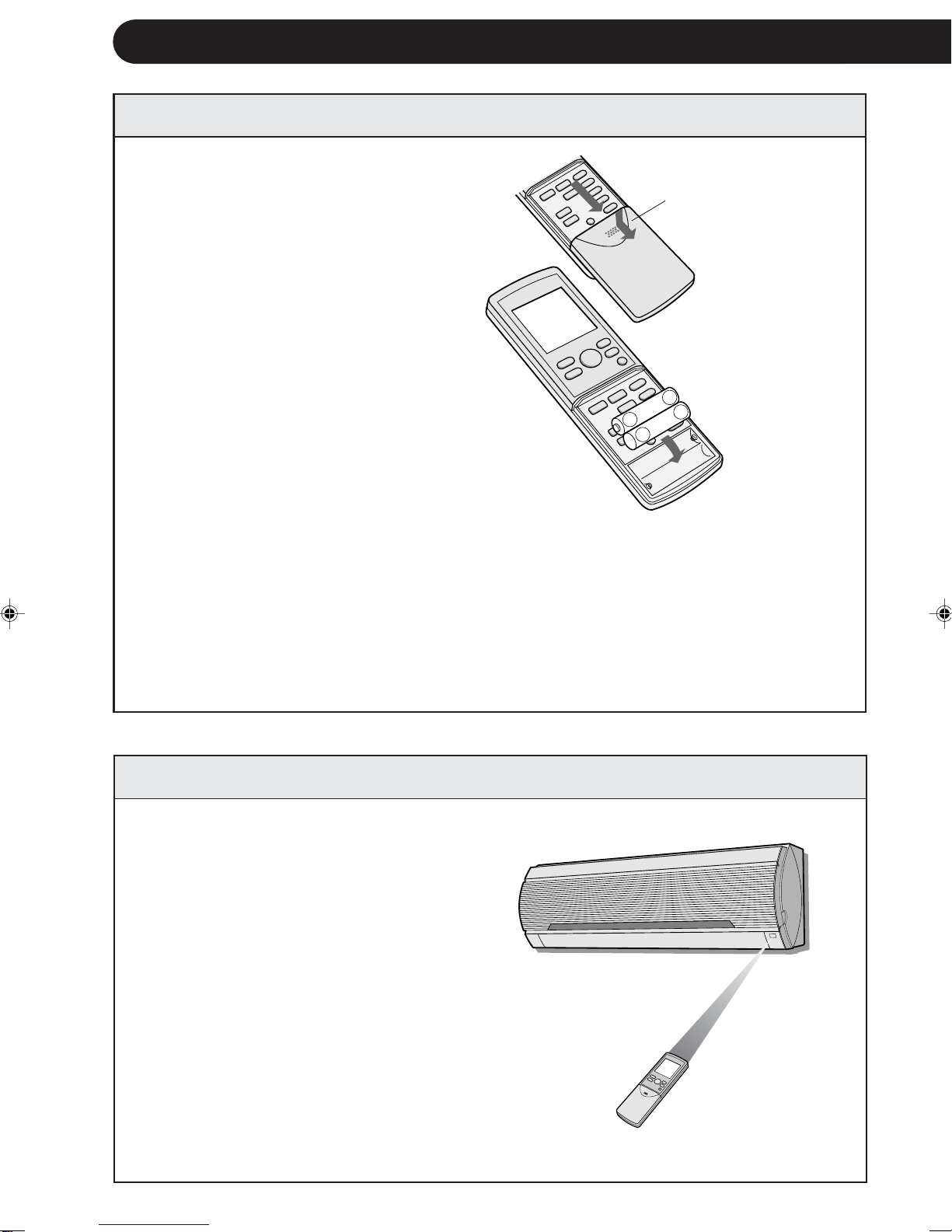

1Remove the remote control
cover.
2Insert batteries in the compart-
ment, making sure the ±and
—polarities are correctly
aligned.
•The display indicates "AM
6:00" when batteries are prop-
erly installed.
3Reinstall the cover.
USING THE REMOTE CONTROL
6
NOTES:
•The battery life is approximately one year in normal use.
•When you replace the batteries, always change both batteries, and make sure
they are the same type.
•If the remote control does not operate properly after replacing the batteries, take
out the batteries and reinstall them again after 30 seconds.
•If you will not be using the unit for a long time, remove the batteries from the
remote control.
Point the remote control towards
the unit’s signal receiver window
and press the desired button. The
unit generates a beep when it re-
ceives the signal.
•Make sure there is no curtain or other
object between the remote control and
the unit.
•The remote control can send signals
from up to 7 metres away.
LOADING BATTERIES Use two size-AAA (R03) batteries.
HOW TO USE THE REMOTE CONTROL
Remote control cover
+
-
+
-
AY-XP30EJ_6.5 03.11.25, 2:51 PM8

7
CAUTION
•Do not allow the signal receiver window to receive strong direct sunlight, since it can
adversely affect its operation. If the signal receiver window is exposed to direct sunlight,
close a curtain to block the light.
•Using a fluorescent lamp with a quick starter in the same room may interfere with
transmission of the signal.
•The unit can be affected by signals transmitted from the remote control of a television,
VCR or other equipment used in the same room.
•Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit
and remote control from moisture and shock which can discolour or damage them.
SET CURRENT CLOCK TIME
There are two clock modes:
12-hour mode and 24-hour
mode.
1To set to the 12-hour mode, press the
CLOCK button once in the first step.
To set to the 24-hour mode, press the
CLOCK button twice in the first step.
2Press the TIME ADVANCE or REVERSE
button to set the current time.
•Keep the button pressed to advance
or reverse the time display quickly.
3Press the SET/C button.
•The colon (:) blinks to indicate that the
clock is functioning.
NOTE:
•The current time cannot be set when the
timer is operating.
1
2
3
Example: 5 o'clock in the afternoon
Clock Display
12-hour mode PM 5:00
24-hour mode 17:00
SWING
CLEAN
FAN
MODE
SET/C
1h
AY-XP30EJ_6.5 03.11.25, 2:51 PM9

Press the THERMO. button to set the de-
sired temperature.
•In the AUTO and
DRY mode, the tem-
perature can be
changed in 1°C incre-
ments within the
range of 2°C higher
to 2°C lower from the
temperature auto-
matically determined
by the air conditioner.
•In the COOL and HEAT modes, the tempera-
ture can be set within the range of 18 to 32°C
1
8
BASIC OPERATION
2Press the ON/OFF button to start opera-
tion.
•The red OPERATION lamp ( ) on the unit
will light.
3
4
1
5
2
3
Press the MODE button to select the op-
eration mode.
AUTO HEAT COOL DRY
5
•In the DRY mode, the fan speed is preset to
AUTO and cannot be changed.
To turn off the unit, press the ON/OFF but-
ton again.
•The red OPERATION lamp ( ) on the unit
will turn off.
Press the FAN button to set the desired fan
speed. AUTO SOFT LOW HIGH
(Example: 1°C higher)
(Example: 2°C lower)
DISPLAY
SWING
CLEAN
FAN
MODE
SET/C
1h
4
C
C
AY-XP30EJ_6.5 03.11.25, 2:51 PM10







 













 
 

9

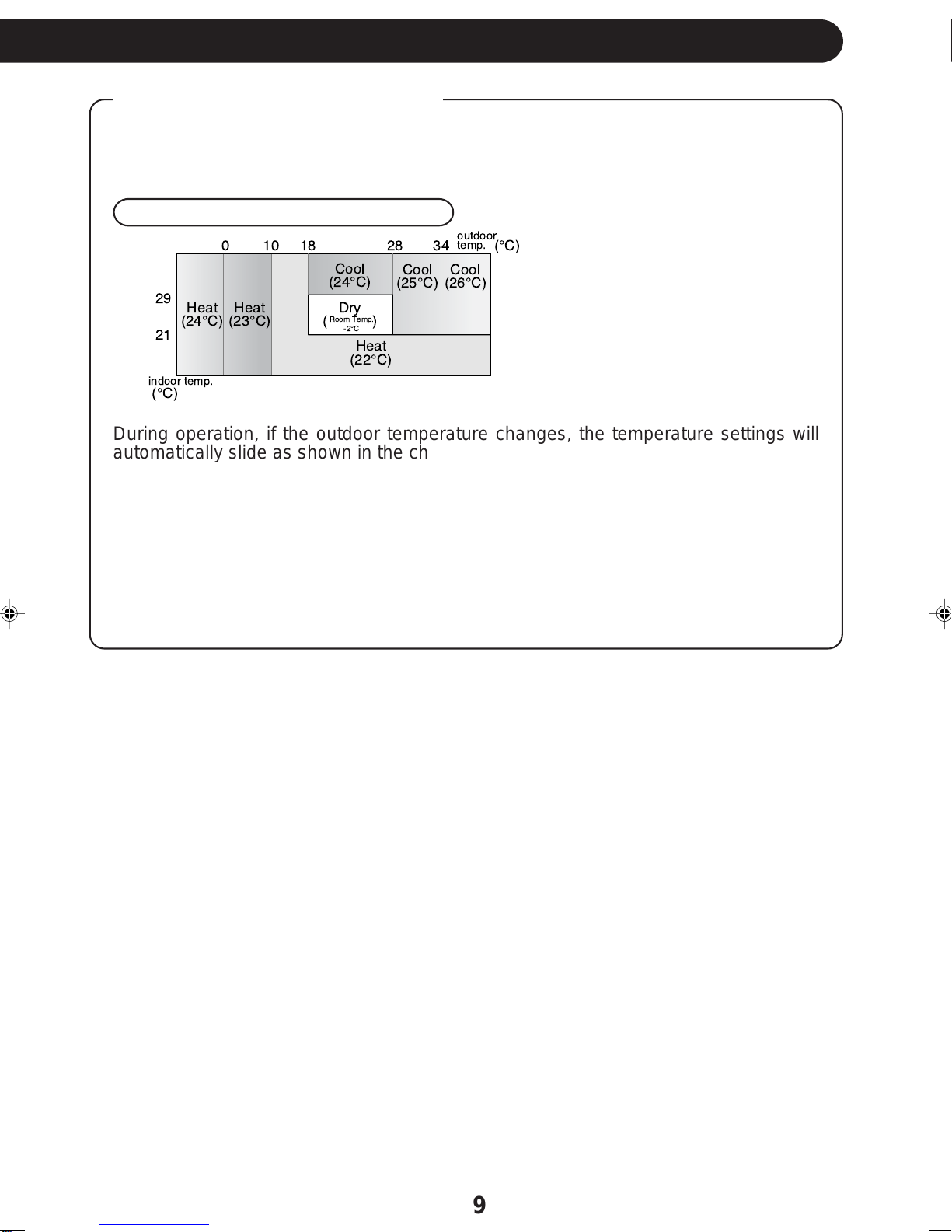

During operation, if the outdoor temperature changes, the temperature settings will
automatically slide as shown in the chart.
MODE CHANGEOVER
During seasons when you need COOLING at daytime and HEATING at night, or if the
room temperature should become extremely higher than the temperature setting, due
to supplementary heating equipment, the mode will automatically switch between
HEAT and COOL mode to keep the comfortable room temperature.
TIPS ABOUT AUTO MODE
In the AUTO mode, the temperature setting and mode are automatically se-
lected according to the room temperature and outdoor temperature when the
unit is turned on.
Modes and Temperature Settings
the figures in ( ) are temperature settings
AY-XP30EJ_6.5 03.11.25, 2:51 PM11

COOL and DRY modes Horizontal air flow
HEAT mode Diagonal air flow
10
ADJUSTING THE AIR FLOW DIRECTION
VERTICAL AIR FLOW DIRECTION
The air flow direction is automatically preset in each mode as follows for
optimum comfort:
HOW TO ADJUST THE AIR FLOW DIRECTION
COOL and DRY modes HEAT mode
The adjustment range
is narrow in order to
prevent condensation
from dripping.
The range is wide so the
air flow can be directed
toward the floor.
Hold the horizontal adjustment
louvre as shown in the diagram
and adjust the air flow direction.
Press the SWING button on the
remote control once.
•The vertical adjustment louvre will
change its angle continuously.
Press the SWING button again
when the vertical adjustment lou-
vre is at the desired position.
•The louvre will stop moving within
the range shown in the diagram.
•The adjusted position will be memo-
rized and will be automatically set to
the same position when operated the
next time.
Adjustment range
HORIZONTAL AIR FLOW DIRECTION
CAUTION
Never attempt to adjust the vertical adjustment louvres manually.
•Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the
remote control is used for the adjustment.
•When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode
for an extended period of time, condensation may result.
Do not adjust the horizontal adjustment louvre extremely to the right or left when operating
the air conditioner with fan speed "SOFT" for an extended period of time.
Condensation may form on the louvres.
AY-XP30EJ_6.5 03.11.25, 2:51 PM12

11
FULL POWER OPERATION
In this operation, the air conditioner works at maximum power to makes the room
cool or warm so rapidly that you can use it just after you come home.
1Press the ONE-HOUR OFF TIMER button.
•The remote control displays “ ”.
•The orange TIMER lamp ( ) on the unit will light up.
•The unit will stop operating after one hour.
TO CANCEL
Press the TIMER CANCEL (SET/C) button.
•The orange TIMER lamp ( ) on the unit will turn off.
Or, turn the unit off by pressing the ON/OFF button.
•The red OPERATION lamp ( ) and the orange
TIMER lamp ( ) on the unit will turn off.
1
When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.
ONE-HOUR OFF TIMER
1To activate the FULL POWER operation, press the
FULL POWER button during operation.
•The remote control will display .
•The temperature display will go off.
•The green FULL POWER lamp ( ) on the unit will
light up.
TO CANCEL
Press the FULL POWER button again.
•FULL POWER operation will also be cancelled when
the operation mode is changed, or when the unit is
turned off.
•The green FULL POWER lamp ( ) on the unit will
turn off.
NOTE:
•You cannot set the temperature and fan speed during the FULL POWER operation.
NOTES:
•The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF
operations.
•When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will
operate for an hour with the formerly set condition.
•If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER
activates, press the ONE-HOUR OFF TIMER button again during operation.
•If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.
1
PM
DISPLAY
CLEAN
FAN
MODE
1h
AY-XP30EJ_6.5 03.11.25, 2:51 PM13

12
TIPS ABOUT PLASMACLUSTER OPERATION
TheionizerinsidetheairconditionerwillreleasePlasmaclusterions,whichare
collective mass of positive and negative ions, into the room.
The Plasmacluster ions reduce airborne mold fungus.
AIR CLEAN OPERATION
Plasmacluster ions released into the air will reduce airborne mold fungus.
ION BALANCE OPERATION
It is said that plenty of negative ions exist in places such as waterfalls or waterside in natural
environment.Inthisoperationmode,negativeionswillbereleasedinanincreasedrate,inorder
to bring the room air close to this condition.
SELF CLEAN OPERATION
Plasmacluster Operation will be performed with FAN or HEAT mode, in order to reduce the
growth of mold fungus, and dry inside of the air conditioner unit.
Utilize the operation at seasonal change over terms.
Mold fungus already grown can not be eliminated by this operation.
Ionizer
Plasmacluster ions
AY-XP30EJ_6.5 03.11.25, 2:51 PM14

1Press the SELF CLEAN button when the unit is not
operating.
•The remote control displays " ".
•The red OPERATION lamp ( ), the green SELF
CLEAN lamp ( ) and the blue PLASMACLUSTER
lamp on the unit will light up.
•The unit will stop operation after forty minutes.
TO CANCEL
Press the SELF CLEAN button.
Or, turn the unit off by pressing the ON/OFF button.
•The red OPERATION lamp ( ), the green SELF
CLEAN lamp ( ) and the blue PLASMACLUSTER
lamp on the unit will turn off.
13
PLASMACLUSTER OPERATION
You can choose AIR CLEAN OPERATION or ION BALANCE OPERATION
1During operation, press the PLASMACLUSTER
button to select the mode.
AIR CLEAN ION BALANCE CANCEL
•IntheAIRCLEANoperation,thebluePLASMACLUSTER
lamp on the unit will light up.
•In the ION BALANCE operation, the green
PLASMACLUSTER lamp on the unit will light up.
TO CANCEL
Press the PLASMACLUSTER button until
PLASMACLUSTER symbol on the remote control
display goes off.
•The PLASMACLUSTER lamp on the unit will turn off.
NOTE:
•You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF
CLEAN operation.
1
NOTES:
•Setting of the PLASMACLUSTER operation will be memorized and will operate in the same
mode, the next time you turn on the air conditioner.
• To turn off the PLASMACLUSTER lamp, press the DISPLAY button.
•When the PLASMACLUSTER button is pressed while the unit is not operating, the
PLASMACLUSTERoperationwillbeperformedwithoutaccompanyingairconditioningmode
(eg, HEATING or COOLING). The mode symbol of the remote control will go off and the fan
speed can not be set AUTO.
SELF CLEAN OPERATION
1
DISPLAY
CLEAN
FAN
MODE
1h
REMOTE CONTROL
DISPLAY
PLASMACLUSTER
lamp on the unit BLUE lamp lights up GREENlamplightsup Lamp goes off
AY-XP30EJ_6.5 03.11.25, 2:51 PM15

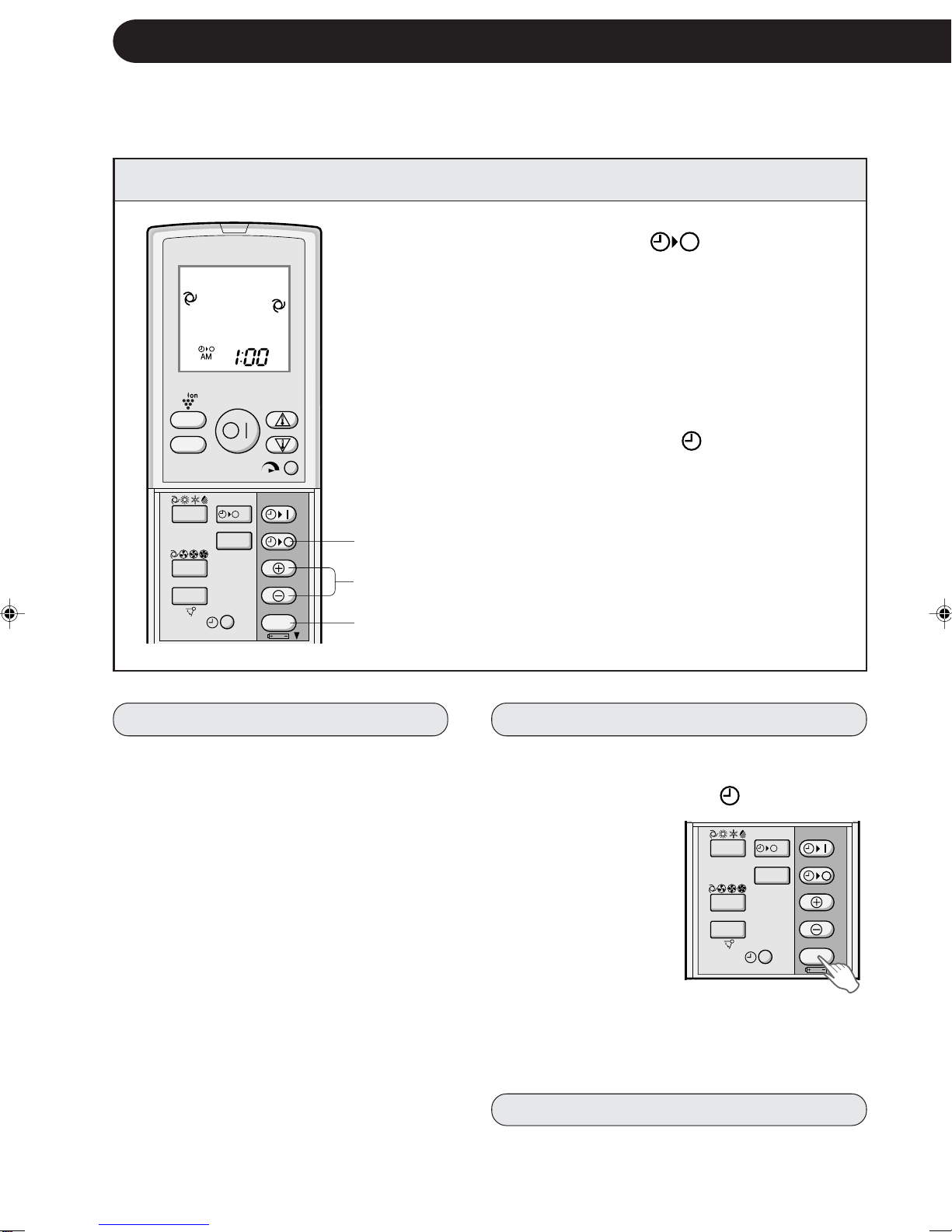

1Press the TIMER OFF ( ) button.
2The TIMER OFF indicator will blink; press the
TIME ADVANCE or REVERSE buttons to set
the desired time. (The time can be set in 10-
minute increments.)
3Point the remote control at the signal receiver
window on the unit and press the TIMER SET
(SET/C) button.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it receives the
signal.
NOTE:
Before setting the timer, make sure the clock is properly set with the current time.
TIMER OPERATION
TIMER OFF
Cancel the TIMER setting first, then set it
again.
TO CHANGE TIME SETTING
TO CANCEL TIMER MODE
Press the TIMER CANCEL (SET/C) button.
•The orange TIMER lamp ( ) on the unit will
turn off.
•The current clock
time will be dis-
played on the re-
mote control.
TIPS ABOUT TIMER OFF OPERATION
When the TIMER OFF mode is set, the
temperature setting is automatically
adjusted to prevent the room from
becoming excessively hot or too cold
while you sleep. (Auto Sleep function)
COOL/DRY MODE:
•One hour after the time operation begins,
the temperature setting rises 1°C higher
than the original thermostat setting.
HEAT MODE:
•One hour after the timer operation begins,
the temperature setting drops 3°C lower
than the original thermostat setting.
2
3
1
NOTE:
•If any TIMER ON, TIMER OFF and ONE-HOUR
OFF TIMER are set, the TIMER CANCEL but-
ton cancels all settings.
14
DISPLAY
SWING
CLEAN
FAN
MODE
SET/C
1h
SWING
CLEAN
FAN
MODE
SET/C
1h
AY-XP30EJ_6.5 03.11.25, 2:51 PM16

1Press the TIMER ON ( ) button.
2The TIMER ON indicator will blink; press the TIME
ADVANCE or REVERSE buttons to set the de-
sired time. (The time can be set in 10-minute
increments.)
3Point the remote control at the signal receiver
window on the unit and press the TIMER SET
(SET/C) button.
•The orange TIMER lamp ( ) on the unit will light.
•The unit will generate a beep when it receives the
signal.
4Select the operation condition.
•The unit will turn on prior to the set time to allow the
room to reach the desired temperature by the pro-
grammed time. (Awaking function)
Example:
To stop operation at 11:00 p.m. and resume opera-
tion (With the same mode and temperature settings)
to bring the room temperature to the desired level by
7:00 a.m.
1Set the TIMER OFF to 11:00 p.m. during opera-
tion.
2Set the TIMER ON to 7:00 a.m.
The arrow ( or ) between the TIMER ON
indicator and the TIMER OFF indicator shows which
timer will activate first.
15
NOTES:
•You cannot programme the ON-TIMER and OFF-TIMER to operate the unit at different
temperatures or other settings.
•Either timer can be programmed to activate prior the other.
You can use the ON and OFF timers in combination.
COMBINED USE OF ON AND OFF TIMERS
2
1
3
TIMER ON
DISPLAY
SWING
CLEAN
FAN
MODE
SET/C
1h
AY-XP30EJ_6.5 03.11.25, 2:51 PM17

MAINTENANCE
AUXILIARY MODE
Use this mode when the remote control is not available.
TO TURN ON

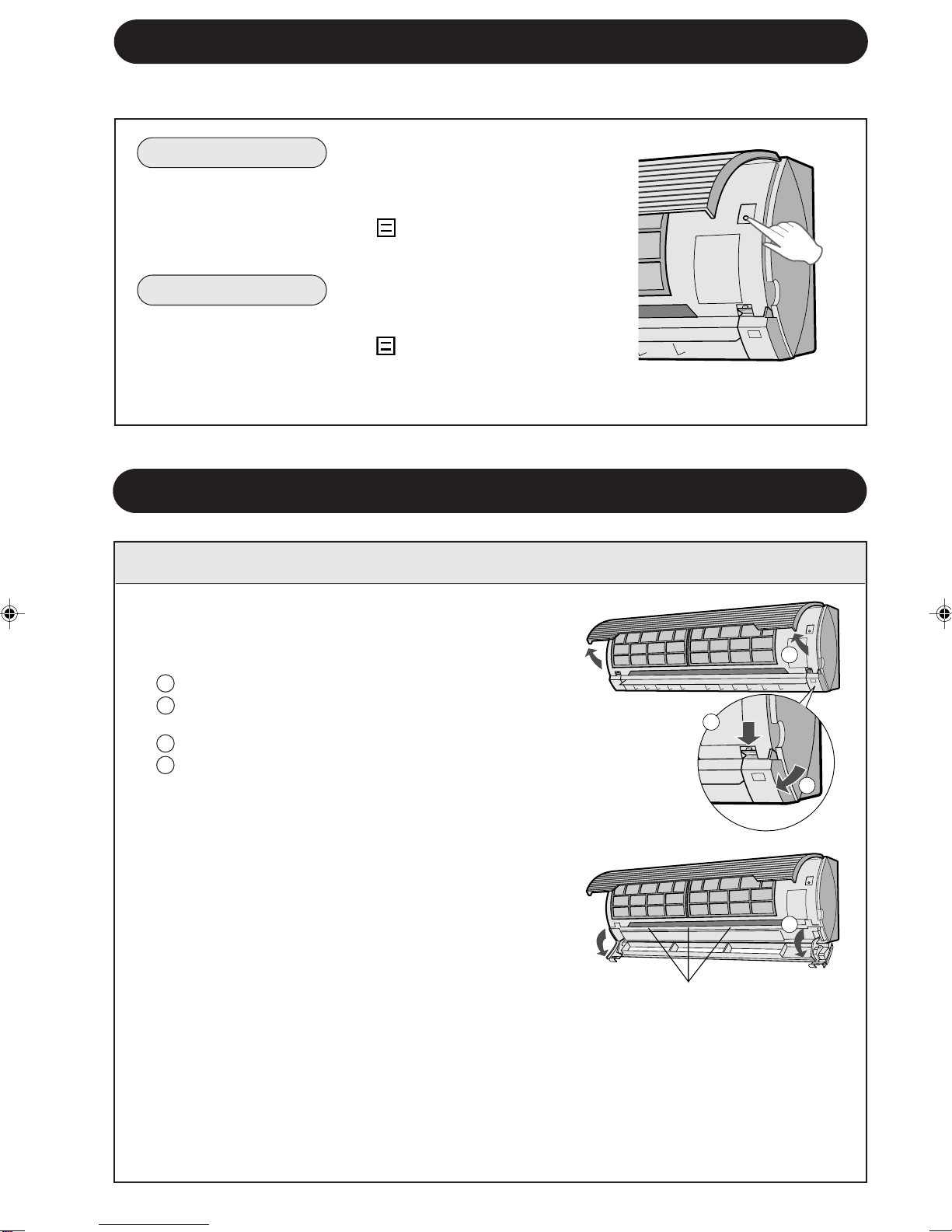

Lift the front panel of the indoor unit and press the AUX.
button on the operation panel.
•The red OPERATION lamp ( ) on the unit will light and
the unit will start operating in the AUTO mode.
•The fan speed and temperature setting are set to AUTO.
TO TURN OFF
Press the AUX. button on the operation panel again.
•The red OPERATION lamp ( ) on the unit will turn off.
NOTE:
If the AUX. button is pressed during normal operation, the unit will turn off.
16
CLEANING THE INTERIOR OF AIR CONDITIONER UNIT
1Be sure to disconnect the power cord from the
wall outlet or turn off the circuit breaker.
2OPEN THE LOUVRE UNIT
1Lift the open panel.
2Push down both hooks at the left and right, and
release the lock.
3Pull out the louvre unit forward.
4Let it open downward gently.
3CLEAN THE INTERIOR OF THE AIR CONDI-
TIONER UNIT
Make sure the fan inside is not rotating.
Remove the dust using a vacuum cleaner or
wipe with dry cloth.
4CLOSE THE LOUVRE UNIT
1Lift up the louvre unit and slide it back into its
position.
2Make sure both hooks at the left and right are
locked in place and the three supports are firmly fit.
3Close the open panel.
5Connect the power cord to the wall outlet or turn on the circuit breaker.
6Make sure the all lamps on the indicator panel are not blinking.
If the louvre unit is not reinstalled properly, the safety equipment will work and the
lamps will blink, preventing the unit from operating. In such case, reinstall the
louvre unit properly. Push the ON/OFF button of the remote control and check if
the unit operates properly.
Supports
1
2
3
4
AY-XP30EJ_6.5 03.11.25, 2:51 PM18

17
CLEANING THE UNIT AND THE REMOTE CONTROL
•Wipe them with a soft cloth.
•Do not directly splash or pour water on them. It can cause electrical shock or damage.
•Do not use hot water, thinner, abrasive powders or strong solvents.
CLEANING THE FILTERS
MAINTENANCE AFTER
AIR CONDITIONER
SEASON
1Operate the unit in the SELF CLEAN
OPERATION to allow the mechanism
to thoroughly dry.
2Stop the operation and unplug the
unit. Turn off the circuit breaker, if you
have one exclusively for the air condi-
tioner.
3Clean the filters, then reinstall them.
1Make sure that the air filters are
not dirty.
2Make sure that nothing obstructs
the air inlet or outlet.
3Check the outdoor mounting rack
periodically for wear and to make
sure it is firmly in place.
MAINTENANCE

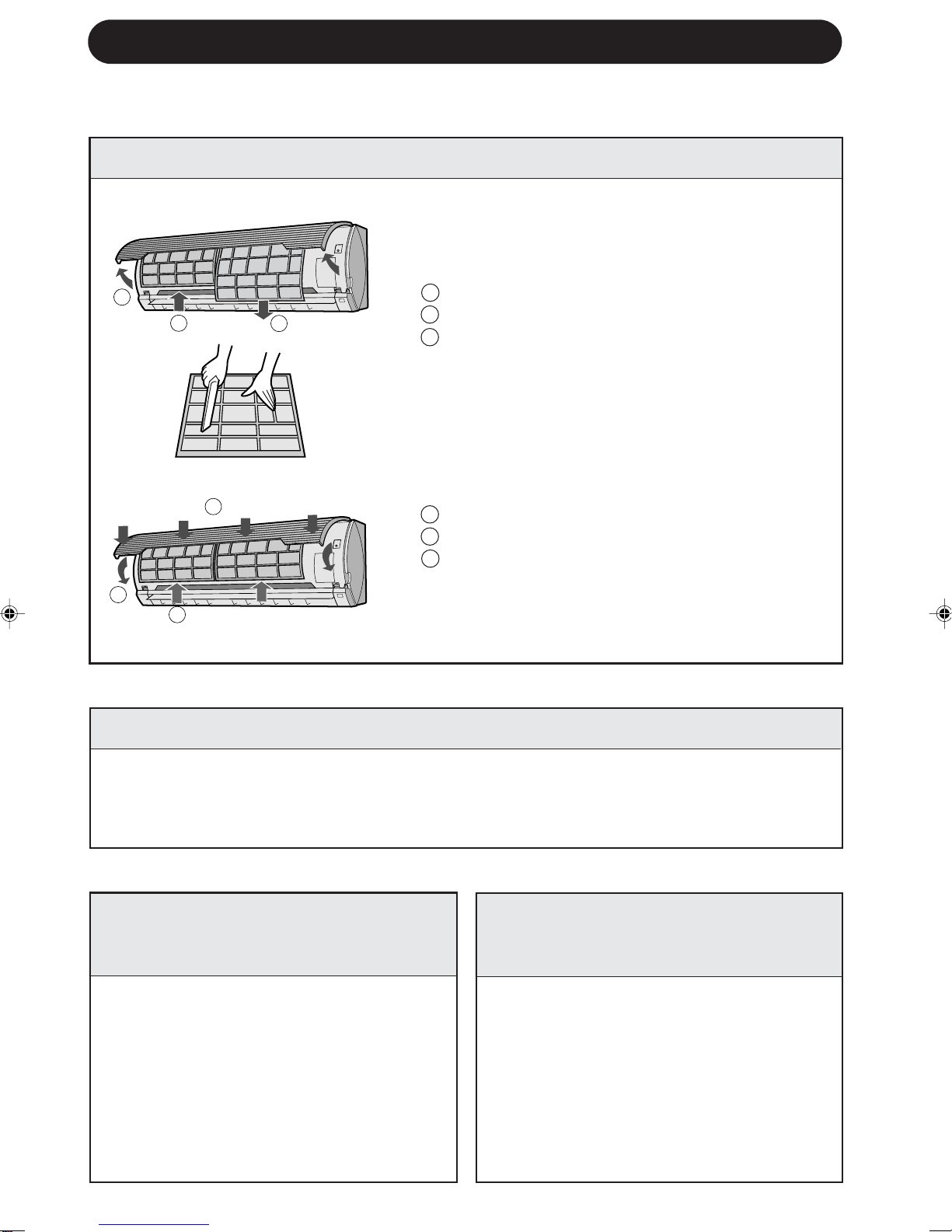

The air filters should be cleaned every two weeks.
1TURN OFF THE UNIT
2REMOVE THE FILTERS
1Lift the open panel.
2Push the air filters up slightly to unlock them.
3Pull the air filters down to remove them.
3CLEAN THE FILTERS
Use a vacuum cleaner to remove dust. If the filters
are dirty, wash them with warm water and a mild
detergent. Dry filters in the shade before reinstalling.
4REINSTALL THE FILTERS
1Reinstall the filters in the original positions.
2Close the open panel.
3Push the arrow-marked of the panel firmly to lock
it in place.
MAINTENANCE BEFORE
AIR CONDITIONER
SEASON
Be sure to disconnect the power cord from the wall outlet or turn off the circuit
breaker before performing any maintenance.
1
23
2
3
1
AY-XP30EJ_6.5 03.11.25, 2:51 PM19

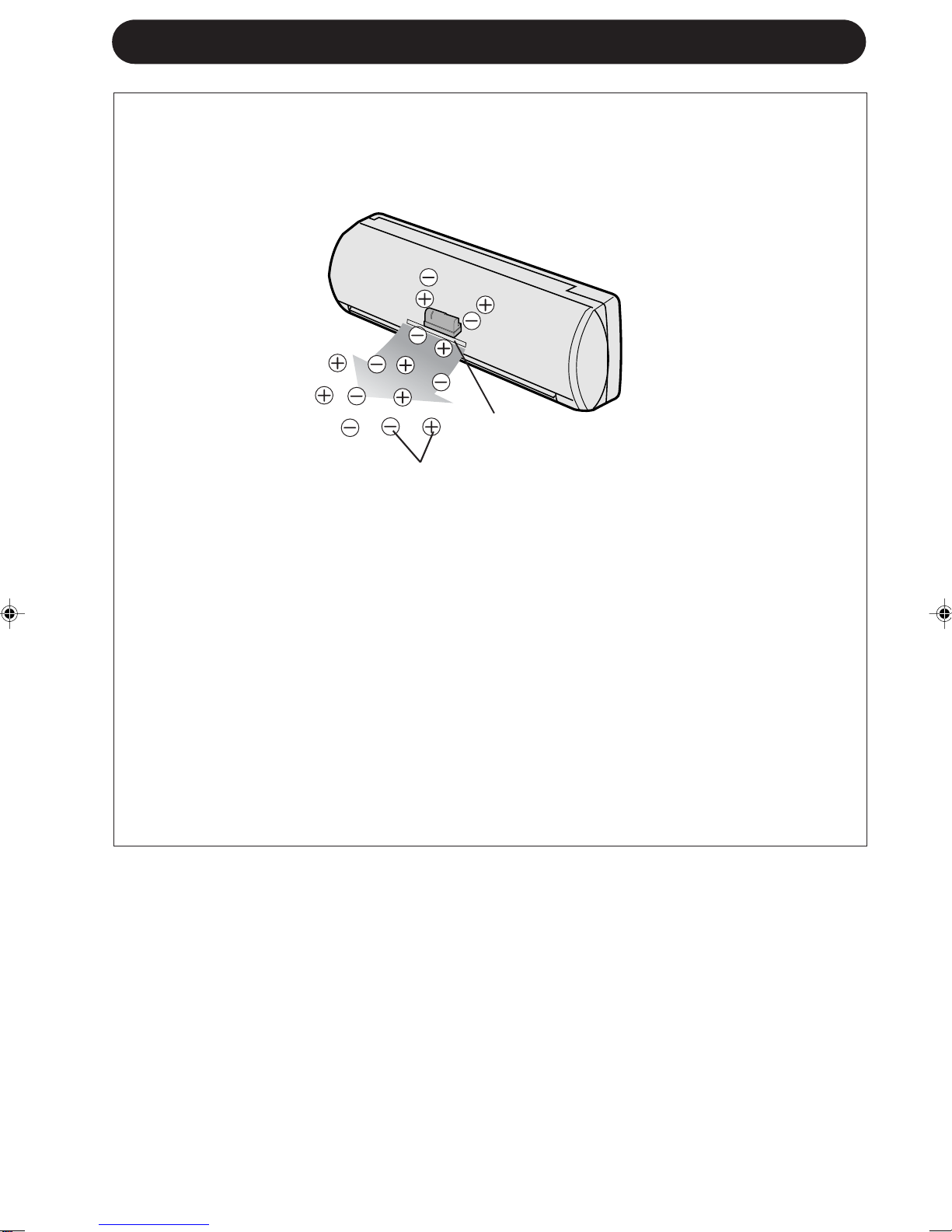

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote
control batteries have be-
come old and weak.
Try to send the signal again
with the remote control
pointed properly towards the
unit’s signal receiver window.
Check whether the remote
control batteries are in-
stalled with the polarities
properly aligned.
18
BEFORE CALLING FOR SERVICE
The following conditions do not denote equipment malfunctions
UNIT DOES NOT OPERATE
The unit will not operate if it is turned on
immediately after it is turned off. The unit will
not operate immediately after the mode is
changed. This is to protect the internal
mechanisms. Wait 3 minutes before operating
the unit.
UNIT DOES NOT SEND OUT WARM AIR
The unit is preheating or de-icing.
CRACKING NOISE
The unit may produce a cracking noise. This
sound is generated by the friction of the front
panel and other components expanding or
connecting due to a temperature change.
If the unit appears to be malfunctioning, check the following points before calling
for service.
IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY
Check the filters. If dirty,
clean them. Check the outdoor unit to
make sure nothing is blocking
the air inlet or outlet.
Check the thermostat is
proper setting.
Make sure windows and
doors are closed tightly. A large number of people in
the room can prevent the unit
from achieving the desired
temperature.
Check whether any heat-
generating appliances are
operating in the room.
ODORS
Carpet and furniture odors that entered into
the unit and the air conditioner's inner compo-
nent odors at the early stage of installation
may be sent out from the unit.
SWISHING NOISE
The soft, swishing noise is the sound of the
refrigerant flowing inside the unit.
WATER VAPOUR
•In the COOL and DRY operation, water
vapour can sometimes be seen at the air
outlet due to the difference between the
room air temperature and the air
discharged by the unit.
•In the HEAT operation, water vapour may
flow out of the outdoor unit during de-icing.
Please call for service when OPERATION Lamp and TIMER Lamp on the indicator panel blink.
ODOR EMITTED FROM THE
PLASMACLUSTER AIR OUTLET
This is the smell of ozone generated from
the ionizer. Density of the ozone is very
little, having no adverse effect over your
health. The ozone released into the air will
decompose soon, and its density in the
room will not increase.
IF THE UNIT FAILS TO OPERATE
•Check to see if the circuit breaker has tripped or the fuse has blown.
•Check if the louvre unit is properly installed. All lamps on the indicator panel will blink when
the louvre unit is not properly installed.
A LOW BUZZ NOISE EMITTED
This is a sound emitted when the unit is
generating Plasmacluster ions.
THE OUTDOOR UNIT DOES NOT STOP
After stopping the operation, the outdoor
unit will rotate its fan for about a minute to
cool down the unit.
AY-XP30EJ_6.5 03.11.25, 2:51 PM20
