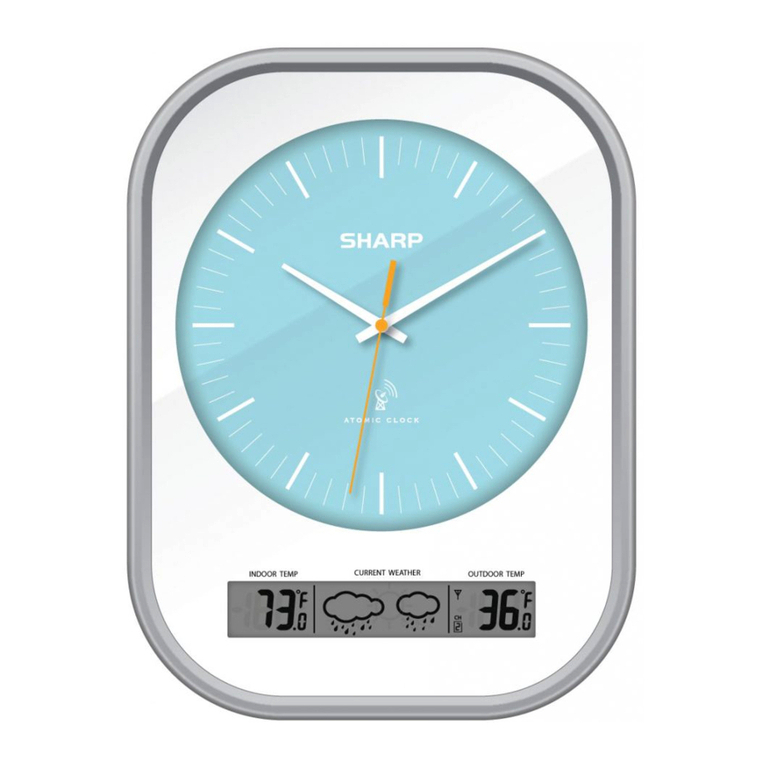

Sharp SPC1100 Installation instructions manual

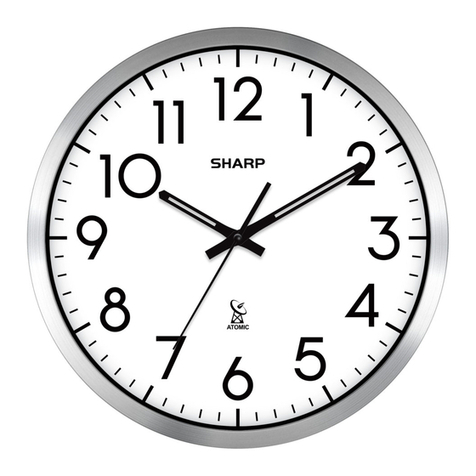

Atomic QA Wall Clock
Instructions & Warranty
Thank you for your purchase of this quality clock. The utmost care has gone into the design and manufacture of your
clock. Please read these instructions and store them in a safe place for future reference.
The receiver unit has a clear, easy-to-read display that shows indoor temperature, outdoor temperature and 12
hour weather forecast. The remote sensor transmits the outdoor temperature. To receive the outdoor temperature,
place the sensor anywhere within 100 feet; the 433.92MHz technology means no wire installation is required.
The Atomic Clock will always be accurate to within one second as it receives daily WWVB updates. Daylight Saving
Time also automatically updates so there is no need to re-set the clock manually!
The clock has a built in receiver that automatically synchronizes itself with the WWVB radio signal broadcast by the
US Governmentís National Institute of Standards & Technology (NIST) in Fort Collins, Colorado.
IMPORTANT: If the Atomic Clock does not receive the WWVB signal immediately, wait overnight and it will be
set in the morning.
FEATURES:
Atomic QA Clock
1
The WWVB radio
signal daily broadcast ensures that the atomic clock will always display the most accurate date and time.
. QA Clock:
2. LCD WEATHER FORECAST DISPLAY
3. BATTERY COMPARTMENT AND DOOR:
-Before inserting the battery, select the Time Zone and
and stop at zero position (12:00), and then the minute and hour hands will start running and
Then, the clock begins to receive the Atomic time signal automatically and it will take 3 - 10
receive the signal, the hands will find their correct time and work normally.
1. The unit will automatically search for the time signal at 2:16am, 4:16am, 2:16pm, 4:16pm.
2. Closed area such as airport, basement, tower block or factory is not recommended.
3. While the atomic signal is flashing, the control panel is inactive.
- Displays indoor/outdoor temperature and 12 hour weather forecast;
- Use 2 x AA size batteries
NOTE:
REC
WWVB
M.SET
Chan nel
Reset
C / F
REC
WWVB
M.SET
12456
37910 11 12 13 14
8
- In normal mode, press the button to switch the between channel 1, 2 and 3 to receive the 433.92MHz signal;
press and hold the button for 3 seconds to pair with the outdoor remote sensor.
In case of malfunction, press RESET button to reset all values to default values.
- In normal mode, press and hold the M.SET button, second hand will stop and enter into manual setting. Keep
pressing the M.Set button, the minute hand will run quickly. Release the button to exit the manual setting and
the clock will start running within a few seconds.
- In normal mode, press and hold the REC button, the hands will stop running and enter into Force Receiving
mode. It will start receiving the Atomic time signal within 10 minutes. Once received the signal successfully,
the clock hands will found the correct time and run normally. Otherwise, it will return to the time before Force
Receiving. If the Atomic signal is not received wait over night and it will be set in the morning.
- Before insert the battery, select the DST mode. The clock has programmed to automatically switch when the
daylight saving time is in effect.
- Before insert the battery, select the correct time zone. The default time zone is P (Pacific Time). If your location
is not in the Pacific, slide the time zone switch to M (Mountain Time) / C (Central Time) / E (Eastern Time) zone.
- Function same as No. 9
- Function same as No. 8
- Use 1 x AA size battery
5. Channel BUTTON:
6. Reset BUTTON:
7. WALL MOUNT
8. M. SET (Manual Set) BUTTON:
9. REC (Force Receiving) BUTTON:
10. DST ON/OFF SWITCH:
11. TIME ZONE SWITCH:
12. REC BUTTON:
13. M. SET BUTTON:
14. BATTERY COMPARTMENT AND DOOR:
-
NOTE:
LCD WEATHER FORECAST DISPLAY
1.The accuracy of a general pressure-based weather forecast is about 70% - 75%.
2.The weather forecast is meant for next 12 hours. It my not necessarily reflect the current situation.
3.The “Sunny
“ icon, when applied to nighttime, implies clear weather.
4. BUTTON:
- In normal mode, press the butt n to switch temperature unit °C/°F.
°C/°F
Sunny, Sunny Intervals, Cloudy, Rain, Rain + Thunder, Snow
DST mode (Daylight Savings Time). Once battery is inserted, the
second hand will run
stop at zero position.
minutes. If successfully
Sunny
Sunny Intervals
Cloudy
Rain
Rain + Thunder
Snow

Remote Transmitter
BATTERY REPLACEMENT:
NOTE:
BATTERY WARNING:
USING THE WALL MOUNT:
If the low battery indicator appears beside the outdoor temperature of main unit, it indicates that the transmitter
batteries need replacement. If the low battery indicator is displayed at the top left corner, it indicates that the atomic
clock batteries need replacement.
Attention! Please dispose of used unit or batteries in an ecologically safe manner.
- Clean the battery contacts and also those of the device prior to battery installation. Follow the polarity (+) and (-)
to place battery.
- Do not mix old and new batteries.
- Do not mix Alkaline, Standard (Carbon - Zinc), or Rechargeable (Nickel - Cadmium) batteries.
- Incorrect battery placement will damage the clock movement and battery may leak.
- Exhausted battery is to be removed from the product.
- Remove batteries from equipment which is not to be used for an extended period of time.
- Do not dispose of batteries in fire. Batteries may explode or leak.
The transmitter has the desktop and wall mounting structure.
- For the Atomic Clock, use the recessed hold on the back of the clock to hang it.
- For the Transmitter, hang or place the separate wall-mounting part in an area protected from direct rain. Once the
stand is mounted, place the transmitter into the stand on the wall.
1. LED INDICATOR:
2. CHANNEL SLIDE SWITCH (inside battery compartment):
3. RESET BUTTON:
4. BATTERY COMPARTMENT:
5. BATTERY DOOR
6. WALL MOUNT
- LED flashes when the remote unit transmits a reading.
- Assign the transmitter to channel 1, 2 or 3 to receive 433.92MHz signal
- Press it to restart the transmitter and return all values to default values.
- Use 2 x AA Size batteries.
SETTING UP THE TRANSMITTER:
NOTE:
SUGGESTION:
1. Remove the battery door and insert 2 AA batteries into the battery compartment and follow the polarities marked.
2. Slide the switch to Channel 1. Press the RESET button to set the transmitter.
3. Press the CHANNEL button at the back of the clock to set channel 1.
4. Lock the transmitter battery door with the screw.
5. Place the units away from metal objects and electrical appliances to minimize interference. Position the receiver
within the effective transmission range 100 feet in usual circumstances.
6. If Channel 1 signal is not received properly, change the transmitter slide button to Channel 2 or 3. Press CHANNEL
button of the clock to 2 or 3 respectively. Press and hold the CHANNEL button for three seconds. The unit will start
to find the new channel.
1. To receive the transmitter signal, the channels of receiver and transmitter must match each other.
2. Once the channel is assigned to transmitter, you can only change it by removing the batteries or resetting the unit.
Make sure you read the instructions before operating this clock. We have developed this sophisticated instrument for
the best reception performance; however, the signal transmitted from USAAtomic Clock transmitter will be affected in
certain situations. We advise you to note the following instructions:
1. It is strongly recommended to start this clock at night and let the clock receive the signal automatically past midnight.
2. Always place the unit away from interfering sources such as TV set, computer, etc.
3. Avoid placing the unit on or next to metal plates.
4. Areas with access to windows is recommended for better reception.
5. Do not start reception in moving articles such as vehicles or trains.
Recommended operating range:
Resolution:
Humidity measuring range: 20% RH to 95%RH
20% RH to 95%RHOperating range:
Resolution: 1%RH
RF transmission frequency: 433.92MHz
Remote transmitter: 1 unit
RF transmission range: maximum 100 ft.
Temperature sensing cycle: around 50 seconds
Main unit: 1.5V, use 1 x AA 1.5V alkaline battery (for clock movement)
3V, use 2 x AA 1.5V alkaline battery (for LCD display)
Remote transmitter: 3V, use 2 x AA 1.5V alkaline battery
REMOTE TRANSMITTER
POWER
SPECIFICATIONS:
MAIN UNIT
Recommended operating range:
Resolution:
Humidity measuring range: 20% RH to 95%RH
Recommended operating range: 20% RH to 95%RH
Resolution: 1%RH
Radio controlled signal: WWVB
Changes or Modifications not expressly approved by the party responsible could void the user's authority to operate
this device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
NOTE
0.1°C/F(above 0°C/32°F), 1°C/°F(below 0°C/32°F)
-50°C to 70°C, -122°F to 158°F
0°C to 45°C, 32°F to 113°F
0.1°C/F(above 0°C/32°F), 1°C/°F(below 0°C/32°F)
SPC1100
or Email at [email protected]
Due to seasonal demands, support response times may vary up to 3 to 5
business days. Your request is important. We listen to every voice mail &
read every email. In an effort to reduce support times, we encourage you to
submit your request online which is 2 to 3 times faster than phone support.
or email
