WARNING

1
Thank you for purchasing our time clock.
For safe and proper operation, please carefully read the manual
before using the time clock and save it for reference.
Features:
Quartz time clock
Dot matrix printer
Perpetual calendar
Automatic daylight saving time
3-way print activation
Automatic
Semi-automatic
Manual
Prints in 4 languages
12 or 24-hour format
Regular minute, 1/10, 1/60,
1/100 or 5/100 of an hour
2 or 4-digit year imprint
13 preprogramed comments
Digital LCD display (Date, Hour,
Minute, Day of the week indication)
Adjustable print position
Prints seconds
Caution:
Avoid placing the unit in environments that are:
•humid or dusty.
•exposed to direct sunshine.
•subject to frequent or continuous vibrations.
•outside the temperature range between -5˚and 45˚C
(+25˚and 113˚F)
•affected by chemicals or ozone.
Place the time clock close to the wall outlet so that it is easily
accessible to disconnect.
Do not put a heavy object on the clock, or not forcefully press the
cover of the clock. It may cause mechanism trouble and danger
especially when the unit is hung on the wall.
Replace battery with TOSHIBA, part no. CR 2450 TVB only.
Use of another battery may present a risk of fire or explosion.
Main applications: Payroll/job cost recorder or time stamp
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
For questions about the operation of this time clock, or to order
supplies and accessories, please contact Lathem Time at
[phone].

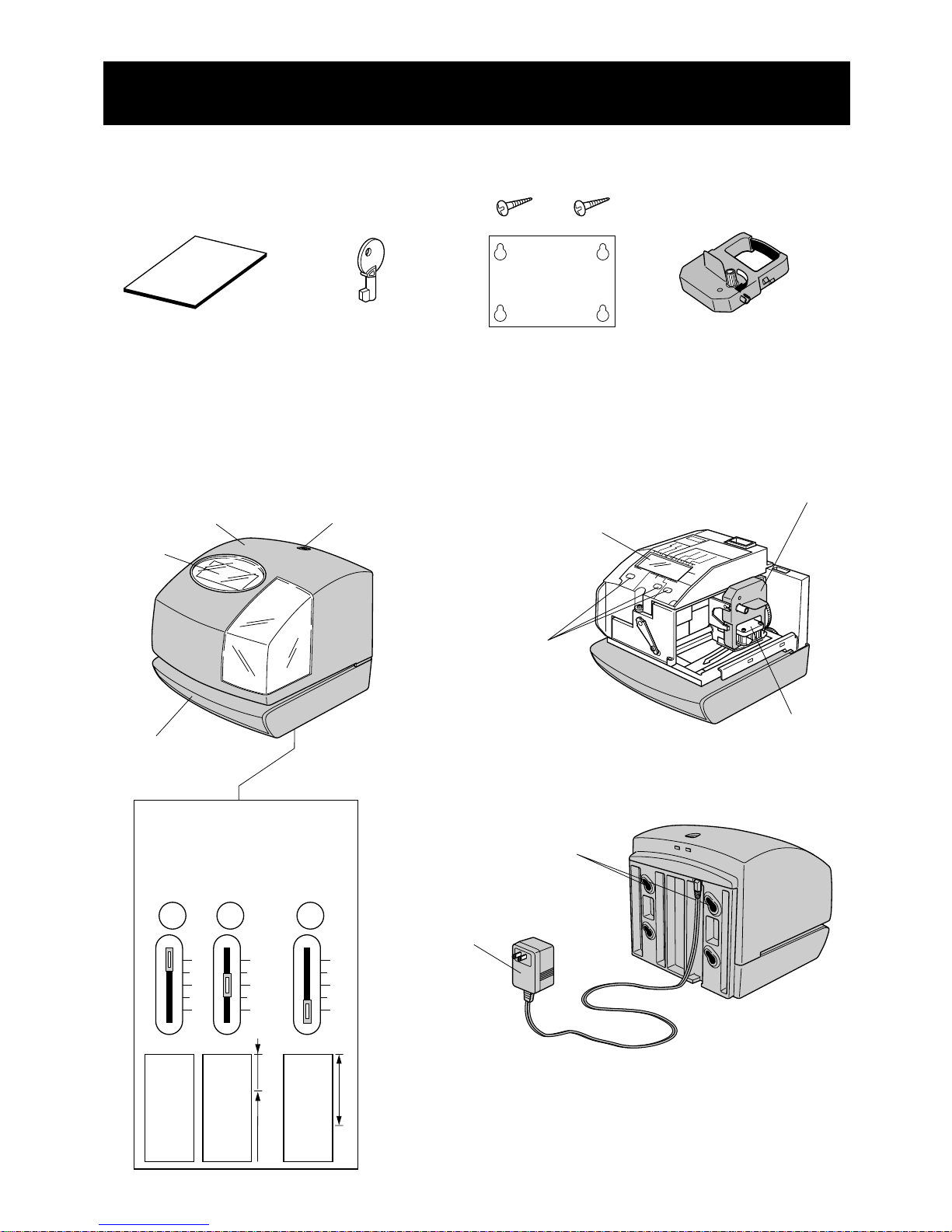

BEFORE USING THE TIME CLOCK
Accessories
Configuration
Wall-mount holes
(Upper side)
Wall-mount fittings
Screws (2 pcs.)
Template
Ribbon cassette
(installed at the factory)
Key
User's manual
<Back view>
<Cover off>
<Front view>
JAN 31AM12:00
JAN 31AM12:00
JAN31A
15mm
30mm
<Print position adjuster>
The print position from the card
edge is adjustable by pressing
and sliding the print position
button on outside bottom.
Cover
Display
Push bar
Key hole
AC adapter
Display
Ribbon cassette
Print head
Control buttons
The print position from the card edge is adjustable by pressing
and sliding the print position button located on the right outside
bottom of the recorder. Maxuim distance from edge of form to
print is approximately 1 3/16"(30mm).
PRINT POSITION ON TIME CARD
2

3
QUICK EASY SETUP
NOTICE: Remove the PROTECTION PAD before you plug the AC adapter into the AC outlet.

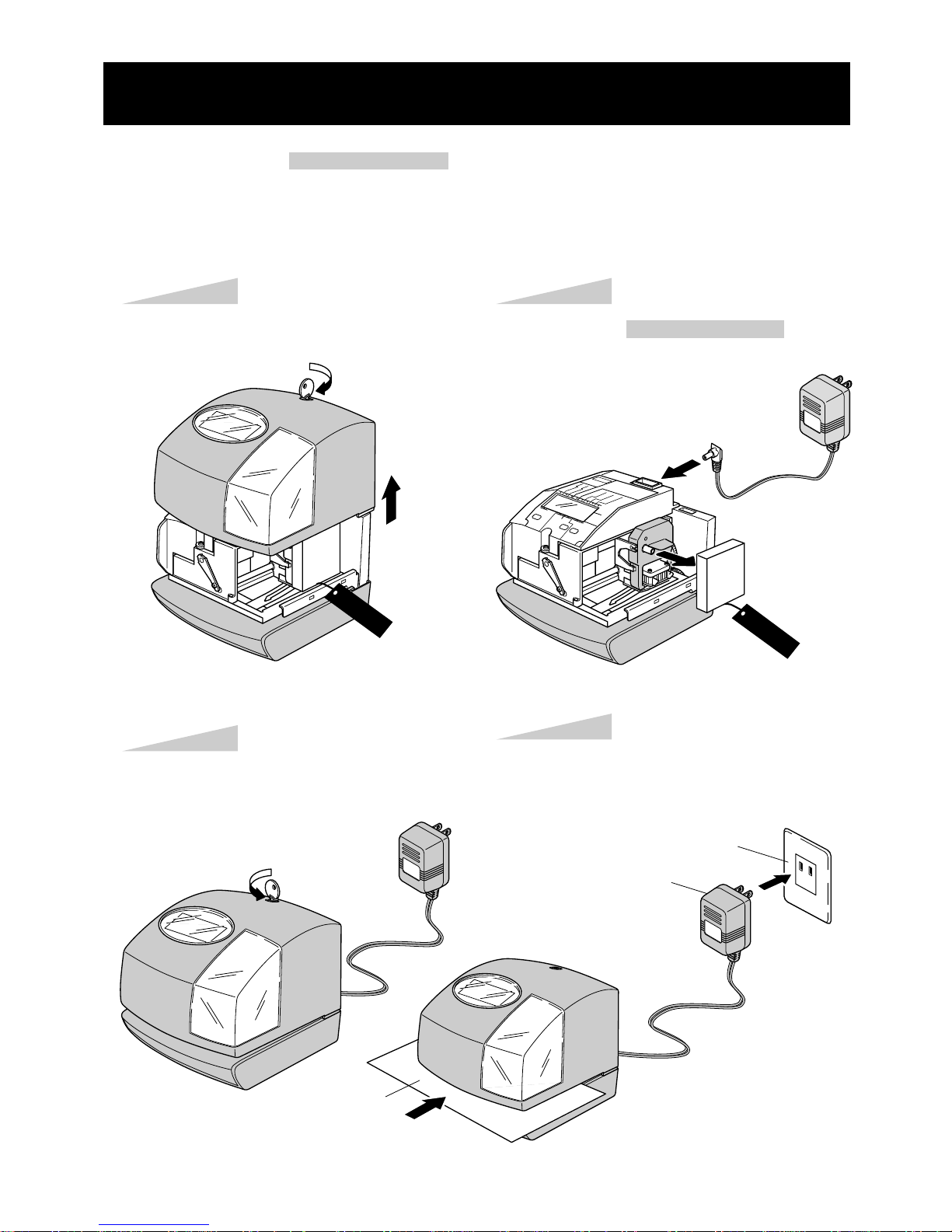

To setup your time clock, follow next steps:
Step 1
Unlock the key and remove the cover. Remove the PROTECTIONPAD , and
plug the AC adapter into the time clock.
Replace the cover and lock. Plug the AC adapter into the AC outlet
and insert a card.
Step 2
Step 4
Step 3
CAUTION
AC outlet
AC adapter
Card
CAUTION

4

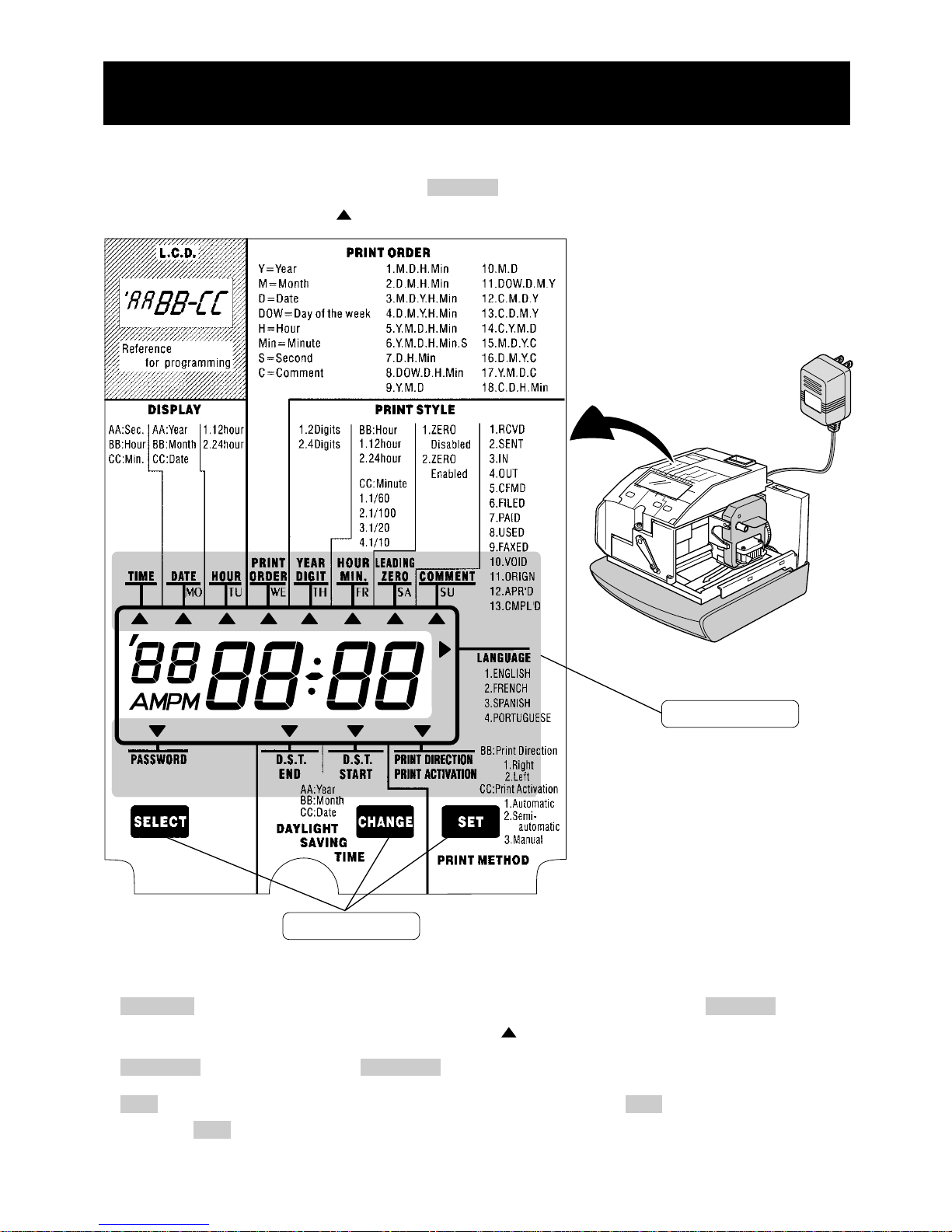

To enter the program setting mode, you should plug the AC adapter into the AC outlet and
remove the cover. Thereafter press the SELECT button once. Then the clock goes into the
program mode showing the " " on the display positioned at the "TIME".
Function of 3 control buttons
SELECT : You can select the desired program setting mode by pressing this SELECT button.
Selected program setting mode is indicated by the " " mark on the display.
CHANGE : When you press the CHANGE button, you can increment the set value.
SET : You can set the value selected on the display by pressing the SET button. Thereafter you
press this SET button again, you can return the clock to the normal operation mode.
HOW TO PROGRAM THE CLOCK
Control buttons
Program modes

5
SETTING THE DISPLAY FORMAT
SETTING THE TIME

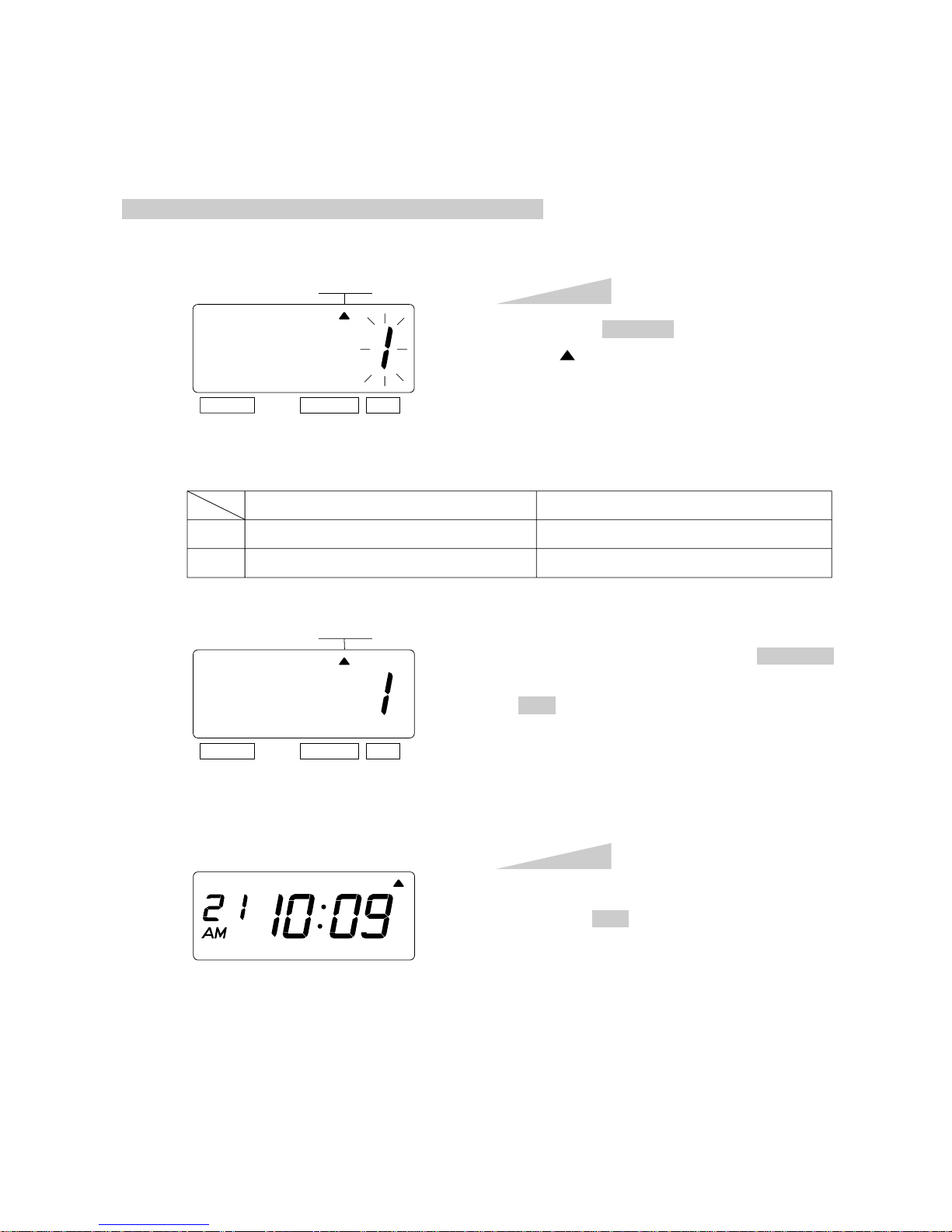

Example: Change the time from 10:08 to 10:09.
Press the SELECT button and position
the " " mark at the "TIME".
At that moment, the "Hour" flashes. (The
flashing means it can be changed.)
Change the "Hour".
In case of the example, press the SET
button because the hour is not to be
changed.
At that moment, the flashing changes
from "Hour" to "Minute".
Step 1
TIME
SELECT CHANGE SET
Change the "Minute".
Press the CHANGE button to set at "09",
and then press the SET button.
At that moment, the "Second" starts to
run from "00".
Step 2
TIME
SELECT CHANGE SET
SELECT CHANGE SET
TIME
After you finish setting the time, press
the SET button once again.
Now the time setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 3, the clock will not print.
Step 3
TU WE TH FR SA SUMO
Second Hour Minute

6
SETTING THE DATE

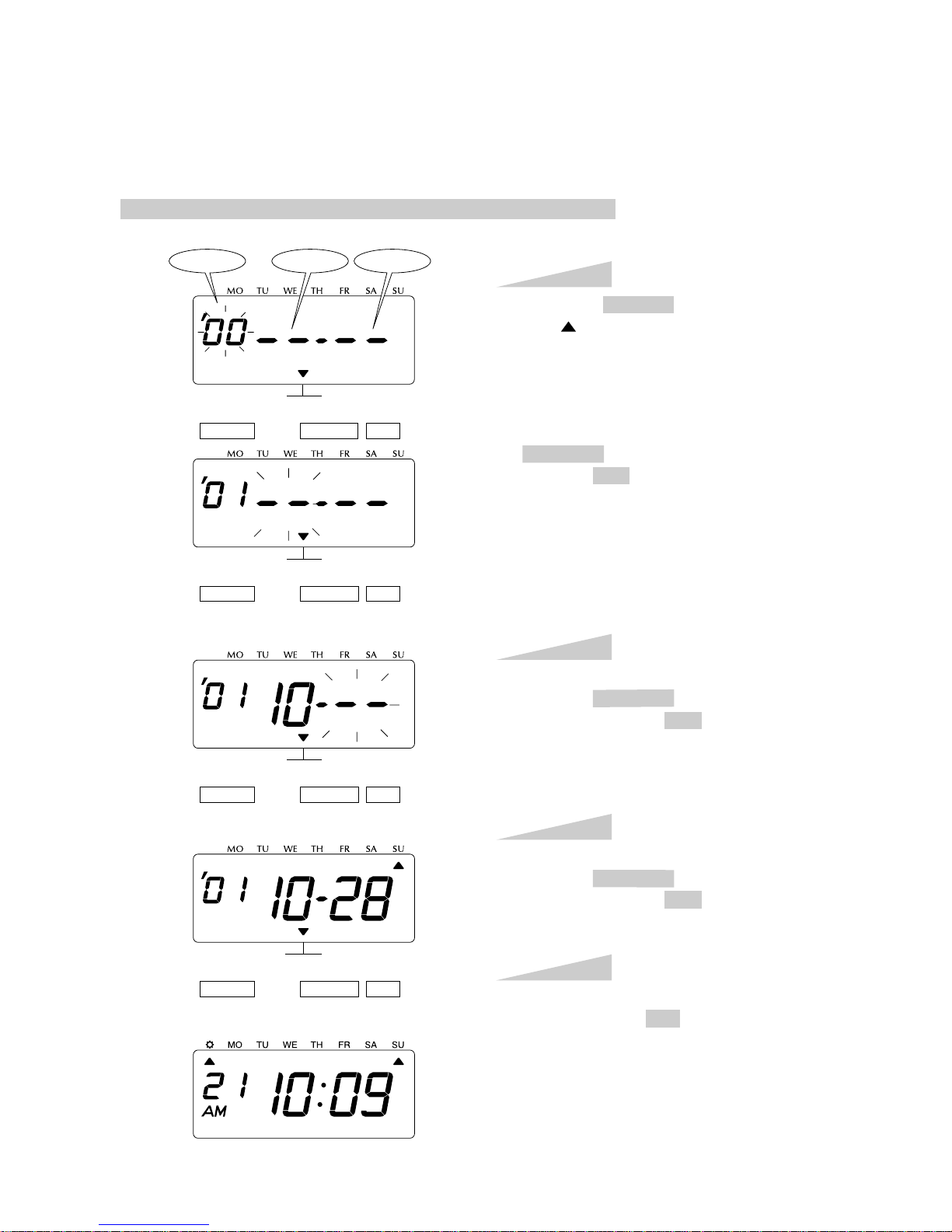

Example: Change the date from October 20, 2001 to October 21, 2001.
Press the SELECT button and position
the " " mark at the "DATE".
At that moment, the "Year" flashes. (The
flashing means it can be changed.)
Change the "Year".
In case of the example, press the SET
button because the year 2001 is not to be
changed.
At that moment, the flashing changes
from "Year" to "Month".
Step 1
DATE
SELECT CHANGE SET
DATE
SELECT CHANGE SET
DATE
SELECT CHANGE SET
DATE
SELECT CHANGE SET
Change the "Month".
In case of the example, press the SET
button because the month is not to be
changed.
At that moment, the flashing changes
from "Month" to "Date".
Step 2
Change the "Date".
Press the CHANGE button to set at "21",
and then press the SET button.
Step 3
After you finish setting the date, press
the SET button once again.
Now the date setting has been completed.
Replace the cover and lock.
IMPORTANT: If you do not complete
Step 4, the clock will not print.
Step 4
TU WE TH FR SA SUMO
Year Month Date

7

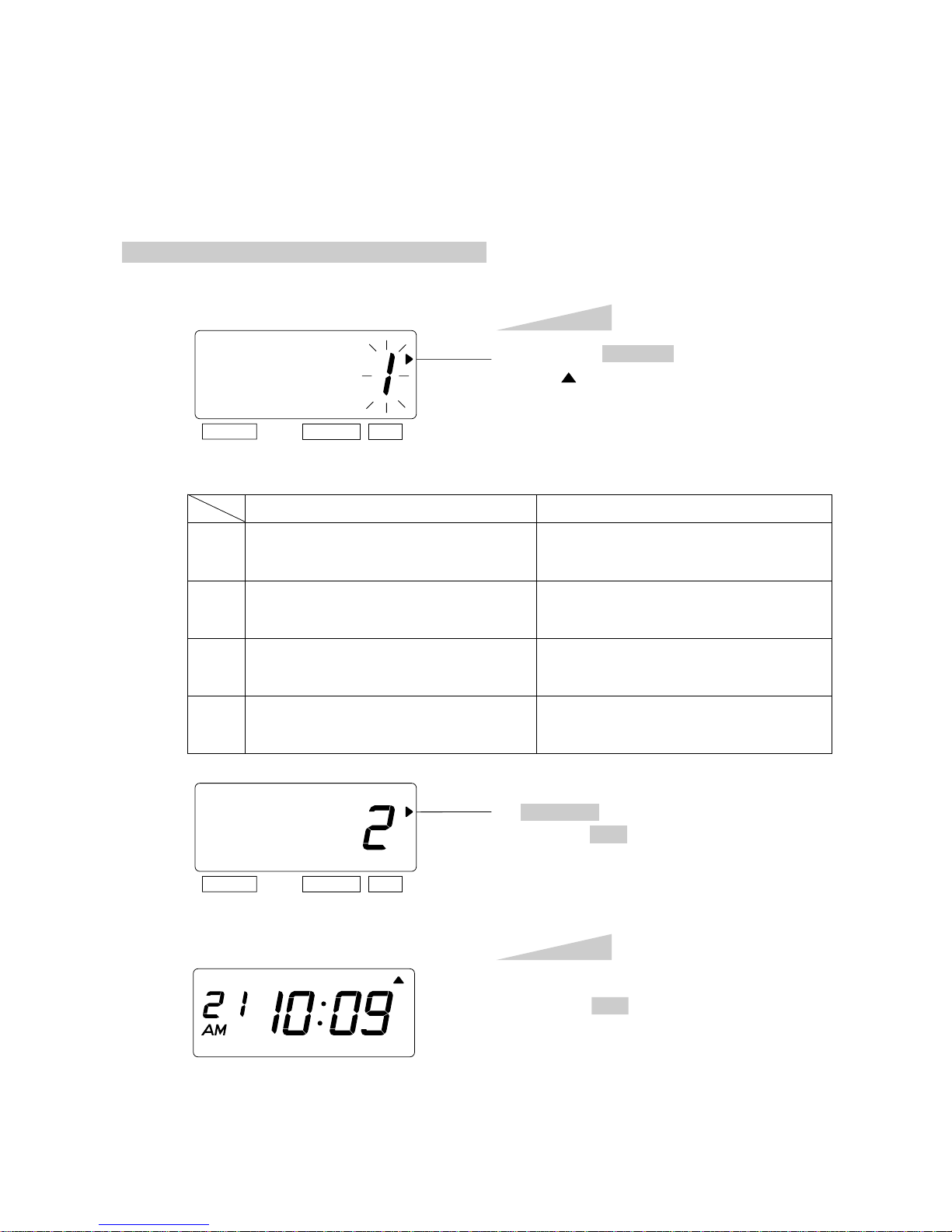

SETTING THE 12/24 HOUR

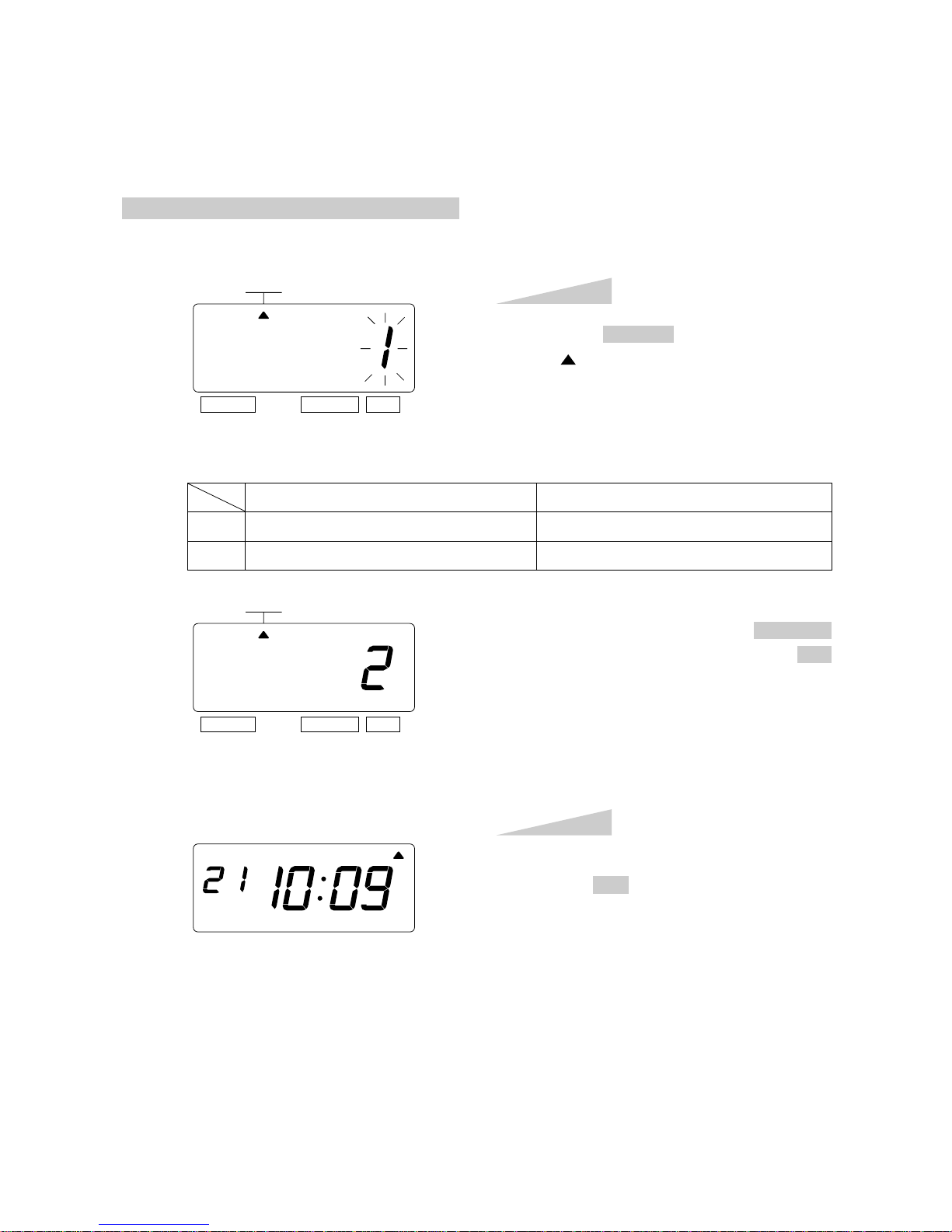

Example: Change the hour format to 24 hour.
Press the SELECT button and position
the " " mark at the "HOUR".
At that moment, the flashing digit
indicates "Order Options" of the hour
format. (The flashing means it can be
changed.)
Step 1
HOUR
SELECT CHANGE SET
After you finish setting the 12/ 24 hour,
press the SET button once again.
Now the 12/24 hour setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 2, the clock will not print.
Step 2
HOUR
SELECT CHANGE SET
1.
2.
Order Options
12 hour
24 hour
Display
PM 3:00
15:00
In case of the example, press the CHANGE
button to set at "2". And then press the SET
button.
TU WE TH FR SA SUMO

8

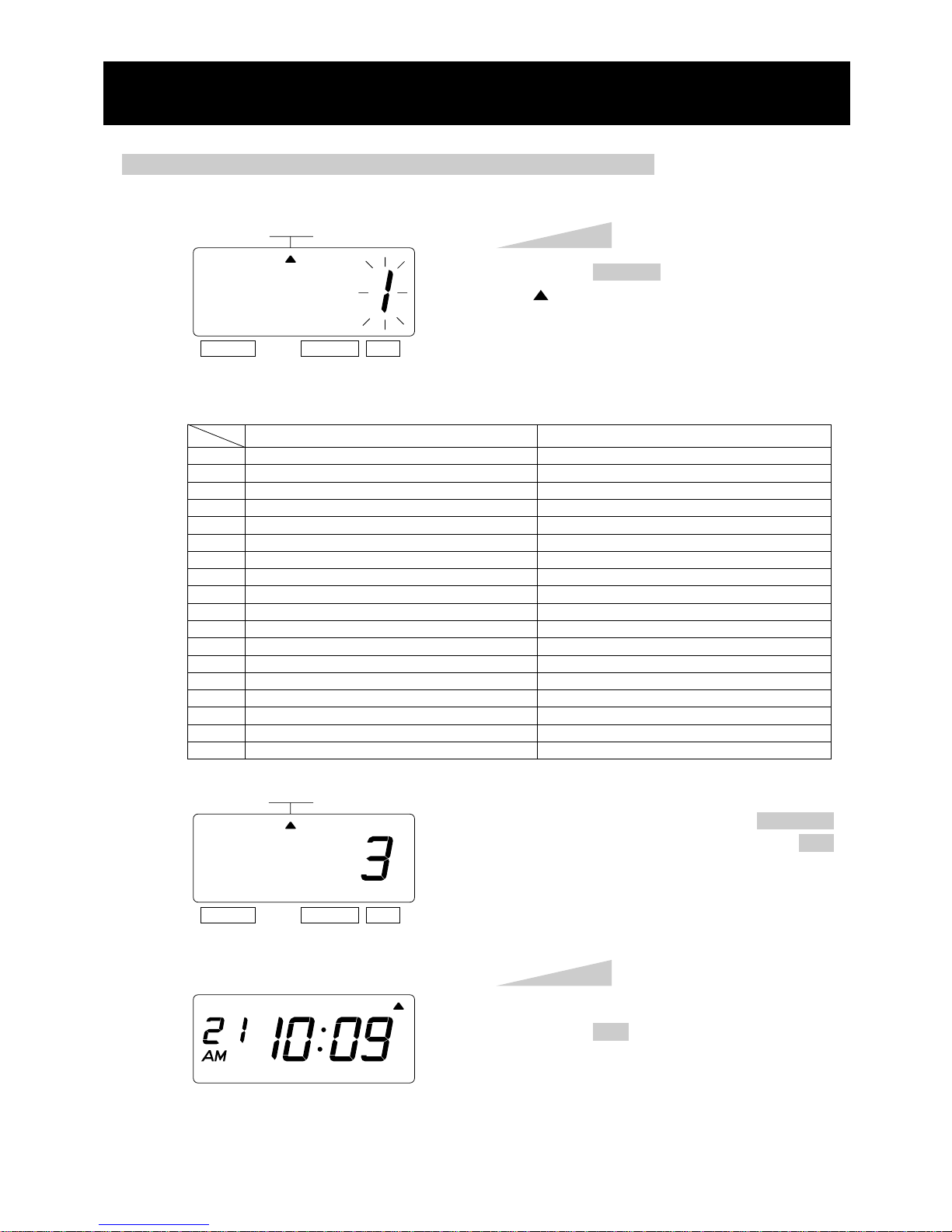

Example: Change the print order to "Month, Date, Year, Hour, Minute".
Press the SELECT button and position the
" " mark at the "PRINT ORDER".
At that moment, the flashing digits indicate
"Order Options" of the print order. (The
flashing means it can be changed.)
Step 1
PRINT
ORDER
SELECT CHANGE SET
PRINT
ORDER
SELECT CHANGE SET
In case of the example, press the CHANGE
button to set at "3". And then press the SET
button.
After you finish setting the print order,
press the SET button once again.
Now the print order setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 2, the clock will not print.
Step 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Order Option
M, D, H, Min
D, M, H, Min
M, D, Y, H, Min
D, M, Y, H, Min
Y, M, D, H, Min
Y, M, D, H, Min, S
D, H, Min
DOW, D, H, Min
Y, M, D
M, D
DOW, D, M, Y
C, M, D, Y
C, D, M, Y
C, Y, M, D
M, D, Y, C
D, M, Y, C
Y, M, D, C
C, D, H, Min
Print Example
JAN 31 AM10:00
31 JAN AM10:00
JAN 31 '01 AM10:00
31 JAN '01 AM10:00
'01 JAN 31 AM10:00
'01 JAN 31 AM 10:00:00
31 AM10:00
WE, 31 AM10:00
'01 JAN 31
JAN 31
WE, 31 JAN '01
SENT JAN 31 '01
SENT 31 JAN '01
SENT '01 JAN 31
JAN 31 '01 SENT
31 JAN '01 SENT
'01 JAN 31 SENT
SENT 31 AM10:00
SETTING THE PRINT ORDER
Y=Year, M=Month, D=Date, DOW=Day of the week, H=Hour, Min=Minute
S=Second, C=Comment
TU WE TH FR SA SUMO

9
SETTING THE PRINT STYLE
SETTING THE YEAR DIGIT

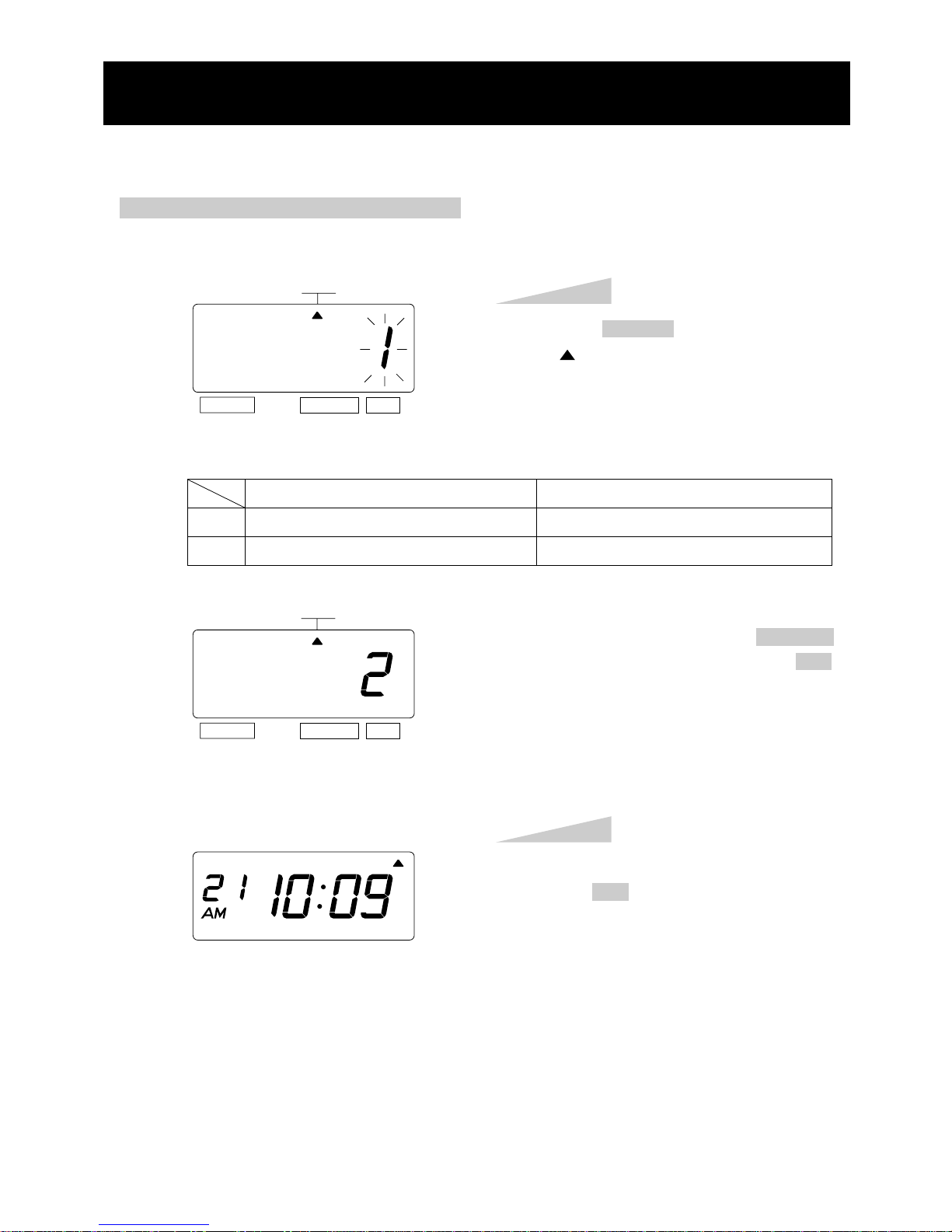

Example: Change the year imprint to 4 digits.
Press the SELECT button and position
the " "mark at the "YEAR DIGIT".
At that moment, the flashing digit
indicates "Order Options" of the year
imprint. (The flashing means it can be
changed.)
Step 1
YEAR
DIGIT
SELECT CHANGE SET
YEAR
DIGIT
SELECT CHANGE SET
After you finish setting the year digit,
press the SET button once again.
Now the year digit setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 2, the clock will not print.
Step 2
1.
2.
Order Options
2 Digits
4 Digits
Print Example
JAN 31 '01 AM10:00
JAN 31 2001 AM10:00
In case of the example, press the CHANGE
button to set at "2", and then press the SET
button.
TU WE TH FR SA SUMO

10
SETTING THE HOUR/MIN.

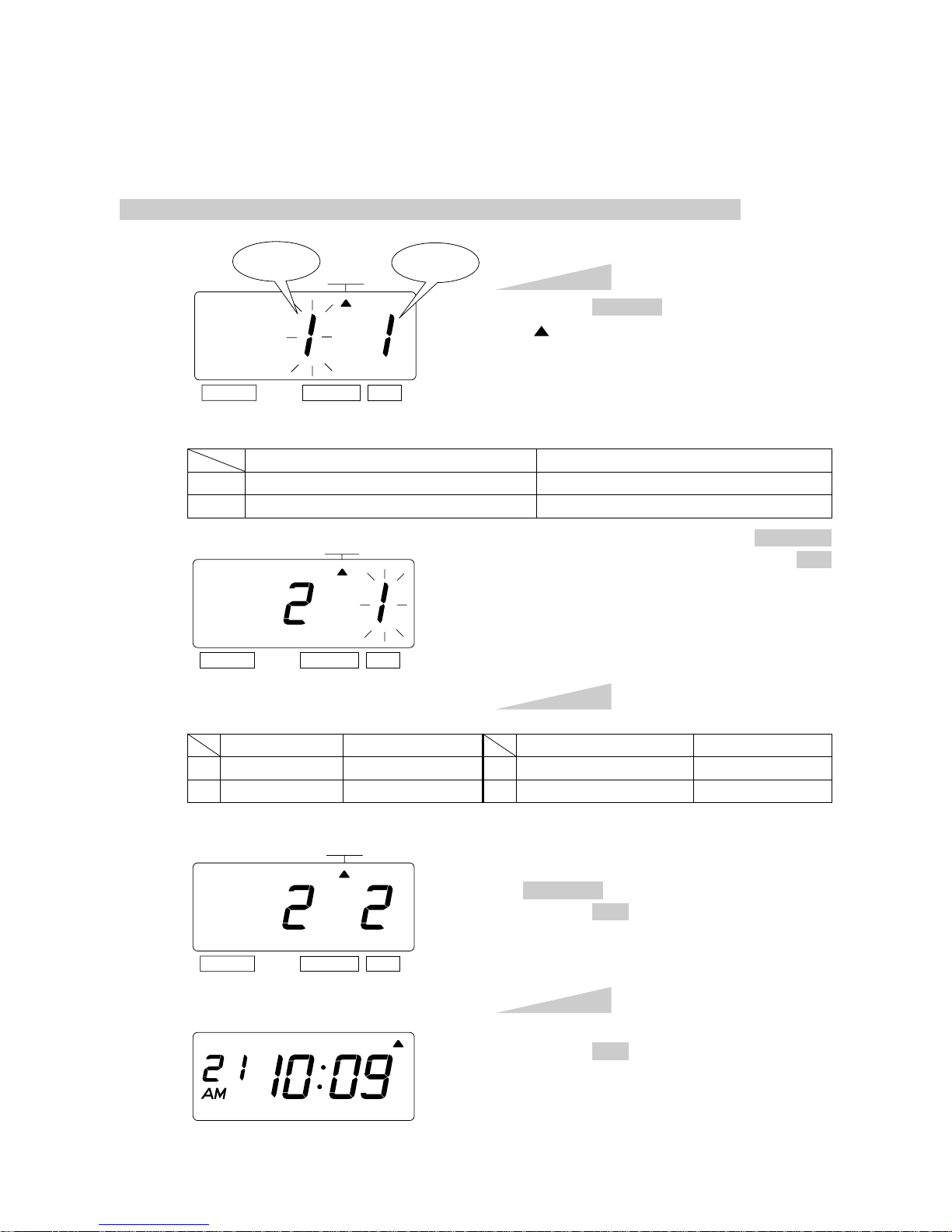

Example: Change the print style of the "Hour" and "Minute" to 24 hour and 1/100 min.
Press the SELECT button and position the
" "mark at the "HOUR /MIN".
At that moment, the flashing digit at the
left indicates "Order Options" of the print
style of the "Hour". (The flashing means it
can be changed.)
Step 1
HOUR
MIN.
SELECT CHANGE SET
HOUR
MIN.
In case of the example, press the CHANGE
button to set at "2". And then press the SET
button.
At that moment, the flashing changes from
"Hour" to "Minute".
1.
2.
Order Options
12 Hour
24 Hour
Print Example
JAN 31 PM3:00
JAN 31 15:00
After you finish setting the hour/minute,
press the SET button once again.
Now the hour/minute setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 3, the clock will not print.
Step 3
HOUR
MIN.
SELECT CHANGE SET
SELECT CHANGE SET
In case of the example, press the
CHANGE button to set at "2". And then
press the SET button.
Step 2
Change the "Hour".
1.
2. 3. 4.
1/60 Min.
1/100 Min. JAN 31 AM12:10 JAN 31 AM12.17 1/20 Min. (=5/100 Min.) 1/10 Min.
Change the "Minute".
JAN 31 AM12.15
JAN 31 AM12.1
Order Options Order Options Print ExamplePrint Example
TU WE TH FR SA SUMO
Type of
Minute
Type of
an hour

11
SETTING THE LEADING ZERO
Example: Change the leading zero to "ZERO: Disabled".
Press the SELECT button and position
the " "mark at the "LEADING ZERO".
At that moment, the flashing digit
indicates "Order Options" of the leading
zero.
(The flashing means it can be changed.)
Step 1
LEADING
ZERO
LEADING
ZERO
SELECT CHANGE SET
SELECT CHANGE SET
After you finish setting the leading zero,
press the SET button once again.
Now the leading zero setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 2, the clock will not print.
Step 2
1.
2.
Order Options
ZERO Disabled
ZERO Enabled
Print Example
JAN 1 PM3:00
JAN 01 PM03:00
In case of the example, press the CHANGE
button to set at "1". And then press the
SET button.
TU WE TH FR SA SUMO

12
SETTING THE COMMENT
Example: Change the comment to "SENT".
Press the SELECT button and position the
" " mark at the "COMMENT".
At that moment, the flashing digits indicate
"Order Options" of the comment.
(The flashing means it can be changed.)
Step 1
COMMENT
COMMENT
SELECT CHANGE SET
SELECT CHANGE SET
After you finish setting the comment, press
the SET button once again.
Now the comment setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 2, the clock will not print.
Step 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Order Options
RCVD
SENT
IN
OUT
CFMD
FILED
PAID
USED
FAXED
VOID
ORIGN
APR'D
CMPL'D
Print Example
JAN 31 '01 RCVD
JAN 31 '01 SENT
JAN 31 '01 IN
JAN 31 '01 OUT
JAN 31 '01 CFMD
JAN 31 '01 FILED
JAN 31 '01 PAID
JAN 31 '01 USED
JAN 31 '01 FAXED
JAN 31 '01 VOID
JAN 31 '01 ORIGN
JAN 31 '01 APR'D
JAN 31 '01 CMPL'D
In case of the example, press the CHANGE
button to set at "2". And then press the SET
button.
TU WE TH FR SA SUMO

13
SETTING THE LANGUAGE
This setting is available if you select "Month," "Day of the week" or "Comment" in previous
"PRINT ORDER".
Example: Change the print language into French.
Press the SELECT button and position
the " " mark at the "LANGUAGE".
At that moment, the flashing digit
indicates "Order Options" of the print
language. (The flashing means it can be
changed.)
Step 1
LANGUAGE
SELECT CHANGE SET
SELECT CHANGE SET
After you finish setting the language,
press the SET button once again.
Now the language setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 2, the clock will not print.
Step 2
1.
2.
3.
4.
Order Options
ENGLISH
FRENCH
SPANISH
PORTUGUESE
Print Example
WE, 26 DEC '01
OUT 31 AM10:00
ME, 26 DEC '01
SORT 31 AM10:00
MI, 26 DIC '01
SAL 31 AM10:00
QA, 26 DEZ '01
SAIDA 31 AM10:00
In case of the example, press the
CHANGE button to set at "2". And then
press the SET button.
TU WE TH FR SA SUMO
LANGUAGE

14
SETTING THE PRINT METHOD
Example: Change the print direction to "Left" and the print activation to "Manual".
Press the SELECT button and position the
" " mark at the "PRINT DIRECTION;
PRINT ACTIVATION".
At that moment, the flashing digit at the
left indicates "Order Options" of the print
direction. (The flashing means it can be
changed.)
In case of the example, press the
CHANGE button to set at "2". And then
press the SET button.
At that moment, the flashing changes
from the "Print Direction" to the "Print
Activation".
Step 1
PRINT DIRECTION
PRINT ACTIVATION
SELECT CHANGE SET
Print
activation
PRINT DIRECTION
PRINT ACTIVATION
SELECT CHANGE SET
Print
direction
1.
2.
Order Options
Right
Left
Change the "Print Direction".

15
In case of the example, press the
CHANGE button to set at "3". And then
press the SET button.
Step 2
TU WE TH FR SA SUMO
After you finish setting the print method,
press the SET button once again.
Now the print method setting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 3, the clock will not print.
Step 3
PRINT DIRECTION
PRINT ACTIVATION
SELECT CHANGE SET
1.
2.
3.
Order Options
Automatic
Semi-automatic
Manual
Change the "Print Activation".
Automatic will allow the clock to print by
simply inserting a card or sheet of paper.
Semi-automatic will allow the clock to print by
pressing the push bar only when a card or piece
of paper is inserted.
Manual will allow the clock to print by pressing
the push bar.
Push bar

16
SETTING THE STARTING DATE OF DAYLIGHT SAVING TIME
Example: Daylight saving time starts on Sunday, March 25, 2001.
Press the SELECT button and position
the " " mark at the "D.S.T. START".
At that moment, the "Year" flashes.
(The flashing means it can be changed.)
Change the "Year".
In case of the example, press the
CHANGE button to set at "01". And then
press the SET button.
At that moment, the flashing changes
from "Year" to "Month".
Step 1
D.S.T.
START
SELECT CHANGE SET
Change the "Month".
Press the CHANGE button to set at "3".
And then press the SET button.
At that moment, the flashing changes
from "Month" to "Date".
Step 2
Change the "Date".
Press the CHANGE button to set at "25".
And then press the SET button.
Step 3
After you finish setting the starting date of
D.S.T., press the SET button once again.
Now the starting date of D.S.T. setting has
been completed.
Go on to the "SETTING THE ENDING
DATE OF DAYLIGHT SAVING
TIME".
Step 4
SETTING THE DAYLIGHT SAVING TIME
Example: Start date Sunday, March 25, 2001.
End date Sunday, October 28, 2001.
If you set as the above, the time clock remembers the start date as the last Sunday of March
and the end date as the last Sunday of October. Once set, the time clock automatically
updates the settings every year thereafter. No further manual setting is necessary.
Year Date
Month
D.S.T.
START
SELECT CHANGE SET
D.S.T.
START
SELECT CHANGE SET
D.S.T.
START
SELECT CHANGE SET

17
SETTING THE ENDING DATE OF DAYLIGHT SAVING TIME
Example: Daylight saving time ends on Sunday, October 28, 2001.
Press the SELECT button and position
the " " mark at the "D.S.T. END".
At that moment, the "Year" flashes. (The
flashing means it can be changed.)
Change the "Year".
In case of the example, press the
CHANGE button to set at "01". And then
press the SET button.
At that moment, the flashing changes
from "Year" to "Month".
Step 1
D.S.T.
END
SELECT CHANGE SET
Change the "Month".
Press the CHANGE button to set at "10".
And then press the SET button.
At that moment, the flashing changes
from "Month" to "Date".
Step 2
Change the "Date".
Press the CHANGE button to set at "28".
And then press the SET button.
Step 3
After you finish setting the ending date of
D.S.T., press the SET button once again.
Now the ending date of D.S.T. setting has
been completed. Replace the cover and
lock.
IMPORTANT: If you do not complete
Step 4, the clock will not print.
Step 4
Year Date
Month
D.S.T.
END
SELECT CHANGE SET
D.S.T.
END
SELECT CHANGE SET
D.S.T.
END
SELECT CHANGE SET

DELETING THE DAYLIGHT SAVING TIME SETTING
Press the SELECT button and position
the " " mark at the "D.S.T. START".
At that moment, the "Year" flashes. (The
flashing means it can be changed.)
Next, press the SET button. At that
moment, the flashing changes from
"Year" to "Month".
Step 1
D.S.T.
START
SELECT CHANGE SET
D.S.T.
START
Press the CHANGE button to set at
" ". And then press the SET button.
At that moment, the flashing changes
from "Month" to "Date".
Step 2
Press the SET button again. At that
moment, the flashing changes from
"25" to " ".
Step 3
Press the SET button once again.
Now the D.S.T. deleting has been
completed. Replace the cover and lock.
IMPORTANT: If you do not complete
Step 4, the clock will not print.
Step 4
Year Date
Month
SELECT CHANGE SET
D.S.T.
START
SELECT CHANGE SET
D.S.T.
START
SELECT CHANGE SET
18
To delete and cancel the daylight saving time setting, change the display of "Month" of the
starting setting to " ".
Example: Change March 25, 2001 of "D.S.T. START" and delete daylight saving time setting.
