Sharp DV-NC70W User manual

OPEN/CLOSE
OPERATE EJECT/STOP
REW PLAY/×2
REC
CH
VCR/DVD
SELECTOR
TIMER
VCR DVD
PLAY STOP
AV 2 IN VIDEO L(MONO)-AUDIO-R
/
OPERATION MANUAL
DV-NC70W
VCR/DVD COMBINATION
MODEL
DV-NC70
DV-NC70X
NTSC/PAL
3
DV-NC70W
DV-NC70
ENGLISH ......
GB
1 –
GB
104
......
C
1 –
C
104
PAL NTSC
Only for DV-NC70W
4
DV-NC70X
•This Operation Manual explains operation for three models (DV-NC70W, DV-NC70 and DV-NC70X)
available in the two geographic areas listed below. Take care to make sure that the instructions you
read are for your particular area.
1. DV-NC70W, DV-NC70 .... Hong Kong: Region Number 3
2. DV-NC70X ....................... Australia: Region Number 4
TINS-A366WJZZ
SHARP CORPORATION
Osaka, Japan
DV-NC70W/DV-NC70/DV-NC70X OPERATION MANUAL /

About This Manual

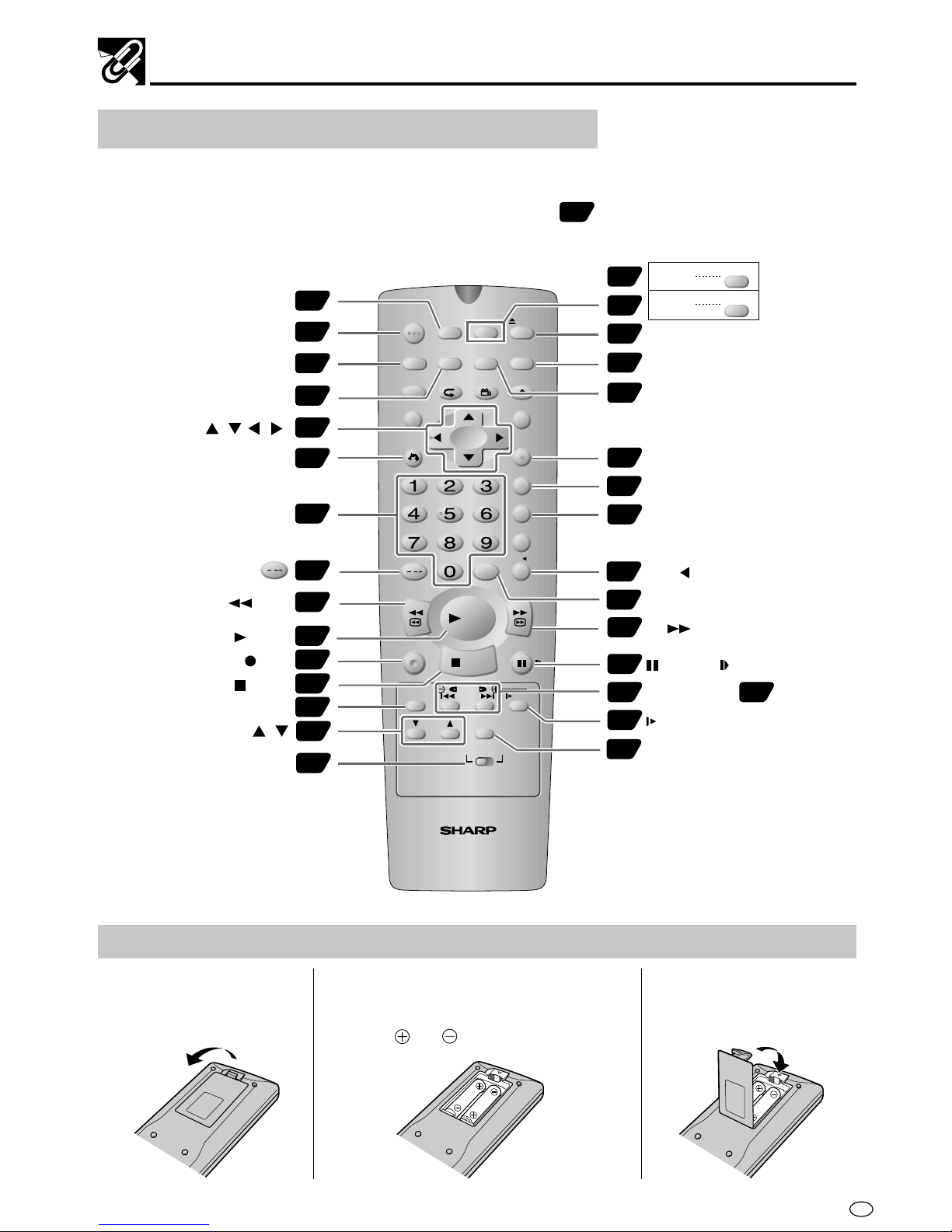

•All mentions of “the Remote” refer to the remote control unit.

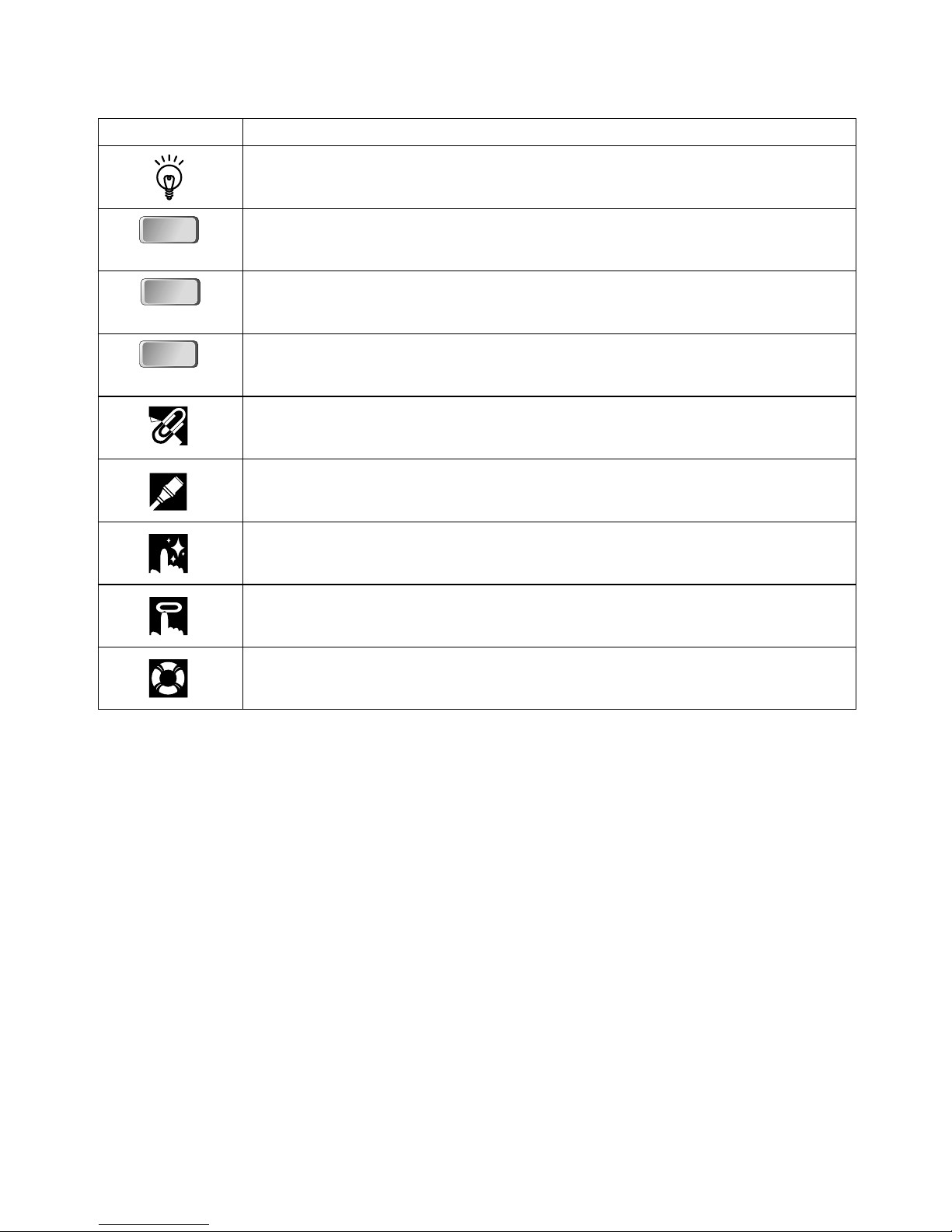

•The following table describes the icons used in this Operation Manual.
Icon Meaning
Tips and Hints for easier operation
Functions for DVD
Functions for VIDEO CD
Functions for Audio CD
GENERAL INFORMATION
CONNECTION AND INITIAL SETTING
VCR, DVD SETUP
WATCHINGTHEVCR,DVD
OTHERINFORMATION
DVD
DVD
C D
C D
Important!
Be sure to read this Operation Manual carefully before using the Product for the first time, and keep it on hand
for future reference when you experience operational problems.
C D
C D
VIDEO
VIDEO

1
GB
Note:
This Product can be used only where the power
supply is AC 110V-240V, 50/60Hz. It cannot be
used elsewhere.
<Only for DV-NC70X>
Note:
This Product can be used only where the power
supply is AC 240V, 50Hz. It cannot be used
elsewhere.
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
AS THE LASER BEAM USED IN THIS PRODUCT
IS HARMFUL TO THE EYES, DO NOTATTEMPT
TO DISASSEMBLE THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
Laser Diode Properties
Material: AlGaInP
Wave length: 650 nm
Emission Duration: Continuous
Laser output: Max. 0.7 mW
SAFETY INFORMATION
(Rear of product)
CAUTION-LASER RADIATION WHEN OPEN.DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VORSICHT-LASERSTRAHLUNG, WENN GEFFNET. BLICKEN SIE NICHT IN DEN STRAHL
UND BETRACHTEN SIE DIESEN NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN.
ATTENTION-RADIATION LASER EN CAS D'OUVERTURE.NE PAS FIXER LE
FAISCEAU NI REGARDER DIRECTEMENT DES INSTRUMENTS OPTIQUES.
VARNING-LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.STIRRA EJ IN
I STRÅLEN OCH BETRAKTA EJ STRÅLEN MED OPTISKA INSTRUMENT.
VARO ! AVATTAESSA OLET ALTTIINA LASERSÄTEILYLLE. ÄLÄTUIJOTA
SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN LAPI.
VARNING-LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.STIRRA EJ IN I
STRÅLEN OCH BETRAKTA EJ STRÅLEN GEMON OPTISKT INSTRUMENT.
ADVARSEL-LASERSTRÅLING NÅR DEKSEL ÅPNES. STIRR IKKE INN I
STRÅLEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
ADVARSEL-LASERSTRÅLING VED ÅBNING.SE IKKE IND I STRÅLEN-
HELLER IKKE MED OPTISKE INSTRUMENTER.
SA005WJ
CLASS 1
LASER PRODUCT
GENERAL
INFORMATION
Power Cord Protection
To avoid any malfunctions of the Product, and to
protect against electric shock, fire or personal injury,
please observe the following.
•Hold the plug firmly when connecting or
disconnecting the AC power cord.
•Keep the AC power cord away from heating
appliances.
•Never put any heavy object on the AC power cord.
•Do not attempt to repair or reconstruct the AC
power cord in any way.
•This Product is classified as a CLASS 1 LASER
product.
•The CLASS 1 LASER PRODUCT label is located
on the rear cover.
•This product contains a low power laser device.
To ensure continued safety do not remove any
cover or attempt to gain access to the inside of
the product. Refer all servicing to qualified
personnel.
<Only for DV-NC70W/70>

GB
2
SAFETY INFORMATION
Location and Handling
•Do not place your Product in closed spaces or do
not cover it to prevent excessive temperatures
inside the Product.
•Do not place the Product in direct sunlight, or near
heat sources.
•Keep the Product away from strong magnetic
objects.
•Do not place any object containing water or other
liquids on the Product. In the event that liquid
should enter the cabinet, unplug the Product
immediately and contact the retailer or service
centre approved by SHARP immediately.
•Do not remove the Product cabinet. Touching parts
inside the cabinet could result in electric shock and/
or damage to the Product. For service and adjust-
ment inside the cabinet, call a qualified dealer or
service centre approved by SHARP.
Nonuse Periods
When the Product is not being used, switch the
Product to the standby mode.
When left unused for a long period of time, the
Product should be unplugged from the household AC
outlet.
No Fingers or Other Objects Inside
Do not put any foreign object on the disc tray.
Stacking
Place the Product in a horizontal position, and do not
place anything heavy on it.
Condensation
Moisture may form on the pickup lens in the following
conditions:
•immediately after a heater has been turned on.
•in a steamy or very humid room.
•when the Product is suddenly moved from a cold
environment to a warm one.
If moisture forms inside this Product, it may not
operate properly.
In this case, turn on the power and wait about one
hour for the moisture to evaporate.
Cleaning
Unplug your Product before cleaning. Use a damp
cloth for cleaning. Do not use cleaning fluids or
aerosols which could enter the Product and cause
damage, fire, or electrical shock. These substances
may also deteriorate the finish of your Product.
If There is Noise Interference on the
TV While a Broadcast is being
Received
Depending on the reception condition of the TV,
interference may appear on the TV monitor when you
watch a TV broadcast while the Product is turned on.
This is not a malfunction of the Product or the TV. To
watch a TV broadcast, turn off the Product.
Service
Do not attempt to service this Product yourself.
Please refer any service to the nearest service centre
approved by SHARP.
Copyright
Audio-visual material may consist of copyrighted
works which must not be recorded without the
authority of the owner of the copyright. Please refer to
relevant laws in your country.
Copy Protection
This Product supports Macrovision copy protection.
On DVDs that include a copy protection code, if the
contents of the DVD are copied using a VCR, the
copy protection code prevents the videotape copy
from playing normally.
Apparatus Claims of U.S.Patent Nos. 4,631,603,
4,577,216, 4,819,098 and 4,907,093 licensed for
limited viewing uses only.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and
other rights owners. Use of this copyright
protection technology must be authorized by
Macrovision Corporation, and is intended for home
and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
Recommended Measures for
Optimum Picture Excellence
The Product is a precision device that is constructed
using extremely accurate technology.
Soiling or friction affecting the pickup lens or disc
drive can impair the image quality. At the worst,
neither video nor audio will be played back. To obtain
optimum picture quality, the Product should be
checked (cleaning and replacement of some parts)
every 1,000 hours. Note that this period varies
depending on the environment (temperature, humid-
ity, dust, etc.) in which the Product is used. Contact
your authorized Sharp supplier for details.
Do not attempt to clean the pickup lens yourself.

3
GB

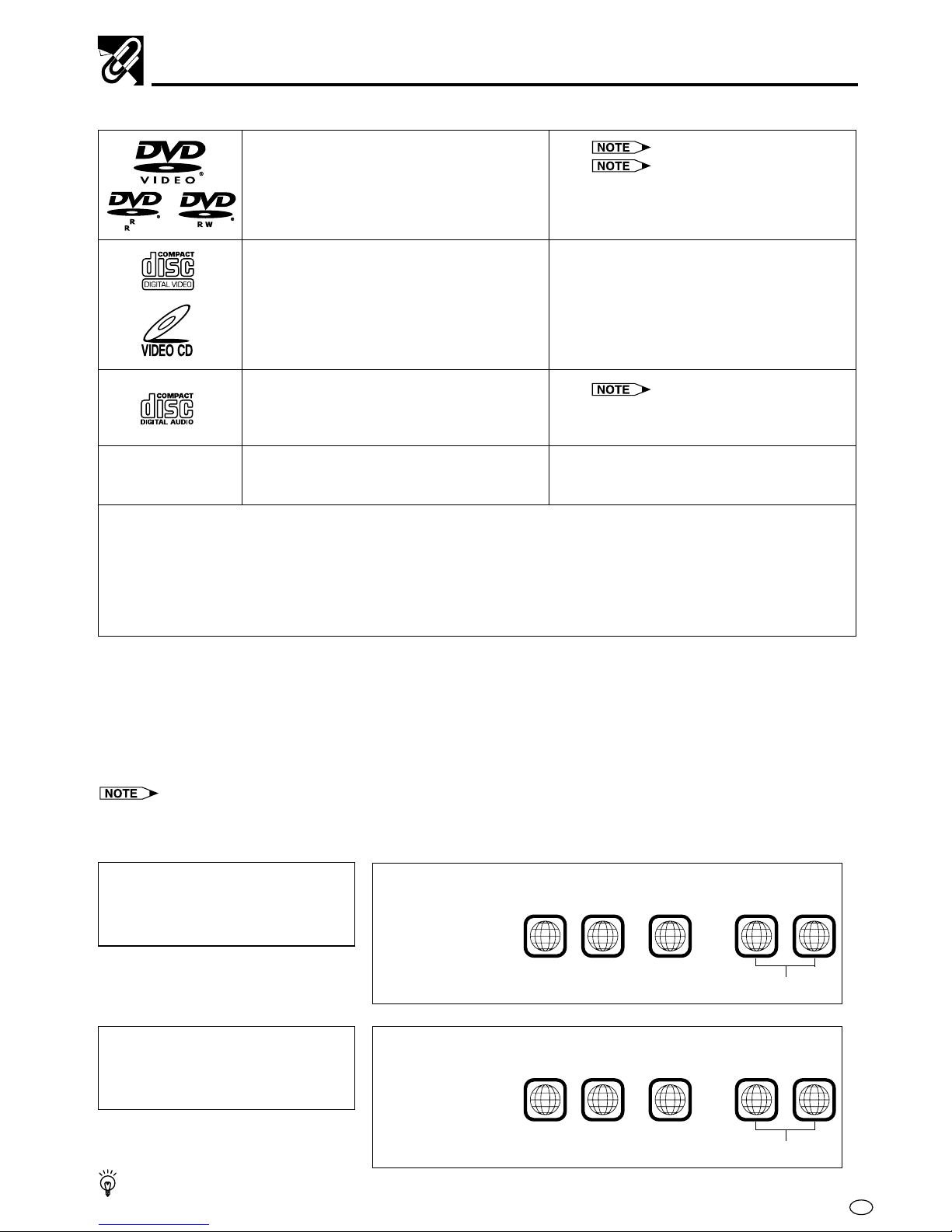

Types of Discs that Can Be Played on This Product
This Product can play back discs bearing any of the following marks:
DVD See 1
DVD-R/DVD-RW* See 2 on the next page
[8cm(3") disc/12cm(5") disc]
VIDEO CDs •Supports up to version 2.0.
[8cm(3") disc/12cm(5") disc]
Audio CDs See 3 on the next page
[8cm(3") disc/12cm(5") disc]
CD-R/CD-RW
[8cm(3") disc/12cm(5") disc]
Other CDs
1) On CD-G and CD-EXTRA discs, only the sound can be played (no images).
2) Photo CD, DVD-ROM, DVD-RW (Video Recording Format), DVD-Audio, SACD, SVCD and CD-ROM
discs cannot be used.
3) Discs with unusual shapes (heart-shaped or hexagonal discs) cannot be used. The use of such discs will
cause a fault.
•This Product will reject an incompatible disc, therefore the disc type should be checked.
This Product will output NTSC signals when playing “NTSC discs”.
NTSC signals cannot be converted to modified PAL signals.
An NTSC TV or NTSC-compatible Multi-system TV must be used when playing NTSC discs.
DVD-R/DVD-RW Recording Modes
The video mode refers to a mode that allows playback with an ordinary DVD player. It is the mode that allows
recording onto disks of DVD-R Ver. 2.0 or later or DVD-RW Ver. 1.1 or later. The video recording format (VR
Recording) refers to the recording mode that allows various recording functions and editing in compliance with
the standard specifications of the DVD Forum. (Cannot be played back with this Product)
1
• DVD video players and discs are designed with region numbers which dictate the regions in which a disc can be played. If the region
number on the disc you want to play does not match the region number in this Product, you will not be able to play the disc.
• Discs recorded in MP3 file format or
Audio format.
As for the list of the region number 3, 4 countries and the world map for all region numbers, refer to pages 102 and 103.
4.7
The region number for
this Player is
3 .
331 36
1213
546
ALL
Disc playable in all regions
Samples of region number marks compatible
with this Player:
.... ........
The region number for
this Player is
4 .
441 46
1213
546
ALL
Disc playable in all regions
Samples of region number marks compatible
with this Player:
.... ........
<Only for DV-NC70X>
<Only for DV-NC70W, DV-NC70>
* Disks that have not been finalized cannot be played
back. In addition, disks that have been recorded
with the video recording format (VR Recording) also
cannot be played back.

GB
4
Types of Discs that Can Be Played on This Product
Disc Function or Operation that is Not Available
In the cases listed below, the or indicator may appear on the TV screen, which indicates
that the function or operation is not available.
•When you intend to perform the function or operation on which the manufacturer restriction is imposed:
The specific functions on some DVDs and VIDEO CDs are determined by the disc manufacturer. As this
Product plays disc data in accordance with the guidelines of the disc manufacturer, some functions may
not be available on some discs. Be sure to read the documentation provided with the disc.
•When you intend to perform the functions or operations prohibited for the current disc:
The types of functions and operations that can be used for a particular disc vary depending on the
features of that disc. Some disc functions and operations may differ from the descriptions given in this
Operation Manual. In this event, follow the instructions given on the screen.
Icons Used on DVDs
Sample Icons
2
•This Product supports 2-channel (L/R) audio and 5.1ch (Multi-channel) MPEG Audio 1/2 (only when the DIGITAL OUT coaxial
jack is used for connection). It does not support 7.1 channel MPEG Audio Version 2.0.
3
•When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played, but the graphic images will not
be shown.
Title, Chapter and Tracks
•DVDs are divided into “titles”and “chapters”. If the disc has more than one movie on it, each movie would be
a separate “title”. “Chapters”, on the other hand, are sections of titles.
Example: DVD
•VIDEO CDs and Audio CDs are divided into “tracks”. You can think of a “track”as one tune on an Audio CD.
Example: VIDEO CD or Audio CD
•Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on them, but some do
not.
22
16:9 2
LB
1. English
2. Chinese 1. English 2. Chinese 3
Number of audio
tracks Type of subtitles recorded Screen aspect ratio recorded Region code indicatorDisc with multiple
camera angles
Track 1 Track 2 Track 3 Track 4 Track 5
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2

5
GB
Handling Precautions
•Hold the disc by the edges so the surface will not be soiled with
fingerprints. (A)
Fingerprints, dirt and scratches can cause skipping and distortion.
•Do not write on the label side with a ball-point pen or other writing
utensils.
•Do not use record cleaning sprays, benzine, thinner, static electricity
prevention liquids or any other solvent.
•Be careful not to drop or bend the disc.
•Do not install more than 1 disc on the disc tray.
•Do not try to close the disc tray when the disc is not installed
properly. (B)
•Be sure to store the disc in its exclusive case when not in use.
Then store upright.
•Do not stick paper or adhesive labels to the disc.
If the Surface is Soiled ( C)
Wipe gently with a soft, damp (water only) cloth.
When wiping discs, always move the cloth from the center hole
towards the outer edge.
(If you wipe the discs using a circular motion, circular scratches are
likely to occur, which will cause noise.)
If the playing surface of a disc is soiled or scratched, the Product
may decide that the disc is incompatible and eject the disc tray,
or it may fail to play the disc correctly. Wipe any soiling off the
playing surface with a soft cloth.
If the Disc is Brought from a Cold to a Warm
Environment, Dew May Form on the Disc
Wipe the dew off with a soft, dry, lint-free cloth before using the disc.
Improper Disc Storage
You can damage discs if you store them in the following places:
•Areas exposed to direct sunlight
•Humid or dusty areas
•Areas directly exposed to a heat outlet or heating appliance
Maintenance
•Be sure to turn the Product off and disconnect the AC power cord
before maintaining the Product.
•Wipe this Product with a dry soft cloth.
If the surfaces are extremely dirty, wipe clean with a cloth which
has been dipped in a weak soap-and-water solution and wrung
out thoroughly and then wipe again with a dry cloth.
•Never use alcohol, benzine, thinner, cleaning fluid or other
chemicals. And do not use compressed air to remove dust.
Disc Handling and Maintenance
Disc tray Disc
A
B
C

GB
6
Contents
GENERAL INFORMATION
SAFETY INFORMATION ................................ 1
Types of Discs that Can Be Played on
This Product .............................................. 3
Disc Handling and Maintenance .................. 5
Features ......................................................... 8

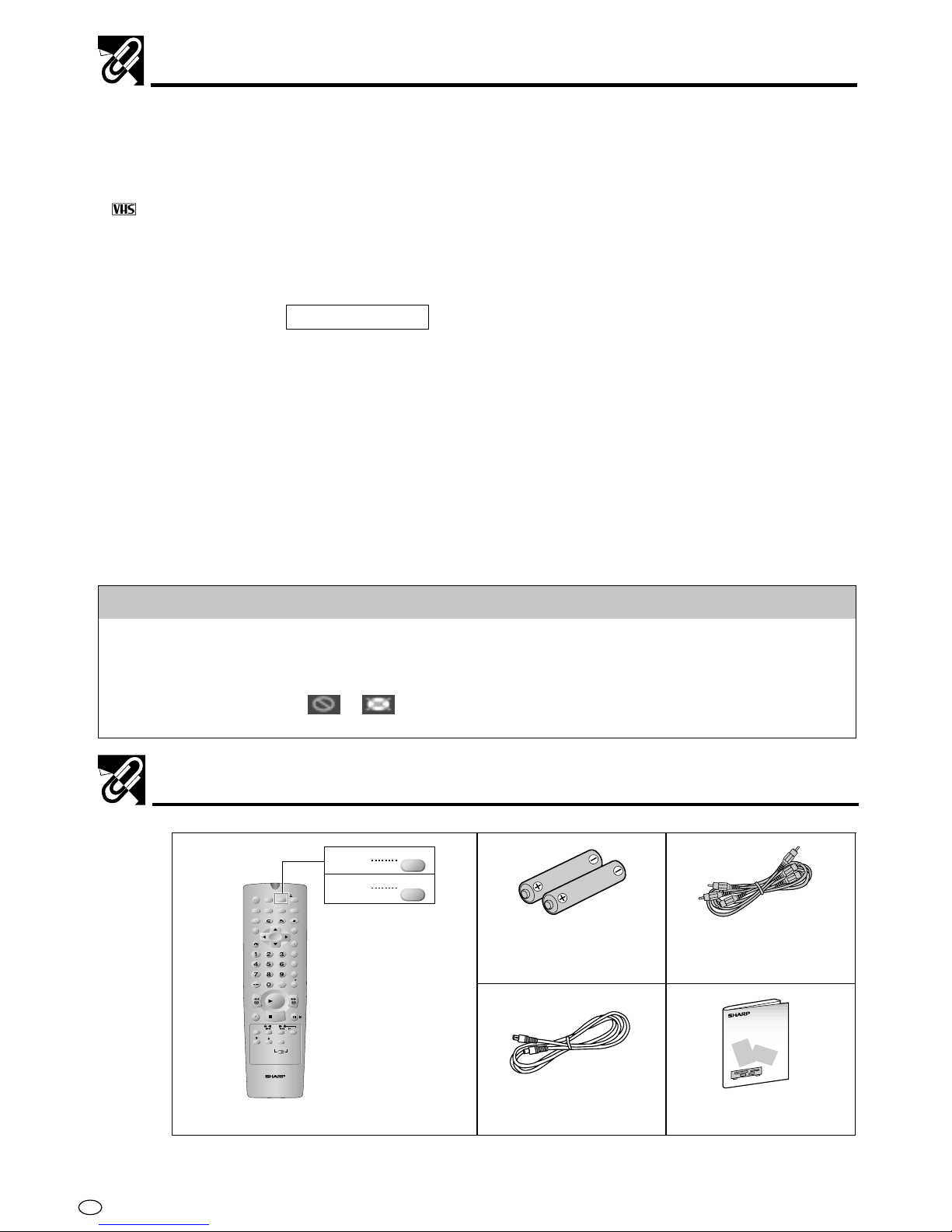

Accessories ................................................... 8

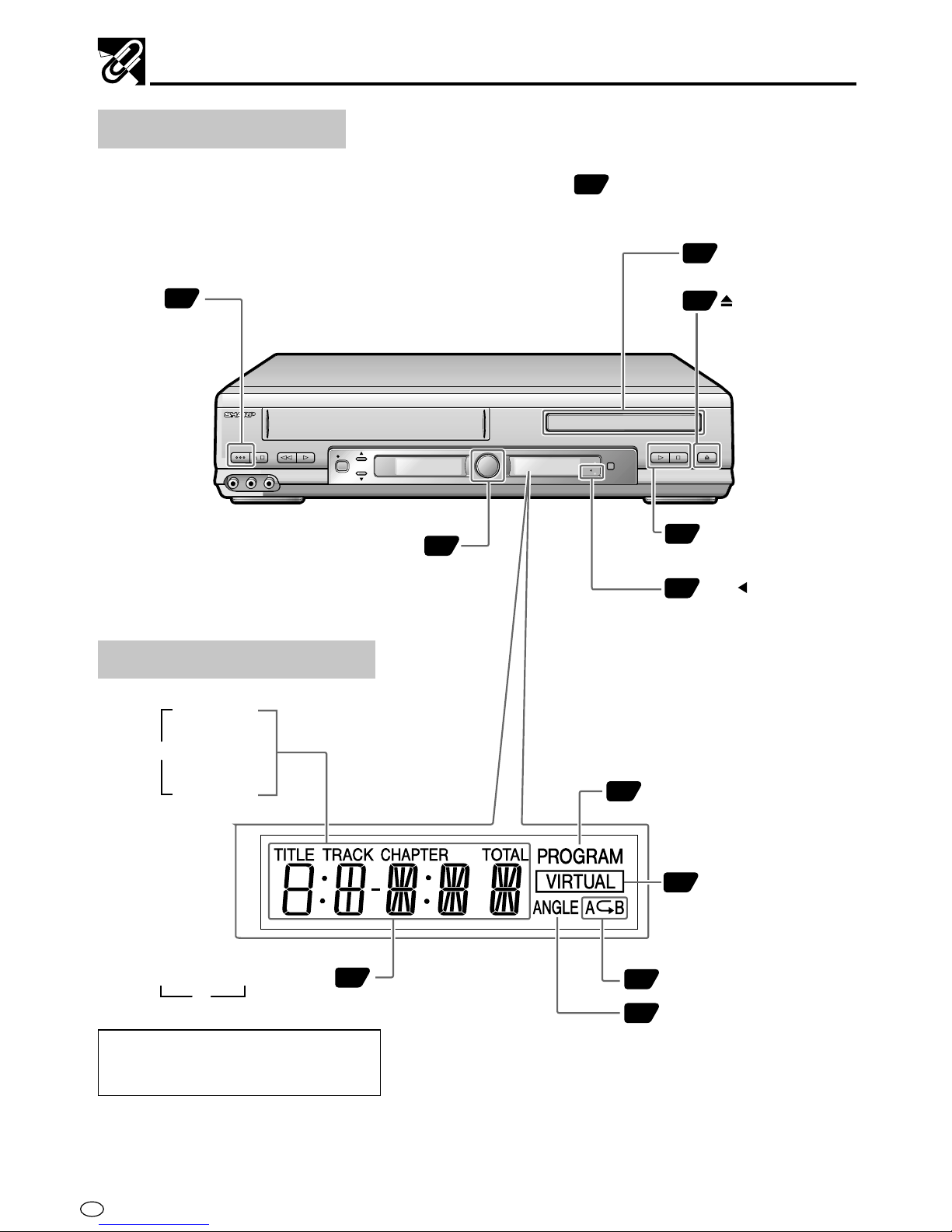

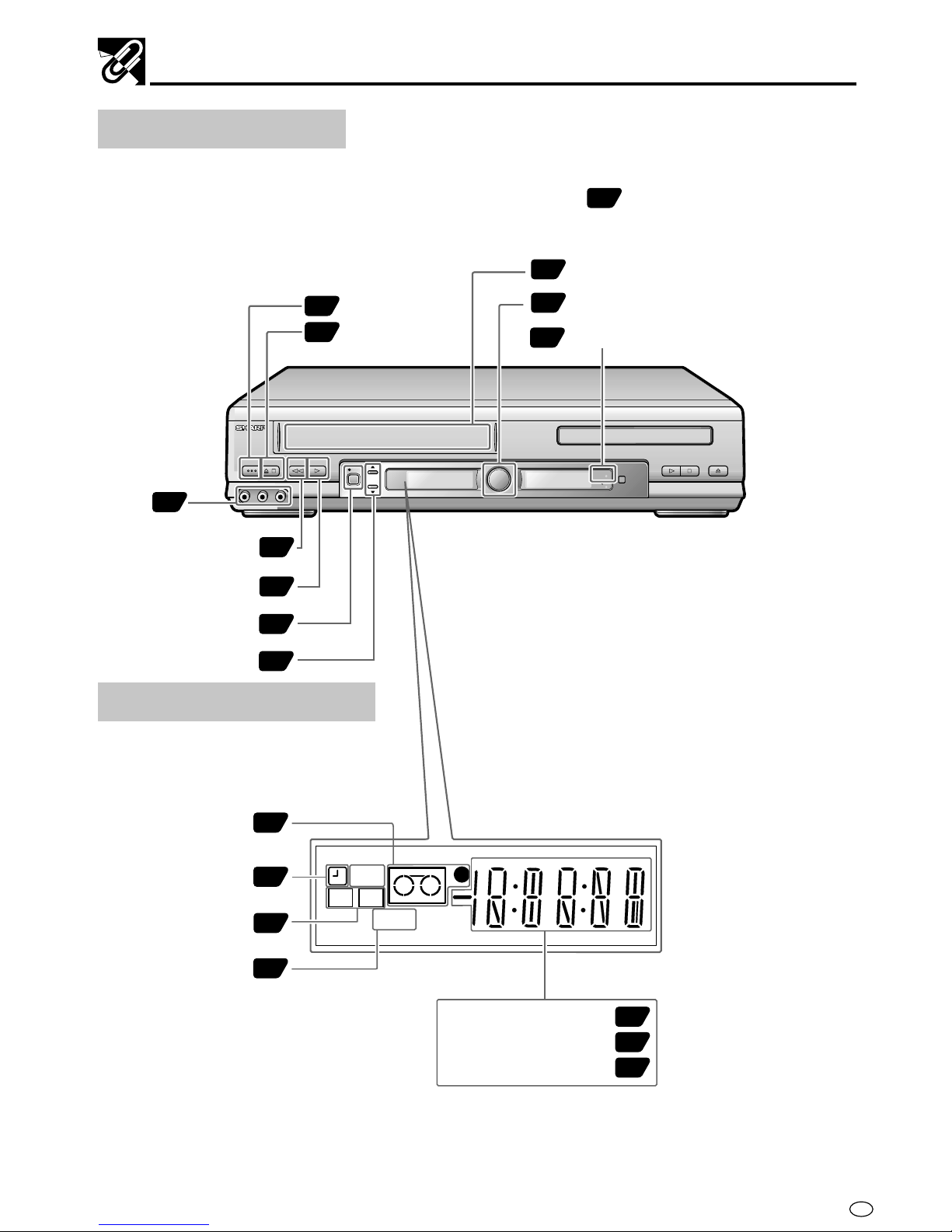

Major Components........................................ 9
CONNECTION AND INITIAL SETTINGS
Basic Connection........................................ 14

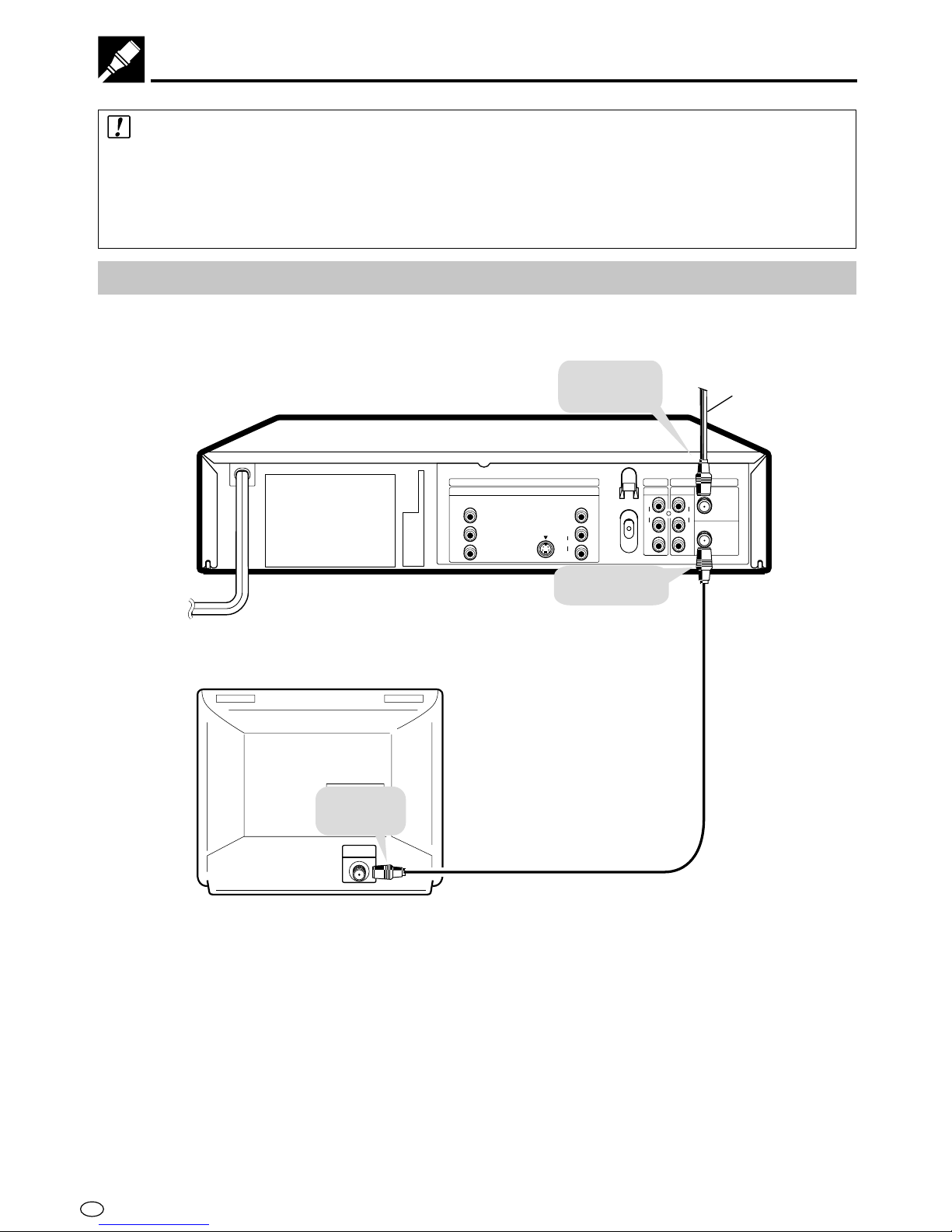

Connecting to ANTENNA IN/RF OUT ..............14
Connecting a TV Equipped with
VIDEO/AUDIO Input Jacks ..........................15
Using the Component Colour (Y, PB(CB),
and PR(CR)) Output Jacks ...........................15
DVD Audio Connections............................. 16

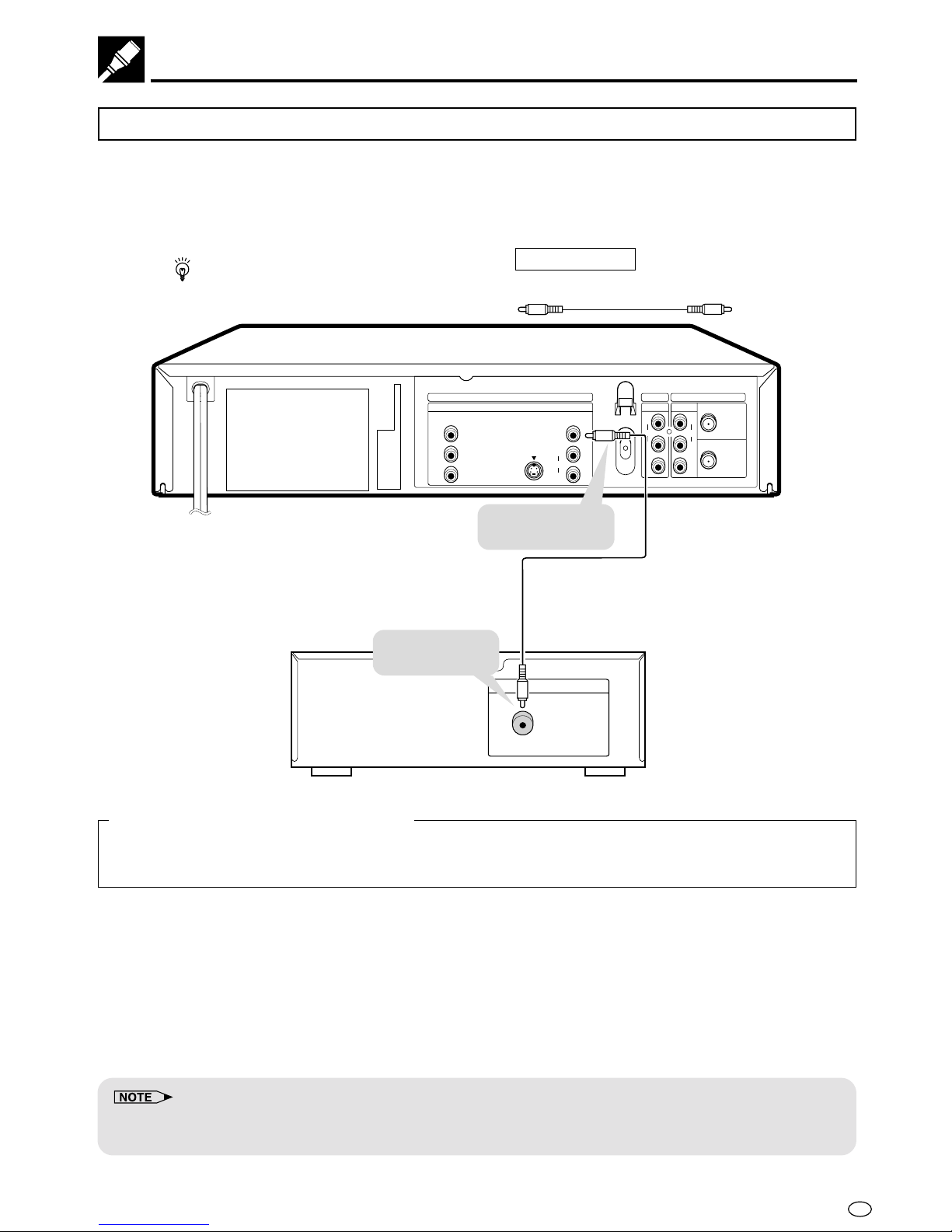

Connecting a TV Equipped with S-VIDEO
Input Jacks...................................................16

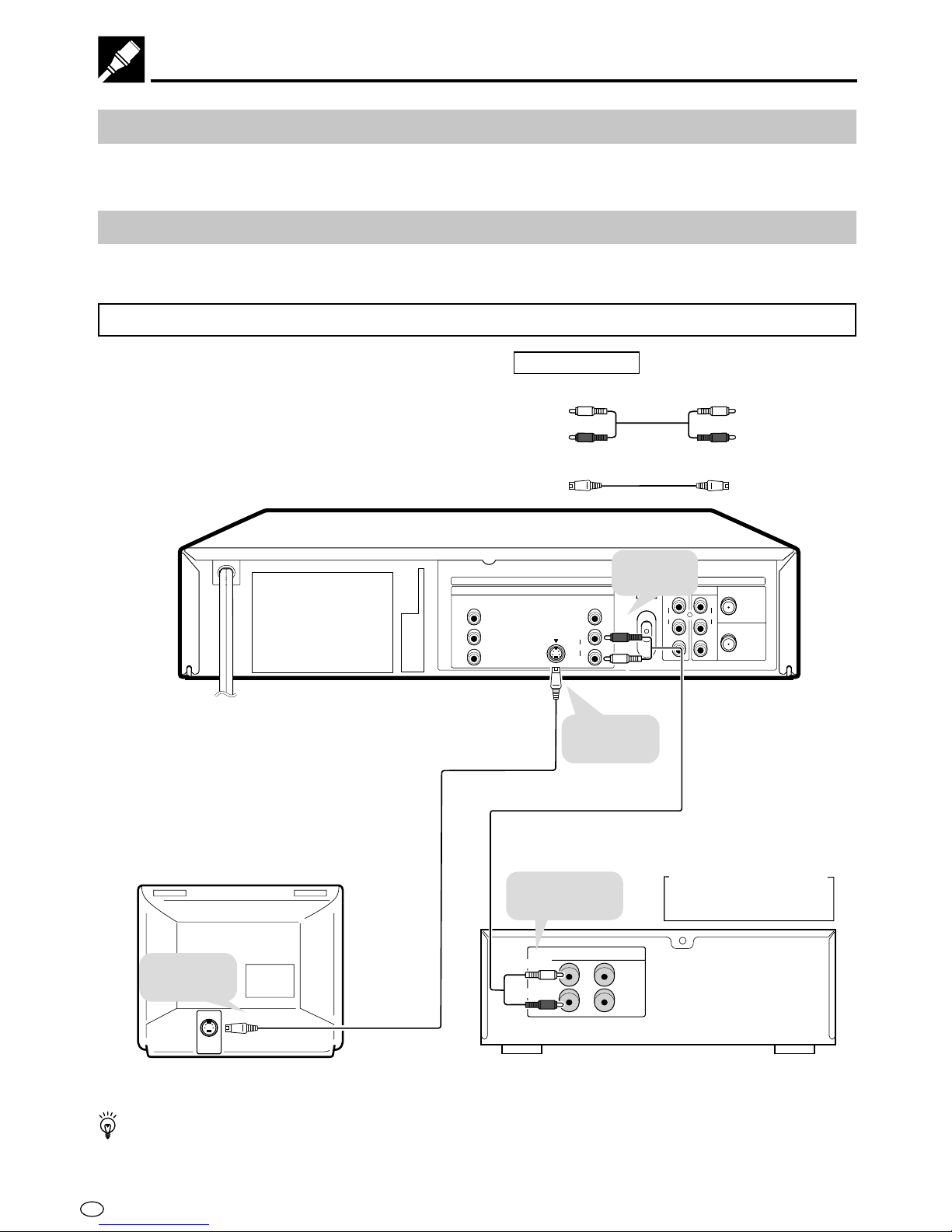

Connecting to Audio Equipment .......................16
Playing 2 channel audio................................16
Playing Dolby Digital (5.1 channel), DTS or
MPEG audio ...............................................17
Preparations Before Using the Product.... 18
Adjusting the Video Channel ..................... 19
Auto Tuning System ................................... 21
VCR SETUP
VCR Setup.................................................... 24
Menu Screen ....................................................24
Mode Selection.................................................25
Setting the Channels ........................................27
Auto Tuning ......................................................28
Manual Tuning..................................................30
Channel Skip/Cancelling Skip ..........................32
Channel Skip.................................................32
Cancelling Skip .............................................34
Setting the Clock ..............................................35
Initial Setting of Clock ...................................35
Changing the Clock Setting ..........................36
Setting the Language .......................................37
VCR-RESET .................................................37
Initial Setting of Language ............................37
Changing Language......................................37
VCR Display Information ............................ 38
How to Display Indicators.................................38
VCR Front Panel Display .................................38
DVD SETUP
DVD Setup.................................................... 40
About the SETUP Screen.................................40
TV MODE Setting.............................................41
PARENTAL Level Setting .................................42
AUDIO Setting..................................................44
Setting the COMPRESSION
(Dolby Digital output level)..........................44
Setting the DOLBY DIGITAL .........................45
Setting the MPEG .........................................46
Setting the CINEMA VOICE..........................46
DISC LANGUAGE Setting................................47
Setting SUBTITLE,
AUDIO and MENU languages ....................47
Selecting languages from OTHER................48
DVD Display Information ............................ 49
Operation Mode Indicators ...............................49
Language Code List for Disc Language ... 50
WATCHING THE VCR
Playback....................................................... 52
Inserting a Video Cassette ...............................52
Playback...........................................................52
Video Search (with the Remote).......................52
Fast Forwarding and Rewinding.......................53
Slow Motion Playback (with the Remote).........53
Still Picture and Frame Advance ......................53
Double Speed Playback ...................................53
NTSC Tape Play Back on PAL TV ....................54
Full Auto Playback ............................................54
Auto Head Cleaning System ............................54
Auto Tracking Control System ..........................54
Quick Start with Full Loading Mechanism ........54
AUTO RENTAL.................................................55
COLOUR ..........................................................55
BLUE BACK .....................................................56
Playback of Hi-Fi Recorded Tapes ...................57
Audio Output Mode ..........................................57
Adjusting Hi-Fi Audio Tracking .........................57
Sharp Super Picture.................................... 58
Auto Repeat ................................................. 59
Auto Zero Back............................................ 60

7
GB
Contents
DPSS (Digital Program Search System)
/Skip Search ............................................ 61
DPSS................................................................61
Skip Search ......................................................61
TV Programme Recording.......................... 62
Cassette Erase Protection................................62
Recording a TV Programme.............................62
To Watch Another TV Programme While
Recording.....................................................62
Recording NICAM/IGR Multiplex Broadcasts...63
Simple Recording Timer............................. 64
Immediate Recording .......................................64
Programming the Timer with G-CODE®System
(DV-NC70W only)..................................... 65
Setting the Programme Number In Step 4 .......67
Recording with the Timer ........................... 68
Confirming Timer Programmes ........................71
Cancelling Timer Programmes .........................72
Tape Dubbing .............................................. 73
Recording a DVD Disc onto a Video
Cassette ................................................... 74
Recording a DVD disc onto a Video cassette
(Tape Editing mode).....................................74
WATCHING THE DVD
Preparing to Use DVD................................. 78
When connecting a TV with the
DVD output jacks .........................................78
When connecting a TV with the
DVD/VCR shared output jacks ....................78
Playback....................................................... 79
Basic Play.........................................................79
Track Direct Playback.......................................79
Fast Forward/Fast Reverse..............................80
Slow-Motion Play..............................................80
Still/Pause ........................................................81
Frame Advance ................................................81
Skip (Forward/Reverse) ...................................81
Angle Selection ........................................... 82
Playing MP3 Discs ...................................... 83
Regarding MP3 discs .......................................83
Playing MP3 discs ............................................83
To play MP3 discs ............................................84
To play another file (music title) while playing ..84
To skip the file while playing .............................84
About the Function Control Screen .......... 85
Direct skip (title [track]/chapter/time) ................86
Subtitle language setting ..................................87
Angle setting.....................................................88
Audio setting.....................................................89
3D VIRTUAL SURROUND setting ...................90
DIGITAL GAMMA setting ..................................91
Direct Selection of Scenes ......................... 92
Selecting Scenes by Title Number ...................92
Selecting Scenes from the Menu Screen .........92
Programmed Playback ............................... 93
Chapter Programmed Playback .......................93
Track Programmed Playback ...........................94
MP3 Files Programmed Playback ....................95
Repeat Playback.......................................... 96
Repeat playback...............................................96
A-B Repeat.......................................................97
Resume Function ........................................ 98
OTHER INFORMATION
Troubleshooting .......................................... 99
Definition of Terms.................................... 101
Specifications............................................ 104
DVD SETUP
CONNECTION AND
INITIAL SETTINGS
WATCHING
THE VCR
VCR SETUP
GENERAL
INFORMATION OTHER
INFORMATION
WATCHING
THE DVD

GB
8
Features
■Common Features
•A DVD, AUDIO CD, VIDEO CD player and VCR all in one.
•Simultaneous VCR recording and DVD playback.
■VCR
•Hi-Fi Stereo Sound, NICAM/IGR System
•380-times High Speed Rewind Function (in NTSC)
•S-VHS Simple Playback
•HQ (High Quality) Circuitry
•Simple Recording Timer
•Sharp Super Picture
•G-CODE System*............... only for DV-NC70W
* For Hong Kong: G-CODE is a registered trademark of Gemstar Development Corporation. The G-CODE system is
manufactured under license from Gemstar Development Corporation.
■DVD
•Plays DVD, VIDEO CD and Audio CD discs as well as CD-R/CD-RW discs recorded in MP3 file format
•3D Virtual Surround provides high-quality surround sound
•Digital Gamma correction
•Dolby Digital*1, DTS*2, MPEG Audio digital out capability
•High-quality digital images
•High-quality digital sound
*1 Manufactured under license from Dolby Laboratories. “Dolby”and the double-D symbol are trademarks of
Dolby Laboratories.
*2 “DTS”and “DTS Digital Surround”are trademarks of Digital Theater Systems, Inc.
Accessories
Remote control unit
Two batteries
(AA, R6 or UM/SUM-3 )
for the Remote VIDEO/AUDIO cable
REV FWD
PLAY
STOP
OPEN/
CLOSE
VCR/DVD
SELECTOR VCR MENU DVD SETUP
TAPE
SPEED
ON
SCREEN
TITLE
DVD MENU
DISPLAY
FUNCTION
CONTROL
PROG/
REPEAT
CLEAR
RETURN
OPERATE
TIMER
ON/OFF
EJECT
SET
ENTER
ZERO BACK
SKIP SEARCH
VCR DVDAM/PM
INPUT SELECT
PAUSE/STILL
REC
SLOW
CH
VCR DVD
SKIP
DPSS
AUDIO
OUTPUT
VCR/DVD COMBINATION
/
ANGLE
Operation Manual
RF cable
Disc Features and this Operation Manual
•The types of functions and operations that can be used for a particular disc vary depending on the
features of that disc. In some cases, these functions and operations may differ from the descriptions given
in this Operation Manual. In this event, follow the instructions given on the screen. This Operation Manual
only covers basic disc operations.
•For some operations, the or indicator may appear on the TV screen. This indicates that
the operation described in this Operation Manual is not permitted for the current disc.
PROG
DV- NC70
DV- NC70X
G-CODE
DV- NC70W

9GB
Major Components
VCR Main Unit (Front)
OPEN/CLOSE
EJECT/STOP
REW
REC
CH
VCR/DVD
SELECTOR
TIMER
VCR DVD
PLAY STOP
AV 2 IN VIDEO L(MONO)-AUDIO-R
/
SEPVP D
VCR
L R
OPERATE PLAY/×2
18
VCR/DVD SELECTOR
62
OPERATE
18
REC
38
Clock Indicator
38
Channel Indicator
38
Tape Counter Indicator
52
PLAY/×2
Front AUDIO/
VIDEO input
jack
73
Timer Recording
Indicator
Numbers in refer to the main pages
in this Operation Manual where the topic is explained.
Tape Speeds
Indicator
67
62
38
Operation status
Indicator
52
Cassette compartment
52
EJECT/STOP
38
CH
52
REW
70
TIMER indicator
Audio Output
Indicator
57
VCR Front Panel Display

GB 10
OPEN/CLOSE
EJECT/STOP
REW
REC
CH
VCR/DVD
SELECTOR
TIMER
VCR DVD
PLAY STOP
AV 2 IN VIDEO L(MONO)-AUDIO-R
/
OPERATE PLAY/×2
79
Disc tray
79
OPEN/CLOSE
78
OPERATE
TITLE
Indicator
49
Operation status/Time Indicator
TRACK
Indicator
CHAPTER
Indicator
79
Disc operation
buttons (PLAY, STOP)
95
PROGRAM Indicator
96
REPEAT Indicator
82
ANGLE Indicator
90
VIRTUAL surround
Indicator
1
2
78
VCR/DVD SELECTOR
75
Numbers in refer to the main pages
in this Operation Manual where the topic is explained.
VCR DVD Indicator
Major Components
DVD Main Unit (Front)
DVD Front Panel Display
You can toggle between 1and 2by
pressing the remote control unit’s
DISPLAY button (page 49).

11 GB
Remote (VCR Operation Buttons)
•The explanations on this page use the VCR/DVD CHANGE Switch in the VCR position.
Numbers in refer to the main pages
in this Operation Manual where the topic is explained.
Loading the Batteries
1Open the battery cover
by pulling the lid in the
direction of the arrow.
2Load the batteries.
Load the two batteries (AA, R6 or UM/SUM-3)
supplied with the Remote so that the battery
poles and are positioned as indicated.
3Close the battery cover
by lowering the lid in the
direction of the arrow.
Major Components
PROG
DV- NC70
DV- NC70X
G-CODE
DV- NC70W
/
REV FWD
PLAY
STOP
OPEN/
CLOSE
VCR/DVD
SELECTOR VCR MENU DVD SETUP
TAPE
SPEED
ON
SCREEN
TITLE
DVD MENU
DISPLAY
FUNCTION
CONTROL
PROG/
REPEAT
CLEAR
RETURN
OPERATE
TIMER
ON/OFF
EJECT
SET
ENTER
ZERO BACK
SKIP SEARCH
VCR DVDAM/PM
INPUT SELECT
PAUSE/STILL
REC
SLOW
CH
VCR DVD
SKIP
DPSS
AUDIO
OUTPUT
VCR/DVD COMBINATION
/
ANGLE
SLOW —/±, DPSS —/±
AM/PM or
38
ON SCREEN
67
TIMER ON/OFF
18
OPERATE
38
DISPLAY
20
60
CLEAR
CURSOR ( / / / )
32
36
Number buttons
52
52
PLAY
REW
62
REC
52
STOP
TAPE SPEED
62
VCR/DVD CHANGE Switch
18
38
78
VCR/DVD SELECTOR
52
68
65
EJECT
19
VCR MENU
20
SET
60
ZERO BACK
61
SKIP SEARCH
73
VCR DVD
53
PAUSE/ STILL
53 61
62
INPUT SELECT
52
53
SLOW
57
AUDIO OUTPUT
CH /
FF

GB 12
REV FWD
PLAY
STOP
OPEN/
CLOSE
VCR/DVD
SELECTOR VCR MENU DVD SETUP
TAPE
SPEED
ON
SCREEN
TITLE
DVD MENU
DISPLAY
FUNCTION
CONTROL
PROG/
REPEAT
CLEAR
RETURN
OPERATE
TIMER
ON/OFF
EJECT
SET
ENTER
ZERO BACK
SKIP SEARCH
VCR DVDAM/PM
INPUT SELECT
PAUSE/STILL
REC
SLOW
CH
VCR DVD
SKIP
DPSS
AUDIO
OUTPUT
VCR/DVD COMBINATION
/
ANGLE
49
ON SCREEN
79
OPERATE
49
DISPLAY
85
FUNCTION CONTROL 92
41
RETURN
TITLE
CURSOR ( / / / )
42
Number buttons
REV
79
STOP
18 VCR/DVD SELECTOR
PROG , REPEAT
93 96
82 ANGLE
79 PLAY
41
92 DVD MENU
79 OPEN/CLOSE
41 DVD SETUP
42
ENTER
80 PAUSE/STILL
81
80 FWD
80 SLOW
18 VCR/DVD CHANGE Switch
80
SKIP
•Do not subject the Remote to shock, water or excessive humidity.
•The Remote may not function if the Product sensor is in direct sunlight or any other strong light.
•Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries properly.
•Do not mix old and new batteries, or mix brands in use.
•Remove the batteries if you do not use the Remote for an extended period of time.
Remote (DVD Operation Buttons)
•The explanations on this page use the VCR/DVD CHANGE Switch in the DVD position.
Numbers in refer to the main pages
in this Operation Manual where the topic is explained.
Major Components

13
GB
Major Components
Main Unit (Rear)
DVD OUT
LINE OUT 2 VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
PR
(CR)
PB
(CB)
COMPONENT
DVD OUT
LINE OUT 2 VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
PR
(CR)
PB
(CB)
COMPONENT
VCR AUDIO input
jacks
14 ANTENNA IN (antena
or cable input)
VCR VIDEO input
jack
14 ANTENNA OUT
15 DVD/VCR shared
AUDIO output jacks
17
DVD Coaxial DIGITAL
output jack
16
DVD S-VIDEO output jack
16
DVD AUDIO output jacks 15 DVD/VCR shared
VIDEO output jack
15
COMPONENT VIDEO output jacks
To an AC outlet

GB 14
Basic Connection
Caution:
•Be sure to turn off the Product and equipment to be connected before connecting.
•Read through the operation manual for the equipment to be connected.
• Be sure that the colours of the jacks and plugs match up when using a VIDEO/AUDIO cable .
•Be sure to keep the Product connection cables separate from the TV antenna cable when you install the
Product, because it may cause electrical interference when you are watching television programmes.
Connecting to ANTENNA IN/RF OUT
The connection method differs depending on the type of TV.
DVD OUT
LINE OUT 2 VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
P
R
(C R )
P B
(C B )
COMPONENT
TV
To RF OUT jack
To ANTENNA
IN jack
To antenna
input jack RF cable
(Supplied)
Antenna cable
This Product

15 GB
DVD OUT
LINE OUT 2 VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
P
R
(C R )
P B
(C B )
COMPONENT
VIDEO
IN
AUDIO
IN
LR
Yellow
White (L)
Red (R)
Yellow
White (L)
Red (R)
Required cable
VIDEO/AUDIO cable (supplied)
Jack and Plug Colours
Video: Yellow
Audio Left: White
Audio Right: Red
This Product
To DVD/VCR shared
VIDEO/AUDIO out jacks
VIDEO/AUDIO cable
(supplied)
To VIDEO/AUDIO
input jacks
TV (with external input jacks)
(White) (Red) (Yellow)
(Red)
(White)
(Yellow)
Connecting a TV Equipped with VIDEO/AUDIO Input Jacks
CONNECTION AND
INITIAL SETTINGS
Basic Connection
You will not be able to hear all of the sound being output by the Product if you use the supplied VIDEO/AUDIO
cable to a monaural TV that has only one AUDIO input jack.
•Make sure that colours of the jacks and plugs match up when connecting the cable.
•Connect the Product directly to the TV. If you attempt to view video on a TV connected via a VCR, the copy protection
function will scramble the picture.
•If you want to listen to the audio through audio equipment, connect only the VIDEO cable to the TV.
Using the Component Colour (Y, PB(CB) and PR(CR)) Output Jacks
DVD OUT
LINE OUT 2 VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
PR
(CR)
PB
(CB)
COMPONENT
Colour Output Jacks (Y, PB(CB)and
PR(CR)):
Some TVs and monitors are equipped with
input jacks for the component colour
signals (Y, PB(CB)and PR(CR)). By connect-
ing these input jacks to the corresponding
output jacks on the Product, you can enjoy
higher quality playback images.
If you are using a TV or monitor equipped
with Y, PB(CB)and PR(CR)jacks, use these
jacks rather than the S-VIDEO OUT jack.

GB 16
ANALOG INPUT
L
R
INPUT
S-VIDEO
TV (with external input jacks)
DVD OUT
LINE OUT 2 VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
P
R
(C R )
P B
(C B )
COMPONENT
To AUDIO
OUT jacks
AUDIO cable
(commercially available)
(White)
(Red)
To amplifier
audio input jacks
Jack and Plug Colours
Audio Left: White
Audio Right: Red
Amplifier of stereo system, etc.
(White)
(Red)
This Product
To S-VIDEO
input jack
S-VIDEO cable
(commercially available)
To S-VIDEO
OUT jack
Required cables
AUDIO cable (commercially available)
White (L)
Red (R)
White (L)
Red (R)
S-VIDEO cable (commercially available)
DVD Audio Connections
Connecting a TV Equipped with S-VIDEO Input Jacks
When you want to achieve a better video image by connecting a TV equipped with an S-VIDEO input connector
to the Product, you should use an S-VIDEO cable (commercially available) to connect the TV to the Product.
Connecting to Audio Equipment
Connecting the Product to audio equipment provides normal stereo sound plus powerful stereo sound en-
hanced by Dolby Digital (5.1 channel), DTS, and MPEG Audio.
Playing 2 channel audio
■Analogue Connection
If the Product is set to OPERATE ON, the DVD signals will be output from the DVD OUT jacks at all times.
(The DVD signals will be output from the DVD OUT jacks also when using the VCR.)

17 GB
DIGITAL IN
COAXIAL
DVD OUT
LINE OUT 2 VCR
DVD/VCR
ANTENNA IN
RF OUT
LINE IN 1
AUDIO
R
L
VIDEO
AUDIO
R
L
VIDEO
LINE OUT 1
DIGITAL
AUDIO
AUDIO
R
L
S-VIDEO
Y
P
R
(C R )
P B
(C B )
COMPONENT
Required cable
Coaxial digital cable (commercially available)
To coaxial
DIGITAL OUT jack
To coaxial
digital input jack
Coaxial digital cable
(commercially available)
You can make this connection
using a coaxial digital
cable .
This Product
Audio equipment
Playing Dolby Digital (5.1 channel), DTS or MPEG audio
Connecting an amplifier with a Dolby Digital/DTS/MPEG Audio digital surround processor or a Dolby Digital/
DTS/MPEG Audio surround processor to your Product’s coaxial digital jack provides richer and more powerful
audio play.
• This connection is not possible if the processor or amplifier to which you want to connect does not have a coaxial
digital input jack.
■Connection to a processor or amplifier with a coaxial digital input jack
DVD Audio Connections
Digital Connection to an MD to Record a CD
Some Audio CDs and VIDEO CDs have a short silent section between musical tracks. When sound from discs
such as these is digitally recorded by connecting the Product directly to a digital recorder (such as an MD player),
the music may be recorded continuously and track numbers may be lost.
■Digital Connection to Audio Equipment or MD Player without a Dolby Digital Decoder
• Audio CD or VIDEO CD
Play the disc as you normally would, with the audio mode set to “L+R” (see page 89). With a digital
connection, audio of a disc recorded with DTS sounds abnormal in this case.
• DVD
With a digital connection, audio cannot be produced from a DVD recorded with Dolby Digital (5.1 channel),
Dolby Surround (Pro Logic), DTS or MPEG Audio, so you should use an analogue connection to play such
discs. Discs with linear PCM audio should play normally.

GB 18
Preparations Before Using the Product
Preparing to Watch a VCR or a DVD
1Turn on the TV and switch the TV channel to the external
“VIDEO” or “AV” channel connected to the DVD/VCR shared
output jacks.
2Press OPERATE.
•The product is turned on.
3Press VCR/DVD SELECTOR on the remote control to switch to
the “VCR” mode or “DVD” mode.
•The VCR/DVD SELECTOR on the product lights up in orange
for “VCR”or green for “DVD”.
VCR/DVD
SELECTOR
•Each time VCR/DVD SELECTOR is pressed, the mode
changes between “VCR”mode and “DVD”mode.
•The mode can be switched by pressing the VCR/DVD
SELECTOR on the product.
4Move the VCR/DVD CHANGE Switch on the Remote to either
“VCR”or “DVD”.
VCR DVD VCR DVD
OPERATE
PLAY/×2
AV2 IN VIDEO
L
(MONO)
-AUDIO-R
REC
CH
VCR/DVD
SELECTOR
/
EJECT/STOP
REW
TIMER
VCR DVD
PLAY STOP OPEN/CLOSE
OPERATE
VCR/DVD
SELECTOR
VCR/DVD
SELECTOR
The VCR functions on
the Remote will now
take priority.
The DVD functions on
the Remote will now
take priority.
/
PLAY
STOP
OPEN/
CLOSE
OPERATE
VCR/DVD
SELECTOR VCR MENU DVD SETUP
TAPE
SPEED
ON
SCREEN
TIMER
ON/OFF
TITLE
DVD MENU
DISPLAY
EJECT
FUNCTION
CONTROL
PROG/
REPEAT
ANGLE
CLEAR
RETURN
REV FWD
SET
ENTER
ZERO BACK
SKIP SEARCH
VCR DVDAM/PM
INPUT SELECT
PAUSE/STILL
REC
VCR/DVD COMBINATION
SLOW
CH
VCR DVD
SKIP
DPSS
AUDIO
OUTPUT
/
PLAY
STOP
OPEN/
CLOSE
OPERATE
VCR/DVD
SELECTOR VCR MENU DVD SETUP
TAPE
SPEED
ON
SCREEN
TIMER
ON/OFF
TITLE
DVD MENU
DISPLAY
EJECT
FUNCTION
CONTROL
PROG/
REPEAT
ANGLE
CLEAR
RETURN
REV FWD
SET
ENTER
ZERO BACK
SKIP SEARCH
VCR DVDAM/PM
INPUT SELECT
PAUSE/STILL
REC
VCR/DVD COMBINATION
SLOW
CH
VCR DVD
SKIP
DPSS
AUDIO
OUTPUT
