Sharp R-756SLM User manual

900W (IEC 60705)
OPERATION MANUAL
R-756
MICROWAVE OVEN
R-756 10/23/2010 11:02:53
with GRILL

OPERATION MANUAL
This operation manual contains important information which you should read
carefully before using your microwave oven.
IMPORTANT:There may be a serious risk to health if this operation manual is
not followed or if the oven is modified so that it operates with the door open.
If you require any advice or assistance regarding your
Sharp product, please visit our website:
http://www.sharp.co.uk/support
Customers without Internet access may telephone (during office hours):
0845 888 8112
or from Ireland
[phone]
A. Information on Disposal for Users (private households)
1. In the European Union
Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!
Used electrical and electronic equipment must be treated separately and in accordance
with legislation that requires proper treatment, recovery and recycling of used electrical
and electronic equipment.
Following the implementation by member states, private households within the EU states
may return their used electrical and electronic equipment to designated collection facilities
free of charge*.
In some countries* your local retailer may also take back your old product free of charge
if you purchase a similar new one.
*) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please
dispose of these separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the
necessary treatment, recovery and recycling and thus prevent potential negative effects
on the environment and human health which could otherwise arise due to inappropriate
waste handling.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authorities and ask for the
correct method of disposal.
For Switzerland: Used electrical or electronic equipment can be returned free of charge
to the dealer, even if you don’t purchase a new product. Further collection facilities are
listed on the homepage of www.swico.ch or www.sens.ch.
B. Information on Disposal for Business Users
1. In the European Union
If the product is used for business purposes and you want to discard it:
Please contact your SHARP dealer who will inform you about the take-back of the
product. You might be charged for the costs arising from take-back and recycling. Small
products (and small amounts) might be taken back by your local collection facilities.
For Spain: Please contact the established collection system or your local authority for take-
back of your used products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for the
correct method of disposal.
Attention:
Your product is
marked with this
symbol.
It means that
used electrical
and electronic
products should
not be mixed
with general
household
waste. There
is a separate
collection
system for these
products.
R-756 10/23/2010 11:02:55

1
OVEN AND ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
SAFETY:
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 5
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION:
Maff Heating Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HowYour OvenWorks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Microwave Power Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Before Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Setting the Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
How to OperateYour Oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 - 10
Grill Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 - 12
Micro + Grill Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Auto Defrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 - 15
Auto Cook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Auto Cook Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Convenient Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 - 19
COOKING ADVICE:
Microwave Cooking Advice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 - 21
Suitable Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Defrosting Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Reheating Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
AFTERCARE:
Cleaning & Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
To Replace the Mains Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Calling for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
CONTENTS
R-756 10/23/2010 11:02:55
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

2
OVEN AND ACCESSORIES
13
14
11
10
12
1
6
8
7 5
2
3
9
4

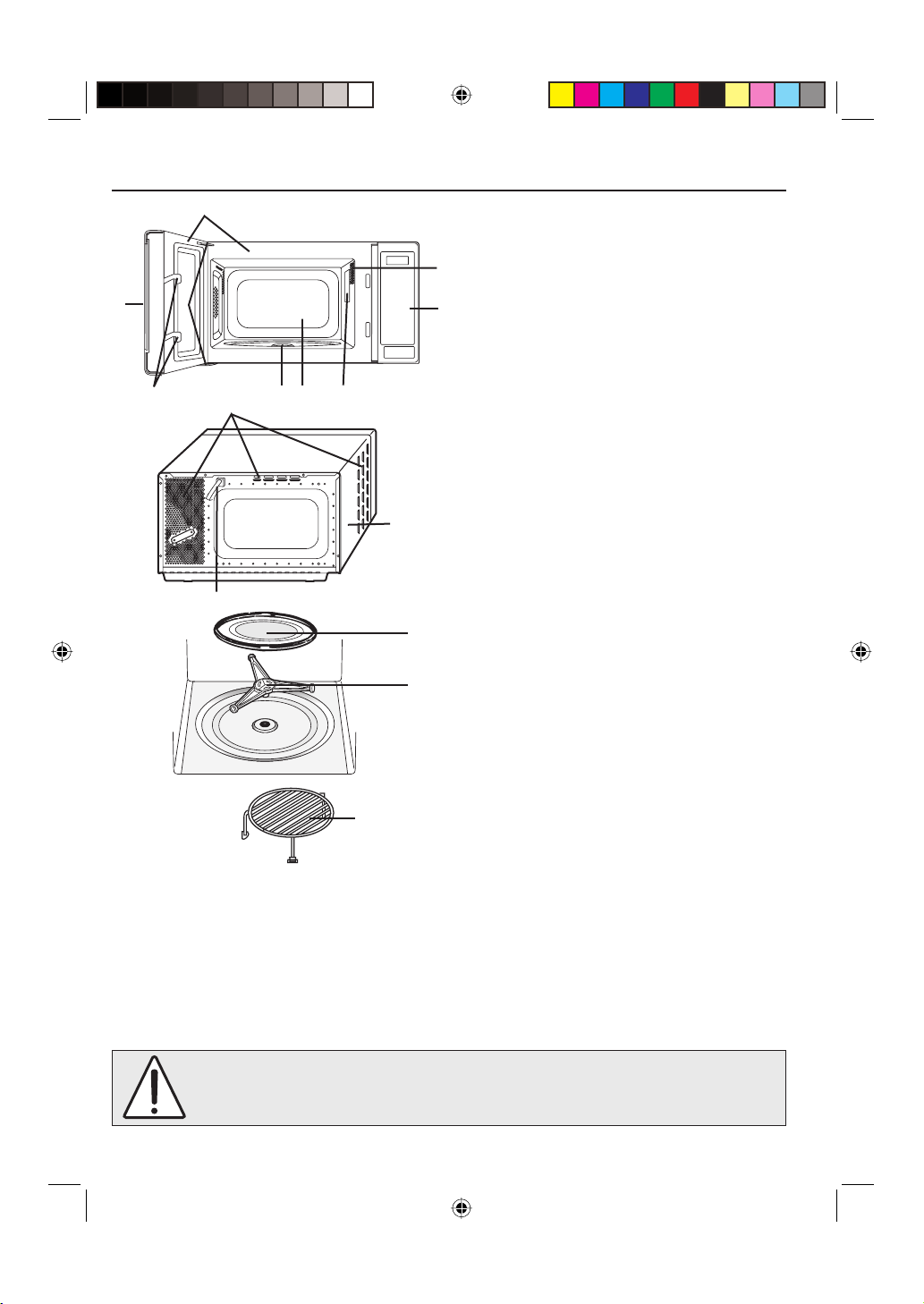

OVEN:
1. Oven lamp
2. Control panel
3. Door opening button
4. Waveguide cover (DO NOT REMOVE)
5. Oven cavity
6. Coupling
7. Door latches
8. Door hinges
9. Door seals and sealing surfaces
10.Power cord
11.Ventilation openings
12.Outer cabinet
ACCESSORIES:
Check to make sure the following accessories
are provided:
13.Turntable
14.Roller stay
•Place the roller stay in the coupling on the
oven floor, then place the turntable on to the
roller stay, ensuring it is located firmly.
•To avoid turntable damage, ensure dishes or
containers are lifted clear of the turntable rim
when removing them from the oven.
NOTES:
•The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it
is not damaged.
•Always operate the oven with the turntable and roller stay fitted correctly.This promotes thorough,
even cooking.A badly fitted turntable may rattle, may not rotate properly and could cause damage to
the oven.
•The turntable rotates clockwise or anti-clockwise.The rotary direction may change each time you
start the oven.This does not affect cooking performance.
•When you order accessories, please quote both the PART NAME and MODEL NUMBER to
your dealer or SHARP approved service facility.
WARNING:
The door, outer cabinet, oven cavity, turntable and dishes will become very
hot during operation.To prevent burns, always use thick oven gloves.
R-756 10/23/2010 11:02:55
15.Rack
•Foruse of the rack, refer to the grilling sections
on page 11-12.
Never touch the grill when it is hot.
15

3
CONTROL PANEL
1
7
3
5
4
6
9

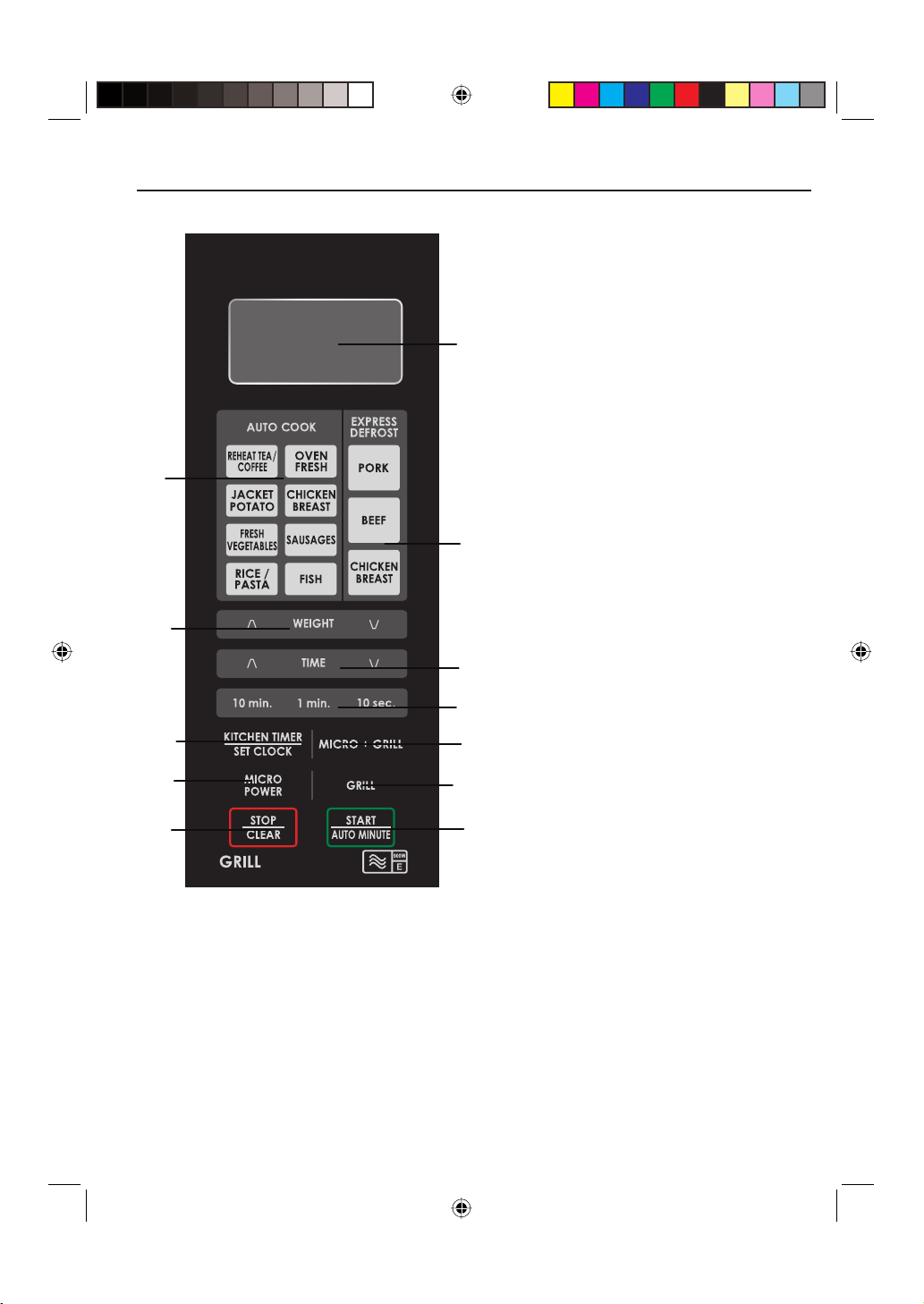

1. DIGITAL DISPLAY
2. AUTO COOK
3. EXPRESS DEFROST
4. LESS/MORE WEIGHT
5. LESS/MORE TIME
6. TIME
7. MICRO + GRILL
8. GRILL
9. KITCHEN TIMER/CLOCK SET
10. START/AUTO MINUTE
11. MICRO POWER
11
10
2
R-756 10/23/2010 11:57:50
12. STOP/CLEAR
8
12

4
INSTALLATION
WARNING:
Inspect the Oven:
•Check the oven carefully for damage
before and regularly after installation.
•Make sure the door closes properly,
that it is not misaligned or warped.
•Check the hinges and door safety
latches are not broken or loose.
•Ensure the door seal and sealing
surfaces are not damaged. If the door
or door seals are damaged, the oven
must not be operated until it has been
repaired by a competent person.
•Inspect the oven interior and door for
dents.
IMPORTANT:
If any damage is apparent, do not
operate the oven in any way, until it
has been repaired by a SHARP trained
engineer.
1. Remove all packing materials including the
feature sticker (if applicable). Do not remove
the plastic film from the inside of the oven
window as this protects it from dirt.The
waveguide cover prevents food and grease
from entering the waveguide area where it
could cause damage. DO NOT REMOVE
THE WAVEGUIDE COVER.
2. Place oven on a secure, level surface.
Ensure it is strong enough to take the oven
weight, plus the heaviest item likely to be
cooked in the oven.
3. The minimum
height of free
space necessary
above the top
surface of the oven
is 15cm.
4. Do not place the oven where heat, moisture
or high humidity are generated, (for example,
near or above a conventional oven) or near
combustible materials (for example, curtains).
Do not block or obstruct air vent openings.
Do not place objects on top of the oven.
5. Make sure the power supply cord
is undamaged (See “ELECTRICAL
CONNECTION” below).
Do not allow the power supply cord to
run over any hot or sharp surfaces, such
as the hot air vent area at the top rear
of the oven.
6. The socket must be readily accessible so that
it can be easily unplugged in an emergency.
7. Do not use the oven outdoors.
BUILDING-IN-KIT.
No built-in kit is available for this oven.
This oven is designed to be used on a countertop
only.
ELECTRICAL CONNECTION.
•Do not allow water to come into contact with
the power supply cord or plug.
•Insert the plug properly into the socket.
•Do not connect other appliances to the same
socket using an adaptor plug.
•If the power supply cord is damaged, it must be
replaced by a Sharp approved service facility or
a similarly qualified person to avoid a hazard.
•When removing the plug from the socket
always grip the plug, never the cord as this
may damage the power supply cord and the
connections inside the plug.
•If the plug fitted to your oven is a rewireable
type and in the event of the socket outlet in
your home not being compatible with the plug
supplied, remove the plug properly (do not cut
off).
•If the plug fitted to your oven is a non-rewirable
type and in the event of the socket outlet in
your home not being compatible with the plug
supplied, cut-off the mains plug.
•Refit with a suitable type, observing the wiring
code given in ‘To replace the mains plug’ on
page 27.
15cm
R-756 10/23/2010 11:57:51

5
INSTALLATION
IMPORTANT SAFETY INSTRUCTIONS
WARNING:Only allow children to use the
oven without supervision when adequate
instructions have been given so that the
child is able to use the oven in a safe way and
understands the hazards of improper use.
This appliance is not intended for use by
persons (including children) with reduced
physical,sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
Oven Use:
•The oven is for domestic food use only.
•Never operate the oven when empty.
•Do not leave or store anything inside the oven
when not in use.
•Never attempt to use the oven with the door
open. It is important not to force or tamper
with the door safety latches.
•Never operate the oven with any object
caught in the door.
•Do not insert fingers or objects in the holes of
the door latches or air-vent openings as this
may damage the oven and cause an electric
shock.
•If water or food drops inside the air vent
openings switch off the oven immediately,
unplug it and call a SHARP approved service
facility. (See page 27).
•Never move the oven while it is operating.
Pacemaker: If you have a heart pacemaker,
consult your doctor or the pacemaker
manufacturer prior to oven use.
FIRE: If smoke is observed, switch off
and unplug the appliance and keep the
door closed in order to stifle any flames.
PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING: Liquids and other foods
must not be heated in sealed containers
since they are liable to explode.
Microwave heating of beverages can
result in delayed eruptive boiling,
therefore care has to be taken when
handling the container. Stir the liquid
prior to and during heating/ reheating,
let liquid stand for at least 20 seconds in
the oven after cooking.
IMPORTANT!
•The fuse from the cut-off plug should be
removed and the plug disposed of in a safe
manner.
•Under no circumstances should the cut-off
plug be inserted into a socket outlet as a
serious electric shock may occur.
•The plug must not be used without the fuse
cover fitted.
•If you have any doubt about your microwave
oven obtain the help of a qualified electrician.
•When replacing the plug please ensure that
you use a BSI or ASTA approved plug to
BS1363, this should be fitted with a brown
coloured 13 amp fuse approved by BSI or
ASTA to BS1362. If you have any doubt about
electrical connection seek the help of a
qualified electrician.
WARNING:THIS APPLIANCE MUST
BE EARTHED
To wire an appropriate plug, follow the wiring code
given in ‘To replace the mains plug’ on page 27.
R-756 10/23/2010 11:02:56

6
MAFF HEATING CATEGORY
The heating category (a letter A to E) developed
by MAFF (Ministry of Agriculture, Fisheries
and Food) with microwave oven and food
manufacturers indicates the ability of the oven
to heat small quantities of food (up to 500g
[1lb 2oz]). It does not represent the general
performance of the oven.
HOW YOUR OVEN WORKS
Microwaves are energy waves, similar to those
used forTV and radio signals.
Electrical energy is converted into microwave
energy, which is directed into the oven cavity via
a waveguide.To prevent food and grease entering
the wave guide it is protected by the waveguide
cover.
Microwaves cannot pass through metal, because
of this the oven cavity is made of metal and there
is a fine metal mesh on the door.
During cooking the microwaves bounce off the
sides of the oven cavity at random.
Microwaves will pass through certain materials,
such as glass and plastic, to heat the food.
(See “Suitable Cookware” on page 22).
Water, sugar and fat in food absorb microwaves
which cause them to vibrate.This creates heat
by friction, in the same way your hands get warm
when you rub them together.
The outer areas of the food are heated by the
microwave energy, then the heat moves to the
centre by conduction, as it does in conventional
cooking. It is important to turn, rearrange or stir
food to ensure even heating.
Once cooking is complete, the oven automatically
stops producing microwaves.
Standing time is necessary after cooking, as it
enables the heat to disperse equally throughout
the food.

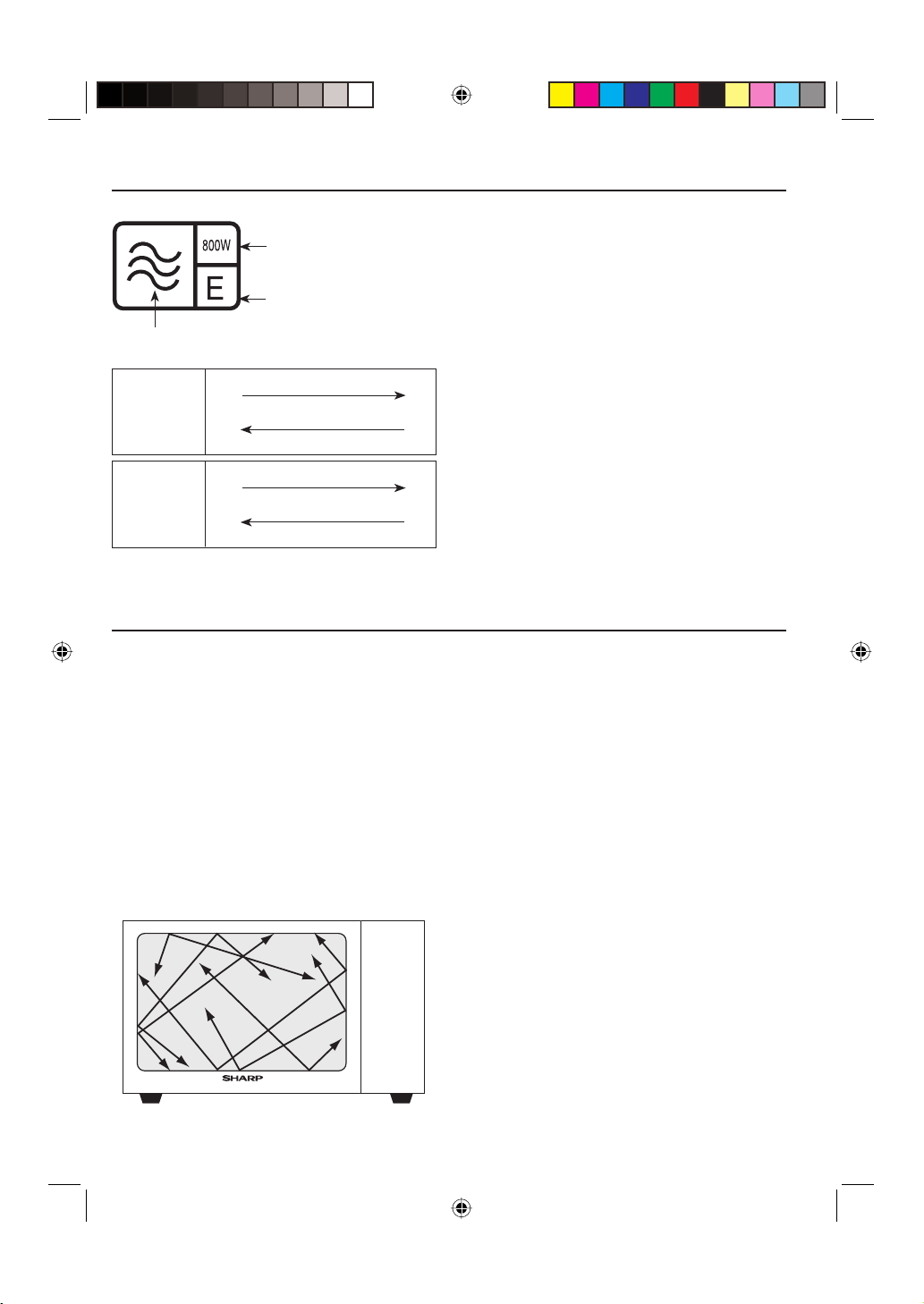

Microwave output power
in Watts (based on
international (IEC 60705)
standard).
Letter representing the
oven heating category.
Microwave Symbol.
600 700 800 900 1000 Watts
OVEN
OUTPUT
POWER
Less heating time required
More heating time required
OVEN
OUTPUT
CATEGORY
Less heating time required
More heating time required
A B C D E
Food packs carry cooking instructions for heating
categories A to E. Follow instructions for the
letter corresponding to the oven’s heating
category.The higher the output power and
heating category of the oven the less heating time
is required as shown opposite.
R-756 10/23/2010 11:02:56

7

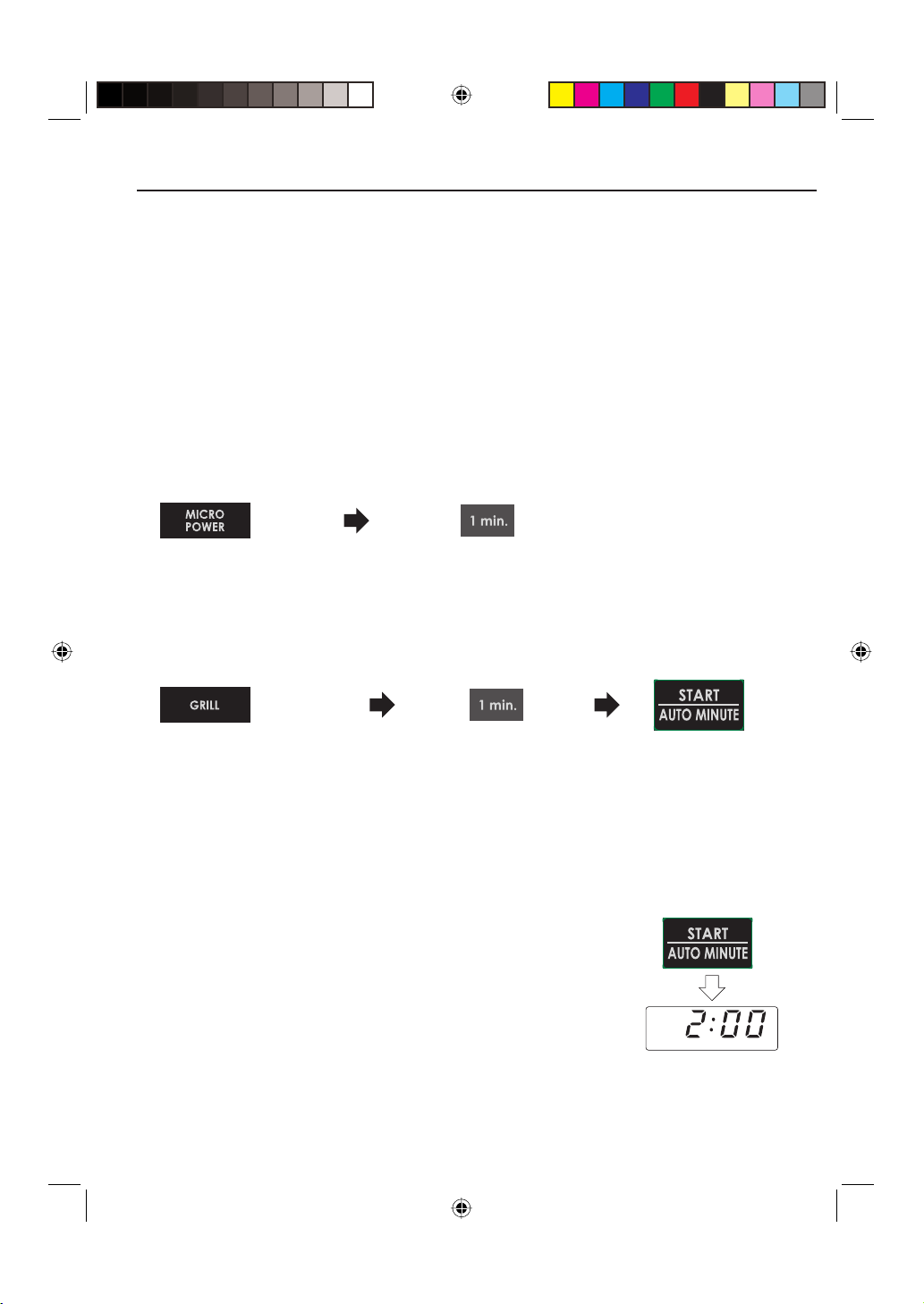

MICROWAVE POWER LEVELS
•Your oven has 5 power levels, as shown.
•To change the power level for cooking,
enter the required time and then press
the MICRO POWER key until the display
indicates the desired level.
•Power level
The microwave power level is varied by the
microwave energy switching on and off.
When using power levels other than 100P you
will be able to hear the microwave energy
pulsing on and off as the food cooks or defrosts.
Power Level
HIGH
MEDIUM HIGH
MEDIUM
MEDIUM LOW
(Defrost)
LOW
(Defrost)
Percentage
100P
70P
50P
30P
10P
Press the
MICRO
POWER key
x 1
x 2
x 3
x 4
x 5
IMPORTANT: The microwave power level will
default to 100P unless you press the MICRO
POWER key.
•Check the power level
To check the microwave power level during
cooking, press the MICRO POWER key.As
long as your finger is pressing the MICRO
POWER
key the power level will be displayed.
The oven continues to count down although
the display will show the power level.
Generally the following recommendations apply:
100P - (HIGH output = 800W) used for fast
cooking or reheating e.g. for casseroles, hot
beverages, vegetables etc.
70P - (MEDIUM HIGH output = 560W) used for
longer cooking of dense foods such as roast joints,
meat loaf and plated meals, also for sensitive dishes
such as sponge cakes. At this reduced setting, the
food will cook evenly without over cooking at the
sides.
50P - (MEDIUM output = 400W) for dense foods
which require a long cooking time when cooked
conventionally, eg. beef casserole, it is advisable to use
this power setting to ensure the meat will be tender.
30P - (MEDIUM LOW output = 240W Defrost setting)
to defrost, select this power setting, to ensure that the
dish defrosts evenly.This setting is also ideal for simmering
rice, pasta, dumplings and cooking egg custard.
10P - (LOW output = 80W) For gentle
defrosting, eg. cream gateaux or pastry.
R-756 10/23/2010 11:02:56

8

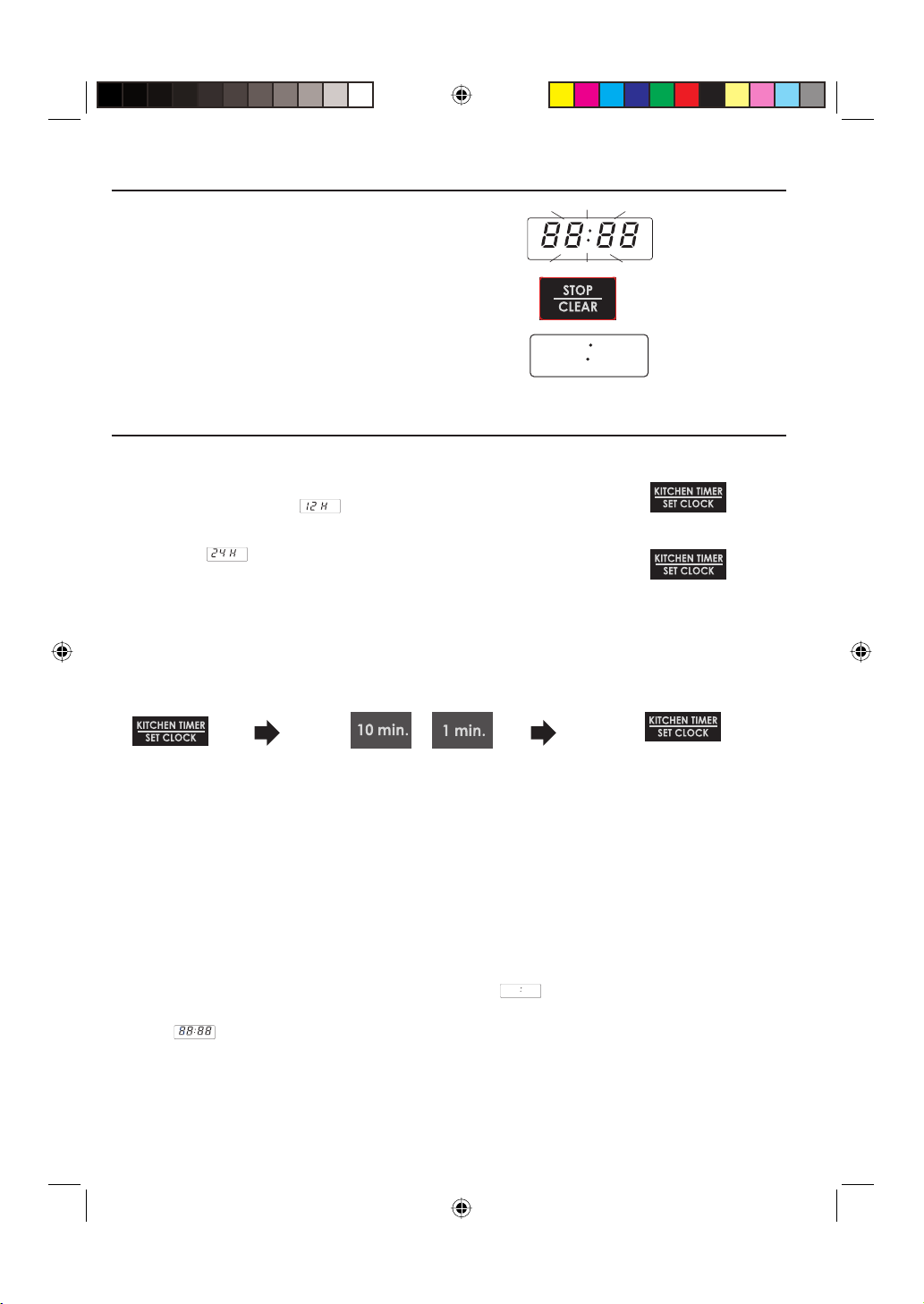

SETTING THE CLOCK
Your oven has a 12 hour and a 24 hour clock.
•To select the 12 hour clock, press the KITCHENTIMER/CLOCK SET
key once for 3 seconds. will appear on the display.
•To select the 24 hour clock, press the KITCHENTIMER/CLOCK SET
key twice. will appear on the display.
To set the time of day follow the instructions below:
x1
x2

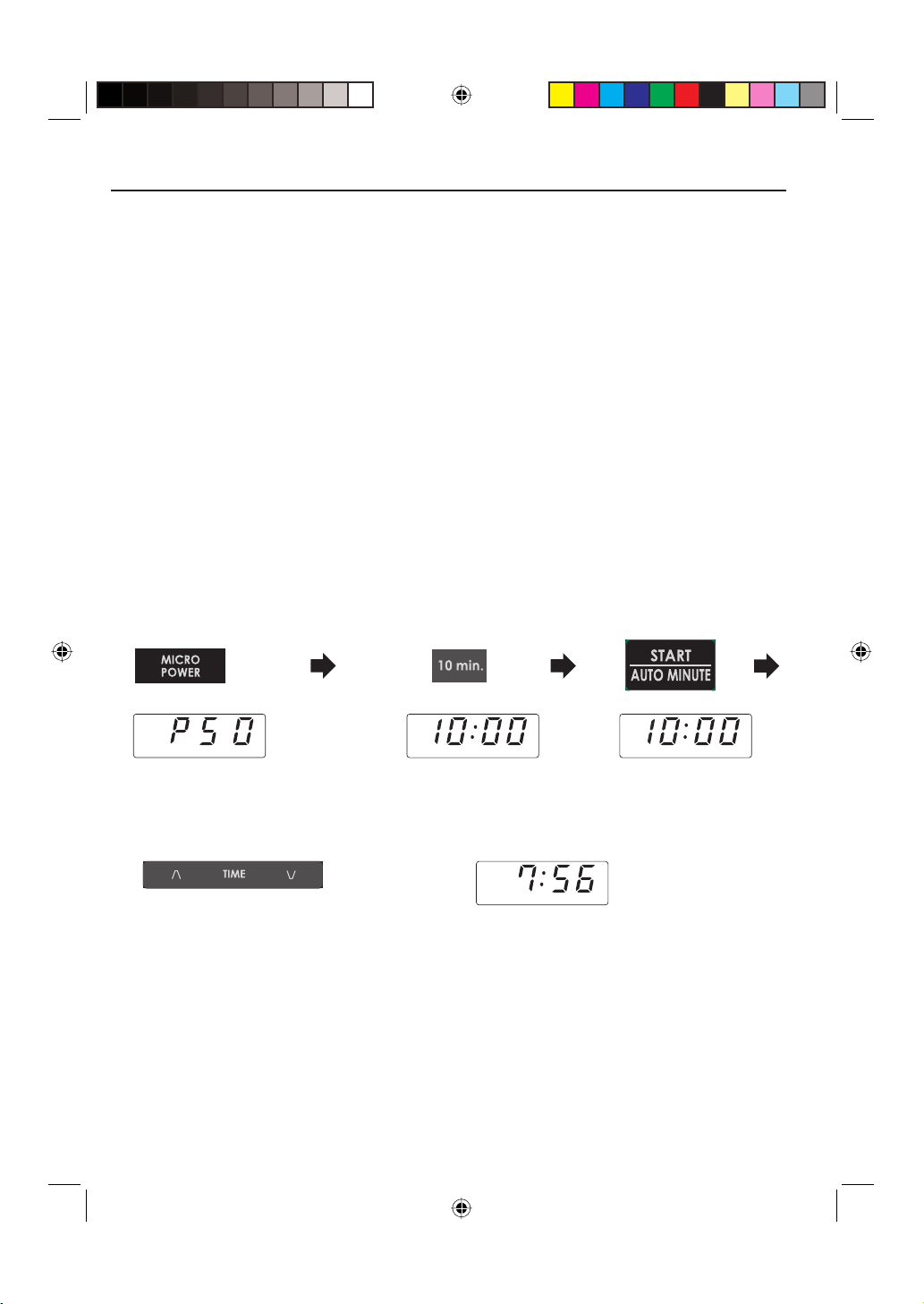

1. Press the KITCHEN
TIMER/CLOCK SET
for 3s until “12H”
displays.
2. Enter the time by
pressing the TIME
keys.
x1
NOTES:
•Press the STOP/CLEAR key if you make a mistake during programming.
•If you press any of the TIME keys too many times, continue to press the key until the desired time
re-appears.
•To check the time of day during a cooking process,press the KITCHENTIMER/CLOCK SET key
and the time of day will remain on the display as long as you keep your finger on the key.This does not
affect the cooking process.
•If the clock is set, when cooking is complete, the display will show the correct time of day.
If the clock has not been set, the display will only show when cooking is complete.
•If the electrical power supply to your microwave oven is interrupted, the display will intermittently
show after the power is reinstated. If this occurs during cooking, the programme will be
erased.The time of day will also be erased.
•When you want to reset the time of day, follow the above example again.
3. Press the KITCHEN
TIMER/CLOCK SET
key once to start the clock.
BEFORE OPERATION
Plug in the oven.
1. The oven display will flash:
2. Press the STOP/CLEAR key.
3. The display will show:
To set the clock, see below.
1.
2.
3.
x1
R-756 10/23/2010 11:02:57
