Sharp R-852N Instruction Manual

ENGLISH
R-852
SVENSKA
Important
Vigtigt
900 W (IEC 60705)
This operation manual contains important information which you should read carefully before using your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified
so that it operates with the door open.
Den här instruktionsboken innehåller viktig information. Läs igenom den noga innan du använder din mikrovågsugn.
VIKTIGT! Om du inte följer instruktionsboken eller om ugnen modifieras så att den kan användas med luckan
öppen, finns det risk för allvarliga personskador.
GB
R-852N
MICROWAVE OVEN WITH TOP & BOTTOM GRILLS AND CONVECTION
OPERATION MANUAL WITH COOKBOOK
MIKROVÅGSUGN MED ÖVER- OCH UNDERGRILL OCH KONVENTIONELL UGNSVÄRME
BRUKSANVISNING MED KOKBOK
S
1 R-852N INTRO 04/02/2000 14:12 Page A

1 R-852N INTRO 04/02/2000 14:12 Page B

Operation Manual
OVEN AND ACCESSORIES . . . . . . . . . . . . . . . . . . .2
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . .4-6
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
BEFORE OPERATION . . . . . . . . . . . . . . . . . . . . . . . .7
USING THE STOP KEY . . . . . . . . . . . . . . . . . . . . . . .7
ENERGY SAVE MODE . . . . . . . . . . . . . . . . . . . . . . .7
SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . .8
MICROWAVE POWER LEVELS . . . . . . . . . . . . . . . . .8
MICROWAVE COOKING . . . . . . . . . . . . . . . . . . . . .9
HEATING WITHOUT FOOD . . . . . . . . . . . . . . . . . . .9
GRILL COOKING . . . . . . . . . . . . . . . . . . . . . . . . .10
CONVECTION COOKING . . . . . . . . . . . . . . . .11-12
DUAL COOKING . . . . . . . . . . . . . . . . . . . . . . .13-14
OTHER CONVENIENT FUNCTIONS . . . . . . . . . .14-16
PIZZA/POTATO/INSTANT ACTION . . . . . . . . . . . .17
PIZZA/QUICHE CHART . . . . . . . . . . . . . . . . . . . . .18
POTATO CHART . . . . . . . . . . . . . . . . . . . . . . . . . .19
INSTANT ACTION CHART . . . . . . . . . . . . . . . .19-21
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . .22
SERVICE CALL CHECK . . . . . . . . . . . . . . . . . . . . . .23
CookBook . . . . . . . . . . . . . . . . . . . . . . .24-59
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . .122
SERVICE ADDRESSES . . . . . . . . . . . . . . . . . .116-122
GB
Bruksanvisning
UGN OCH TILLBEHÖR . . . . . . . . . . . . . . . . . . . . . .2
KONTROLLPANEL . . . . . . . . . . . . . . . . . . . . . . . . . .3
VIKTIGA SÄKERHETSINSTRUKTIONER . . . . . . . .60-62
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . .62
FÖRE ANVÄNDNING . . . . . . . . . . . . . . . . . . . . . .63
ANVÄNDA STOPP-KNAPPEN . . . . . . . . . . . . . . . .63
ENERGISPARANDE FUNKTION . . . . . . . . . . . . . . .63
STÄLLA KLOCKAN . . . . . . . . . . . . . . . . . . . . . . . .64
MIKROVÅGORNAS EFFEKTNIVÅER . . . . . . . . . . . .64
TILLAGNING MED MIKROVÅGOR . . . . . . . . . . . . .65
UPPVÄRMNING UTAN MAT . . . . . . . . . . . . . . . . .65
GRILLNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
TILLAGNING MED KONVENTIONELL UGNSVÄRME . .67-68
KOMBINATIONSTILLAGNING . . . . . . . . . . . . . .69-70
ANDRA PRAKTISKA FUNKTIONER . . . . . . . . . . .70-72
PIZZA/POTATIS/AUTOMATIK . . . . . . . . . . . . . . . . .73
PIZZA/PAJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
POTATISTABELL . . . . . . . . . . . . . . . . . . . . . . . . . . .75
AUTOMATIKTABELL . . . . . . . . . . . . . . . . . . . . .75-77
UNDERHÅLL OCH RENGÖRING . . . . . . . . . . . . . .78
INNAN DU RINGER SERVICE . . . . . . . . . . . . . . . . .79
Kokbok . . . . . . . . . . . . . . . . . . . . . . . .80-115
SPECIFIKATIONER . . . . . . . . . . . . . . . . . . . . . . . .122
SERVICEADRESSER . . . . . . . . . . . . . . . . . . . .116-122
1
S
CONTENTS / INNEHALL
1 R-852N INTRO 04/02/2000 14:12 Page 1

OVEN AND ACCESSORIES / UGN OCH TILLBEHÖR
ACCESSORIES:
Check to make sure the following accessories are provided:
13. Turntable 14. Low rack 15. High rack
Place the turntable over the turntable shaft in the floor of the cavity.
Before first using the turntable and racks, clean with mild soapy water.
Do not cut or scratch the turntable.
Warning:
The accessories (e.g. turntable) will become very hot during
GRILL, DUAL, CONVECTION, PIZZA,POTATO and
INSTANT ACTION (except Easy Defrost) modes. Always use
thick oven gloves when removing the food or turntable from
the oven to prevent burns.
NOTE: When you order accessories, please mention the
following two items: Part name and model name to your
dealer or SHARP authorised service agent.
ACCESSORIES:
Kontrollera att följande tillbehör finns med:
13. Roterande tallrik 14. Lågt stöd 15. Högt stöd
Placera den roterande tallriken i fördjupningen på ugnens botten.
Rengör tallriken och stöden med ett milt diskmedel innan du börjar
använda dem. Den roterande tallriken får inte skäras eller repas.
Varningar:
Tillbehören (t.ex. den roterande tallriken) blir mycket varma när du
använder grillen, automatik, konventionell ugnsvärme samt
funktionerna pizza, potatis och automatik. Undvik att bränna dig
genom att alltid använda tjocka grytlappar när du tar ut mat eller
den roterande tallriken ur ugnen.
OBS: Glöm inte att ange följande uppgifter när du beställer
tillbehör: Delens namn och modellbeteckning. Vänd dig till
din återförsäljare eller SHARP:s auktoriserade serviceställen.
13
14
15
GB S
1Control panel
2Oven lamp
3Grill heating element (top grill)
4Door open button
5Waveguide cover
6Oven cavity
7Turntable motor shaft
8Grill heating element (bottom grill)
9Door seals and sealing surfaces
10 Ventilation openings
11 Power cord
12 Outer cabinet
1Kontrollpanel
2Ugnslampa
3Grillelement (övergrill)
4Knapp för lucköppning
5Stänkskydd
6Ugn
7Drivanordning
8Grillelement (undergrill)
9Dörrtätningar och tätande ytor
10 Ventilationsöppningar
11 Nätsladd
12 Yttersida
R-852
1
2
3
4
9 10 8 7 6 5
10
11
2
12
1 R-852N INTRO 04/02/2000 14:12 Page 2

CONTROL PANEL / KONTROLLPANEL
3
Digital display and indicators:
1. TOP GRILL indicator
2. BOTTOM GRILL indicator
3. CONVECTION indicator
4. MICROWAVE indicator
5. WEIGHT (kg) indicator
6. COOKING IN PROGRESS indicator
7. LESS/MORE indicators
8. CLOCK SET indicator
Operating keys:
9. FRESH PIZZA/FRESH QUICHE key
10. BOILED/JACKET POTATOES key
11. INSTANT ACTION keys
12. LESS/MORE keys
13. TIME keys
14. CONVECTION key
Press to change the convection setting
15. DUAL MODE key:
1 PRESS = MICROWAVE & CONVECTION
2 PRESSES = MICROWAVE & TOP GRILL
3 PRESSES = MICROWAVE & BOTTOM GRILL
16. +1 min /START key
17. DOOR OPEN button
18. STOP key
19. GRILL MODE key:
1 PRESS = TOP GRILL
2 PRESSES = BOTTOM GRILL
3 PRESSES = TOP & BOTTOM GRILL
20. MICROWAVE POWER LEVEL key
Press to change the microwave power setting
21. CLOCK SETTING key
22. FRENCH FRIED POTATO key
23. FROZEN PIZZA/FROZEN QUICHE key
GB
Digital display och indikeringar:
1. ÖVERGRILL-indikering
2. UNDERGRILL-indikering
3. KONVENTIONELL UGNSVÄRME-indikering
4. MIKROVÅGOR-indikering
5. VIKT-indikering
6. TILLAGNING PÅGÅR-indikering
7. MINDRE/MER-indikering
8. INSTÄLLNING AV KLOCKAN-indikering
Kontrollknappar:
9. FÄRSK PIZZA/FÄRSK PAJ-knapp
10. KOKT/BAKAD POTATIS-knapp
11. AUTOMATIK-knapp
12. MINDRE/MER-knappen
13. TID-knappen
14. KONVENTIONELL UGNSVÄRME-knapp
Du ändrar temperaturen genom att trycka på den
här knappen
15. KOMBINATION-knapp
1 TRYCK = MIKROVÅGOR OCH
KONVENTIONELL VÄRME
2 TRYCK = MIKROVÅGOR OCH ÖVERGRILLEN
3 TRYCK = MIKROVÅGOR OCH UNDERGRILLEN
16. +1min /START-knapp
17. LUCKÖPPNING-knapp
18. STOPP-knapp
19. GRILL-knapp
1 TRYCK = ÖVERGRILLEN
2 TRYCK = UNDERGRILLEN
3 TRYCK = ÖVER- OCH UNDERGRILLEN
20. EFFEKT-knapp
Du ändrar effekten genom att trycka på den här
knappen
21. INSTÄLLNING AV KLOCKAN-knapp
22. POMMES FRITES-knapp
23. FRYST PIZZA/FRYST PAJ-knapp
S
9.
10.
11.
21.
12.
13.
18.
14.
15.
19.
20.
16.
22.
23.
17.
1.
3.
4. 5.
6.
7.
8.
2.
1 R-852N INTRO 04/02/2000 14:12 Page 3

4
IMPORTANT SAFETY INSTRUCTIONS
To avoid the danger of fire
The microwave oven should not be left
unattended during operation. Power
levels that are too high or cooking times
that are too long may overheat foods
resulting in a fire.
In cases where the oven is to be installed into
kitchen cabinet, the installation frame EBR-4700
(W) licensed by SHARP must be used. This is
available from your dealer. Refer to the frame
installation instructions or ask your dealer for the
proper instruction procedure. Only the use of this frame
will guarantee the safety and quality of the product.
The electrical outlet must be readily accessible so that
the unit can be unplugged easily in an emergency.
The AC power supply must be 230 V, 50 Hz, with
a minimum 16 A distribution line fuse, or a
minimum 16 A distribution circuit breaker.
It is recommended that a separate circuit serving
only this appliance be provided.
Do not place the oven in areas where heat is
generated. For example, close to a conventional oven.
Do not install the oven in an area of high humidity
or where moisture may collect.
Do not store or use the oven outdoors.
If food being heated begins to smoke,
DO NOT OPEN THE DOOR. Turn off and
unplug the oven and wait until the food
has stopped smoking. Opening the door
while food is smoking may cause a fire.
Use only microwave-safe containers and
utensils. See Page 25.
Do not leave the oven unattended when
using disposable plastic, paper or other
combustible food containers.
Clean the waveguide cover, the oven
cavity and the turntable after use. These
must be dry and free from grease. Built-
up grease may overheat and begin to
smoke or catch fire.
Do not place flammable materials near the oven or
ventilation openings. Do not block the ventilation
openings.
Remove all metallic seals, wire twists, etc., from
food and food packages. Arcing on metallic
surfaces may cause a fire.
Do not use the microwave oven to heat oil for deep
frying. The temperature cannot be controlled and
the oil may catch fire.
To make popcorn, use only special microwave
popcorn makers.
Do not store food or any other items inside the oven.
Check the settings after you start the oven to ensure
the oven is operating as desired.
See the corresponding hints in the cookery book section.
To avoid the possibility of injury
WARNING:
Do not operate the oven if it is damaged or
malfunctioning. Check the following before use:
a)The door; make sure the door closes properly and
ensure it is not misaligned or warped.
b) The hinges and safety door latches; check to make sure
they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they
have not been damaged.
d) Inside the oven cavity or on the door; make sure there
are no dents.
e) The power supply cord and plug; ensure that they are
not damaged.
Never adjust , repair or modify the oven
yourself. It is hazardous for anyone
other than a competent person to carry
out any service or repair operation
which involves the removal of a cover
which gives protection against exposure
to microwave energy.
Do not operate the oven with the door open or
alter the door safety latches in any way.
Do not operate the oven if there is an object
between the door seals and sealing surfaces.
Do not allow grease or dirt to build up
on the door seals and adjacent parts.
Follow instructions for “Care and
Cleaning”, Page 23.
Individuals with PACEMAKERS should check with
their doctor or the manufacturer of the pacemaker
for precautions regarding microwave ovens.
To avoid the possibility of electric shock
Under no circumstances should you remove the
outer cabinet.
Never spill or insert any objects into the door lock
openings or ventilation openings. In the event of a
spill, turn off and unplug the oven immediately, and
call an authorised SHARP service agent.
Do not immerse the power supply cord or plug in
water or any other liquid.
Do not let the power supply cord hang over the
edge of a table or work surface.
IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
2 R-852N ENGLISH O/M 04/02/2000 14:14 Page 4

5
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
To avoid burns, always test food
temperature and stir before serving and
pay special attention to the temperature
of food and drink given to babies,
children or the elderly.
Temperature of the container is not a true
indication of the temperature of the food or drink;
always check the food temperature.
Always stand back from the oven door when opening,
to avoid burns from escaping steam and heat.
Slice stuffed baked foods after heating to release
steam and avoid burns.
Keep children away from the door to prevent them
burning themselves.
Do not touch the oven door, outer cabinet, rear
cabinet, oven cavity, ventilation openings,
accessories and dishes during GRILL,
CONVECTION, DUAL, PIZZA, POTATO and
INSTANT ACTION modes (except EASY
DEFROST) as they will become hot. Before
cleaning make sure they are not hot.
To avoid misuse by children
WARNING: Only allow children to use the
oven without supervision when adequate
instructions have been given so that the child
is able to use the oven in a safe way and
understands the hazards of improper use.
Do not lean or swing on the oven door. Do not
play with the oven or use it as a toy.
Children should be taught all important safety
instructions: use of pot holders, careful removal of
food coverings; paying special attention to
packaging (e.g. self-heating materials) designed to
make food crisp, as they may be extra hot.
Other warnings
Never modify the oven in any way.
Do not move the oven while it is in operation.
This oven is for home food preparation only and
may only be used for cooking food. It is not
suitable for commercial or laboratory use.
To promote trouble-free use of your oven
and avoid damage.
Never operate the oven when it is empty except
where recommended in the operation manual, see
Page 9. Doing so may damage the oven.
When using a browning dish or self-heating
material, always place a heat-resistant insulator
such as a porcelain plate under it to prevent
damage to the turntable due to heat stress. The
preheating time specified in the dish’s instructions
must not be exceeded.
Keep the power supply cord away from heated
surfaces, including the rear of the oven.
Do not attempt to replace the oven lamp yourself
or allow anyone who is not an electrician
authorised by SHARP to do so. If the oven lamp fails,
please consult your dealer or an authorised SHARP
service agent.
If the power supply cord of this appliance is
damaged, it must be replaced with a special cord.
The exchange must be made by an authorised
SHARP service agent.
To avoid the possibility of explosion and
sudden boiling:
WARNING: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
Never use sealed containers. Remove seals and
lids before use. Sealed containers can explode due
to a build up of pressure even after the oven has
been turned off.
Take care when microwaving liquids. Use a wide-
mouthed container to allow bubbles to escape.
Never heat liquids in narrow necked
containers such as baby bottles, as this
may result in the contents erupting from the
container when heated and cause burns.
To prevent sudden eruption of boiling liquid and
possible scalding:
1. Stir liquid prior to heating/reheating.
2. It is advisable to insert a glass rod or similar utensil
into the liquid whilst reheating.
3. Let liquid stand in the oven at the end of cooking
time to prevent delayed eruptive boiling.
Do not cook eggs in their shells, and whole
hard boiled eggs should not be heated in
microwave ovens since they may explode
even after microwave cooking has ended.
To cook or reheat eggs which have not
been scrambled or mixed, pierce the yolks
and the whites, or the eggs may explode.
Shell and slice hard boiled eggs before
reheating them in the microwave oven.
Pierce the skin of such foods as potatoes, sausages
and fruit before cooking, or they may explode.
To avoid the possibility of burns
Use pot holders or oven gloves when removing food
from the oven to prevent burns.
Always open containers, popcorn makers, oven
cooking bags, etc., away from the face and hands to
avoid steam burns.
2 R-852N ENGLISH O/M 04/02/2000 14:14 Page 5

6
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION
1. Remove all packing materials from the inside of the
oven cavity. Discard the loose polythene sheet from
between the door and cavity. Remove the feature
sticker, if attached, from the outside of the door.
2. Check the oven carefully for any signs of damage.
3. Place the oven on a flat, level surface strong
enough to support the oven’s weight plus the
heaviest item likely to be cooked.
NOTE:
If you are unsure how to connect your oven, please
consult an authorised, qualified electrician.
Neither the manufacturer nor the dealer can accept
any liability for damage to the oven or personal
injury resulting from failure to observe the correct
electrical connection procedure.
Water vapour or drops may occasionally form on
the oven walls or around the door seals and
sealing surfaces. This is a normal occurrence and is
not an indication of microwave leakage or a
malfunction.
Do not use metal utensils, which reflect microwaves
and may cause electrical arcing. Do not put cans
in the oven.
Use only the turntable designed for this oven.
Do not place anything on the outer cabinet during
operation.
Do not use plastic containers for microwaving if the
oven is still hot from using the GRILL,
CONVECTION, DUAL, PIZZA, POTATO and
INSTANT ACTION modes (except EASY
DEFROST) because they may melt. Plastic
containers must not be used during above modes
unless the container manufacturer says they are
suitable.
0
23
14
5
8
9
10
11
12
13
14
15
20
25
30
7
6
Remove this film
4. The oven door may become hot during
cooking. Place or mount the oven so
that the bottom of the oven is 85 cm or
more above the floor. Keep children
away from the door to prevent them
burning themselves.
5. Ensure there is a minium of free space above
the oven of 19.5 cm.
6. Securely connect the plug of the oven to a
standard earthed (grounded) household
electrical outlet.
19.5 cm
2 R-852N ENGLISH O/M 04/02/2000 14:14 Page 6

7
BEFORE OPERATION
ENGLISH
USING THE STOP KEY
Use the STOP key to:
1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, press
the STOP key twice.
Your oven has an energy save mode.
Plug in the oven. Nothing will appear on the display at this time.
1. Open the door.
The oven display will show “ENERGY SAVE MODE”.
2. Close the door.
The display will show “.0”.
If you set the clock, “energy save mode”does not work.
If you keep “energy save mode”go to step 4.
3. Set the clock (See page 8).
4. Heat the oven without food (See page 9).
ENERGY SAVE MODE
Your oven comes set for the energy save mode. If you do nothing for 2 minutes after a preceding
operation, i.e. plugging in or at the end of cooking, the power will go off automatically. To restore power
on, open and then close the door. If you set the clock, energy save mode does not work.
To start energy save mode, follow the instructions below.
Example:
To start the energy save mode, (the current time is 23:35):
1. Make sure the
correct time
appears on the
display.
3. Press the 1 MIN
key once.
2. Press the
CLOCK
SETTING key.
4. Press +1 min key. The
power will be off and the
display will show nothing.
x1
x1 x1
Display:
2 R-852N ENGLISH O/M 04/02/2000 14:14 Page 7

If this occurs during cooking, the programme will
be erased. The time of day will also be erased.
4. When you want to reset the time of day, follow the
above example again.
5. If you do not set the clock, press the STOP key
once will appear on the display. When the
operation of the oven is finished, will
reappear on the display instead of the time of day.
6. If you set the clock, energy save mode does
not work.
x1
8
SETTING THE CLOCK
MICROWAVE POWER LEVELS
There are two setting modes: 12 hour clock and 24 hour clock.
Step 1.
x1
1. To set the 12 hour clock, press the CLOCK
SETTING key once, as in Step 1 opposite.
2. To set the 24 hour clock, press the CLOCK
SETTING key twice, as in Step 2 opposite.
Step 2.
x2
Example:
To set the 24 hour clock to 23:35:
x2 x2 x1
1. Choose the 24 hour
clock by pressing the
CLOCK SETTING key
twice.
3. Change from hours to mins
by pressing the CLOCK
SETTING key once.
Check the display.
4. Set the minutes:
Press 10 MIN key three times.
Press 1 MIN key five times.
2. Set the hours:
Press the 10 MIN key twice.
Press the 1 MIN key three times.
5. Start the clock.
NOTES:
1. Press the STOP key if you make a mistake during
programming.
2. If the oven is in cooking or minute timer mode and
you wish to know the time of day, touch the
CLOCK SETTING key. As long as your finger is
touching the key, the time of day will be displayed.
3. If the electrical power supply to your microwave
oven is interrupted, plug in the oven again, then
open and close the door. The display will show
“ENERGY SAVE MODE”.
Your oven has 5 power levels. To choose the power level, follow the advice given in the cookbook.
900 WATT = 100 % output
630 WATT = 70 % output
450 WATT = 50 % output
•To set the power, touch the MICROWAVE POWER LEVEL key until the desired level is displayed.
•If the MICROWAVE POWER LEVEL key is touched once, will be displayed. If you miss your desired
level, continue touching the MICROWAVE POWER LEVEL key until you reach the level again.
•If the level is not selected, the level 900 W (100 %) is automatically set.
x3
x3 x5
270 WATT = 30 % output
90 WATT = 10 % output
2 R-852N ENGLISH O/M 04/02/2000 14:14 Page 8

9

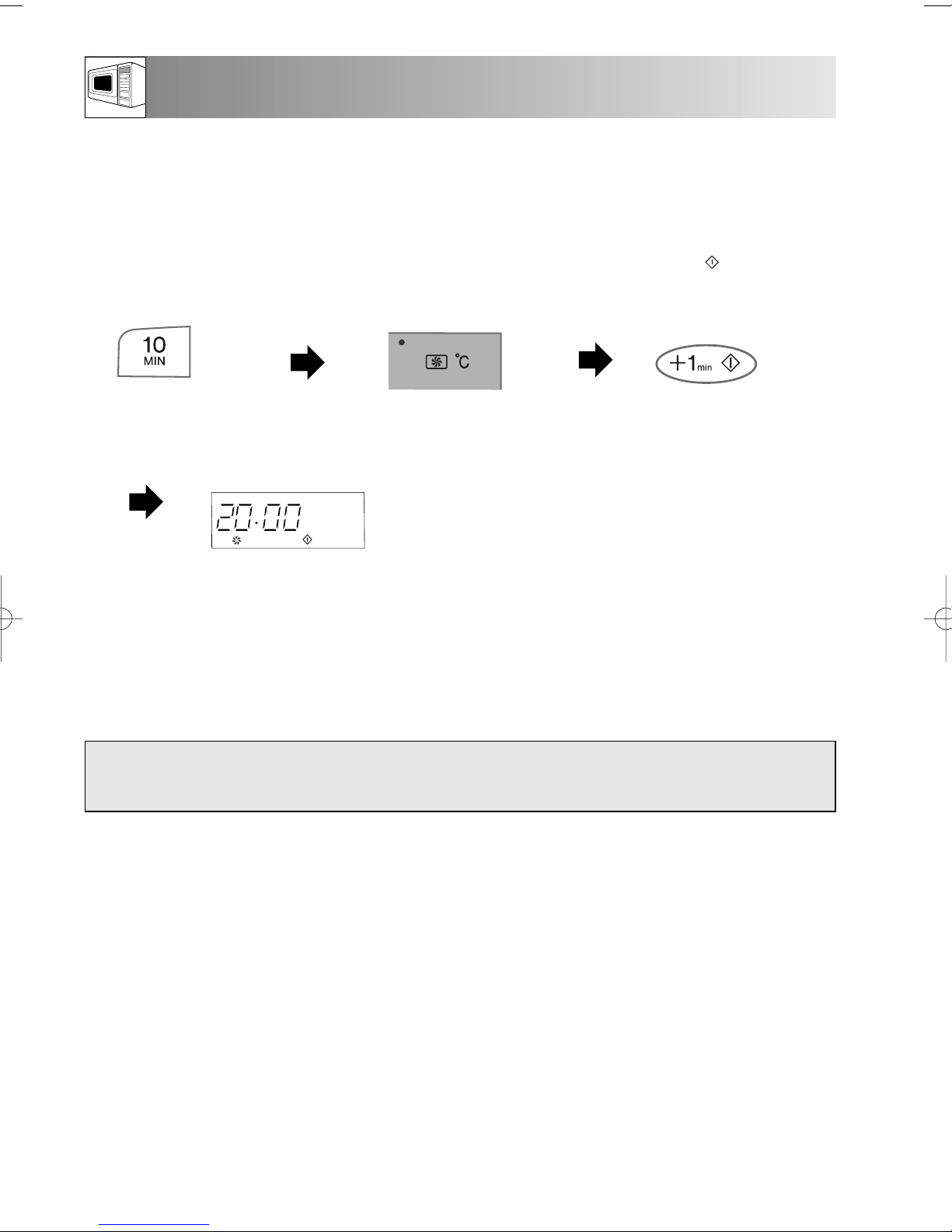

MICROWAVE COOKING
ENGLISH
NOTES:
1. When the door is opened during the cooking
process, the cooking time on the digital display
stops automatically. The cooking time starts to count
down again when the door is closed and the
+1 min /START key is pressed.
2. If you wish to know the power level during
cooking, press the MICROWAVE POWER
LEVEL key. As long as your finger is pressing the
MICROWAVE POWER LEVEL key, the power
level will be displayed.
3. When the operation of the oven is finished, the
time of day will reappear, if set, on the display.
Example: Suppose you want to heat soup for 2 minutes and 30 seconds on 630 W microwave power.
1. Set the time:
Press 1 MIN key
twice and the 10
SEC key three
times.
x2
x3x2
2. Choose desired power
630 W by pressing
MICROWAVE POWER
LEVEL key twice.
x1
Your oven can be programmed for up to 99.90 minutes. (99.90).
You may detect smoke or a burning smell when using the grill(s), dual grill or convection for the first time. This is
normal and not a sign that the oven is out of order.
To avoid this problem, when first using the oven, operate both top and bottom grills without food for 20 minutes.
IMPORTANT: During grill operation, to allow smoke or smells to disperse open a window or switch the kitchen
ventilation on. Make sure there is no food in the oven.
1. Enter the required
heating time (20 min)
by pressing the 10
MIN key twice.
2. Press the GRILL
MODE key
three times.
x1x2
The oven will count down. When the oven has finished cooking, open the door to cool the oven cavity.
WARNING:
The oven door, outer cabinet and oven cavity will become hot. Take care to avoid burns when cooling the
oven down after operation.
x3
Check the display
Check the display
3. Start cooking
3. Start heating
HEATING WITHOUT FOOD
2 R-852N ENGLISH O/M 04/02/2000 14:15 Page 9

10
GRILL COOKING
1. Enter the desired
cooking time by
pressing the 1
MIN key five
times
2. Choose TOP GRILL
function by pressing
GRILL MODE key
once.
Example:
Suppose you want to cook for 5 minutes using the TOP GRILL only.
x1 x1
1. The high or low racks are recommended when grilling.
2. You may detect smoke or a burning smell when using the grill for the first time, this is normal and not a sign that the
oven is out of order. Please see heating without food on the previous page.
3. After cooking using TOP GRILL and BOTTOM GRILL the display may show ‘NOW COOLING’.
x5
Your oven has 2 grill heating elements, and a combination of 3 grill cooking modes. Input the time first then
select the desired grill mode by pressing the GRILL MODE key as indicated below.
Press GRILL MODE key SYMBOL
GRILL HEATING ELEMENT IN USE
Top Grill
Bottom Grill
Top & Bottom Grill together
x1
x2
x3
Check the display
3. Start cooking
WARNING: The oven cavity, door, outer cabinet, turntable, racks, dishes and
especially the bottom grill will become very hot, always use thick oven gloves when
removing the food or turntable from the oven to prevent burns.
2 R-852N ENGLISH O/M 04/02/2000 14:15 Page 10

11
ENGLISH
x5
CONVECTION COOKING
This microwave oven has 10 pre-set oven temperatures which use a combination of the top and bottom
grills.
Example 1: To cook with preheating
Suppose you want to pre-heat to 180o C and cook for 20 minutes at 180o C.
NOTES:
•After preheating, if you want to cook at a different temperature press the CONVECTION key until
the desired setting appears on the display. In the example above, to change the temperature you
would press the CONVECTION key after entering the cooking time.
•When the oven reaches the programmed temperature, it will automatically hold at the pre-heated
temperature for 30 minutes. After 30 minutes the display will change to time of day, if set and the
convection temperature will be cancelled.
•After cooking, the display may show “NOW COOLING”.
1. Enter the desired convection
temperature by pressing the
CONVECTION key five times.
The display will show 180°C.
Check the display
1
250
Press CONVECTION key
Oven Temp (°C)
2
230
3
220
4
200
5
180
6
160
7
130
8
100
9
70
10
40
3. Enter the cooking time.
Press the 10 MIN key
twice.
x2 x1
4. Press the
+1 min /START key.
2. Press the +1 min /
START key to start pre-
heating. The display shows
“PREHEAT”
x1
When the pre-heated
temperature has been reached
the audible signal sounds. The
display will show . Open
the door and place the food
inside the oven. Close the door.
WARNING: The oven cavity, door, outer cabinet, turntable, racks, dishes and
especially the bottom grill will become very hot, always use thick oven gloves when
removing the food or turntable from the oven to prevent burns.
2 R-852N ENGLISH O/M 04/02/2000 14:15 Page 11

12
CONVECTION COOKING
x1
Example 2: To cook without preheating
Suppose you want to cook at 250o C for 20 minutes.
1. Enter the desired cooking time
(20 min.) by pressing the 10
MIN key twice.
Check the display
x2
3. Press the
+1 min /START key.
2. Select the desired cooking
temperature. (250o C).
x1
NOTES:
•After cooking, the oven will automatically cool and the display may show “NOW COOLING”.
•To change the convection temperature, press the CONVECTION key until the desired temperature appears
on the display.
WARNING:
The oven cavity, door, outer cabinet, turntable, racks, dishes and
especially the bottom grill will become very hot, always use thick oven gloves when
removing the food or turntable from the oven to prevent burns.
2 R-852N ENGLISH O/M 04/02/2000 14:15 Page 12

13
DUAL COOKING
ENGLISH
Your oven has 3 DUAL cooking modes combining the heat of the grill(s) with the power of the microwave.
To select the DUAL cooking mode, press the DUAL MODE key until the desired setting appears in the display.
Generally, dual cooking time shortens the total cooking time.
NOTES:
•To adjust the microwave power, press the MICROWAVE POWER LEVEL key.
•To adjust the convection temperature, press the CONVECTION key until the desired temperature appears
on the display.
•For DUAL 1 the oven temperature can be changed from 40°C to 250°C in ten levels.
Press DUAL MODE key Cooking method
MICRO 270 W
CONV 250°C
MICRO 270 W
TOP GRILL
MICRO 270 W
BOTTOM GRILL
Microwave Power Range
90 W - 450 W
90 W - 900 W
90 W - 900 W
Symbol
Example 1:
Suppose you want to cook for 20 minutes using DUAL 1 (90 W microwave power and 200o C
CONVECTION).
1. Enter the desired
cooking time (20
min.) by pressing the
10 MIN key twice.
2. Press the DUAL
MODE key once.
3. Press the
MICROWAVE
POWER LEVEL key
once (90 W).
5. Start cooking.
x1
x1
x1
x2 x3
4. Press CONVECTION
key three times
(200o C).
Check the display
x1
x2
x3
•After cooking, the display may show “NOW COOLING”.
DUAL 1
DUAL 2
DUAL 3
2 R-852N ENGLISH O/M 04/02/2000 14:15 Page 13

14
DUAL COOKING
OTHER CONVENIENT FUNCTIONS
x3
x1
x5
Example:-
Stage 1: 10 minutes at 450 W power Stage 2: 5 minutes Dual 2 at 90 W
Stage 3: 20 minutes using the TOP GRILL.
1. MULTIPLE SEQUENCE COOKING.
A sequence of 4 stages (maximum) can be programmed which may combine the MICROWAVE, GRILL,
DUAL or CONVECTION modes.
EXAMPLES OF SEQUENCE COOKING:
1. Micro or Preheat + Micro + Micro + Dual or Convection or Grill or Micro
2. Micro or Preheat + Dual or Convection or Grill or Micro + Dual or Convection or Grill or Micro
3. Dual or Convection or Grill or Micro + Micro + Dual or Convection or Grill or Micro
STAGE 1
1. Enter the desired cooking
time (10 minutes) by pressing
the 10 MIN key once.
2. Select 450 W microwave
power by pressing the
MICROWAVE POWER
LEVEL key three times.
STAGE 2
3. Enter the desired cooking
time (5 minutes) by pressing
the 1 MIN key five times.
4. Select DUAL MODE 2
only, by pressing the
DUAL MODE key twice.
5. Select 90 W low power by
pressing the MICROWAVE
POWER LEVEL key once.
x2 x1
1. Enter the
desired
cooking time
by pressing
the 10 MIN
key twice.
2. Press DUAL
MODE key
twice.
3. Press the
MICROWAVE
POWER LEVEL
key once (90 W).
4. Start cooking.
x2
x2 x1
x1
Example 2:
Suppose you want to cook for 20 minutes on DUAL 2, using 90 W microwave power and TOP GRILL.
Check the display
WARNING:
The oven cavity, door, outer cabinet, turntable, racks, dishes and especially the bottom
grill will become very hot, always use thick oven gloves when removing the food or
turntable from the oven to prevent burns.
NOTE: After cooking, the display may show “NOW COOLING”.
2 R-852N ENGLISH O/M 04/02/2000 14:16 Page 14

15
OTHER CONVENIENT FUNCTIONS
ENGLISH
2. LESS / MORE keys.
The LESS ( ) and MORE ( ) keys allow you to easily decrease or increase programmed setting times,
(for a less well or more well cooked result), used for PIZZA, POTATO and INSTANT ACTION or when
cooking is underway.
a) Changing the pre-programmed time setting.
Example:
Suppose you want to cook 0,9 kg Roast chicken using the INSTANT ACTION and MORE ( ) keys.
NOTES:
To cancel LESS or MORE press the same key again.
To change MORE to LESS simply press the LESS ( ) key.
To change LESS to MORE simply press the MORE ( ) key.
b) Changing the heating time while the oven is operating:-
The cooking time can be decreased or increased in 1 minute steps each time the LESS ( ) and
MORE ( ) keys are pressed.
2. Choose the desired
result (well cooked)
by pressing the
MORE key once
within 2 seconds.
1. Choose the INSTANT
ACTION menu for Roast
chicken by pressing the
INSTANT ACTION key
once.
3. The oven will start to
cook automatically.
x1
x1
x2
STAGE 3
6. Enter the desired
cooking time (20
minutes) by pressing the
10 MIN key twice.
7. Select TOP GRILL by
pressing the GRILL
MODE key once.
8. Start to cook by
pressing the +1
MIN /START
key.
x1
x1
Check the display
2 R-852N ENGLISH O/M 04/02/2000 14:16 Page 15

16
OTHER CONVENIENT FUNCTIONS
x1
3. +1 min function
The + 1 min function allows you to operate the
following functions:
a) Direct Start. You can start to cook directly on full microwave power (900 W) and in 1 minute steps by
pressing the + 1 min /START key.
NOTE: To avoid children’s misuse, the + 1 min /START key can be used only within 2 minutes after a
preceding operation, i.e., closing the door or pressing the STOP key.
b) Extending the cooking time. You can extend the cooking time in multiples of 1 minute, by pressing the
+ 1 min /START key, during the cooking process.
4. TO CHECK SETTINGS WHILE THE OVEN IS OPERATING
You can check the power level, oven temperature, the programmed and actual oven temperatures ie:
when pre-heating.
TO CHECK THE POWER LEVEL :
To check the microwave power level during cooking
press the MICROWAVE POWER LEVEL key.
The oven continues to count down, although the
display shows the power level.
As long as your finger is
pressing the key, the
power level will be
displayed.
TO CHECK THE CONVECTION TEMPERATURE:
To check the convection temperature during cooking
press the CONVECTION key.
When the oven is preheating, you can check the
actual oven temperature.
As long as your finger is
pressing the key, the
convection temperature in
°C will be displayed.
TO CHECK THE TIME OF DAY:
Firstly, the clock must already be set, see page 8.
To check the time of day during cooking, press the
CLOCK SETTING key.
As long as your finger is
pressing the key, the
time of day will be
displayed.
2 R-852N ENGLISH O/M 04/02/2000 14:16 Page 16

17
PIZZA/POTATO/INSTANT ACTION
ENGLISH
The PIZZA, POTATO AND INSTANT ACTION functions automatically work out the correct cooking mode and
cooking time of the foods illustrated below.
NOTES:
When manipulation is required (eg: to turn food over) the oven will stop and the audible signal will sound, the display
will show the necessary action. To continue cooking, press the +1 min /START key. The final temperature of the
food will vary according to its initial temperature. Check food is piping hot after cooking. If necessary, you can extend
the cooking time. Always refer to the cooking charts given in the separate cookery book.
Input the menu by pressing the desired key. The INSTANT ACTION can only be input within 2 minutes after
cooking completion, closing the door or pressing the STOP key.
To increase the weight press the selected key until the desired weight is displayed. Enter the weight of the food only.
Do not include the weight of the container.
For food weighing more or less than the weights/quantities given in the cooking charts (see separate cookery
book) cook using manual operation.
The programmed cooking times are average times. If you want to alter the cooking times of PIZZA, POTATO
and INSTANT ACTION, use the LESS ( ) or MORE ( ) keys. For best results use the cooking chart
instructions (see separate cookery book).
The oven will start to cook instantly after the weight has been input.
1.
2.
3.
4.
Warning:
The oven cavity, door, outer cabinet, turntable, racks, dishes and especially the bottom grill will become
very hot. Use thick oven gloves when removing food or the turntable from the oven to prevent burns.
What you need to know when using PIZZA/POTATO/INSTANT ACTION :
FRESH PIZZA/FRESH QUICHE key
BOILED/JACKET POTATOES key
FROZEN PIZZA/
FROZEN QUICHE key
FRENCH FRIED POTATO key
INSTANT ACTION keys
Example: Suppose you want to cook 200 g of French Fried Potatoes.
Choose the menu and quantity by
pressing the FRENCH FRIED
POTATO key once.
The oven will instantly
begin to cook.
x1
2 R-852N ENGLISH O/M 04/02/2000 14:16 Page 17

18
PIZZA/QUICHE CHART
Procedure:
•Remove the ready prepared frozen pizza/
quiche from the packaging and place on the
turntable. When cooking thick base pizzas and
ready prepared frozen quiches, press the MORE
( ) key before pressing the FROZEN
PIZZA/FROZEN QUICHE key.
•After cooking, place on a plate for serving.
For thick base pizza and quiche, let stand for 2
minutes.
Frozen Pizza, Frozen Quiche
Quantity: 0,15 - 0,6 kg Pizza
0,15 - 0,4 kg Quiche
Utensils: Directly on the turntable
Increasing unit: 50 g
Initial food Temp: -18o C, Frozen
Recommended
menus: Frozen pizzas, frozen quiches
▲
Procedure:
•Prepare the pizza/quiche according to the
recipe below.
•Place directly on the turntable.
•After cooking, place on a plate for serving.
Fresh Pizza, Quiche
Quantity: 0,7 - 1,0 kg Pizza,
0,7 kg Quiche
Utensils: Directly on the turntable
Increasing unit: 100 g
Initial food Temp: 20o C, Room temperature
Recommended
menus: Homemade pizza/Quiche
For quiche, use the MORE ( )
key.
PIZZA RECIPE
Ingredients:
300 g Approx. Ready prepared dough.
(Ready mix or roll out dough)
200 g Approx. Tinned tomatoes
150 gTopping as desired
(eg. corn, ham, salami,
pineapple)
50 gGrated cheese
Basil, oregano, thyme,
salt, pepper
Prepare the dough according to the
manufacturer’s instructions. Roll out to the size of
the turntable.
Lightly grease the turntable and place the pizza
base on it and pierce the dough.
Drain the tomatoes and cut them into pieces.
Season the tomatoes with the spices and
spread on the dough. Put all other ingredients
on the pizza and finally cover with the cheese.
Cook the pizza using the FRESH
PIZZA/FRESH QUICHE key.
QUICHE RECIPE
Ingredients:
200 g Puff pastry (frozen or chilled)
3 Eggs (size medium)
200 g Cream or milk
100 gGrated cheese (Emmenthal)
50 gHam
Defrost the pastry and roll it out to the size of the
turntable. Place on the turntable and pierce the dough.
Mix the eggs with the cream and the cheese
together. Season with salt and pepper, and
pour over the pastry.
Sprinkle the ham over and cook the
quiche using the FRESH
PIZZA/FRESH QUICHE key and
the MORE ( ) key.
Procedure:
1.
2.
3.
4.
Procedure:
1.
2.
3.
▲
▲
2 R-852N ENGLISH O/M 04/02/2000 14:16 Page 18
