DV-L70U
1. IMPORTANT SAFEGUARDS AND PRECAUTIONS
1-1
IMPORTANT SERVICE NOTES
BEFORE RETURNING THE DVD PLAYER
Beforereturning the DVDplayerto the user,perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the DVD player.
2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustmentandcompartmentcoversorshields,isola-
tion resistor/capacitor networks, mechanical insula-
tors etc.
3. To be sure that no shock hazard exists, check for
current in the following manner.
●Plug the AC line cord directly into a 120 volt AC outlet
(Do not use an isolation transformer for this test).
●Using two clip leads, connect a 1.5k ohm, 10 watt
resistorparalleledby a0.15µFcapacitorinserieswith
all exposed metal cabinet parts and a known earth
ground, such as a water pipe or conduit.
●UseanDVMorVOMwith1000ohmpervolt,orhigher
sensifivity measure the AC voltage drop across the
resistor (See Diagram).
●Move the resistor connection to earth exposed metal
parthavingareturnpathtothechassis(metalcabinet,
screw heads, knobs and control shafts, etc.) and
measure the AC voltage drop across the resistor.
ReversetheACplugonthesetandrepeatACvoltage
DVM
AC SCALE
1.5k ohms.
10W
CONNECT TO
KNOWN EARTH
GROUND
TO EXPOSED
METAL PARTS
0.15 µF
TEST PROBE
measurementsforeachexposedpart.Anyreadingof
0.45V rms (this corresponds to 0.3mA rms AC.) or
more is excessive and indicates a potential shock
hazard which must be corrected before returning the
DVD player to the owner.
CAUTION
This symbol mark means following.
For continued protection against fire haz-
ard, replace only with same type fuse
F9001 (4A, 63V) on DC-IN jack PWB or
F9002 (1A, 63V) on DC/DC CONV. PWB
orF9901(1.5A,63V)onCCFTINV.PWB.
Camcorder
only
This symbol alerts the user that there are
importantoperatingandmaintenanceinstruc-
tions in the literature accompanying this unit.
This symbol warns the user of uninsulated
voltagewithinthe unitthatcancausedanger-
ous electric shocks.

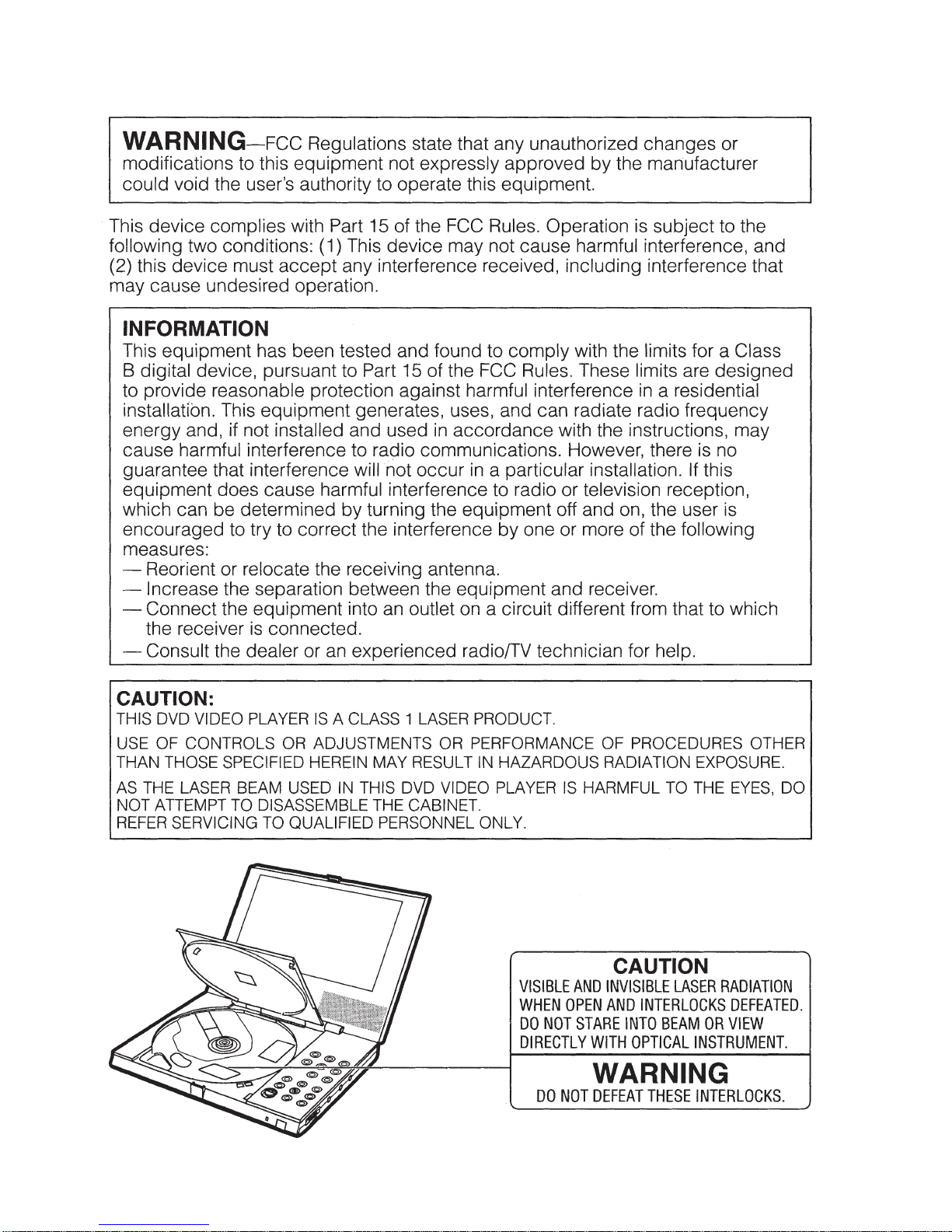

WARNING :TOREDUCETHE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE
THIS APPLIANCETOWET LOCATIONS.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER. NO
USER·SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
