Sharp XL-MP9H User manual

SERVICE MANUAL
XL-MP9H
No. S7552XLMP9H//
MICRO COMPONENT SYSTEM
XL-MP9H
MODEL
SHARP CORPORATION
CONTENTS
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
CHAPTER 1. GENERAL DESCRIPTION
[1] PRECAUTION FOR USING LEAD-FREE
SOLDER ........................................................ 1-1
[2] SAFETY PRECAUTION FOR SERVICE
MANUAL ........................................................ 1-2
[3] SPECIFICATIONS ......................................... 1-3
[4] NAMES OF PARTS........................................ 1-3
CHAPTER 2. ADJUSTMENTS
[1] ADJUSTMENT ............................................... 2-1
[2] TEST MODE .................................................. 2-2
CHAPTER 3. MECHANICAL DESCRIPTION
[1] DISASSEMBLY .............................................. 3-1
CHAPTER 4. DIAGRAMS
[1] BLOCK DIAGRAM MAIN ............................... 4-1
[2] BLOCK DIAGRAM DISPLAY ......................... 4-3
CHAPTER 5. CIRCUIT DESCRIPTION
[1] WAVEFORMS OF CD CIRCUIT .................... 5-1
[2] VOLTAGE....................................................... 5-2
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS
LAYOUT
[1] NOTES ON SCHEMATIC DIAGRAM ............6-1
[2] TYPES OF TRANSISTOR AND LED ............6-1
[3] SCHEMATIC DIAGRAM MAIN(1/3)...............6-2
[4] SCHEMATIC DIAGRAM MAIN(2/3)...............6-4
[5] SCHEMATIC DIAGRAM MAIN(3/3)...............6-6
[6] SCHEMATIC DIAGRAM DISPLAY ................6-8
[7] WIRING SIDE OF PWB ..............................6-10
[8] WIRING SIDE OF PWB MAIN TOP ............6-12
[9] WIRING SIDE OF PWB MAIN BOTTOM......6-14
[10] WIRING SIDE OF PWB POWER/JACK......6-16
[11] WIRING SIDE OF PWB DISPLAY/
SWITCH ......................................................6-18
CHAPTER 7. FLOWCHART
[1] TROUBLESHOOTING ..................................7-1
CHAPTER 8. OTHERS
[1] FUNCTION TABLE OF IC .............................8-1
[2] FL DISPLAY ..................................................8-7
Parts Guide
TopPage
XL-MP9H Micro Component System consisting of XL-MP9H
(main unit) and CP-MP8H (speaker system).
• In the interests of user-safety the set should be restored to its origi-
nal condition and only parts identical to those specified be used.
E

XL-MP9H
1 – 1
Home StereoXL-MP9HService ManualXL-MP9H S/MMarketE
CHAPTER 1. GENERAL DESCRIPTION
[1] PRECAUTION FOR USING LEAD-FREE SOLDER
1. Employing lead-free solder
Example:
Indicates lead-free solder of tin, silver and copper.
2. Using lead-free wire solder
When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder
may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 C, we recommend you to use a
dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station
or service branch in your area.
3. Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 C which is higher than the conventional lead solder by 40 C,
and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of
time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded,
remove the bit from the PWB as soon as you confirm the steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corrected. Make sure to turn on and off the
power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use
of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Ref No. Description Parts No.
PWB-A DCEKKV565SJ03
" MAIN,JACK,SENSOR,SWITCH,DISPLAY,POWER PWB" of this model employs lead-free solder.
The LF symbol indicates lead-free solder, and is attached on the PWB and service manuals. The alphabetical character
following LF shows the type of lead-free solder.
MAIN(A1)/JACK(A2)/Sensor(A3)/SWITCH(A4)/DISPLAY(A5)/POWER(A6)

XL-MP9H
1 – 2
[2] SAFETY PRECAUTION FOR SERVICE MANUAL
Precaution to be taken when replacing and servicing the Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class 1 Requirements. However, the follow-
ing precautions must be observed during servicing to protect your eyes against exposure to the Laser beam.
1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than the lead-in posi-
tion, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens.
2) The Laser Power Output of the Pickup inside the unit and replacement service parts have already been adjusted prior to shipping.
3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup.
4) Under no circumstances look directly into the Pickup Lens at any time.
5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in hazardous radiation
exposure.
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN
I DENNA BRUKSANVISNING SPECIFICERAS. KAN
ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASER-
STRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR
LASERKLASS 1.
ADVARSEL-USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE IND I
STRÅLEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NÄKYMÄTÖN LASERSÄTEILYLLE.
ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN
LÄPI.
VARNING-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.
STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN GENOM
OPTISKT INSTRUMENT.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW

XL-MP9H
1 – 3
[3] SPECIFICATIONS
[4] NAMES OF PARTS
Specifications for this model are subject to change without prior
notice.
General
Amplifier
Tuner
CD player
Speaker
Power source AC 230 V, 50 Hz
Power
consumption Power on: 25 W
Power stand-by: 0.9 W
Dimensions Width: 100 mm (3-15/16")
Height: 205 mm (8-1/16")
Depth: 240 mm (9-7/16")
Weight 2.1 kg (4.6 lbs.)
Output power PMPO: 30 W (total)
MPO: 15 W (7.5 W + 7.5 W) (DIN 45 324)
RMS: 10 W (5 W + 5 W) (DIN 45 324)
Output terminals Speakers: 4 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Line output: 2 k ohms
Input terminals Line input: 47 k ohms
Frequency range FM: 87.5 - 108.0 MHz
AM: 522 - 1,620 kHz
Type Compact disc player
Signal readout Non-contact, 3-beam semiconductor laser
pickup
D/A converter 1-bit D/A converter
Frequency
response 20 - 20,000 Hz
Dynamic range 90 dB (1 kHz)
Type 8 cm (3-1/8") full-range speaker
Maximum input
power 10 W
Rated input power 5W
Impedance 4 ohms
Dimensions Width: 100 mm (3-15/16")
Height: 205 mm (8-1/16")
Depth: 193 mm (7-5/8")
Weight 1.2 kg (2.6 lbs.)/each
■
■
■
■
■
1. Remote Sensor
2. On/Stand-by Button
3. Disc Stop/Tuning Down Button
4. Bass/Treble Selector Button
5. Memory/Set Button
6. Clear Button
7. Volume Up and Down/Track Up and Down/Preset Up and
Down Lever
8. Headphone Socket
9. Function Selector Button
10. Disc Eject Button
11. Disc Play or Pause/Tuning Up Button
12. MP3/WMA Display Button
13. Timer Button
14. Sleep Button
15. Disc Slot
16. Line Input Socket
17. Line Output Socket
18. AC Power Input Socket
19. FM 75 Ohm Aerial Socket
20. AM Loop Aerial Socket
21. Speaker Terminals
1
2
3
4
5
6
7
8
9
11
13
10
12
14
15
16
18
17
19
21
20

XL-MP9H
1 – 4
1. Timer Play Indicator
2. MP3 Track Indicator
3. WMA Track Indicator
4. Sleep Indicator
5. Memory Indicator
6. Random Play Indicator
7. Repeat Play Indicator
8. Pause Indicator
9. Play Indicator
10. RDS Indicator
11. Dynamic PTY Indicator
12. FM Stereo Mode Indicator
13. FM Stereo Receiving Indicator
14. Traffic Programme Indicator
15. Traffic Announcement Indicator
16. Full-Range Speaker
17. Bass Reflex Duct
18. Speaker Wire
Notes:
The speaker grilles are not removable.
There is no distinction between the right and the left speakers.
16 17
18
1
9
7
8
13
12
23 4 5 6
14
15
10
11
1. Remote Control Transmitter
2. On/Stand-by Button
3. CD Select Button
4. Random/Repeat Button
5. Fast Reverse/Tuning Down Button
6. Track Down/Preset Down Button
7. Disc Stop Button
8. Memory Button
9. Clear Button
10. Clock Button
11. RDS Display Mode Select Button
12. Shift Button
13. Bass/Treble Selector Button
14. Volume Up and Down Buttons
15. Tuner and Band Selector Button
16. MP3/WMA Display Button
17. Auxiliary Button
18. Fast Forward/Tuning Up Button
19. Track Up/Preset Up Button
20. Disc Play Button
21. Disc Pause Button
22. Timer Button
23. Sleep Button
24. Direct Search Buttons
25. RDS ASPM (Auto Station Programme Memory) Button
26. RDS Programme Type/
Traffic Information Search Button
4
5
7
13
20
17
18
21
1
3
2
14
12
16
19
22
23
15
6
8
10
24
9
11
25
26

XL-MP9H
2 – 1
XL-MP9H Service Manual
CHAPTER 2. ADJUSTMENTS
[1] ADJUSTMENT
1. TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
•AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
•Check FM VT
Signal generator: 1 kHz, 40 kHz dev., FM modulated
•FM Mute Level
Signal generator: 1 kHz, 40 kHz dev., FM modulated
*1.Adjiust so that an output signal appears.
•Setting the Test Mode
Keeping the REW/REV button and BASS/TREBLE button pressed,
turn on POWER. Then, the frequency is initially set in the memory
as shown in Table. Call it with the PRESET button to use it for
adjustment and check of tuner circuit.
Test Stage Frequency Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
IF 450 kHz 1,602 kHz T351 *1
AM Band
Coverage
— 531 kHz (fL): T306
1.1 ± 0.1 V
*2
AM Tracking 990 kHz 990 kHz T302 *3
*1. Input: Antenna Output: Speaker terminal
*2. Input: Input is not connected Output: TP301(IC302 20Pin)
Frequency Display Check
Point
Instrument
Connection
87.5 MHz 87.5 MHz 2.2V ± 1.0V TP301
108 MHz 108 MHz 7.3V ± 1.0V TP301
Frequency Display Adjusting
Parts
Instrument
Connection
98.00 MHz
(30 dBµV)
98.00 MHz VR351*1 Input: CNP301
Output: Speaker Terminal
Figure 1 ADJUSTMENT POINTS
CNP301
FE301
SO301
T302
AM
Tracking fL
AM BAND
COVERAGE fL
T306
T351
AM IF
FM MUTE
LEVEL
VR351
IC303
IC302
20
C393
TP301
TP302
R350
R357 R356
MAIN PWB-A1
Preset No. BAND FM STEREO
1 FM STEREO FM 87.50 MHz
2 FM 108.00 MHz
3 FM 98.00 MHz
4 FM 90.00 MHz
5 FM 106.00 MHz
6 AM AM 522 kHz
7 AM 1620 kHz
8 AM 990 kHz
9 AM AM 603 kHz
11~25 —————
26 FM MONO FM 106.00 MHz
27 FM 90.00 MHz
28 FM 98.00 MHz
29 FM 108.00 MHz
30 FM 87.50 MHz

XL-MP9H
2 – 2
[2] TEST MODE
1. Turning on the test mode
Turning on the test mode
To turn on the specific test mode, holding down the following two buttons in the ordinary stand-by mode (power off state). In this case only the main
unit button is valid. Even when the ON/STAND-BY of remote control button is set to on, the test mode is not turned on. Then press the ON/STAND-
BY button.
[Ordinary test mode]
1. CD Test Mode (TEST 1).....................MEMORY+FUNCTION
2. Tuner Test Mode (TEST 2).................FUNCTION+BASS/TREBLE
3. Volume Test Mode (TEST 3).............BASS/TREBLE+VOLUME DOWN
4. Timer Test Mode (TEST 4)..................BASS/TREBLE+TIMER
5. Display Test Mode (TEST 5)...............MEMORY+PLAY
6. ALL KEY Test (TEST 6)......................BASS/TREBLE+PRESET UP
7. Tuner clear test (TEST 7)...................MEMORY+Preset Up
8. Soft reset test (TEST 8)......................FUNCTION+CLEAR
All test modes can be terminated by turning off the power with ON/STAND-BY key.
•CD test (TEST 1)
In step 5, hold down the AUX key on the remote control. The tracking servo is switched on/off.
From step 3, the pick up can be moved with the FF/REW key.
•Tuner test (TEST 2)
[cd step 1] Enter test mode. ←––––––––—
↓Hold down the “memory” button
[cd step 2] After some steps, the laser turns on.
↓Hold down the “memory” button
[cd step 3] After some steps, focus search is per-
formed.
↓Hold down the “memory” button
[cd step 4] After some steps, CLV rotation is per-
formed.
↓Hold down the “memory” button
[cd step 5] CD playback starts.
↓Hold down the “stop” button to return to [cd step 1] ––––––––
A
A
CH BAND FREQUENCY
1
2
3
4
5
FM STEREO FM87.50 MHz
FM108.00 MHz
FM98.00 MHz
FM90.00 MHz
FM106.00 MHz
6
7
8
9
AM AM522 kHz
AM1620 kHz
AM990 kHz
AM603 kHz
10 AM AM1404 kHz
11
⋅
⋅
35
——————
36
37
38
39
40
FM MONO FM106.00 MHz
FM90.00 MHz
FM98.00 MHz
FM108.00 MHz
FM87.50 MHz

XL-MP9H
2 – 3
•VOLUME test (TEST 3)
Starting from level 23 (default), check all the levels (0 - 23 - MAX).
•TIMER test (TEST 4)
At 1:05, the power turns on to activate the tape function, and turns off after 90 seconds (equivalent to 90 minutes on the unit).
•Display test (TEST 5)
When test mode is activated, the entire display lights up. As the “PLAY” key is pressed, half of the display lights up alternately.
•ALL KEY test (TEST 6)
In the test mode, hold down all the buttons on the main unit and then press the “ON/STAND-BY”button. “OK” appears.
If only the “ON/STAND-BY” button is pressed, “ERROR” appears.
•Tuner clear test (TEST 7)
All tuner preset stations are cleared.
•Soft reset test (TEST 8)
All data in RAM is cleared.

XL-MP9H
3 – 1
Home StereoXL-MP9HService ManualXL-MP9H S/MMarketE
CHAPTER 3. MECHANICAL DESCRIPTION
[1] DISASSEMBLY
Note:
After removing the connector for the optical pickup from the connector,
wrap the conductive aluminium foil around the front end of the connec-
tor so as to protect the optical pickup from electrostatic damage.
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and
reassembling it, to keep it safe and ensure excellent performance:
1) Be sure to remove the power supply plug from the wall outlet
before starting to disassemble the unit.
2) Take off nylon bands or wire holders where they need to be
removed when disassembling the unit. After servicing the unit,
be sure to rearrange the leads where they were before disas-
sembling.
3) Take sufficient care on static electricity of integrated circuits and
other circuits when servicing.
STEP REMOVAL PROCEDURE FIGURE
1 Top Cabinet 1. Screw...........................(A1) x 5 1
2 Side Panel 1. Screw...........................(B1) x 4 1
3 Rear Panel 1. Screw..........................(C1) x 3 1
4 Display PWB 1. Screw..........................(D1) x 2
2. Flat cable.....................(D2) x 2
3. Socket.........................(D3) x 3
3. Socket.........................(D4) x 1
2
5 Main PWB 1. Screw..........................(E1) x 3
2. Socket.........................(E2) x 5
3. Flat cable.....................(E3) x 1
2
3
3
6 Front Panel 1. Screw...........................(F1) x 1 3
7 CD Mechanism
Unit
1. Screw..........................(G1) x 4 4
8 Power PWB 1. Screw..........................(H1) x 4 4
9 Sensor PWB 1. Screw..........................(J1) x 4
2. Socket.........................(J2) x 1
5
10 Switch PWB 1. Screw..........................(K1) x 6 5
11 Jack PWB 1. Screw...........................(L1) x 2 5
12 CD Mechanism
(Note)
1. Screw..........................(M1) x 4
2. Spring..........................(M2) x 1
6
Figure 1
Figure 2
Side Panel
(Right)
Side Panel
(Lift)
(A1)x1
ø3x12mm
(A1)x1
ø3x12mm
(A1)x1
ø3x12mm
(A1)x2
ø3x12mm
(B1)x2
ø3x6mm
(C1)x1
ø3x8mm
(C1)x2
ø3x12mm
(B1)x2
ø3x6mm
Top Cabinet
Rear Panel
(D1)x2
ø3x10mm
(E1)x2
ø3x10mm
(E1)x1
ø3x6mm
(D2)x1
(D2)x1
(D3)x2
(D3)x1 Front Panel
Main PWB
Display PWB
Power PWB
(D4)x1
(F1)x1
ø3x6mm
Front Panel
Power PWB
Jack PWB
(E2)x3
(E2)x1
(E2)x1
(E3)x1
CD Mechanism

XL-MP9H
3 – 2
These speaker CP-MP8H are available in assembles only and may
not be disassembled.
Figure 3
Figure 4
Figure 5
Figure 6
CP-MP8H
(G1)x2
ø3x6mm
(G1)x2
ø3x8mm
(H1)x3
ø3x6mm
(H1)x1
ø3x6mm
Power PWB CD
Mechanism Unit
Transformer
Front Panel
Sensor PWB
Switch PWB
Jack PWB
(J1)x4
ø2.5x10mm
(J2)x1 (K1)x6
ø2.5x10mm
(L1)x2
ø2.5x10mm
CD
Mechanism Unit
CD Mechanism (M1)x4
ø2.5x12mm
(M2)x1

XL-MP9H
3 – 3
-MEMO-

XL-MP9H
4 – 1
CHAPTER 4. DIAGRAMS
[1] BLOCK DIAGRAM MAIN
F
B
A
E
FO+
TR+
TR-
FO-
ACTUATOR
TR+
FO+
FO-
C
F
B
A
E
TR-
C
D
VCC
VC
LD
VR
MD
D
GND
LD
VR
MD
F
B
A
E
FO+
TR+
TR-
FO-
C
D
VCC
VC
GND
LD
VR
MD
8
6
5
3
13
14
15
16
7
4
2
1
9
10
11
12
8
6
5
3
13
14
15
16
7
4
2
1
9
10
11
12
CD PICKUP UNIT
CD MECHANISM UNIT
MECHANISM PWB
+
+
-
-
SP+
SP-
SL+
SL-
PU-IN
GND
PICKUP IN
SLED
MOTOR
SPINDLE
MOTOR
M
M
MP3 DECODER
DIGITAL SIGNAL
PROCESSOR
FOCUS/TRACKING/ SPIN/SLED DRIVER
EFMIN
SLCO
AVDD
RF
LPF
PHLPF
AIN
CIN
BIN
DIN
FEC
RFMON
VREF
JITTC
EIN
FIN
TEC
TE
TEIN
LDD
LDS
VSS
AVDD
FDO
TDO
SLDO SPDO VVSS1 PDOUT1 PDOUT0 PCKIST VVDD1 DMUTEB PUIN DEFECT FSEQ C2F DVDD DVSS
DVDD1.8
VVDD3
TES
STDA
ST
STR
TES
CON
CON
CON
INT
INT
RE
RCHO
LRVSS
LRVDD
LCHO XVDD
XIN
XOUT
XVSS
AMUTEB
DOUT DVDD
DVSS
DVDD1.8
VVSS2
VCOC2
VPREF2
VPDOUT2
DV
DV
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
151413121110987654321
39
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62
LC78690
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
67
LA6548ND
VINT
VG3
VO3+
VO3-
CD
RESET
REG-IN
VO4-
VO4+
VIN4
VG4
VREF
VIN2 REG-OUT VO2+ VO2- VG2 VO1- VG1
GND GND GND
VO1+ GND GND GND GND VCC MUTE
VCC
+B
+B
+B +B
+B
+B
16.93MHz
+B
+B
LASER
DRIVER
CON
VOL
CONSTANT
VOLTAGE
STEREO
SD
CF352 CF351
FM IF
24 22 21 20 19 18 17 16 15 14 13
12
11
10
9
8
7
6
5
4321
IC303
LA1832S
22 21 20 17 16 15 14 13 12
12 3 4 5678
8
9
7
10
6
11
5
12
4
13
3
14
2
15
1
16
910 11
IC302
LC72131
IC521
LC72723M
X352
X351
456kHz
L354
LOW PASS
FILTER
XIN NC CE DI CL
MO/ST
FM
FM
DO
CE DI CL DO
FM IN
XOUT
DATA
CLE
VSS
AOUT
VDD
AM IN
NC
IF IN
IF REQ
SW
VCC
AM ANT
AM OSC.
VD301-1
SVC348S
VD301-2
SVC348S
VR351
10K(B)
FM MUTE LEVEL
23
T351
+5V
AM IF
MUTE
R-MUTE
MO/ST
L-CH OUT
R-CH OUT
MPX VCO
AM LOW CUT
FM/AM OUT
MPX IN
AM OSC OUT
FM AFC
AM RF IN
VSM
AM OSC INAM MIX OUT
AM IF IN GND REG FM IF IN
SD
STEREO
FM DET
PHASE
(AM/FM)
IF OUT
PHASE
FM IF DET./FM MPX./AM IF
FE301
FM FRONT END
4.5MHz
Q351
SWITCHING
R_MUTE
PLL TUNER
RDS
ZD351
Q360
FM+B
TUN+B
TUN+B
FM+B
FM IF
AM OSC OUT
AM MIX OUT
A_GND
+5V
D_GND
AM IF IN
T302
T306
1
2
3
CF302
1
2
3
21345678
10.7MHz
FM IF
CF301
1
2
3
10.7MHz
VT
1
2
AM
FM
CNP301
SO301
FM
ANTENNA
TERMINAL
L341
BALUN
Q301
Q521
FC801
Q802
X801
Q805
IC802
IC801
Q801
Q809
Q808
Q810
+B1
+B1
Q806
Figure 4-1 BLOCK DIAGRAM (1/4)

XL-MP9H
4 – 2
CODER
SIGNAL
E
SSOR
DMUTEB PUIN DEFECT FSEQ C2F DVDD DVSS
DVDD1.8
VVDD3
VVSS3
DATACK
LRSY
DATA
TEST1
STDATA
STCK
STREQ
TEST0
CONT0
CONT1
CONT2
INTB1
INTB0
RESB
DO
DI
CL
CE
AMUTEB
DOUT DVDD
DVSS
DVDD1.8
VVSS2
VCOC2
VPREF2
VVDD2
VPDOUT2
DVSS
DVDD
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
31 32 33 34 35 36 37 38 39 40
70 69 68 67 66 65 64 63 62 61
8
690
+B
+B +B
+B
16.93MHz
TUN_L
TUN_R
CD_L
CD_R
O_CD_RESET
I_CD_DATA
O_CD_CE
CD+B
+12V
CD-VCC
O_CD_DATA
O_CD_CLK
SPEAKER
TERMINAL SPEAKER BOX A'SSY
SPEAKER BOX A'SSY
LA4631++
POWER AMP.
MUTING
LC75341M
4
3
2
1
9
8
7
6
13
12
11
10
5
4321
123456789
101112
151413 181716 212019 242322
1
5
234
678
LINE OUT
DI
CE
CL
DO
FM ST
SD
VSM
RDS_CLK
RDS_DATA
L OUT
L OUT
L OUT
R OUT
LIN
RIN
R OUT
R OUT
HEADPHONES
M+5V
P-ON
PRE.GND
(L)
(L)
(L)
(R)
(R)
(R)
L-CH
R-CH
R.F IN1 IN2 STBY P.P
LBS
VCC OUT2 P_GND OUT1
TUN R
AUX R AUX L
CD R
CD L
TUN L
CL
DI
LOUT
CE
DI
CE
VSS
LTRE
LIN
LSL0
L4 L3 L2 L1
R3 R1 R2 CL R4 RSL0 RIN RTRE RBS ROUT VREF VDD
3
2
1
+12V
O_CD_RESET
D_GND
O_TU_CE
VSM
RDS_DATA
RDS_CLK
O_POWER
O_CD_CE
O_CD_CLK
O_CD_DATA
O_TU_SDO
I_CD_DATA
O_TU_SCK
I_TU_SDI
0_AMP_ON
O_CD+B
FM ST
SD
O_P_MUTE
M+5V
M_GND
2 4 8 6 7 5 9 1 3
11 13 17 15 16 14 18 19 23 21 22 20 24 10 12
2
1
3
NJM14558
PRE.AMP.
FROM DISPLAY
LINE IN
3
2
1
VP
GND
AUDIO
PROCESSOR
CONSTANT
VOLTAGE
+B
8
9
7
10
6
11
5
12
4
13
IC521
C
72723M X521
456 kHz
RDS
+5V
Q601~603
TO DISPLAY
5V 1
2
3
POWER TRANSFORMER
LINE
FILTER
T200mA L250V
AC INPUT
SOCKET
AN78L05
CONSTANT
VOLTAGE
REGULATOR
31
2
+5.6V
TO CHASSIS GND
TO DISPLAY
VP
123
AC 230V 50Hz
AC POWER
SUPPLY CODE
X801
01
Q808 Q803
Q810
Q104
12V
+B1
+B1
+B1
+B1
+B1
+B1
+B2
Q107
Q108
CNP501
IC601
IC602
J101
SO601
IC101
J103
D110
ZD111
D113
SO201
Q101
Q102
Q103
Q106
Q109
Q105
+B2
CNS603
D103
D102
D104
D101
CNP102
RP101
PT1
F101
SO102
L101
IC102
Figure 4-2 BLOCK DIAGRAM (2/4)

XL-MP9H
4 – 3
[2] BLOCK DIAGRAM DISPLAY
1
5
2
3
4
6
8
MECHANISM PWB
SLOT IN MECHANISM A'SSY
M_GND
O_POWER
0_AMP_ON
O_TU_CE
O_TU_SDO
O_TU_SCK
I_TU_SDI
FM ST
SD
VSM
RDS_DATA
RDS_CLK
M+5V
D_GND
AMP_ON
EEP-GNDD
EEP-VDDD
EEP-CLK
EEP-DATA
+5.6V
MM-
MM+
SW3
SW1
SW2
MM-
MM+
M_GND
SW2
SW1
DISC SLOT-IN
MECHA DRIVER
SW3
D_GND
D_GND
M_GND
D_GND
D_GND
M_GND
I_KEY2
I_KEY1
O_POWER
I_POWER
OPEN_CLOSE
+B3
+B4
+B
+B
+B
+B
+B2
+B2
VP
I_KEY3
1324657
9
101112131415161718192021
222324
123
123
CNP501
TO MAIN
CNP102
TO POWER
EEPROM
KEY
KEY
AT24C04
CNP701
Q701~Q706
SW701~707
SW709~715
SW708
CNW102
CNS102
CNW501
D703
D708
D704
D705
IC7A1
Q707
Q709
Figure 4-3 BLOCK DIAGRAM (3/4)

XL-MP9H
4 – 4
IXA054SJ
REMOTE
SENSOR
123456789
10 11 12
100
99
98
97
96
95
94
93
92
91
13 14 15 16 17 18 19 20 21 22 23 25 26 27 28 2924 30
31
32
33
34
36
35
37
38
39
40
41
42
43
44
45
46
47
48
49
50
515253545556575859606162636465666768697071727374757677787980
81
82
83
84
85
86
87
88
89
90
O_CD_CE
O_POWER
0_AMP_ON
O_CD_CLK
O_CD_DATA
I_CD_DATA
O_CD_RESET
O_TU_CE
O_TU_SCK
O_CD+B
I
_
TU
_
SDI
FM ST
SD
VSM
O_P_MUTE
+12V
+12V
VDD3
VSS3
COM3/PL3
RDS_CLK
RDS_DATA
COM2/PL2
COM1/PL1
COM0/PL0
VSS2
VDD2
VDD1 CF2 CF1 VSS1 XT2/AN11 XT1/AN10 RES
S32
S31
S30
S29
S28
S27
S26
S25
S24
S23
S22
S21
S20
S19
S17 S16 S15 S14 S13 S12 S11 S10
S9 S8 S7 S6 S5 S4 S3 S2 S1 S0
EEP_CLK
EEP_DATA
MM+
MM-
SW1
SW2
SW3
CD_ON
AMP_ON
CD_RES CD_DO CD_DI CD_CLK TU_DO TU_DI TU_CLK TU_CE P_MUTE PRG2 I_KEY1 I_KEY2 SUFIX RDS_VSM I_TU_SD I_VOL_ENC I_FM_ST I_HOLD I_POWER I_REM LED_CON
FL DISPLAY
CD_CE
C0 C1 C2 C3 S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19S19 S20 S21 S22 S23 S24 S25 S26 S27
D
D_GND
S32 S29 S30 S28 S31
O_POWER
LED_CON
I_REM
+5V
+B1
+B1
+B3
+B4
+B
+B
I_KEY3
3 5 4 7 1 2 9 8 6
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
123
25 26 27 28 29 30 31 32 33 34 35 36 37
123456789
101112131415
1
6
S18
CNP501
TO MAIN
SYSTEM
MICROCOMPUTER
32.768 KHz
IC701
LED702
LED701
RX701
LCD701
X702
Q708
Q710
Figure 4-4 BLOCK DIAGRAM (4/4)

XL-MP9H
5 – 1
Home StereoXL-MP9HService ManualXL-MP9H S/MMarketE
CHAPTER 5. CIRCUIT DESCRIPTION

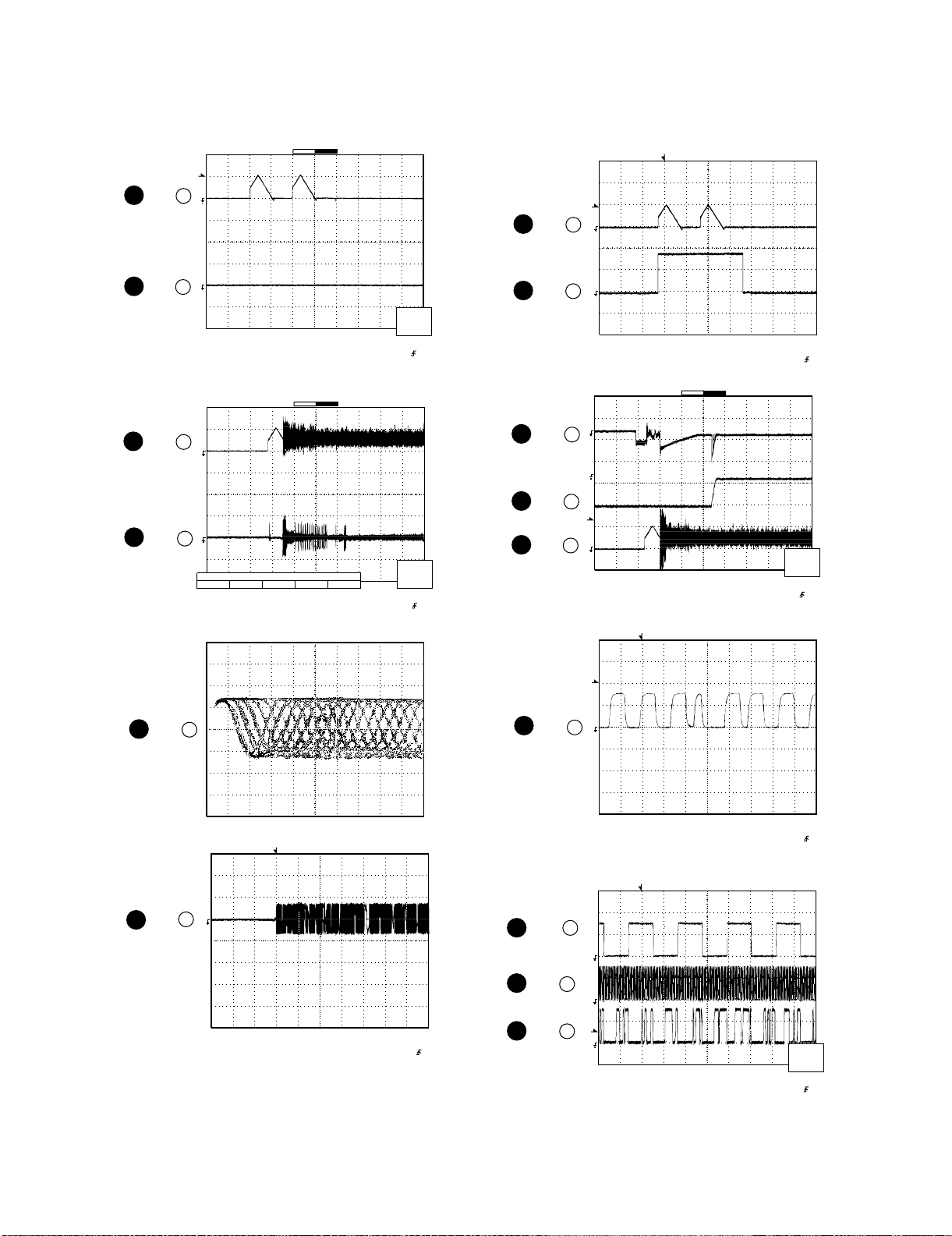

[1] WAVEFORMS OF CD CIRCUIT
T
FDO
TDO
Stopped
CH1=500 mV
DC 10:1
CH3=500 mV
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.000 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1IC801 22
2IC801 23
FDO
TE
Stopped
CH1=500 mV
DC 10:1
CH2=10 V
DC 10:1
CH3=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
-3 div -1 div 0 div +1 div +3 div
CH Position To
CH2
Position
0.20 div
1IC801 22
3IC801 16
Vp-p=1.0 V~1.3 V
0.5 mV/div,0.5 µsec/div
4IC801 2
T
TE
Stopped
CH1=10 V
DC 10:1
CH2=1 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
2
=Record Length=
Smoothing : ON CH1 : 0.0 V
CH2 : 0.00 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
3IC801 16
T
T
FDO
SPDO
Stopped
CH1=200 mV
DC 10:1
CH2=500 mV
DC 10:1
500 ms/div
1999/04/07 09:51:15
(500 ms/div)
NORM:20 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
1IC801 22
5IC801 25
T
FDO
PDOUT1
PDOUT0
Stopped
CH1=500 mV
DC 10:1
CH3=1 V
DC 10:1
CH4=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1999/04/05 17:33:17
1IC801 22
6IC801 28
7IC801 27
T
T
DOUT
Stopped
CH1=2 V
DC 10:1
500 ns/div
1999/04/07 09:25:28
(500 ns/div)
NORM:200 MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 1 K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
8IC801 69
T
T
DATA
DATACK
LRSY
Stopped
CH1=2 V
DC 10:1
CH2=2 V
DC 10:1
CH3=2 V
DC 10:1
5 µs/div
(5 µs/div)
NORM:100 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 5 K
Zoom : 100
Mode : AUTO
Type : EDGE CH3
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH3
v/DIV
2V
1999/04/05 20:50:17
9IC801 60
IC801 59
IC801 58
10
11
RF

XL-MP9H
5 – 2
[2] VOLTAGE
1.38V
1.47V
1.45V
1.2V
1.6V
1.7V
1.67V
1.63V
1.42V
1.4V
1.46V
1.74V
1.75V
1.74V
1.43V
1.43V
1.43V
2V
0.18V
0V
2.9V
1.47V
1.5V
1.5V
1.6V
0V
0V
1V
0.93V
2.74V
0V
2.8V
0V
2.8V
0V
2.8V
0V
1.8V
2.8V
0V
2.8V
0V
0.45V
3V
3V
0V
3.23V
2.8V
2.8V
2.8V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
2.57V
1.44V
2.1V
2.1V
0V
1.8V
0V
2.8V
0V
0V
0V
1V
1.14V
2.7V
1.64V
3.3V
0V
1.64V
2.9V
1.4V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
PIN
NO. VOLTAGE
IC801
9.14V
1.62V
0V
1.62V
1.51V
12V
18.3V
9.21V
0V
0V
0V
9.15V
0V
1
2
3
4
5
6
7
8
9
10
11
12
13
PIN
NO. VOLTAGE
IC101
7.75V
2.77V
1.45V
1.47V
3.9V
3.3V
0V
0V
0V
3.5V
3.7V
1.46V
1.45V
2.9V
1V
2.9V
3.4V
1.45V
1.45V
3.7V
3.6V
0V
0V
0V
3.6V
3.6V
1.46V
1.46V
1.46V
7.8V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
PIN
NO. VOLTAGE
IC802
3.5 V
3.5 V
0V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
3.5 V
7V
3.5 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO. VOLTAGE
IC601
6V
6V
6V
6V
6V
6V
6V
12 V
1
2
3
4
5
6
7
8
PIN
NO. VOLTAGE
IC602
0V
0V
4.48V
1.13V
4.49V
0V
0V
0V
0V
4.48V
4.61V
1.5V
2.27V
0V
2.17V
2.22V
4.81V
4.84V
4.86V
4.81V
0.36V
0V
0V
1.86V
0V
4.91V
4.85V
4.84V
4.78V
0V
0V
0V
0V
0V
0V
2.3V
2.3V
2.3V
2.3V
2.46V
2.46V
2.46V
2.47V
2.47V
2.47V
2.47V
2.47V
2.47V
2.47V
2.47V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO. VOLTAGE
IC701
2.47V
2.47V
2.47V
5.00V
0V
2.40V
2.47V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
2.46V
0V
0V
0V
0V
0V
0V
0V
0V
0V
1.67V
0.5V
2.3V
2.3V
2.3V
2.3V
0V
0V
0V
4.8V
0V
0V
0V
0V
4.9V
4.9V
4.9V
0V
0V
0V
PIN
NO. VOLTAGE
51
64
63
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
62
61
60
59
58
57
56
55
54
53
52
85
84
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
83
82
81
16.7V
12.0V
16.0V
E
C
B
PIN
NO. VOLTAGE
Q101
0.2V
15.8V
0.7V
E
C
B
PIN
NO. VOLTAGE
Q102
0V
0.8V
0.6V
E
C
B
PIN
NO. VOLTAGE
Q103
0V
2.77V
0.5V
E
C
B
PIN
NO. VOLTAGE
Q104
4.8V
4.5V
3.8V
E
C
B
PIN
NO. VOLTAGE
Q105
0V
0V
0V
E
C
B
PIN
NO. VOLTAGE
Q107
0V
0V
0V
E
C
B
PIN
NO. VOLTAGE
Q108
4.6V
1.2V
5.2V
E
C
B
PIN
NO. VOLTAGE
Q109
0V
9.5V
0.8V
E
C
B
PIN
NO. VOLTAGE
Q301
0V
0.05V
0.7V
E
C
B
PIN
NO. VOLTAGE
Q106
0V
4.7V
3.7V
E
C
B
PIN
NO. VOLTAGE
Q351
12V
11V
11V
E
C
B
PIN
NO. VOLTAGE
Q360
2V
5.1V
2.5V
E
C
B
PIN
NO. VOLTAGE
Q521
0V
1.57V
1.48V
E
C
B
PIN
NO. VOLTAGE
Q701
0V
1.44V
0V
E
C
B
PIN
NO. VOLTAGE
Q702
0V
1.46V
0V
E
C
B
PIN
NO. VOLTAGE
Q703
0V
3.9V
3.7V
E
C
B
PIN
NO. VOLTAGE
Q704
0V
3.8V
0V
E
C
B
PIN
NO. VOLTAGE
Q705
0V
3.5V
0V
E
C
B
PIN
NO. VOLTAGE
Q706
0V
0.02V
0.5V
E
C
B
PIN
NO. VOLTAGE
Q707
0V
0.04V
0.67V
E
C
B
PIN
NO. VOLTAGE
Q708
0V
4.9V
0.02V
E
C
B
PIN
NO. VOLTAGE
Q709
0V
4.61V
0V
E
C
B
PIN
NO. VOLTAGE
Q710
3.2V
1.8V
2.5V
E
C
B
PIN
NO. VOLTAGE
Q801
3.3V
6.3V
3.9V
E
C
B
PIN
NO. VOLTAGE
Q802
0V
8.4V
0.1V
E
C
B
PIN
NO. VOLTAGE
Q803
3.4V
12V
4V
E
C
B
PIN
NO. VOLTAGE
Q805
0.02V
0.08V
0.7V
E
C
B
PIN
NO. VOLTAGE
Q806
7.8V
11.4V
8.4V
E
C
B
PIN
NO. VOLTAGE
Q809
12.2V
12.1V
11.4V
E
C
B
PIN
NO. VOLTAGE
Q810
11.3V
0.6V
5.7V
1
2
3
PIN
NO. VOLTAGE
IC102
2.5V
2.5V
5.1V
0V
5V
2.3V
0.6V
2.5V
2.5V
0V
5.1V
0V
0V
1.3V
1.3V
0V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PIN
NO. VOLTAGE
IC521

XL-MP9H
5 – 3
-MEMO-

XL-MP9H
6 – 1
Home StereoXL-MP9HService ManualXL-MP9H S/MMarketE
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT
[1] NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and M are
used: the symbol K means 1000 ohm and the symbol M means
1000 kohm and the resistor without any symbol is ohm-type resis-
tor. Besides, the one with “Fusible” is a fuse type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this symbol P
means micro-micro-farad and the unit of the capacitor without such
a symbol is microfarad. As to electrolytic capacitor, the expression
“capacitance/withstand voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this model
are subject to change for improvement without prior notice.
• The indicated voltage in each section is the one measured by Digi-
tal Multimeter between such a section and the chassis with no sig-
nal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these parts
with specified ones for maintaining the safety and performance of
the set.
[2] TYPES OF TRANSISTOR AND LED
REF. NO DESCRIPTION POSITION
SW701 STOP ON-OFF
SW702 BASS/TREBLE ON-OFF
SW703 MEMORY/SET ON-OFF
SW704 CLEAR ON-OFF
SW705 VOLUME UP ON-OFF
SW706 PRESET DOWN ON-OFF
SW707 ON/STAND-BY ON-OFF
SW708 DISC EJECT ON-OFF
SW709 FUNCTION ON-OFF
SW710 PLAY ON-OFF
SW711 MP3/WMA DISPLAY ON-OFF
SW712 TIMER ON-OFF
SW713 SLEEP ON-OFF
SW714 PRESET UP ON-OFF
SW715 VOLUME DOWN ON-OFF
REF. NO DESCRIPTION POSITION
(1) (2) (3)
(S) (G) (D)
EC B
FRONT
VIEW
2HA1015 GR
2HC1815 GR
KTC3203 Y
KTA1271 Y
KTC3205 Y
FRONT
VIEW
2SC3052 F+
2SA1235 F+
BE
C
SVC348SLPBB73VQ
2SC380 O
2SB1370 E+
KRC104 M
2SC5395 F+
KRA107 M

XL-MP9H
6 – 2
[3] SCHEMATIC DIAGRAM MAIN(1/3)
Figure 6-2 SCHEMATIC DIAGRAM (1/8)
A
B
C
D
E
F
G
H
123456
+B
+B
+B
+B
+B
+B +B
+B
+B
+B
8.2K
0.0
0
2200/16
10K
0.1
100/16
0.1
DZH05C2+
330
100
3.3
470
0
0.1
0
0.1
2200/16
33/16
0
8.2K
KTC
3
560
0.1
DZH04B2+
2SA1235F+
0.
0
0.1
0.001
123456
101112131415
212019181716 272625 302928242322
789
LA6548ND
B
A
FO-
LD
TR+
VR
MD
GND
CD PICKUP UNIT
C
FO-
TR-
ACTUATOR
TR+
VCC
D
TR-
+
+
-
F
B
A
E
SP-
SL+
SL-
PU-IN
GND
MECHANISM PWB
-
SP+
SP+
SP-
SLED
MOTOR
SPINDLE
MOTOR
PICKUP IN
D
VC
D_GND
PU-IN
SHORT
SL-
SL+
VCC
VC
LAND
VR
MD
LD
VCC VIN1 VG1 VO1+ VO1- MUTE REG_OUT REG_IN VO2- VO2+ VG2 VIN2
E
C
D
GND GND GND
FO+ TR+
F
LD
VR
FO-
FO+
MD
GND
TR-
C
E
A
FO+
B
F3
1
M
2
4
9
8
7
3
3
5
M
2
6
5
4
15
16
14
13
12
11
10
3
1
9
8
7
2
6
5
4
15
16
14
13
12
11
10
67
2
6
5
4
1
1
4
3
5
6
2
1
VIN4
VG4
VO4+
VCC
VO4-
VREF
RESET
CD
VO3+
VO3-
VG3
VIN3
GND GND GND
MAIN PWB-A1(1/3)
FOCUS/TRACKING/
SPIN/SLED DRIVER
CD MECHANISM Ass'y(209)
The numbers to are waveform numbers shown in page 5-1
1 11
FC801
CNP801
R801
JP801
R802
R803
ZD801
C802 C803
C801
R804
C809
C804
CNW402
CNS402 R853
JP802
IC802
C8
5
R806
C808
C807
R805
Q801
R807
R812
R813
C
8
C
8
C
8
C
8
C
8
C
8
C
8
C805
C806
ZD802
Q
C811
R814
C844
CD SIGNAL
NOTES ON SCHEMATIC DIAGRAM can be found on page 6-1
