21B-FX1
Please read this operation manual
carefully before using the colour
television.
Veuillez lire attentivement ce mode
d’emploi avant d’utiliser ce
téléviseur couleur.
21B-FX1
RUSSKIJ
FRANÇAIS

21B-FX1(AF);01-05; 00/6/1/18:00 G. K. Associates, Tokyo
E 1
Contents
Preparation
Accessories ................................................................................ 2
Easy setup .................................................................................. 3
Safety precautions ...................................................................... 4
Part names ................................................................................. 5
Installing batteries in the remote control unit .............................. 5
Watching TV
Watching a TV programme ......................................................... 7
Operating the TV buttons ............................................................ 8
Useful features
Channel/Timer display ................................................................ 9
Mute ............................................................................................ 9
Channel recall ........................................................................... 10
TV/Video selection .................................................................... 10
Selecting menu items
Selecting a menu item .............................................................. 11
Settings and adjustments
On-screen display language selection ...................................... 12
Auto channel tuning .................................................................. 13
Manual channel tuning ............................................................. 14
Channel setting ......................................................................... 15
Picture adjustment .................................................................... 16
Sound adjustment ..................................................................... 17
Surround sound ........................................................................ 18
Off timer .................................................................................... 19
On timer .................................................................................... 20
Reminder on-screen timer ........................................................ 21
Blue screen ............................................................................... 22
Connections
Connecting to an antenna ........................................................ 23
Connecting to an antenna via a VCR ....................................... 23
Connecting to video equipment ................................................ 24
Troubleshooting
Troubleshooting ........................................................................ 25
Specifications
Specifications ........................................................................... 26

21B-FX1(AF);01-05; 00/6/1/18:00 G. K. Associates, Tokyo
E 2
ENGLISH
Dear SHARP Customer
Thank you for buying SHARP's Colour
Television. We hope you will have many
years of enjoyment from this television
set. To ensure proper operation, please
read this manual carefully, and keep it in
a safe place for future reference.

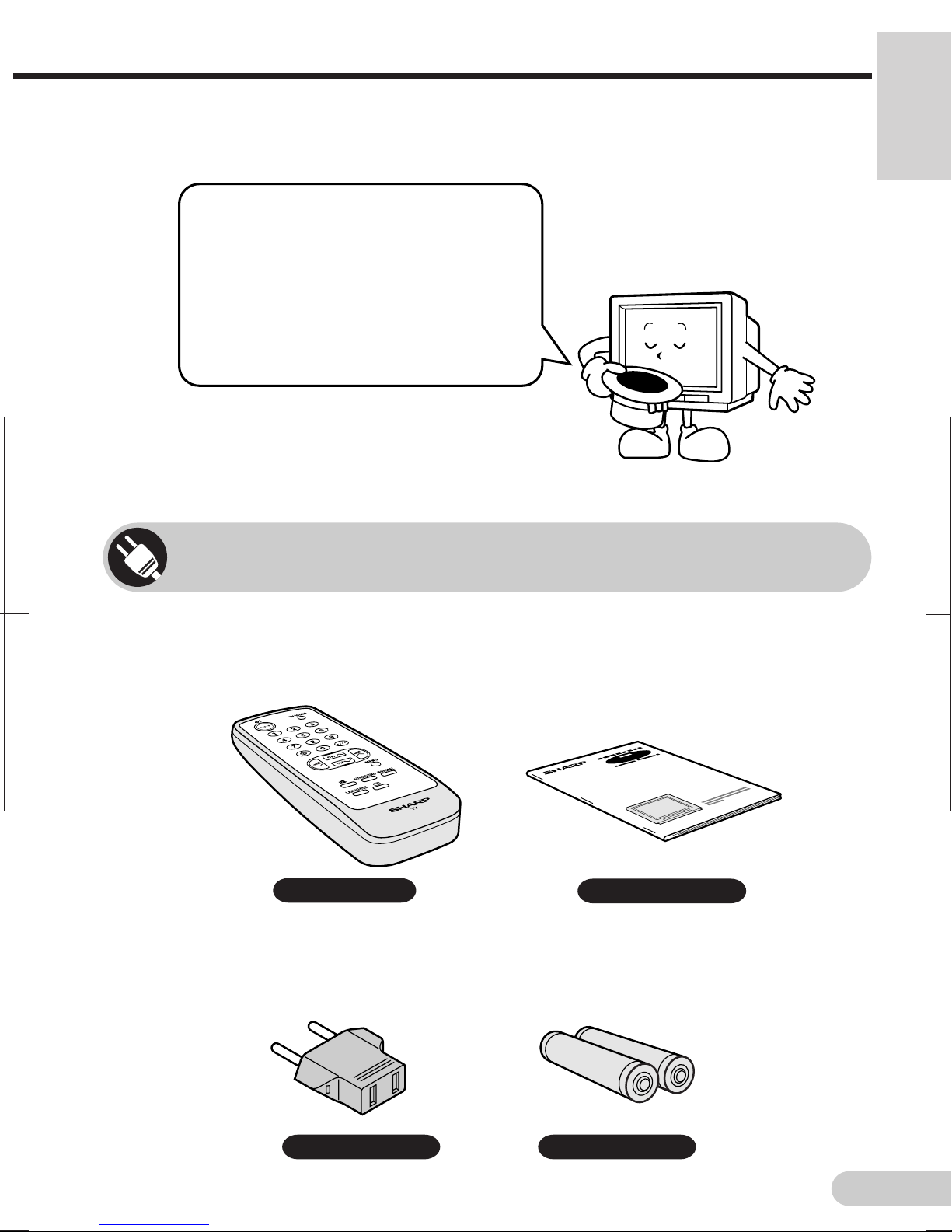

The following accessories are included with this television.
Accessories
Operation manual
AC plug adapter Size-AA batteries
Remote control

21B-FX1(AF);01-05; 00/6/1/18:00 G. K. Associates, Tokyo
E 3
Easy setup
To use your TV set, perform the easy setup procedure below.
The mark indicates the page numbers with more detailed information.
Connect the antenna.
• See
23
to connect the antenna.
Connect any video equipment.
•See
23
,
24
to connect video equipment.
•See the operation manual of your video equipment when
connecting to the TV set.
Insert the batteries into the remote control.
•Use the two batteries included with the TV.
•See
5
.
Insert the AC plug to the power outlet.
•If you will not use the TV set for a considerable length of time,
as a safety precaution, unplug the cord from the outlet.
Tune the channels.
•Use the buttons on the TV.
•See
13
,
14
.

21B-FX1(AF);01-05; 00/6/1/18:00 G. K. Associates, Tokyo
E 4
ENGLISH
Safety precautions
Do not place this TV
set on an unstable
cart, stand, shelf, or
table. The TV set may
fall, causing serious
injury to a child or
adult, and serious
damage to the set.
Do not place a flower
vase or anything else
containing liquid on the
TV set, as liquid spilt
on the TV set can
cause electrical shock
or failure.
Damage
Turn off the power and
unplug the power cord
from the wall outlet
immediately if the TV
set begins to make
any unusual noises or
gives off smoke or an
unusual smell. Then
call your dealer for
service.
Servicing
To reduce the risk of
electric shock, do not
remove the back of the
cabinet. This TV set
contains dangerous
voltage.
Unstable surface
Liquid entry
Never insert or drop
any metallic or
inflammable objects
into the ventilation
openings of the TV set,
as this can cause fire,
electrical shock, or
electrical failure.
Object entry
Water
Power-cord protection
To prevent electrical
shock, do not subject the
power cord to damage
by bending or twisting it,
or by placing heavy
items on top of it. If the
power cord becomes
damaged, unplug it from
the wall outlet
immediately and call
your dealer for service.
To prevent electrical
shock, do not use the
TV set in an
excessively damp
place.
Moisture
Ventilation
Do not place this TV
set in a confined area,
such as on a bookshelf
or in a built-in case.
Leave adequate space
behind the TV for
proper ventilation.
Shocks
Sharp recommends
securing the TV set to
a stable surface or wall
to prevent the set from
falling due to sudden
shocks or impact.
To prevent fire or
electrical shock, do not
place the TV set near a
bath, swimming pool or
other area where it
may become wet.

21B-FX1(AF);01-05; 00/6/1/18:00 G. K. Associates, Tokyo
E 5

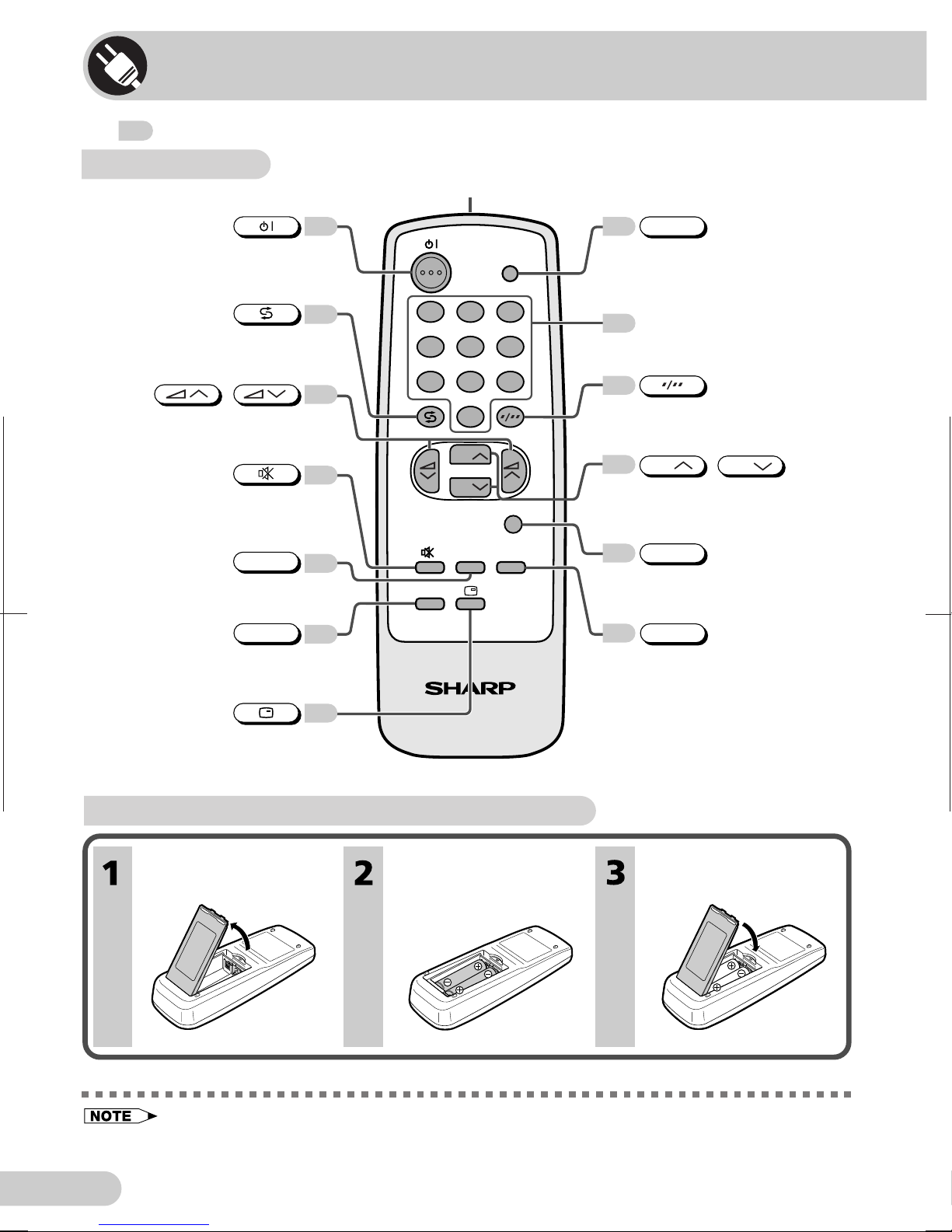

Part names
•Be sure to match the battery j/kterminals with the j/kmarks inside the compartment.
•Remove the batteries if weak or if the unit is not in use for long periods.
•Do not mix old and new batteries.
•Incorrect installation of the batteries may damage the remote control.
With your thumbnail, pull
up at the slit to open the
battery cover.
Insert two batteries
(size AA).
Replace the battery cover.
Installing batteries in the remote control unit
Remote control
The mark indicates the page numbers with more detailed information.
TV/VIDEO
1
4
7
2
5
8
3
6
9
0
TV
CH
CH
MENU
NORMALSURROUND
LANGUAGE
Infrared transmitter window
Aim this window at the infrared
sensor window on your TV set.
Turns the TV on or to
Standby mode.
7
10
7
9
18
12
9
Returns to previously viewed
channel.
Adjusts the volume.
Used for MENU setup.
/
Mutes the sound and restores
sound to previous level.
Produces a more spacious sound.
SURROUND
Changes the on-screen
display language.
LANGUAGE
Displays the channel and timer
settings on the screen.
Number buttons
10
7
7
Switches between TV broadcasts
and A/V input programmes.
TV/VIDEO
Switches between one- or two-digit
mode channel selection.
7
Selects the channel.
Used for MENU setup.
CH
CH /
11
16
Calls the MENU screen.
MENU
Resets all settings.
NORMAL

21B-FX1(AF);06-10; 00/5/27/18:00 G. K. Associates, Tokyo
E 6
ENGLISH
TV front
On timer indicator
Power indicator
Power can be turned on from
the remote control when the
indicator is red.
Power switch
Turns on and off
the main power.
Volume up/down buttons
Adjusts the volume.
Makes adjustments in PRESET.
Infrared sensor window
Receives the infrared sensor
from the remote control.
MENU/PRESET button
Tunes the channels.
Used for MENU setup.
7
7
20
5
8
11
Channel up/down buttons
Selects the channels.
Tunes or sets the channels.
Audio input terminals
Connects to a camcorder,
video game, etc.
Video input terminal
Connects to a camcorder,
video game, etc.
24
24
Headphone jack
Used to listen to the
audio with
headphones.
8
CH
CH
/
8/
MENU/PRESET
• When using headphones, see
8
.

21B-FX1(AF);06-10; 00/5/27/18:00 G. K. Associates, Tokyo
E 7
Watching TV
1Turn on power.
•When the power indicator is off, press .
•When the power indicator is red, press on the remote
control. The power indicator changes to green and a picture appears.
Power indicator
CH
CH

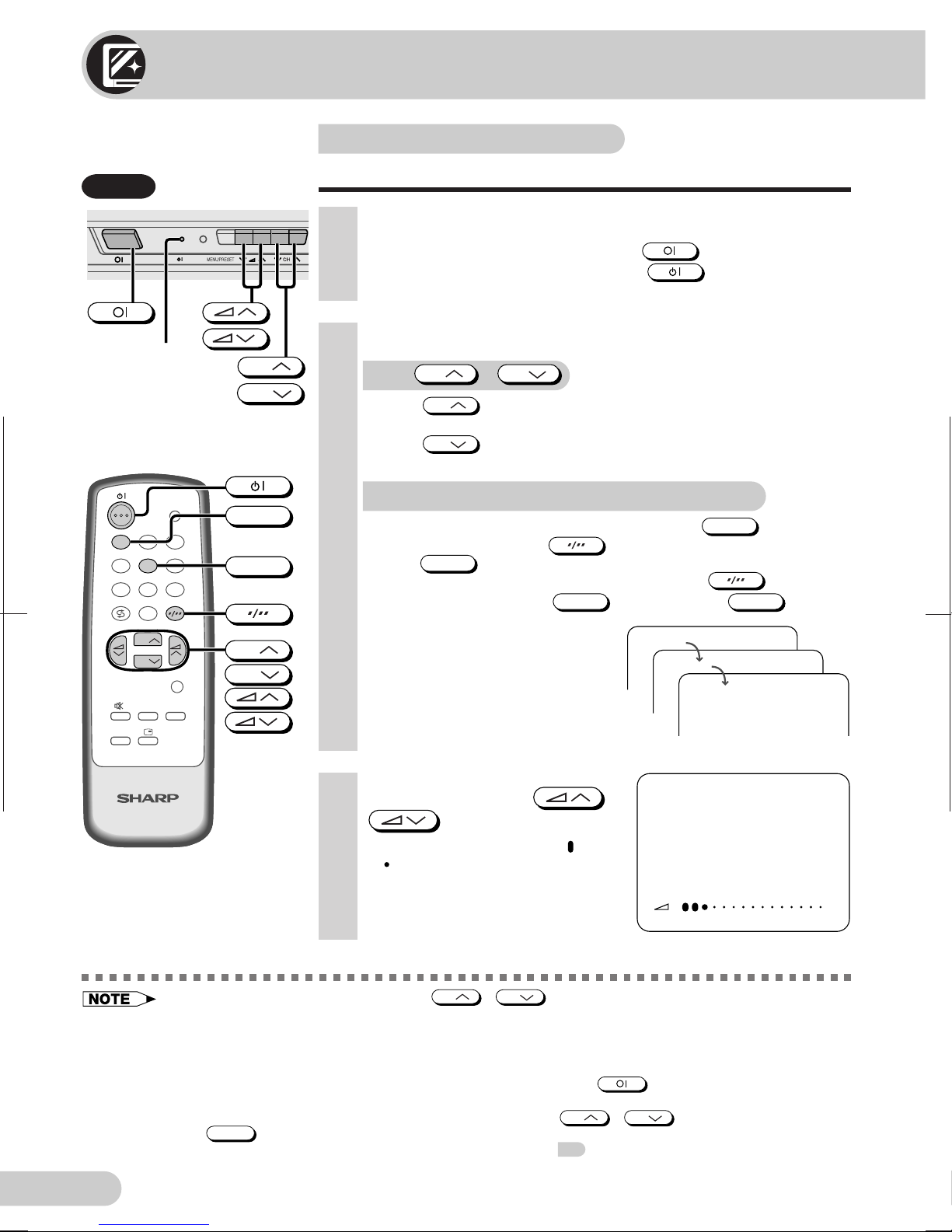

Watching a TV programme
Simple operations for watching a TV programme
TV Set
With CH / CH
•Press
CH
and channels change as shown below.
1 /2 / ... /98 /99 /AV1 /AV2 /0 /1 /2 ...
•Press
CH
and channels change as shown below.
1 /0 /AV2 /AV1 /99 /98 /... / 2 /1 /0 ...
TV
TV/VIDEO
4
7
2
8
3
6
9
0
MENU
NORMALSURROUND
LANGUAGE
CH
CH
1
5
CH
CH
1
5
VOLUME 10
3Adjust volume using /
.
•The number of oval blocks “ ” and
“”indicates the volume level.
The volume bar disappears
approximately three seconds after
the volume has been adjusted.
2Select channel.
With the number buttons (on remote control)
•To select a one-digit channel, such as 5, press
5
.
If “5-”is indicated, press to select one-digit input, and then
press
5
again.
•To select a two-digit channel, such as 15, press to select
the two-digit input. Press
1
, and then press
5
.
--
1-
15
PAL
B/G
•When the power indicator is red, either
CH
/
CH
on the TV can be pressed to turn on the
power.
•The channel number is displayed in green for channels tuned by auto tuning and displayed in yellow for
channels tuned using fine tuning.
•When the power indicator is red, the TV is in Standby mode and power is still supplied to the TV. If you
will not watch TV for a while, turn off the main power by pressing on the TV set. Also, if you will
not be at home for a considerable length of time, unplug the cord from the outlet.
•The AV1 and AV2 input channels cannot be selected using
CH
/
CH
on the remote control.
Use
TV/VIDEO
to select these channel.
•Channels that have been skipped cannot be selected. See
15
.
•The on-screen displays in this manual may differ from their actual appearance.

21B-FX1(AF);06-10; 00/5/27/18:00 G. K. Associates, Tokyo
E 8
ENGLISH
•The volume of the headphones can be adjusted from the TV or with the remote control. When the
headphone jack is unplugged, the volume of the TV returns to the previous setting.
•Select an appropriate volume so as not to injure your hearing.
•To avoid injuring your hearing, do not put on the headphones before plugging them into the headphone
jack and before the power is turned on.
•The proper impedance for the headphones is 32 ohms.
•Remove the headphone plug from the jack when not using the headphones.

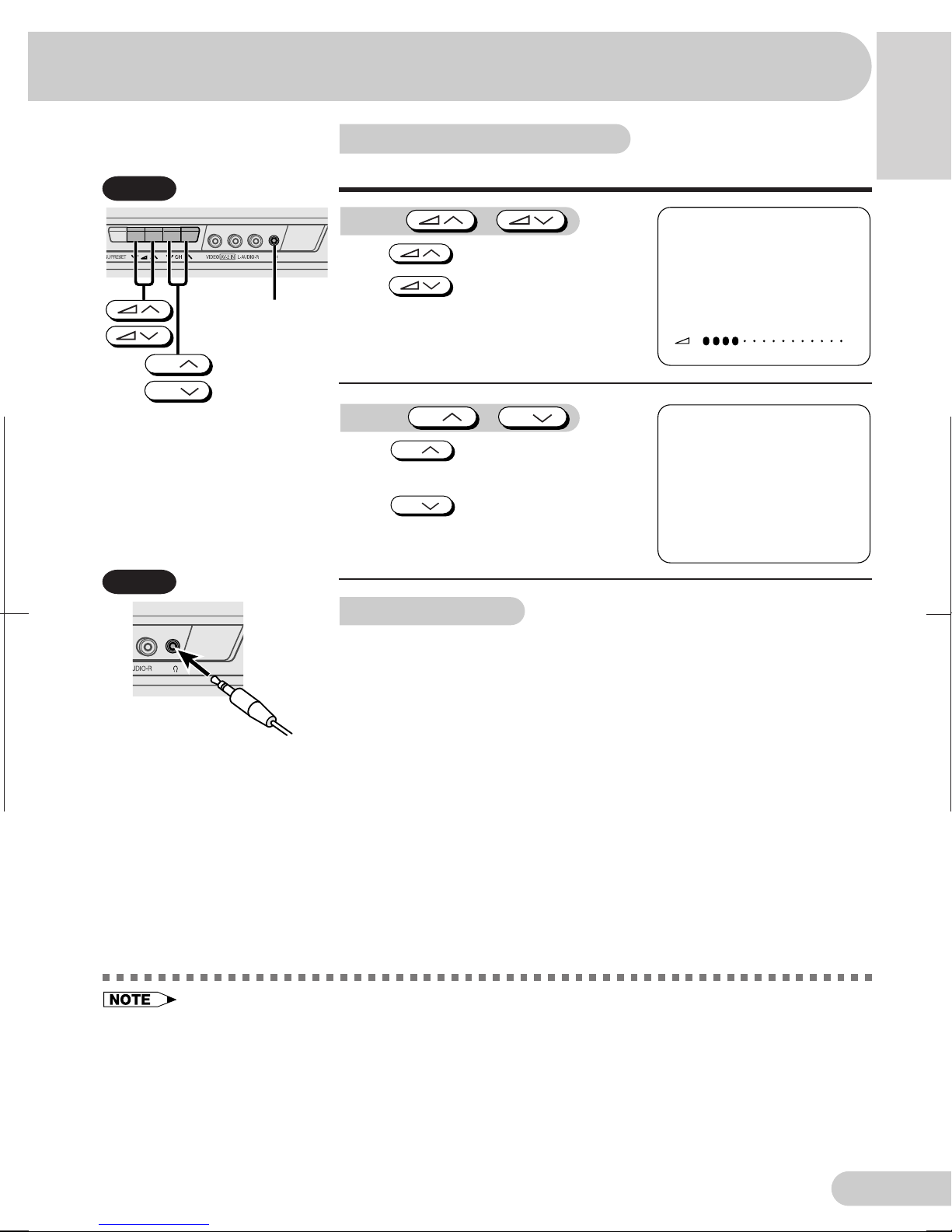

Operating the TV buttons
Simple operation of the TV set
Using /
Press to increase volume.
Press to decrease volume.
Headphone jack
CH
CH
VOLUME

15
5
PAL
B/G
Using
CH
/
CH
Press CH to increase channel
number.
Press CH to decrease channel
number.
Using headphones
Insert headphone plug into headphone jack to listen to audio with
headphones.
•The audio from the speakers is turned off.
TV Set
TV Set

21B-FX1(AF);06-10; 00/5/27/18:00 G. K. Associates, Tokyo
E 9

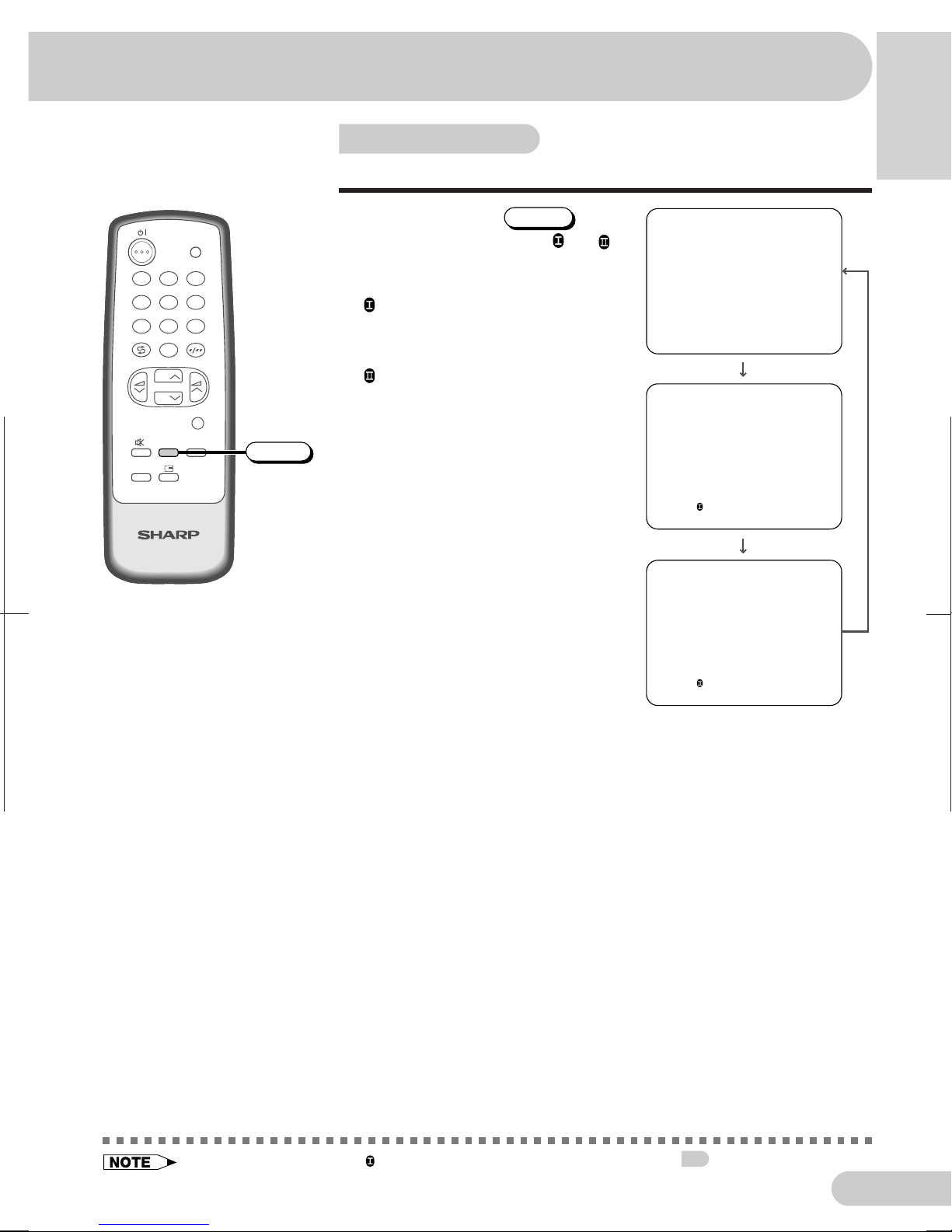

Channel/Timer display
Displays the current channel number, the timer, and other
settings on the screen.
OFF
ON 12 03
3 45
9 15
5
PAL
B/G
2Press again.
•The channel number, colour system,
and sound system appear on the
screen.
1Press .
•The time remaining on the Off timer,
On timer, and Reminder appears on
the screen.
•When no timer is set, nothing
appears on the screen.
Useful features
TV
TV/VIDEO
4
7
2
8
3
6
9
0
MENU
NORMALSURROUND
LANGUAGE
1
5
CH
CH
Mute

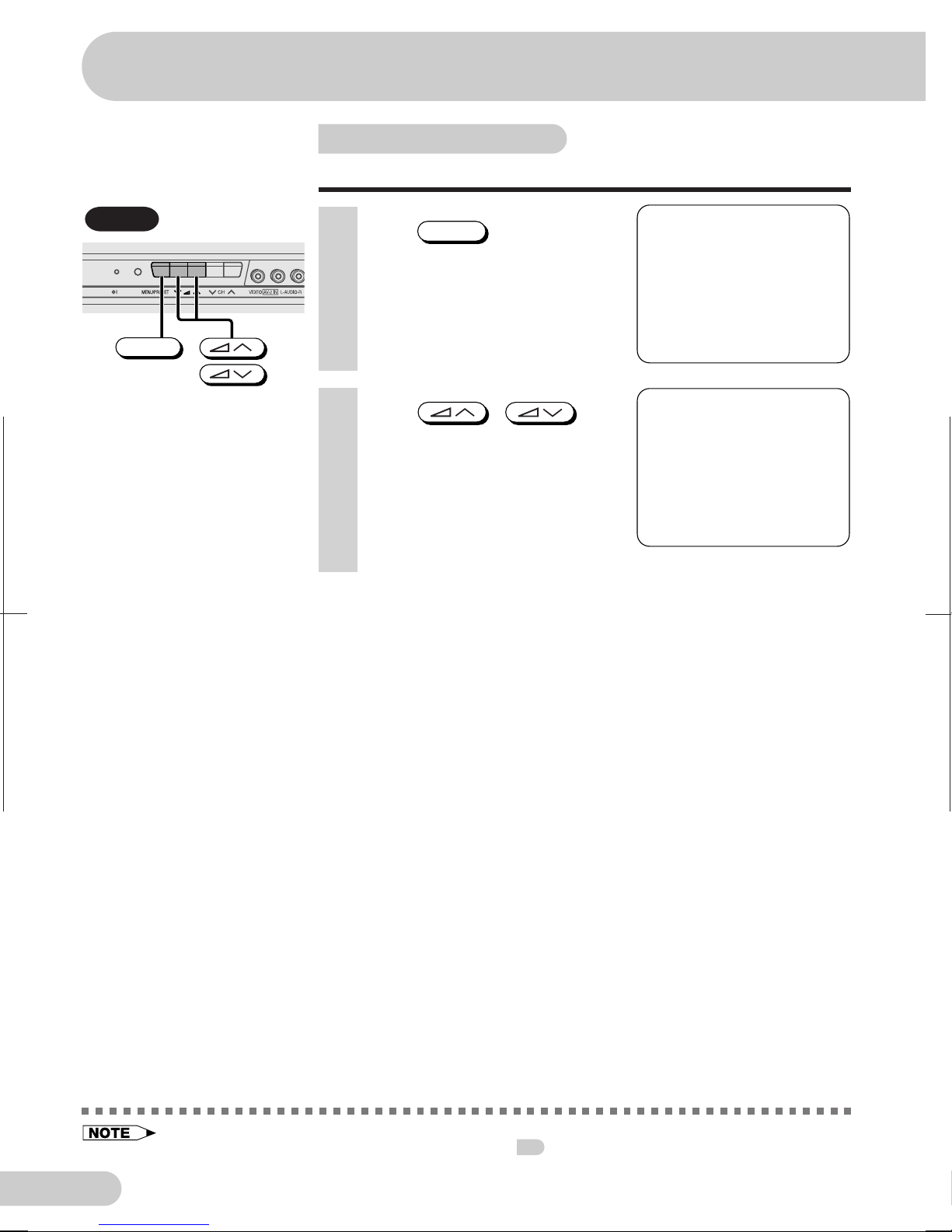

Silences the sound.
1Press .
•“ ”appears on the screen, and the
sound is silenced.
2Press again or / .
•The volume returns to its previous level.
3Press once again.
•The display disappears.
