Sharp LC-20SH3X User manual

LC-20SH3X
LCD COLOUR TELEVISION
OPERATION MANUAL
Printed in Malaysia
TINS-C184WJZZ
05P11-MA-NM
Printed on post-consumer recycled paper.
SHARP CORPORATION
Congratulations on Your Purchase!
This Sharp product is warranted against faults in materials and manufacture for a period
of twelve (12) months from the date of original purchase.
If service is required during the warranty period, please contact your nearest Sharp
Approved Service Centre. These repairs would be carried out at no charge to the
owner, subject to the conditions specified herein.
The owner is responsible for any transportation and insurance costs if the product has
to be returned for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting
from causes not attributable to faulty parts or the manufacture of the product, including
but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect,
accidental damage, improper voltage, liquid spillage, vermin infestation, software, or
any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a
warranty claim.
This warranty is in addition to and in no way limits, varies or excludes any express and
implied rights and remedies under any relevant legislation in the country of sale.
For your reference, please enter the particulars of your purchase
below and retain, with your purchase documentation.
Model No.
Serial No.
Date of Purchase
Retailer
IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand
SHARP CORPORATION OF
AUSTRALIA PTY. LIMITED
ABN 40 003 039 405
1 Huntingwood Drive
Huntingwood NSW 2148
SHARP CORPORATION OF
NEW ZEALAND LIMITED
59 Hugo Johnston Drive
Penrose, Auckland
SPform020 (JUNE 2004)
IMPORTANT
DO NOT RETURN THIS DOCUMENT TO SHARP
LC-20SH3X_E_Hyo1_4.p65 05.9.20, 1:14 PM1

1
ENGLISH
Contents
LC-20SH3X
OPERATION MANUAL
Supplied Accessories ...................................................... 1
Dear SHARP Customer .................................................... 2
Important Safety Precautions ......................................... 2
Preparation ....................................................................... 3
Installing Batteries in the Remote Control ................... 3
Using the Remote Control ........................................... 3
Power Connection ....................................................... 4
Antenna Connection ................................................... 4
Listening with Headphones......................................... 4

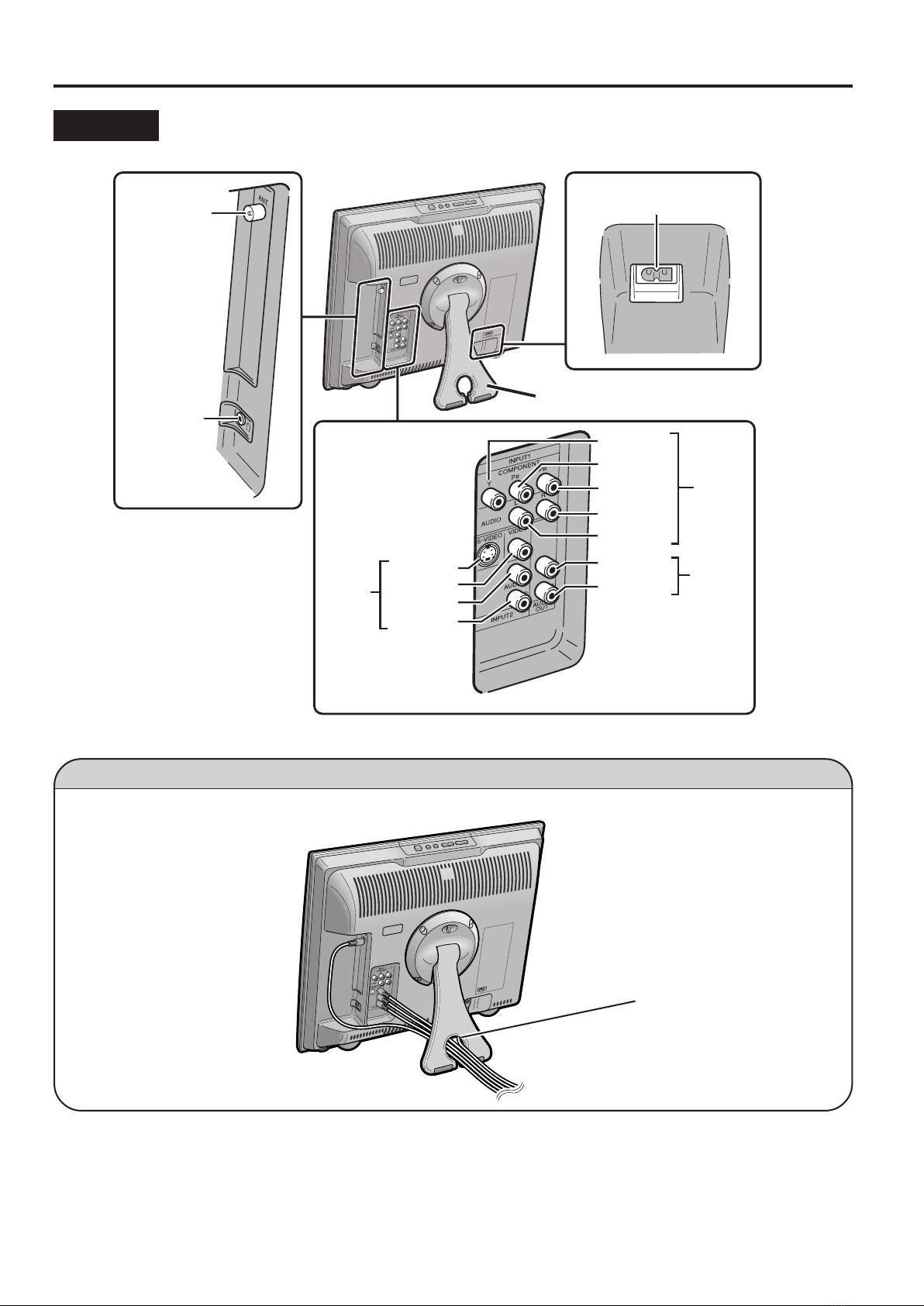

Part Names of the Main Unit ........................................... 5
How to Prevent the LCD TV Set from Falling Over ...... 5
How to Fix the Cables ................................................. 6
Part Names of the Remote Control................................. 7
Basic Operation................................................................ 8
Turning On and Off the Main Power ............................ 8
Standby ....................................................................... 8
Switching the TV/VIDEO Modes (INPUT1/INPUT2/TV) ... 8
Sound Volume ............................................................. 9
Changing Channels .................................................... 9
Preset .............................................................................. 10
On-Screen Display Language Selection ................... 10
Presetting the Channels (AUTO) ............................... 10
Presetting the Channels (MANUAL).......................... 11
Channel Setting (AUTO)............................................ 12
Channel Setting (MANUAL) ...................................... 12
Selecting Menu Items .................................................... 13
Basic Adjustment Settings ............................................ 14
BOOSTER.................................................................. 14
AV MODE .................................................................. 14
BACKLIGHT .............................................................. 15
Picture Adjustments .................................................. 15
COLOUR SYSTEM (Only INPUT2 Mode) .................. 16
Colour Temperature ................................................... 16
Useful Features .............................................................. 17
Sound Adjustments ................................................... 17
SOUND WIDE............................................................ 17
DISPLAY MODE ........................................................ 17
On-Screen Display Language Setting ...................... 17
WIDE MODE .............................................................. 18
AUDIO ONLY ............................................................. 18
SLEEP TIMER ............................................................ 19
AUTO POWER OFF ................................................... 19
NO OPERATION OFF ................................................ 19
BLUE SCREEN .......................................................... 19
NICAM Broadcast Selection .......................................... 20
A2 Stereo Broadcast Selection ..................................... 21
Teletext ............................................................................ 22
Connecting with External Devices ............................... 24
Example of External Devices that can be
Connected .......................................................... 24
Troubleshooting ............................................................. 25
Specifications ................................................................. 26
Dimensional Drawings................................................... 27
Make sure the following accessories are provided with the LCD TV set.
Supplied Accessories
Remote control unit Operation manual
“AA” size batteries (×2) AC cord
pages 3 and 7 page 3 page 4
LC-20SH3X
LC-20SH3X_E_P01-07.p65 05.9.13, 2:34 PM1

2

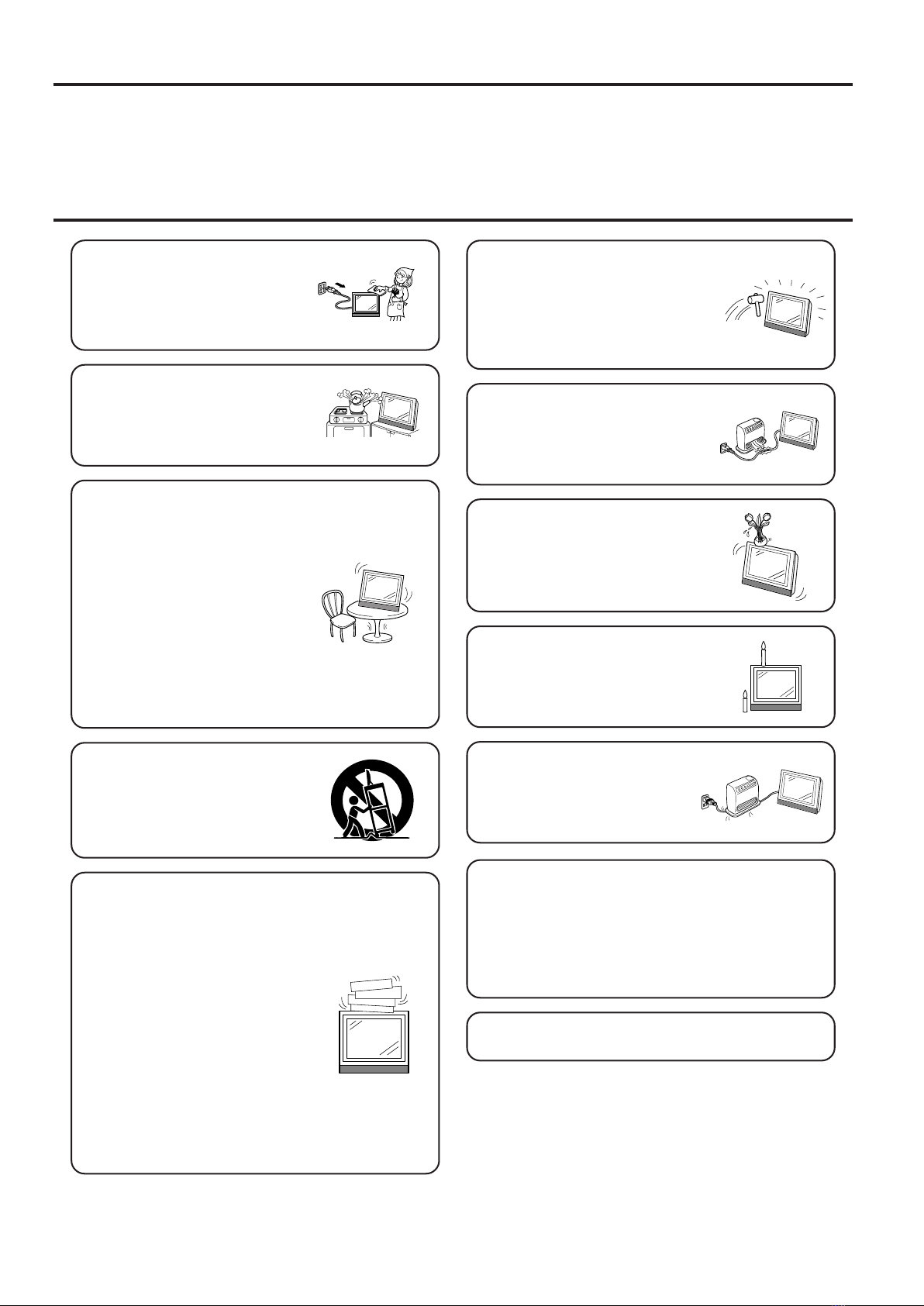

Important Safety Precautions
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free
operation of your product, please read the Important Safety Precautions carefully before using this product.
Dear SHARP Customer
•Cleaning—Unplug the AC cord
from the AC outlet before cleaning
the product. Use a damp cloth to
clean the product. Do not use
liquid cleaners or aerosol
cleaners.
•Stand—Do not place the product
on an unstable cart, stand, tripod
or table. Doing so can cause the
product to fall, resulting in serious
personal injuries as well as
damage to the product. Use only
a cart, stand, tripod, bracket or
table recommended by the
manufacturer or sold with the
product. When mounting the
product on a wall, be sure to
follow the manufacturer’s
instructions. Use only the
mounting hardware recommended
by the manufacturer.
•When relocating the product
placed on a cart, it must be
moved with utmost care. Sudden
stops, excessive force and
uneven floor surface can cause
the product to fall from the cart.
•Water and moisture—Do not use
the product near water, such as
bathtub, washbasin, kitchen sink,
laundry tub, swimming pool and in
a wet basement.
•Ventilation—The vents and other
openings in the cabinet are
designed for ventilation. Do not
cover or block these vents and
openings since insufficient
ventilation can cause overheating
and/or shorten the life of the
product. Do not place the product
on a bed, sofa, rug or other similar
surface, since they can block
ventilation openings. This product
is not designed for built-in
installation; do not place the
product in an enclosed place
such as a bookcase or rack,
unless proper ventilation is
provided or the manufacturer’s
instructions are followed.
•The LCD panel used in this
product is made of glass.
Therefore, it can break when the
product is dropped or applied
with impact. Be careful not to be
injured by broken glass pieces in
case the LCD panel breaks.
•Heat sources—Keep the product
away from heat sources such as
radiators, heaters, stoves and
other heat-generating products
(including amplifiers).
•Do not place vases or any other
water-filled containers on this
product. The water may spill onto
the product causing fire or electric
shock.
•To prevent fire, never place any
type of candle or naked flames on
the top or near the TV set.
•To prevent fire or shock hazard,
do not place the AC power cord
under the TV set or other heavy
items.
The LCD panel is a very high technology product with
921,600 thin film transistors, giving you fine picture
details.
Due to the very large number of pixels, a few
non-active pixels may occasionally appear
on the screen as a fixed point of blue, green or red.
This is within product specifications and does not
constitute a fault.
Do not display a still picture for a long time, as this
could cause an afterimage to remain.
LC-20SH3X_E_P01-07.p65 2005.8.29, 2:14 PM2

3

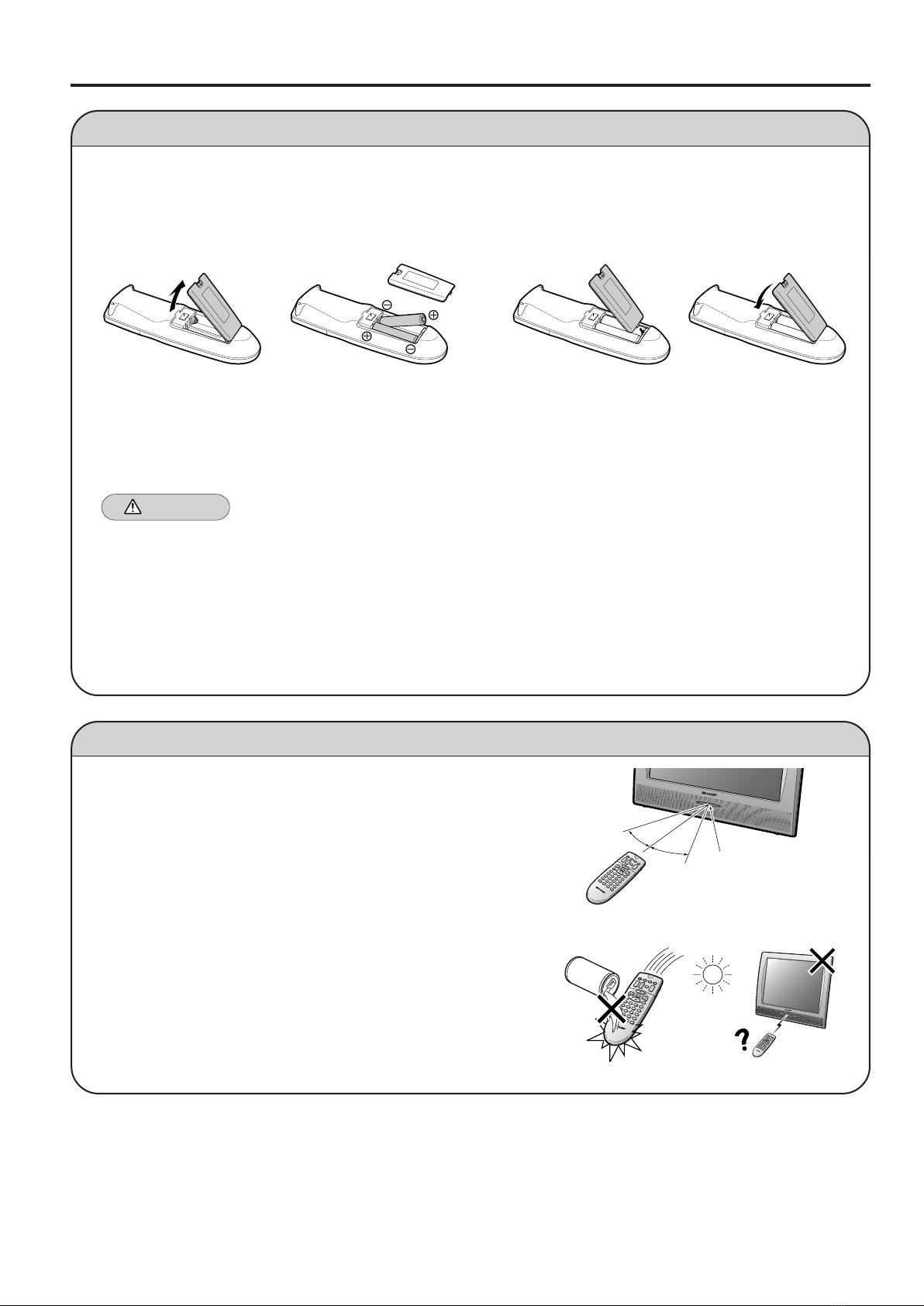

Installing Batteries in the Remote Control
Before using the LCD TV set for the first time, install the two “AA” size batteries supplied in the remote control. When the
batteries become depleted and the remote control fails to operate, replace the batteries with new “AA” size batteries.
1Open the battery cover. 2Insert two “AA” size batteries. 3Close the battery cover.
Caution!
Precautions regarding batteries
■Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.
•Place batteries with their terminals corresponding to the (+) and (–) indications.
•Different types of batteries have different characteristics. Do not mix batteries of different types.
•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old
batteries to leak chemicals.
•Remove batteries as soon as they are depleted. Chemicals that leak from batteries can cause a rash. If chemical
leakage is found, wipe it off with a cloth.
•The batteries supplied with the LCD TV set may have a shorter operating time due to storage conditions.
•If the remote control is not to be used for an extended period of time, remove the batteries from the remote control.
Preparation
Using the Remote Control
■Use the remote control by pointing it towards the remote sensor
window of the main unit. Objects between the remote control and
sensor window may prevent proper operation.
Cautions regarding use of remote control
■Do not apply shock to the remote control. In addition, do not
expose the remote control to liquids, and do not place it in an area
with high humidity.
■Do not install or place the remote control under direct sunlight. The
heat may cause deformation of the unit.
■The remote control may not work properly if the remote sensor
window is under direct sunlight or strong lighting. In such a case,
change the angle of the lighting or main unit, or operate the remote
control closer to the remote sensor window.
•Place batteries with their
terminals corresponding
to the (+) and (–)
indications in the battery
compartment.
•Align the tab on the battery cover (1) and place
it while pressing the tab (2) to close it.
•Detach the cover
while pressing the
(") part.
12
5m
30˚
30˚
Remote
sensor
LC-20SH3X_E_P01-07.p65 05.9.13, 2:34 PM3

4
Preparation (Continued)
Power Connection
Antenna Connection
■Using a TV antenna cable
•Using the antenna cable, connect the room
antenna terminal to the antenna terminal on
the LCD TV set.
(Refer to the figure on the right.)
Listening with Headphones
Plug the headphone mini-plug into the headphone jack
located on the side of the LCD TV set.
Adjust the sound volume using VOL (+)/(–) on the remote
control.
NOTE
•Headphones are not included in the supplied accessories.
•No sound is heard from the main unit speakers when the
headphone mini-plug is connected into the headphone jack.
•Do not set the volume at a high level. Hearing experts
advise against extended listening at high volume levels.
Connect to the AC INPUT terminal of the LCD TV set using the AC cord (supplied).
Plug into power outlet.
Household
power outlet
Antenna cable
Antenna
terminal
NOTE
•Unplug the AC cord from the LCD TV set and power outlet when the LCD TV set is not to be used for a long period of time.
On-screen display
To antenna
terminal
Room antenna terminal
(75-ohm type)
Headphones
VOLUME
AC cord
AC INPUT
terminal
(110-240V)
POWER
LC-20SH3X_E_P01-07.p65 2005.8.29, 2:14 PM4

5
Part Names of the Main Unit
Controls
NOTE
•TV/VIDEO, CH ( )/( ), VOL (–)/(+) and MENU on the main unit have the same functions as the same buttons on the remote control.
Fundamentally, this operation manual provides a description based on operation using the remote control.
SLEEP TIMER indicator
The SLEEP TIMER indicator lights up red when the
SLEEP TIMER is set. (See page 19.)
POWER indicator
The POWER indicator lights up green when the power is on,
and red when in the standby mode (the indicator will not light up
when the main power is off).
Remote sensor
Speaker
Upper control panel VOL (volume) (–)/(+)
MENU
TV/VIDEO
POWER
CH (channel) ( )/( )
12
°
Ta ble stand
Easel type
The angle of the LCD TV set has to be kept at 12°.
Caution:
• Be careful not to hurt your fingers with the stand.
• Do not pick up the LCD TV set by its stand.
• Securely unfold the easel type table stand until you
hear a clicking sound.
Only use the easel type table stand after first unfolding
until a clicking sound is heard to ensure that it is stable.
Easel type table stand
How to Prevent the LCD TV Set from Falling Over
To prevent the LCD TV set from falling over in case
of earthquakes and so on, strap it onto the wall by
threading one end of the string through the loop of
the table stand (1) and fastening the LCD TV set
with the string attached to the hook on the wall or
the post, etc. (2).
(An example of strapping the LCD TV set onto the
wall is shown on the right.)
•The string and hook are commercially available.
2
1
Table
stand
LC-20SH3X_E_P01-07.p65 2005.9.8, 3:43 PM5

6
Part Names of the Main Unit (Continued)
Terminals
How to Fix the Cables
Pull the cables connected to each terminal. Insert the cables into the stand hole and fix the cables.
INPUT1
INPUT2
P
R
P B
Y
AUDIO (L)
AUDIO (L)
S-VIDEO
VIDEO AUDIO (R)
AUDIO (R)
AUDIO (L)
AUDIO (R)
AUDIO
OUT
ANT.
(Antenna
terminal)
Headphone
jack
Table stand
AC INPUT
terminal
Rear View
Stand hole
LC-20SH3X_E_P01-07.p65 2005.8.29, 2:14 PM6

7
Part Names of the Remote Control
MPX
Switches to the sound mode.
(P. 20)
BACKLIGHT
Selects the brightness of the display.
(P. 15)
Upwards/Downwards
Selection, Zoom display
function (Teletext mode)
(P. 12, 23)
(Mute)
Switches the sound on and off.
(P. 9)
POWER
(P. 8)
MENU
Displays the menu.
(P. 12)
(Flashback)
Returns to the previous channel.
(P. 9)
Channel Select
TV mode: Selects the channel.
(P. 9)
Teletext mode: 0-9/Selects the page.
(P. 22)
Blue
(P. 22)
Yellow
(P. 22)
VOL (+)/( - ) (Volume)
(P. 9)
TV/VIDEO ( )/( )
Switches the input source
between INPUT1, INPUT2
and TV mode. (P. 8)
OK
(P. 12)
RETURN
Returns to the previous screen.
Right/Left Selection
(P. 12)
TEXT
Displays the Teletext mode
screen. (P. 22)
REVEAL
Displays hidden information
such as solutions to riddles
and puzzles. (P. 23)
HOLD
Temporarily holds the
current Teletext page.
(P. 23)
SUBTITLE
Displays the Teletext
Subtitle directly.
(P. 23)
SUBPAGE
Displays the Teletext
Subpage directly.
(P. 23)
Red, PICTURE Menu
(P. 14, 22)
Green, SOUND Menu
(P. 17, 22)
CH ( )/( ) (Channel)
TV mode: Selects the channel.
(P. 9)
Teletext mode: Selects the page.
(P. 22)
LC-20SH3X_E_P01-07.p65 2005.8.29, 2:14 PM7

8
●Press POWER. The POWER indicator instantly changes
from red to green and the LCD TV set is turned on.
NOTE
•The on-screen display disappears after a few seconds.
●To turn off the main power, press POWER again.
Standby
To turn off the LCD TV
Press POWER. The POWER indicator will turn red.
To turn the LCD TV back on
Press POWER again. The POWER indicator will turn green.
Turning On and Off the Main Power
POWER indicator
1
PAL
B/G
On-screen display
POWER
Basic Operation
Switching the TV/VIDEO Modes (INPUT1/INPUT2/TV)
Turn on the power of the connected video equipment.
Press TV/VIDEO ( )/( ) to select the applicable
input source.
•The screen changes in order of INPUT1, INPUT2 and TV
mode each time TV/VIDEO ( )/( )is pressed.
INPUT2
PAL
12
PAL
B/G
INPUT1
INPUT1 mode
INPUT2 mode
TV mode
576I
NOTE
•INPUT1: Select this mode when viewing the signals from the video
equipment connected to the INPUT1 (COMPONENT)
terminals.
•INPUT2: Select this mode when viewing the signals from the video
equipment connected to the INPUT2 terminals using the
VIDEO or S-VIDEO terminal for video input.
If both terminals are connected with cables, the S-VIDEO
input terminal is selected as the high priority.
1
2
LC-20SH3X_E_P08-09.p65 2005.9.8, 3:44 PM8

9
Basic Operation (Continued)
Changing Channels
You can select channels using Channel Select or CH ( )/( ).
•To handle the increasing number of channels available, this
LCD TV set allows you to select up to 100 positions (Channels
0 to 99). One-digit and two-digit methods of selection can be
used. Follow the procedure shown below to select channels.
■Using Channel Select
To select a one-digit channel (e.g., Channel 5):
Press 5of Channel Select.
If “5--” is indicated and the picture does not change,
press -/-- to switch over to the 1-digit select mode and
press 5of Channel Select.
5
PAL
B/G
To select a two-digit channel (e.g., Channel 15):
Press -/-- to set the 2-digit select mode.
--
Press 1of Channel Select.
1-
Press 5of Channel Select.
15
PAL
B/G
NOTE
•Complete this procedure within 4 seconds, otherwise the selection
will not be made.
Changing channels with CH ( )/( ) on the remote
control.
Press CH ( )and the channels change in the order shown below:
1 →2 →3 →. . . →98 →99 →0 →1 →2 →3 →. . .
Press CH ( ) and the channels change in the order shown below:
3 →2 →1 →0 →99 →98 →. . . →3 →2 →1 →. . .
■Using AA
AA
A(Flashback)
●Press AA
AA
Ato switch the currently tuned channel to the
previously tuned channel.
●Press AA
AA
Aagain to switch back to the currently tuned
channel.
Sound Volume
■To adjust the volume
●Press VOL (+) to increase the sound volume.
The numerical value increases.
VOLUME
50
●Press VOL (–) to decrease the sound volume.
The numerical value decreases.
VOLUME
10
■To mute the sound
●Press ee
ee
e(Mute) to temporarily turn off the sound. The
MUTE mark is displayed on the screen.
●Press ee
ee
e(Mute) or VOL (+)/(–) to turn the sound back to
the previous level. MUTE is automatically cleared when one
of the following buttons is pressed: POWER,
VOL (+)/(–) or ee
ee
e(Mute).
VOLUME
10
1
2
1
2
3
LC-20SH3X_E_P08-09.p65 05.9.20, 2:54 PM9

10
MENU on the LCD TV set can also be used to select the
language.
Upper control panel
3 1, 2 4
Press MENU (PRESET-1) on the upper part of the
LCD TV set for more than 2 seconds to display the
PRESET mode screen.
AUTO(B/G)
VHF 1
48.25MHZ
Press MENU (PRESET-1) twice to display the
LANGUAGE select mode screen.
•Press MENU (PRESET-1) again to change the
PRESET mode as shown below.
AUTO MANUAL LANGUAGE NORMAL SCREEN
NOTE
• Instead of pressing MENU for more than 2 seconds, you can set
the language by selecting “LANGUAGE” in “SETUP” in the Menu
screen. (See page 17.)
ENGLISH
Press CH ()/( )to select the language you wish to
display.
Press TV/VIDEO to return to the normal screen.
Preset
1
2
3
4
On-Screen Display Language Selection Presetting the Channels (AUTO)
Automatically tunes in and presets receivable TV stations.
Make sure the antenna cable is properly connected.
Upper control panel
21
Press MENU (PRESET-1) on the upper part of the
LCD TV set for more than 2 seconds to display the
AUTO mode screen.
AUTO(B/G)
VHF 1
48.25MHZ
Press VOL (–)/(+) (PRESET-2) on the upper part of
the LCD TV set. All the TV stations in your area that
can be received by the LCD TV set are automatically
preset.
The screen shows whatever is on channel 1 when full
auto channel preset is finished.
1
PAL
B/G
NOTE
•When starting PRESET after setting “SOUND SYSTEM” with
MENU on the remote control, “SOUND SYSTEM” for all channels
are stored into memory.
•Unused channels are automatically skipped.
•The Preset mode is only available in the TV mode.
•Instead of pressing MENU for more than 2 seconds, you can set
the channel by selecting “CH SETUP” in “SETUP” in the Menu
screen. (See page 12.)
1
2
3
Sound System
LC-20SH3X_E_P10-13.p65 2005.8.29, 2:15 PM10

11
Preset (Continued)
■Setting a channel to a desired TV station
Upper control panel
3 1, 2, 64
Press MENU (PRESET-1) on the upper part of the
LCD TV set for more than 2 seconds to display the
AUTO mode screen.
AUTO(B/G)
VHF 1
48.25MHZ
Press MENU (PRESET-1) to display the MANUAL
mode screen.
•Press MENU (PRESET-1) again to change the
MANUAL mode as shown below.
AUTO MANUAL LANGUAGE NORMAL SCREEN
Select the channel position using Channel Select or
CH ( )/( ).
MANUAL(B/G)
VHF 1
48.25MHZ
Press VOL (–)/(+) to locate the channel you want to
preset to the position. Search is initiated and when a
TV signal is received during the search, the search
stops.
Repeat steps 3and 4above, to preset the channel
positions for other broadcasts, etc.
MANUAL(B/G)
UHF 5
623.25MHZ
Press MENU (PRESET-1) twice to return to the
normal screen.
NOTE
•System may not have been set correctly, if noise can be heard or
if there is no sound. In such a case, adjust “SOUND SYSTEM”.
(See page 12.)
Presetting the Channels (MANUAL)
■In a weak reception area or under bad reception
conditions
Upper control panel
4 1, 2, 3, 5
Press MENU (PRESET-1) on the upper part of the
LCD TV set for more than 2 seconds to display the
AUTO mode screen.
Press MENU (PRESET-1) to display the MANUAL
mode screen.
While the MANUAL mode screen is displayed, press
MENU (PRESET-1) for more than 2 seconds.
The channel position number remains in green.
Adjust for good reception using VOL (–)/(+).
After finishing the adjustment, press MENU
(PRESET-1) to continue channel presetting.
NOTE
•While the MANUAL mode screen is displayed, press MENU
(PRESET-1).
(The LANGUAGE mode screen will appear.)
MANUAL(B/G)
VHF 1
48.25MHZ
FINE
UHF 5
623.25MHZ
ENGLISH
Press MENU for more than
2 seconds.
1
1
2
Sound system
2
3
4
5
6
4
5
3
LC-20SH3X_E_P10-13.p65 2005.8.29, 2:15 PM11

12

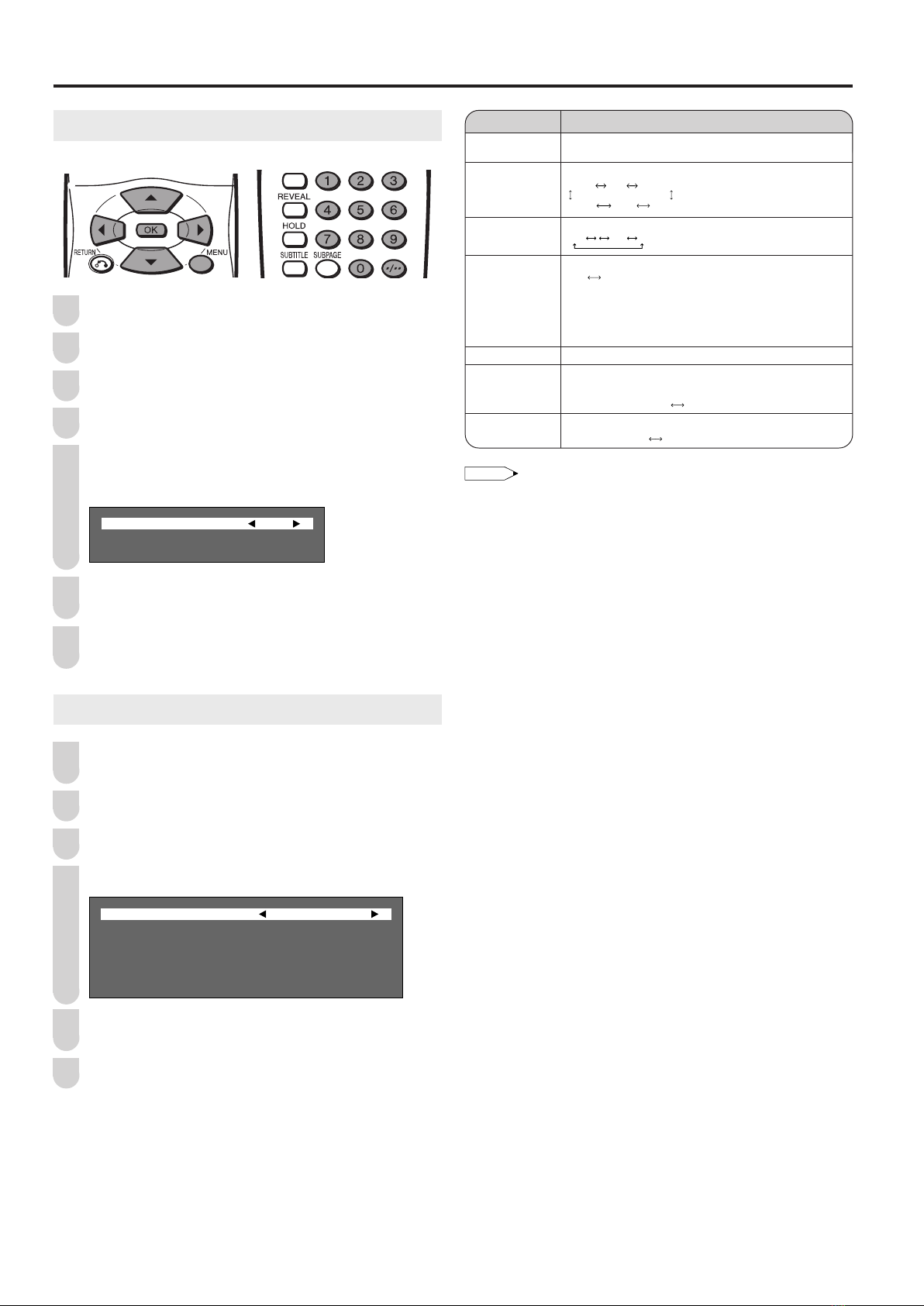

Preset (Continued)
Channel Setting (AUTO)
Press MENU to display the Menu screen.
Press \/|to select “SETUP”.
Press '/"to select “CH SETUP”, and press OK.
Press '/"to select “AUTO”, and press OK.
Press '/"to select “SOUND SYSTEM”. Each time
you press \/|, the setting for individual items changes
as shown in the table on the right.
SOUND SYSTEM B/G
START SEARCH
Press '/"to the select “START SEARCH”, and press
OK to begin the automatic programme search.
When the automatic programme search is completed,
the channel first received will be displayed.
Channel Setting (MANUAL)
Perform steps 1 and 2 in Channel Setting (AUTO) to
display the Setup Menu screen.
Press '/"to select “CH SETUP”, and press OK.
Press '/"to select “MANUAL”, and press OK.
Press '/"to select the desired adjustment item.
POSITION CH 1
COLOUR SYSTEM AUTO
SOUND SYSTEM B/G
SKIP OFF
FINE 695.25MHZ
NICAM ON
A2 ON
Each time you press \/|, the setting for individual
items changes as shown in the table on the right.
Press MENU to exit.
Selected item
POSITION
COLOUR SYSTEM
SOUND SYSTEM
SKIP
FINE
NICAM
A2
B/G I D/K M
AUTO
N358
PAL60 N443
PAL SECAM
Description
The channel position changes to the upper or lower
number.
The mode changes in the following order:
The mode changes in the following order:
The mode changes in the following order:
ON OFF
Channel numbers with a “●(RED)” mark on the left are
set to Skip.
To turn off Skip, press Channel Select to select the
desired channel, and then set the Skip mode on the CH
setup menu to “OFF”.
The frequency changes to allow fine tuning.
The broadcast sound system changes in the following
order:
ON (NICAM sound) OFF (Monaural TV sound)
Stereo system changes in the following order:
ON (A2 sound) OFF (Monaural TV sound)
1
2
3
4
5
6
7
4
1
2
3
5
6
NOTE
•Switching Colour system:
Set the system to Auto for normal TV reception. The Auto mode
automatically detects the receiving signal system and changes the
reception system of the LCD TV set. When the picture or sound is
not stable, switching to an appropriate system may improve the
picture or sound quality.
•When using Fine tuning, the channel number changes from green
to yellow.
•To return the channel to its original frequency setting, follow the
manual channel preset procedure. (For details “Presetting the
Channels (MANUAL)”, see page 11.)
LC-20SH3X_E_P10-13.p65 2005.9.8, 3:44 PM12

13

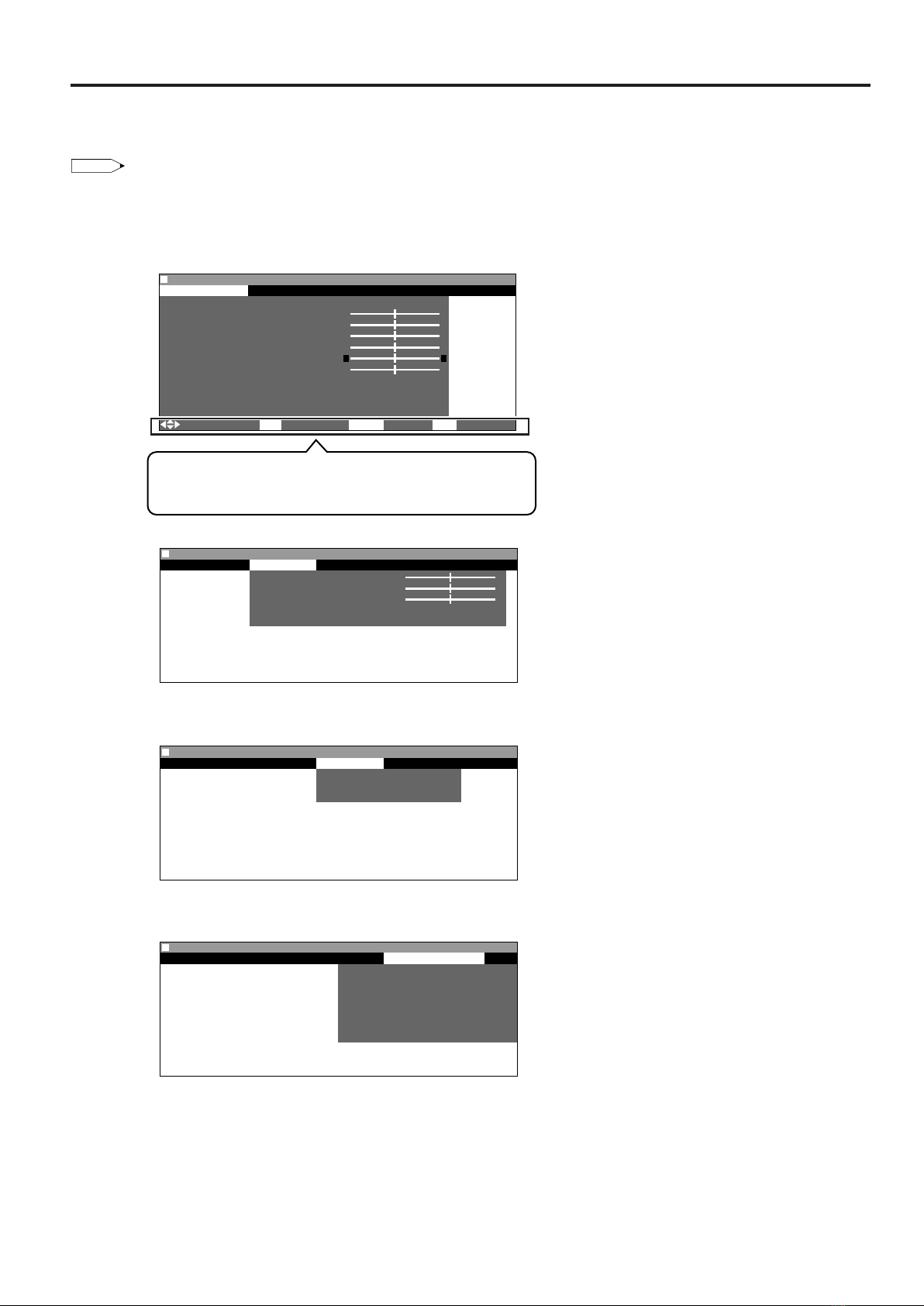

Selecting Menu Items
MENUMENU[SOUND]
PICTURE SOUND SETUP FEATURES
TREBLE [TREBLE [ ] – +
BASS [BASS [ ] – +
BALANCE [BALANCE [ ]L R
SOUND WIDE
RESET
0
0
0
MENUMENU[SETUP]
PICTURE SOUND SETUP FEATURES
CH SETUP
DISPLAYMODE
LANGUAGE
MENUMENU[FEATURES]
PICTURE SOUND SETUP FEATURES
WIDE MODE
AUDIO ONLY
SLEEP TIMER
BOOSTER
AUTO POWER OFF
NO OPERATION OFF
BLUE SCREEN
:SELECT:SELECTOK:ENTER RETURN: BACK MENU: EXIT
MENUMENU[PICTURE]
PICTURE SOUND SETUP FEATURES
AV MODE [DYNAMIC]
BACKLIGHT [ NORMAL ]
CONTRAST [ 3[ 3 ]
BRIGHTNESS [BRIGHTNESS [ ] – +
COLOUR [COLOUR [ ] – +
TINT [[ ]]
SHARPNESS [SHARPNESS [ ] – +
COLOUR SYSTEM
ADVANCED
RESET
0
0
0
0
0
SOUND
SETUP
FEATURES
■Menu setting screens
For details on setting each menu item, refer to the page number indicated below.
NOTE
•The illustrations and on-screen displays in this manual are for explanation purposes and may vary slightly from the actual
appearance.
•Depending on the setting condition, such as an input mode, it may not be possible to adjust or set some items. In such cases, the alert
message (Example: CANNOT OPERATE) is displayed on the menu setting screen.
Page
AV MODE ....................................................... 14
BACKLIGHT ................................................... 15
CONTRAST .................................................... 15
BRIGHTNESS ................................................ 15
COLOUR ......................................................... 15
TINT ................................................................ 15
SHARPNESS .................................................. 15
COLOUR SYSTEM ........................................ 16
ADVANCED .................................................... 16
RESET ............................................................ 15
Page
TREBLE .......................................................... 17
BASS .............................................................. 17
BALANCE ....................................................... 17
SOUND WIDE ................................................ 17
RESET ............................................................ 17
The bar above is an operational guide for the remote
control. The bar will change in accordance with each
menu setting screen.
Page
CH SETUP .......................................... 12, 20, 21
DISPLAY MODE ............................................. 17
LANGUAGE .................................................... 17
Page
WIDE MODE ................................................... 18
AUDIO ONLY.................................................. 18
SLEEP TIMER ................................................ 19
BOOSTER ...................................................... 14
AUTO POWER OFF ....................................... 19
NO OPERATION OFF .................................... 19
BLUE SCREEN .............................................. 19
LC-20SH3X_E_P10-13.p65 05.8.31, 10:54 AM13

14

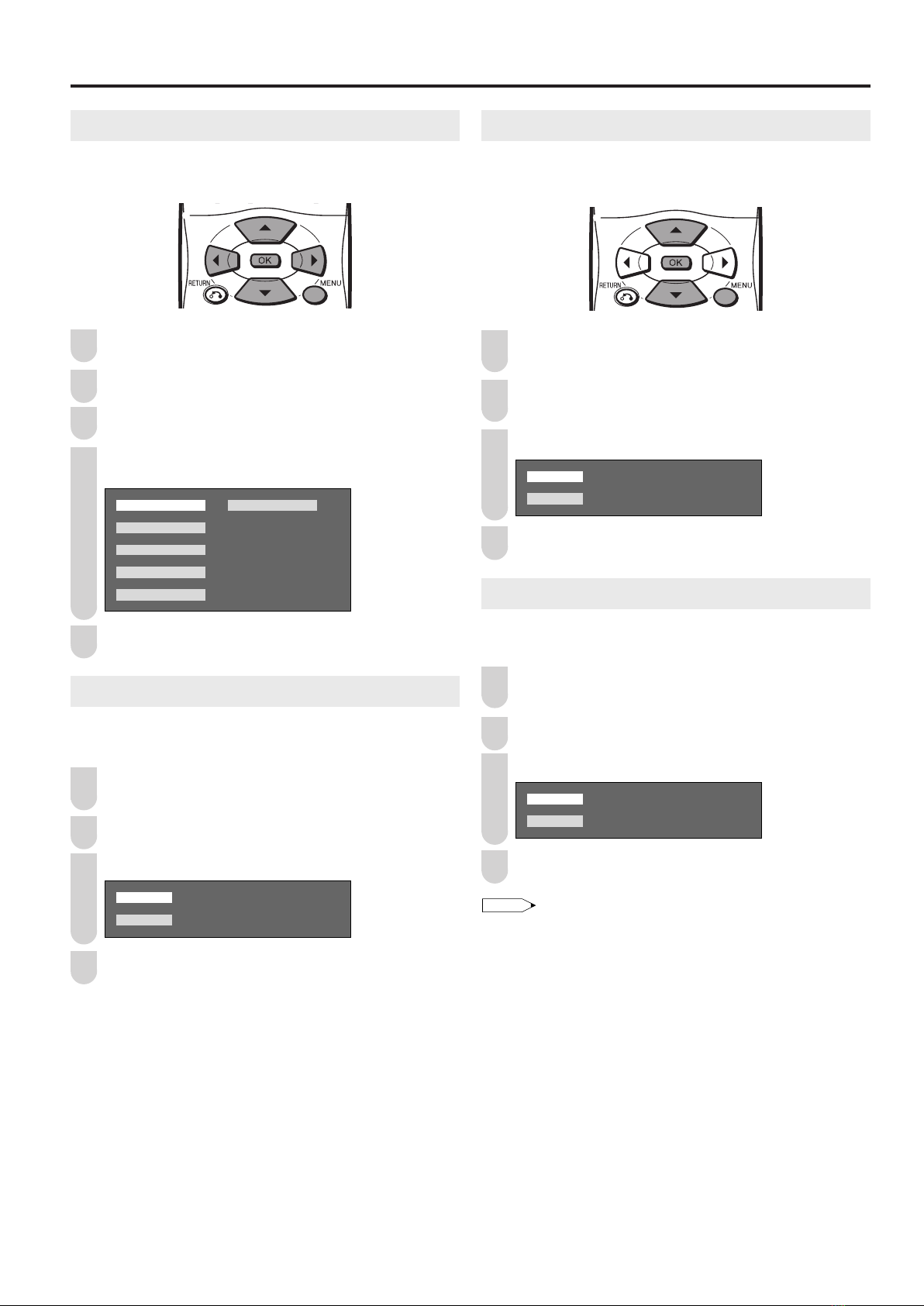

AV MODE
AV MODE gives you preset options to choose from, to best
match the image based on room-brightness and playback
software used.
Press MENU to display the Menu screen.
•The Picture Menu screen can be displayed directly by
pressing Red.
Press \/|to select “PICTURE”.
Press '/"to select “AV MODE”, and press OK.
Press '/"to select desired mode, and press OK.
STANDARD
DYNAMIC
DYNAMIC(FIXED)
MOVIE
GAME
Press MENU to exit.
1
2
3
4
5
Basic Adjustment Settings
NOTE
•You can select a different AV Mode item for each input mode.
(For example, select “STANDARD” for TV mode and “DYNAMIC”
for INPUT mode.)
Selected item
STANDARD
DYNAMIC
DYNAMIC
(FIXED)
MOVIE
GAME
Description
Changing image settings to standard values.
For a clear-cut image emphasising high contrast
for sports viewing.
Changing image settings to factory preset
values. No adjustments are allowed.
Controlling the contrast to enable easier viewing
of dark images.
Controlling the brightness of video games and
other images for easier viewing.
BOOSTER
Picture quality may improve in regions with weak signal
strength using this function.
Press MENU to display the Menu screen.
Press \/|to select “FEATURES”.
Press '/"to select “BOOSTER”, and press OK.
Press '/"to select “ON”, and press OK.
ON
OFF
Press MENU to exit.
NOTE
•If signal strength is strong enough for the selected channel, the
effect is negligible and may produce instability. In such a case,
select “OFF”.
1
2
3
4
5
LC-20SH3X_E_P14-16.p65 2005.8.29, 2:16 PM14

15

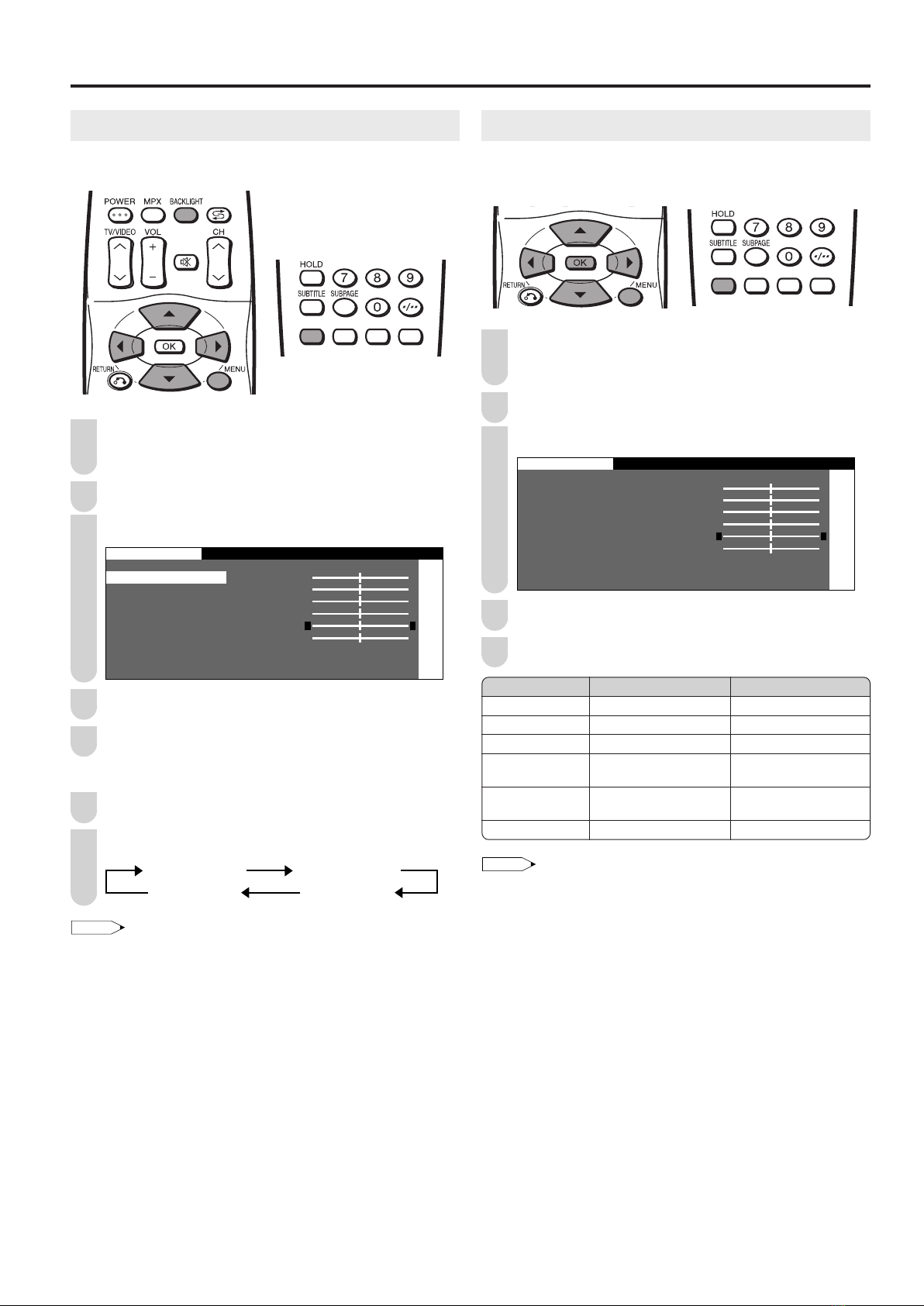

Basic Adjustment Settings (Continued)
BACKLIGHT
You can adjust the brightness of the picture.
Press MENU to display the Menu screen.
•The Picture Menu screen can be displayed directly by
pressing Red.
Press \/|to select “PICTURE”.
Press '/"to select “BACKLIGHT”.
PICTURE SOUND SETUP FEATURES
AV MODE [DYNAMIC]
BACKLIGHT [ NORMAL ]
CONTRAST [ 3[ 3 ]
BRIGHTNESS [BRIGHTNESS [ ] – +
COLOUR [COLOUR [ ] – +
TINT [[ ]]
SHARPNESS [SHARPNESS [ ] – +
COLOUR SYSTEM
ADVANCED
RESET
0
0
0
0
0
Press \/|to adjust the item to the desired position.
Press MENU to exit.
Directly setting the BACKLIGHT
Press BACKLIGHT to display the BACKLIGHT screen.
Press BACKLIGHT to change the setting.
BACKLIGHT [BRIGHT]
BACKLIGHT [USER]
BACKLIGHT [NORMAL]
BACKLIGHT [DARK]
NOTE
•[BRIGHT]: Maximum brightness.
[NORMAL]: Suitable for viewing in a well-lit area. Saves energy.
[DARK]: Sufficiently bright when viewing in dim areas.
[USER]: The brightness can be adjusted to suit your
preference using \/|.
4
3
Selected item
BACKLIGHT
CONTRAST
BRIGHTNESS
COLOUR
TINT
SHARPNESS
||
||
|button
The screen brightens
For more contrast
For more brightness
For more colour
intensity
Skin tones become
greenish
For more sharpness
\\
\\
\button
The screen dims
For less contrast
For less brightness
For less colour
intensity
Skin tones become
purplish
For less sharpness
1
2
5
Picture Adjustments
Adjust the picture to your preference with the following
picture settings.
Press MENU to display the Menu screen.
•The Picture Menu screen can be displayed directly by
pressing Red.
Press \/|to select “PICTURE”.
Press '/"to select a specific adjustment item.
PICTURE SOUND SETUP FEATURES
AV MODE [DYNAMIC]
BACKLIGHT [ NORMAL ]
CONTRAST [ 3[ 3 ]
BRIGHTNESS [BRIGHTNESS [ ] – +
COLOUR [COLOUR [ ] – +
TINT [[ ]]
SHARPNESS [SHARPNESS [ ] – +
COLOUR SYSTEM
ADVANCED
RESET
0
0
0
0
0
Press \/|to adjust the item to your desired position.
Press MENU to exit.
NOTE
•Select “COLOUR SYSTEM” and press OK to select “AUTO”,
“PAL”, “SECAM”, “N358”, “N443” or “PAL60”. See page 16.
•Select “ADVANCED” and press OK to set “COLOUR TEMP.”. See
page 16.
•When resetting all adjustment items (except for the items on the
“AV MODE”, “COLOUR SYSTEM” and “ADVANCED” menu) to
factory preset values, perform the following procedure.
1Press '/"to select “RESET”, and press OK.
2Press '/"to select “YES”, and press OK.
1
2
3
4
1
2
5
LC-20SH3X_E_P14-16.p65 2005.9.8, 3:45 PM15

16
Basic Adjustment Settings (Continued)
COLOUR SYSTEM (Only INPUT2 Mode)
Set the system to “AUTO” for normal reception. The “AUTO”
mode automatically detects the receiving signal system and
changes the reception system of the set. When the picture or
sound is not stable, switching to an appropriate system may
improve the picture or sound quality.
Press MENU to display the Menu screen.
•The Picture Menu screen can be displayed directly by
pressing Red.
Press \/|to select “PICTURE”.
Press '/"to select “COLOUR SYSTEM”, and press
OK.
Press '/"/\/|to select “AUTO”, “PAL”, “SECAM”,
“N358”, “N443” or “PAL60” and press OK.
AUTO PAL6
PAL
SECAM
N358
N443
0
Press MENU to exit.
NOTE
•“COLOUR SYSTEM” is available only in the INPUT2 mode.
Colour Temperature
Adjust the colour temperature to give a better white balance.
Press MENU to display the Menu screen.
•The Picture Menu screen can be displayed directly by
pressing Red.
Press \/|to select “PICTURE”.
Press '/"to select “ADVANCED”, and press OK.
Press '/"to select “COLOUR TEMP.”, and press OK.
0
0
0
COLOUR TEMP.
RED [ ] –+
GREEN [ ] –+
BLUE [ ] –+
RESET
Press '/"to select the desired item, and press OK.
USER
HIGH
MIDDLE
LOW
Press MENU to exit.
* When you select “USER”, the following items are adjustable.
NOTE
•When resetting “RED”, “GREEN” and “BLUE” to factory preset
values, perform the following procedure.
1Press '/"to select “RESET” in the “ADVANCED” menu, and
press OK.
2Press '/"to select “YES”, and press OK.
Selected item
USER
HIGH
MIDDLE
LOW
Description
Can set your desired colour*
White with Bluish tone
White with Reddish tone
Selected item
RED
GREEN
BLUE
Press \\
\\
\Press ||
||
|
Weaker red Stronger red
Weaker green Stronger green
Weaker blue Stronger blue
1
2
3
5
4
1
2
5
6
4
3
LC-20SH3X_E_P14-16.p65 2005.8.29, 2:16 PM16

17
Sound Adjustments
You can adjust the sound quality to your preference with the
following settings.
Press MENU to display the Menu screen.
•The Sound Menu screen can be displayed directly by pressing
Green.
Press \/|to select “SOUND”.
Press '/"to select a specific adjustment item.
SOUND SETUP FEATURES
TREBLE [TREBLE [ ] – +
BASS [BASS [ ] – +
BALANCE [BALANCE [ ]L R
SOUND WIDE
RESET
0
0
0
Press \/|to adjust the item to your desired position.
Press MENU to exit.
NOTE
•When resetting all adjustment items (except for the items on the
“SOUND WIDE” menu) to factory preset values, perform the
following procedure.
1Press '/"to select “RESET”, and press OK.
2Press '/"to select “YES”, and press OK.
SOUND WIDE
This feature can increase the spread of the sound.
Press MENU to display the Menu screen.
•The Sound Menu screen can be displayed directly by pressing
Green.
Press \/|to select “SOUND”.
Press '/"to select “SOUND WIDE”, and press OK.
Press '/"to select “ON”, and press OK.
ON
OFF
Press MENU to exit.
Useful Features
4
5
Selected item
TREBLE
BASS
BALANCE
\\
\\
\button
For weaker treble
For weaker bass
Decrease audio from
the right speaker
||
||
|button
For stronger treble
For stronger bass
Decrease audio from
the left speaker
1
2
3
5
3
4
2
1
DISPLAY MODE
You can set the orientation of the picture.
Press MENU to display the Menu screen.
Press \/|to select “SETUP”.
Press '/"to select “DISPLAY MODE”, and press OK.
Press '/"to select the desired mode, and press OK.
NORMAL
MIRROR
ROTATE
UPSIDE DOWN
Press MENU to exit.
3
5
4
2
1
ABC
ABC
ABC
ABC
[MIRROR]: To display mirror
images for special uses.
[NORMAL]: Normal image
orientation.
[UPSIDE DOWN]: To display upside
down images for special uses.
[ROTATE]: To display rotated
images for special uses.
On-Screen Display Language Setting
You can select English, Chinese or Arabic as the on-screen
display language.
Press MENU to display the Menu screen.
Press \/|to select “SETUP”.
Press '/"to select “LANGUAGE”, and press OK.
Press '/"to select the desired language, and press OK.
ENGLISH
Press MENU to exit.
4
5
3
2
1
LC-20SH3X_E_P17-21.p65 2005.8.29, 2:16 PM17

18

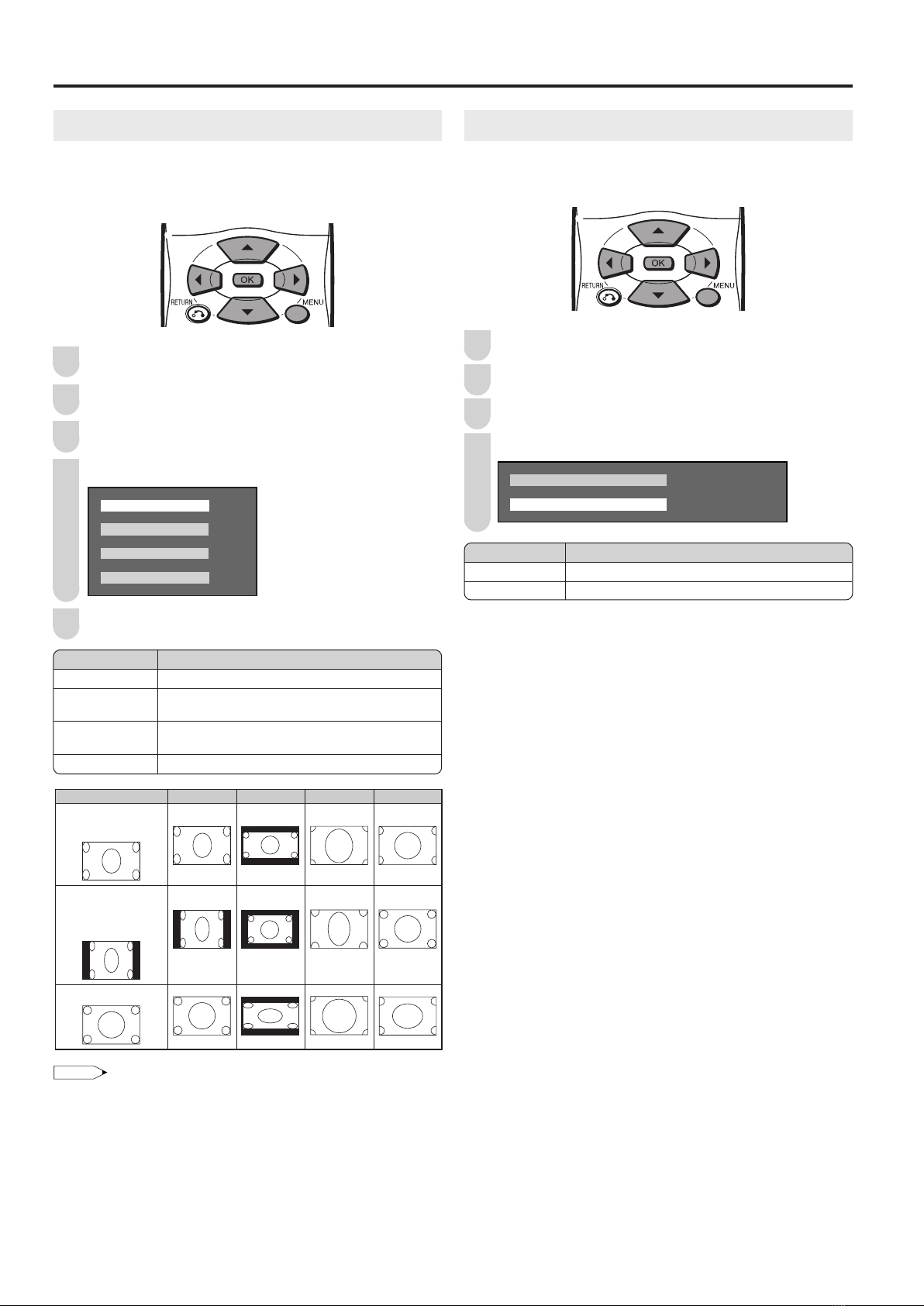

Useful Features (Continued)
AUDIO ONLY
When listening to music from a music programme, you can
turn the display off and enjoy audio only.
Press MENU to display the Menu screen.
Press \/|to select “FEATURES”.
Press '/"to select “AUDIO ONLY”, and press OK.
Press '/"to select “DISPLAY OFF”, and press OK.
DISPLAY ON
DISPLAY OFF
WIDE MODE
You can select the picture display size for the playback
image of the DVD player from the following four modes:
“4:3”, “16:9”, “ZOOM” and “STRETCH”.
Press MENU to display the Menu screen.
Press \/|to select “FEATURES”.
Press '/"to select “WIDE MODE”, and press OK.
Press '/"to select the desired setting, and press OK.
4:3
16:9
ZOOM
STRETCH
Press MENU to exit.
NOTE
• The 4:3 image will be distorted on the screen when the “WIDE MODE”
is set to “16:9”.
1
2
Description
Displays the image in a 4:3 size.
Stretches the image horizontally to display it in a
16:9 size.
Displays the centre part of the image by enlarging
it in the horizontal and vertical directions.
Stretches the image horizontally.
Selected item
4:3
16:9
ZOOM
STRETCH
3
4
(For an image
stretched vertically
with bands at the left
and right sides)
(For an image
stretched vertically)
Image type 4:3 16:9 ZOOM STRETCH
(For a 4:3 image)
1
2
Selected item
DISPLAY ON
DISPLAY OFF
Description
Both screen images and audio are output.
Audio is output without screen image.
3
4
5
LC-20SH3X_E_P17-21.p65 2005.8.29, 2:16 PM18

19
Useful Features (Continued)
SLEEP TIMER
You can set “SLEEP TIMER” to automatically turn off the
LCD TV set.
Press MENU to display the Menu screen.
Press \/|to select “FEATURES”.
Press '/"to select “SLEEP TIMER”, and press OK.
Press '/"/\/|to select “30MIN”, “60MIN”, “90MIN”,
“120MIN”, “150MIN” or “OFF”, and press OK.
3 MIN OFF
6 MIN
9 MIN
12 MIN
15 MIN
0
0
0
0
0
Press MENU to exit.
AUTO POWER OFF
You can set the power to automatically turn off if there is no
signal for 5 minutes.
Perform steps 1 and 2 in SLEEP TIMER to display the
Features Menu screen.
Press '/"to select “AUTO POWER OFF”, and press OK.
Press '/"to select “ON”, and press OK.
ON
OFF
Press MENU to exit.
4
1
4
3
2
1
2
5
NO OPERATION OFF
You can set the power to automatically shut down if there is
no operation for 3 hours.
Perform steps 1 and 2 in SLEEP TIMER to display the
Features Menu screen.
Press '/"to select “NO OPERATION OFF”, and
press OK.
Press '/"to select “ON”, and press OK.
ON
OFF
Press MENU to exit.
BLUE SCREEN
Automatically turns the screen blue if no broadcast signal is
received.
Perform steps 1 and 2 in SLEEP TIMER to display the
Features Menu screen.
Press '/"to select “BLUE SCREEN”, and press OK.
Press '/"to select “ON”, and press OK.
ON
OFF
Press MENU to exit.
NOTE
•When received signals are weak or interfered with by some other
signals, “BLUE SCREEN” may be activated. To watch the TV
under such conditions, set “BLUE SCREEN” to “OFF”.
1
2
3
4
1
3
4
2
3
LC-20SH3X_E_P17-21.p65 2005.9.8, 3:46 PM19
