OPERATION MANUAL
COLOUR TELEVISION
MODEL
21H-S3P
Please read this operation manual
carefully before using the colour
television.
TINS-B567WJZZ
05P01-MSP
SHARP CORPORATION
21H-S3P(Front) 5/11/04, 10:03 AM1

E 1
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Contents
Preparation
Accessories ...................................................................................... 2
Easy setup ........................................................................................ 3
Safety precautions ............................................................................ 4
Part names ....................................................................................... 6
Installing batteries in the remote control unit .................................... 6
Watching TV
Watching a TV programme ............................................................... 8
Operating the TV buttons .................................................................. 9
Useful features
Channel/Timer display .................................................................... 10
Mute ............................................................................................... 10
Channel recall ................................................................................ 11
TV/Video selection ......................................................................... 11
Channel Scan ................................................................................. 12
Picture In Picture (PIP) Function .................................................... 13
Selecting menu items
Selecting a menu item .................................................................... 14
Settings and adjustments
On-screen display language selection ............................................ 15
Auto channel tuning ........................................................................ 16
Manual channel tuning ................................................................... 17
Channel setting .............................................................................. 18
Picture adjustment .......................................................................... 20
Sound adjustment .......................................................................... 21
Surround sound .............................................................................. 22
Background .................................................................................... 23
Safety Mode ................................................................................... 24
Child Lock ....................................................................................... 25
Off timer .......................................................................................... 27
On timer .......................................................................................... 28
Reminder on-screen timer .............................................................. 29
Inset adjustment ............................................................................. 30
Favourite channels ......................................................................... 31
Broadcast features
Teletext broadcasts ......................................................................... 32
Connections
Connecting to a DVD player ........................................................... 33
Watching DVD Playback ................................................................. 33
Connecting to an antenna .............................................................. 34
Connecting to an antenna via a VCR ............................................. 34
Connecting to video equipment ...................................................... 35
Troubleshooting
Troubleshooting .............................................................................. 36
Specifications
Specifications ................................................................................. 37
21H-S3P[01-06]EN 22/11/04, 2:21 PM1

E 2
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Dear SHARP Customer
Thank you for buying SHARP's Colour
Television. We hope you will have many
years of enjoyment from this television
set. To ensure proper operation, please
read this manual carefully, and keep it in
a safe place for future reference.

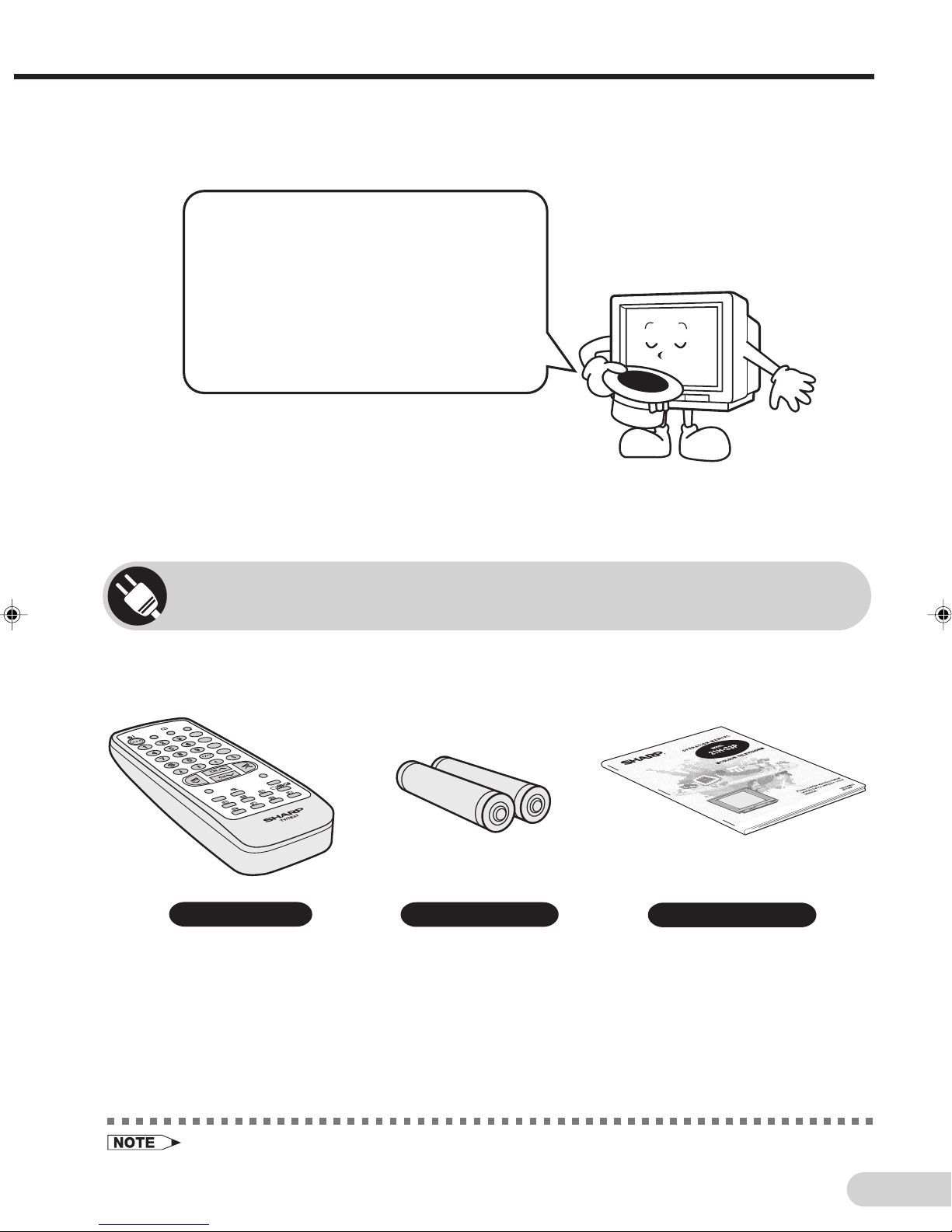

Remote control Size-AA batteries Operation manual
The following accessories are included with this television.
Accessories
SURROUND
NORMAL
PIP
ON/OFF
TV/VIDEO
PIP.TV/VIDEO
SWAP
FREEZE
MOVE
MENU
CH SCAN
• Remove the power cord from the electrical outlet before connecting the antenna to the rear of the TV
set.
21H-S3P[01-06]EN 5/11/04, 10:39 AM2

E 3
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd

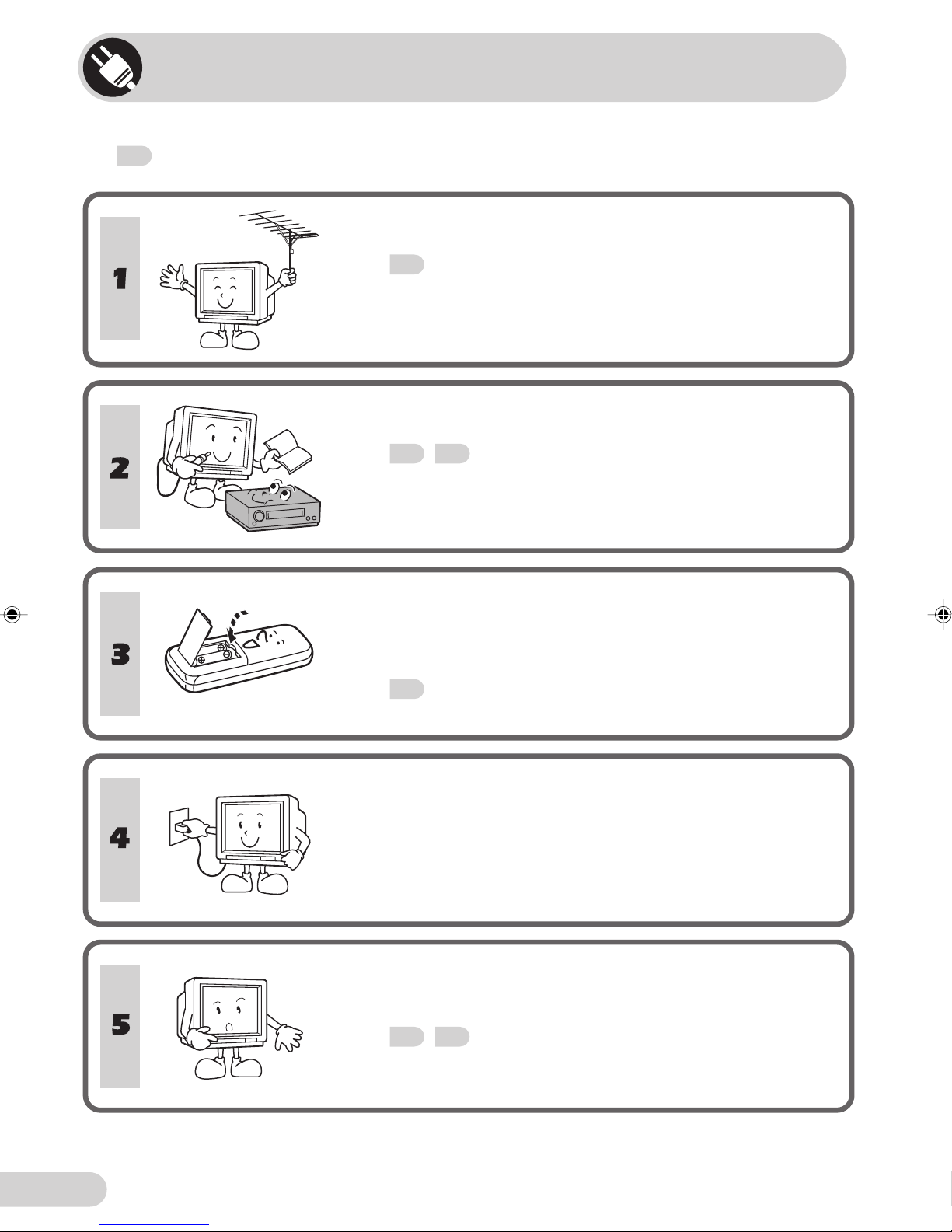

Easy setup
To use your TV set, perform the easy setup procedure below.
The mark indicates the page numbers with more detailed information.
Connect the antenna.
•See
34
to connect the antenna.
Connect any video equipment.
•See
34
,
35
to connect video equipment.
•See the operation manual of your video equipment when
connecting to the TV set.
Insert the batteries into the remote
control.
•Use the two batteries included with the TV.
•See
6
.
Insert the AC plug to the power outlet.
•If you will not use the TV set for a considerable length of
time, as a safety precaution, unplug the cord from the
outlet.
Tune the channels.
•Use the buttons on the TV.
•See
16
,
17
.
21H-S3P[01-06]EN 21/10/04, 4:17 PM3

E 4
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Safety precautions
Damage
Turn off the power and unplug the power cord from the wall
outlet immediately if the TV set begins to make any unusual
noises or gives off smoke or an unusual smell. Then call your
dealer for service.
Servicing
To reduce the risk of electric shock, do not remove the back of
the cabinet. This TV set contains dangerous voltage.
Unstable surface and shocks
Do not place this TV set on an unstable cart, stand, shelf, or
table. The TV set may fall, causing serious injury to a child or
adult, and serious damage to the set.
Sharp recommends securing the TV set to a stable surface or
wall to prevent the set from falling due to sudden shocks or
impact.
Water
To prevent fire or electrical shock, do not place the TV set near a
bathroom, swimming pool or other area where it may become wet.
Moisture
To prevent electrical shock, do not use the TV set in an
excessively damp place.
Power-cord protection
To prevent electrical shock, do not subject the AC power cord to
damage by bending or twisting it, or by placing heavy items on
top of it and do not place the AC power cord under the TV set. If
the AC power cord becomes damaged, unplug it from the wall
outlet immediately and call your dealer for service.
21H-S3P[01-06]EN 21/10/04, 4:17 PM4

E 5
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Safety precautions
Liquid entry
Do not place a flower vase or anything else containing liquid on
the TV set, as liquid spilt on the TV set can cause electrical
shock or failure.
Object entry
Never insert or drop any metallic or inflammable objects into the
ventilation openings of the TV set, as this can cause fire,
electrical shock, or electrical failure.
Ventilation
Do not place this TV set in a confined area, such as on a
bookshelf or in a built-in case. Leave adequate space behind the
TV for proper ventilation.
TV Set position
Do place the TV set onto an even stand, table or track which size
is bigger than the TV set.
If the TV set is put onto a smaller size or uneven stand, table or
track may cause the TV cabinet distort.
Do not put or insert anything between TV set and the stand, table
or track.
Uneven surface and excessive force
Television equipment and cart combination should be moved
with care. Quick stops, excessive force, and uneven surfaces
may cause the equipment and cart combination to overturn.
Fire prevention
To prevent fire, never place any type of candle or naked flames
on the top or near the TV set.
21H-S3P[01-06]EN 21/10/04, 4:17 PM5

E 6
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd

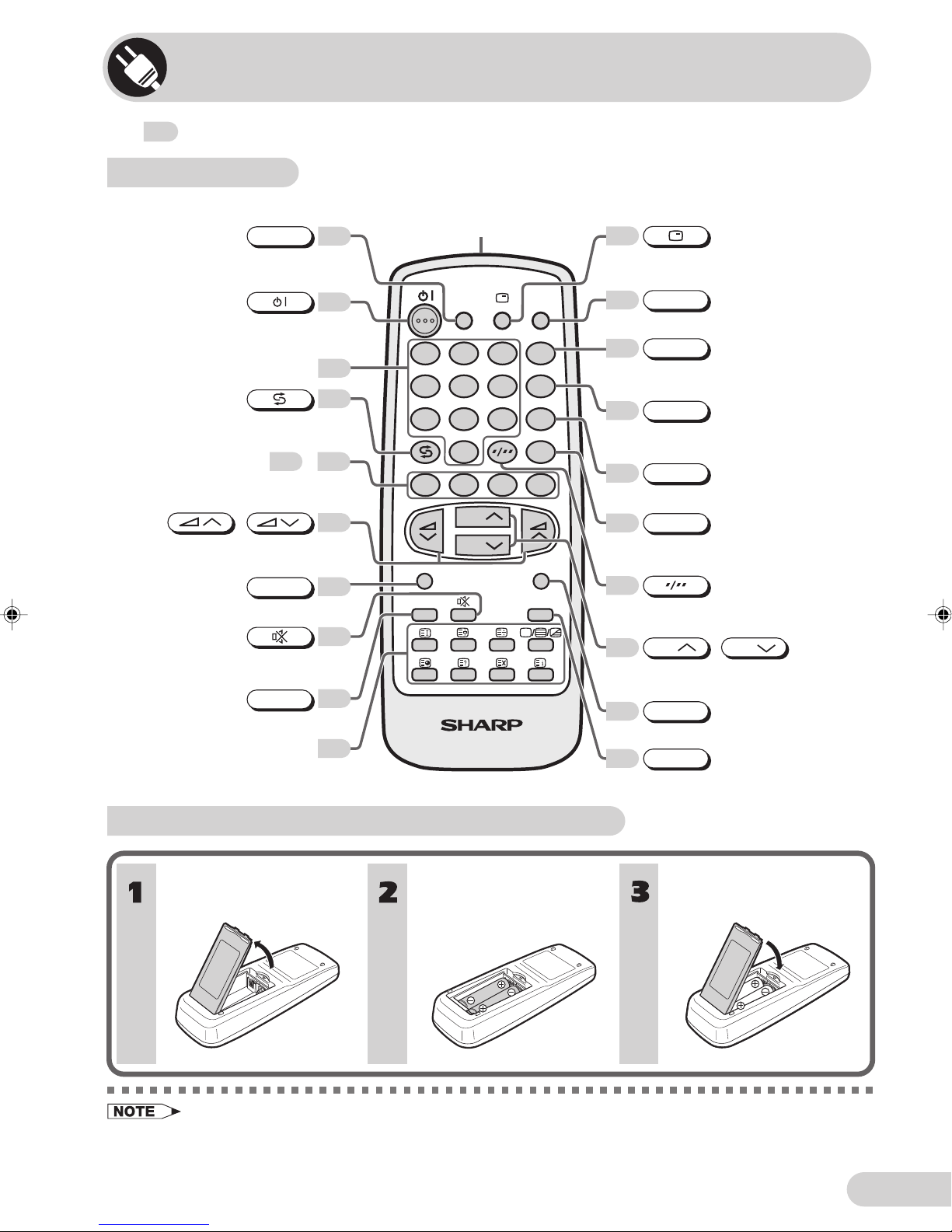

Part names
• Be sure to match the battery j/kterminals with the j/kmarks inside the compartment.
• Remove the batteries if weak or if the unit is not in use for long periods.
• Do not mix old and new batteries.
• Incorrect installation of the batteries may damage the remote control.
With your thumbnail, pull
up at the slit to open the
battery cover.
Insert two batteries
(size AA).
Replace the battery cover.
Installing batteries in the remote control unit
Remote control
The mark indicates the page numbers with more detailed information.
PIP
ON/OFF
TV/VIDEO
SURROUND CH SCAN
NORMAL
TV/TEXT
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
Infrared Transmitter Window
Aim this window at the infrared
sensor window on your TV set.
Mutes the sound and restores
sound to previous level.
Adjusts the volume.
Used for MENU setup.
Resets all settings.
Teletext buttons
Operate the Teletext functions.
Operate the Favourite Channel
and Teletext functions.
Colour buttons
Number buttons
Switches between one- or two-digit
mode channel selection.
Returns to previously viewed
channel.
Selects the channel.
Used for MENU setup.
Calls the MENU screen.
Switches between TV broadcasts
and A/V input programmes.
Turns the TV on or to
Standby mode.
11
31 /
20
32
8
8
14
13
13
13
13
13
Displays the channel and timer
settings on the screen.
Turn PIP “ON”or “OFF”.
Switches channel selection
of inset screen.
To move the position
of inset screen.
Exchange displayed.
To stop moving image
of inset screen.
10
TV/VIDEO
MENU
12
CH SCAN
FREEZE
SWAP
MOVE
PIP.TV/VIDEO
PIP ON/OFF
CH
CH
NORMAL
/
/
Produces a more spacious sound.
8
22
11
SURROUND
10
Scan and tune in the channel.
8
32
8
21H-S3P[01-06]EN 21/10/04, 5:08 PM6

E 7
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Bottom
Door
Infrared sensor window
Receives the infrared wave
from the remote control.
Power switch
Turns on and off the
main power.
8
Channel up/down buttons
Selects the channels.
Tunes or sets the channels.
CH
CH /
MENU/PRESET button
Tunes the channels.
Used for MENU setup.
MENU/PRESET
/
Audio input terminals (AV-2)
Connects to a camcorder,
video game, etc.
35
Video input terminal (AV-2)
Connects to a camcorder,
video game, etc.
35
Power indicator
Power can be turned on by the remote
control when the indicator is dimly.
8
Headphone jack
Used to listen to the audio with headphone.
9
6
14
8
Volume up/down buttons
Adjusts the volume.
Makes adjustments in PRESET.
8
TV set
• When using headphone, see
9
.
Part names
To open the door
Using the projection located under
the “PULL-OPEN” indication, pull
and lift the door open.
To close the door
Using the projection, lower the door
until closed.
Caution:
• When opening or closing the door,
do not insert your fingers into the
gap between the door and front
panel. This may result in an injury.
21H-S3P[07-13]EN 5/11/04, 10:05 AM7

E 8
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Watching TV

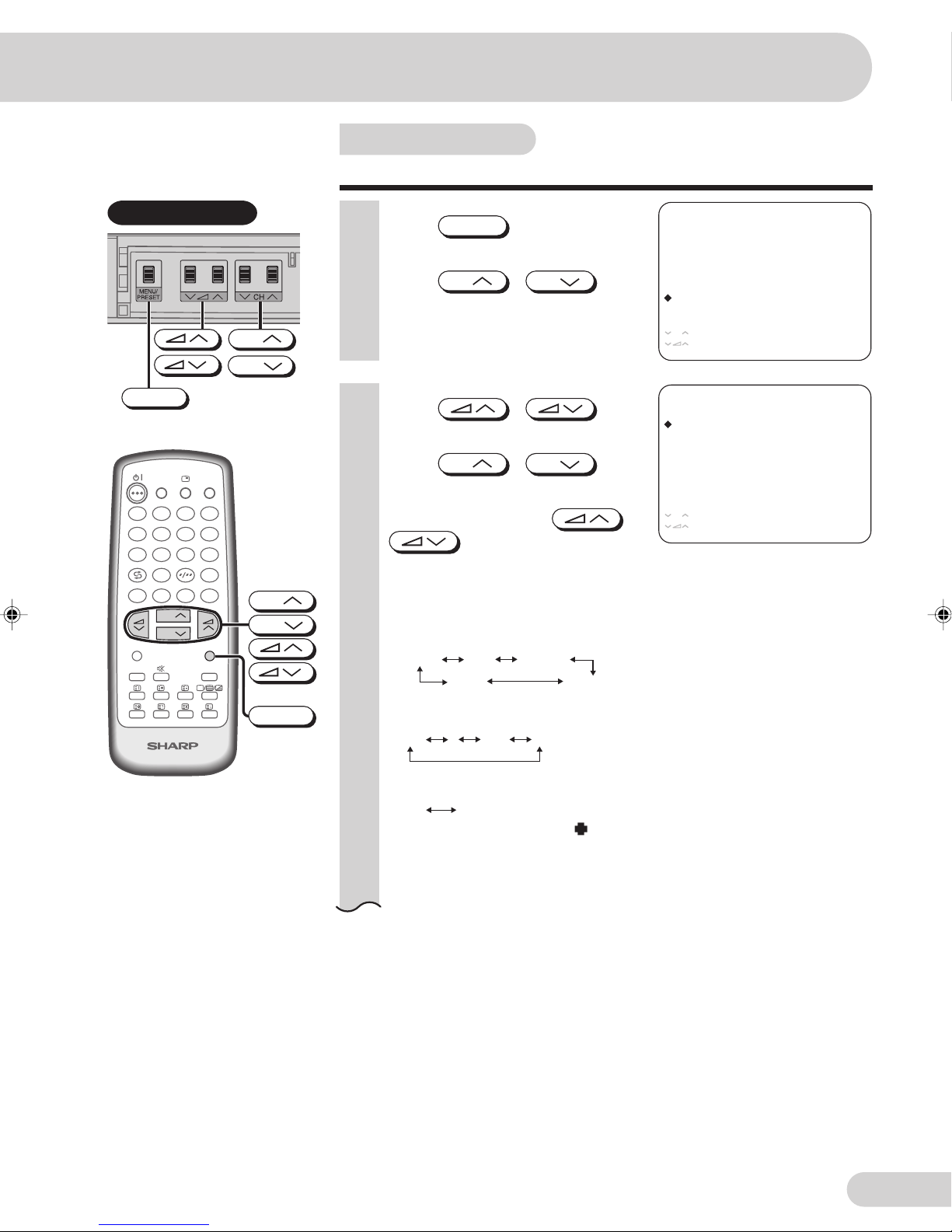

1Turn on power.
• When the power indicator is off, press .
• When the power indicator lights up dimly, press on the
remote control. The power indicator changes to bright and a picture
appears.
Power indicator
TV Set (Bottom)
With CH / CH
•Press
CH
and channels change as shown below.
1 /2 / ... /98 /99 /AV1 (or COMPONENT) /AV2 / 0 /1 /2 ...
•Press
CH
and channels change as shown below.
1 /0 /AV2 /AV1 (or COMPONENT) /99 /98 /... /2 /1 /0 ...
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
CH
CH
1
5
VOLUME 10
3Adjust volume using
/
.
•The number of oval blocks “ ”
indicates the volume level.
The volume bar disappears
approximately three seconds after
the volume has been adjusted.
2Select channel.
With the number buttons (on remote control)
•To select a one-digit channel, such as 5, press
5
.
If “5-”is indicated, press to select one-digit input, and then
press
5
again.
•To select a two-digit channel, such as 15, press to select
the two-digit input. Press
1
, and then press
5
.
15
1-
--
PAL
B/G
•When the power indicator lights up dimly, either
CH
/
CH
on the TV can be pressed to turn
on the power.
•The channel number is displayed in green for channels tuned by auto tuning and displayed in yellow for
channels tuned using fine tuning.
•When the power indicator lights up dimly, the TV is in Standby mode and power is still supplied to the
TV. If you will not watch TV for a while, turn off the main power by pressing on the TV set.
Also, if you will not be at home for a considerable length of time, unplug the cord from the outlet.
•The AV1 (or COMPONENT), AV2 input channels cannot be selected using
CH
/
CH
on the
remote control. Use
TV/VIDEO
to select these channel.
•Channels that have been skipped cannot be selected by
CH
/
CH
. See
18
.
•The on-screen displays in this manual may differ from their actual appearance.
CH
CH
Behind the door
Watching a TV programme
Simple operations for watching a TV programme
21H-S3P[07-13]EN 21/10/04, 5:10 PM8

E 9
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
•Select an appropriate volume so as not to injure your hearing.
•To avoid injuring your hearing, do not put on the headphone before plugging them into the headphone
jack and before the power is turned on.
•The proper impedance for the headphone is 32 ohms.
•Remove the headphone plug from the jack when not using the headphone.

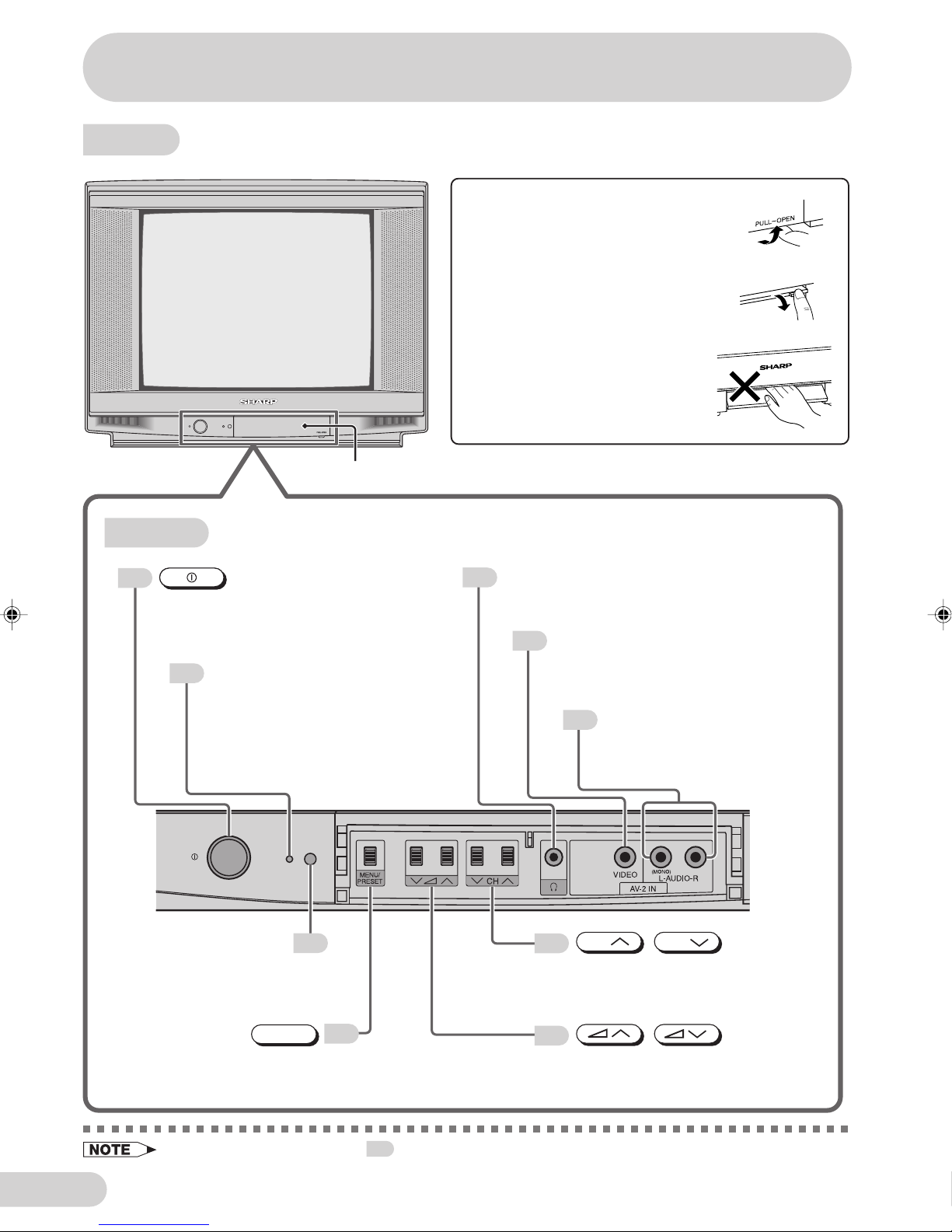

Operating the TV buttons
Simple operation of the TV set
Using
/
Press to increase volume.
Press to decrease volume.
CH
CH
VOLUME 10
5
PAL
B/G
Using
CH
/
CH
Press CH to increase channel
number.
Press CH to decrease channel
number.
Using headphone
Insert headphone plug into headphone jack to listen to audio with
headphone.
•The audio from the speakers is turned off.
Behind the door
Behind the door
Watching TV
21H-S3P[07-13]EN 21/10/04, 4:18 PM9

E 10
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Channel/Timer display
Displays the current channel number, the timer, and other
settings on the screen.
ON 8:00
OFF 2:30
1:50
5
PAL
B/G
( AV2)
2Press
again.
•The channel number, colour and
sound system appear on the screen.
•If is pressed with PIP set to
“OFF”, the INSET screen and
channel number for INSET will not
appear.
•When PIP is set to “ON”, the
channel number for INSET is
displayed in parentheses ( ).
1Press
.
•The time remaining on the Off timer,
On timer, and Reminder appears on
the screen.
•When no timer is set, the channel
number, colour and sound system
appear on the screen. Press
again to clear these current
settings display on the screen.
Useful features
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
1Press
.
•“ ”appears on the screen, and the
sound is silenced.
2Press again.
•The volume returns to its previous
level.
3Press once again.
•The display disappears.
•Mute will be cancelled if the
is pressed at any time.

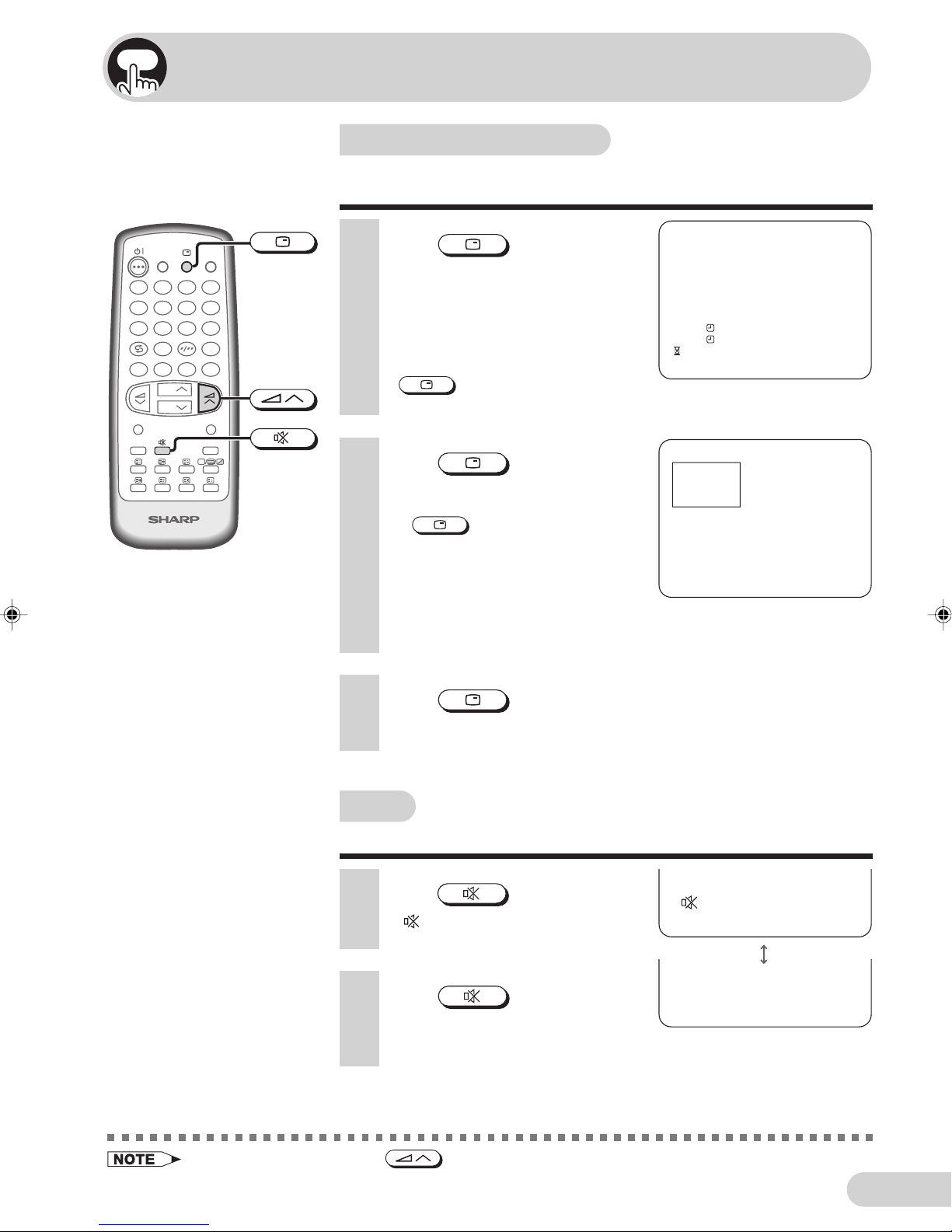

Mute
Silences the sound.
21H-S3P[07-13]EN 21/10/04, 4:18 PM10

E 11
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
TV/Video selection
Switches between TV broadcasts and AV input programmes.
Each time you press the
TV/VIDEO
, the
input switches between AV1 (or
COMPONENT), AV2 and TV programme.
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
TV/VIDEO
Channel recall
Switches back to the channel you were watching just before
the current channel.
52
PAL
B/G
COMPONENT AV1
AV2
or
Press .
•The channel previously viewed returns to
the screen.
Example:
After switching from channel 5 to channel
7, is pressed, the channel will
change to channel 5. Press
again to return to channel 7.
5
PAL
7
PAL
5
PAL
7
PAL
Useful features
•The input from COMPONENT terminal has priority over the video signal from AV1.
21H-S3P[07-13]EN 21/10/04, 4:18 PM11

E 12
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
1Press
CH SCAN
.
2Each of the tuned channels
is automatically displayed in
numeric order, beginning and
ending with the current
channel.
3Press
CH SCAN
to stop
CHANNEL SCAN at any time.

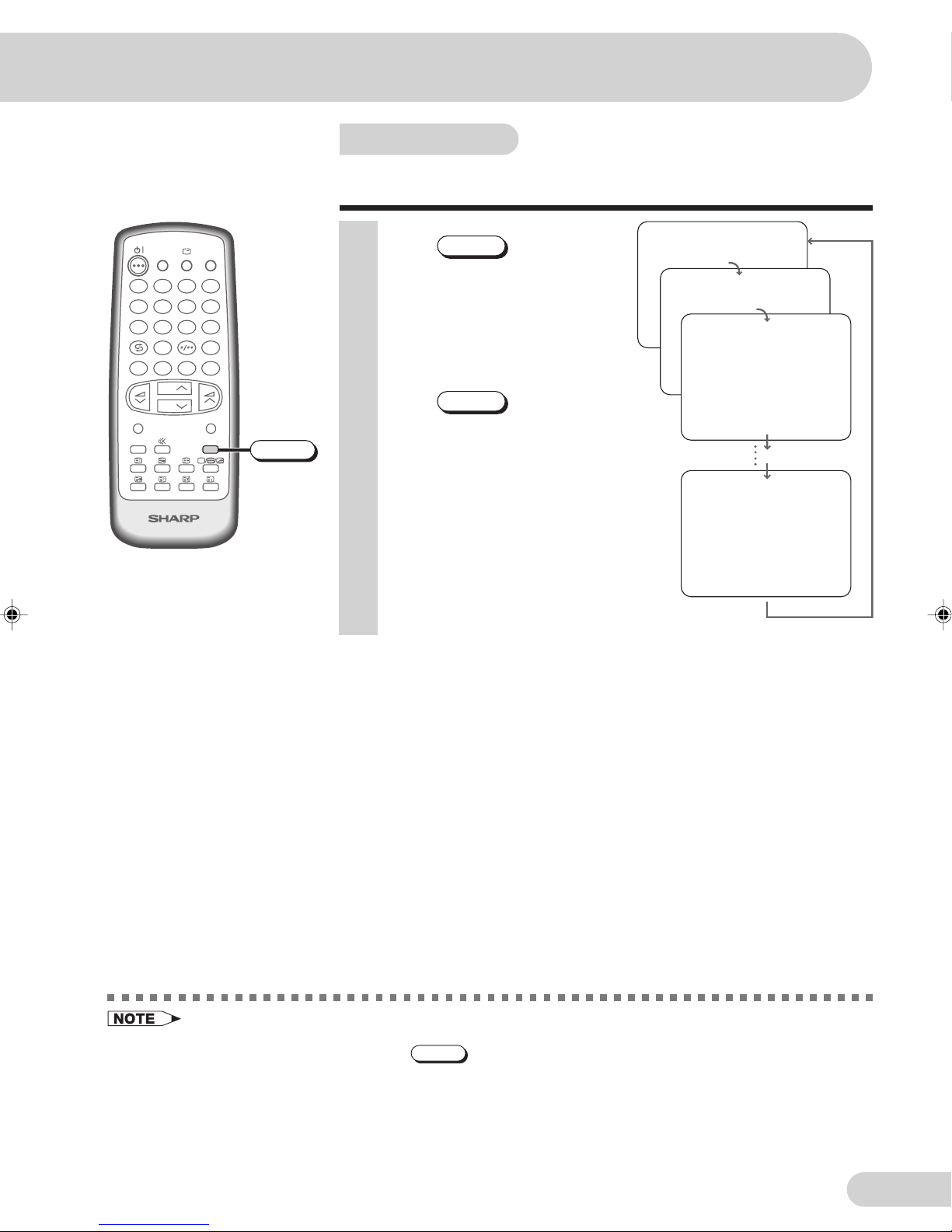

Channel Scan
For fast and easy channel selection, this function displays
each tuned channel in numeric order.
3
2
1
99
•Channel Scan does not work when the AV input screen is displayed.
•Skipped channels are not displayed.
•During PIP is set to “ON”, press
CH SCAN
(i) If main screen and inset screen are TV channel, both screen will perform channel scanning.
(ii) If main screen is TV channel and inset screen is AV channel, only main screen will perform channel
scanning.
(iii) If main screen and inset screen are AV channel, both screen will not perform channel scanning.
(iv)If main screen is AV channel and inset screen is TV channel, only inset screen will perform channel
scanning.
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
CH SCAN
21H-S3P[07-13]EN 21/10/04, 4:18 PM12

E 13
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd

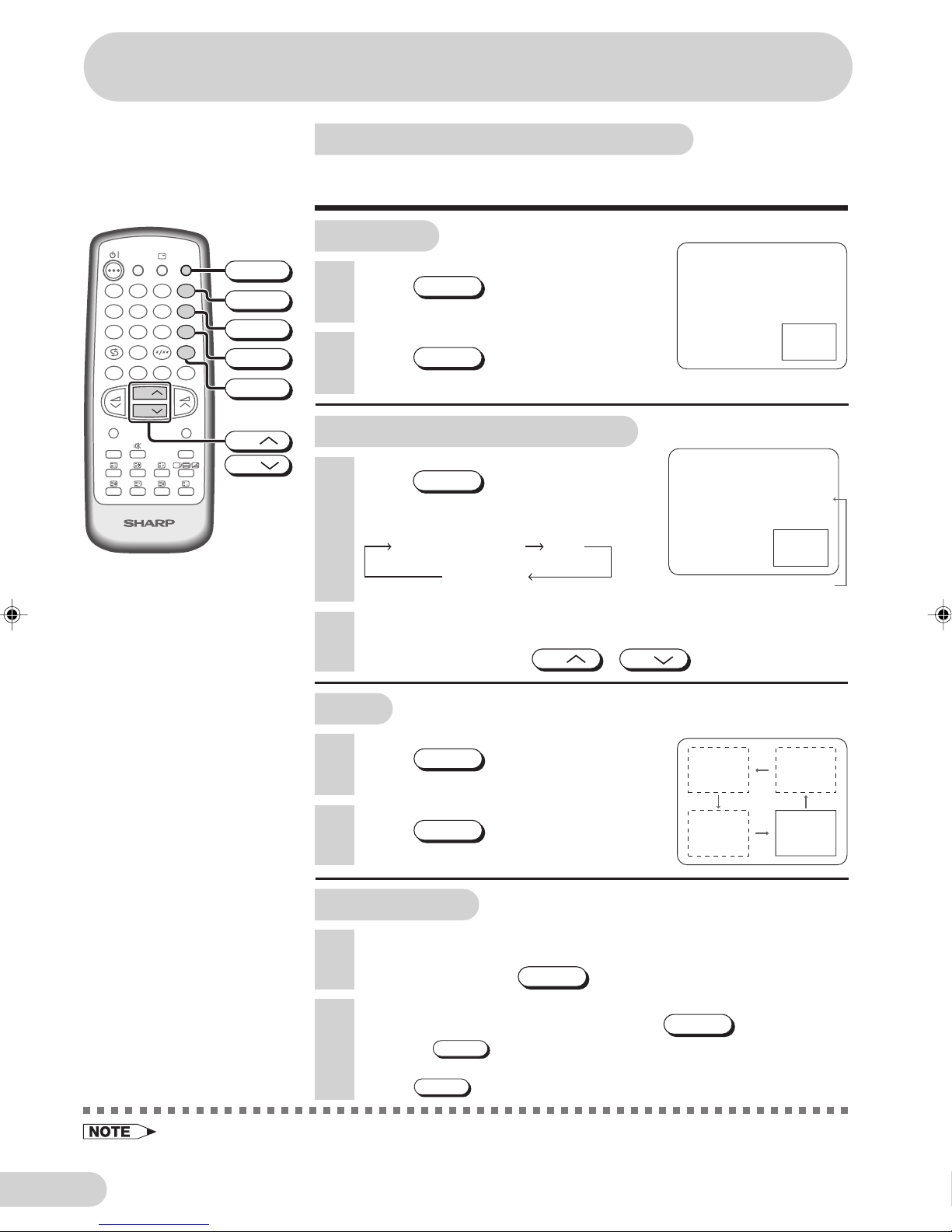

Picture In Picture (PIP) Function
With the VIDEO input, you can watch two picture at same time: one
from the TV channel and the other from the VIDEO input.
1Press
PIP ON/OFF
.
• The inset is displayed to indicate PIP is “ON”.
2Press
PIP ON/OFF
again.
• The inset screen is disappears to indicate PIP is “OFF”.
PIP On/Off
51
PAL
B/G
( AV2)
1When
PIP.TV/VIDEO
is pressed, the input
for the inset changes in the following
order.
2When the inset is displayed, the channel number for INSET is
changed by pressing
CH
/
CH
.
Channel Selection of Inset Screen
Channel number for
inset screen
AV1 (or COMPONENT) AV2
TV programme
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
PIP.TV/VIDEO
MOVE
SWAP
FREEZE
PIP ON/OFF
CH
CH
1Press
PIP ON/OFF
.
• The inset is displayed.
2Press
MOVE
to move the inset
position as shown on the right.
MOVE
1When the inset is displayed, it is changed over with the main
screen by pressing
SWAP
.
2The inset displays a still picture when
FREEZE
is pressed.
• Pressing
SWAP
when FREEZE is activated will cancels FREEZE and the
inset changes over with the main screen.
• Press
FREEZE
again to cancel the FREEZE mode.
SWAP/FREEZE
•The same TV channel screen will be displayed for main screen and inset screen, if the selection
channel of main screen and inset screen are TV channel.
•Even if the COMPONENT terminal is connected, the inset screen do not shows COMPONENT signal.
•When the colour system between the main screen and the inset is different, the size (aspect ratio) of
the inset screen might be bigger or smaller.
Useful features
21H-S3P[07-13]EN 5/11/04, 10:06 AM13

E 14
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Selecting menu items
This TV set allows you to adjust the picture and sound, and set the channels and other features
using the On-screen display with the remote control or from the TV set. Select the desired
menu item by following the steps below and then refer to the indicated page for details.
Remote control
TV/TEXT
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
CH
CH
MENU
Behind the door
CH
CH
MENU/PRESET
MENU
SOUND
FEATURE
TIMER
INSET
CH-SETTING
Selecting a menu item
1Press
MENU
/
MENU/PRESET
to
call MENU screen.
2Press
CH
/
CH
to
select desired menu item.
• The selected item is highlighted in
yellow.
MENU
SOUND
FEATURE
TIMER
INSET
CH-SETTING
3Press / to
enter.
• The corresponding menu screen will
appear.
SOUND
BASS 0
0
SURROUND OFF
TREBLE 0
BALANCE
Operating guide
MENU
SOUND
FEATURE
TIMER
INSET
CH-SETTING
MENU:ENTER :RETURN
:SELECT
CH
CONTRAST 60
COLOUR 0
BRIGHTNESS 0
TINT
SHARPNESS 0
MENU
:ADJUST :RETURN
:SELECT
CH
SOUND
BASS 0
SURROUND OFF
TREBLE 0
BALANCE 0
MENU
:ADJUST :RETURN
:SELECT
CH
FEATURE
BACKGROUND RED
WHITE TEMP
SAFETY MODE OFF
CHILD LOCK
MENU
:ADJUST :RETURN
:SELECT
CH
TIMER
OFF --:--
ON --:--
--:--
POSITION
VOLUME
MENU
:ADJUST :RETURN
:SELECT
CH
CH-SETTING menu
CH-SETTING
POSITION CH 7
COLOUR AUTO
SOUND B/G
SKIP OFF
AUTO
FINE(MANUAL) 168.25MHz
MENU
:ADJUST :RETURN
:SELECT
CH
PICTURE menu SOUND menu
21
20
30
FEATURE menu TIMER menu
2623 – 2927 –
1918 –
INSET
BRIGHTNESS - +
TINT 0
MENU
:ADJUST :RETURN
:SELECT
CH
INSET menu
• If you press
MENU/PRESET
for more than two seconds, the LANGUAGE mode screen will appear instead of the MENU
screen. To display the MENU screen, press
MENU/PRESET
until the normal screen appears, then press the button again.
• The procedures for setting and selecting the menu items on the following pages are described using the buttons
on the remote control. These procedures can also be performed using the corresponding buttons on the TV set.
21H-S3P[14-19]EN 5/11/04, 10:07 AM14

E 15
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Settings and adjustments

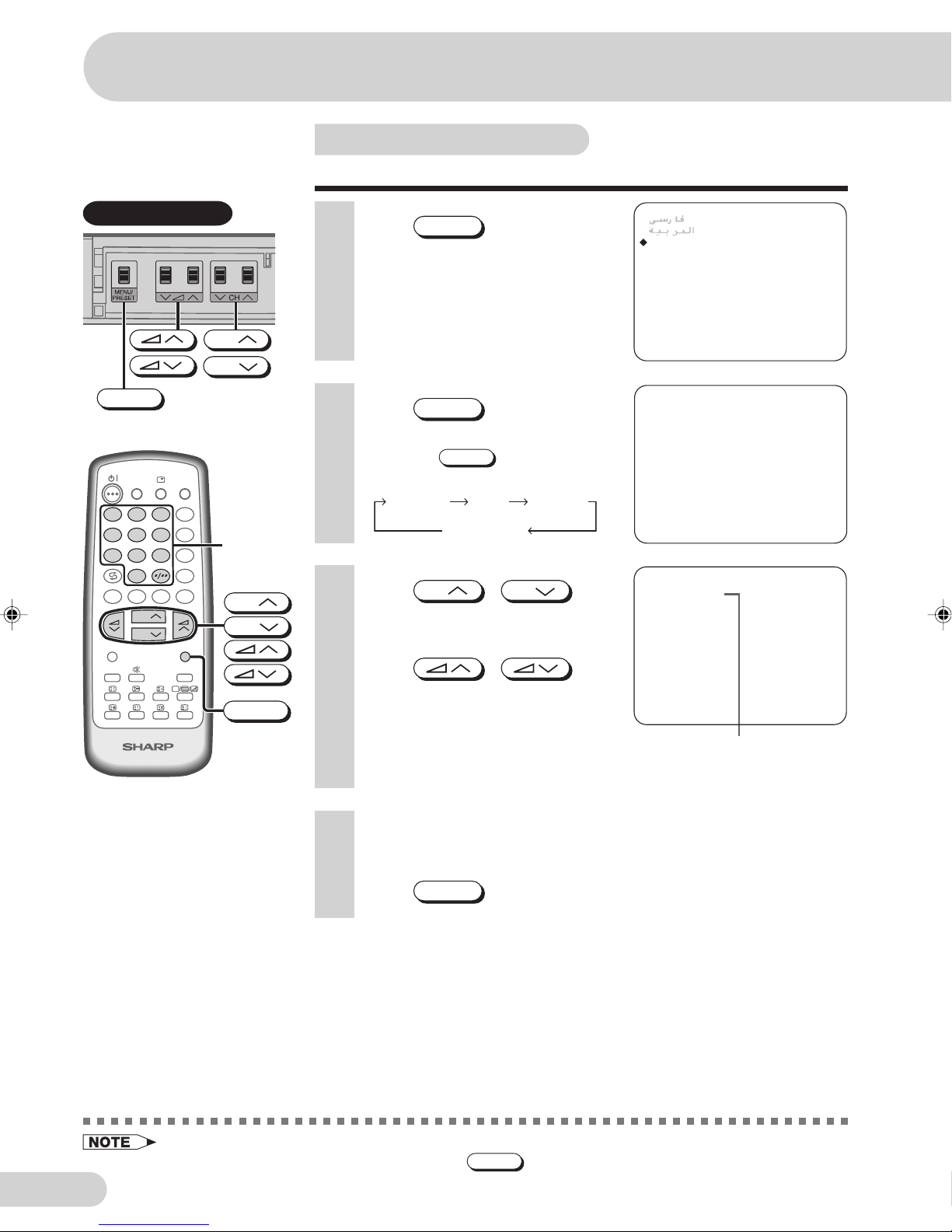

On-screen display language selection
The on-screen display language can be set to Persian, Arabic,
English or French.
2Press
CH
/
CH
to
select desired language.
•Pressing
MENU/PRESET
changes the
screen as shown below.
3Press
MENU/PRESET
until normal
screen appears.
1Press
MENU/PRESET
for more than
two seconds.
•The language select mode appear.
Language MANUAL
Normal screen
AUTO
CH
CH
MENU/PRESET
Behind the door TV set
FRANCAI
S
EN
G
LI
SH
21H-S3P[14-19]EN 21/10/04, 4:19 PM15

E 16
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Auto channel tuning
Automatically tunes in and presets receivable TV stations.
AUTO(B/G)
VHF 1
48.25MH z
1Press
MENU/PRESET
for more than
two seconds.
•The language select mode appear.
•Adjust the SOUND SYSTEM using the
MENU
on the remote control. When starting the AUTO
PRESET after setting the SOUND SYSTEM with the
MENU
, the SOUND SYSTEM for all the
channels are stored into memory.
•AUTO PRESET stores all receivable channels including those which may be very weak and not clearly
visible. To preset only those channels designated for the local viewing region, use MANUAL PRESET.
See
17
.
•Unused channels are automatically skipped.
1
PAL
B/G
2Press
MENU/PRESET
again to display
AUTO mode screen.
•Pressing
MENU/PRESET
changes the
screen as shown below.
MENU/PRESET
3Press / and
Auto Channel Tuning is started.
•All the TV stations in your area that
can be received by the TV set are
automatically preset between
channels 1 to 99.
•The screen shows whatever is on
channel 1 when auto channel preset
is finished.
Behind the door
FRANCAI
S
ENGLI
SH
Language MANUAL
Normal screen
AUTO
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
MENU
21H-S3P[14-19]EN 21/10/04, 4:19 PM16

E 17
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Manual channel tuning
Enables manual channel tuning to a desired TV station.
1Press
MENU/PRESET
for more than
two seconds.
•The language select mode appear.
FRANCAI
S
ENGLI
SH
2Press
MENU/PRESET
twice to display
MANUAL mode screen.
•Pressing
MENU/PRESET
changes the
screen as shown below.
MANUAL(B/G)
VHF 1
48.25MHz
Language MANUAL
Normal screen
AUTO
MANUAL(B/G)
VHF 5
107.50MH z
3Press
CH
/
CH
or
number buttons to select channel
position.
4Press / to
locate channel you wish to preset
to current channel position.
•Search is initiated and when a TV
signal is received during the search,
the search stops.
5Repeat steps 3 and 4 above, to preset channel positions for
other broadcasts.
6Press
MENU/PRESET
again to display normal screen.
Channel position
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
CH
CH
MENU
Number
buttons
CH
CH
MENU/PRESET
Behind the door
•SOUND SYSTEM may not have been set correctly, if noise can be heard or if there is no sound. In such
case, adjust the SOUND SYSTEM using the
MENU
on the remote control.
Settings and adjustments
21H-S3P[14-19]EN 21/10/04, 4:19 PM17

E 18
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
Channel setting
Enables individual channel setting.
MENU
SOUND
FEATURE
TIMER
INSET
CH-SETTING
MENU
:ENTER :RETURN
:SELECT
CH
1Press
MENU
to call MENU
screen.
2Press
CH
/
CH
to
select “CH-SETTING”.
3Press / to
display CH-SETTING menu.
4Press
CH
/
CH
to
select desired setting.
5Each time you press /
, setting for individual
items changes as follows:
•POSITION
The channel position changes to the higher or lower number.
•COLOUR
•SOUND
•SKIP
ON OFF
Channel numbers with a “”mark on the left are set to SKIP. To turn
off SKIP, press the number buttons to select the desired channel and
then set “SKIP”to “OFF”.
CH-SETTING
POSITION CH 7
COLOUR AUTO
SOUND B/G
SKIP OFF
AUTO
FINE(MANUAL) 168.25MHz
MENU
:ADJUST :RETURN
:SELECT
CH
AUTO PAL SECAM
N443
N358
B/G ID/K M
TV/TEXT
PIP
ON/OFFTV/VIDEO
SURROUND CH SCAN
NORMAL
CH
CH
MENU
BACD
MOVE
PIP.TV/VIDEO
FREEZE
SWAP
123
456
78
0
9
CH
CH
MENU
CH
CH
MENU/PRESET
Behind the door
(continue)
21H-S3P[14-19]EN 21/10/04, 4:19 PM18

E 19
Dimension: 176 x 250 mm
Printelligence (M) Sdn. Bhd
•AUTO
The AUTO mode screen will appear.
(i) Pressing
MENU/PRESET
changes the
screen as shown below.
(ii) Pressing /
again and Auto Channel Tuning
is started.
(Please see page
16
for details on Auto Channel Tuning.)
•FINE (MANUAL)
(i) Each time / is pressed, the frequency changes
to allow fine tuning and the colour of channel number changes to
yellow.
(ii) Press / for more than 4 seconds, the “Manual
Channel Tuning”will start. If a signal is found, the Manual
Channel Tuning will stop searching.
•
Channel number in Red : Manual Channel Tuning is
performing.
•
Channel number in Green : Manual Channel Tuning is stop.
Repeat (ii) above to continue Manual
Channel Tuning.
•Switching COLOUR system:
Set the system to “AUTO”for normal TV reception. The AUTO mode automatically detects the receiving
signal system and changes the reception system of the TV set. When the picture is not stable, switching
to an appropriate system may improve the picture quality.
•In a weak reception area, or under bad reception conditions, you can change the frequency by fine tuning.
•When using FINE, the channel number changes from green to yellow.
•To return the channel to its original frequency setting, follow the manual channel tuning procedure.
See
17
.
•Channel setting menu cannot be selected during COMPONENT mode.
Channel setting (continued)
Settings and adjustments
AUTO PAL SECAM
N443
N358
MANUAL NORMAL
SCREEN
AUTO
AUTO(B/G)
VHF 7
224.25MH z
6Press
MENU
until normal
screen appears.
•When you select AV1, AV2 for the
channel position, the CH-SETTING
menu changes as shown on the
right and the colour mode changes
in the following order:
CH-SETTING
POSITION AV1
COLOUR AUTO
MENU
:ADJUST :RETURN
:SELECT
CH
21H-S3P[14-19]EN 21/10/04, 4:19 PM19
