Sharp 27SC26BQ User manual

This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
In the interests of user-safety (Required by safety regulations in some countries ) the set should be restored to its
original condition and only parts identical to those specified should be used.
COLOR TELEVISION
Chassis No. GB-D7
Page
»ELECTRICAL SPECIFICATIONS .........................................................................................................1
»IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2
»LOCATION OF USER'S CONTROL .....................................................................................................5
»INSTALLATION AND SERVICE INSTRUCTIONS ................................................................................6
»SERVICE ADJUSTMENT ...................................................................................................................13
»CHASSIS LAYOUT .............................................................................................................................16
»BLOCK DIAGRAM ..............................................................................................................................17
»DESCRIPTION OF SCHEMATIC DIAGRAMS & WAVEFORMS ........................................................18

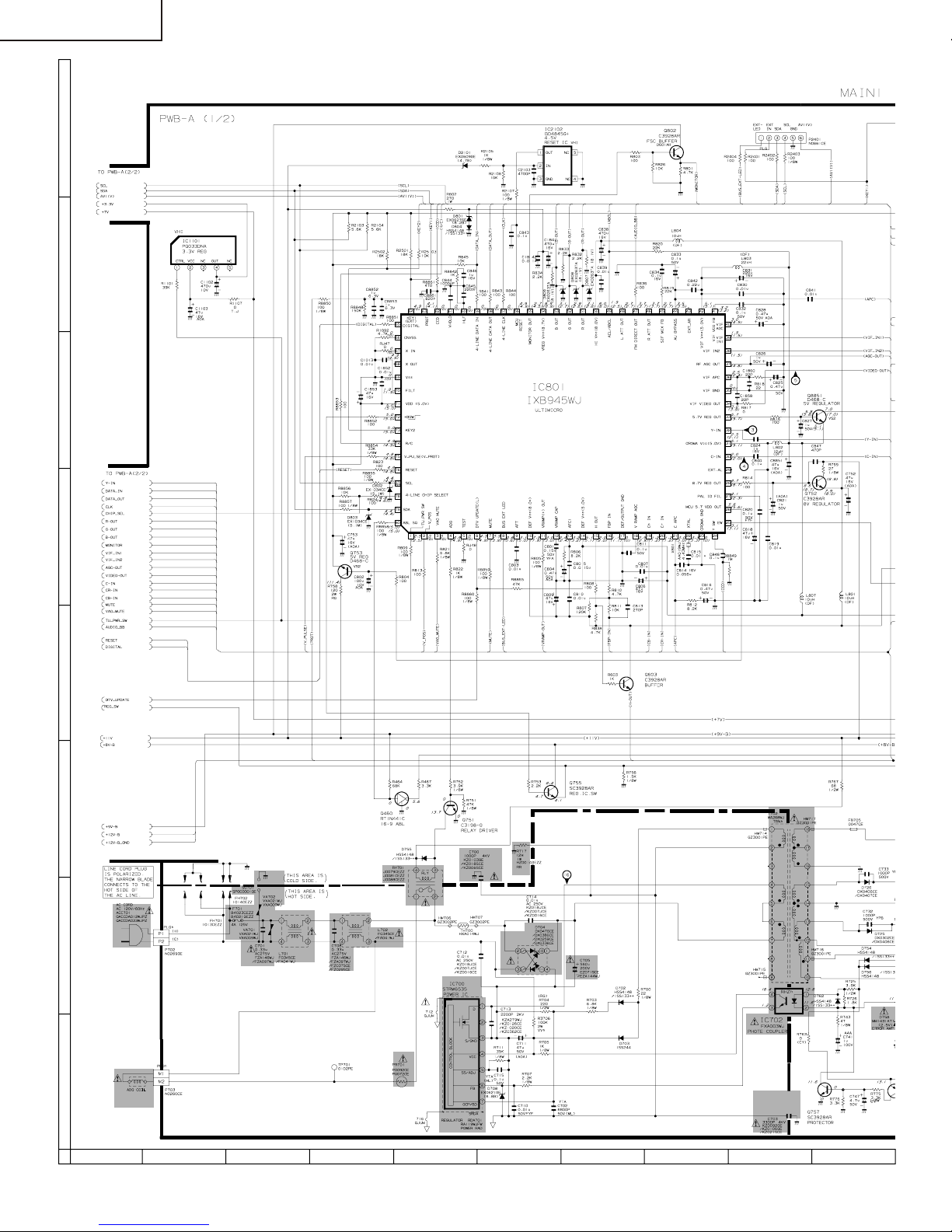

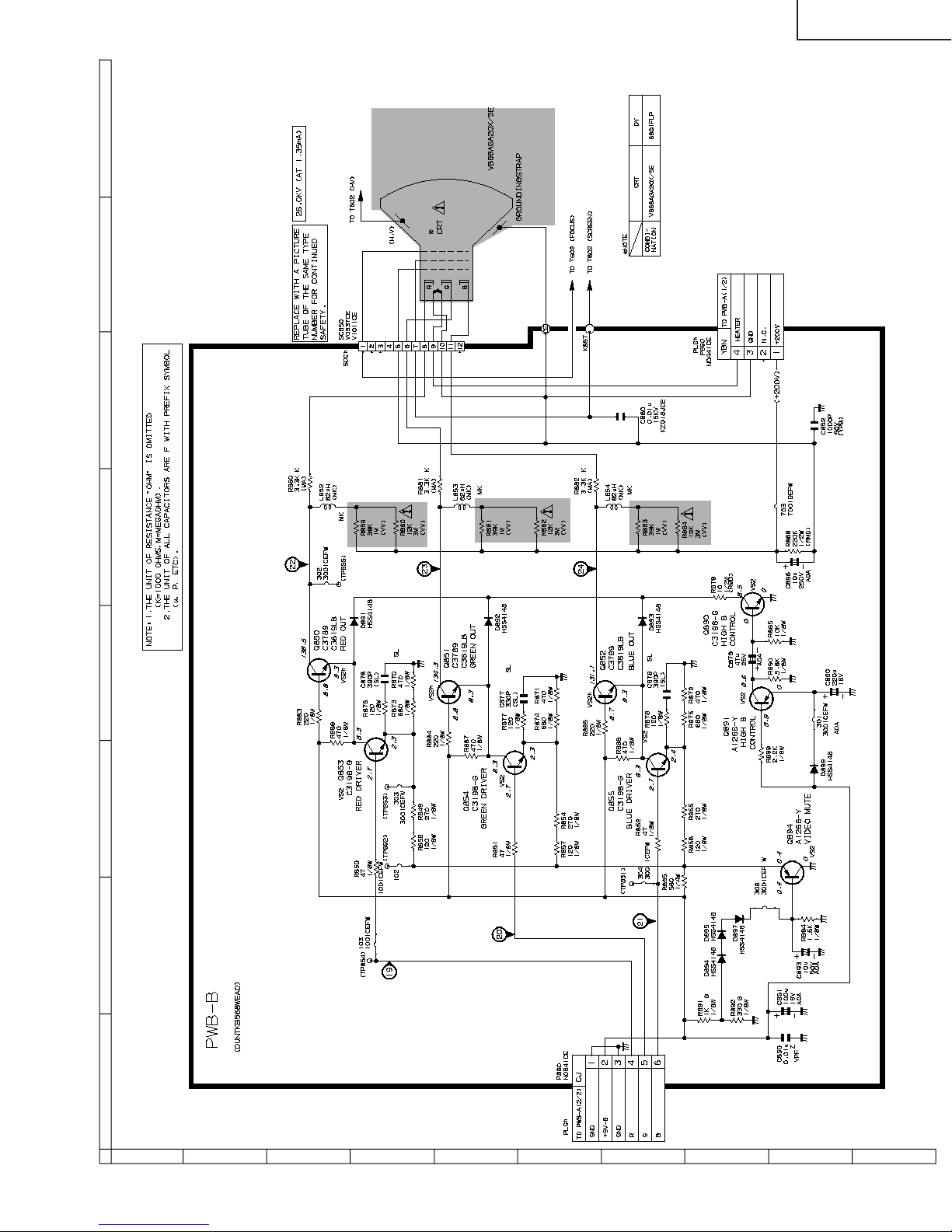

»SCHEMATIC DIAGRAMS ...................................................................................................................19
»PRINTED WIRING BOARD ASSEMBLIES ........................................................................................26
»PARTS LIST ........................................................................................................................................31
»PACKING OF THE SET ......................................................................................................................40
SPEAKER
SIZE .......................................................... 12 x 6cm oval (2 pcs.)
VOICE COIL IMPEDANCE ............................. 16 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF ..................................................... 75 ohm Unbalanced
TUNING RANGES
VHF-Channels ............................................................... 2 thru 13
UHF-Channels ............................................................ 14 thru 69
CATV Channels ............................................ 1 thru 125 (Analog)
CATV Channels ............................................. 1 thru 135 (Digital)
Digital Terrestrial Broadcast (VHF/UHF) ....................... 2 thru 69
(EIA, Channel Plan U.S.A.)
POWER INPUT ..................................................... 120V AC, 60 Hz
POWER RATING .................................................................. 110W
PICTURE SIZE ....................................... 2,193.5 cm2 (339sq inch)
CONVERGENCE ............................................................. Magnetic
SWEEP DEFLECTION .................................................... Magnetic
FOCUS ............................................... Hi-Bi-Potential Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ...... 45.75 MHz (Analog Terrestrial)
Sound IF Carrier Frequency ....... 41.25 MHz (Analog Terrestrial)
Color Sub-Carrier Frequency ..... 42.17 MHz (Analog Terrestrial)
IF Center Frequency ........................ 44 MHz (Digital Terrestrial)
(Nominal)
AUDIO POWER
OUTPUT RATING .............. 3.0W + 3.0W (at 10% distortion and
Dual CH Operate)
Specifications are subject to change without
prior notice.
ELECTRICAL SPECIFICATIONS
MODEL
SERVICE MANUAL
27SC26BQ
CONTENTS
27SC26BQ

2
IMPORTANT SERVICE SAFETY PRECAUTION
ËService work should be performed only by qualified service technicians who are
thoroughly familiar with all safety checks and the servicing guidelines which follow:
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE 4A-
125V FUSE.
X-RADIATION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation. The
only potential source of X-ray in current solid state
TV receivers is the picture tube. However, the picture
tube does not emit measurable X-Ray radiation, if
the high voltage is as specified in the "High Voltage
Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage should always be kept at the rated value
-no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem. Every
time a color chassis is serviced, the brightness should
be tested while monitoring the high voltage with a
meter to be certain that the high voltage does not
exceed the specified value and that it is regulating
correctly.
5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.
6. When trouble shooting and taking test measurements
on a receiver with excessive high voltage, avoid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock hazards
when the chassis is operating.
4. The chassis in this receiver has two ground systems
which are separated by insulating material. The non-
isolated (hot) ground system is for the B+ voltage
regulator circuit. The isolated ground system is for
the low B+ DC voltages and the secondary circuit of
the high voltage transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic-
ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)
1. Picture tube in this receiver employs integral
implosion protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
4A 125V
27SC26BQ

3
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
•Plug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
•Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth
ground, such as electrical conduit or electrical ground
connected to earth ground.
•Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
•Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
1.5k ohm
10W
0.15µF
TEST PROBE
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND
27SC26BQ

4
Precautions for using lead-free solder
1 Employing lead-free solder
"PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the
PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
Example:
2 Using lead-free wire solder
When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional
lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you
to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit,
contact our service station or service branch in your area.
3 Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder
by 40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for
extended period of time. However, since the land may be peeled off or the maximum heat-resistance temperature
of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on
and off the power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after
every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
Be careful when replacing parts with polarity indication on the PWB silk.
LFa
Indicates lead-free solder of tin, silver and copper.
Part No. ★Description Code
ZHNDAi123250E J φ0.3mm 250g(1roll) BL
ZHNDAi126500E J φ0.6mm 500g(1roll) BK
ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM
Lead-free wire solder for servicing
27SC26BQ

5

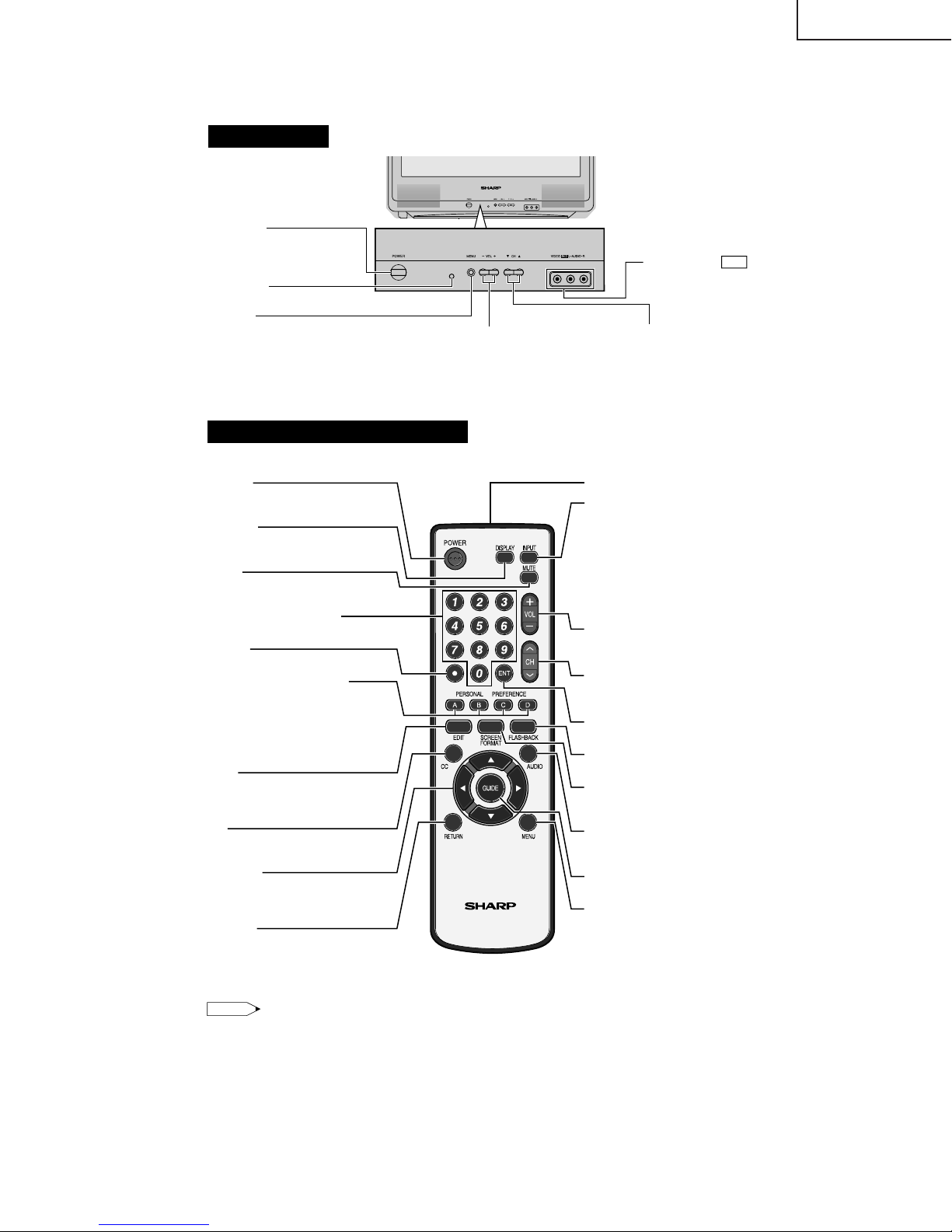

LOCATION OF USER'S CONTROL
Front Panel
VOLUME UP/DOWN
(k) Increases sound.
(l) Decreases sound.
CHANNEL UP/DOWN
(a) Selects next higher channel.
(s) Selects next lower channel.
VIDEO/AUDIO IN 2
TERMINALS
POWER
Press →On.
Press again →Off.
REMOTE CONTROL
SENSOR
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
Note:
•The TV set and remote control illustrations and the on-screen displays in this manual may differ from
their actual appearance.
POWER
Press →On.
Press again →Off.
REMOTE KEYPAD (0 – 9)
Sets the channel.
RETURN
Returns to the previous screen.
a/b/c/d
Press to select a desired item on
the screen or adjust a selected
item.
EDIT
To enter Personal Preference setting
screen/to exit from Personal
Preference setting screen.
CC
Switches between Closed Caption
service type.
•
(DOT)
Sets the channel.
PERSONAL PREFERENCE
With the Personal Preference buttons,
you can program your favorite
programs by using the 4 categories A,
B, C and D. The channels can be
accessed quickly by using these
buttons.
DISPLAY
To display receiving channel
information.
MUTE
Press →Mutes sound.
Press again →Restores sound.
FLASHBACK
Returns to previous channel.
VOLUME UP/DOWN
(VOL k) Increases sound.
(VOL l) Decreases sound.
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
GUIDE
Display the programme list.
Infrared Transmitter Window
INPUT
Press →Switches to external video
INPUT 1 mode.
Press twice →Switches to external
video INPUT 2 mode.
Press 3 times →Switches to external
video INPUT 3 mode or
COMPONENT mode.
Press 4 times →Switches back to
the original TV mode.
ENTER
Sets the channel.
SCREEN FORMAT
Switches between Screen Format
mode.
AUDIO
Switches between the audio
service type.
CHANNEL UP/DOWN
(CH
r
) Selects next higher channel.
(CH s) Selects next lower channel.
Basic Remote Control Functions
27SC26BQ

6
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIATION PROTECTOR CIRCUIT TEST
After service has been performed on the horizontal
deflection system, high voltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1. Apply 120V AC using a variac transformer for accurate
input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter to TP651-3 (P651 Pin3)
and make sure that the voltmeter reads 13.50 ±0.6V
DC.
5. Apply external 17.2V DC at TP651-3 by using an
external DC supply, TV must be shut off.
6. To reset the protector, unplug the AC cord (about
1min.) and plug the AC cord power on. Now make
sure that normal picture appears on the screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.
HIGH VOLTAGE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with a strong air signal or a properly tuned
in test signal.
3. Enter the service mode and select the service
adjustment "V95" and Bus data "02" (Y-mute on, CRT
Cut Off).
4. The voltage should be below 30.5kV (at zero beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
make Y-mute off to the normal mode.
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1) When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2) Before performing adjustments, the TV set must be on at least 15 minutes.
27SC26BQ

7
For adjustments of this model, the bus data is converted to various analog signals by the D/A converter
circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage.
Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if serv-
ice adjustments are required.
1. Service mode
Before putting unit into the service mode, check that
customer adjustments are in the normal mode. Use
the reset function in the video adjustment menu to
ensure customer controls are in their proper (reset)
position.
2. Service number selection
Once in the service mode, press the Ch-up or Ch-
down button on the remote controller or at the set.
The service adjustment number will vary in
increments of one, from "D01" to "M07". Select the
item you wish to adjust.
3. Data number selection
Press the Vol-up or Vol-down button to adjust the data
number.
To enter the service mode and exit serv-
ice mode.
To enter the service mode manually just press and hold
the Vol-down and Ch-up buttons at the same time, plug
the AC cord into a wall socket.
Now the TV set is switched on and enters the service
mode.
To exit the service mode, turn the television off by
pressing the power button.

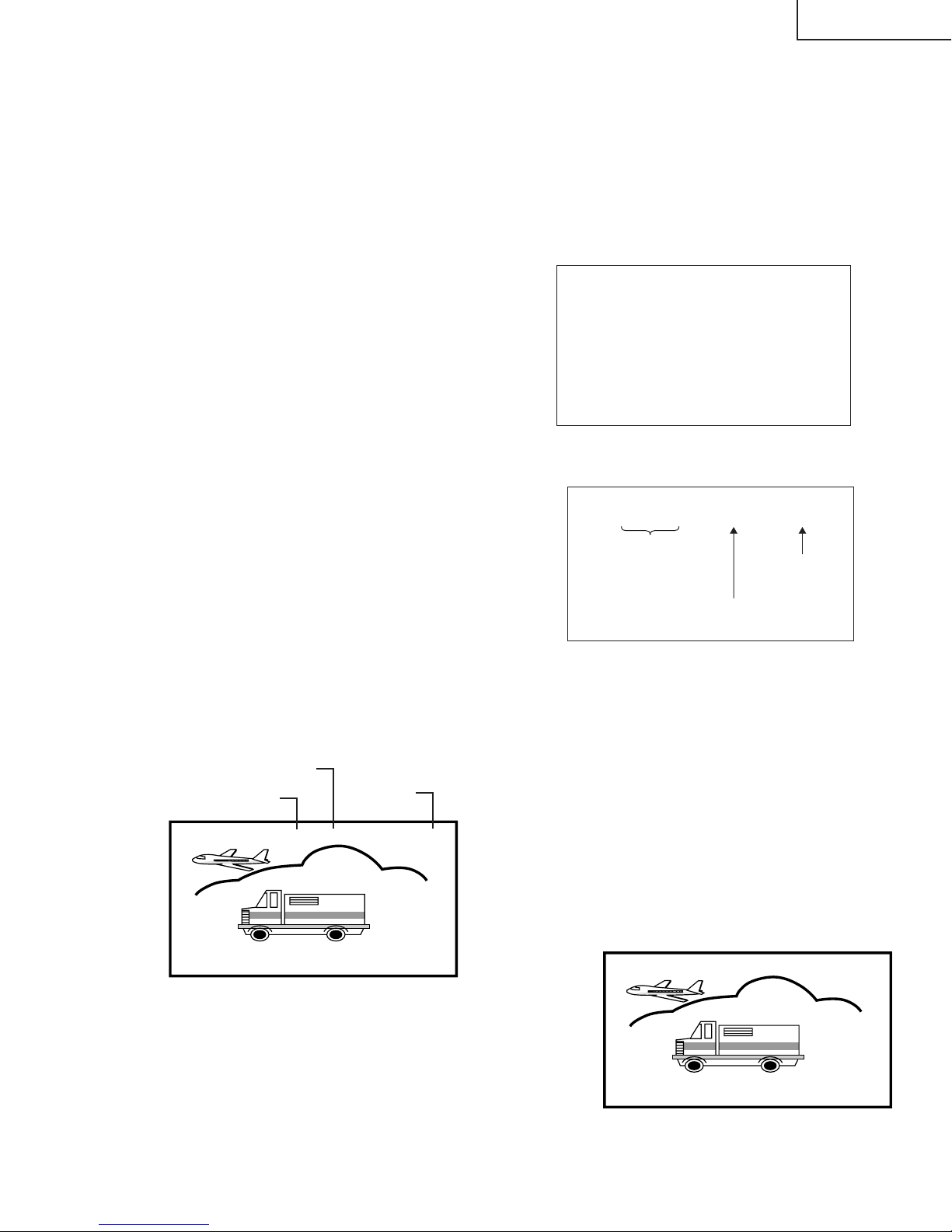

4. Donau and Main Micon version Check
1. After television power on, press test key “0x31”
and the following screen will display.
Figure B.
INFO 12
VERSION NUMBER
ANALOG : 1.00-2-R2
DIGITAL : 1.00
* ANALOG –Main Micon IC (RH-IXB945WJQZQ)
Software Version
* DIGITAL –Renesas IC (Inside Tuner) Software
Version
2. The version display screen will disappear after 30
second or pressing any key (except test key) will
cancel the version display.
3. Alternatively for analog version only, go to service
mode. Press menu key/button until "INFO" page
appears in OSD. Version will display at bottom right
corner. Explanation as below
Main Micon
Version Number of
ROM Correct
1.00 - 2 - R2
EEPROM Version
Number
MASK : 0S
SOFT : (Main micon software ver.)
CHK1 : (ROM1 correct)
CHK2 : (ROM2 correct)
MASK: 0S
SOFT: V1.00
CHK1: ACT
CHK2: ACT
Figure A.
V05 12
CHANNEL
SERVICE ADJUSTMENT
NUMBER
DATA NUMBER
111
27SC26BQ

8
A. Deflection
no. Item. DATA REG Range Remark Revision / Change
D01 V-SHIFT FIX V-SHIFT
[
13h D2…D0
]
0 … 7 0
D02 H-SHIFT ADJ H-PHASE
[
16h D4…D0
]
0 … 31 H-PHASE.DTV
D03 V-POS-4:3 ADJ m-co 0 … 255 V-PHASE.DTV
D04 V-SIZE-4:3 ADJ V-SIZE
[
11h D5…D0
]
0 … 63 V-SIZE.DTV
D05 H-SIZE-4:3 ADJ H-SIZE
[
1Bh D5…D0
]
0 … 63 H-SIZE.DTV
D06 VS-CORRECT
-4:3 FIX VS CORRECTION [19h D5…D0] 0 … 63 28
D07 V-LINEARITY
-4:3 ADJ V-LINEARITY
[1Dh D5…D0] 0 … 63 V-
LINEARITY.DTV
D08 E/W PARABOLA
-4:3 ADJ E/W PARABOLA [18h D5…D0] 0 … 63 E/W PARABOLA.DTV
D09 E/W TRAPEZIUM
-4:3 FIX E/W TRAPEZIUM [1Ah D5…D0] 0 … 63 27
D10 E/W CORNER
-4:3 ADJ E/W CORNER [1Ch D5…D0] 0 … 63 E/W CORNER.DTV
D11 V-SHIFT-16:9 FIX V-SHIFT
[13h D2 ..D0] 0 … 7 0
D12 H-SHIFT-16:9 ADJ H-PHASE
[16h D4 ..D0] 0 … 31 H-PHASE.DTV
D13 V-POS-16:9 ADJ m-co 0 … 255 V-PHASE.DTV
D14 V-SIZE-16:9 ADJ V-SIZE
[
11h D5…D0
]
0 … 63 V-SIZE.DTV
D15 H-SIZE-16:9 ADJ H-SIZE
[
1Bh D5…D0
]
0 … 63 H-SIZE.DTV
D16 VS-CORRECT
-16:9 FIX V S CORRECTION
[
19h D5…D0
]
0 … 63 38
D17 V-LINEARITY
-16:9 ADJ V-LINEARITY
[
1Dh D5…D0
]
0 … 63 V-
LINEARITY.DTV
D18 E/W PARABOLA
-16:9 ADJ E/W PARABOLA
[
18h D5…D0
]
0 … 63 E/W
PARABOLA.DTV
D19 E/W TRAPEZIUM
-16:9 FIX E/W TRAPEZIUM
[
1Ah D5…D0
]
0 … 63 27
D20 E/W CORNER
-16:9 ADJ E/W CORNER
[
1Ch D5…D0
]
0 … 63 E/W
CORNER.DTV
D21 V-BLK-TOP
-16:9 FIX Vert. Bla ki g Top
[
2Ch D3…D2
]
0 … 3 2
D22 V-BLK-BOTTOM
-16:9 FIX Vert. Bla ki g Bottom
[
2Ch D1…D0
]
0 … 3 2
D23 AFC1-IF FIX AFC1 Gai
[
27h D6
]
0 / 1 0
D24 AFC2 FIX AFC2-G
[
15h D6
]
0 / 1 0
D25 V-FREE FIX V-FREE
[
10h D6
]
0 / 1 1
D26 H-FREE FIX H-FREE
[
13h D7
]
0 / 1 0
D27 HV-FREE FIX HV-FREE
[
25h D5
]
0 / 1 0
D28 1W-TV FIX V.Wi dow
[
13h D6
]
0 / 1 0
D29 1W-AV-SAV FIX V.Wi dow
[
13h D6
]
0 / 1 0
D30 1W-YUV-DTV FIX V.Wi dow
[
13h D6
]
0 / 1 0
D31 SL-TV FIX S-SLICE DN
[
14h D3…D2
]
[
24h D6
]
0 … 7 5
D32 SL-AV FIX S-SLICE DN
[
14h D3…D2
]
[
24h D6
]
0 … 7 5
D33 SL-SAV FIX S-SLICE DN
[
14h D3…D2
]
[
24h D6
]
0 … 7 5
D34 SL-YUV FIX S-SLICE DN
[
14h D3…D2
]
[
24h D6
]
0 … 7 5
D35 SL-DTV FIX S-SLICE DN
[
14h D3…D2
]
[
24h D6
]
0 … 7 5
D36 VD-DYTV FIX Vsy c-Det
[
27h D3
]
[
16h D7
]
0 … 3 0
D37 VD-AV FIX Vsy c-Det
[
27h D3
]
[
16h D7
]
0 … 3 0
D38 AS-TV FIX Auto-Slice
[
16h D6
]
0 / 1 1
D39 AS-AV FIX Auto-Slice
[
16h D6
]
0 / 1 1
4:3-Def-Adj16:9-Def-Adj
27SC26BQ

9
B. Video
TV-Picture-Adj
DTV-Picture-Adj
no. Item. DATA REG Range Remark Revision / Change
V01 SUB-CON ADJ CONTRAST
[05h D6…D0] 0 … 127 PIC.DTV
V02 SUB-TINT ADJ TINT
[
07h D6…D0
]
0 … 127 TINT.DTV
V03 SUB-COL ADJ COLOR
08h D6…D0
]]
0 … 127 COLOR.DTV
V04 SUB-BRI ADJ BRIGHT
[
0Ah D7…D0
]
0 … 255 PIC.DTV
V05 SUB-SHP FIX VIDEO-TONE
[
04h D5…D0
]
0 … 63 40
V06 R-CUT ADJ R-CUTOFF
[
0Dh D7…D0
]
0 … 255 WHITE.DTV
V07 G-CUT ADJ G-CUTOFF
[
0Eh D7…D0
]
0 … 255 WHITE.DTV
V08 B-CUT ADJ B-CUTOFF
[
0Fh D7…D0
]
0 … 255 WHITE.DTV
V09 R-DRI ADJ R-DRIVE
[
0Bh D6…D0
]
0 … 127 WHITE.DTV
V10 B-DRI ADJ B-DRIVE
[
0Ch D6…D0
]
0 … 127 WHITE.DTV
V11 SUB-CON-YUV ADJ CONTRAST
[
05h D6..D0
]
0 … 127 PIC.DTV
V12 SUB-BB-TINT-YUV ADJ BASEBAND-TINT
[
17h D6…D0
]
0 … 127 TINT.DTV
V13 SUB-COL-YUV ADJ COLOR
[
08h D6…D0
]
0 … 127 COLOR.DTV
V14 SUB-BRI-YUV ADJ BRIGHT
[
0Ah D7…D0
]
0 … 255 PIC.DTV
V15 SUB-SHP-YUV FIX VIDEO-TONE
[
04h D5…D0
]
0 … 63 37
V16 R-CUT-YUV ADJ R-CUTOFF
[
0Dh D7…D0
]
0 … 255 WHITE.DTV
V17 G-CUT-YUV ADJ G-CUTOFF
[
0Eh D7…D0
]
0 … 255 WHITE.DTV
V18 B-CUT-YUV ADJ B-CUTOFF
[
0Fh D7…D0
]
0 … 255 WHITE.DTV
V19 R-DRI-YUV ADJ R-DRIVE
[
0Bh D6…D0
]
0 … 127 WHITE.DTV
V20 B-DRI-YUV ADJ B-DRIVE
[
0Ch D6…D0
]
0 … 127 WHITE.DTV
V21 SUB-CON-DTV ADJ CONTRAST
[
05h D6..D0
]
0 … 127 PIC.DTV
V22 SUB-BB-TINT-DTV ADJ BASEBAND-TINT
[
17h D6…D0
]
0 … 127 TINT.DTV
V23 SUB-COL-DTV ADJ COLOR
[
08h D6…D0
]
0 … 127 COLOR.DTV
V24 SUB-BRI-DTV ADJ BRIGHT
[
0Ah D7…D0
]
0 … 255 PIC.DTV
V25 SUB-SHP-DTV FIX VIDEO TONE
[
04h D5…D0
]
0 … 255 35
V26 R-CUT-DTV ADJ R-CUTOFF
[
0Dh D7…D0
]
0 … 255 WHITE.DTV
V27 G-CUT-DTV ADJ G-CUTOFF
[
0Eh D7…D0
]
0 … 255 WHITE.DTV
V28 B-CUT-DTV ADJ B-CUTOFF
[
0Fh D7…D0
]
0 … 255 WHITE.DTV
V29 B-DRI-DTV ADJ B-DRIVE
[
0Ch D6…D0
]
0 … 127 WHITE.DTV
V30 R-DRI-DTV ADJ R-DRIVE
[
0Bh D6…D0
]
0 … 127 WHITE.DTV
TV-Picture-AdjYUV-Picture-AdjDTV-Picture-Adj
no. Item. DATA REG Range Remark Revision / Change
D40 AS-SAV FIX Auto-Slice
[
16h D6
]
0 / 1 1
D41 AS-YUV FIX Auto-Slice
[
16h D6
]
0 / 1 1
D42 AS-DTV FIX Auto-Slice
[
16h D6
]
0 / 1 1
D43 FBP-TV FIX FBP VTH L
[
16h D5
]
0 / 1 0
D44 AS-SPEED-UP FIX AS SPEED UP
[
28h D4
]
0 / 1 0
D45 AS-SPEED-DN FIX AS SPEED DOWN
[
28h D5
]
0 / 1 0
TV-Picture-Adj
YUV-Picture-Adj
DTV-Picture-Adj
27SC26BQ

10
no. Item. DATA REG Range Remark Revision / Change
V31 SHPG-YUV FIX V-TONE
[
02h D3
]
0 / 1 1
V32 YDL-YUV FIX Y-Delay
[
06h D2…D0
]
0 … 7 1
V33 CrDL-FINE-YUV FIX CrDL FINE ADJ.
[
21h D3…D2
]
0 … 3 0
V34 CbDL-FINE-YUV FIX CbDL FINE ADJ.
[
21h D1…D0
]
0 … 3 0
V35 CB-P-YUV FIX CB PEDESTAL ADJ.
[
29h D3…D0
]
0 … 15 7
V36 CR-P-YUV FIX CR PEDESTAL ADJ.
[
28h D3…D0
]
0 … 15 7
V37 C-ANGLE-YUV FIX C.ANGLE 95
[
15h D1
]
0 / 1 0
V38 SHPG-DTV FIX V-TONE
[
02h D3
]
0 / 1 1
V39 YDL-DTV FIX Y-Delay
[
06h D2…D0
]
0 … 7 1
V40 CrDL-FINE-DTV FIX CrDL FINE ADJ.
[
21h D3…D2
]
0 … 3 0
V41 CbDL-FINE-DTV FIX CbDL FINE ADJ.
[
21h D1…D0
]
0 … 3 0
V42 CB-P-DTV FIX CB PEDESTAL ADJ.
[
29h D3…D0
]
0 … 15 7
V43 CR-P-DTV FIX CR PEDESTAL ADJ.
[
28h D3…D0
]
0 … 15 7
V44 C-ANGLE-DTV FIX C.ANGLE 95
[
15h D1
]
0 / 1 0
V45 SHPG-TV FIX V-TONE
[
02h D3
]
0 / 1 1
V46 YDL-TV-AV FIX Y-Delay
[
06h D2…D0
]
0 … 7 5
V47 TAKE-OFF-TV FIX TAKE OFF
[
02h D0
]
0 / 1 0
V48 C-ANGLE FIX C.ANGLE 95
[
15h D1
]
0 / 1 0
V49 R-R2 FIX R-DRI(OFFSET)
[
0Bh D6…D0
]
-32 … +32 +13
V50 R - R FIX R-DRI(OFFSET)
[
0Bh D6…D0
]
-32 … +32 +2
V51 R-B FIX R-DRI(OFFSET)
[
0Bh D6…D0
]
-32 … +32 -6
V52 B-R2 FIX B-DRI(OFFSET)
[
0Ch D6…D0
]
-32 … +32 -23
V53 B-R FIX B-DRI(OFFSET)
[
0Ch D6…D0
]
-32 … +32 -8
V54 B-B FIX B-DRI(OFFSET)
[
0Ch D6…D0
]
-32 … +32 +5
V55 BRIGHT-OFF-SAV FIX BRIGHT (OFFSET)
[
0Ah D7…D0
]
-63 … +63 +7
V56 CON-OFF-SAV FIX CONTRAST(OFFSET)
[
05h D6…D0
]
-32 … +32 +11
V57 TINT-OFF-SAV FIX TINT(OFFSET)
[
07h D6…D0
]
-32 … +32 +1
V58 COL-OFF-SAV FIX COLOR(OFFSET)
[
08h D6…D0
]
-32 … +32 +5
V59 SHP-OFF-SAV FIX VIDEO-TONE(OFFSET)
[
04h D6…D0
]
-32 … +32 0
V60 YDL-SAV FIX Y-Delay
[
06h D2…D0
]
0 … 7 1
V61 BRIGHT-OFF-FAV FIX BRIGHT(OFFSET)
[
0Ah D7…D0
]
-63 … +63 -7
V62 CON-OFF-FAV FIX CONTRAST(OFFSET)
[
05h D6…D0
]
-32 … +32 +15
V63 TINT-OFF-FAV FIX TINT(OFFSET)
[
07h D6…D0
]
-32 … +32 +2
V64 COL-OFF-FAV FIX COLOR(OFFSET)
[
08h D6…D0
]
-32 … +32 +1
V65 SHP-OFF-FAV FIX VIDEO-TONE(OFFSET)
[
04h D6…D0
]
-32 … +32 0
Compo e etF-AV DTVTVCOLOR TEMPS-VIDEO
Componenet
DTV
TV
COLOR TEMP
S-VIDEO
F-AV
27SC26BQ

11
no. Item. DATA REG Range Remark Revision / Change
V66 BRIGHT-OFF-AV FIX BRIGHT(OFFSET)
[
0Ah D7…D0
]
-63 … +63 -5
V67 CON-OFF-AV FIX CONTRAST(OFFSET)
[
05h D6…D0
]
-32 … +32 +15
V68 TINT-OFF-AV FIX TINT(OFFSET)
[
07h D6…D0
]
-32 … +32 +3
V69 COL-OFF-AV FIX COLOR(OFFSET)
[
08h D6…D0
]
-32 … +32 +1
V70 SHP-OFF-AV FIX VIDEO-TONE(OFFSET)
[
04h D6…D0
]
-32 … +32 0
V71 TINT-OFF-ADJ-TV FIX TINT
[
07h D6..D0
]
-32 … +32 0
V72 CON-OFF-16:9 FIX CONTRAST(OFFSET)
[
05h D6…D0
]
-15 … +15 -7
V73 BRI-OFF-16:9 FIX BRIGHT(OFFSET)
[
0Ah D7…D0
]
-15 … +15 0
V74 TRAP-FINE-TV-AV FIX TRAP-FINE
[
12h D1…D0
]
0…32
V75 TRAP-TV-AV FIX C-TRAP OFF
[
02h D4
]
0 / 1 1
V76 SHPG-AV FIX V-TONE
[
02h D3
]
0 / 1 1
V77 SHPG-SAV FIX V-TONE
[
02h D3
]
0 / 1 1
V78 COL-OFF-16:9 FIX COLOR(OFFSET)
[
08h D6…D0
]
-15 … +15 0
V79 TRAP-DTV-YUV FIX C-TRAP OFF
[
02h D4
]
0 / 1 1
V80 TAKE-OFF-AV FIX TAKE OFF
[
02h D0
]
0 / 1 0
V81 TAKE-OFF-SAV FIX TAKE OFF
[
02h D0
]
0 / 1 0
V82 RF-AGC ADJ RF-Delay
[
00h D6…D0
]
0 … 127 AGC.DTV
V83 VIF-AGC FIX VIF AGC Clip
[
27h D1
]
0 / 1 0
V84 VIF-G FIX VIF-GAIN
[
06h D7…D5
]
0 … 7 7
V85 V-AGC FIX V-AGC
[
1Dh D6
]
0 / 1 0
V86 VIF-VCO ADJ VIF-VCO
[
01h D5…D0
]
0 … 63 VIF-VCO.DTV
V87 H-VCO ADJ H-VCO
[
10h D2…D0
]
0 … 7 H-VCO.DTV
V88 BS FIX BS-OFF
[
02h D1
]
0 / 1 0
V89 BS-GAIN FIX BLACK STRETCH GAIN
[
15h D2
]
0 / 1 0
V90 BS-D FIX BS-DISCHARGE
[
14h D7…D6
]
0 … 3 2
V91 BS-C FIX BS-CHARGE
[
14h D5…D4
]
0 … 3 0
V92 ABCL FIX ABCL
[
02h D2
]
0 / 1 0
V93 ABCL-Gai FIX ABCL-G
[
04h D7
]
0 / 1 0
V94 GAMMA FIX GAMMA
[
12h D3…D2
]
0 … 3 0
V95 Y-MUTE FIX m-co 0,1,2 0
V96 CbCr-G FIX CbCr GAIN UP
[
29h D6
]
0 / 1 1
V97 STP FIX Test Patter Sig al
[
2Fh D3…D0
]
0 … 15 0
V98 RGB-CLIP FIX ExtRGB-Clip
[
05h D7
]
0 / 1 0
V99 OSD-LVL FIX OSD LEVEL
[
15h D5
]
0 / 1 0
V100 YLPF FIX YSW-LPF
[
13h D5
]
0 / 1 0
V101 C.Clip Level FIX C.Clip Level
[
02h D5
]
0 / 1 0
V102 S-TRAP FIX S-TRAP
[
20h D7
]
[
1Fh D7…D5
]
0 … 31 16
V103 S-TRAP OFF FIX S-TRAP OFF
[
1Eh D7
]
0 / 1 1
V104 OM-DET FIX OM DETECTOR
[
15h D3
]
0 / 1 0
RR-AV
RR-AV
27SC26BQ

12
D. Option
Model
27SC—
O 01 SPEAKER 1
O 02 FAO 1
O 03 VIEW TIMER 1
O 04 PON-CH 1
O 05 FAV-COL 1
O 06 AV3/COMPONENT 1
O 07 AV 1
O 08 AV2 1
O 09 MTS 1
O 10 TONE-CTRL 1
O 11 AUTO-OFF 1
O 12 INIT-LANG 0
O 13 S-IN 1
O 14 COMB 0
O 15 AUTO-INPUT 1
O 16 FLAT 1
O 17 WHITE-OUT 0
O 18 CURSOR R/C 1
O 19 EDIT KEY R/C 1
REMARKS/
REVISION
C. Sound
no. Item. DATA REG Range Remark Revision / Change
V105 R-MTX-DN FIX R MTX DOWN
[
23h D6
]
0 / 1 0
V106 CTI FIX CTI
[
23h D3
]
0 / 1 1
V107 KILLER-LVL FIX KILLER LEVEL
[
15h D0
]
0 / 1 1
V108 SIF-BW FIX SIF BPF WIDE
[
2Bh D5…D4
]
0 … 3 1
V109 E-SAVE FIX CONTRAST(OFFSET)
[
05h D6…D0
]
0 … 63 30
V110 MONITORING FIX I tellige t MON
[
1Ah D6
][
12h D7…D4
]
0 … 31 21
V111 OFF-ADJ-TINT-YUV FIX BB Ti t Co trol
[
17h D6…D0
]
-32 … +32 0
V112 OFF-ADJ-TINT-DTV FIX BB Ti t Co trol
[
17h D6…D0
]
-32 … +32 0
V113 CC-POS ADJ m-co 0 … 255 CC.DTV
V114 CC LEVEL FIX m-co 0 … 31 0
V115 OSD POS FIX m-co 0 … 31 0
V116 DIGITAL POW OFF TIM FIX m-co 0…255 50
V117 BSW CONTROL FIX m-co 0…100 85
V118 SVM-SAV FIX DELAY Y ADJ
[
22h D5…D4
]
0…3 0
V119 SVM-COMP FIX DELAY Y ADJ
[
22h D5…D4
]
0…3 0
V120 SVM-DTV FIX DELAY Y ADJ
[
22h D5…D4
]
0…3 0
V121 RGB ADJ FIX m-co 0…127 127
V122 ChromaBPF FIX ChromaBPF
[
26h D6
]
1
no. Item. DATA REG Range Remark Revision / Change
M01 MTS-ATT ADJ ATT
[
00h D3..D0
]
0 … 15 MS.DTV
M02 MTS-VCO FIX VCO
[
01h D5..D0
]
0 … 63 32
M03 MTS-FILT FIX FILTER
[
02h D5..D0
]
0 … 63 28
M04 MTS-WBND ADJ WIDEBAND
[
04h D5..D0
]
0 … 63 SEPA.DTV
M05 MTS-SPEC ADJ SPECTRAL
[
03h D5..D0
]
0 … 63 SEPA.DTV
M06 SUB-VOL FIX VOL
[
07h
,
08h D5..D0
]
0 … 63 63
M07 FAO-VOL FIX VOL
[
07h
,
08h D5..D0
]
0 … 50 26
27SC26BQ

13
SERVICE ADJUSTMENT
H-VCO ADJ (I2C BUS CONTROL) (Auto &
Manual Adj)
• Manual Adj.
1. In No Signal (RASTER) condition.
2. Go to service mode, choose service data V87.
3. Connect oscilloscope to IC801 Pin15, adjust V87 until
frequency become 15.75±0.15kHz.
• Auto Adj.
4. In No Signal (RASTER) condition.
5. Go to service mode, choose service data V87, by
pressing R/C Auto (HEX 44) key, OSD will appear
"OK" at screen.
6. If appear "NG", please repeat step 3.
VIF-VCO ADJ (I2C BUS CONTROL) (Auto &
Manual Adj)
• Manual Adj.
1. In No Signal (RASTER) condition.
2. Go to service mode, choose service data V86.
3. Connect oscilloscope to IC801 Pin9, adjust V86 until
voltage between 2.5±1.0V.
• Auto Adj.
4. In No Signal (RASTER) condition.
5. Go to service mode, choose service data V86.
6. Press the R/C Auto (HEX C5) key, OSD will appear
"OK" at screen.
7. If appear "NG", please repeat step 3.
RF AGC Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "V82".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confirm that no noise or
beat appears.
Note 1 : You will have to come out of the service
mode to select another channel.
Note 2 : Setting the data to "00" will produce a black
raster.
Screen Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "V03" and set the data value to "00" to
set the color level to minimum. (Record original data
code under adjustment "V03" before changing) You
may skip this step, if you selected a B/W picture or
monoscope pattern.
3. Select the service adjustment "V95" and adjust the
data value to "02", this turn off the luminance signal
(Y-mute).
4. Adjust the master screen control until the raster
darkness to the point where raster is barely seen.
5. Adjust the service adjustments "V06" red, "V07" green
and "V08" blue to obtain a good grey scale with
normal whites at low brightness level.
6. Select the service adjustment "V95" and reset data
to "00". Select the service adjustment "V03" and reset
data to obtain normal color level.
7. For component input, the data value of "V16" red,
"V17" green and "V18" blue is adjusted to follow the
data value of "V06", "V07" and "V08" respectively.
8. For digital RF input, the data value of "V26" red, "V27"
green and "V28" blue is adjusted to follow the data
value of "V06", "V07" and "V08" respectively.
9. Reset the master screen control to obtain normal
brightness range.
NECESSARY UNNECESSARY
ADJUSTMENT
PART REPLACED
IC801 The adjustment is needed to compensate for characteristics of parts
including IC801 and MTS level (M01).
Holding down both the VOL-up and CH-up buttons on the TV set at service mode for more than 2 seconds will
automatically write the above initial values into IC2101.
NOTES
X
IC2101
IC3001
CRT
Holding down both the VOL-up and CH-up buttons on the TV set in
the service mode for more than 2 seconds will automatically write the
above initial values into IC2101 Then perform a complete adjustment.
Adjust items related to picture tube only.
Adjust items related to MTS only (M01~M07).
X
X
X
27SC26BQ

14
Sub-Tint Adjustment
1. Receive the half color bar signal.
• RF INPUT (TU1101)
2. Get into Y-Mute by R/C, or by setting the "V95" bus
data to "01".
3. Vary the "V02" bus data until the waveform becomes
as stated below.
4. Reset "V95" bus data to "00".
• Component Input
5. Get into Y-mute by R/C, or by setting the "V95" bus
data to "01".
6. Vary the "V12" bus data until the waveform becomes
as stated below.
7. Reset "V95" bus data to "00".
• Digital RF Input (TU1101)
8. Input data of "V22" = "V02" + 13 steps.
9. Reset "V95" bus data to "00".
Sub-Color Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position .
• RF INPUT (TU1101)
3. Enter the service mode and select service adjustment
"V03".
4. Adjust "V03" data value to obtain a normal color level.
• Component Input
5. Enter the service mode and select service adjustment
"V13".
6. Adjust "V13" data value to obtain a normal color level.
• Digital RF Input (TU1101)
7. Input data of "V23" = "V03" + 59 steps.
Focus Adjustment
1. Receive a good local channel.
2. Adjust the FOCUS VR of the flyback transformer to
make the image as fine as possible.
C. C Display Position Adjustment
1. Receive the lion head pattern signal.
2. Select "V113" to display the text box.
3. Adjust the "V113" bus data to let the text box displayed
in the center.

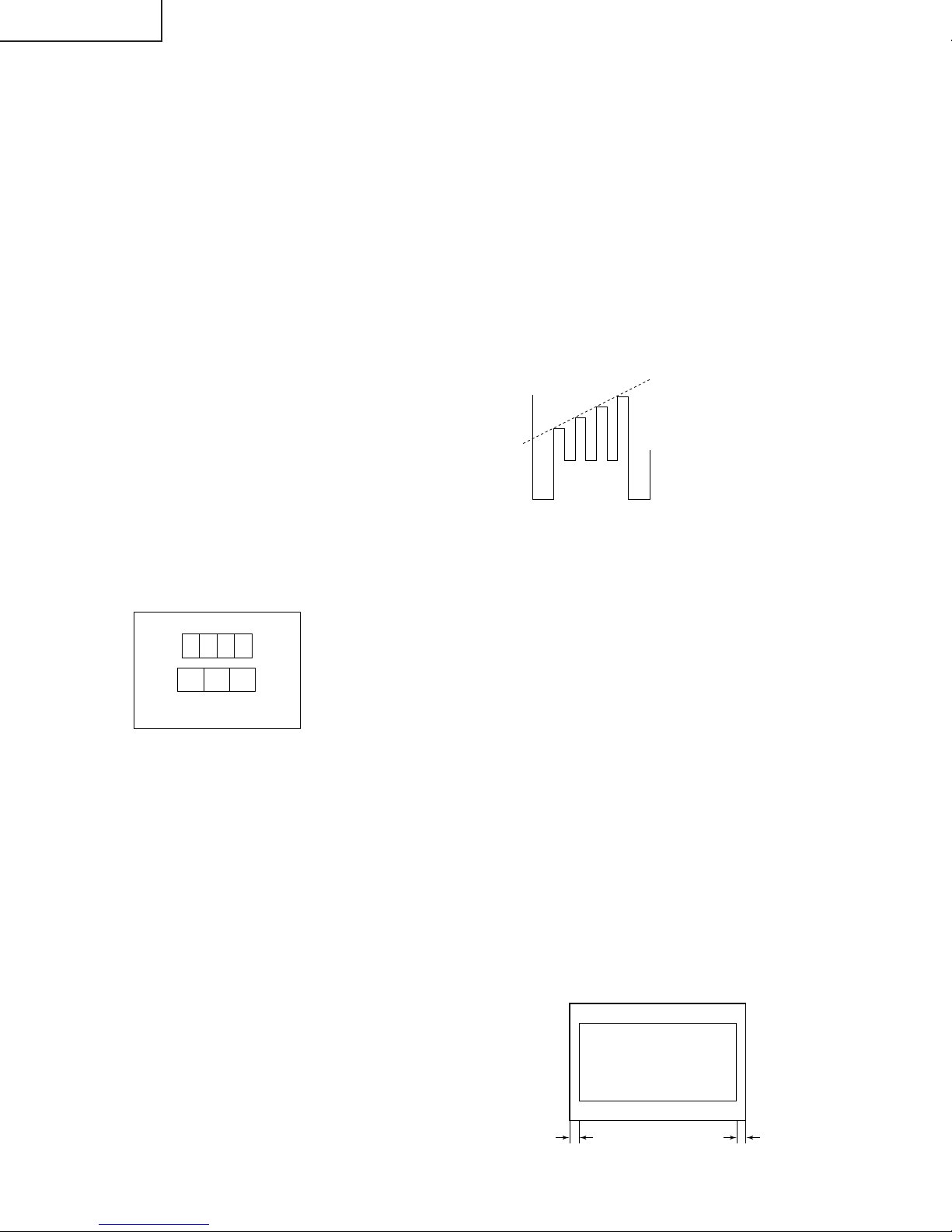

B-AMP Base waveform in step
(TP47B)
LEVEL
DISPLAY OF TEXT BOX
TEXT BOX
AB
| A-B | / 2
SPEC INSPECTION:| A-B | / 2 <
=5mm
AB
White Balance Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "V03" and set to "00" (minimum color)
(Record original data code under adjustment "V03"
before changing). "V03" does not have to be adjusted,
if you selected a B/W picture or monoscope pattern.
3. Alternately adjust the service adjustment data of "V09"
and "V10" until a good grey scale with normal whites
is obtained. (RF Input)
4. For component input, the data value of "V19" and
"V20" is adjusted to follow the data value of "V09"
and "V10" respectively.
5. For digital RF input, the data value of "V29" and "V30"
is adjusted to follow the data value of "V09" and "V10"
respectively.
6. Select the service adjustment "V03" and reset data
to obtain normal color level.
Sub-picture and Sub-Bright Adjustments
1. Receive the window pattern signal.
• RF INPUT (TU1101)
2. Get into service adjustment data "V01" and "V04" and
set the luminance as shown in figure "A" and "B" as
below respectively.
• COMPONENT INPUT
3. Get in service adjustment data "V11" and "V14" and
set the luminance as shown in figure "A" and "B" as
below respectively.
LUMINESCENCE CONFIRMATION
A: 86±10cd/m2
B: 1.25±0.5cd/m2
• DIGITAL RF INPUT (TU1101)
4. Get in service adjustment data "V21", "V24".
4-1 Input data of “V21”= “V01”- 05 Steps
4-2 Input data of “V24”= “V04”+ 09 Steps
27SC26BQ

15
Vertical-Size and Linearity Adjustments
1. Receive a good local channel.
(SCREEN FORMAT 4:3)
2. Enter the service mode and select the service
adjustment "D04" for V-size.
3. Adjust the "D04" bus data to get the proper V-size.
4. For V-linearity adjustment, select data bus "D07" and
adjust to get the proper vertical linearity.
(SCREEN FORMAT 16:9)
5. Input data of "D14" to minus 26 steps from "D04"
data. (V-SIZE)
6. Input data of "D17" to minus 3 steps from "D07" data.
(V-LIN)
Note: Aging for 10 min before adjustment. After the
adjustment of V-center and V-size, re-
adjustment for this V-line.
Vertical Phase Adjustment
(SCREEN FORMAT 4:3)
1. Enter the service mode and input data of "00" on
"D01".
2. Adjust "D03" data value so that picture is centered.
(SCREEN FORMAT 16:9)
3. Input data of "00" on "D11".
4. Input data of "D13" is additional 10 steps from data
"D03".
Horizontal Position Adjustment
1. Receive a good local channel.
(SCREEN FORMAT 4:3)
2. Enter the service mode and select the service
adjustment "D02".
3. Adjust "D02" data value so that picture is centered.
(SCREEN FORMAT 16:9)
4. Input data of "D12" same as "D02" data.
Horizontal-Size Adjustment
1. Receive a good local channel.
(SCREEN FORMAT 4:3)
2. Enter the service mode and select the service
adjustment "D05" for H-size.
3. Adjust the "D05" bus data to get the proper H-size.
(SCREEN FORMAT 16:9)
4. Input data of "D15" is additional 1 step from data
"D05".
EW-Parabola
1. Receive a good local channel.
(SCREEN FORMAT 4:3)
2. Enter the service mode and select the service
adjustment "D08" for EW parabola.
3. Adjust the "D08" bus data to get the proper vertical
straight line for both left and right side.
(SCREEN FORMAT 16:9)
4. Input data of "D18" to minus 10 steps from "D08"
data.
EW-Corner
1. Receive a good local channel.
(SCREEN FORMAT 4:3)
2. Enter the service mode and select the service
adjustment "D10" for EW-Corner.
3. Adjust the "D10" bus data to get the best position
display.
(SCREEN FORMAT 16:9)
4. Input data of "D20" is plus 2 steps of "D10" data.
ËMTS ADJUSTMENT
MTS Level Adjustment
1. Set the sound volume above 1.
Monoral signal: 400Hz, 100% modulation
2. Vary the "M01" bus data until the voltage to pin (39)
of IC3001 to become the value as stated below.
SETTING VOLTAGE
ADJ spec : 490±10mVrms
CHK spec: 490±20mVrms
Separation Adjustment
1. Input "SIGNAL 1" and vary the "M04" bus data to get
the minimun AC voltage to pin (39) of IC3001.
2. Input "SIGNAL 2" and vary the "M05" bus data to get
the minimun AC voltage to pin (39) of IC3001.
SIGNAL 1: 300Hz, 30% modulation, Lch only, NR-ON
SIGNAL 2: 3kHz, 30% modulation, Lch only, NR-ON
Note: SIGNAL 1 Adj. for widebando
SIGNAL 2 Adj. for spectral
Check the output of the speaker at the maximum
volume as stated below.
Confirmation spec:
ADJ spec: above 25 dB
CHK spec: above 20 dB
27SC26BQ

16
CHASSIS LAYOUT
27SC26BQ

17
BLOCK DIAGRAM
27SC26BQ

18
DESCRIPTION OF SCHEMATIC DIAGRAMS
NOTES:
1. The unit of resistance "ohm" is omitted.
(K=kW=1000W, M=MW)
2. All resistors are 1/16 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted.
(P=pF=µµF)
4. (G) indicates ±2% tolerance may be used.
5. indicates line isolated ground.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for normal
picture unless otherwise indicated.
2. All voltages measured with 1000µ V B & W or Color
signal.
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color. The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
WAVEFORMS
å AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
ç MARK= X-RAY RELATED PARTS.
This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.
Stopped
2007/02/ 05 15: 32: 56 20us/ di v
(20us/div)
NORM:50MS/s
CH2=1 V
DC10:1
=Filter=
Smoot hi ng :  ON
BW:FULL
=Offs e t =
CH1:    0. 00V
CH2:    0. 00V
CH3:0.0V
CH4:0.0V
=RecordLengt h=
Ma i n  :  1 0 K
Zoom:  10K
=Tri gg er =
Mo d e  :  A UT O
Ty p e  :  E DGE CH2
Del ay  :   0 . 0 n s
Hol d o f f  :  MINI MUM
  =Trace2=
P-P   3. 040V   
Stopped
2007/02/ 05 15: 38: 07 5ms/ di v
(5ms/div)
NORM: 2MS/ s
CH2=1 V
DC10:1
=Filter=
Smoothing:ON
BW:  FULL
=Offs e t =
CH1:    0. 00V
CH2:    0. 00V
CH3:0.0V
CH4:0.0V
=Recor d Le n gt h=
Ma i n  :  1 0 0 K
Zoom :  10 0K
=Tri gg er =
Mo d e  :  AU T O
Ty p e  :  E DGE CH2
Del ay  :   0 . 0 n s
Holdoff:MINIMUM
=Trace2=
P-P   1. 280V  
Stopped
2007/02/ 05 16: 11: 02 20us/ di v
(20us/ di v)
NORM:200MS/s
CH2=2 V
DC10:1
=Filter=
Smoot hi ng :  ON
BW:  FULL
=Offset=
CH1 :    0. 0 0V
CH2 :    0. 0 0V
CH3:0V
CH4 :     0. 0 V
=RecordLengt h=
Ma i n  :  4 0 K
Zoom :  40K
=Tri gg er =
Mode  :  AUT O
Ty p e  :  E DGE CH2
Delay:0.0ns
Holdoff:MINIMUM
  =Trace2=
P-P   6. 560V   
Stopped
2007/02/ 05 16: 12: 26 20us/ di v
(20us/ di v)
NORM: 2 0 0 MS/ s
CH2=2V
DC10: 1
=Filter=
Smoothing:ON
BW:  FULL
=Offs e t =
CH1:0.00V
CH2:0.00V
CH3:0V
CH4:0.0V
=RecordLengt h=
Main:40K
Zoom:40K
=Tri gg er =
Mo d e  :  AU T O
Type  :  EDGECH2
Delay:0.0ns
Ho l d of f  :  MI N I MUM
  =Trace2=
P-P   5. 600V   
Stopped
2007/02/ 05 16: 13: 18 20us/ di v
(20us/ di v)
NORM: 2 0 0 MS/ s
CH2=2 V
DC10:1
=Filter=
Smoot hi ng :  ON
BW:FULL
=Offset=
CH1:0.00V
CH2:0.00V
CH3:0V
CH4:0.0V
=RecordLengt h=
Main:40K
Zoom:40K
=Tri gg er =
Mode:AUTO
Type:EDGECH2
Delay :   0. 0ns
Hol d o f f  :  MI NI MUM
=Trace2=
P-P6.080V
Stopped
2007/02/ 05 16: 15: 58 20us/ di v
(20us/ di v)
NORM:200MS/s
CH2=5 0 V
DC10:1
=Fil t e r =
Smoothing:ON
BW:FULL
=Offs e t =
CH1:    0. 00V
CH2:0.0V
CH3:0V
CH4:0.0V
=RecordLengt h=
Ma i n  :  4 0 K
Zoom :  40K
=Tri gg er =
Mode  :  AUT O
Type:  EDGECH2
Delay:0.0ns
Hol d o f f  :  MI NI MUM
=Trace2=
P-P124.0V
Stopped
2007/02/ 05 16: 23: 32 20us/ di v
(20us/ di v)
NORM: 2 0 0 MS/ s
CH2=5 0 V
DC10:1
=Filter=
Smoothi ng  :  ON
BW:FULL
=Offs e t =
CH1:0.00V
CH2:     0. 0V
CH3:0.00V
CH4:     0. 0V
=RecordLengt h=
Main:40K
Zoom:40K
=Tri gg er =
Mode  :  AUT O
Ty p e  :  E DGE CH2
Delay:0.0ns
Hol d o f f  :  MI NI MUM
=Trace2=
P-P92.00V
Stopped
2007/02/ 05 16: 22: 52 20us/ di v
(20us/ di v)
NORM:200MS/s
CH2=5 0 V
DC10:1
=Filter=
Smoot hi ng :  ON
BW:FULL
=Offs e t =
CH1:    0. 00V
CH2:0.0V
CH3:    0. 00V
CH4:0.0V
=RecordLengt h=
Main:40K
Zoom:40K
=Tri gg er =
Mode  :  AUT O
Ty p e  :  E DGE CH2
Delay:0.0ns
Hol d o f f  :  MI NI MUM
  =Trace2=
P-P   114. 0V   
11.0 Vp-p 22.1 Vp-p 30.9 Vp-p 40.56 Vp-p 53.0 Vp-p
65.0 Vp-p 71.3 Vp-p 813.6 Vp-p 932 Vp-p 053 Vp-p
q2.6 Vp-p w0.8 Vp-p e146 Vp-p r12 Vp-p t960 Vp-p
y320 Vp-p u222 Vp-p i27.0 Vp-p o6.6 Vp-p p5.6 Vp-p
a6.1 Vp-p s124 Vp-p d92 Vp-p f114 Vp-p
27SC26BQ

19
87109654321
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAM: CRT Unit
27SC26BQ

20
87109654321
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAM: MAIN-1 Unit
27SC26BQ
DUNTKD872WEA1
