Sharp 21K-FD1SF User manual

E1 [ SAFETY
PRECAUTIONS ]
E2 [ BEFORE
OPERATING
TELEVISION ]
• Connecting to an
antenna
• Connecting to an
antenna via a VCR
E3 [ DVD PLAYBACK ]
• Connecting to a DVD
player
• Watching DVD playback
E4 [ ACCESSORIES ]
E5 [ PART NAMES ]
• TV set
• Using headphone
• Remote control
• Installing batteries
• OSD indicator quick
reference TINS-B997WJZZ
05P10-MSP
Damage
Turn off the power and unplug
the power cord from the wall
outlet immediately if the TV set begins to make
any unusual noises or gives off smoke or an
unusual smell. Then call your dealer for service.
Unstable surface
and shocks
Do not place this TV set on an
unstable cart, stand, shelf, or table. The TV set
may fall, causing serious injury to a child or
adult, and serious damage to the set. Sharp
recommends securing the TV set to a stable
surface or wall to prevent the set from falling
due to sudden shocks or impact.
Moisture
To prevent electrical shock, do
not use the TV set in an
excessively damp place.
Liquid entry
Do not place a flower vase
or anything else containing liquid
on the TV set, as liquid spilt on the TV set can
cause electrical shock or failure.
TV Set position
Do place the TV set onto an even
stand, table or track which size is
bigger than the TV set.
If the TV set is put onto a smaller
size or uneven stand, table or track may cause
the TV cabinet distort.
Do not put or insert anything between TV set
and the stand, table or track.
Ventilation
Do not place this TV set in a
confined area, such as on a
bookshelf or in a built-in case. Leave adequate
space behind the TV for proper ventilation.
Servicing
To reduce the risk of electric
shock, do not remove the back
of the cabinet. This TV set
contains dangerous voltage.
Power-cord
protection
To prevent electrical shock, do
not subject the AC power cord to damage by
bending or twisting it, or by placing heavy items
on top of it and do not place the AC power cord
under the TV set. If the AC power cord becomes
damaged, unplug it from the wall outlet
immediately and call your dealer for service.
Water
To prevent fire or electrical
shock, do not place the TV set
near a bathroom, swimming pool or other area
where it may become wet.
Object entry
Never insert or drop any metallic
or inflammable objects into the
ventilation openings of the TV set, as this can
cause fire, electrical shock, or electrical failure.
Uneven surface and
excessive force
Television equipment and cart
combination should be moved with care. Quick
stops, excessive force, and uneven surfaces
may cause the equipment and cart combination
to overturn.
Fire prevention
To prevent fire, never place any
type of candle or naked flames on
the top or near the TV set.
OPERATION MANUAL
COLOUR TELEVISION
21K-FD1SF
21K-FD1SS
Please read this operation manual
carefully before using the colour
television.
E6 [ BASIC OPERATION ]
•Turn on the power
•On-screen display
language selection
•Channel selection
•Adjusting volume
E7 [ PRESETTING
CHANNELS ]
•Auto channel tuning
•Manual channel tuning
E8 [ SETTING AND
ADJUSTMENT ]
•Channel setting
•Picture or Sound
adjustment
E9 [ TIMER SETTING ]
•Off timer
•On timer
•Reminder on-screen
timer
E 10 [ FEATURES ]
•Blue screen
•Child lock
E 11 [ USEFUL
FEATURES ]
•Channel/Timer display
•Mute
•Channel recall
•TV/Video selection
•Surround sound

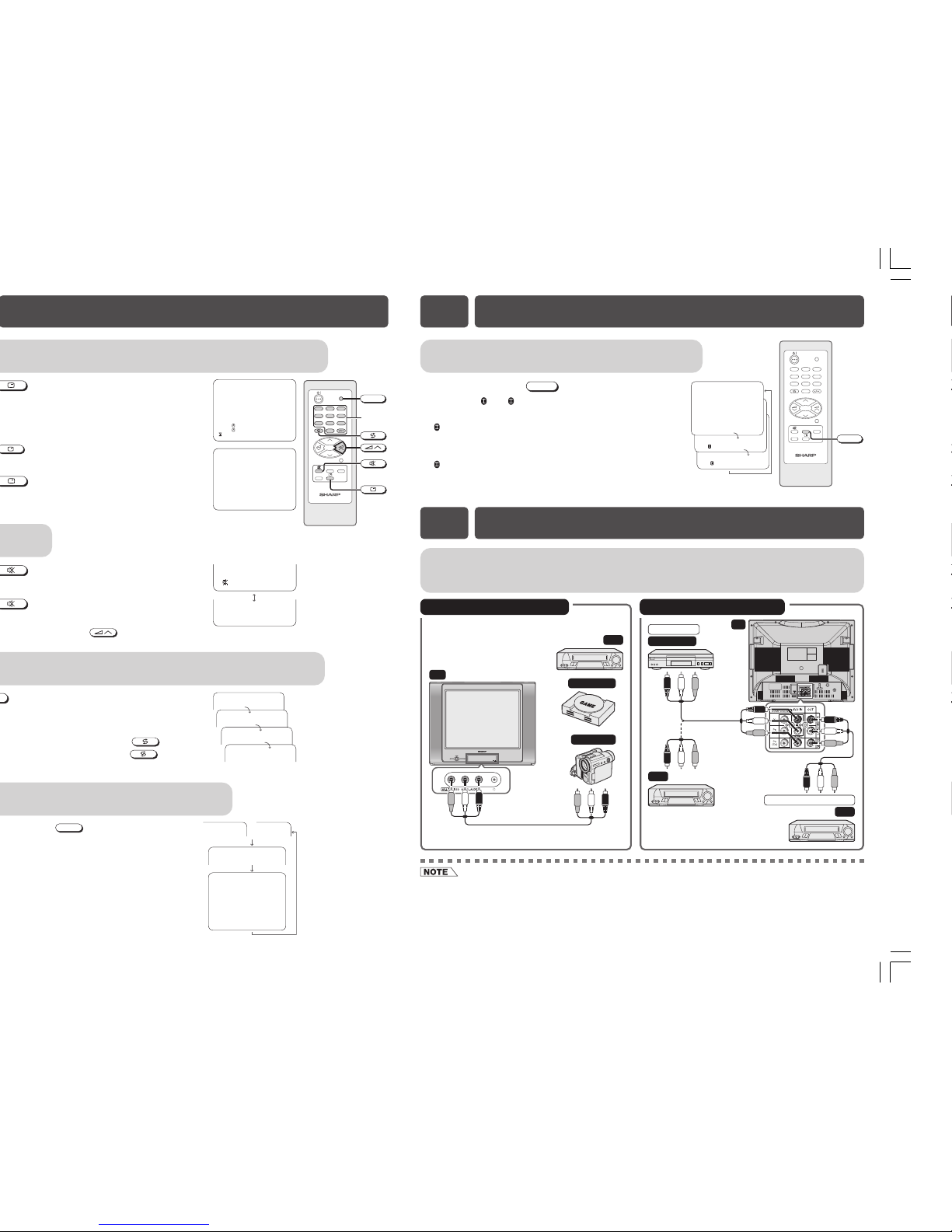

E 12 [ CONNECTIONS ]
•Connecting to video
equipment
E 13 [ TROUBLESHOOTING ]
E 14 [ SPECIFICATIONS ]
E1 SAFETY PRECAUTIONS
Contents
ENGLISH
21K-FD1SF[EN] 14/9/05, 1:02 PM1

Standard DIN45325
plug (IEC169-2)
75-ohm
coaxial cable
(round cable)
(not supplied)
300-ohm
twin-lead
flat feeder
(not supplied)
75-ohm
impedance
converter
(not supplied)
Antenna in
TV
Antenna in
TV
VCR
To antenna
in terminal
To RF out
terminal
Connecting to a DVD player
The DVD input terminals (COMPONENT-IN) on the rear of the TV can be used to input high-
quality images from a DVD player.
If your outdoor antenna uses a 75-ohm coaxial
cable with a standard DIN45325 plug (IEC 169-2),
plug it into the antenna jack at the rear of the set.
[ Behind the door ]
Using headphone
Insert headphone plug into headphone jack to listen to audio with
headphone.
•The audio from the speakers is turned off.
•When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.
•To avoid injuring your hearing, do not put on the headphone before plugging them into the headphone jack and before
the power is turned on.
E4 ACCESSORIESE2 BEFORE OPERATING TELEVISION
Connecting to an antenna Connecting to an antenna via a VCR
E3 DVD PLAYBACK
If your outdoor antenna uses a 300-ohm twin-lead
flat feeder, connect a 300-ohm to 75-ohm
impedance converter and plug it into the antenna
jack at the rear of the set.
TV
DVD input terminals
To colour-difference
(component video)
out terminals
To audio out
(L/R) terminals
DVD player
Green : To Y
Blue : To PB(CB)
Red : To PR(CR)
Red : To AUDIO IN (R)
White : To AUDIO IN (L)
Connecting the video terminals
DVD input terminals DVD player
COMPONENT-IN
VIDEO
Y Y or Y/Y
PB(CB)PB(CB) or B-Y/Pb
PR(CR)PR(CR) or R-Y/Pr
Watching DVD Playback
!Press
TV/VIDEO
to select “COMPONENT”, DVD
input screen.
@Turn on the DVD player and begin playback.
•When connecting the TV to a DVD player via the
COMPONENT-IN terminals, the video and audio from the
DVD player cannot be output through the Audio/Video out
terminals on the TV.
TV/VIDEO
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
TV/VIDEO
COMPONENT
The following accessories are included with this television.
Remote Control Size-AA batteries Operation manual
E5 PART NAMES
TV set
Door
Bottom
MENU/PRESET
/
CH
CH
/
POWER
!
!
@
$%^@# & * (
POWER switch
Turns on and off the main power.
%
Volume up/down buttons
Adjusts the volume.
Makes adjustments in PRESET.
^
Channel up/down buttons
Selects the channels.
Tunes or sets the channels.
$
MENU/PRESET button
Tunes the channels.
Used for MENU setup.
Power indicator
Power can be turned on by the remote control when
the indicator is dimly lit.
#
Infrared sensor window
Receives the infrared wave from the remote control.
&
Video input terminal (AV-2 IN)
Connects to a camcorder, video game, etc.
*
Audio input terminals (AV-2 IN)
Connects to a camcorder, video game, etc.
(
Headphone jack
Use to listen to the audio with headphone.
To open the door
Using the projection located under the
“PULL-OPEN”indication, pull and lift the
door open.
To close the door
Using the projection, lower the door until
closed.
Caution:
•When opening or closing the door, do not insert
your fingers into the gap between the door and
front panel. This may result in an injury.
21K-FD1SF[EN] 14/9/05, 12:04 PM2

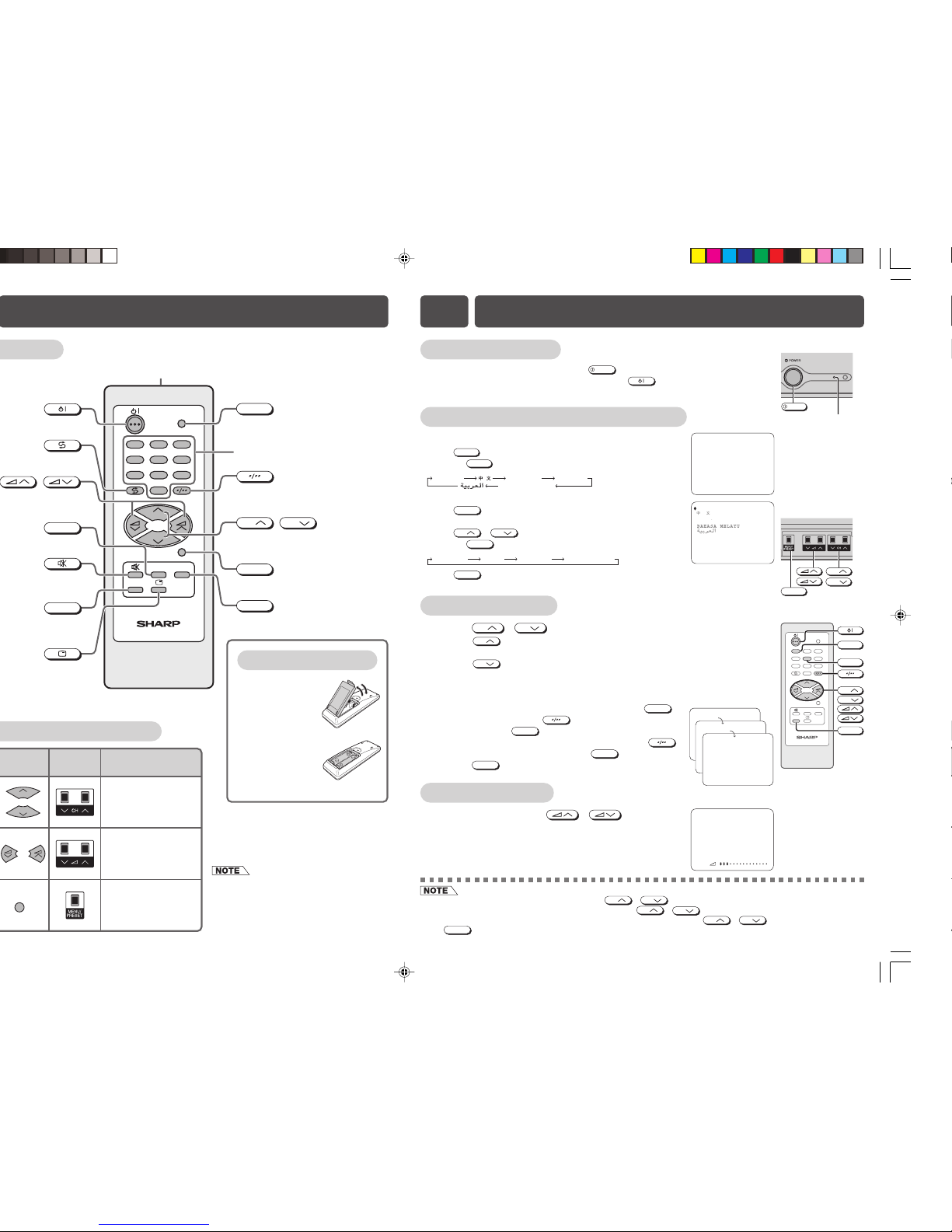

Remote control
TV
0
1
4
7
2
5
8
3
6
9
CH
CH
TV/VIDEO
MENU
SURROUND
LANGUAGE
NORMAL
Mutes the sound and restores sound
to previous level.
Produces a more spacious sound.
SURROUND
Changes the on-screen display
language.
LANGUAGE
Calls the MENU screen.
MENU
Resets all settings.
NORMAL
Displays the channel and timer settings
on the screen.
Infrared transmitter window
Aim this window at the infrared
sensor window on your TV set.
Turns the TV on or to Standby mode.
Returns to previously viewed channel.
Switches between TV broadcasts
and A/V input programmes.
TV/VIDEO
Switches between one- or two-digit
mode channel selection.
Adjusts the volume.
Used for MENU setup.
/
Number buttons
Selects the channel.
Used for MENU setup.
CH
CH /
[ TV Set (Bottom) ]
Power indicator
POWER
Turn on the power
•When the power indicator is off, press POWER .
•When the power indicator lights up dimly, press on the remote
control. The power indicator changes to bright and a picture appears.
On-screen display language selection
ENGLISH
Remote Control
•Press
LANGUAGE
to select desired language.
•Pressing
LANGUAGE
changes the language as shown below.
TV set
•Press
MENU/PRESET
for more than two seconds, the language select
mode appears.
•Press CH / CH to select desired language.
•Pressing
MENU/PRESET
changes the screen as shown below.
•Press
MENU/PRESET
until normal screen appears.
!Adjust volume using / .
•The volume bar disappears approximately three seconds
after the volume has been adjusted.
!Using
CH
/
CH
•Press CH and channels change as shown below.
1 /2 /... /98 /99 /AV1 (or COMPONENT) /AV2 /0 /1 /2 ...
•Press CH and channels change as shown below.
1 /0 /AV2 /AV1 (or COMPONENT) /99 /98 /... /2 /1 /0 ...
@With the number buttons (on remote control)
•To select a one-digit channel, such as 5, press 5. If
“5-”is indicated, press to select one-digit input,
and then press 5again.
•To select a two-digit channel, such as 15, press
to select the two-digit input. Press 1, and then
press 5.
VOLUME 10
--
1-
15
PAL
B/G
MENU/PRESET
CH
CH
[ Behind the door ]
ENGLI
SH
BAHA
S
A MELAY
U
RUSSKIJ
FRANÇAIS
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
CH
CH
1
5
5
MENU
SURROUND
LANGUAGE
NORMAL
LANGUAGE
Channel selection
Adjusting volume
•When the power indicator lights up dimly, either CH / CH on the TV can be pressed to turn on the power.
•Channels that have been skipped cannot be selected by CH / CH .
•The AV1 (or COMPONENT), AV2 input channels cannot be selected using CH / CH on the remote control.
Use TV/VIDEO to select these channels.
E6 BASIC OPERATIONE5 PART NAMES (Continued)
Language MANUAL Normal screen
AUTO
Installing batteries
1Pull up or replace
back the battery
cover.
2Insert two batteries
(size AA). Be
sure to match
the battery j/k
terminals.
OSD indicator quick reference
OSD
indicator
Remote
control OperationTV set
CH
CH
MENU
Used to select items.
Used to adjust or enter
the selected items.
Used to return to
previous screen or
exit Menu screen.
ENGLI
SH
FRA
N
Ç
AI
S
RUSSKIJ
Ç
•OSD: On-Screen Display
•Please refer to this table for all the OSD
operation in this manual.
21K-FD1SF[EN] 14/9/05, 12:04 PM3

AUTO(B/G)
VHF 1
48.25MHz
1
PAL
B/G
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
CH
CH
Number
buttons
MENU
Auto channel tuning
Automatically tunes in and presets receivable TV stations.
!Press
MENU/PRESET
for more than two seconds.
@Press
MENU/PRESET
again to display AUTO mode screen.
•Pressing
MENU/PRESET
changes the screen as shown below.
#Press / on TV set.
•All the TV stations in your area that can be received by
the TV set are automatically preset between channels 1
to 99.
•The screen shows whatever is on channel 1 when auto
channel preset is finished.
MENU/PRESET
[ Behind the door ]
Manual channel tuning
Enables manual channel tuning to a desired TV station.
!Press
MENU/PRESET
for more than two seconds.
@Press
MENU/PRESET
twice to display MANUAL mode
screen.
•Pressing
MENU/PRESET
changes the screen as shown below.
#Press
CH
/
CH
or number buttons to
select channel position.
$Press / on TV set to locate channel you wish to preset to current
channel position.
•Search is initiated and when a TV signal is received during the search, the search stops.
%Repeat steps 3 and 4 above, to preset channel positions for other broadcasts.
^Press
MENU/PRESET
again to display normal screen.
Language MANUAL Normal screen AUTO
Channel setting
Enables individual channel setting.
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “CH-SETTING”.
#Press / to display CH-SETTING
menu.
$Press
CH
/
CH
to select desired setting.
%Each time you press / , setting for
individual items changes as follows:
•POSITION
The channel position changes to the higher or lower number.
•COLOUR
•SOUND
•SKIP
ON OFF
Channel numbers with a “ ” mark on the left are set to SKIP. To turn off SKIP, press the number
buttons to select the desired channel and then set “SKIP”to “OFF”.
•FINE
The frequency changes to allow fine tuning.
•BOOSTER
Picture quality may improve in regions with weak signal strength using this function.
•If ON is selected and the picture quality is still not good enough, please switch to ON .
•If signal strength is strong enough for the selected channel, the effect is negligible and may
produce instability. In such a case select “OFF”.
^Press
MENU
until normal screen appears.
•When you select AV1, AV2 for the channel position, the
CH-SETTING menu changes as shown on the right and
the colour mode changes in the following order:
SOUND
FEATURE
TIMER
CH-SETTING
POSITION CH27
COLOUR AUTO
SOUND B/G
SKIP OFF
OFF
FINE
BOOSTER 168.25MHz
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
CH
CH
MENU
POSITION AV1
COLOUR AUTO
AUTO SECAM N443 PAL N358
MANUAL(B/G)
VHF 1
48.25MHz
•SOUND SYSTEM may not have been set correctly, if noise can be heard or if there is no sound. In such case, adjust
the SOUND SYSTEM using the MENU on the remote control.
•AUTO PRESET stores all receivable channels including those which may be very weak and not clearly visible. To
preset only those channels designated for the local viewing region, use MANUAL PRESET.
AUTO SECAM N443 PAL N358
B/G D/K M I
•Switching COLOUR system:
Set the system to “AUTO”for normal TV reception. The AUTO mode automatically detects the receiving signal system
and changes the reception system of the TV set. When the picture is not stable, switching to an appropriate system
may improve the picture quality.
•When using FINE, the channel number changes from green to yellow.
E8 SETTING AND ADJUSTMENTE7 PRESETTING CHANNELS
Language MANUAL Normal screen AUTO
ON ON OFF

Picture or Sound adjustment
The following table lists the adjustment items shown in the PICTURE/SOUND menu and
how they change as you press / .
*: TINT can only be selected and adjusted when receiving NTSC broadcasts.
•Auto Noise Reduction (ANR)
Noise might be generated on images when playing deteriorated video tapes or when
receiving broadcasts with relatively weak signals. In these cases, set ANR to “ON ”or
“ON ”to reduce the noise. However, when receiving good images without noise, you
can get better image quality by turning OFF this feature. If ON is selected and the
image is still with noise, please switch to ON .
•WHITE TEMP can only be adjusted on PICTURE menu.
•The CONTRAST, COLOUR, BRIGHTNESS, TINT, SHARPNESS and WHITE TEMP
setting can be set differently for individual AV Mode setting.
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
CH
CH
MENU
NORMAL
CONTRAST
AV MODE
Selected item Press Press
COLOUR
BRIGHTNESS
TINT
SHARPNESS
To decrease contrast
For less colour intensity
For less brightness
To move tint toward red
For less sharpness
To increase contrast
For more colour intensity
For more brightness
To move tint toward green
For more sharpness
- +
- +
- +
- +
WHITE TEMP To more reddish
background To more bluish background
ANR (See note below)
DYNAMIC SOFT STANDARD
ON ON OFF
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “PICTURE”or “SOUND”.
#Press
/
to display PICTURE or SOUND menu.
$Press
CH
/
CH
to select adjustment items.
%Adjust using / .
•Wait for approximately three seconds to return to PICTURE/SOUND menu.
^Repeat steps 4 and 5 above to adjust other items.
&Press
MENU
until normal screen appears.
SURROUND ON ON
TREBLE
BASS
To decrease treble
To decrease bass
To increase treble
To increase bass
- +
- +
BALANCE To shift balance
toward left To shift balance toward right
OFF
Selected item Press Press
AV MODE DYNAMIC SOFT STANDARD
SOUND
FEATURE
TIMER
CH-SETTING
AV MODE DYNAMIC
SURROUND ON
TREBLE +10
BASS –20
BALANCE 20
TREBLE +10
-+
OFF 0:00
OFF 0:01
OFF 0:02
OFF 0:03
OFF 0:04
OFF 0:05
Flashin
g
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “TIMER”.
#Press / to display TIMER menu.
$Press
CH
/
CH
to select “OFF ”.
%Press / to set time for TV to turn
off.
•Maximum time that can be preset is 12 hours and 50
minutes. Timer start to count down after setting.
^Press
MENU
until normal screen appears.
•Five minutes before the preset length of time expires, the remaining time
appears on the screen.
•A flashing display of the remaining time appears during the last few seconds.
When the preset length of time has passed, the TV set enters the Standby
mode.
Off timer
Automatically turns power off after a set length of time has passed.
!Repeat step 1 to 3 of OFF TIMER.
@Press
CH
/
CH
to select “ON ”.
#Press / to set time for TV to turn
on.
•Maximum time that can be preset is 12 hours and 50
minutes. Timer start to count down after setting.
$Press
CH
/
CH
to select “POSITION”.
%Press / to set the channel.
^Repeat step 4 to 5 above to select and set the
“VOLUME”.
&Press
MENU
until normal screen appears.
*Press to put TV set into Standby mode.
•Power indicator will flash to indicate On Timer is set.
•When the preset length of time setting has passed, the power turns on and a
picture appears on the screen.
•The ON TIMER speaker volume gradually increases from zero to preset
volume.
On timer
Automatically turns power on after a set length of time has passed.
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
CH
CH
MENU
[ TV Set (Bottom) ]
Power indicator
(Flashing)
OFF --:--
ON 8:00
POSITION --
VOLUME --
--:--
OFF --:--
ON 8:00
POSITION CH28
VOLUME --
--:--
OFF --:--
ON 8:00
POSITION CH28
VOLUME 20
--:--
•Pressing NORMAL while a PICTURE/SOUND selection is displayed, only the selected mode is reset to the standard
(factory-setting) position.
•Pressing NORMAL while a PICTURE/SOUND menu screen is displayed will reset the individual AV Mode setting to the
standard (factory-setting) position.
•The Off timer is cancelled if the power is turned off or set to the Standby mode using on the remote control or
POWER on the TV set, or if the power is otherwise interrupted.
•The On Timer is cancelled if the power is turned off using POWER .
•If the TV set is turned on by the On Timer, then the TV set will be automatically turned off in two hours if no buttons
are pressed on the TV set or remote control.
E9 TIMER SETTINGE8 SETTING AND ADJUSTMENT (Continued)
AV MODE DYNAMIC
CONTRAST 50
COLOUR 0
BRIGHTNESS +10
TINT
SHARPNESS –10
CONTRAST 50
-+
SOUND
FEATURE
TIMER
CH-SETTING
[ PICTURE menu screen ]
[ SOUND menu screen ]
PICTURE menu table
SOUND menu table
SOUND
FEATURE
TIMER
CH-SETTING
OFF 2:30
ON --:--
POSITION
VOLUME --:--
OFF --:--
ON --:--
POSITION
VOLUME --:--
•The SURROUND, TREBLE, BASS and BALANCE setting can be set differently for
individual AV Mode setting.
21K-FD1SF[EN] 14/9/05, 12:04 PM5

!Repeat step 1 to 3 of OFF TIMER.
@Press
CH
/
CH
to select “ ”.
#Press / to set time.
• Maximum time that can be preset is 12 hours and 50
minutes.
• The right example shows that the Reminder will be
activated after one hour and 50 minutes.
$Press
MENU
until normal screen appears.
• Five minutes before the preset length of time expires (in
the example, after one hour and 45 minutes) and each
minute thereafter, the remaining time appears on the
screen for several seconds.
• When the preset length of time has passed, “ 0:00”
flashes in red.
Reminder on-screen timer
Lets you know when a preset length of time has passed by displaying a countdown timer on
the screen. This is useful for timer cooking while you watch TV.
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
CH
CH
MENU
OFF --:--
ON --:--
POSITION
VOLUME
--:--
OFF --:--
ON --:--
POSITION
VOLUME
1:50
0:00
0:01
0:02
0:03
0:04
Flashing
0:05
after 5 seconds
after 15 minutes
No signal
When BLUE BACK is set to “ON”.
Blue screen TV off (Indicator)
Standby mode
Power indicator
lights up dimly
SOUND
FEATURE
TIMER
CH-SETTING
CHILD LOCK
BLUE BACK ON
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “FEATURE”.
#Press
/
to display FEATURE menu.
$Press
CH
/
CH
to select “BLUE BACK”.
%Press / to select “ON”or “OFF”.
^Press
MENU
until normal screen appears.
Blue screen
Automatically turns the screen blue if a broadcast signal is not received.
•The Reminder also works in the Standby mode. Power is automatically turned on five minutes before the preset length
of time expires. The TV set automatically returns to the Standby mode approximately 1 minute if no buttons are
pressed on the TV set or remote control.
•The Reminder is cancelled if POWER on the TV set is pressed or if the power is otherwise interrupted.
•Poor reception due to weak signals and too much noise may activate BLUE BACK, despite the presence of a
broadcast signal. To continue watching TV under these conditions, switch “BLUE BACK”to “OFF”.
•When Off timer is set, the OFF TIMER setting has priority over BLUE BACK.
E10 FEATURES (Continued)E9 TIMER SETTING (Continued)
E10 FEATURES
Child lock
Preventing children from watching TV.
Setting the CHILD LOCK mode (For the first time)
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “FEATURE”.
#Press
/
to display FEATURE menu.
$Press
CH
/
CH
to select “CHILD LOCK”.
%Press
/
to display CHILD LOCK
menu.
^Press
CH
/
CH
to select desired setting.
•TV
Press / to select “TV”to “ON”or “OFF”.
•ON: “TV”will lock the entire TV for viewing.
•OFF: “TV”deactivated.
•PASSWORD
Enter 4 digits PASSWORD using Number buttons (0~9) on the remote
control. (For example: 0000)
•Press NORMAL to reset the entered number to “0000”.
&Press
MENU
until normal screen appears.
•The CHILD LOCK mode will be activated after the TV is turned off and on
again.
To turn OFF or to change setting of CHILD LOCK mode
!While “CHILD LOCK ON”screen appear.
@Enter 4 digits PASSWORD using Number buttons (0~9) on the
remote control. (For example:0000)
•Press to clear the entered number.
•If the wrong PASSWORD is entered, “PASSWORD INCORRECT”screen will
appear. Input the PASSWORD again in this case.
•If you forget your PASSWORD, please input “2398”to enter, then change to new PASSWORD.
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
CH
CH
MENU
NORMAL
Number
buttons
SOUND
FEATURE
TIMER
CH-SETTING
CHILD LOCK
BLUE BACK ON
TV
CHILD LOCK OFF
PASSWORD 0000
SWITCH OFF TV TO
ACTIVATE CHILD LOCK
TV
CHILD LOCK OFF
PASSWORD 0000
SWITCH OFF TV TO
ACTIVATE CHILD LOCK
PLEASE INPUT PASSWORD
CHILD LOCK ON
– – – –
PLEASE INPUT PASSWORD
* * ––
CHILD LOCK ON
PASSWORD INCORRECT
21K-FD1SF[EN] 19/9/05, 2:48 PM6

E11 USEFUL FEATURES
!Press .
•The time remaining on the Off timer, On timer, and
Reminder appears on the screen.
•When no timer is set, the channel number, colour and
sound system appear on the screen.
•Press again to clear these current settings
display on the screen.
@Press again, the channel number, colour
and sound system appear on the screen.
Channel / Timer display
Displays the current channel number, the timer, and other settings on the screen.
ON
OFF 2:30
1:50
8:00
5
PAL
B/G
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
Number
buttons
TV/VIDEO
!Press .
•“ ”appears on the screen, and the sound is silenced.
@Press again, the volume returns to its
previous level.
•Mute will be cancelled if the is pressed at any time.
Mute
Silences the sound.
Press .
•The channel previously viewed returns to the screen.
Example:
After switching from channel 5 to channel 7, is pressed,
the channel will change to channel 5. Press again to
return to channel 7.
Channel recall
Switches back to the channel you were watching just before the current channel.
5
PAL
5
PAL
7
PAL
7
PAL
TV / Video selection
Switches between TV broadcasts and AV input programmes.
•Each time you press the TV/VIDEO , the input switches
between AV1 (or COMPONENT), AV2 and TV
programme.
25
PAL
B/G
AV2
AV1COMPONENT
or
E11 USEFUL FEATURES (Continued)
Each time you press
SURROUND
, the mode changes
between ON , ON and OFF.
OFF : Produces normal sound.
ON : Setting to this mode during stereo signal reception
produces a spacious sound, making the most of the
speakers’performance.
ON : Setting to this mode during monaural signal reception
creates monaural sound that is similar to stereophonic
sound.
Surround sound
Produces a virtual surround sound from the TV’s speakers.
SURROUND
ON
SURROUND
ON
SURROUND
OFF
TV/VIDEO
TV
0
4
7
2
8
3
6
9
CH
CH
1
5
MENU
SURROUND
LANGUAGE
NORMAL
SURROUND
Example use of front terminals
Connecting to video equipment
Enjoy playback from a video disc player, VCR or other video equipment by connecting them to
this TV set using the Audio/Video in terminals.
TV
VCR
Video Game
Camcorder
Yellow : To VIDEO
White : To AUDIO (L)
Red : To AUDIO (R)
To Audio/Video
out terminals
E12 CONNECTIONS
•For playback of monaural audio, connect the external source to the audio input left terminal on the front or rear of the
TV set (MONO) to hear the same sound from both speakers.
•The audiovisual cords required to connect the TV set with video equipment may differ from those shown in the above
diagram. See the operation manual of your video equipment for connection details.
•The above recording and editing connections are for intended solely for personal use and not for the illegal copying of
audiovisual material protected by copyright laws.
Example use of rear terminals
For Playback
DVD Player
For Recording and Editing
VCR
TV
VCR
To Audio/
Video out
terminals
To Audio/
Video out
terminals
To Audio/
Video in
terminals
Yellow : To VIDEO
White : To AUDIO (L)
Red : To AUDIO (R)

This unit is equipped with a microprocessor. Its performance could be adversely affected by external
electrical noise or interference. If this should happen, unplug the unit and plug it in again after a few
minutes.
The following problems do not always indicate a hardware failure. Therefore, please use the
troubleshooting guide below before calling for repair service.
If, after following the guide none of the remedies work, unplug the TV set and call for service.
SHARP CORPORATION
•Design and specifications are subject to change without notice.
•Receiving system: These receiving systems, encompassing all currently available technology, include those with
planned broadcast, videotape and laserdisc hardware and software.

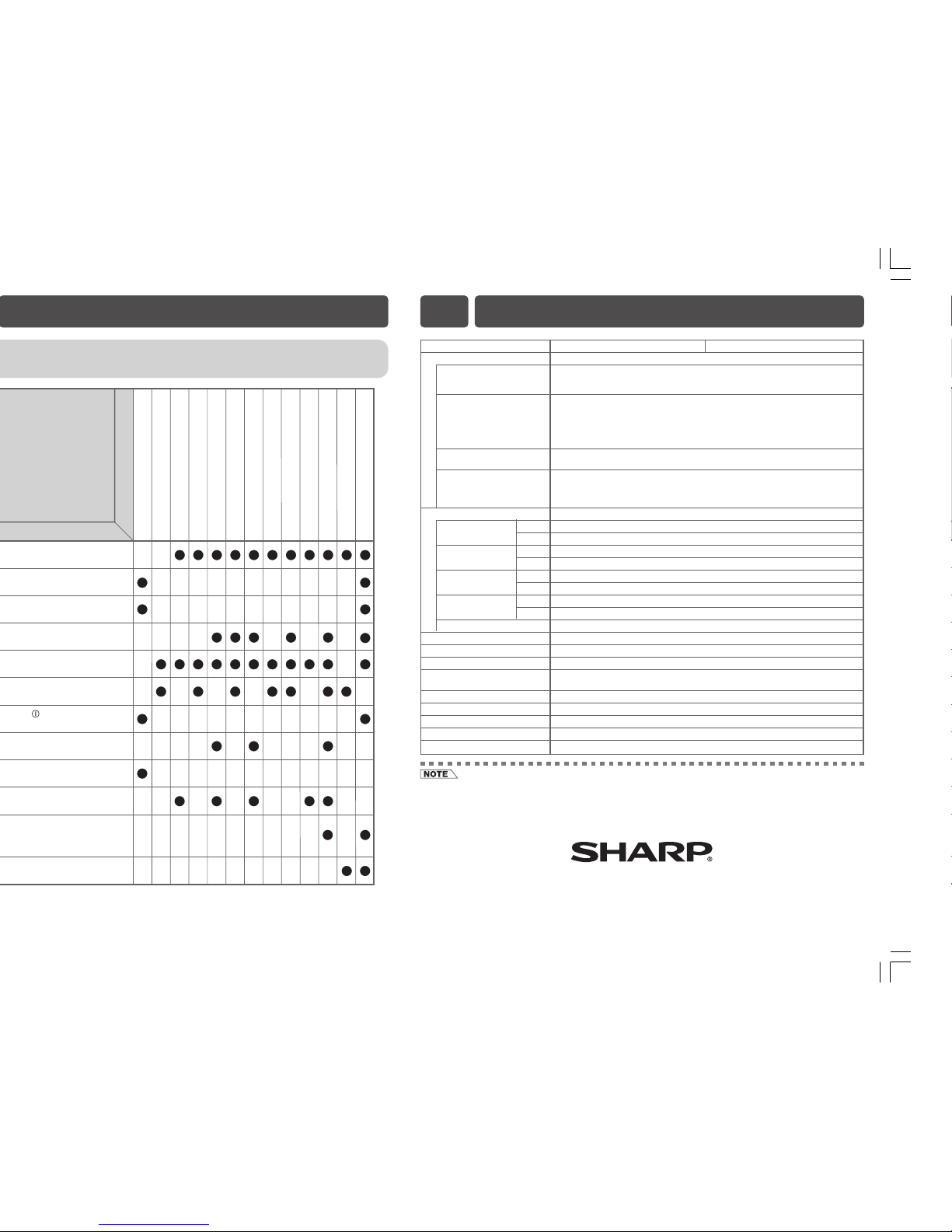

E14 SPECIFICATIONSE13 TROUBLESHOOTING
MODEL 21K-FD1SF 21K-FD1SS
Receiving System World multi 21 system
TV Broadcasts/ PAL-I SECAM-B/G
VCR Playback PAL-B/G SECAM D/K, K1
PAL-D/K NTSC-M (NTSC Standard)
VCR Playback NTSC 4.43/5.5 MHz/60 Hz NTSC 3.58/5.5 MHz
NTSC 4.43/6.0 MHz/60 Hz NTSC 3.58/6.0 MHz
NTSC 4.43/6.5 MHz/60 Hz NTSC 3.58/6.5 MHz
NTSC 4.43/5.5 MHz/50 Hz SECAM-I (6.0 MHz)
NTSC 4.43/6.0 MHz/50 Hz
NTSC 4.43/6.5 MHz/50 Hz
VCR Playback SECAM-L (French SECAM)
(Using Video-in terminals)
Laserdisc Player Playback PAL 5.5 MHz/60 Hz
(Using RF-in terminals) PAL 6.0 MHz/60 Hz
PAL 6.5 MHz/60 Hz
NTSC 3.58/4.5 MHz/50 Hz
Reception Channels
PAL-B/G VHF E2–E12 ch
SECAM-B/G UHF E21–E69 ch
PAL-D/K VHF C1–C12 ch, R1–R12 ch
SECAM-D/K, K1 UHF C13–C57 ch, R21–R69 ch
PAL-I VHF B–J ch
UHF 21–69 ch (Hong Kong)
NTSC VHF 2–13 ch (U.S), 1–12 ch (Japan)
UHF 14–69 ch (U.S), 13–62 ch (Japan)
CATV S1–S20 ch, S21–S41 ch (Hyper)
Receiving Frequency 48.25 MHz –863.25 MHz
Channel Tuning 100-Channel Electronic Tuner with Full Auto Tuning System
Picture Tube 21-Inch Flat CRT
Terminals Audio/video input ×2 (front ×1, rear ×1), Audio/video output ×1 (rear),
Headphone jack ×1 (front), DVD input (COMPONENT-IN) ×1 (rear)
Sound Output 7.5 W (RMS) ×2, total 15 W (RMS)
Power Source AC 110 –240V, 50/60 Hz
Power Consumption 112 W
Dimensions 605 (W) ×468 (H) ×487.5 (D) mm
Weight 22.5 kg (Approx.)
Quick
Service
Check List
Try a new channel to check for possible station
trouble.
TV not plugged in.
Outlet power OFF.
Antenna not connected to terminal at the back
of the TV set.
If outside antenna is used, check for broken
wires.
Check for local interference.
Adjust COLOUR control.
Check batteries in the remote control.
Try fine tuning to correct.
Contrast setting in picture mode might be all
the way to the minus side. Press the
NORMAL button on the remote control to
correct.
Increase the volume.
Problems
Remote control does not work. Bars on screen. Picture distorted. Picture rolls vertically. No colour. Poor reception on some channels. Picture weak. Picture lines or streaks. Picture ghosting. Picture blurred. Sound OK, picture poor. Picture OK, sound poor. No picture or sound.
Possible Causes/Remedies
POWER switch of TV not ON.
Turn OFF using the POWER switch,
then turn ON again after a minute.
