Sharp 28JW-74E User manual

1
28JW-74E
PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
SERVICE MANUAL
This document has been published to
be used for after sales service only.
GA-200 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATIONS ................... 3
IMPORTANT SERVICING NOTES ................. 4
CONTROLS & TERMINALS ........................... 5
ADJUSTMENT PROCEDURES ...................... 6
LED FLASHING CODES ............................... 13
PRINTED WIRING BOARDS ........................ 14
COMPONENT LOCATION TABLES ............... 22
CHASSIS LAYOUT ......................................... 29
SCHEMATIC DIAGRAMS ............................... 32
BLOCK DIAGRAM ....................................... 45
TROUBLESHOOTING TABLES ..................... 46
ICs ADDITIONAL INFORMATION .................. 51
PARTS LISTING ............................................. 67
SERVICING NOTES.................................... 77
SOURCE OF DOCUMENTATION .................. 79
SHARP CORPORATION
MODEL
28JW-74EES
SE0028JW74E00
Issued: 2nd April 2003

2
28JW-74E
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
28JW-74E
ELECTRICAL SPECIFICATIONS
•White Level
Set brightness control to get total picture tube cathode current of 600 µA under no signal condition.
Maximum necessary correction of each picture tube cathode current to get 8550 degrees K+1 MPCD
screen temperature should not exceed 15% of its original value.
X=0.290 ± 0.015 Y=0.300 ± 0.015
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
•Sweep Deflection ............................. Magnetic
•Picture Intermediate frequency
L’ ................................................ 33.9MHz
L, B/G, D/K,I .............................. 38.9MHz
•Sound Carrier Trap
L’ ................................................ 40.4MHz
L, D/K ......................................... 32.4MHz
B/G ............................................ 33.4MHz
I .................................................. 32.9MHz
•Adjacent Sound Carrier Trap
L’ ................................................ 32.4MHz
L, D/K, B/G ................................ 40.4MHz
I .................................................. 40.9MHz
•Adjacent Picture Carrier Trap
L’ ................................................ 41.9MHz
L, D/K, I ...................................... 30.9MHz
B/G ............................................ 31.9MHz
•Aerial Input Impedance
VHF/UHF ................. 75 ohm Unbalanced
•Tuning Ranges ..... 45.75MHz thru 855.25 MHz
VHF: IR A - J / S1 - S41 CH (Hiperband)
E2 - E12 / F2 - F10
UHF: I21 - I69 CH / E21 - E69
CATV Special Channels
Specifications are subject to change without prior notice.
•Power Input .................... 220V-240 Volts AC 50Hz
•Power Consumption
Normal Operation (Method IEC60107) ................. 90W
Stand-by Operation ..........................................1.5W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 10W, 7Ω
Internal Right Speaker ............................... 10W, 7Ω
•Speakers
Left / Right ................................................. 12 x 6cm
•Convergence (Maximum Misconvergence)
•Focus .................................................. Electrostatic
MODEL DESTINATION (Operation Manual Languages)
28JW-74E: Deutsch, Français, Nederlands.
28JW-74EES: Español, Português.
20 mm
20 mm20 mm
1,4 mm
1,4 mm
1,4 mm
1,4 mm
1,4 mm 1,4 mm
1,4 mm 1,4 mm
1,2 mm 1,2 mm
1 mm 1 mm0,4 mm
0,9 mm
0,9 mm
TV screen

4
28JW-74E
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 32 KV, (at a
instantaneous beam current of 1300µA).
2. Ensure that during normal operation the EHT does not exceed 29 KV ± 1.5 KV (at a beam current of
1300µA). This level has been preset in the factory. Always check that this level has not been exceeded
after carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

5
28JW-74E
CONTROLS & TERMINALS













 
  
 
 
 


  


  


 

      

/6*,5'''
$8',2
69,'(29,'(2
 


 


$97(50,1$/

6&$57
3(5,7(/(9,6,21
 

6
28JW-74E
REMOTE CONTROL
TV 1. Stand-by button (TV)
Video 2. Power button (VCR)
TV 3. 0 ~ 9 digit buttons
4. Flash back button
Teletext 5. GREEN button
6. RED button
TV 7. Volume DOWN button
8. MENU button
Teletext 9. REVEAL button
10. LIST button
11. STORE button
12. CANCEL button
13. HALF PAGE button
TV 14. RESET button
Video 15. Rewind/picture search reverse
16. Play button
17. Pause/Still button
18. Stop button
TV 19. TV/VIDEO button
20. Channel Call button
21. Single/Double entry button
Teletext 22. YELLOW button
23. BLUE button
TV 24. Channel UP button
25. Volume UP button
26. Channel DOWN button
27. Wide mode button
TV /Teletext 28. CLOCK button
TV 29. Sound mode button
Teletext 30. HOLD button
TV 31. Sound Mute button
Teletext 32. TEXT/MIX/PICTURE button
33. INDEX button
Video 34. Channel UP button (VCR)
35. Fast forward/picture search forward
36. Channel DOWN button (VCR)
37. Record button
1. 19.
23.
21.
24.
25.
26.
27.
28.
29.
30.
31.
32.
34.
37.
36.
35.
33.
22.
20.
4.
5.
6.
7.
8.
10.
11.
12.
13.
15.
18.
17.
16.
14.
9.
2.
3.
ADJUSTMENT PROCEDURES
All adjustments to this chassis, except for focus, are carried out in the Service Mode.
Service Mode
The Service Mode is provided to enable the engineer to correctly set up the receiver to the CRT fitted in the set.
Note that these adjustments may vary from one receiver to another.
To enter the Service Mode, carry out the following procedure.
1. Connect a test pattern to the antenna terminal.
2. Tune the receiver to this signal.
3. Turn the receiver off using the mains switch.
4. Press volume down and channel up buttons on the
front of the receiver at the same time.
5. Keeping these buttons pressed, turn the mains on.
6. When the set starts up it will be in Service Mode.
7. Release the two buttons. Figure 1
CH
4
5

7
28JW-74E
01. Horizontal Shift
02. East West Width
03. Pin Phase
04. Pin Amp
05. Upper corner correction
06. Lower corner correction
07. Extreme Corner Correction
08. Vertical Linearity
09. Vertical Angle
10. Vertical Bow
11. Vertical Amplitude
12. S Correction
13. Vertical Shift
14. Red Cut Off
15. Green Cut Off
16. Blue Cut Off
17. Alter NVM Pag (Page)
18. Alter NVM Pos (Position)
19. Alter NVM Val (Value)
20. Teletext Mix Mode Contrast
21. Teletext Contrast
22. OSD Contrast
23. DVCO Adjustment (Only PAL)
24. DVCO Adjustment (Only NTSC)
25. AGC Adjustment
26. Auto Installation On/Off
••
••
•Use the channel up and down buttons to move between the options.
••
••
•Use the volume control buttons to change the data.
••
••
•To store the data, use the stand-by button on the remote control.
••
••
•To exit the Service Mode, turn the receiver off using the mains switch.
When the Service Mode is entered the following On Screen Display appears:
The figures displayed in the “XXXX” locations are hexadecimal representations of the number of times that particular
function has been executed. For example if the hexadecimal number displayed after “SW ON” was 0E4A, this would
correspond to the receiver being turned on 3658 times.
X
Adjustment menu:
The following adjustments can be carried out in the Service Mode.
When in the Service Mode it is possible to access certain functions by using the teletext keys as below.
••
••
•By pressing the Blue button each adjustment can be directly accessed via the remote control. Referring to the
list above, press the Blue button followed by the adjustment number, this will directly access the selected
adjustment. If any number above 26 is selected, the set will revert to the Service Mode entry page. To access a
number less than 10, use the 0 key first, i.e. 02.
••
••
•Press the Yellow button to go straight to the AGC adjustment.
••
••
•Press the Green button once to enter “FACTORY VOLUME” level. Use volume control keys to change the
setting. The original value will be recovered after resetting the TV set.
••
••
•Press the Green button twice to enter “FACTORY BALANCE” level. Use volume control keys to change the
setting. The original value will be recovered after resetting the TV set.
••
••
•Press the Red button once to enter “FACTORY CONTRAST” level. Use volume control keys to change the
setting. The adjustment is stored automatically.
••
••
•Press the Red button twice to enter “FACTORY BRIGHTNESS” level. Use volume control keys to change the
setting. The adjustment is stored automatically.
••
••
•Press the Red button three times to enter “FACTORY COLOUR” level. Use volume control keys to change the
setting. The adjustment is stored automatically.
••
••
•If buttons 0 through 9 are pressed, the set will automatically go to that program number.
Note that in case the blue button has been used before, the program number should be requested by using two
digit number (01...99).
••
••
•By pressing the Menu button, the unit will normalise Picture and Audio settings. The Auto Installation is then
turned “on”.
SERVICE SOFTWARE 28JW74E ∗∗-∗∗∗∗∗
SW on: XXXX SW off: XXXX Hours ON: XXXX

8
28JW-74E
The following geometry adjustments can be carried out. Detailed instructions on how to execute these are given on the
following pages:
Horizontal
• Horizontal Shift
• East West Width
• Pin Phase
• Pin Amp
• Vertical angle
• Vertical bow
• Upper Corner Amplitude
• Lower Corner Symmetry
• Extreme Corner Symmetry
Vertical
• Vertical Amplitude
• S Correction
• Vertical Shift
• Vertical Linearity
Just in case the TV set requires a full geometry adjustment, please proceed first with Verti-
cal according to the above order, and after that, adjust Horizontal according to the above
order.
Horizontal Shift
Adjust the horizontal shift so that the picture is centred.
The effect of this adjustment is shown in figure 2.
•When the volume up button is pressed, the picture moves to the left.
•When the volume down button is pressed, the picture moves to the right.
•Press the stand-by button on the remote control to store.
East West Width
Adjust the East West Width so that 8% over-scan is achieved.
The effect of this adjustment is shown in figure 3.
•When the volume up button is pressed, horizontal scanning increases.
•When the volume down button is pressed, horizontal scanning decreases.
•Press the stand-by button on the remote control to store.
Pin Phase
Adjust the Pin Phase so that the picture is symmetrical top and bottom.
The effect of this adjustment is shown in figure 4.
•When the volume up button is pressed, side pincushion changes.
•When the volume down button is pressed, side pincushion changes.
•Press the stand-by button on the remote control to store.
Pin Amp
Adjust the Pin Amplitude so that the picture is centred.
The effect of this adjustment is shown in figure 5.
•When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel
shape to pincushion.
•Press the stand-by button on the remote control to store.
Figure 2
Figure 3
Figure 4
Figure 5

9
28JW-74E
Upper Corner Correction
Adjust the Upper Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 6.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
•Press the stand-by button on the remote control to store.
Lower Corner Correction
Adjust the Lower Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 7.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
• When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
• Press the stand-by button on the remote control to store.
Extreme Corner Correction
Adjust the Extreme Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 8.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
•Press the stand-by button on the remote control to store.
Vertical Linearity
Adjust the Vertical Linearity so that the upper and lower parts of the picture are symmetrical.
The effect of this adjustment is shown in figure 9.
• When the volume up button is pressed, the upper picture scanning decreases and the
lower picture scanning increases.
• When the volume down button is pressed, the upper picture scanning increases and the
lower picture scanning decreases.
• Press the stand-by button on the remote control to store.
Vertical Angle
Adjust the Vertical Angle so that the picture is centred.
The effect of this adjustment is shown in figure 10.
• When the volume up button is pressed, the vertical angle changes to right.
• When the volume down button is pressed, the vertical angle changes to left.
• Press the stand-by button on the remote control to store.
Figure 9
Figure 7
Figure 10
Figure 6
Figure 8

10
28JW-74E
Colour Adjustments
The following adjustments should only be carried out when the CRT, IC850, IC851
or IC852 are replaced.
G2, Cut Off and Gain Adjustments
1. Follow the procedure below to set the G2
1.1 Tune the set to the output of a signal generator (cross hatch pattern).
1.2 In the user menu, set contrast to 80/100 and brightness to 40/100.
1.3 Connect the oscilloscope to the RED cathode (pin 8 of CRT socket)
and adjust G2 to read 150V on the sensor pulse as in the drawing:
Vertical Bow
Adjust the Vertical Bow so that the picture is centred.
The effect of this adjustment is shown in figure 11.
• When the volume up button is pressed, the vertical bow changes to left.
• When the volume down button is pressed, the vertical bow changes to right.
• Press the stand-by button on the remote control to store.
Vertical Amplitude
Adjust the Vertical Amplitude so that 8% over-scan is achieved.
The effect of this adjustment is shown in figure 12.
• When the volume up button is pressed, the vertical size of the picture increases.
• When the volume down button is pressed, the vertical size of the picture decreases.
• Press the stand-by button on the remote control to store.
S Correction
Adjust the S Correction so that the picture symmetrical between the top, centre and bottom.
The effect of this adjustment is shown in figure 13.
• When the volume up button is pressed, the top and bottom scanning decreases and the
centre scanning increases.
• When the volume down button is pressed the top and bottom scanning increases and the
centre scanning decreases.
• Press the stand-by button on the remote control to store.
Vertical Shift
Adjust the Vertical Shift so that the picture is centred.
The effect of this adjustment is shown in figure 14.
• When the volume up button is pressed, the picture moves up.
• When the volume down button is pressed, the picture moves down.
• Press the stand-by button on the remote control to store.
Figure 14
Figure 11
Figure 12
Figure 13
150 V
CH1 gnd
Figure 15

11
28JW-74E
Note:
Oscilloscope should be adjusted for vertical TV field trigger and synchronized with video signal.
2. Follow the procedure below to set the Cut Off.
2.1 Adjust G2.
2.2 Tune a white pattern.
2.3 Adjust colour to minimum.
2.4 Position colorimeter in the centre of screen.
2.5 Adjust brightness and contrast to obtain a luminance of ≈20 NITS.
2.6 Operate in Service Mode and select location RED CUT OFF, GREEN CUT OFF and BLUE CUT OFF, to
obtain colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease press volume down button.
RED CUT OFF alter «X» coordinate.
GREEN CUT OFF alter «Y» coordinate.
BLUE CUT OFF alter «X» and «Y» coordinate.
They will be stored automatically.
Changing NVM Data
To change the data contained within the Non Volatile Memory, it is necessary to first select the page the data is stored in,
then the position and finally to change the data itself. The procedure below outlines this process.
1. While on ALTER NVM PAGE, use the volume up/down buttons to change this data (data is shown in hexadecimal
format).
2. Press the channel up button and ALTER NVM POSITION appears, use the volume up/down buttons to change this
data (data is shown in hexadecimal format).
3. Press the channel up button and ALTER NVM VALUE appears, use the volume up/down buttons to change this data
(data is shown in hexadecimal format).
4. Once this data has been set, press the stand-by button to store.
5. If another NVM value has to be changed, use the channel down button to select the page or position and repeat as
necessary.
Note:
DO NOT change any NVM data, unless you have been advised to do so by a Sharp representative. If data is incorrectly
changed, serious damage may occur to the receiver.
Contrast Adjustments
Three types of contrast levels can be varied as listed below:
• TELETEXT MIX MODE CONTRAST
• TELETEXT CONTRAST
• OSD CONTRAST
Use the volume up/down buttons to adjust to a suitable level, they will be stored automatically.
DVCO Adjustment (PAL)
Carry out the DVCO Adjustment (PAL) as shown below:
1. Receive a color pattern signal (PAL).
2. While in the DVCO ADJUSTMENT (PAL) menu, press the stand-by button.
3. The adjustment will be carried out automatically and stored.

12
28JW-74E
DVCO Adjustment (NTSC)
Carry out the DVCO Adjustment (NTSC) as shown below:
1. Receive a color pattern signal (NTSC 3.58).
2. While in the DVCO ADJUSTMENT (NTSC) menu, press the stand-by button.
3. The adjustment will be carried out automatically and stored.
Automatic Gain Control Adjustment (B/G, D/K, I)
To correctly align the Automatic Gain Control, follow the procedure outlined below:
1. Tune the set into a pattern generator on E-12 (B/G).
2. Enter the Service Mode.
3. Press the channel up button of Remote Control to select “Automatic Gain Control”
4. Press volume up/down to adjust to “109 dB/mV”.
5. It will be stored automatically.
6. Turn off the receiver by Main switch to exit the Service Mode.
Automatic Gain Control Adjustment (L, L’)
To correctly align the Automatic Gain Control, follow the procedure outlined below:
1. Tune the set into a pattern generator on F-10.
2. Enter the Service Mode.
3. Press the Channel up button of Remote Control to select “Automatic Gain Control”
4. Press volume up/down to adjust to “103 dB/mV”.
5. It will be stored automatically.
6. Turn off the receiver by Main switch to exit the Service Mode.
Auto Installation On/Off
To return the receiver to the original Auto Installation mode, using the volume up or down button, set the Auto Installation
On/Off to On. This setting is automatically stored and when the receiver is turned on the next time it will start up in Auto
Installation mode.

13
28JW-74E
On Off
On Off
On Off
On Off
On Off
LED FLASHING CODES
This model is not provided with stereo led, so to let “flashing codes” for IC failures detection when the TV set does not
work, we offer the next solution:
• The detection of failure will be made with an external LED.
• The output of the flashing code will be via AV1 (pin 10).
• Insert a generic led diode between pin 10 and ground (i.e. pin 5) as shows the below picture.
Follow the sequence according to the below information, as a guide to fault finding.
1. Unable to read or write into NVM: 66% ON, 33% OFF twice and OFF for a second.
2. MSP 3410 failure: 66% ON, 33% OFF for three times and OFF for a second.
3. SDA 9380 failure: 66% ON, 33% OFF for four times and OFF for a second.
4. VSP 9402 failure: 66% ON, 33% OFF for five times and OFF for a second.
5. TDA9886 failure: 66% ON, 33% OFF for six times and OFF for a second.
21
21 19 17 15 13 11 97531
20 18 16 14 12 10 8 6 4 2

14
28JW-74E
R650
R617
R725
R723
C643
R909
R799
C705
R668
C639
D903
JF902
C903
+
C902
+
+
C634
5
(H)
J202 J203
C640
+
C520
+
BLUE
C710 R778
D717
R722 D734 D735
D736
R787
T702
R711
VR701
C713
+
+
C712
D701
D702
D704
R730
D712
C730
R798
C796
J42
C725 J35
R749
J17
L701
R441
R666
1
(MO)
4
J134
C601
C619
R651
L609
COLD
HOT
R2
1
J94
J93
J85
J84 J83
J59 J58
D607
C603
R215
J172
J133
J132
J121
J97
R1009
J171
D627
D611
R660
R603
R609
J96
D609
D718
+
C623
R614
(L2)
IC703
R718
D737
R758
R728
R779
J47
Q703
R721
Q702
(M)
1
2
3
F701
13
12
11
10
9
8
7
65
4
3
2
1
B
C
E
K
A
PRDAR1563BM
D638
Q601
J3
D617
D619
J5 J4
J1
QP
W
D610
D606 D618
20
21
21
20
(RC)
(SW1)
13 (AA)
S701
LP701
M1000
S705S704
D1001 D1002
S703
S702
K7351BM
R1036
T3.15AH
3
(ST)
11
(OPC)
3
D1017
Q602
D620
R612
7
PRDARA027WJ
DIP
(L7)
1
(VIB)
4
R770
R774
C701
C706
C721
+
C748
D752
C738
R790 D711 R757 D710 R756
D746
+
C734
L606
R530
E
Q605
B
(F)
15
R618
J82
C613
C620
+
L601
J56 J57 D510
4
(SWRC)
1
C622
PRDARA027WJ
PRDAR5531BM
PRDAR5531BM
PRDAR5531BM
1
FB601
C703
1
2
3
4
C799
R747
R746
(AV1)
R663
C1022
+
E
Q706
C
+
C626
C625
Q612
C624
C617
C628
R657
C630
C636
+
R667
C753
J194
D605
(L5)
C746
D703
J196
R714
C702
(G) 2
1
POR701
J41
+
C707
J32 J33
J34
C711
Q701
FB703
R606
C602
D729
R719
C704
+
C709
C717
C798
R755
TP601TP602
L605
+
C609
C627
JL1
R627
T601
R671
L602
+
C642
D612
D613
C621
FB603
L611
J122
JL1.
C644
+
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
X
010 11 12 13 14 15 16 171 234 56 789
Page 15

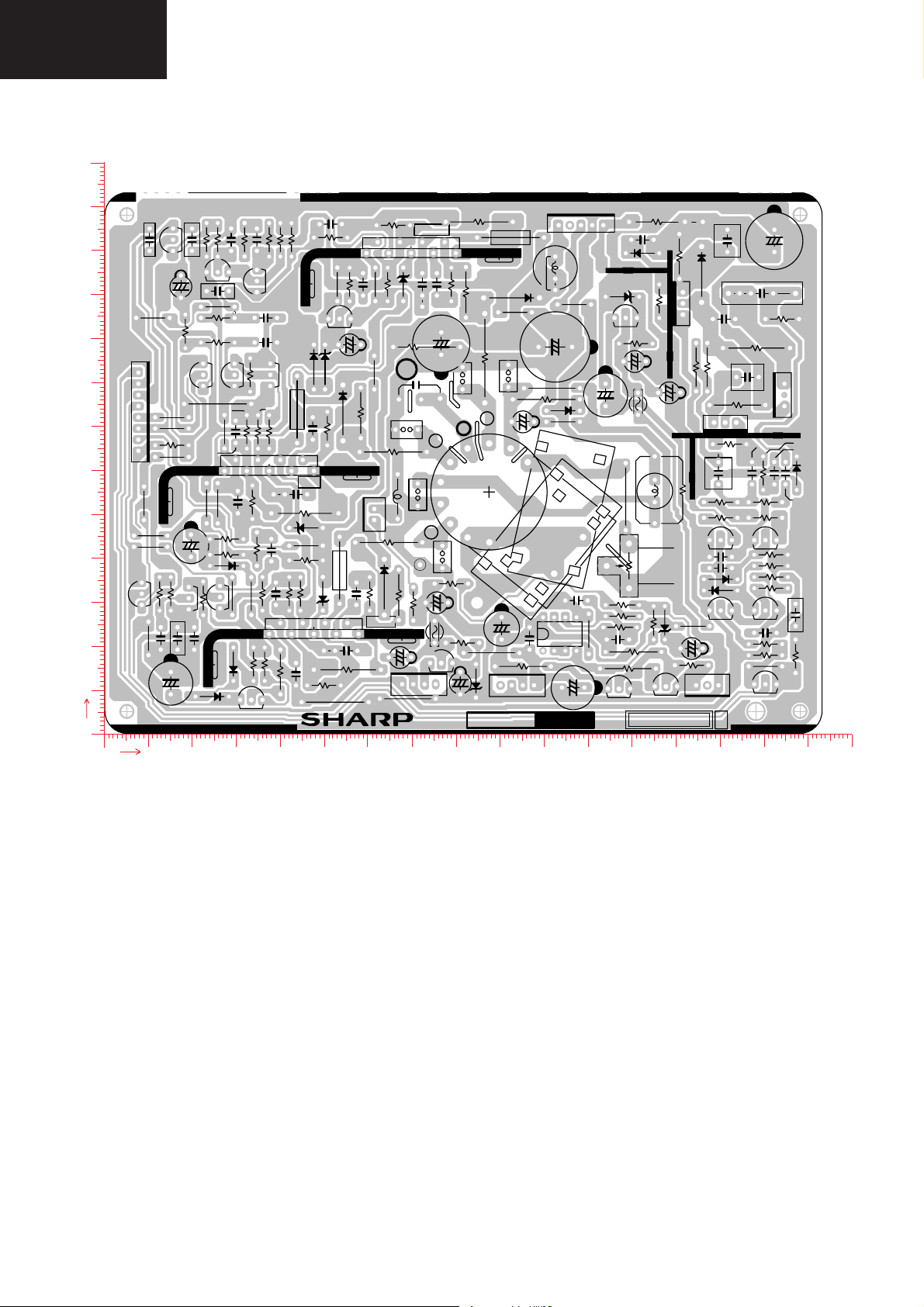

F7351N4A Mother Unit PWB. Component side.
PRINTED WIRING BOARDS

15
28JW-74E
J216
J215
L320
C757
R699
J212
L704
(VS)
J14
L702
J19
SUBWOOFER
(SB)
16
R702
J209
J214
J107 J108
C535
+
J114
J115 J200
JF70
R344
R345
R443
R442
J166
R413
(YC)
(HD)
L302
C1052
J164
J24
R797
C720
+
L705
+
C729
R733
IC702
R553
J197
J179
J205
J204
R414 R417 R416 R415
J198
R704
+
C742
BLUE
J61 J60
R505
D508
D745
J37
D720
D753
D721
J195
D727
FB701J27
F702
R441
FB301
R
666
J193
J18
D719
J44
C752
+
J182
L318
L319
C735
+
J51
C1047
+
IC704
J189
J188
J190
J191
J95
C511
+
J175
J177
C504
L501
J72
J73
J74 J76 J77 J78
J81 J80
J90 J91 J92
FB501
J180
J98
J99
J181
J102
R654
J103
J129
+
C618
R223 L202
J169 J168
J21
J22
R387
R214
J94
J93
J85 J84
J83
R423
+
C727
L303
J28
J125
A
J105
C312
CN3
J162
(RGB)
IC304
1
8
L351
L350
L316
J20
L315
1
(FV)
1
(SS)
3
C372
+
C362
+
A
IC302
10
11
(FRONT)
PWBF7351BMN4
IC301
1
10
20
(PHONE)
4
2
6
5
317
+
C363
L352
+
C351
C352
+
C378
+
C365
C388
J25
C221
+
C222 C212
+
J174
J163
(SA)
12
1
X201
J130
J151
J152
J149
SF201
1
5
J148
+
C330
L203
C422
+
J161
FB303
FB302
J153
C204
+
1
2
2
1
(AV)
TH201
AGC
TU
AS
CL
DA
B+
33V
IF1
IF2
C201
SF202
15
J147
J140
C319
J104
C302
+
C215
+
C205
R208
J167
(YB)
1
2
25
24
(YA)
1
2
25
24
(S)
+
C1031
R337
J13
IC202
R203
R202
R220
R219
D204
D205
J170
J142
J141
J139
J154
R303
R304 CN1
1
R302
R301
J158
J159
J160
+
+
C311
C309
+
C301
+
C317
J155
C318
J143 J144
J145
C316
C320
+
X301
+
C308
C304
+
+
C303
J106
10
16
ESPA¥A
C361
R358
C370
C376
R359
J16
C377
+
J23
L353
J156 J157
J173
(VIA)
T701
J128
J126
J127
J124
J11
R795
J29
R717
J79
MOD.DIGITAL
J101
IC501
20
J109
J110
IC706
C728
+
J38
J39
J30
J31
D728
R776
J40 IC708
R734
R796
J46
R1045
D1010
J49
J50
D608
J52
J53
J71 J70 J69 J68 J67 J66 J65 J64
IC305
JF23
J54
R509
C524
PRDAR5531BM
PRDAR5531BM
1
2
C799
R747
D798
+
C726
F704
J48
C389
R640
J100
C636
+
J137 J136
+
C417
R601
R738
R611 J62
JF61
JF60
L301
J88 J89
J187
J186
J185
J184
Q797
R1024
(CR)
1
TP701
J113
R213
J116 J117 J118 J119 J120
3V3 STBY
5V
1.8V
3V3
J86
J87 J201
+16V
-16V
8V MSP
+
J206
J208
D722
J207
J183
J176
R501
C732
+
IC705
C737
+
C751
+
R759
D740
R780
C733
QPWBF7351BMN4
D306
C356
R351
C526
+
J63
Q502
R555
R518
R503
JF59
J55
C536
+
FB704
J199
J131
+
C637
+
FB304
R391
R390
(FI)
R772
F7351N4A Mother Unit PWB. Component side.
Page 14
29 30 31 32 33
20 21 22 23 24 25 26 27 28 17 18 19
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
16

16
28JW-74E
K
D311
J218
J217
J216
J215
L320
K
D750
R816
C757
R699
J212
L704
C386
(VS)
J14
L702
J19
R388
J211
JF11
C1046
C1045
(SB)
R702
Q611
D637
K
C392
C341
R319
C359
C377
J214
J213
J111
R307
C313
J107 J108
D507
K
R506 R504
C535
+
J114
J115 J200
JF73
JF72
JF71
JF70
R1046
R345
R442
J166
R413
D511
K
(YC)
(HD)
J15
C385
R329
L302
C1052
D307
K
K
D308
24
13
12
1
J24
R797
C720
+
L705
+
C729
R733
R771 R735
IC702
R553
C733
C728
K
2
1
3
2
31
2
3
1
G
D
S
G
S
G
S
D
9
8
7
6
5
4
3
2
1
40
41
64
65
80
C510
J197
J179
J205
J204
1.8V
5V
3V3
STBY
3V3
+1.8V +5V +3V3 3V3 STBY
R414 R417 R416 R415
J198
R704
+
C742
K
D431
C395
C344
R323
J61
R505
D508
D745
J37
D720
D753
D721
J195
D727
FB701
J27
F702
R441
FB301
R554
R531
R638
R605
R320 C340
C342
C522
C502
C503
R510
C507
J193
J18
D719
R420
C506
J44
C752
+
J182
L318
L319
C735
+
R761
R777
Q710
R794
J51
C1047
+
C743
R1025
C741
IC704
R1047
Q1011
J189
J188
J190
J191
J95
C511
+
J175
J177
R516
C504
IC502
L501
R545
R535
R548
R549
R512 R537 R536
R502
C525
R515
R544 R513
R534
Q1010
IC503
R526
R514
J72 J73 J74 J76 J77 J78 J81 J80
J90
J91
J92
C534
FB501
C505 C508
R511
J180
J98
J99
J181
J102
R654
J103
J129
+
C618
K
D615
R656
R223
L202
J169 J168
J21 J22
R387
Q505
R214
J94
J93
J85
J84
J83
R423
C727
L303
J12
J28
J125
IC7
0
D422
K
R411
R410
D423K
C213
JF6
JF7
JF5 R204
J105
C311
D305
C327
C326
R322
1
CN3
J162
R333 C383
R335
C387
R336
C384
R334
R332
IC304
8
C1044
L351
L350
R330
R328
C381
R353
C360
JF29
JF28
L316
J20
L315
1
(FV)
(SS) 1
3
C372
+
R374
C371
C374
C366
R356
C367
C369
C368
C373
C379
R338
C390
C391
J7
J9
C416
C357
R375
+
C362
C358 C354
C364
C350
R352
IC302 1120
(FRONT)
IC301
11
20
QWBF7351BMN4
+
C363
L352
C351
+
C352
+
C378
+
C365
C388
J25
C323 C324
C325
C322
C321
C328
C329
C315 C314
C403
R407
R305
R306
KD425
C338
R321
C221
+
C222
C347
C219
C206
R206
R217
C214
JF9
C211
C212
+
J174
R212
R210
C209
R201
C207
R207
Q403
R422
(SA)12 1
X201
R230
C203
C202
C208
JF10
J130
J151
J152
K D203
K D202
K D201
J149
J148
+
C330
L203
C422
+
J161
FB303
FB302 J153
C204
+
L205
IF2
IF1
B+
DA
CL
AS
TU
TH201
IC201
SF202
J147
IC303
24
J140
C319
Q201
J104
D411K
C302
+
C215
+
C205
R209
R211
C210
R208
R225
JF8
R231
R324
R326
C348
R327
R325
J167
C343
K
D426
C337 R409
R408
A
(YA)
25
24
1
2
(YB)
1
2
25
24
C375
R357
(S)
C353
Q305
+
C1031
R382
C1043
C382 C380
R331
R337
J13
Q202
J164
IC202
R240
R203
R202
R220
R219
D204
D205
J170
J142
J141
J139
J154
R303
R304
CN1
Q306
R385 R362 R384
R302 R301
J158
J159
J160
+
C312
+
C309
+
C310
D723
K
D303
K
C301
+
K
D302
C317
R421
K D410
K
D406D409K
J155
C318 J143
J144
J145
C316
R310
R313
R312
R311
C320
+
X301
+
C308
C307
K D408
R419
KD407
R418
C304
+
K
+
C303
R309
R370
J106
10
16
C361
R358
C370
C376
R359
J16
+
J23
L353
R452
K
D405
R412
C433
J156 J157
J173
(VIA)
K
D
J163
J128
J126
J127
J124
J11
R795
R739
J29
R717 R740
D748
K
J79
MOD.DIGITAL
MOD.DIGITAL
R308
R369
Q606
J101
IC501
J109
J110
IC706
C731
J38
J39
J30
J31
D728
R776
J40
IC708
R734
R796
J46
R1045
D1011
K
D1010
J49
J50
D608
J52
J53
C736
J71 J70 J69 J68 J67 J66 J65 J64
IC305
JF23
J54
R509
C524
C749
C708
R1039
J6
J8
R747
C406
D798
C726
R436
F704
J48
R339
C389
J192
R634
C633
R640
+
R641
C629
R633
KD636
D633
KD631
K
C540
R644
J137
J136
+
C417
R4
3
R440
Q407
R601
R738
J62
JF61
JF60
J88 J89
J187
J186
J185
J184
Q797
R775
Q796
C218
R736
C739
R1024
R428
(CR)
R438
R437
R
C345
R316
C334
K
D429
C336
C331
K D430
KD434
C393 R343
C394 R341
D436
K
K
D437
K
D424
C346
C339
R318
R314
C333
R427
C1023 R424
J113
R213 J116 J117 J118 J119 J120
R221
R222
2
1
GND
J86
Q503
J87
J201
+
J206
J208
D722
C740
J207
J183
J176
R501
R742
C732
R737
R741
IC705
R745
R744
C722
R766
C737
R764
C751
+
R765
D747
K
Q708
Q709
R767
R759
150V
D740
R780
R346
J60
D306
R355
R350
D304 K
L802
JF62 R815
C817
C356
R351
C526
+
J63
Q502
R555
R518
R503
JF59
J55
C536
+
J199
J131
R389
R360
Q309
Q308
R380
Q307
D310
K
C396 C397
C398
R622
R743
J
+
C637
R635
C632
R639
C644
+
FB304
R1026
R391
R390
R1051
R1056
R1044
Q1004
R655
R673
R205
J146 JF54
(FI)
J210
C3313
C305
C306
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
F7351N4A Mother Unit PWB. Copper side.
Page 17
19 18 17 16 29 28 27 26 25 24 23 22 21 20
33 32 31 30
X

17
28JW-74E
R650
R617
K D731
C723
R731
D730K
R725 D732 K
D733
K
R723
IC601
C631
K
D624
K
D616
D625
K
C643
R909
JF901
43
61
R799
C705
C714
(AV1)
R908
K
D902
JF63
R608
R610
C639R668
R616
C608
R620
C612
R903
R904
Q901 R902
JF902
K
D901
C903
+
R906
C902
+
R905
C901
Q902
+
C634
(H)
K
D1018
D639
K
R661
R706
G
S
S
D
G
S
G
D
GS
D
G
S
D
D
S
G
J202 J203
C640
+
C520
400V
25V
-13V
13V
R787
C710
Q723
R778
D717
R722
D734
D735
D736
D725
K
D708
K
C610
T702
R711
Q707
VR701
C713
+
+
C712
D701
D702
D704
R730
D712
C730
K
D743
R798
J42
C725
J35
R749
J17
12
34
D642
K
R665
4
41
R666
5
54
R643
C541
5
31
R638
6
05
D1021
K
R1050
(MO)
J134
J150
D1019
K
D1020K
R1010 C1049 R1049
C601
F7351BMN4
R631
JF1014
JF1013
JF1015
JF1016
JF1012 JF1011 JF1010 JF1009
R651
L609
Q613
R214
J84
J83
J59 J58
D607
C603
R215
J172
J133 J132
K
D604
J121
J97
K
D640
R1009
J171
D627
D611
R660
R609
J96
D609
D718
C623
+
R614
R700
C724
C719
IC703
R718
D737
C716 R727 R781
R758
R729
R728
R779
J47
Q703
R721
Q702
3
2
1
(M)
F701
A
13 12
11
10
9
8
7
65
4
3
2
1
C412
C432
J165
R453
R405
R451
D638
K
A
E
C
B
Q601
R1032
D617
D619
J5
J4
J3
J1
D610
..
D606
D618
C403
R407
R425
D427
K
(AV)
KD404
4
11
D403
K
8
(RC)
(SW1)
(AA)
31
S701
LP701
AM1000 S705 S704
D1001
D1002
S703
S702
Q1002
(ST) (OPC)
Q1003
JF151
R1037
R1015
R1014
R1013
D1017
R1099 R1017
JF153
Q602
D620
Q603
R607
R612
Q604
Q608
R1031
R1030 R1053
JF56
710
16
K
D402
JF24
(VIB)
K D420
R770
R774
C701
C706
C721
+
C748
D752
C738
R790
D711
R757
D710
R756
J36
Q714
D746
R791
R793
R768
Q713
+
R792
L606
R530
C605
Q605
C604
(F)
1
2
R618
J11
J82
R645
C613
C620
+
C622
L601
J56 J57
D510
D512
K
JF1008 JF1007
JF1006 JF1005 JF1004 JF1003 JF1002 JF1001
C708
(SWRC)
R1055
1
C796
HOT
COLD
R732
C715
Q724
C718
R726
R629
R628
FB601
C703
C799
R747
R663
C1022
+
JF58
E
C
Q706
R707
D713
K
R630
Q614
R664
+
D623
K
Q609
D622
K
Q612
K
D641
C624 C617
C628
R657
C630
R658
C635
R637
R632
J192
6
R667
C753
J194
Q406
R439
R440
C746
D703
J196
R714
C702
21
(G)
POR701
K
D714
Q704
R752
D707
K
R748
R701
K
D741
Q705
R754
R703
R786
Q712
J41
R716
+
IC701
R788
R785
R789
J32 J33 J34
Q721
R750
R705
R712
R783
R710
R709
C711
C755
R715
R782
R751
C754
R773
C756
R708
R784
K
D715
Q701
FB703
R606
R426
C602
R662
K
D643
D729
R719
KD716
R753
Q720
64
31
IC709
C704
+
R713 C798
3
8
R437
R406
L605
+
C609
C627
R621
23
41
Q
503
R627
R907
C905
C904
C606
K
D644
R623
Q607
R669
C607
R604
R670
G
T1 T2
T601
L602
L611
+
C642
D612
D613
C641
FB603
C906 C907 C908
R901
D904
K
R910
R626
R1019
JF55
R1042
J122
3
5
3
2
R639
R760
R672
+
K
D421
F7351N4A Mother Unit PWB. Copper side.
Page 16
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
1
Y
X
0
10 987654321
17 16 15 14 13 12 11

18
28JW-74E
F7269N4 CRT Unit PWB
Component side
R5418
RED
C1614
J16
+
C1612
JF8
R5431
R5433
C5427
R5434
R5432
R5435
R5427
C888
JF3
R5438
C
Q855
E
R855
E
Q853
C
E
Q852
C
R857 C854
JF6
+
C887
JF4
R1623
E
Q1603
C
J5
+
C1608
R1620
R876
R1619
D871
J15
SG862
R5420
C5410
D5410
R5425
CQ5406
E
C5420
C5424
R5446
R889
D861
R887
J24
L863
D5409
C
Q5405
E
C5407
C890
D5408
E
Q5411
CC
Q5412
E
CQ5410
E
C5421
D5404
J19
+
C868
SG865
J23
+
C894
JF1
D870
J21
R891 SG861
C869
R893
R854
IC1601
1
R1621
+
C1609
R1622
(MO) C1613
+
E
Q1604
C
D867
D866
D865
C5414
+
D851
E
Q851 B
J17
C
Q859
E
J18
FB852
R897
J14
SG860
D862
C
Q856
E
R873 R870 R867 R869 R864
C889 C859
J4
Q5408
BE
SG863
C857
C856
C852
C885
C
Q854
E
E
B
Q5407
C862
R868
J6
R895
C874
9
1
IC851
R875 R883
FB851
R5415
C5417
8
1
J3
J12
FB850
J7
C861
R860
R858
IC850
19
C881
R850
J9
R863
J8 J1
C871
R872
C880
R880
R888
R852
R853
R859
IC852
19
C877
R856
D852
J13
R861
C882 C883 R851
C853
+
(G2)
L2
L3
ESPA¥A
F7269BMN4
K7269BM
C884
SC861
5
6
7
8
9
10
11
12
4
R1801
(B)
1
.
+
C863
D868
D869
+
C851
C855
R5439
C892
D864
R865
R862
R5440
C893
R5443 R5445
C5408
C5409 R5419
D5403
C5411
R5442
R5424
R5417
C5422
R5444
3
1
(K)
(H)
(SVM)
B
Q5414
E
R5436
+
C850
+
C5419
J25
D5411
+
C5418
R5437
J11
L864
R871
C1611
R1615
R1616
R1618
C1610
D1607
R1617
R1624
J20
R894
R892
D863
+
C5425
R5448
R5449
C5426
+
R884
(Q)
1
B
Q5415
E
(RT)
L1603
1
R5447 C5405
JF2
R886
R866
C865
R881
J10
R882 R874
C
Q860
E
R885
E
Q861
C
JF7
JF5
C
Q857
E
E
Q858
C
C891
R
G
B
R5441
BLUE
GREEN
+
C895
R5416
R5421
11
12
13
1
2
3
4
5
6
7
8
9
10
Y
X
010 11 12 13 14 15 16 17
123456 7 8 9

19
28JW-74E
F7269N4 CRT Unit PWB
Copper side
R5418
G
R
B
C1614
J16
+
JF8
R5431
R5433
C5427
R5434
R5432
R5435
R5427
C888
JF3
R5438
Q855
C
E
R855
E
C
Q853
E
C
Q852
R857
C854
JF6
+
C887
JF4
R1623
EC
Q1603 J5
+
C1608
R1620
R876
R1619
D871
J15
SG862
R5420
C5410
D5410
R5425
Q5406
C
E
C5420
C5424
R5446
R889
D861 R887
J24
L863
D5409
Q5405
C
E
C5407
C890
D5408
E
C
Q5411
Q5412
CE
Q5410
C
E
C5421
D5404
J19
+
C868
R5441
SG865
J23
+
C894
JF1
D870
J21
R891
SG861
C869
R893 R854
IC1601
14
8
R1621
+
C1609
R1622
(MO)
C1613
+
EC
Q1604
D867
D866
D865
C5414
D851
Q851 E
B
J17
Q859
C
E
J18
FB852
R897
J14
SG860
D862
Q856
C
E
R873 R870 R867
R869 R864
C889
C859
J4
Q5408B
E
SG863
C857
C856
C852
C885
Q854
C
E
E
B
Q5407
C862
R868
J6
R895
C874
IC851
19
R875
R883
FB851
R5415
C5417
8
1
J3
J12
FB850
J7
C861
R860 R858
91
IC850
C881
R850
J9
R863
J8 J1
C871
R872
C880
R880
R888
R852
R853
R859
91
IC852
C877
R856
D852
J13
R861
C882
C883
R851
C853
+
C884
4
56
78
9
10
11
12
SC861
R1801
(B)
F7269BMN4
(RT)
.
+
C863
D868
D869
+
C851
C855
R5439
C892
D864
R865
R862
R5440
C893
R5443
R5445
C5408 C5409 R5419 D5403
C5411
R5442
R5424
R5417
C5422
R5444
3
1
(SVM)
(H)
(K)
BE
Q5414
R5436
+
C850
+
C5419
J25
D5411
+
C5418
R5437
J11
L864
R871
C1611
R1615
R1616
R1618
C1610
D1607
R1617
R1624
J20
R894
R892
D863
+
C5425
R5448
R5449
C5426
+
R884
(Q)
1
BE
Q5415
L1603
R5447 C5405
JF2
R886 R866
C865
R881
J10
R882
R874
Q860
C
E
R885
E
C
Q861
JF7
JF5
Q857
C
E
E
C
Q858
C891
+
C895
R5416
R5421
Y
11
12
13
1
2
3
4
5
6
7
8
9
10
X
0
10 9876 54 3 2117 16 15 14 13 12 11

20
28JW-74E
J4 J95
C6058
R6041
C6061
Q6008
R6069
JF6009
C6012 C6011
R6049
JF6010
JF6004
FB6049 FB6050
C6044
C6047
C6046
C6048
FB6028
C6122
R6006
J94
C6003
R6058
R6060
R6059 C6067
C6066
C6023
R6053
C6139
C6140
J107
J106
C6024
K D6011
R6042
R6054
R6055
C6068
R6056
J80
K D6015
J103
J100
C6114
J49
C6027
C6026
C6028
C6029
FB6027
C6126
FB6032 FB6033
C6127 C6049
C6050
J26
C6034
R6052
C6038
FB6018 FB6016
FB6017
C6115
FB6007
R6040
J77
Q6003
KD6014
R6017
Q6004
C6136
FB6044
C6137
FB6040 FB6041 FB6042 FB6043
J12
C6036 R6031 R6033 R6034
R6032
C6128 C6129 C6130 C6131 C6132
FB6034
J79
C6119
FB6021
C6117
FB6019
C6118
FB6020
FB6031
C6125
FB6030
C6124 C6123
FB6029
C6051
FB6035
C6056
C6102
FB6004
C6103
FB6005
C6104
FB6006
C6116
FB6014
C6112
FB6013
C6111
C6110
FB6012
C6109
FB6011
C6108
FB6010 FB6009
C6107
FB6008
C6106
C6064
KD6001
C6053
R6009
KD6002
R6008
C6006
JF6006
Q6001
R6012
C6045
C6055
R6035
1
30
31
5051
80
81
100
IC6001 IC6007
80
6160
41
40
21 20
1
1
16 17
32
33
48
49
64 IC6006
R6037 R6036 C6039
C6040
C6020 C6021 C6022
J17
C6042
R6011
C6017
C6018
JF6005
JF6007 R6047
JF6008
C6010
R6048
KD6003
J22
J7
FB6026
IC6003
C6054
FB6048
C6121
FB6025
C6120
FB6024
FB6023
FB6022
R6050
J63
C6101
C6030
C6065
R6016
R6051
FB6039
D6004K
Q6002
R6029
C6031
KD6010
R6015
C6062
C6063
C6060
R6023
C6141
C6138
J101 J102
C6033
K D6005
R6018
R6007
C6004
C6005
C6059
R6057
FB6036 FB6037
FB6038
JF6014
J104
R6064
R6062
J27
C6144
R6044
J105
Q6007
JF6002
JF6003
R6045
C6016
C6013
J68
C6015
C6009
R6002
R6003
C6008
R6001
C6007
C6146 C6145
R6066 R6065
J108
R6013 R6010
J23 C6057
+
C6037
X6001
C6069
+
C6052
+
J20
JL2.
J16
J14
+
C6041
J3
J93
J2
J25
C6025
+
J39
C
Q6005
E
J96 J36
J86
X6002
J40
J64
F7353BMN1
R6019
FB6046
FB6047
J48
R6020
R6021
R6039
R6038
J32 J33 J34
J21
J19
+
C6001
1
6
(VI)
J10
J11
L6003
J8
J37
+
C6043
J13
J92
(K)
112
(RT)
IC6002
(YB)(YA)
J59
FB6003
J67 J69
J60
J73
E
Q6006
C
R6043
FB6001
J75
ESPA¥A
IC6005
1
J57
R6014
J53
J58
J42
J15
FB6002
J52
R6005
J56
J61
K7353BM
L6004
L6006
J54
.
J82
J83
J84
J35 J41
D6012
R6026 R6024 J24
FB6045
R6004
J9
X6003
R6046
L6002
L6005
L6001
JL2
J74
C6143
J1
JF6013
JF6012
JL1.
R6061
R6063
C6035
J91
L6008
J90
J65
+
C6070
+
C6014
L6007
J85
R6068
1
3
(YC)
F7353N1 TVTextPRO Digital Module Unit PWB
Component side
F7353N1 TVTextPRO Digital Module Unit PWB
Copper side
1
2
3
4
5
6
7
Y
X
010 11 12 13 14 15 16 17
123456 7 8 9
8
Y
X
1
2
3
4
5
6
7
0
10 987654 321
17 16 15 14 13 12 11
8
