Sharp 19PR100 User manual

1
COLOR TELEVISION
Chassis No. CD-A
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its
original condition and only parts identical to those specified should be used.
»ELECTRICAL SPECIFICATIONS......................................................................................................... 1
»IMPORTANT SERVICE SAFETY PRECAUTION ................................................................................. 2
»LOCATION OF USER'S CONTROL.....................................................................................................4
»INSTALLATIONAND SERVICE INSTRUCTIONS................................................................................5
»CHASSIS LAYOUT............................................................................................................................10
»BLOCK DIAGRAM.............................................................................................................................11
»SCHEMATIC DIAGRAMS..................................................................................................................12
»PRINTED WIRING BOARD ASSEMBLIES........................................................................................15
»REPLACEMENTPARTS LIST...........................................................................................................18
»PACKING OF THE SET.....................................................................................................................23
Page
SHARP CORPORATION This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
CONTENTS
SERVICE MANUAL
POWER INPUT................................120 V AC 60 Hz
POWER RATING .............................................69 W
PICTURE SIZE.......................1,194cm2(185sq inch)
CONVERGENCE........................................Magnetic
SWEEP DEFLECTION................................Magnetic
FOCUS...........................Hi-Bi-Potential Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ................. 45.75 MHz
Sound IF Carrier Frequency .................. 41.25 MHz
Color Sub-Carrier Frequency ................ 42.17 MHz
(Nominal)
ELECTRICAL SPECIFICATIONS
AUDIOPOWER
OUTPUTRATING...........1.0 W (at 10% distortion)
SPEAKER
SIZE ..................................................8 cm (Round)
VOICE COILIMPEDANCE...........8 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF................................ 75 ohm Unbalanced
TUNING RANGES
VHF-Channels.......................................... 2 thru 13
UHF-Channels........................................ 14 thru 69
CATV Channels ...................................... 1 thru 125
(EIA, Channel Plan U.S.A.)
Specifications are subject to change without
prior notice.
MODELS 19PR100
19PR100

2
IMPORTANT SERVICE SAFETY PRECAUTION
ËService work should be performed only by qualified service technicians who are thoroughly
familiar with all safety checks and the servicing guidelines which follow:
4A 125V
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic-
ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)
1. Picture tube in this receiver employs integral
implosion protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
X-RADIATION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation.
The only potential source of X-ray in current solid
state TV receivers is the picture tube. However, the
picture tube does not emit measurable X-Ray
radiation, if the high voltage is as specified in the
"High Voltage Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage shouldalways bekept attherated value
-no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the highvoltage regulatoris operating properly
there is no possibility of an X-radiation problem.
Everytime acolor chassisis serviced,the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
notexceed the specifiedvalue and thatit is regulating
correctly.
5. Do not use a picture tube other than that specified
ormake unrecommended circuit modifications tothe
high voltage circuitry.
6. When troubleshooting andtaking testmeasurements
onareceiver with excessivehighvoltage, avoid being
unnecessarily close to the receiver.
Donot operate thereceiver longer than is necessary
to locate the cause of excessive voltage.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.
4. Thechassis in thisreceiver has two ground systems
whichare separatedby insulating material. The non-
isolated (hot) ground system is for the B+ voltage
regulatorcircuit andthe horizontaloutput circuit.The
isolatedground systemis forthe lowB+ DC voltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE 4A-
125V FUSE.
19PR100

3
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarilyincreasedby using replacementcomponents
rated for higher voltage, wattage and etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators and etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
»Plug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
»Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15mF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to earth ground.
»Use anAC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitutereplacementparts which donothave the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
»Connectthe resistor connection to allexposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon and etc.) and measure the AC voltage
drop across the resistor.
AII checks must be repeated with the AC ine cord
plug connection reversed. (If necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Anycurrent measuredmust notexceed 0.5milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
1.5k ohm
10W
0.15µF
TEST PROBE
CONNECT TO
KNOWN EARTH
GROUND
TO EXPOSED
METAL PARTS
19PR100

4
LOCATION OF USER'S CONTROL
19PR100

5
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIATION PROTECTOR CIRCUIT TEST
After service has been performed on the horizontal
deflection system, high voltage system, +B system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1) Apply 120V AC using a variac transformer for
accurate input voltage.
2) Allow for warm up and adjust all customer controls
for normal picture and sound.
3) Receive a good local channel.
4) Connect a digital voltmeter to TP653 and make sure
that the voltmeter reads 21.3 ±1.5 V.
5) Apply external 28.9V DC at TP653 by using an
external DC supply, TV must be shut off.
6) To reset the protector, unplug theAC cord and make
ashort circuit betweenTP651andTP652. Nowmake
sure that normal picture appears on the screen.
7) If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before
the set is returned to the customer.
HIGH VOLTAGE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120VAC
line voltage, with a strong air signal or a properly
tuned in test signal.
3. Enter the service mode and select the service
adjustment "S19" and Bus data "01" (Y-mute on).
4. The voltage shouldbe approximately,26.0kV(atzero
beam).
If a correct reading cannot be obtained, check
circuitry for malfunctioning components. After the
voltage test, make Y-mute off to the normal mode.
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2)Before performing adjustments, the TV set must be on at least 15 minutes.
19PR100

6
Figure A.
S01 02
CHANNEL
SERVICE ADJUSTMENT NUMBER
DATA NUMBER
S01 D:00
For adjustments of this model, the bus data is converted to various analog signals by the D/A converter
circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage.
Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if serv-
ice adjustments are required.
1. Service mode
Before putting unit into the service mode, check that
customer adjustments are in the normal mode. Use
the reset function in the video adjustment menu to
ensure customer controls are in their proper (reset)
position.
2. Service number selection
Once in the service mode, press the Ch-up or Ch-
down button on the remote controller or at the set.
The service adjustment number will vary in
increments of one, from "S01" to "OP". Select the
item you wish to adjust.
3. Data number selection
Press the Vol-up or down button to adjust the data
number.
To enter the service mode and exit service
mode.
While pressing the Vol-up and Ch-up buttons at the
sametime, plug the AC cord into a wall socket.
Now the TV set is switched on and enters the service
mode.
To exit the service mode, turn the television off by
pressing the power button.
55(085)
19PR100

7
SERVICE
NUMBER DATA ADJUSTMENT CONTENTS
ADJUSTMENT ITEM RANGE
INITIAL VALUE
S01 PICTURE 55 00-7F
S02 TINT 46 00-7F
S03 COLOR 32 00-7F
S04 BRIGHTNESS 40 00-7F
S05 SHARPNESS 28 00-3F Must be set to "24"
S06 VERTICAL PHASE 00 00-07 Must be set to "00" ~ "03"
S07 HORIZONTAL PHASE 12 00-1F
S08 RF-AGC 23 00-3F
S09 VERTICAL AMP 20 00-3F
S10 VCO 2C 00-7F
S11 R CUT-OFF 00 00-FF
S12 G CUT -OFF 00 00-FF
S13 B CUT-OFF 00 00-FF
S14 G GAIN 7F 00-FF
S15 B GAIN 7F 00-FF
S16 TRAP(3.58MHz) 00 00 or 01 Must be set to "00"
S17 BALANCE 20 00-3F Must be set to "20"
S18 C.C.POSITION 17 00-7F
S19 Y-MUTE 00 00,01,03 "00" = NORMAL, "01" = No Y, "03" = No VERTICAL
S20 ENERGY SAVE OFFSET 20 00-3F Must be set to "23"
S21 D.D.E.OFFSET 03 00-1F Must be set to "03"
S22 OSD SETUP 00 00-03 Must be set to "00"
S23 TUNER SETUP 00 00-01 Must be set to "00"
OP OPTION 30 00-FF Must be set to "02"
NECESSARY UNNECESSARY
ADJUSTMENT NOTES
PART REPLACED
IC2001
IC2101 X
CRT X
IC201 X
XData is stored in IC2101.
The adjustment is needed to compensate for characteristics
of parts including IC201.
Holding down both the CH-up/down buttons on the TV set in
the service mode for more than 2 seconds will automatically
write the above initial values into IC2101.
Adjust items related to picture tube only.
Table - A
Holdingdown boththe CH-up/downbuttons ontheTV setat servicemode for more than 2seconds willautomatically
write the above initial values into IC2101.
Table - B
19PR100

8
ËSERVICE ADJUSTMENT
VCO Adjustment
1. Connect a digitalvoltmeter betweenpin(44) ofIC201
and ground.
2. Receive a good local channel.
3. Enter the service mode and select the service
adjustment "S10".
4. Adjust the data so that digital voltmeter reads 2.2V.
5. Adjustment is completed, remove the voltmeter,
return to "normal" mode.
RF AGC Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S08".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confirm that no noise or
beat appears.
Note 1: You will have to come out of the service
mode to select another channel.
Note 2: Setting the data to "00" will produce a black
raster.
Screen Adjustment
1. Connect a digital voltmeter between TP852 and
TP853 on the CRT Unit.
Note: These test points may not be provided.
Then connect the voltmeter to both ends of
R852 located near Q852 on the foil side.
2. Receive a good local channel.
3. Enter the service mode and select the service
adjustment "S03" and set the data value to "00" to
set the color level to minimum. (Record original data
code under adjustment "S03" before changing) You
may skip this step, if you selected a B/W picture or
monoscope pattern.
4. Select the service adjustment "S19" and adjust the
data value to "01", this turn off the luminance signal
(Y-mute).
5. Select the service adjustment "S04" and adjust data
value to obtain 0.17 volts on the digital voltmeter.
6. Adjust the master screen cotrol until the raster
darkens to the point where raster is barely seen.
7. Adjust the service adjustments "S11" red, "S12"
green and "S13" blue to obtain a good grey scale
with normal whites at low brightness level.
8. Select the service adjustment "S19" and reset data
to"00".Select theserviceadjustment "S03"andreset
data to obtain normal color level.
9. Remove digital voltmeter, and reset the master
screen control to obtain normal brightness range.
White Balance Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "S03" and set to "00" (minimum
color)(Record original data code under adjustment
"S03" before changing). "S03" does not have to be
adjusted,if you selecteda B/Wpictureor monoscope
pattern.
3. Alternately adjust the service adjustment data of
"S14" and "S15" until a good grey scale with normal
whites is obtained.
4. Select the service adjustment "S03" and adjust data
to obtain normal color level.
Sub-Picture Adjustment
1. Receive a good local channel.
2. Make sure the customer picture control is set to
maximum.
3. Enter the service mode and select the service
adjustment "S01".
4. Adjust the data value to achieve normal contrast
range.
Sub-Tint Adjustment
1. Receive a good local channel.
2. Set customer tint control to center of it's range.
3. Enter the service mode and select the service
adjustment "S02".
4. Adjust"S02" data valueto obtainnormal flesh tones.
Sub-Color Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position .
3. Enter the service mode and select service
adjustment "S03".
4. Adjust "S03" data value to obtain normal color level.
19PR100

9
DESCRIPTION OF SCHEMATIC DIAGRAM
NOTES:
1. The unit of resistance "ohm" is omitted.
(K=k Ω =1000 Ω ,M=M Ω )
2. All resistors are 1/10 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted.
(P=pF= µµ F)
4. (G) indicates ± 2% tolerance may be used.
5. indicates line isolated ground.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltageset at120V ACandall controlsset fornormal
picture unless otherwise indicated.
2. All voltages measured with 1000 µ V B & W or Color
signal.
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color.The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
å AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
' MARK= X-RAY RELATED PARTS.
This circuit diagram is a standard one, printed
circuits may be subject to change for product
improvement without prior notice.
WAVEFORMS
1.2
1160
1.4
1.0
25
220
105
1.0
47
150
95
0.9
4.6
133
105
5.0
0.7
220
5.0
33
1.7
2.1
39.0
0.7
1.0
19PR100

10
654321
A
B
C
D
E
F
G
H
CHASSIS LAYOUT
NORMAL
PR701
C708
19PR100

11
654321
A
B
C
D
E
F
G
H
BLOCK DIAGRAM
19PR100

12
87 109654321
A
B
C
D
E
F
G
H

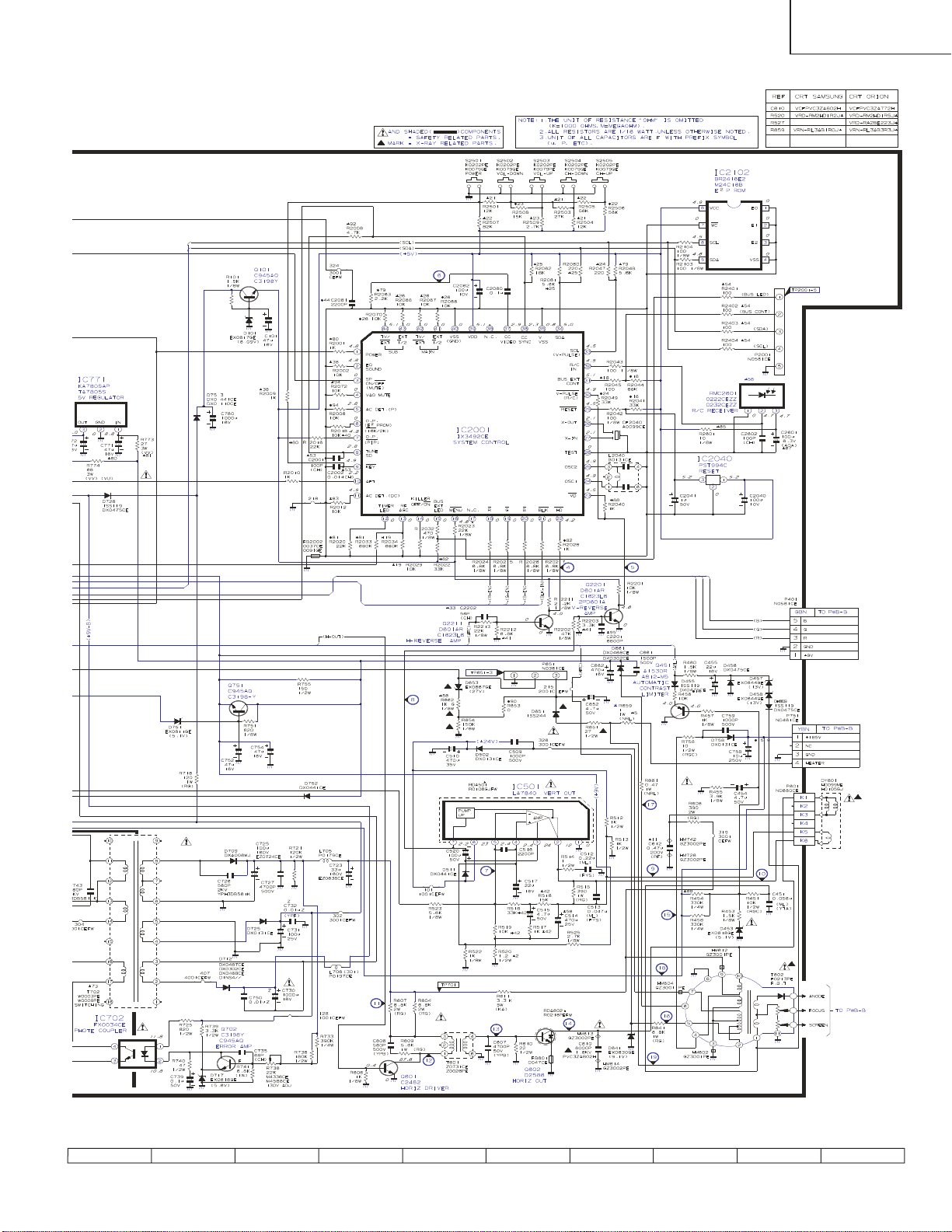

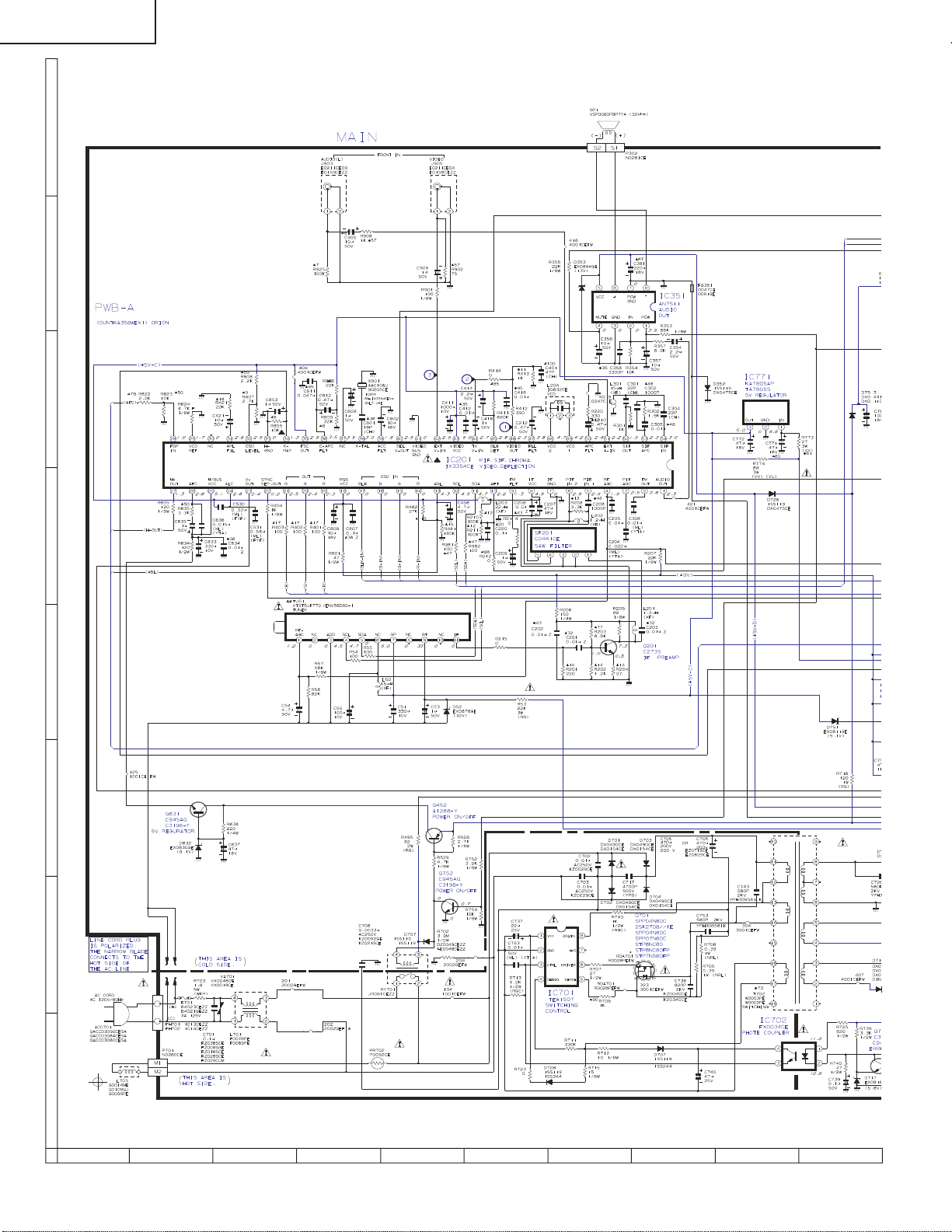

SCHEMATIC DIAGRAM: MAIN-1 Unit
19PR100

13
1716 1918151413121110
19PR100

14
654321
A
B
C
D
E
F
G
H

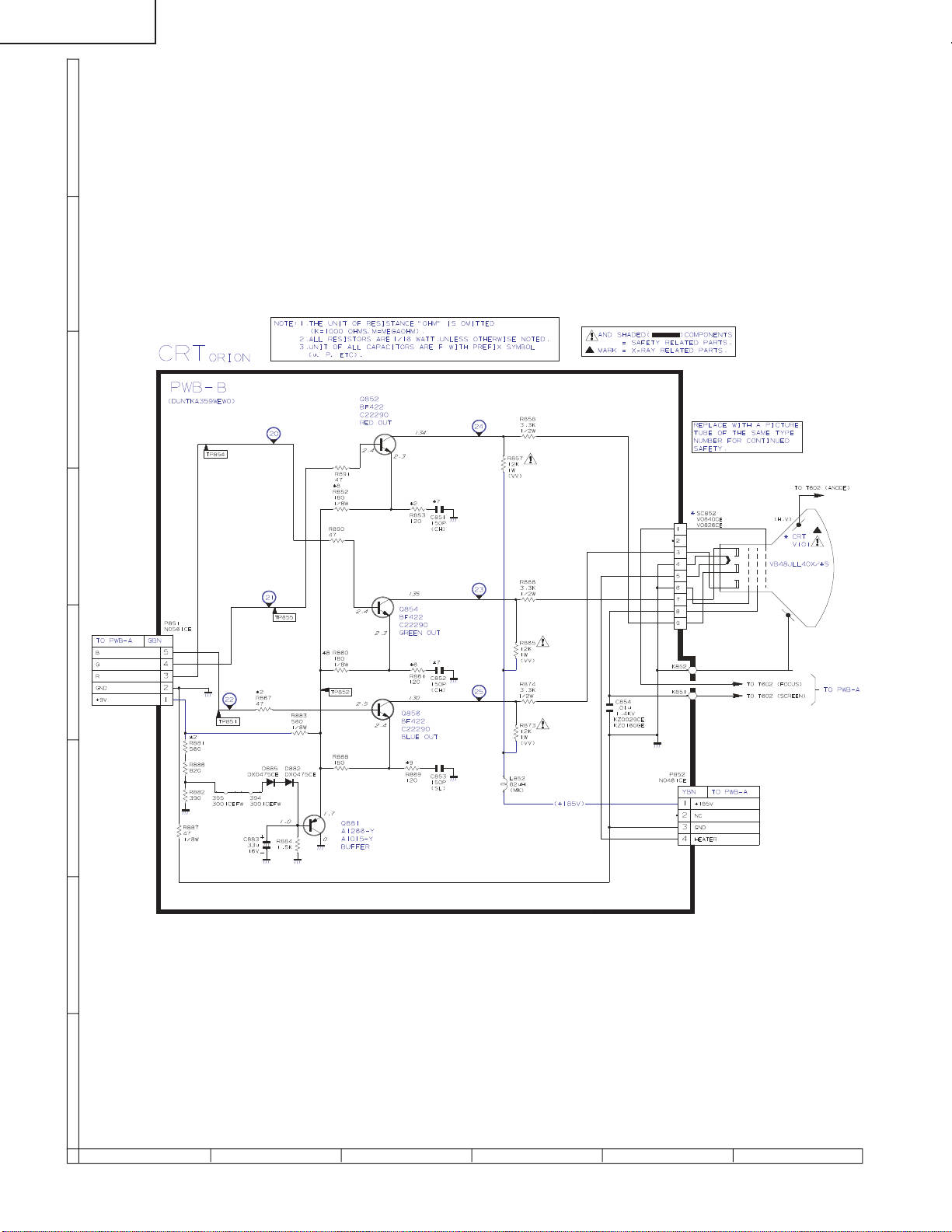

SCHEMATIC DIAGRAM: CRT Unit
19PR100

15
654321
A
B
C
D
E
F
G
H

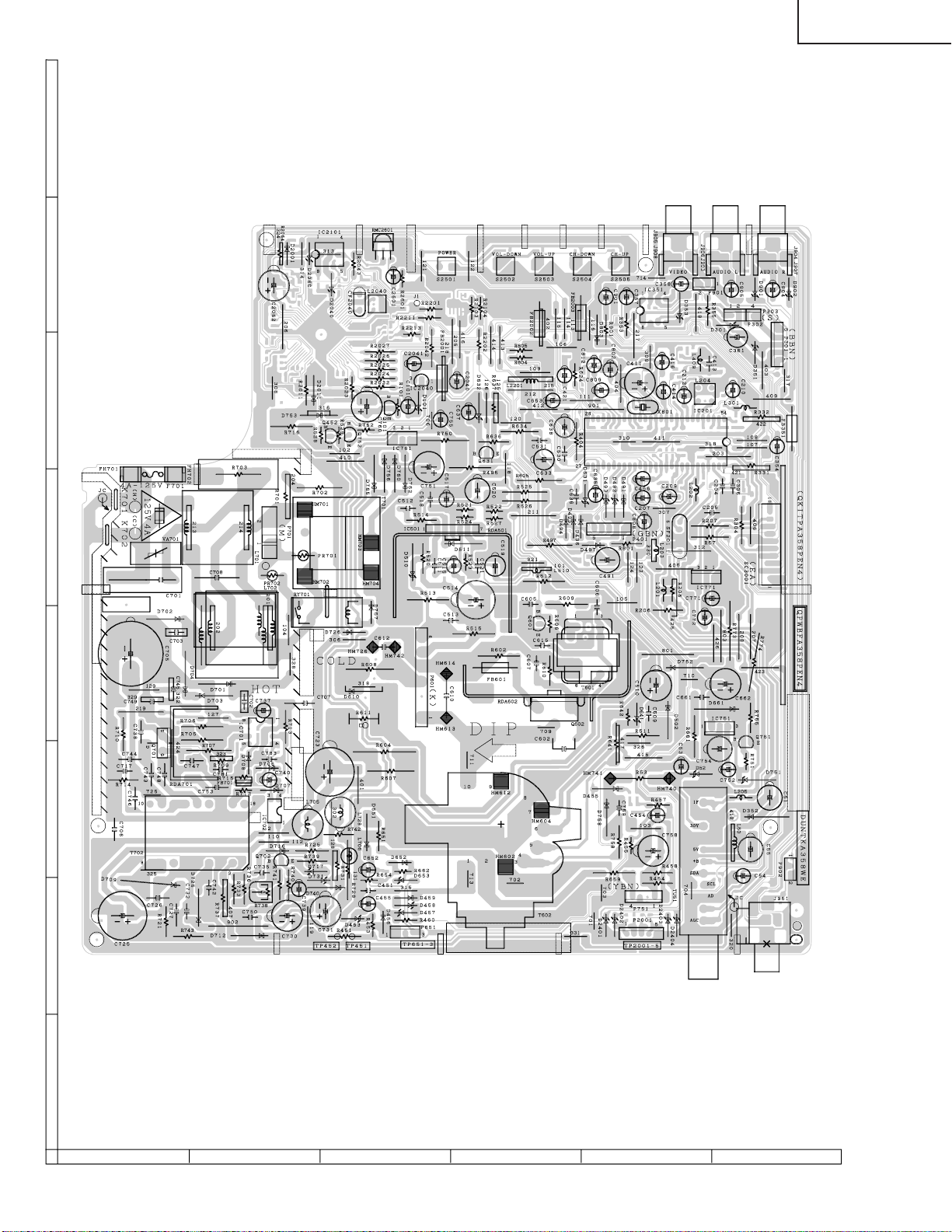

PWB-A: MAIN Unit (Wiring Side)
PRINTEDWIRING BOARD ASSEMBLIES
19PR100

16
654321
A
B
C
D
E
F
G
H
PWB-A: MAIN Unit (Chip Parts Side)
❊❈❇✹
◗I✵✼
◗✻✸✽
◗I✵✽
❇✻✷✷
◗✺✹✷
◗✶✸✴✵ ◗✶✸✴✶ ◗✶✸✴✷ ◗✶✸✴✸
◗✹✸
◗✹✹
◗✹✺
◗I✶◗I✵
❊❈❇✶
◗I✵✺
◗✶✵✹
◗✶✴✵
◗✸✹✽
P✸✹✵
◗✸✹✺
◗✻✶✶
◗✻✵✵
◗✻✶✷
❇✻✴✽
❇✻✼✶
◗✻✴✼
◗✻✶✴
◗I✶✺
❇✻✵✴
◗I✶✵
◗✹✵✽◗✹✵✻
❇✹✵✺
◗✹✵✺
◗✹✵✼
◗I✶✴
◗✸✽✸
◗✸✽✵
◗✸✽✶
❇✸✽✶
P✸✽✵
◗✸✽✺
◗✸✺✶
◗I✽
❇✶✴✶
◗✶✵✺❇✶✴✷
P✶✴✵
❇✶✴✵
◗✶✴✷
◗✶✴✸
◗✶✴✶
◗✷✴✹
P✷✴✵
◗✷✴✼
◗✷✴✶
❇✷✴✸
❇✷✴✹
❇✷✴✵
◗✶✶✴
❇✷✴✶ ◗✷✴✵ ❇✷✴✷
❇✶✴✺❇✶✵✵
❇✶✵✸
◗✶✵✷
◗✶✴✼
❇✶✶✴
❇✶✵✷
◗✶✵✵
◗✸✵✶◗✸✵✷
◗✶✵✴◗✽✺✶
◗✸✵✵
◗✶✴✽
◗✽✺✵
◗✶✵✸
◗✶✵✶
❇✸✵✼
❇✸✵✶
◗✸✺✵
❇✶✴✼
❇✼✵✴
❇✼✴✵
❇✼✵✵
❇✼✴✻
◗I✶✸
◗✸✴✵ ◗✸✴✶
◗✺✹✹
◗✸✴✷◗I✵✴
◗✼✴✻
◗I✶✹
◗✺✶✷ ❇✺✶✴
◗✺✷✹
◗✸✶✸
◗✺✶✶
◗✸✽✷
❇✺✷✸
◗✼✴✶
◗I✶✶
◗✶✴✵✴
◗I✼
◗✶✴✵✶
❇✶✴✵✴ ◗✶✴✵✺ ◗✶✴✵✸
❊❈❇✷
◗✶✴✴✵
◗✶✴✴✽
◗✶✴✻✴
◗✶✴✺✼
◗✶✴✺✻
◗✶✴✺✺
❇✶✴✴✶
◗✶✴✻✶
◗✶✴✴✺
◗✶✴✴✶
◗✶✴✵✼
◗✶✴✺✷
◗✶✴✺✹
◗✶✴✵✻
❇✶✴✺✴
◗✶✴✺✶
P✶✴✺✴
◗✶✴✴✼
❇✶✴✴✵
❇✶✴✺✵
◗✶✴✺✴◗✶✴✺✵
❍❇✶✴✴✵
◗✶✴✸✼
◗✶✴✸✻
◗✶✴✶✴
❇✶✴✹✵◗✶✵✴✵
◗✶✴✶✽
◗✶✵✴✶
❇✶✺✴✶
◗✶✴✸✽
◗✶✴✸✹
◗✶✴✸✸
❇✶✴✶✵
❇✶✴✶✶
❇✶✴✶✷
❇✶✴✶✸
❇✶✴✶✹
◗✶✴✷✸
❊❈❇✸
❇✶✶✴✷
◗✶✴✶✼
◗✶✴✷✷
❇✶✴✶✺
◗✶✴✸✴
◗✶✶✴✷
◗✶✶✵✶
❇✶✶✴✵
P✶✶✵✵
P✶✶✴✵
❇✶✶✴✶
◗✶✴✸✵
❍❇✶✵✴✶
◗✶✴✶✶
◗✶✹✴✵
◗✶✹✴✻
◗✸✶✹
◗✶✹✴✼
◗✼✴✷
◗✶✹✴✽
◗✸✶✶
◗✸✶✵
◗✶✹✴✷ ◗✶✹✴✸
◗✼✴✼◗✼✵✴◗✼✴✽
◗I✵✸
◗✶✹✴✹
◗I✵✶◗I✵✵◗I✶✷
◗✶✹✴✺
◗I✵✷
◗✷✹✸
◗✷✹✻
❇✷✹✺
◗✽✴✶
P✸✴✵
◗✸✵✺
P✸✴✶
◗I✶✽
◗✸✵✸
❇✷✹✵
❇✸✵✻
◗✸✵✹
◗✸✶✷
◗I✻
❇✸✴✵
◗I✹
◗✽✶✹
◗✸✵✴
◗I✶✼
◗✽✴✺
◗I✸
◗✽✶✸
❊❈❇✺
◗I✶✻
◗✽✴✹
◗I✷
19PR100

17
654321
A
B
C
D
E
F
G
H

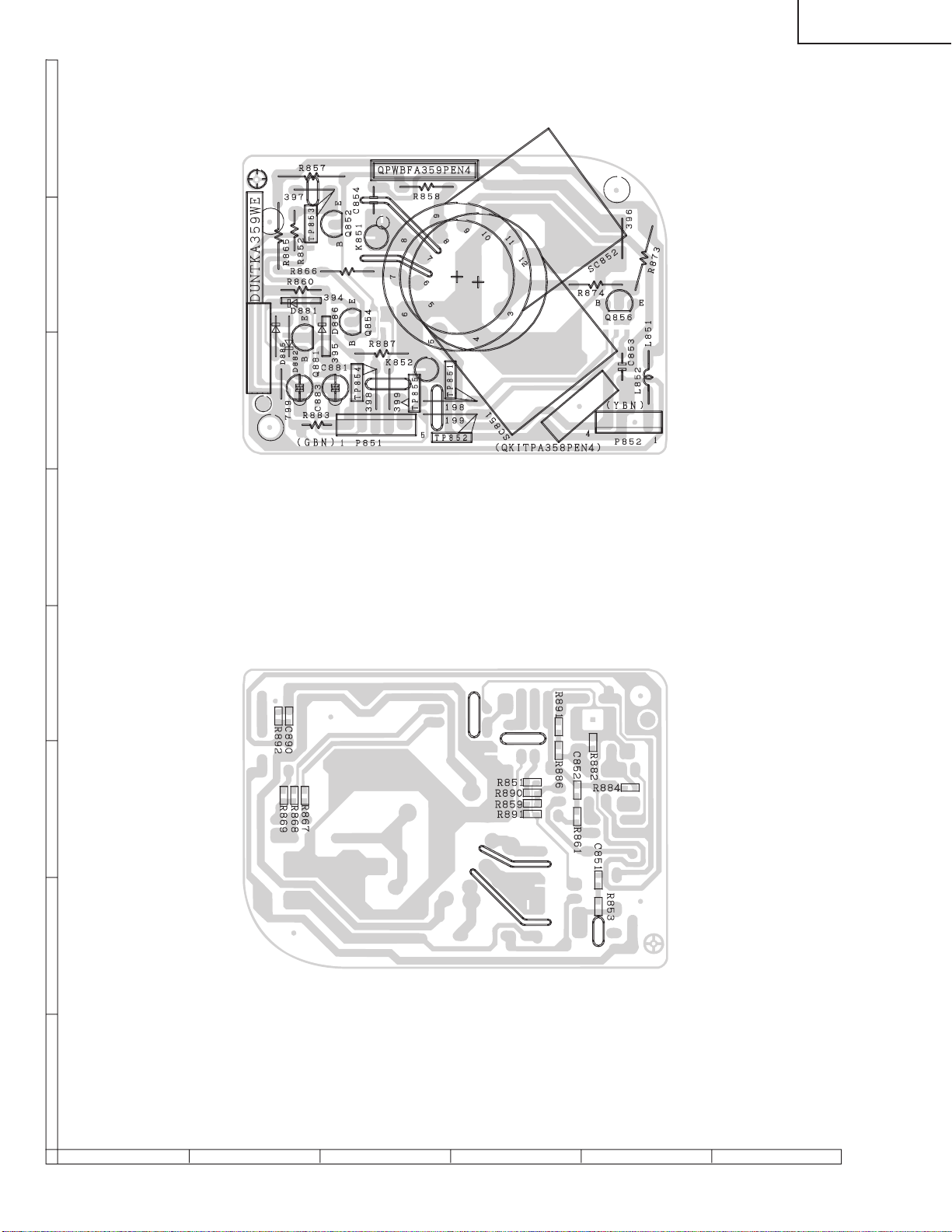

PWB-B:CRT Unit (Chip Parts Side)
PWB-B:CRT Unit (Wiring Side)
\b \b
\b\\b\\b
\b\b
\b
\b\
\b
\b
\b\
\b
\b
\b\
\b\
\b\
19PR100

Ref. No. Part No. «Description Code
U V101 VB48JLL40X/*S X CRT 19V (ORION) BR
U L703 RCILG0099PEZZ X DEGAUSSING COIL (19V) AF
U DY601 RCILH0105GJZZ X DY (20V) AQ
QEARC2016PEZZ X EARTH PARTS AC
PMAGF3045CEZZ XPURITY MAGNET AC
PSPAG0012MEZZ XWEDGE AB
PSPAG0001PE00 XCRT SCREW RUB WASHER AE
LHLDW1033PEZZ XWIRE TIE (10.4 CM) AA
DUNTKA358WEX1 –MAIN Unit —
DUNTKA359WEW0 –CRT Unit —
★ MARK: SPARE PARTS-DELIVERY SECTION
'MARK: X-RAY RELATED PARTS
PICTURE TUBE
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
MAIN UNIT
TUNER
NOTE:THE PARTS HERE SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT INDEPENDETLY
Ref. No. Part No. «Description Code
U TU51 VTUVT1T5UF214 XTUNER AP
IC201 RH-IX3354CEN1 XIX3354CE AM
IC351 VHIAN7511//-1 X AN7511 AC
U IC501 VHILA7840//-1 X LA7840 AE
U IC701 VHITEA1507/-1 X TEA1507 AE
U IC702 RH-FX0034CEZZ X FX0034CE AB
U IC771 VHIKA7805AP-1 X KA7805AP AC
IC2001 RH-IX3492CEZZQ X IX3492CE AN
IC2040 VHIPST994C/-1+ X PST994C AB
IC2102 VHIBR24L16F-1Y X BR24L16F AC
Q101 VS2SC945AQ/-1+ X 2SC945AQ AB
Q201 VS2SC2735//1EY X 2SC2735 AB
Q451 VS2SA1530R/-1Y X 2SA1530R AB
Q452 VS2SA1266-Y-1+ X 2SA1266(Y) AB
Q601 VS2SC2482//-1+ X 2SC2482 AB
U Q602 VS2SD2586//1E X 2SD2586 AF
Q631 VS2SC945AQ/-1+ X 2SC945AQ AB
U Q701 VSSPA04N603-1 X SPA04N603 AF
Q702 VS2SC945AQ/-1+ X 2SC945AQ AB
Q751 VS2SC945AQ/-1+ X 2SC945AQ AB
Q752 VS2SC945AQ/-1+ X 2SC945AQ AB
Q2201 VS2SD601AR/-1Y X 2SD601AR AB
Q2211 VS2SD601AR/-1Y X 2SD601AR AB
D52 RH-EX0676GEZZY X Zener Diode 32V AB
D101 RH-EX0617GEZZY X Zener Diode 5.6V AB
D352 VHD1SS119//-1Y X Diode AA
D353 RH-EX0644GEZZY X Zener Diode 13V AB
D453 RH-EX0616GEZZY X Zener Diode 5.6V AB
D455 VHD1SS119//-1Y X Diode AA
D456 RH-DX0475CEZZY X Diode AB
D457 RH-EX0644GEZZY X Zener Diode 13V AB
D458 RH-EX0644GEZZY X Zener Diode 13V AB
D459 VHD1SS119//-1Y X Diode AA
D502 RH-DX0131CEZZY X Diode AB
D511 RH-DX0441CEZZY X Diode AB
D632 RH-EX0630GEZZY X Zener Diode 9.1V AB
D641 RH-EX0630GEZZY X Zener Diode 9.1V AB
D651 VHD1SS244//-1Y X Diode AB
D653 RH-EX0667GEZZY X Zener Diode 27V AB
D661 RH-DX0468CEZZ X Diode AB
D701 RH-DX0490CEZZY X Diode AB
D702 RH-DX0490CEZZY X Diode AB
D703 RH-DX0490CEZZY X Diode AB
D704 RH-DX0490CEZZY X Diode AB
D707 VHD1SS119//-1Y X Diode AA
D708 VHD1SS119//-1Y X Diode AA
D709 RH-DXA006WJZZ X Diode AB
D712 RH-DX0487CEZZY X Diode AB
D717 RH-EX0616GEZZY X Zener Diode 5.6V AB
D725 RH-DX0131CEZZY X Diode AB
D726 VHD1SS119//-1Y X Diode AA
D751 RH-EX0611GEZZY X Zener Diode 5.1V AB
D752 RH-DX0441CEZZY X Diode AB
D753 RH-DX0441CEZZY X Diode AB
D757 VHD1SS119//-1Y X Diode AA
D758 RH-DX0131CEZZY X Diode AB
VA701 RH-VXA009WJZZ X VARISTOR AB
PR702 RMPTP0092CEZZ X Packaged Circuit AD
X801 RCRSAA010WJZZ X CRYSTAL AC
PWB-A: DUNTKA358WEX1
INTEGRATED CIRCUITS
TRANSISTORS
DIODES
PACKAGED CIRCUITS
18
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
areidentifiedby åandshaded areasin theReplacement PartsLists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
followinginformations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call Toll-
Free; 1-800-BE-SHARP
19PR100

Ref. No. Part No. «Description Code
CF2040 RFILA0099CEZZ+ XFILTER AB
SF201 RFILC0441CEZZ XSAW Filter AD
L50 VP-DF150K0000Y XPeaking 15mHAB
L201 VP-XF1R2K0000Y XPeaking 1.2mHAB
L202 VP-XF1R2K0000Y XPeaking 1.2mHAB
L203 VP-XF220K0000Y XPeaking 22mHAB
L204 RCILI0632CEZZ XIF Coil AB
L301 VP-XF150K0000Y XPeaking 15mHAB
U L701 RCILF0078PEZZ XCoil Line Filter AC
U L705 RCILP0179CEZZ+ XCoil AB
L706 RCILP0197CEZZ XCoil AB
L2040 RCILB0131CEZZ XCoil (OSC) AB
U T601 RTRNZ0731CEZZ XTransformer AD
U T602 RTRNF0213PEZZ XH-Volt Transformer AP
U T702 RTRNW0003PEZZ XPower Transformer AE
R738 RVR-M4588CEZZ+ X22k 130V Adj. AB
C51 VCEA0A1AW337M+ X 330 10V EL. AB
C53 VCEA0A1HW105M+ X 1 50V EL. AB
C54 VCEA0A1HW475M+ X 4.7 50V EL. AB
C55 VCEA0A1AW107M+ X 100 10V EL. AB
C101 VCEA0A1CW476M+ X 47 16V EL. AB
C201 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C202 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C203 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C204 VCQYTA1HM223J+ X 0.022 50V Mylar AB
C205 VCKYPA1HB103K+ X 0.01 50V Ceramic AB
C206 VCKYCY1HB102KY X 1000p 50V Ceramic AA
C207 VCEA0A1CW476M+ X 47 16V EL. AB
C208 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C209 VCEA0A1HW105M+ X 1 50V EL. AB
C210 VCEA0A1HW474M+ X 0.47 50V EL. AB
C212 VCEA0A1HW474M+ X 0.47 50V EL. AB
C220 VCKYCY1CB104KY X 0.1 16V Ceramic AA
C301 VCCCCY1HH220JY X 22p 50V Ceramic AA
C302 VCKYCY1HB102KY X 1000p 50V Ceramic AA
C304 VCCCCY1HH220JY X 22p 50V Ceramic AA
C305 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C306 VCQYTA1HM103J+ X 0.01 50V Mylar AB
C354 VCEA0A1HW225M+ X 2.2 50V EL. AB
C356 VCKYCY1HB332KY X 3300p 50V Ceramic AA
C357 VCEA0A1HW106M+ X 10 50V EL. AB
C358 VCEA0A1HW106M+ X 10 50V EL. AB
C361 VCEA0A1CW227M+ X 220 16V EL. AB
C401 VCCCCY1HH470JY X 47p 50V Ceramic AA
C411 VCEA0A1AW108M+ X 1000 10V EL. AB
C412 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C414 VCEA0A1HW225M+ X 2.2 50V EL. AB
C416 VCEA0A1HW105M+ X 1 50V EL. AB
C418 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C421 VCEA0A1HW106M+ X 10 50V EL. AB
C451 VCQYTA1HM563J+ X 0.056 50V Mylar AB
C454 VCEA0A1HW475M+ X 4.7 50V EL. AB
C455 VCEA0A1CW226M+ X 22 16V EL. AB
C456 VCEA0A1HW475M+ X 4.7 50V EL. AB
C509 VCKYPA2HB102K+ X 1000p 500V Ceramic AB
C510 VCEA0A1VW477M+ X 470 35V EL. AB
C512 VCFYSA1JB224J+ X 0.22 63V Mylar AB
C513 VCFYSA1JB473J+ X 0.047 63V Mylar AB
C514 VCEA0A1EW477M+ X 470 25V EL. AB
C515 VCEA0A1HW475M+ X 4.7 50V EL. AB
Ref. No. Part No. «Description Code
C516 VCKYCY1HB222KY X2200p 50V Ceramic AA
C517 VCEA0A1CW226M+ X 22 16V EL. AB
C520 VCEA0A1HW107M+ X 100 50V EL. AB
C530 VCFYFA1HA334J+ X 0.33 50V Mylar AB
C531 VCFYFA1HA564J+ X 0.56 50V Mylar AB
C606 VCKYPA2HB561K+ X 560p 500V Ceramic AB
C607 VCKYPA1HB472K+ X 4700p 50V Ceramic AB
C610 VCFPVC3ZA772H X 7700p 1.5kV M-Poly. AB
C612 VCFPVC2DB474J X 0.47 200V M-Poly. AB
C633 VCEA0A1AW337M+ X 330 10V EL. AB
C634 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C635 VCEA0A1HW105M+ X 1.0 50V EL. AB
C636 VCQYTA1HM153J+ X 0.015 50V Mylar AB
C637 VCEA0A1CW476M+ X 47 16V EL. AB
C652 VCEA0A1HW475M+ X 4.7 50V EL. AB
C653 VCEA0A1HW105M+ X 1.0 50V EL. AB
C661 VCKYPA2HB152K+ X 1500p 500V Ceramic AB
C662 VCEA0A1CW477M+ X 470 16V EL. AB
C701 RC-FZ036SCEZZ X 0.1mFAC125V Plastic AB
C702 RC-KZ0029CEZZ+ X 0.01 250V Ceramic AB
C703 RC-KZ0029CEZZ+ X 0.01 250V Ceramic AB
C705 RC-EZ0718CEZZ X 470 200V EL. AE
C706 RC-KZ0092GEZZA X 3300p AC125V Ceramic AB
C717 VCKYPA2HB472K+ X 4700p 500V Ceramic AB
C723 RC-EZ0638CEZZ X 33 160V EL. AC
C725 RC-EZ0724CEZZ X 100mF160V EL. AC
C726 VCKYPH3DB561K X 560p 2kV Ceramic AB
C727 VCKYPA2HB472K+ X 4700p 500V Ceramic AB
C730 VCEA0A1CW108M+ X 1000mF16V EL. AB
C731 VCEA0A1EW107M+ X 220mF25V EL. AB
C732 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA
C735 VCCCPA1HH680J+ X 68p 50V Ceramic AA
C737 VCEA0A1EW226M+ X 22 25V EL. AB
C738 RC-KZ0040CEZZ X 820p 2kV Ceramic AB
C739 VCEA0A1HW104M+ X 0.1 50V EL. AB
C740 VCEA0A1EW476M+ X 47 25V EL. AB
C743 VCKYPH3DB561K X 560p 2kV Ceramic AB
C750 VCKYPA1HF103Z+ X 0.01 50V Ceramic AA
C752 VCEA0A1CW476M+ X 47 16V EL. AB
C754 VCEA0A1CW476M+ X 47 16V EL. AB
C758 VCEA0A2EW106M+ X 10 250V EL. AB
C759 VCKYPA2HB102K+ X 1000p 500V Ceramic AB
C760 VCEA0A1CW108M+ X 1000 16V EL. AB
C771 VCEA0A1CW476M+ X 47 16V EL. AB
C772 VCEA0A1CW476M+ X 47 16V EL. AB
C783 VCQYTA1HM103J+ X 0.01 50V Mylar AB
C801 VCCCCY1HH180JY X 18p 50V Ceramic AA
C802 VCEA0A1CW106M+ X 10 16V EL. AB
C807 VCKYCY1EF104ZY X 0.1 25V Ceramic AA
C808 VCEA0A1CW106M+ X10 16V EL. AB
C809 VCEA0A1HW105M+ X 1.0 50V EL. AB
C811 VCKYCY1CB473KY X 0.047 16V Ceramic AA
C812 VCEA0A1HW474M+ X 0.47 50V EL. AB
C901 VCEA0A1HW105M+ X 1.0 50V EL. AB
C905 VCEA0A1HW106M+ X 10 50V EL. AB
C2001 VCCCCY1HH101JY X 100p 50V Ceramic AA
C2002 VCKYCY1HF103ZY X 0.01 50V Ceramic AA
C2040 VCEA0A1AW107M+ X 100 10V EL. AB
C2041 VCEA0A1HW105M+ X 1.0 50V EL. AB
C2060 VCKYCY1CB104KY X 0.1 16V Ceramic AA
C2061 VCKYCY1HB222KY X 2200p 50V Ceramic AA
C2062 VCEA0A1AW107M+ X 100 10V EL. AB
C2201 VCKYCY1HB682KY X 6800p 50V Ceramic AA
C2202 VCCCCY1HH560JY X 56p 50V Ceramic AA
C2601 VCEA0A0JW107M+ X 100 6.3V EL. AB
C2602 VCCCCY1HH101JY X 100p 50V Ceramic AA
RJ2 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ7 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ8 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
PWB-A: DUNTKA358WEX1
MAIN UNIT (Continued)
PACKAGED CIRCUITS
FILTERS AND COILS
TRANSFORMERS
CAPACITORS
CONTROL
CAPACITORS
RESISTORS
19
[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]
[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]
19PR100

Ref. No. Part No. «Description Code
RJ9 VRS-CY1JF000JY X00 1/16W M-Ox. AA
RJ10 VRS-CY1JF000JY X00 1/16W M-Ox. AA
RJ12 VRS-CY1JF000JY X00 1/16W M-Ox. AA
RJ18 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ19 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ20 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ21 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ16 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ18 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ19 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ20 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
RJ21 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R53 VRS-RG3LB223J+ X 22k 3W M-Ox. AB
R54 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R55 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R56 VRS-CY1JF823JY X 82k 1/16W M-Ox. AA
R57 VRD-RA2BE563JY X 56k 1/8W Carbon AA
R101 VRD-RA2BE152JY X 1.5k 1/8W Carbon AA
R201 VRS-CY1JF221JY X 220 1/16W M-Ox. AA
R202 VRS-CY1JF122JY X 1.2k 1/16W M-Ox. AA
R203 VRS-CY1JF682JY X 6.8k 1/16W M-Ox. AA
R204 VRS-CY1JF270JY X 27 1/16W M-Ox. AA
R205 VRD-RA2BE680JY X 68 1/8W Carbon AA
R206 VRD-RA2EE151JY X 150 1/4W Carbon AA
R207 VRD-RA2BE223JY X 22k 1/8W Carbon AA
R208 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R209 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R210 VRS-CY1JF104JY X 100k 1/16W M-Ox. AA
R211 VRS-CY1JF104JY X 100k 1/16W M-Ox. AA
R212 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R215 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R220 VRS-CY1JF331JY X 330 1/16W M-Ox. AA
R301 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
R302 VRS-CY1JF152JY X 1.5k 1/16W M-Ox. AA
R353 VRD-RA2BE683JY X 68k 1/8W Carbon AA
R354 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R355 VRD-RA2BE223JY X 22k 1/8W Carbon AA
R357 VRS-CY1JF822JY X 8.2k 1/16W M-Ox. AA
R401 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R402 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R403 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R404 VRD-RA2BE102JY X 1.0k 1/8W Carbon AA
R411 VRS-CY1JF684JY X 680k 1/16W M-Ox. AA
R412 VRS-CY1JF391JY X 390 1/16W M-Ox. AA
R413 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
R414 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R421 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
U R451 VRS-RG2HC103J+ X 10k 1/2W M-Ox. AB
R453 VRD-RA2BE152JY X 1.5k 1/8W Carbon AA
R454 VRD-RA2EE334JY X 330k 1/4W Carbon AA
R455 VRD-RA2BE392JY X 3.9k 1/8W Carbon AA
R456 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R457 VRD-RA2BE102JY X 1.0k 1/8W Carbon AA
R458 VRD-RA2EE334JY X 330k 1/4W Carbon AA
R460 VRD-RA2BE152JY X 1.5k 1/8W Carbon AA
R461 VRS-CY1JF184JY X 180k 1/16W M-Ox. AA
R462 VRS-CY1JF273JY X 27k 1/16W M-Ox. AA
R495 VRS-RG3DB820J+ X 180k 1/16W M-Ox. AB
R512 VRD-RM2HD102JY X 1.0k 1/2W Carbon AA
R513 VRD-RM2HD102JY X 1.0k 1/2W Carbon AA
R514 VRD-RM2HD1R0JY X 1.0 1/2W Carbon AA
R515 VRS-RG3AB391J+ X 390 1W M-Ox. AB
R516 VRS-CY1JF153JY X 15k 1/16W M-Ox. AA
R517 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
R518 VRS-CY1JF333JY X 33k 1/16W M-Ox. AA
R519 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R520 VRD-RM2HD1R5JY X 1.5 1/2W Carbon AA
R522 VRD-RA2BE102JY X 1.0k 1/2W Carbon AA
R523 VRD-RA2BE562JY X 5.6k 1/8W Carbon AA
R525 VRD-RA2BE272JY X 2.7k 1/8W Carbon AA
20
PWB-A: DUNTKA358WEX1
MAIN UNIT (Continued)
RESISTORS
[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]
Ref. No. Part No. «Description Code
R527 VRD-RA2BE223JY X22k 1/8W Carbon AA
R528 VRD-RA2BE272JY X 2.7k 1/8W Carbon AA
R529 VRD-RA2BE472JY X 4.7k 1/8W Carbon AA
U R604 VRS-RG3DB682J+ X 6.8k 2W M-Ox. AB
R605 VRD-RA2BE121JY X 120 1/8W Carbon AA
R606 VRD-RA2BE102JY X 1.0k 1/8W Carbon AA
R607 VRS-RG3DB682J+ X 6.8k 2W M-Ox. AB
U R608 VRS-RG3DB391J+ X 390 2W M-Ox. AB
U R609 VRS-RG3AB562J+ X 5.6k 1W M-Ox. AB
R610 VRD-RM2HD220JY X 22 1/2W Carbon AA
U R611 VRS-KA3HG3R3K X 3.3 5W M-Ox. AB
R622 VRS-CY1JF222JY X 2.2k 1/16W M-Ox. AA
R623 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R624 VRN-RA2BK472FY X 4.7k 1/8W M-Film AB
R634 VRD-RM2HD121JY X 120 1/2W Carbon AA
R635 VRS-CY1JF332JY X 3.3k 1/16W M-Ox. AA
R636 VRD-RA2EE221JY X 220 1/4W Carbon AA
U R641 VRS-RG3AB682J+ X 6.8k 1W M-Ox. AB
R651 VRD-RM2HD270JY X 27 1/2W Carbon AA
R653 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R654 VRD-RA2BE154JY X 150k 1/8W Carbon AA
R655 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R659 VRN-RL3AB3R3J+ X 3.3 1W M-Ox. AB
R661 VRN-RL3ABR47J+ X 0.47 1W M-Film AB
R662 VRD-RA2BE102GY X 1.0k 1/8W Carbon AA
U R702 RR-DZ0049CEZZY X 3.9M 1/2W Carbon AB
U R703 VRW-KP3HC1R8K X 1.8 5W Cement AB
U R705 VRN-RL3ABR39J+ X 0.39 1W M-Ox. AB
U R706 VRN-RL3ABR39J+ X 0.39 1W M-Ox. AB
U R707 VRD-RM2HD270JY X 27 1/2W Carbon AA
U R708 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
U R710 VRS-RG2HC102J+ X 1k 1/2W M-Ox. AB
U R711 VRS-CY1JF334JY X 330k 1/16W M-Ox. AA
R712 VRD-RA2BE100JY X 10 1/8W Carbon AA
R713 VRS-RG2HC122J+ X 1.2k 1/2W M-Ox. AB
R715 VRD-RA2BE150JY X 15 1/8W Carbon AA
R716 VRS-RG3AB121J+ X 120 1W M-Ox. AB
R721 VRD-RM2HD124JY X 120k 1/2W Carbon AA
R723 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R725 VRS-RG2HC821J+ X 820 1/2W M-Ox. AB
R733 VRD-RA2EE394JY X 390k 1/4W Carbon AA
R736 VRD-RM2HD184JY X 180k 1/2W Carbon AA
R739 VRD-RM2HD332JY X 3.3k 1/2W Carbon AA
R740 VRD-RM2HD470JY X 47 1/2W Carbon AA
R741 VRN-RA2BK682FY X 6.8k 1/8W M-Film AB
R751 VRD-RA2BE821JY X 820 1/8W Carbon AA
R752 VRD-RA2BE392JY X 3.9k 1/8W Carbon AA
U R755 VRD-RM2HD151JY X 150 1/2W Carbon AA
U R758 VRS-RG2HC100J+ X 10 1/2W M-Ox. AB
R759 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
U R773 VRS-VV3LB270J X 27 3.0W M-Ox. AB
R774 VRS-VV3LB680J X 68 3.0W M-Ox. AB
R801 VRD-RM2HD470JY X 47 1/2W Carbon AA
R807 VRS-CY1JF272JY X 2.7k 1/16W M-Ox. AA
R808 VRS-CY1JF222JY X 2.2k 1/16W M-Ox. AA
R809 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
R810 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
R901 VRD-RA2BE101JY X 100 1/8W M-Ox. AA
R902 VRS-CY1JF750JY X 75 1/16W M-Ox. AA
R906 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
R925 VRS-CY1JF104JY X 100k 1/16W M-Ox. AA
R961 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R962 VRS-CY1JF101JY X 100 1/16W M-Ox. AA
R2001 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
R2002 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R2006 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R2008 VRS-CY1JF472JY X 4.7k 1/16W M-Ox. AA
R2009 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
R2010 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
R2012 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R2016 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
R2018 VRS-CY1JF103JY X 10k 1/16W M-Ox. AA
R2020 VRS-CY1JF223JY X 22k 1/16W M-Ox. AA
R2022 VRS-CY1JF333JY X 33k 1/8W Carbon AA
R2023 VRD-RA2BE223JY X 22k 1/8W Carbon AA
R2024 VRD-RA2BE682JY X 6.8k 1/8W Carbon AA
R2025 VRD-RA2BE682JY X 6.8k 1/8W Carbon AA
R2026 VRD-RA2BE682JY X 6.8k 1/8W Carbon AA
R2027 VRD-RA2BE682JY X 6.8k 1/8W Carbon AA
R2028 VRS-CY1JF102JY X 1.0k 1/16W M-Ox. AA
19PR100
