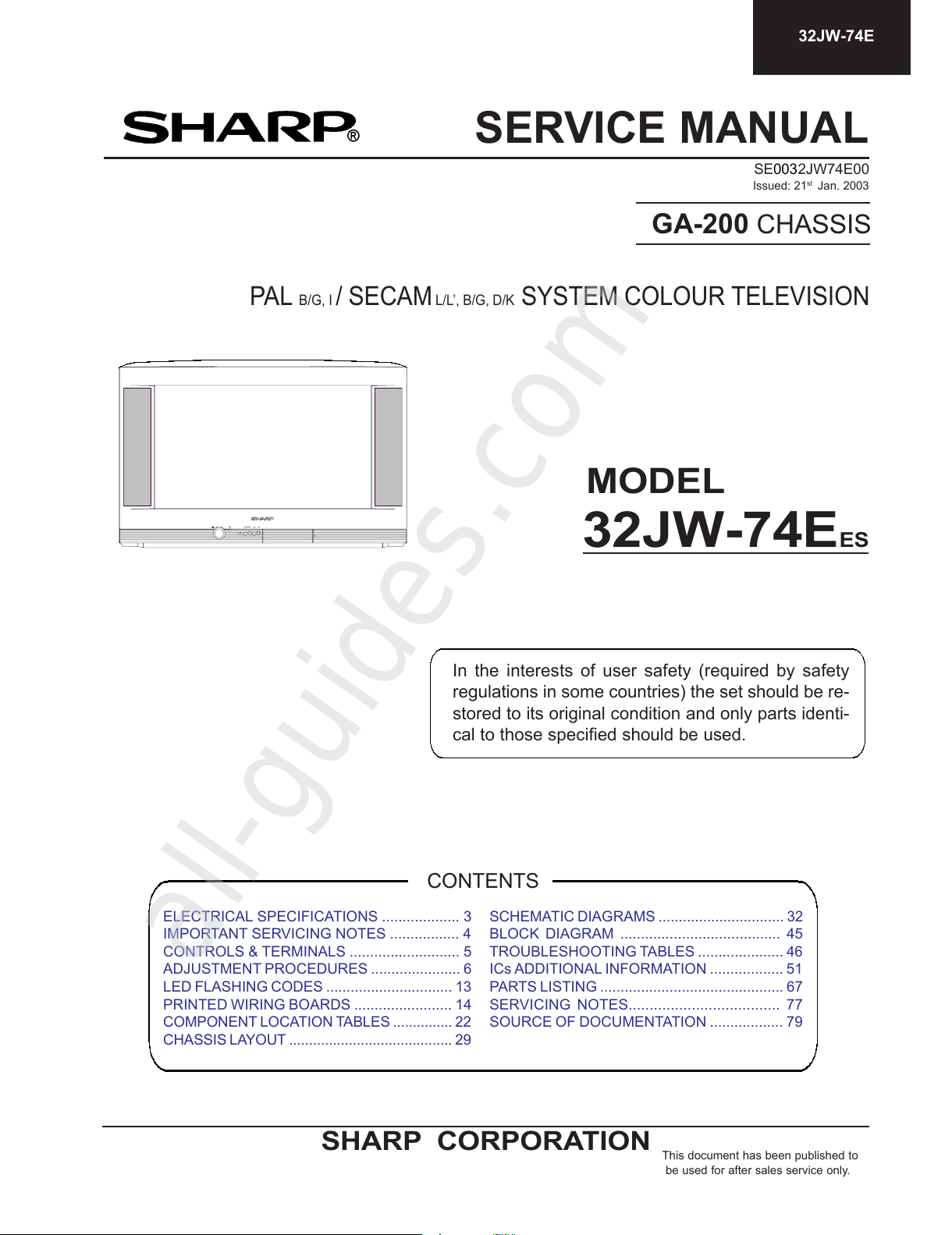

Sharp 32JW-74EES User manual

1
32JW-74E
MODEL
32JW-74EES
PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
SE0032JW74E00
SERVICE MANUAL
Issued: 21st Jan. 2003
This document has been published to
be used for after sales service only.
GA-200 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATIONS ................... 3
IMPORTANT SERVICING NOTES ................. 4
CONTROLS & TERMINALS ........................... 5
ADJUSTMENT PROCEDURES ...................... 6
LED FLASHING CODES ............................... 13

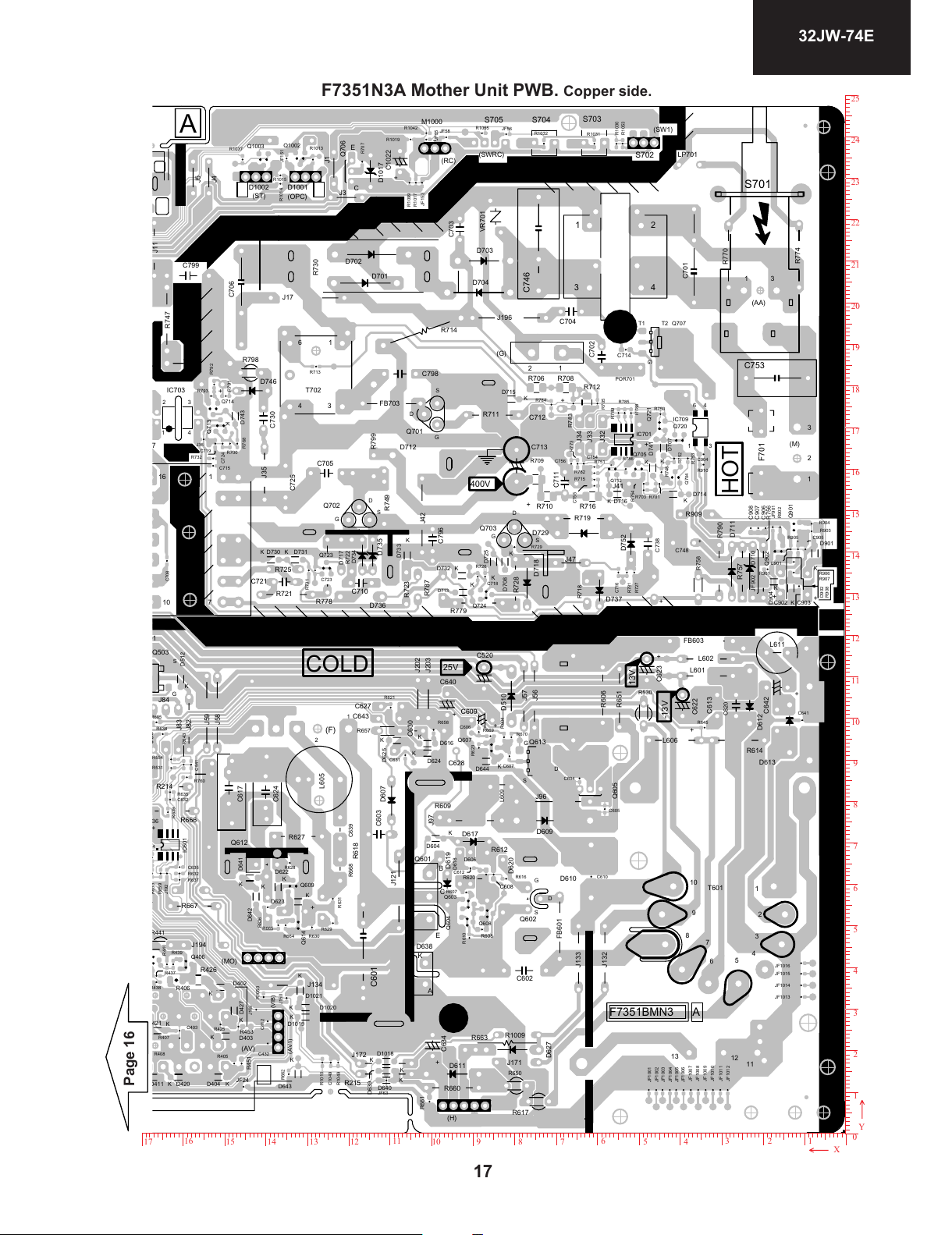

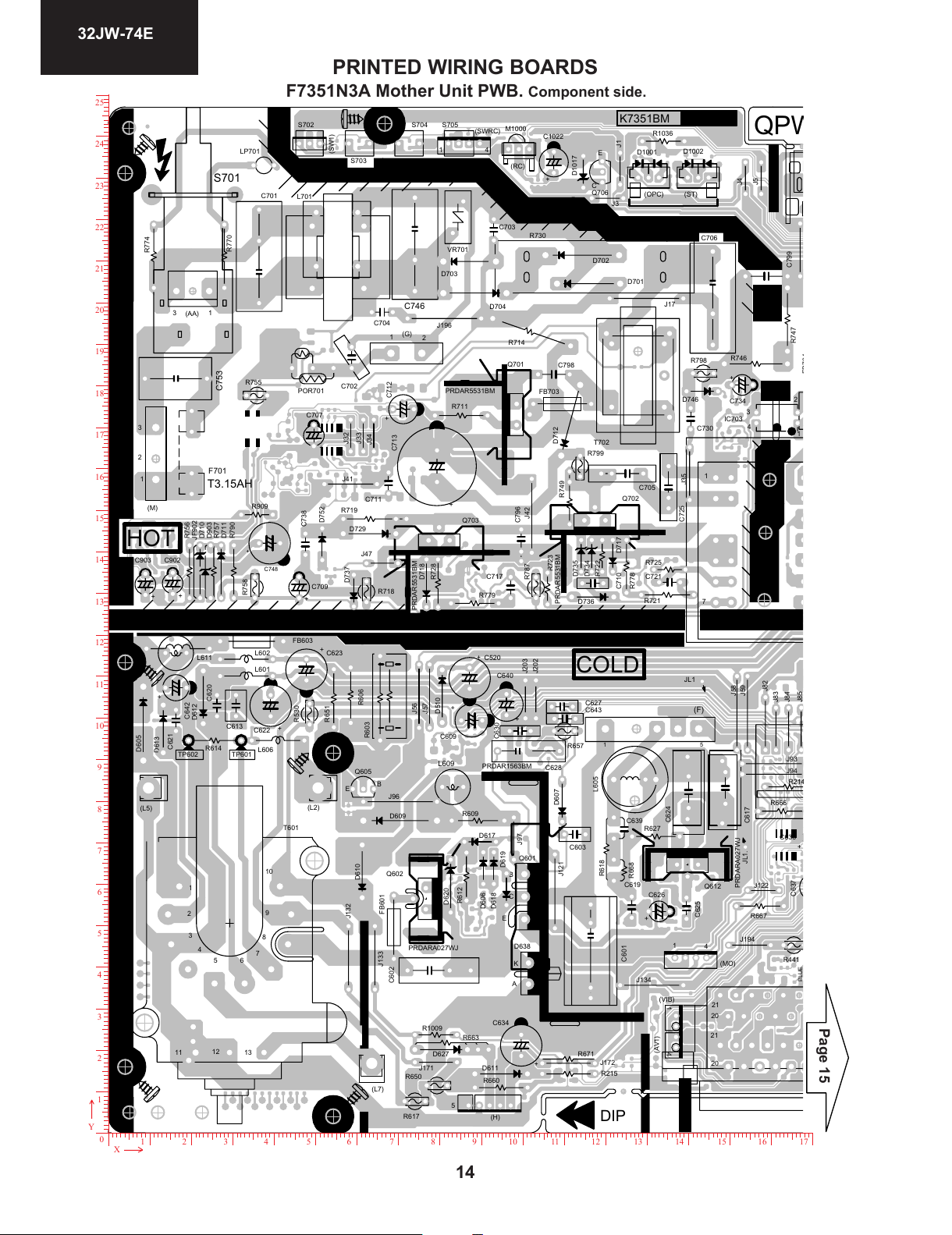

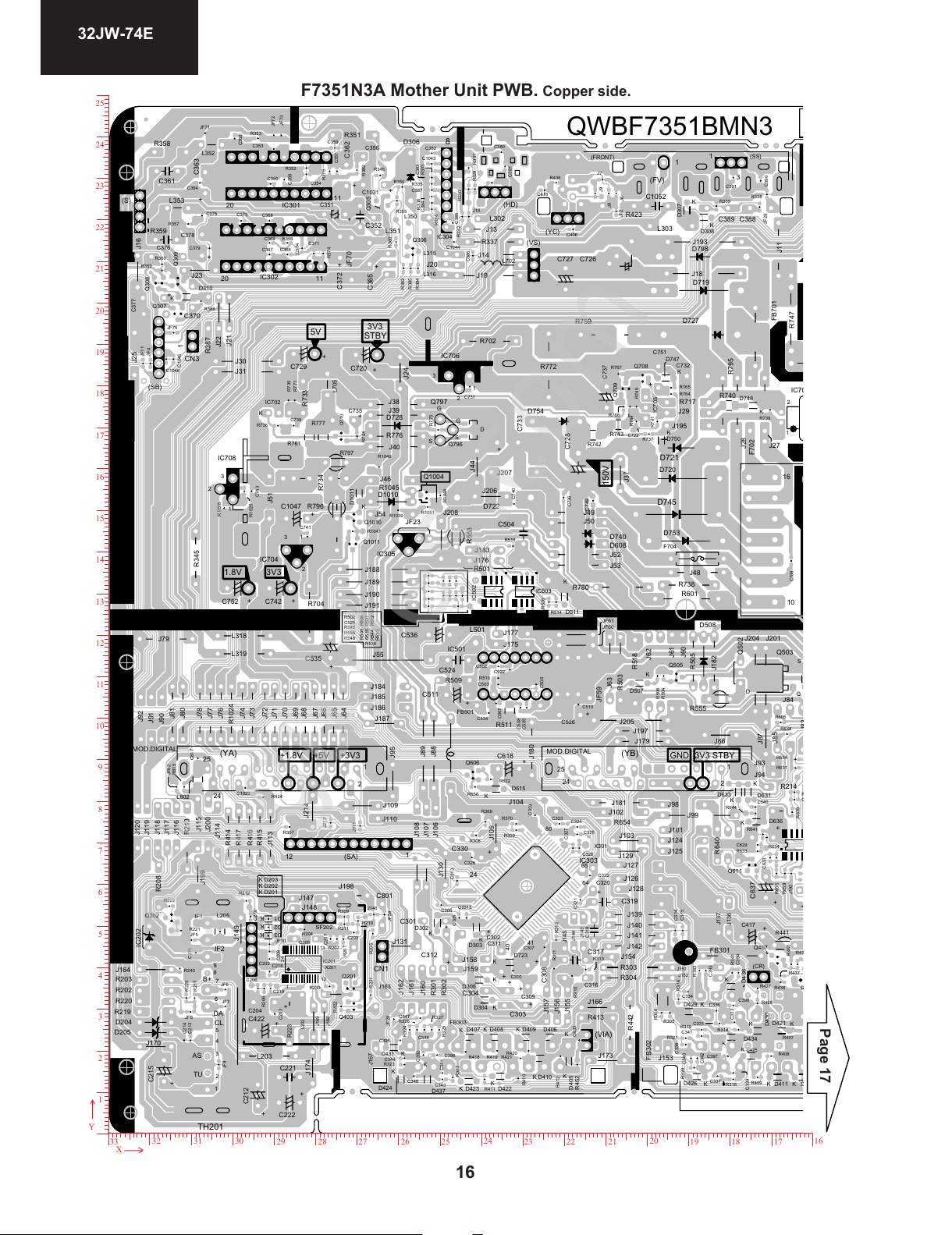

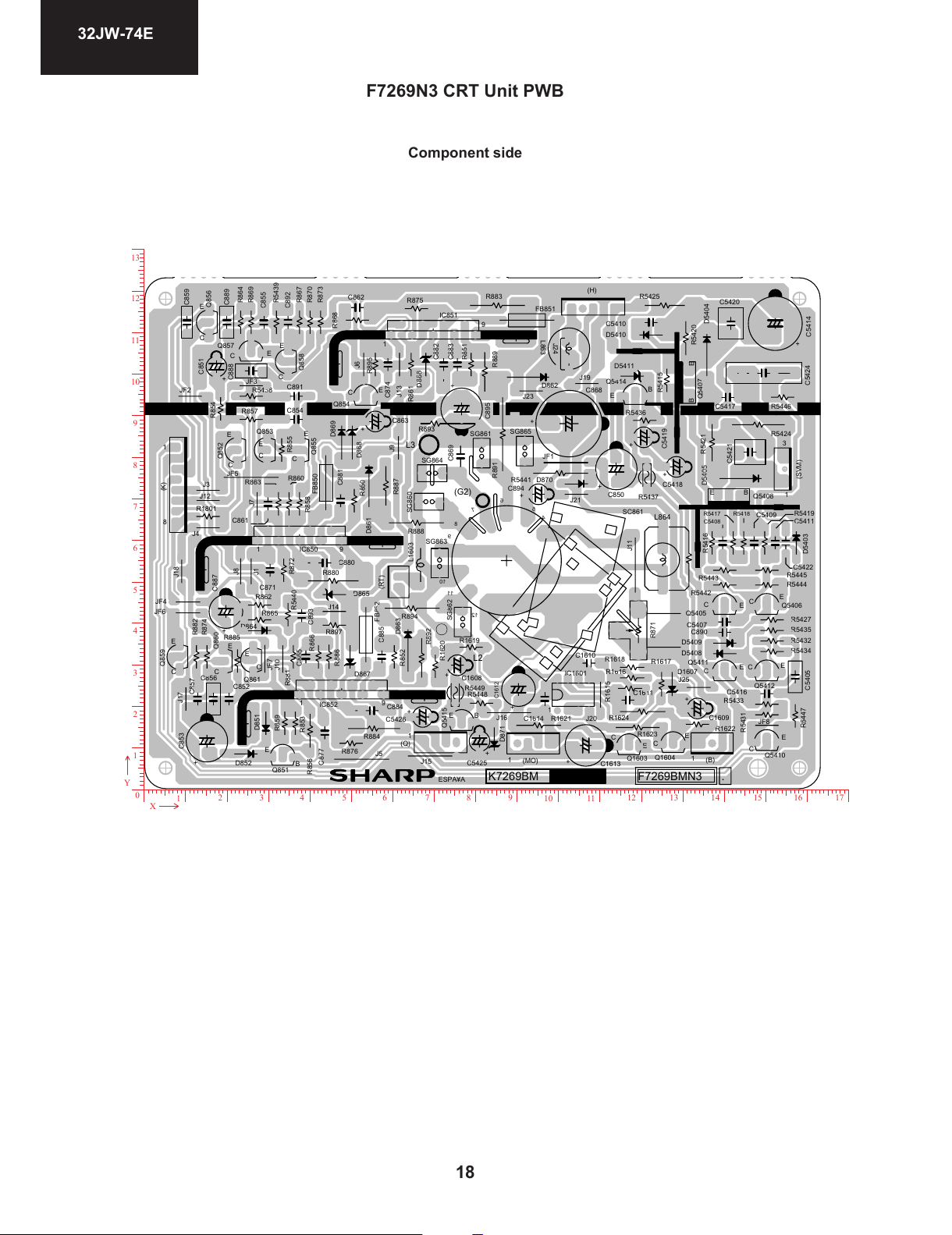

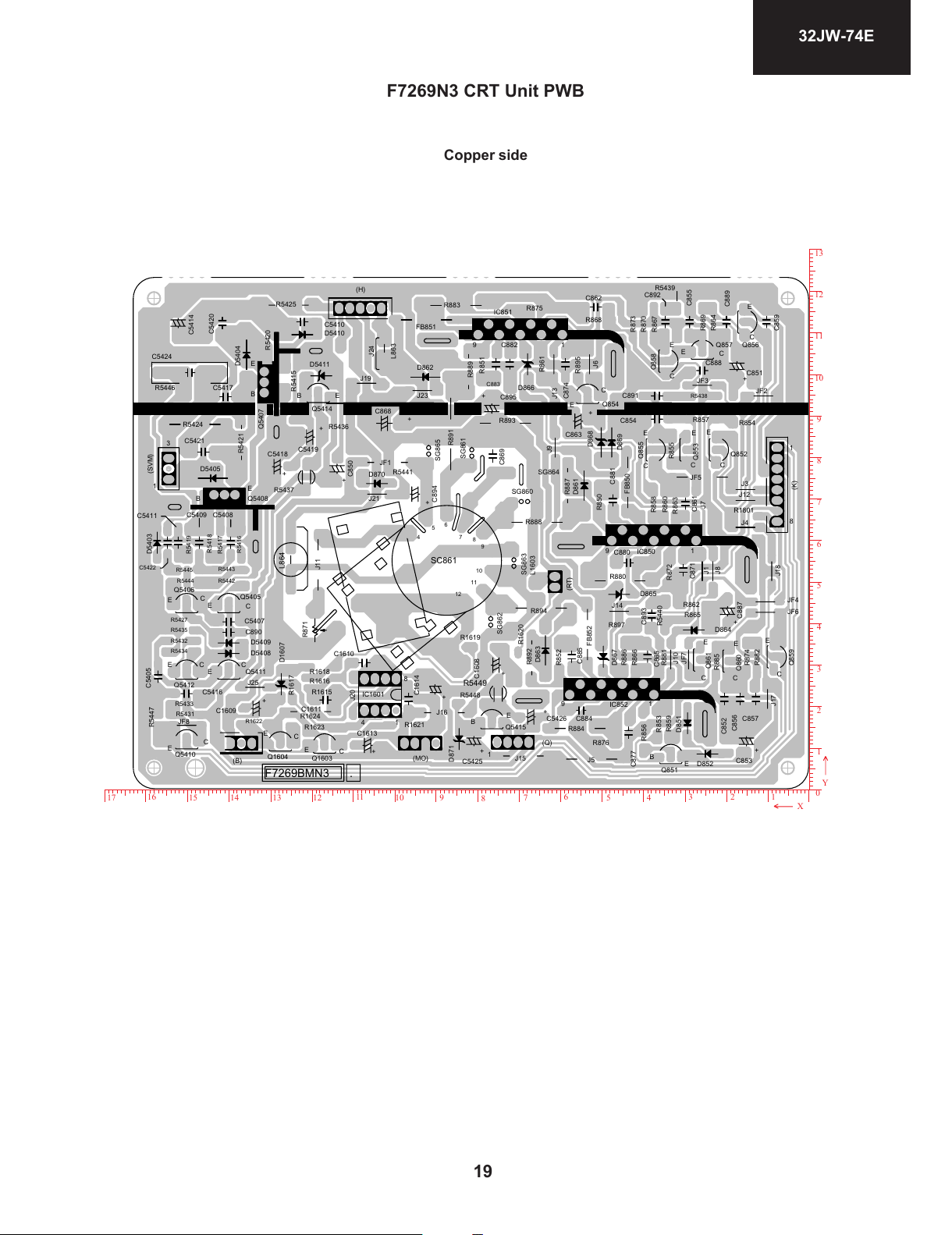

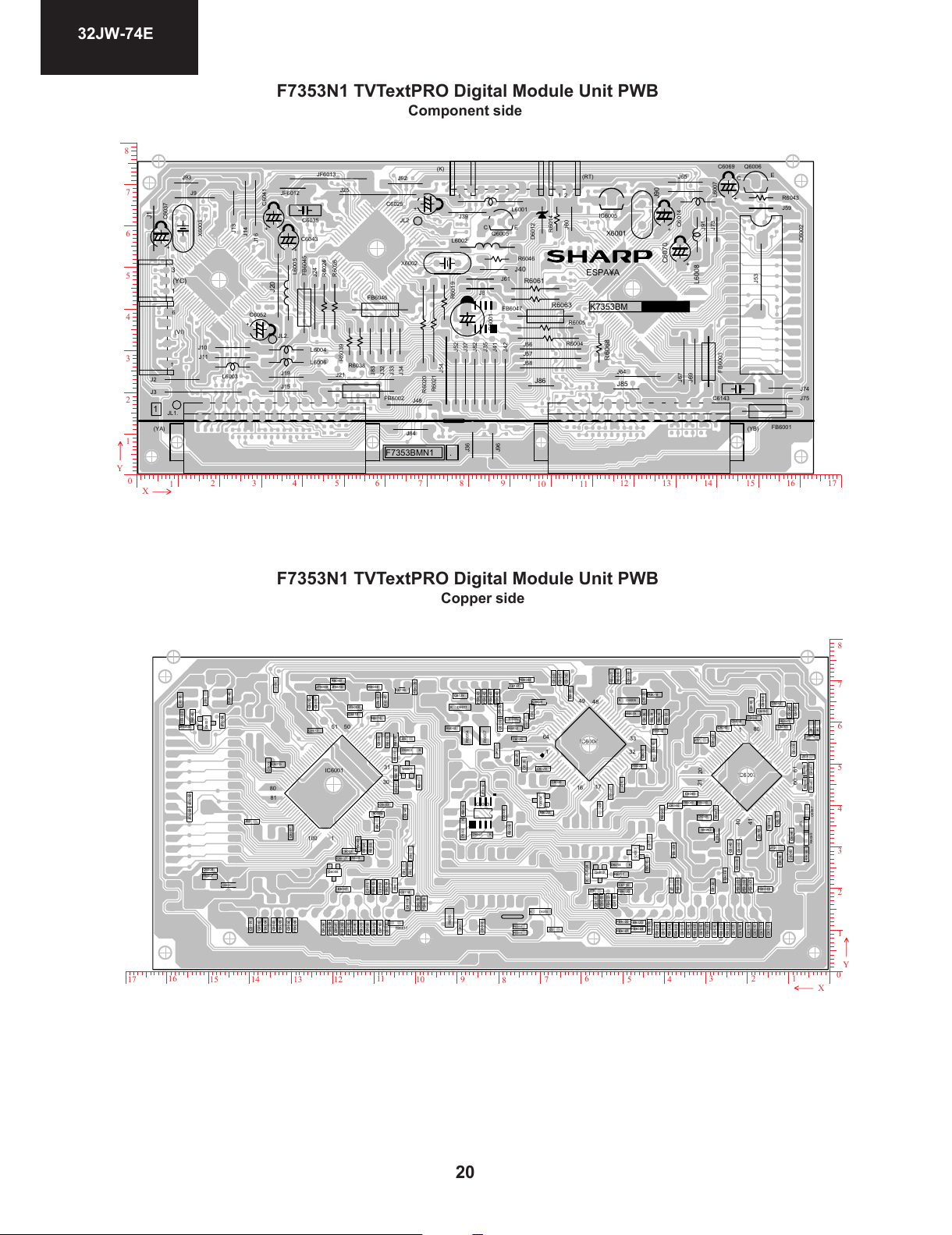

PRINTED WIRING BOARDS ........................ 14
COMPONENT LOCATION TABLES ............... 22
CHASSIS LAYOUT ......................................... 29
SCHEMATIC DIAGRAMS ............................... 32
BLOCK DIAGRAM ....................................... 45
TROUBLESHOOTING TABLES ..................... 46
ICs ADDITIONAL INFORMATION .................. 51
PARTS LISTING ............................................. 67
SERVICING NOTES.................................... 77
SOURCE OF DOCUMENTATION .................. 79
SHARP CORPORATION
All manuals and user guides at all-guides.com
all-guides.com

2
32JW-74E
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.
All manuals and user guides at all-guides.com

3
32JW-74E
ELECTRICAL SPECIFICATIONS
•White Level
Set brightness control to get total picture tube cathode current of 600 µA under no signal condition.
Maximum necessary correction of each picture tube cathode current to get 8550 degrees K+1 MPCD
screen temperature should not exceed 15% of its original value.
X=0.290 ± 0.015 Y=0.300 ± 0.015
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
•Power Input .................... 220V-240 Volts AC 50Hz
•Power Consumption
Normal Operation (Method IEC60107) ...............100W
Stand-by Operation ..........................................1.5W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 10W, 7Ω
Internal Right Speaker ............................... 10W, 7Ω
•Speakers
Left / Right ................................................. 12 x 6cm
•Convergence (Maximum Misconvergence)
•Focus .................................................. Electrostatic
MODEL DESTINATION (Operation Manual Languages)
32JW-74E: Deutsch, Français, Nederlands.
32JW-74EES: Español, Português.
•Sweep Deflection ............................. Magnetic
•Picture Intermediate frequency
L’ ................................................ 33.9MHz
L, B/G, D/K,I .............................. 38.9MHz
•Sound Carrier Trap
L’ ................................................ 40.4MHz
L, D/K ......................................... 32.4MHz
B/G ............................................ 33.4MHz
I .................................................. 32.9MHz
•Adjacent Sound Carrier Trap
L’ ................................................ 32.4MHz
L, D/K, B/G ................................ 40.4MHz
I .................................................. 40.9MHz
•Adjacent Picture Carrier Trap
L’ ................................................ 41.9MHz
L, D/K, I ...................................... 30.9MHz
B/G ............................................ 31.9MHz
•Aerial Input Impedance
VHF/UHF ................. 75 ohm Unbalanced
•Tuning Ranges ..... 45.75MHz thru 855.25 MHz
VHF: IR A - J / S1 - S41 CH (Hiperband)
E2 - E12 / F2 - F10
UHF: I21 - I69 CH / E21 - E69
CATV Special Channels
Specifications are subject to change without prior notice.
20 mm
20 mm20 mm
2,1 mm
2,1 mm
2,1 mm
2,1 mm
1,8 mm 1,8 mm
1,8 mm 1,8 mm
1,5 mm 1,5 mm
1 mm 1 mm0,4 mm
1,3 mm
1,3 mm
TV screen
All manuals and user guides at all-guides.com

4
32JW-74E

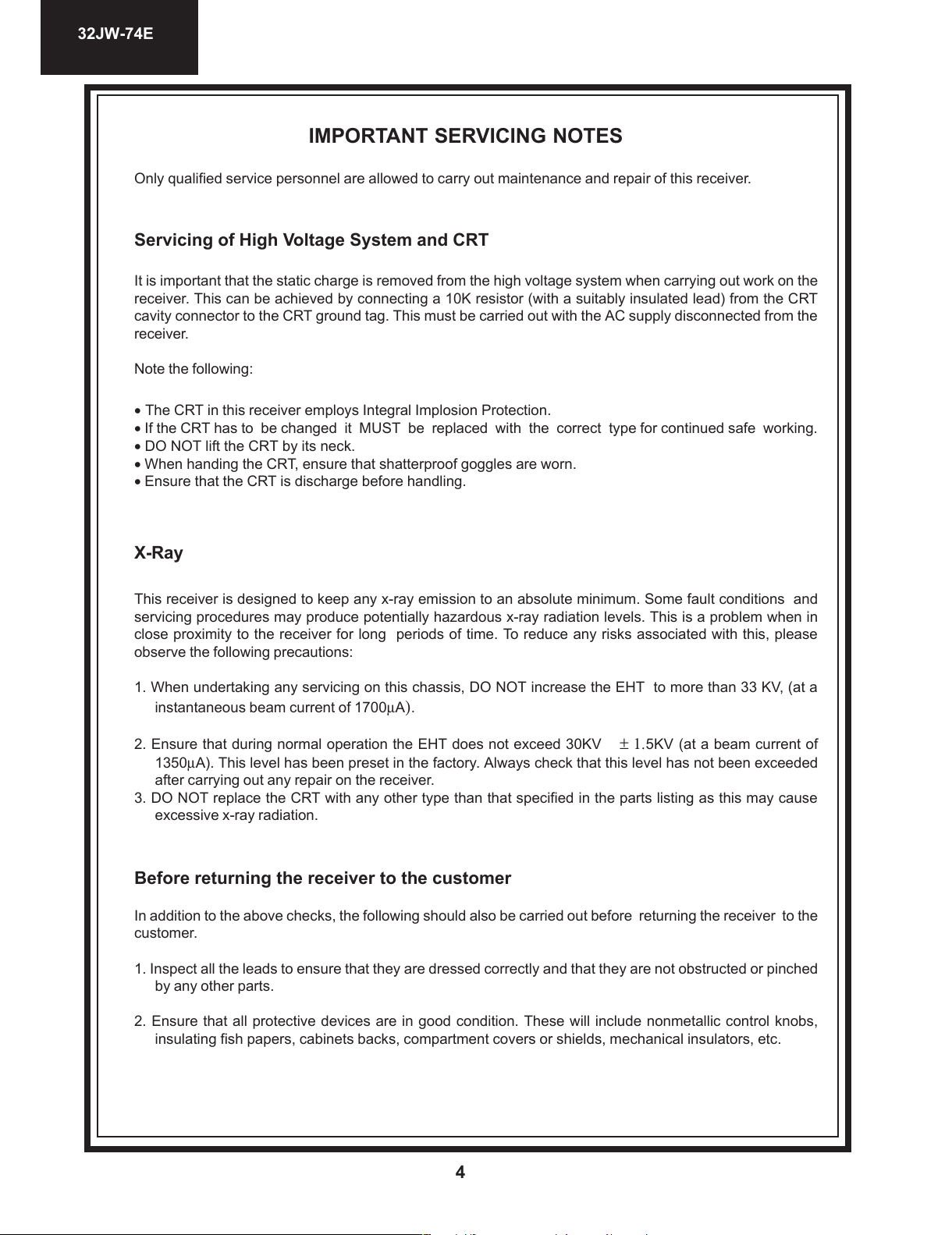

IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 33 KV, (at a
instantaneous beam current of 1700µA).
2. Ensure that during normal operation the EHT does not exceed 30KV ± 1.5KV (at a beam current of
1350µA). This level has been preset in the factory. Always check that this level has not been exceeded
after carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.
All manuals and user guides at all-guides.com

5
32JW-74E

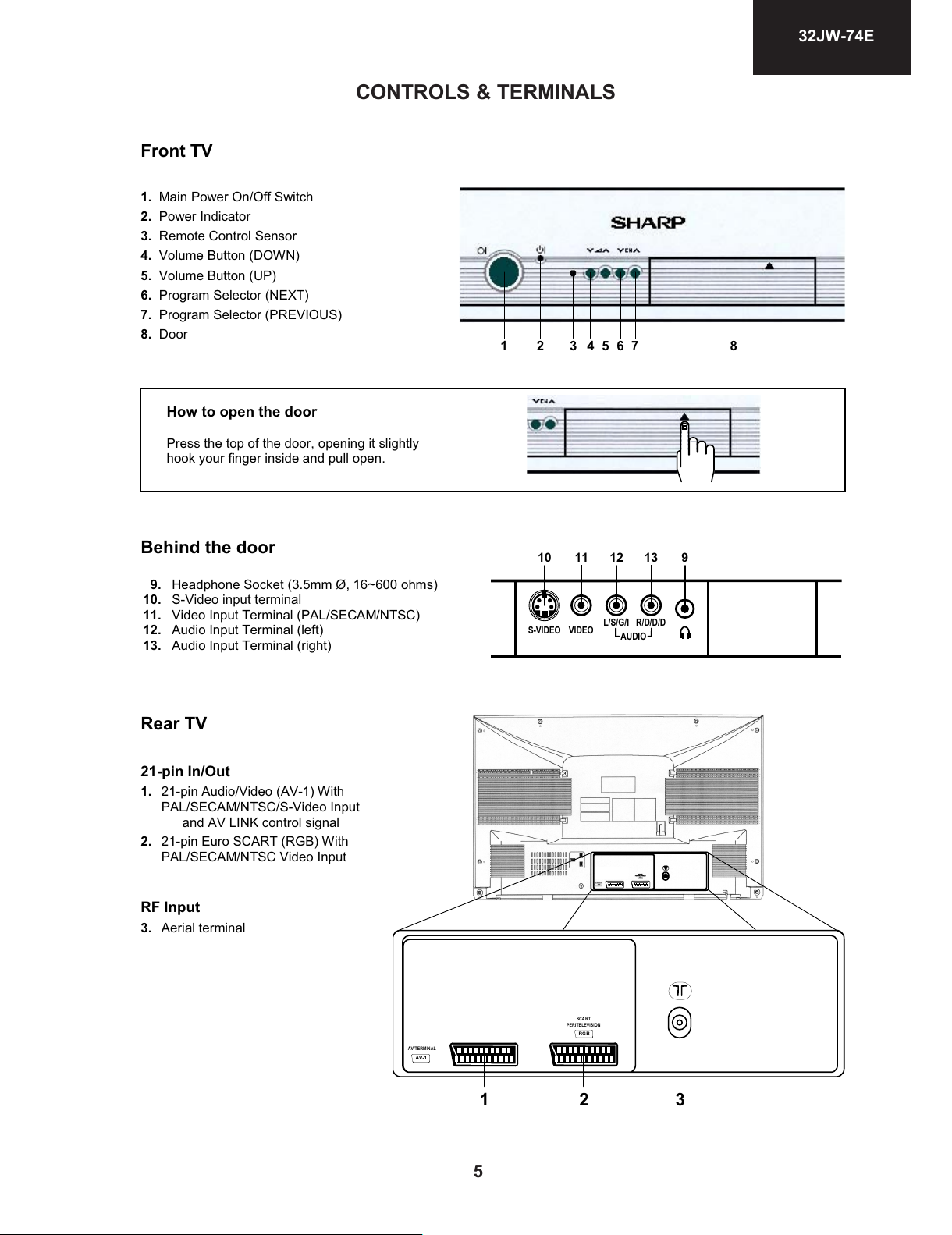

CONTROLS & TERMINALS













 
  
 
 
 


  


  


 

      

/6*,5'''
$8',2
69,'(29,'(2
 


 


$97(50,1$/

6&$57
3(5,7(/(9,6,21
 
All manuals and user guides at all-guides.com

6
32JW-74E
REMOTE CONTROL
TV 1. Stand-by button (TV)
Video 2. Power button (VCR)
TV 3. 0 ~ 9 digit buttons
4. Flash back button
Teletext 5. GREEN button
6. RED button
TV 7. Volume DOWN button
8. MENU button
Teletext 9. REVEAL button
10. LIST button
11. STORE button
12. CANCEL button
13. HALF PAGE button
TV 14. RESET button
Video 15. Rewind/picture search reverse
16. Play button
17. Pause/Still button
18. Stop button
TV 19. TV/VIDEO button
20. Channel Call button
21. Single/Double entry button
Teletext 22. YELLOW button
23. BLUE button
TV 24. Channel UP button
25. Volume UP button
26. Channel DOWN button
27. Wide mode button
TV /Teletext 28. CLOCK button
TV 29. Sound mode button
Teletext 30. HOLD button
TV 31. Sound Mute button
Teletext 32. TEXT/MIX/PICTURE button
33. INDEX button
Video 34. Channel UP button (VCR)
35. Fast forward/picture search forward
36. Channel DOWN button (VCR)
37. Record button
1. 19.
23.
21.
24.
25.
26.
27.
28.
29.
30.
31.
32.
34.
37.
36.
35.
33.
22.
20.
4.
5.
6.
7.
8.
10.
11.
12.
13.
15.
18.
17.
16.
14.
9.
2.
3.
ADJUSTMENT PROCEDURES
All adjustments to this chassis, except for focus, are carried out in the Service Mode.
Service Mode
The Service Mode is provided to enable the engineer to correctly set up the receiver to the CRT fitted in the set.
Note that these adjustments may vary from one receiver to another.
To enter the Service Mode, carry out the following procedure.
1. Connect a test pattern to the antenna terminal.
2. Tune the receiver to this signal.
3. Turn the receiver off using the mains switch.
4. Press volume down and channel up buttons on the
front of the receiver at the same time.
5. Keeping these buttons pressed, turn the mains on.
6. When the set starts up it will be in Service Mode.
7. Release the two buttons. Figure 1
CH
4
5
All manuals and user guides at all-guides.com
all-guides.com

7
32JW-74E
01. Horizontal Shift
02. East West Width
03. Pin Phase
04. Pin Amp
05. Upper corner correction
06. Lower corner correction
07. Extreme Corner Correction
08. Vertical Linearity
09. Vertical Angle
10. Vertical Bow
11. Vertical Amplitude
12. S Correction
13. Vertical Shift
14. Red Cut Off
15. Green Cut Off
16. Blue Cut Off
17. Alter NVM Pag (Page)
18. Alter NVM Pos (Position)
19. Alter NVM Val (Value)
20. Teletext Mix Mode Contrast
21. Teletext Contrast
22. OSD Contrast
23. DVCO Adjustment (Only PAL)
24. DVCO Adjustment (Only NTSC)
25. AGC Adjustment
26. Auto Installation On/Off
••
••

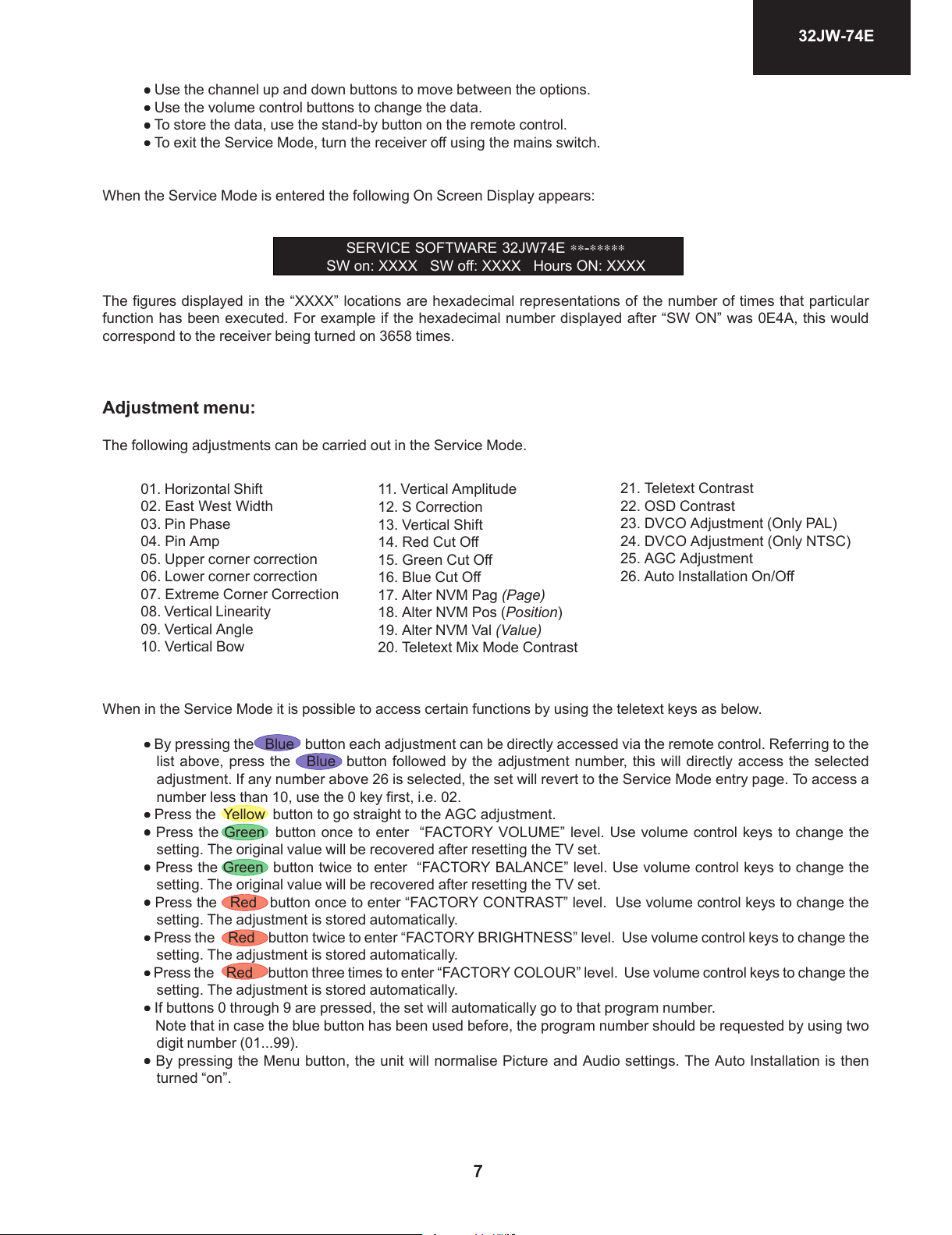

•Use the channel up and down buttons to move between the options.
••
••
•Use the volume control buttons to change the data.
••
••
•To store the data, use the stand-by button on the remote control.
••
••
•To exit the Service Mode, turn the receiver off using the mains switch.
When the Service Mode is entered the following On Screen Display appears:
SERVICE SOFTWARE 32JW74E ∗∗-∗∗∗∗∗
SW on: XXXX SW off: XXXX Hours ON: XXXX
The figures displayed in the “XXXX” locations are hexadecimal representations of the number of times that particular
function has been executed. For example if the hexadecimal number displayed after “SW ON” was 0E4A, this would
correspond to the receiver being turned on 3658 times.
X
Adjustment menu:
The following adjustments can be carried out in the Service Mode.
When in the Service Mode it is possible to access certain functions by using the teletext keys as below.
••
••
•By pressing the Blue button each adjustment can be directly accessed via the remote control. Referring to the
list above, press the Blue button followed by the adjustment number, this will directly access the selected
adjustment. If any number above 26 is selected, the set will revert to the Service Mode entry page. To access a
number less than 10, use the 0 key first, i.e. 02.
••
••
•Press the Yellow button to go straight to the AGC adjustment.
••
••
•Press the Green button once to enter “FACTORY VOLUME” level. Use volume control keys to change the
setting. The original value will be recovered after resetting the TV set.
••
••
•Press the Green button twice to enter “FACTORY BALANCE” level. Use volume control keys to change the
setting. The original value will be recovered after resetting the TV set.
••
••
•Press the Red button once to enter “FACTORY CONTRAST” level. Use volume control keys to change the
setting. The adjustment is stored automatically.
••
••
•Press the Red button twice to enter “FACTORY BRIGHTNESS” level. Use volume control keys to change the
setting. The adjustment is stored automatically.
••
••
•Press the Red button three times to enter “FACTORY COLOUR” level. Use volume control keys to change the
setting. The adjustment is stored automatically.
••
••
•If buttons 0 through 9 are pressed, the set will automatically go to that program number.
Note that in case the blue button has been used before, the program number should be requested by using two
digit number (01...99).
••
••
•By pressing the Menu button, the unit will normalise Picture and Audio settings. The Auto Installation is then
turned “on”.
All manuals and user guides at all-guides.com

8
32JW-74E
The following geometry adjustments can be carried out. Detailed instructions on how to execute these are given on the
following pages:
Horizontal
• Horizontal Shift
• East West Width
• Pin Phase
• Pin Amp
• Vertical angle

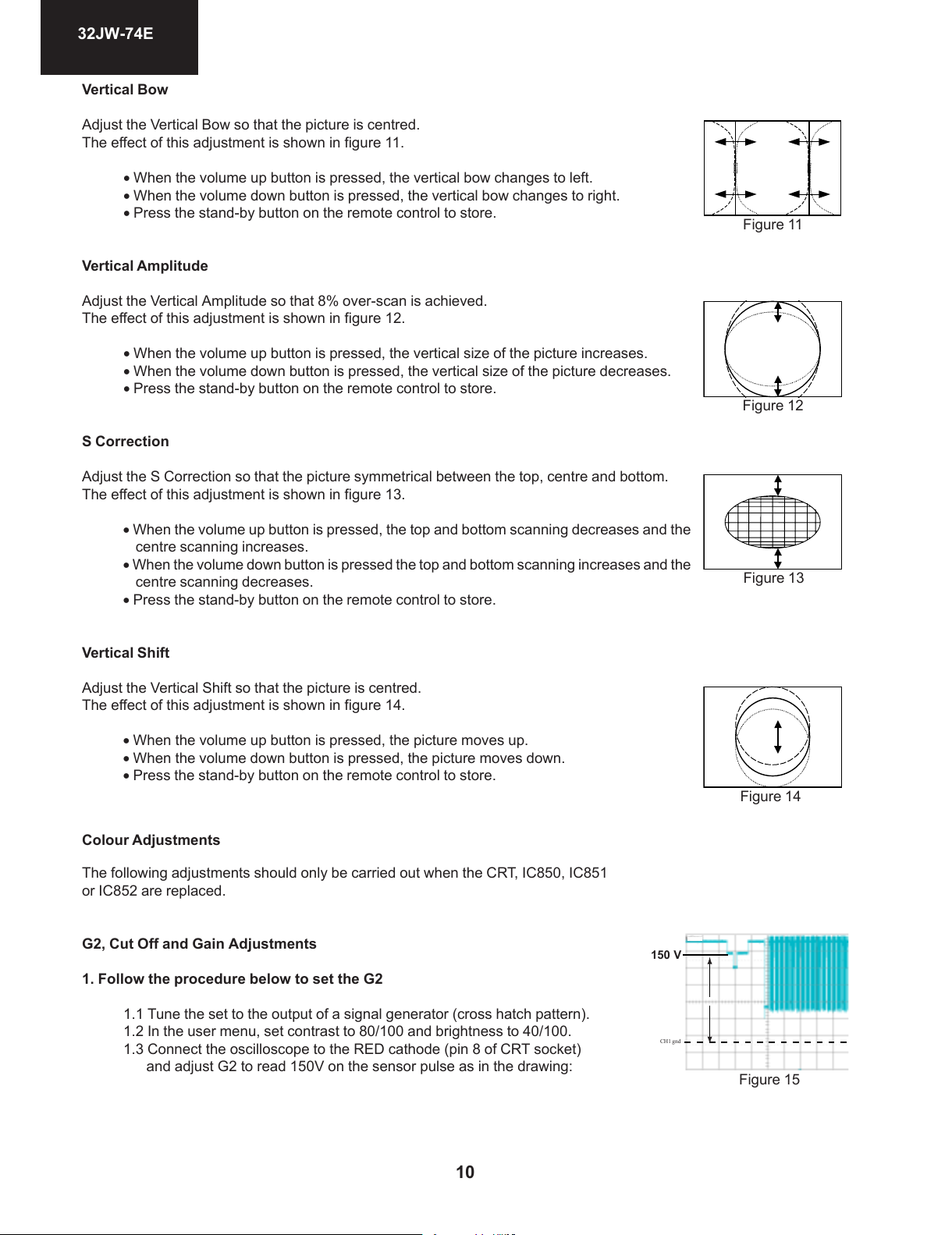

• Vertical bow
• Upper Corner Amplitude
• Lower Corner Symmetry
• Extreme Corner Symmetry
Vertical
• Vertical Amplitude
• S Correction
• Vertical Shift
• Vertical Linearity
Just in case the TV set requires a full geometry adjustment, please proceed first with Verti-
cal according to the above order, and after that, adjust Horizontal according to the above
order.
Horizontal Shift
Adjust the horizontal shift so that the picture is centred.
The effect of this adjustment is shown in figure 2.
•When the volume up button is pressed, the picture moves to the left.
•When the volume down button is pressed, the picture moves to the right.
•Press the stand-by button on the remote control to store.
East West Width
Adjust the East West Width so that 8% over-scan is achieved.
The effect of this adjustment is shown in figure 3.
•When the volume up button is pressed, horizontal scanning increases.
•When the volume down button is pressed, horizontal scanning decreases.
•Press the stand-by button on the remote control to store.
Pin Phase
Adjust the Pin Phase so that the picture is symmetrical top and bottom.
The effect of this adjustment is shown in figure 4.
•When the volume up button is pressed, side pincushion changes.
•When the volume down button is pressed, side pincushion changes.
•Press the stand-by button on the remote control to store.
Pin Amp
Adjust the Pin Amplitude so that the picture is centred.
The effect of this adjustment is shown in figure 5.
•When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel
shape to pincushion.
•Press the stand-by button on the remote control to store.
Figure 2
Figure 3
Figure 4
Figure 5
All manuals and user guides at all-guides.com

9
32JW-74E
Upper Corner Correction
Adjust the Upper Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 6.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
•Press the stand-by button on the remote control to store.
Lower Corner Correction
Adjust the Lower Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 7.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
• When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
• Press the stand-by button on the remote control to store.
Extreme Corner Correction
Adjust the Extreme Corner Correction so that the picture is centred.
The effect of this adjustment is shown in figure 8.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel shape to
pincushion.
•Press the stand-by button on the remote control to store.
Vertical Linearity
Adjust the Vertical Linearity so that the upper and lower parts of the picture are symmetrical.
The effect of this adjustment is shown in figure 9.
• When the volume up button is pressed, the upper picture scanning decreases and the
lower picture scanning increases.
• When the volume down button is pressed, the upper picture scanning increases and the
lower picture scanning decreases.
• Press the stand-by button on the remote control to store.
Vertical Angle
Adjust the Vertical Angle so that the picture is centred.
The effect of this adjustment is shown in figure 10.
• When the volume up button is pressed, the vertical angle changes to right.
• When the volume down button is pressed, the vertical angle changes to left.
• Press the stand-by button on the remote control to store.
Figure 9
Figure 7
Figure 10
Figure 6
Figure 8
All manuals and user guides at all-guides.com

10
32JW-74E
Colour Adjustments
The following adjustments should only be carried out when the CRT, IC850, IC851
or IC852 are replaced.
G2, Cut Off and Gain Adjustments
1. Follow the procedure below to set the G2
1.1 Tune the set to the output of a signal generator (cross hatch pattern).
1.2 In the user menu, set contrast to 80/100 and brightness to 40/100.
1.3 Connect the oscilloscope to the RED cathode (pin 8 of CRT socket)
and adjust G2 to read 150V on the sensor pulse as in the drawing:
Vertical Bow
Adjust the Vertical Bow so that the picture is centred.
The effect of this adjustment is shown in figure 11.
• When the volume up button is pressed, the vertical bow changes to left.
• When the volume down button is pressed, the vertical bow changes to right.
• Press the stand-by button on the remote control to store.
Vertical Amplitude
Adjust the Vertical Amplitude so that 8% over-scan is achieved.
The effect of this adjustment is shown in figure 12.
• When the volume up button is pressed, the vertical size of the picture increases.
• When the volume down button is pressed, the vertical size of the picture decreases.
• Press the stand-by button on the remote control to store.
S Correction
Adjust the S Correction so that the picture symmetrical between the top, centre and bottom.
The effect of this adjustment is shown in figure 13.
• When the volume up button is pressed, the top and bottom scanning decreases and the
centre scanning increases.
• When the volume down button is pressed the top and bottom scanning increases and the
centre scanning decreases.
• Press the stand-by button on the remote control to store.
Vertical Shift
Adjust the Vertical Shift so that the picture is centred.
The effect of this adjustment is shown in figure 14.
• When the volume up button is pressed, the picture moves up.
• When the volume down button is pressed, the picture moves down.
• Press the stand-by button on the remote control to store.
Figure 14
Figure 11
Figure 12
Figure 13
150 V
CH1 gnd
Figure 15
All manuals and user guides at all-guides.com

11
32JW-74E
Note:
Oscilloscope should be adjusted for vertical TV field trigger and synchronized with video signal.
2. Follow the procedure below to set the Cut Off.
2.1 Adjust G2.
2.2 Tune a white pattern.
2.3 Adjust colour to minimum.
2.4 Position colorimeter in the centre of screen.
2.5 Adjust brightness and contrast to obtain a luminance of ≈20 NITS.
2.6 Operate in Service Mode and select location RED CUT OFF, GREEN CUT OFF and BLUE CUT OFF, to
obtain colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease press volume down button.
RED CUT OFF alter «X» coordinate.
GREEN CUT OFF alter «Y» coordinate.
BLUE CUT OFF alter «X» and «Y» coordinate.
They will be stored automatically.
Changing NVM Data
To change the data contained within the Non Volatile Memory, it is necessary to first select the page the data is stored in,
then the position and finally to change the data itself. The procedure below outlines this process.
1. While on ALTER NVM PAGE, use the volume up/down buttons to change this data (data is shown in hexadecimal
format).
2. Press the channel up button and ALTER NVM POSITION appears, use the volume up/down buttons to change this
data (data is shown in hexadecimal format).
3. Press the channel up button and ALTER NVM VALUE appears, use the volume up/down buttons to change this data
(data is shown in hexadecimal format).
4. Once this data has been set, press the stand-by button to store.
5. If another NVM value has to be changed, use the channel down button to select the page or position and repeat as
necessary.
Note:
DO NOT change any NVM data, unless you have been advised to do so by a Sharp representative. If data is incorrectly
changed, serious damage may occur to the receiver.
Contrast Adjustments
Three types of contrast levels can be varied as listed below:
• TELETEXT MIX MODE CONTRAST
• TELETEXT CONTRAST
• OSD CONTRAST
Use the volume up/down buttons to adjust to a suitable level, they will be stored automatically.
DVCO Adjustment (PAL)
Carry out the DVCO Adjustment (PAL) as shown below:
1. Receive a color pattern signal (PAL).
2. While in the DVCO ADJUSTMENT (PAL) menu, press the stand-by button.
3. The adjustment will be carried out automatically and stored.
All manuals and user guides at all-guides.com
all-guides.com

12
32JW-74E
DVCO Adjustment (NTSC)
Carry out the DVCO Adjustment (NTSC) as shown below:
1. Receive a color pattern signal (NTSC 3.58).
2. While in the DVCO ADJUSTMENT (NTSC) menu, press the stand-by button.
3. The adjustment will be carried out automatically and stored.
Automatic Gain Control Adjustment (B/G, D/K, I)
To correctly align the Automatic Gain Control, follow the procedure outlined below:
1. Tune the set into a pattern generator on E-12 (B/G).
2. Enter the Service Mode.
3. Press the channel up button of Remote Control to select “Automatic Gain Control”
4. Press volume up/down to adjust to “109 dB/mV”.
5. It will be stored automatically.
6. Turn off the receiver by Main switch to exit the Service Mode.
Automatic Gain Control Adjustment (L, L’)
To correctly align the Automatic Gain Control, follow the procedure outlined below:
1. Tune the set into a pattern generator on F-10.
2. Enter the Service Mode.
3. Press the Channel up button of Remote Control to select “Automatic Gain Control”
4. Press volume up/down to adjust to “103 dB/mV”.
5. It will be stored automatically.
6. Turn off the receiver by Main switch to exit the Service Mode.
Auto Installation On/Off
To return the receiver to the original Auto Installation mode, using the volume up or down button, set the Auto Installation
On/Off to On. This setting is automatically stored and when the receiver is turned on the next time it will start up in Auto
Installation mode.
All manuals and user guides at all-guides.com

13
32JW-74E
On Off
On Off
On Off
On Off
On Off
LED FLASHING CODES
This model is not provided with stereo led, so to let “flashing codes” for IC failures detection when the TV set does not
work, we offer the next solution:
• The detection of failure will be made with an external LED.
• The output of the flashing code will be via AV1 (pin 10).
• Insert a generic led diode between pin 10 and ground (i.e. pin 5) as shows the below picture.
Follow the sequence according to the below information, as a guide to fault finding.
1. Unable to read or write into NVM: 66% ON, 33% OFF twice and OFF for a second.
2. MSP 3410 failure: 66% ON, 33% OFF for three times and OFF for a second.
3. SDA 9380 failure: 66% ON, 33% OFF for four times and OFF for a second.
4. VSP 9402 failure: 66% ON, 33% OFF for five times and OFF for a second.
5. TDA9886 failure: 66% ON, 33% OFF for six times and OFF for a second.
21
21 19 17 15 13 11 97531
20 18 16 14 12 10 8 6 4 2
All manuals and user guides at all-guides.com

14
32JW-74E
FB704
L611
FB603
C621
D613
D612
C642
+
L602
R671
T601 R627
JL1.
JL1
C627
C609
+
L605
TP602 TP601
R755
C798
C717
C709
+
C704
R719
D729
C602
R606
FB703
Q701
C711
J34
J33 J32
C707
+
J41
POR701
12
(G)
C702
R714
J196
D703
C746
(L5)
D605
C637
J194
C753
R667
+
C636
C630
R657
C628
C617
C624
J122
Q612
C625
C626
+
C
Q706
E
+
C1022
R663
(AV1)
R746
R747 C799
4
3
2
1
C703
FB601
1
PRDAR5531BM
PRDAR5531BM
PRDAR5531BM
PRDARA027WJ
C622
1
(SWRC)
4
D510 J57 J56
L601
+
C620
C613
J82
R618
51
(F)
B
Q605
E
R530
L606
C734
+
D746
R756 D710 R757 D711 R790
C738
D752
C748
+
R725
C721
C706
C701
R774
R770
4
(VIB)
1
(L7)
DIP
PRDARA027WJ
7
R612
D620
Q602
D1017
3
(OPC)
11
(ST)
3
T3.15AH
R1036
K7351BM
S702
S703
D1002
D1001
S704 S705 M1000
LP701
S701
(AA)
31
(SW1)
(RC)
20
21
21
20
D618 D606
D610
QP
W
J1
J4 J5
D619
D617
J3
Q601
D638
PRDAR1563BM
A
K
E
C
B
1
2
3
4
56
7
8
9
10
11 12 13
F701
3
2
1
(M)
Q702
R721
Q703
J47
R779
R728
R758
D737
R718
IC703
(L2)
R614
C623
+
D718
D609
J96
R609
R603
R660
D611
D627
J171
R1009
J97
J121
J132
J133
J172
R215
C603
D607
J58 J59
J83 J84 J85
J93
J94
R21
4
HOT
COLD
L609
R651
C619
C601
J134
4
(MO)
1
R666
R441
L701
J17
R749
J35
C725
J42
C796
R798
C730
D712
R730
D704
D702
D701
C712
+
+
C713
VR701
R711
T702
R787
R723
D736
D735 D734 R722
D717
R778 C710
BLUE
+
C520
+
C640
J203 J202
R650
R617 (H)
5
C634
+
+
C902
+
C903
JF902
D903
C639
R668
C705
R799
R909
C643
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
X
010 11 12 13 14 15 16 171 234 56 789
Page 15
F7351N3A Mother Unit PWB. Component side.
PRINTED WIRING BOARDS
All manuals and user guides at all-guides.com

15
32JW-74E
J131
J199
FB704
+
C536
J55
JF59
R503
R518
R555
Q502
J63
+
C526
R351
C356
D306
QPWBF7351BMN3
C733
R780
D740
R759
+
C751
+
C737
IC705
+
C732
R772
R501
J176
J183
J207
D722 J208
J206
+
D754
8V MSP
-16V
+16V
J201J87
J86
3V3
1.8V
5V
3V3 STBY
J120 J119 J118 J117 J116
R213
J113
TP701
1(CR)
R1024
Q797
J184
J185
J186
J187
J89 J88
L301
JF60
JF61
J62 R611
R738
R601
C637
+
C417
+
J136 J137
+
C636
D637
J100
R640
C389
J48
F704
C726
+
D798
R747 C799
2
1
PRDAR5531BM
PRDAR5531BM
C524
R509
J54
JF23
IC305
J64 J65 J66 J67 J68 J69 J70 J71
J53
J52
D608
J50
J49
D1010
R1045
J46
R796
R734
IC708
J40
R776
D728
J31
J30
J39
J38
+
C728
IC706
J110
J109
20
IC501
J101
MOD.DIGITAL
J79
R717
J29
R795
J11
J124
J127
J126
J128
T701
(VIA)
J173
J157 J156
L353
J23
+
C377
J16
R359
C376
C370
R358
C361
ESPA¥A
16
10
J106
C303
+
+
C304
C308
+
X301
+
C320
C316
J145
J144 J143
C318
J155
C317
+
C301
+
C309
C311
+
+
J160
J159
J158
R301
R302
1
CN1R304
R303
J154
J139
J141
J142
J170
D205
D204
R219
R220
R202
R203
IC202
J13
R337
J14
L702
J19
C1031
+
(S)
24
25
2
1
(YA)
24
25
2
1
(YB)
J167
R208
C205
+
C215
+
C302
J104
C319
J140
J147
5
1
SF202
C201
IF2
IF1
33V
B+
DA
CL
AS
TU
AGC
TH201
(AV)
1
2
2
1
+
C204
J153
FB302
FB303
J161
+
C422
L203
C330
+
J148
51
SF201
J149
J152
J151
J130
X201
112
(SA)
J163
J174
+
C212
C222
+
C221
6
1
(SB)
J25
C388
C365
+
C378
+
C352
C351
+
L352
C363
+
71 3 5
6
2
4
(PHONE)
20
10 1
IC301
Q
PWBF7351BMN3
(FRONT)
11
10
IC302
A
+
C362
+
C372
3
(SS)
1
(FV)
1
L315
J20
L316
L350
L351
8
1
IC304
(RGB)
J162
CN3
C312
C801
J105
A
J125
J28
L303
C727
+
(VS)
R423
J83 J84 J85
J93
J94
R214
R387
J22 J21
J168 J169
L202 R223
C618
+
J129
J103
R654
J102
J181
J99
J98
J180
FB501
J92 J91 J90
J80 J81
J78 J77 J76 J74 J73 J72
L501
C504
J177
J175
+
C511
J95
J191
J190
J188
J189
IC704
+
C1047
J51
+
C735
L319
L318
J182
+
C752
J44
D719
J18
J193
R
666
FB301
R441
F702 J27 FB701
D727
J195
D721
D753
D720
J37
D745
D508
R505
J60 J61
BLUE
C742
+
R704
R702
J198
R415 R416 R417 R414
J204
J205
J179
J197
R553
IC702
R733
C729
+
L705
+
C720
R797
J24
J164
C1052 L302 (HD)
(YC)
R413
J166
R442
R443
R345
R344
JF70
J200 J115
J114
+
C535
J108 J107
J214
J209
F7351N3A Mother Unit PWB. Component side.
Page 14
29 30 31 32 33
20 21 22 23 24 25 26 27 28 17 18 19
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
16
All manuals and user guides at all-guides.com

16
32JW-74E
R622
C398
C397
C396
K
D310
R388
Q307
JF75
R380
Q308
Q309
R360
R389
J131
J199
+
C536
J55
JF59
R503
R518
R555
Q502
J63
+
C526
R351
C356
C817
R815 JF62
L802
KD304
R350
R355
D306
J60
R346
R780
D740
K
D1
D3 K
D2 K
150V
R743
R759
R767
Q709
Q708 K
D747
R765
+
C751
R764
C737
R766
C722
R744
R745
IC705
R741
R737
C732
R742
K
D750
R772
R501
J176
J183
J207
C740
D722
J208
J206
+
D754
J201
J87
Q503
J86
GND
1
2
R222
R221
J120 J119 J118 J117 J116 R213
J113
R424
C1023
R427
C333
R314
R318
C339
C346
D424
K
D437
K
K
D436
R341 C394
R343 C393
D434
K
D430 K
C331
C336
D429 K
C334
R316
C345
R
R437
R438
(CR)
R428
R1024
C739
R736
C218
Q796
R775
Q797
J184
J185
J186
J187
J89 J88
JF60
JF61
J62
R738
R601
C637
+
Q407
R440
R4
3
C417
+
J136
J137
R644
C540
K
D631
K
D633
D636
K
Q611
R633
C629
R641
+
R640
C633
R634
R655 R659 J192
C389
R339
J48
F704
R436
C726
D798
C406
R747
J8
J6
R1039
C708
C749
C524
R509
J54
JF23
IC305
J64 J65 J66 J67 J68 J69 J70 J71
C736
J53
J52
D608
J50
J49
R1051
Q1004
R1044
D1010
K
D1011
R1045
J46
R796
R734
IC708
J40
R776
D728
J31
J30
J39
J38
C731
IC706
J110
J109
IC501
J101
Q606
R369
R308
MOD.DIGITAL MOD.DIGITAL
J79
K
D748
R740
R717
J29
C386
R739
R795
J11
J124
J127
J126
J128
J163
D
K
JF54
(VIA)
J173
J157 J156
C433
R412
D405
K
R452
L353
J23
+
J16
R359
C376
C370
R358
C361
16
10
J106
R370
R309
C303
+
K
+
C304
R418
D407
K
R419
D408K
C307
C308
+
X301
+
C320
R311 R312 R313
R310
C316
J145
J144
J143 C318
J155
K D409 D406 K
D410K
R421
C317
D302K
+
C301
C305
C3313
K
D303
C306
K
D723
C310
+
C309
+
C312
+
J160
J159
J158
R301 R302
R384 R362 R385
Q306
R205
CN1
R304
R303
J154
J139
J141
J142
J170
D205
D204
R219
R220
R202
R203
R240
IC202
J164
Q202
J13
R337
J14
L702
J19
R331
C380
C382
C1043
R382
C1031
+
Q305
C353
(S)
R357
C375
24
25
2
1
(YB)
2
1
24
25 (YA)
R408
R409
C337
D426 K
C343
J167
R325
R327
C348
R326
R324
R231
JF8
R225
R208
C210
C801
R211
R209
C205
+
C215
+
C302
K D411
J104
Q201
C319
J140
24
IC303
J147
SF202
IC201
TH201
TU
AS
CL
DA
B+
IF1
IF2
L205
+
C204
J153 FB302
FB303
J161
+ C422
L203
C330
+
J148
J149
D201K
D202K
D203K
J152
J151
J130
JF10
C208
C202
C203
R230
X201
1
12 (SA)
J146
R422
Q403
R207
C207
R201
C209
R210
R212
J174
+
C212
C211
JF9
C214
R217
R206
C206
C219
C347
C222
+
C221
R321
C338
D425
K
R306
R305
R407
D421 K
C314 C315
C329
C328
C321
C322
C325
C324
C323
C1046
(SB)
J25
JF4
C388
C365
+
C378
+
C352
+
C351
L352
C363
+
QWBF7351BMN3
20
11
IC301
(FRONT)
20 11
IC302
R352
C350
C364
C354
C358
C362
+
R375
C357
C416
J9
J7
C391
C390
R338
C379
C373 C368
C369
C367
R356
C366
C374
C371
R374
+
C372
3
1
(SS)
(FV)
1
L315
J20
L316
JF28
JF29
C360
R353
C381
R328
R330
L350
L351
C1044
8
IC304
R332
R334
C384
R336
C387
R335
C383 R333
J162
CN3
1
R322
C326
C327
D305
C311
J105
R204
JF5
JF7
JF6
C213
K D423
R410
R411
KD422
IC7
0
J125
J28
J12
L303
C727
(VS)
R423
J83
J84
J85
J93
J94
R214
Q505
R387
J22
J21
J168 J169
L202
R223
R656
D615
K
C618
+
J129
J103
R654
J102
J181
J99
J98
J180
R511
C508 C505
FB501
C534
J92
J91
J90
J80 J81 J78 J77 J76 J74 J73 J72
R514
R526
IC503
Q1010
R534
R513 R544
R515
C525
R502
R536 R537 R512
R549
R548
R535
R545
L501
IC502
C504
R516
J177
J175
+
C511
J95
J191
J190
J188
J189
Q1011
R1047
IC704
C741
R1026
R1025
C743
+
C1047
J51
R794
Q710 R777
R761
+
C735
L319
L318
J182
+
C752
J44
C506
R420
D719
J18
J193
C507
R510
C503
C502
C522
C342
C340
R320
R605
R638
R531
R554
R
C
R639
FB301
R441
F702
J27
FB701
D727
J195
D721
D753
D720
J37
D745
D508
R505
J61
R323
C344
C395
D431
K
C742
+
R704
R702
J198
R415 R416 R417 R414
3V3 STBY+3V3+5V+1.8V
3V3
STBY
3V3
5V
1.8V
J204
J205
J179
J197
C510
80
65
64
41
40
1
2
3
4
5
6
7
8
9
D
S
G
S
G
S
DG
1
3
2
13
2
3
1
2
K
C728
C733
R553
IC702
R735 R771
R733
C729
+
L705
+
C720
R797
J24
1
12
13
24
D308
K
K
D307
C1052
L302
R329
C385
J15
(HD)
(YC)
K
D511
R413
J166
R442
R345
R1046
JF70
JF71
JF72
JF73
J200 J115
J114
+
C535
R504 R506
K
D507
J108 J107
C313
R307
J111
J213
J214
C377
C359
R319
C341
C392
JF11
C1045
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
F7351N3A Mother Unit PWB. Copper side.
Page 17
19 18 17 16 29 28 27 26 25 24 23 22 21 20
33 32 31 30
X
All manuals and user guides at all-guides.com
all-guides.com

17
32JW-74E
R1042
JF55
R1019
D731KD730K
R731
R626
R910
K
D904
R901
C908 C907 C906
FB603
C641
D613
D612C642
+
L611
L602
T601
T2T1
G
R670
R604
C607
R669
Q607
R623
D644 K
C606
C904
C905
R907
R627
0
1
Q503
14
32
R621
C627 C609
+
L605
R406
R437
R
438
C798
R713
+
C704
IC709
13
46
Q720
R753
D716
K
R719
D729
D643
K
R662
C602
R426
R606
FB703
Q701
D715
K
R784
R708
C756
R773
C754
R751
R782
R715
C755
C711
R709
R710
R783
R712
R705
R750
Q721
J34 J33 J32
R789
R785
R788
IC701
+
R716
J41
Q712
R786
R703
R754
Q705
D741
K
R701
R748
K
D707
R752
Q704
D714
K
POR701
(G)
12
C702
R714
J196
D703
C746
+
R440
R439
Q406
J194
C753
R667
3
6
+
3
4
R655
R659 J192
R632
R637
C635
IC601
R658
C630
R657
C628
C617 C624
D641
K
Q612
K
D622
Q609
K
D623
+
R664
Q614
R630
D732 K
K
D713
R707
Q706
C
E
JF58
+
C1022
R663
R747
C799
C703
FB601
R628
R629
R726
C718
Q724
C715
R732
COLD
HOT
C796
1
R1055
(SWRC)
C708
JF1001 JF1002 JF1003 JF1004 JF1005 JF1006
JF1007 JF1008
K
D512
D510
J57 J56
L601
C622
+
C620
C613
R645
J82
J11
R618
2
1
(F)
C604
Q605
C605
R530
L606
R792
+
Q713
R768
R793
R791
D746
Q714
J36
R756
D710
R757
D711
R790
C738
D752
C748
+
R725
C721
C706
C701
R774
R770
D420K
(VIB)
JF24
D402
K
16
10 7
JF56
R1053 R1030
R1031
Q608
Q604
R612
R607
Q603
D620
Q602
JF153
R1017 R1099
D1017
R1013
R1014
R1015
R1037
JF151
Q1003
(OPC)
(ST)
Q1002
S702
S703
D1002 D1001
S704
S705
M1000
A
LP701
S701
13
(AA)
(SW1)
(RC)
R408
KD403
D
411 D404 K
(AV)
K
D427
R425
R407
C403
4
21 K
D618
D606
..
D610
J1
J3
J4
J5
D619
D617
R1032
Q601
B
C
E
A
K
D638
R451
R405
R453
J165
C432
C412
1
2
3
4
5
6
7
8
9
10
11
12
13
A
F701
(M)
1
2
3
Q702
R721
Q703
J47
R779
R728
R729
R758
R781 R727 C716
D737
R718
IC703
C719
C724
R700
R614
+
C623
D718
D609
J96
R609
R660
D611
D627
J171
R1009
D640
K
J97
J121
D604
K
J132 J133
J172
R215
C603 D607
J58 J59
J83
J84
J85
R214
Q613
L609
R651
JF1009 JF1010 JF1011 JF1012
JF1016
JF1015
JF1013
JF1014
R631
F7351BMN3
C601
R1049 C1049 R1010
K D1020
K
D1019
J150
J134
(MO)
R1050
K
D1021
R
605
R638
R531
C541
R643
R554
R760
R635
C632
R666
R639
R
441
R665
K
D642
7
43
2
1
J17
R749
J35
C725
J42
R798
D743
K
C730
D712
R730
D704
D702
D701
C712
+
+
C713
VR701
Q707
R711
T702
C610
D733
K
K
D708
K
D725
D736
D735
D734
R722
D717
R778
Q723
C710
C723
R723
R787
13V
-13V
25V
400V
C520
+
C640
J203 J202
G
S
D
D
S
G
D
S
G
D
G
S
G
D
S
S
G
R706
R661
R650
R617
K
D639
D1018
K
(H)
C634
+
Q902
C901
R905
+
C902
R906
+
C903
D901
K
JF902
R902 Q901
R904
R903
C612
R620
C608
R616
R668 C639
R610
R608
JF63
D902
K
R908
(AV1)
C714
C705
R799
16
34
JF901
R909
C643
K
D625
D616
K
D624
K
C631
F7351N3A Mother Unit PWB. Copper side.
Page 16
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
2
3
4
5
6
7
8
9
10
1
Y
X
0
10 987654321
17 16 15 14 13 12 11
All manuals and user guides at all-guides.com

18
32JW-74E
F7269N3 CRT Unit PWB
Component side
+
C895
C891
C
Q858
E
E
Q857
C
JF5
JF7
C
Q861
E
R885
E
Q860
C
R874 R882
J10
R881
C865
R866
R886
JF2
C5405
R5447
1
L1603
(RT)
E
Q5415
B
1
(Q)
R884
+
C5426
R5449
R5448
C5425
+
D863
R892
R894
J20 R1624
R1617
D1607
C1610 R1618
R1616
R1615
C1611
R871
L864
J11
R5437
C5418
+
D5411
J25
C5419
+
C850
+
R5436
E
Q5414
B
(SVM)
(H)
(K)
1
3
R5444
C5422
R5421
R5424
D5405
R5442
C5411
D5403
R5419
C5409
R5418R5417
C5408
R5416
R5445
R5443
C893
R5440
R862
R865
D864
C892
R5439
C855
C851
+
D869
D868
C863
+
.
1(B)
R1801
4
12
11
10
9
8
7
6
5
SC861
C884
K7269BM F7269BMN3
ESPA¥A
L3
L2
(G2)
+
C853
R851 C883 C882
R861
J13
D852
R856
C877
91 IC852
R859
R853
R852
R888
R880
C880
R872
C871
J1 J8
R863
J9
R850
C881
91 IC850
R858
R860
C861
J7
FB850
J12
J3
1
8
C5417
R5415
FB851
R883
R875
IC851
1
9
C874
R895
J6
R868
C862
Q5407
BE
E
Q854
C
C885
C852
C856
C857
SG863
EB
Q5408
J4
C859 C889
R864 R869 R867 R870 R873
E
Q856
C
D862
SG860
J14
R897
FB852
J18
E
Q859
C
J17
B
Q851
E
D851
+
C5414
D865
D866
D867
C
Q1604
E
+
C1613
(MO)
R1622
C1609
+
R1621
1
IC1601
R854
R893
SG864
C869
SG861
R891
J21
D870
JF1
C894
+
J23
SG865
R5441
C868
+
J19
D5404
C5421
E
Q5410
C
E
Q5412
C
C
Q5411 E
D5408
C890
C5407
E
Q5405
C
D5409
L863
J24
R887
D861
R889
R5446
C5424
C5420
E
Q5406
C
R5425
D5410
C5410
R5420
SG862
J15
D871
R1619
R876
R1620
C1608
+
J5
C
Q1603
E
R1623
JF4
C887
+
JF6
C854
R857
C
Q852
E
C
Q853
E
R855
E
Q855
C
R5438
JF3
C888
R5427
R5435
R5432
R5434
C5416
R5433
R5431
JF8
C1612
+
J16 C1614
11
12
13
1
2
3
4
5
6
7
8
9
10
Y
X
010 11 12 13 14 15 16 17
123456789
All manuals and user guides at all-guides.com

19
32JW-74E
F7269N3 CRT Unit PWB
Copper side
+
C895 C891
Q858
C
E
EC
Q857
JF5
JF7
Q861
C
E
R885
E
C
Q860
R874
R882
J10
R881
C865
R866 R886
JF2
C5405
R5447
L1603
Q5415
E
B
1
(Q)
R884
+
C5426
R5449
R5448
C5425
+
D863
R892
R894
J20
R1624
R1617
D1607
C1610
R1618
R1616
R1615
C1611
R871
L864
J11
R5437
C5418
+
D5411
J25
C5419
+
C850
+
R5436
Q5414
E
B
(K)
(H)
(SVM)
1
3
R5444
C5422
R5421
R5424
D5405
R5442
C5411
D5403 R5419
C5409
R5418
R5417
C5408
R5416
R5445 R5443
C893
R5440
R862
R865
D864
C892
R5439
C855
C851
+
D869
D868
C863
+
.
(RT)
F7269BMN3
(B)
R1801
SC861
12
11
10
9
8
7
6
5
4
C884
+
C853
R851
C883
C882
R861
J13
D852
R856
C877
IC852 19
R859
R853
R852
R888
R880
C880
R872
C871
J1 J8
R863
J9
R850
C881
IC850 19
R858 R860
C861
J7
FB850
J12
J3
1
8
C5417
R5415
FB851
R883 R875
91
IC851
C874
R895
J6
R868
C862
Q5407
B
E
E
C
Q854
C885
C852
C856
C857
SG863
E
B Q5408
J4
C859
C889
R864 R869
R867 R870 R873
E
C
Q856
D862
SG860
J14
R897
FB852
J18
E
C
Q859
J17
B
E
Q851
D851
C5414
D865
D866
D867
Q1604
C
E
+
C1613
(MO)
R1622
C1609
+
R1621
8
41
IC1601
R854
R893
SG864
C869
SG861
R891
J21
D870
JF1
C894
+
J23
SG865
R5441
C868
+
J19
D5404
C5421
EC
Q5410
EC
Q5412
Q5411
C
E
D5408
C890
C5407
EC
Q5405
D5409
L863
J24
R887 D861
R889
R5446
C5424
C5420
EC
Q5406
R5425
D5410
C5410
R5420
SG862
J15
D871
R1619
R876
R1620
C1608
+
J5
Q1603
C
E
R1623
JF4
C887
+
JF6
C854 R857
Q852
C
E
Q853
C
E
R855
E
C
Q855
R5438
JF3
C888
R5427
R5435
R5432
R5434
C5416
R5433
R5431
JF8
+
J16
C1614
Y
11
12
13
1
2
3
4
5
6
7
8
9
10
X
0
10 987654 321
17 16 15 14 13 12 11
All manuals and user guides at all-guides.com

20
32JW-74E
J4 J95
C6058
R6041
C6061
Q6008
R6069
JF6009
C6012 C6011
R6049
JF6010
JF6004
FB6049 FB6050
C6044
C6047
C6046
C6048
FB6028
C6122
R6006
J94
C6003
R6058
R6060
R6059 C6067
C6066
C6023
R6053
C6139
C6140
J107
J106
C6024
K D6011
R6042
R6054
R6055
C6068
R6056
J80
K D6015
J103
J100
C6114
J49
C6027
C6026
C6028
C6029
FB6027
C6126
FB6032 FB6033
C6127 C6049
C6050
J26
C6034
R6052
C6038
FB6018 FB6016
FB6017
C6115
FB6007
R6040
J77
Q6003
KD6014
R6017
Q6004
C6136
FB6044
C6137
FB6040 FB6041 FB6042 FB6043
J12
C6036 R6031 R6033 R6034
R6032
C6128 C6129 C6130 C6131 C6132
FB6034
J79
C6119
FB6021
C6117
FB6019
C6118
FB6020
FB6031
C6125
FB6030
C6124 C6123
FB6029
C6051
FB6035
C6056
C6102
FB6004
C6103
FB6005
C6104
FB6006
C6116
FB6014
C6112
FB6013
C6111
C6110
FB6012
C6109
FB6011
C6108
FB6010 FB6009
C6107
FB6008
C6106
C6064
KD6001
C6053
R6009
KD6002
R6008
C6006
JF6006
Q6001
R6012
C6045
C6055
R6035
1
30
31
5051
80
81
100
IC6001 IC6007
80
6160
41
40
21 20
1
1
16 17
32
33
48
49
64 IC6006
R6037 R6036 C6039
C6040
C6020 C6021 C6022
J17
C6042
R6011
C6017
C6018
JF6005
JF6007 R6047
JF6008
C6010
R6048
KD6003
J22
J7
FB6026
IC6003
C6054
FB6048
C6121
FB6025
C6120
FB6024
FB6023
FB6022
R6050
J63
C6101
C6030
C6065
R6016
R6051
FB6039
D6004K
Q6002
R6029
C6031
KD6010
R6015
C6062
C6063
C6060
R6023
C6141
C6138
J101 J102
C6033
K D6005
R6018
R6007
C6004
C6005
C6059
R6057
FB6036 FB6037
FB6038
JF6014
J104
R6064
R6062
J27
C6144
R6044
J105
Q6007
JF6002
JF6003
R6045
C6016
C6013
J68
C6015
C6009
R6002
R6003
C6008
R6001
C6007
C6146 C6145
R6066 R6065
J108
R6013 R6010
J23 C6057
+
C6037
X6001
C6069
+
C6052
+
J20
JL2.
J16
J14
+
C6041
J3
J93
J2
J25
C6025
+
J39
C
Q6005
E
J96 J36
J86
X6002
J40
J64
F7353BMN1
R6019
FB6046
FB6047
J48
R6020
R6021
R6039
R6038
J32 J33 J34
J21
J19
+
C6001
1
6
(VI)
J10
J11
L6003
J8
J37
+
C6043
J13
J92
(K)
112
(RT)
IC6002
(YB)(YA)
J59
FB6003
J67 J69
J60
J73
E
Q6006
C
R6043
FB6001
J75
ESPA¥A
IC6005
1
J57
R6014
J53
J58
J42
J15
FB6002
J52
R6005
J56
J61
K7353BM
L6004
L6006
J54
.
J82
J83
J84
J35 J41
D6012
R6026 R6024 J24
FB6045
R6004
J9
X6003
R6046
L6002
L6005
L6001
JL2
J74
C6143
J1
JF6013
JF6012
JL1.
R6061
R6063
C6035
J91
L6008
J90
J65
+
C6070
+
C6014
L6007
J85
R6068
1
3
(YC)
F7353N1 TVTextPRO Digital Module Unit PWB
Component side
F7353N1 TVTextPRO Digital Module Unit PWB
Copper side
1
2
3
4
5
6
7
Y
X
010 11 12 13 14 15 16 17
123456 7 8 9
8
Y
X
1
2
3
4
5
6
7
0
10 987654 321
17 16 15 14 13 12 11
8
All manuals and user guides at all-guides.com
