Sharp 50NP4 User manual

APRIL 2000
Models:
50NP4/60NP4
PROJECTION COLOR
TELEVISION
S/M: S01TM50/60//E
SERVICE MANUAL
CONTENTS
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SERVICING PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TECHNICAL CAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CIRCUIT PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CAUTIONS WHEN CONNECTING/DISCONNECTING THE HV CONNECTOR . . . . . .12
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CUSTOMIZED PICTURE AND SOUND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . .19
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ADJUSTMENT POINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
WAVEFORMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
PRINTED CIRCUIT BOARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
WIRING DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
CIRCUIT SCHEMATICS DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
REPLACEMENT PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
In the interest of user-safety (required by safety regulations in some countries), the set should be
restored to its original conditiion and only parts identical to those specified should be used.
CAUTION: Before servicing this chassis, it is important that the service technician read the ÒSafety PrecautionÓ
and ÒProduct Safety NoticesÓ in this service manual.
SAFETY NOTICE
USE ISOLATION TRANSFORMER WHEN SERVICING
Components having special safety characteristics are identified by a on the schematics and on the parts list in this
Service Data and its supplements and bulletins. Before servicing the chassis, it is important that the service technician
read and follow the ÒSafety PrecautionsÓ and ÒProduct Safety NoticesÓ in this Service Manual.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
!
SHARP CORPORATION
This document has bben published to be used for after
sales service only.
The contents are subject to change without notice.

2
IMPORTANT SERVICE SAFETY PRECAUTION
JService work should be performed only by qualified service technicians who are throughly familiar with all
safety checks and the servicing guidelines which follow:
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shcok hazards when
the chassis is operating.
4. The chassis in this receiver has two ground systems which are
separated by insulating material. The non-isolated (hot)
ground system is for the B+ voltage regulator circuit and the
horizontal output circuit. The isolated ground system is for the
low B+ DC voltages and the secondary circuit of the high
voltage transformer.
To prevent electrical shock use an isolation transformer
between the line cord and power receptable, when servicing
this chassis.
SERVICING OF HIGH VOLTAGE SYSTEM AND PICTURE
TUBE
When servicing the high voltage system, remove the static
charge by connecting a 10k ohm resistor in series with an
insulated wire (such as a test probe) between the picture
tube ground and the anode lead. (AC line cord should be
disconnected from AC outlet.)
1. Picture tube in this receiver employs integral implosion
protection.
2. Replace with tube of the same type number for continued
safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing shatterproof
goggles and after discharging the high voltage anode
completely.
F
4A 125V
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE 4A-
125V FUSE.
X-RADIATION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the procedures and
instructions covering X-radiation. The only potential source of
X-ray in current solid state TV receivers is the picture tube.
However, the picture tube does not emit measurable X=Ray
radiation, if the high voltage is as specified in the ÒHigh
Voltage CheckÓ instructions.
It is only when high voltage is excessive that X-radiation is
capable of penetrating the shell of the picture tuve including
the lead in the glass material. The important precaution is to
keep the high voltage below the maximum level specified.
2. Is is essential that servicemen have available at all times an
accurate high voltage meter.
The calibration of this meter should be checked periodically.
3. High voltage should always be kept at the rated value - no
higher. Operation at higher voltages may cause a failure of
the picture tube or high volate circuity and also, under certain
conditions, may produce radiation in exceeding of desirable
levels.
4. When the high voltage regulator is operating properly there is
no possibility of an X-radiation problem. Every time a color
chassis is serviced, the brightness should be tested while
monitoring the high voltage with a meter to be certain that the
high voltage does not exceed the specified value and that it is
regulating correctly.
5. Do not use a picture tube other than that specified or make
unrecommended circuit modifications to the high voltage
circuitry.
6. When trouble shooting and taking test measurements on a
receiver with excessive high voltage, avoid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary to locate
the cause of excessive voltage.

3
LEAKAGE
CURRENT
TESTER
(READING
SHOULD NOT
BE ABOVE 0.5mA)
EARTH
GROUND
TEST ALL
EXPOSED
METAL SURFACES
DEVICE
UNDER
TEST
2-WIRE CORD
ALSO TEST WITH PLUG
REVERSED
(USING AC ADAPTER
PLUS AS REQUIRED)
AC Leakage Test
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinched or that hardware is not lodged between the
chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic control
knobs, insulating materials, cabinet backs, adjustment
and compartment covers or shields, isolation resistor-
capacity networks, mechanical insulators and etc.
3. To be sure that no shock hazard exists, check for leakage
current in the followingmanner.
¥ Plug the AC cord directly into a 120 volt AC outlet, (Donot
use an isolation transformer for this test).
¥ Using two clip leads, connect a 1.4k ohm, 10 watt resistor
paralleled by a 0.15mF capacitor in series with all
exposed metal cabinet parts and a known earth ground,
such as electrical conduit or electrical ground connected
to earth ground.
¥ Use an AC voltmeter having with 5000 ohm per volt, or
higher, sensitivity to measure the AC voltage drop across
the resistor.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
¥ Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon and etc.) and measure the AC voltage drop
across the resistor.
All checks must be repeated with the AC line cord plug
connection reversed. (If necessary, a non-polarized
adapter plug must be used only for the purpose of
completing these checks.)
Any current measured must not exceed 0.5 milliamp. Any
measurements not within the limits outlined above
indicate of a potential shock hazard and corrective action
must be taken before returing the instrument to the
customer.
SAFETY NOTICE
many electrical and mechanical parts in television receivers
have special safety-related characteristics. These
characteristics are often not evident from visual inspection,
nor can protection afforded by them be necessarllity
increased by using replacement components rated for
higher voltage, wattage, and etc. Replacement parts which
have these special safety characteristics are identified in
this manual; electrical components having such features are
identified by and shaded areas in the Replacement Parts
Lists and Schematic Diagrams.
For continued protection, replacement parts must be
identical to those used in the origianl circuit. The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may create
shock, fire, X-radiation or other hazards.
!

4
g. X-radiation – TUBE: The primary source of X-
radiation in this receiver is the picture tube. The tube
utilized for the above mentioned function in this
chassis is specially constructed to limit X-radiation
emissions.
For continued X-radiation protection, the replacement
tube must be the same type as the original, Sharp
approved type.
When troubleshooting and making test measure-
ments in a receiver with a problem of excessive high
voltage, avoid being unnecessarily close to the pic-
ture tube and the high voltage component.
Do not operate the chassis longer than is necessary
to locate the cause of excessive voltage.
h. X-radiation Shield –
1. This receiver is provided with X-ray shield plates
for protection against X-radiation. Do not remove
X-ray shield plates A, B, or C shown in Fig. 1
unnecessarily, when troubleshooting and/or
making test measurements.
2. To prevent X-radiation, after replacement of
picture tube and lens, confirm these components
to be fixed correctly to bracket and cabinet, and
not to be taken off easily.
Shield Plate A (1.6mm)
Glass Lens for Shielding
Shield Plate B (1.6mm)
Shield Plate B (1.6mm)
Shield Plate C (1.6mm)
Detailing X-radiation shield, ( ) plate thickness
Shield Plate B (1.6mm)
Fig. 1. Installation of shield lens, shield cover and shield plates (oblique view).

5
2. Read and comply with all caution and safety-related
notes on or inside the receiver cabinet, on the
receiver chassis, or on the picture tube.
3. Design Alteration Warning Ð Do not alter or add to
the mechanical or electrical design of this TV receiver.
Design alterations and additions including but not
limited to circuit modifications and the addition of
items such as auxiliary audio and/or video output
connectors, might alter the safety characteristics of
this receiver and create a hazard to the user. Any
design alterations or additions may void the
manufacturerÕs warranty and may make you, the
servicer, responsible for personal injury or property
damage resulting therefrom.
4. Picture Tube Implosion Protection Warning Ð The
picture tube in this receiver employs integral
implosion protection. For continued implosion
protection, replace the picture tube only with one of
the same type number. Do not remove, install, or
otherwise handle the picture tube in any manner
without first putting on shatterproof goggles equipped
with side shields. People not so equipped must be
kept safely away while picture tubes are handled.
Keep the picture tube away from your body. Do not
handle the picture tube by its neck.
5. Hot Chassis Warning Ð a. Some TV receiver chassis
are electrically connected directly to one conductor of
the AC power cord and may be safely serviced
without an isolation transformer only if the AC power
plug is inserted so that the chassis is connected to the
ground side of the AC power source. Confirm that the
AC power plug is inserted correctly with an AC
voltmeter by measuring between the chassis and a
known earth ground. If a voltage reading in excess of
1.0V is obtained, remove and reinsert the AC power
plug in the opposite polarity and again measure the
voltage potential between the chassis and a known
earth ground. b. Some TV receiver chassis normally
have 85V AC (RMS) between chassis and earth
ground regardless of the AC plug polarity. These
chassis can be safely serviced only with an isolation
transformer inserted in the power line between the
receiver and the AC power source, for both personnel
and test equipment protection. c. Some TV receiver
chassis have a secondary ground system in addition
to the main chassis ground. This secondary ground
system is not isolated from the AC power line. The two
ground systems are electrically separated by
insulating material that must not be defeated or
altered.
6. Observe original lead dress. Take extra care to assure
correct lead dress in the following areas: a. near
sharp edges, b. near thermally hot parts Ð be sure
that leads and components do not touch thermally hot
parts, c. the AC supply, d. high voltage and e. antenna
wiring. Always inspect in all areas for pinched, out-of-
plate, or frayed wiring. Do not change spacing
between components and the printed circuit board.
Check AC power cord for damage.
7. Components, parts, and/or wiring that appear to have
overheated or are otherwise damaged should be
replaced with components, parts, or wiring that meet
original specifications. Additionally, determine the
cause of overheating and/or damage and, if
necessary, take corrective action to remove any
potential safety hazard.
8. PRODUCT SAFETY NOTICE Ð Many TV electrical
and mechanical parts have special safety-related
characteristics some of which are often not evident
from visual inspection, nor can the protection they
give necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified in Sharp service data by shading on
schematics and by a in the parts list. Use of
substitute replacement that does not have the same
safety characteristics as the recommended replace-
ment part in Sharp service data parts list might create
shock, fire, and/or other hazards. Product safety is
under review continuously and new instructions are
issued whenever appropriate. For the latest
information, always consult the appropriate current
Sharp service literature. A subscription to, or
additional copies of service literature may be obtained
at a nominal charge from Sharp.
!

6
CAUTION: Before servicing instruments covered by this
service data and its supplements and addenda, read and
follow the SAFETY PRECAUTIONS on page 3 of this
publication.
NOTE: If unforeseen circumstances create conflict between
the following servicing precautions and any of the safety
precautions on page 3 of this publication, always follow the
safety precautions. Remember: Safety First.
General Servicing Guidelines
1. Always unplug the instrumentAC power cord from theAC
power source before:
a. Removing or reinstalling any component, circuit
board, module, or any other instrument assembly.
b. Disconnecting or reconnecting any instrument
electrical plug or other electrical connection.
c. Connecting a test substitute in parallel with an
electrolytic capacitor in the instrument.
CAUTION: A wrong part substitution or incorrect
polarity installation of electrolytic
capacitors may result in an explosion
hazard.
d. Discharging the picture tube anode.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device
(DVM, FETVOM, etc.) equipped with a suitable high
voltage probe. Do not test high voltage by “drawing an
arc.” The H.V. Distribution Box has an internal 400MW
resistor (bleeder resistor) connected from the high
voltage to ground. After power is removed from the
instrument the high voltage will discharge through the
high voltage bleeder resistor. If the tubes have high
voltage after power is removed, then the bleeder resistor
is defective or the bleeder ground is disconnected.
3. Discharge the picture tube’s anode at any of the R, G, or
B outputs on the H.V. Distribution Box only by (a) first
connecting one end of an insulated clip lead to the
degaussing or kine aquadag grounding system shield at
the point where the picture tube socket ground lead is
connected, and then (b) touch the other end of the
insulated clip lead to the picture tube high voltage
distribution box R, G, or B output, using an insulated
handle to avoid personal contact with high voltage.
4. Do not spray chemicals on or near this instrument or any
of its assemblies.
5. Unless specified otherwise in these service data, clean
electrical contracts by applying the following mixture to
the contacts with a pipe cleaner, cotton-tipped stick or
comparable nonabrasive applicator: 10% (by volume)
Acetone and 90% (by volume) isopropyl alcohol (90%-
99% strength).
CAUTION: This is a flammable mixture. Unless
specified otherwise in these service data,
lubrication of contacts is not required.
6. Do not defeat any plug/socket B+ voltage interlocks with
which instruments covered by this service data might be
equipped.
7. Do not applyAC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat-
sinks are correctly installed.
8. Always connect the test instrument ground lead to the
appropriate instrument chassis ground before connecting
the test instrument positive lead. Always remove the test
instrument ground lead last.
9. Use with this instrument only the test fixtures specified in
this service data.
CAUTION: Do not connect the test fixture ground strap
to any heatsink in this instrument.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field-
effect transistors and semiconductor “chip” components.The
following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor
component or semiconductor-equipped assembly, drain
off any electrostatic charge on your body by touching a
known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device,
which should be removed for potential shock reasons
prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface
such as aluminum foil, to prevent electrostatic charge
buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or
desolder ES devices.
4. Use only can anti-static type solder removal device.
Some solder removal devices not classified as “anti-
static” can generate electrical charges sufficient to
damage ES device.
5. Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ES
devices.
6. Do not remove a replacement ES device from its
protective package until immediately before you are
ready to install it. (Most replacement ES devices are
packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive
material.)
7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the
protective material to the chassis or circuit assembly into
which the device will be installed.
CAUTION: Be sure no power is applied to the chassis or
circuit, and observe all other safety
precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion
such as the brushing together of your clothes fabric or the
lifting of your foot from a carpeted floor can generate
SERVICING PRECAUTIONS

7
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and
appropriate tip size and shape that will maintain tip
temperature within the range 500°F to 600°F.
2. Use an appropriate gauge of resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well-tinned.
4. Thoroughly clean the surfaces to be soldered. Use a
small wire-bristle (0.5 inch or 1.25 cm) brush with a metal
handle. Do not use freon-propelled spray-on cleaners.
5. Use the following desoldering technique.
a. Allow the soldering iron tip to reach normal
temperature (500°F to 600°F).
b. Heat the component lead until the solder melts.
Quickly draw away the melted solder with an anti-
static, suction-type solder removal device or with
solder braid.
CAUTION: Work quickly to avoid overheating the
circuit board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach normal
temperature (500°F to 600°F).
b. First, hold the soldering iron tip and solder strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of
the component lead and the printed circuit foil, and
hold it there only until the solder flows onto and
around both the component lead and the foil.
CAUTION: Work quickly to avoid overheating the
circuit board printed foil or components.
d. Closely inspect the solder area and remove any
excess or splashed solder with a small wire-bristle
brush.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as
the solder melts.
2. Draw away the melted solder with an anti-static suction-
type solder removal device (or with solder braid) before
removing the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad
and solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to areas.)
“Small-signal” Discrete Transistor Removal/Replacement
1. Remove the defective transistor by clipping its leads as
close as possible to the component body.
2. Bend into a “U” shape the end of each of three leads
remaining on the circuit board.
3. Bend into a “U” shape the replacement transistor leads.
4. Connect to replacement transistor leads to the
corresponding leads extending from the circuit board and
crimp the “U” with long nose pliers to insure metal to
metal contact, then solder each connection.
Power Output Transistor Devices Removal/Replacements
1. Heat and remove all solder from around the transistor
leads.
2. Remove the heatsink mounting screw (if so equipped).
3. Carefully remove the transistor from the circuit board.
4. Insert new transistor in circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heatsink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicularly to the
circuit board.
3. Observing diode polarity, wrap each lead of the new
diode around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints
of the two “original leads”. If they are not shiny, reheat
them and, if necessary, apply additional solder.
Use Solding Iron to Pry Leads
IC Removal/Replacement
Some Sharp unitized chassis circuit boards have slotted
holes (oblong) through which the IC leads are inserted and
then bent flat against the circuit foil. When holes are the
slotted type, the following technique should be used to
remove and replace the IC. When working with boards using
the familiar round hole, use the standard technique as
outlined in paragraphs 5 and 6 above.

8
Fuses and Conventional Resistor Removal/Replacement
1. Clip each fuse or resistor lead at top of circuit board
hollow stake.
2. Securely crimp leads of replacement component around
stake 1/8 inch from top.
3. Solder the connections.
CAUTION: Maintain original spacing between the
replaced component and adjacent
components and the circuit board, to
prevent excessive component
temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed
circuit board will weaken the adhesive that bonds the foil to
the circuit board, causing the foil to separate from, or Òlift-
off,Ó the board. The following guidelines and procedures
should be followed whenever this condition is encountered.
In Critical Copper Pattern Areas
High component/copper pattern density and/or special
voltage/current characteristics make the spacing and
integrity of copper pattern in some circuit board areas more
critical than in others. The circuit foil in these areas is
designated as Critical Copper Pattern. Because Critical
Copper Pattern requires special soldering techniques to
ensure the maintenance of reliability and safety standards,
contact your Sharp personnel.
At IC Connections
To repair defective copper pattern at IC connections, use the
following procedure to install a jumper wire on the copper
pattern side of the circuit board. (Use this technique only on
IC connections.)
1. Carefully remove the damaged copper pattern with a
sharp knife. (Remove only as much copper as absolutely
necessary.)
2. Carefully scratch away the solder resist and acrylic
coating (if used) from the end of the remaining copper
pattern.
3. Bend a small ÒUÓ in one end of a small-gauge jumper wire
and carefully crimp it around the IC pin. Solder the IC
connection.
4. Route the jumper wire along the path of the cut-away
copper pattern and let it overlap the previously scraped
end of the good copper pattern. Solder the overlapped
area, and clip off any excess jumper wire.

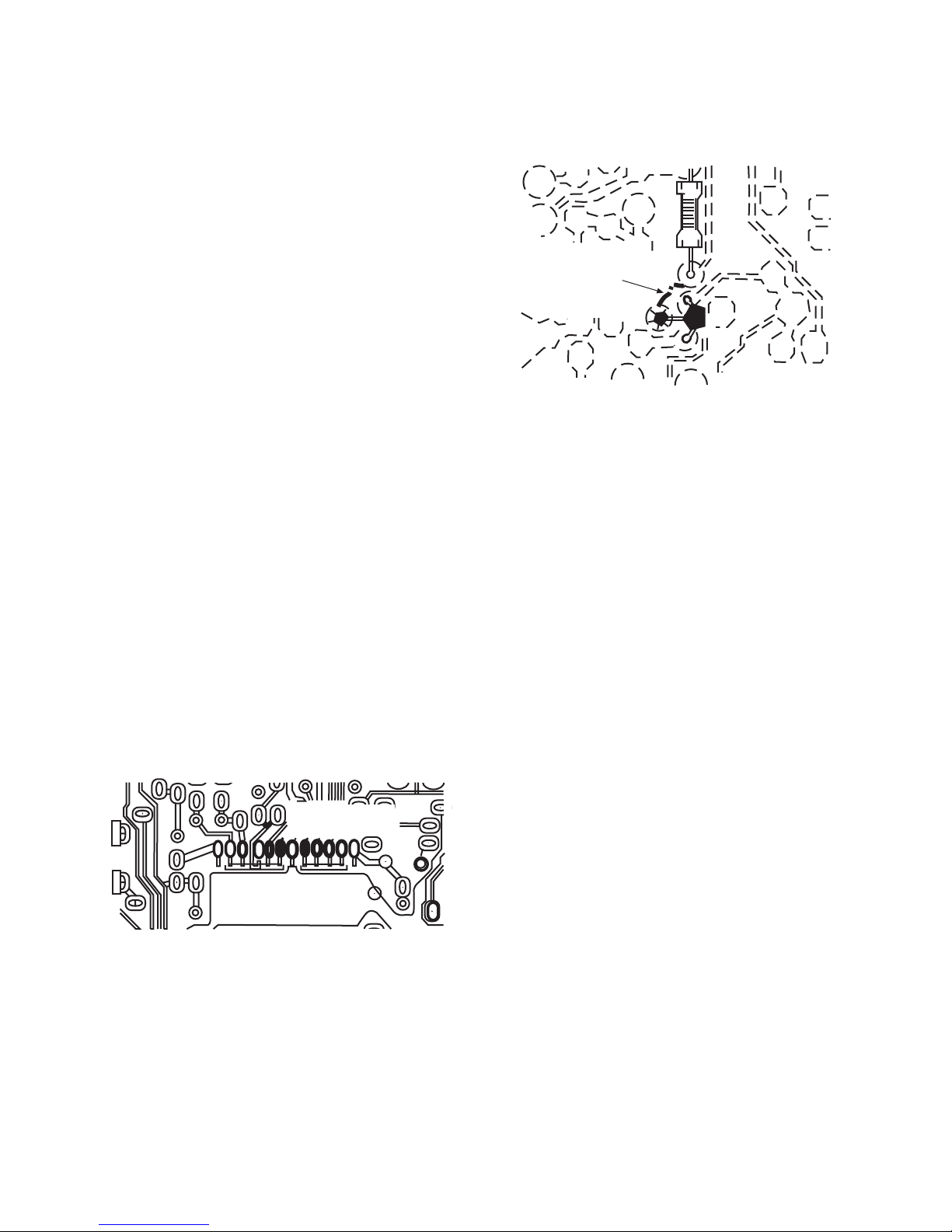

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both wire sides of
the pattern break and locate the nearest component
directly connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the
nearest component on one side of the pattern break to
the lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is
dressed so that it does not touch
components or sharp edges.
Frequency Synthesis (FS) Tuning Systems
1. Always unplug the instrument AC power cord before
disconnecting or reconnecting FS tuning system cables
and before removing or inserting FS tuning system
modules.
2. The FS tuner must never be disconnected from the FS
tuning control module while power is applied to the
instrument.
3. When troubleshooting intermittent problems that might be
caused by defective cable connection(s) to the FS tuning
system, remove the instrument AC power as soon as the
defective connector is found and finish confirming the
bad connection with a continuity test. This procedure will
reduce the probability of electrical overstress of the FS
system semi-conductor components.
CRIMP AND
SOLDER
BARE JUMPER
WIRE
Install Jumper Wire and Solder
DEFECTIVE
COPPER
REMOVED
Insulated Jumper Wire
At Other Connections
Use the following technique to repair defective copper
pattern at connections other than IC Pins. This technique
involves the installation of a jumper wire on the component
side of the circuit board.

9
Leadless Chip Components
(surface mount)
Chip components must be replaced with identical
chips due to critical foil track spacing. There are no
holes in the board to mount standard transistors or
diodes. Some chip capacitor or resistor board solder
pads may have holes through the board, however the
hole diameter limits standard resistor replacement to
1/8 watt. Standard capacitors may also be limited for
the same reason. It is recommended that identical
chip components be used. .
Chip resistors have a three digit numerical resistance
code -1st and 2nd significant digits and a multiplier.
Example: 162 = 1600 or 1.6KΩresistor, 0 = 0Ω
(jumper).
Chip capacitors generally do not have the value
indicated on the capacitor. The color of the component
indicates the general range of the capacitance.
Chip transistors are identified by a two letter code. The
first letter indicates the type and the second letter, the
grade of transistor.
Chip diodes have a two letter identification code as
per the code chart and are a dual diode pack with
either
common anode or common cathode. Check the parts
list for correct diode number.
Component Removal
1. Use solder wick to remove solder from component
end caps or terminals.
2. Without pulling up, carefully twist the component
with tweezers to break the adhesive.
3. Do not reuse removed leadless or chip
components since they are subject to stress
fracture during removal .
Chip Component Installation
1. Put a small amount of solder on the board
soldering pads.
2. Hold the chip component against the soldering
pads with tweezers or with a miniature alligator
clip and apply heat to the pad area with a 30 watt
iron until solder flows. Do not apply heat for more
than 3 seconds

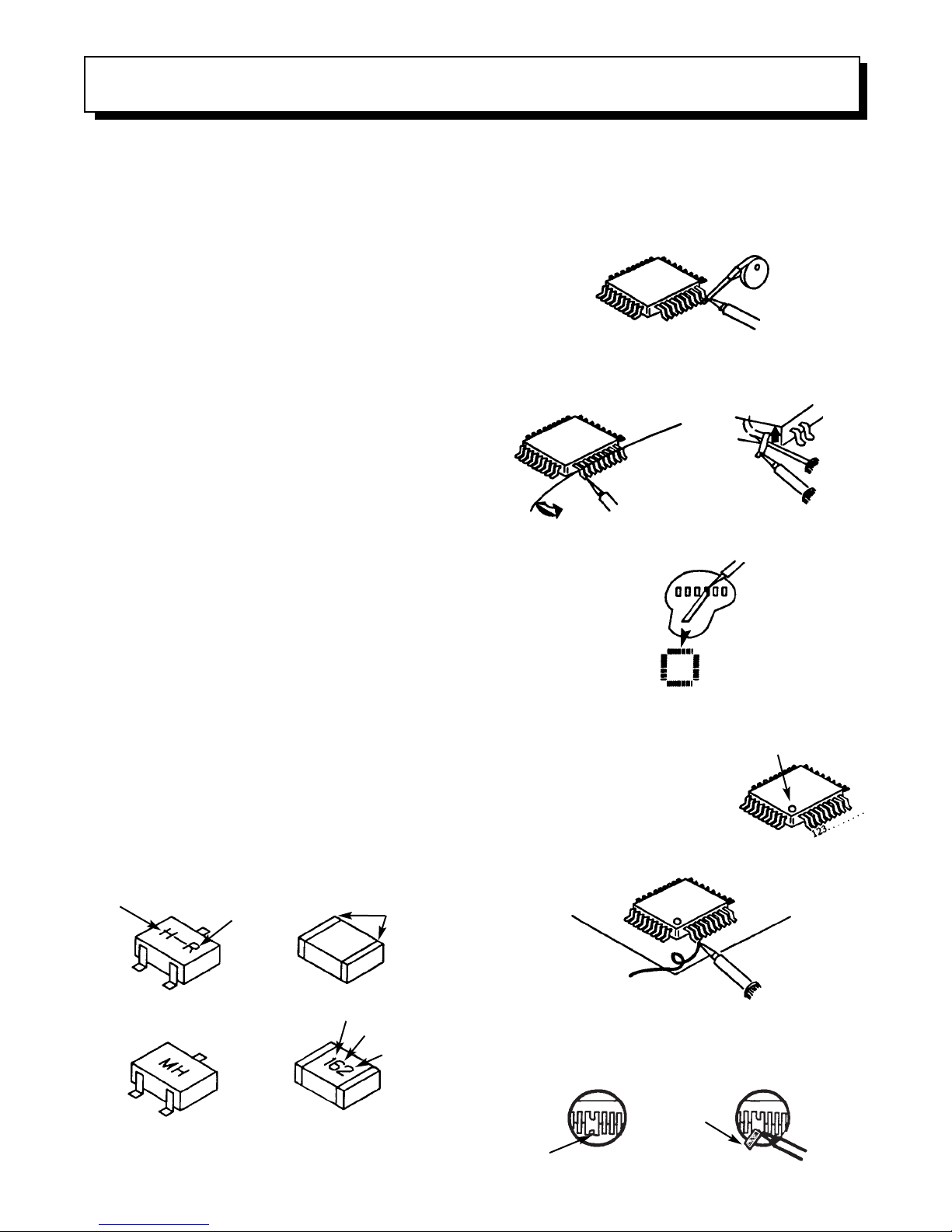

How to Replace Flat-lC
—Required Tools—
• Soldering iron • iron wire or small awl
• De-solder braids • Magnifier
1. Remove the solder from all of the pins of a Flat-lC
by using a de-solder braid.
2. Put the iron wire under the pins of the Flat-lC and
pull it in the direction indicated while heating the
pins using a soldering iron. A small awl can be
used instead of the iron wire.
3. Remove the solder from all of the pads of the
Fiat-lC by using
a de-solder braid.
4. Position the new Flat-lC in place (apply the pins of
the Flat-lC to the soldering pads where the pins
need to be soldered). Properly
determine the positions of the
soldering pads and pins by
correctly aligning the polarity
symbol.
6. Check with a magnifier for solder bridge between
the pins or for dry joint between pins and soldering
pads. To remove a solder bridge, use a de-solder
braid as shown in the figure below.
NOTE: These components are affixed with glue. Be careful not to break or damage any foil under the
component or at the pins of the ICs when removing. Usually applying heat to the component for a short
time while twisting with tweezers will break the component loose.
Chip Components
TYPE GRADE
C
BE
SOLDER
CAPS
TRANSISTOR CAPACITOR
1ST DIGIT
2ND DIGIT
MULTIPLIER
= 1600 = 1.6K
ANODES
MH DIODE RESISTOR
SOLDER CAPS
COMMON CATHODE
De-Solder
Braid
Soldering
Iron
Soldering
Iron
Soldering
Iron
Soldering
Iron
Soldering
Iron
Soldering
Iron
De-Solder
Braid
Flat-IC
Bridge
Solder
De-Solder
Braid
Iron
Wire
Pull
Awl
Polarity Symbol
5. Solder all pins to the soldering pads using a fine
tipped soldering iron.

10

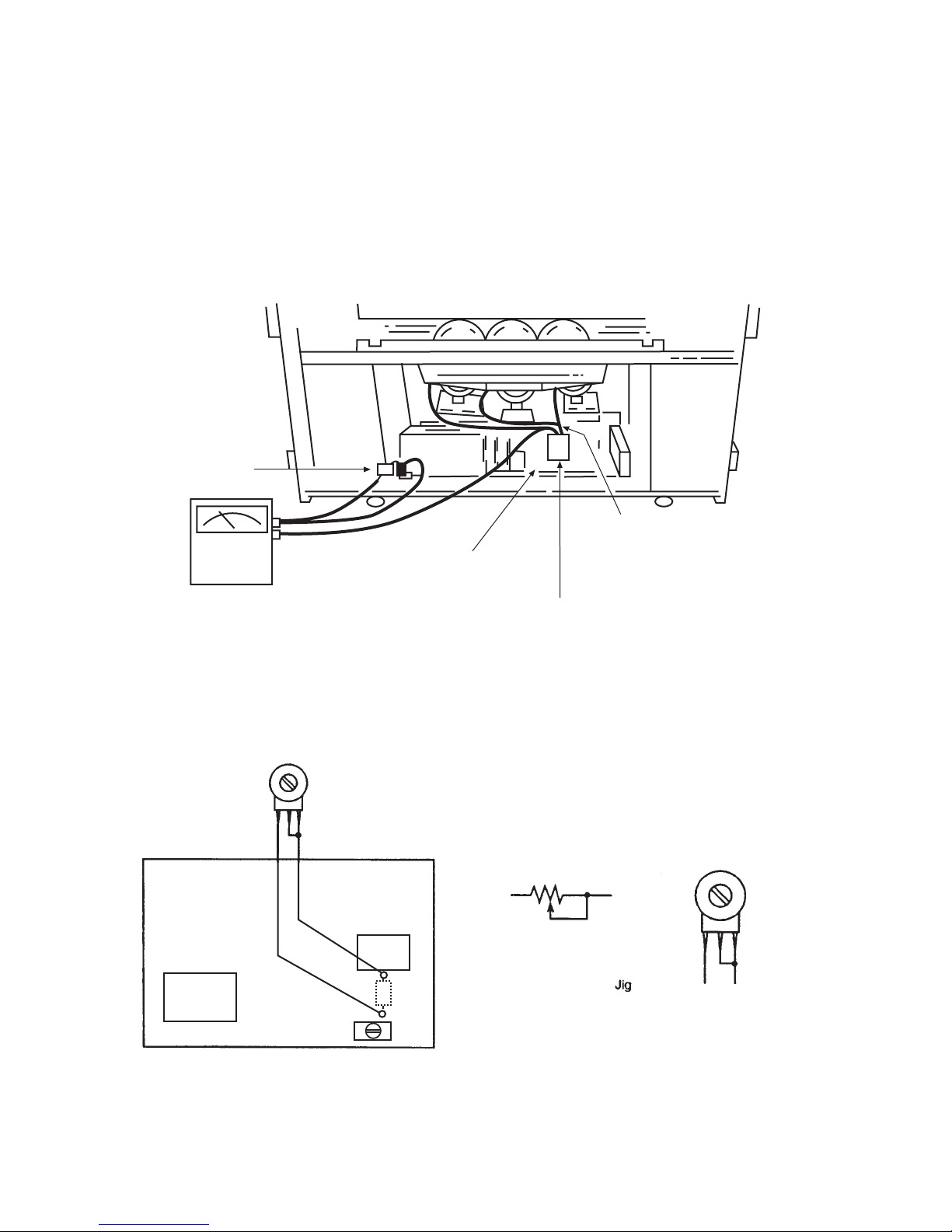

High Voltage limiter circuit operation check.
1. Turn off TV and connect jig as shown in Figure 2. Adjust
jig fully counter-clockwise for minimum resistance.
2. Set the AC input to 120V AC and turn on TV.
3. Confirm test pattern on CRT is a usable picture, then
slowly adjust jig until the picture disappears and TV shuts
down.
4. When the limiter circuit is operating properly, High
Voltage will be less than 31.5 kV at 1.5mA when TV shuts
down.
5. Turn off set immediately after checking circuit operation.
6. Unplug set for one minute to reset shutdown circuit.
Remove jig and voltmeter.
TECHNICAL CAUTIONS
TP91 CP16 IP04
Remove RH80 and connect 50KΩVR jig as shown.
FBT
RH80
TP91
POWER/DEFLECTION PWB RH44
50K½VR
Chassis ground
High impedance
H.V. meter
Deflection P.W.B.
FBT
(TH01)
High voltage
connector
Fig. 2. Deflection/Power P.C.B.

11
Model: 50NP4 60NP4
Cathode-Ray Tube:
R=P16LFM00RFA(LU)
G=P16LFM00HHA(LU)
B=P16LFM00BMB(EU)
Power Input: 120 volts AC, 60 Hz
Power Consumption: 50NP4 60NP4
Maximum 232W 232W
Operating 206W 206W
Antenna Impedance: 75 Ohm Unbalanced
VHF / UHF / CATV
Receiving Channel: BAND CH
VHF 2~13
UHF 14~69
EXT. Mid (A-5)~(A-1), 4+
CATV Mid. A~I
CATV Super J~W
CATV Hyper (W+1)~(W+28)
Intermediate Frequency: Picture l-F Carrier 45.75 MHz
Sound l-F Carrier 41.25 MHz
Color Sub Carrier 42.17 MHz
Video Input: 1 Volt p-p, 75 Ohm
1 Volt p-p, 75 Ohm (Y)
0.7 Volt p-p, 75 Ohm, (PB, PR)
Video Output: 1 Volt p-p, 75 ohm
Audio Input: 470 mVrms, 47 k Ohm
Stereo Audio Output: 470 mVrms, 1 k Ohm
Audio Output Power:
Front: 12 watts per channel at 10% distortion,
8 ohm Impedance. Max output Ð 15 watts.
Anode Voltage: 30.0 ± 1.5kv (1.27±0.2mA)
Brightness: 50NP4 130cd/m2
60NP4 100cd/m2
Speakers: 2 Woofers - 5 inch (120 mm) round
Dimension: 50NP4 60NP4
Height (in.) 51 7/860 2/5
Width (in.) 43 1/551 1/3
Depth (in.) 23 3/526 2/3
Weight (Ibs.) 145 216
Circuit Board Assemblies:
C.P.T. (B) P.W.B. Terminal P.W.B.
C.P.T. (G) P.W.B. VM P.W.B.
C.P.T. (R) P.W.B. Surround P.W.B.
Audio Out P.W.B. Power/Deflection P.W.B.
2 H P.W.B. Control P.W.B.
Power Supply P.W.B. Control Sub P.W.B.
Signal P.W.B. Sensor Distribution P.W.B.
Sub Deflection P.W.B.
CIRCUIT PROTECTION
CAUTION: Below is an EXAMPLE only. See Replacement Parts List for details. The following symbol near the fuse
indicates fast operation fuse (to be replaced). Fuse ratings appear within the symbol.
125V
6A
F
6 A 125V
Example:
SPECIFICATIONS
RISK OF FIRE - REPLACE FUSE AS MARKED
The rating of fuse F901 is 6.0A - 125V.
Replace with the same type fuse for continued protection
against fire.

12

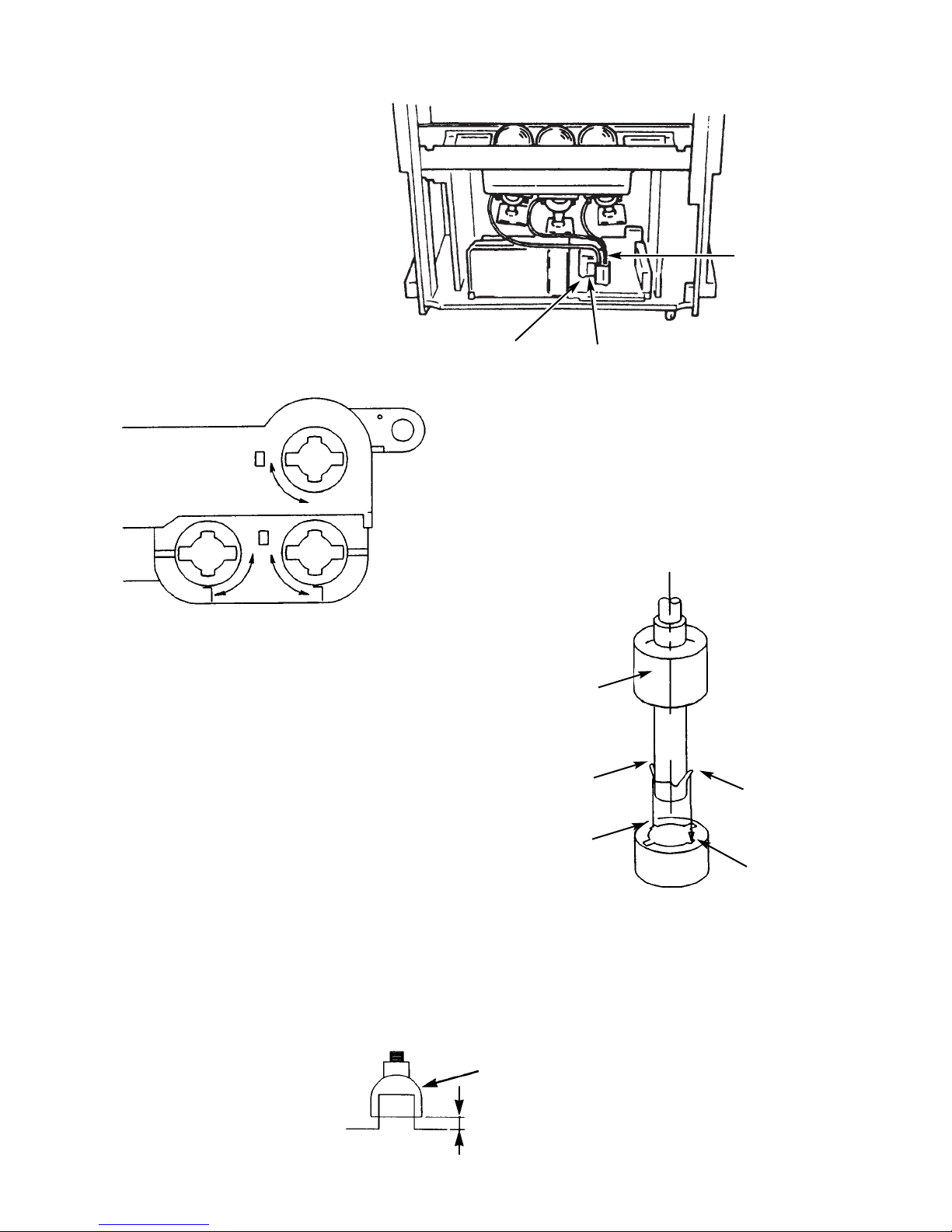

During Insertion
1. Please refer to direction for insertion as shown in Fig. B (L position). Insert connector until “CLICK” sound is heard.
2. Make sure the connector is pressed right in, so that it has a good contact with the spring.
3. Confirm the contact by pulling the connector slightly. (Don’t pull hard because it may damage the connector).
4. Cover the high voltage output by carefully pushing silicon cover onto it. (Don’t turn the connector).
(REMARK)
1. Make sure the silicon cover is
covering the high voltage output.
CAUTIONS WHEN CONNECTING / DISCONNECTING THE HV CONNECTOR
Perform the following when the
HV connector (anode connector)
is removed or inserted for CPT
replacement, etc.
Deflection P.W.B.
Silicon cover
Wing
L Position
L Position
Wing
FBT
Anode
connector
3. Remove the connector slowly
by pulling it away from the
case.
During Removal
1. Roll out silicon cover from FBT’s contact area slowly.
2. While turning the connector about 90 degrees
following the arrow (0 position), push the connector
slightly towards the case. (Fig. A)
Fig. A
Fig. B
Silicon Cover
less than 1mm
PUSH
PUSH

13
FRONT PANEL CONTROLS

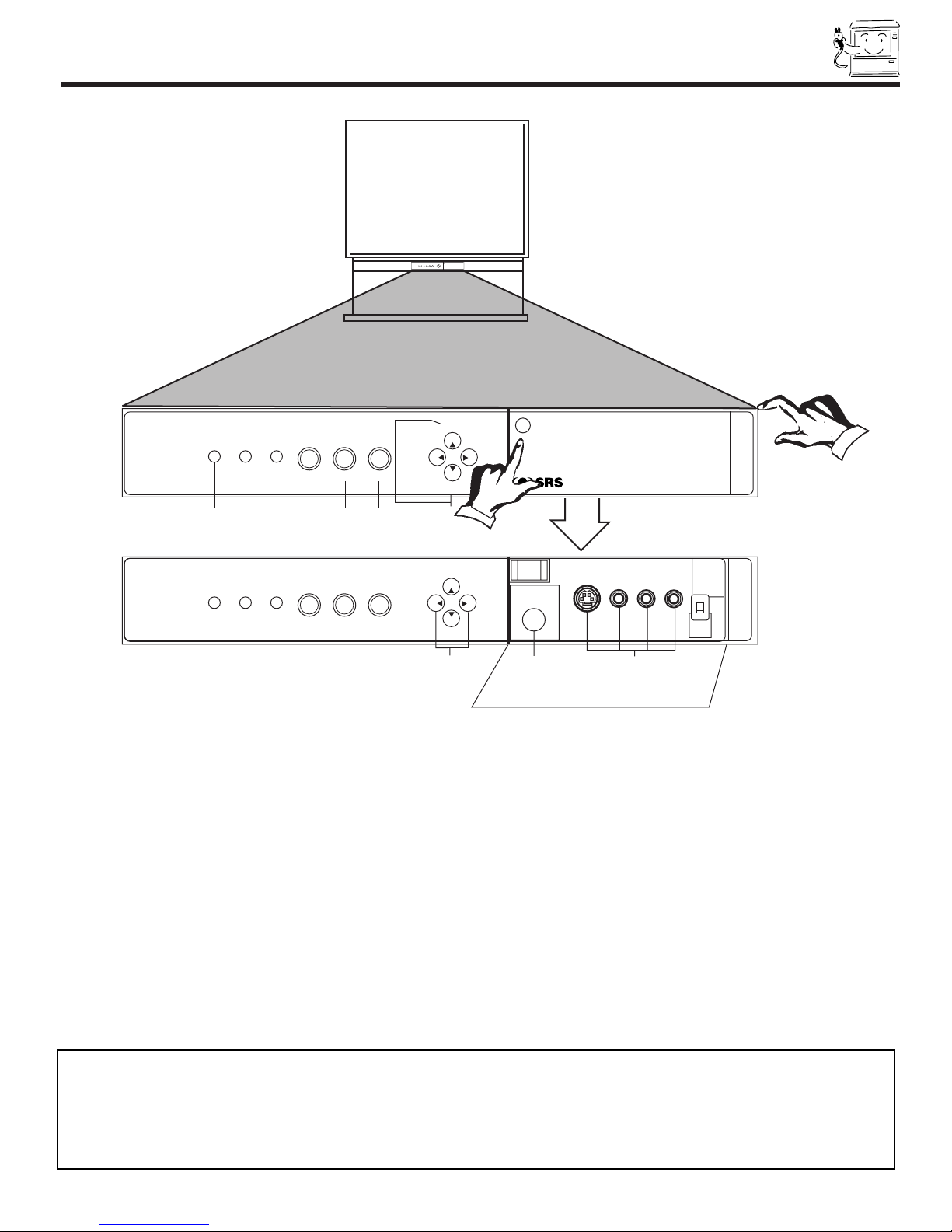

FRONT VIEW
POWER INPUT
EXIT MENU
f e b a c
d i j
Push open door and
pull forward and down
PUSH
POWER INPUT
hg
EXIT MENU
VOL+VOL-
CH-
CH+
VOL+VOL-
CH-
CH+
SCREEN
ADJ.
POWERINPUT
EXIT MENU
PUSH
VOL+VOL-
CH-
CH+
NOTES: 1. Your SHARP Projection TV will appear to be turned OFF if there is no video input when VIDEO: 1, 2 or 3 is
selected. Check the Power Light to make sure the TV is turned off when not in use.
2. To see an auto-demonstration of the on-screen displays with HELP text displayed, press and hold the POWER
button on the TV set for approximately five seconds. Press the POWER button on the TV again to end the auto-
demonstration.
aMENU button
This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This
button also serves as the ÒSELECTÓ button when in menu mode.
bINPUT/EXIT button
Press this button to select the current antenna source, VIDEO: 1, 2, 3 or alternate antenna source. Your selection is shown in the
top right corner of the screen. This button also serves as the EXIT button when in MENU mode.
cCHANNEL selector
Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as
the cursor down (H) and up (G) buttons when in MENU mode.
dVOLUME level
Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These buttons also serve
as the cursor left (F) and right (E) buttons when in MENU mode.
ePOWER button
Press this button to turn the TV on or off.

14
fPOWER light
You will see a red light when the TV is turned on.
gAI (Artificial Intelligence) sensor
The Artificial Intelligence sensor will make automatic picture adjustments depending on the amount of light in the room to give the
best picture.
hREMOTE CONTROL sensor
Point your remote at this area when selecting channels, adjusting volume, etc.
iSCREEN ADJUST
Use this button to adjust your picture quality to optimum performance.
jFRONT INPUT JACKS (for VIDEO: 3)
Use these audio/video jacks for a quick hook-up from a camcorder or VCR to instantly view your favorite show or new recording.
Press the INPUT button until VIDEO: 3 appears in the top right corner of the TV screen. If you have mono sound, insert the audio
cable into the left audio jack.
FRONT PANEL CONTROLS

REAR PANEL JACKS

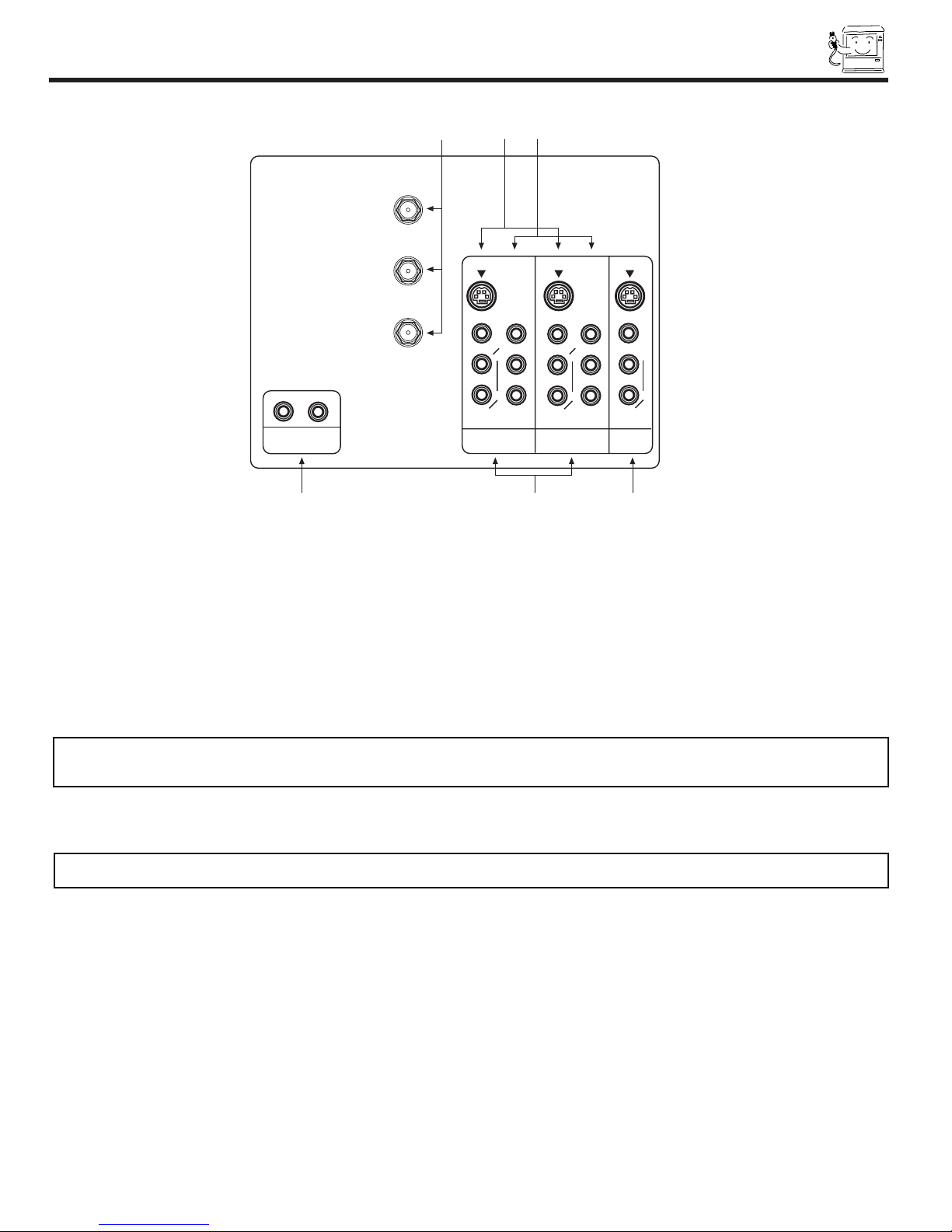

aAntenna Input/Output
The remote control allows you to switch between two separate 75-Ohm RF antenna inputs, ANT A and ANT B. ANT A input can
be displayed as a main picture or sub-picture. ANT B can only be displayed as a main picture. (ANT B cannot be displayed as a
sub-picture.) The antenna output labeled ÒTO CONVERTERÓ allows the ANT A connection to pass directly to a different source
such as a cable box, only when ANT B is displayed as a main picture.
bAudio/Video Inputs 1 and 2
The INPUT button will step through each video source and antenna source input each time it is pressed. Use the audio and video
inputs to connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (If you have mono sound, insert
the audio cable into the left audio jack.)
cMONITOR OUT
These jacks provide fixed audio and video signals which are used for recording. Use the S-VIDEO Output for high quality video
output.
dAUDIO TO HI-FI Output
These jacks provide variable audio output to a separate stereo amplifier. With this connection, the audio to the stereo can be
controlled by the televisionÕs main volume.
eS-VIDEO Inputs 1 and 2
Inputs 1 and 2 provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.
a
bc
e
PB
PR
PB
PR
f
d
MONITOR
OUT
INPUT 2
INPUT 1
AUDIO
(MONO) L
R
AUDIO
L
R
S-VIDEOS-VIDEO
VIDEO VIDEO
ANT A
TO
CONVERTER
ANT B
AUDIO
L
R
(MONO)
S-VIDEO
VIDEO
YY
AUDIO
TO HI-FI
RL
NOTE: You may use VIDEO, S-VIDEO, or COMPONENT: Y-PBPRinputs to connect to INPUT 1 and 2, but only one of these
inputs may be used at a time.
NOTE: S-VIDEO Output may be used for recording, only when the input is of S-VIDEO type.
15

16
REAR PANEL JACKS
NOTES: 1. DO NOT connect standard VIDEO or S-VIDEO to Input 1 or 2 when using Y-PBPRinput.
2. When using the Y-PBPRinput jacks, connect your components audio output to the TVÕs Input 1 or 2 Left and Right Audio input jacks.
3. Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TVÕs PBinput and
the components R-Y output to the TVÕs PRinput.
4. Your component outputs may be labeled Y-CBCR. In this case, connect the component CBoutput to the TVÕs PBinput and the
component CRoutput to the TVÕs PRinput.
5. It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs.
6. To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-PBPRjacks.
7. When using the Y-PBPR jacks, PIP sub-picture can not be turned ON. It is not possible to view a Y-PBPRinput while PIP is ON.
fComponent: Y-PBPRInputs
Inputs 1 and 2 provide Y-PBPRjacks for connecting equipment with this capability, such as a DVD player or Set Top Box.

USING THE REMOTE TO CONTROL VCR FUNCTIONS
Operating the precoded function for your VCR.
This remote is designed to operate different types of VCRs. You must first program the remote to match the remote system of your
VCR. (refer to page 18 for pre-codes)
1. Turn ON your VCR.
2. Aim the remote control at the front of your VCR.
3. Press and release the ANALOG mode button.
4. Push ÒSELECTÓ key and ÒCH HÓ key at the same time, then release both buttons, and within 10 seconds after releasing these
buttons, enter the 2 digit code number as shown on page 31.
5. Aim the remote at the VCR and press the POWER button. The remote will turn off your VCR when the correct two digit preset code
is entered. When this occurs, the remote control is programmed for your VCR. If the VCR does not turn off, try a different two digit
preset code.
6. The remote will now control your VCR.
NOTES:
1. If your VCR cannot be operated after performing the
above procedures, your VCRÕs code has not been
precoded into the remote.
2. In the unlikely event that your VCR cannot be operated
after performing the above procedures, please consult
your VCR operating guide.
3. The remote control will remember the codes you have
programmed until the batteries are removed from the
remote control. After replacing the batteries repeat the
entire programming procedure as stated above.
aPRECODED VCR Buttons
These buttons transmit the chosen precoded VCR codes.
For some VCRs, you must press the RECORD button twice
to record a program.
bEXCLUSIVE TV Buttons
These buttons are for operating the TV.
b
b
a
MY VCR CODE IS:
NOTE: Refer to the instruction manual of the VCR for operation of the buttons exclusively for the VCR.
17

18
VCR BRAND. . . . . . . . . . . . . CODE
Akai . . . . . . . . . . . . . . . . . 25, 26, 37
Audio Dynamics . . . . . . . . 15, 22, 30
Broksonic . . . . . . . . . . . . . . . . . . 32
Canon . . . . . . . . . . . . . . . . . . . . . 04
Capehart . . . . . . . . . . . . . . . . . . . 34
Craig . . . . . . . . . . . . . . . . . . . . . . 31
Curtis Mathis . . . . . . . . . . . . . . . . 04
Daewoo . . . . . . . . . . . . . . . . . . . . 34
DBX. . . . . . . . . . . . . . . . . 15, 22, 30
Dynatech . . . . . . . . . . . . . . . . . . . 29
Emerson . . . . . . . . . . . . . 21, 32, 35
Fisher . . . . . . . . . . . . . . . . . . 09, 11
Funai . . . . . . . . . . . . . . . . . . . . . . 29
GE. . . . . . . . . . . . . . . . . . . . . . . . 04
Goldstar. . . . . . . . . . . . . . . . . . . . 24
Hitachi . . . . . . . . . . . . . . . . . . . . . 06
Instant Replay . . . . . . . . . . . . . . . 04
JC Penney . . . . . . . . . 04, 06, 24, 30
JVC . . . . . . . . . . . . . . . . . 15, 41, 42
Kenwood . . . . . . . . . . . . . . . . . . . 15
Lloyds . . . . . . . . . . . . . . . . . . . . . 29
Magnavox . . . . . . . . . . . . 04, 05, 08
Magnin . . . . . . . . . . . . . . . . . . . . 31
Marantz . . . . . . . . . . . . . . . . . . . . 30
Memorex . . . . . . . . . . . . . 04, 24, 29
Minolta . . . . . . . . . . . . . . . . . . . . 06
Mitsubishi. . . . . . . . . . 17, 18, 39, 40
Montgomery Ward . . . . . . . . . 02, 43
Multitech . . . . . . . . . . . . . . . . . . . 29
NEC. . . . . . . . . . . . . . . . . 15, 22, 30
Panasonic . . . . . . . . . . . . . . . 04, 44
Pentax . . . . . . . . . . . . . . . . . . 05, 06
Philco . . . . . . . . . . . . . . . . . . 04, 05
Philips . . . . . . . . . . . . . . . 04, 05, 08
Quasar . . . . . . . . . . . . . . . . . . . . 04
RCA. . . . . . . . . . . . . . . . . 06, 07, 33
Realistic . . . . . . . . . . . . . . 01, 02, 24
Samsung . . . . . . . . . . . . . . . . 23, 31
Scott . . . . . . . . . . . . . . . . . . . . . . 20
Sears . . . . . . . . . . . . . . . . 06, 11, 24
Sharp. . . . . . . . . . . . . . . . 01, 02, 03
Shintom . . . . . . . . . . . . . . . . . . . . 36
Sony . . . . . . . . . . . . . . . . 12, 13, 38
Sound Design . . . . . . . . . . . . . . . 29
Sylvania . . . . . . . . . . . . . . 04, 05, 08
Symphonic. . . . . . . . . . . . . . . . . . 29
Tatung . . . . . . . . . . . . . . . . . . . . . 15
Teac . . . . . . . . . . . . . . . . . . . 15, 29
Teknika . . . . . . . . . . . . . . . . . 27, 29
Thomas . . . . . . . . . . . . . . . . . . . . 29
TMK . . . . . . . . . . . . . . . . . . . . . . 21
Toshiba . . . . . . . . . . . . . . . . . 19, 20
Video Concepts . . . . . . . . . . . . . . 30
Yamaha . . . . . . . . . . . . . . 15, 29, 30
Zenith . . . . . . . . . . . . . . . . . . . . . 16
CABLE BRAND . . . . . . . . . . CODE
Anision . . . . . . . . . . . . . . . . . 07, 08
Cable Star . . . . . . . . . . . . . . . 07, 08
Eagle. . . . . . . . . . . . . . . . . . . . . . 08
Eastern International . . . . . . . . . . 02
General Instrument . . 04, 05, 15, 23,
. . . . . . . . . . . . . . . . . 24, 25, 30, 36
Hamliln . . . . . . . . . . . . . . 12, 13, 34
Jerold . . . . . . . . . . . . 04, 05, 15, 23,
. . . . . . . . . . . . . . . . . 24, 25, 30, 36
Macom . . . . . . . . . . . . . . . . . . . . 37
Magnavox . . . 07, 08, 19, 25, 28, 29,
. . . . . . . . . . . . . . . . . 32, 33, 40, 41
NSC . . . . . . . . . . . . . . . . . . . . . . 09
Oak . . . . . . . . . . . . . . . . . 01, 16, 38
Oak Sigma . . . . . . . . . . . . . . . . . 18
Panasonic . . . . . . . . . . . . . . . 27, 39
Philips . . . . . . 07, 08, 19, 26, 28, 29,
. . . . . . . . . . . . . . . . . 32, 33, 40, 41
Pioneer . . . . . . . . . . . . . . . . . 18, 20
Randtek . . . . . . . . . . . . . . . . . 07, 08
RCA . . . . . . . . . . . . . . . . . . . . . . 27
Regal. . . . . . . . . . . . . . . . . . . 12, 13
Regency . . . . . . . . . . . . . . . . . . . 02
Scientific Atlanta. . . . . . . . 03, 22, 42
Sylvania. . . . . . . . . . . . . . . . . . . . 11
Teknika . . . . . . . . . . . . . . . . . . . . 06
Texscan . . . . . . . . . . . . . . . . . . . . 11
Tocom . . . . . . . . . . . . . . . . . . 17, 21
Unika. . . . . . . . . . . . . . . . . . . . . . 31
Viewstar. . 07, 08, 19, 26, 28, 29, 32,
. . . . . . . . . . . . . . . . . . . . 33, 40, 41
Zenith . . . . . . . . . . . . . . . . . . . . . 14
VCR and CABLE CODES

19
SET UP
SET UP
Your SHARP Projection TV has three color projection tubes: one for red, one for green, one for blue. When mixed together in the proper
proportion, the output of these three color tubes can produce any color. To produce these colors, however, the beams must be precisely
aligned over each other so that the colors can be mixed. The process of aligning these picture beams is called ÒconvergenceÓ.
Over a period of time, the picture tubes can drift out of alignment due to normal bumps and vibrations or moving the TV. If you move
your TV, or if, after a time, you notice color rings or halos around objects in the picture, you may want to converge (align) the colors.
Properly converged, the lines appear white, which is actually a combination of the outputs of the three color tubes. The output of the
green tube is stationary. The outputs of the red and blue tubes can be adjusted. When properly aligned, the outputs of all three tubes
should be directly over each other to produce the white lines.

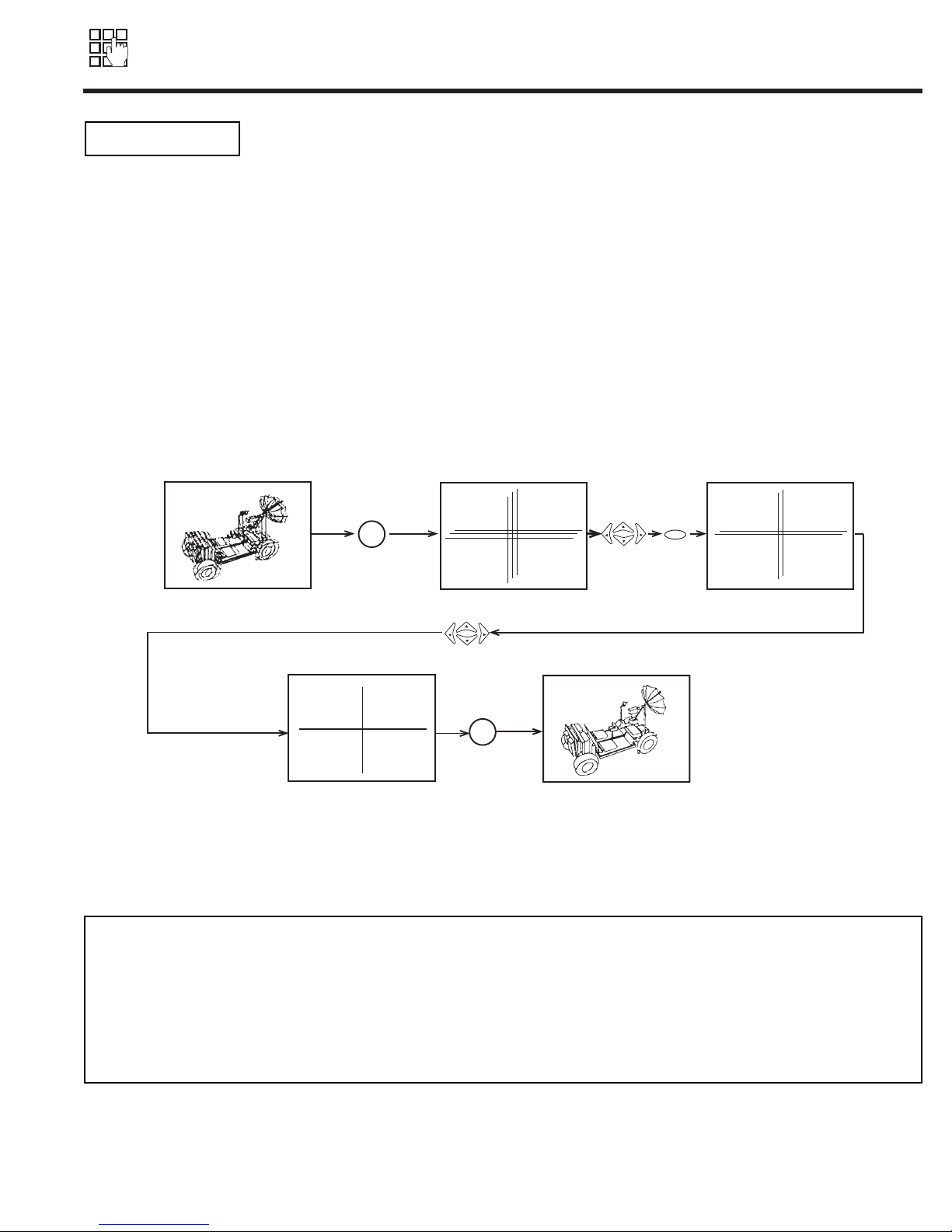

To simplify convergence, SHARP incorporates a feature to allow you to display a test pattern of 1 horizontal and 1 vertical line at the
center of the screen. Simply use the remote control to adjust the red and blue colors to match the green. When properly aligned, the
outputs of all three tubes should be directly over each other to produce the white lines.
To enter this adjustment mode, you may also select CONVERGENCE ADJ. from the Set Up menu. However, this will display a message
prompting you to press the front panel SCREEN ADJ. button.
NOTES: 1. Only a momentary press of the SCREEN ADJ. button is necessary to enter CONVERGENCE ADJUST mode.
2. The color being adjusted will blink (red or blue) to indicate color you are adjusting.
3. To save your adjustment data into memory, press the front panel SCREEN ADJ. button. If you do NOT wish to save
your adjustment data into memory, turn the TV OFF. When the TV is turned ON again, your old convergence data
will be restored.
CONVERGENCE ADJ.
Red
SCREEN
ADJ.
Blue
SCREEN
ADJ.
CURSOR
FAV.
FAV. MENU
CURSOR
FAV.
FAV.
Press the CURSOR G, H, F, Ebuttons to move the displayed color up, down, left, or right.
Press MENU to change the color you want to adjust.
Press the front panel SCREEN ADJ. button when adjustment is done. This will save your adjustment into memory.

20

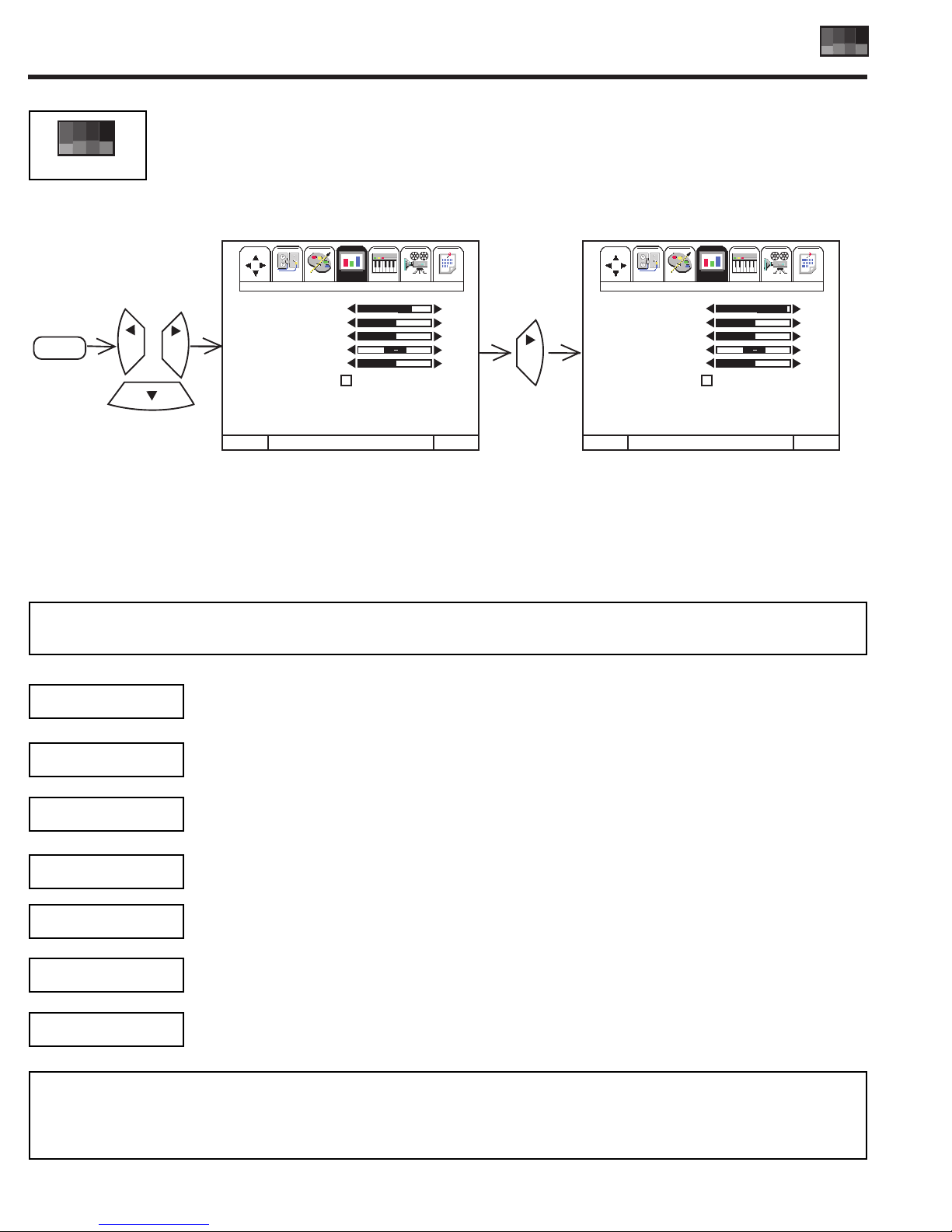

VIDEO
VIDEO
VIDEO
Select VIDEO to adjust picture settings and improve picture quality.
Use this function to change the contrast between black and white levels in the picture. This adjustment will
only affect the picture when OTHER SETTINGS-O.P.C. is OFF. (see page 50)
Use the CURSOR Gor Hto highlight the function to be adjusted.
Press the CURSOR For Eto adjust the function.
Press EXIT to quit menu.
NOTE: If PICTURE is selected, you are adjusting the PICTURE. The additional menu items BRIGHT, COLOR, TINT,
and SHARP can be selected and adjusted in the same manner.
Use this function to adjust the level of color in the picture.
Use this function to adjust flesh tones so they appear natural.
Use this function to adjust overall picture brightness.
Use this function to adjust the amount of fine detail in the picture.
When RESET is selected, press SELECT to return video adjustments to factory preset conditions.
COLOR
TINT
BRIGHT
SHARP
RESET
Set Up Custom Video Audio Theater Info Set UpSet Up I Set UpSet UpSet Up
Set Up Video Audio Theater Info
I
MENU TO MENU BAR TO QUIT EXIT
CURSOR
MENU
CURSOR
Set Up Custom Video Audio Theater Info Set UpSet Up I Set UpSet UpSet Up
Set Up Video Audio Theater Info
I
MENU TO MENU BAR TO QUIT EXIT
75%
50%
50%
50%
98%
50%
50%
50%
FAV
CH
FAV
CH FAV
CH
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
RESET
ADVANCED
SETTINGS
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
RESET
ADVANCED
SETTINGS
NOTE: 1. It may be necessary to adjust TINT to obtain optimum picture quality when using the COMPONENT VIDEO Y-PBPR
input jacks.
2. If you are using the COMPONENT VIDEO input jacks (Y-PBPR) and notice that the TINT and COLOR are abnormal,
check to make sure that COMPONENT SET - COLOR SYSTEM is set properly. (see page 41)
Use this function to automatically adjust picture settings to produce the highest quality picture possible.
OTHER SETTINGS
