Sharp 21JF2-RU User manual

E1 [ SAFETY
PRECAUTIONS ]
E2 [ ACCESSORIES ]
E3 [ BEFORE
OPERATING
TELEVISION ]
• Connecting to an
antenna
• Connecting to an
antenna via a VCR
E4 [ PART NAMES ]
• TV set
• Using headphone
• Remote control
• Installing batteries in the
remote control unit
Damage
Turn off the power and unplug
the power cord from the wall
outlet immediately if the TV set begins to make
any unusual noises or gives off smoke or an
unusual smell. Then call your dealer for service.
Unstable surface
and shocks
Do not place this TV set on an
unstable cart, stand, shelf, or table. The TV set
may fall, causing serious injury to a child or
adult, and serious damage to the set. Sharp
recommends securing the TV set to a stable
surface or wall to prevent the set from falling
due to sudden shocks or impact.
Moisture
To prevent electrical shock, do
not use the TV set in an
excessively damp place.
Liquid entry
Do not place a flower vase
or anything else containing liquid
on the TV set, as liquid spilt on the TV set can
cause electrical shock or failure.
TV Set position
Do place the TV set onto an even
stand, table or rack which size is
bigger than the TV set.
If the TV set is put onto a smaller
size or uneven stand, table or rack may cause
the TV cabinet to distort.
Do not put or insert anything between TV set
and the stand, table or rack.
Ventilation
Do not place this TV set in a
confined area, such as on a
bookshelf or in a built-in case. Leave adequate
space behind the TV for proper ventilation.
Servicing
To reduce the risk of electric
shock, do not remove the back
of the cabinet. This TV set
contains dangerous voltage.
Power-cord
protection
To prevent electrical shock, do
not subject the AC power cord to damage by
bending or twisting it, or by placing heavy items
on top of it and do not place the AC power cord
under the TV set. If the AC power cord becomes
damaged, unplug it from the wall outlet
immediately and call your dealer for service.
Water
To prevent fire or electrical
shock, do not place the TV set
near a bathroom, swimming pool or other area
where it may become wet.
Object entry
Never insert or drop any metallic
or inflammable objects into the
ventilation openings of the TV set, as this can
cause fire, electrical shock, or electrical failure.
Uneven surface and
excessive force
Television equipment and cart
combination should be moved with care. Quick
stops, excessive force, and uneven surfaces
may cause the equipment and cart combination
to overturn.
Fire prevention
To prevent fire, never place any
type of candle or naked flames on
the top or near the TV set.
OPERATION MANUAL
COLOUR TELEVISION
21JF2-RU
Please read this operation manual
carefully before using the colour
television.
E5 [ BASIC OPERATION ]
• Turn on the power
• On-screen display
language selection
• Channel selection
• Adjusting volume
E6 [ PRESETTING
CHANNELS ]
• Auto channel tuning
• Manual channel tuning
E7 [ SETTING AND
ADJUSTMENT ]
• Channel setting
• Picture adjustment
E8 [ TIMER SETTING ]
• Off timer
• On timer
• Reminder on-screen
timer
E9 [ FEATURES ]
• Blue screen
E 10 [ USEFUL
FEATURES ]
• Channel/Timer display
• Mute
• Channel recall
• TV/Video selection

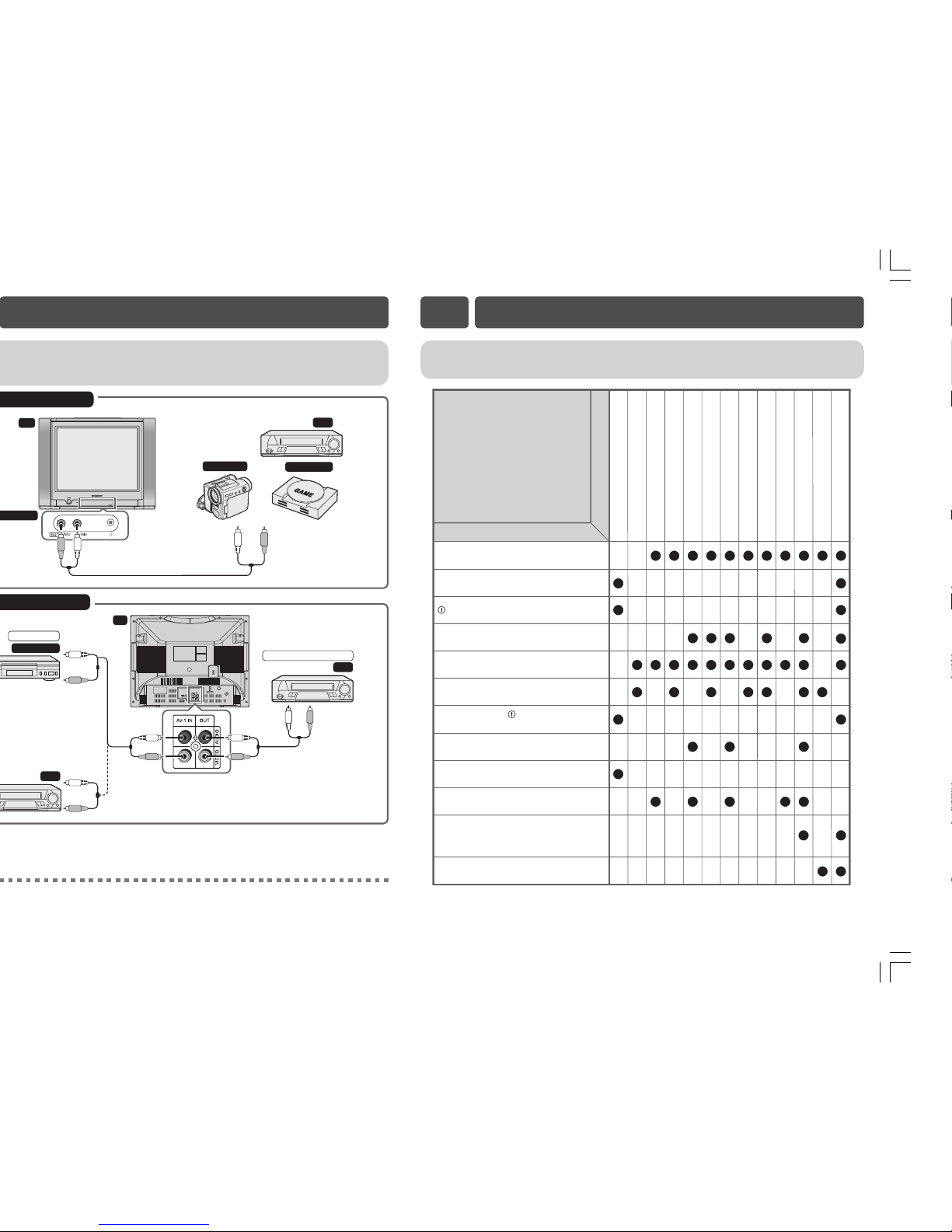

E 11 [ CONNECTIONS ]
• Connecting to video
equipment
E 12 [ TROUBLESHOOTING ]
E 13 [ SPECIFICATIONS ]
E1 SAFETY PRECAUTIONS
Contents
TINS-B981WJZZ%
05P09-MSF
1
ENGLISH РУССКИЙ
(Nazad)
21JF2-RU[EN] 9/2/05, 2:59 PM1

Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
(not supplied)
300-ohm twin-lead
flat feeder
(not supplied)
75-ohm impedance
converter
(not supplied)
TV
Antenna in
Antenna in
VCR
To antenna in
terminal
To RF out
terminal
TV
Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the
types of connections that are used for coaxial and feeder cables.
Connecting to an antenna via a VCR
You can also connect the TV set to the tuner on a VCR using the connection shown below.
If your outdoor antenna uses a
75-ohm coaxial cable with a
standard DIN45325 plug (IEC
169-2), plug it into the antenna
jack at the rear of the set.
If your outdoor antenna uses a
300-ohm twin-lead flat feeder,
connect a 300-ohm to 75-ohm
impedance converter and plug
it into the antenna jack at the
rear of the set.
TV set
[ Behind the door ]
Using headphone
Insert headphone plug into headphone jack to listen to audio with
headphone.
• The audio from the speakers is turned off.
The following accessories are included with this television.
Remote Control Size-AA batteries Operation manual
• When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.
Door
Bottom
Power indicator
Power can be turned on by the
remote control when the indicator
is dimly.
MENU/PRESET button
Tunes the channels.
Used for MENU setup.
MENU/PRESET
Volume up/down buttons
Adjusts the volume.
Makes adjustments in PRESET.
/
Channel up/down buttons
Selects the channels.
Tunes or sets the channels.
CH
CH
/
Headphone jack
Use to listen to the audio
with headphone.
Video input terminal (AV-2)
Connects to a camcorder,
video game, etc.
Audio input terminals (AV-2)
Connects to a camcorder,
video game, etc.
Infrared sensor window
Receives the infrared wave from
the remote control.
POWER
POWER switch
Turns on and off the
main power.
• To avoid injuring your hearing, do not put on the headphone before plugging them into the headphone jack and before
the power is turned on.
E4 PART NAMESE2 ACCESSORIES
E3 BEFORE OPERATING TELEVISION
To open the door
Using the projection located under
the “PULL-OPEN” indication, pull
and lift the door open.
To close the door
Using the projection, lower the door
until closed.
Caution:
• When opening or closing the door, do
not insert your fingers into the gap
between the door and front panel. This
may result in an injury.
21JF2-RU[EN] 9/2/05, 2:27 PM2

Remote control
TV/VIDEO
TV
0
NORMAL
TIMERFEATURE
CH-SET
1
4
7
2
5
8
3
6
9
CH
CH
Infrared transmitter window
Aim this window at the infrared
sensor window on your TV set.
Turns the TV on or to Standby mode.
Returns to previously viewed channel.
Mutes the sound and restores
sound to previous level.
Calls the TIMER screen.
TIMER
Calls the FEATURE screen.
FEATURE
Resets all settings.
NORMAL
Calls the CH-SETTING screen.
CH-SET
Switches between TV broadcasts
and A/V input programmes.
TV/VIDEO
Switches between one- or two-digit
mode channel selection.
Calls the PICTURE screen.
Adjusts the volume.
Used for MENU setup.
/
Displays the channel and timer
settings on the screen.
Number buttons
Selects the channel.
Used for MENU setup.
CH
CH
/
Installing batteries in the remote control unit
With your thumbnail, pull
up at the slit to open the
battery cover.
a
[ TV Set (Bottom) ]
Power indicator
POWER
Turn on the power
• When the power indicator is off, press POWER .
• When the power indicator lights up dimly, press on the remote
control. The power indicator changes to bright and a picture appears.
On-screen display language selection
ENGLISH
TV set
• Press
MENU/PRESET
for more than two seconds, the language select
mode appear.
• Press CH / CH to select desired language.
• Pressing
MENU/PRESET
changes the screen as shown below.
• Press
MENU/PRESET
until normal screen appears.
!Adjust volume using / .
• The volume bar disappears approximately three seconds
after the volume has been adjusted.
!Using
CH
/
CH
• Press CH and channels change as shown below.
1 /2 /... /98 /99 /AV1 /AV2 /0 /1 /2 ...
• Press CH and channels change as shown below.
1 /0 /AV2 /AV1 /99 /98 /... /2 /1 /0 ...
@With the number buttons (on remote control)
• To select a one-digit channel, such as 5, press 5. If
“5-” is indicated, press to select one-digit input,
and then press 5again.
• To select a two-digit channel, such as 15, press
to select the two-digit input. Press 1, and then
press 5.
VOLUME 10
--
1-
15
SECAM
D/K
MENU/PRESET
CH
CH
[ Behind the door ]
Insert two batteries
(size AA).
bReplace the battery
cover.
c
TV/VIDEO
TV
0
NORMAL
TIMERFEATURE
CH-SET
4
7
2
8
3
6
9
CH
CH
1
5
CH
CH
1
5
Channel selection
Adjusting volume
• Channels that have been skipped cannot be selected by CH / CH .
• The AV1, AV2 input channels cannot be selected using CH / CH on the remote control. Use TV/VIDEO to select
these channel.
E5 BASIC OPERATIONE4 PART NAMES (Continued)
Language MANUAL Normal screen AUTO
21JF2-RU[EN] 9/2/05, 2:27 PM3

AUTO(D/K)
VHF 1
48.25MH
z
1
SECAM
D/K
TV/VIDEO
TV
0
NORMAL
TIMERFEATURE
CH-SET
4
7
2
8
3
6
9
1
5
CH
CH
CH
CH
Number
buttons
Auto channel tuning
Automatically tunes in and presets receivable TV stations.
!Press
MENU/PRESET
for more than two seconds.
@Press
MENU/PRESET
again to display AUTO mode screen.
• Pressing
MENU/PRESET
changes the screen as shown below.
#Press / on TV set.
• All the TV stations in your area that can be received by
the TV set are automatically preset between channels 1
to 99.
• The screen shows whatever is on channel 1 when auto
channel preset is finished.
MENU/PRESET
[ Behind the door ]
Manual channel tuning
Enables manual channel tuning to a desired TV station.
!Press
MENU/PRESET
for more than two seconds.
@Press
MENU/PRESET
twice to display MANUAL mode
screen.
• Pressing
MENU/PRESET
changes the screen as shown below.
#Press
CH
/
CH
or number buttons to
select channel position.
$Press / on TV set to locate channel you wish to preset to current
channel position.
• Search is initiated and when a TV signal is received during the search, the search stops.
%Repeat steps 3 and 4 above, to preset channel positions for other broadcasts.
^Press
MENU/PRESET
again to display normal screen.
Language MANUAL Normal screen AUTO
Channel setting
Enables individual channel setting.
!Press
CH-SET
to call CH-SETTING screen.
@Press
CH
/
CH
to select desired setting.
#Each time you press / , setting for
individual items changes as follows:
• POSITION
The channel position changes to the higher or lower number.
• COLOUR
• SOUND
• SKIP
ON OFF
Channel numbers with a “ ” mark on the left are set to SKIP. To turn off SKIP, press the number
buttons to select the desired channel and then set “SKIP” to “OFF”.
• FINE
The frequency changes to allow fine tuning.
$Press
CH-SET
to return to normal screen.
• When you select AV1, AV2 for the channel position, the
CH-SETTING menu changes as shown on the right and
the colour mode changes in the following order:
CH-SETTING
POSITION CH27
COLOUR AUTO
SOUND D/K
SKIP OFF
168.25MHz
:ADJUST
:SELECT
CH
FINE
TV/VIDEO
TV
0
NORMAL
TIMERFEATURE
CH-SET
4
7
2
8
3
6
9
1
5
CH
CH
CH-SET
CH
CH
CH-SETTING
POSITION AV1
COLOUR AUTO
:ADJUST
:SELECT
CH
AUTO SECAM N443 PAL N358
MANUAL(D/K)
VHF 1
48.25MH
z
• AUTO PRESET stores all receivable channels including those which may be very weak and not clearly visible. To
preset only those channels designated for the local viewing region, use MANUAL PRESET.
AUTO SECAM N443 PAL
B/G D/KI
• Switching COLOUR system:
Set the system to “AUTO” for normal TV reception. The AUTO mode automatically detects the receiving signal system
and changes the reception system of the TV set. When the picture is not stable, switching to an appropriate system
may improve the picture quality.
• When using FINE, the channel number changes from green to yellow.
E7 SETTING AND ADJUSTMENTE6 PRESETTING CHANNELS
Language MANUAL Normal screen AUTO
21JF2-RU[EN] 9/2/05, 2:27 PM4

Picture adjustment
The following table lists the adjustment items shown in the PICTURE menu and how they
change as you press / .
*: TINT can only be selected and adjusted when receiving NTSC broadcasts. (AV only)
• WHITE TEMP can only be adjusted on PICTURE menu.
TV/VIDEO
TV
0
NORMAL
TIMERFEATURE
CH-SET
4
7
2
8
3
6
9
CH
CH
1
5
CH
CH
NORMAL
CONTRAST
Selected item Press Press
COLOUR
BRIGHTNESS
TINT
SHARPNESS
To decrease contrast
For less colour intensity
For less brightness
To move tint toward red
For less sharpness
To increase contrast
For more colour intensity
For more brightness
To move tint toward green
For more sharpness
- +
- +
- +
- +
WHITE TEMP To more reddish
background To more bluish background
CONTRAST 50
COLOUR 0
BRIGHTNESS +10
TINT
SHARPNESS -10
WHITE TEMP
-+
CONTRAST 50
!Press
to call PICTURE screen.
@Press
CH
/
CH
to select adjustment items.
#Adjust using / .
• Wait for approximately three seconds to return to PICTURE menu.
$Repeat steps 2 and 3 above to adjust other items.
%Press
to return to normal screen.
0:00
0:01
0:02
0:03
0:04
OFF
OFF
OFF
OFF
OFF
OFF
0:05
Flashing
TIMER
OFF 2:30
ON --:--
--:--
POSITION
VOLUME
TIMER
OFF --:--
ON --:--
--:--
POSITION
VOLUME
!Press
TIMER
to call TIMER screen.
@Press
CH
/
CH
to select “OFF ”.
#Press / to set time for TV to turn
off.
• Maximum time that can be preset is 12 hours and 50
minutes. Timer start to count down after setting.
$Press
TIMER
to return to normal screen.
• Five minutes before the preset length of time expires, the remaining time
appears on the screen.
• A flashing display of the remaining time appears during the last few seconds.
When the preset length of time has passed, the TV set enters the Standby
mode.
Off timer
Automatically turns power off after a set length of time has passed.
!Press
TIMER
to call TIMER screen.
@Press
CH
/
CH
to select “ON ”.
#Press / to set time for TV to turn
on.
• Maximum time that can be preset is 12 hours and 50
minutes. Timer start to count down after setting.
$Press
CH
/
CH
to select “POSITION”.
%Press / to set the channel.
^Repeat step 4 to 5 above to select and set the
“VOLUME”.
&Press
TIMER
to return to normal screen.
*Press to put TV set into Standby mode.
• Power indicator will flash to indicate On Timer is set.
• When the preset length of time setting has passed, the power turns on and a
picture appears on the screen.
• The ON TIMER speaker volume gradually increases from zero to preset
volume.
On timer
Automatically turns power on after a set length of time has passed.
TV/VIDEO
TV
0
NORMAL
TIMERFEATURE
CH-SET
4
7
2
8
3
6
9
CH
CH
1
5
CH
CH
TIMER
[ TV Set (Bottom) ]
Power indicator
(Flashing)
TIMER
OFF --:--
--
--
ON 8:00
--:--
POSITION
VOLUME
TIMER
OFF --:--
ON 8:00
CH28
--:--
--
POSITION
VOLUME
TIMER
OFF --:--
ON 8:00
CH28
--:--
20
POSITION
VOLUME
• Pressing NORMAL while a PICTURE selection is displayed, only the selected mode is reset to the standard (factory-
setting) position.
• Pressing NORMAL while a PICTURE menu screen is displayed will reset all the item of PICTURE menu to the standard
(factory-setting) position.
• The Off timer is cancelled if the power is turned off or set to the Standby mode using on the remote control or
POWER on the TV set, or if the power is otherwise interrupted.
• The On Timer is cancelled if the power is turned off using POWER .
• If the TV set is turned on by the On Timer, then the TV set will be automatically turned off in two hours if no buttons
are pressed on the TV set or remote control.
E8 TIMER SETTINGE7 SETTING AND ADJUSTMENT (Continued)
21JF2-RU[EN] 9/2/05, 2:27 PM5
