SHAR~
LC-65D93U
LIQUID CRYSTAL TELEVISION
TELEVISEUR
ACL
TELEVISOR CON PANTALLA
DE CRISTAL LIQUIDO
OPERATION MANUAL
MODE D1EMPLOI
MANUAL DE OPERACION
AQuas
• t DT"
1§~i*JWJit.';1 HI~H-DEFINITION TELEVISION
[][]IDOLBYI Homl™
DIG I TAL HIGH-DEFINITION MULTIMEDIA INTERFACE

LC-65D93U
LIQUID CRYSTAL TELEVISION
ENGLISH
OPERATION MANUAL
•The illustrations and on-screen displays in this operation
manual are for explanation purposes and may vary slightly
from the actual operations.
•Menu items that are not selectable are grayed out.
IMPORTANT:
To aid reporting
in case of loss or theft, please record the
TV's model and serial numbers
in the space provided. The
numbers are located at the rear of the
TV.
Model No.:
Serial No.:
IMPORTANT INFORMATION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrow-head
symbol, within
an equilateral triangle,
is intended to alert the user to the
presence
of uninsulated "dangerous
voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute arisk of
electric shock to persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within a
triangle is intended to alert the user
to the presence of important
operating and maintenance
(servicing) instructions
in the
literature accompanying the product.
@-1

@-2
IMPORTANT INFORMATION
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
CAUTION:
DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR
TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS
DAMAGE TO THE PRODUCT. USE ONLY WITH A
CART, STAND, TRIPOD, BRACKET, OR TABLE
RECOMMENDED BY THE MANUFACTURER
OR SOLD WITH THE PRODUCT. FOLLOW THE
MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING
ACCESSORIES RECOMMENDED BY THE MANUFACTURER. APRODUCT AND CART
COMBINATION SHOULD
BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND
UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly
approved by the manufacturer could void the user's authority to operate this equipment.
CAUTION:
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other
equipment.
To prevent electromagnetic interference with electric appliances such as radios and televisions, use
shielded cables and connectors for connections.
DECLARATION OF CONFORMITY:
SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-65D93U
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
RESPONSIBLE PARTY:
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
TEL: 1-800-BE-SHARP
For Business Customers: URL http://www.sharpusa.com
INFORMATION:
This equipment has been tested and found to comply with the limits for aClass 8digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in aresidential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur
in aparticular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct
the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into
an outlet on acircuit different from that to which the receiver is connected.
-Consult the dealer or
an experienced radiofTV technician for help.
"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the
National Electrical Code that provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point
of cable entry as practical."
This product utilizes tin-lead solder, and fluorescent lamp containing asmall amount
of mercury. Disposal of these materials may be
regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities
or the
Electronic Industries Alliance: www.eia.org
Trademarks
•Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby
Laboratories.
•"HDMI, the HDMIIogo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC."
•Products that have earned the ENERGY
STAR® are designed to protect the environment through superior energy
efficiency.

DEAR SHARP CUSTOMER
Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years
of trouble-free operation of your product, please read the Important Safety Instructions carefully before
using this product.
IMPORTANT SAFETY INSTRUCTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if
improperly handled. This product has been engineered and manufactured with the highest priority on safety. However,
improper use can result
in electric shock and/or fire. In order to prevent potential danger, please observe the following
instructions when installing, operating and cleaning the product.
To ensure your safety and prolong the service life of
your Liquid Crystal Television, please read the following precautions carefully before using the product.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer1s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug has two blades with
one wider than the other. Agrounding type plug has
two blades and athird grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the ~
apparatus. When acart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Additional Safety Information
15) Power Sources- This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply
to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other sources, refer to the operating
instructions.
16) Overloading-Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result
in arisk of fire or electric shock.
17) Object and Liquid Entry- Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result
in afire or electric shock. Never spill liquid of any
kind on the product.
18) Damage Requiring Service- Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a) When the AC cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions
as an improper adjustment of other
controls may result
in damage and will often require extensive work by aqualified technician to restore the
product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits adistinct change in performance -this indicates aneed for service.
19) Replacement Parts- When replacement parts are required, be sure the service technician has used replacement
parts specified by the manufacturer or have the same characteristics
as the original part. Unauthorized
substitutions may result
in fire, electric shock, or other hazards.
20) Safety
Check-Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks
to determine that the product is in proper operating condition.
21) Wall or ceiling mounting-When mounting the product on awall or ceiling, be sure to install the product
according to the method recommended by the manufacturer.
(®- 3

IMPORTANT SAFETY INSTRUCTIONS
•Water and Moisture -Do not use this product near water -for example, near abath tub, wash
bowl, kitchen sink, or laundry tub;
in awet basement; or near aswimming pool; and the like.
•Stand -Do not place the product on
an unstable cart, stand, tripod or table. Placing the
product on
an unstable base can cause the product to fall, resulting in serious personal injuries
as well as damage to the product. Use only acart, stand, tripod, bracket or table recommended
by the manufacturer or sold with the product. When mounting the product on awall, be sure to
follow the manufacturer's instructions. Use only the mounting hardware recommended by the
manufacturer.
•Selecting the location -Select aplace with no direct sunlight and good ventilation.
r•Ventilation -The vents and other openings
in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product on abed, sofa, rug or other
similar surface, since they can block ventilation openings. This product
is not designed for built-
in installation; do not place the product in an enclosed place such as abookcase or rack, unless
proper ventilation
is provided or the manufacturer'sinstructions are followed.
•The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the
product
is dropped or applied with impact. Be careful not to be injured by broken glass pieces
in case the panel breaks.
•Heat -The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
~
'
\1
I II
D
@-4
•The Liquid Crystal panel is avery high technology product with 6,220,800 thin film transistors, giving you fine picture
details.
Occasionally, afew non-active pixels may appear on the screen
as afixed point of blue, green or red. Please note that this
does not affect the performance of your product.
Precautions when transporting the TV
•Be sure to always carry the TV by two people holding it with two hands -one hand on
each side of the
TV. When moving the TV, be sure to always hold the grips on the back.
•Lightning -For added protection for this television equipment during alightning storm, or G
when it is left unattended and unused for long periods of time, unplug it from the wall outlet
and disconnect the antenna. This will prevent damage to the equipment due to lightning and @
power-line surges.
•Power Lines -
An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where
it can fall into such power lines
or circuits. When installing
an outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with them might be fatal.

IMPORTANT SAFETY INSTRUCTIONS

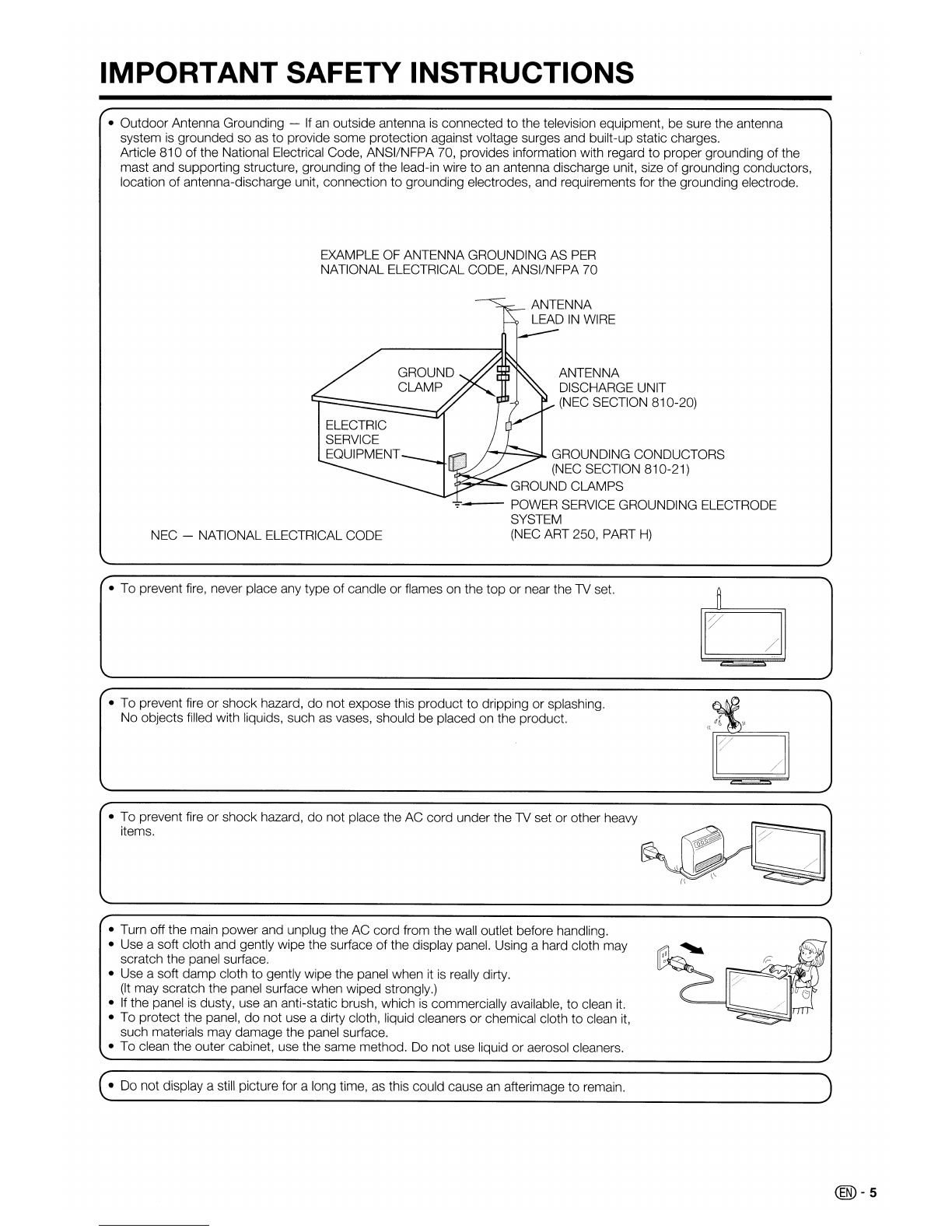

•Outdoor Antenna Grounding - If an outside antenna is connected to the television equipment, be sure the antenna
system
is grounded so as to provide some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS
PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
NEC -NATIONAL ELECTRICAL CODE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
~~--. GROUND CLAMPS
~=-t-- POWER SERVICE GROUNDING ELECTRODE
SYSTEM
(NEC ART 250, PART H)
•To prevent fire, never place any type of candle or flames on the top or near the TV set. o
•To prevent fire or shock hazard, do not expose this product to dripping or splashing.
No objects filled with liquids, such as vases, should be placed on the product.
•To prevent fire or shock hazard,
do not place the AC cord under the TV set or other heavy
items.
•Turn off the main power and unplug the AC cord from the wall outlet before handling.
•Use asoft cloth and gently wipe the surface of the display panel. Using ahard cloth may
scratch the panel surface.
•Use asoft damp cloth to gently wipe the panel when
it is really dirty.
(It may scratch the panel surface when wiped strongly.)
•
If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.
•To protect the panel, do not use adirty cloth, liquid cleaners or chemical cloth to clean it,
such materials may damage the panel surface.
•To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners.
•Do not display astill picture for along time, as this could cause
an afterimage to remain.
@-s

Supplied accessories
Make sure the following accessories are provided with the product.
Page 8Page 8Page 7
Page 7Page 7Page 7
SHAR~
@-s
R!m
•Always use the AC cord supplied with the TV.

QUICK REFERENCE
STOP! To safely remove the AQUOS television from the box
•It's best to use 2people to remove the AQUaS television for stability.
•Lift onto installation location as the diagram illustrates.
QUICK INSTALLATION TIPS
Clean the screen by spraying asoft lint free cloth (supplied) with water to lightly moisten. Gently
wipe and avoid pressing on the screen. To clean the outer cabinet, use the same method. Do
not use liquid or aerosol cleaners.
The screen
is glass and can be scratched or broken when dropped or impacted.
Ventilation &Cleaning Tips
Keep your AQUaS television in awell ventilated area and make sure not to place it by aheat
source or use near water. The
AQUaS television is designed for AC use only and should be
used with supplied AC cord.
Press down on the hooks
in the directions of
the arrows to remove the
two terminal covers.
Attach your antenna to the back of the
AQUaS television. (See page 12.)
Connect the AC plug for the
AQUaS
television into the AC outlet.
Bundle the cords properly with cable clamps,
and close the terminal covers.
~.,--- ....... ~ .. lAC outlet I
•Place the TV close to the AC outlet, and keep the power
plug within reach.
•This product must only be connected to a120
V, 60 Hz,
grounded (3-prong) outlet.
Connecting
it to any other kind of outlet will damage the
product and invalidate the warranty.
How to turn on the AQUaS television for the
first time.
A) Press POWER on AQUaS television.
POWER II
POWER
INPUT 0
B) POWER indicator on the front of the AQUaS
television lights BLUE.
•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT
TOUCH UN-INSULATED PARTS OF ANY CABLES
WITH THE AC CORD CONNECTED. (
POWER indicator
•Speakers cannot be detached from the
TV.
•TV angle cannot be adjusted.
@-7

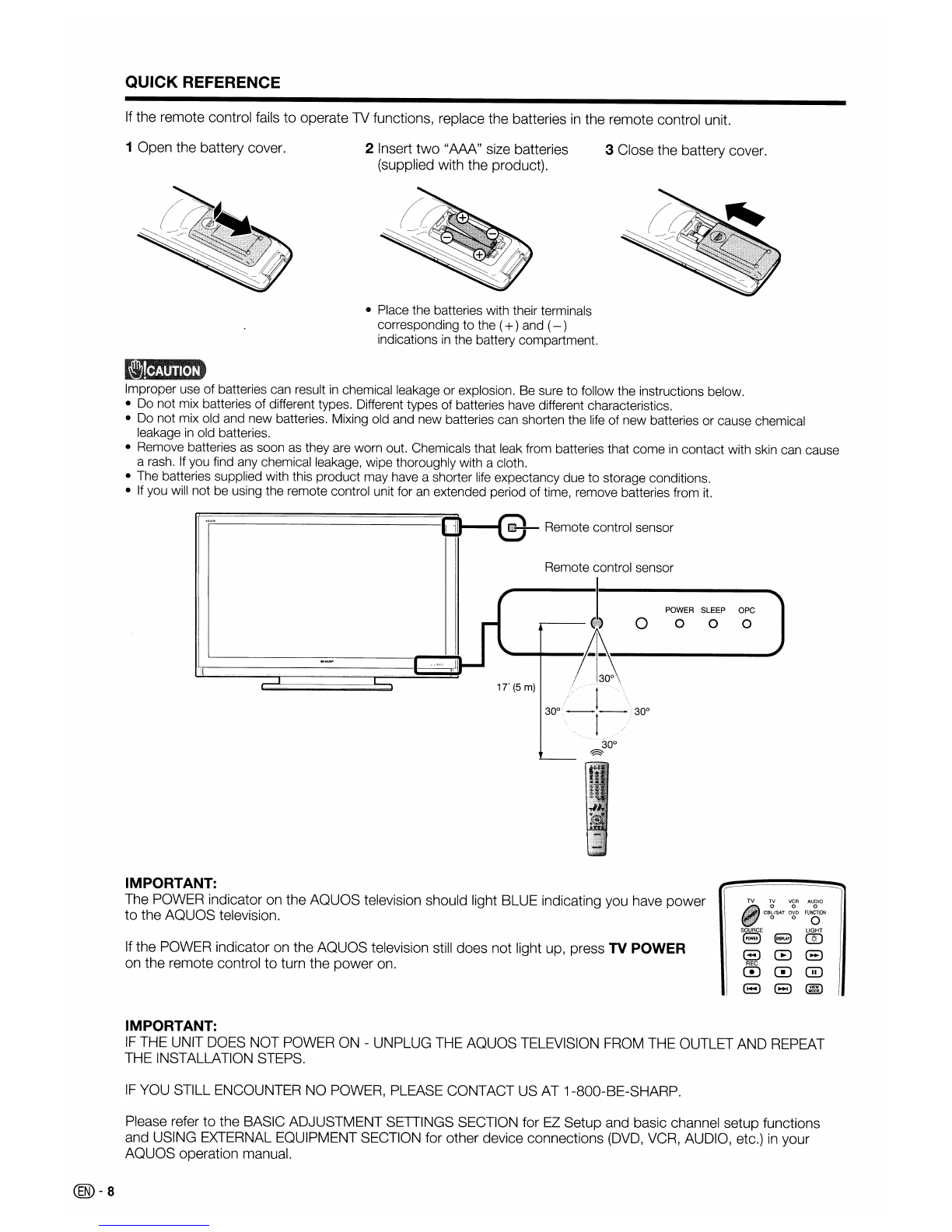

QUICK REFERENCE
If the remote control fails to operate 1V functions, replace the batteries in the remote control unit.
1Open the battery cover. 2Insert two "AAA" size batteries
(supplied with the product).
•Place the batteries with their terminals
corresponding
to the (+)and (- )
indications
in the battery compartment.
3Close the battery cover.
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
•Do not mix batteries of different types. Different types of batteries have different characteristics.
•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage
in old batteries.
•Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come
in contact with skin can cause
arash. If you find any chemical leakage, wipe thoroughly with acloth.
•The batteries supplied with this product may have ashorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove batteries from it.
Q---(3 Remote control sensor
P-nr,~-----------.!~ll-
1T(5m)
II
Remote control sensor
_ r ....----1 0 PO~ER SL~r o~c
\...~ ...... _-~--------",
300 __ l~\ 300
I
IMPORTANT:
The POWER indicator on the AQUOS television should light BLUE indicating you have power
to the AQUOS television.
If the POWER indicator on the AQUOS television still does not light up, press TV POWER
on the remote control to turn the power on.
TV TV VCR AUDIO
000
CBL/SAT DVD FUNCTION
o00
SOURCE LIGHT
S E3 m
E) G (3
REC
C!) C!) 0
8
~ @ID
@-a
IMPORTANT:
IF THE UNIT DOES NOT POWER ON -UNPLUG THE AQUOS TELEVISION FROM THE OUTLET AND REPEAT
THE INSTALLATION STEPS.
IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.
Please refer to the BASIC ADJUSTMENT SETIINGS SECTION for
EZ Setup and basic channel setup functions
and USING EXTERNAL EQUIPMENT SECTION for other device connections
(DVD, VCR, AUDIO, etc.) in your
AQUOS operation manual.

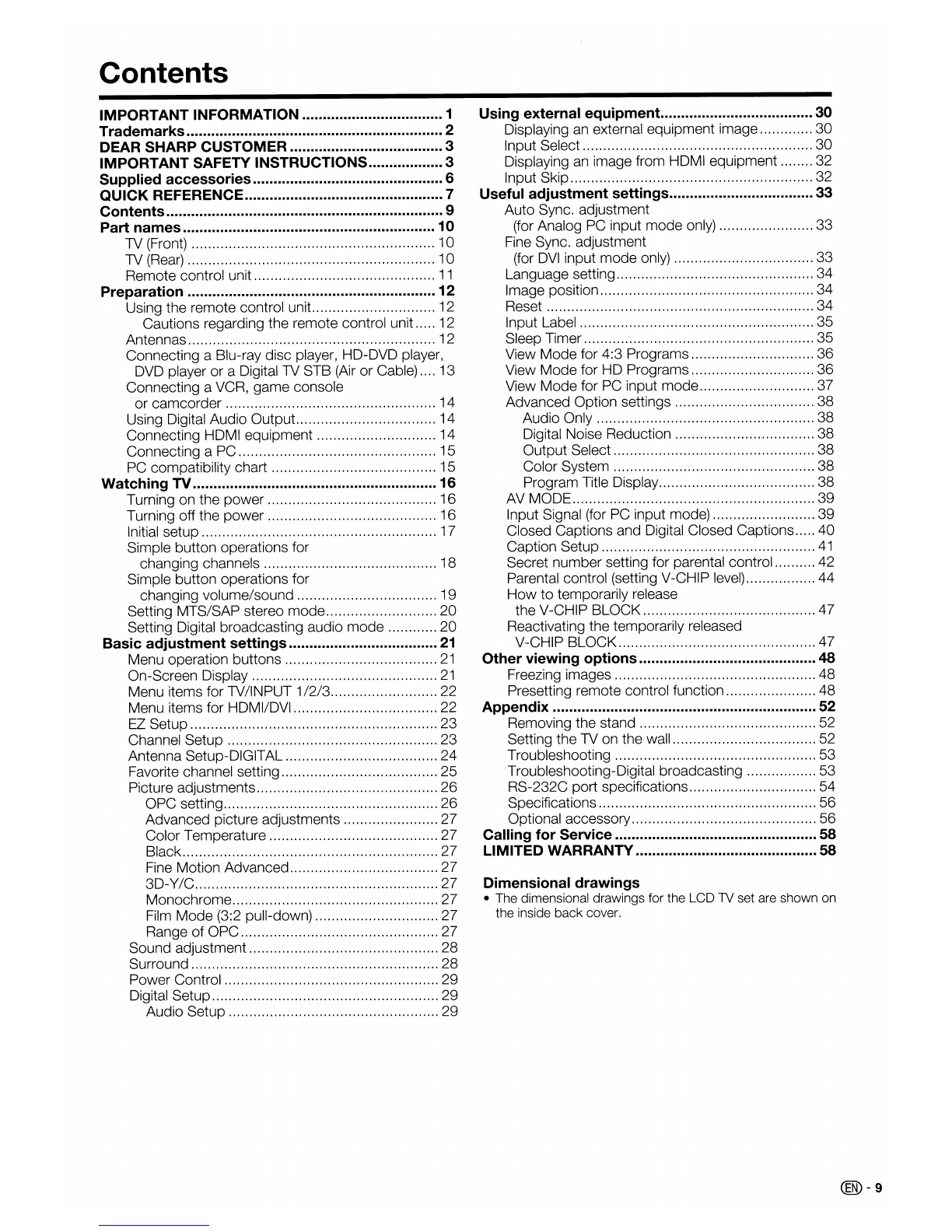

Contents
IMPORTANT INFORMATION 1
Trademarks 2
DEAR SHARP CUSTOMER 3
IMPORTANT SAFETY INSTRUCTIONS 3
Supplied accessories 6
QUICK REFERENCE 7
Contents 9
Part names 10
TV (Front) 10
TV (Rear) 10
Remote control unit
11
Preparation 12
Using the remote control unit 12
Cautions regarding the remote control unit 12
Antennas 12

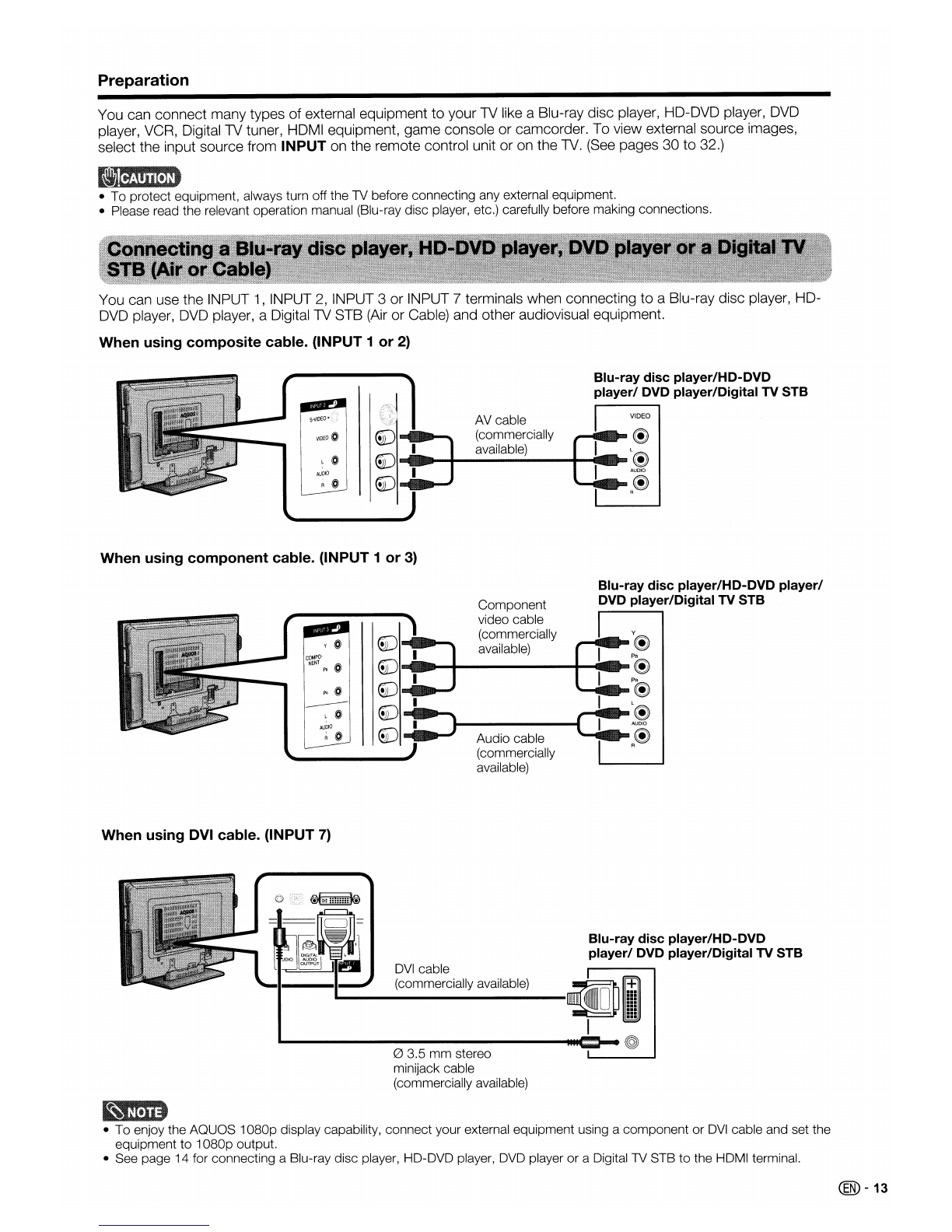

Connecting aBlu-ray disc player, HD-DVD player,
DVD player or aDigital TV STB (Air or Cable) .... 13

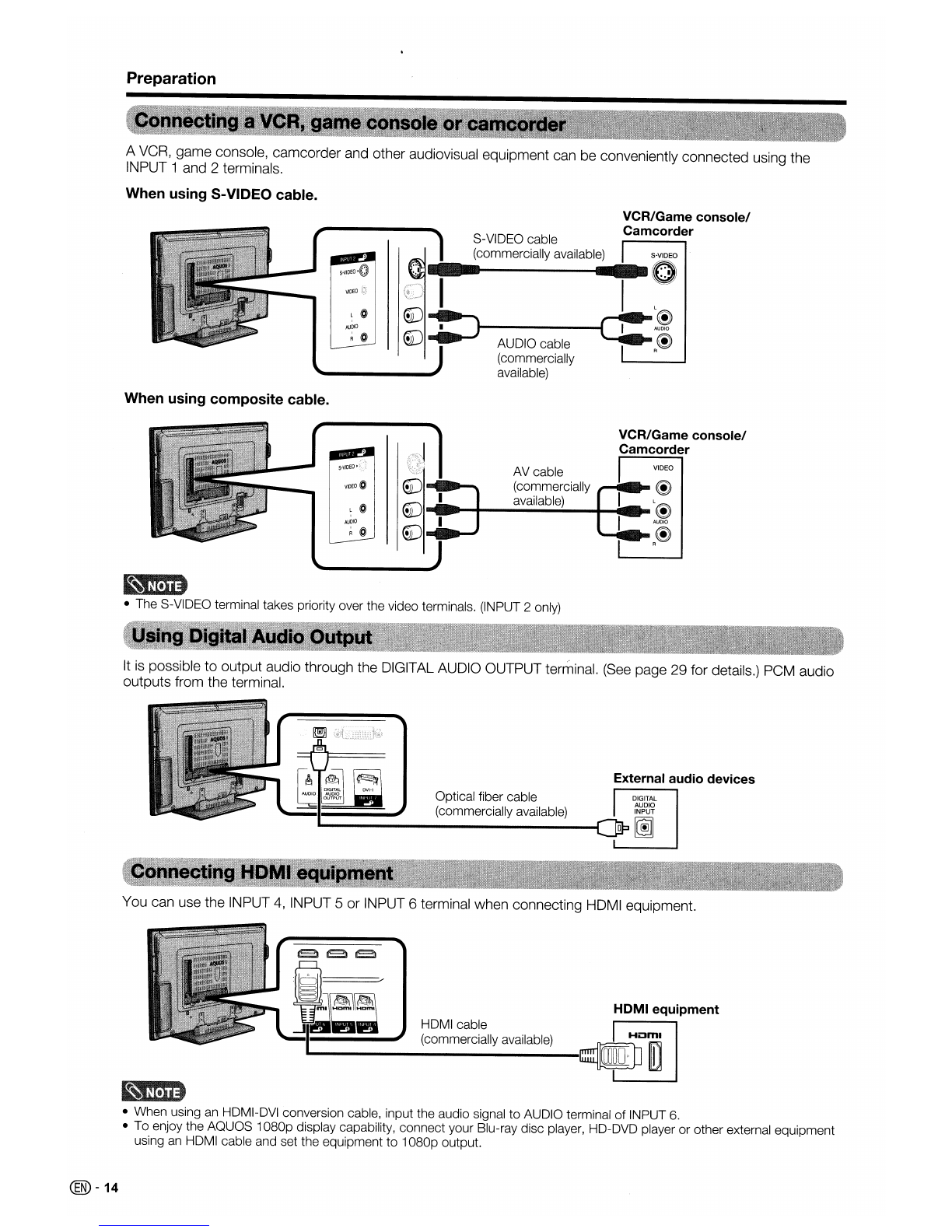

Connecting aVCR, game console
or camcorder 14
Using Digital Audio Output 14
Connecting HDMI equipment 14

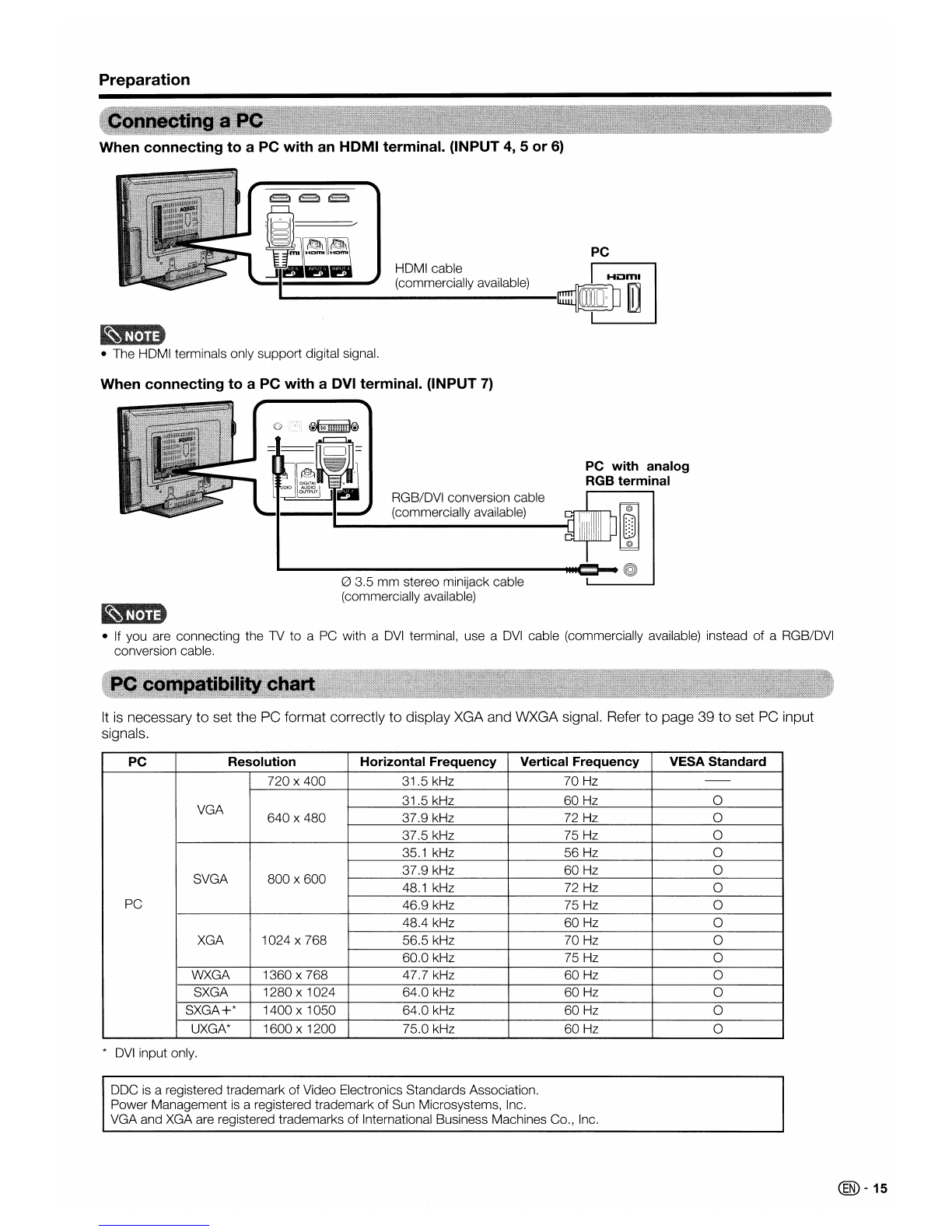

Connecting a
PC 15
PC compatibility chart 15
Watching TV 16
Turning on the power 16
Turning off the power 16
Initial setup 17
Simple button operations for
changing channels 18
Simple button operations for
changing volumelsound 19
Setting MTSISAP stereo mode 20
Setting Digital broadcasting audio mode 20
Basic adjustment settings 21
Menu operation buttons 21
On-Screen Display 21
Menu items for TV/INPUT 1/2/3 22
Menu items for HDMIIDVI 22
EZ Setup 23
Channel Setup 23
Antenna Setup-DIGITAL 24
Favorite channel setting 25
Picture adjustments 26
OPC setting 26
Advanced picture adjustments 27
Color Temperature
~ 27
Black 27
Fine Motion Advanced 27
3D-Y/C 27
Monochrome 27
Film Mode (3:2 pull-down) 27
Range of OPC 27
Sound adjustment 28
Surround 28
Power Control 29
Digital Setup 29
Audio Setup 29
Using external equipment 30
Displaying an external equipment image 30
Input Select 30
Displaying
an image from HDMI equipment 32
Input Skip 32
Useful adjustment settings 33
Auto Sync. adjustment
(for Analog
PC input mode only) 33
Fine Sync. adjustment
(for
DVI input mode only) 33
Language setting 34
Image position 34
Reset 34
Input Label 35
Sleep Timer '35
View Mode for 4:3 Programs 36
View Mode for HD Programs 36
View Mode for PC input mode 37
Advanced Option settings 38
Audio Only 38
Digital Noise Reduction 38
Output Select 38
Color System
~ 38
Program Title Display 38
AV MODE 39
Input Signal (for
PC input mode) 39
Closed Captions and Digital Closed Captions 40
Caption Setup
41
Secret number setting for parental control 42
Parental control (setting V-CHIP
level) 44
How to temporarily release
the V-CHIP BLOCK 47
Reactivating the temporarily released
V-CHIP BLOCK 47
Other viewing options 48
Freezing images 48
Presetting remote control function 48
Appendix 52
Removing the stand 52
Setting the TV on the wall 52
Troubleshooting 53
'Troubleshooting-Digital broadcasting 53
RS-232C port specifications 54
Specifications 56
Optional accessory 56
Calling for Service 58
LIMITED WARRANTY 58
Dimensional drawings
•The dimensional drawings for the LCD 1V set are shown on
the inside back cover.
(00-9

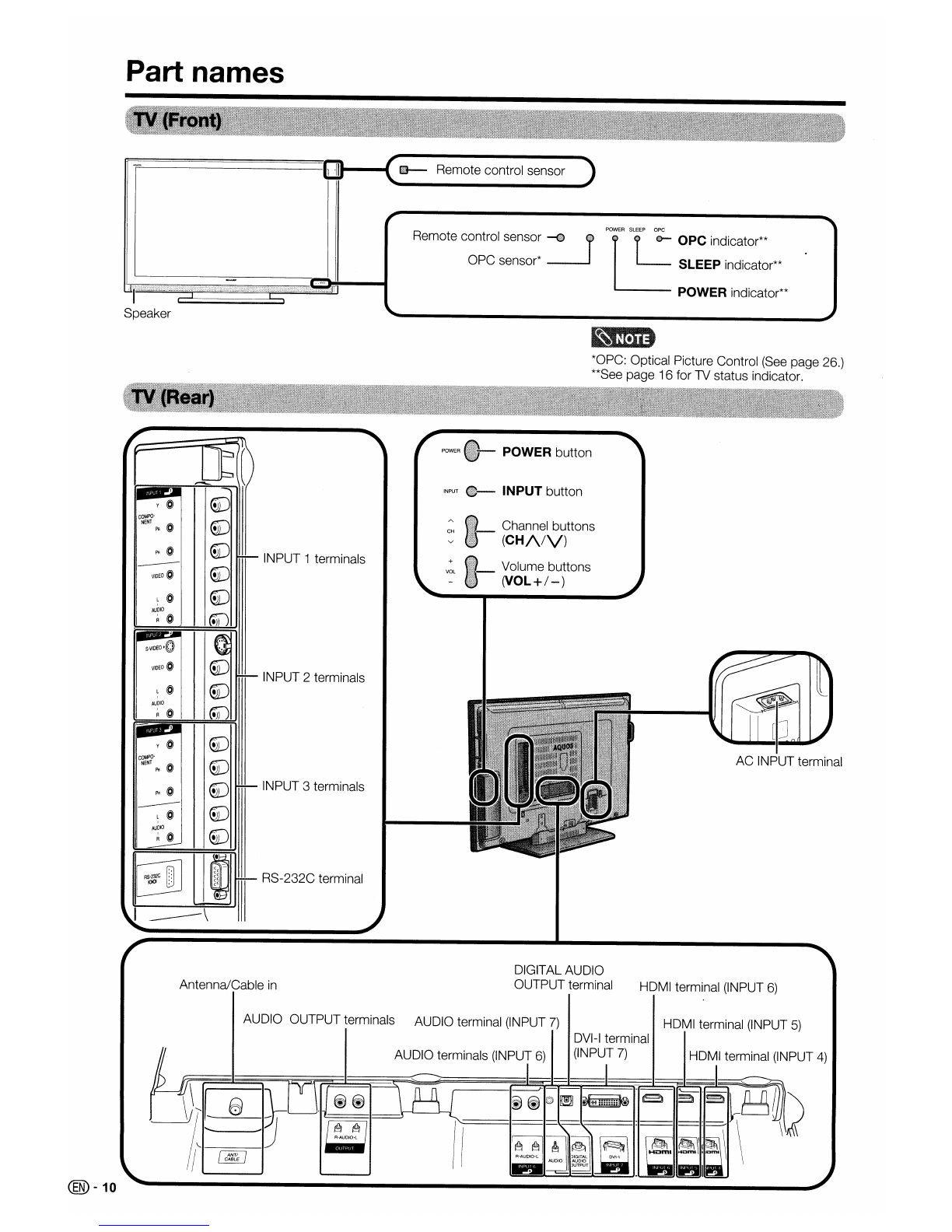

Part names
p
ActUOI []I
C-
Remote control sensor )
r
"""
POWER SLEEP
ope
Remote control sensor -. r
~
OPC indicator**
OPC sensor* SLEEP indicator**
-POWER indicator**
I
Seaker
\....
~
*OPC: Optical Picture Control (See page 26.)
**See page 16 for TV status indicator.
Volume buttons
(VOL+f-)
Channel buttons
(CHAfV)
INPUT 8- INPUT button
RS-232C terminal
INPUT 3terminals
INPUT 2terminals
INPUT 1terminals
COMPO-
NENT PB @
y@
([)
COMPO-
NENT
PB @
([)
PA @
([)
--
([) VIDEO@
L@
([)
AUDIO
R@
~
S-VIDEO'O
::.
VIDEO@
([)
L@
([)
AUDIO
~
~ @
PA @
---
~@
AUDIO
~ @
I~III
DIGITAL AUDIO
Antenna/Cable
in OUTPUT terminal HDMI terminal (INPUT
6)
AUDIO OUTPUT terminals AUDIO terminal (INPUT 7)
@-10
AUDIO terminals (INPUT 6)
DVI-I terminal
(INPUT
7)
HDMI terminal (INPUT 5)
HDMI terminal (INPUT 4)

Part names
1TV POWER: Switch the TV power on or enters standby.
(See page 16.)
2DISPLAY: Display the channel information.
3SOURCE POWER: Turns the power of the external
equipment on and off.
4External equipment operational buttons: Operate the
external equipment.
5o-
9: Set the channel. (See page 18.)
6•
(DOn: (See pages 18 and 50.)
15 7INPUT: Select aTV input source.
(TV, INPUT 1, INPUT
2, INPUT 3, INPUT 4, INPUT 5, INPUT 6, INPUT 7) (See
pages 30 to 32.)
8VOL +
1-: Set the volume. (See page 19.)
16 9SURROUND: Select Surround settings.
(See page 19.)
10 FREEZE: Set the still image. Press again to return to
normal screen.
(See page 48.)
11 EXIT: Turn off the menu screen.
12 SLEEP: Set the sleep timer.
(See page 35.)
13 AUDIO: Selects the MTS/SAP or the audio mode during
17 multi-channel audio broadcasts.
(See page 20.)
14 FUNCTION: Switches the remote control for
TV, CBU
18 SAT, VCR,
DVD and AUDIO operation. Indicator lights up
for the current mode.
(See pages 48 to 51 for details.)
*To enter the code registration mode, you need to press
19 FUNCTION and DISPLAY at the same time.
20 15 LIGHT
-eo: When pressed all buttons on the remote
control unit will light. The lighting will turn off
if no
operations are performed within about 5seconds. This
21
button is used for performing operations in low-light
situations.
22
16 VIEW MODE: Select the screen size.
(See pages 36 and
37.)
17 ENT: Jumps to achannel after selecting with the
0-9
23 buttons.
24
18 FLASHBACK: Return to the previous channel or external
input mode.
(See page 18.)
25 19
CH/\/V: Select the channel. (See page 18.)
20 MUTE: Mute the sound.
(See page 19.)
26
21
MENU: Display the menu screen.
22
./~ / ~/~/ENTER: Select adesired item on the
screen.
23 RETURN: Return to the previous menu screen.
24 FAVORITE CH
27
A, B, C, D: Select 4preset favorite channels in 4different
categories.
(See page 25 for details.)
While watching, you can toggle the selected channels by
pressing
A, B, Cand D.
25 FAVORITE: Set the favorite channels.
(See page 25.)
26 CC: Display captions from aclosed-caption source.
(See
page 40.)
27 AV MODE: Select
an audio or video setting. (When the
input source
is TV, INPUT 1, 2or 3: STANDARD, MOVIE,
GAME, USER, DYNAMIC (Fixed), DYNAMIC. When the
input source
is INPUT 4, 5, 6or 7: STANDARD, MOVIE,
GAME,
PC, USER, DYNAMIC (Fixed), DYNAMIC) (See
page 39.)
MENU
14
---
REC
---
-
-I-
•
••
•
••
•••
.1.1.
1
6INPUT
FLASHBACK
7 -~-----.;. e·------
4
5
2---.;;;...--=~- .....
3
VOL CH
: __ ~S_UR;ND' I Mi._
E
~~_
13
11
FAVORITE
.:----
:i ••• •• SLEEP AUDIO AV MODE CC
IlliIT·· •
12ii
10-~-
•When using the remote control unit, point it at the TV.
@-11

Preparation
-:::0:::-
,::\0··"/"········· ·.· .. · ..
./ /)(
~ ..... /~
./
tf
~~c~:~~~
v.././~" .... , /
" ,,?;- ..
•Do not expose the remote control unit to shock. In addition, do not expose the remote
control unit to liquids, and do not place
in an area with high humidity.
•Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation of the remote control unit.
•The remote control unit may not work properly if the remote control sensor on the TV
is
under direct sunlight or strong lighting. In such cases, change the angle of the lighting or
the TV, or operate the remote control unit closer to the remote control sensor.
Use the remote control unit by pointing it towards the remote control sensor on the
TV. Objects between the remote control unit and the remote control sensor may
prevent proper operation.
To enjoy aclearer picture, use an outdoor antenna. The following is abrief explanation of the types of connections
that are used for acoaxial cable.
If your outdoor antenna uses a75-ohm coaxial cable with an F-type connector,
plug
it into the antenna terminal at the rear of the TV set.
1.A 75-ohm system is generally around cable with F-type
connector that can easily be attached to aterminal
without tools (Commercially available).
F- type connector
+
____ .75-ohm coaxial cable (round)
2.A 300-ohm system is aflat "twin-lead" cable that can be
attached to a75-ohm terminal through a300/75-ohm
adapter (Commercially available).
300-ohm twin-lead cable
(flat)
~ F-type connector should be finger-
.tightened only.
When connecting the RF cable to the TV set, do not
tighten F-type connector with tools.
If tools are used, it may cause damage to your TV
set. (The breaking of internal circuit, etc.)
~
~~ .• 1=-,' ..... F-type connector
~"' .. ' .•............ _/ ;v;-;
r-< 'IV.
75-ohm coaxial cable
Connecting Antenna Cable
CD Cable without a
CATV converter
Home Antenna
terminal (75-ohm)
.Ca.b.le.TV.le.ad.-.ln ~ ~~F=rEl@]
Coaxial cable
(commercially available)
®VHF/UHF antenna •Connect the antenna cable
to the TV using one of the
methods
in the illustration as
shown
(CD, ®, @or @).
VHF UHF
ANTENNA ANTENNA
To TV antenna
terminal
300/75-ohm adapter
(commercially available)
300-ohm
twin-lead
cable
Combiner
\
(commercially
available)
300-ohm twin-lead cable I I
__ ••••• t==-.IN OUTI-------~II ••
75-ohm coaxial cable /
..
Home Antenna
75-ohm coaxial cable (round) terminal (75-ohm)
~-------- ~ ~~F=~
Coaxial cable
(commercially available)
~3~Oo~-o~hm~t~w;;in-;;lea;;d~ca~b~le~(fla~t)~~~~~~~~Eb:===.
or
l
®Separate VHF/
UHF antenna
®Combination VHF/
UHF antenna
@-12

Preparation
You can connect many types of external equipment to your TV like aBlu-ray disc player, HD-DVD player, DVD
player, VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source images,
select the input source from INPUT on the remote control unit or on the
TV. (See pages 30 to 32.)
• To protect equipment, always turn off the TV before connecting any external equipment.
•Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
You can use the INPUT 1, INPUT 2, INPUT 3or INPUT 7terminals when connecting to aBlu-ray disc player, HD-
DVD player, DVD player, aDigital TV STB (Air or Cable) and other audiovisual equipment.
When using composite cable. (INPUT 1or 2)
VIDEO
VIDEO (Q)
L(Q)
AUDIO
~(Q)
Blu-ray disc player/HD-DVD
player/ DVD player/Digital TV STB
AV cable
(commercially
~4111111111" @
11IIIIIIIII1IIIIIIIII ..... +-_av_a_ila_b_le_) __ .......... IIIIIIIII!IIIIm \@
AUDIO
"'-ll1IBIII'" R@
When using component cable. (INPUT 1or 3)
Blu-ray disc player/HD-DVD player/
DVD player/Digital TV STB
COMPO-
NENT PB (Q)
PR (Q)
---
7(Q)
AUDIO
~ (Q)
When using DVI cable. (INPUT 7)
Component
video cable
(commercially y
,. ..... :=IIlfi1I1IIIIII@
1111118111111111-- __ av_a_ila_b_le_) --f :: ::
~I:_L@
)~---~( I Aumo
I _fIIIIIIII!t--" Audio cable - R@
(commercially
available)
Blu-ray disc player/HD-DVD
player/ DVD player/Digital TV STB
DVI cable
(commercially available)
..... --------------- ..... IM:~ ... O
o3.5 mm stereo
minijack cable
(commercially available)
•To enjoy the
AQUaS 1080p display capability, connect your external equipment using a component or DVI cable and set the
equipment
to 1080p output.
•See page 14 for connecting aBlu-ray disc player, HD-DVD player, DVD player or aDigital TV STB
to the HDMI terminal.
@-13

YCR/Game console/
Camcorder
Preparation
AVCR, game console, camcorder and other audiovisual equipment can be conveniently connected using the
INPUT 1and 2terminals.
When using S-VIDEO cable.
S-VIDEO cable
(commercially available) S-VIDEO
-0
I_---.)~ __ --( !: :~
AUDIO cable /iJ
(commercially
available)
When using composite cable.
VIDEO
VIDEO~
7~
AUDIO
~ ~
YCR/Game console/
Camcorder
AV cable
(commercially,... ..... @
available) L@
AUDIO
~"'''R@
•The S-VIDEO terminal takes priority over the video terminals. (INPUT 2only)
It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 29 for details.) PCM audio
outputs from the terminal.
Optical fiber cable
(commercially available)
External audio devices
DIGITAL
AUDIO
INPUT
D~
You can use the INPUT 4, INPUT 5or INPUT 6terminal when connecting HDMI equipment.
HDMI cable
(commercially available)
HDMI equipment
•When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 6.
•To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player, HD-DVD player or other external equipment
using
an HDMI cable and set the equipment to 1080p output.
@-14

Preparation
When connecting to aPC with an HDMI terminal. (INPUT 4, 5or 6)
HOMI cable
(commercially available)
PC
•The
HOMI terminals only support digital signal.
When connecting to aPC with aDVI terminal. (INPUT 7)
RGB/OVI conversion cable
(commercially available)
PC with analog
RGB terminal
..... ---------------- ... c=~ Q
o3.5 mm stereo minijack cable
(commercially available)
•
If you are connecting the TV to a PC with a OVI terminal, use a OVI cable (commercially available) instead of aRGB/OVI
conversion cable.
It is necessary to set the PC format correctly to display XGA and WXGA signal. Refer to page 39 to set PC input
signals.
PC Resolution Horizontal Frequency Vertical Frequency VESA Standard
720 x400 31.5 kHz 70 Hz
--
VGA 31.5 kHz 60 Hz 0
640 x480 37.9 kHz
72 Hz 0
37.5 kHz 75 Hz 0
35.1 kHz 56 Hz 0
SVGA 800 x600 37.9 kHz 60
Hz
0
48.1 kHz 72 Hz 0
PC
46.9 kHz 75 Hz 0
48.4 kHz 60 Hz 0
XGA 1024 x768 56.5 kHz 70 Hz
0
60.0 kHz 75 Hz 0
WXGA 1360 x768 47.7 kHz 60 Hz 0
SXGA 1280 x1024 64.0 kHz 60 Hz 0
SXGA+*
1400 x1050 64.0 kHz 60 Hz 0
UXGA* 1600 x1200 75.0 kHz 60 Hz 0
* OVI input only.
DOC is aregistered trademark of Video Electronics Standards Association.
Power Management
is aregistered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Co., Inc.
@-15

Watching TV
•The initial setup starts when the TV powers on for the first
time. If the TV has been turned on before, the EZ Setup will
not be invoked. See page 23 for performing EZ Setup from
the Setup menu.
Press POWER on the TV, or TV POWER on the
remote control unit.
•POWER indicator (Blue): The TV is on. (After afew
seconds, a
window appears with sound.)
POWER
INPUT 0
Simple operations for watching a TV program
• If you are not going to use this TV for along period of time,
be sure
to remove the AC cord from the AC outlet.
•Weak electric power
is still consumed even when POWER
is turned off.
Press POWER on the TV, or TV POWER on the
remote control unit.
•The TV enters standby and the image on the screen
disappears.
,_'). The POWER indicator on the TV turns off.
ope Indicator
I
PC
rn
0 0
I--
(
--
POWER SLEEP 0
o0 rn 0
POWER indicator
SLEEP indicator
TV POWER (On/Standby) TV status indicator (POWER)
ON Lighting (Blue)
Standby Lights off
TV TV VCR AUDIO
00 0
CBL/SAT DVD FUNCTION
000
SOURCE LIGHT
88
@)
','
S0
(3
REC
00m
8
8)
GID
MODE
TV status indicator (SLEEP)
"Off" is selected in SLEEP setting
"30", "60", "90" or "120"
is selected in SLEEP setting
•See page 35 for details.
TV status indicator (Ope)
Lights off
Lighting
(Red)
"Off" is selected in OPC setting Lights off
"On" or "On: Display"
is selected in OPC setting Lighting (Green)
•See page 26 for details.
@-16

Watching TV
When you turn on the TV for the first time, it will automatically memorize the broadcasting channels where you live.
Perform the following steps before you press TV POWER on the remote control unit.
1. Insert the batteries into the remote control unit. (See page 8.)
2. Connect the antenna cable to the TV. (See page 12.)
3. Plug in the AC cord to the AC outlet. (See page 7.)
When "Cable" is selected in Antenna
setting:
Press .,/T to select "Analog &Digital
Search Start" to search both analog and
digital broadcasts or "Analog Search Start"
to search only analog broadcasts, and then
press ENTER.
•The Channel search will start automatically.
•To exit the Channel search screen, select
"Cancel", and then press ENTER.
Example
•
When "Air" is selected in Antenna
setting:
Press ..... /~ to select "Start", and then press
ENTER.
Channel search
Channel auto search makes the TV look for all channels
viewable
in the set area.
EXIT ~RETURN
o0
FREEZE MENU
O~O
I-I
Press ~/~ to select "Air" or "Cable".
Press ENTER to enter the setting.
Press
.,/T to select the desired language
listed on the screen, and then press ENTER.
Antenna setting
Make sure what kind of connection is made with your
TV when selecting "Air"
or "Cable".
Language setting
Select from among 3languages: English, French and
Spanish.
• If no channel is found, confirm the type of connection made
with your TV and try
EZ Setup again. (See page 23.)
@-17

Watching TV
You can change channels in several ways.
POWER 0
INPUT 0
INPUT FLASHBACK
o.
Method 1
Using CH /\/V on the remote control unit or on the
1V.
Method 2
1Press FLASHBACK to switch to the previously tuned
channel.
2Press FLASHBACK again
to switch back to the
currently tuned channel.
•FLASHBACK will not work if no channel has been
changed after the TV
is turned on.
Method 3
Using remote control buttons 0-9, • (DOT) to select
channels for VHF/UHF/CA1V/OIGITAL.
To select a 1 or 2-digit channel number
(e. g., Channel
5):
Press 5~ENT
•When selecting a1-digit channel number, it is not
necessary to press 0before the number,
•When you enter
0-9 only, channel selection will be made if
there
is no operation within afew seconds.
VOL
SURROUND j+)
oU
To select a3-digit channel number
(e. g., Channel 115):
Press 1 ~ 1 ~5~ENT
FREEZE MENU
O~o
8@8
EXIT ~ RETURN
O~O
-FAVORITE CH -
0®@@
AQuas
SHARP
@-18
•
' ..
~
To select a4-digit channel number
(e. g., Channel 22.1):
Press 2~2~ • (DOT) ~ 1 ~ENT
-~-~'
•When you enter 0-9 only, channel selection will be made if
there
is no operation within afew seconds.
•
If you push "0" by itself, nothing will happen.
•Complete the above steps within afew seconds.
•When you enter
0-9 and •(001), channel selection will be
made
if there is no operation within afew seconds.

Watching TV
,
•
Mute
•Using SURROUND on the remote control unit
•Within 30 minutes of pressing MUTE, mute can be
canceled by using one of the methods below.
-Mute will cancel
if you press VOL +/ - or MUTE.
•Mute will be canceled after 30 minutes have passed.
However, the TV will not suddenly output aloud sound
as
the volume level is set to 0automatically.
Press MUTE.
• ~ will be displayed on the screen for 30 minutes, and the
sound
is silenced.
•Using MUTE on the remote control unit
Mutes the current sound output.
INPUT 0
POWERQ
l
i{JC~
SURROUND .,.,.',.:,.:"., ..• , .• "'".".,., .• ".".".".,,., ...•. , .•. ,:,., •.•.• :MUTE
o"jii_I? v0
•Using VOL+/-
•To increase the volume, press VOL+.
•To decrease the volume, press VOL - .
•Changing the volume
You can change the volume on the TV or on the remote
control unit.
Volume adjustment VOL CH
SURR,.,.,:""O":.:,.".".,,::,,,.U,. NO j+) AMUTE
.'VUO
SURROUND produces Surround effect from the
speakers. Each time you press SURROUND, the
mode changes between
On and Off.
•VOL +/ - on the TV operates the same as VOL +/ - on
the remote control unit.
Audio status
Surround sound options
On: Makes it possible to enjoy natural, realistic surround
sound.
Off: Outputs the normal sound.
*
*When "Output Select" is set to "Variable", the indicator on
the screen changes as shown below. •You can have the same settings by choosing "Surround"
on the menu items.
(See page 28.)
•See page 38 for details on the Output Select function.
(00-19
