SERVICE MANUAL
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
OUTLINE AND DIFFERENCES FROM BASE MODEL
OUTLINE.................................................................... i
LIST OF CHANGED PARTS ...................................... i
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY
PRECAUTION........................................................... ii
PRECAUTIONS A PRENDRE LORS DE LA
REPARATION ...........................................................iii
PRECAUTIONS FOR USING LEAD-FREE
SOLDER .................................................................. iv
PRECAUTIONS IN SERVICING THE HDCP-
KEY ROM.................................................................. v
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS .................................................1-1
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL ..........................................2-1
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS ........................................................3-1
CHAPTER 4. PRINTED WIRING BOARD ASSEMBLIES
[1] MAIN Unit...............................................................4-1
CHAPTER 5. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIAGRAM .........5-1
[2] MAIN Unit...............................................................5-2
Parts Guide
TopPage
CONTENTS
In the interests of user-safety (Required by safety regulations in some countries) the set should
be restored to its original condition and only parts identical to those specified should be used.
LC-32/37M43U
LC-32M43U
LC-37M43U
MODELS
LCD COLOR TELEVISION
No. S77L7LC32M43U
OUTLINE
This model is based on the LC-32/37D42U and is changed some parts. This Service Manual covers the modifica-
tions alone. For the other points, refer to the LC-32/37D42U (No. S06X9LC32D42U) Service Manual.

LC-32/37M43U
i
LC-32/37M43U Service Manual
OUTLINE AND DIFFERENCES FROM BASE MODEL
OUTLINE
This model is based on the LC-32/37D42U and is changed some parts. This Service Manual covers the modifications
alone. For the other points, refer to the LC-32/37D42U (No. S06X9LC32D42U) Service Manual.
LIST OF CHANGED PARTS
Ref. No. Description LC-32/37D42U LC-32/37M43U Note
PRINTED WIRING BOARD ASSEMBLIES
R/C, LED Unit DUNTKD909FM02 ←—
KEY Unit DUNTKD910FM02 ←—
MAIN Unit DUNTKD862FM04 DUNTKD862FM10 Some parts changed
AV TERMINAL Unit DUNTKD999FM04 ←—
POWER Unit RDENCA198WJQZ RDENCA252WJQZ —
LCD PANEL
32” LCD Panel Module Unit R1LK315T3LZ4BX R1LK315T3LZ50Z —
37” LCD Panel Module Unit R1LK370T3LZ5BW R1LK370T3LZ6CZ —
MAIN Unit
Please refer to a Parts list
CABINET AND MECHANICAL PARTS
Please refer to a Parts list
PACKING PARTS AND ACCESSORIES
Please refer to a Parts list

LC-32/37M43U
ii
LC-32/37M43U Service Manual
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER (Fire &
Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.
5. To be sure that no shock hazard exists, check for leakage current in
the following manner.
• Plug the AC cord directly into a 110 ~ 240 volt AC outlet.

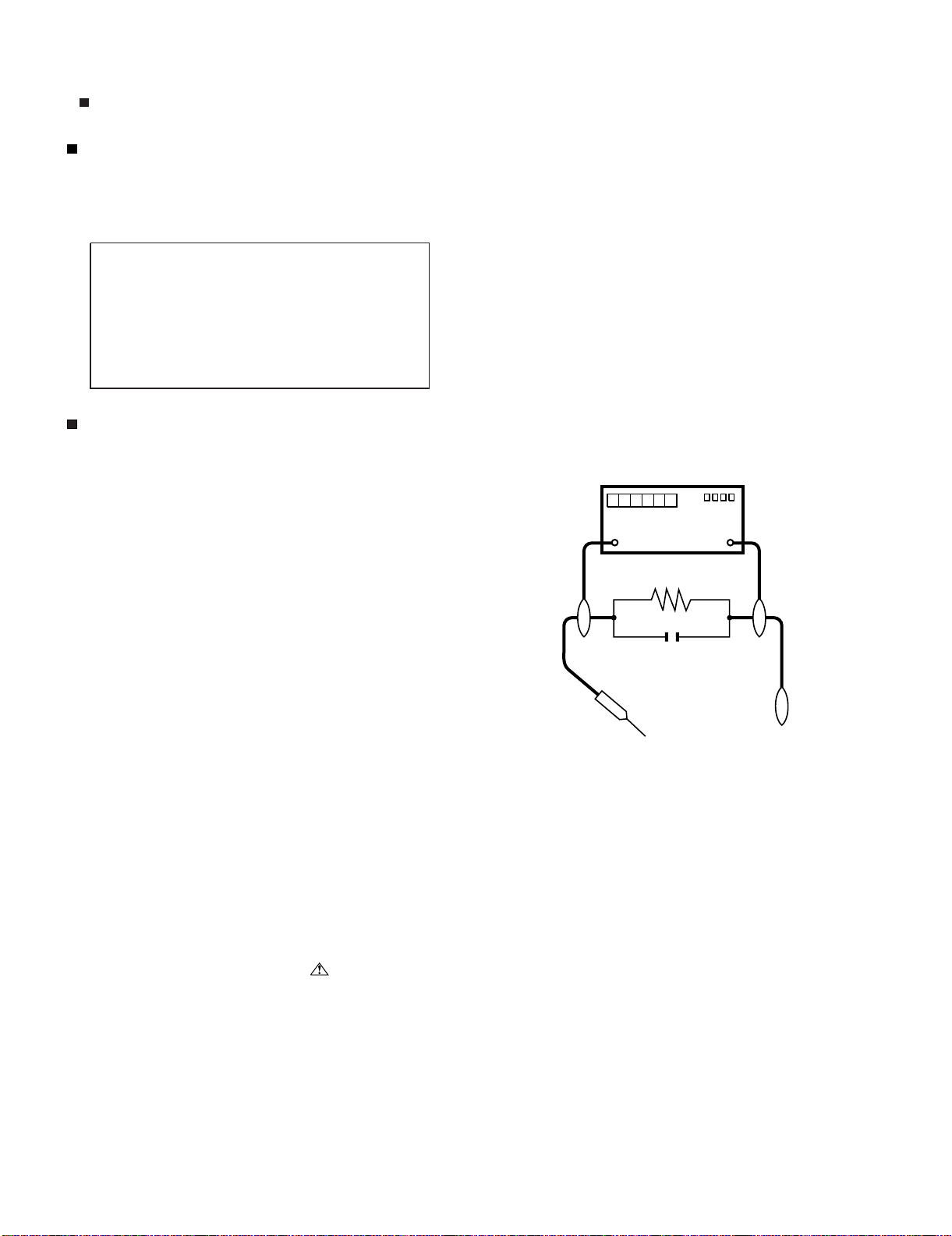

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-
leled by a 0.15µF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or elec-
trical ground connected to an earth ground.
• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-
sitivity or measure the AC voltage drop across the resistor.
• Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
SAFETY NOTICE
Many electrical and mechanical parts in LCD color television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " " and shaded areas in the Replacement Parts List
and Schematic Diagrams.
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
CAUTION: FOR CONTINUED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
F001 (250V 4A)
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
0.15 µ F
TEST PROBE

LC-32/37M43U
iii
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
De nombreuses pièces, électriques et mécaniques, dans les télévi-
seur ACL présentent des caractéristiques spéciales relatives à la sé-
curité, qui ne sont souvent pas évidentes à vue. Le degré de protec-
tion ne peut pas être nécessairement augmentée en utilisant des
pièces de remplacement étalonnées pour haute tension, puissance,
etc.
Les pièces de remplacement qui présentent ces caractéristiques sont
identifiées dans ce manuel; les pièces électriques qui présentent ces
particularités sont identifiées par la marque " " et hachurées dans la
liste des pièces de remplacement et les diagrammes schématiques.
Pour assurer la protection, ces pièces doivent être identiques à celles
utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas
les mêmes caractéristiques que les pièces recommandées par l'usine,
indiquées dans ce manuel, peut provoquer des électrocutions, incen-
dies, radiations X ou autres accidents.
AVERTISSEMENT
1.
2.
3.
4.
5.
•
•
•
•
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux
conseils suivants.
N'entreprendre aucune modification de tout circuit. C'est danger-
eux.
Débrancher le récepteur avant toute réparation.
Inspecter tous les faisceaux de câbles pour s'assurer que les fils
ne soient pas pincés ou qu'un outil ne soit pas placé entre le châs-
sis et les autres pièces métalliques du récepteur.
Inspecter tous les dispositifs de protection comme les boutons de
commande non-métalliques, les isolants, le dos du coffret, les cou-
vercles ou blindages de réglage et de compartiment, les réseaux
de résistancecapacité, les isolateurs mécaniques, etc.
S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la
fuite de courant, de la facon suivante:
Brancher le cordon d'alimentation directem-ent à une prise de cou-
rant de 110 ~ 240V. (Ne pas utiliser de transformateur d'isolation
pour cet essai).
A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ
10 watts en parallèle avec un condensateur de 0.15µF en série
avec toutes les pièces métalliques exposées du coffret et une terre
connue comme une conduite électrique ou une prise de terre
branchée à la terre.
Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour
mesurer la chute de tension en travers de la résistance.
Toucher avec la sonde d'essai les pièces métalliques exposées qui
présentent une voie de retour au châssis (antenne, coffret métalli-
que, tête des vis, arbres de commande et des boutons, écusson,
etc.) et mesurer la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir inversé la
fiche du cordon d'alimentation. (Si nécessaire, une prise
d'adpatation non polarisée peut être utilisée dans le but de termin-
er ces vérifications.)
La tension de pointe mesurèe ne doit pas dépasser 0.75V (corre-
spondante au courant CA de pointe de 0.5mA).
Dans le cas contraire, il y a une possibilité de choc électrique qui
doit être supprimée avant de rendre le récepteur au client.
PRECAUTION: POUR LA PROTECTION CON-
TINUE CONTRE LES RISQUES D'INCENDIE,
REMPLACER LE FUSIBLE
F001 (250V 4A)
VERIFICATIONS CONTRE L'INCEN-DIE ET LE
CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer les vérifica-
tions suivantes.
DVM
ECHELLE CA
1.5k ohm
10W
0.15
µ F
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
AVIS POUR LA SECURITE

LC-32/37M43U
iv
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-
age or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.
PARTS CODE PRICE
RANK
PART
DELIVERY DESCRIPTION
ZHNDAi123250E BL J φ0.3mm 250g (1roll)
ZHNDAi126500E BK J φ0.6mm 500g (1roll)
ZHNDAi12801KE BM J φ1.0mm 1kg (1roll)

LC-32/37M43U
v
PRECAUTIONS IN SERVICING THE HDCP-KEY ROM
The HDCP-KEY ROM shall be protected and managed for its information inside. In servicing this ROM, therefore, take the following information pro-
tection/management measures.
1) When disposing of the component parts and PWBs, destruct the IC itself in a proper way.
(For repairing or replacing the component parts and PWBs as well as clearing those in stock)
2) In storing the component parts, protect and manage them against theft and disclosure.
(For storing the service parts, service units, etc.)
Applied part: HDCP-KEY ROM
IC8451 RH-iXB979WJQZY (updated ROM)

LC-32/37M43U
1 – 1
LC-32/37M43U Service Manual
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS
Item Model: LC-32M43U Model: LC-37M43U
LCD panel 32" Advanced Super View & BLACK TFT
LCD
(Screen size 31
1
/
2
" measured diagonally)
37" Advanced Super View & BLACK TFT
LCD
(Screen size 37" measured diagonally)
Number of dots 3,147,264 dots (1366 768 3 dots)
TV
Function
TV-standard (CCIR) American TV Standard ATSC/NTSC System
Receiving
Channel
VHF/UHF VHF 2-13ch, UHF 14-69ch
CATV 1-135ch (non-scrambled channel only)
Digital Terrestrial
Broadcast (8VSB)
2-69ch
Digital cable
*1
(64/256 QAM)
1-135ch (non-scrambled channel only)
Audio multiplex BTSC System
Audio out 10W 2
Terminals Rear INPUT 1 AV in, COMPONENT in
INPUT 2 S-VIDEO in, AV in
INPUT 3 Audio in, COMPONENT in
INPUT 4 HDMI in with HDCP
INPUT 5 Audio in, HDMI in with HDCP
INPUT 6 15 pin mini D-sub, Audio in (Ø 3.5 mm jack)
ANTENNA 75 Unbalance, F Type 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
DIGITAL AUDIO OUTPUT Optical Digital audio output 1 (PCM/Dolby Digital)
OUTPUT Audio out
OSD language English/French/Spanish
Power Requirement AC 110-240 V, 50/60 Hz
Power Consumption 148 W (0.9 W Standby) 172 W (0.9 W Standby)
Weight TV + stand 43.0 lbs./19.5 kg 50.7 lbs./23.0 kg
TV only 36.4 lbs./16.5 kg 43.0 lbs./19.5 kg
Dimension
*2
(W H D)
TV + stand 31
11
/
32
23
13
/
64
9
37
/
64
inch 35
61
/
64
25
27
/
32
11
35
/
64
inch
TV only 31
11
/
32
20
59
/
64
3
53
/
64
inch 35
61
/
64
23
37
/
64
3
53
/
64
inch
Operating temperature 32°F to 104°F (0°C to 40°C)
*1
Emergency alert messages via Cable are unreceivable.
*2
The dimensional drawings are shown on the inside back cover.
As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.













++ +

LC-32/37M43U
2 – 1
LC-32/37M43U Service Manual
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL
OPC indicator
POWER indicator
OPC sensor
Remote control sensor
SLEEP indicator
Part names
TV (Front)
TV (Rear/Top)
HDMI terminal (INPUT 4)
INPUT 3 terminals
AUDIO OUTPUT terminals
HDMI terminal (INPUT 5)
DIGITAL AUDIO OUTPUT terminal
Antenna/Cable in
INPUT 1 terminals
AC INPUT terminal
AUDIO terminals (INPUT 5)
INPUT 2 terminals
PC IN terminals (INPUT 6)
POWER button
Channel buttons
(CH /)
Volume
buttons
(VOL /)
INPUT button

LC-32/37M43U
2 – 2
3
2
114
5
6
4
8
17
15
16
18
19
7
20
10
9
21
11 23
24
25
12
13 27
22
26
Part names

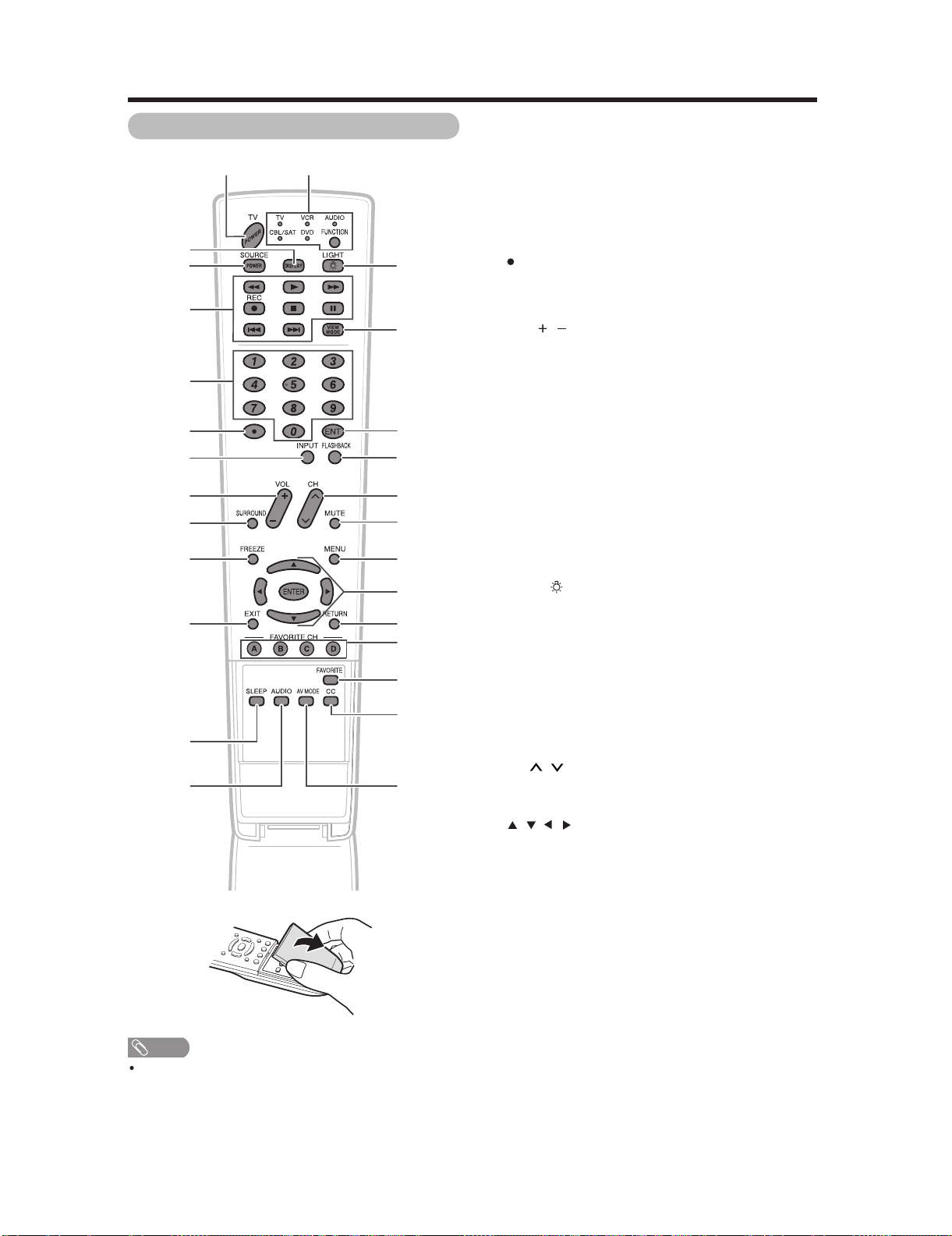

1 TV POWER: Switch the TV power on or enters
standby.
2 DISPLAY: Display the channel information.
3 SOURCE POWER: Turns the power of the external
equipment on and off.
4 External equipment operational buttons: Operate
the external equipment.
50
_9: Set the channel.
6 (DOT):
7INPUT:Select a TV input source. (TV, INPUT 1,
INPUT 2, INPUT 3, INPUT 4, INPUT 5, INPUT 6)
8 VOL / : Set the volume.
9 SURROUND: Select Surround settings.
10 FREEZE: Set the still image. Press again to return to
normal screen.
11 EXIT: Turn off the menu screen.
12 SLEEP: Set the sleep timer.
13 AUDIO: Selects the MTS/SAP or the audio mode
during multi-channel audio broadcasts.
14 FUNCTION: Switches the remote control for TV,
CBL/SAT, VCR, DVD and AUDIO operation. Indicator
lights up for the current mode.
* To enter the code registration mode, you need to
press FUNCTION and DISPLAY at the same time.
15 LIGHT : When pressed all buttons on the remote
control unit will light. The lighting will turn off if no
operations are performed within about 5 seconds.
This button is used for performing operations in low-
light situations.
16 VIEW MODE: Select the screen size.
17 ENT:
Jumps to a channel after selecting with the 0_9
buttons.
18 FLASHBACK:Return to the previous channel or
external input mode.
19 CH / : Select the channel.
20 MUTE: Mute the sound.
21 MENU: Display the menu screen.
22 ////ENTER: Select a desired item on the
screen.
23 RETURN: Return to the previous menu screen.
24 FAVORITE CH
A, B, C, D: Select 4 preset favorite channels in 4
different categories.
While watching, you can toggle the selected channels
by pressing A, B, C and D.
25 FAVORITE: Set the favorite channels.
26 CC: Display captions from a closed-caption source.
27 AV MODE: Select an audio or video setting.
(When the input source is TV, INPUT 1, 2 or 3:
STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed),
DYNAMIC. When the input source is INPUT 4, 5 or 6:
STANDARD, MOVIE, GAME, PC, USER, DYNAMIC
(Fixed), DYNAMIC)
Remote control unit
NOTE
When using the remote control unit, point it at the TV.

LC-32/37M43U
2 – 3
QUICK REFERENCE
2
1 3
Hex key
Screw
Insert the stand into the openings on the
bottom of the TV.
Insert and tighten the 4 screws into the 4
holes on the rear of the TV.
Hex key
Screw
Soft cushion
NOTE
To detach the stand, perform the steps in reverse order.
Set the post for the stand unit onto the
box.
Attach the base to the post.
Insert and tighten the 5 screws into the 5
holes on the bottom of the base.
Confirm that there are 9 screws (all the same 
size) supplied with the TV.
Attaching the stand
Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
Attach the stand in the correct direction.
Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

LC-32/37M43U
2 – 4
Setup
Audio
Option
Power Control
Digital Setup
Setup
Audio
Option
Power Control
Basic adjustment settings
Menu items for TV/INPUT 1/2/3 Menu items for HDMI/PC-IN
Treble
Bass
Balance
Surround
Reset
NOTE
Some menu items may not be displayed depending on the
selected input source.
OPC
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced
Color Temp.
Black
I/P Setting
Film Mode
3D-Y/C
Monochrome
Range of OPC
Reset
Treble
Bass
Balance
Surround
Reset
OPC
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced
Color Temp.
Black
I/P Setting
Film Mode
Monochrome
Range of OPC
Reset
No Signal Off
No Operation Off
No Signal Off
No Operation Off
EZ Setup
CH Setup
Antenna Setup-DIGITAL
Input Skip
Input Label
Parental CTRL
Position
Language
Reset
Input Skip
Input Signal
Auto Sync.
Input Label
Fine Sync.
Position
Language
Reset
Audio Only
Digital Noise Reduction
HDMI Setup
Output Select
Audio Only
Digital Noise Reduction
Input Select
Output Select
Color System
Caption Setup
Program Title Display
Favorite CH
Audio Setup

LC-32/37M43U
3 – 1
LC-32/37M43U Service Manual
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS
77/8(200)
3111/32 (796)
39/32 (83) 353/64 (97)
1945/64 (500)
1945/64 (500)
937/64 (243)
131/2(343)
2059/64 (531)29/32 (58)323/64 (85)
2313/64 (589)
279/16 (700.0)
77/8(200)
1535/64 (394.6)
Unit: inch/(mm)
LC-32M43U
LC-37M43U
77/8(200)
1135/64 (293)
45/8(117)
3561/64 (913)
1427/32 (377)
353/64 (97)
77/8(200)
323/64 (85)
2135/64 (547)
3225/64 (822.6)
1817/64 (463.8)
2337/64 (599)
2527/32 (656)
21/4(57)
2135/64 (547)

LC-32/37M43U
3 – 2
MEMO

LC-32/37M43U
4 – 1
LC-32/37M43U Service Manual
CHAPTER 4. PRINTED WIRING BOARD ASSEMBLIES
[1] MAIN Unit
A
C
B
D
E
F
G
H
12345678910

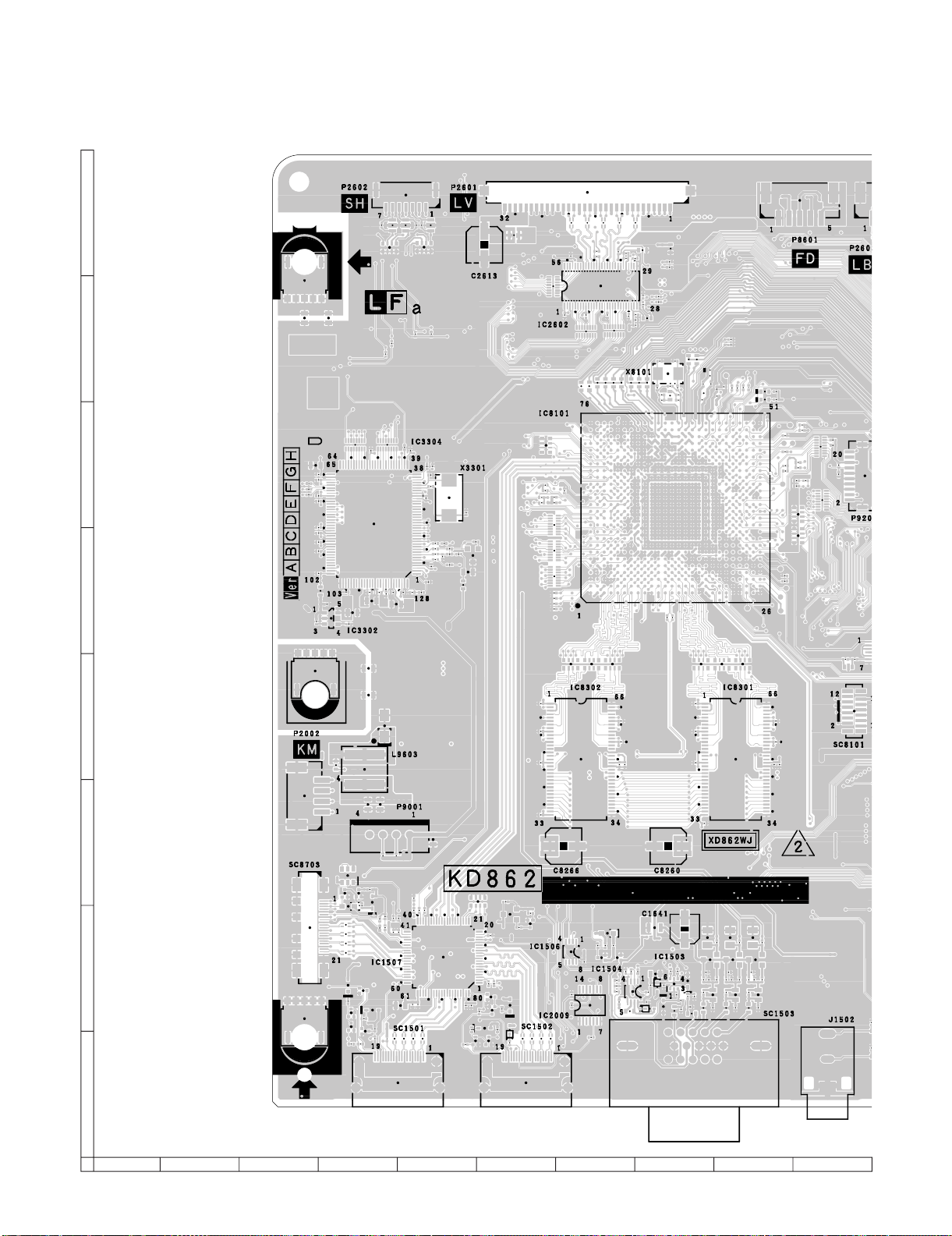

MAIN Unit (Side-A)

LC-32/37M43U
4 – 2

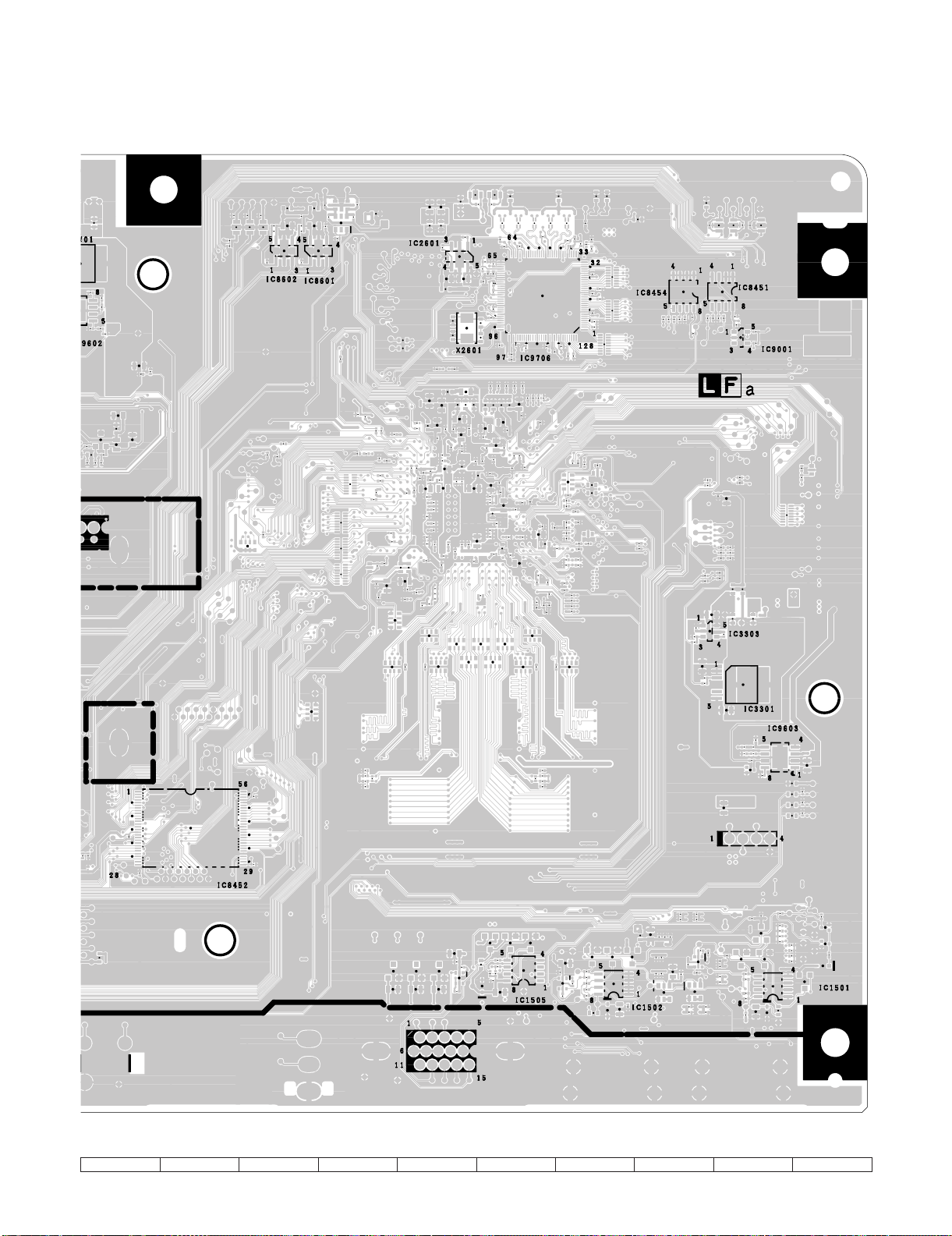

10 11 12 13 14 15 16 17 18 19

LC-32/37M43U
4 – 3

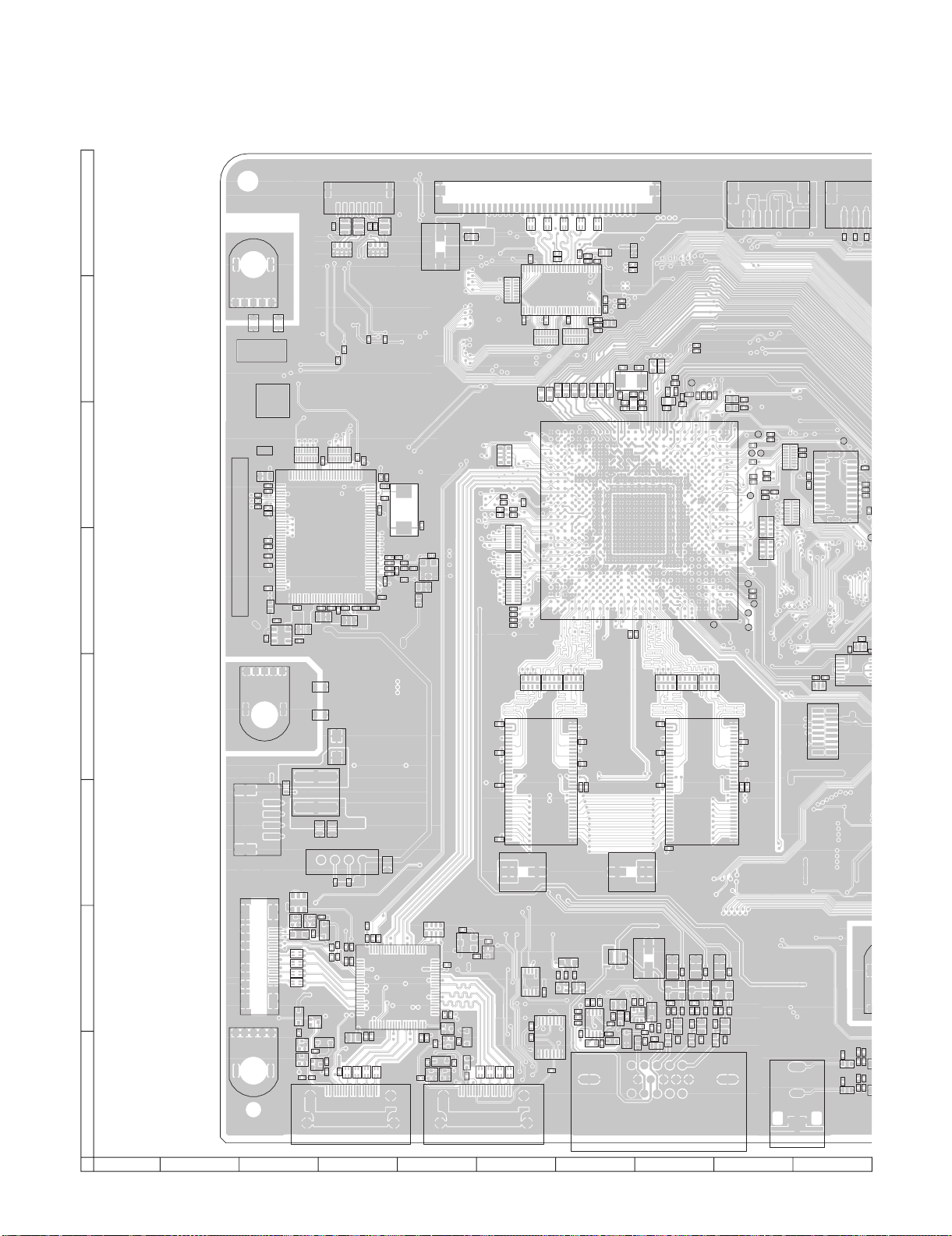

A
C
B
D
E
F
G
H
12345678910

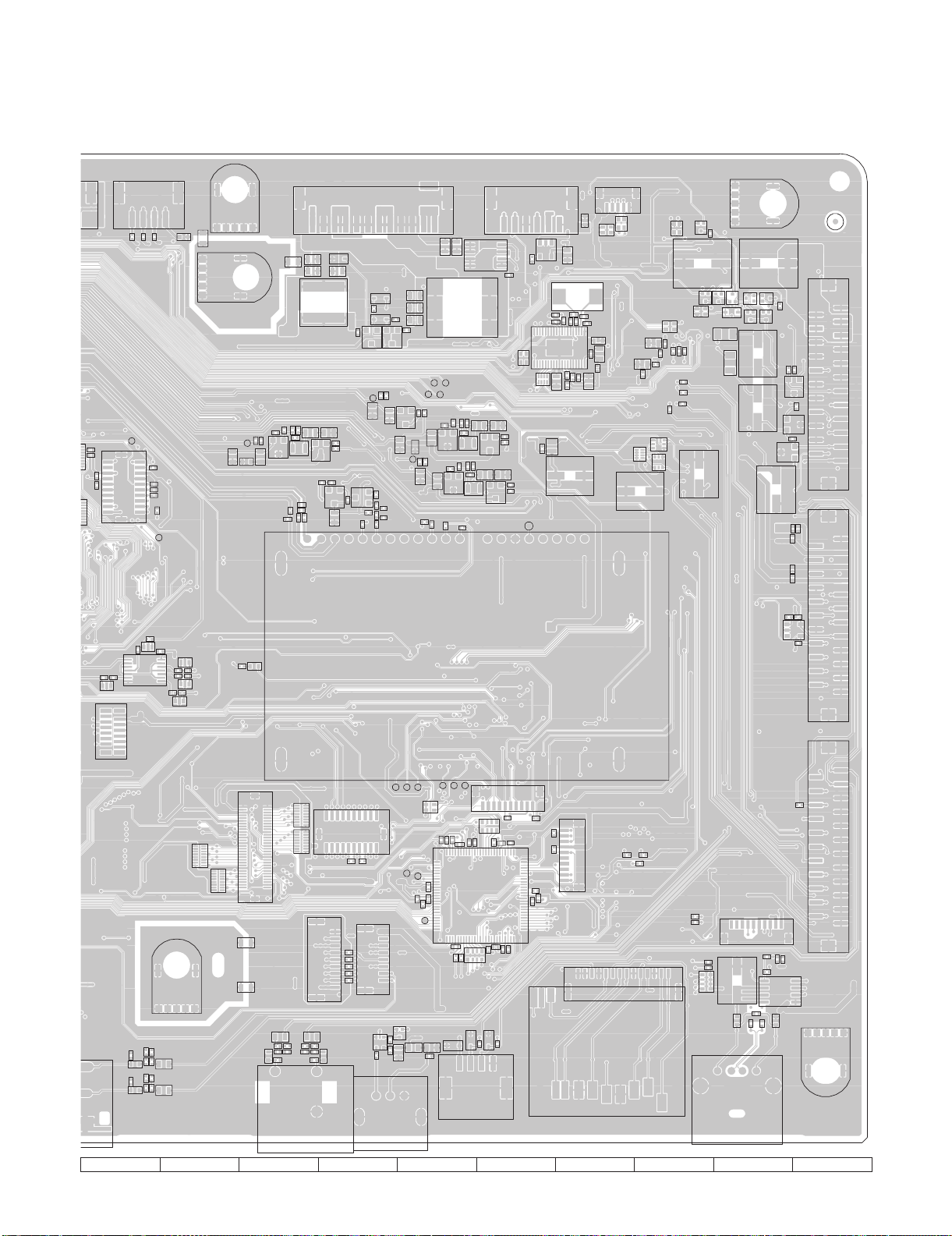

MAIN Unit
(Side-A Chip)
LUG1104
SC8703
L1501
L1502
L1504
L1503
D1525
Q1517
R1501
R1585
D1528
Q1521 Q1519
R1582
Q1506
R1555
Q1516
Q1508
R1558
R1544
D1514
D1526
R1633 R1559 R1604
R1572
R1605 R1580
R1502
SC1501
C1596 R1616
L1506
C1551
C1599 R1611
L1507
C1543
L1508
R1636
R1632
C1544 R1607
L1509
R1608
IC1507
R1583
C1549
C1550
R1551
R1618
Q1505
D1511
R1505
R1606
Q1520
Q1507
R1595
Q1518
R1601
R1557
R1598
R1584
Q1525
R1519
D1523
D1527
R1599
SC1502
L1510
R1597
Q1524
L1511
L1512
L1513
IC1506
R2043 C2030
C1537
R1576
IC2009
Q1502
R1634
D1501
R1520
R1527
R1530
R1533
Q1501
R1516
R1531
C1536
R1524
R1523
IC1504
R1511
R1522
C1531
R1513
D1519
L1505
C1523
R1521
D1512
D1508
C1524
C1522
R1571
IC1503
FB1509
R1529
R1561
R1526
R1525
FB1505
C1641
SC1503
R1528 D1507
C1521
C1640
FB1506
C1529
R1566
Q1511
R1575
R1567
R1550
C1530
R1570
R1579
C1639
FB1508
C1527
R1564
Q1510
R1574
R1565
R1549
C1528
R1569
R1578
C1638
FB1507
C1525
R1562
Q1509
R1573
R1563
R1548
C1526
R1568 R1577
J1502
FB1502
FB1501
C1502 C1501
R1504
C1505
R1503
C1507
R1515 R1508 R1514 R1509
C
C
R
R9322
FL9305
R9329
IC9301
SC8101
R9330
FL9306
R9323
C8323
C8251
C8259
C8258
R8328
IC8301
R8329
C8257
R8331
C8256
C8255
C8254
R8314
R8315
C8260
C8324
C8252
C8265
C8264
R8313
R8332
IC8302
R8334
C8266
C8263
C8262
C8261
C8253
C9005
R9034
D9604
P9001
R9035
C9616
C9626
R1182
R1181
L9603
Q1513
C3344
C9615
IC3302
R3301
LUG1109
P2002
kame5
R3333
R3334
R3338
C3335
KOU1
C3336
C3326
C3308
C3311
C3312
C3327
C3316
C3328
C3330
kame1
FB3301
C3303
C3318
C3343
R3326
C3305
C3306
C3332
C3322
IC3304
R3331
R9002
R3318
C3324
C3304
R9001
C3321
R3337
C3337
C3333
C3307
C3338
R3335
C3334
C3315 R3319
C3313
C3309
C3310
C3314
C3329
R3320
R3312
C3345
R3309
R3310
R3311
X3301
R3306
C3302
FB3302
C3325
R3308
Q3301
R8137
R8138
R8140
R8139
R8173
R8120
R8118
R8124
R8122
R9033
R9032
R8197 R8198 R8199
R8141
C8210
C8109
C8110
C8111
C8112
C8211
C8113
C8107
C8212
C8104
C8214
R8209
R8191
X8101
R8185
IC8101
C8103
L8101
C8215
R8208
R8190
C8114
C1144
C8209
L1107
C1140
C1139
L1106
C1141
R1173
R1172
C1146
TP8110
R8155
R8156
TP8107
R8152
R8151
D8102
D8101
R8146
R8145
TP8102
TP8109
TP8104
TP8105
TP8112
TP8103
R8174
R9313
R8177
R8181
R8184
R8183
TP8101
TP8111
R9316
R9315
R9303
R9324
R8102
R8112
R9302 R9301
R8171
R8144
R8169
R9310
R9314
R9212 R9202
P9202
TP9201
R9
R
R
R
TP8116
R2625
FB2617
P2603
FB2616
P8601
R8189
R8161
FB2603
C2611
C2612
R2637
R2636
R2645 R2644
FB2601
L2605
FB2602
C2601
C2602
C2604
R2654
R2612
C2608
C2609
L2604
C2635
R2631
R2611
L2603
IC2602
C2606
C2607
L2602
C2603
P2601
R2630
L2601
C2644
C2605
R2629
FB2604
C2613
R9011
FL2604
R2618
R2613
R2620
R9010
FL2611
P2602
FL2606
R2614
R2621
R1169
kame2
R1168
LUG1106

LC-32/37M43U
4 – 4
10 11 12 13 14 15 16 17 18 19
J1502
FB1502
FB1501
C1502 C1501
R1504
C1505
R1503
C1507
R1515 R1508 R1514 R1509
C1510
C1509
LUG1108
R1180
R1179
FB1504
C1504
R1507
R1518
C1512
C1506
R1510
C1508
R1512
J1501
C1511
C1503
R1506
R1517
FB1503
P9003
R9016
R9017
R9027
R9028
R9029
P1103
R1311
IC1304
D1306
C1310 R1333
C1313
Q1312
L1301
TP9108
R9113
C1312
C1311 D9002
C9102
R9104
R9109
R9106
P9005
D9003
R9007
D9004
R9101
C9105
R9004 R9114
R9110
SC8701
P9704
R8719
R8720
R8704
R8703
R8705
SC8401
FB8401
C8405
C8406
P8401
VA8401
R8405
R8404
VA8402
IC8402
FB8402 C8404
R8403
LUG1101 SC1102
R1102
R9015
C8707
R8730
C8706
P9101
R9107 R9112
C9101
C9103
R2025
R9111
R9131
P2001
R2068
C9104
R9102
R9103
R9105
IC9101
R9124
TU1101
TP2002
C9106
R9122
R9108
TP2001
R9130
TP2003
C9107 C9108
R2010
R9305
TP9110
TP2004
TP9111
TP2009
TP2005
R9215
R9216
P9201
R9309 R9308
P9301
D2003
R2041
R9311
R9312
R9320
R9321
FL9303
FL9304
R9318
R9327
R9328
FL9301
R9325
C9301
R9322
FL9305
R9329
IC9301
SC8101
R9330
FL9306
R9323
R8169
R9310
R9314
R9212 R9202
P9202
TP9201
R9211
R9204
R9207
R9208
TP8116
R9115
R9818
TP2204
C2233
R2231
R2222
R2233
R2238
Q2208
C1145
R2225
C2205
R1171
C2210
L2202
R1115
C1135
C2202
C1155
C1156
R2217
R1122
Q2204
R2214
R1127
R2201
R2206
C1122 Q1102
R1132
Q1103
R1196
R1129
TP2203
R2260
R1133
R1106
C1127
R1131
R1160
R1130
R2234
R2232
R2250
R2258
TP2202
Q2213
C2216
R1165
R2249
R2245
R2257
TP8115
R2248
R2244
TP8119
R1110
R2223
TP8114
R2224
TP8117
R2243
R2239
R1105
Q2207
R2226
Q2209
R1111
C2206
R2228 C2211
L2201
C2207
C2203
C2212
L2203
C2204
R2218
R2219
Q2201
R2215
Q2205
R2216
R2202
R2207
R2203
R2208
TP1101
R1414
R1426
C1420
L1401 C1463
C1421
C1464
R1470
C1465
R1472
C1467
C1462
R1413
C1466
C1432
C1403
R1425
C1405
R1417
Q1401
Q1402
R1424
R1431
R1429
R1433
R1430
R1428
C1430
R1432
C1431
R1447
C1450 C1451
C1474
Q1311
C9003
IC9002
R1332
Q1308
R1317
R9014
C1106
C1119
C1109 C1410
Q1314
R1329
R1342
C1124
SC1101 SC1301
FD1
R1336
D1309
C1306
D1310
LUG1102
D1308
D1312
D1314
D1303
R1448
D1307
R1323
D1313
Q1304
C1302
R1310
R1309
C1425
R1434
C1426
R1401
P1401
R1409
FB1401
FB9707
C1460
C1459
R1469
X1402
R1463
C1458
C9713
R1462
IC1407
C1461
R1461
IC9703
C9718
P9702
C9614
Q9602
C9617
L9602
C9613
C9620
C9621
C9622
R9617
D9605
R9628
D9607
D9606
R9624
D9603
P9701
R9615
D9602
C9631
L9601
C9619
C9618
R1178
LUG1105
LUG1107
R1177
FB2608
R2625
FB2617
P2603
FB2616

LC-32/37M43U
4 – 5
A
C
B
D
E
F
G
H
12345678910
MAIN Unit (Side-B)

LC-32/37M43U
4 – 6
10 11 12 13 14 15 16 17 18 19

LC-32/37M43U
4 – 7
A
C
B
D
E
F
G
H
12345678910
MAIN Unit
(Side-B Chip)
TL1128
TL1129
TL1131
TL1133
TL1135
TL1130
TL1132
TL1134
TL1136
TL8402
R8407
Q8401
TL8409
C8403
C8402
TL8406
IC8401
R8402
TL8408
R8406
R8401
TL8401
R8409
TL8411
TL8404
TL8412
C8401 R8408
TL8403
TL8405
C8711
R8722
R8723
R8724
R8725
R8727
R8721
C8710
R8726
C8709
TL8709
R8708R8713
TL8714
R8728
IC8702
R8711
TL8701
C8708
TL8702
FB8702
TL8703
FB8701
TL8704
C8702
R8710C8704
TL8705
C8703
C8705
IC8701
R8707
TL8713
TL8706
TL9104
R8706
C8701
TL8707
TL8708
TL8710
TL8711
TL8712
TL9042 TL9041 TL9040
TL9039
TL1543
TL1303 TL1304
C1107
FB1101
FB1102
FB1103
TL1120
TL1302
TL1178
TL1124
TL1125
Q8451 R8451
D8451
TL1177
FL9001
FL9002
FL9003
FL9004
FL9005
FB9006
FB9007
Q8452
TL9025
TL9027
TL9029
TL9031
TL1538
R8452
TL9024
TL9026
TL9028
TL9030
TL9032
R8453R8469
FB9005
TL1540
TL9332
TL1539
TL9333
TL9334
C8454
TL9335
R9306
TL9354
TL9355
TL9353
TL9352
TL9351
TL9350
TL9349
TL934
TL9
T
TL9
IC8
TL932
TL9319
TL9318
TL9382
TL9310
TL8457
TL8452
C2009C2011
TL9232
TL9233
TL9218
R9218
TL9217
R9214
TL9231
TL9219
TL9216
TL9215
R9219R2018
TL9230
TL9229
TL9214
R2020
TL9228
TL9213
X2001
TL9227
TL9212
R2079
TL9226
TL9211
R9217
R9213
TL9225
R2078
X2002
TL9220
TL9209
TL9210
R2026
R2027R2028
R2034
R2036
R2049
TL2009
R2067
TL2006
R2047
C2016
R2046
R2048
R2003
R2071
R2050
R2070
R2016
C2010
Q2006
Q2001
C2002
C2001
R2007
R2052
Q2007
R2035
IC2001
C2014
C2012
R2051
IC2008
R2076
C2003
R2023R2024
C2015
C2008
TL2007
C2026
R2072
C2005
R2009
R2038
R2037
R2056 C2004
TL2012
TL2001
R2008 R2019
IC2002
R2055
TL2008
R2022
R2015
R2054
R2021
R2042
R2014
R2045
R2032
R2033
R2002
R2031
Q2002
C1102
R2057
IC2007
R2058
TL2010
C2023
R2004
Q2003
TL2014
R2029
R2069
C2024
R2011
R2012
C2018
TL2013
R2063 C2017 R2005
IC1105
R2059 R2062 R2053
TL2011
R2066
C2022
IC2006
IC2003
R2060
R2061
C1104
R2064
C2019
C1108
C2021R2065
R2044
C2013
C2020
TL8456
TL8451
C2025
IC2004
TL9105
IC2005
IC1101
TL9103
TL9102
TL9101
C1103
C1105
R2006
R2001
TL1102
R8712
R8714
R8715
R8716
R8717
R8718
R1136
TL1144
TL1138
TL1140
TL1142
TL1127
TL1147
TL1151
TL1156
TL1158
TL1160
TL1162
TL1168
TL1171
TL1173
TL1170
TH2001
TL1137
TL1139
TL1141
TL1143
TL1145
TL1149
TL1153
TL1155
TL1157
TL1159
TL1161
TL1163
TL1169
TL1172
TL1174
TL1301
TL1305
TL1321
TL1326
TL1324
TL1319
TL1176
TL1320
TL1318
TL1329
TL1327
TL1325
TL1331
TL1316
TL1175
TL1323
TL1322
TL1330
TL1328
R1330
C1309
R1318
TL1150
Q1313
R1466
Q1307
Q1310
R1331
R1327
Q1303
TL1146
TL1148
TL1152
TL1154
Q1306
R1457
R1328 C1472
C1307
R1315R1314
R1334
R1326
C1303
R1325 R1450
R1455
IC1408
R1439
R1458R1460
R1440
C1439
C1449
C1437
C1440
C1441
C1443
C1444
C1447
IC1104
R1452
C1436
R1451
C1473
R1454
R1108
C1115
R1135
R1465
R1456
C1471
R1446 C1116
R1107
TL1101
C1433
TL1166
R1125
C1435
C1434
IC1403
R1453
C1438
TL1164
C1118
R1449
IC1103
C1424
C1470
R1443
R1422
C1427
R1423
C1469
R1441
C1448
R1442
R1438
C1101
R1101
R1437
C1468
C1429
IC1404
R1435
R1436
C1442
C1452
R1427
C1428
TP1402
IC1405
R1420
TP1401
R1421
C1422
R1467
C1446
R1415
C1423 R1416
C1402
C1406
C1401
TL1103
C1404
R1464
C1407
TL1104
R1404 C1408
R1405 C1409
IC1401
TL1105
R1408 R1406
R1459
C1411
C1453
TL1106
R1471
R1410
C1412
C1414
C1454
R1445
C1415
TL1107
IC1406
R1444
C1417
R1411
C1445
C1456
C1419
TL1108
C1413
C1418
C1455
C1416
TL1109
C1457
TL1110
R2204
R2210
R2212
R2205
TL1111
R2221
Q2202
TL1112
Q2206
R2237
R2213
TL1113
C2229
C2226
R2235
R9606
C2214
L2205
C2232
C2201
TL1114
R9604
C9602
C2209
C2227
C2230
R2227
Q2212
C9603
L2206
TL1115
R9605
Q9604
Q9601
R9602
R9601
R9626
TL9604
C9605
TL1116
R2251
R2252
R2242
R2230
R9627
Q2210
R9607 R9619
C9606
R9608
C9601
R9603
TL1117
Q9705
R9609
R2266 R2240
R9622
TP2201
R2247
R2246
TL1118
Q9603
D9601
R2211
R2209
TL1119
C9629 R2262
R2220
C9624
TL1121
Q2203
R2236
IC9602
TL1122
C2228
R9625
L2204
TL1123
C2215
R9611
C2231
R2253
R9610
Q2211
R2229
C9604R9612
C2213
R2241
C2208
TL9720
R2265
C9707
R9702
R9701
FB9703
TL9705
C9607
TL9709
TL8407
IC9701
TL9701
FB9704
TL9710
TL9716
C9708
FB9712
R9712
D9703
TL9715
FB9705
TL9601
TL9717
C9611
TL9711
FB9711
IC9601
TL9702
C9609
FB9713
TL9708
C9610
C9612
R9613
FB9701
TL9718
TL9712
IC9705
C9714
R9705
C9717
FB9708
TL9706
FB9709
TL9723
D9701
TL9713
R9714
TL9703
Q9701
FB9710
R9715
C9711
R9704
TL9719
FB9702
D9702
Q9702
TL9707
TL9714
C9710
TL9722
FB9706
IC1402
R1407
TL1401
TL1405
R1402
TL1402
TL1403
TL1404
C1301
R1301
R1322
R1324
IC1301
Q1305
R1302
X1401
R1306
R1304
Q1301
R1303
R1307
D1305
D1304
C1308
R1305
R1339
IC1302
R1308
R1338
R1341
Q1309
Q1302
R1340
D1301
D1302
D1311
R1335
R1312
R1313
R1337
C1304
IC1303
R1319
C1314
R1320
C1305
R1316
R1321
TL1315
FD2
