Sharp 70GS-61FP User manual

1
70GS-61FP

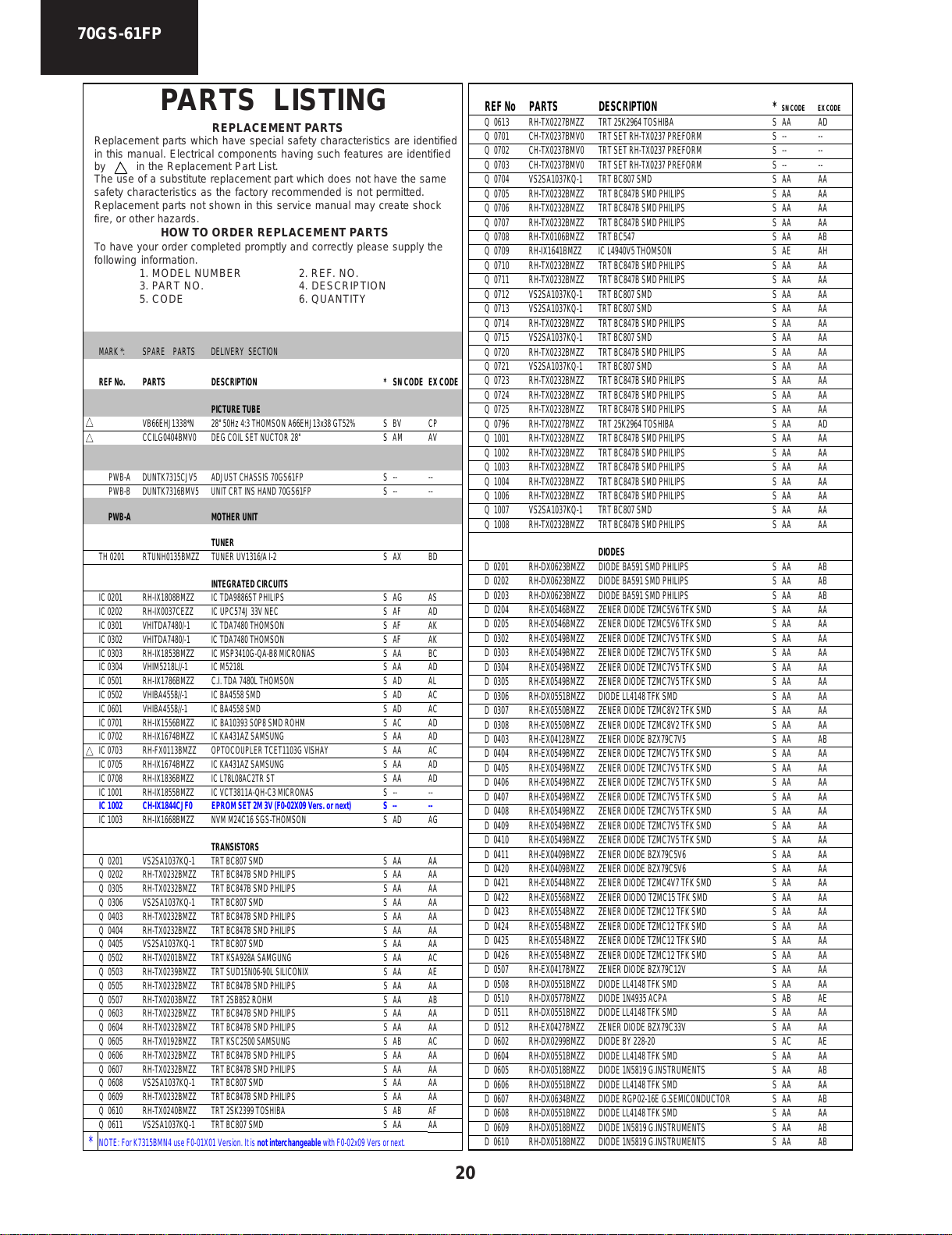

PARTSLISTING..............................................20

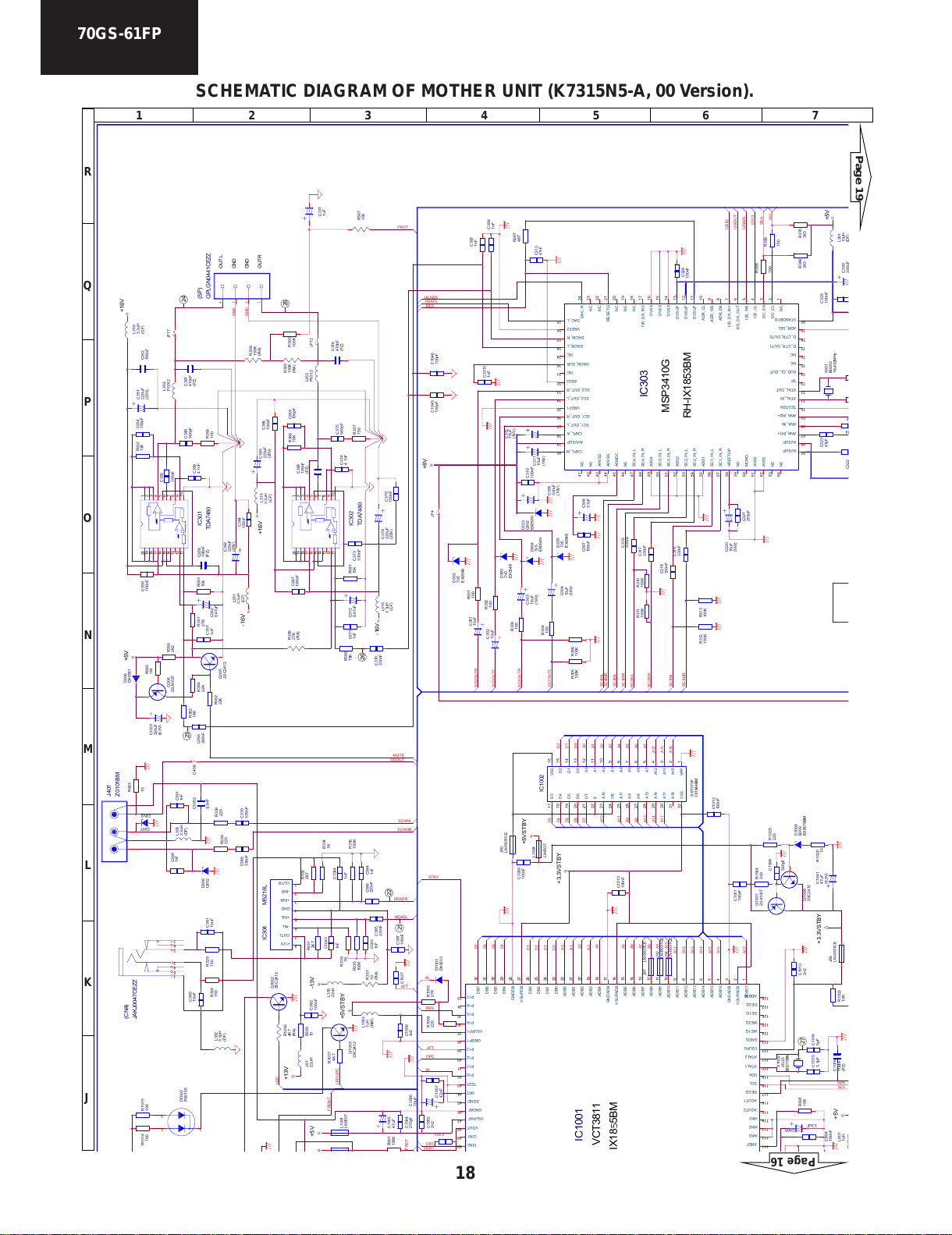

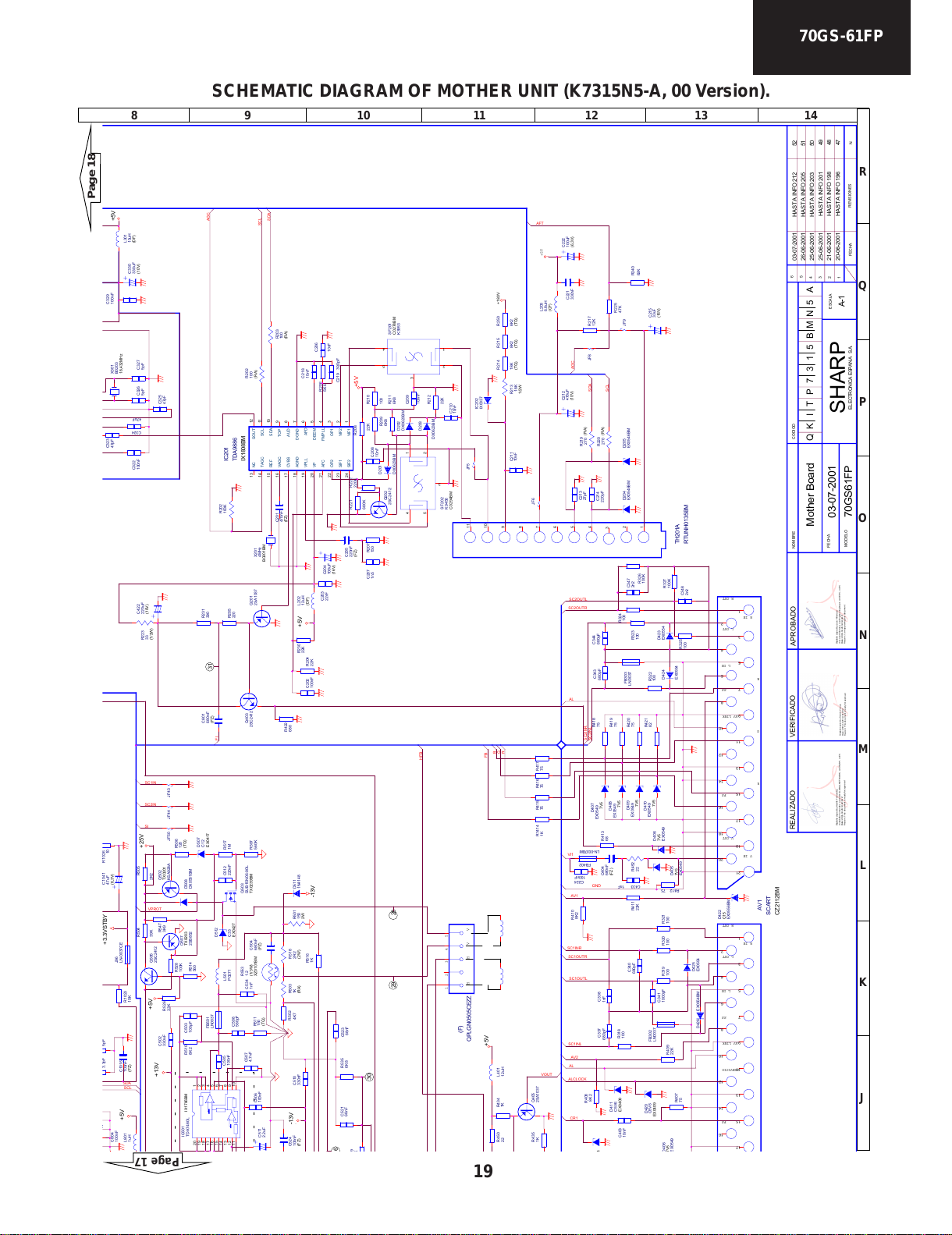

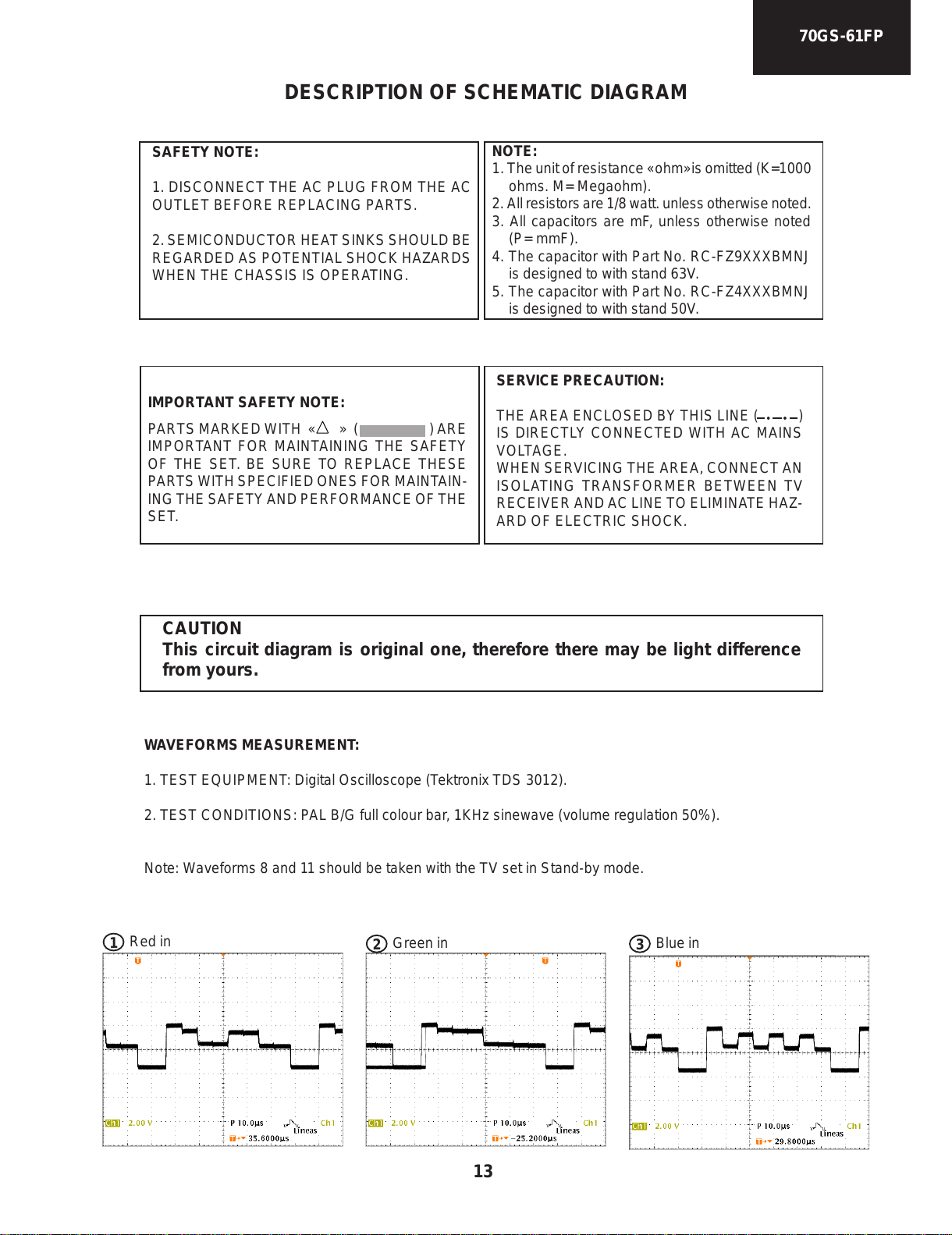

SCHEMATIC DIAGRAM..................................13
CONTENTS

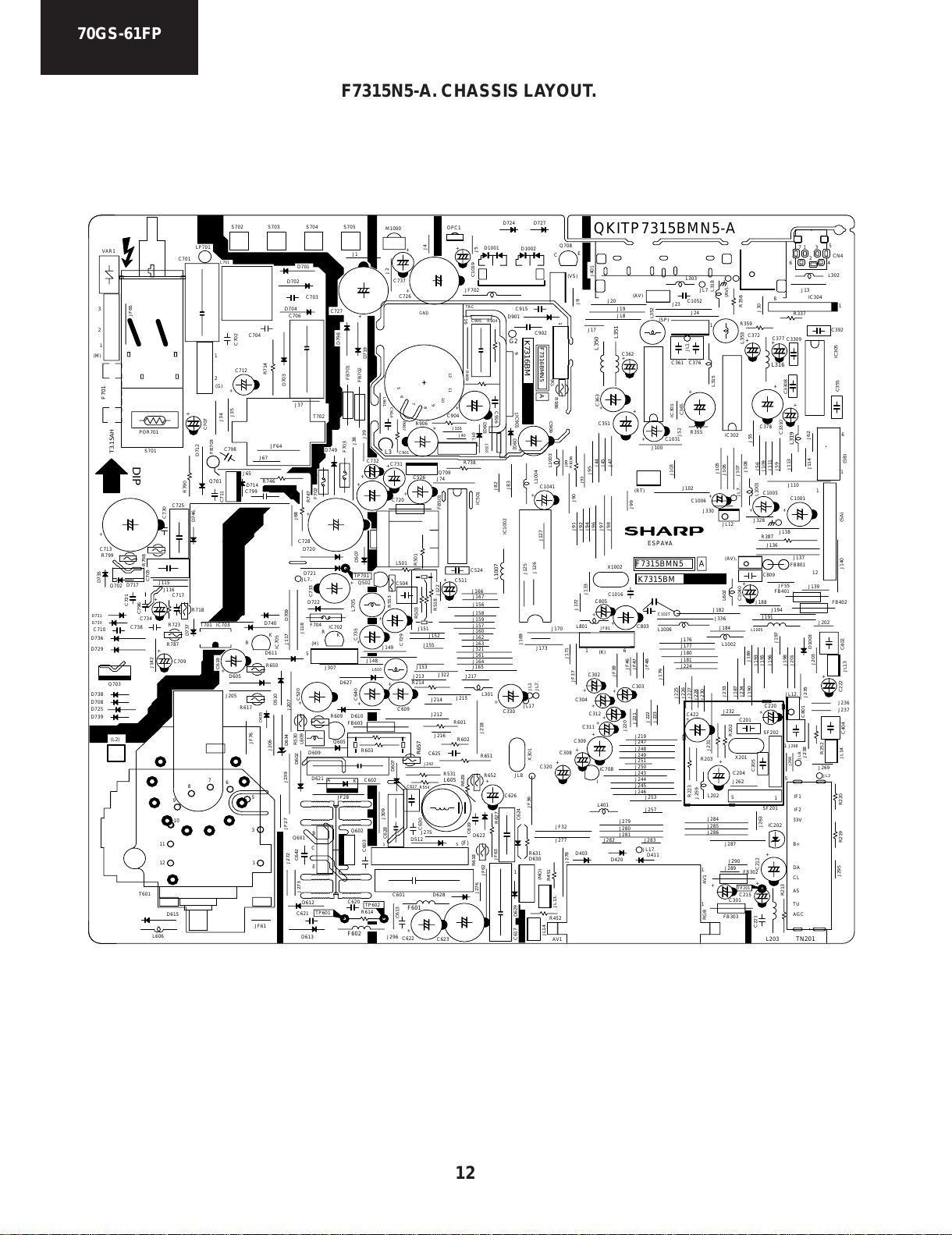

ELECTRICALSPECIFICATION.......................3 CHASSISLAYOUT..........................................12

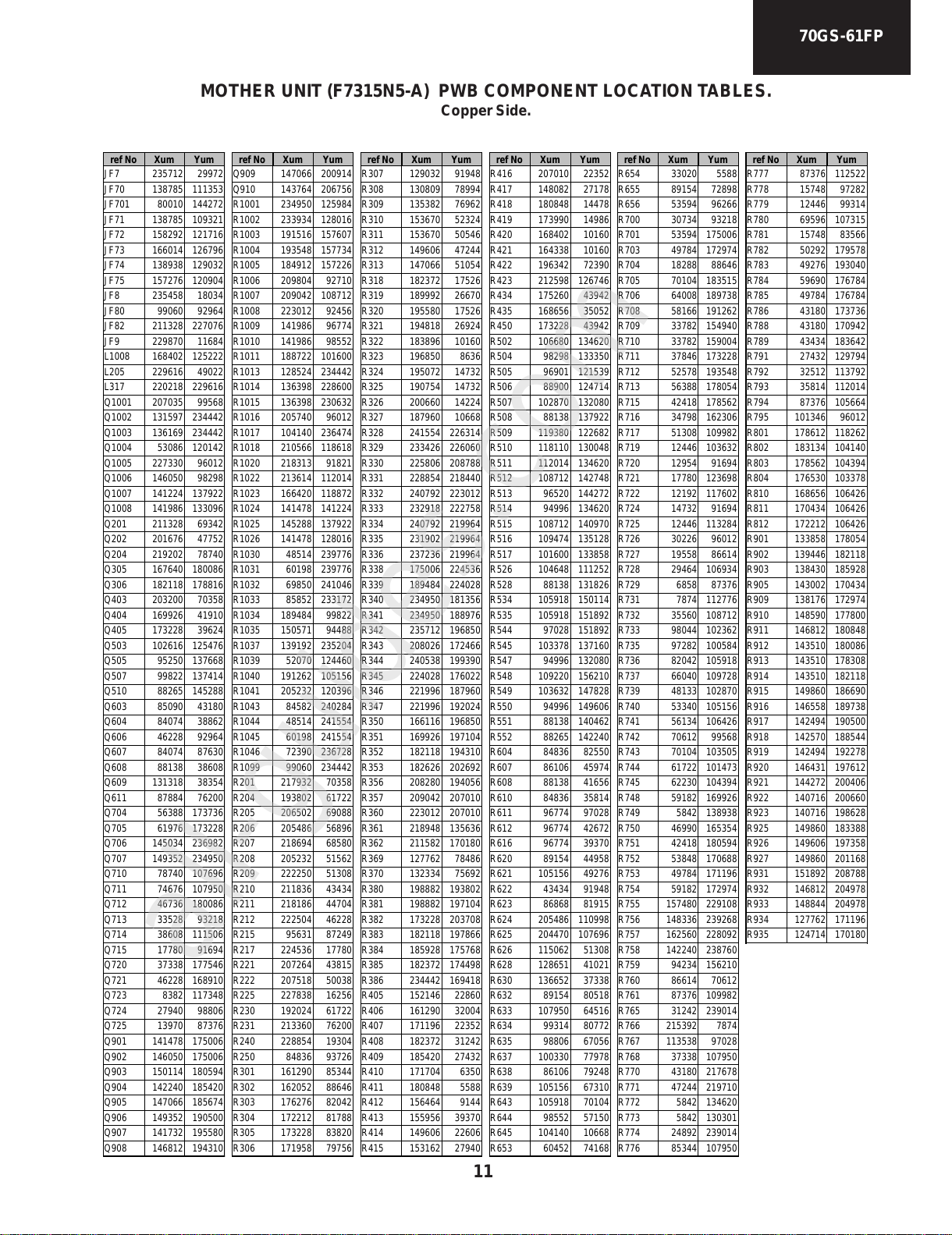

COMPONENT LOCATION TABLES.................8
PRINTED WIRING BOARDS............................4
SHARP CORPORATION
PAL B/G / SECAML/L’, B/G SYSTEM COLOUR TELEVISION
S0170GS61FP00
SERVICE MANUAL
Issued: 6th November ‘01
This document has been published to
be used for after sales service only.
GA-10 CHASSIS
MODEL 70GS-61FP F/FS
MOTHER UNIT PWB UPDATING
In order to service models 70GS-61FP, refer to the
previouslyissuedServiceManual(SEJ70GS61FP01).
This manual only contains the Mother Unit PWB
updating (QKITP7315BMN5-A).
In the interests of user safety (required by safety
regulationsinsomecountries)thesetshouldrestored
to its original condition and only parts identical to
those specified should be used.
All manuals and user guides at all-guides.com
all-guides.com

2
70GS-61FP
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.
All manuals and user guides at all-guides.com

3
70GS-61FP
ELECTRICAL SPECIFICATIONS
•Sound Carrier Trap
B/G..................................................33.4MHz
L.......................................................32.4MHz
L’ ...................................................... 40.4MHz
•Adjacent Sound Carrier Trap
B/G,L..............................................40.4MHz
L‘......................................................32.4MHz
•Adjacent Picture Carrier Trap
B/G..................................................31.9MHz
L .....................................................30.9MHz
L’ ...................................................... 31.9MHz
.
•Aerial Input Impedance
VHF/UHF ...................... 75 ohm Unbalanced
•Tuning Ranges
L/L’ ..................... 55.75 MHz thru 855.25 MHz
B/G ..................... 48.25 MHz thru 855.25 MHz
VHF: F2-F10 CH
E2-E12 CH
S1-S41 CH (Hiperband)
UHF: E21-E69 CH
•White Level
Set brightness control to get total picture tube cathode current of 600 milliammeter under no signal
condition. Maximum necessary correction of each picture tube cathode current to get 8900 de-
grees K-20 MPCD screen temperature should not exceed 15% of its original value.
X=0.290 Y=0.284
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
•Power Input .................... 220V-240 Volts AC 50Hz
•Power Consumption
NormalOperation...................................87W
Stand-byOperation..................................3W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ...................... 10W, 7Ω
Internal Right Speaker .................... 10W, 7Ω
•Speakers
Left / Right ...................................... 12 x 6cm
•Convergence
Static (Centre) ........ between any two colours
Dynamic ..................... after static equals zero
•Focus ....................... High Bi-Potential Electrostatic
•SweepDeflection.....................................Magnetic
•Picture Intermediate frequency
B/G..................................................38.9MHz
L’ ...................................................... 33.9MHz
70GS-61FPFS: France, Benelux. Silver.
70GS-61FPF: France. Exclusive customer. Black.
MODEL DESTINATION & DIFFERENCES:
All manuals and user guides at all-guides.com

4
70GS-61FP
Page 5

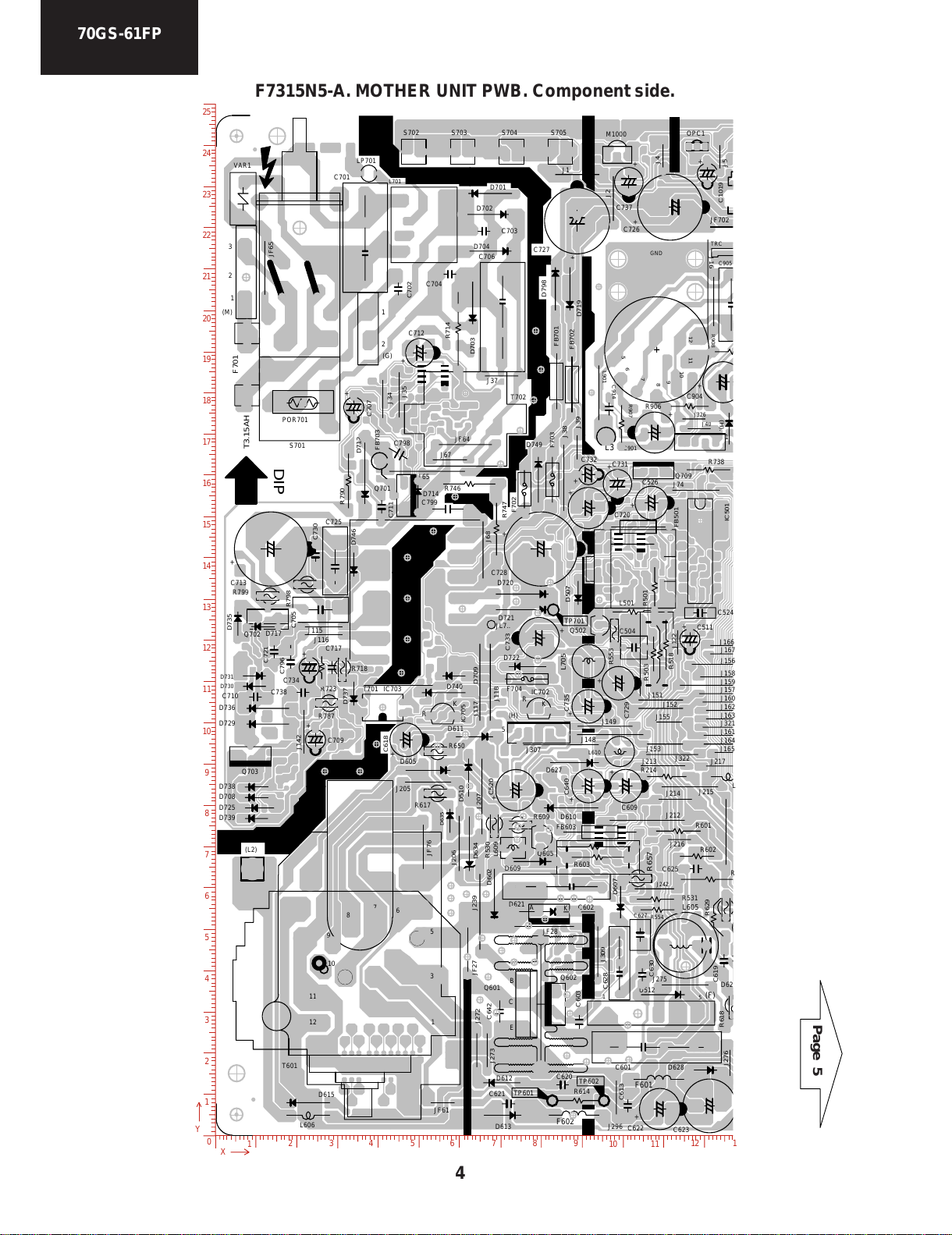

F7315N5-A. MOTHER UNIT PWB. Component side.
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
X
010 11 12 1
123456789
T601
Q703
D737
D717
D735
D507
D746
C621
J275
L605
C619
D708
D738
D714
D635
D628
J276
R657
D607
F701
VAR1
R601
D609
J326
C914
J165
L
C737
+
D627
+
C904
1
(H).
FB703
C627
FB701
FB702
J307
L610
C520
+
J1
R906
C905
R908
J166
D621
C709
+
C524
J35
C712
+
J34
C603
JF28
Q602
C707
+
C642
J40
D634
L609
R603
C733
+
D721
D720
C728
+
D722
F704
J117
J118
J67
1
2
(G)
D702
C701
LP701
+
C727
R799
C730
C725
J115
J215
C735 +
J149
L705
Q701
C798
J37
R790
D612
D709
D729
D736
C721
R518
FB603
J207
J148
J155
J74
IC501
J122
C526
+
FB501
+
C640
D510
K
IC705
R
J296
+
C609
D605
C618 +
R501
R214
R746
J157
D703
C706
D704
C703
D701
J151J152
D611 J164
J321
T701 J160
R629
C620
C623
+
C622
(L2)
S702 S703 OPC1
S704 S705
R614
Q601
E
C
B
Q605
L501
L701
S701
T3.15AH
C504
J161
J162
J163
J217
J158
J272
J273
J167
IC703
J239
D602
J216
C630
J213
J214
J212
F601
J156
J205
D610
M1000
J68
R747
C613
C702
J4
R714
C704
C799
R718
C717
R723
C796
J116
Q702
J142
R617
R650
5
(H)
R609
R530
C738
R787
C713
J38
C625
C734
+
D740
R798
J2
J5
+
C1019
C601
5
1
(F)
C628
T702
J65
C726
+
RIC702
K
D712
+
J153
R531
R554
+
C901
R907
L901
56
7
8
9
10
1112
GND TRC
L3
J16
C602
TP701
TP601 TP602
J206
K
A
+
C732
J39
R738
Q709
+
C731
JF702
+
C720
POR701
D749
C711
J309
Q502
C705
F602
J322
R618
R
J242
R553
R503
+
C729
J159
(M)
1
2
3
JF65
F702
F703 D798
D719
JF64
JL7..
D613
DIP
JF76
JF61
L606
JF27
1
3
5
6
7
8
9
10
11
12
+ C511
C710
D730
D731
D615
D62
D739
D725
R602
D512
All manuals and user guides at all-guides.com

5
70GS-61FP
F7315N5-A. MOTHER UNIT PWB. Component side.
Page 4
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
20 21 22 23 24 2513 14 15 16 17 18 19
JF81
L801
C1027
L318
J23
L202
D629
L1003
L1002
L1005
C619
D902
J276
D403 D420 D411
D901
C915
C902
R452
R451
J330
+
C1006
J102
J328
J139
J133
J82
JL12 J138
JL17.
JL17
+
C312
FB801
J188
FB401
FB402
J165
L301
C363 +
JL13.
C222
+
JL14
J310
D903
1
(H).
C221
J182
J283J282 J287
J278
J277
JF36
JF32
J197
J336
J113
J59
+
C351
J111
J109
J45 J44
+
C303
J176
JF48
JL7. JL1
J9
J93
R1036
J90
J89
L1004
K7316BM
C905
R908
J137
J166
D630
R631
C524
JL3
J231
R203
C422
+
1(K).
J198 J201 J196
J172
JL1.
J140
J184
J96 J94 J97
J219
J180
J189
J177
C302
+
C805
+
6
(K)
1
FB302
J289
C301
+
+
C304
J221
J220
C1031
+
C330
+
J194
L203
5
IC501
J114 J62
J266
J268
(MO)
1
IC202
AV1
J95
X301
J157
J127
+
C212
J253
J246
J257
J245
J244
J243
J249
J248
J247
6
1
(SB)
J92 J91
J191
C1001
+
J136
+
C3310 +
C378
+
C372 C3309
C3308
C377
+
L316
R359
J52
+
C365
L315
L353
J18
IC301
C376C361
1
(SP)
L352
J24
J164
J321
C392
J160
C624
R629
R220R219 IC305
IC1002
D1002
D1001
QKITP7315BMN5-A
71 3 5
624CN4
J401
IC304
1
8
C205
5
1
SF202
SF201
1
5
J262
+
C204
J161
IF2
IF1
33V
B+
DA
CL
AS
TU
AGC
TN201
ESPA¥A
F7315BMN5
R355 IC302
C355
J55
J56
J162
J163
J217
J158
+
C362
L350
(VS)
J19
J20
R358
L303
C617
J290
J30
J100
J103
A
K7315BM
J167
C
Q708 E
+
C320
J156
AV1RGB
1
1
C215
+
X1002
J193 J195
J13
L302
J5
C1019
)
J110
J190
J181
J224
R202
J251
J223
J232
J225
J179
J222
J226 J227
J228
J171
JF37
J250
J279
C220
+
C801
J234 J233 J187
J230
+
C626
R652
X201
C201
J98
J99
L1001
J108
(RT)
J106
J105
J107
(SA)
12
1
J284
JF38
J170
J126
J125
J173
J169
J218
TRC
.
G2
F7316BMN5 A
IC901
91
C803
+
R904
J16
FB303
JL8.
C1016
TP201
R337
J259
R223
L401
J235
J236
R252
J238
J237
J203
+
C1005
J263
738
C909
+
J83
JF702
J47
J202
JF47
JF46
J17
L351
JF55
JL7
L602
J285
J286
J280
J281
JL8
C309
+
I
IC708
C308
+
R213
C916
C404
JL14.
J269
JL12.
C402
JL13
R387
L1007
J295
JF62
R627
JF63
R618
(AV).
C1040+
C809
R651
J159
R936
(AV) C1052
JL7....
D1003
L319
C1041
+
D622
D724 D727
2
L1006
(AV)..
+
C311
All manuals and user guides at all-guides.com

6
70GS-61FP
F7315N5-A. MOTHER UNIT PWB. Copper side.
Page 7
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y19 18 17 16 15 14 1325 24 23 22 21 20
R810 R811
JF44
R804
R803
R339
R625
R624
R1007
R935
C1034
R361
J258
R360
R628
C911
R909
R406
R435
R408
C225
C388
J334
R338
C319
C318
R311
R310
R312
C373
J54
C358
J49
C350
C368
C353
C370
R1026
JF74
JF73
JF68
JF72
JF69
J134
D907
K
R932
Q910
K
D908
R931
C912
R933
D1013
K
D1012
K
C1002
J104
C521
C804
JF70
JF71
J168
JF67
JF66
C810
C1003
C329
C328
R384
J297
R1022
C313
R307
D302
K
D303
K
D407 K
R318
D426
K
D425
K
C342
D424 K
D423
K
C345
R327
R350
J46
R351
C364
JF43
L1008
J312
J316
J315
J313
R343
J314
K
D306
C1043
C1036
J81
R417
C432
JF58
J311
R414
K
D405 R415
R231
C338
D1011
K
C1033
J305
R766
J304
C352
J63
R342
C398
C399
JF16
JF50
JF53
JF39
L317
C381
J87
J86
J128
R1006
R1002
R1001
R1016
R1035
Q202
R205
C219
C206
C218
C217
C1038
Q201
R1020
R217
JF1
C322
R341
C395
C396
C394
R340
C393
J130
J129
R1024
C346
J174
R1041
C1009
J11
J254
R305
R1011
R302
R301
D304
K
R304
R306 D305
K
C1018
C1024
R383
C354
R352
R382
R381
R380
R1040
JF17
J1
Q1008
Q1007
Q1003
Q1002
Q1001
JF13
JF12
JF10
JF9
JF8
JF7
JF6
JF5
J255
J186
J291 J288
J112
J60
J264
J267
J57
J31
J51
J58
J64
J6
J84
J260
J271
J14
C403
C390
C387 C384 C383
C375
C374
C371
C369
C367
C366
C360
C357
C340
C325
C321
D1005
K
R419
R412
IC303
D410
K D409
K
IC1001
K D201
IC1004
D406
K
K
D1006
IC1003
D421
K
L205
K
D202D203
K
C202
C207
C210
C211
C1012
C1021
C3300
C3301
C3302 C3303
C3305 C3304
C3313
J301
J53
J7
J8
J28
JF14
JF15
R201
R204
R206
R207
R209
R230
R308
R309
R313
R319
R320
R323
R324 R325
R326
R331
R334
R335 R336
R344
R345
R346
R347
R353
R356
R357
J48
R369
R370
R407
R409
R411
R420 R421
R434
R450
R755
R757
R1005
R1009
R1010
R1013
R1014
R1015
J185
R1025
R1034
R1037
Q305
Q404
Q405
Q706
Q707
JF18
J25
C1020
Q1006
J299
J302
Q6
D1009 K
C523
R329
JF19
R328
R332
Q306
R385
J50
J261
J229
R422
K
D1004
JF24
R416
JF25
C203
C348
C429
C347
C430
JF23 R321
JF26
C341
C337
C428
C427
Q204
C216
C431
C1011
C1010
R362
R303
D1008
K
R802
J175
C327
C359
Q903
R920
Q902
C906
Q901
R913 C907
R902
R914
R912
R911
R910
R925
Q905
Q904
R903
R916
R917
R919
C908
R923
R922
Q909
R927
R918
R915
Q908
R926
Q907
R921
C326
C324
R225
K D408
K
D422 J300
R322
R418
R410
R801
C1028
C802
R386
C382
C423
R222
J204
J270
J294
J265 R212
R211
C209
R210
R221
J292
J
J79
J101
J42
C910
R905
C1042
J85
R240
C213
K
D205
C214
D204
K
C380
J43
J32
R1018
C323
C310
D723
K
C307
C741
JF4
IC1009
J10
K
D404
R405
R330
C385
C397
J308
C1045
C1046
R901
C433
JF59
Q403
J256
C424
R1023
C1014
C1015
C1013
C543 R413
C339
R934
J317
J318
J319
C306
C305
R333
J29
C223
R423
Q906
C208
R208
C1048
C1049
J298
J329
C1017
C1051
C1007
J21
J22
K
D307
C391
D308
K
K
D1014
D1015
K
J333
C409 C408
C407
C1032
C316
C317
C389
C386
C1044
C356
R1008
Q1005
JF75
C1030
C1004
C224 J335
R1004
C1037
C1008
R1003
D623
K
R630
JF29
Q609
R758
R756
J15
C343
C344
C379
R812
C405
JF82
K
D1007
All manuals and user guides at all-guides.com
all-guides.com

7
70GS-61FP
F7315N5-A. MOTHER UNIT PWB. Copper side.
Page 6
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
0
10 9 876 543 2112 11
JF80
R935
C722
C541
C540
JF33
R626
R721
C723
R725
R773 R772
R528
R526
R733
JF35
JF34
D632
K
D633
K
JF1014
JF1015 JF1016
JF1013
JF1012
R781
R729
D904
R644
R778
R655
C605
R634
J323
Q607
J241
J81
D750
K
C1050
R741
C608
R780
R743
C739
Q711
R737
R621
D616
K
K
D748
R739
R740
R1046
R1045 R1044
R1031 R1030
J41
R1043
C724
C718
R653
K D732
D718
K
J141
Q724
R700
J36
R789
J274
R610
K
D620
R616
C612
K
D618
R607
R711
Q796
R792
R761
R776
R736
R507
R784
J70 J71
D715
K
R250
J69
R777
R794
Q710
R742
R748
Q705
R754
R622
J3
C607
D707
K
J66
R708
R712
R706
IC701
R703
K D741
R785
K
D705
K
D706
Q1004
R720 R724 Q715
Q725
R704
R727
Q723
R751
R715
Q712
R783
R771
R770
C641
R623
R512
J121
Q505
R514
R504
R547
R517
J293
C505
J124
J145
J6
C610
C510
C508
C507
C506
C503
C502
D608
K
D625
K
D619
K
R774R765
Q503
IC601
K
D626
Q613
JF20
JF21
JF1001 JF1002 JF1003 JF1004 JF1005 JF1006 JF1007 JF1008 JF1009
R510
R515
R604
R608
R620
R637
R638
R1017
Q604
Q606
Q608
Q611
R545 J120
J73
Q507
IC502
R508
R534
R549
C522
J119
R513
R552
Q510
R551
R645
C1022
K
D716
D734
K
R722
D713
K
J146
J210
J208
J209
R701
R753
R726
D743
K
Q610
JF701
D733 K
J143
Q713
R768
R717
Q720
R705
Q704
R752
R713
D728 K
R506
R749
R795
C525
R632
R782
C913
J147
R1039
C542
JF3
C740
C512
Q603
R509 J80
J78
J79
J76
J77
C550
J72
R759
R1032
C534
R544
R767
R735
C736
R611
R750
Q721
R786
R788
R716
R710
R709
JF57
D617
K
R612
K
D606
R791
R511
R516
R745
R744
R1099
JF60
R1033
J320
R215
C606
J324
R656
D906
D905
J306
R760
C632
C604
R505
R502
D511
K
K D508
R550
D604
K
R535
R548
J75
K
D747 J303
K
D742
K
D744
C631
R643
R639
D636
K
R635
C629
R633
J331
D631
K
J332
J327
JF1010
JF1011
J123
R793
Q714
R728
R732
C715
R719
R779
R731
R654
C716
C719
K
D624
All manuals and user guides at all-guides.com

8
70GS-61FP
MOTHER UNIT (F7315N5-A) PWB COMPONENT LOCATION TABLES.
Component Side.
Ref No Xum Yum
(AV) 183642 219964
(AV) 213360 128778
(AV) 206248 225552
(AV) 208788 225552
(AV)GND 222504 142748
(F) 96012 29464
(G) 37338 195326
(H) 79248 97536
(H) 118872 167640
(K) 169672 102870
(K) 152146 200406
(M) 7366 207772
(MO) 141224 20320
(RT) 180594 157734
(SA) 239014 139700
(SB) 237744 166116
(SP) 193548 208788
(VS) 151384 222504
AV1 175768 7620
C1001 229362 145542
C1005 217678 148082
C1006 203454 150114
C1016 174752 118872
C1019 120650 232918
C1027 180848 112776
C1027 189738 112014
C1031 182372 173736
C1040 213360 119126
C1041 146939 150368
C1052 192024 219710
C201 212852 72898
C204 203200 56896
C205 217424 60960
C212 220980 25146
C215 217170 16002
C220 219964 76708
C221 217170 7874
C222 238760 87376
C301 205232 17526
C302 163068 87376
C303 172974 84328
C304 165862 82296
C308 159258 62230
C309 164846 66040
C311 167132 72644
C312 169418 77724
C320 152908 57912
C330 136144 83820
C3308 227076 188976
C3309 227330 199898
C3310 226314 179070
C351 173228 176276
C355 241300 181864
C361 190246 201930
C362 174498 195580
C363 169164 184404
C365 197104 181864
C372 214122 201168
C376 195834 201930
C377 222758 200914
C378 218948 182880
C392 235458 207772
C402 238760 101854
C404 239268 73152
C422 196342 72390
Ref No Xum Yum
C504 102616 118110
C511 116332 120142
C520 73660 83566
C524 118872 126492
C526 106934 153162
C601 108204 21336
C602 83566 60198
C603 89154 27432
C609 100584 84582
C613 101092 7112
C617 132842 13970
C618 46736 95758
C619 124714 42164
C620 85090 12192
C621 71882 7620
C622 108966 6350
C623 121158 7112
C624 134874 36830
C625 117856 64516
C626 130301 50292
C627 104140 48514
C628 99060 41656
C630 104648 38862
C640 91440 84582
C642 69596 29972
C701 36576 213614
C702 44704 204978
C703 65786 218948
C704 57404 208534
C705 25654 127254
C706 70358 201930
C707 33782 176276
C709 24384 95758
C710 9652 106172
C711 40640 152146
C712 50038 189484
C713 13462 141986
C717 28448 113284
C720 91440 151892
C721 14224 117094
C725 29210 137668
C726 111506 224790
C727 88646 221488
C728 79756 141986
C729 98806 109474
C730 24384 140462
C731 98552 157734
C732 91440 160020
C733 79248 120396
C734 22860 113284
C735 91440 103886
C737 101346 230886
C738 21336 107188
C796 18288 114554
C798 45212 163322
C799 56896 151638
C801 228092 72136
C803 173228 110490
C805 166116 112522
C809 213360 124714
C901 107696 170180
C902 141732 209042
C904 124460 182372
C905 126492 201168
C909 143510 170434
Ref No Xum Yum
C914 96520 176022
C915 145542 215138
C916 131063 183642
CN4 232994 241985
D1001 130301 229997
D1002 142290 229997
D1003 230632 100584
D403 159258 28194
D411 179324 28194
D420 170688 30734
D507 88900 131318
D510 61976 86614
D512 109728 34036
D602 68326 58420
D605 52070 88392
D607 99314 56438
D609 77724 66294
D610 87122 79248
D611 63500 96520
D612 70104 12700
D613 70358 4826
D615 22606 7874
D621 80518 54102
D622 127762 41656
D627 88011 90170
D628 120142 15748
D629 137414 18034
D630 139954 34290
D634 62230 70612
D635 57404 76200
D701 67310 228092
D702 66802 223012
D703 62992 201676
D704 67310 214122
D708 9906 81788
D709 58420 111252
D712 36576 160274
D714 49530 154686
D717 11430 123190
D719 86868 204978
D720 75184 131063
D721 75184 127254
D722 76454 113538
D724 135636 242062
D725 10668 79248
D727 145542 242062
D729 12700 99568
D730 9398 108712
D731 9398 111252
D735 5334 123952
D736 12700 103378
D737 33782 106934
D738 9906 84328
D739 9906 76708
D740 55880 107188
D746 33782 138176
D749 79121 158750
D798 83312 204978
D901 146050 212344
D902 136144 171958
D903 125984 171196
F601 108712 13462
F602 87884 4826
F701 7620 186690
F702 75692 156464
Ref No Xum Yum
F703 82550 158775
F704 76454 110490
FB302 208026 21844
FB303 207264 11938
FB401 231648 117602
FB402 233807 113792
FB501 103632 147320
FB603 94234 73406
FB701 83566 182626
FB702 87376 181864
FB703 40132 163322
FB801 221615 128524
G2 136652 206756
IC1001 190500 133350
IC1002 144018 128016
IC1008 118110 239471
IC202 221488 35306
IC301 182118 189738
IC302 207518 186690
IC304 230632 215900
IC305 234188 191770
IC501 118872 141478
IC702 79248 102870
IC703 40894 103632
IC705 55626 101600
IC708 162052 57912
IC901 134874 189738
J1 88646 232664
J100 184404 169164
J102 191338 152908
J103 188976 160782
J105 203962 161036
J106 205994 159766
J107 208026 161036
J108 210566 156972
J109 218440 164592
J110 229108 156718
J111 220472 164592
J113 226568 163068
J114 231140 164846
J115 26416 123190
J116 26416 121158
J117 64770 109728
J118 67310 109728
J122 113411 119380
J125 140462 118618
J126 143510 119126
J127 146812 138176
J13 232156 223520
J133 161544 122656
J136 225552 133858
J137 225552 131826
J138 225374 140716
J139 234442 119888
J140 241554 128016
J142 21590 97790
J148 96774 97028
J149 95504 99060
J151 109220 105410
J152 109220 103378
J153 110236 94742
J155 111252 100076
J156 124206 114046
J157 124460 106934
J158 124714 110998
Ref No Xum Yum
J159 121920 108966
J16 122174 201930
J160 124968 104902
J161 127762 96774
J162 124714 102870
J163 124714 100838
J164 127762 94742
J165 129794 92710
J166 125984 118618
J167 126238 116586
J169 145796 103378
J17 163068 209550
J170 151638 105410
J171 155194 98044
J172 158496 115570
J173 146812 101346
J176 193040 101854
J177 193040 99822
J179 185420 90805
J18 169164 211582
J180 193802 97282
J181 195834 95250
J182 199898 112014
J184 206121 105918
J187 209296 89662
J188 216331 114554
J189 211582 97536
J19 170434 214122
J190 213868 90932
J191 224282 109728
J193 215900 96012
J194 225552 111760
J195 217932 93472
J196 220472 96012
J197 223012 101092
J198 225552 93472
J2 97536 226822
J20 170942 216662
J201 227584 93472
J202 236982 107696
J203 234696 96012
J205 52070 85598
J206 59690 70612
J207 65277 82042
J212 105918 76200
J213 109728 89408
J214 112776 81280
J215 116332 84328
J216 113792 71628
J217 124714 89408
J218 125222 73406
J219 181610 69088
J220 174752 76454
J221 176784 76454
J222 181356 78232
J223 183388 77470
J224 196088 93218
J225 190500 84328
J226 192532 84074
J227 194564 84836
J228 196596 83058
J23 191897 215138
J230 198628 83058
J231 200914 74676
J232 207010 77470
Ref No Xum Yum
J233 205994 85344
J234 211328 86868
J235 229616 87122
J236 236220 81534
J237 236220 78994
J238 232156 70358
J239 64770 54102
J24 193040 212598
J242 107696 59690
J243 176276 56896
J244 178562 54610
J245 178562 52578
J246 179324 50546
J247 180086 67056
J248 180086 65024
J249 180086 62992
J250 180086 58928
J251 177292 60960
J253 182880 48514
J257 181864 44450
J259 196088 60706
J262 211328 53340
J263 215392 41656
J266 225044 61468
J268 227076 61468
J269 236728 60706
J272 64008 20574
J273 66548 20574
J275 115265 36322
J276 126238 17526
J277 152654 36068
J278 152908 24130
J279 175006 40132
J280 175006 38100
J281 175006 36068
J282 168656 34036
J283 181356 34036
J284 202438 40894
J285 202438 38862
J286 202438 36830
J287 209296 34798
J289 206756 24384
J290 209296 26670
J295 240792 25146
J296 98298 9144
J30 217424 216408
J307 84709 94615
J309 93726 44450
J310 130048 172720
J321 127508 98806
J322 112014 92202
J326 117348 173482
J328 216408 144653
J330 204724 148336
J336 192405 109982
J34 40894 178308
J35 44958 179324
J37 70104 183896
J38 85344 159258
J39 88646 166624
J4 109728 237236
J40 118618 171196
J401 216458 237998
J44 164592 164719
J45 166624 165862
All manuals and user guides at all-guides.com

9
70GS-61FP
MOTHER UNIT (F7315N5-A) PWB COMPONENT LOCATION TABLES.
Component Side Copper Side
Ref No Xum Yum
J47 168656 165354
J5 123698 236982
J52 189738 180848
J55 214376 172974
J56 216408 165608
J59 223012 165862
J62 233426 169926
J65 51816 160782
J67 57404 163576
J68 65531 141732
J74 117856 156210
J82 132334 156210
J83 136398 156972
J89 152908 163068
J9 156210 219202
J90 154940 152654
J91 157480 140716
J92 159512 141732
J93 159893 160401
J94 161544 141986
J95 162560 163322
J96 163576 139573
J97 166370 141732
J98 168656 142748
J99 173736 150114
JF27 61722 44958
JF28 80518 50546
JF32 153162 38100
JF36 143002 48514
JF37 157226 94742
JF38 170434 92583
JF40 220218 54102
JF41 224282 51816
JF42 224282 45720
JF46 174752 93980
JF47 176784 94284
JF48 178816 94284
JF55 223266 122428
JF61 55626 7874
JF62 128270 17018
JF63 130048 36220
JF64 61214 167259
JF65 11938 210058
JF702 130048 219964
JF76 50800 69850
JF81 170434 105918
JL1 142240 84074
JL1 193040 205232
JL12 206502 144780
JL12 226568 79756
JL13 240792 94234
JL13 147574 16002
JL14 143002 4826
JL14 240030 65277
JL17 140970 82296
JL17 177546 31750
JL3 235712 56896
JL7 197866 223520
JL7 144272 84074
JL7 67564 123698
JL7 208026 151130
JL8 143002 56769
JL8 228854 61214
L1001 213106 153162
L1002 205232 103886
Ref No Xum Yum
L1003 150876 163068
L1004 141224 155956
L1005 221869 107696
L1006 191897 107950
L1007 133858 126238
L202 198374 53594
L203 220726 11176
L3 95758 169164
L301 125730 86868
L302 232410 226314
L303 190754 223520
L315 199898 196596
L316 218440 198120
L318 203200 220218
L319 228854 171196
L350 166116 196596
L351 169926 196596
L352 181864 207264
L353 205486 207772
L401 166116 44704
L501 102870 137160
L602 207518 119126
L605 114046 45974
L606 22606 4826
L609 72898 69596
L610 99060 92964
L701 51054 220472
L705 91440 114808
L801 163068 109474
L901 93980 179832
LP701 37490 232943
M1000 98501 236931
POR701 21336 177292
Q502 93980 123444
Q601 79756 31750
Q602 83820 31750
Q605 79502 72136
Q610 120142 55118
Q613 81026 83566
Q701 46228 154940
Q702 12700 125476
Q703 8382 92202
Q708 154686 231902
Q709 107442 160528
Q796 83058 117094
R1036 157226 161798
R202 205232 68580
R203 202946 68834
R213 224282 9398
R214 110744 86868
R219 240792 36830
R220 240792 49784
R223 193802 60960
R252 234696 70866
R337 226568 212090
R355 196596 175260
R358 208026 217678
R359 216408 208788
R387 225552 136652
R451 150114 23114
R452 146812 10160
R501 107696 132842
R503 107416 116586
R518 110490 118872
R530 68326 75438
Ref No Xum Yum
R531 107950 57150
R553 97790 121666
R554 108458 54610
R601 113538 73660
R602 118110 67564
R603 92710 69850
R609 74168 75184
R614 88900 8382
R617 54356 82804
R618 127000 31496
R627 130048 38354
R629 125222 52578
R631 139954 34290
R650 54356 92964
R651 121412 61976
R652 125222 55168
R657 103632 62230
R714 59436 195326
R718 30988 113284
R723 25908 113284
R738 120904 161163
R746 62230 157734
R747 68834 146812
R787 27686 104648
R790 32512 158496
R798 22352 133350
R799 13208 130555
R904 131063 202692
R906 116332 176530
R907 99568 172212
R908 127000 189738
R936 152654 187960
REF10 32258 -3556
REF5 172720 138176
ROT1 93522 205486
ROT2 92659 179857
ROT3 156032 177038
ROT4 154101 200583
S701 20497 247015
S702 48514 238201
S703 60502 238201
S704 72517 238201
S705 84505 238201
SF201 214884 49022
SF202 222504 61722
T601 35306 52832
T701 49784 130048
T702 61214 173482
TN201 232410 4826
TPC1 239014 153670
TPC10 239014 130809
TPC100 170053 7620
TPC101 166243 7620
TPC102 162433 7620
TPC103 158623 7620
TPC11 239014 128270
TPC12 239014 125730
TPC13 237744 172389
TPC14 237744 169900
TPC15 237744 167386
TPC16 237744 164896
TPC17 237744 162382
TPC18 237744 159893
TPC19 179324 157734
TPC2 239014 151130
Ref No Xum Yum
TPC20 181864 157734
TPC21 197358 208788
TPC22 194818 208788
TPC23 192278 208788
TPC24 189738 208788
TPC25 141224 24130
TPC26 141224 21590
TPC27 141224 19050
TPC28 141224 16510
TPC29 151384 225044
TPC3 239014 148590
TPC30 151384 222504
TPC31 151384 219964
TPC32 84328 97536
TPC33 81788 97536
TPC34 79248 97536
TPC35 76708 97536
TPC36 74168 97536
TPC37 160782 102870
TPC38 163322 102870
TPC39 165862 102870
TPC4 239014 146050
TPC41 170942 102870
TPC42 173482 102870
TPC5 239014 143510
TPC6 239014 140970
TPC63 156718 24765
TPC64 160528 24765
TPC65 164338 24765
TPC66 168148 24765
TPC67 171958 24765
TPC68 175768 24765
TPC69 179578 24765
TPC7 239014 138430
TPC70 183388 24765
TPC71 187198 24765
TPC72 191008 24765
TPC73 194818 24765
TPC74 192913 19685
TPC75 158623 19685
TPC76 162433 19685
TPC77 166243 19685
TPC78 170053 19685
TPC79 173863 19685
TPC8 239014 135890
TPC80 177673 19685
TPC81 181483 19685
TPC82 185293 19685
TPC83 189103 19685
TPC84 156718 12700
TPC85 160528 12700
TPC86 164338 12700
TPC87 168148 12700
TPC88 171958 12700
TPC89 175768 12700
TPC9 239014 133350
TPC90 179578 12700
TPC91 183388 12700
TPC92 187198 12700
TPC93 191008 12700
TPC94 194818 12700
TPC95 192913 7620
TPC96 189103 7620
TPC97 185293 7620
TPC98 181483 7620
Ref No Xum Yum
TPC99 177673 7620
TRC 108204 190246
VAR1 6604 226822
X1002 168402 123444
X201 212090 67056
X301 138176 64008
ref No Xum Yum
C1002 230124 142494
C1003 212979 138811
C1004 214630 150622
C1007 203454 150114
C1008 196088 157734
C1009 176784 153162
C1010 176022 146050
C1011 168402 131318
C1012 146812 127254
C1013 171297 125984
C1014 170078 121920
C1015 166827 121920
C1017 203327 115570
C1018 207010 119761
C1020 190627 97663
C1021 188722 103378
C1022 115824 233172
C1024 208788 120142
C1028 172110 112369
C1030 212852 151892
C1032 210312 151130
C1033 218440 131826
C1034 217678 138430
C1036 219456 97282
C1037 198374 157734
C1038 138938 134874
C1042 191897 108712
C1043 227076 213614
C1044 237236 211836
C1045 235966 207010
C1046 231902 176784
C1048 207010 93726
C1049 138811 163322
C1050 115824 235966
C1051 201549 117221
C202 195580 61722
C203 195072 58420
C206 199898 54864
C207 218694 66802
C208 201168 50546
C209 213106 45720
C210 226314 50038
C211 230124 40386
C213 227838 28194
C214 228854 21082
C216 201676 88138
C217 214376 51054
C218 211328 53721
C219 201422 56896
C223 222504 85852
C224 217830 145897
C225 214985 144678
C305 139395 88188
C306 137566 88188
C307 160401 67183
C310 165100 66040
C313 129032 93980
C316 162814 51054
C317 157734 50800
C318 154178 46736
C319 150368 50546
C321 151638 57912
C322 147320 54356
C323 145542 55880
C324 144018 59690
All manuals and user guides at all-guides.com

10
70GS-61FP
MOTHER UNIT (F7315N5-A) PWB COMPONENT LOCATION TABLES.
Copper Side.
ref No Xum Yum
C325 141478 62738
C326 140462 59944
C327 137668 64770
C328 137414 82550
C329 135636 82804
C3300 240538 194310
C3301 222250 189992
C3302 231902 195580
C3303 231902 200406
C3304 225044 193040
C3305 225044 186182
C3313 240030 169672
C337 186944 21844
C338 198374 22860
C339 187198 18796
C340 198628 18542
C341 190500 21336
C342 195834 19812
C343 205740 11938
C344 203962 11938
C345 187198 8890
C346 195072 8636
C347 205740 16256
C348 190500 9144
C350 179832 186690
C352 173228 176276
C353 188976 190246
C354 182118 196088
C356 175514 206248
C357 182118 199644
C358 181102 191516
C359 189992 196088
C360 178816 204470
C364 169672 186182
C366 199136 181864
C367 205740 183134
C368 214884 191008
C369 208280 192024
C370 195834 191770
C371 208280 197104
C373 207518 187960
C374 208280 189992
C375 205740 207772
C379 217424 182880
C380 233172 235712
C381 225298 230886
C382 219964 214630
C383 235458 219964
C384 239014 219964
C385 228854 209804
C386 234188 211836
C387 233680 219964
C388 170688 220472
C389 178308 223774
C390 177800 229362
C391 186944 230124
C393 234950 179324
C394 234950 183388
C395 234950 187198
C396 234950 185420
C397 235966 202438
C398 235966 198628
C399 235966 200660
C403 167386 22352
C405 200660 221742
ref No Xum Yum
C407 197104 91440
C408 197307 95097
C409 195478 95097
C423 189357 56642
C424 185420 53340
C427 192532 23114
C428 196342 22860
C429 192532 11176
C430 197866 12954
C431 179070 81661
C432 236728 87122
C433 240284 72644
C502 118364 133858
C503 118110 131826
C505 116840 142748
C506 118364 139192
C507 118364 137414
C508 112268 139700
C510 118364 135636
C512 97536 130301
C521 187960 110871
C522 101854 149606
C523 188849 109093
C525 94996 141732
C534 99060 149352
C540 107188 58166
C541 106426 55880
C542 116586 156210
C543 188722 38354
C550 101092 152654
C604 89154 66802
C605 76962 66040
C606 94742 82550
C607 80264 86868
C608 99060 45466
C610 83566 77470
C612 84328 50292
C629 107950 66294
C631 107696 70358
C632 96266 68580
C641 66548 83058
C715 34036 106680
C716 10668 79248
C718 27178 93726
C719 19050 82550
C722 58674 105791
C723 9144 114554
C724 28194 91694
C736 93726 99822
C739 74676 104902
C740 78232 112522
C741 160528 57150
C802 173736 112369
C804 176784 116433
C810 209550 143637
C906 138430 177038
C907 139446 180086
C908 139192 190246
C910 150368 172974
C911 135890 171958
C912 150622 205486
C913 115824 193294
D1004 193294 96012
D1005 192278 101346
D1006 138938 101092
ref No Xum Yum
D1007 202946 112903
D1008 143764 128270
D1009 188722 106934
D1011 213360 133858
D1012 229412 137769
D1013 231648 136550
D1014 216408 120650
D1015 218694 117856
D201 220218 54102
D202 224282 51816
D203 224282 45720
D204 227838 23114
D205 227838 25908
D302 141605 89662
D303 143637 89662
D304 166370 84836
D305 167640 80264
D306 176276 173482
D307 169926 228600
D308 191262 232410
D404 154178 22860
D405 154178 9906
D406 155702 16510
D407 185420 14224
D408 173228 11176
D409 168402 14986
D410 161544 14986
D421 162560 22352
D422 178816 9906
D423 192786 5842
D424 187706 5842
D425 191262 17526
D426 186436 17018
D508 103632 114808
D511 109220 116840
D604 97536 51308
D606 94742 44704
D608 105410 80772
D616 108204 51054
D617 96774 46482
D618 85852 48006
D619 80772 36322
D620 80518 30734
D623 136906 39370
D624 106680 40386
D625 108458 75946
D626 102362 78740
D631 95504 64770
D632 86868 63754
D633 86868 61722
D636 103124 64262
D705 52578 114808
D706 55626 115570
D707 48768 160782
D713 33020 99060
D715 65024 176784
D716 43434 176784
D718 23368 95758
D723 163068 67056
D728 84836 104140
D732 26670 102108
D733 24130 113030
D734 9144 120650
D741 49784 174752
D742 83820 157734
ref No Xum Yum
D743 30988 101092
D744 79248 157734
D747 104902 157226
D748 49022 105029
D750 65531 105410
D904 113284 187452
D905 108077 173990
D906 101981 173609
D907 146558 213360
D908 146558 211328
IC1003 225298 155702
IC1004 229362 149606
IC1009 143865 109931
IC201 211328 60198
IC303 150368 74676
IC502 101600 143764
IC601 96774 72644
IC701 53340 184404
J10 147116 104851
J101 184658 160274
J104 200660 157988
J11 168148 235204
J112 228854 145034
J119 102870 140208
J120 105156 137160
J121 107188 131318
J123 111506 119634
J124 120142 140970
J128 147066 145034
J129 146812 121666
J130 148590 121666
J134 164084 120650
J14 231140 228600
J141 19304 95504
J143 35052 99060
J145 48768 100330
J146 69088 93218
J147 74676 115824
J15 241046 233426
J168 146507 114198
J174 164846 117094
J175 181610 106172
J185 204978 103632
J186 206756 103632
J204 234696 96012
J208 72644 86106
J209 72644 89154
J21 177800 218948
J210 74422 79502
J22 177800 220980
J229 196850 69342
J241 108458 54610
J25 197866 201422
J254 177038 60452
J255 177800 56388
J256 180848 52324
J258 197866 52832
J260 198628 60960
J261 197866 64008
J264 220472 45720
J265 222250 42926
J267 226314 45720
J270 236728 43688
J271 239014 48260
J274 93853 33147
ref No Xum Yum
J28 213106 219964
J288 202184 28194
J29 216916 208280
J291 206502 29464
J292 209042 41910
J293 100838 86868
J294 236728 40894
J297 146812 12192
J298 158496 114808
J299 161290 5588
J3 107950 230378
J300 172720 9398
J301 174752 17399
J302 211074 13462
J303 83566 155702
J304 220726 9652
J305 207772 5842
J306 106426 44577
J308 234442 204978
J31 217932 197104
J311 152400 13462
J312 145034 162814
J313 172466 167386
J314 206248 169164
J315 166624 166878
J316 163068 165354
J317 235966 105410
J318 233680 104648
J319 230632 86868
J32 225044 201422
J320 88392 233172
J323 88138 87630
J324 99568 90170
J327 106934 19050
J329 158496 128828
J331 104648 60706
J332 93599 65024
J333 197307 99568
J334 171958 217424
J335 217830 149148
J36 47752 186436
J41 117602 176530
J42 150368 175006
J43 164338 177038
J46 167894 193802
J48 169926 175514
J49 181102 189738
J50 182372 171704
J51 184150 188468
J53 199898 185674
J54 207518 186182
J57 220980 176022
J58 221996 194056
J6 125984 234442
J60 226314 179070
J63 232664 191770
J64 235458 191008
J66 50038 167894
J69 83312 144780
J7 133858 237744
J70 84328 160782
J71 86106 160782
J72 101600 160528
J73 109982 150114
J75 114808 156210
ref No Xum Yum
J76 118110 152654
J77 119126 155956
J78 119634 161290
J79 120650 159258
J8 133858 239522
J80 120904 151638
J81 121158 155956
J84 138684 145288
J85 142240 145796
J86 146558 146812
J87 146812 148590
JF1 142240 59944
JF10 218440 51308
JF1001 31496 18796
JF1002 33274 18796
JF1003 35052 18796
JF1004 37592 18796
JF1005 39370 18796
JF1006 41148 18796
JF1007 42926 18796
JF1008 44704 18796
JF1009 46482 18796
JF1010 48260 18796
JF1011 50038 19558
JF1012 41148 14478
JF1013 42926 14478
JF1014 35052 14478
JF1015 33274 14478
JF1016 31496 14478
JF12 195326 212598
JF13 191008 213106
JF14 193040 213106
JF15 197104 212598
JF16 221742 233172
JF17 187960 212344
JF18 213360 216916
JF19 239776 226314
JF20 106172 239014
JF21 106172 241300
JF22 224282 51816
JF23 212090 28702
JF24 210820 20574
JF25 207518 20066
JF26 197866 26289
JF29 133858 38354
JF3 96774 240284
JF33 107442 59944
JF34 86868 63754
JF35 86868 61722
JF39 220218 229616
JF4 169926 75692
JF43 172110 116230
JF44 163576 107899
JF5 229362 44958
JF50 180441 101396
JF53 196596 230124
JF57 39878 160020
JF58 145542 4826
JF59 237998 62484
JF6 235712 34036
JF60 93726 235204
JF66 146304 151587
JF67 144272 152603
JF68 160324 123545
JF69 161950 121716
All manuals and user guides at all-guides.com

11
70GS-61FP
MOTHER UNIT (F7315N5-A) PWB COMPONENT LOCATION TABLES.
Copper Side.
ref No Xum Yum
JF7 235712 29972
JF70 138785 111353
JF701 80010 144272
JF71 138785 109321
JF72 158292 121716
JF73 166014 126796
JF74 138938 129032
JF75 157276 120904
JF8 235458 18034
JF80 99060 92964
JF82 211328 227076
JF9 229870 11684
L1008 168402 125222
L205 229616 49022
L317 220218 229616
Q1001 207035 99568
Q1002 131597 234442
Q1003 136169 234442
Q1004 53086 120142
Q1005 227330 96012
Q1006 146050 98298
Q1007 141224 137922
Q1008 141986 133096
Q201 211328 69342
Q202 201676 47752
Q204 219202 78740
Q305 167640 180086
Q306 182118 178816
Q403 203200 70358
Q404 169926 41910
Q405 173228 39624
Q503 102616 125476
Q505 95250 137668
Q507 99822 137414
Q510 88265 145288
Q603 85090 43180
Q604 84074 38862
Q606 46228 92964
Q607 84074 87630
Q608 88138 38608
Q609 131318 38354
Q611 87884 76200
Q704 56388 173736
Q705 61976 173228
Q706 145034 236982
Q707 149352 234950
Q710 78740 107696
Q711 74676 107950
Q712 46736 180086
Q713 33528 93218
Q714 38608 111506
Q715 17780 91694
Q720 37338 177546
Q721 46228 168910
Q723 8382 117348
Q724 27940 98806
Q725 13970 87376
Q901 141478 175006
Q902 146050 175006
Q903 150114 180594
Q904 142240 185420
Q905 147066 185674
Q906 149352 190500
Q907 141732 195580
Q908 146812 194310
ref No Xum Yum
Q909 147066 200914
Q910 143764 206756
R1001 234950 125984
R1002 233934 128016
R1003 191516 157607
R1004 193548 157734
R1005 184912 157226
R1006 209804 92710
R1007 209042 108712
R1008 223012 92456
R1009 141986 96774
R1010 141986 98552
R1011 188722 101600
R1013 128524 234442
R1014 136398 228600
R1015 136398 230632
R1016 205740 96012
R1017 104140 236474
R1018 210566 118618
R1020 218313 91821
R1022 213614 112014
R1023 166420 118872
R1024 141478 141224
R1025 145288 137922
R1026 141478 128016
R1030 48514 239776
R1031 60198 239776
R1032 69850 241046
R1033 85852 233172
R1034 189484 99822
R1035 150571 94488
R1037 139192 235204
R1039 52070 124460
R1040 191262 105156
R1041 205232 120396
R1043 84582 240284
R1044 48514 241554
R1045 60198 241554
R1046 72390 236728
R1099 99060 234442
R201 217932 70358
R204 193802 61722
R205 206502 69088
R206 205486 56896
R207 218694 68580
R208 205232 51562
R209 222250 51308
R210 211836 43434
R211 218186 44704
R212 222504 46228
R215 95631 87249
R217 224536 17780
R221 207264 43815
R222 207518 50038
R225 227838 16256
R230 192024 61722
R231 213360 76200
R240 228854 19304
R250 84836 93726
R301 161290 85344
R302 162052 88646
R303 176276 82042
R304 172212 81788
R305 173228 83820
R306 171958 79756
ref No Xum Yum
R307 129032 91948
R308 130809 78994
R309 135382 76962
R310 153670 52324
R311 153670 50546
R312 149606 47244
R313 147066 51054
R318 182372 17526
R319 189992 26670
R320 195580 17526
R321 194818 26924
R322 183896 10160
R323 196850 8636
R324 195072 14732
R325 190754 14732
R326 200660 14224
R327 187960 10668
R328 241554 226314
R329 233426 226060
R330 225806 208788
R331 228854 218440
R332 240792 223012
R333 232918 222758
R334 240792 219964
R335 231902 219964
R336 237236 219964
R338 175006 224536
R339 189484 224028
R340 234950 181356
R341 234950 188976
R342 235712 196850
R343 208026 172466
R344 240538 199390
R345 224028 176022
R346 221996 187960
R347 221996 192024
R350 166116 196850
R351 169926 197104
R352 182118 194310
R353 182626 202692
R356 208280 194056
R357 209042 207010
R360 223012 207010
R361 218948 135636
R362 211582 170180
R369 127762 78486
R370 132334 75692
R380 198882 193802
R381 198882 197104
R382 173228 203708
R383 182118 197866
R384 185928 175768
R385 182372 174498
R386 234442 169418
R405 152146 22860
R406 161290 32004
R407 171196 22352
R408 182372 31242
R409 185420 27432
R410 171704 6350
R411 180848 5588
R412 156464 9144
R413 155956 39370
R414 149606 22606
R415 153162 27940
ref No Xum Yum
R416 207010 22352
R417 148082 27178
R418 180848 14478
R419 173990 14986
R420 168402 10160
R421 164338 10160
R422 196342 72390
R423 212598 126746
R434 175260 43942
R435 168656 35052
R450 173228 43942
R502 106680 134620
R504 98298 133350
R505 96901 121539
R506 88900 124714
R507 102870 132080
R508 88138 137922
R509 119380 122682
R510 118110 130048
R511 112014 134620
R512 108712 142748
R513 96520 144272
R514 94996 134620
R515 108712 140970
R516 109474 135128
R517 101600 133858
R526 104648 111252
R528 88138 131826
R534 105918 150114
R535 105918 151892
R544 97028 151892
R545 103378 137160
R547 94996 132080
R548 109220 156210
R549 103632 147828
R550 94996 149606
R551 88138 140462
R552 88265 142240
R604 84836 82550
R607 86106 45974
R608 88138 41656
R610 84836 35814
R611 96774 97028
R612 96774 42672
R616 96774 39370
R620 89154 44958
R621 105156 49276
R622 43434 91948
R623 86868 81915
R624 205486 110998
R625 204470 107696
R626 115062 51308
R628 128651 41021
R630 136652 37338
R632 89154 80518
R633 107950 64516
R634 99314 80772
R635 98806 67056
R637 100330 77978
R638 86106 79248
R639 105156 67310
R643 105918 70104
R644 98552 57150
R645 104140 10668
R653 60452 74168
ref No Xum Yum
R654 33020 5588
R655 89154 72898
R656 53594 96266
R700 30734 93218
R701 53594 175006
R703 49784 172974
R704 18288 88646
R705 70104 183515
R706 64008 189738
R708 58166 191262
R709 33782 154940
R710 33782 159004
R711 37846 173228
R712 52578 193548
R713 56388 178054
R715 42418 178562
R716 34798 162306
R717 51308 109982
R719 12446 103632
R720 12954 91694
R721 17780 123698
R722 12192 117602
R724 14732 91694
R725 12446 113284
R726 30226 96012
R727 19558 86614
R728 29464 106934
R729 6858 87376
R731 7874 112776
R732 35560 108712
R733 98044 102362
R735 97282 100584
R736 82042 105918
R737 66040 109728
R739 48133 102870
R740 53340 105156
R741 56134 106426
R742 70612 99568
R743 70104 103505
R744 61722 101473
R745 62230 104394
R748 59182 169926
R749 5842 138938
R750 46990 165354
R751 42418 180594
R752 53848 170688
R753 49784 171196
R754 59182 172974
R755 157480 229108
R756 148336 239268
R757 162560 228092
R758 142240 238760
R759 94234 156210
R760 86614 70612
R761 87376 109982
R765 31242 239014
R766 215392 7874
R767 113538 97028
R768 37338 107950
R770 43180 217678
R771 47244 219710
R772 5842 134620
R773 5842 130301
R774 24892 239014
R776 85344 107950
ref No Xum Yum
R777 87376 112522
R778 15748 97282
R779 12446 99314
R780 69596 107315
R781 15748 83566
R782 50292 179578
R783 49276 193040
R784 59690 176784
R785 49784 176784
R786 43180 173736
R788 43180 170942
R789 43434 183642
R791 27432 129794
R792 32512 113792
R793 35814 112014
R794 87376 105664
R795 101346 96012
R801 178612 118262
R802 183134 104140
R803 178562 104394
R804 176530 103378
R810 168656 106426
R811 170434 106426
R812 172212 106426
R901 133858 178054
R902 139446 182118
R903 138430 185928
R905 143002 170434
R909 138176 172974
R910 148590 177800
R911 146812 180848
R912 143510 180086
R913 143510 178308
R914 143510 182118
R915 149860 186690
R916 146558 189738
R917 142494 190500
R918 142570 188544
R919 142494 192278
R920 146431 197612
R921 144272 200406
R922 140716 200660
R923 140716 198628
R925 149860 183388
R926 149606 197358
R927 149860 201168
R931 151892 208788
R932 146812 204978
R933 148844 204978
R934 127762 171196
R935 124714 170180
All manuals and user guides at all-guides.com
all-guides.com

12
70GS-61FP
F7315N5-A. CHASSIS LAYOUT.
JF81
L801
C1027
L318
J23
T601
L202
Q703
D629
D737
D717
D735
D507
D746
C621
L1003
L1002
L1005
J275
L605
C619
D708
D738
D902
D714
D635
D628
J276
D403 D420 D411
D901
C915
C902
R657
D607
R452
R451
J330
+
C1006
J102
J328
J139
J133
F701
VAR1
J82
JL12 J138
JL17.
JL17
+
C312
R601
D609
FB801
J188
FB401
FB402
J326
C914
J165
L301
C363 +
C737
+
D627
JL13.
C222
+
JL14
+
C904
J310
D903
1
(H).
FB703
C627
FB701
FB702
J307
L610
C520
+
C221
J182
J283J282 J287
J278
J277
JF36
JF32
J197
J336
J113
J59
+
C351
J111
J109
J45 J44
J1
+
C303
J176
JF48
JL7. JL1
J9
J93
R1036
J90
J89
L1004
K7316BM
R906
C905
R908
J137
J166
D630
R631
D621
C709
+
C524
JL3
J231
R203
C422
+
J35
C712
+
J34
C603
JF28
Q602
C707
+
C642
1(K).
J40
J198 J201 J196
D634
L609
J172
R603
JL1.
J140
J184
J96 J94 J97
C733
+
D721
D720
C728
+
D722
F704
J117
J118
J219
J180
J189
J177
C302
+
C805
+
6
(K)
1
FB302
J289
C301
+
+
C304
J67
1
2
(G)
D702
C701
LP701
J221
J220
C1031
+
C330
+
+
C727
J194
R799
C730
C725
J115
L203
J215
C735 +
J149
L705
Q701
C798
J37
R790
D612
D709
D729
D736
C721
R518
FB603
J207
J148
J155
J74
IC501
J122
C526
+
FB501
+
C640
D510
K
IC705
R
J296
+
C609
D605
C618 +
J114 J62
J266
J268
R501
R214
(MO)
1
R746
IC202
AV1
J95
X301
J157
J127
D703
C706
D704
C703
D701
+
C212
J253
J246
J257
J245
J244
J243
J249
J248
J247
J151J152
6
1
(SB)
J92 J91
J191
C1001
+
J136
+
C3310 +
C378
+
C372 C3309
C3308
C377
+
L316
R359
J52
+
C365
L315
L353
J18
IC301
C376C361
1
(SP)
L352
J24
D611 J164
J321
C392
T701 J160
C624
R629
C620
C623
+
C622
R220R219 IC305
IC1002
(L2)
S702 S703 OPC1
D1002
D1001
QKITP7315BMN5-A
71 3 5
624CN4
S704 S705
J401
IC304
1
8
R614
Q601
E
C
B
C205
5
1
SF202
SF201
1
5
Q605
J262
+
C204
L501
L701
S701
T3.15AH
C504
J161
IF2
IF1
33V
B+
DA
CL
AS
TU
AGC
TN201
ESPA¥A
F7315BMN5
R355 IC302
C355
J55
J56
J162
J163
J217
J158
+
C362
L350
(VS)
J19
J20
R358
L303
C617
J290
J30
J100
J103
J272
J273
A
K7315BM
J167
IC703
C
Q708 E
J239
D602
J216
C630
J213
J214
J212
+
C320
F601
J156
AV1RGB
1
1
J205
D610
M1000
J68
R747
C613
C702
J4
R714
C704
C215
+
X1002
C799
R718
C717
R723
C796
J116
Q702
J142
J193 J195
R617
R650
5
(H)
R609
R530
C738
R787
C713
J38
C625
C734
+
D740
R798
J13
L302
J2
J5
+
C1019
C601
5
1
(F)
C628
J110
J190
T702
J65
J181
J224
R202
J251
J223
J232
J225
J179
J222
J226 J227
J228
J171
JF37
J250
J279
C220
+
C801
J234 J233 J187
J230
C726
+
+
C626
R652
RIC702
K
D712
X201
C201
+
J98
J99
L1001
J108
(RT)
J106
J105
J107
(SA)
12
1
J284
JF38
J153
J170
J126
J125
J173
J169
J218
R531
R554
+
C901
R907
L901
56
7
8
9
10
1112
GND TRC
.
L3
G2
F7316BMN5 A
IC901
91
C803
+
R904
J16
FB303
JL8.
C602
C1016
TP201
TP701
TP601 TP602
R337
J259
R223
L401
J206
K
A
J235
J236
R252
J238
J237
J203
+
C1005
J263
+
C732
J39
R738
C909
+
J83
Q709
+
C731
JF702
+
C720
POR701
J47
J202
JF47
JF46
J17
L351
JF55
JL7
L602
J285
J286
J280
J281
JL8
C309
+
I
IC708
C308
+
D749
C711
R213
J309
Q502
C705
C916
C404
JL14.
J269
JL12.
C402
JL13
R387
L1007
J295
F602
J322
JF62
R627
JF63
R618
(AV).
C1040+
C809
R651
J242
R553
R503
+
C729
J159
R936
(M)
1
2
3
JF65
F702
F703 D798
D719
JF64
(AV) C1052
JL7..
JL7....
D1003
D613
L319
DIP
JF76
JF61
L606
JF27
1
3
5
6
7
8
9
10
11
12
+ C511
C1041
+
C710
D730
D731
D615
D622
D724 D727
D739
D725
R602
D512
L1006
(AV)..
+
C311
All manuals and user guides at all-guides.com

13
70GS-61FP
DESCRIPTION OF SCHEMATIC DIAGRAM
SAFETY NOTE:
1. DISCONNECT THE AC PLUG FROM THE AC
OUTLET BEFORE REPLACING PARTS.
2.SEMICONDUCTORHEAT SINKS SHOULD BE
REGARDED AS POTENTIAL SHOCK HAZARDS
WHEN THE CHASSIS IS OPERATING.
NOTE:
1.Theunitofresistance«ohm»isomitted(K=1000
ohms. M= Megaohm).
2.Allresistorsare1/8watt. unless otherwisenoted.
3. All capacitors are mF, unless otherwise noted
(P= mmF).
4. The capacitor with Part No. RC-FZ9XXXBMNJ
is designed to with stand 63V.
5. The capacitor with Part No. RC-FZ4XXXBMNJ
is designed to with stand 50V.
SERVICE PRECAUTION:
THE AREA ENCLOSED BY THIS LINE ( )
IS DIRECTLY CONNECTED WITH AC MAINS
VOLTAGE.
WHEN SERVICING THE AREA, CONNECT AN
ISOLATING TRANSFORMER BETWEEN TV
RECEIVERANDACLINE TO ELIMINATE HAZ-
ARD OF ELECTRIC SHOCK.
WAVEFORMS MEASUREMENT:
1. TEST EQUIPMENT: Digital Oscilloscope (Tektronix TDS 3012).
2. TEST CONDITIONS: PAL B/G full colour bar, 1KHz sinewave (volume regulation 50%).
Note: Waveforms 8 and 11 should be taken with the TV set in Stand-by mode.
Red in
1
Green in
2
Blue in
3
IMPORTANT SAFETY NOTE:
PARTS MARKED WITH «»( )ARE
IMPORTANT FOR MAINTAINING THE SAFETY
OF THE SET. BE SURE TO REPLACE THESE
PARTSWITHSPECIFIED ONES FOR MAINTAIN-
INGTHE SAFETYANDPERFORMANCE OF THE
SET.
CAUTION
This circuit diagram is original one, therefore there may be light difference
from yours.
All manuals and user guides at all-guides.com

14
70GS-61FP
I Sense
7
V St-by
8
E/W Output
9
V Switch
10
V Control St-by
11
Vp (Primary)
12
Vertical Input
13
E/W Correction
14
V inner correction
15
Vertical + input
16
VH
17
H Control
18
Red output
4
Green output
5
Blue output
6
All manuals and user guides at all-guides.com

15
70GS-61FP
V in Headphone R
22
V in Speaker L
23
V out Speaker L
24
V out Speaker R
25
V in Speker R
26
X1002
27
V Flyback Vertical
28
Vertical output
29
Vertical input
30
IF Video output
31
Vb(Horizontal)
19
Vc (Horizontal)
20
V in Headphone L
21
All manuals and user guides at all-guides.com

16
70GS-61FP
SCHEMATIC DIAGRAM OF MOTHER UNIT (K7315N5-A, 00 Version).
1
I
H
G
F
E
D
C
B
A
234567
Page 17
Page18
M1000
B R G
+5V
+5V
+5V
123456
1 2 3 4 5
1234
VCT
3
IX185
5
+5VSTBY
+3.3VSTBY
+3,3VSTBY
+16V +5VSTBY
+3.3V
+5VSTBY
+5VSTBY
+3.3V
+5V
+16V
-16V
+165V
+5V
+12V
+12V
+12V
+12V
+5V
+13V
12 3
4 5
6
7
8
+5VSTBY
IX1847BM
Q709
+5VSTBY
+5STBY
VOL-VOL+CH CH
+3.3VSTBY
G
B
VPROT
HOUT
R
VI2
VI1
AV2
ALCLOCK
VOUT
CR1
MUT
AV2
K Y
PROT
FI
FB
IR
L DOPC
STBY
/W
PROT
K Y
AV1
AV1
K Y
L D
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
C701 330nF (275V) FZ0188BM
R1002
3K3
R1001
3K3
D720
GP20J
L701
F0111BM
JF701 100nF
D727 DX0045
Q708 BC547 TX0106
Q706
2SC2412
R1009 1K
D1004 DX0551
R1010 100K
C1021
1nF
R624 1K
R625 330
C805
3.3uF
F701 FS-C3226
(M)
GN0304
3
2
CU0205BM
1
D1001 PX0105
1 2
3
1 2
R1013 100
IC901
TDA6107
VI(1) 1 VI(2) 2 VI(3) 3
GND 4
S NS 5
VDD 6
VO(3) 7 VO(2) 8 VO(1) 9R906
2K7 (1/2W)
C901 10uF (250V) D901
1N4004 DX0501BM
C902
PB3D 472
FOCUS G2 (L3)
(H) CNW-2710BM
R908 2K7 (1/2W)
R907 2K7 (1/2W)
R904 4M7 (1/2W)
JF702 3,3uH (CF)
S702 K0079GE
S703 K0079GE
S704 K0079GE
S705 K0079GE
R1033 100
C737 100uF (16V)
R1099 100
D703 DX0555 RF2005
D704 DX0555 RF2005
D701 DX0555 RF2005 D702 DX0555 RF2005 C703 10nF 250V KZ0029C
C704 10nF 250V
KZ0029C
C706 680nF (400V)
(G) PLGN0207
C702 10nF 250V
KZ0029C
R713 10K
R706 390K (TQ)
R738
68
R755 390
R756 100
R758
2R7
D1007 DX0551
Q903 2SC2412
Q902 2SC2412
Q901 2SA1037 R912
2K2
R910 390
R911
100 Q906
2SC2412
Q905 2SC2412
Q904
2SA1037
R917 2K2
R915 390
R916 2K2
Q909 2SC2412
Q908 2SC2412
Q907
2SA1037
R919 120 R923 390
R922 2K2
R920 390
R921 100
D902 C5V1 X0408BM
C910 100nF R905 2K2
(K) CNW-2865BM
C911
100nF
L1006 1uH (DF) C1040 47uF
LP701
RLAMP001
R771 82K
(TQ)
R765 82K (TQ) R774 82K (TQ)
R770 82K (TQ)
D1006 DX0551
R1035
33K
D1009 C4V7 X0544BM
R903
0
R902
0
Q702 TX0237BM
R725 2K2
D717 DX0045
C721 10nF (FZ)
D731 DX0045
R749 680K (TQ)
R711 10
R715 18K (1%)
+VS
-VS
IC701 IX1556
8
7
6
5 4
3
2
1
R788 22K
Q721 2SA1037
Q720 2SC2412
R785 100K
C712 1uF (160V)
R783 220K R712
390K (TQ)
R705
8K2
Q712 2SA1037
D716 C6V2 X0584BM 2%
R751 100K
R786 1K8
R784 18K
D715 DX0551
R716 390K (TQ) R710 330K (TQ) (1%)
R709 330K (TQ)(1%)
C711 68nF (250V) FZ0206BM
R708 390K (TQ)
Q704 2SA1037
Q705 2SC2412
R754 10K
R752
10K
D714 C6V8 X0411BM
D741 C4V3 X0543BM
R701 22K
R748 220K
R790 270 (1/2W)
D707 DX0551
R789 100K
D742 DX0551
C798 220pF 2KV KZ0035C
R772 680K (TQ) R773
680K
R719
2M2
R779
2M2
R778
2M2
D744 DX0551
R926 560
R927
560
R925
560
Q910 2SA1037
R933 3K3
R932 1K8
R931 8K2
C912 220pF
R799 1 (1/2W) XZ0200BM
POR701 P0001BM
D734 DX0551
R721 100 (TQ)
R722
C804 100nF
R1020
10K
C409
100nF
C408
100nF
L602 3.3uH (DF)
C407 100nF
R804 2K2
C720 1000uF (6.3V)
T702 Z0583BM
3 1 4 6
R1018 100
R1022 100
R901
0
C1033 100nF
C1034 100nF
R361 100K
C1036
100nF
L901 0
C915 10nF
C914 10nF
D747
DX0551BM
R1043 680
R759 (TQ) 390
14 12 13 11
T701
RNZ0589BM
5 6 4
C727 1000uF (25V)
D903
DX0539
R934 (TQ)
R935 (TQ)
C1042 470nF
D749
DX0518BM
C731 100uF (25V)
Q701 TX0237BM FB703
R1034 8K2
TP701
D1011 X0545
TRC
8 9
10
6
11
5
7
1
12
13
R757 1K8
D904 DX0600
D906 DX0600
D905 DX0600
S701 P0600BM
C1002 100nF
C223
R802
1K2
C1018 2n2
R1039 3K9
C803 470uF
R1041
R803
270
R1017 3K3
D1005
C33
X0564BM
C1024 100nF
C10
0
47u
F
R1006 4K7 (RA)
R1016 2K2
D724 B2V4 X0914BM
D1013 C5V6 X0546BM
IC1
0
V RTQ
97
V RT
98
W
99
S NS
100
GNDM
101
RSW1
102
RSW2
103
SVMOUT
104
ROUT
105
GOUT
106
BOUT
107
VSUPAB
108
GNDAB
109
VRD
110
XR F
111
AIN3
112
AIN2
113
AIN1
114 VSUPAF 47
VOUT 48
CIN1 49
CIN2 50
VIN1 51
VIN2 52
VIN3 53
VIN4 54
DISINTROM 55
P27 56
P26 57
P25 58
P24 59
VSUPP2 60
GNDP2 61
P23 62
P22 63
P21 64
P20
65
VBCLK
66
VB7
67
VB6
68
VB5
69
VB4
70
VB3
71
VB2
72
VB1
73
VB0
74
CLK20
75
HOUT
76
VSUPD
77
GNDD
78
P37
79
P36
80
P35
81
P34
82
VSUPP3
83
GNDP3
84
P33
85
P32
86
P31
87
P30
88
NC
89
FBLIN
90
RIN
91
GIN
92
BIN
93
VPROT
94
SAF TY
95
HFLB
96
VAR1 VX0035BM
C1049 10nF
J181 LN-0037C
R714 .56 (2W)
R782 47K
R918 390
C1003 2.2nF
C1027 10nF
R913 390
R750 22K
C10
3
2n2
R1011
2K2
C1001 470uF (6.3V)
C904 10uF
R703 2K7
C707 100uF (25V)
C713 (450V) 68uF Z0141BM
D1012 C5V6 X0546BM
R1040
2M2
C1020 220nF
Q1001 2SC2412
C1051 10nF
D1014 C8V2 X0413BM
D1015 DX0551
C809 680nF (FZ)
C1017 100nF
FB801
C810
390pF
R936 47R
L801 1uH
C905 .1uF (250V) (FZ)
Q707 2SC2412
R1014
100
C1019 47uF (16V)
C909 470uF (16V)
R909 120
C726 2200uF (25V)
R1007 4K7 (TQ)
Q1006 2SC2412
C1048 10nF
C728 100uF
(200V)
R914 120
L1005 1uH (NM)
JF60
R810 0
R811 0
IC1003
M24C16 IX1668BM
NC
1
S1
2
S2
3
VSS
4SDA 5
SCL 6
WP 7
VCC 8
C10
0
270
p
L10
0
LN0
0
L1002 LN0037
R1031 1K 1%
R1032 1K 1%
R1030
2K2 1%
F702 FUS F703 FUS
D719 BY27/100
DX0621
FB702
LN-0037BM
D798
BY27/100 DX0621
FB701
LN-0037BM
D712 BYV28-600 DX0618BM
All manuals and user guides at all-guides.com
all-guides.com

17
70GS-61FP
SCHEMATIC DIAGRAM OF MOTHER UNIT (K7315N5-A, 00 Version).
8910 11 12 13 14
I
H
G
F
E
D
C
B
A
Page 16
Page 19
Vh
GND
FS
V OUT
V IN
1234
+13V
-13V
+5V
+25V
+5V
3
4 5 6
ONLY 28"
-1
+
+165V
+13V
+5V
+165V
+5V
+13V
-13V
+165V
+13V
-4V
+180V
-6V
9
10
11
12
13
14
15
16
17
18
19
20
HOUT
VPROT
PROT
CR1
VI2
.
.
.
.
.
.
.
.
.
.
.
.
.
R603 2R2 (3W)
C606 47nF (HB)
R530 XZ0208BM 4.7 (1/2W)
L2 M0017C
C403 10nF
R512 4K7
R515
1K2
C522
100nF
+VS
-VS
IC502 BA4558
8 7 6 54
3 2 1
R544
1K
R549
27K
C511 2.2uF
R435 1K
Q404 2SC2412
R450 22
R545 180K
D406 X0549 7V5
D720 GP20J DX0624BM
C799
3300pF
4KV
KZ0106G
IC705 KA431AZ IX1674
R513 180K
C524 100nF (FZ)
C604 390pF
C607 22pF
R609 3.3 1/2W XZ0206BM
C605
2.2nF
Q605 KSC2500 TX0192
C610 1nF
C621 2.2nF (500V)
C620 2.2nF (500V)
R509
39K
R614 10K (1/2W)
C613 470nF (FZ)
17
19
15
16
18
20
R602 82 (1/4W) R601 82 (1/4W)
F601 22uH (CF)
F602 22uH (CF)
C733 470uF (35V)
L609 3.3uH P0144
21
R1010
100K
3
C402 680nF (FZ)
R739 100
R745 82K
C722 27nF
C609 390uF (6.3V)
R740 390 R741 330K
Q613 2SK2964 TX0227BM
R623 2K2
D608
DX0551BM
Q602
TX0238BM
D620 C18
X0558BM
Q604 2SC2412
Q608 2SA1037
R610
68
R608 2K2
R616 4.7
C608 100nF R612
2K2
Q603
2SC2412
R607
2K2
D619
DX0551
D618
DX0551
C612 680pF
C603
220nF (FZ)
D606 DX0551
D604 DX0551
D617
DX0551
R620 4K7
R621 1K
C628 330pF (2Kv) FZ0216BM
R633 6K8
Q611
2SA1037
L605
Z0725
C619 100nF (250V) FZ0198BM
R629 470K (RA)
D623 C4V7 X0544BM
C626 10uF
D622 C12 X0417BM
R627 82K (1/2W)
R626 100
R738
68
(1/2W)
Q711 2SC2412
Q607 2SC2412
R604 1K
+VS
-VS
IC601
BA4558
8 7 6 54
3 2 1R635
1M
R637 4K7
D625 DX0551
R643 820K
C631 2n2
R638 100K
C540 3,3 nF
C632 22pF
2 3 8 5 6
9
7
T601 F2085
13 4 1
10
D624 DX0551BM
R622 1K5
D616
X0545BM
R508 680
R645 220
D1009 C4V7 X0544BM
R406 75 (TQ)
R534 27K
R729 22K
R725 2K2
D717 DX0045
Q703 TX0237BM
D713
DX0551
C717 10nF (FZ)
Q723 TX0232
R728 100 (TQ)
D718 DX0551
Q724
TX0232
D731 DX0045
D732
DX0551
C723 390pF
R731 4K7
D736 1N4937
D729 1N4937
Q725
2SC2412
Q715 2SA1037
R704 100K
R720 15K
D739 C33 X564BM
R724
1M
D738 DX0045
R781 22K
C716 6n8
R726 5K6 1%
D708 DX0421
C719 100nF
R787
10R
(1/2W) XZ0112BM
D737 DX0045
R617 22 1/2W XZ0216
R717 0
D706 DX0551
D709 DX0045
R718 10 (1/2W) XZ0212BM
C732 10uF
R650 22 1/2W XZ0216
C710 22nF (FZ)
D735 C15
X0421BM
R531 120K
R723 2K2 (RA)
R773 680K (TQ)
R719 2M2 (TQ)
R779 2M2 (TQ)
R778 2M2 (TQ)
R737 3K3
L705 330K P0308BM
Q710 2SC2412
R776 220
D728 DX0551
D744 DX0551
IC702 KA431AZ IX1674
R735 100K
Q713 2SA1037
R768 2K7
C730 270pF (500V)
R793 22K
D746 DX0045
R791 390
C734
47uF (16V)
R794 47
C735 390uF (6.3V)
R760 3K9
R733 100K
C739 100nF
FB603 LN0037
R634 1K
R550 R551
(K)
CNW-2865BM
(H)
CNW-2710BM
R722 10K
C804 100nF
Q796 2SK2964 TX0227BM
C623 470uF (35V)
C736 100nF D722
DX0518BM
D740 DX0551 F704 FUS
R743
120K
(1%)
(TQ)
C641 470nF
C724 100nF
C543 680pF
C740 220pF
R653 180 (TQ)
D634 4V7
D636 DX0551BM
R767 470
R700 4K7
D633D631
C541 330pF
R766 470
R554 100
11 9 10 8 9
5 2 7 1
IC703 FX0113
4
12
3
390 R632
R654 100
R655 2K7
L610 P0311BM
C738 100nF (FZ)
TP701
C627 470nF
C705 3n3 (630V) FZ0217BM
Q610 TX0240BM
R631 330K (RA)
D750 X0915BM C13
R795 120
D615 C22 X0423BM
C618 220uF (16V)
FB401
LN-0037BM
R792 22K
C432 1nF
Q1004 2SC2412
Q714
2SC2412
R451 22
R657 18R (1/2W)
XZ0215BM
R777 0,68
R761 0,68
C803 470uF
R548 6K8
R405 75
C542 4,7nF
R727 1K
C640 390uF (6.3V)
Q606 2SC2412
D743
C18
X558BM
C725 3n3
(630V)
FZ0217BM
D404 X0549 7V5
D725 C15 X0421BM
D602 BY228
R747 8M2 1/2W (UA)
C718 390pF
R628 10K
R744 3K9 (1%)
R644 1K8
Q601 TX0226
R746 8M2 (1/2W) (UA)
R630 6K8
C622 470uF (25V)
R656 2K2
Q609
2SC2412
R798 18R (1/2W)
XZ0215BM
C225 100nF
R639 270K
C630 22nF (FZ)
C715 68nF
C709 10uF
D421 4V7 X0544
C520 470uF (35V)
C629 68nF
R732 1K5
L801 1uH
C625 1nF FZ-9102BM
C624 220nF (250V)
FZ6224BM
D605 DX0518 1N5819
D610
DX0518 1N5819
D609 DX0518 1N5819
IC501 TDA7480
20 19 18 17 16 15 14 13 12 11
C729 390uF (6.3V)
C526 220uF (25V)
C728 100uF (200V)
Z0258C
R611 150 (2W)
R651 1K2 (1/2W)
R742
120K (1%) (TQ)
D721 GP20J DX0624BM
D621
LN-0037BM
D607 RGP02 DX0634BM
D510
DX0631 1N4935
D612 DX0577 1N4935
D613 DX0577 1N4935
D611 1N4936 DX0578
C602 4.7nF (1.6Kv) FZ0227BM
C601 10nF 1.6Kv
FZ0228BM
C617
180nF (250V) FZ0229BM
D627
D635
IN4148 DX0045
L606 3,3uH (DF)
0R811
0
R812 0
L611 1uH
C642 220pF 2kV
D748
X0549BM
D705 C5V6 X0546BM
LN
-
0037BM
R780 33 (TQ)
D730 B6V2 X0482BM D733 B6V2
X0584BM
R618 3K3 (1/2W) XZ0242BM
All manuals and user guides at all-guides.com

18
70GS-61FP
1 2 34567
R
Q
P
O
N
M
L
K
J
SCHEMATIC DIAGRAM OF MOTHER UNIT (K7315N5-A, 00 Version).
Page 19
Page 16
1 2 3 4
OUT L GND GND OUT R
+5V
+16V
+16V
-16V
-16V
-13V
+13V
MSP3410G
RH-IX1853BM
VCT3811
IX1855BM
+5V
+3.3VSTBY
+5VSTBY
+5V
+5VSTBY
+5V
+8V
21
22
23 24
25
26
27
+3,3VSTBY
SC2OUTR SC2OUTL SC1OUTR SC1OUTL SC2INL
SC1INL SC1INR
SC2INR
AL
I2SOUT
H ADR
SC4INL
I2SIN
SC3INL SC4INR
I2SCL
H ADR
SC3INR
H ADL
I2SWS
H ADL
A5
A11
A8
A16 A17
D1 A1 D0
D7 D4 D3
MUT
VOUT
A14
IR
A7
CR1
D3 D0
A4
PROT
A2
A13
A8 A6 D5
STBY
OPC
D5
A14
A2 A9
A11 A15
A17
D7 A6 A10
A13
D1
A5
A4
R S
R S
A0
D6
A0 A3
D6
D4 A7
A15
PROT
A3
A9
A12 A16
A12
D2
A10
L DOPC
D2 A1
L D
AFT
GND
SCL
SDA
SDA
GND
SCL
AFT
SC4INR
SC4INL
FRONT
FRONT
.
.
.
.
.
.
.
.
IC304 M5218L
+12V
8
OUTL
7
-INL
6
+INL
5
GND
4
+INR
3
-INR
2
OUTR
1
C351 220uF (25V)
R350 2K2
R353 150
R357 150
C350 100nF
C360 560pF
C375 560pF
C361 470nF (FZ)
(SP) QPLGN0441C ZZ
C369 100pF
R356 10K
C367
100nF
C371 1nF
L316
3.3uH
(CF)
C378 220uF (25V)
C379
100nF
L350 3.3uH (CF)
C354 100pF
R352 12K
C359 4.7nF
C358 100nF (FZ)
C357 1nF C362
0.47uF
L351
3.3uH
(CF)
C363 220uF (25V)
L315
3.3uH
(CF)
C366 100nF
C365
220uF (25V)
C364
100nF
IC301
TDA7480
1 2 3 4 5 6 7 8 9 10
20 19 18 17 16 15 14 13 12 11
C368 100nF (FZ)
C374 4.7nF
C321 270nF
R311 100K
R302
100
R303
100
R306 100K
R305 100K
R304
100
R332 2K7
R1037
4K7
R331
2K7
R335 100K
C376 470nF (FZ)
R1036 4K7 (RA)
R337 10 (RA)
R330 10
L352 P0312
L353 P0312
R362 22K Q305
2SC2412
C372 0.47uF
R307 4K7
R336 100K R334 1K
C384 1nF
R333
1K
C385 220nF
R301
100
C303 10uF (16V)
C302 10uF
C301 10uF
C304 10uF (16V)
C383 1nF
C352 100nF
R1003 27K
D1003 DX0513
C805
3.3uF
C377 1uF
R360 100K
R328 150
R329 150
C381 10nF
D1002 PX0105
1 2
3
IC302 TDA7480
1 2 3 4 5 6 7 8 9 10
20 19 18 17 16 15 14 13 12 11
C322
L301 10uH
(DF)
(CN4) JAKJ0047C ZZ
1
5
4
3
2
6
7
C1012 100nF
R351 27K
JF17
JF12
C305 1nF
R370 3K3
R369 3K3
D1008 B3V9 X0579BM
R1026
10
R1025 220
Q1008 2SC2412
Q1007 2SA1037
C1016 100nF (FZ)
R355 27K (RA)
R358 100K (RA)
R359 100K (RA)
R381 15K
R383 15K
R382 18K
R380 18K
Q306
2SA1037
R385 1M
D306 DX0551
R384 22K
C380 10nF
C804 100nF
C1013 2n2
R801 10K
R1015 100
C328
100nF
C323 47pF
2
4
F
X301 B0203 18,432MHz
C311 10uF (16V)
C320 10uF (16V)
C312 10uF (16V)
IC303
NC
64
NC
63
AVSS
62
AVSS
61
MONO
60
NC
59
VR FTOP
58
SC1_IN_R
57
SC1_IN_L
56
ASG1
55
SC2_IN_R
54
SC2_IN_L
53
ASG2
52
SC3_IN_R
51
SC3_IN_L
50
ASG4
49
SC4_IN_R
48
CAPL_M 40
AHVSUP 39
CAPL_A 38
SC1_OUT_L 37
SC1_OUT_R 36
VR F1 35
SC2_OUT_L 34
SC2_OUT_R 33
ASG3 32
NC 31
DACM_SUB 30
NC 29
DACM_L 28
DACM_R 27
VR F2 26
DAC_L 25
DAC_R 24
I2S_DA_IN2 17
DVSS 16 DVSS 15
DVSUP 13 DVSUP 12 DVSUP 11
ADR_CL 10
ADR_WS 9
ADR_DA 8
I2S_DA_IN1 7
I2S_DA_OUT 6
I2S_WS 5
I2S_CL 4
I2C_DA 3 I2C_CL 2
NC 1
STANDBYQ
80
ADR_S L
79
D_CTR_OUT0
78
D_CTR_OUT1
77
NC
76
NC
75
AUD_CL_OUT
74
TP
73
XTAL_OUT
72
XTAL_IN
71
T ST N
70
ANA_IN2+
69
ANA_IN-
68
ANA_IN1+
67
AVSUP
66
AVSUP
65
SC4_IN_L
47
NC
46
AGNDC
45
AHVSS
44
AHVSS
43
NC
42
NC
41
NC 18 NC 19 NC 20
R S TQ 21
NC 22 NC 23
DVSS 14
C1031 330uF (6.3V)
R309 100
R361 100K
C1037 .
C1038 560pF
C1015 3.3pF C1041
47uF (6,3V)
C329 100nF
C1043 1nF C1044
1nF
C1045 100pF
C1046 100pF
R387 100
R313 100K
C308 3.3uF
Q1002 2SC2412
C223
L1003 1uH (NM)
R1023 10K
C1014 5pF
R1004 220
IC1002
SST37VF IX1844BM
VPP 1
A16 2 A15 3 A12 4
A7 5 A6 6 A5 7 A4 8 A3 9 A2 10 A1 11 A0 12
D7
21 22
A10
23
O
24
A11
25
A9
26
A8
27
A13
28
A14
29
A17
30
A18
31
VCC
32
D0 13 D1 14 D2 15
VSS 16
D3
17
D4
18
D5
19
D6
20
R1024 330
X1002 20.25
B0219BM
C1005 47uF
IC1001
XR F
111
AIN3
112
AIN2
113
AIN1
114
AOUT2
115
AOUT1
116
R SQ
117
SCL
118
SDA
119
XTAL1
120
XTAL2
121
VSUPS
122
GNDS
123
W 1Q
124
W 2Q
125
O 1Q
126
O 2Q
127
ADB1B
128
ADB17 1
VSUPADB 2
GNDADB 3
ADB16 4 ADB15 5 ADB14 6 ADB13 7 ADB12 8 ADB11 9 ADB10 10
ADB9 11 ADB8 12 ADB7 13 ADB6 14 ADB5 15
VSUPADB 16
GNDADB 17
ADB4 18 ADB3 19 ADB2 20 ADB1 21 ADB0 22
DB0 23 DB1 24 DB2 25 DB3 26
VSUPDB 27
GNDDB 28
DB4 29 DB5 30 DB6 31 DB7 32
P17 33
P16 34
P15 35
P14 36
VSUPP1 37
GNDP1 38
P13 39
P12 40
P11 41
P10 42
T ST 43
VRT 44
SGND 45
GNDAF 46
VSUPAF 47
VOUT 48
CIN1 49
CIN2 50
J61 22uH
J90 LN-0037C
J91 LN-0037C
J92 LN-0037C J94 LN-0037C
J96 LN-0037C
C382 100nF
L302
3.3uH (DF)
Q1003
2SC2412
D305 7V5 X0549
D302 7V5 X0549
C1009 100nF
C1006 10uF
R310 100K
C306 1nF
C1008 2n2
C1007 47nF
R308 100
C1011 100nF
C313 47nF
C1032 2n2
C310 100nF
C309 330uF (10V)
D303 7V5 X0549
C307 100nF
C387 100nF
R312 100K
D723 C8V2 X0550
D304 7V5 X0549
C330
330uF
C3313 1nF
R339
220
R338
220
C390 1nF C391
1nF
J401 Z0101BM
L303 3.3uH (DF)
C406
D307
C8V2
D308 C8V2
C1052 3,3nF
R423 75
L801 1uH
C353 100nF
C386 220nF
C316 330nF
C317 330nF
C318 330nF
C319 330nF
C370 330nF
C356 330nF
JF4
R1014
100
C1010 100nF
L318 22uH
C373 100nF
C388 330nF
C339 330nF
C1004 270pF
L1004 LN0037
L1001 LN0037
All manuals and user guides at all-guides.com

19
70GS-61FP
8 9 10 11 12 13 14
R
Q
P
O
N
M
L
K
J
SCHEMATIC DIAGRAM OF MOTHER UNIT (K7315N5-A, 00 Version).
Page 18
Page 17
12345
R OUT
R IN
L OUT
L IN
B
SS
G
R
FS
V OUT
V IN
R OUT
R IN
L OUT
L IN
SS
FS
AV LINK
AV LINK
SE RVICIO
HHVV
+5V
+5V
+5V
+5V
+25V
SHARP
L CTRONICA SPANA S.A.
NOMBR CODIGO
SCALA
MOD LO
F CHA R VISION S N
2 3 4
5 6
F CHA
A-1
KITP7 BMN15 5
Mother Board
70GS61FP
R ALIZADO V RIFICADO APROBADO
Q
1
3
+13V
-13V
+5V
+3.3VSTBY
-13V
03-07-2001
20-06-2001 HASTA INFO 196 47
6
29 28
30
25-06-2001 HASTA INFO 201 49
HASTA INFO 203 50 HASTA INFO 212 52
21-06-2001 HASTA INFO 198 48
31
HASTA INFO 205 51
+5V
+5V
A
26-06-2001 25-06-2001 03-07-2001
HFB
B G
SC2INR
SC2INL
SC1INL
SC1OUTL
SC1OUTR
SC1INR
SC2OUTR
SC2OUTL
VPROT
R
AL
VI1
AL
SC1IN
SC2IN
SI
AV1
VOUT
ALCLOCK
FI
CR1
AV2
FB
SDA
SCL
SDA
GND
SCL
AGC
AGC
AFT
SDA SCL
.
.
.
.
+180V
.
R319 100
R320 100
R321 100
R434 1K
C337
680pF
C338
1nF
C403 10nF
R407 75
R318 100
C340
680pF
C341 1000pF
FB302 LN0037
(F)
QPLGN0505C ZZ
C503 100pF
C502 330nF
C507 4.7nF
Q505 2SC2412
9
K
D508 DX0551BM
R506 120 (TQ)
R502
4K7
R516 1K
C511 2.2uF
R435 1K R450 22
Q405 2SA1037
C347 2n2
R326 100K
C348 2n2
R327 100K
R325 100
R324
100
R323 100
FB303
LN0037
R421 82
L202 12uH (DF)
R322 100
C508 560pF
R511 150 (TQ)
R503 1K (RA)
C505 100nF
C506 100nF
D
406
X0549
7
V5
D410
X0549
7V5
D409
X0549
7V5
D408
X0549
7V5
D407
X0549
7V5
C523
68nF
C521 68nF
R547 3K9
L501 P0271
R505
2K2
Q502 KSA928A TX0201
C524 100nF (FZ)
C534 1nF
FB501 LN0037
R518 2R2 (2W)
R553 1.2 (1/3W) XZ0101BM
C504 680nF (FZ)
D420 C5V6
X0409
17
19
13
15
9
11
5
7
1
3
2
4
6
8
10
12
14
16
18
20
17
13
15
9
11
5
7
1
3
2
4
6
8
10
12
14
16
D507 C12 X0417
AV1
SCART CZ2112BM
21
C201 470nF (FZ)
C205 220nF (FZ)
3
R411 22K
R410
8K2
R408
8K2
R409 22K
C404 680nF (FZ)
X201 4MHz
B0201BM
IC201 TDA9886 IX1808BM
VIF1 1 VIF2 2 OP1 3
FMPLL 4
D M 5
AFD 6
DGND 7
AUD 8
TOP 9
SDA 10
R F
15
VAGC
16
CVBS
17
AGND
18
VPLL
19
VP
20
AFC
21
OP2
22
SIF1
23
SIF2
24
SCL 11
SOUT 12
NC
13
TAGC
14
C322 100nF
L301 10uH (DF)
R223 33 (1/2W)
C422 220uF (10V)
R205 220
Q403
2SC2412
D405 X0549 7V5
C801 680nF (FZ)
R1026
10
C1016 100nF (FZ)
R526 33K
R202 100 (RA)
R203 100 (RA)
C804 100nF
D411 C5V6 X0409
R230 22K
C323 47pF
C324
47pF
X301 B0203 18,432MHz
R1414 1K
R415 75
R416 75
R417 75
R418 75 R420 75
R413 68
R412 75
R419 75
L401 12uH
C510 330nF
3
.
3
p
FC1041
47uF (6,3V)
C329 100nF
C344 680pF
C343
680pF
D424 X0554
D423 X0554
D425 X0554
D426 X0554BM
JF43JF44JF50
R231 390
R452 22
R1023 10K
5
p
F
FB402
LN-0037BM
C203 22nF
D422 X0556BM C15
C207 1n5
D406 X0549 7V5
J96 LN-0037C
C512 220nF
R528 100K
R504 39K
R517 1M
R422 680
C204 100uF (16V)
Q507 2SB852 TX0203
C224
100nF
C327 5pF
R535 6K8
C326 5pF
C325 47pF
R207 150
Q201 2SA1037
R514 560
4
R507 560K
C433 1nF
C330 330uF (10V)
C202 100nF
R501 150 2W
R204 22K
2
3
4 5 6 7 8 9 10 11
JF9 R217 12K
IC202 IX0037
R213
18K
1/2W
C214
220pF
C213 27pF R219
270 (RA)
JF6
L203 6.8uH (CF)
JF8
SF201 K3953 C0278BM
5
4
3
1
2
TH201A RTUNH0135BM
1
D202 DX0623BM
D201 DX0623BM
R212 22K
R209 6K8
R211 6K8
C210
10nF
C209 100nF R210 100
R208
22K
C208 10nF
JF5
Q202
2SC2412
R222 220K
R225 47K
C215 33uF (16V)
C211 10nF
C212 470uF (10V)
R214 18K (TQ)
R215 8K2 (TQ)
R250 8K2 (TQ)
R220
270 (RA)
D203
DX0623BM
D204 X0546BM
D205 X0546BM
C221 330nF
C222 100uF (6,3V)
SF202 K9456 C0294BM
5 4
3
1 2
R221 680K
R240 82K
R202 100K
L801 1uH
IC501 TDA7480L IX1786BM
1 2 3 4 5 6 7 8 9 10
20 19 18 17 16 15 14 13 12 11
R510 8K2
D511 1N4148
Q503 SUB15N06-90L TX0239BM
D512 C33 X0427
C206 10nF
R206 5K6
C219 390pF
C218 10nF
Digitally signed by Adolfo Fernandez cn=Adolfo Fernandez, ou=CAD GLOBAL NETWORK, o=SHARP, c=ES Date: 2001.10.29 13:42:19 Z Reason: This document is ready for approval
Digitally signed by Robert Comas Date: 2001.10.29 14:01:49 Z Reason: This document is ready for approval
Digitally signed by Jose Villarrasa cn=Jose Villarrasa, ou=Engineering Dept., o=SEES, c=ES Date: 2001.10.29 14:14:44 Z Reason: I am approving this document
All manuals and user guides at all-guides.com

20
70GS-61FP
MARK *: SPARE PARTS DELIVERY SECTION
REF No. PARTS DESCRIPTION * SN CODE EX CODE
PICTURE TUBE
VB66EHJ1338*N 28" 50Hz 4:3 THOMSON A66EHJ13x38 GT52% S BV CP
CCILG0404BMV0 DEG COIL SET NUCTOR 28" S AM AV
PWB-A DUNTK7315CJV5 ADJUST CHASSIS 70GS61FP S -- --
PWB-B DUNTK7316BMV5 UNIT CRT INS HAND 70GS61FP S -- --
PWB-A MOTHER UNIT
TUNER
TH 0201 RTUNH0135BMZZ TUNER UV1316/A I-2 S AX BD
INTEGRATED CIRCUITS
IC 0201 RH-IX1808BMZZ IC TDA9886ST PHILIPS S AG AS
IC 0202 RH-IX0037CEZZ IC UPC574J 33V NEC S AF AD
IC 0301 VHITDA7480/-1 IC TDA7480 THOMSON S AF AK
IC 0302 VHITDA7480/-1 IC TDA7480 THOMSON S AF AK
IC 0303 RH-IX1853BMZZ IC MSP3410G-QA-B8 MICRONAS S AA BC
IC 0304 VHIM5218L//-1 IC M5218L S AA AD
IC 0501 RH-IX1786BMZZ C.I. TDA 7480L THOMSON S AD AL
IC 0502 VHIBA4558//-1 IC BA4558 SMD S AD AC
IC 0601 VHIBA4558//-1 IC BA4558 SMD S AD AC
IC 0701 RH-IX1556BMZZ IC BA10393 S0P8 SMD ROHM S AC AD
IC 0702 RH-IX1674BMZZ IC KA431AZ SAMSUNG S AA AD
IC 0703 RH-FX0113BMZZ OPTOCOUPLER TCET1103G VISHAY S AA AC
IC 0705 RH-IX1674BMZZ IC KA431AZ SAMSUNG S AA AD
IC 0708 RH-IX1836BMZZ IC L78L08AC2TR ST S AA AD
IC 1001 RH-IX1855BMZZ IC VCT3811A-QH-C3 MICRONAS S -- --
IC 1002 CH-IX1844CJF0 EPROM SET 2M 3V (F0-02X09 Vers. or next) S -- --
IC 1003 RH-IX1668BMZZ NVM M24C16 SGS-THOMSON SADAG
TRANSISTORS
Q 0201 VS2SA1037KQ-1 TRT BC807 SMD SAA AA
Q 0202 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0305 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0306 VS2SA1037KQ-1 TRT BC807 SMD SAA AA
Q 0403 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0404 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0405 VS2SA1037KQ-1 TRT BC807 SMD SAA AA
Q 0502 RH-TX0201BMZZ TRT KSA928A SAMGUNG SAAAC
Q 0503 RH-TX0239BMZZ TRT SUD15N06-90L SILICONIX SAAAE
Q 0505 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0507 RH-TX0203BMZZ TRT 2SB852 ROHM SAAAB
Q 0603 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0604 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0605 RH-TX0192BMZZ TRT KSC2500 SAMSUNG SABAC
Q 0606 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0607 RH-TX0232BMZZ TRT BC847B SMD PHILIPS SAA AA
Q 0608 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
Q 0609 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0610 RH-TX0240BMZZ TRT 2SK2399 TOSHIBA S AB AF
Q 0611 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
*
NOTE: For K7315BMN4 use F0-01X01 Version. It is not interchangeable with F0-02x09 Vers or next.
REF No PARTS DESCRIPTION *
SN CODE EX CODE
Q 0613 RH-TX0227BMZZ TRT 25K2964 TOSHIBA S AA AD
Q 0701 CH-TX0237BMV0 TRT SET RH-TX0237 PREFORM S -- --
Q 0702 CH-TX0237BMV0 TRT SET RH-TX0237 PREFORM S -- --
Q 0703 CH-TX0237BMV0 TRT SET RH-TX0237 PREFORM S -- --
Q 0704 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
Q 0705 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0706 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0707 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0708 RH-TX0106BMZZ TRT BC547 S AA AB
Q 0709 RH-IX1641BMZZ IC L4940V5 THOMSON S AE AH
Q 0710 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0711 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0712 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
Q 0713 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
Q 0714 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0715 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
Q 0720 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0721 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
Q 0723 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0724 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0725 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 0796 RH-TX0227BMZZ TRT 25K2964 TOSHIBA S AA AD
Q 1001 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 1002 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 1003 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 1004 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 1006 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
Q 1007 VS2SA1037KQ-1 TRT BC807 SMD S AA AA
Q 1008 RH-TX0232BMZZ TRT BC847B SMD PHILIPS S AA AA
DIODES
D 0201 RH-DX0623BMZZ DIODE BA591 SMD PHILIPS S AA AB
D 0202 RH-DX0623BMZZ DIODE BA591 SMD PHILIPS S AA AB
D 0203 RH-DX0623BMZZ DIODE BA591 SMD PHILIPS S AA AB
D 0204 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA
D 0205 RH-EX0546BMZZ ZENER DIODE TZMC5V6 TFK SMD S AA AA
D 0302 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0303 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0304 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0305 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0306 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA
D 0307 RH-EX0550BMZZ ZENER DIODE TZMC8V2 TFK SMD S AA AA
D 0308 RH-EX0550BMZZ ZENER DIODE TZMC8V2 TFK SMD S AA AA
D 0403 RH-EX0412BMZZ ZENER DIODE BZX79C7V5 S AA AB
D 0404 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0405 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0406 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0407 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0408 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0409 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0410 RH-EX0549BMZZ ZENER DIODE TZMC7V5 TFK SMD S AA AA
D 0411 RH-EX0409BMZZ ZENER DIODE BZX79C5V6 S AA AA
D 0420 RH-EX0409BMZZ ZENER DIODE BZX79C5V6 S AA AA
D 0421 RH-EX0544BMZZ ZENER DIODE TZMC4V7 TFK SMD S AA AA
D 0422 RH-EX0556BMZZ ZENER DIODO TZMC15 TFK SMD S AA AA
D 0423 RH-EX0554BMZZ ZENER DIODE TZMC12 TFK SMD S AA AA
D 0424 RH-EX0554BMZZ ZENER DIODE TZMC12 TFK SMD S AA AA
D 0425 RH-EX0554BMZZ ZENER DIODE TZMC12 TFK SMD S AA AA
D 0426 RH-EX0554BMZZ ZENER DIODE TZMC12 TFK SMD S AA AA
D 0507 RH-EX0417BMZZ ZENER DIODE BZX79C12V S AA AA
D 0508 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA
D 0510 RH-DX0577BMZZ DIODE 1N4935 ACPA S AB AE
D 0511 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA
D 0512 RH-EX0427BMZZ ZENER DIODE BZX79C33V S AA AA
D 0602 RH-DX0299BMZZ DIODE BY 228-20 S AC AE
D 0604 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA
D 0605 RH-DX0518BMZZ DIODE 1N5819 G.INSTRUMENTS S AA AB
D 0606 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA
D 0607 RH-DX0634BMZZ DIODE RGP02-16E G.SEMICONDUCTOR S AA AB
D 0608 RH-DX0551BMZZ DIODE LL4148 TFK SMD S AA AA
D 0609 RH-DX0518BMZZ DIODE 1N5819 G.INSTRUMENTS S AA AB
D 0610 RH-DX0518BMZZ DIODE 1N5819 G.INSTRUMENTS S AA AB
PARTS LISTING
REPLACEMENT PARTS
Replacement parts which have special safety characteristics are identified
in this manual. Electrical components having such features are identified
by in the Replacement Part List.
The use of a substitute replacement part which does not have the same
safety characteristics as the factory recommended is not permitted.
Replacement parts not shown in this service manual may create shock
fire, or other hazards.
HOW TO ORDER REPLACEMENT PARTS
To have your order completed promptly and correctly please supply the
following information.
1. MODEL NUMBER
3. PART NO.
5. CODE
2. REF. NO.
4. DESCRIPTION
6. QUANTITY
All manuals and user guides at all-guides.com
