LCD COLORTELEVISION
SERVICE MANUAL
MODEL LC-15B1U
In the interests of user-safety (Required by safety regula-
tions in some countries) the set should be restored to its
original condition and only parts identical to those specified
be used.
Page
»IMPORTANT SERVICE SAFETY PRECAUTION................................................................................. 2
»PRECAUTIONS FOR USING LEAD - FREE SOLDER........................................................................ 4
»SPECIFICATIONS ................................................................................................................................ 5
»OPERATION MANUAL ......................................................................................................................... 6
»DIMENSIONS ....................................................................................................................................... 7
»REMOVING OF MAJOR PARTS .......................................................................................................... 8
»ADJUSTING PROCEDURE OF EACH SECTION ............................................................................. 11
»TROUBLE SHOOTING TABLE ........................................................................................................... 23
»CHASSIS LAYOUT ............................................................................................................................. 28
»BLOCK DIAGRAMS............................................................................................................................ 30
»DESCRIPTION OF SCHEMATIC DIAGRAM ..................................................................................... 32
»SCHEMATIC DIAGRAMS ................................................................................................................... 33
»PRINTED WIRING BOARD ASSEMBLIES ........................................................................................ 47
»PARTS LIST
ËELECTRICAL PARTS..................................................................................................................... 62
MAIN UNIT ..................................................................................................................................... 62
TERMINAL UNIT............................................................................................................................ 66
CONTROL UNIT ............................................................................................................................ 69
LED UNIT ....................................................................................................................................... 69
INVERTER UNIT............................................................................................................................ 69
ËCABINET PARTS LIST................................................................................................................... 70
ËSUPPLIED ACCESSORIES PARTS.............................................................................................. 70
ËPACKING PARTS ........................................................................................................................... 70
ËCABINET AND MECHANICAL PARTS.......................................................................................... 71
»PACKING OF THE SET ...................................................................................................................... 73
CONTENTS
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.

LC-15B1U
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in LCD television
have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage and etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by “ å”
IMPORTANT SERVICE SAFETY PRECAUTION
ËServiceworkshouldbeperfomedonlybyqualifiedservicetechnicianswhoarethoroughlyfamiliar
withallsafetychecksandtheservicingguidelineswhichfollow:
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams .
For continued protection, replacement parts must be
identical to those used in the original circuit.
The use of a substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire or other hazards.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND
DVM
AC SCALE
50k ohm
10W
0.15 µF
TEST PROBE
•Use an AC voltmeter having with 5000 ohm per volt, or
higher, sensitivity or measure the AC voltage drop
across the resisor.
•Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon and etc.) and measure the AC voltage drop
across the resistor.
All checks must be repeated with the AC cord plug
connection reversed. (If necessary, a nonpolarized
adaptor plug must be used only for the purpose of
completing these checks.)
Any reading of 0.75V peak (this corresponds to 0.5
milliamp.peak AC.) or more is excessive and indicates
a potential shock hazard which must be corrected
before returning the monitor to the owner.
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks:
1. Inspect all lead dress to make certain that leads are
not pinched, and check that hardware is not lodged
between the chassis and other metal parts in the
receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators and etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
•Plug the AC cord directly into a 110~240 volt AC outlet,
and connect the DC power cable into the receiver's
DC jack. (Do not use an isolation transformer for this
test).
•Usingtwoclipleads,connect a50kohm,10wattresistor
paralleled by a 0.15µF capacitor in series with all
exposedmetalcabinet partsand aknownearth ground,
suchaselectrical conduitorelectricalground connected
to an earth ground.
CAUTION
FOR CONTINUED PROTECTION
AGAINST A RISK OF FIRE REPLACE
ONLY WITH SAMETYPE FUSE.
F3701 (2A, 125V),F6500 (1.6A, 125V),F6501(1.6A,
125V) FUSE.
A V

3
LC-15B1U
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234
5
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234
5
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345
AVIS POUR LA SECURITE
De nombreuses pièces, électriques et mécaniques, dans
les téléviseurs présentent des caractéristiques spéciales
relatives àla sécurité, qui ne sont souvent pas évidentes
àvue. Le degréde protection ne peut pas être
nécessairement augmentée en utilisant des pièces de
remplacement étalonnées pour haute tension, puissance,
etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel; les
pièces électriques qui présentent ces particularités sont
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
ËNe peut effectuer la réparation qu’un technicien spécialisé qui s’est parfaitement accoutumé
à toute vérification de sécurité et aux conseils suivants.
identifiées par la marque “å”et hachurées dans la liste
des pièces de remplacement et les diagrammes
schématiques.
Pour assurer la protection, ces pièces doivent être
identiques àcelles utilisées dans le circuit d’origine.
L’utilisation de pièces qui n’ont pas les mêmes
caractéristiquesquelespiècesrecommandéesparl’usine,
indiquées dans ce manuel, peut provoquer des
électrocutions, incendies, radiations X ou autres acci-
dents.
AVERTISSEMENT
1. N’entreprendre aucune modification de tout circuit.
C’est dangereux.
2. Débrancher le récepteur avant toute réparation.
VERIFICATIONS CONTRE L’INCEN-DIE ET
LE CHOC ELECTRIQUE
Avant de rendre le récepteur à l’utilisateur, effectuer
les vérifications suivantes.
1. Inspecter tous les faisceaux de câbles pour s’assurer
que les fils ne soient pas pincés ou qu’un outil ne soit
pas placéentre le châssis et les autres pièces
métalliques du récepteur.
2. Inspecter tous les dispositifs de protection comme les
boutons de commande non-métalliques, les isolants,
le dos du coffret, les couvercles ou blindages de
réglageetdecompartiment,lesréseauxderésistance-
capacité, les isolateurs mécaniques, etc.
3. S’assurer qu’il n’y ait pas de danger d’électrocution en
vérifiant la fuite de courant, de la facon suivante:
•Brancher le cordon d’alimentation dans la prise CA de
110~240 V et le câble d’alimentation CC dans le jack
du moniteur. (Ne pas utiliser un transformateur pour
cet essai.)
•A l’aide de deux fils àpinces, brancher une résistance
de 1,5kΩ10 watts en paralléle avec un condensateur
de 0,15µF en série avec toutes les pièces métalliques
exposées du coffret et une terre connue comme une
conduite électrique ou une prise de terre branchée à
la terre.
•Utiliser un voltmètre CA d’une sensibilitéd’au moins
5000Ω/V pour mesurer la chute de tension en travers
de la résistance.
•Toucher avec la sonde d’essai les piéces métalliques
exposées qui présentent une voie de retour au châssis
(antenne, coffret métallique, tête des vis, arbres de
commande et des boutons, écusson, etc.) et mesure
la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites aprés avoir
inverséla fiche du cordon d’alimentation. (Si
nécessaire, une prise d’adpatation non polarisée peut
être utilisée dans le but de terminer ces vérifications.)
Une valeur de 0.75 V RMS ou plus (correspond à0.5
mA C.A.) est excessive et implique un danger de
secousse électrique, qui devra être suppriméavant
de retourner l'appareil àl'utilisateur.
0.15 µF
SONDE D'ESSAI
VERS PIECES
METALLIQUES
EXPOSEES
VTVM
ECHELLE CA
50K OHMS
10W
CANNECTER A
UNE MASSE DE
TERRE CONNUE
PRECAUTION
POUR LA PROTECTION CONTINUE
CONTRE LES RISQUES D’INCENDIE,
REMPLACER LE FUSIBLE PAR UN FUSIBLE
DE MEME TYPE F3701 (2A, 125V), F6500
(1.6A, 125V), F6501 (1.6A, 125V) FUSE.
A V

LC-15B1U
4
ËPrecautions for using lead-free solder
1Employing lead-free solder
“Main PWB”of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached
on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
Example:
Indicates lead-free solder of tin, silver and copper.
2Using lead-free wire solder
When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional
lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend
you to use a dedicated soldering bit. If you are not familiar with how to obtain lead-free wire solder or soldering bit,
contact our service station or service branch in your area.
3Soldering
As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder
by 40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB
for extended period of time. However, since the land may be peeled off or the maximum heat-resistance
temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering
condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on
and off the power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after
every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
Be careful when replacing parts with polarity indication on the PWB silk.
Special attention must be paid to coils of L6500 - L6503.
Part No. ★Description Code
ZHNDAi123250E J φ0.3 mm 250 g (1 roll) BL
ZHNDAi126500E J φ0.6 mm 500 g (1 roll) BK
ZHNDAi12801KE J φ1.0 mm 1 kg (1 roll) BM
Lead-free wire solder for servicing

5
LC-15B1U
SPECIFICATIONS
LCD panel................................................ 15" Advanced Super View & Black TFT LCD
Number of dots ..................................................................................921,600 dots VGA
Video color system ..............................N358/N443/PAL/PAL-M/PAL-N/SECAM/PAL-60
TV Function
Destination......................................................................................USA/Latin A/Twn
TV-Standard (CCIR) ................................................................. NTSC/PAL-M/PAL-N
TV-Tuning System...................................................................................PLL 181 ch.
Stereo ..................................................................................................... MTS + SAP
CATV.............................................................................................................. 125 ch.
4-line comb filter ....................................................................................................... Yes
Audio output.....................................................................................................2.1 W x 2
Speakers............................................................... 1-37/64 x 2-3/4 in. (4 x 7 cm), 2 pcs.
Terminals
AV1 ........................................................................................... AV-IN1, S-VIDEO-IN
AV2 ...................................................................................................AV-IN2/AV-OUT
Component ..................................................................COMPONENT-IN, AUDIO-IN
Antenna ..........................................................................................................F-Type
Headphone ...................................................................... Mini-jack for stereo (3.5 φ)
PC Card slot ...................................................... PC Card Type ll (PC Card adapter)
Image File Format............................................. JPEG files complying with DCF format
OSD language ..........................................................................English/French/Spanish
Power supply........................................................... DC 12 V, AC 110 - 240 V, 50/60 Hz
Power consumption ............................................................AC 43 W (With AC adapter)
DC 37 W (DC 12 V)
Weight.......................................................................11.7 lbs (5.3 kg), w/o accessories
Accessories ................................................ Remote Control, Batteries, Antenna cable,
AC adapter, AC cord, Cable clamp
Æ The LCD display is manufactured with concentrated precision technology, and has
effective pixels of more than 99.99%. 0.01% of them may be missing or all the time.
This is normal.
Specifications are subject to change without prior notice.

LC-15B1U
6
OPERATION MANUAL
Main unit (Front view)
Remote Control
TV/VIDEO, CH ( )/( ), VOL (–)/(+), and MENU on the main unit have the same functions as the same buttons
on the remote control. Fundamentally, this operation manual provides a description based on operation with the
remote control.
POWERSLEEP
VOL CH MENU TV/VIDEO MAIN POWER
VOL (–)/(+)
CH ( )/( )
MENU
TV/VIDEO
MAIN POWER
Speaker
SLEEP indicator
The SLEEP indicator lights up red when
the SLEEP TIMER is set to on.
Speaker
Upper control panel
Remote sensor window
To change the vertical angle of the LCD
TV set, tilt the screen up to 5 degrees
forward or 10 degrees backward. The
TV set can also be rotated 50 degrees
horizontally. Please adjust the angle so
that the TV set can be watched most
comfortably.
POWER indicator
A green indicator lights when the power is
on and a red indicator lights when in the
standby mode (the indicator will not light
when the main power is off).
PC Card slot
Note
VIDEO
AUDIO
L
Y
P
B
P
R
R
AUDIO
L
R
COMPONENT
AV-IN2/OUT
ANT.
VIDEO
S-VIDEO
AUDIO
L
R
HEAD
PHONE
POWER
INPUT
DC12V
AV-IN1
VOLCH MENUTV/VIDEOMAINPOWER
PC CardPC Card
Antenna terminal
AUDIO (L)
AUDIO (R)
HEADPHONE
POWER INPUT
(DC 12V)
AUDIO (L)
AUDIO (R)
VIDEO
Y
P
R
P B
AV-IN2/OUT
COMPONENT
AUDIO (L)
AUDIO (R)
VIDEO
S-VIDEO
AV-IN1
PC Card slot
Main unit (Rear view)

7
LC-15B1U

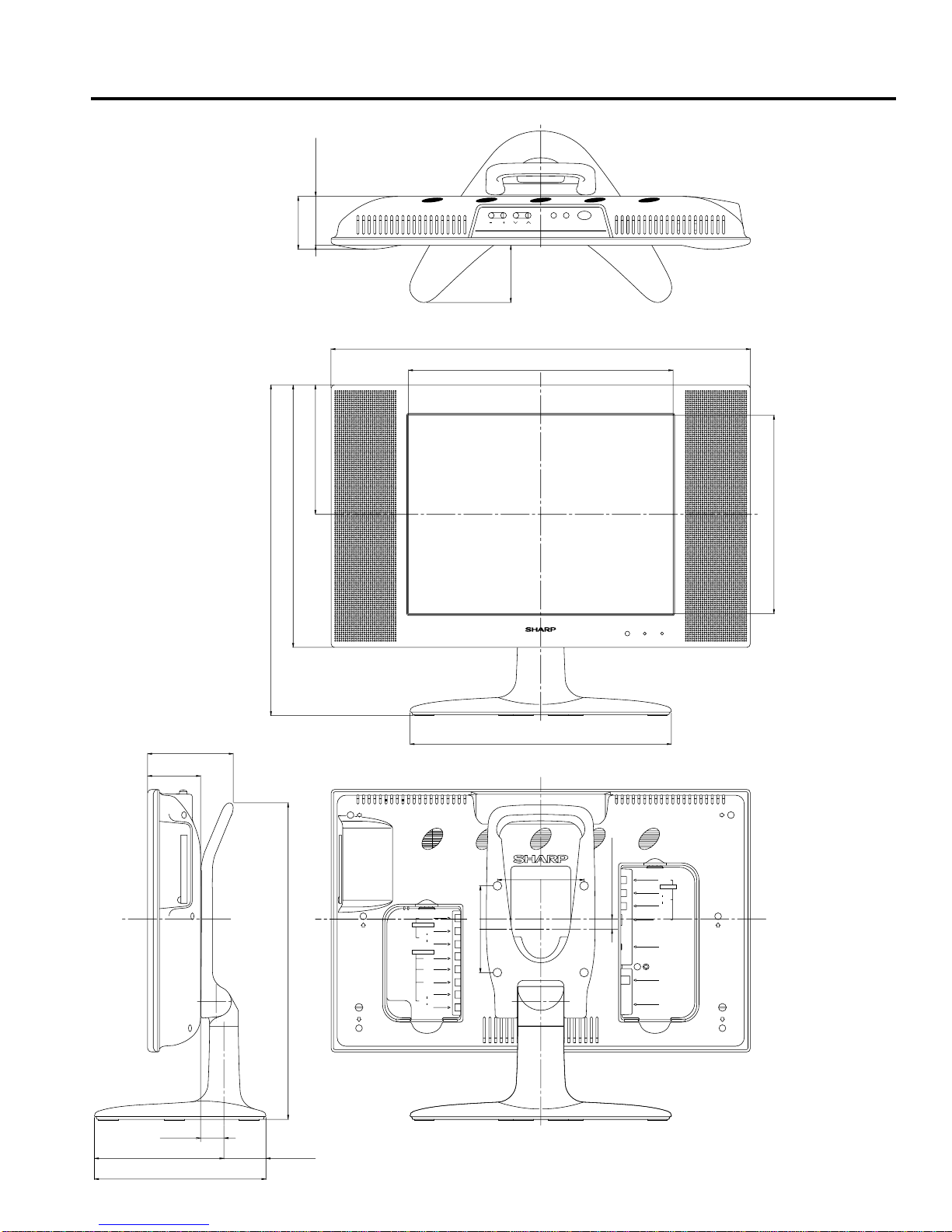

DIMENSIONS
(Unit: Inch/mm)
CHVOL TV/VIDEOMENU MAINPOWER
POWER
INPUT
DC12V
ANT.
HEAD
PHONE
S-VIDEO
R
AUDIO
VIDEO
AV-IN1
L
AV-IN 2/OUT
COMPONENT
R
AUDIO
VIDEO
L
R
AUDIO
L
PR
PB
Y
15-
1/32
/381.7
2-
13/32
/61.12-
7/32
/56.5
2-
19/32
/66
19- 1/16 /484
12-
1/64 /305.3
3-
15/16
/100
11- 7/8 /301.6
5-
57/64 /149.5 1- 29/32 /48.5
1- 1/16 /27
2-
13/32 /61.1
3-
57/64 /98.8
7-
51/64 /198
11-
59/64
/303
5-
57/64
/149.5
9-
1/64
/229
14-
3/8
/365.2
15/32
/11.8
3- 15/16 /100

LC-15B1U
8
Terminal PWB
LED PWB
Control PWB
Main PWB Inverter PWB
P3601
SC3403
P3702
P3500
P3504
P6500 P6501
6
6
6
66
666
6
6
6
6
6
P3501
P3503
P3703
P6502
SC2001
P2004
P2003
SC1203
SC1202 SC1201
P4005
5-2
5-2
5-1
5-2
PC Card Frame Angle
PC Card PWB
[ CAUTION ]
When you attach FFC , a
Black dot mark should be
on a card unit side

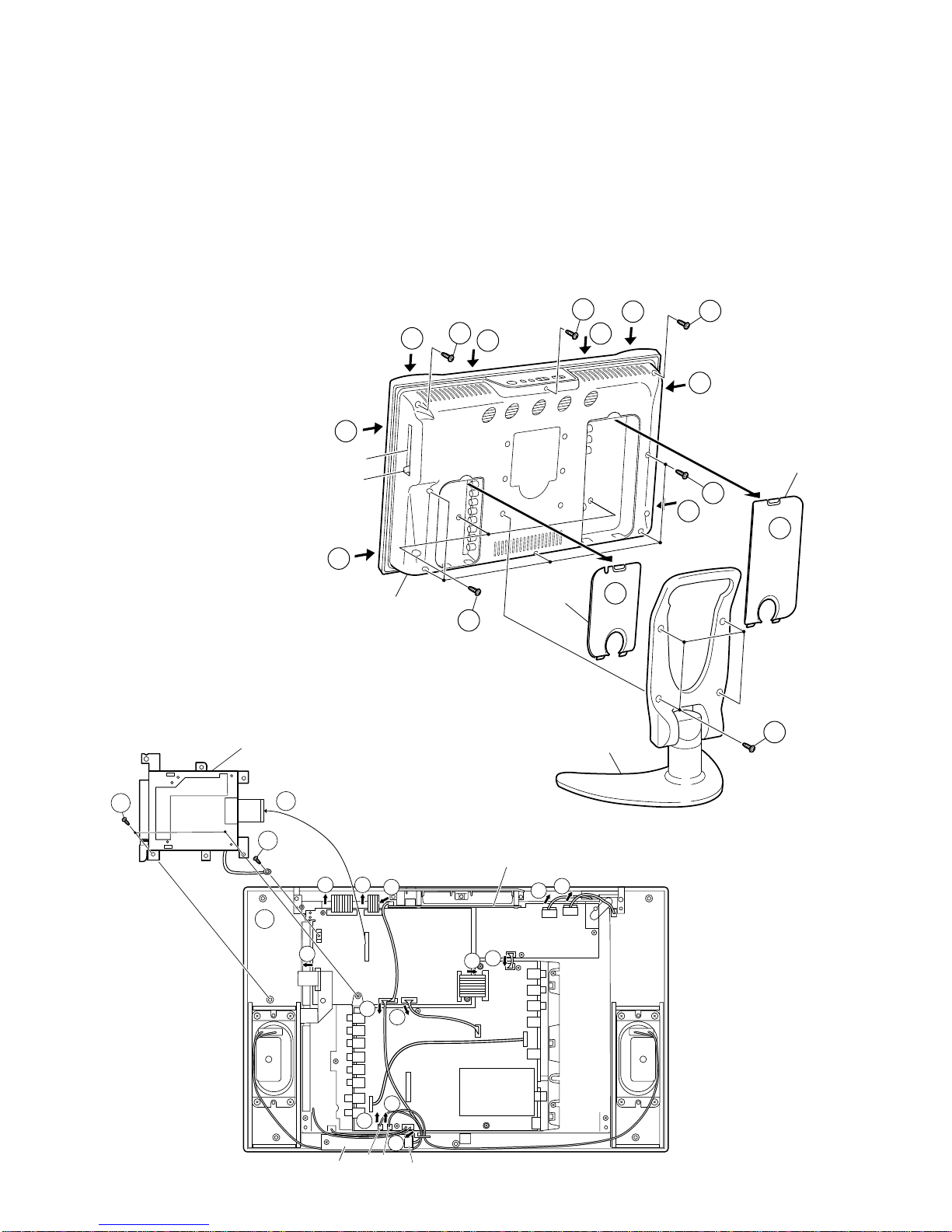

REMOVING OF MAJOR PARTS
1. Remove two Rear covers.
2. Remove the Table stand fixing screws (4 pcs.).
3. Remove the Cabinet B fixing screws (10 pcs.) and detach the cabinet.
4. Push on the hooksof the Cabinet B, open the cabinet and detach eight hooks,
and then detach the Cabinet B.
5. Remove the PC card
5-1. Detach the connector.
5-2. Remove the PC card frame angle
fixing screws (2 pcs).
6. Detach the connector from each PWB.
Cabinet B
PC Card Slot
PC Card Eject button
Table stand
Rear cover (L)
1
2
33
3
3
3
1
4
4
444
4
4
4
Rear
cover (S)

9
LC-15B1U

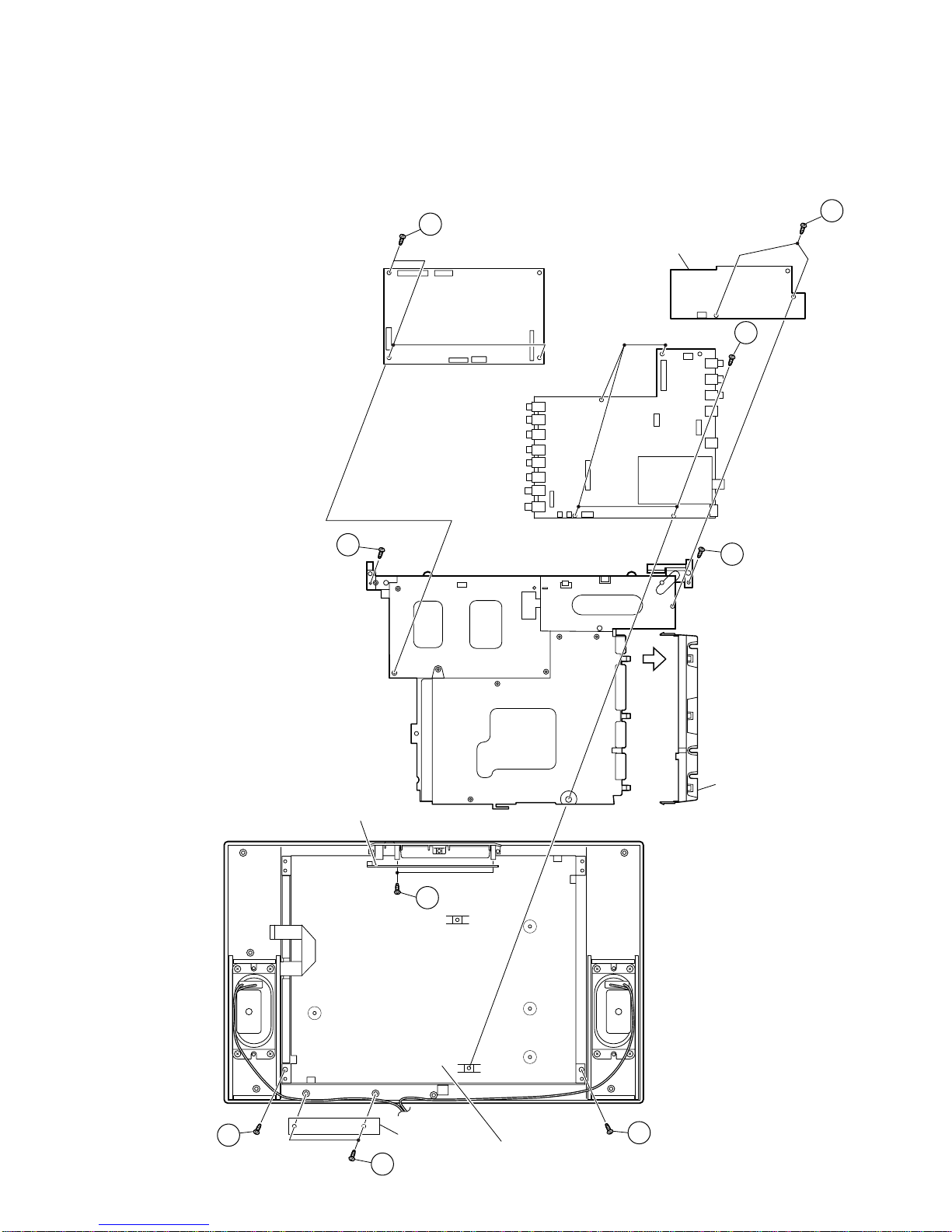

7. Remove the Main PWB fixing screws (3 pcs.).
8. Remove the Inverter PWB fixing screw (2 pcs.).
9. Remove the Terminal PWB fixing screws (4 pcs.).
10. Remove the LED PWB fixing screws (2 pcs.).
11. Remove the Control PWB fixing screws (2 pcs.).
12. Remove the LCD Unit fixing screws (4 pcs.).
9
8
12
Terminal PWB
Chassis Frame
Main PWB
Inverter PWB
11
LED PWB
7
Control PWB
10
LCD Unit
12
12 12

LC-15B1U
10

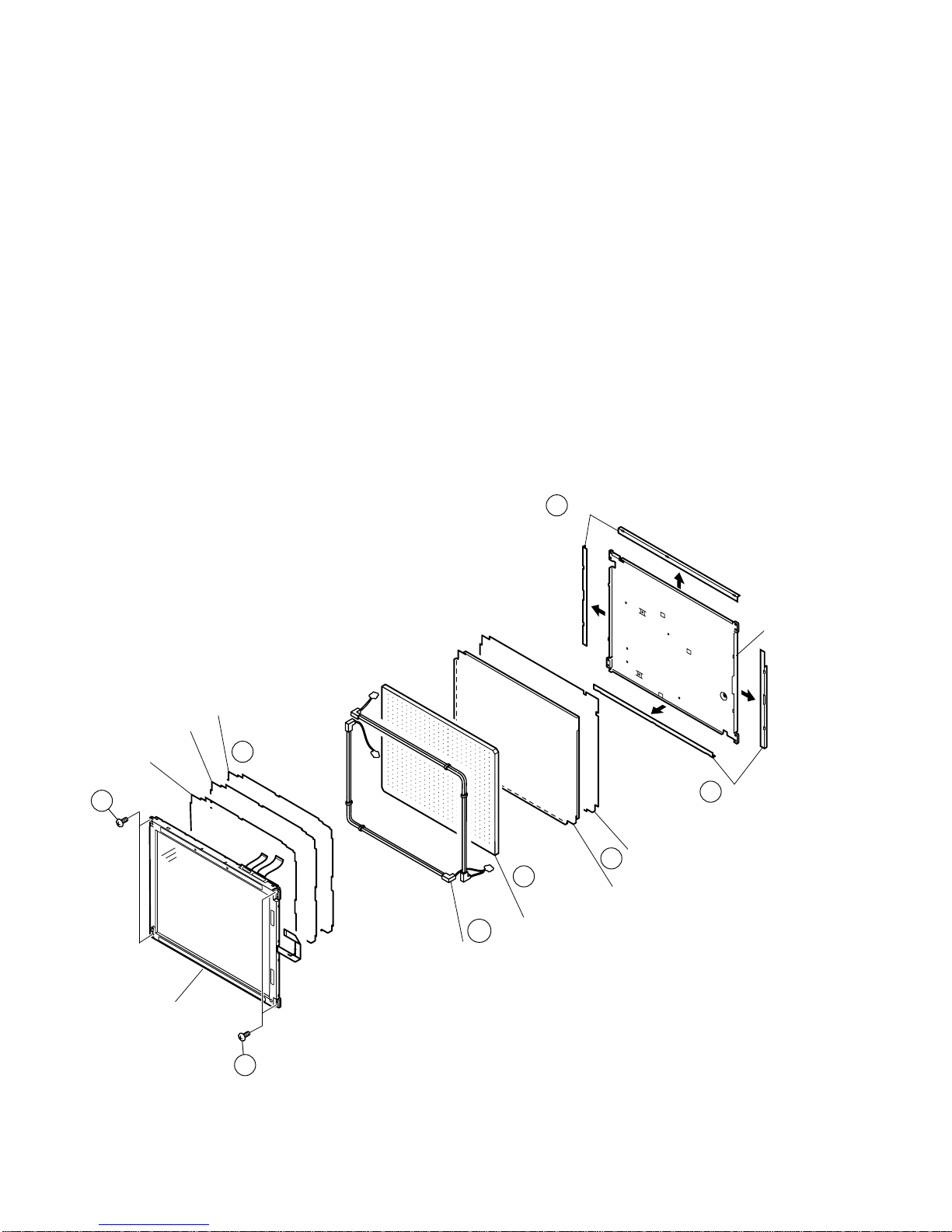

13. Remove the LCD display unit fixing screws (4 pcs.).
14. Detach the Reflection/deflection sheet, Prism sheet and Diffusion sheet.
15. Detach four Reflection mirrors.
16. Remove the Fluorescent lamp.
17. Detach the Light guide plate.
18. Detach two Lamp reflection sheets.
Shielding plate
(PSLDM4689CEFW)
Lamp reflection sheet-1
(PSHEP0284CEZZ)
Light guide plate
(PGiDM0070CEZZ)
Fluorescent lamp
(KLMP-0122CEZZ)
Lamp reflection sheet-2
(PSHEP0285CEZZ)
18 19
14
17
Reflection mirror
Reflection mirror
15
14
Reflection/deflection sheet
(PSHEP0283CEZZ)
LCD display unit
(RLCDTA003WJZZ)
16
Diffusion sheet
(PSHEP0281CEZZ)
Prism sheet
(PSHEP0282CEZZ)
16


11
LC-15B1U
ADJUSTING PROCEDURE OF EACH SECTION
The best adjustment is made before shipping. If any position deviation is found or after part replace is performed, adjust
as follows.
1.Preparation for Adjustments
(1) Use the exclusive-use AC adapter or stable DC power supply.
AC adapter: UADP-0242CEPZ
DC power supply: 12 ±0.5V
2.Special mode setting procedure
(1) After initialization of E2PROM the mode is changed to the adjustment mode.
[Procedure]
Connect TP2001 and TP2002 to GND, and turn on the power.
[Description]
»The initialization of microcomputer is as follows.
»AV position, DAC data, G/A data, sound processor data, and video chroma data adjustment values are taken as
defaults.
(2) Adjustment mode
[Procedure]
Short-circuit TP2001 to GND, and turn on the power.
Or short-circuit TP2002 to GND, and turn on the power.
Or holding down the [TV/VIDEO] key and [MENU] key, turn on the main power, and simultaneously press the
(inspection process) [CH "] key and [VOL –] key to change the mode to the adjustment mode.
[Description]
The manual adjustment or adjustment through communication with the automatic machine is performed.
(3) Shipping setting mode
[Procedure]
Holding down the [TV/VIDEO] key and [MENU] key, turn on the main power, and simultaneously press the
(inspection process) [CH '] key and [VOL +] key to change the mode to the shipping setting mode.
Note: Keep it in mind to turn off the power immediately. If any key-in is accidentally made, the setting will be
canceled.
[Description]
User adjustment and other values are taken as defaults.
If TV is indicated as SETTING COMPLETE, setting has been completed.
3.Cancel of special mode
Turn off the main unit power.

LC-15B1U
12
1 B+ Adjustment
(R3760)
2 Inch Size setup
(If E2PROM is replaced)
(IC2004)
3 Common-bias
adjustment
4 TAMP adjustment
1. Connect the DC voltmeter topin (2) of
P3702.
1. Go to the adjustment mode.
1. Receive a B/W channel.
2. Go to the adjustment mode.
3. Select the"COMBIAS"with [MENU]
key.
1. In the TV mode, the unit receives a
picture of the half color bar signal
whose left top corner is 75% white.
The signal does not have to be the
half color bar as long as the 180th
line from the top and 46th pixel from
the left is 75% white. (Data at this
point is used for adjustment.)
2. Adjust "NTSC TAMP" on the page 2
of the adjustment process mode so
that the "Y" value on the same page
falls between BF - C9.
Page 2 of the adjustment process
mode
3. Set the values of PAL-M TAMP and
PAL-N TAMP same.
1. Adjust the "B+ Adj" value to
5.0 ±0.02V with R3760.
* Keep the voltage at pin (2) of P3702
below 5.3V during the adjustment.
1. Select "INCH SIZE" and adjust to
"15" with [VOL +] or [VOL –] key.
* The color of "INCH SIZE" must be
yellow.
1. Adjust "COM BIAS" to the darkest
screen with [VOL +] and [VOL –] key.
* The color of "COM BIAS" must be
yellow.

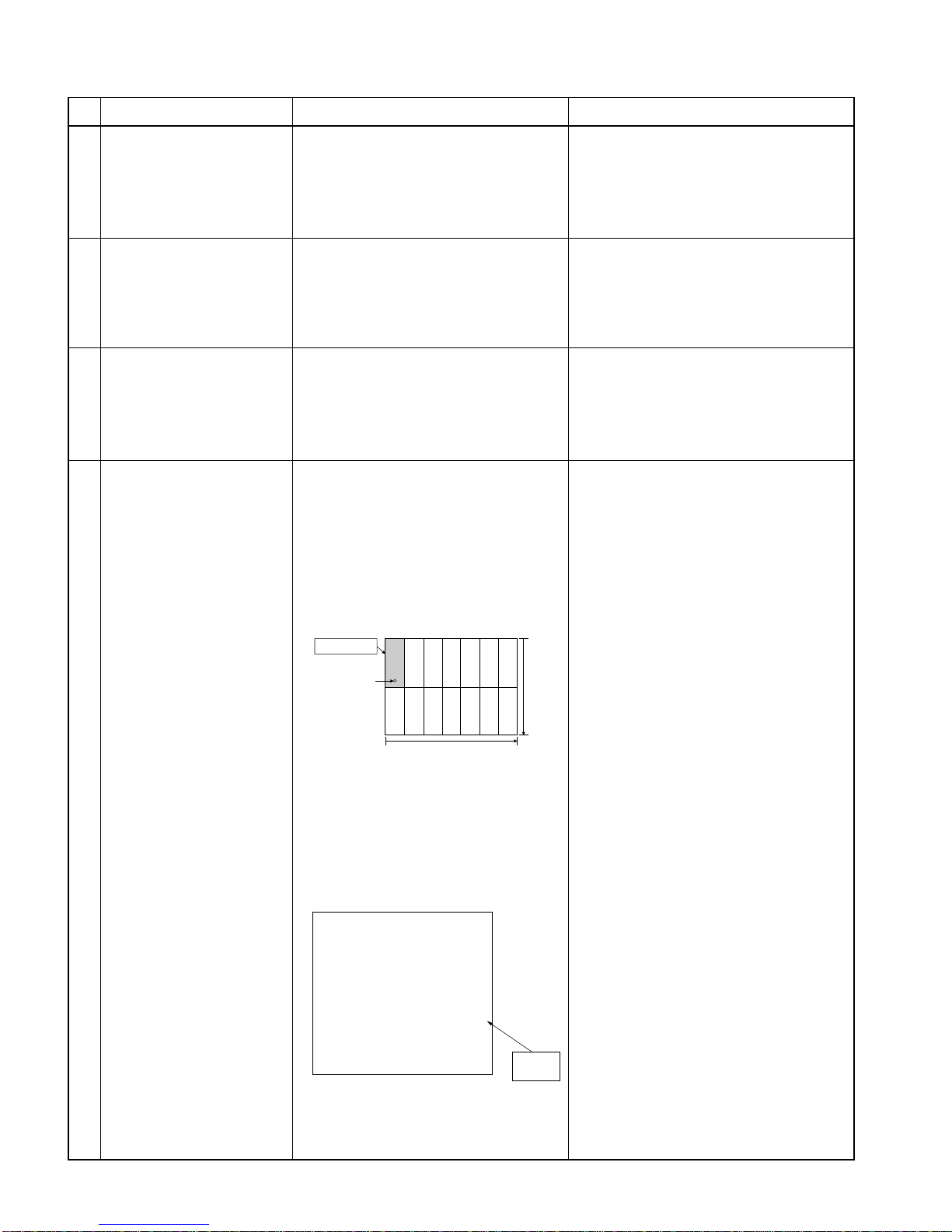

4.Adjustments
Adjustment Adjusting conditions Adjusting method
2
| COM BIAS 120
NTSC TAMP 27
PAL-M TAMP 27
PAL-N TAMP 27
RCUTOFF 0
GCUTOFF 0
BCUTOFF 0
G3 B3 R3 00 00 00
G1 B4 Y DF DE B5
TAMP H C9
TAMP L BF
GAIBU VER 0.000 Y-Data
(White 100%)
Vertical: 180th line
Horizontal: 46th pixel
Upper left 75%
640 pixels
480 lines

13
LC-15B1U
5 White balance
adjustment
6 Checking and modifying
the settings
(If E2PROM is replaced)
1. Receive the monoscope pattern
signal.
2. Adjust the "RCUTOFF" and
"BCUTOFF" settings on the page 2
of the adjustment process mode to
become the proper white balance.
Do not change the "GCUTOFF"
settings. (It also change the black
level.)
1. Go to the adjustment mode and
check the following settings.
»V176 137
»V64 73
»V21 50
»V0 BIAS 130
1. See if all the settings are as specified.
If not, select an item in question with
[VOL +] or [VOL –] key and adjust the
setting as shown at left.
* An item selected will be highlighted
in yellow.
Adjustment Adjusting conditions Adjusting method

LC-15B1U
14
5.Shipping setting list
Channel............................................................................................................................................... 2ch
Air/Cable ............................................................................................................................................. Air
Skip Data_CATV................................................................................................................................. All Skip
Skip Data_AIR .................................................................................................................................... All Skip
Volume................................................................................................................................................ 20
Picture................................................................................................................................................. 30
Tint ...................................................................................................................................................... 0
Color ................................................................................................................................................... 0
Black Level ......................................................................................................................................... 0
SHARPNESS...................................................................................................................................... 0
RED-BLUE.......................................................................................................................................... 0
GREEN ............................................................................................................................................... 0
TV Color System................................................................................................................................. N358
AV Color System ................................................................................................................................ Auto
Language............................................................................................................................................ English
Blue Screen ........................................................................................................................................ Off
EZ Setup Auto Start............................................................................................................................ On
Sleep Timer ........................................................................................................................................ None
MTS .................................................................................................................................................... Stereo
Brightness........................................................................................................................................... Bright
Auto Power Off ................................................................................................................................... Off
Upside................................................................................................................................................. Normal
Right/Left ............................................................................................................................................ Normal
AV2 IN/OUT........................................................................................................................................ In
Closed Caption (Mode) ...................................................................................................................... OFF
(Data) ....................................................................................................................... CH1
V Chip block (MPAA)..................................................................................................................... None
(TV Guideline) .......................................................................................................... None
(Block Content) ........................................................................................................ All Unblock
(Status)..................................................................................................................... Off
(Input Secret No.)..................................................................................................... Clear
CARD
CARD MODE CARD
SLIDE SHOW SETTING INTERVAL 5SEC
ORDER TO SHOW NORMAL
REPEAT OFF
SOUND SETTING TV ——(OFF)
AV1 ——(OFF)
AV2 ——(OFF)
COMPONENT ——(OFF)

15
LC-15B1U
6.Test patterns in adjustment process mode
(1) IC801 (video decoder) test pattern
1-1) Indication of the test pattern
Set the screen to AV1, AV2, or component, and do not input a signal.
It enters the adjustment process mode. By selecting “TEST PATTERN”on the third line of page 7 and changing
the setting value to one of 1 - 6, the test pattern will be displayed.
1-2) Description of test pattern
•In Setting 1 The color bar as shown to the left will appear.
•In Setting 2
A striped pattern with narrower bars than in Setting 1 will appear.
•In Setting 3 Green pattern as shown to the left will appear.
•In Setting 4
Green pattern of slightly dark tone will appear.
•In Setting 5
Green pattern of middle tone will appear.
•In Setting 6
Green pattern of slightly bright tone will appear.
(2) Test pattern of IC1201 (LCD controller)
2-1) How to display the test pattern
Set the screen to AV1, AV2, or component, and do not input a signal.
It enters the adjustment process mode. By selecting “G/A TEST PATTERN”on the 13th line of page 16 and
changing the setting value to ON, the test pattern will be displayed.
2-2) Description of the test pattern
The test pattern as shown to the below will appear.
Note: If both test pattern displays of IC801 and IC1201 are set to ON, that of IC1201 will prevail.
Magenta Magenta
Cyan
Yellow Green
Blue
Red
Green Cyan
Yellow
Green
(Bright)
(Bright)
(Bright)
(Bright)
(Dark)
(Dark)
(Dark)
(Dark)
(Dark)
(Dark)
(Dark)
(Dark)
Grey scale
Red
Green
Blue
White
(63 grey level)
Grey
(48 grey level)
Grey
(32 grey level)
Grey
(16 grey level)
White
(0 grey level)
White
Green
Bright Bright
Dark

LC-15B1U
16
(3) Trouble shooting using test patterns
Is the test pattern of IC801
displayed normally?
Check IC801 and its
peripheral circuits.
Is the waveform of signal
input pins of IC801 normal?
TV/Composite.......Pin (73)
S-video........Pins (71), (72)
Component.....Pins (4), (5),
(6), (75)
Check the signal input line
of IC801.
Is the test pattern of IC1201
displayed normally?
Check the signal output
line of IC801, IC801 and
its peripheral circuits.
Is the waveform of pins
(10), (11), (13), (15), (17)
of IC1201 normal?
Check IC1201 and its
peripheral circuits, voltage of
LCD panel and waveform.
Check the line, IC801 and its
peripheral circuits.

17
LC-15B1U
No. Terminal Name Descriptions
1 V HOLD For closed caption
2 HLF For closed caption
3 MAINSW Main switch ON “H”/ OFF “L”
4 TIMELED For LED lighting when off-timer is ON
5 M/S OUT Master-slave output for sub-micon
6 CSYNC Composite synchronized signal
7 IREMI Remote control
8 GND GND grounding
9 GND GND grounding
10 XCIN 32 kHz oscillation input
11 XOUT 32 kHz oscillation output
12 RESET Reset state in “L”
13 XOUT Oscillator connection in micon part
14 GND GND grounding
15 XIN Oscillator connection in micon part
16 VCC Power source
17 OSCIN Clock input for OSD
18 OSCOUT Clock output for OSD
19 PSWIN Main power source input
20 SUBREADY READY input for sub-micon
21 BLK Blanking output for OSD
22
23 DAC1CS DAC1 chip select
24 DAC2CS DAC2 chip select
25 DSW Detection for D-terminal connection
26 DTV Control line for D-terminal
27 MRDY Input for I2C bus open-connection change
28 SCL2 I2C bus serial clock line 2
29 SCL1 I2C bus serial clock line 1
30 SDA1 I2C bus serial data line 1
31 SDA2 I2C bus serial data line 2
32 R R-signal output
33 G G-signal output
34 B B-signal output
35 SUBDOUT Data output for sub-micon
36 SUBDIN Data input for sub-micon
37 SUBCLK Clock input for sub-micon
38
39 MRDY OUT I2C open-connection output
40 FCH Field-destinctional signal output when no signals
41 IREM OUT Not used
42 L_ERR Fluorescent lamp error detection input
43 S IN/OUT AUDIO IN/OUT change
44 N443 “H”in N443, “L”in others
45 PAL “H”in PAL, “L”in others
46 SECAM “H”in SECAM, “L”in others
47 PAL_M “H”in PAL-M, “L”in others
48 N358 “H”in N358, “L”in others
49 PXOE Card (Card mode in “L”)
50 VSH OUT Control for panel gate driver voltage
No. Terminal Name Descriptions
51 REQ Adjusting procedure
52 AV/SY/DY2 CCD input change for US
53 FSMUTE Front speaker mute
54 RSMUTE Rear speaker mute
55 HPDET Headphones detection: detect in “L”
56 SSTBY Speaker standby (“H”in standby state)
57 VSH IN Check for panel gate driver voltage
58 LMUTE LINE OUT sounds MUTE
59 V IN/OUT VIDEO IN/OUT change
60 SRESET Sound multiplex reset: reset in “L”
61 DENKA For counter-measures to the electric charge
62 VCC Power source
63 CARDPOW Card (ON/OFF)
64 VSS GND grounding
65 TV/AV1 Analog SW 1
66 AV/AV2 Analog SW 2
67 VIS/3DS Analog SW 3
68 AV1/VISY Analog SW 4
69 AV/SY/DY1 CCD input change for US 2
70 STD Micon power-OFF output
71 PMUTE P-mute
72 POWOUT DC/DC control output
73 AD POW Adapter ON/OFF input
74 IREM 2 Receiving in slave state
75 MPRCS G/A read enable
76 MPRDA G/A data input
77 MPCS G/A chip select
78 MPDA G/A data out
79 MPCLK G/A clock
80 DDCRESET Digital decoder reset
81 KEY4 Key input 4
82 KEY5 Key input 5
83 CARDRESET CARD RESET (reset in “H”)
84 SAW SW For the tuner change (use “H”)
85 MODE1 For the tuner change (use “H”)
86 MODE2 For the tuner change (use “H”)
87 SSYSTEM For the detection of S-system change
88 SSW S-terminal connection input (S-terminal connection in “L”)
89 AFT AFT voltage input
90 AGC AGC voltage input
91 KEY1 Key input 1
92 KEY2 Key input 2
93 KEY3 Key input 3
94 POWIN Detection for DC/DC starting
95 VSYNC Vertical sychronized signal for OSD
96 AVSS Analog power input (GND)
97 HSYNC Horizontal sychronized signal for OSD
98 TVSETB For closed caption (GND)
99 AVCC OSD power input
100 CVIN Signal input for closed caption
Descriptions of the terminals of Micon IC (IC2001) RH-iXA276WJZZQ

LC-15B1U
18
Standard settings
1 INCH SIZE 15 Inch size select Adjustment
MODEL B1U Model name
CARD ON Card system ON/OFF setup
SYSTEM AUTO Color system change
NTSC PWM FREQ OCO Light control frequency setup
PAL PWM FREQ OBD Light control frequency setup
NTSC PWM DUTY 0 Light control duty setup
PAL PWM DUTY 0 Light control duty setup
TV GAIN OFF Auto gain setup in TV mode
ERROR NO RESET 0 Lamp error count and reset Number of times of lamp error
V-CHIP 1 VCHIP line mute setup
CANADIAN VCHIP OFF CANADIAN VCHIP correspondence setup
Video adjustment
2 COM BIAS 120 Common bias adjustment Adjustment
NTSC TAMP 27 TAMP adjustment Adjustment
PAL-M TAMP 27 TAMP adjustment Adjustment (Same value to NTSCTAMP)
PAL-N TAMP 27 TAMP adjustment Adjustment (Same value to NTSCTAMP)
RCUTOFF -1 Red cutoff adjustment Adjustment
GCUTOFF 0 Green cutoff adjustment
BCUTOFF -1 Blue cutoff adjustment Adjustment
G3 00 DATA READ Value
B3 00 DATA READ Value
R3 00 DATA READ Value
G1 00 DATA READ Value
B4 00 DATA READ Value
Y 00 DATA READ Value in TAMP adjustment
TAMP H C9 Y max. value setup in TAMP adjustment
TAMP L BF Y min. value setup in TAMP adjustment
3 TV NTSC CONT 50 Video contrast setup (TV NTSC)
TV PAL-M CONT 50 Video contrast setup (TV PAL-M)
TV PAL-N CONT 50 Video contrast setup (TV PAL-N)
AV N358 CONTRAST 50 Video contrast setup (Composite, S-video)
AV PAL CONTRAST 50 Video contrast setup (Composite, S-video)
AV SECAM CONTRAST 50 Video contrast setup (Composite, S-video)
AV PAL-M CONTRAST 50 Video contrast setup (Composite, S-video)
AV PAL-N CONTRAST 50 Video contrast setup (Composite, S-video)
AV PAL60 CONTRAST 50 Video contrast setup (Composite, S-video)
G3 00 DATA READ Value
B3 00 DATA READ Value
R3 00 DATA READ Value
G1 00 DATA READ Value
B4 00 DATA READ Value
Y 00 DATA READ Value
Audio adjustment
4 TV GEQ BAND1 +2.0 Equallizer setup1 (TV)
TV GEQ BAND2 +0.5 Equallizer setup2 (TV)
TV GEQ BAND3 -2.0 Equallizer setup3 (TV)
TV GEQ BAND4 -1.5 Equallizer setup4 (TV)
TV GEQ BAND5 -1.5 Equallizer setup5 (TV)
EXT GEQ BAND1 +2.0 Equallizer setup1 (External input)
EXT GEQ BAND2 +0.5 Equallizer setup2 (External input)
EXT GEQ BAND3 -2.0 Equallizer setup3 (External input)
EXT GEQ BAND4 -1.5 Equallizer setup4 (External input)
EXT GEQ BAND5 -1.5 Equallizer setup5 (External input)
AVC OFF AVC setup
CARRIER MUTE ON Audio output setup inTV mode (no synchronization)
IGR THR 12D IGR THRESH LEVEL
Audio adjustment
5 MSP DATA 0 Audio IC MSP DATA WRITE and READ
MSP DATA WAIT WRITE and READ execute
PRESCALE FM/AM-M 17 Prescale setup (TV)
PRESCALE SCART 15 Prescale setup (External input)
FSP TEST OFF For audio test (FSMUTE ON/OFF)
Page Items Initial settings Descriptions Adjustments or descriptions of change
Video adjustment (VPC setup)
6I
2C DATA 0
I
2
C BUS control IC DATA WRITE and READ
I2C DATA WAIT WRITE and READ execute
CBW 1 CHROMA band pass setup
NOSEL 3 Comb filter setup
DDR 0 Comb filter setup
List of the adjustment process mode menu

19
LC-15B1U
Video adjustment (VPC setup) [Continued]
6 HDG 2 Comb filter setup
VDG 1 Comb filter setup
VPK 3 Comb filter setup
KILVL 08 08 Color killer level setup
KILHY 05 05 Color killer hysterysis setup
VSYNC DELAY 29 V-synchronized phase setup
DVCO -720 DVCO setup
AUTO LCK 1 Line lock mode setup
Page Items Initial settings Descriptions Adjustments or descriptions of change
Video adjustment (Component)
7 VPC DATA 0 Video IC VPC DATA WRITE and READ
VPC DATA WAIT WRITE and READ execute
TEST PATTERN 0 VPC test pattern select Video IC test pattern
AUTO LDLY -2 Y/C phase setup
DVD NTSC CR 25 Color thickness setup (Component)
DVD NTSC CB 28 Color thickness setup (Component)
DVD NTSC TINT +7 Tint setup (Component)
DVD NTSC BRIGHTNESS +64 Brightness setup (Component)
DVD NTSC CONTRAST 28 Contrast setup (Component)
DVD NTSC P FILTER 0 Peaking filter setup (Component)
DVD NTSC H-PEAKING 3 H-peaking setup (Component)
DVD NTSC BRIGHT2 +8 Brightness setup2 (Component)
DVD NTSC CONTRAST2 48 Contrast setup2 (Component)
8 DVD PAL CR 31 Color thickness setup (Component)
DVD PAL CB 31 Color thickness setup (Component)
DVD PAL TINT 0 Tint setup (Component)
DVD PAL BRIGHTNESS +64 Brightness setup (Component)
DVD PAL CONTRAST 27 Contrast setup (Component)
DVD PAL P FILTER 0 Peaking filter setup (Component)
DVD PAL H-PEAKING 3 H-peaking setup (Component)
DVD PAL BRIGHT2 +9 Brightness setup2 (Component)
DVD PAL CONTRAST2 48 Contrast setup2 (Component)
Video adjustment (TV ·Composite ·S-video)
9 N358 TV COLOR 2600 Color thickness setup (TV)
N358 AV COLOR 2600 Color thickness setup (Composite, S-video)
N358 TV TINT +70 Tint setup (TV)
N358 AV COLOR +70 Tint setup (Composite, S-video)
N358 BRIGHTNESS +8 Brightness setup (TV, Composite, S-video)
N358 PEAKING FILTER 0 Peaking filter setup (TV, Composite, S-video)
N358 TV H-PEAKING 3 H-peaking setup (TV)
N358 AV H-PEAKING 3 H-peaking setup (Composite, S-video)
N358 AVO START 152 Horizontal position setup
N358 SFIF 0 Horizontal position setup
N358 SCINC1 1623 Setup of the degree of true circle
N358 TV LDLY -2 Y/C phase setup (TV)
N358 AV LDLY -2 Y/C phase setup (Composite, S-video)
10 N443 AV COLOR 2600 Color thickness setup (Composite, S-video)
N443 AV TINT +70 Tint setup ( Composite, S-video )
N443 BRIGHTNESS +8 Brightness setup (TV, Composite, S-video)
N443 PEAKING FILTER 0 Peaking filter setup (TV, Composite, S-video)
N443 AV H-PEAKING 3 H-peaking setup (Composite, S-video)
N443 AVO START 152 Horizontal position setup
N443 SFIF 0 Horizontal position setup
N443 SCINC1 1623 Setup of the degree of true circle
N443 AV LDLY -2 Y/C phase setup (Composite, S-video)
11 PAL AV COLOR 2600 Color thickness setup (Composite, S-video)
PAL AV TINT +70 Tint setup ( Composite, S-video )
PAL BRIGHTNESS +8 Brightness setup (TV, Composite, S-video)
PAL PEAKING FILTER 0 Peaking filter setup (TV, Composite, S-video)
PAL AV H-PEAKING 3 H-peaking setup (Composite, S-video)
PAL AVO START 152 Horizontal position setup
PAL SFIF 0 Horizontal position setup
PAL SCINC1 1623 Setup of the degree of true circle
PAL AV LDLY -2 Y/C phase setup (Composite, S-video)
12 SECAM AV COLOR 2600 Color thickness setup (Composite, S-video)
SECAM AV TINT +70 Tint setup ( Composite, S-video )
SECAM BRIGHTNESS +8 Brightness setup (TV, Composite, S-video)
SECAM PEAKING FILTER 0 Peaking filter setup (TV, Composite, S-video)
SECAM AV H-PEAKING 3 H-peaking setup (Composite, S-video)
SECAM AVO START 152 Horizontal position setup
SECAM SFIF 0 Horizontal position setup
SECAM SCINC1 1623 Setup of the degree of true circle
SECAM AV LDLY -2 Y/C phase setup (Composite, S-video)

LC-15B1U
20
Video adjustment (TV ·Composite ·S-video) [Continued]
13 PAL-M TV COLOR 2600 Color thickness setup (TV)
PAL-M AV COLOR 2600 Color thickness setup (Composite, S-video)
PAL-M TV TINT +70 Tint setup ( TV )
PAL-M AV TINT +70 Tint setup ( Composite, S-video )
PAL-M BRIGHTNESS +8 Brightness setup (TV, Composite, S-video)
PALM PEAKING FILTER 0 Peaking filter setup (TV, Composite, S-video)
PALM TV H-PEAKING 3 H-peaking setup (TV)
PALM AV H-PEAKING 3 H-peaking setup (Composite, S-video)
PAL-M AVO START 152 Horizontal position setup
PAL-M SFIF 0 Horizontal position setup
PAL-M SCINC1 1623 Setup of the degree of true circle
PAL-M TV LDLY -2 Y/C phase setup (TV)
PAL-M AV LDLY -2 Y/C phase setup (Composite, S-video)
14 PAL-N TV COLOR 2600 Color thickness setup (TV)
PAL-N AV COLOR 2600 Color thickness setup (Composite, S-video)
PAL-N TV TINT +70 Tint setup (TV)
PAL-N AV TINT +70 Tint setup (Composite, S-video)
PAL-N BRIGHTNESS +8 Brightness setup (TV, Composite, S-video)
PALN PEAKING FILTER 0 Peaking filter setup (TV, Composite, S-video)
PALN TV H-PEAKING 3 H-peaking setup (TV)
PALN AV H-PEAKING 3 H-peaking setup (Composite, S-video)
PAL-N AVO START 152 Horizontal position setup
PAL-N SFIF 0 Horizontal position setup
PAL-N SCINC1 1623 Setup of the degree of true circle
PAL-N TV LDLY -2 Y/C phase setup (TV)
PAL-N AV LDLY -2 Y/C phase setup (Composite, S-video)
15 PAL60 AV COLOR 2600 Color thickness setup (Composite, S-video)
PAL60 AV TINT +70 Tint setup ( Composite, S-video )
PAL60 BRIGHTNESS +8 Brightness setup (TV, Composite, S-video)
PAL60 PEAKING FILTER 0 Peaking filter setup (TV, Composite, S-video)
PAL60 AV H-PEAKING 3 H-peaking setup (Composite, S-video)
PAL60 AVO START 152 Horizontal position setup
PAL60 SFIF 0 Horizontal position setup
PAL60 SCINC1 1623 Setup of the degree of true circle
PAL60 AV LDLY -2 Y/C phase setup (Composite, S-video)
AFT reference value setup in search mode / LCD controller setup (NTSC)
16 AFT UP 2.7 AFT voltage reference value
AFT DOWN 1.8 AFT voltage reference value
NTSC 01 8C Initial setting
NTSC 02 C0 Various setting
NTSC 03 81 RCUTOFF
NTSC 04 00 GCUTOFF
NTSC 05 81 BCUTOFF
NTSC 06 0B Horizontal display position
NTSC 07 10 Vertical display position
NTSC 08 00 UV data phase delay
NTSC 09 4C Panel clock adjustment
NTSC 0A 4B Upper and lower mask position of display screen
NTSC 10 80 Test pattern display
NTSC 11 00 Test pattern data
NTSC 12 00 Horizontal display mask position (left)
NTSC 13 00 Horizontal display mask position (right)
NTSC E0 00 FIFO TEST
NTSC E1 03 Reverse of sinchronized polarity
NTSC F0 07 OFL terminal action setup
NTSC F1 00 Inverter frequency setup
NTSC F2 00 Inverter duty setup
NTSC F3 C0 Light control frequency setup lower level
NTSC F4 00 Light control frequency setup upper level
NTSC F5 00 Light control PWM setup lower level
NTSC F6 00 Light control PWM setup upper level
NTSC F7 00 Phase of OFL1/2
NTSC 14 02 System clock setup
G/A TEST PATTERN OFF Grey level test pattern display LCD controller IC test pattern
Page Items Initial settings Descriptions Adjustments or descriptions of change
LCD controller setup (PAL) / Closed caption setup
17 PAL 01 8E Initial setting
PAL 02 C8 Various setting
PAL 03 81 RCUTOFF
PAL 04 00 GCUTOFF
PAL 05 81 BCUTOFF
