SERVICE MANUAL
No.S53M2024LE150M
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY
PRECAUTION................................................i
PRECAUTION FOR USING LEAD-FREE
SOLDER.........................................................ii
CHAPTER 1. OUTLINE
[1] OUTLINE...........................................1-1
CHAPTER 2. SPECIFICATIONS
[1] SPECIFICATION.................................2-1
CHAPTER 3.OPERATION MANUAL
[1] OPERATION MANUAL........................3-1
CHAPTER 4. DIMENSIONS
[1] DIMENSIONS......................................4-1
CHAPTER 5. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS...........5-1
CHAPTER 6. ADJUSTMENT
[1] ADJUSTMENT....................................6-1
CHAPTER 7. TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE .........................7-1
CHAPTER 8. OVERALL WIRING/BLOCK DIAGRAM
[1] SYSTEM BLOCK DIAGRAM............................8-1
CHAPTER 9. PRINTED WIRING BOARD ASSEM-
BLIES
[1] Main Unit .............................................9-1
[2] LED RC Unit ........................................9-5
[3] POWER Unit........................................9-7
CHAPTER 10. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC
DIAGRAM ...........................................10-1
[2] MAIN Unit ...........................................10-2
[3] LED RC Unit .......................................10-4
[4] POWER Unit ......................................10-6
Parts Guide
TopPage
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
MODEL : LC-24LE150M
LED BACKLIGHT TV

LC-24LE150M
i
SAFETY PRECAUTION
SAFETY PRECAUTI ONSAFETY PRECAUTIONSAF ETY PRECAUTIONSAFET Y PRECAUTIONSAFETY PRECAUTIONSAFETY PRECAUTION
LC32LE240M 5GTXKEG/CPWCN

IMPORTANT SERVICE SAFETY PRECAUTION
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER (Fire &
Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.
5. To be sure that no shock hazard exists, check for leakage current in
the following manner.
• Plug the AC cord directly into a 110-240 volt AC outlet.
• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-
leled by a 0.15 F capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or elec-
trical ground connected to an earth ground.
• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-
sitivity or measure the AC voltage drop across the resistor.
• Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.74 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
SAFETY NOTICE
Many electrical and mechanical parts in LCD colour television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " " and shaded areas in the Replacement Parts List
and Schematic Diagrams.
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
0.15 µ F
TEST PROBE

LC-24LE150M
ii
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-
age or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 C which is higher than the conventional lead solder by 40 C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.
PARTS CODE PRICE
RANK
PART
DELIVERY DESCRIPTION
ZHNDAi123250E BL J 0.3mm 250g (1roll)
ZHNDAi126500E BK J 0.6mm 500g (1roll)
ZHNDAi12801KE BM J 1.0mm 1kg (1roll)

LC-24LE150M
1 – 1
CHAPTER 1. OUTLINE
[1] OUTLINE
MAJOR SERVICE PARTS
PWB
Ref No. Part No .
NDKEYMG260FM02
NDUNTKG255FM02
NDUNTKG265FM02
OTHER UNI
T
Ref No. Part No .
NRLCDTA249WJN1
ĞƐĐƌŝƉƟŽŶ
MAIN hŶŝƚ
POWER hŶŝƚ
LED RC hŶŝƚ
ĞƐĐƌŝƉƟŽŶ
24" LCD WĂŶĞů hŶŝƚ

LC-24LE150M
2 – 1
CHAPTER 2. SPECIFICATIONS
Specifications
Item Model LC-24LE150M
LCD panel 23.5o(598 mm) TFT LCD
Resolution 1,049,088 pixels (1366 g768)
Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43
TV
Function
TV-Standard PAL: B/G, D/K, I SECAM: B/G, D/K, K/K
1
NTSC: M
Receiving
Channel
VHF/UHF 43.25—863.25 MHz
CATV S1—S41ch (including Hyperband)
TV-Tuning System Auto Preset 99 ch
STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G
º671:Vº671:HselgnagniweiV
Audio amplifier/Speakers 5 Wg2 / 3 g8 cm 2pcs
Terminals Antenna input UHF/VHF 75 qDIN type
INPUT 1 HDMI (HDMI input), PC input
INPUT 2 VIDEO in, AUDIO in, COMPONENT in
INPUT 3 VIDEO in, AUDIO in
OUTPUT AUDIO out, Headphone ( 3.5 mm stereo)
/iahT/naisreP/naissuR/eseugutroP/hcnerF/cibarA/esenihCdefiilpmiS/hsilgnEegaugnalDSO
Vietnamese/Indonesian
Power Requirement AC 110—240 V, 50/60 Hz
Power Consumption 36 W (0.8 W Standby)
Dimensions without stand 561 (W) g358 (H) g50 (D) mm
with stand 561 (W) g391 (H) g178 (D) mm
)dnatshtiw(gk6.5/)dnatstuohtiw(gk2.5thgieW
Operating Temperature 0°C — 40°C
sAs a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for
product improvement without prior notice. The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.
561 (W) g
423 (H)
g
178 (D) mm ( For Vietnam only )

LC-24LE150M
3 – 1
CHAPTER 3. OPERATION MANUAL
[1] OPERATION MANUAL

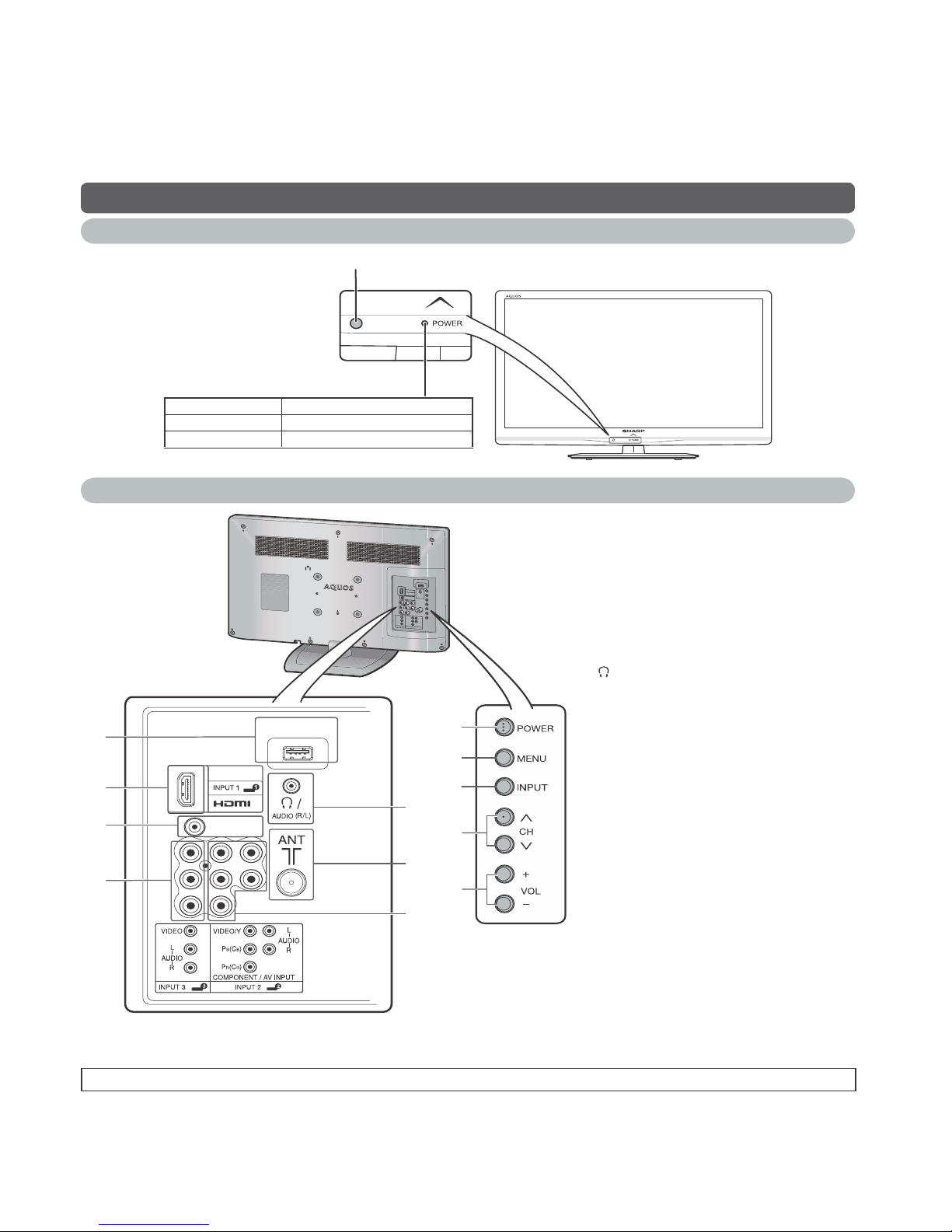

Part names
TV (Front)
POWER indicator
Light off Power off.
Lighted (Red) The TV is in standby mode.
Lighted (Green) The TV is on.
Remote control sensor
TV (Rear)
SERVICEONLY
SERVICE
ONLY
12
9
1
2
3
4
5
7
6
10
11
8
1 POWER (On/Off) button
2 MENU button
3 INPUT button
4Channel up (r)/down (
s
) buttons
5Volume up (e)/down (f) buttons
6SERVICE ONLY terminal*
7INPUT 1 (HDMI) terminal
8SERVICE ONLY terminal*
9INPUT 3 terminals
10 /AUDIO output (R/L) terminal
11 Antenna input terminal
12 INPUT 2 (COMPONENT/AV INPUT)
terminals
* Usually do not connect anything to this terminal as it is reserved only for service personnel.
sThe illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

LC-24LE150M
3 – 2

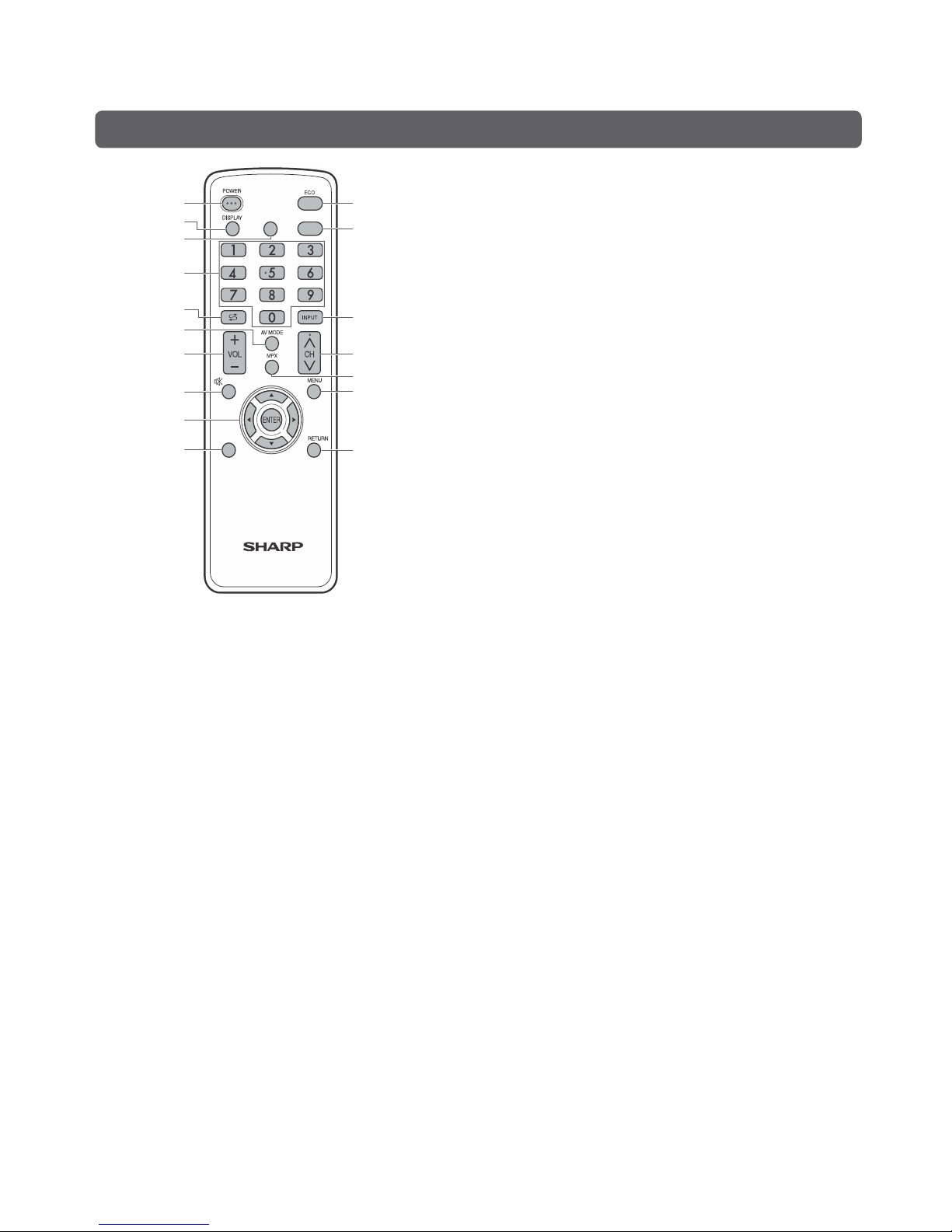

Remote control unit
SURROUND TIMER
WIDE
LCDTV
GB095WJSA
1
2
5
7
8
9
10
6
3
4
11
12
13
14
16
15
17
7 VOLk/VOLl
Set the volume.
(VOLk) Increase the volume.
(VOLl) Decrease the volume.
8e(Mute)
Press esMutes sound.
Press eagain sRestores sound.
Mute will be cancelled after 30 minutes. However, the TV
will not suddenly output loud sound as the volume level will
be set to 0 automatically. Increase the volume level by
pressing VOL k.
9a/b/c/d(Cursor)
Select a desired item on the setting screen.
ENTER
Execute a command.
10 WIDE
Change the wide image mode.
11 ECO
Reduce overall power consumption based on user
preferences.
12 TIMER
Set the Sleep timer and Reminder.
13 INPUT (INPUT SOURCE)
Select an input source.
14 CHr/CH
s
TV input mode: Select the channel.
(CHr) Increase the channel number.
(CH
s
) Decrease the channel number.
15 MPX
Select the sound multiplex mode.
16 MENU
Display the menu screen.
17 RETURN
MENU mode: Return to the previous menu screen.
1 POWER (STANDBY/ON)
To switch the power on and off.
2 DISPLAY
Display the channel or input information.
3 SURROUND
Select surround setting.
4 0 – 9
Set the channel.
5A(Flashback)
Press Ato return to the previous selected channel
or external input mode.
6 AV MODE
Select an audio and video setting.

LC-24LE150M
3 – 3
Attaching the stand
sBefore attaching (or detaching) the stand, unplug the AC cord from the AC outlet.
sBefore performing work spread cushioning over the base area to lay the TV on. This will prevent it from
being damaged.
1
Confirm the screws supplied with the TV.
Screw driver
Screw
Soft cushion
Screws (m4)
(used in step 1 and 3)
2
Insert and hook post into stand base slot holes.
(1)
Fix the post using short screw.
3
Insert the stand base to the stand post on the
bottom of the TV. (2)
4
Insert and tighten the 3 screws into the 3 holes
on the bottom of the stand base. (3)
NOTE
sTo detach the stand, perform the steps in reverse order.
sDo not attach or detach the stand without holding it. Doing
so can cause the stand to fall, resulting in serious personal
injuries as well as damage to the stand.

LC-24LE150M
4 – 1

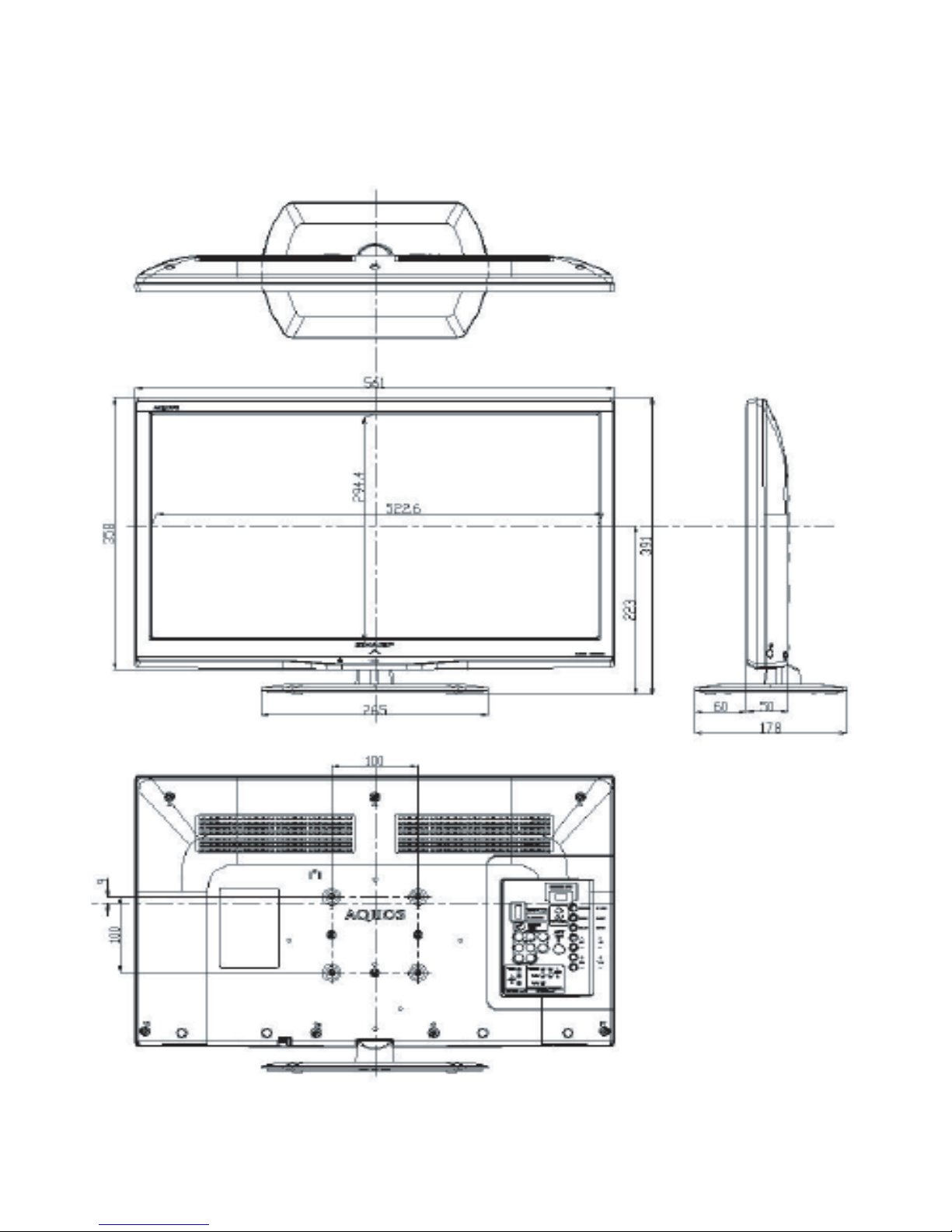

CHAPTER 4. DIMENSIONS
[1] DIMENSIONS
[mm]

LC-24LE150M
5 – 1
CHAPTER 5. REMOVING OF MAJOR
PARTS
[1] REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
1.Removing of the Rear Cabinet Ass'y and Stand Base
1 .Remove the 3 screws and detach the Stand Base
2 .Remove the 9 screws and detach the rear cabinet ass'y
1
3
2
4
3
1
2
3
4

LC-24LE150M
5 – 2
2.Removing of the Bottom Bracket & speaker L/R
and PWB Chassis
1 .Remove the 2 screws and detach the bottom bracket
2 .Disconnect SP wayer & remove speaker from L/R panel bosses
3 .Disconnect LED BL FFC CABLE and disconnect LED /IR WIRE
4 .Disconnect PD wayer and remove 4 screw for remove power board
5. Disconnect LVDS FFC wayer and remove 3 screw
for remove main unit
7
8
9
1
6
3
3
3
4
5
1
2
1
3
45
6
2
8
9
7

LC-24LE150M
5 – 3
3.Removing of LCD Panel Unit
1 .Hook out the 9 lock
from cab A.
2.Remove 4 screw
and detech KS Tray Chassis
1
2
1
1
1
3
1
2
2
3

LC-24LE150M
6 – 1
CHAPTER 6. ADJUSTMENT
[1] ADJUSTMENT
[1] ADJUSTMENT PROCEDURE
1. Entering and cancel the adjustment process mode
1) While holding down the INPUT and Volume DOWN keys at the same time, plug in the AC cord to turn on the power. (“K” standing for
inspec- tion process mode is displayed on the upper left position of the screen.)
2) Press the Channel DOWN and Volume DOWN keys at the same time. (The adjustment process mode screen appears.)
3) To cancel it, turn off the power using the Power switch or remote control.
2. Remote controller key operation and description of display in adjustment process mode.
1. key operation
Remote controller key Main unit key F unc tion
CH ( / )
CH ( / )
Changing selected line (UP/DOWN)
VOL (+ / –) /+(LOV –) Changing selected line setting (+1/-1)
Cursor ( / )——————
egapagninruT (PREVIOUS/NEXT)
Cursor ( / )——————
Changing a selected line setting (+10/-10)
INPUT button on remote
controller
INPUT button elggot(gnihctiwsecruostupnI switching)
(TV ÆINPUT1 ÆINPUT2 ÆINPUT3 )
ENTER —————— ——————
* Input mode is switched automatically when relevant adjustment is started so far as the necessary input signal is available.
3. Software upgradin g.
1) Plug off the LCD TV.
2) Insert the USB device to the USB terminal at the LCD TV.
(Make sure that the latest software is installed in the USB
device).
3) Hold the LCD TV power key and plug on the LCD
TV.
4) LCD TV is on and detecting the USB device.
5) A few seconds later, LED light (orange) will blink indicating the software upgrading.
7) T V w i l l a u t o m a t i c a l l y r e s t a r t w h e n s oftware is successfully installed
8) LCD TV is running with the latest software.
LCD TV ADJUSTMENT ITEM
1. EDID DATA INPUT
No need to input EDID
–
–
–
–
2. SIGNAL ADJUSTMENT
A. PICTURE ADJUSTMENT
Confirmation of signal from generator (setting to spec level)
p-pV7.0langisetisopmoCLAP
+
0.02Vp-p (pedestal to white level)
15K Component signal (50Hz) Y level 0.7Vp-p
+
0.02Vp-p (pedestal to white level)
Pb, Pr level 0.7Vp-p : 0.7Vp-p
+
0.02Vp-p
33K Component signal Ylevel 0.7Vp-p
+
0.02Vp-p (pedestal to white level)
+
Pb, Pr level 0.7Vp-p

0.7Vp-p
–
0.02Vp-Com

LC-24LE150M
6 – 2
a) Adjustment Mode
ITEM CONDITION PROCEDURE
1 Adjustment Mode Press the test key at the test remote control
b) Component 33K 60Hz Signal Adjustment (COMP-HD)
ITEM CONDITION PROCEDURE
1Setting [Signal]
COMP 33K 60Hz
(1080i)
100% Full-field Colour
Bar
[Terminal]
COMPONENT
INPUT 2
 Feed the COMPONENT 33K 60Hz (1080i) 100% Full-field
Colour Bar signal (100% colour saturati on) to
COMPONENT INPUT 2
100% White  Black
2 Auto Adjustment
Test Mode page 5
(COMP HD)
At the related page, move cursor to [COMP HD ADJ], press
ENTER.
[OK] appears when finished.

LC-24LE150M
6 – 3
B. WHITE BALANCE ADJUSTMENT
a) White Balance Adjustment
NO.
ITEM CONDITION PROCEDURE
i Setting Backlight : MAX
AV Mode : DYNAMIC
Active Backlight :
OFF
Set the luminance
meter on the centre
of the screen
For the details of white balance adjustment procedure, please refer to white balance
adjustment spec for Kameyama model.
1. Confirm the set condition.
2. Connect the white balance jig.
3. Through RS-232C command, adjustment mode screen is displayed.
ii Auto
Adjustment
[command]
Adjustment
Mode
KRSW0001
KKT10037
Setting
KYOF0001
OSDS0001
SBSL0016
Multi point
adj. Mode
MSET0000
WBI20255
Point 2
WBI20204
MG2G****
MG2B****
MG2R****
Point 1
WBI10051
MG1G****
MG1B****
MG1R****
Write
MSET0003
Set
Max.Level
MGMG****
MGMR****
MGMB****
Initial setting Panel Contrast
R/G/B_MAX
R/G/B_HIGH
R/G/B_LOW
C
nt
=3000:1
WB
MAX
=4080
WB H
=3664/4080
WB L
= 816/4080
(1) Measurement MAX Brightness
(2) Set MIN Brightness
(3) Measurement HIGH Brightness
(4) Measurement LOW Brightness
(5) Calculation H Ȗ
(6) Calculation LȖ
(7) Calculation HIGH luminance (Ȗ=2.2)
(8) Calculation Initial setting of R/G/B_HIGH
(9) Set Initial setting of R/G/B_HIGH
(10) Original WB adjustment is performed (HIGH)
Set the specified gradation for point 2, fix the
most faint colour to get reference value,
adjust others 2 colours to minus adjustment for
reference value of point 2.
(11) Measurement HIGH Brightness
(Set) R_HIGH= G_HIGH
G_HIGH= G_HIGH
B_HIGH= G_HIGH
(12) Calculation MAX luminance after WB
ADJ set to Ȗ=2.2 (L
XHG )
(13) Set R/G/B_MAX
(14) Calculation LOW luminance (Ȗ=2.2)
(15) Calculation Initial setting of R/G/B_LOW
(16) Set Initial setting of R/G/B_LOW
(17) Original WB adjustment is performed (LOW).
Set the specified gradation for point 1. Set G of
point 1 to the default value [(R1 x G value of
point 2/R2), with fractions rounded] and adjust
RB to the reference value of point 1.
(18) Adjusted value is writing at [command]
MSET0003
L
max =305.7 cd/m²
L
min =L max /C nt = 0.102
L
XH =235.1 cd/m²
L
XL =2.06 cd/m²
HȖ=LOG((L
XH -L min )/(L max -L min ))/LOG(WB H /WB MAX )= 2.44
LȖ=LOG((L
XL -L min ) /(L max -L min ))/LOG(WB L /WB MAX )=2.73
L
H22 =(L max -L min )x(WB H /WB MAX )^2.2+L min =241.31
WB
HX =WB MAX X ((L H22 -L min )/(L max -L min ))^(1/H Ȗ)=3703
R_HIGH=WB
HX ’=3703
G_HIGH=WB
HX ’=3703
B_HIGH=WB
HX ’=3703
R_HIGH=3702
G_HIGH=3641
B_HIGH=3703
R_HIGH=3641
G_HIGH=3641
L XHG= 231.3
B_HIGH=3641
L
XMX =L XHG /((W BH /WB MAX )^2.2)=293.04
R_MAX=G_MAX*(R_HIGH/G_HIGH)=4078
G_MAX=WB
MAX X ((L XMX -L min )/(L max -L min ))^(1/HȖ)=4010
B_MAX=G_MAX*(B_HIGH/G_HIGH)=4078
L
XLX =(L XMX -L min )x(WB L /WB MAX )^2.2+L min =5.08
WB
LX =WB MAX X ((L XLX -L min )/(L max -L min ))^(1/LȖ)=901
R_LOW=WB
XLX =901
G_LOW=WB
XLX =901
B_LOW=WB
XLX =901
R_LOW= 921
G_LOW=901
B_LOW=971
Example: G6 panel also use for G8/
CSOT, CMI (be careful of INT setting)
RESULT
RESULT

LC-24LE150M
6 – 4
(19) Set the G of point Max. to the default value
(4080 x G value of point 2 / R2). Set the R,B
Max. value [G
max
– G value of point 2 + (R,B
value of point 2)
(20) Calculate the slope R2
slope,
G2
slope,
B2
slope
between MAX and Point2. R2
slope =
(R
max
-R
high
)/(4080-3664)
(21) Calculate the correction value پR
high,
پG
high,
پB
high.
R
high =
R2
slope X
(3840-3664)
(22) Set the reference value R,G,B of point 2
(R2’)=R2+پR
high
(23) Calculate the slope R1
slope,
G1
slope,
B1
slope
between Point2 and Point1. R1
slope =
(R
high
-R
low
)/(3664-816)
(24) Calculate the correction value پR
low,
پG
low,
پB
low.
R
low =
R1
slope X
(915-816)
(25) Set the reference value R,G,B of point 1
(R1’)=R1+پR
low
(26) Shut down the AC power.
䯲
Initial value at RGB 2 point : 3664
䯲
Initial value at RGB 1 point : 816
[Adjustment value]
侀
Teaching set send by engineering dept is set as
reference.
[Reference values for adjustment reference]
Equipment : Luminance meter [Minolta CA-210]
Level Spec
Data
Adjustment
Spec.
Inspection
Spec.
Point
2 ref.
values 229 x=0.272
y=0.277 0.0010 0.0020
Point
1 ref.
values
51 x=0.272
y=0.277 0.0045 0.0090
Ref. : For inspection, set the LCD TV as below.
AV MODE : [DYNAMIC] (Reset)
Aging Time : Minimum 5 minutes

LC-24LE150M
6 – 5
3. FACTORY SETTING
AC power is plug off after shipment setting is done.
Caution: Do not plug on again after shipment setting is done. If do, please re-do the shipment setting.
Do not off with remote control.
ITEM CONDITION PROCEDURE
Factory setting
AC power off t o exit the
factory setting.
1. Setting is done with test remote control.
2. Press the ‘Factory Setting’ key on the remote control continuously.
3. When Green background appears on screen and ‘K’ mark
disappears, setting
is completed.
The followings are initialised to factory setting
1) User setting
2) Channel data (e.g. broadcast frequencies)
3) Manufacturer’s option settings
4) Password data
5) Setting values are set based on model destination
Model Name Factory Setting Key
Name
Remote Control Code S-System Setting OSD Language
Setting
A3KLE1VVZ/J/I/Y/B/N/M M-Setting 100000001010110 B/G ENGLISH
A3KLE1VVP P-Setting 100000001011110 M ENGLISH
**Please do inspection for A3KLE1VVP using NTSC signal.

LC-24LE150M
7 – 1
CHAPTER 7. TROUBLESHOOTING
TABLE
[1] TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE
No power (front LED failure to light up) or no startup (front LED failure to turn from red to green)
Is the AC cord connector tightly connected to the set? NO Reconnect the AC cord tightly and turn on the power again.
YES
Are the wire harnesses and other cables properly connected in
the set?
NO Reconnect the wire harnesses and other cables properly in the
set.
YES
Is there the AC_CTRL and PNL_POWER signal input at pins
(81 and (37) of IC3301?
NO .
YES
Are the DC/DC converter outputs and the output voltages along
the control lines as specified?
NO Check the DC/DC converters and the control lines. Replace
defective parts as required.
1) M+5.V (IC9601)
2) D+1.1 (IC9602)
3) D+3.3V (IC9603)
4) T+ 3.3V (IC1101)
YES
Check the AC CTRL signal line & PNL .Power signal line.
Check IC3301 & IC3101 and replace accordingly

LC-24LE150M
7 – 2
With [RF] signal input No video onscreen (1)
No video in the UHF/VHF reception
Is there IF output from the tuner pin(8)(9) of TU1101 as
specified ?
NO Check TU1101and its peripheral circuits.
YES
Is there IF input at pin 18 & 19 of IC 3301? NO Check the circuit between TU1101 & IC3301.
YES
Are there the LVDS signal outputs of IC3301? ( pin 43 to 52) NO Check IC3301 and its LVDS peripheral circuit.
YES
Check LVDS cable, LCD controller (incl. panel) and their periph-
eral circuits.
With <Video> signal input No video onscreen (2)
No external input video onscreen <INPUT 3>
Is INPUT 3 selected on the input select menu screen? NO Select INPUT 3 on the input select menu screen to pick up the
right input signal.
YES
Is there the video signal input at pin (96) of IC3301? NO Check the line between pin (7) of J501 and pin (96) of IC3301.
YES
Are there LVDS signal outputs of IC3301? (pin 43 to 52) NO Check IC3301 and its LVDS peripheral circuits.
YES
Check LVDS cable, LCD controller (incl. panel) and their periph-
eral circuits.

LC-24LE150M
7 – 3
With <Component> signal input No video onscreen (3)
No external input video onscreen <INPUT 2>
Is INPUT 2 selected on the input select menu screen? NO Select INPUT 2 on the input select menu screen to pick up the
right input signal.
YES
Are there the Y, Pb and Pr signal inputs at pins (92), (90) and
(93) of IC3301 respectively?
NO Check the line between pins (10)/(11)/(12) of J501 and pins (92)/
(90)/(93) of IC3301.
YES
Is input waveform of IC3301 normal?
Y=(92) pin, Pb=(90) pin, Pr=(93) pin
NO Check IC3301 and its peripheral circuits.
YES
Check LVDS cable, LCD controller (incl. panel) and their periph-
eral circuits.
With <HDMI> signal input No video onscreen (4)
No external input video onscreen <INPUT 1>.
ehtpukcipotneercsunemtcelestupniehtno1TUPNItceleSON?neercsunemehtnodetceles1TUPNIsI
right signal input.
YES
Are there signal outputs from SC1501 to IC3301? NO Check peripheral circuits between SC1501 and IC3301.
YES
N(pin 43 to 52 )1033CIfostuptuolangisre LVDSehterAOCheckI
C3301 and its LVDS peripheral circuits.
YES
Check LVDS cable, LCD controller (incl. panel) and their periph-
eral circuits.
YES
Is there LVDS signal outputs of IC3301?
( pin 43 to 52 )
NO Check IC3301 and LVDS peripheral circuits.
