Sharp 36u-f510 User manual

36U-F510
SHARP CORPORATION This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
In the interests of user-safety (Required by safety regulations in some countries ) the set should be restored to its
original condition and only parts identical to those specified should be used.
COLORTELEVISION
Chassis No. MS-B
Page
»ELECTRICAL SPECIFICATIONS .........................................................................................................1
»IMPORTANT SERVICE SAFETY PRECAUTION .................................................................................2
»LOCATION OF USER'S CONTROL .....................................................................................................4
»INSTALLATION AND SERVICE INSTRUCTIONS ................................................................................6
»SERVICE ADJUSTMENT ...................................................................................................................10
»CHASSIS LAYOUT .............................................................................................................................13
»BLOCK DIAGRAM ..............................................................................................................................15
»SCHEMATIC DIAGRAMS ...................................................................................................................17
»PRINTED WIRING BOARD ASSEMBLIES ........................................................................................37
»REPLACEMENT PARTS LIST ............................................................................................................43
»PACKING OF THE SET ......................................................................................................................57
CONTENTS
SPEAKER
SIZE ........................................................12 x 6 cm oval (2 pcs.)
VOICE COIL IMPEDANCE............................... 8 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF.....................................................75 ohm Unbalanced
TUNING RANGES
VHF-Channels...............................................................2 thru 13
UHF-Channels ............................................................14 thru 69
CATV Channels...........................................................1 thru 125
(EIA, Channel Plan U.S.A.)
POWER INPUT..................................................... 120V AC, 60 Hz
POWER RATING .................................................................. 180W
PICTURE SIZE .......................................... 3,905 cm2 (605sq inch)
CONVERGENCE ............................................................. Magnetic
SWEEP DEFLECTION .................................................... Magnetic
FOCUS ...................................................... Ex-D Gun Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ..................................... 45.75 MHz
Sound IF Carrier Frequency...................................... 41.25 MHz
Color Sub-Carrier Frequency .................................... 42.17 MHz
(Nominal)
AUDIO POWER
OUTPUT RATING ..............5.0W + 5.0W (at 10% distortion and
Dual CH Operate)
Specifications are subject to change without
prior notice.
ELECTRICAL SPECIFICATIONS
MODELS
SERVICE MANUAL
36U-F510
1st Edition

2
36U-F510
IMPORTANT SERVICE SAFETY PRECAUTION
ËService work should be performed only by qualified service technicians who are
thoroughly familiar with all safety checks and the servicing guidelines which follow:
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE 4A-
125V FUSE.
X-RADIATION AND HIGHVOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation.The
only potential source of X-ray in current solid state
TV receivers is the picture tube.However, the picture
tube does not emit measurable X-Ray radiation, if
the high voltage is as specified in the "High Voltage
Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage should always be kept at the rated value
−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem.Every
time a color chassis is serviced, the brightness should
be tested while monitoring the high voltage with a
meter to be certain that the high voltage does not
exceed the specified value and that it is regulating
correctly.
5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.
6. When trouble shooting and taking test measurements
on a receiver with excessive high voltage, avoid being
unnecessarily close to the receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heatsinks are potentialshockhazards
when the chassis is operating.
4. The chassis in this receiver has two ground systems
which are separated by insulating material.The non-
isolated (hot) ground system is for the B+ voltage
regulator circuit.The isolated ground system is for
the low B+ DC voltages and the secondary circuit of
the high voltage transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURETUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (such as a test probe) between the pic-
ture tube ground and the anode lead. (AC
line cord should be disconnected from AC
outlet.)
1. Picture tubein thisreceiveremploysintegralimplosion
protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
4A 125V

3
36U-F510
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.

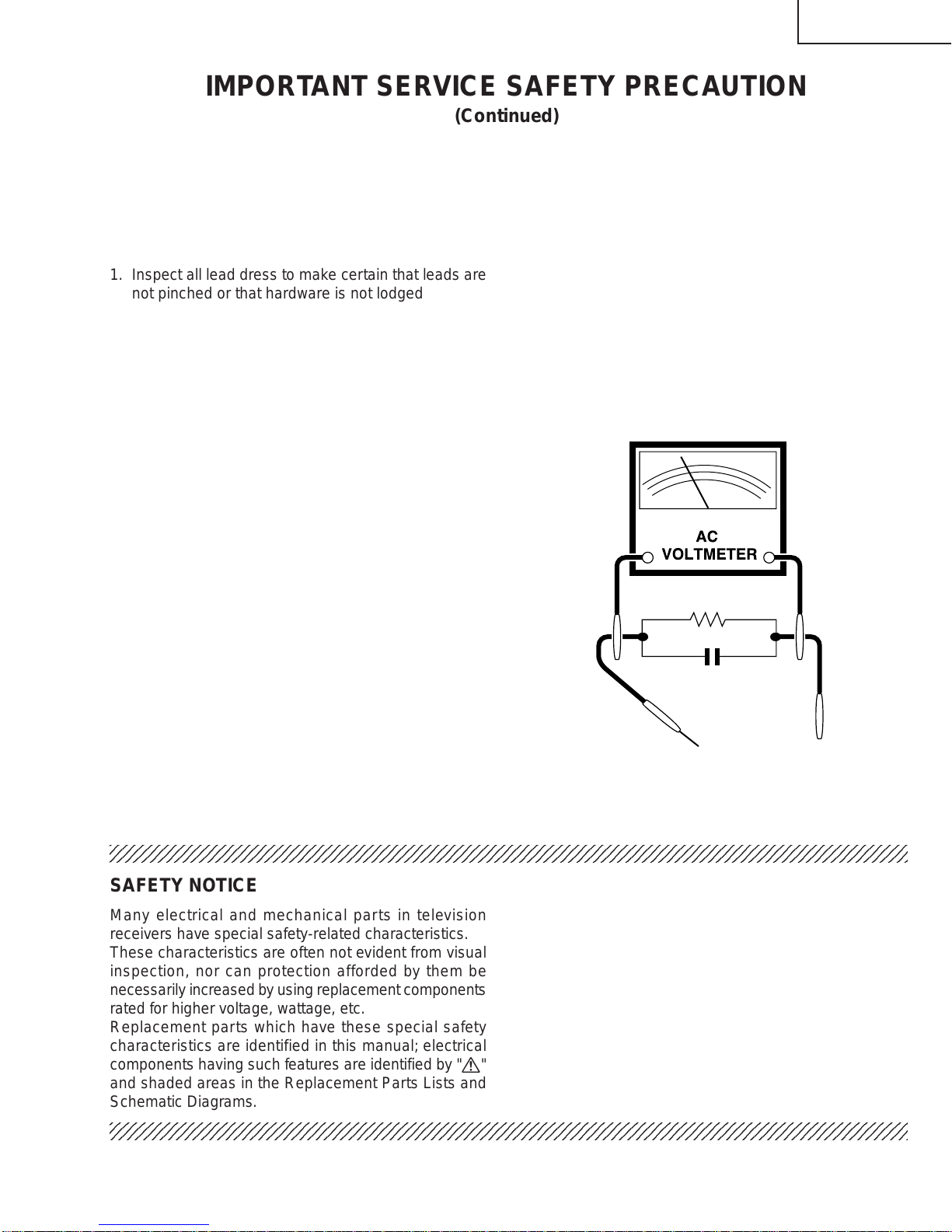

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
•Plug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
•Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth
ground, such as electrical conduit or electrical ground
connected to earth ground.
•Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
BEFORE RETURNINGTHE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
•Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
For continued protection, replacement parts must be
identical to those used in the original circuit.The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
1.5k ohm
10W
0.15µF
TEST PROBE
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND

4
36U-F510

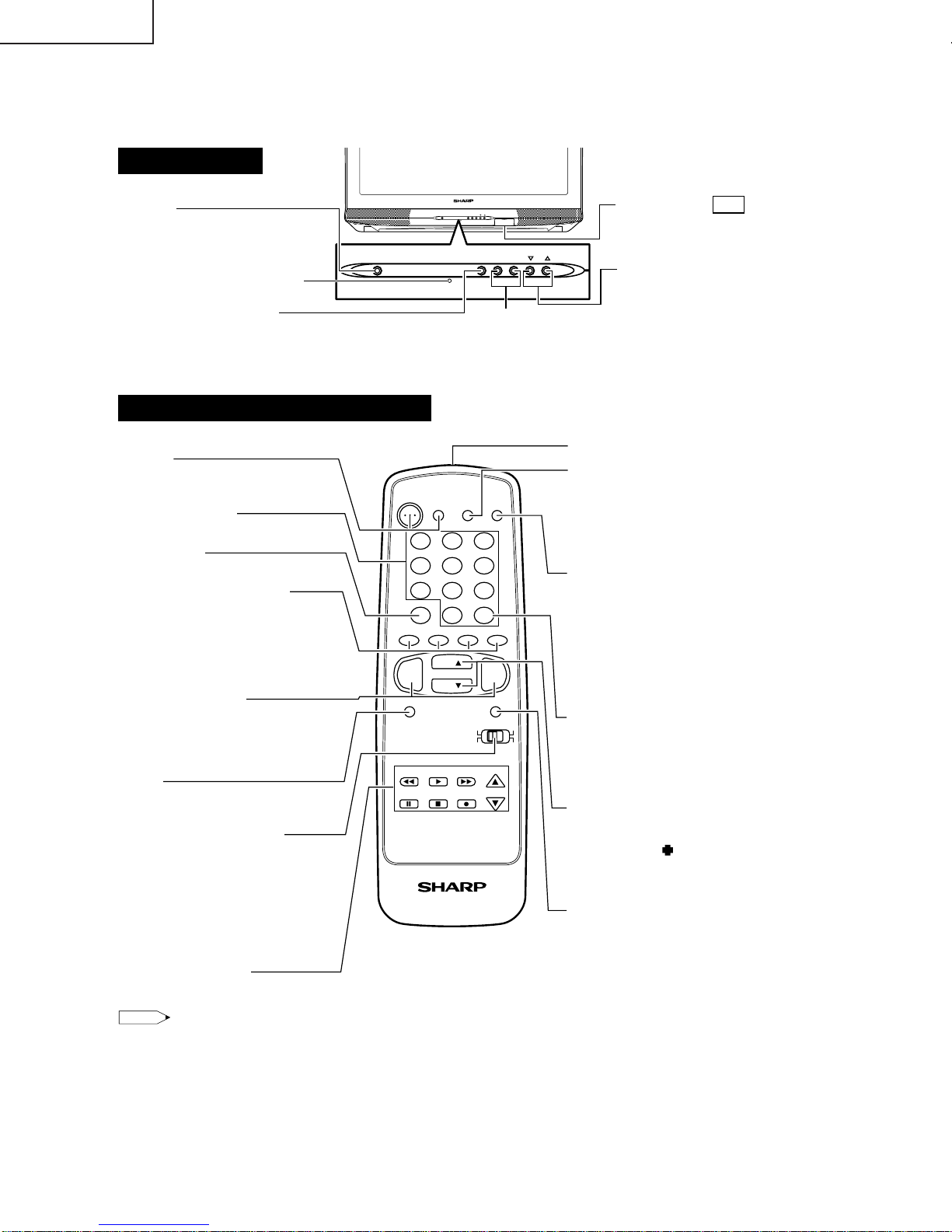

LOCATION OF USER'S CONTROL
POWER MENU – VOL + CH
PULL-OPEN
POWER MENU – VOL + CH
Front Panel
POWER
Press →On.
Press again →Off.
Basic Remote Control Functions
CHANNEL UP/DOWN
(') Selects next higher
channel.
(") Selects next lower
channel.
• Press both at the same
time to access the MAIN
MENU screen.
IN 2VIDEO/AUDIO
TERMINALS
(INSIDE DOOR)
SENSOR AREA FOR
REMOTE CONTROL
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
Infrared Transmitter Window
DISPLAY
Press→Displaysreceiving channelfor
four seconds.
Press again →Removes display.
• Temporarily displays receiving
channel when in Closed Caption
mode.
INPUT
Press →Switch to external video
INPUT 1 mode.
Press2times→Switchtoexternalvideo
INPUT 2 mode.
Press3 times→Switchtoexternalvideo
INPUT3modeorCOMPONENT mode.
Press 4 times →Switch back to the
original TV mode.
ENTER
Usedin some instances wherea Cable
Converter Box requires an “enter”
command after selecting channels,
when using the REMOTE KEYPAD
button.
CHANNEL UP/DOWN
( ) Selects next higher channel.
( ) Selects next lower channel.
• Moves the “ ” mark of the MENU
screens.
MUTE
Press →Mutes sound.
Press again →Restores sound.
• CLOSED CAPTION appears when
sound is muted.
1 2 3
4 5 6
7 8 9
0 100
POWER
TV
MENU MUTE
PAUSE
FLASHBACK
DISPLAY INPUT
TV • CATV • VCR • DVD
STOP REC
REW PLAY FF
CH/SKIP
VOL
—
CH
CH
VOL
+
ENTER
A B C D
PERSONAL PREFERENCE
DVD
VCR
CATV TV
DVD VCR
POWER
Press →On.
Press again →Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
PERSONAL PREFERENCE
With the Personal Preference buttons,
you can program your favorite
programs by using the 4 categories A,
B, C and D. The channels can be
accessed quickly by using these
buttons.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
• In menu mode, changes or selects
the TV adjustments.
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
CATV/DVD-TV/VCR MODE
SELECT SWITCH
In TV/VCR position, sends power and
channel select commands (Channel
up/downandRandom Access buttons)
to the TV and VCR control.
In CATV/DVD position, sends power
and channel select commands to a
cableTV converter and DVD control.
DVD/VCR CONTROL
Note:
• The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the
remote control, place it under a fluorescent light or other lighting.
• The phosphorescent material contains no radioactive or toxic material, so it is safe to use.
• The degree of illumination will vary depending on the strength of lighting used.
• The degree of illumination will decrease with time and depending on the temperature.
• The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.
• Sunlight and fluorescent lighting are the most effective when charging the display.
'
"

5
36U-F510
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIATION PROTECTOR CIRCUITTEST
After service has been performed on the horizontal
deflection system, high voltage system, B+ system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1. Apply 120VACusinga variac transformer foraccurate
input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter to TP651 and make sure
that the voltmeter reads 12.8 ±0.7V.
5. Apply external 16.1V DC at TP651 by using an
external DC supply, TV must be shut off.
6. To reset the protector, unplug the AC cord and plug
the AC cord power on. Now make sure that normal
picture appears on the screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.
HIGH VOLTAGE CHECK
High voltage is not adjustable but must be checked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120V AC
line voltage, with a strong air signal or a properly tuned
in test signal.
3. Enter the service mode and select the service
adjustment "V18" and Bus data "01" (Y-mute on, CRT
Cut Off).
4. The voltage should be approximately 36.0kV (at zero
beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
makeY-mute off to the normal mode.
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1)When performing any adjustments to resistor controls and transformers use non-metallic
screwdrivers or TV alignment tools.
(2)Before performing adjustments, the TV set must be on at least 15 minutes.

6
36U-F510
Figure A.
V01 02
CHANNEL
SERVICE ADJUSTMENT NUMBER
DATA NUMBER
For adjustments of this model, the bus data is converted to various analog signals by the D/A converter
circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage.
Follow the steps below whenever the service adjustment is required. See "Table-B" to determine, if serv-
ice adjustments are required.
1. Service mode
Before putting unit into the service mode, check that
customer adjustments are in the normal mode.Use
the reset function in the video adjustment menu to
ensure customer controls are in their proper (reset)
position.
2. Service number selection
Once in the service mode, press the Ch-up or Ch-
down button on the remote controller or at the set.
The service adjustment number will vary in
increments of one, from "V01" to "P08". Select the
item you wish to adjust.
3. Data number selection
Press theVol-up orVol-down button to adjust the data
number.
To enter the service mode and exit serv-
ice mode.
To enter the service mode manually just press and hold
the Vol-down and Ch-up buttons at the same time, plug
the AC cord into a wall socket.
Now the TV set is switched on and enters the service
mode.
To exit the service mode, turn the television off by
pressing the power button.
55(085)

7
36U-F510
SERVICE
NUMBER DATA
ADJUSTMENT ITEM
INITIAL VALUE RANGE ADJUSTMENT CONTENTS
Table - A
V01 PICTURE 3(03h) 0-15(00h-0Fh)
V02 TINT 62(3Eh) 0-127(00h-7Fh)
V03 COLOR 45(2Dh) 0-127(00h-7Fh)
V04 SUB COLOR 16(10h) 0-127(00h-1Fh) Must be set to “10”
V05 BRIGHT 77(4Dh) 0-127(00h-7Fh)
V06 R CUT-OFF 64(40h) 64-255(40h-FFh)
V07 G CUT-OFF 64(40h) 64-255(40h-FFh)
V08 B CUT-OFF 64(40h) 64-255(40h-FFh)
V09 G DRIVE 64(40h) 0-127(00h-7Fh)
V10 B DRIVE 64(40h) 0-127(00h-7Fh)
V11 SHARP 20(14h) 0-63(00h-3Fh) Must be set to “1E”
V12 N PHASE 1(01h) 0-3 (00h-03h) Must be set to “01”
V13 DC RESTORATION 0(00h) 0-3 (00h-03h) Must be set to “03”
V14 BLACK STRETCH 3(03h) 0-3 (00h-03h) Must be set to “03”
V15 ABL START POINT 3(03h) 0-3 (00h-03h) Must be set to “03”
V16 ABL GAIN 2(02h) 0-3 (00h-03h) Must be set to “02”
V17 γ POINT 0(00h) 0-3 (00h-03h) Must be set to “02”
V18 Y-MUTE/V-STOP 0(00h) 0-2 Must be set to “00”
V19 ENERGY SAVE 40(28h) 0-63(00h-3Fh) Must be set to “28”
V24 LOW-G 247(F7h) 0-255(00h-FFh) Must be set to “F7”
V25 LOW-B 232(E8h) 0-255(00h-FFh) Must be set to “E8”
V26 ML-G 0(00h) 0-255(00h-FFh) Must be set to “00”
V27 ML-B 249(F9h) 0-255(00h-FFh) Must be set to “F9”
V28 HIGH-G 3(03h) 0-255(00h-FFh) Must be set to “03”
V29 HIGH-B 6(06h) 0-255(00h-FFh) Must be set to “06”
V30 WPS 1(01h) 0-1 Must be set to “01”
V31 RGB CONTRAST 32(20h) 0-63(00h-3Fh) Must be set to “30”
V32 Y-DL 2(02h) 0-7(00h-07h) Must be set to “02”
V33 Y-DL-INPUT 1(01h) 0-7(00h-07h) Must be set to “01”
V34 VSM GAIN 7(07h) 0-7(00h-07h) Must be set to “07”
V35 N COMB 1(01h) 0-1 Must be set to “01”
V36 BPF/TOF-INPUT 0(00h) 0-1 Must be set to “01”
V37 CORING 0(00h) 0-1 Must be set to “00”
V38 VSM PHASE 0(00h) 0-1 Must be set to “00”
V39 COLOR γ0(00h) 0-1 Must be set to “01”
V40 SHARP-INPUT 20(14h) 0-63(00h-3Fh) Must be set to “1E”
V41 TINT-INPUT 62(3Eh) 0-127(00h-7Fh)
V42 PICTURE-COMPONENT 3(03h) 0-15(00h-0Fh)
V43 TINT-COMPONENT 16(10h) 0-31(00h-1Fh) Must be set to “10”
V44 COLOR-COMPONENT 48(30h) 0-31(00h-1Fh) Must be set to “44”
V45 BRIGHT-COMPONENT 74(4Ah) 0-127(00h-7Fh)
V46 R CUT OFF-COMPONENT 64(40h) 0-255(00h-FFh)
V47 G CUT OFF-COMPONENT 64(40h) 0-255(00h-FFh)
V48 B CUT OFF-COMPONENT 64(40h) 0-255(00h-FFh)
V49 G DRIVE-COMPONENT 64(40h) 0-127(00h-7Fh)
V50 B DRIVE-COMPONENT 64(40h) 0-127(00h-7Fh)
V51 SHARP-COMPONENT 20(14h) 0-63(00h-3Fh) Must be set to “1E”
V52 N PHASE-COMPONENT 01(01h) 0-3 (00h-03h) Must be set to “01”
V53 C-TRAP 0(00h) 0-1 Must be set to “00”
V54 ANT-B PICTURE 3(03h) 0-15(00h-0Fh)
V55 ANT-B TINT 62(3Eh) 0-127(00h-7Fh)
V56 ANT-B COLOR 45(2Dh) 0-127(00h-7Fh)
V57 ANT-B SHARP 20(14h) 0-63(00h-3Fh) Must be set to “1E”
V58 ANT-B BRIGHT 77(4Dh) 0-127(00h-7Fh)
R01 RF-AGC 36(24h) 0-63(00h-3Fh)
R02 PIF VCO coil – –
R03 RF-AGC REF 92(5Ch) 0-255(00h-FFh) Must be set to “5C”
D01 V POSITION 0(00h) 0-7 (00h-07h)
D02 H POSITION 16(10h) 0-31(00h-1Fh)
D03 V SIZE 18(12h) 0-63(00h-3Fh)
D04 H SIZE 31(1Fh) 0-63(00h-3Fh) Must be set to “16”
D05 V-LINEARITY 7(07h) 0-15(00h-0Fh)
D06 V-S CORRECTION 8(08h) 0-15(00h-0Fh) Must be set to “0A”

8
36U-F510
SERVICE
NUMBER DATA
ADJUSTMENT ITEM
INITIAL VALUE RANGE ADJUSTMENT CONTENTS
D07 EW PARABOLA 33(21h) 0-63(00h-3Fh) Must be set to “24”
D08 EW TRAPEZIUM 14(0Eh) 0-31(00h-1Fh) Must be set to “0D”
D09 EW CORNER 12(0Ch) 0-15(00h-0Fh) Must be set to “08”
D10 AFC GAIN 2(02h) 0-3 (00h-03h) Must be set to “02”
D11 V EHT 7(07h) 0-7 (00h-07h) Must be set to “04”
D12 H EHT 3(03h) 0-7 (00h-07h) Must be set to “04”
EX1 FAO VOLUME 36(24h) 0-50(00h-32h) Must be set to “24”
EX2 CC-POSITION 33(21h) 0-127(00h-7Fh)
EX3 INT 122(7Ah) 0-255(00h-FFh) Must be set to “7A”
EX4 A-ATT 90(5Ah) 0-127
EX5 TUNER data 0(00h) 0-3(00h-03h) Must be set to “00”
EX6 Think chip-Slice LEVEL 54(36h) 0-255(00h-FFh) Must be set to “36”
OP1 OPTION1 247(F7h) 0-255(00h-FFh) Must be set to “F7” (36U-F810), “F5” (36U-F500)
OP2 OPTION2 249(F9h) 0-255(00h-FFh) Must be set to “F9” (36U-F810), “18” (36U-F500)
OP3 OPTION3 15(0Fh) 0-255(00h-FFh) Must be set to “0F”
M01 INPUT LEVEL 9(09h) 0-15(00h-0Fh) Must be set to “09”
M02 MTS VCO 36(24h) 0-63(00h-3Fh)
M03 FILTER 31(1Fh) 0-63(00h-3Fh)
M04 WIDEBAND 24(18h) 0-63(00h-3Fh)
M05 SPECTRAL 16(10h) 0-63(00h-3Fh)
M06 ANT-B INPUT LEVEL 9(09h) 0-15(00h-0Fh)
M07 ANT-B WIDEBAND 24(18h) 0-63(00h-3Fh)
M08 ANT-B SPECTRAL 16(10h) 0-63(00h-3Fh)
M09 SRS LEVEL 255(FFh) 0-255(00h-FFh) Must be set to “E0”
M10 BBE LEVEL 255(FFh) 0-255(00h-FFh) Must be set to “D9”
M11 SRS&BBE LEVEL 255(FFh) 0-255(00h-FFh) Must be set to “D0”
M12 SRS&BBE OFF LEVEL 255(FFh) 0-255(00h-FFh) Must be set to “E5”
M13 SRS Effect 2(02h) 2-3(02h-03h) Must be set to “02”
M14 BBE-L Effect 8(08h) 0-15(00h-0Fh) Must be set to “0F”
M15 BBE-H Effect 8(08h) 0-15(00h-0Fh) Must be set to “0F”
M16 AGC Level 7(07h) 0-7(00h-07h) Must be set to “01”
M17 BASS Offset 0(00h) 0-31(00h-1Fh) Must be set to “10”
M18 TREBLE Offset 0(00h) 0-31(00h-1Fh) Must be set to “10”
M19 BASS Offset-BBE 0(00h) 0-31(00h-1Fh) Must be set to “11”
M20 TREBLE Offset-BBE 0(00h) 0-31(00h-1Fh) Must be set to “10”
P01 CONTRAST-PIP 50(32h) 0-127(00h-7Fh)
P02 TINT-PIP 41(29h) 0-63(00h-3Fh) Must be set to “29”
P03 COLOR-SAT-PIP 50(32h) 0-127(00h-7Fh)
P04 Y-OFFSET-PIP 9(09h) 0-31(00h-1Fh) Must be set to “09”
P05 HXA-PIP 10(0Ah) 0-255(00h-FFh) Must be set to “0A”
P06 HADJ-PIP 0(00h) 0-15(00h-0Fh) Must be set to “00”
P07 FREE RUN-PIP 11(0Bh) 0-15(00h-0Fh) Must be set to “0B”
P08 TINT-PIP-INPUT 36(24h) 0-63(00h-3Fh) Must be set to “24”
NECESSARY UNNECESSARY
ADJUSTMENT
PART REPLACED
IC2001
IC201
XData is stored in IC2102.
The adjustment is needed to compensate for characteristics of parts
including IC201 and MTS level (M01).
Holding down both the VOL-up and CH-up buttons on the TV set at service mode for more than 2 seconds will
automatically write the above initial values into IC2102.
NOTES
X
IC2102 (or IC2101)
IC3001
CRT
IC1801
Holding down both the VOL-up and CH-up buttons on the TV set in the
service mode for more than 2 seconds will automatically write the above
initial values into IC2102 (or IC2101).Then perform a complete adjustment.
Adjust items related to picture tube only.
Adjust items related to MTS only (M01~M20).
Adjust items related to P-IN-P only (P01~P08).
Table - B
X
X
X
X
Table - A

9
36U-F510
SERVICE ADJUSTMENT
RF AGC Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "R01".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confirm that no noise or
beat appears.
Note 1 : You will have to come out of the service
mode to select another channel.
Note 2 : Setting the data to "00" will produce a black
raster.
ScreenAdjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "V03" and set the data value to "00" to
set the color level to minimum.(Record original data
code under adjustment "V03" before changing)You
may skip this step, if you selected a B/W picture or
monoscope pattern.
3. Select the service adjustment "V18" and adjust the
data value to "01", this turn off the luminance signal
(Y-mute).
4. Adjust the master screen control until the raster
darkens to the point where raster is barely seen.
5. Adjust the service adjustments "V06" red, "V07" green
and "V08" blue to obtain a good grey scale with
normal whites at low brightness level.
6. Select the service adjustment "V18" and reset data
to "00".Select the service adjustment "V03" and reset
data to obtain normal color level.
7. For component input, the data value of "V46" red,
"V47" green and "V48" blue is adjusted to follow the
data value of "V06", "V07" and "V08" respectively.
8. Reset the master screen control to obtain normal
brightness range.
White Balance Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "V03" and set to "00" (minimum
color)(Record original data code under adjustment
"V03" before changing). "V03" does not have to be
adjusted, if you selected a B/W picture or monoscope
pattern.
3. Alternately adjust the service adjustment data of
"V09" and "V10" until a good grey scale with normal
whites is obtained. (RF Input)
4. For component input, the data value of "V49" and
"V50" is adjusted to follow the data value of "V09"
and "V10" respectively.
5. Select the service adjustment "V03" and reset data
to obtain normal color level.
Sub-picture and Sub-Bright Adjustments
1. Receive the window pattern signal.
• RF INPUT (TU51)
2.Get into service adjustment data "V01" and "V05"
and set the luminance as shown in figure "A" and "B"
as below respectively.
• RF INPUT (TU52)
3. Get into service adjustment data "V54" and "V58"
and set the luminance as shown in figure "A" and "B"
as below respectively.
• COMPONENT INPUT
4. Get in service adjustment data "V42" and "V45" and
set the luminance as shown in figure "A" and "B" as
below respectively.
VOLTAGE CONFIRMATION
A: 80±10cd/m2
B:1.1±0.5cd/m2
Sub-Tint Adjustment
1. Receive the half color bar signal.
• RF INPUT (TU51)
2. Get into Y-Mute by R/C, or by setting the "V18" bus
data to "01".
3. Vary the "V02" bus data until the waveform becomes
as stated below.
4. Input data of "V55" to minus 1 step from "V02" data.
• AV INPUT
5. Input data of "V41" to minus 5 step from "V02" data.
Sub-Color Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position .
• RF INPUT (TU51)
3. Enter the service mode and select service adjustment
"V03".
4. Adjust "V03" data value to obtain a normal color level.
5.Enter the service mode and select service adjustment
"V56".
6. Input the data of "V56" same as "V03" data.
AB
LEVEL
B-AMP Base waveform in step
(TP47B)

10
36U-F510
Focus Adjustment
1. Receive a good local channel.
2.Adjust theVR-1 (upper knob) and VR-2 (middle knob)
of the flyback transformer to make the image as fine
as possible.
C. C Display Position Adjustment
1. Receive the lion head pattern signal.
2. Select "EX2" to display the text box.
3. Adjust the "EX2" bus data to let the text box displayed
in the center.
Vertical-Size and Linearity Adjustments
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D03" for V-size.
3. Adjust the "D03" bus data to get the proper V-size.
4. ForV-linearity adjustment, select data bus "D05" and
adjust to get the proper vertical linearity.
Note: Aging for 10 min before adjustment. After the
adjustment of V-center and V-size, re-
adjustment for this V-line.
Vertical Phase Adjustment
1. Enter the service mode and select the service
adjustment "D01".
2. Adjust "D01" data value so that picture is centered.
Horizontal Position Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D02".
3. Adjust "D02" data value so that picture is centered.
Caption Position Adjustment (Horizontal)
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "EX2".
3. A black text box appears on the screen. (see Figure
B. )
4. Adjust "EX2" data value so that text box is positioned
in the center of the screen.
Horizontal-Size Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D04" for H-size.
3. Adjust the "D04" bus data to get the proper H-size.
EW-Parabola
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D07" for EW parabola.
3. Adjust the "D07" bus data to get the proper vertical
straight line for both left and right side.
EW-Trapezium
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D08" for EW-Trapezium.
3. Adjust the "D08" bus data to get the best position
display.
EW-Corner
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "D09" for EW-Corner.
3. Adjust the "D09" bus data to get the best linearity for
4 corner points.
Other Adjustments
1. Enter the service mode.
2. Adjust the following data values as listed below.
Figure B.
SERVICE ADJUST DATA(Hex)
POSITION ITEM
OP1 OPTION1 F5
OP2 OPTION2 18
OP3 OPTION3 0F

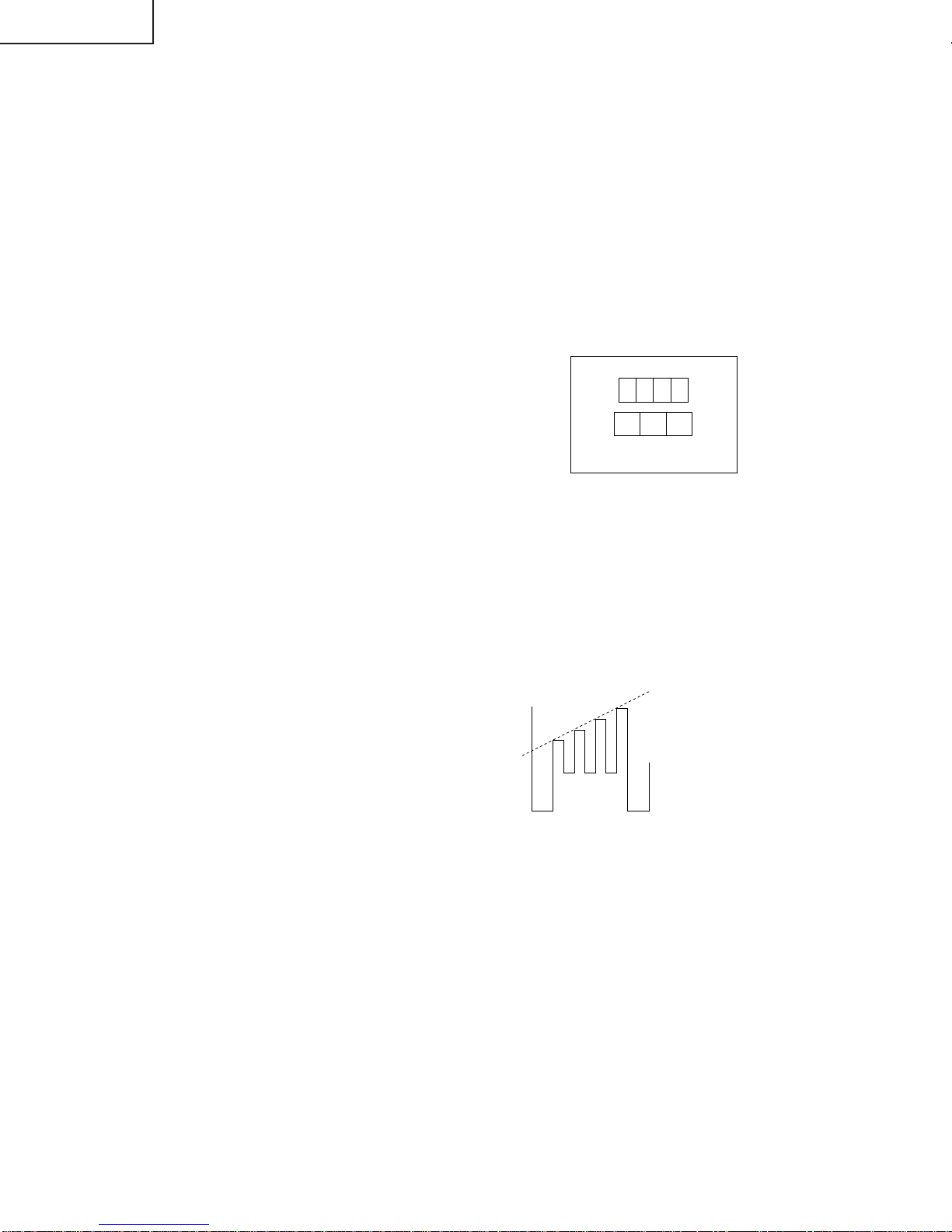

DISPLAY OF TEXT BOX
TEXT BOX
AB
| A-B | / 2
SPEC INSPECTION:| A-B | / 2 <
=5mm

11
36U-F510
ËMTS ADJUSTMENT
MTS Level Adjustment
1. Set the sound volume above 1.
Monoral signal: 400Hz, 100% modulation
2. Confirm "M01" data is "09h".
3. Vary the "EX4" bus data until the voltage to pin (39)
of IC3001.
4. Become the value as stated below.
ADJ spec : 490±10mVrms
CHK spec: 490±20mVrms
MTS VCO Adjustment
1. Keep the unit in no-signal state.
2.Connect the frequency counter to pin (39) of IC3001.
3.Connect a capacitor (100µF, 50V) in between
positive(+) side of C3005 and ground.
4.Enter the service mode and select the service
adjustment "M02"
5. Adjust the data so that the frequency counter reads
62.94 ±0.75kHz.
Filter Adjustment
1.Feed the following stereo pilot signal to pin (14) of
IC3001 .
Stereo pilot signal: 9.4kHz, 600mVrms.
2.Enter the service mode and select the service
adjustment "M03".
3. Adjust the data until "OK" appears in position on the
screen. Make sure the "OK" is displayed almost at
the center of the data range.
Separation Adjustment
1.Input "SIGNAL 1" and vary the "M04" bus data to get
the minimun AC voltage to pin (39) of IC3001.
2.Input "SIGNAL 2" and vary the "M05" bus data to get
the minimun AC voltage to pin (39) of IC3001.
SIGNAL 1:
300Hz, 30% modulation, Lch only, NR-ON
SIGNAL 2: 3kHz, 30% modulation, Lch only, NR-ON
Note: SIGNAL 1 Adj.for wideband
SIGNAL 2 Adj. for spectral
Check the output of the speaker at the maximum
volume as stated below.
Confirmation spec:
ADJ spec: above 25 dB
CHK spec: above 20 dB
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P01".
3. Adjust "P01" data value to obtain normal contrast
level.
P-IN-PTINT Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P02".
3. Adjust data value to "29".
P-IN-P COLOR Adjustment
1. Receive a good local channel.
2. Make sure the customer color control is set to center
position.
3. Enter the service mode and select the service
adjustment "P03".
4. Adjust "P03" data value to obtain normal color level.
P-IN-PY-OFF SET Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P04".
3. Adjust data value to "09".
P-IN-P H-POSITION Adjustment
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P05".
3. Adjust data value to "0A".
P-IN-P BURST GATE PULSE (for MAIN)
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P06".
3. Adjust data value to "00".
P-IN-P FREERUN
1. Receive a good local channel.
2. Enter the service mode and select the service
adjustment "P07".
3. Adjust data value to "0B".

12
36U-F510
654321
A
B
C
D
E
F
G
H

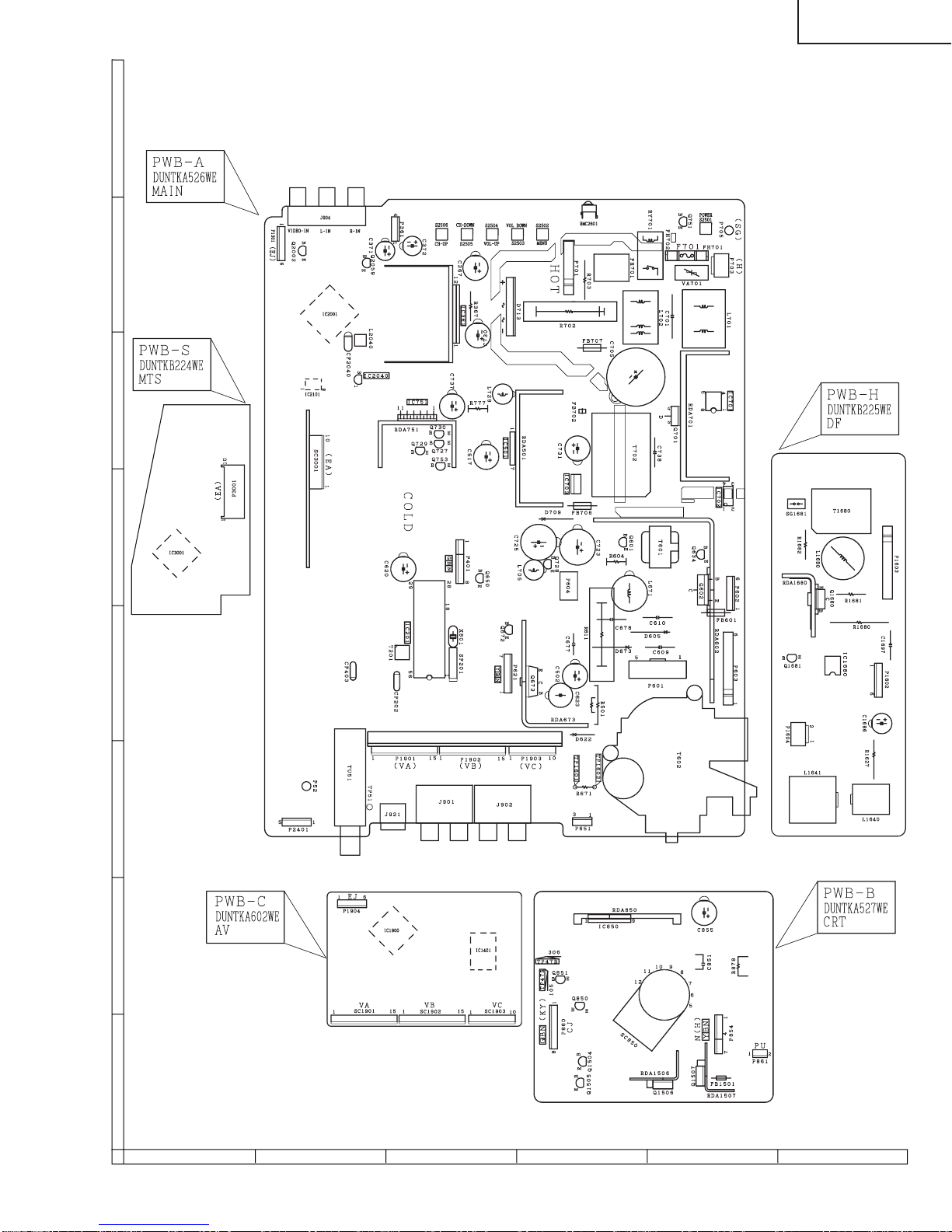

MODEL 36U-F500 CHASSIS LAYOUT

13
36U-F510
654321
A
B
C
D
E
F
G
H
MODEL 36U-F500 BLOCK DIAGRAM

14
36U-F510
DESCRIPTION OF SCHEMATIC DIAGRAM
NOTES:
1. The unit of resistance "ohm" is omitted.
(K=k Ω =1000 Ω , M=M Ω )
2. All resistors are 1/16 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted.
(P=pF=µµF)
4. (G) indicates ±2% tolerance may be used.
5. indicates line isolated ground.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for normal
picture unless otherwise indicated.
2. All voltages measured with 1000µ V B & W or Color
signal.
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color.The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
WAVEFORMS
å AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
ç MARK= X-RAY RELATED PARTS.
This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.
11.2 Vp-p 22.3 Vp-p 31.0 Vp-p 40.5 Vp-p 55 Vp-p 65 Vp-p
71.1 Vp-p 81.5 Vp-p 930 Vp-p 053 Vp-p q5.4 Vp-p w0.8 Vp-p
e190 Vp-p r15 Vp-p t1050 Vp-p y900 Vp-p u220 Vp-p i27 Vp-p
o3.0 Vp-p p3.0 Vp-p a3.0 Vp-p s140 Vp-p d130 Vp-p f130 Vp-p

16
36U-F510
15
121110987654321
A
B
C
D
E
F
G
H
MODEL 36U-F510 SCHEMATIC DIAGRAM: MAIN-1 Unit

18
36U-F510
17
121110987654321
A
B
C
D
E
F
G
H

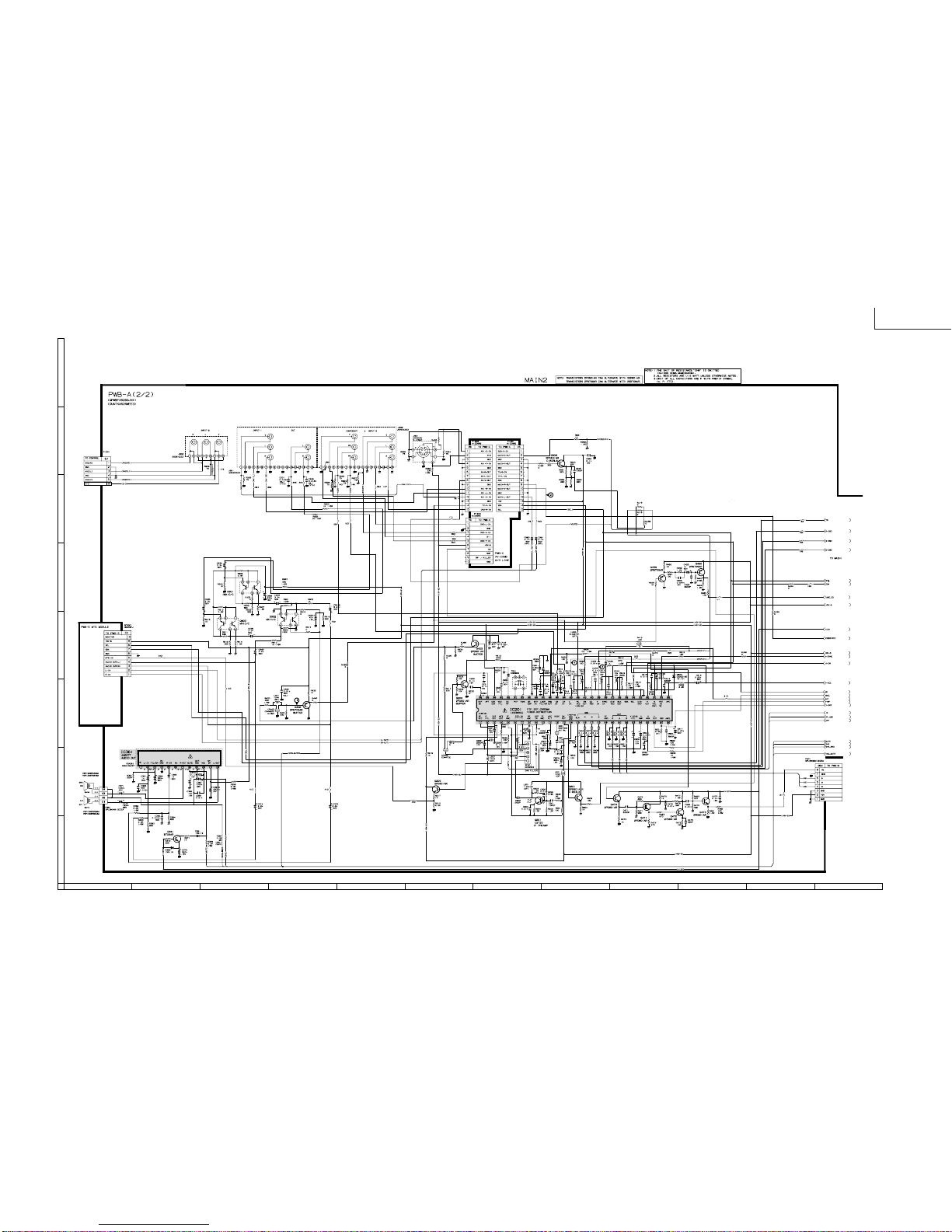

MODEL 36U-F510 SCHEMATIC DIAGRAM: MAIN-2 Unit

20
36U-F510
19
121110987654321
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAM: AV Unit

21
36U-F510
654321
A
B
C
D
E
F
G
H

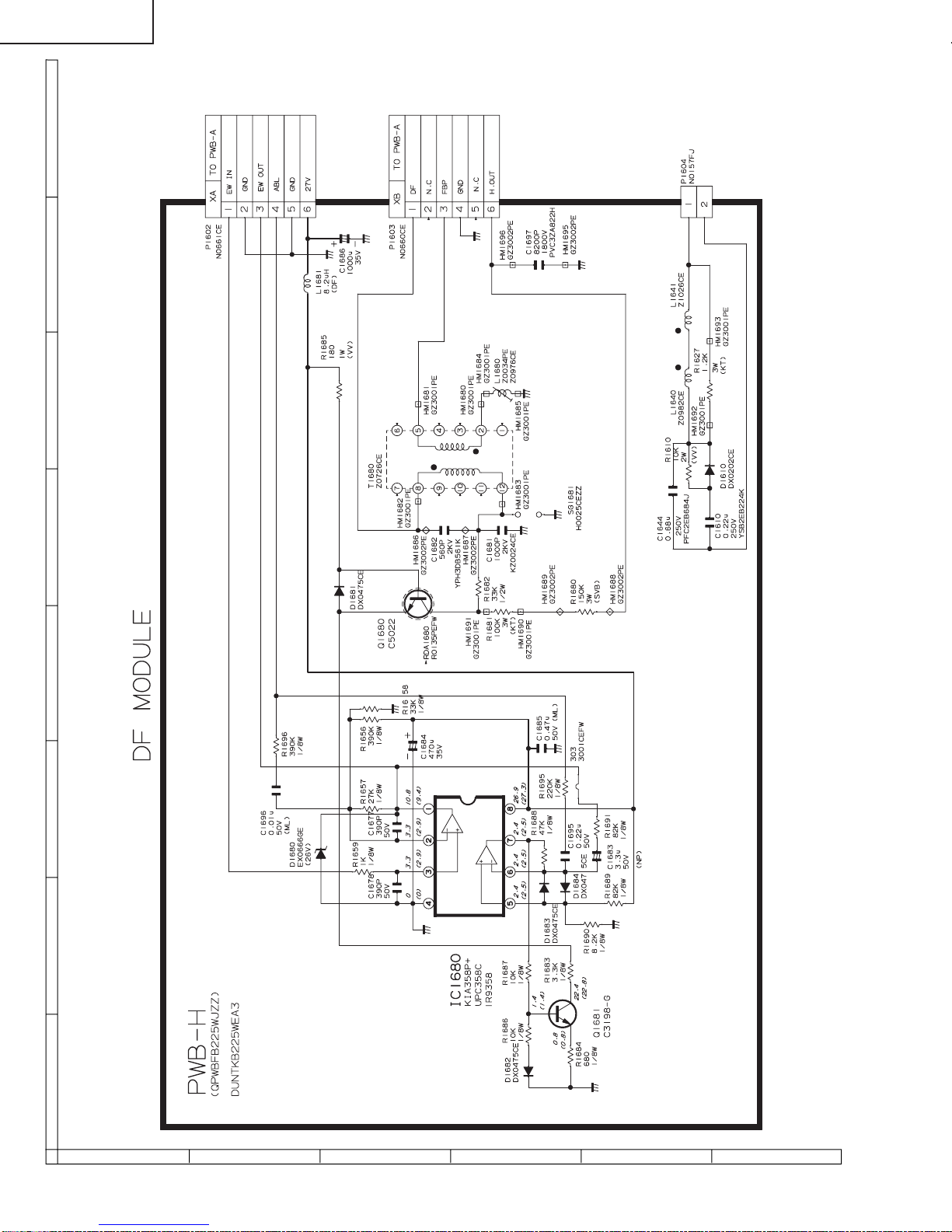

SCHEMATIC DIAGRAM: DF MODULE Unit

22
36U-F510
654321
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAM: CRT Unit

36U-F510
654321
A
B
C
D
E
F
G
H
23

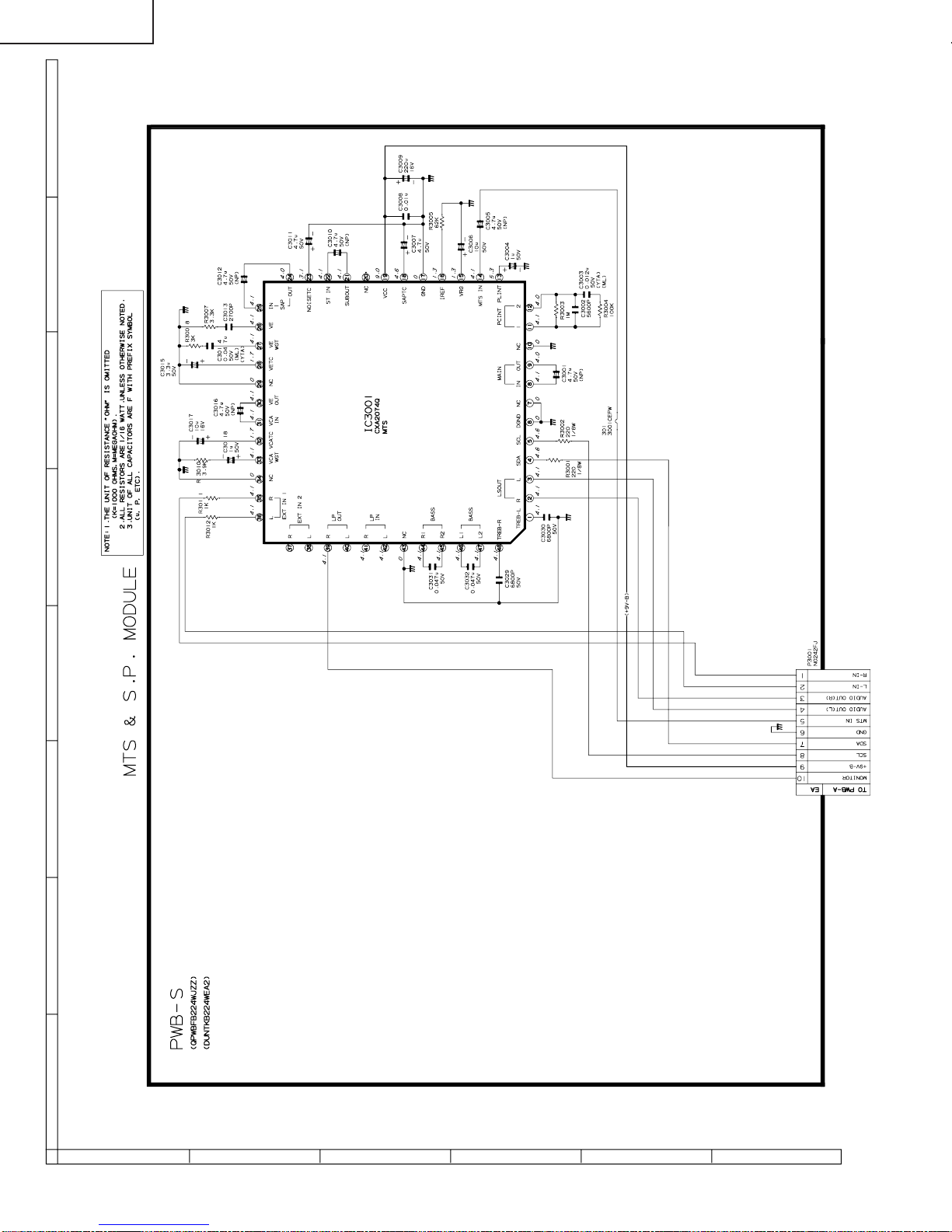

SCHEMATIC DIAGRAM: MTS MODULE Unit
