Sharp AQUOS LC-40LE820UN User manual

SERVICE MANUAL
LC-40/46/52/60LE820UN
No. S30F140LE820U
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION ...............i
PRECAUTIONS A PRENDRE LORS DE
LA REPARATION...............................................ii
PRECAUTIONS FOR USING LEAD-FREE SOLDER ...........iii
OUTLINE
MAJOR SERVICE PARTS................................iv
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS (LC-40/46LE820UN)........1-1
[2] SPECIFICATIONS (LC-52/60LE820UN)........1-2
CHAPTER 2. OPERATION MANUAL

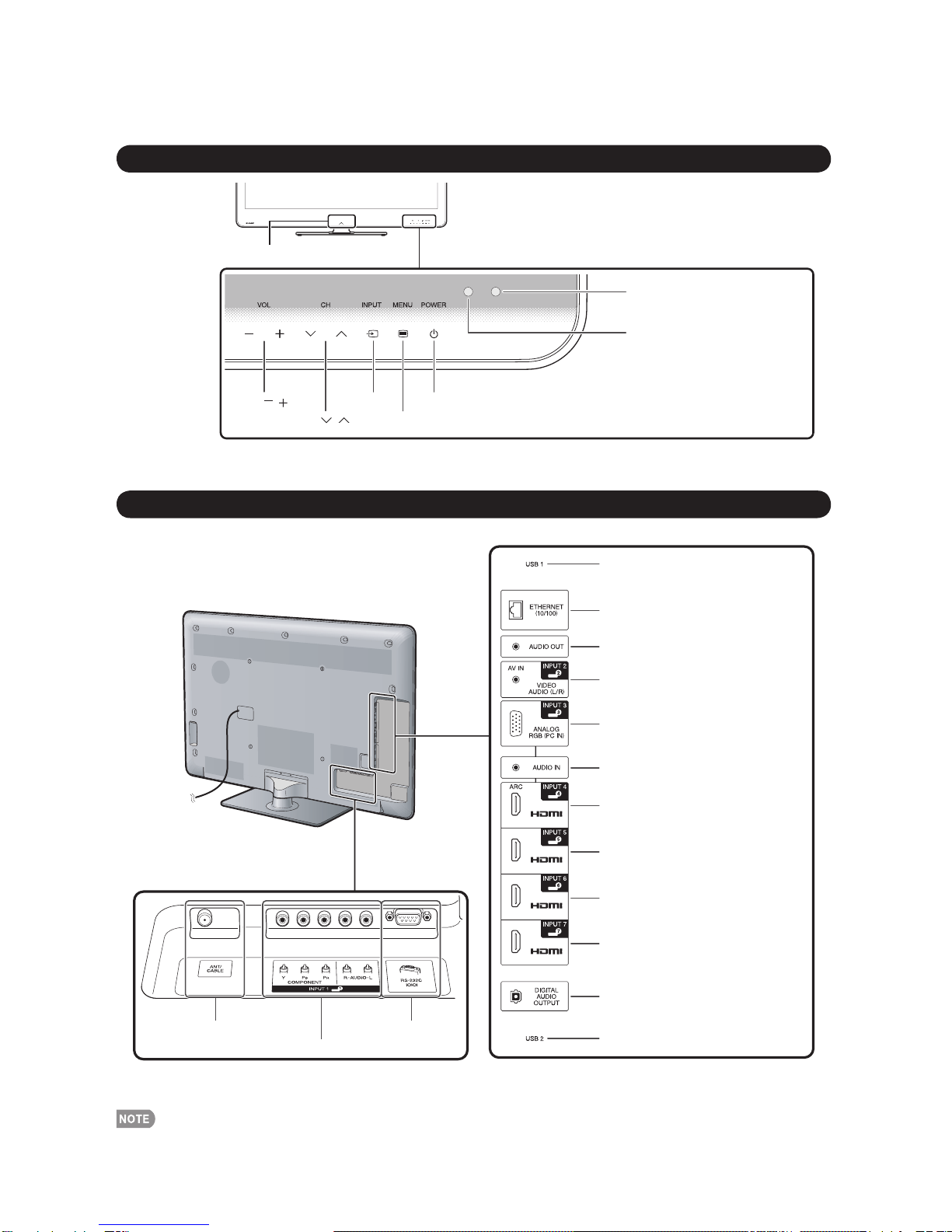

[1] Parts Name....................................................2-1
[2] OPERATION MANUAL ..................................2-3

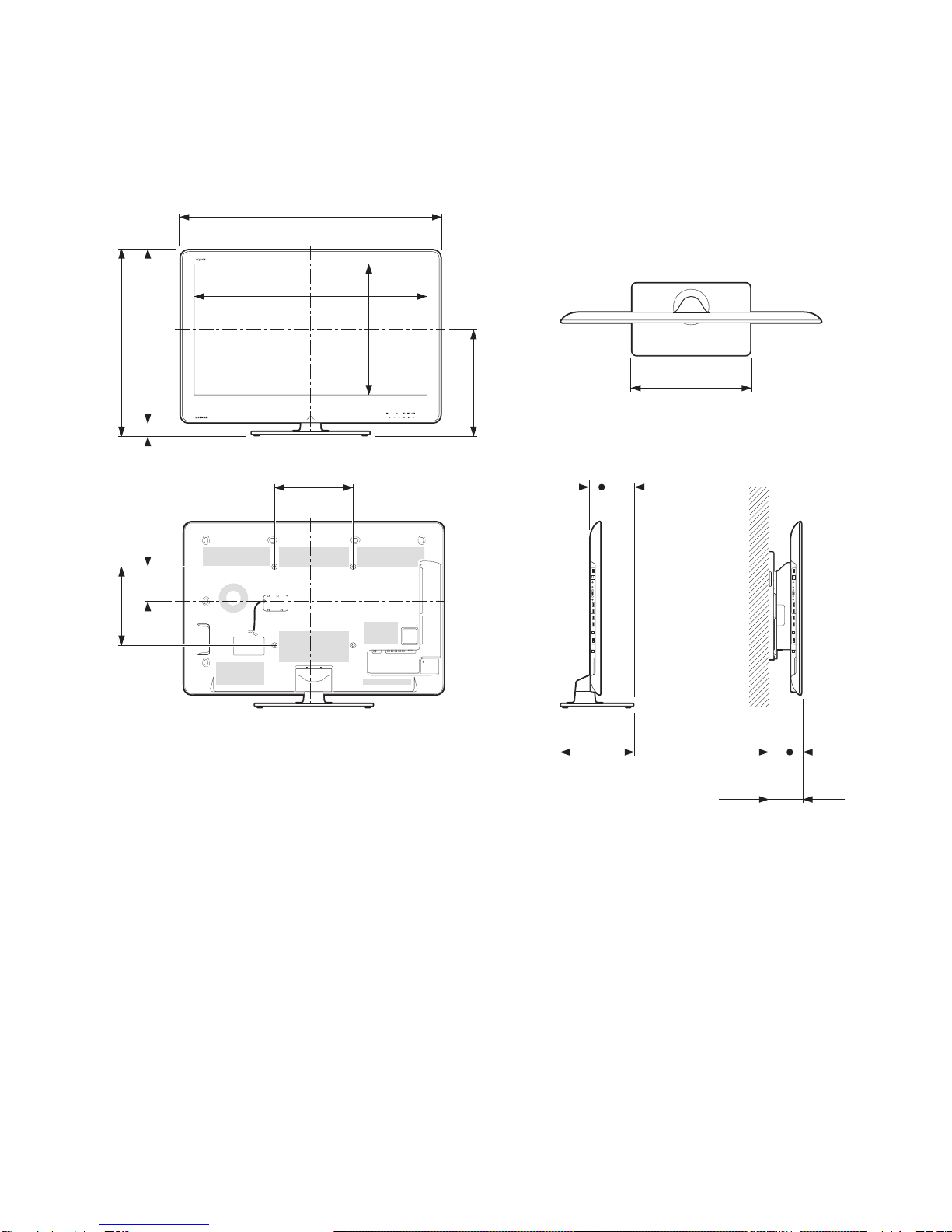

CHAPTER 3. DIMENSIONS
[1] DIMENSIONS (LC-40LE820UN)....................3-1
[2] DIMENSIONS (LC-46LE820UN)....................3-2
[3] DIMENSIONS (LC-52LE820UN)....................3-3
[4] DIMENSIONS (LC-60LE820UN)....................3-4

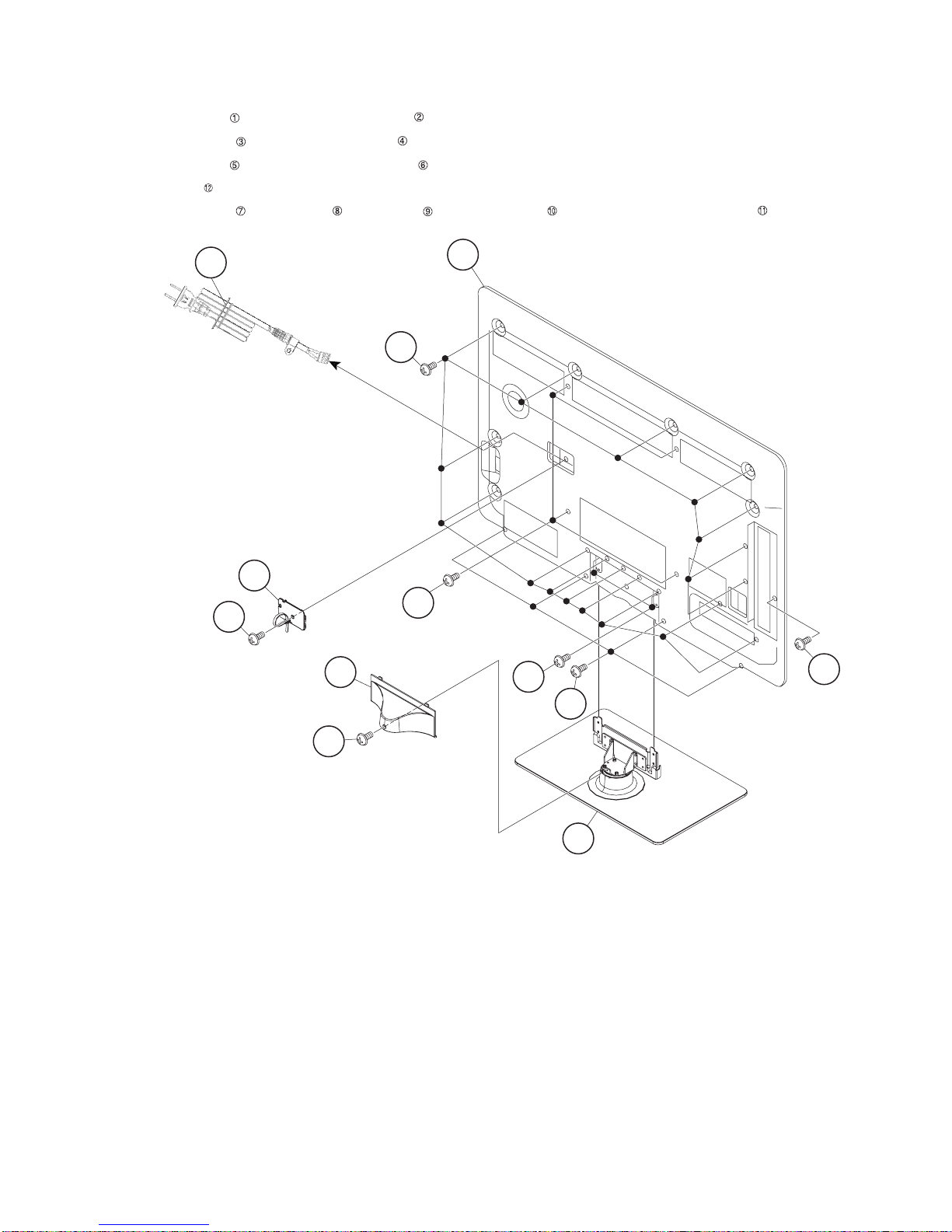

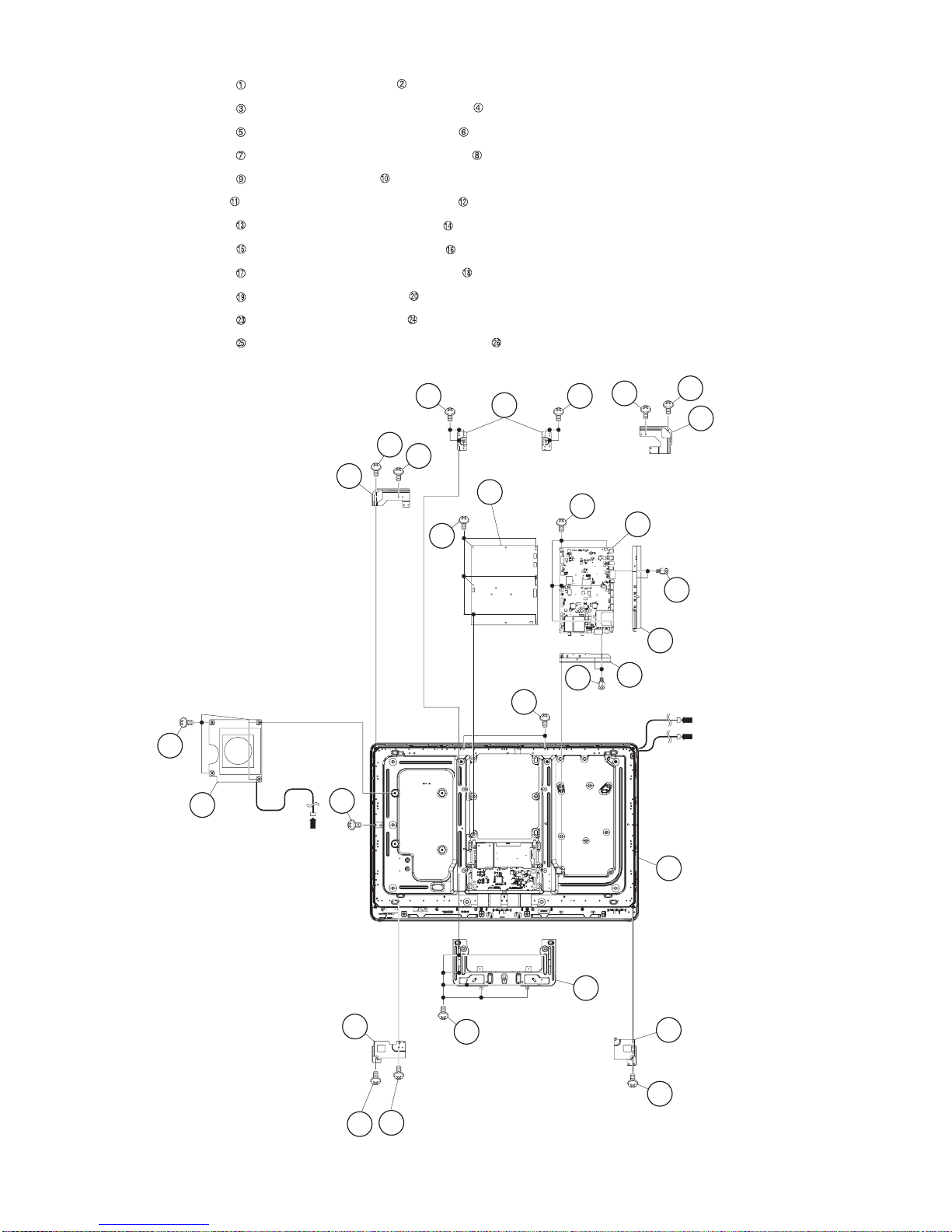

CHAPTER 4. REMOVING OF MAJOR PARTS
[1]
REMOVING OF MAJOR PARTS (LC-40LE820UN) ........4-1
[2]
REMOVING OF MAJOR PARTS (LC-46LE820UN) ........4-6
[3]
REMOVING OF MAJOR PARTS (LC-52LE820UN) ...... 4-11
[4]
REMOVING OF MAJOR PARTS (LC-60LE820UN) ......4-16
[5] Caution Cleaning Glass...............................4-21
[6]
How to replace the touch key sensor PWB ......4-23
CHAPTER 5. Enter the chapter title here.
[1] LC-40LE820UN .............................................5-1
[2] LC-46LE820UN .............................................5-2
[3] LC-52LE820UN .............................................5-3
[4] LC-60LE820UN .............................................5-4
CHAPTER 6. ADJUSTMENT
[1] ADJUSTMENT PROCEDURE ......................6-1
[2] PUBLIC MODE SETTING PROCEDURE......6-15
CHAPTER 7. TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE ......................7-1
[2] LED flashing specification at the time of an
error (Center icon LED used) ......................7-14
CHAPTER 8. MAJOR IC INFORMATIONS
[1] MAJOR IC INFORMATIONS.........................8-1
CHAPTER 9. OVERALL WIRING/SYSTEM BLOCK
DIAGRAM
[1] OVERALL WIRING DIAGRAM......................9-1
[2] SYSTEM BLOCK DIAGRAM.........................9-2
Parts Guide
CONTENTS
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
LCD COLOR TELEVISION
LC-40LE820UN
LC-46LE820UN
LC-52LE820UN
LC-60LE820UN
MODELS

LC-40/46/52/60LE820UN
i
LC-40LE820UN Service Manual
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER (Fire &
Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.

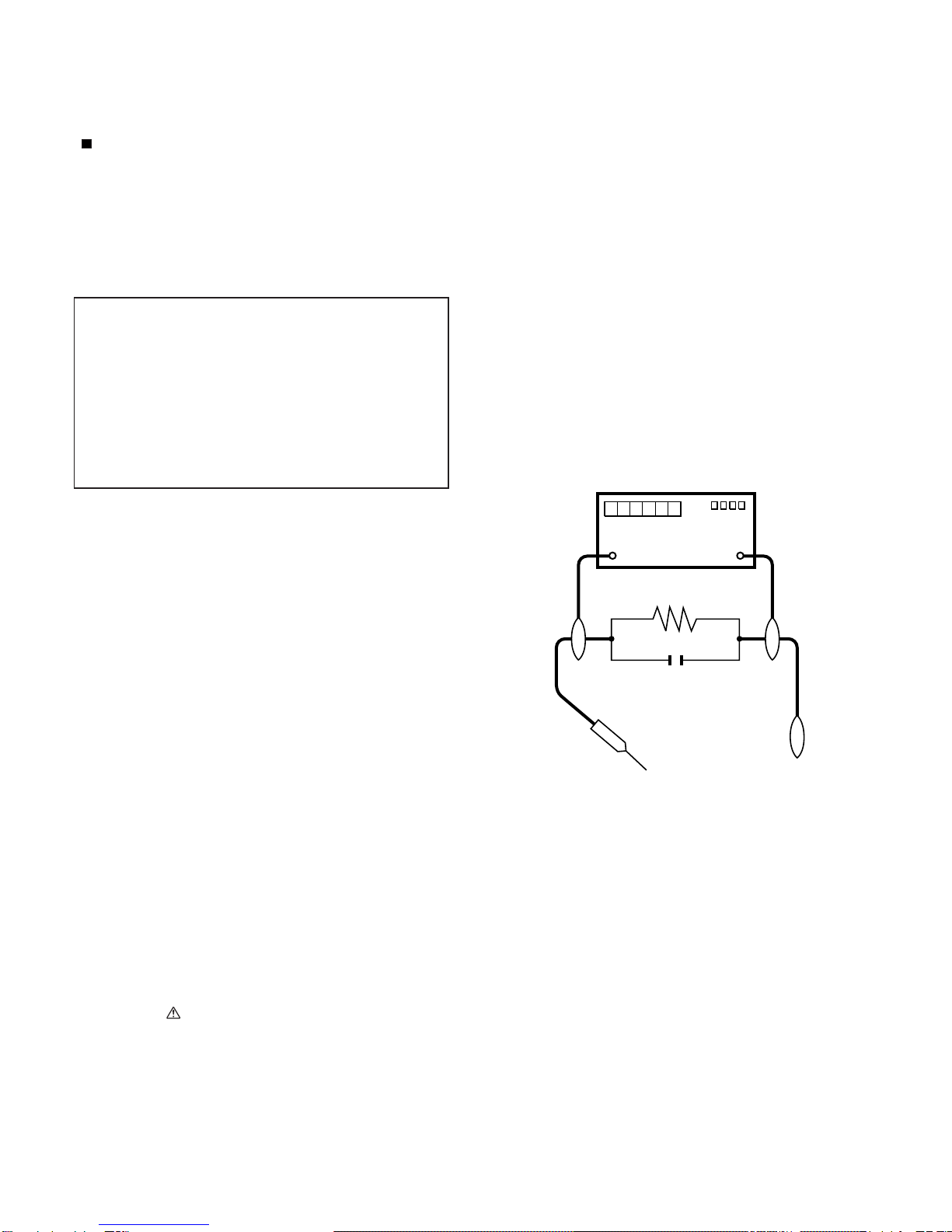

5. To be sure that no shock hazard exists, check for leakage current in
the following manner.
• Plug the AC cord directly into a 120 volt AC outlet.
• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-
leled by a 0.15µF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or elec-
trical ground connected to an earth ground.
• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-
sitivity or measure the AC voltage drop across the resistor.
• Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
SAFETY NOTICE
Many electrical and mechanical parts in LCD color television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " " and shaded areas in the Replacement Parts List
and Schematic Diagrams.
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
CAUTION: FO R CON TIN UED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
F7000 (250V 3.5A) (LC-40LE820UN)
F7001 (250V 3.5A) (LC-40LE820UN)
F7000 (250V 5A) (LC-46/52/60LE820UN)
F7001 (250V 5A) (LC-46/52/60LE820UN)
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
0.15 µ F
TEST PROBE

LC-40/46/52/60LE820UN
ii
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
De nombreuses pièces, électriques et mécaniques, dans les télévi-
seur ACL présentent des caractéristiques spéciales relatives à la sé-
curité, qui ne sont souvent pas évidentes à vue. Le degré de protec-
tion ne peut pas être nécessairement augmentée en utilisant des
pièces de remplacement étalonnées pour haute tension, puissance,
etc.
Les pièces de remplacement qui présentent ces caractéristiques sont
identifiées dans ce manuel; les pièces électriques qui présentent ces
particularités sont identifiées par la marque " " et hachurées dans la
liste des pièces de remplacement et les diagrammes schématiques.
Pour assurer la protection, ces pièces doivent être identiques à celles
utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas
les mêmes caractéristiques que les pièces recommandées par l'usine,
indiquées dans ce manuel, peut provoquer des électrocutions, incen-
dies, radiations X ou autres accidents.
AVERTISSEMENT
1.
2.
3.
4.
5.
•
•
•
•
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux
conseils suivants.
N'entreprendre aucune modification de tout circuit. C'est danger-
eux.
Débrancher le récepteur avant toute réparation.
Inspecter tous les faisceaux de câbles pour s'assurer que les fils
ne soient pas pincés ou qu'un outil ne soit pas placé entre le châs-
sis et les autres pièces métalliques du récepteur.
Inspecter tous les dispositifs de protection comme les boutons de
commande non-métalliques, les isolants, le dos du coffret, les cou-
vercles ou blindages de réglage et de compartiment, les réseaux
de résistancecapacité, les isolateurs mécaniques, etc.
S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la
fuite de courant, de la facon suivante:
Brancher le cordon d'alimentation directem-ent à une prise de cou-
rant de 120V. (Ne pas utiliser de transformateur d'isolation pour
cet essai).
A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ
10 watts en parallèle avec un condensateur de 0.15µF en série
avec toutes les pièces métalliques exposées du coffret et une terre
connue comme une conduite électrique ou une prise de terre
branchée à la terre.
Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour
mesurer la chute de tension en travers de la résistance.
Toucher avec la sonde d'essai les pièces métalliques exposées qui
présentent une voie de retour au châssis (antenne, coffret métalli-
que, tête des vis, arbres de commande et des boutons, écusson,
etc.) et mesurer la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir inversé la
fiche du cordon d'alimentation. (Si nécessaire, une prise
d'adpatation non polarisée peut être utilisée dans le but de termin-
er ces vérifications.)
La tension de pointe mesurèe ne doit pas dépasser 0.75V (corre-
spondante au courant CA de pointe de 0.5mA).
Dans le cas contraire, il y a une possibilité de choc électrique qui
doit être supprimée avant de rendre le récepteur au client.
PRECAUTION: POUR LA PROTECTION CON-
TINUE CONTRE LES RISQUES D'INCENDIE,
REMPLACER LE FUSIBLE
VERIFICATIONS CONTRE L'INCEN-DIE ET LE
CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer les vérifica-
tions suivantes.
DVM
ECHELLE CA
1.5k ohm
10W
0.15
µ F
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
AVIS POUR LA SECURITE
F7000 (250V 3.5A) (LC-40LE820UN)
F7001 (250V 3.5A) (LC-40LE820UN)
F7000 (250V 5A) (LC-46/52/60LE820N)
F7001 (250V 5A) (LC-46/52/60LE820UN)

LC-40/46/52/60LE820UN
iii
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-
age or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.
PARTS CODE PRICE
RANK PART DELIVERY DESCRIPTION
ZHNDAi123250E BL J φ0.3mm 250g (1roll)
ZHNDAi126500E BK J φ0.6mm 500g (1roll)
ZHNDAi12801KE BM J φ1.0mm 1kg (1roll)

LC-40/46/52/60LE820UN
iv
LC-40LE820UN Service Manual
OUTLINE
MAJOR SERVICE PARTS
PWB UNIT
OTHER UNIT
IC FOR EXCLUSIVE USE OF THE SERVICE
NOTE: *1 Replace MAIN PWB Units (DKEYMF452FM02) in case of IC8455, IC8401 or IC3302 failure.
*2 TOUCH SENSOR Unit (RUNTKA690WJQZ) reuse will be impossible, once it is stuck on front glass and exfoliates.
Therefore, please exchange of a touch sensor unit in the case of front glass exchange.
SERVICE JIGS
Ref No. Part No. Description
N DKEYMF452FM02 MAIN Unit *1
N DUNTKF493FM01 ICON Unit
N DUNTKF493FM02 LOGO Unit
N DUNTKF494FM01 R/C, LED Unit
N RUNTKA682WJQZ POWER/LED Drive Unit (LC-40LE820UN)
N RUNTKA683WJQZ POWER/LED Drive Unit (LC-46LE820UN)
N RUNTKA693WJQZ POWER/LED Drive Unit (LC-52LE820UN)
N RUNTKA684WJQZ POWER/LED Drive Unit (LC-60LE820UN)
N RUNTKA690WJQZ TOUCH SENSOR Unit *2
N RUNTK4437TPZZ LCD CONTROL Unit (LC-40LE820UN)
N RUNTK4437TPZA LCD CONTROL Unit (LC-46LE820UN)
N RUNTK4437TPZB LCD CONTROL Unit (LC-52LE820UN)
N RUNTK4437TPZC LCD CONTROL Unit (LC-60LE820UN)
N RUNTK4462TPZZ LED PWB Unit (LC-40LE820UN), x4
N RUNTK4461TPZZ LED PWB Unit (LC-46LE820UN), x4
N RUNTK4460TPZZ LED PWB Unit (LC-52LE820UN), x4
N RUNTK4458TPZZ LED PWB Unit (LC-60LE820UN), x4
N RUNTK4459TPZZ LED PWB Unit (LC-60LE820UN), x4
Ref No. Part No. Description
N R1LK400D3LWF0Z 40” LCD Panel Module Unit
N R1LK460D3LWA0Z 46” LCD Panel Module Unit
N R1LK520D3LWA0Z 52” LCD Panel Module Unit
N R1LK600D3LW20Z 60” LCD Panel Module Unit
Ref No. Part No. Description Q'ty
IC509 VHiR24002AS1YS R1EX24002ASAS0A (RGB EDID) 1
IC2002 RH-iXC786WJNHQ R5F364A6NFB (MICON) 1
Ref No. Part No. Description Q'ty
N QCNW-C222WJQZ Connecting Cord L=1000mm 80pin LCD Control to LCD Panel Unit x2 2
N QCNW-H184WJQZ Connecting Cord L=1000mm 12pin Main to Power Unit (PD) 1
N QCNW-F676WJQZ Connecting Cord L=1000mm 41pin Main to LCD Control (LW) 1
N QCNW-G405WJQZ Connecting Cord L=1000mm 4pin Main to LCD Control (PL) 1
N QCNW-G394WJQZ Connecting Cord L=1000mm 9pin Main to Power (LB) 1

LC-40/46/52/60LE820UN
1 – 1
LC-40LE820UN Service Manual
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS (LC-40/46LE820UN)
Item Model: LC-40LE820UN Model: LC-46LE820UN
LCD
panel
Size 40" Class (40" Diagonal) 46" Class (45 63/64" Diagonal)
Resolution 2,073,600 pixels (1,920 x 1,080)
TV
Function
TV-standard (CCIR) American TV Standard ATSC/NTSC System
Receiving
Channel
VHF/UHF VHF 2-13ch, UHF 14-69ch
CATV 1-135ch (non-scrambled channel only)
Digital Terrestrial
Broadcast (8VSB)
2-69ch
Digital cable*1
(64/256 QAM) 1-135ch (non-scrambled channel only)
Audio multiplex BTSC System
Audio out 10W x 2 +15W (WF)
Terminals
Back panel
vertical
inputs
INPUT 2 AV in (AV mini plug and RCA plugs)
INPUT 3 ANALOG RGB (PC) in (15-pin mini D-sub female connector),
Audio in (Ø 3.5 mm stereo jack)
INPUT 4 HDMI in with HDCP, Audio in (Ø 3.5 mm stereo jack)
INPUT 5 HDMI in with HDCP
INPUT 6 HDMI in with HDCP
INPUT 7 HDMI in with HDCP
AUDIO IN Audio in (Ø 3.5 mm stereo jack)
AUDIO OUT Audio out (Ø 3.5 mm stereo jack)
DIGITAL AUDIO OUTPUT Optical Digital audio output x 1 (PCM/Dolby Digital)
ETHERNET Network connector
USB 1 Photo/Music mode, Software update
USB 2 Photo/Music mode, Software update
Back panel
horizontal
inputs
INPUT 1 COMPONENT in
ANT/CABLE
75 ΩUnbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
RS-232C 9-pin D-sub male connector
OSD language English/French/Spanish
Power Requirement AC 120 V, 60 Hz
Power Consumption 140 W (0.5 W Standby with AC 120 V) 160 W (0.5 W Standby with AC 120 V)
Weight TV + stand 51.8 lbs./23.5 kg 66.1 lbs./30.0 kg
TV only 43.0 lbs./19.5 kg 54.0 lbs./24.5 kg
Dimension*2
(WxHxD)
TV + stand
39
3
/
32
x27
27
/
32
x10
27
/
32
inch 44
3
/
8
x30
59
/
64
x13
25
/
64
inch
TV only
39
3
/
32
x25
61
/
64
x1
35
/
64
inch 44
3
/
8
x28
29
/
32
x1
35
/
64
inch
Operating temperature +32°Fto+104°F(0°Cto+40°C)
Cautions regarding use in high and low temperature environments
When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.
Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.
Storage temperature: − 4°F to e140°F (−20°C to +60°C)
•
•

LC-40/46/52/60LE820UN
1 – 2
[2] SPECIFICATIONS (LC-52/60LE820UN)
Optional Accessory
The listed optional accessory is available for the Liquid
Crystal Television. Please purchase it at your nearest shop.
• Additional optional accessories may be available in the near
future. When purchasing, please read the newest catalogue for
compatibility and check the availability.
Part name Model number
Wall mount
bracket AN-37AG2 (for LC-40LE820UN)
Attachment AN-37P30 (for LC-40LE820UN)
Wall mount
bracket
AN-52AG4
(for LC-46LE820UN/LC-52LE820UN/
LC-60LE820UN)
Item Model: LC-52LE820UN Model: LC-60LE820UN
LCD
panel
Size 52" Class (52 1/32" Diagonal) 60" Class (60 1/32" Diagonal)
Resolution 2,073,600 pixels (1,920 x 1,080)
TV
Function
TV-standard (CCIR) American TV Standard ATSC/NTSC System
Receiving
Channel
VHF/UHF VHF 2-13ch, UHF 14-69ch
CATV 1-135ch (non-scrambled channel only)
Digital Terrestrial
Broadcast (8VSB)
2-69ch
Digital cable*1
(64/256 QAM) 1-135ch (non-scrambled channel only)
Audio multiplex BTSC System
Audio out 10W x 2 + 15 W (WF)
Terminals
Back panel
vertical
inputs
INPUT 2 AV in (AV mini plug and RCA plugs)
INPUT 3 ANALOG RGB (PC) in (15-pin mini D-sub female connector),
Audio in (Ø 3.5 mm stereo jack)
INPUT 4 HDMI in with HDCP, Audio in (Ø 3.5 mm stereo jack)
INPUT 5 HDMI in with HDCP
INPUT 6 HDMI in with HDCP
INPUT 7 HDMI in with HDCP
AUDIO IN Audio in (Ø 3.5 mm stereo jack)
AUDIO OUT Audio out (Ø 3.5 mm stereo jack)
DIGITAL AUDIO OUTPUT Optical Digital audio output x 1 (PCM/Dolby Digital)
ETHERNET Network connector
USB 1 Photo/Music mode, Software update
USB 2 Photo/Music mode, Software update
Back panel
horizontal
inputs
INPUT 1 COMPONENT in
ANT/CABLE
75 ΩUnbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
RS-232C 9-pin D-sub male connector
OSD language English/French/Spanish
Power Requirement AC 120 V, 60 Hz
Power Consumption 170 W (0.5 W Standby with AC 120 V) 230 W (0.5 W Standby with AC 120 V)
Weight TV + stand 77.2 lbs./35.0 kg 112.4 lbs./51.0 kg
TV only 66.1 lbs./30.0 kg 89.3 lbs./40.5 kg
Dimension*2
(WxHxD)
TV+stand
49 5/8x3329/32 x1325/64 inch 56 21/32 x3825/64 x141/2 inch
TV only
49 5/8x3115/16 x135/64 inch 56 21/32 x3561/64 x137/64 inch
Operating temperature + 32°F to + 104°F (0°C to + 40°C)
*1
Emergency alert messages via Cable are unreceivable.
*2
The dimensional drawings are shown on the inside back cover.
• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for
product improvement without prior notice. The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.

LC-40/46/52/60LE820UN
2 – 1
LC-40LE820UN Service Manual
CHAPTER 2. OPERATION MANUAL
[1] Parts Name
TV (Front)
*1 OPC: Optical Picture Control.
*2 Using the touch sensor panel.
Center Icon illumination
POWER *2INPUT
VOL /
MENU
Remote control sensor
OPC sensor *1
CH /
TV (Rear)
RS-232C terminalAntenna/Cable in
INPUT 1 terminals
DIGITAL AUDIO OUTPUT terminal
INPUT 6 terminal (HDMI)
INPUT 7 terminal (HDMI)
INPUT 4 terminal (HDMI)
ARC: Audio Return Channel
INPUT 3 terminal (PC-IN)
AUDIO IN terminal
(shared for INPUT 3 and INPUT 4) *2
INPUT 2 terminal
AUDIO OUT terminal
USB 1 terminal
USB 2 terminal
ETHERNET terminal
INPUT 5 terminal (HDMI)
*1
*1
*1 External equipment connection.
*2 Details on the Audio Select function.
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
• The examples used throughout this manual are based on the LC-52LE820UN model.

LC-40/46/52/60LE820UN
2 – 2
1
19
20
21
22
4
3
2
5
24
25
8
7
6
9
26
27
29
30
31
16
15
14
13
12
11
10
17
18
28
23
1 POWER: Switch the TV power on or enter standby.
2TV,STB,DVD•VCR,AUDIO: Switches the remote control for
TV, STB, DVD, BD, VCR and AUDIO operation.
* To enter the code registration mode, you need to press an
appropriate button (STB,DVD•VCR or AUDIO)andDISPLAY
at the same time.
3 External equipment operational buttons: Operate the external
equipment.
4 OPTION: Display the Link Operation Menu screen. This button
will function only when AQUOS LINK is used.
5 SLEEP: Set the sleep timer.
6
7
8CC:Display captions from a closed-caption source.
9 AV MODE: Select an audio or video setting.
10 MUTE: Mute the sound.
11 VOL /:Set the volume.
12 MENU: Display the menu screen.
13 AQUOS NET: Switches the display to the Sidebar Widget,
TV+Web, Web or TV screen.
14 ///,ENTER: Select a desired item on the screen.
15 EXIT: Turn off the menu screen.
16 SURROUND: Select Surround settings.
17 FAVORITE CH: Set the favorite channels.
18 A,B,C,D: Select 4 preset favorite channels in 4 different
categories.
While watching, you can toggle the selected channels by pressing
A,B,Cand D.
19 DISPLAY: Display the channel information.
20 POWER (SOURCE): Turns the power of the external equipment
on and off.
21 REC STOP: Stops one touch recording. This button will function
only when AQUOS LINK is used.
22 POWER SAVING: Select Power Saving settings.
23 ENT: Jumps to a channel after selecting with the 0–9buttons.
24 FLASHBACK: Return to the previous channel or external input
mode.
25 VIEW MODE: Select the screen size.
26 INPUT: Select a TV input source. (TV, INPUT 1, INPUT 2, INPUT 3,
INPUT 4, INPUT 5, INPUT 6, INPUT 7)
27 CH /:Select the channel.
28 DOCK: Display the DOCK.
29 RETURN: Return to the previous menu screen.
30 AUDIO: Selects the MTS/SAP or the audio mode during multi-
channel audio broadcasts.
31 FREEZE: Set the still image. Press again to return to normal
screen.
Remote Control Unit
0–9: Set the channel.
•(DOT)

LC-40/46/52/60LE820UN
2 – 3
[2] OPERATION MANUAL
1Confirm that there are 9 screws (5 short screws
and 4 long screws) supplied with the stand unit.
2Attach the supporting post for the stand unit onto
the base using the box for the stand unit as shown
below.
The supporting post attaches to the base at an off-
centered location on the base. Be sure to attach the
supporting post in the direction indicated below and
attach the stand to the TV with the wider side of the
base facing forward.
Long screws
3Insert the stand into the openings on the rear of the
TV.
Soft cushion
•
Attaching the Stand
• Before attaching (or detaching) the stand, unplug the AC cord.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
CAUTION
•Attach the stand in the correct direction.
•Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
•Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
QUICK REFERENCE
4Insert and tighten the 4 screws into the 4 holes on
the rear of the stand unit.
Short screws
51Insert the stand cover.
2Insert the screw to secure the stand cover.
1
2
Short screw
• To detach the stand, perform the steps in reverse
order.

LC-40/46/52/60LE820UN
3 – 1
LC-40LE820UN Service Manual
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS (LC-40LE820UN)
Unit: inch (mm)
11 13/16 (300)
135/64
(39)
459/64
(125)
10 27/32
(275)
35/16
(84)
427/32
(123)
135/64
(39)
39 3/32 (993)
17 47/64 (450)
35 1/16 (890.6)
15 59/64 (404)
27 27/32 (707)
513/64
(132)
11 13/16 (300)
AN-37AG2
AN-37P30
+
25 61/64 (659)
157/64
(48)
19 13/16
(503.2)

LC-40/46/52/60LE820UN
3 – 2
[2] DIMENSIONS (LC-46LE820UN)
Unit: inch (mm)
15 3/4(400)
135/64
(39)
615/64
(158)
13 25/64
(340)
241/64
(67)
411/64
(106)
135/64
(39)
15 3/4(400)
44 3/8(1127)
28 29/32 (734)
17 31/64 (444)
30 59/64 (785)
21/64
(51)
85/16
(211)
40 19/64 (1023.4)
22 3/4
(577.6)
21 17/64 (540)
AN-52AG4

LC-40/46/52/60LE820UN
3 – 3
[3] DIMENSIONS (LC-52LE820UN)
Unit: inch (mm)
AN-52AG4
615/64
(158)
135/64
(39)
13 25/64
(340)
411/64
(106)
241/64
(67)
135/64
(39)
49 5/8(1260)
25 23/32
(653)
19 1/16 (484)
15 3/4(400)
33 29/32 (861)
31 15/16 (811)
163/64
(50)
625/32
(172)
15 3/4(400)
21 17/64 (540)
45 9/16 (1157)

LC-40/46/52/60LE820UN
3 – 4
[4] DIMENSIONS (LC-60LE820UN)
Unit: inch (mm)
AN-52AG4
56 21/32 (1439)
52 17/32 (1334.2)
38 25/64 (975)
35 61/64 (913)
29 41/64
(752.6)
21 1/2(546)
22 27/32 (580)
15 3/4(400)
229/64
(62)
449/64
(121)
137/64
(40)
655/64
(174)
14 1/2
(368)
241/64
(67)
47/32
(107)
137/64
(40)
15 3/4(400)

LC-40/46/52/60LE820UN
4 – 1
LC-40LE820UN Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-40LE820UN)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Cord .
5. Remove the 4 lock screws , 4 lock screws , 1 lock screw and 12 lock screws and detach the Rear Cabinet Ass’y .
Rear Cabinet Ass'y
4Stand Unit
2Support Cover
6AC Cord Cover
10
11
5
8
3
1
7
9
AC Cord 12

LC-40/46/52/60LE820UN
4 – 2
2. Removing of Speaker-L/R.
1. Remove the 1 lock screw and detach the Stand Cover .
2. Disconnect SP wire.
3. Detach the Speaker-L , Speaker-R .
MAIN Unit
2 Stand Cover
1
[SP]
[SP]
4Speaker-R 3 Speaker-L

LC-40/46/52/60LE820UN
4 – 3
3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (SB, LB, PD, LW, RA, RL)
2. Disconnect the following connectors from the POWER/LED Drive Unit. (L1, L2, LB, PD, PL)
3. Disconnect the following connectors from the LCD Control Unit. (LW, PL)
MAIN Unit
POWER/LED Drive Unit
[L1]
[L2]
[LB]
[PD]
[PL]
[LB]
[PD]
[RA]
[RL]
[LW]
[SB]
LCD Control Unit
MAIN UnitPOWER/LED Drive Unit
[LW]
[PL]

LC-40/46/52/60LE820UN
4 – 4
4. Removing of MAIN Unit, POWER/LED Drive Unit, Woofer, Stand Angle, 40” LCD Panel Module Unit.
1. Remove the 5 lock screws and detach the MAIN Unit .
2. Remove the 2 lock screws and detach the Terminal Angle (Bottom) .
3. Remove the 2 lock screws and detach the Terminal Angle (Side) .
4. Remove the 6 lock screws and detach the POWER/LED Drive Unit .
5. Remove the 4 lock screws and detach the Woofer .
6. Remove the 1 lock screw and detach the LCD Angle (Bottom-R) .
7. Remove the 2 lock screws and detach the LCD Angle (Top-L) .
8. Remove the 2 lock screws and detach the LCD Angle (Top-R) .
9. Remove the 2 lock screws and detach the LCD Angle (Bottom-L) .
10.Remove the 8 lock screws and detach the VESA Angle .
11.Remove the 8 lock screws and detach the Stand Angle .
12.Remove the 3 lock screws and detach the 40” LCD Panel Module Unit .
8
19
20
19 VESA Angle
7
25
25
40" LCD Panel
Module Unit
[L1]
[L2]
23
24
26
Stand
Angle 12
11
LCD Angle
(Bottom-R)
18
17
17
LCD Angle
(Bottom-L)
9
10
Woofer
[SB]
5
6Terminal Angle
(Side)
34Terminal Angle
(Bottom)
2 MAIN Unit
1
14LCD Angle
(Top-L)
13
13
16 LCD Angle
(Top-R)
15
15
POWER/LED
Drive Unit

LC-40/46/52/60LE820UN
4 – 5
5. Removing of R/C, LED Unit, ICON Unit, LOGO Unit, Front Cabinet Ass’y, Glass Front Panel Ass’y, TOUCH
SENSOR Unit.
1. Detach the R/C, LED Unit .
2. Detach the ICON Unit .
3. Detach the LOGO Unit .
4. Remove the 18 Hooks and detach the Front Cabinet Ass’y
5. Detach the Glass Front Panel Ass’y .
6. Detach the Touch Sensor Unit .
NOTE: The Touch Sensor unit removed once is not reusable.
Front Cabinet Ass'y5
7 TOUCH SENSOR Unit
[RK]
Glass Front Panel Ass'y6
3 LOGO Unit
[RL]
2 ICON Unit
[R]
1
R/C, LED
Unit
[RA]
44
4
4
4

LC-40/46/52/60LE820UN
4 – 6
[2] REMOVING OF MAJOR PARTS (LC-46LE820UN)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Cord .
5. Remove the 4 lock screws , 4 lock screws , 1 lock screw and 16 lock screws and detach the Rear Cabinet Ass’y .
AC Cord 12
9
Rear Cabinet Ass'y
10
11
6AC Cord Cover
5
2Support Cover 3
4
Stand Unit
7
8
1
