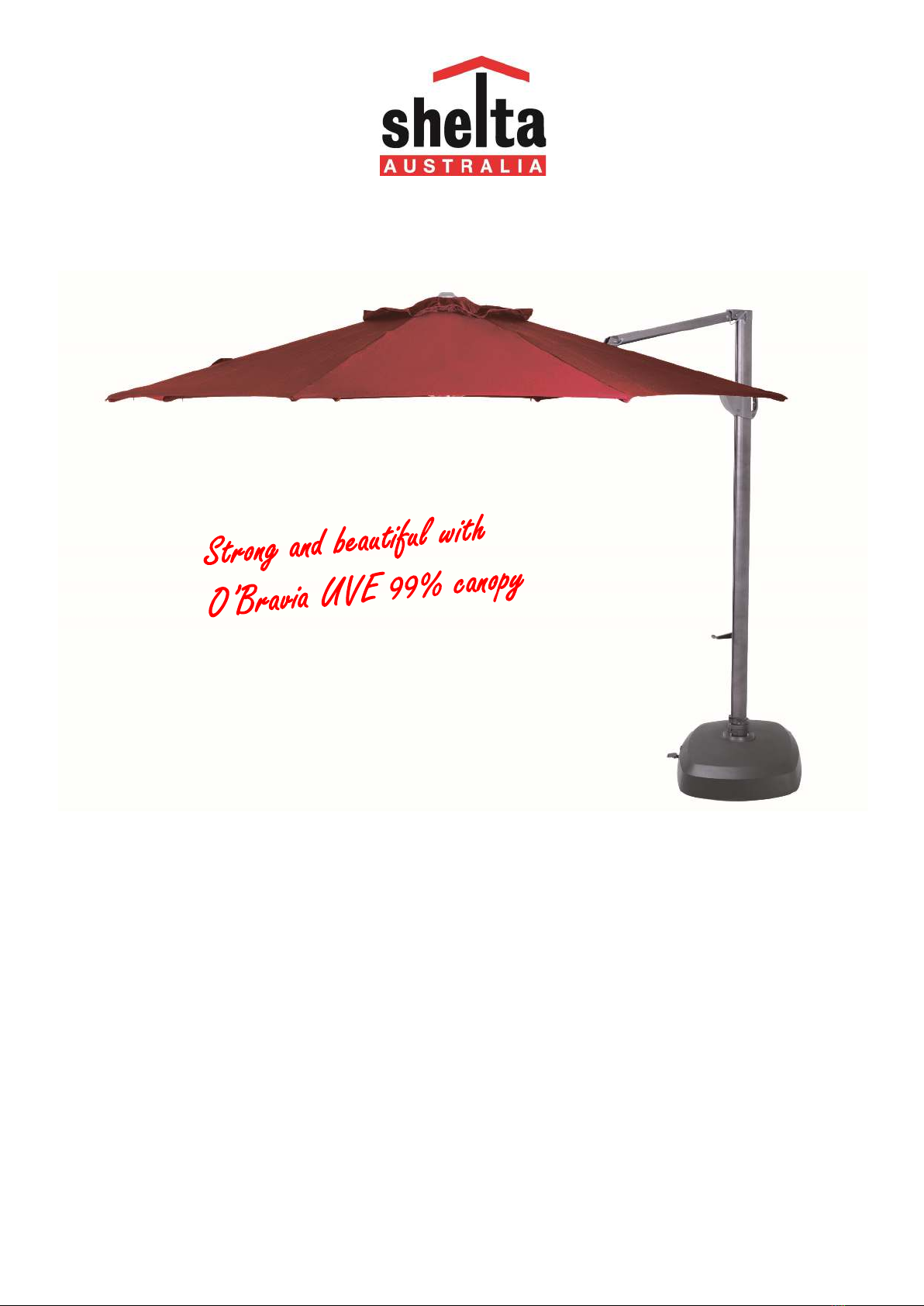

shelta AG35 User manual

Important Safety Information
This umbrella is not a permanent shade structure and must be lowered when unattended or in
windy conditions. Excessive wind puts stress on the frame, which can cause damage to the
umbrella and danger to people. This umbrella is not recommended for exposed environments
such as high balconies or roof tops. Do not install on sloping or soft ground. Please carefully
read the following instructions; if in doubt, consult a qualified trades-person. Only use
recommended Shelta bases or anchoring systems.
To ensure a long life for your AG35 Cantilever umbrella:
• Close the umbrella and cover with the Protective Sleeve between uses.
• Store in a dry, shaded location if not used for long periods.
• The umbrella should be hosed regularly with fresh water if exposed to salt spray chlorine or pollution.
• Soiling of the canopy can be minimised by simply brushing off dirt before it becomes embedded in the fabric
or spot cleaning soon after stains occur. Fabrics may be treated with a fabric protector such as ‘Scotchguard’
for additional protection.
• Do not close or store the umbrella when wet; if it is necessary to close a wet umbrella in stormy weather,
remember to open and dry the canopy as soon as weather conditions allow.
• Every 6 months spray the Rotate Bearing and Ballast Block Frame with WD40 or deoderised fish-oil.
• Regularly check that the base of the umbrella is properly secured.
www.shelta.com.au
AG35 CANTILEVER UMBRELLA

COMPONENT REF QTY
AG35 Side-post and Umbrella A1
Protective Sleeve B1
Ballast Block Frames C2
Rotate Bearing (in some cases
attached to the side-post)
D1
Onground Plate E1
Parts Bag (including
Handle and spanners)
F1
AG35 Components
After unpacking the carton, please make sure that you have the following parts:

AG35 Mounting Options
Mounting Option 1: Onground Plate (E included).
Suitable for a concrete slab (minimum 10cm thick) or a concrete column (30cm diameter by 75cm deep). With this
option the umbrella can be rotated. Purchase 4 Stainless Steel masonry anchors such as 10mm x 75mm Dynabolts
from your local hardware.
1. Place the Onground Plate (E) in the required location. Use metal spacers if the
surface is not flat and horizontal. Mark the position of the 4 corner holes with a
felt pen. Use a 10mm masonry bit to drill holes to a depth of 80mm. Fasten the
Plate to the slab using the 4 masonry anchors.
2. If necessary, remove the Rotate Bearing (D) from the bottom of the Side-post
and attach to the Onground plate using the four M8 x 20mm bolts and washers
provided
The Umbrella may also be bolted to a wooden deck using the same hardware
however it is strongly recommended a builder reinforce the deck with extra
joists under the boards and use stainless steel bolts or 100mm M12 galvanized or stainless steel coach
bolts in the joists.
Mounting Option 2: Shelta Resin Base (not included).
Not Suited for 4x3 model
Suitable for most surfaces including timber decks. Purchase a Shelta Large Resin
base from your local retailer (wheeled and non-wheeled versions available). Note:
the Ballast Block Frame and the Onground Plate are not required for this option.
100 Kilos of 5mm blue metal and 10 Kilos of sand will be required to fill the
Resin base for ballast
1. Remove the square plate from the bottom of the Rotate Bearing (D) by
unscrewing the 4 countersunk screws.
2. If necessary, remove the Rotate Bearing from the bottom of the Side-post and
attach to the Resin Base “Top Hat” using the 4 countersunk screws.
3. Follow the assembly instructions included with the Large Resin Base.
Mounting Option 3: Ballast Block Frame (C included).
Not Suited for 4x3 model
Suitable for most surfaces including grass. This should be ballasted with
between 110 and 140 kilograms of weight. Purchase at least 6 Shelta
Resinstone Ballast Weights, Shelta Concrete or Granite Ballast Weights from
Your Shelta stockists
1. Assemble the 2 parts of the Ballast Block Frame (C) at right angles.
2. If necessary, remove the Rotate Bearing (D) from the bottom of the Side-
post and attach to the Ballast Block Frame using four M8x20mm screws and washers provided.
3. Place the assembled frame in the required location. Note: for safe use the surface should be flat and horizontal.
4. Place at least 6 Resinstone or paving blocks on the assembled frame with double-stacked blocks on the side
opposite the umbrella.
Installing and operating the AG35 Umbrella
Up to date instructions and installation clearance measurements can be found at https://shelta.com.au/cantilever-installation/
The AG35 umbrella frame is heavy and is best handled by 2 people; take care not to soil or damage the canopy by
contacting nearby structures.
1. Carefully lift the umbrella and side-post to the vertical position. Hold the umbrella so that the side-post is above
the rotate bearing and carefully lower onto the rotate stem.
2. Insert two M8x20mm screws into the bottom of the side-post and tighten with the large Allan key.
3. Before opening the umbrella, release the canvas band and allow the umbrella to unfurl.
4. Attach the crank handle to the crank spindle and tighten the grub screw with the small Allan key.
5. Slowly turn the crank handle in a clockwise direction; if the canopy does not begin to open, check that the
umbrella ribs are not tangled. DO NOT FORCE THE CRANK HANDLE.
6. As the umbrella begins to open, depress the locking button on the side-post runner and manually raise the
runner while turning the crank handle. The umbrella will be easier to open if the canopy is horizontal.
7. Continue to wind the crank handle until the umbrella is fully open but do not apply excessive force.
8. Tilting. To change the angle of the umbrella canopy, depress the locking button and move the side-post runner
to the preferred position. Please note that the umbrella catches more wind when tilted and so the tilt feature
should be used with extreme caution.
9. Rotating. The umbrella will rotate 360 degrees by simply stepping on the rotate pedal and turning the frame by
hand.
10. Close the umbrella by turning the crank handle anti-clockwise and simultaneously lowering the side-post runner.

Additional Instructions
1. Optional LED light. The central runner features a drop-down spigot to
which the Shelta ’Flying Saucer’ LED light may be attached.
2. Protective Sleeve. When not in use, tie the fabric band around the
umbrella and side-post, then slip the unzipped Protective Sleeve over the
top of the umbrella.
3. Safety. Never leave the umbrella unattended while open. Weather
conditions can change without warning and strong gusts of wind may
cause the umbrella to fall over or to break away from the mounting.
4. Sun Protection. The fabric on this umbrella is rated at UPF50+ and
provides excellent protection. However on high UV days there can be
significant reflected sunlight from sources such as windows and water for
which Shelta recommends the use of protective clothing and sunscreen.
Warranty
Shelta warrants the frame of this product against manufacturer’s faults for a period of 1 year from the date of
purchase. Shelta repairs or replaces at our option.
Warranty does not cover:
• Damage caused by inadequate installation or inappropriate use
• Wind or other accidental damage
• Damage to fabric cover
• Normal wear and tear
• Commercial use
Leaving the umbrella open in windy conditions voids the warranty.
Additional Information about this Warranty
In all cases the Shelta Warranty excludes normal wear and tear, wind damage, commercial use, use of unreasonable force,
failure of reasonable care, failure of maintenance (as set out in detail below for each product), and incorrect assembly by the
customer. The Shelta Warranty applies only to the original purchaser from the purchase date, and only covers (subject to the
terms set out below) manufacturing faults or defects which occur in normal domestic use. Where a claim is made pursuant to the
Shelta Warranty Shelta Australia will, at their discretion repair, refinish, replace, replace with a similar product or refund the
product. Only the failed item will be replaced, not a complete setting. The Shelta Warranty period is not extended in the event of a
replacement. In the event of a refund, it will be for wholesale price only. The balance of the retail price will be the responsibility of
the retailer. In the event of a Shelta Warranty claim, please return the item to the store where purchased, with the original tax
invoice. If the retailer cannot accept return of the product, please return to Shelta Australia at the address below. For residents
outside Sydney, phone Shelta at the number below. Where the item is returned to Shelta Australia the purchaser must include the
original tax invoice. The purchaser must also bear all costs associated with shipping the product to Shelta Australia and the return
freight. The purchaser must also provide details of the problem with the product (such details must be sufficient for Shelta
Australia to determine whether the Shelta Warranty applies).
Consumer Guarantees
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Such guarantees may include the right to a remedy from Shelta Australia if our products are not of an acceptable quality or do not
match any demonstration model or sample (as those terms are defined in the Competition and Consumer Act 2010 (Cth) (CCA).
Shelta Australia will not be liable for any act, default, omission or representation made by any person other than our employees,
alterations made to the product not performed by us, damage or defects due to unusual or non-recommended use, or damage or
loss caused by any factors beyond our control.
Shelta Australia’s total liability in respect of a claim by a consumer under the CCA for a minor problem (as defined in the CCA)
with a product is limited, at our option to, providing the consumer with a refund, replacement product or repairing the product.
Subject to the above paragraphs, all express or implied representations, conditions, statutory guarantees, warranties and
provisions (whether based on statute, common law or otherwise), relating to this warranty, that are not contained in it, are
excluded to the fullest extent permitted by law.
Nothing in this warranty excludes, restricts or modifies any condition, warranty, statutory guarantee, right or remedy, implied or
imposed by common law, statute or regulation, which cannot be lawfully excluded, restricted or modified.
Shelta Australia ©2016
ABN 12 602 964 278
PO Box 6540, Blacktown BC, NSW 2148 AUSTRALIA
Phone [phone] Email [email protected].au
Made in China
www.shelta.com.au
