Sherlock BBGC200P User manual

























SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144

HEADOFFICE
244‐264GreensRd,
DandenongSouth,3175Australia



FORSERVICESUPPORTPH1300745826
[email protected]
Assembly Instructions
MANBBGC200P REV A 28/9/15

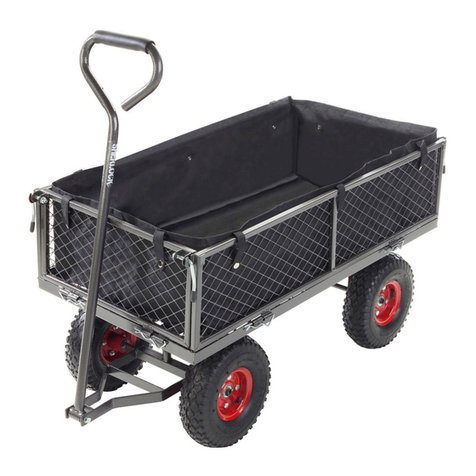

SHERLOCK GARDEN CART & RIDE ON MOWER TRAILER
BBGC200P


IMPORTANTSAFETYINSTRUCTIONS
•Wheninflatingtyreswerecommendusingabicycleorfootpumptopreventover
inflation.Themaximumpressureis30psi.Neveruseaircompressorsastheriskofover
inflationandburstingishigh
•Donotallowchildrentousethecartwithoutsupervision,itisnotatoy
•Donotexceed15km/hr.




STEP1
Fittheaxlesupportstothetray.Fitthe
boltsbutdonotfullytightenatthispoint











Assembly






STEP2
Fitthefronttraysupportandhandles
















Whenattachingthehandlefitthe2plastic
spacers.
Assembly



STEP3
Fitthedrawbar,axleandwheels














Fitthewheelsotheairvalvesfaceout





Fitthetowtongue

STEP4
Tightenandrecheckallbolts
Assembly


