Shindaiwa EC7600W EC1 Instruction Manual

PARTS CATALOG
ENGINE CUTTER
EC7600W EC1
EC7600W EC1

EC7600W EC1

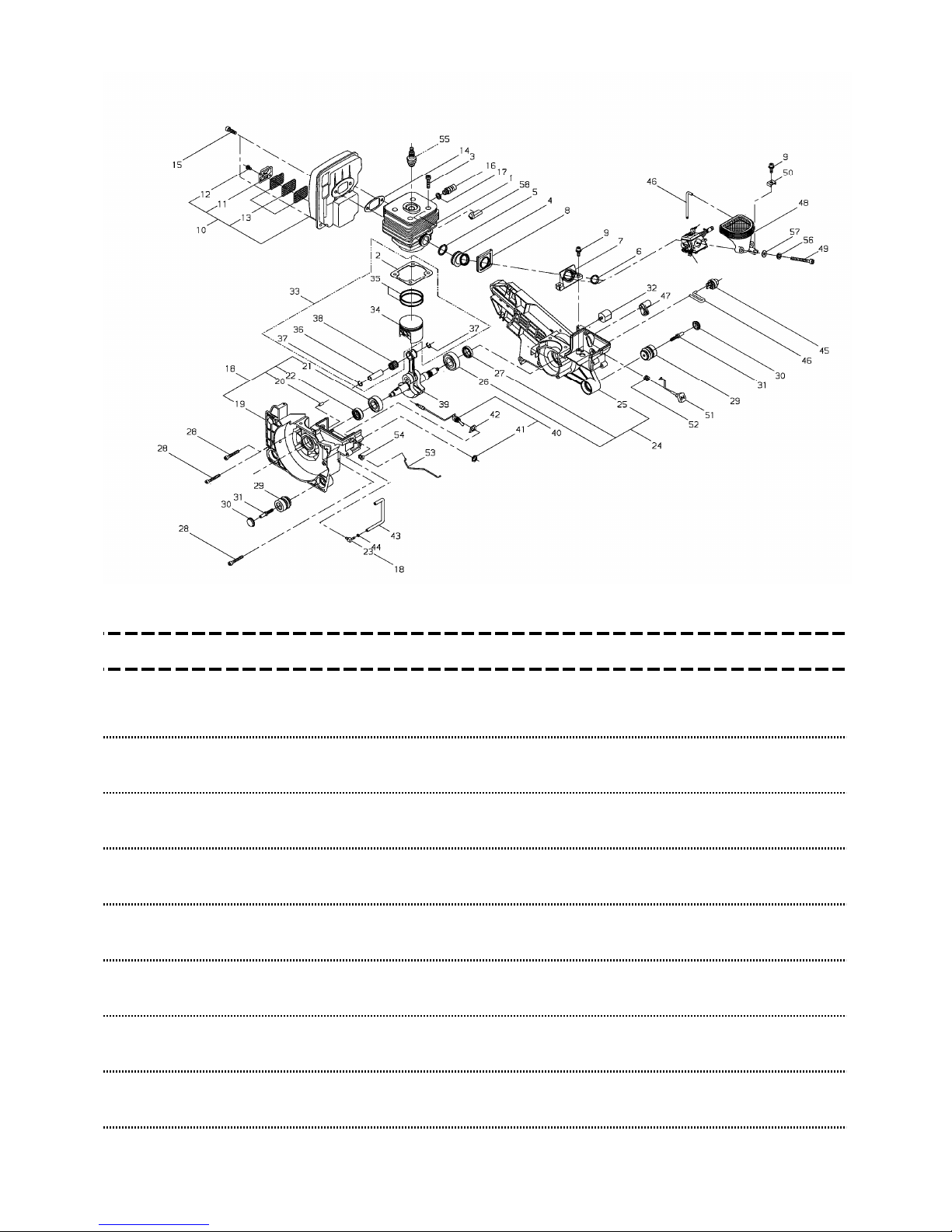

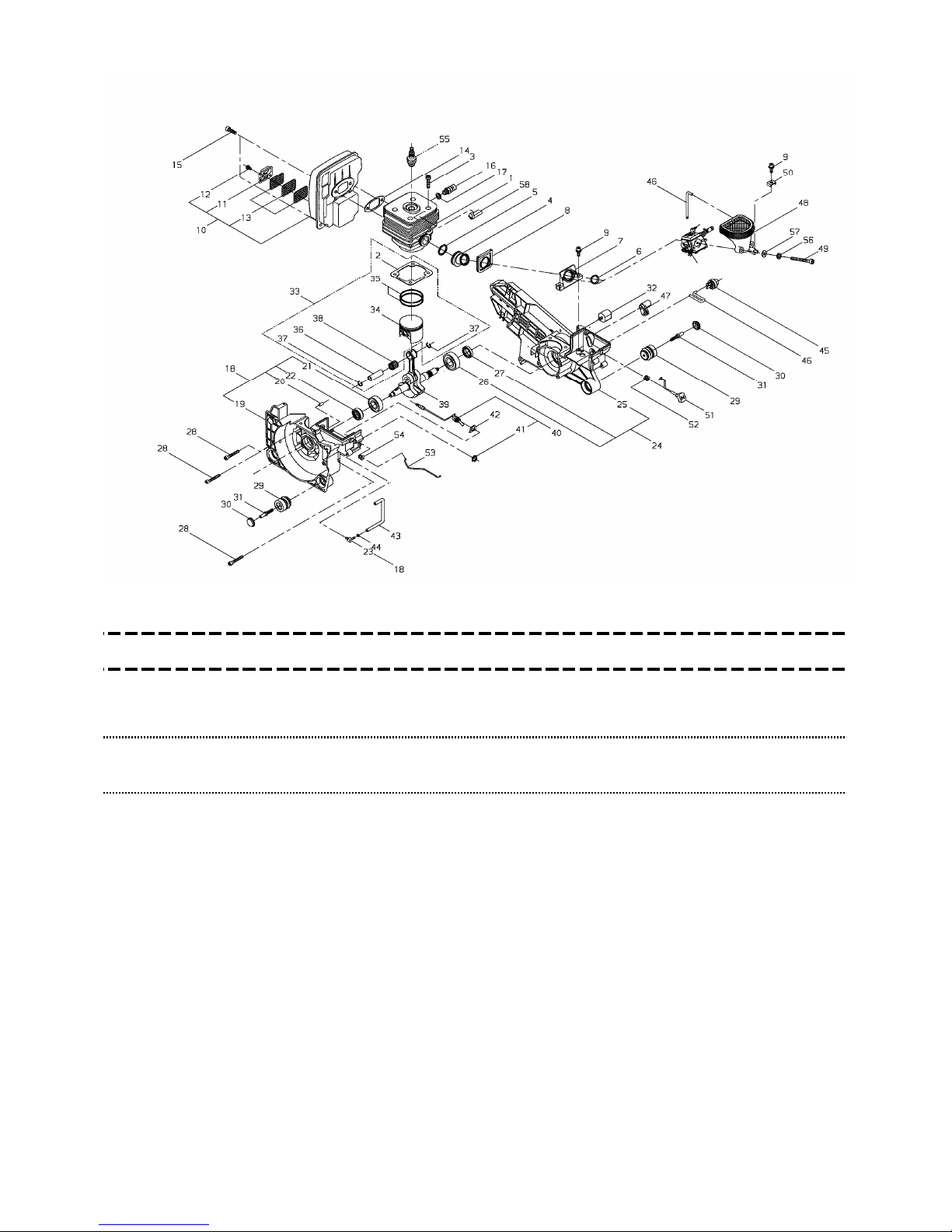

1. ENGINE
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 38010-12112 1 CYLINDER
2・38010-12120 1
GASKET
3 22169-12190 4
BOLT
M6×25
4 38010-12210 1
BOOTS
5 22182-12160 1
SPRING
6 22150-12170 1
SLEEVE
7 38010-12220 1
BRACKET
8 38010-12230 1
SEAL
9 11060-05141 3
BOLT ADHESIVE
M5×14
10 38010-15010 1
MUFFLER ASSY
11 ・38010-15140 1
TAIL PLATE
12 ・11203-05080 2
SCREW PM
M5×8
13 ・68006-15130 3
SCREEN
14 38010-15210 1
GASKET
15 11060-06200 4
BOLT ADHESIVE
M6×20
16 38010-16110 1
DECOMPRESSION
17 22173-16160 1
GASKET
18 68000-21012 1
CRANK CASE M COMP
19 ・68000-21112 1
CRANK CASE M
20 ・12492-50100 2
ROLLER
21 ・02030-06202 1
BEARING
6202
22 ・22155-21630 1
OIL SEAL
23 22150-21220 1
PULSE JOINT
24 38010-21021 1
CRANK CASE C COMP
25 ・38010-21211 1
CRANK CASE C
26 ・02030-06203 1
BEARING
6203
- 1 -

EC7600W EC1
1. ENGINE
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 ・22169-21630 1 OIL SEAL
28 22169-21910 6
BOLT
M5×35
29 72330-33710 4
CUSHION 26
30 22150-33720 4
PLUG 26
31 22169-33770 4
STOPPER BOLT
32 20050-87160 1
CUSHION
33 68004-98311 1
PISTON ASSY
34 ・38010-41110 1
PISTON
35 ・22169-41210 2
PISTON RING
36 ・22169-41220 1
PISTON PIN
37 ・22155-41230 2
SNAP RING
38 ・22155-41281 1
BEARING SE
39 38010-42012 1
CRANK SHAFT
40 68000-71340 1
SWITCH ASSY
41 ・22154-22130 1
NUT
42 68000-71330 1
SWITCH PLATE
43 22155-82111 1
PULSE PIPE
44 22150-82140 1
CLIP,PULSE
45 123181-39130 1
PUMP, PRIMER
46 38010-81341 2
PIPE
47 38010-81440 1
GROMMET CABURETOR
48 38010-82470 1
ELBOW
49 01020-05600 2
BOLT
M5×60
50 38010-82420 1
PLATE
51 38010-83310 1
CHOKE ROD
52 22150-33410 1
GROMMET CHOKE
- 2 -

EC7600W EC1
1. ENGINE
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
53 38010-83321 1 THROTTLE ROD
54 38010-83330 1
GROMMET
55 13000-13507 1
SPARK PLUG BPMR7A
BPMR7A
56 01600-05131 2
SPRING WASHER
Φ5
57 01613-05080 2
WASHER
Φ5
58 38020-12310 1
EDGE RUBBER
- 3 -

EC7600W EC1

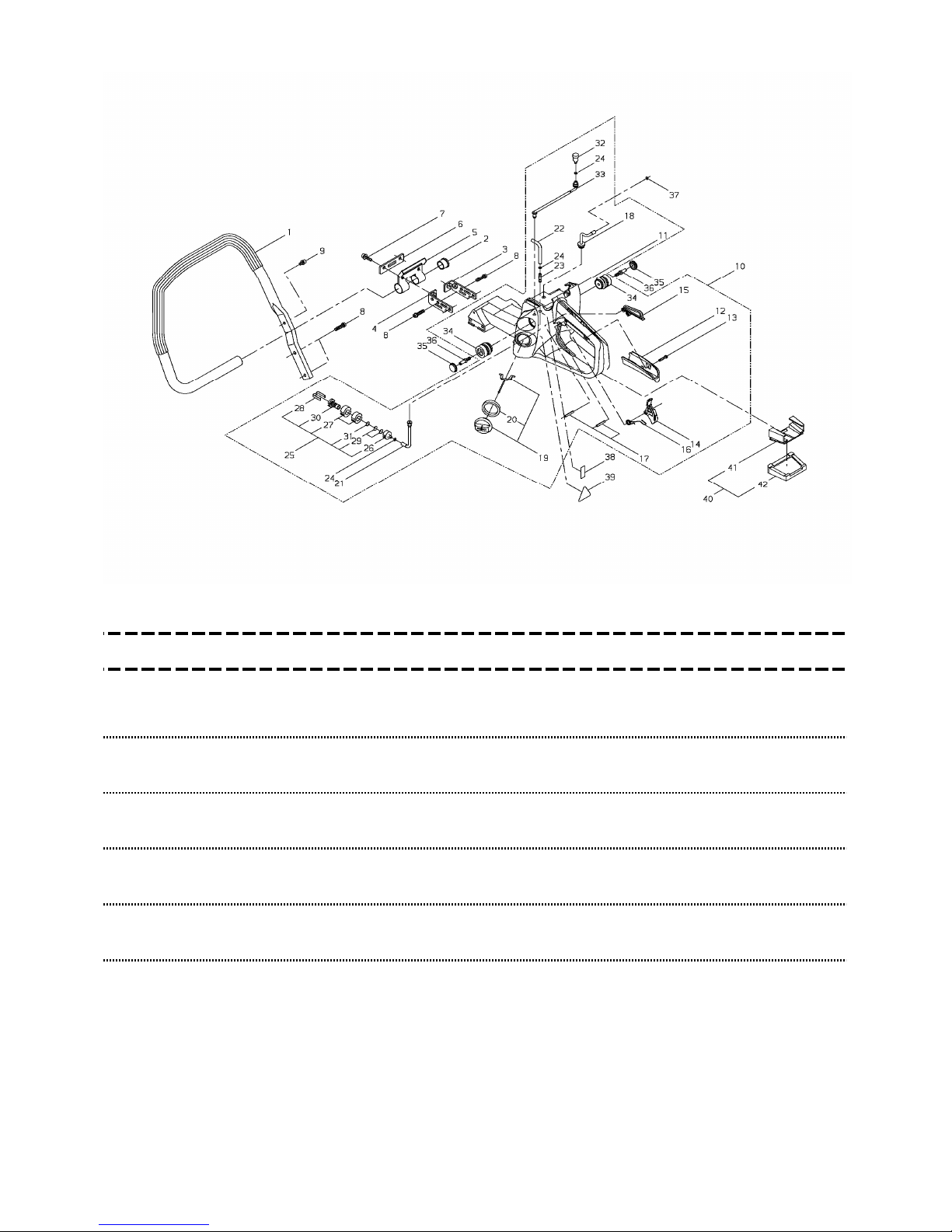

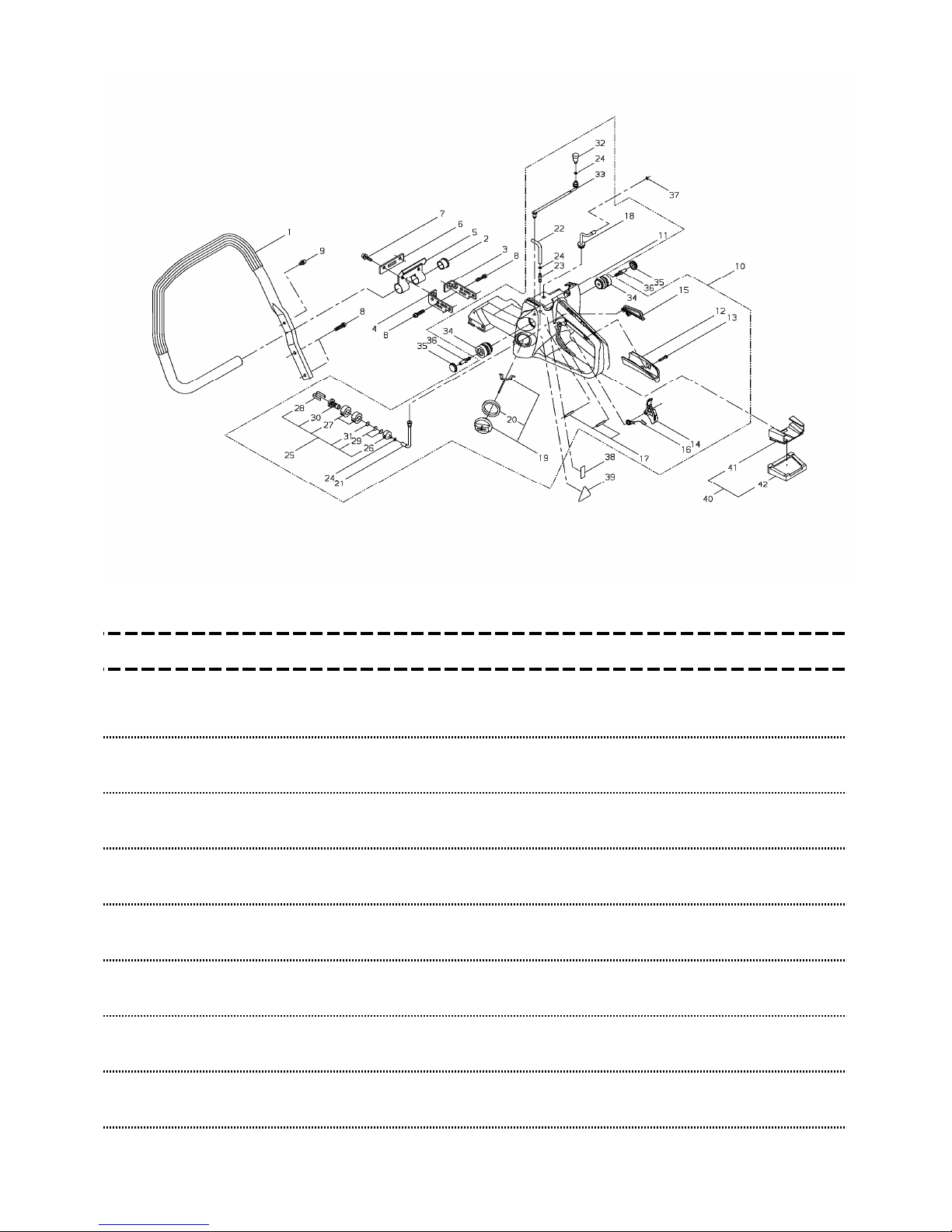

2. REAR HANDLE
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 38010-32110 1 FRONT HANDLE
2 38010-32440 1
CAP
3 38010-32460 1
BRACKET RIGHT
4 38010-32470 1
BRACKET LEFT
5 38010-32330 1
BRACKET
6 38010-32480 1
PLATE
7 11060-05204 2
BOLT ADHESIVE
M5×20
8 22169-32220 6
BOLT PC
φ6×23
9 11022-05100 1
BOLT SPW
M5×10
10 38010-32025 1
REAR HANDLE ASSY
11 ・38010-32211 1
REAR HANDLE
12 ・22182-33230 1
GRIP
13 ・01280-04222 1
SCREA TAPPING
4x22
14 ・22182-33326 1
TRIGGER,THROTTLE
15 ・22182-33332 1
LOCKOUT,THROTTLE
16 ・22182-33340 1
SPRING,TORSION
17 ・12420-40255 2
SPRING PIN
φ4×25
18 ・38010-32371 1
PIPE
19 ・38010-32041 1
CAP ASSY
20 ・・ 38010-32271 1
GASKET
21 ・38010-32381 1
PIPE
22 ・38010-32390 1
PIPE
23 ・72933-85620 1
JOINT
24 ・20020-85540 3
CLIP
25 ・38010-32420 1
FUEL FILTER SUB ASSY
26 ・・ 22128-85410 1
FUEL LINE WEIGHT
- 4 -

EC7600W EC1
2. REAR HANDLE
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 ・・ 38010-32430 2 FILTER
28 ・・ 22128-85440 1
CLIP FILTER
29 ・・ 22118-85460 2
ELEMENT
30 ・・ 22128-85470 1
SLEEVE
31 ・・ 22128-85480 1
RING
32 ・20800-33910 1
VALVE
33 ・38010-32412 1
PIPE
34 ・72330-33710 2
CUSHION 26
35 22150-33720 2
PLUG 26
36 22150-33770 2
STOPPER BOLT 26
37 20020-85540 1
CLIP
38 19401-00256 1
LABEL INST
39 19402-00221 1
LABEL CAUTION
40 38010-32501 1
RUBBER FOOT COMP
41 ・38010-32511 1
HOLDER
42 ・38010-32520 1
RUBBER FOOT
- 5 -

EC7600W EC1

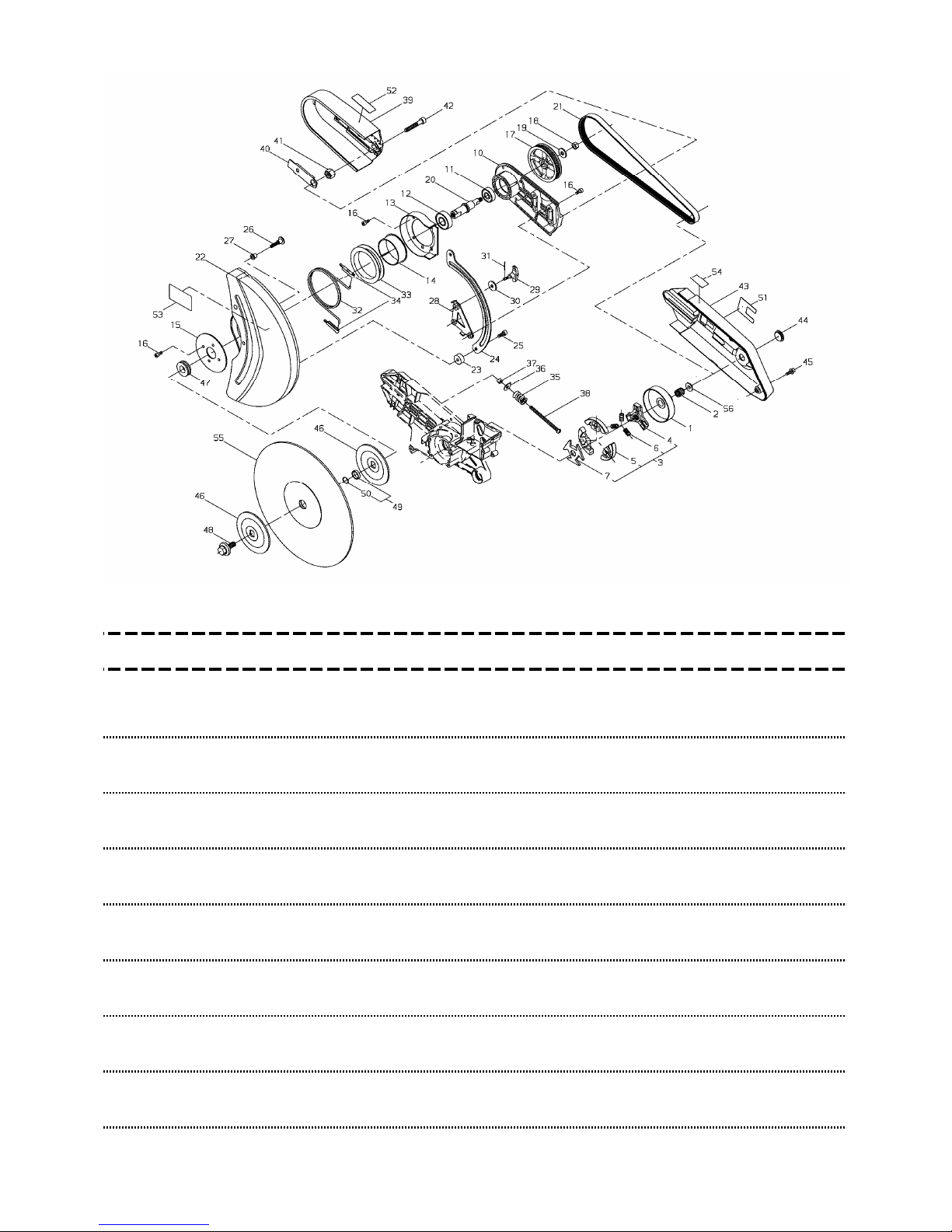

3. CUTTER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 38010-51110 1 CLUTCH DRUM EC7500
1 38011-51110 1
CLUTCH DRUM
EC7600
2 38010-51320 1
NEEDLE BEARING
3 22169-51200 1
CLUTCH ASSY
4・22169-51210 1
CLUTCH BOSS A
5・22169-51220 3
CLUTCH SHOE
6・22150-51230 3
CLUTCH SPRING
7・22169-51240 1
CLUTCH BOSS B
10 38010-63110 1
BEARING CASE
11 02006-06201 1
BEARING
6201DDU
12 02006-06203 1
BEARING
6203DDU
13 38010-63330 1
SPRING PLATE
14 38010-63310 1
SLIDE RING
15 38010-63320 1
BEARING PLATE
16 01020-05160 10
BOLT
M5*16 BLACK M5×16
17 38010-64111 1
DRIVE PULLY
18 01500-08061 1
NUT
M8
19 15401-20007 1
COLLAR
20 38010-64120 1
DRIVE SHAFT
21 38010-64131 1
DRIVE BELT
22 38010-65112 1
WHEEL GUARD
EC7500
22 38011-65112 1
WHEEL GUARD
EC7600
23 15401-20101 2
COLLAR
24 68002-65330 1
SLIDE PLATE
25 01020-06200 2
BOLT
M6×20
26 20087-51210 2
BOLT
- 6 -

EC7600W EC1
3. CUTTER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 15401-00008 2 COLLAR
28 38010-65330 1
LOCK PLATE
29 68002-65341 1
KNOB
30 15401-20008 1
COLLAR
31 02427-20125 1
PIN
Φ2.0×12
32 17520-98200 1
COIL SPRING
33 38010-65360 1
SPRING GUIDE
34 38010-65370 2
SPRING HOLDER
35 17500-17500 1
COIL SPRING
36 38010-66330 1
WASHER
37 38010-66310 1
NUT
38 11203-06908 1
SCREW ADHESIVE
M6×90
39 38010-67310 1
PULLY COVER
40 38010-67320 1
TENSION PLATE
41 38010-67330 1
TENSION BLOCK
42 01020-08500 2
BOLT
M8×50
43 38010-67341 1
CLUTCH COVER
44 38010-67351 1
PLUG
45 11060-05141 2
BOLT ADHESIVE
M5×14
46 38010-68110 2
INNER FLANGE
47 15401-21022 1
COLLAR
48 38010-68130 1
FLANGE BOLT
49 38010-98071 1
COLLAR SET
φ20
50 ・68000-69310 1
SNAP RING
51 38010-91030 1
LABEL TRADE
EC7500
51 38011-91030 1
LABEL TRADE
EC7600
- 7 -

EC7600W EC1
3. CUTTER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
52 19401-00254 1 LABEL INST
53 19402-00219 1
LABEL CAUTION
EC7500
53 19402-00220 1
LABEL CAUTION
EC7600
54 19405-00006 1
LABEL ARROW
55 18647-30501 1
GC-GR WHEEL
EC7500 12"
55 18607-35502 1
GC-GR WHEEL
EC7600 14"
56 38010-51330 1
NUT
M8
- 8 -

EC7600W EC1

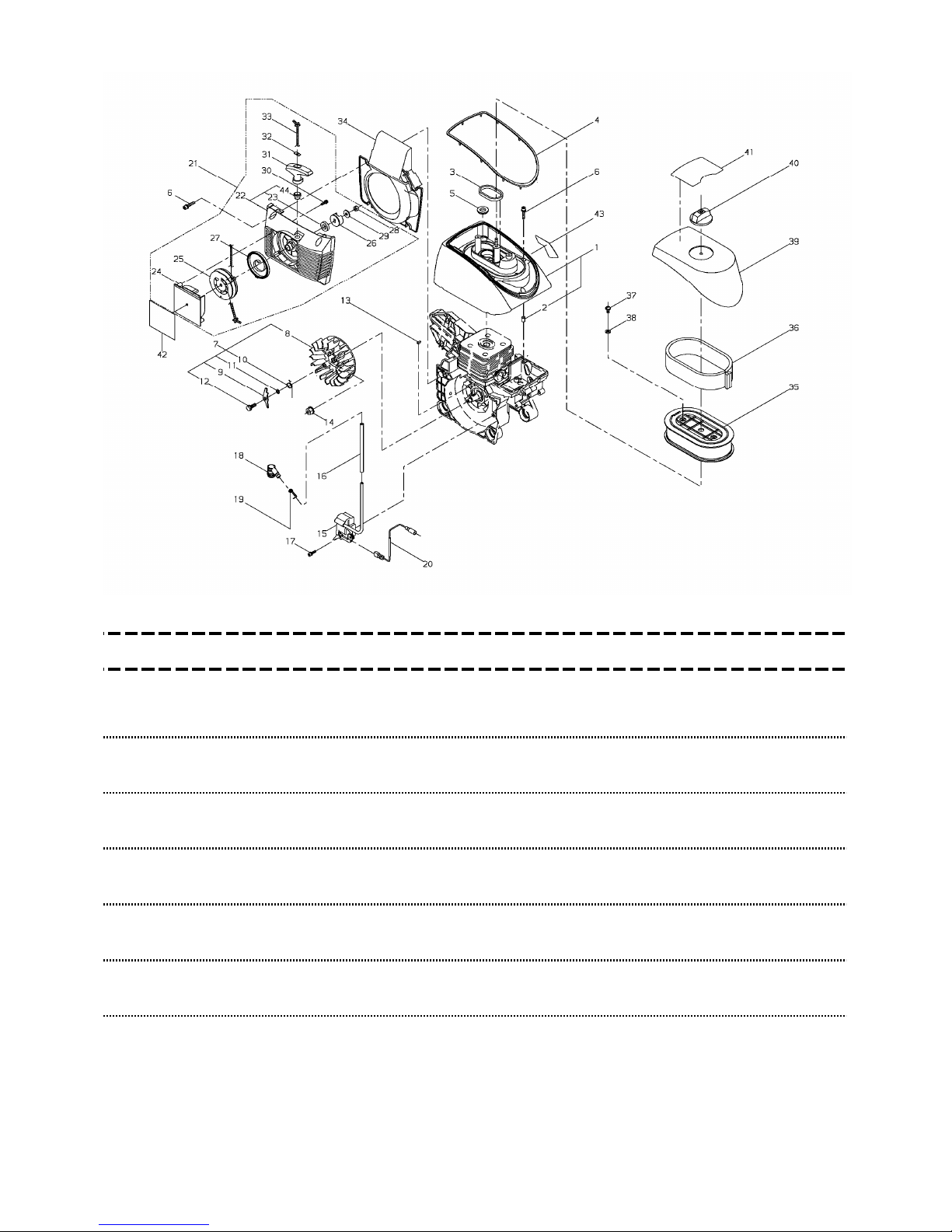

4. COVER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 38010-31111 1 CYLINDER COVER
2・17901-06100 4
COLLAR
3 38010-31311 1
SEAL
4 38010-31321 1
SEAL SEAT
5 38010-67351 1
PLUG
6 22160-31150 8
BOLT SW
M5x25
7 38010-71011 1
ROTOR ASSY
8・38010-71112 1
ROTOR
9・38010-71120 2
RATCHET
10 ・17520-14801 2
COIL SPRING
11 ・15401-10030 2
COLLAR
12 ・22100-71441 2
BOLT
13 02403-03100 1
KEY
3*10
14 22169-71460 1
NUT
M8x1.0
15 38010-71212 1
COIL
16 38010-71320 1
TUBE
17 11022-04160 2
BOLT SPW
M4x16
18 38010-71330 1
PLUG CAP
19 22154-72230 1
TERMINAL,SPARKPLUG
20 14352-01700 1
LEAD WIRE
21 38010-75011 1
RECOIL STARTER ASSY
22 ・38010-75310 1
RECOIL CASE
23 ・・ 38010-75320 1
OIL SEAL
24 38010-75330 1
COVER
25 38010-75341 1
REEL
26 38010-75410 1
DRUM
- 9 -

EC7600W EC1
4. COVER
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 38010-75360 1 RECOIL SPRING
28 01500-06051 1
NUT
M6
29 38010-75370 1
WASHER
30 32003-77370 1
SCREW SPW
31 22104-75420 4
KNOB RECOIL
32 22104-75430 1
STOPPER KNOB
33 38010-75390 1
ROPE
34 38010-75210 1
AIR PLATE
35 38010-82581 1
FILTER
36 38010-82311 1
PRE FILTER
37 38010-82561 2
SCREW PM SW
M5x12
38 38010-82590 2
COLLAR
39 38010-82131 1
CLEANER COVER
40 38010-82460 1
KNOB
41 19422-00044 1
LABEL CAUTION
42 38010-91020 1
LABEL TRADE
EC7500
42 38011-91020 1
LABEL TRADE
EC7600
43 19401-00300 1
LABEL INST
44 ・・ 38010-75400 1
GUIDE
- 10 -

EC7600W EC1

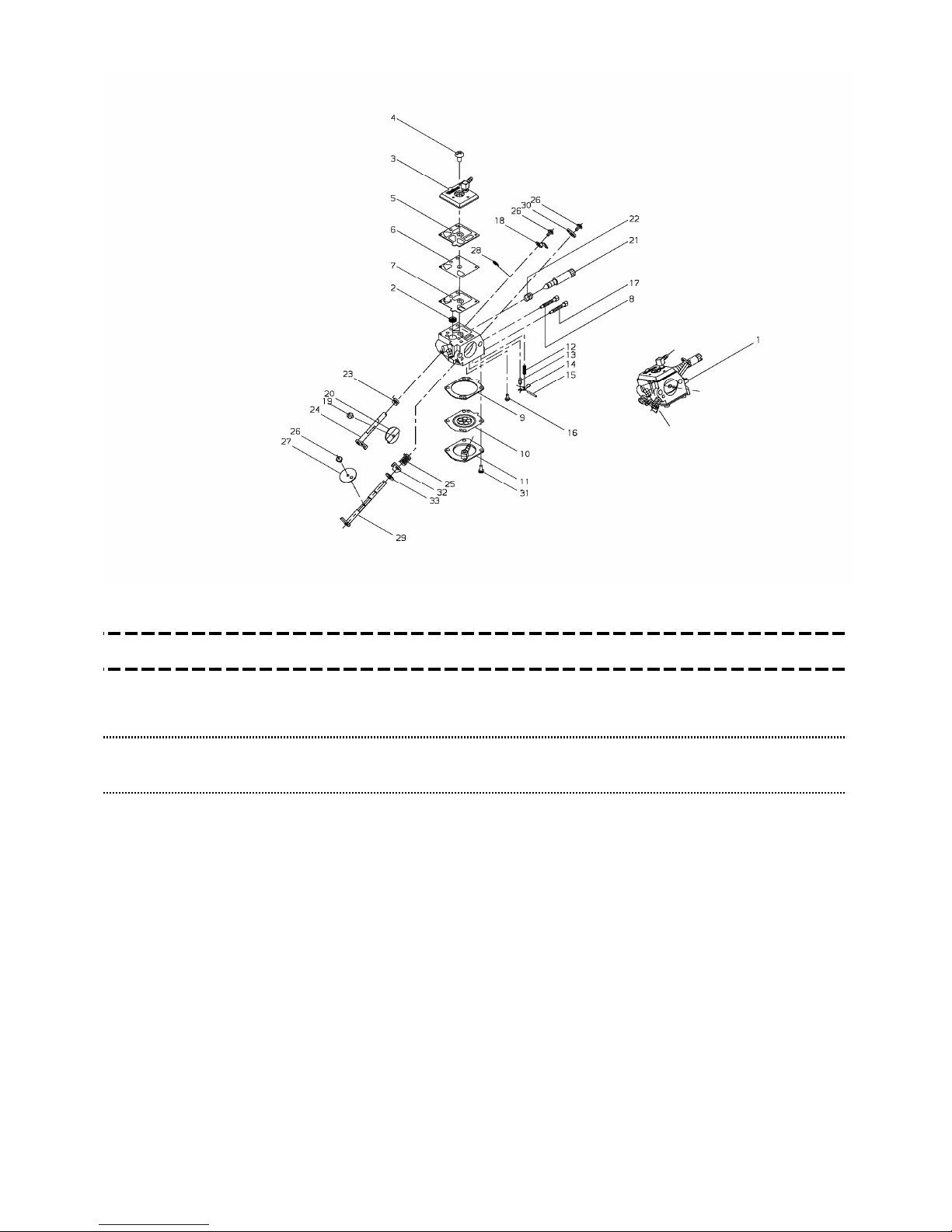

5. CARBURETOR
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 68006-81010 1 CARBURETOR ASSY
2・70030-81380 1
SCREEN
3・22150-81120 1
PUMP COVER ASSY
4・22150-81130 1
SCREW
5・22150-81140 1
GASKET PUMP
6・22169-81180 1
DIAPHRAGM PUMP
7・22169-81150 1
DIAPHRAGM PUMP
8・68006-81320 1
L NEEDLE
L
9・22150-81290 1
GASKET DIAPHRAGM
10 ・22150-81260 1
DIAPHRAGM ASSY
11 ・38010-81350 1
COVER DIAPHRAGM
12 ・22150-81270 1
SPRING LEVER
13 ・20036-81440 1
VALVE
14 ・22150-81230 1
LEVER
15 ・22100-81250 1
PIN
16 ・22100-81240 1
SCREW
17 ・68006-81330 1
H NEEDLE
H
18 ・22160-81390 1
STOPPER
19 ・20803-81140 1
SCREW
20 ・22150-81340 1
THROTTLE VALVE
21 ・22156-81410 1
IDLE SCREW
22 ・22156-81420 1
SPRING, IDLE ADJUST
23 ・22150-81430 1
RETURN SPRING
24 ・38010-81370 1
SHAFT ASSY
25 ・38010-81380 1
SPRING
26 ・20803-81150 3
SCREW
- 11 -

EC7600W EC1
5. CARBURETOR
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 ・38010-81390 1 CHOKE VALVE
28 ・70030-81390 1
E-RING
29 ・38010-81400 1
SHAFT ASSY
30 ・22156-81380 1
LEVER
31 ・22100-81351 4
SCREW
32 ・38010-81420 1
LEVER
33 ・20036-81185 1
WASHER
- 12 -

EC7600W EC1
6. OPTION
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 72320-91410 1 PLUG WRENCH 19-13 19-13
2 22150-91160 1
DRIVER
3 19020-17001 1
WRENCH
4 09026-06001 1
HEXA WRENCH 7MM
6mm
5 38010-98090 1
PRE FILTER
6 38010-98330 1
COLLAR SET
φ22
6 38010-98310 1
COLLAR SET
φ25.4
6 38010-98320 1
COLLAR SET
φ30.5
7・68000-69310 1
SNAP RING
- 13 -

EC7600W EC1

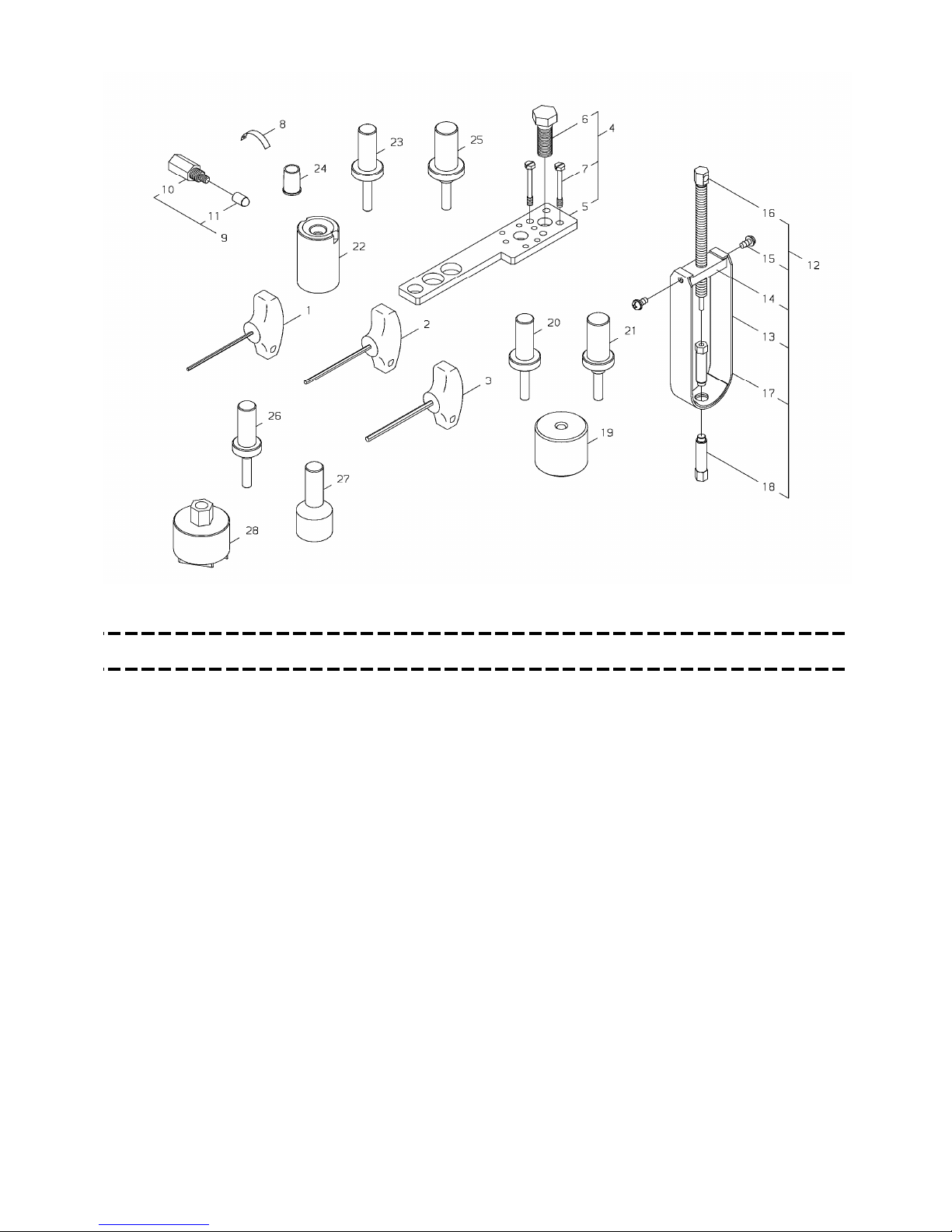

7. OPTION TOOL
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 22155-96521 1 T WRENCH 4
2 22155-96531 1
T WRENCH 5
3 22155-96540 1
T WRENCH 6
4 22150-96101 1
PULLER ASSY
5・20000-96114 1
LEVER
6・22100-96121 1
CENTER BOLT
7・22102-96130 2
BOLT
8 20000-96210 1
AIR GAP GAUGE
t=0.3-0.35
9 22182-96601 1
STOPPER ASSY
10 ・2218296610 1
ｽﾄﾂﾊﾟ
11 ・22182-96621 1
CAP
12 22169-96300 1
PULLER ASSY
13 ・22155-96310 1
PULLER
14 ・22155-96320 1
BOSS
15 ・11204-06120 2
SCREW PM
16 ・22155-96340 1
BOLT
17 ・22169-96350 1
PIN ADAPTER
18 ・22169-96360 1
GUIDE PIN
19 22169-96410 1
HOLDER M
20 22169-96420 1
ROD OIL SEAL M
21 22169-96430 1
ROD 6202
22 38010-98010 1
HOLDER
23 22169-96450 1
ROD OIL SEAL C
24 22169-96460 1
COLLAR OIL SEAL
25 22169-96470 1
ROD 6203
26 38010-98020 1
ROD
- 14 -

EC7600W EC1
7. OPTION TOOL
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 38010-98040 1 ROD
28 38010-98050 1
PULLER
- 15 -

EC7600W EC1

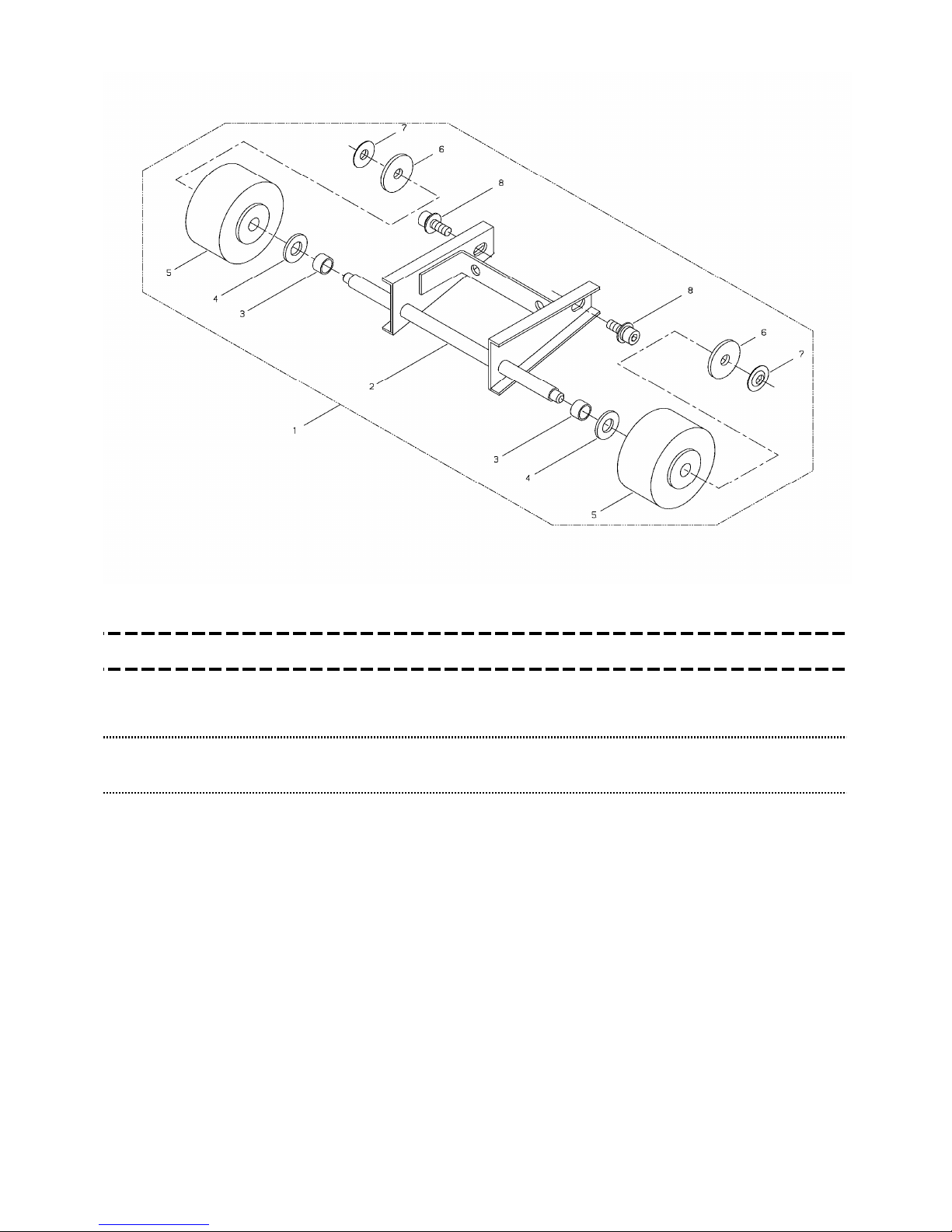

8. OPTION (CASTER)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 680-0098310 1 CASTER
2・68000-98330 1
STAY
3・17901-08070 2
COLLAR
8，L=7
4・01612-00800 2
WASHER
5・16011-00051 2
CASTER
427S-RD-50
6・15401-20008 2
COLLAR
7・68000-98340 2
PUSH NUT
OCHIAI SPN-6
8・11060-05141 2
BOLT ADHESIVE
M5×14
- 16 -

EC7600W EC1

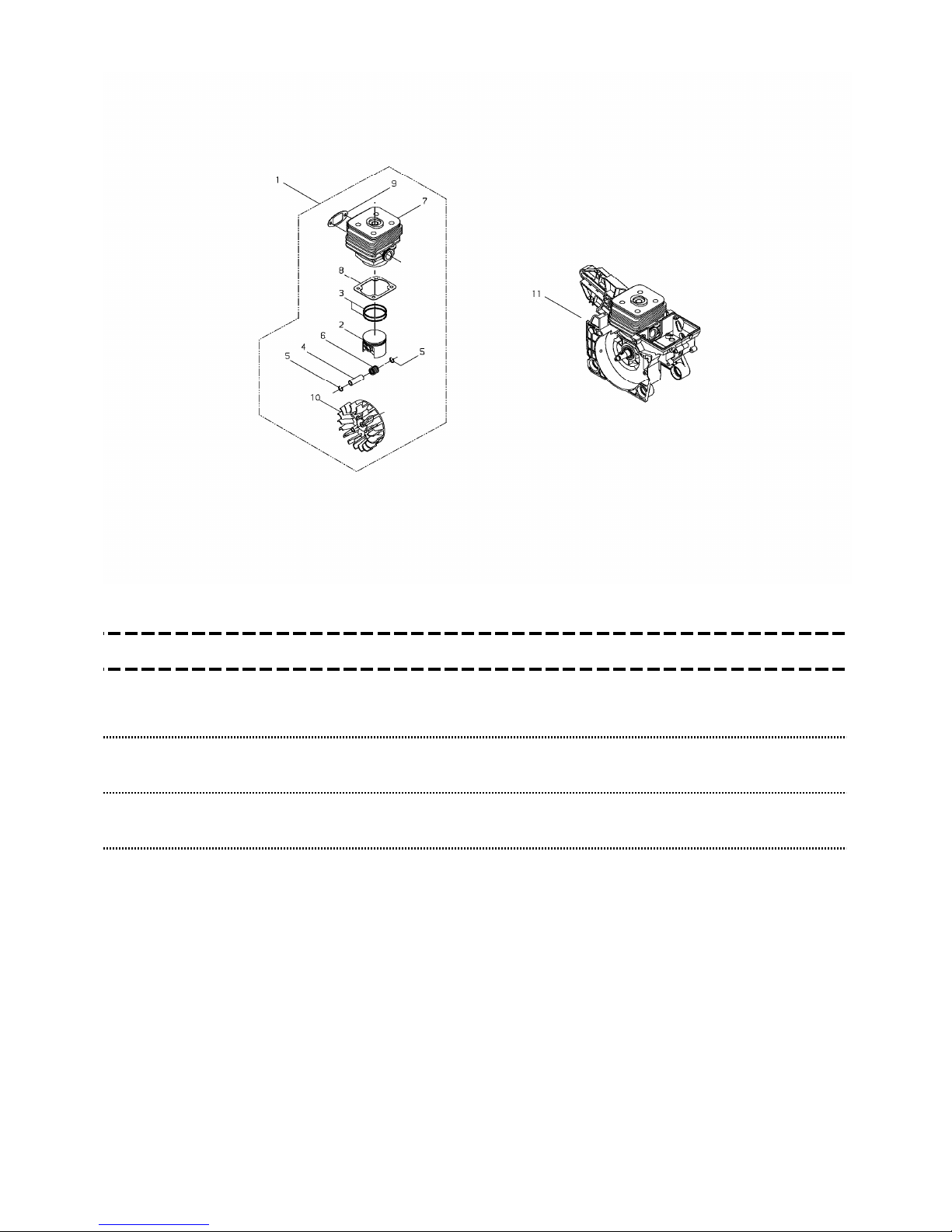

. OPTION
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 38010-98350 1 CYLINDER SET
2・38010-41110 1
PISTON
3・22169-41210 2
PISTON RING
4・22169-41220 1
PISTON PIN
5・22155-41230 2
SNAP RING
6・22155-41281 1
BEARING SE
7・38010-12112 1
CYLINDER
8・38010-12120 1
GASKET
9・38010-15210 1
GASKET
10 ・38010-71112 1
ROTOR
11 68002-98331 1
SHORT BLOCK
- 17 -

EC7600W EC1

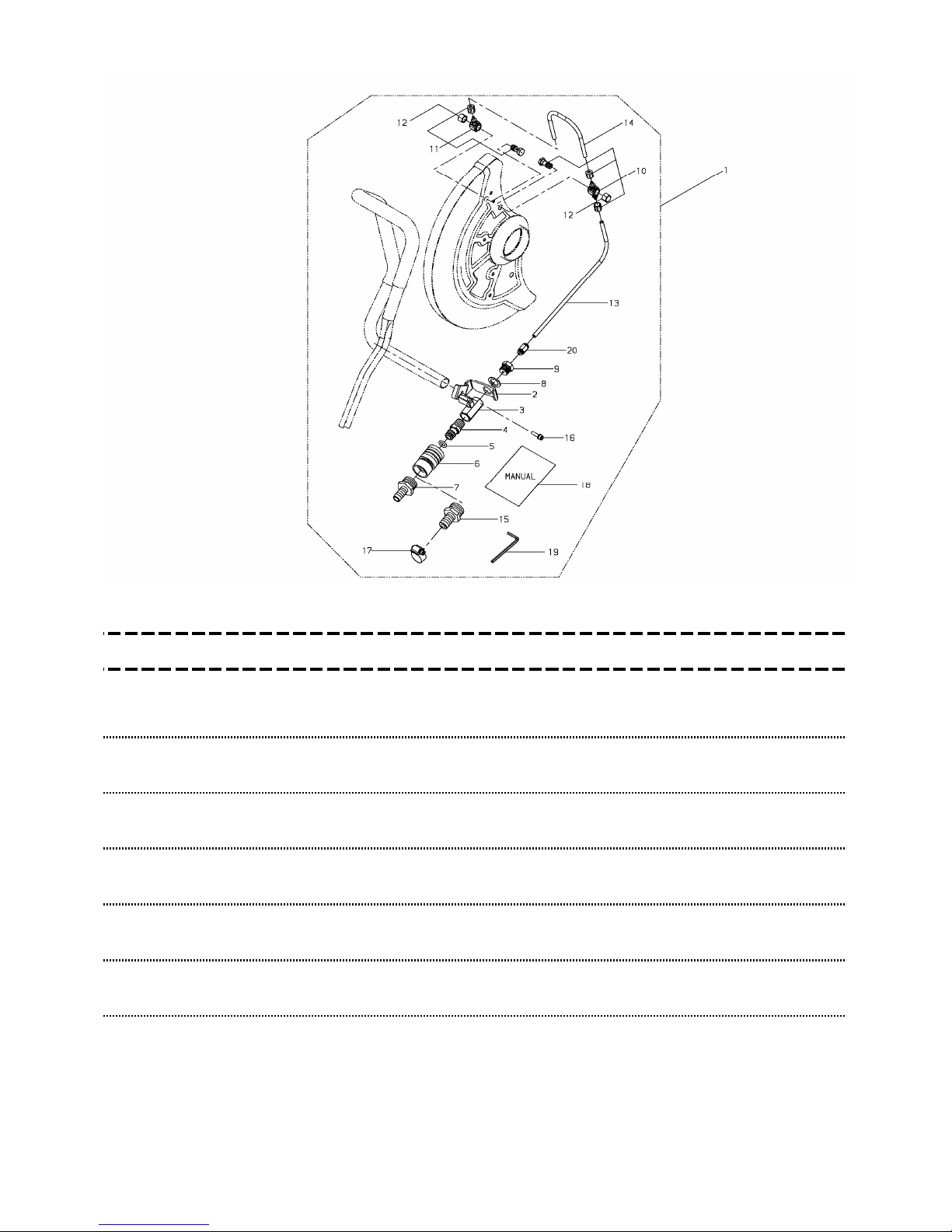

10. WATER SYSTEM KIT
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 68020-93310 1 WATER SYSTEM KIT
2・68020-93320 1
BRACKET
3・68020-93330 1
VALVE
4・68020-93341 1
CONNECTOR
5・68020-93520 1
O RING
6・68020-93350 1
COUPLER
7・68020-93360 1
HOSE JOINT
1/2"(φ14)
8・68020-93370 1
SPACER
9・68020-93381 1
JOINT
10 ・68020-93390 1
NOZZLE ASSY
11 ・68020-93430 1
NOZZLE ASSY
12 ・68020-93450 2
NUT
13 ・68020-93460 1
TUBE
L370
14 ・68020-93470 1
TUBE
L235
15 ・68020-93480 1
HOSE JOINT
5/8"(φ17)
16 ・11022-05200 1
BOLT SPW
M5x20
17 ・68020-93490 1
CLAMP
18 ・68020-93500 1
MANUAL
19 ・09026-04001 1
HEXA WRENCH
4MM M5ﾖｳ 4mm M5
20 ・68020-93511 1
CONNECTOR
- 18 -

Index
Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.
01020-05160 3 - 16 19020-17001 6 - 3 22150-82140 1 - 44
01020-05600 1 - 49 19401-00254 3 - 52 22150-91160 6 - 2
01020-06200 3 - 25 19401-00256 2 - 38 22150-96101 7 - 4
01020-08500 3 - 42 19401-00300 4 - 43 22154-22130 1 - 41
01280-04222 2 - 13 19402-00219 3 - 53 22154-72230 4 - 19
01500-06051 4 - 28 19402-00220 3 - 53 22155-21630 1 - 22
01500-08061 3 - 18 19402-00221 2 - 39 22155-41230 1 - 37
01600-05131 1 - 56 19405-00006 3 - 54 22155-41230 9 - 5
01612-00800 8 - 4 19422-00044 4 - 41 22155-41281 1 - 38
01613-05080 1 - 57 20000-96114 7 - 5 22155-41281 9 - 6
02006-06201 3 - 11 20000-96210 7 - 8 22155-82111 1 - 43
02006-06203 3 - 12 20020-85540 2 - 24 22155-96310 7 - 13
02030-06202 1 - 21 20020-85540 2 - 37 22155-96320 7 - 14
02030-06203 1 - 26 20036-81185 5 - 33 22155-96340 7 - 16
02403-03100 4 - 13 20036-81440 5 - 13 22155-96521 7 - 1
02427-20125 3 - 31 20050-87160 1 - 32 22155-96531 7 - 2
09026-04001 10 - 19 20087-51210 3 - 26 22155-96540 7 - 3
09026-06001 6 - 4 20800-33910 2 - 32 22156-81380 5 - 30
11022-04160 4 - 17 20803-81140 5 - 19 22156-81410 5 - 21
11022-05100 2 - 9 20803-81150 5 - 26 22156-81420 5 - 22
11022-05200 10 - 16 22100-71441 4 - 12 22160-31150 4 - 6
11060-05141 1 - 9 22100-81240 5 - 16 22160-81390 5 - 18
11060-05141 3 - 45 22100-81250 5 - 15 22169-12190 1 - 3
11060-05141 8 - 8 22100-81351 5 - 31 22169-21630 1 - 27
11060-05204 2 - 7 22100-96121 7 - 6 22169-21910 1 - 28
11060-06200 1 - 15 22102-96130 7 - 7 22169-32220 2 - 8
11203-05080 1 - 12 22104-75420 4 - 31 22169-33770 1 - 31
11203-06908 3 - 38 22104-75430 4 - 32 22169-41210 1 - 35
11204-06120 7 - 15 22118-85460 2 - 29 22169-41210 9 - 3
123181-39130 1 - 45 22128-85410 2 - 26 22169-41220 1 - 36
12420-40255 2 - 17 22128-85440 2 - 28 22169-41220 9 - 4
12492-50100 1 - 20 22128-85470 2 - 30 22169-51200 3 - 3
13000-13507 1 - 55 22128-85480 2 - 31 22169-51210 3 - 4
14352-01700 4 - 20 22150-12170 1 - 6 22169-51220 3 - 5
15401-00008 3 - 27 22150-21220 1 - 23 22169-51240 3 - 7
15401-10030 4 - 11 22150-33410 1 - 52 22169-71460 4 - 14
15401-20007 3 - 19 22150-33720 1 - 30 22169-81150 5 - 7
15401-20008 3 - 30 22150-33720 2 - 35 22169-81180 5 - 6
15401-20008 8 - 6 22150-33770 2 - 36 22169-96300 7 - 12
15401-20101 3 - 23 22150-51230 3 - 6 22169-96350 7 - 17
15401-21022 3 - 47 22150-81120 5 - 3 22169-96360 7 - 18
16011-00051 8 - 5 22150-81130 5 - 4 22169-96410 7 - 19
17500-17500 3 - 35 22150-81140 5 - 5 22169-96420 7 - 20
17520-14801 4 - 10 22150-81230 5 - 14 22169-96430 7 - 21
17520-98200 3 - 32 22150-81260 5 - 10 22169-96450 7 - 23
17901-06100 4 - 2 22150-81270 5 - 12 22169-96460 7 - 24
17901-08070 8 - 3 22150-81290 5 - 9 22169-96470 7 - 25
18607-35502 3 - 55 22150-81340 5 - 20 22173-16160 1 - 17
18647-30501 3 - 55 22150-81430 5 - 23 22182-12160 1 - 5
- 19 -
