OPERATOR’S MANUAL
POWERCENTER 15
CAUTION
Do not operate the Generator, or any other appliance, before you have read and
understood the instructions for use.

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Table of Contents
Introduction .............................................................................................. 1
EC Declaration of Conformity................................................................. 2
1. Safety Guidelines ................................................................................. 3
2. Specifications....................................................................................... 9
2-1. Specifications................................................................................ 9
2-2. Ambient Conditions ....................................................................... 9
3. Applications.......................................................................................... 9
4. Parts .................................................................................................... 10
5. Equipment........................................................................................... 13
5-1. Spill Containment........................................................................ 13
5-2. Multi digital meter........................................................................ 13
5-3. Error Code Display...................................................................... 14
5-4. Monitor Lamp .............................................................................. 14
5-5. Earth Leakage Circuit Breaker and Grounding .......................... 16
5-6. Emergency Stop Switch.............................................................. 19
5-7. Terminal Cover Switch ................................................................ 19
6. Load connections .............................................................................. 20
6-1. Load Cable Selection.................................................................. 20
6-2. Connecting Load Cable .............................................................. 21
7. Pre-Operation Inspection .................................................................. 25
7-1. Engine Oil Inspection .................................................................. 25
7-2. Cooling Water Inspection............................................................ 26
7-3. Fuel Inspection............................................................................ 27
7-4. Spill Containment Inspection ...................................................... 27
7-5. Inspection for Fuel/Oil/Cooling Water Leakage.......................... 28
7-6. Battery Inspection ....................................................................... 28
8. Operating Procedures ....................................................................... 29
8-1. Initial Startup/Pre-Check............................................................. 30
8-2. Stopping Operation..................................................................... 32
8-3. Protective Functions ................................................................... 33
9. Inspection/Maintenance .................................................................... 34
10. Long-Term Storage .......................................................................... 41
11. Troubleshooting ............................................................................... 42
12. Engine Wiring Diagram.................................................................... 44
13. Generator Wiring Diagram .............................................................. 45

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Introduction
Thank you for purchasing a Shindaiwa Sound Proof Diesel Engine
Generator.
This operation manual has been created to ensure the safe operation of this
equipment. Therefore, the manufacturer of this equipment strongly
recommends that the user follow the instructions herein, to avoid unnecessary
accidents and repairs.
Please operate this equipment after thoroughly reviewing and understanding the
contents of this manual.
Please supply this manual with the equipment.
■The following conventions will be used throughout the manual to indicate
the degree of caution.
Warning
Can cause serious injuries or death.
Caution
Can cause minor injuries or damage to the equipment or
other properties.
<Caution>
Other types of caution
Even some of the items noted in『 Caution 』may lead to serious injuries.
Please read all items and follow all the safety guidelines.
The following statement refers to the noise level data contained in the EC Declaration of
Conformity contained on page 2 of this manual:
“The figures quoted are emission levels and are not necessarily safe working levels. Whilst there is a
correlation between the emission and exposure levels, this cannot be used reliably to determine whether or
not further precautions are required. Factors that influence the actual level of exposure of work ‐ force
include the characteristics of the work place, the other sources of noise, etc. i.e. the number of machines
and other adjacent processes, and the length of time for which an operator is exposed to the noise. This
information, however, will enable the user of the machine to make a better evaluation of the hazard and
risk”.
-1-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
EC Declaration of Conformity
In accordance with EN ISO 17050-1:2004
We
Shindaiwa Ltd
of
Unit 6 The Dell, Enterprise Drive, Four Ashes, Wolverhampton WV10 7DF
in accordance with the following Directives:
2004/108/EC
The Electromagnetic Compatibility Directive
and its amending directives
2006/42/EC
The Machinery Directive
2000/14/EC
The Noise Emission in the Environment by Equipment for Use Outdoors Directive
2011/65/EU
The Restriction of Hazardous Substances Directive
hereby declare that:
Equipment
Engine driven generator
Model number
PowerCenter 15
Serial Number(s)
W0165500581
is in conformity with the applicable requirements of the following documents
Ref. No.
Title
Edition/date
BS EN ISO 12100
Safety of machinery. General principles for design. Risk assessment and risk reduction
2010
BS EN 60204-1
Safety of machinery. Electrical equipment of machines. General requirements
2006 +A1:2009
BS EN 61000-6-2
Electromagnetic compatibility - immunity
2005
BS EN 61000-6-4
Electromagnetic compatibility - emissions
2007
BS EN 12601
Reciprocating internal combustion engine driven generating sets. Safety
2010
Noise measurements have been made in accordance with ISO 3744 with internal control of production
(Schedule 8/Annex V). The declared noise values are as follows:
Measured sound power level
Guaranteed sound power level
( 90 ) dB Lwa
( 92 ) dB Lwa
I hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications. The unit complies with all applicable Essential
Requirements of the Directives.
Signed by: ............................................................................................................................
Name:
D.Richards
Position:
Director
Done at
Wolverhampton
On
10/04/14
Document ref. No.
PC1500001
The technical documentation for the machinery is available from the manufacturer at the above
address.
-2-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Warning: Suffocation from Exhaust Fumes
Do not operate the equipment in a poorly-ventilated area such as indoors or within a
tunnel because the engine exhaust fume includes components that are harmful to
humans.
Warning: Electric Shock
Do not operate the equipment with any doors or covers open.
Do not touch wirings or any electric parts inside the equipment during operation.
Do not touch the equipment during operation if the equipment or your body is wet.
Be sure to stop the engine whenever touching output terminals such as when installing or
removing cables.
Do not connect cables to any part other than output terminals.
Do not insert any metallic objects, such as pins or wires, into AC output receptacles or
terminals.
Always be sure to turn off all breakers before installing or removing devices using AC
output receptacles.
Always be sure to repair the corresponding earth leakage location when earth leakage
circuit breakers operate.
Always be sure to stop the engine and remove the starter key before performing any
equipment check or maintenance.
This machine is rated to IP23.
Warning: Fire
Always be sure to stop the engine when inspecting fuel or refueling, and absolutely never
perform such tasks near fire or other open flame. Wait until the engine has completely
cooled before inspecting fuel or refueling.
Always be sure to wipe up any spilled fuel or oil.
Spilled fuel and oil accumulates in the spill containment. Do not operate the equipment
with liquid accumulated in the spill containment.
Absolutely never use the equipment if there is a fuel, oil or cooling water leak, and be
sure to always repair the leak before using.
Absolutely never inspect or perform maintenance to the equipment near fire or other
open flame.
Keep any ignitable items (such as fuel, gas and paint) or inflammable items away from
the equipment because the muffler, exhaust fume and other parts attain high
temperatures.
Provide at least 1 meter (3 feet) of distance between the equipment and walls and other
obstacles, and operate the equipment on a flat surface.
Allow the equipment to cool before covering with protective covers and similar items.
Do not ground wiring of earth leakage circuit breakers of the equipment to piping that
passes through flammable material.
Warning: Injuries
Do not operate the equipment with any doors or covers open. There is a danger of hair,
body parts and other items being caught up in moving parts such as cooling fans and
belts.
Do not modify the equipment and do not operate with parts removed.
Always be sure to stop the engine and remove the starter key before performing any
equipment check or maintenance.
1. Safety Guidelines
１．
-3-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Warning: Injuries to Eyes and Skin
Use protective gear, such as rubber gloves, when inspecting or replacing the battery due
to the dilute sulfuric acid in the battery fluid. Be sure that fluid does not get into eyes, or
on skin or clothing.
If battery fluid gets into the eyes, or on the skin or clothing, immediately wash with a large
amount of water, and always be especially sure to seek medical attention if it gets into
the eyes.
Warning: Explosion
Do not operate the equipment or recharge the battery when the battery fluid level is
below the lower level.
Do not generate any sparks near the battery and do not allow any fire or other open
flame near the equipment because the battery generates ignitable gas.
Warning: Electromagnetic Interference
Persons using a heart pacemaker are not allowed near the Generator work area while
Generator is being performed without the permission of a doctor. The welder generates a
magnetic field while energized that can negatively affect pacemaker operation.
Caution: Suffocation from Exhaust Fumes
Do not direct the engine exhaust towards passersby, private homes or similar
persons/locations because the engine exhaust fume includes components that are
harmful to humans.
Caution: Electric Shock
Do not sprinkle water on the equipment and do not use where exposed to rain.
If wearing gloves, be sure to always wear gloves with dry insulation properties. Do not
wear gloves that are damaged or wet.
Caution: Burns
The engine, muffler and similar parts are extremely hot during operation and immediately
after stopping the equipment. Never touch hot parts.
Never open the radiator cap during operation or immediately after stopping the
equipment. Hot cooling water and steam will spurt out.
Always be sure to stop the engine and allow it to cool before inspecting or changing the
engine oil. Opening the oil gauge or oil plug during operation will result in hot oil spurting
out.
-4-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Caution: Injuries
Use this equipment with it situated on a stable level surface so that it is prevented from
moving.
Do not move the equipment during operation.
Always be sure to turn off the switches of all devices using the equipment and turn off the
equipment breakers before starting the engine.
Always be sure to turn off the power switches of all devices using the equipment when
turning on the equipment breakers. Leaving on the power switch of a device using the
equipment when the equipment breakers are turned on could result in the sudden
operation of the corresponding device.
Do not leave on the power switch of a device using the equipment and do not connect a
device to an AC output receptacle.
The lifting lug is designed to be used only for lifting the equipment. Do not lift the
equipment with any heavy items (such as a trailer and additional fuel tank) added to the
equipment.
Always be sure to use the lifting lug when lifting the equipment, and lift slowly and directly
straight above.
Wear a helmet, safety shoes, gloves and similar protective gear when performing lifting
work. Do not stand or get under the equipment while it is suspended.
Securely fix the equipment with rope or similar item so that it cannot move when
transporting by truck or other vehicle.
Caution: Physical and Secondary Damage
Do not use the equipment for any improper applications. Improper usage can result in an
accident or malfunction.
Do not connect the AC power source to indoor wiring.
If using the equipment as a power source for medical equipment, you must check with
the medical equipment manufacturer, doctor and hospital before using the equipment.
-5-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
■Location of Warning Labels
Replace warning labels when they become difficult to see or damaged by affixing new labels
in the specified locations. Order the necessary labels by numbers in parentheses.
(1) Fire（No. X505-007650）
(2) Suffocation from exhaust fume（No. X505-007570 ）
(3) Lifting eye（No. X505-000240）
(4) Hot surface (X505-006420)
(5) Burns（No. X505-006410）
(6) Keep 1 meter（No. M707-000260）
(7) Injuries（No. X505-007630）
(8) Electric shock（No. X505-007560）
(9) Earth leakage relay（No. X505-004890）
(10) Positioning handle（No. X505-006430）
-6-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
LABEL REPRODUCTION
①X505-007650
②X505-007570
③X505-000240
④X505-006420
⑤X505-006410
-7-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
⑥M707-000260
⑦X505-007630
⑧X505-007560
⑨X505-004890
⑩X505-006430
-8-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
2-1.Specifications
Model
POWERCENTER15
Generating Method
Rotating Field
AC Generator
Rated Frequency
(Hz)
50
Rated Speed
(min-1 )
3000
Phase
3-Phase
1-Phase
Rated Voltage
(V)
415
240
110
Rated Current
(A)
21
50
110
Power Factor
0.8
1.0
Rated Output
(kVA)
15
12
Rating
Continuous
Engine
Model
Kubota D902
Type
Vertical, Water-Cooled 4-Cycle Diesel Engine
Displacement
(L)
0.898
Rated Output
(kW/min-1)
13.1／3000
Fuel
ASTM No.2-D Diesel Fuel or Equivalent
Lubricant Oil
API Class CD or Higher
Lubrication Oil Volume
(L)
3.6 (Effective 1.7)
Cooling Water Volume
(L)
4.0 (Sub Tank Capacity 0.6 L included)
Starting Method
Starter Motor
Battery
46B24L (Japanese Industrial Standard)
Fuel Tank Capacity
(L)
37
Dimen-
sion
Length
(mm)
1344
Width
(mm)
640
Height
(mm)
778
Dry Weight
(kg)
387
Generating Set ISO 8528-8/G2
EMC Group 2 class A
2-2.Ambient Conditions
・Temperature : -15～40℃
・Humidity : 80% or less
・Elevation : 300m or less
Power Source for Light, Electric Tools and Appliances
Caution: Physical and Secondary Damage
Do not use the equipment for any applications not listed above. Improper usage
can result in an accident or malfunction.
If using the equipment as a power source for medical equipment, you must check
with the medical equipment manufacturer, doctor and hospital before using the
equipment.
2. Specifications
２．
3. Applications
３．
-9-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]

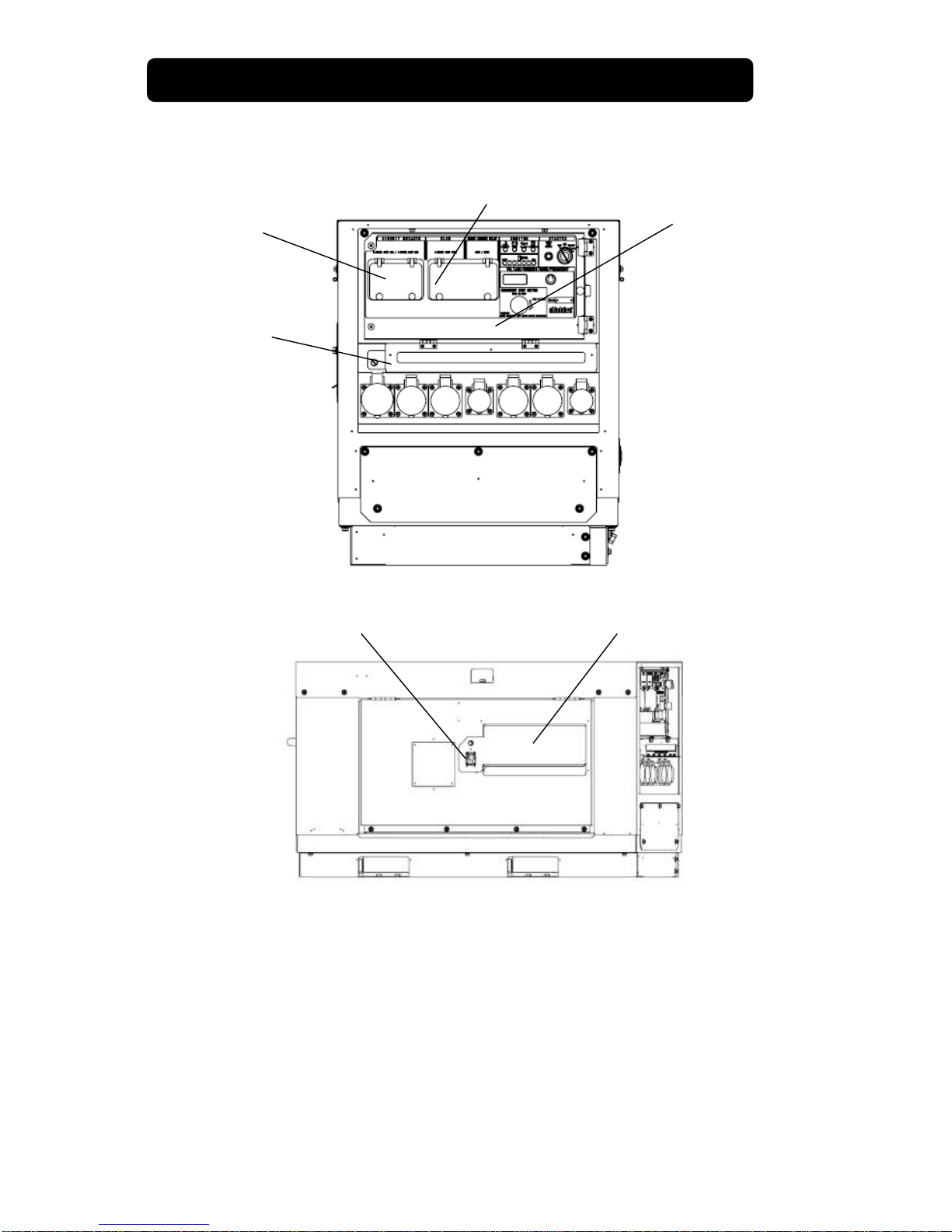

4. Parts
４．
Operation Panel
1-Phase
Breaker Cover
3-Phase
Breaker Cover
Circuit Breaker
Cover
Terminal Cover
Ring Latch
-10-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]

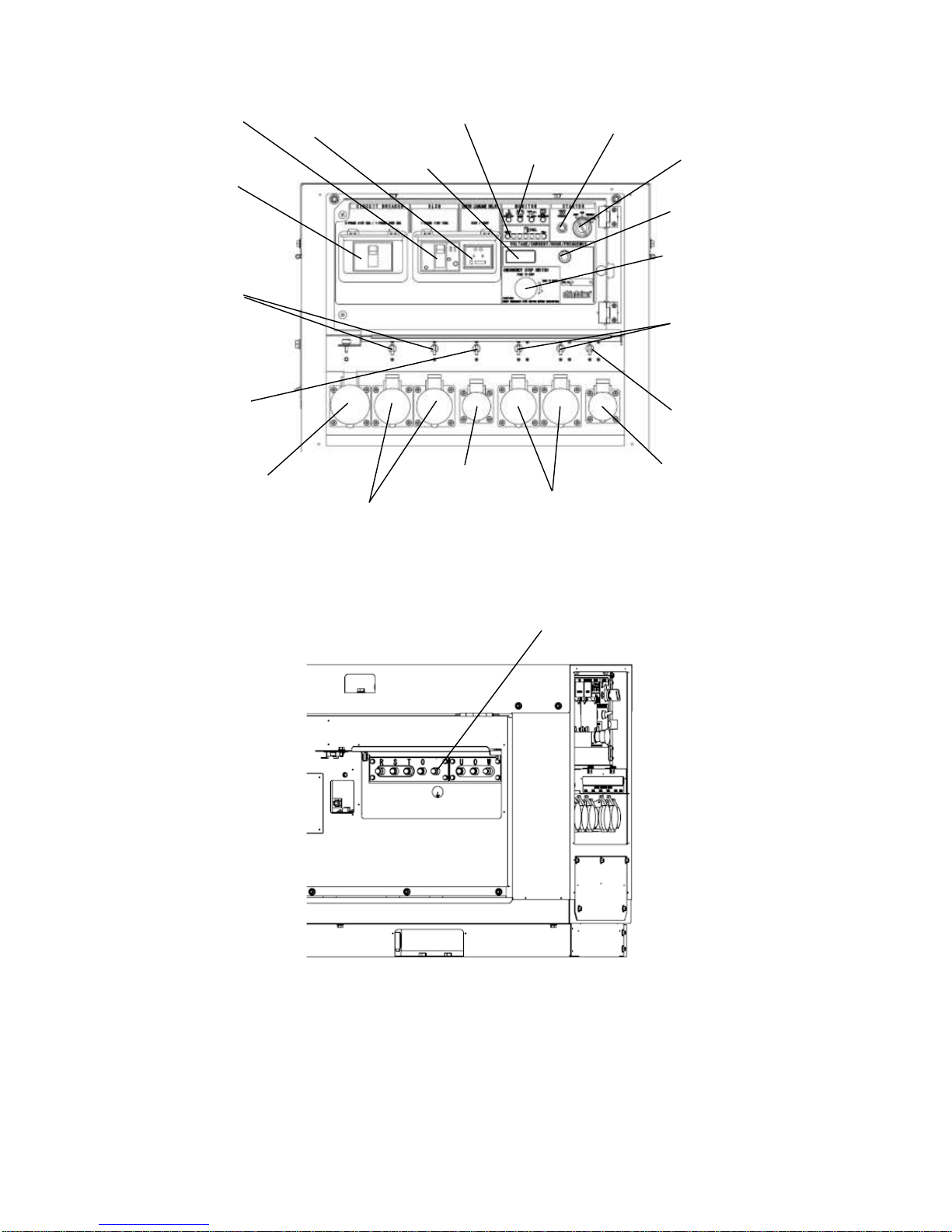

Bonnet Grounding
Terminal
1-PHASE
ELCB
(Breaker)
Meter Selector
Monitor Lamp
Fuel Meter
Multi digital
Meter
Starter Switch
3-PHASE
Breaker
3-PHASE
Receptacle
(415V 32A)
1-PHASE
Receptacle
(240 32AV)
3-PHASE
ELR
(Relay)
Preheat Lamp
Emergency
Stop Switch
1-PHASE
Receptacle
(240V 16A)
1-PHASE
Receptacle
(110V 16A)
1-PHASE
Receptacle
(110V 32A)
1-PHASE
Breaker
(240V 20A)
1-PHASE
Breaker
(240V 15A)
1-PHASE
Breaker
(110V 30A)
1-PHASE
Breaker
(110V 15A)
-11-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Owner’s
and
Operators
Manual
Accessories
Starter Key 1
Set
Door Key 1
Set
Top Plate
Muffler
Lifting Lug
Fuel Inlet
Fuel Inlet Cover
Spill Containment
Coolant
Sub Tank
Battery
Air Cleaner
Oil
Drain Plug
Side Door
Fuel Lever
(Fuel Strainer)
Fuel
Drain Plug
Oil Filter
Spill Containment
Drain Valve
Water
Drain Plug
Oil Gauge
Oil Plug
Oil Inlet
Positioning handle
(Not to be used for lifting)
-12-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Multi digital
Meter
Meter Selector
5-1. Spill Containment
Warning: Fire
Always be sure to wipe up any spilled fuel or oil.
Spilled fuel and oil accumulates in the spill containment. Do not operate the
equipment with liquid accumulated in the spill containment.
Do not use the equipment if there is a fuel, oil or cooling water leak, and be sure to
always repair the leak before using.
The equipment includes a spill containment (structure that collects leaking liquid) in order to
prevent leaking liquid from getting outside of the equipment if oil, fuel or other liquid should
leak.
Before starting operation, check if there is any fluid accumulated in the spill containment
and drain any accumulated liquid.（Refer to section "9. (7) Draining Liquid from the Spill
Containment".）
<Note>
It is necessary to periodically drain the liquid from spill containment because any
rainwater induced into the equipment accumulates in the spill containment.
Although the fluids consist of oil, fuel and cooling water, the spill containment does not
have a function that can separate rainwater leaked into the equipment from these
internally leaked fluids. Properly dispose of spill from the spill containment according to
the applicable federal laws and regulations.
5-2．Multi digital meter
The equipment includes a meter that provides digital display of voltage, current,
operating time and frequency.
Meter is equipped with meter selector that can be switched to display voltage,
current, operating time or frequency.
<Note>
During operation, the 3-phase output voltage of the AC power source is constantly
displayed regardless of whether the breaker for 3-phase voltage is set to "ON" or "OFF".
5. Equipment
５．
Voltage
Current
Hour
Frequency
Rotating indication by selector
-13-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Oil Press
Water Temp
Charge
Spill
Containment
5-3．Error Code Display
The equipment includes an error code display［E06］function that notifies the operator of
Engine over speed after the engine shuts off automatically. Consult your authorized dealer
when the error code［E06］is displayed on the meter.
5-4．Monitor Lamp
Warning: Injuries/Electric Shock
Do not operate the equipment with any doors or covers open. There is a danger of
hair, body parts and other items being caught up in moving parts such as cooling
fans and belts.
Caution: Burns
The engine, muffler and similar parts are extremely hot during operation and
immediately after stopping the equipment. Never touch hot parts.
Never open the radiator cap during operation or immediately after stopping the
equipment. Hot cooling water and steam will spurt out.
Always be sure to stop the engine and allow it to cool before inspecting or changing
the engine oil. Opening the oil gauge or oil plug during operation will result in hot oil
spurting out.
The equipment includes monitor lamps for "WATER TEMP”, "CHARGE", "OIL PRESS"
and "SPILL CONTAINMENT" .
If the equipment is normal, the "CHARGE" and "OIL PRESS" monitor lamps light up when
the starter switch is switched from "STOP" to "RUN" , and all monitor lamps turn off when
the engine is started. If any error besides that of spill containment occurs during operation,
the corresponding monitor lamp lights up and the engine is automatically stopped.
If the engine is automatically stopped, return the starter switch to "STOP" and restart the
engine. Watch the lit/unlit status of the monitor lamps the next time an automatic stop
occurs and check the error contents.
-14-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
(1) Water Temperature Monitor Lamp
The water temperature monitor lamp ("WATER TEMP") lights up and the engine is
automatically stopped if the cooling water temperature becomes irregularly high during
operation. If this occurs, inspect the water level of the sub tank and add cooling water if the
water level is insufficient.（Refer to section "7-2．Cooling Water Inspection".)
If the cooling water in the sub tank is at the specified level, it is probable that overloading is
the cause. Use within the rated output.
(2) Battery Charge Monitor Lamp
The battery charge monitor lamp ("CHARGE") lights up and the engine is automatically
stopped if battery charge fails during operation. If this occurs, it is probable that there is fan
belt damage or a wiring fault. Request repair at the retail outlet where the equipment was
purchased.
(3) Oil Pressure Monitor Lamp
The oil pressure monitor lamp ("OIL PRESS") lights up and the engine is automatically
stopped if the engine oil pressure drops during operation. If this occurs, inspect the engine
oil level and fill with engine oil until it reaches the maximum level.
<Note>
The oil pressure monitor cannot detect oil deterioration. Change the engine oil
periodically. Refer to section "9. (1) Changing the Engine Oil".）
The charge monitor cannot detect battery deterioration or insufficient battery fluid.
Inspect the battery fluid level periodically.（Refer to section "7-6．Battery Inspection”.）
To inspect the fuses open the operation panel, if the engine is automatically stopped
and none of the monitor lamps ("WATER TEMP", "CHARGE" and "OIL PRESS") light
up. If a fuse has blown, it is probable that there is a fault in an electric part or the wiring.
Request a repair at the retail outlet where the equipment was purchased.
(4) Spill Containment Monitor Lamp
The spill containment monitor lamp ( "SPILL CONTAINMENT" ) lights up if the level of
liquid in the spill containment is approximately 70% full (approx. 36 L) in order to ensure
that liquid accumulated in the spill containment does not spill out of the equipment. If this
occurs, drain the accumulated liquid from the equipment. (Refer to section "9. (7) Draining
Liquid from the Spill Containment".)
<Note>
The engine is not stopped if the spill containment monitor lamp lights up during
operation.
When the spill containment monitor lamp lights up during operation, stop the engine,
check for fuel, oil and cooling water leakage, and repair as necessary.
Do not use the equipment with liquid accumulated in the spill containment. Drain the
spill containment before using. (Refer to section "9. (7) Draining Liquid from the Spill
Containment".）
-15-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]

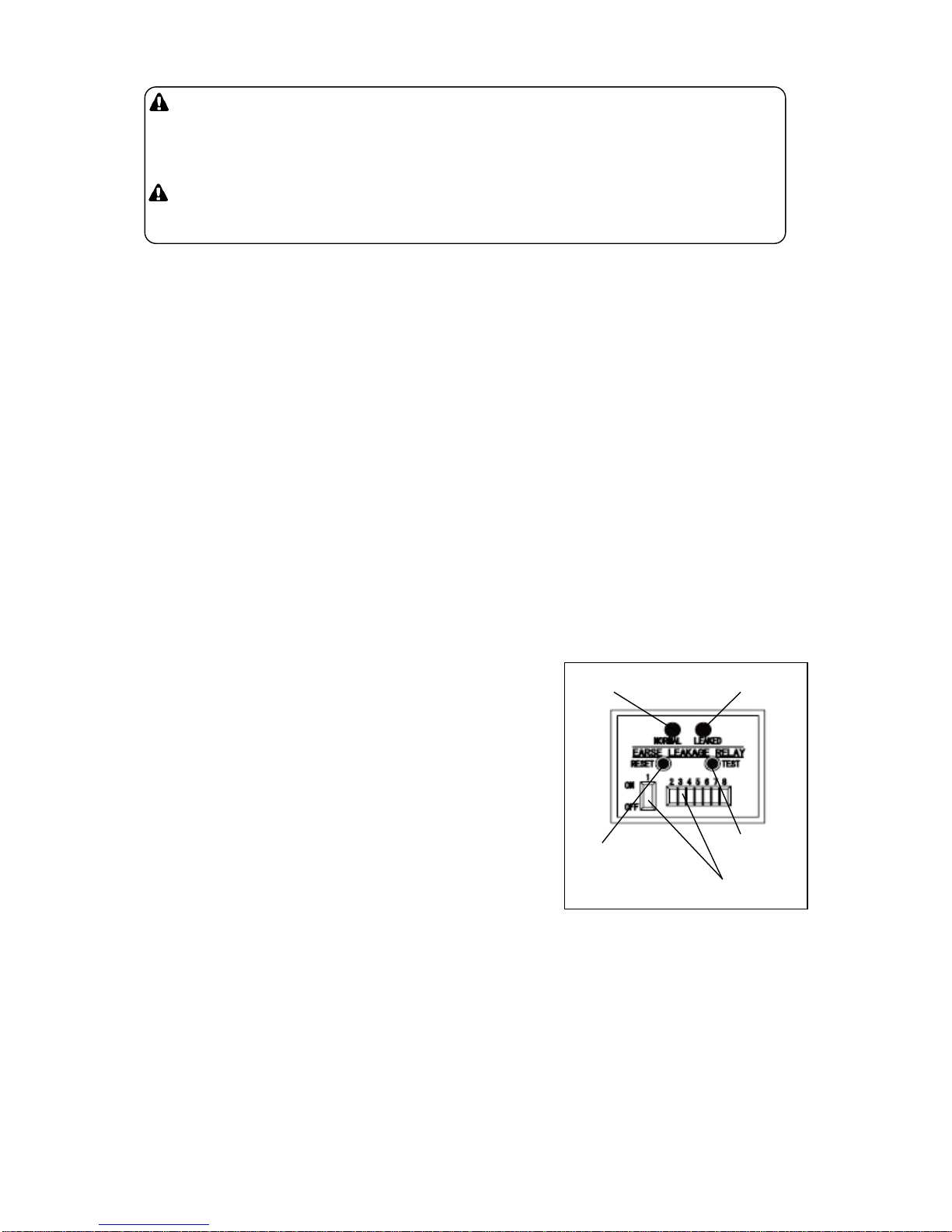

Slide Switches
Leakage
Lamp(Red)
Reset Button
Test Button
Pilot
Lamp(Green)
5-5．Earth Leakage Circuit Breaker and Grounding
Warning: Electric Shock
Do not operate the equipment with wrong adjustment of Earth Leakage relay, to
avoid electrical shock when the relay is not properly set.
Always be sure to stop the engine and repair the corresponding earth leakage
location when earth leakage circuit breakers operate.
Warning: Fire
Do not ground wiring of earth leakage circuit breakers of the equipment to piping
that passes through flammable material.
The equipment includes earth leakage circuit breakers (solidly grounded type) in order to
prevent electric shock. Immediately isolate the electrical circuit if earth leakage occurs due
to insulation failure in devices using the equipment or similar reason.
(1) Three phase 415V / Single phase 240V Earth Leakage Circuit Breaker (ELCB)
The equipment is provided with an earth leakage relay in the Circuit Breaker to detect any
leakage arisen due to the troubles as insulation failure of the load while the generator is
running and cutting off the circuit for protection against any accident such as electrical shock.
The sensitivity current of earth leakage relay can be adjusted from 30mA to 1,000mA with
duration of 0.04sec to 2.00sec by selecting slide switch located on the front panel of the
leakage relay. For multiple load connection, set the leakage relay setting to be larger than
each Individual leakage current of each load.
Selection of Sensitivity Current and activation duration
Unscrew the leakage relay cover, and adjust the leakage relay to required
current and duration. （Refer to the following selection table.）
Default setting is below from factory
sensitivity current : 30mA
activation duration : 0.04sec
■ Operation Check
1) Start the engine (Refer to 8-1).
2) Turn the 3-phuse ELCB (lever) to [ON] position.
3) Push the test button on leakage relay. The devise
is found to be normal when the leakage indication
button and the lever positions at the middle of
[ON] and [OFF].
4) Press reset button to turn off the leakage warning
indicator.
5) Push down the lever [OFF] on 3-phase ELCB to
reset the breaker to [ON] position.
Leakage relay keeps shut off the circuit once it is
activated, until reset button is pressed or
engine is stopped.
-16-

Shindaiwa Limited POWERCENTER 15
Four Ashes, Wolverhampton, UK PC15-OM-Vs: 1
T: [phone]
Selection of Rated Sensitivity Current
Current
setting
Slide switch position
Switch
1
2
3
4
30mA
(Operating
time:0.04
sec. or less)
ON
OFF
※1
100mA
ON
OFF
300mA
ON
OFF
500mA
ON
OFF
1000mA
ON
OFF
Selection of Operating Time
(not applicable to 30mA)
Time
setting
Slide switch position
Switch
5
6
7
8
0.04sec.
or less
ON
OFF
0.3sec.
(0.2-0.36
sec.)
ON
OFF
0.5sec.
(0.4-0.6
sec.)
ON
OFF
1sec.
(0.8-1.2
sec.)
ON
OFF
2sec.
(1.3-2sec.)
ON
OFF
<Note>
※1: Whenever Switch1 is set to「ON」position, the setting is back to default
as 30mA/0.04sec, regardless of Switch2～8 position.
-17-
