USER’S MANUAL
FOR OPERATION PRINTER MODEL CSP-160Ⅱ
SHINKO DENSHI CO., LTD.
Tokyo
3325M81

はくし

CONTENTS
1. INTRODUCTION··················································· 1
2. GENERAL SPECIFICATIONS ·································· 2
3. NAMES OF PARTS ··············································· 3
4. The NAME AND FUNCTION OF ALL PARTS ··············· 3
5. INSTALLATION····················································· 5
6. ERROR MESSAGES ············································· 6
7. DATA OPERATIONS ·············································· 7
8. OPERATIONS ······················································ 8
9. CONNECTION WITH SCALE··································· 10
10. CLOCK ADJUSTMENT··········································· 13

USER'S MANUALMODEL CSP-160Ⅱ
1
USRES’MANUAL
MODEL CSP-160Ⅱ
１．INTRODUCTION
The Operation Micro-Printer CSP-160II, storing data from your Shinko electronic
scale, operates Total, Average, Deviation, Maximum, Minimum, Ratio of Data
of out of Limits, etc., besides ordinary data recording.
The results are printed by cartridge ink ribbon.
1-1. Features
* Statistical Operation and Printing
Number of Data (N) Average (AVE)
Maximum (MAX) Standard Deviation
(σn, σn-1)
Minimum (MIN) Failure Ratio (P)
Range (R) Total (TOTAL)
* Histogram
* Judgements: HIGH, LOW or GOOD of data
* AUTO/MANUAL selectable
CAUTIONS ON USE
1. Always use the attached AC adaptor only, by connecting to an isolated line outlet
from other devices to avoid disturbing noises.
2. Turn off the power switch of CSP-160II first, before cutting line power off. Never
unplug the AC adaptor from the outlet before turning the printer switch off.
Turn off power switches of both printer and scale before connecting/disconnecting
cable and the AC adaptor.
3. Do not print without setting roll paper and/or ink ribbon.
4. Position and use the printer in a suitable place. A quiet area without vibration,
dusts, humidity, heat or cooling sources, is preferable.
5. After operation, turn off the power switch of the printer, then unplug the AC
adaptor from The line outlet without fail.

USER'S MANUALMODEL CSP-160Ⅱ
2
２．GENERAL SPECIFICATIONS
Character Construction ：5×7 Dot Matrices
Printing Digits ：16 digits maximum
Printing Speed ：Approx. 1 line/sec.
Character Sizes ：1.8mm(W)×2.5mm(H)
Operation Temperature ：0℃～40℃
Dimensions ：155mm（W）×145mm（D）×48mm（H）
Power Source ：AC adaptor
Weight ：Approx. 400g without AC adaptor and roll paper
Ink Ribbon / Color ：Cartridge ERC-05 Violet
Recording Paper ：45mm(W)×30mm diameter ordinary paper
The following items are included in the package. If there are any missing or
damaged items, please contact our sales office or the dealer of purchase.
1. CSP-160II (Ink ribbon included)・・・・・・・・・・・・・1
2. Recording paper・・・・・・・・・・・・・・・・・・・・ 2
3. Connecting cable Din5P ・・・・・・・・・・・・・・・・ 1
4. Connecting cable Dsub9P・・・・・・・・・・・・・・・・1
5. Foot switch jack・・・・・・・・・・・・・・・・・・・・ 1
6. Instruction manual・・・・・・・・・・・・・・・・・・・ 1

USER'S MANUALMODEL CSP-160Ⅱ
3

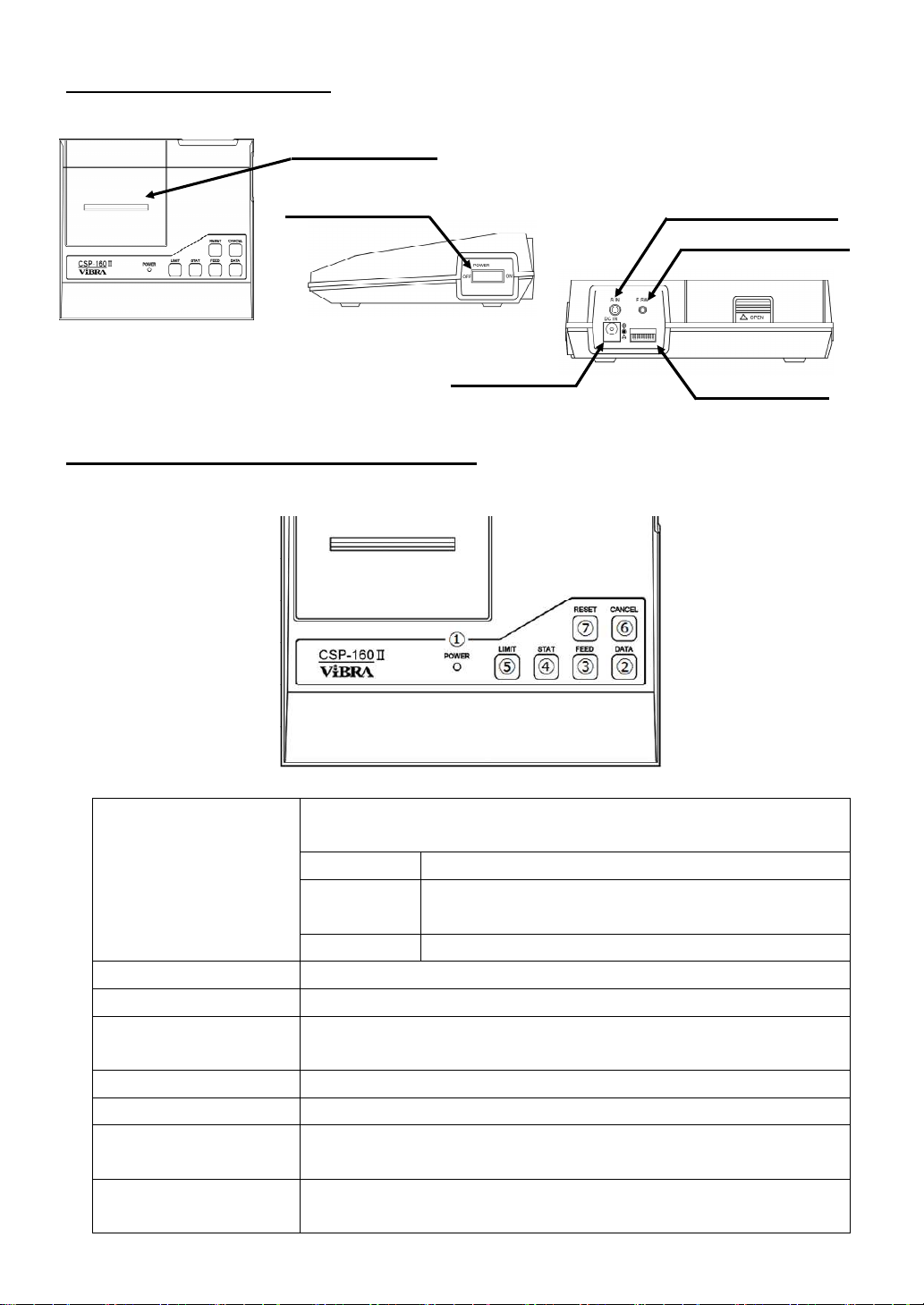

３．NAMES OF PARTS
４．The name and function of all parts
4.1 Front part
①POWER lamp Lights on to indicate power is on.
Also, indicates by colors:
Green: In normal condition of printer.
Red: Error in printer mechanism, such as locked by
paper jam.
Orange: Error in internal clock.
②DATA Key to input data manually.
③FEED Key to feed recording paper in inching by one line.
④STAT Key to process statistical data, printing results and
histogram, by the procedure described in page 8 to page 9.
⑤LIMIT Key to start/finish setting of limits.
⑥CANCEL Key to cancel the latest input data by printing “CANCEL”.
⑦RESET Key to clear all data including LMIT values and operation
results.
④STAT Key to process statistical data, printing results and
histogram, by the procedure described in page 8 to page 9.
PRINTER COVER
POWER SWITCH
SIGNAL INPUT JACK
FOOT SWITCH JACK
DIP SWITCHES
DC IN JACK
(AC ADAPTOR)

USER'S MANUALMODEL CSP-160Ⅱ
4
4.2 Rear side, Right side
①
POWER
SWITCH
Switch for on/off of the power to the CSP-160II
②
S.IN jack Jack for data from scale by connecting the attached cable.
Corresponding plug: T-0718 by TEISHIN
③
F.SW jack Jack for foot Switch to operate the same performance as
DATA key.
Corresponding plug: T-0706 by TEISHIN
④
Dip Switches Switches for setting function of the printer.
⑤
DC IN JACK Jack for connection of attached AC adaptor.
SETTING OF DIP SWITCHES
SW № ON OFF Setting at the time of delivery
1 Baud Rate Setting,
See the table below.
OFF
2 OFF
3 Command by scale Command by printer ON
4 Statistical Calculation - OFF
5 English character Japanese character ON
6 Totaling Statistical
Calculation ON
7 Automatic printing Manual Printing OFF
8 5 scales print reset 50 scales print reset OFF
SW 1 SW 2 BAUD RATE
OFF OFF 1200
ON OFF 2400
OFF ON 4800
ON OFF 9600
CAUTION ：1. Turn power switch OFF before setting.
2. SW No.9 and 10 are not in use.
3. SW No.4 ON to use the statistical calculation function when the
scale is displaying the auxiliary scale interval

USER'S MANUALMODEL CSP-160Ⅱ
5
５．INSTALLATION
5.1 Connections
1.Verify that power switches of the CSP-160II Printer and the scale are both OFF.
2.Connection with the scale. Connect one of the connectors of the attached cable with
S.IN jack of the CSP-160II and the other connector of the cable to output jack of
the scale.
3.Connection of the AC adaptor.
Connect the jack of attached AC adaptor with DC.IN jack of the CSP-160II．
4.Connection of foot switch option
Connect the foot switch F.SW jack of the CSP-160II.

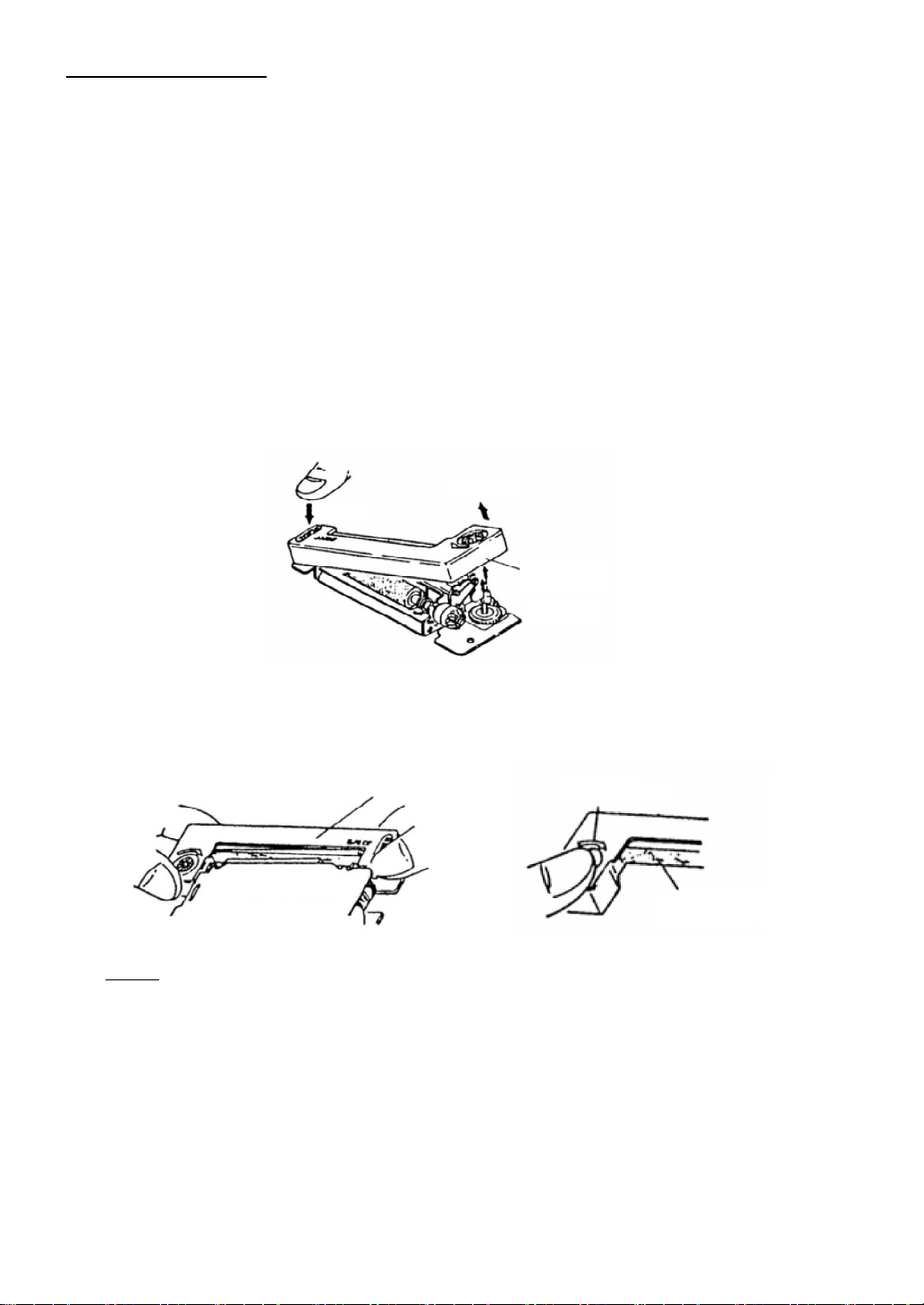

5. 2 Ink Ribbon Setting
1. Remove the printer cover by lifting it up.
2. To remove old cartridge, press the end of the cartridge at “PUSH” mark.
3.Setting new ribbon to platen, put a new cartridge in, fitting knob axis. Turn
the knob to arrow direction to get rid of the slack in the ribbon.
NOTE ：The ink ribbon is disposable, don’t put ink to the ribbon.
PUSH
Ribbon
Cartridge
Printer
Ribbon Cartridge
Knob
Ribbon

USER'S MANUALMODEL CSP-160Ⅱ
6
5.3 Roll paper Setting
1.Under power ON, remove the printer cover by lifting it up.
2.Cut the paper tip straight.
3.Inserting the tip into the paper slot, press the “FEED” key to feed the paper
out of the outlet.
4.Position the roll paper in the holder, then cover the printer after feeding
the paper out of the opening of the Cover.
６．ERROR MESSAGES
LIMIT ERROR ：Upper and lower limit are set at the same value, or set only
one limit.
I/O ERROR ：Incorrect connection of the printer with scale, or data is out
of specification.
STAT ERROR ：STAT key is pressed with only one data inputted.
DATA ERROR ：Data from the scale is out of range.
ERROR ：Printer malfunction by disturbance noise, etc.
Paper
IN
OUT
Paper
Ink Ribbon

USER'S MANUALMODEL CSP-160Ⅱ
7

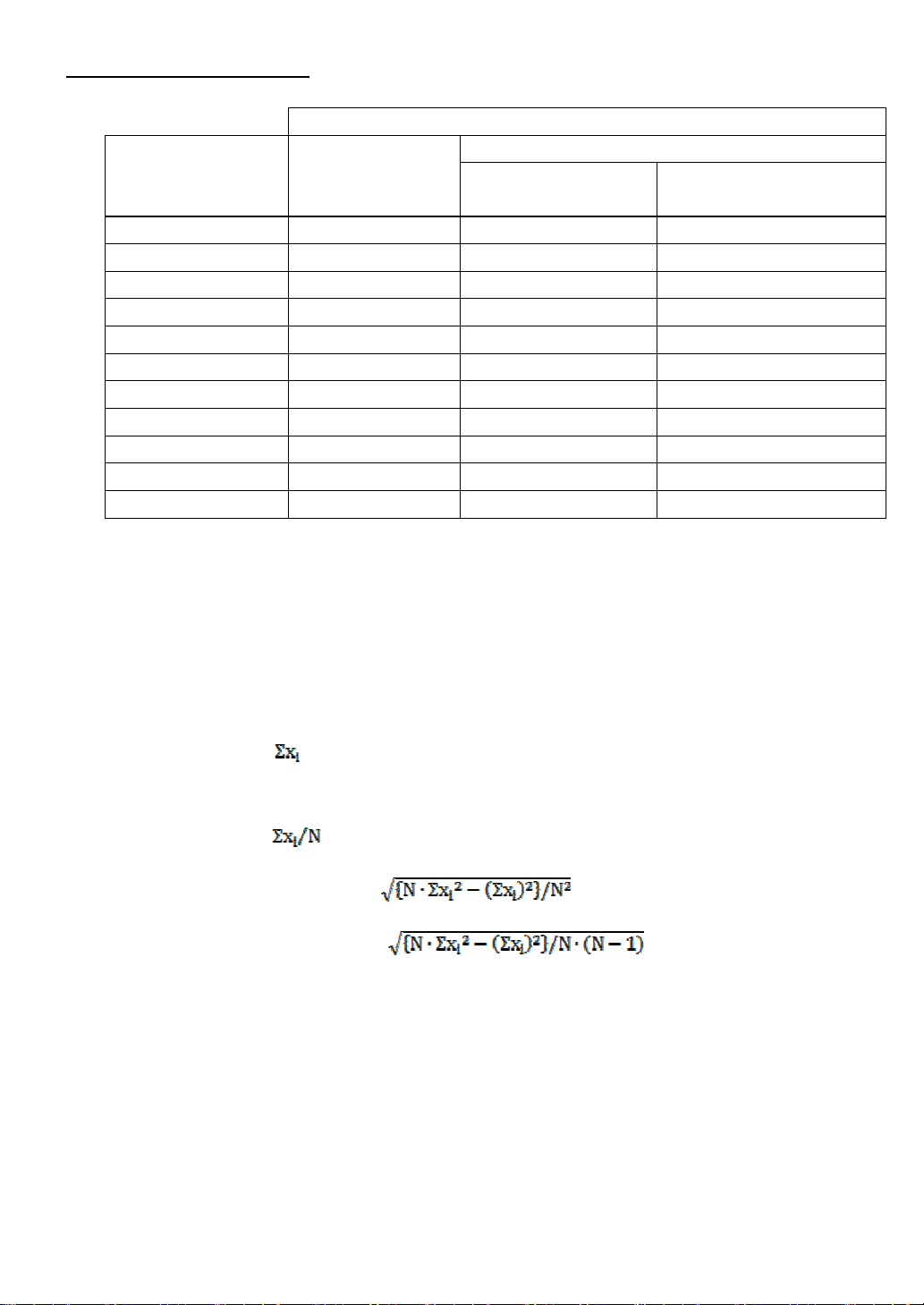

７．DATA OPERATIONS
7.1
SETTING CONDINTION OF STATISTICAL OPERATION
ITEMS TO BE
PRINTED
DIP SWITCH
NO.6
SET ”ON”
DIP SWITCH NO.6 SET “SET OFF”
No Limit are set Limits are set
TOTAL ○○○
N: Number of data - ○○
MAX: Maximum - ○○
MIN: Minimum - ○○
R: Range - ○○
AVE: Average - ○○
Standard deviation - ○○
P: Failure Ratio - - ○
Histogram - - ○
＊
1
Judgement result
○
＊
2 - ○
Date - ○○
“○” mark shows items to be printed.
*1: Effective when limits are set by the CSP-160II Printer, not by scale.
*2: Effective when limits are set.
7.2 OPERATION FORMULAE
Total (TOTAL) =
Range (R) = (MAX) - (MIN)
Average (AVE) =
Standard Deviation (σn) =
Standard Deviation (σn-1) =
Failure ratio (P) = (HIGH) + (LOW) / N
7.3 JUDGMENT FORMULAE
Upper limit Value ＜Data ‥‥‥‥‥‥‥‥‥ ＋NG (Prints ”H“)
Upper limit ≧Data ≧Lower Limit ‥‥‥‥ GOOD (space)
Upper limit Value ＞Data ‥‥‥‥‥‥‥‥‥ －NG (Prints ”L“)

USER'S MANUALMODEL CSP-160Ⅱ
8
８．OPERATIONS
PRINT SANPLE KEY OPERATION
RESET
LIMIT
DATA
DATA
LIMIT
DATA
DATA
CANCEL
‥‥To clear memories
‥‥To set limits
Press for judgements & histogram.
‥‥Input one limit value
‥‥ Input another limit value
‥‥ To finish setting of limits
‥‥Data printing, by either of Data key of
Printer, or by foot switch, or by command
from scale.
Prints * mark with an unstabilized data.
Mark Judgement Result
L Data is less than limit
H Data is over than limit
‥‥ To cancel the latest data

USER'S MANUALMODEL CSP-160Ⅱ
9
PRINT SANPLE KEY OPERATION
DATA
STAT
‥‥To start statistical operation, with
setting Dip Switch No.6 “OFF”
Total amount
Number of data
Maximum value
Minimum value
Range
Average
Failure ratio
Number of data over limit
Number of data within limit
Number of data less than limit
High limit of histogram
Low limit of histogram
Number of division of histogram
HISTOGRAM
Number of data indicated by
one “□” block of the histogram
Range of each grade of the histogram
“~” mark indicates “and over”
DATA
‥‥To start printing data again
Standard deviation:
Root of unbiased variance:
σ
n
=

S
N
⁄
=


N
∙
Σ
x
i
2
−

Σ
x
i

2

N
2
⁄
σ
n
−
1
=

V
N
⁄
=


N
∙
Σ
x
i
2
−

Σ
x
i

2

N
∙

N
−
1

⁄

USER'S MANUALMODEL CSP-160Ⅱ
10
９．CONNECTION WITH SCALE
In case the printer CSP-160II is used in connection with any SHINKO electronic
scale, set both the printer and the scale referring to the following. Also refer to
operation manual for the scale.
9-1 For Automatic Printing
: Printing starts automatically by stabilization of data from the scale.
1. Setting of the Printer

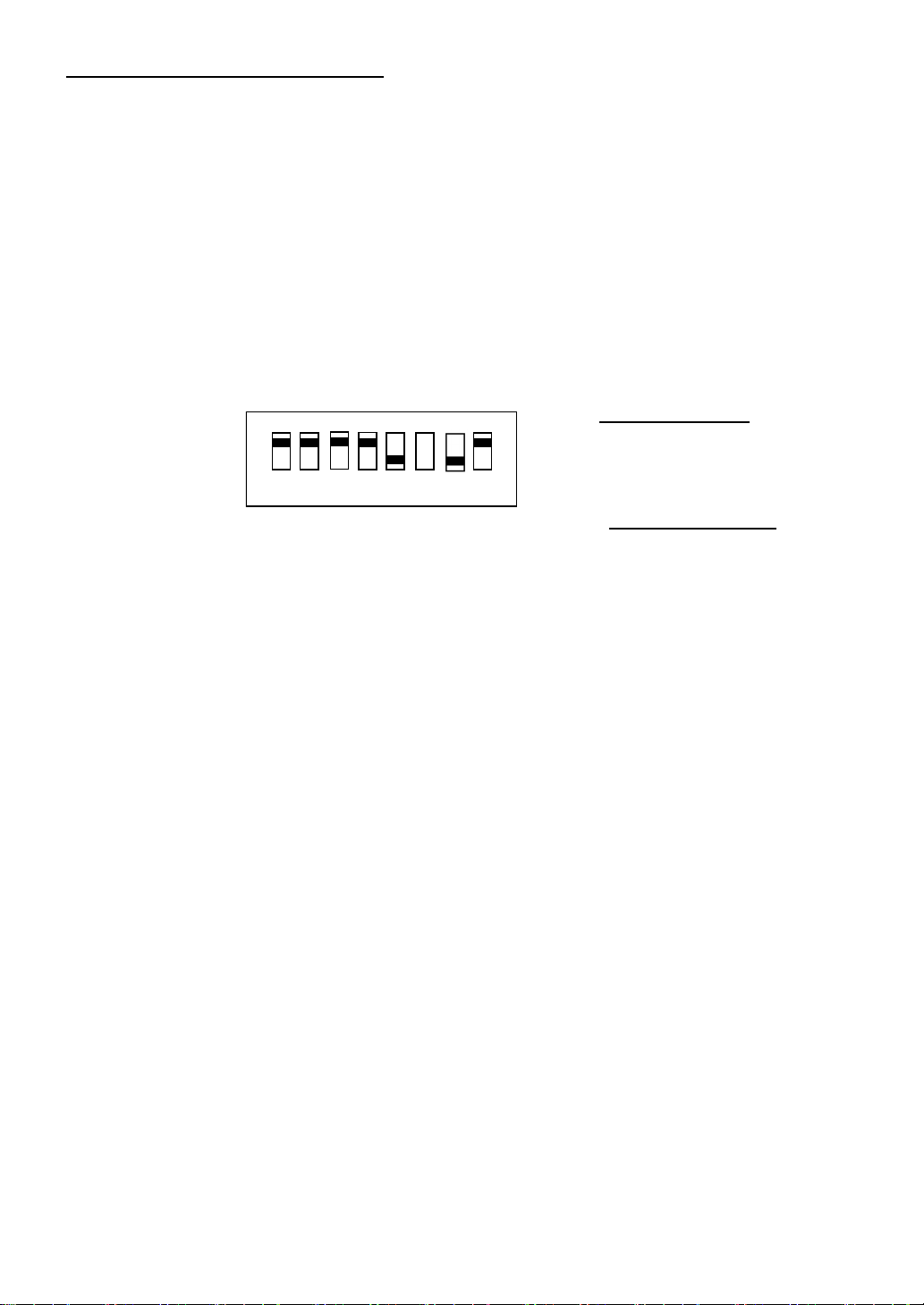

Set dip switches on the rear of the CSP-160II as follows:
Dip Sw. No. 6
OFF OFF : Statistical Operation
ON ON : Totaling only
Dip Sw. No.9 & 10 = OFF
1
2
3
4
5
6
7
8

USER'S MANUALMODEL CSP-160Ⅱ
11

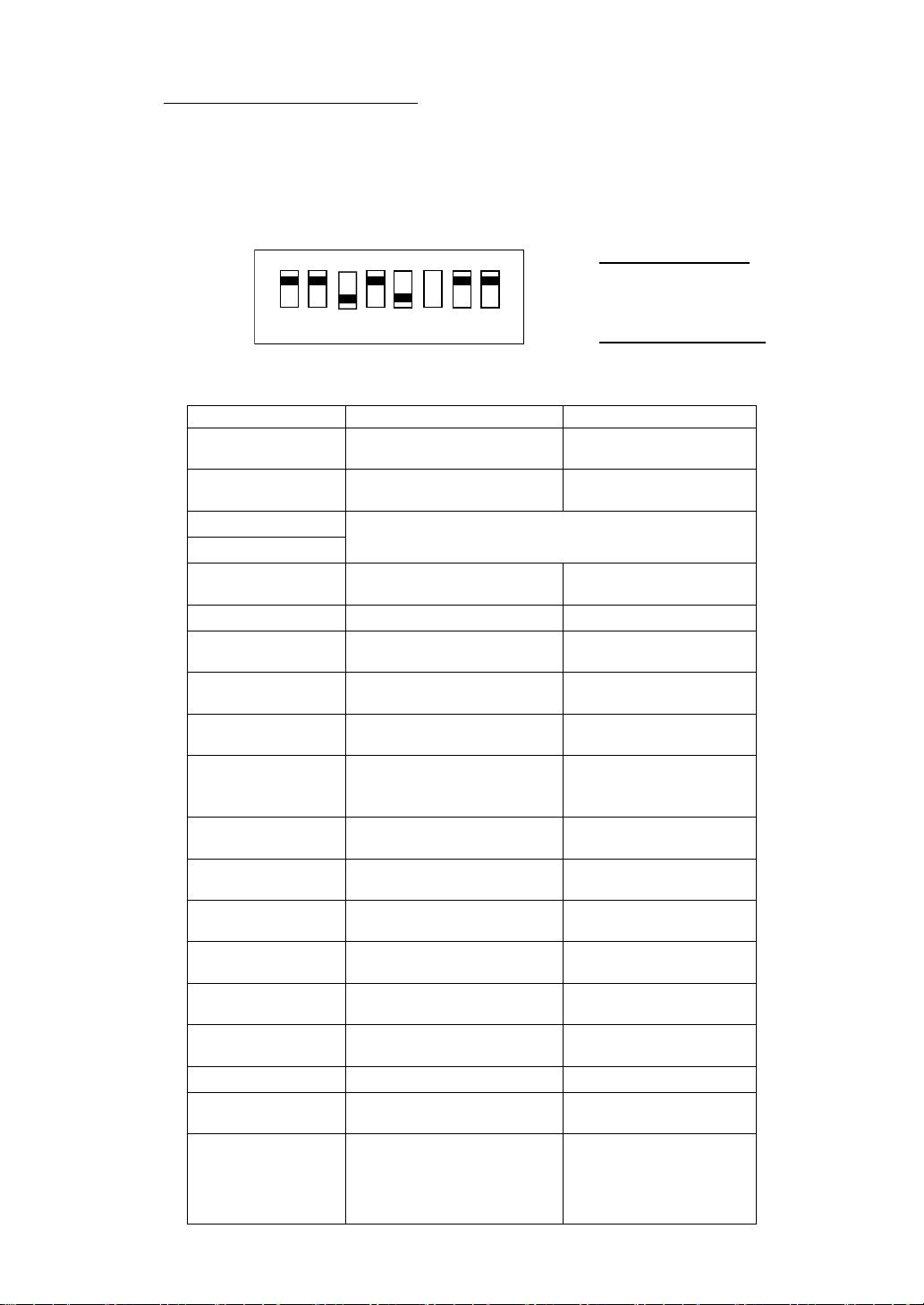

2. Setting of the Scale Functions
Scale Series
Functions
Output Provision
AJ 7.
71.
IF.
O.C.
1
1 Standard equipment
HG, PF 8.
81.
IF.
O.C.
1
1 Standard equipment
CUXII 4. O.C. 1 Option
CGX, CGX-K 6.
61.
IF.
O.C.
1
1 Option
CG, CG-K, CG-KF
6.
61.
IF.
O.C.
1
1 Option
DJ-E 6. O.C. 1 Option
GZII 5.
51.
IF.
O.C.
1
1 Option
HTR, HT 7.
71.
IF.
O.C.
2
1 Standard equipment
LF 7.
71.
IF.
O.C.
5
1 Standard equipment
ALE, HTN
4 1 1 ACTIVATE: ON
4 1 2 FORMAT: CSP 7
4 1 3 CONDITION: 1
Standard equipment
AB 7.
71.
IF.
O.C.
1
1 Standard equipment
LN 6.
61.
IF.
O.C.
1
1 Standard equipment
CJ 6.
61.
IF.
O.C.
1
1 Standard equipment
SJ 7.
71.
IF.
O.C.
1
1 Option
HJ-K 6.
61.
IF.
O.C.
1
1 Standard equipment
FJK 6.
61.
IF.
O.C.
1
1 Standard equipment
DME A. O.C. 1 Standard equipment
CT 7.
71.
IF.
O.C.
1
1 Standard equipment
FS, FZ
411.
412.
413.
415
416
IC.
OO.
OC.
BL
PA
2 or 3
1
1
1
0
Standard equipment
9-2 For Manual Printing
A. Print command by DATA key of the CSP-160Ⅱ
Printing starts by every pressing of the DATA key, regardless of the status of data.
1. Setting of the Printer
Set dip switches on the rear of the CSP-160II as follows:
Dip Sw. No. 6
OFF OFF : Statistical Operation
ON ON : Totaling only
Dip Sw. No.9 & 10 = OFF
2. Setting of the Scale Functions: The same as above 9-1 2.
1 2
3
4
5 6
7 8

USER'S MANUALMODEL CSP-160Ⅱ
12
B. Print command by Scale Key
Printing starts by every pressing of a scale key, regardless of the status of data.
1. Setting of the Printer
Set dip switches on the rear of the CSP-160II as follows:
Dip Sw. No. 6
OFF OFF : Statistical Operation
ON ON : Totaling only
Dip Sw. No.9 & 10 = OFF
2. Setting of the Scale Functions
Scale Series Functions Scale Key
AJ 7.
71.
IF.
O.C.
1
3 [Memory]
HG, PF 8.
81.
IF.
O.C.
1
3 [S]
CUXII Impossible to set
CGX, CGX-K
CG, CG-K, CG-KF
6.
61.
IF.
O.C.
1
3 [S]
DJ-E 6. O.C.
3 [Print]
GZII 5.
51.
IF.
O.C.
1
3 [Print]
HTR, HT 7.
71.
IF.
O.C.
2
3 [Print]
LF 7.
71.
IF.
O.C.
5
3 [Print]
ALE, HTN
4 1 1 ACTIVATE: ON
4 1 2 FORMAT: CSP 7
4 1 3 CONDITION: 3
[Output]
AB 7.
71.
IF.
O.C.
1
3 [Print]
LN 6.
61.
IF.
O.C.
1
3 [Print]
CJ 6.
61.
IF.
O.C.
1
3 [Output] or [Print]
SJ 7.
71.
IF.
O.C.
1
3 [Memory]
HJ-K 6.
61.
IF.
O.C.
1
3 [Print]
FJK 6.
61.
IF.
O.C.
1
3 [Print]
DME A. O.C.
3 [Print]
CT 7.
71.
IF.
O.C.
1
3 [Print]
FS, FZ
411.
412.
413.
415
416
IC.
OO.
OC.
BL
PA
2 or 3
1
3
1
0
[Transfer]
1
2
3
4
5
6
7
8

USER'S MANUALMODEL CSP-160Ⅱ
13
10．CLOCK ADJUSTMENT
10-1 Setting Date and Time
10-2 Date and Time printing for checking
CL OCK SET
YES= DATE KEY
DATE 2 0 0 1 / 0 6 / 2 0
TI ME 1 6 : 2 1 : 3 6
TI ME 1 7 : 2 2 : 3 6
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _
DATE 2 0 0 2 / 0 7 / 2 1
TI ME 1 7 : 2 2 : 3 6
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Turn power on with pressing the STAT key
Press the DATE key
(Press the CANCEL key for no setting key)
Change the Date
[STAT] : increase year (2000~2099)
[FEED] : increase month (01~12)
[DATA] : increase date (01~31)
[LIMIT] : decrease each number the above with pressing this
Press CANCEL for checking
Press RESET key for Time setting
Change the Time
[STAT] : increase hour (00~23)
[FEED] : increase minute (00~59)
[DATA] : increase second (00~59)
[LIMIT] : decrease each number the above with pressing this
Press CANCEL for checking
Press RESET key for normal mode
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _
DATE 2 0 0 2 / 0 7 / 2 1
TI ME 1 7 : 2 2 : 3 6
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Press DATA key for more than 2 seconds

はくし

はくし
