Shintaro SHDPF8W User manual

Weather Station Photo Frame
User Manual
shintaro.com.au
SHDPF8W

Safety Information 4
Package Contents 4
Specication Summary 5
Remote Control Overview 7
DPF Introduction 7
Weather Forecast Module 8
Quick Start 8
Operation Guide 9
OSD Menu Function 18
FAQ 19
Weather Station Photo Frame
Contents
shintaro.com.au

4
Safety Information
Keep away from water, moisture and dusty areas•
Working temperature 0-40°C. Never store in a hot or very cold place•
Be careful not to drop or knock the photo frame•
Never try to open the case yourself, always seek technical support•
Connect the AC adaptor to both the DC IN jack and to the power outlet•
Only use attachments / accessories approved by the manufacturer•
When left unused for a long period of time, the unit should be unplugged•
from the household AC outlet
Warning: To reduce the risk of re or electric shock, do not expose to rain,
moisture, dripping or splashing.
Package Contents
Digital Photo Frame Power Adapter Remote Control
Weather Forecast Sensor Indoor Sensor 2 x AAA batteries
(outdoor with batteries)

5
Specification Summary
Main Features:
Plays digital photos as slide shows with background music.•
Indoor temperature and outdoor weather forecast•
Plays Music and videos•
Display calendar and clock with alarm•
Rotate and zoom photos•
Brightness, contrast adjustable•
Built-in memory 256MB•
Power saving LCD Function•
Memory Card Slots
Secure Digital (SD)•
Multi Media Card (MMC)•
Memory Stick (MS), MS Pro, MS Duo, MS Pro Duo•
Secure Digital High Capacity (SDHC)•
MS Duo adapter required•
Specifications
Pictures: JPEG•
Video: Motion JPEG•
Audio: MP3•
USB: USB 2.0 Host•

6
Remote Control Description
Note:
a) To edit or adjust, press MENU on the remote control; or you can instead
press button M on the frame for 3 seconds.
b) To go back a step or go to the main menu, press EXIT on the remote
control; or you can instead press button M on the frame.

7

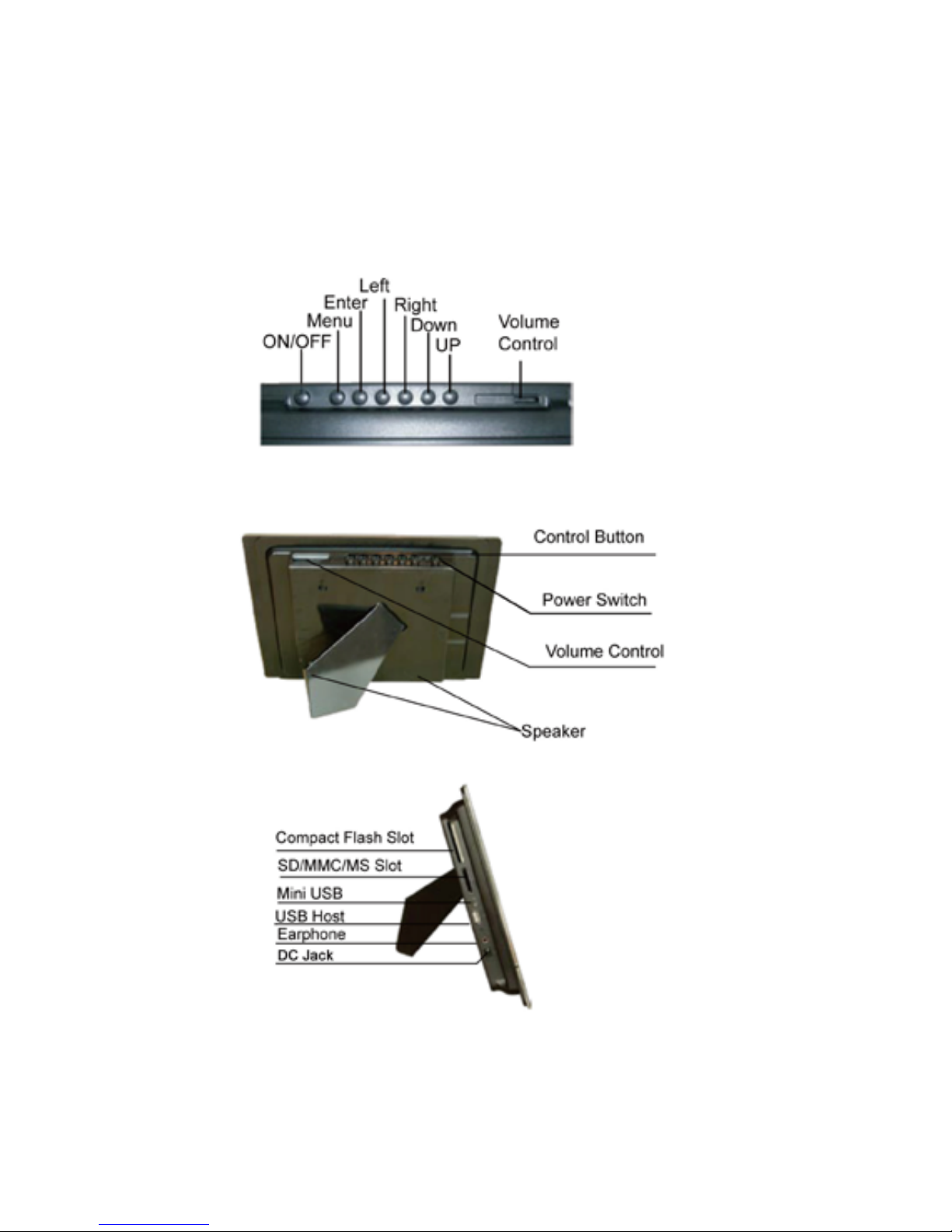

Digital Photo Frame Introduction
Note: The MS Duo / MS PRO
Duo need to use “MS Duo
Adapter” to make the card
easier to pull

8
Weather forecast module installation
Insert the jack of indoor sensor into the “Weather station” jack on photo1.
frame. Make sure the indoor sensor is as far away as possible from the
photo frame to avoid heat interference.
Put outdoor sensor in a sheltered and shaded position so as to protect2.
it from direct exposure to sun and rain. The outdoor sensor has to be
put upright in right direction, not horizontal. (Note: Please install batteries
inside the outdoor sensor before usage, when leaving the outdoor sensor
unused for a long period of time, please take out the batteries)
Quick Start
Step 1 Insert the jack of the DC adapter into the digital photo frame, then plug
the DC adapter into a standard power outlet.
Step 2 Turn on the power, the pictures from the inserted memory card or
internal memory will be displayed automatically.

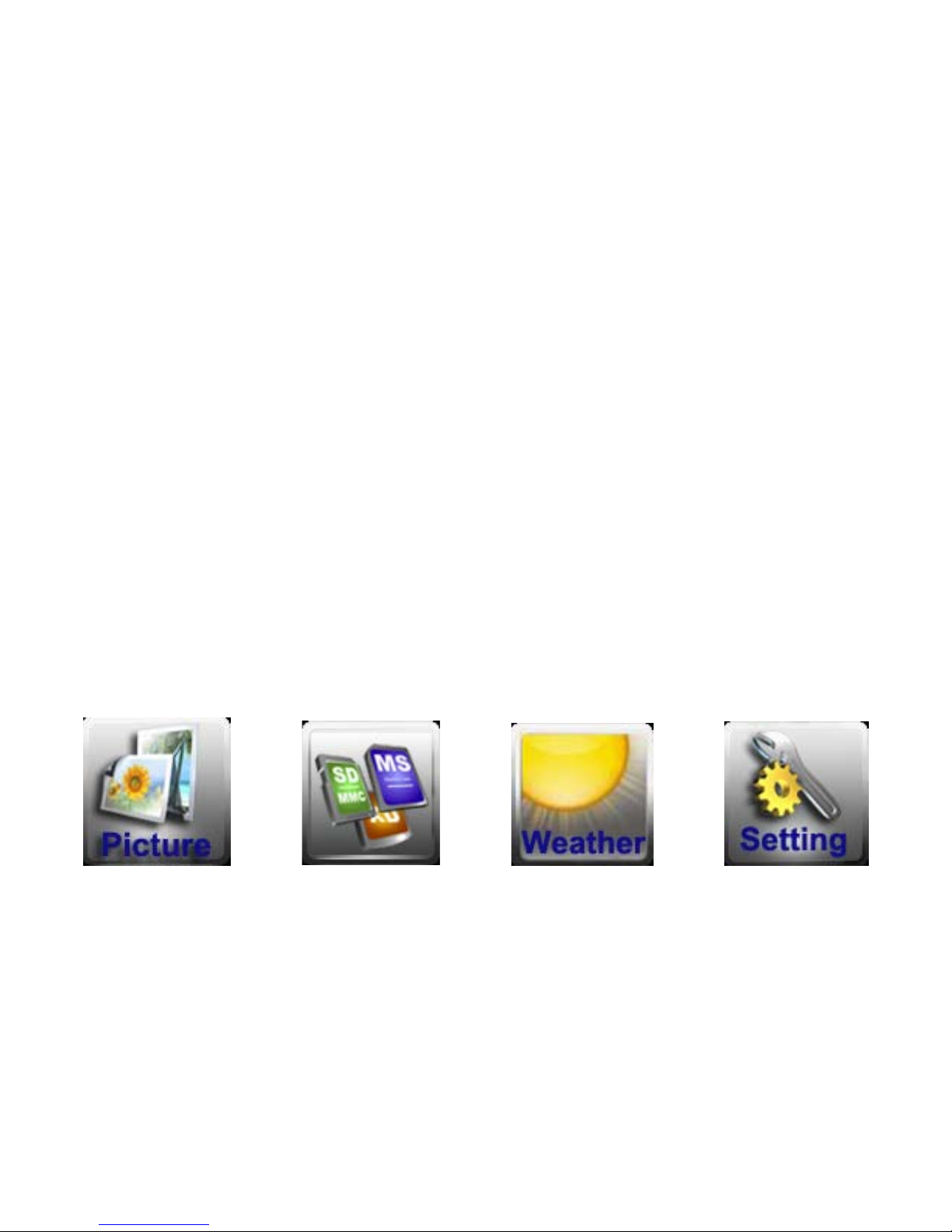

Mode Selection Memory Card Weather Forecast Settings
(Picture, video, selection Clock/Calendar/
music, combo) Alarm

9
Operation Guide
1. Mode Selection (Picture, Video, Music, Combo)
In the mode select menu, you can press ◄/ ►and ENTER to select different
icons to play.
Picture Video Music Combo
Exhibit 1. Mode Select Menu
Note: Combo mode allows you to play both pictures and music
simultaneously.

10

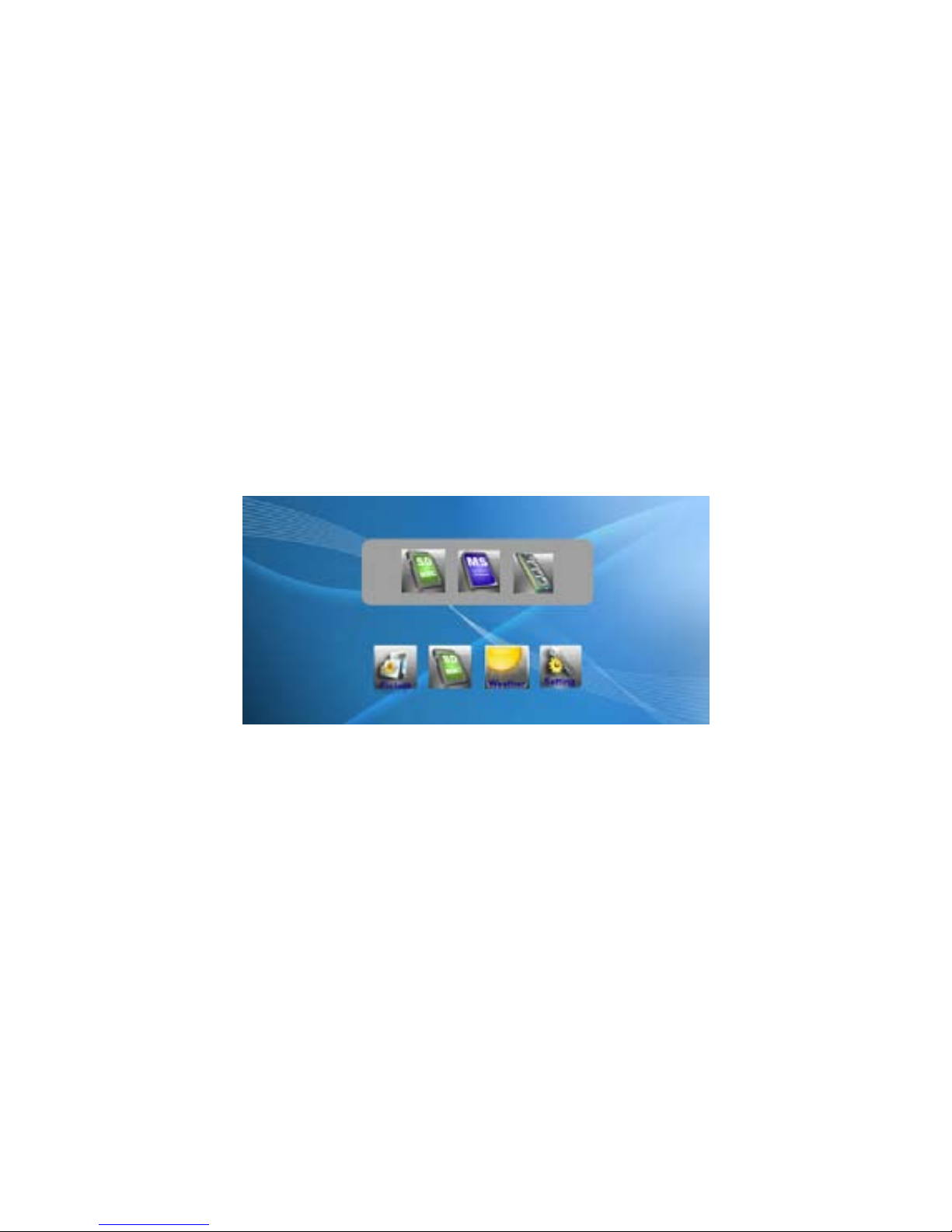

2. Memory Select Menu (SD / SDHC / MMC, MS, Internal
memory)
In the memory select menu, you will see highlighted which, if any, memory•
cards you have inserted into the photo frame.
Use• ◄/ ►and ENTER to select memory card.
SD/MMC MS MEMORY
Exhibit 2. Memory Select Menu

11
3. Playback Screen
3.1 Picture display screen
Choose the memory card you want to view and the picture icon,•
and then press ENTER to go to the picture preview mode.
Exhibit 3. Picture Preview Mode
In the picture preview mode, press MENU to edit these pictures.•
Exhibit 4. Select Copy Delete Setting

12
To slideshow pictures, press• ◄/ ►to choose a picture, and then press
ENTER or alternatively press frame button E
Note: If you want to stop the slideshow and keep the picture on the screen,
you can press ENTER, then continue pressing ENTER to slideshow.
When playing a picture, you can press MENU on remote control or M•
button to adjust or set up the picture.

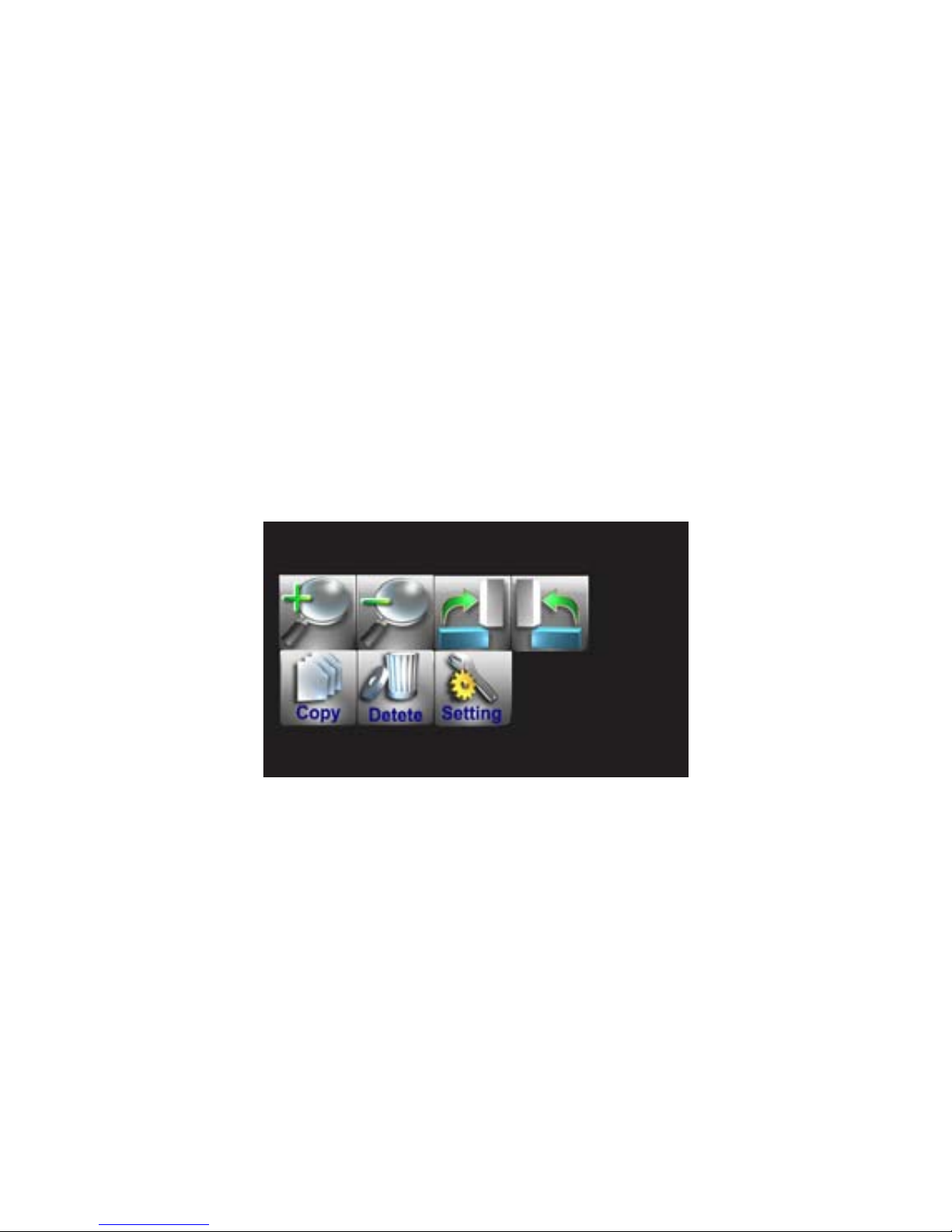

Exhibit 5. Zoom In Zoom Out Rotate right 90° Rotate left 90°
Copy Delete Setting

13
Split Screen Function
With Split Screen function, several images can be displayed at the same time.
In the picture review mode, press button “E” for 3 seconds to change•
picture slideshow mode.
Slideshow mode – 1. Single mode 2. Slideshow 3. Multishow.•
Single mode: Split Screen:
Multishow:

14
3.2 Video playback screen
Choose the memory card and the Video icon,•
and then press ENTER to play the Video.
When playing the Video, press ENTER to pause, and press ENTER again•
to continue.
Press• ◄ / ►to go back to the beginning of the movie.
3.3 MP3 playback screen
Choose the memory card and the music icon,•
and then press ENTER to go to the MP3 le list
Exhibit 6. MP3 playback

15
Press• ◄ / ►and ENTER to choose which music to play, when playing you
can press remote control or frame button ▲/ ▼to adjust volume.
If you want to edit MP3 les, press MENU the pop-up menu will appear on •
the screen
Select Copy Delete Setting
Exhibit 7. Playback mode Equalizer Information
3.4 COMBO playback
Choose the memory card and the combo icon,•
and then press ENTER to go to the combo mode.
Note: If you want to stop the slideshow and keep the picture on the screen,
you can press ENTER, then continue pressing ENTER to slideshow.
During playing music you can press the remote control or frame button•
▲/ ▼to adjust volume.

16
4. Weather forecast / Clock / Calendar / Alarm setting
Indoor / Outdoor Mode: Indicates indoor & outdoor current temperature,•
air humidity and provides a forecast of the weather for the next 24 hours.
Indoor Only Mode: Indicates the current indoor temperature, air humidity•
and provides a forecast of the weather for the next 24 hours.
Choose the Weather forecast icon, and press ENTER, the weather•
forecast / clock / calendar / alarm / pictures slideshow will then appear.
Indoor / Outdoor Mode:
Clock / Calendar
/ Alarm
Battery
Status
Indoor Temperature &
Humidity
Outdoor Temperature &
Humidity
Picture Slideshow

17
Indoor Only Mode:
Note: The battery status indication will icker when the battery inside the
outdoor sensor is going to be used up.
Press ENTER or alternatively press frame button E to change between•
Indoor / Outdoor and Indoor mode (It is only valid in Indoor / Outdoor
mode)
If you want to setup clock / calendar / alarm, you can press MENU.•
Setting
Press SETUP icon to set display information.
Clock / Calendar
/ Alarm
Indoor Temperature &
Humidity
Picture Slideshow

18
OSD Menu Function Description
Function Menu
Photo Picture Slideshow
Music MP3 display
Movie Video display
Combo Music & Picture display
Memory Menu
Memory Format SD / MMC / MS, Internal Memory
Settings
Language Multi-language
Slideshow Interval 5 / 10 / 30 / 60 seconds
File Description ON/OFF to show the le information or not
Folder Management ON/OFF to show the folder or not
Aspect Ratio Original / Stretch / Crop
LCD Power Saving ON/OFF the automatic screen sleep enabled or not
after 15 / 30 / 60 minutes of device standby
Random Slideshow ON/OFF slideshow pictures at random order or not
Display Setting Brightness / Contrast adjustable
Default Setting Restore to the factory settings
System Information Show the software version
Format Format your internal memory or memory card
*The above settings are subject to change in case of any spec modification.

19
File Compatibility Chart
Function Form Jeilin Chipset Comment
Picture format JPEG 
Maximum Resolution:
8000 X 8000 pixels
Music format MP3 
Video format Motion JPG 
Frequently Asked Questions
Q. Why can’t the Digital Photo Frame play all images or movie les?
A: The Digital Photo Frame can support JPEG, MP3 and some video format
depending on the product specication. It may not read some les
downloaded from the internet.
Q. I have a memory card in the Digital Photo Frame, but it’s not reading the
card, what should I do?
A: First, make sure that you are using a memory card that is supported by the
Digital Photo Frame. Second, ensure that the memory card is inserted all
the way into the correct slot. Third, choose the correct card icon which you
want to play.
Q. Why do some pictures load faster than others?
A: Higher resolution pictures usually load slower.
Q. Why doesn’t it show both indoor and outdoor weather station data?
A: Make sure that the indoor sensor is inserted straight to the weather station jack.

20
This symbol on the product or in the instructions means that your
electrical and electronic equipment should be disposed at the end of its
life separately from your household waste. There are separate collection
systems for recycling in the EU. For more information, please contact the
local authority or your retailer where you purchased the product.
NOTE: All rights for modications reserved
[e-mail]
Q. Why doesn’t it show outdoor weather station data?
A: Firstly, make sure that you installed batteries well inside the outdoor sensor.
Secondly, make sure that the battery inside the outdoor sensor is in right
cathode and anode. Thirdly, check if the power status indication on digital
photo frame is ickering, if so, please change the batteries inside the
outdoor sensor.
