Shodex Asahipak NH2P-50 10E User manual

ver.211102E
SHOWA DENKO K.K. (https://www.shodex.com/)
1
Operation Manual
Shodex

Asahipak

NH2P-50 10E
（Please read this manual carefully to achieve the best and consistent column performance for a long time）
Important Handling Instructions
Caution! · Please consult the Safety Data Sheet (SDS) of reagents and solvents used with the column
and understand their proper handling methods to prevent potential health hazards or death
from occurring.
· Please wear appropriate personal protective equipment such as lab goggles and gloves
when handling organic solvents and acid and alkaline reagents. Avoid any direct physical
contact to prevent chemical injuries.
Before Using the Column
(1) Please visually inspect the package and outside of the column for any damage.
(2) Please check if product name and serial number written on the column package, column adhesive label, and
enclosed Certificate of Analysis (CoA) are matching and correct.
1. Introduction
Thank you for purchasing the Shodexproduct. ShodexAsahipakNH2P series is a polymer-based
chromatography column modified with amino group. The column is suitable for the analyses that require HILIC
or ion exchange mode separations.
2. Column Components
3. Column Specifications
Product
Code Product Name Column Size (mm) Particle Size (μm)
Theoretical Plate Number
(Per Column)
I.D. Length
F6830001 Asahipak NH2P-50 10E 10.0 250 5 ≥10,000
F6710016 Asahipak NH2P-50G 4A 4.6 10 5 (Guard Column)
Base Material : Spherical porous particles of polyvinyl alcohol modified with amino group
Column Housing : SUS-316
Screw Type : Internally-threaded type No.10-32 UNF
Shipping Solvent : Acetonitrile

ver.211102E
SHOWA DENKO K.K. (https://www.shodex.com/)
2
4. Usable Conditions
Usable solvents are listed below.
(1) A mixture of water and acetonitrile or water and ethanol of any ratio can be used. Up to 100 % water,
acetonitrile, or ethanol can be used. Use of organic solvents other than acetonitrile or ethanol is not
warrantied.
(2) Aqueous and buffer solutions can be used instead of water. They include acidic aqueous solutions such as
phosphoric and acetic acids; alkaline aqueous solutions such as ammonia and sodium hydroxides; aqueous
salt solutions of sodium chloride, potassium chloride, or sodium sulfate; and buffers of phosphates or
acetates.
Attention! · Use the column within above stated flow rate, pressure, and temperature ranges. Using
the column outside the given range may damage the column and lower its performance.
· When using a mixture of buffer or salt solution and organic solvent, make sure there is no
precipitation of salt.
· When using highly corrosive salts such as sodium chloride, wash out the salts at the end
of analysis. The metal parts of the devices and/or the columns may rust.
·Column pressure is influenced by the eluent composition, flow rate, and column
temperature. When changing the eluent compositions, adjust the flow rate and column
temperature so that the column pressure remains below the usable maximum pressure.
· Do not use hydrochloric acid as it corrodes stainless steel.
5. Eluent Preparation
(1) Degas the eluent fully to prevent the formation of air bubbles.
(2) Presence of small debris or insoluble substances may result in deterioration of the column and/or they appear
as noise on the chromatograms. Filter the eluent with a 0.45-μm disposable filter to prevent the problems.
Attention! · Whenever water is required, use ultra-pure water freshly generated by a water purification
system or water from a newly opened HPLC grade distilled water bottle. Use HPLC grade
organic solvent whenever possible. Solvents left in an opened bottle for a long time should
not be used. The content may have been changed, absorbed moisture, or has been
contaminated.
· Always use freshly prepared solvents. Solvents stored for a long time may have changed
their compositions and may influence elution patterns and/or damage the column.
Note · Use of on-line degasser is recommended.
6. Sample Preparation
(1) If possible, use the eluent for analysis to dissolve or dilute samples. If this is difficult, use a solvent which
has a composition that is as close as possible to the eluent's composition, but which fully dissolves or dilutes
the sample. When gradient elution is used, it is recommended to use the initial eluent to prepare the sample.
e.g. When using a mixture of water (buffer) and over 50 % acetonitrile for the eluent: If the sample does not
dissolve in the eluent well, first dissolve the sample with water (or buffer), and then add acetonitrile to
make the final acetonitrile concentration in the sample more than 50 % (v/v).
(2) Filter the sample solution using disposable 0.45-μm filter to prevent the column from clogging or deteriorating.
(3) Recommended sample injection volume is less than 300 μL per column.
(4) When a sample contains protein or lipid, make sure to remove them prior to the injection. Presence of
those substances may damage the column.
Note · Use of guard column is recommended to protect the analytical column.
Product Name Flow Rate (mL/min) Maximum Pressure (MPa)
(Per Column)
pH Range Temperature
Range (°C)
Recommended Maximum
Asahipak NH2P-50 10E 2 - 3 5 15 2 - 13 4 - 50
Asahipak NH2P-50G 4A - - -

ver.211102E
SHOWA DENKO K.K. (https://www.shodex.com/)
3
7. Column Usage Procedure
7.1 HPLC System Preparation
Wash entire LC system prior to the column installation, including all flow-lines and sample loop by switching the
valve, and then replace the washing solution with the eluent to be used. If desired new eluent has low
miscibility/solubility to the eluent of previous analysis, first use the eluent that is miscible/soluble to both eluents,
and then replace it with the desired eluent.
e.g. When replacing chloroform to water/acetonitrile, first run methanol and then replace it with water/acetonitrile.
e.g. When replacing highly concentrated buffer solution or salt solution to water/acetonitrile, first run water and
then replace it with water/acetonitrile.
Attention! · If the eluent left in the system is not compatible with the column to be used, it may damage
the column.
· A drastic change in the eluent compositions may remove substances adsorbed on the
system and they may enter and deteriorate the column.
7.2 Column Installation
(1) Connect the column to LC system by following the “flow direction arrow” (➡) indicated on the column
adhesive label. If guard column is used, position the guard column in front (before the inlet) of the analytical
column.

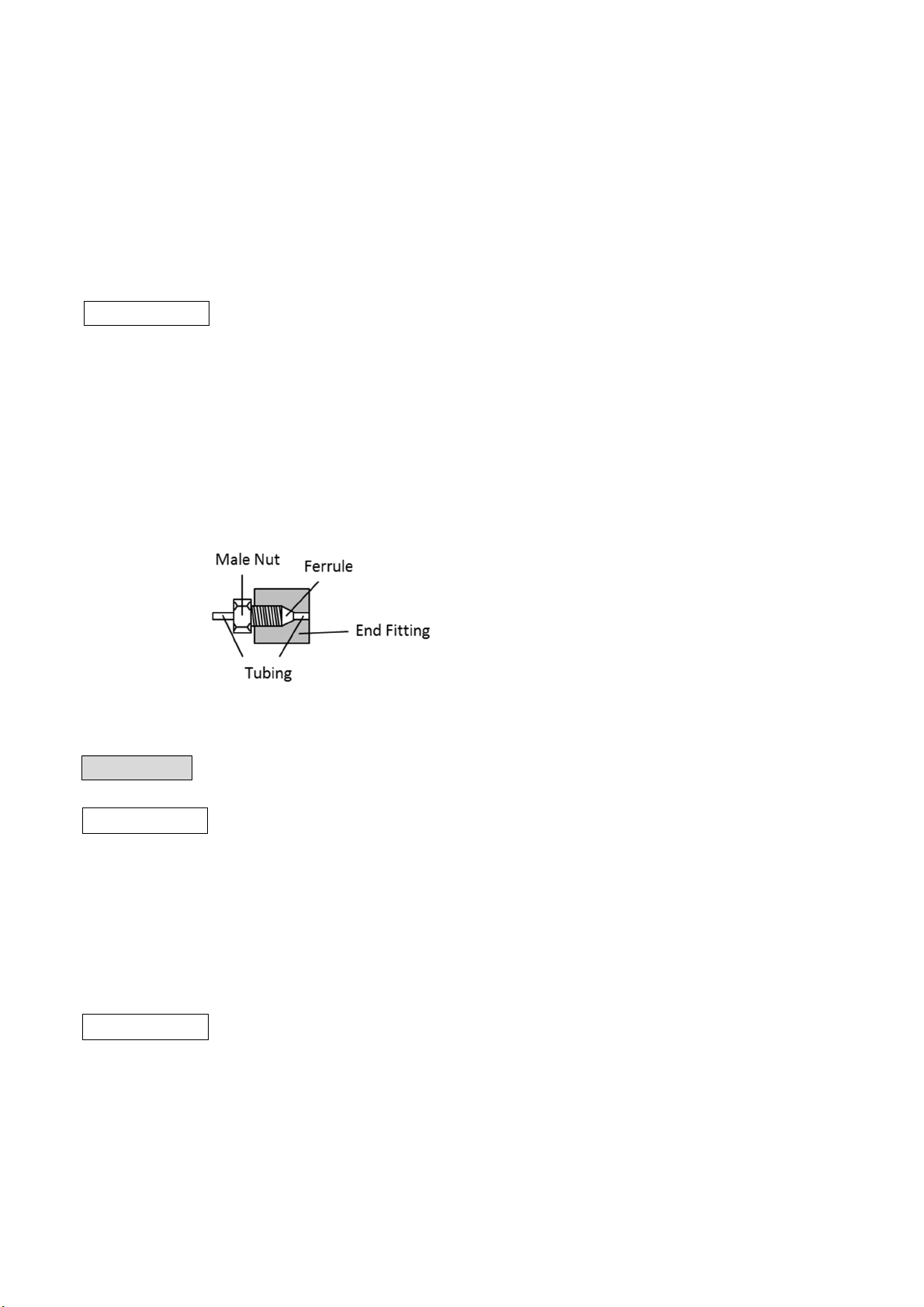

(2) Make sure to insert the tubing all the way to the end fitting and secure it with the male nut. It is important that
there is no extra space between the tubing and the column side of the end fitting. Presence of an extra space
will let the sample to spread out and may result in wide peaks.
(3) Set the initial flow rate at 1.0 mL/min and start the system. If using the column at an elevated temperature,
keep a low flow rate until the temperature of the column reaches to the set temperature, and then gradually
increase the flow rate to the desired.
Caution! · Verify that there is no solvent leak. It may cause electronic leakage, rust, and/or chemical
injury.
Attention! · Make sure not to let air bubbles enter the column while installing the column. The air
bubbles may damage the column.
· When restarting the system after column installation or after holding the eluent flow, start
the system at less than 1.0 mL/min. A rapid increase in pressure can damage the column.
· If the column was used at an elevated temperature, lower the flow rate to less than
1.0 mL/min at the end of analysis. Then, turn off the column oven, and let the column
temperature return to room temperature before stopping the pump. If the pump was
stopped while the eluent inside the column was still hot, as the eluent temperature
decreases, its volume also decreases. This may result in creating an empty space in the
column and deteriorates the column.
Note · It is recommended to set the pump limiter to avoid exceeding the maximum pressure.

ver.211102E
SHOWA DENKO K.K. (https://www.shodex.com/)
4
7.3 Solvent Exchange
(1) When replacing the solvent, start the system at less than 1.0 mL/min. Recommended solvent volume to
introduce at each step is 3 to 5 times of the column volume.
(2) Check miscibility/solubility of the desired new solvent and the solvent currently filled in the column.
(3) When replacing the current solvent with a solvent with low miscibility/solubility to the current solvent, first
use a solvent that is miscible/soluble to both eluents, and then replace it with the new solvent.
e.g. When replacing water/acetonitrile to a highly concentrated buffer solution, first run water and then
replace it with the buffer solution.
(4) When using a gradient method, changes in the eluent compositions may increase the column backpressure.
Adjust the flow rate and column temperature so that the column backpressure remains below the usable
maximum pressure.
Attention! · When replacing the eluent from water/acetonitrile to a mixture of buffer solution and organic
solvent, take a pre-equilibrium step: First run 10 - 20 column volumes of the buffer without
organic solvent, and then replace it with the desired eluent. If replacing to a buffer solution
alone or a mixture of water and ethanol, pre-equilibrium step is generally not required.
·When replacing the eluent from a mixture of buffer solution and organic solvent to
water/organic solvent, first wash the column with alkaline solution. Please refer to “7.4
Column Cleaning Method 1”.
7.4 Column Cleaning
Problems in peak shapes and elution time changes or elevated column pressure etc. are often caused by
insoluble or adsorbing components present in the eluent and reagents being deposited inside the column. These
problems may be resolved by cleaning the column.
If a guard column is used with the analytical column, first remove the guard column and check the performance
of the analytical column alone. If the problem is solved, most likely the cause is from the guard column. In this
case, clean the guard column.
If the problem is not solved by removing the guard column, clean both guard and analytical columns. Make sure
to clean the guard and the analytical columns separately. When washing the column, let the washing solution
flow from the column outlet go directly into the waste container and not let the solution go through the detector.
<Cleaning Method>
(1) Insoluble components that block the column inlet may be removed by reversing the flow direction, i.e.,
introducing the eluent from the column outlet, with flow rate at less than half of the recommended flow rate.
(2) Follow below cleaning steps for adsorbing components. For an efficient cleaning, reverse the flow direction.
Use the flow rate at 1.5 mL/min.
Method 1: General cleaning
Washing Solution Cleaning Time
1 H2O 15 min
2 0.1 M NaOH aq. solution 190 min
3 H2O 30 min
4 Eluent 95 min
Method 2: Adsorption of metal ions or in case Method 1 did not work
Washing Solution Cleaning Time
1 H2O 15 min
2 0.1 M HNO3aq. solution 190 min
3 H2O 15 min
4 0.1 M NaOH aq. solution 190 min
5 H2O 30 min
6 Eluent 95 min

ver.211102E
SHOWA DENKO K.K. (https://www.shodex.com/)
5
Attention! · Keeping acidic or alkaline solution in the column for a long time will lead to the column
deterioration. Complete the suggested column cleaning steps all the way up to the eluent
replacement at once and do not hold the procedure in middle way.
· Strong alkaline solvents such as 0.1-M aqueous sodium hydroxide solution can damage
the detector cell. Do not connect the detector while regenerating the column and collect
elute directly from the column outlet to the waste container.
8. Column Storage
Remove the column from the system after replacing the in-column solvent with the shipping solvent. Securely
tighten the end caps and store the column at a location with stable temperature (a cool and dark space is
recommended). Refer to section 7.3 Solvent Exchange for how to replace the eluent.
Attention! · Never allow inside of the column to dry. It can damage the column.
9. Column Inspection
Inspection method is described in the Certificate of Analysis (CoA).
Theoretical Plate Number (N) and Asymmetry Factor (Fas) were calculated using the below equations.
(1) Theoretical Plate Number (N)
(2) Asymmetry Factor (Fas)
10. Additional Warnings
(1) Do not remove end fittings.
(2) Do not make a strong impact on the column. Do not drop or hit the column on a hard surface.
Refer to the Shodex™ website (https://www.shodex.com/) for product details and their applications.
For additional assistance, contact the distributor from whom you purchased the column or contact your regional
Shodexsupport office (https://www.shodex.com/en/support_office/list/).

ver.211102E
SHOWA DENKO K.K. (https://www.shodex.com/)
6
11. Warranty (Ver. 4COLUMN)
(1) Showa Denko K. K. warrants that the Shodexproduct, at the time of delivery to the user, will conform to
the specification of the attached CERTIFICATE OF ANALYSIS, if the Shodex product is used in accordance
with the attached operating manual. The foregoing warranty is exclusive and is in lieu of all other warranties
with respect to the Shodex product, whether written, oral, implied, statutory or otherwise. No warranties by
Showa Denko K. K. are implied or otherwise created, including, but not limited to, the warranty of merchantability
and fitness for particular purposes.
(2) Any claim of inconformity to the specification must be notified to Showa Denko K.K. within ten (10) days after
delivery to the user. User’s exclusive remedy and Showa Denko K.K.‘s exclusive liability for such claim are
limited to the replacement of the Shodex product in question. In no event is Showa Denko K.K. liable for any
indirect, incidental or consequential damage arising out of in connection with the Shodex product, whether or
not such damage is allegedly based on breach of warranty, negligence or otherwise.
(3) No warranty is made in any of the following cases:
3-1 If the Shodex product is not used in accordance with the operating manual
3-2 If the Shodex product is remodeled by anyone other than person or firm designated by Showa Denko K.K.
3-3 If the Shodex product is disposed of
3-4 If the Shodex product is resold by the user without giving prior written notice to Showa Denko K.K.
3-5 If the performance of the Shodex product is not conform to the specification of the attached CERTIFICATE
OF ANALYSIS due to any of the reasons below:
a. Computer virus
b. Impurities contained in the sample, reagent, gas air or cooling water provided by the user
c. Breakdown or malfunction of equipment, apparatus or component used in combination with the Shodex
product
d. Force majeure such as fire, earthquake, flood, other natural disaster, crime, riot, act of terrorism, war or
radioactive contamination
(4) In no event is Showa Denko K.K. liable for
4-1 the results of analysis or preparations using the Shodex product or any portion of the same, including, but
not limited to, the reliability, accuracy, efficacy and safety of said results, and
4-2 the occupational hazard in the use of the Shodex product, whether or not such use is made in accordance
with the attached Conditions for use.
(5) The Shodex product is for laboratory use only. It must not be used for clinical diagnosis. Showa Denko K.K.
is not liable for any use of the Shodex product except laboratory use.
Following names are trademarks or registered trademarks of SHOWA DENKO K.K.
Shodex, AFpak, Asahipak, AXpak, CLNpak, CXpak, HILICpak, MSpak, ODP, OHpak,
ORpak, RSpak, SUGAR, USPpak.
Products described in the operation manual are not intended for medical use or medical applications.
