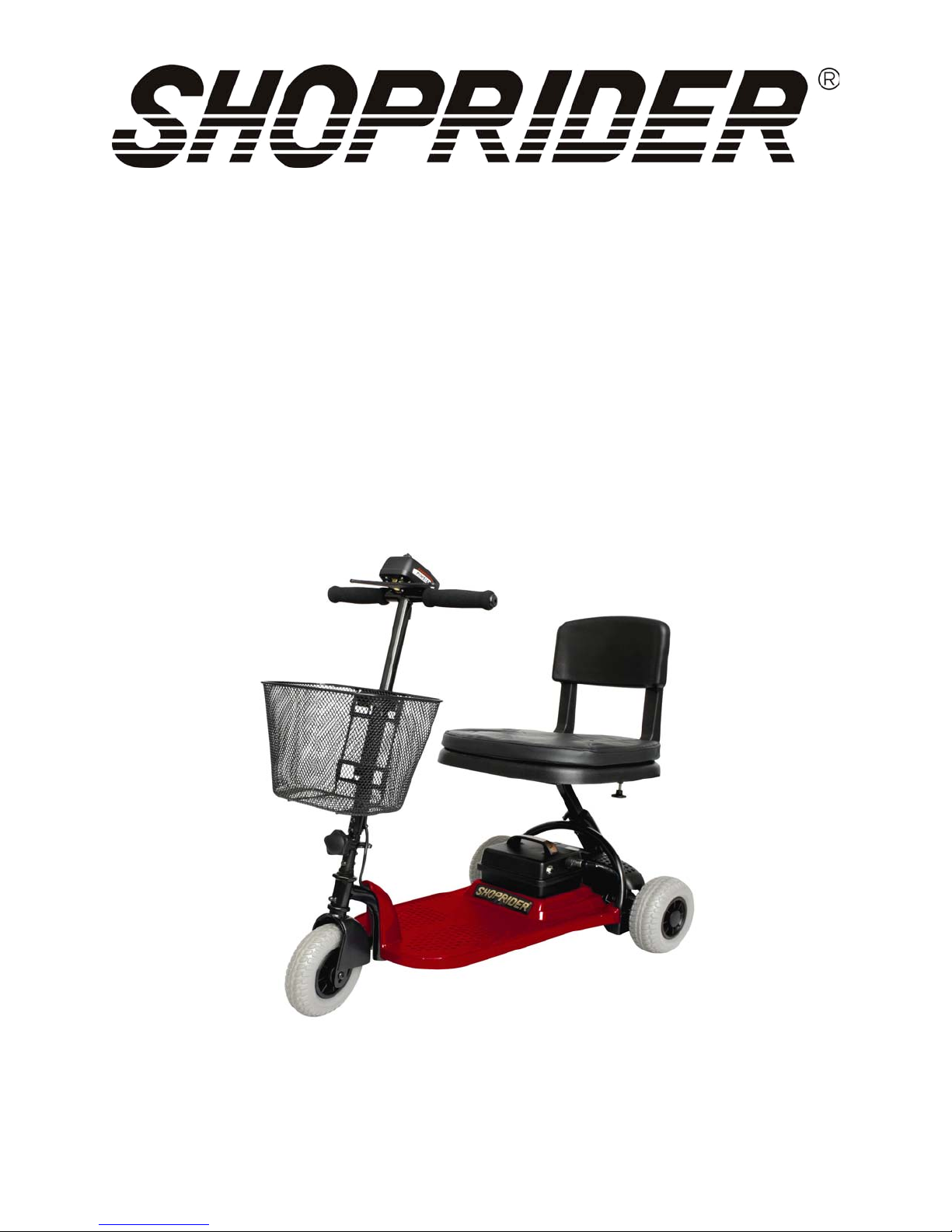

Shoprider Echo 3 SL7-3 User manual

12/7/2006
1
Echo 3
Model # SL73
Portable Scooter
User Manual
™

12/7/2006
2
Table of Contents
INTRODUCTION/FEATURE GUIDE…………………………………………………..……….
SAFETY ADVICE……………………………………………………………………….…...4
EMI WARNING………………………………………………………….……….…………..
ADJUSTMENTS………………………………………………….…………………………..7
SCOOTER TILLER CONTROLS………………………………….……….……………..1
DRIVE/FREEWHEEL OPERATION…………………………………………….…………10
BATTERY PACK/ SERIAL NUMBER………………………………………………………..
STARTING TO DRIVE YOUR SCOOTER……………………………………..………….1
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER……………….…….
BATTERIES AND BATTERY CHARGING………………………………………..……….14
MAINTENANCE/ TROUBLE SHOOTING GUIDE………………………….…………..15
NOTES……………………….…………………………………………………..……….15
TECHNICAL SPECIFICATIONS………………………………………………………..16
QUARTERLY INSPECTION………………………………………………..…………….17
NOTES………………………………………………………………………………………
WARRANTY AND DISCLAIMER.……………………………………………………………
3
4
5-6
7
8
9
10
11
12
13
14
15
16
17
18-19
20

12/7/2006
3
INTRODUCTION
Congratulations on your purchase of the Shoprider® Echo scooter. The Echo is the
ultimate combination of style, comfort and portability.
The Echo goes with you wherever you go and can be assembled or disassembled in
just seconds. The Echo is super light and compact, and can be stored in small areas
such as the trunk or back seat of your car. The compact features support easy
transportation of your Echo for today’s active lifestyle.
The Echo can be used in confined spaces both indoors and out. Direct drive transaxle
and electromagnetic brake give a safe and efficient ride. We know that the Echo
portable scooter will provide many years of mobility for you.
Please ensure that you read this manual carefully, it is important for your safety
that you understand the guidelines and instructions given.
ECHO FEATURE GUIDE (Fig 1)
1. Tiller control head
2. Detachable seat with fold down
Back and optional removable pads
3. Removable flip-up arm rests
(optional)
4. Detachable basket
5. Detachable battery-pack
6. Tiller adjustment knob
7. Seat release lever
8. Puncture proof tires
9. Anti-tip wheels
1
4
7
8
5
6
Figure 1
2
3
9

12/7/2006
4
SAFETY ADVICE
•DO NOT carry passengers.
•DO NOT exceed inclines over 6 degrees (10% grade).
•DO NOT turn on steep inclines.
•DO NOT turn suddenly at high speeds.
•DO NOT get on or off the scooter unless the brake is on and the scooter is switched
off.
•DO NOT switch off the scooter while the scooter is moving.
•DO NOT drive the scooter where you can not safely or legally walk.
•DO NOT drive the scooter on the road, street or highway.
•DO NOT attempt to drive over curbs greater than 2 inches in height. Doing so could
cause your scooter to turn over, causing injury or damage to the scooter.
•DO NOT drink or use a mobile phone when driving your scooter.
•DO NOT exceed the suggested user weight limit. Doing so, could cause personal
injury and invalidate the warranty.
•ALWAYS keep your feet on the scooter when moving.
•Consult your doctor if there is any doubt about your ability to use a scooter safely.
•ALWAYS slow down and proceed carefully when traveling over rough or uneven
ground.
•For individuals with balance problems practice getting on the scooter with assistance
of a qualified healthcare professional.
•DO NOT operate the scooter without anti-tip wheels installed.
•DO NOT use an escalator to move a scooter between floors. Serious injury could
occur.
•DO NOT drive the scooter on an incline that has oil, water or ice film on it.
•DO NOT try to lift the scooter by its seat, tiller, or any removable parts. Any of these
could cause injury to the user or damage to the scooter.
•DO NOT use parts or accessories that are not authorized by Shoprider®.
•Before sitting in or exiting the scooter, turn scooter switch to off position. This will
insure the POWER is off and the scooter can not move under its own power.
•As a general precaution, always turn scooter off while the scooter is not in use. This
will prevent use by untrained and unauthorized persons.
•DO NOT connect any medical device to the scooter battery. This could cause failure
of the device, the scooter and personal injury.
•Make sure the tiller is properly adjusted to the user or damage and injury could result.
•DO NOT transport in a vehicle WHILE seated on the scooter. Shoprider® will not be
responsible for any injury or damage that might result.
•DO NOT use the scooter in the rain or near any other water source where the scooter
may get wet. Direct exposure to rain or dampness could cause damage to the scooter
electrical components.
•For maximum battery life, make sure to fully charge batteries for up to 12 hours prior
to first use.
EMI WARNING

12/7/2006
5
Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is
a kind of interfering electromagnetic energy (EM) emitted from sources such as radio
stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular
phones. The interference (from radio wave sources) can cause the scooter to release
its brakes, move by itself, or move in unintended directions. It can also permanently
damage the scooter’s control system.
The sources of radiated EMI can be broadly classified into three types:
1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios,
“walkie talkie”, security, fire and police transceivers, cellular telephones, and other
personal communication devices.
NOTE! Some cellular telephones and similar devices transmit signals while they
are ON, even when not being used.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of
the vehicle.
3. Long-range transmitters and transceivers, such as commercial broadcast
transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.
NOTE! Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players, and small
appliances, such as electric shavers and hair dryers, so far as we know, are not
likely to cause problems to the scooter.
Scooter Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the
transmitting antenna (source), the EM fields from hand-held radio sources (transceivers)
are of special concern. It is possible to unintentionally bring high levels of EM energy
very close to the scooter’s control system while using these devices. This can affect
scooter movement and braking. Therefore, the warnings listed below are
recommended to prevent possible interference with the control system of the scooter.

12/7/2006
6
WARNINGS
1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens
band (CB) radios, or turn ON personal communication devices, such as cellular
phones, while the scooter is turned ON.
2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid
coming close to them.
3. If unintended movement or brake release occurs, turn the scooter OFF as soon as it
is safe.
4. Be aware that adding accessories or components, or modifying the scooter may
make it more susceptible to EMI.
NOTE! There is no easy way to evaluate the overall immunity of the scooter.
5. Report all incidents of unintended movement or braking to your Shoprider® provider,
and note whether there are sources of EMI nearby.
WARNING! Shoprider® is not responsible for damage or injury incurred due to
improper and unsafe use of our scooter.

12/7/2006
7
ADJUSTMENTS
Adjustments for Transport (Fig 2)
First remove the basket by lifting basket up and off bracket. Next release the seat (Refer
to Figure 3). Disconnect the battery back by pushing release button in; the button is
located on the side of the round metal connection plug in socket. Release the round
plug connector by pulling round plug out of box while depressing button. Remove
battery pack off the unit (pack is held down by two Velcro strips on the bottom of battery
pack). *NOTE: The serial number is also located on the frame beneath the battery
pack.*Fold down the tiller by loosening the tiller tightening knob located at the base of
the tiller.
Seat Removal & Upgrades (Fig 3)
To remove the seat; there is a tightening
knob on the bottom of the seat that
needs
to be loosened in order to slide the seat
off. An available seat upgrade includes
adjustable armrests and a back pad with
zipper pouch for added comfort and
convenience. The armrests flip up for
easy sideways transfer. The back seat
pad pack has a utility zipper pouch on
the reverse side to carry and protect any
added goods.
Figure 2
Tiller
Tightening
Knob
Back Pad with
Zipper Pouch
Adjustment
Knob Armrest
Seat Adjustment
Tightening Knob
Figure 3
Flip-up
Armrests

12/7/2006
8
SCOOTER TILLER CONTROLS (FIG 4)
Speed Controls
The speed control allows you to set a speed between slow (turtle) and fast (rabbit).
Battery Level Indicator Gauge
Where the needle sits, shows the amount of charge in your batteries. The amount of
charge will only show at its true level when the scooter is in drive. Always charge the
batteries completely before beginning out on any journey.
Caution – Do not allow the gauge needle to go down completely as complete
discharge of the batteries could cause irreversible battery damage.
Horn
A yellow button next to power switch on tiller operates the horn.
Hand Lever Controls
The left hand lever controls the reverse and the right hand lever controls the forward
motion. The amount of pressure applied to each lever will determine the speed the scooter
travels at up to the speed selected. Release the hand lever and the scooter will
automatically come to a stop as the electromagnetic brake is applied to the motor.
On/Off Switch
The On/Off switch is located on the tiller. When the unit is in the On position the switch will
display a red light and the battery gauge needle will move. There may be a slight delay
before the hand lever control can be operated, while the main controller checks the circuits.
Electromagnetic Brake
The brake is automatically operated when the hand control levers are pressed or released.
There is a slight delay when the scooter accelerates and decelerates; this allows the
scooter to start smoothly and come to a smooth stop.
Battery Level
Indicator Gauge
Horn Button
Speed
Control Dial
On/Off
Switch
Hand Lever
Control (Forward)
Hand Lever
Control (Reverse)
Figure 4

12/7/2006
9
DRIVE/FREEWHEEL OPERATION (FIG 5)
The drive/freewheel lever (yellow lever) is located at the right rear of unit. This lever allows
you to disengage the drive mechanism and push the scooter while in freewheel mode. To
disengage the drive mechanism (neutral), push the lever up (the scooter can now be
pushed). To re-engage the drive mechanism (drive), push the lever down (now the unit
may be driven).
Note: The scooter will not operate while the drive/freewheel lever is in the neutral position
(forward). The scooter must be turned off, lever pushed downward (drive position) and then
turned on in order to reset the circuits.
WARNING! Always re-engage the free wheeling device after use. Failure to do so
may result in injury.
Anti-tip wheels
The anti-tip wheels are located at the rear of the scooter frame (Fig 5). The scooter should
not be used unless the anti-tipping wheels are in place.
Shoprider® is not responsible for damage or injury incurred due to improper or
misuse of the scooter.
Free wheel
lever (yellow)
Anti-tip
wheels
Scooter in
Manual Mode
Scooter in
Drive Mode
Figure 5

12/7/2006
10
Battery Pack (Fig. 6)
The battery pack is specially designed for easy access and transportability. The reset
button is located on the battery pack. This reset button is designed to protect the
electronics on your scooter. If this button pops the scooter will not turn on, nor operate,
simply push button to reset. The 3-pin plug-in port is on the battery pack and serves two
purposes; connecting batteries to scooter and charging the battery pack. The plug-in port
also has a release button; that prevents the connections from coming apart. The 3-pin
round plug is removed by gently pressing the release button while pulling plug out. The
battery pack is held onto the unit by Velcro straps lining the bottom of the battery pack and
unit.
Scooter serial number (Fig. 7)
The scooter serial number is located under the battery pack. It is an alphanumeric
combination of 13 numbers and letters. Shoprider recommends that you write the serial
number down on the back of this manual for future reference. The battery pack is easily
removed (refer to Fig. 6). Pull up firmly to release pack from unit.
Reset Button
Connection
Release
Button
Battery/Charging
Port
Figure 6
Figure 7
Serial Number
Velcro Strips

12/7/2006
11
STARTING TO DRIVE YOUR SCOOTER
First Time Use
Prior to using your Echo 3 Portable scooter for the first time, you must charge the batteries
fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging
the batteries completely prior to first time use will benefit battery efficiency. Failure to do so
may cause permanent damage.
Getting Started
•Select a level area with plenty of space.
•Mount the scooter by pushing the arm (if installed) upward out of the way and sliding
onto the seat. Use the arm rest for support if necessary. DO NOT use the seat back or
tiller for support.
•Adjust the seat height as previously described.
Starting Scooter Movement
•Ensure that you are seated in a comfortable position.
•Turn the switch to the on position. The switch will light up red when on.
•Your speed setting should be on or near the turtle (slow).
•Squeeze your right hand lever (yellow dot) and the scooter will move forward slowly.
The harder you squeeze, the faster the scooter goes but will only reach the speed level
that has been selected.
•Release the lever and the scooter will slowly come to a stop as the magnetic brake
automatically engages.
Steering
Steering the scooter is light and easy. When starting off ensure that you give a wide
clearance when turning so that the rear wheels clear any obstacle that you are passing.
When steering through limited spaces such as a doorway or when turning around, turn the
tiller handles where you want to go and apply power gently. The scooter will turn very
tightly, but will still move with complete stability as long as the speed is not too high.
Reversing
Before reversing ensure that the area behind is free from any hazards or obstructions.
Adjust your speed setting to a low setting (turtle) before you move in reverse. Squeeze
your left hand lever (red dot), and steer wide of all corners and obstacles.
Dismounting
Before dismounting ensure that the Scooter switch is turned to the off position (red light
off). Dismount the scooter by pushing the arm upward out of the way (if installed) and slide
off the seat. Use the arm rest for support if necessary. Do Not use the seat back or tiller
for support.
CAUTION: Please ensure that care is exercised when mounting or dismounting
the scooter and that the tiller and foot rest is not used for support.

12/7/2006
12
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER
Ramps
The stability of your scooter is governed by several factors such as the seating position, the
angle of the slope and your height and weight. When approaching an incline, do so directly
and not at an angle and where ever possible avoid making turns. When going down a
ramp or slope keep the speed settings on slow. This will ensure there is a safe controlled
descent. When the hand levers are released the scooter will slowly stop.
Safe Climbing Angle
Always follow the guidelines of the safe climbing angle as shown in figure 8.
Caution - Do not turn off the switch while the unit is in motion
Grass and Gravel
Please follow the guidelines given previously and your scooter will perform admirably over
many surfaces. Avoid long grass, loose gravel and sand.
NOTE: You should not operate your scooter in wet weather or on wet surfaces. This
may cause the motor to short out or cause other irreversible damage.
NOTE: To preserve battery charge, your scooter may go into sleep mode after being
idle for a few minutes. To reset, switch unit off and turn back on again.
Figure 8

12/7/2006
13
BATTERIES AND BATTERY CHARGING
Batteries
The Shoprider® Echo 3 Portable scooter is supplied with maintenance-free, sealed lead
acid batteries. For easy handling, the batteries are contained within a battery pack. Battery
life and performance may be affected by temperature, terrain, condition of battery, the
weight of the user, and care of batteries. The battery needle gauge is only a guide and is
most effective when the scooter is moving, only then is the true discharge level displayed.
•When the scooter stops the battery needle gauge may indicate full.
•An active user can use up to 30% of battery capacity or more per day.
•Inactive users may use 50% of battery capacity in a week.
•In both of these instances the battery should be put on charge over night. If the battery
is kept in a discharged state permanent damage to the batteries may result, thereby
shortening the battery life and/or the charge capacity.
Keeping the batteries charged will extend the life of the batteries
The Batteries hold a fixed amount of energy, and charging cycles. It is recommended
that you get familiar with the range and charging cycles before going on a long
journey.
Battery Charger
The battery charger is a 2-amp transformer type off board. The Echo 3 Portable scooter
has a built in charger port on the rear side of the battery pack. This special feature allows
the batteries within the battery pack to be charged without the scooter.
First Time Use
Prior to using your Echo 3 Portable scooter for the first time, you must charge the batteries
fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging
the batteries completely prior to first time use will benefit battery efficiency. Failure to do so
may cause damage.
Charging
To charge the batteries connect the 3-pin male plug lead into the 3-pin female battery-
charging socket located on the battery pack. Plug the A/C cord plug into the wall socket
and the other end into the charger (2-pin). The battery charger has two indicator lights. The
red light shows the batteries are charging. When the light turns green while connected to
the charging port the batteries are fully charged. Once the batteries are completely
charged, unplug the A/C cord from the wall then unplug the 3-pin lead from the battery
pack.
WARNING: Only use the original Shoprider approved charger!
This charger is for indoor use only. DO NOT expose it to rain or water spray.
Do not leave the charger plugged into the charger port if the charger is not charging.

12/7/2006
14
MAINTENANCE
Tires
Since your tires are flat free tires, there is no need to ever worry about tire air pressure.
General Maintenance and Lubrication
•Inspection for loose wheel bolts, seat and arm tightening bolts, and other nuts and bolts
is recommended on a regular basis.
•Most lubricated components on the Echo Portable scooter are designed to be
maintenance free and are sealed. Therefore lubrication is not required for these
components. However, the driving axles and seat post should always have a very light coat
of multipurpose grease.
DO NOT USE TOO MUCH GREASE!
Drips may stain or damage carpets, furnishings, etc.
•It is recommended that the driving axles (inside the drive wheel assembly) be checked
and cleaned occasionally for hair and debris build-up, which will hinder the performance of
the unit.
•Check the batteries on a regular basis. For extended battery life, it is highly
recommended that the batteries be fully charged after each use. If the batteries are weak,
severely discharged or old, a variety of problems may occur with the unit including charging
problems, reduced speed, loss of range, and others. Please contact your local Shoprider®
provider for battery replacement.
TROUBLESHOOTING GUIDE
Circuit Breaker (Reset Button)
Your scooter is fitted with the latest in electronic controls that are programmed to protect
the electrical system from abnormal overloads. Provided for extra protection is a circuit
breaker, located on the battery pack. Should there be a situation where your scooter stops
for no apparent reason, please check that the circuit breaker has not popped.
NOTE: To preserve battery charge, your scooter may go into sleep mode after being idle for
a few minutes. To remove from sleep mode, turn the scooter switch off and back on again.
Check List
If your scooter fails to operate, please check the following:
•Unit is switched on.
•Drive/Freewheel mechanism is in the drive position.
•All plugs and connectors are clean and firmly connected.
•Battery level shows full charge.
If the free wheel device has been operated with the scooter switched on, then the scooter
will not operate until the ignition key has been switched off and then on again.
Please consult your dealer if your scooter does not run after checking these points.

12/7/2006
15
Notes:

12/7/2006
16
TECHNICAL SPECIFICATIONS
UNIT SPECIFICATIONS
ECHO 3
Overall Dimensions: L1 x W x H
in
37”x20”x36”
Front
1,8”
Number, Size of Tires
Rear
2, 8”
Suggested User Weight
(on the Level Road)
lb
MAX. 250
Weight of Heaviest Part
(Front Chassis Assembly)
lb
35
Total Weight (w/ 12Ah Battery
Pack, Basket, Seat)
lb
70
Battery Pack Module Weight
lb
15
Battery Module Capacity
_V_Ah
x Pcs
12V10Ah x 2
Charger
AMPS
Off Board (2A)
Output Power of Motor
Hp
0.45
Maximum Speed2
mph
3.8
Maximum Climbing Angle
(based on user weight of
100kg/220lb) /Safe Climbing
Angle
% ( º )
15 (9) 130lbs/
10(6) 187lbs
(Figure 8)
Range3(per charge w/ STD
10Ah Battery / 90
kg User Weight) (After the
battery and
mechanical moving parts
fully break in)
mile
8
Turning Radius
in
32”
Ground Clearance
in
1.5
Handle Bar
Type
T-BAR
***ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***
1. Include the Anti-Tip wheel.
2. Driver weight may exceed weight of the unit; speed must be reduced when turning.
3. The actual driving range varies with the factors shown below:
a) the weight of occupant
b) ground surface
c) battery conditions
d) type of charger
e) ambient temperature
f) the way of driving
g) terrain
QUARTERLY INSPECTION

12/7/2006
17
For your own safety, quarterly inspection and service on the product has to be performed
and signed by an authorized provider. Maintenance records (below) should be kept at all
times. The manufacturer / distributor / vendor will be indemnified from any product liability
claim if the above maintenance / service requirement is not met.
NOTE! Regular (Monthly) inspection is strongly recommended by the manufacturer
to ensure ultimate performance of the vehicle.
Service Record: Date of Purchase: / /
Purchaser:____________________________________________________
Model #: SL73 Serial #: ___________________________________
Provider Unit Was Purchased From: _______________________________
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y

12/7/2006
18
Notes:

12/7/2006
19
Notes:

12/7/2006
20
WARRANTY
Please refer to warranty information included with unit.
DISCLAIMER
Congratulations on your purchase of the Shoprider® Echo 3 Portable scooter.
It is not intended to be used by individuals with physical limitations that could prevent
the user from operating this unit safely. Shoprider® disclaims all responsibility for any
personal injury or property damage, which may occur as a result of improper or unsafe
use of its products. Mechanical or electrical defects will be dealt with on a contingency
liability basis.
The preceding guidelines are intended to assist you in the safe operation of your
powered scooter. If you should have any questions about the correct operation of your
scooter, please contact your authorized Shoprider® provider.
Model Name:Echo 3 Serial # :
Shoprider® Mobility Products, Inc.
[phone]
www.shoprider.com
Provider’s Stamp
