Shoprider Traveso 889XLSBN/CAN User manual

Traveso
Model: 889XLSBN/CAN
USER MANUAL
Please ensure that this manual is read and understood before
using the scooter.
May 2011

Contents Page
Introduction 2
Intended Use 2
Feature Guide 3
Safety Advice 4
Adjustments
 Tiller angle 5
 Seat slide 5
 Seat swivel 5
 Seat height 5
Tiller Controls 6 & 7
Brake Release / Freewheel Operation 7
Starting to Drive
 Getting Started 8
 Moving Off 8
 Steering 8
 Reversing 8
 Gradients and Kerbs 8 & 9
Technical Specification 9
Batteries and Battery Charger 10
Maintenance 11 & 12
Troubleshooting
 Circuit Breaker 12
 Fuses 12
 Check List 13
Further Information 13 & 14
Warranty
1

Introduction
Congratulations on your purchase of Shoprider® all weather scooter. This
scooter incorporates comfort and style with the latest in technology. The
unique weatherproof canopy enables the user to be fully independent all year
round. It is also complemented with a full light set that includes front and rear
lights, indicators and hazard warning lights enabling it to be used on public
roads.
Intended Use
Your scooter was carefully designed for persons with limited mobility. It is for
predominantly outdoor use by a single occupant up to a maximum weight of
160kg / 25st.
The intended user should possess the necessary physical, visual and
cognitive skills to operate the scooter safely. If you have any doubt, please
consult your dealer / prescriber.
Note: Persons with lower body amputations should not use this device
unless evaluated with artificial limbs fitted, as stability may be
compromised due to an irregular centre of gravity.
The scooter is classified as an invalid carriage and is not legally defined as a
motor vehicle, and therefore the user is not required to possess a driving
license. It is exempt from MOT certification.
An invalid can only be used by a person suffering from some physical defect
or physical disability aged 16 or over, or by an able bodied person who is
demonstrating a vehicle before sale, training a disabled user or taking the
vehicle to or from a place for maintenance or repair.
An invalid carriage can be used on public roads, but not on motorways, cycle
lanes or bus lanes. When used on pavements or in pedestrian areas the
scooter MUST be switched to its lower speed limit (see page 6). It is not
recommended that the scooter is used on a dual carriageway, but if it is
necessary an amber coloured flashing beacon must be used to warn other
road users of your presence.
It is important that the user reads and understands the safety advice given
within this manual before attempting to operate the product to avoid possible
injury to the user or bystanders and avoid damage to the scooter or
surrounding property.
2

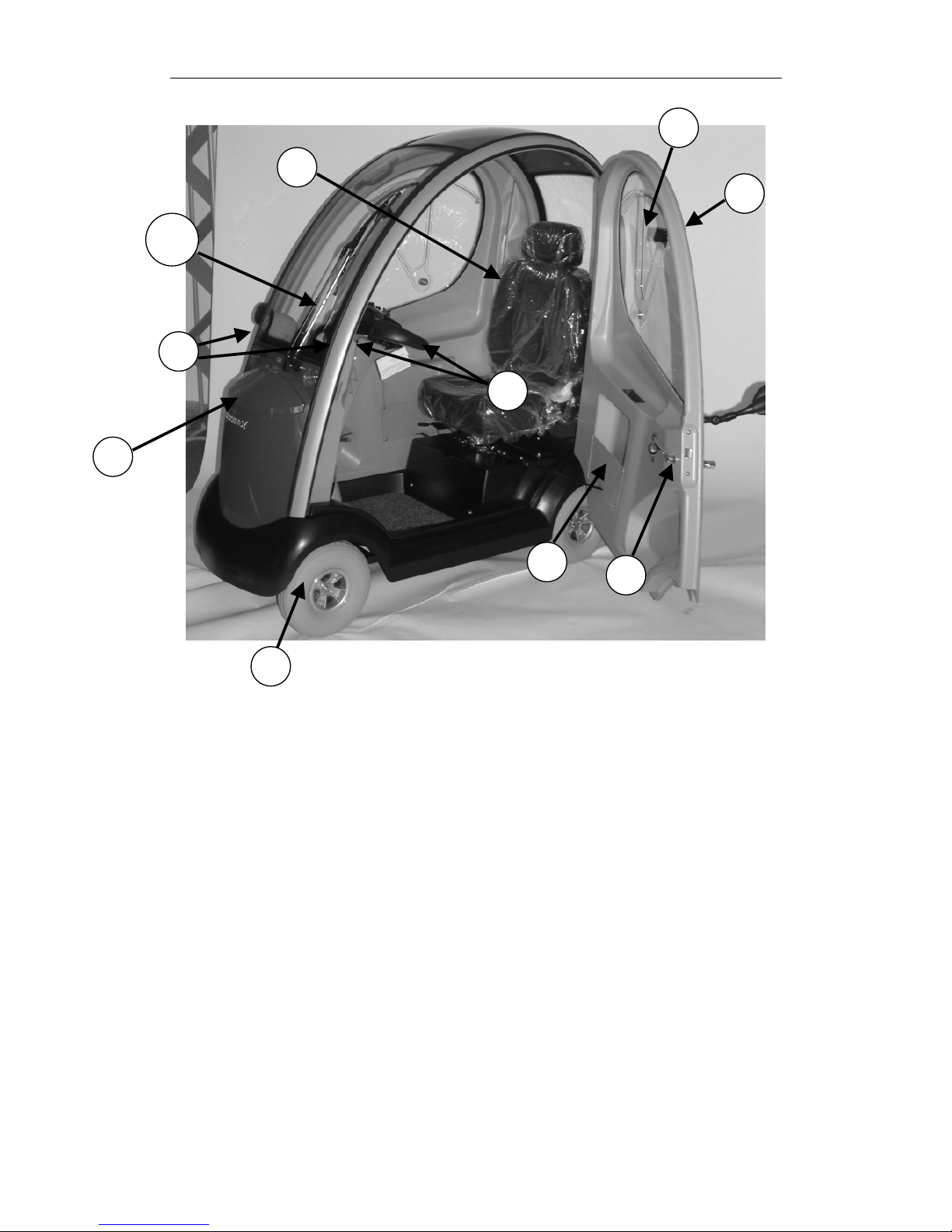

Feature Guide
1. 13” diameter wide profile, non-marking wheels
2. Access to external charging port and washer refill bottle
3. Delta tiller controls (page 6) and windscreen wiper / washer
switches
4. Fully adjustable ‘Captain’s’ seat
5. Door air vents
6. Removable main door units
7. Lockable doors *
8. Handy door pockets
9. Headlights
10…Windscreen wiper
 Please note that y our door key has a three digit number
stamped on it. Please make a note of this number and
quote it should replacements be needed in case of any
accidental loss.
2
3
4
5
6
7
9
1
8
10
3

Safety Advice
DO:
 Read this manual carefully before using your scooter.
 Turn the power off when transferring to and from the scooter.
 Select a slow speed when going down gradients or over uneven
ground.
 Keep your feet inside the scooter whilst driving.
 Ensure the batteries are fully charged before your journey.
 Avoid rough or soft terrain and long grass wherever possible.
 Be aware of other road users and pedestrians. If driving on the road
you MUST adhere to the Highway Code.
 Use lights whenever necessary.
 Turn the power off when not in use.
 Follow the maintenance guide to ensure safe operation of the scooter.
 Always remove the keys if leaving the scooter unattended.
Unauthorised persons/children may use the scooter resulting in injury.
 Fit a lap-belt or armrests if you intend to use the scooter with the doors
removed.
DO NOT:
 Carry passengers.
 Exceed inclines over 8° (14%).
 Traverse inclines.
 Attempt inclines if the surface is slippery.
 Turn sharply at full speed.
 Exit or enter the scooter unless the power is switched off.
 Switch off the power whilst driving – this will cause the scooter to stop
abruptly and could damage the controls. (see emergency procedures
on page 15)
 Use the scooter where you cannot safely or legally walk.
 Attempt to climb kerbs over 10cm (4”) high.
 Use the scooter in high winds (speeds in excess of 38mph)
 Use the scooter if under the influence of alcohol or any medication.
 Use a mobile phone whilst driving.
 Attempt to negotiate steps or escalators.
 Transport the scooter with the user inside.
 Attempt to tow any other devices.
 Exceed the stated weight limit.
 Connect any other devices to the batteries as this could cause
permanent damage and void your warranty.
 Use any other batteries/charger other than those supplied by RMA.
 Travel through water or over soft terrain (mud, sand etc.).
 Lift the scooter by the cab assembly or any plastic part.
 Store the scooter outdoors uncovered for any period of time.
Every care has been taken to ensure that your scooter will give you safe,
reliable service provided you adhere to the advice given above.
4

Adjustments
Tiller Angle Adjustment
On the left side of the base of the tiller
there is a red lever. Push the lever in to
release the pin and select the required
tiller angle.
When the desired angle is set, refit the pin
into one of the three lower locating holes.
Caution! Ensure the tiller is properly
locked into position before driving the
scooter.
Seat Depth Adjustment
The seat in the scooter can be
adjusted for depth and swivel to
allow easy access/exit.
To adjust the depth, pull the seat
slide lever upwards, move the
seat to the required position and
release the lever.
Under the right side of the seat
there is a red lever. Pulling up on
the lever allows the seat to swivel.
Seat Height Adjustment
To adjust the height of the seat, undo
the seat-tightening knob under the front
of the seat.
Pull the swivel adjustment lever
upwards and at the same time lift the
seat from the adaptor.
Remove the seat height-locating pin and
set the seat adaptor to the desired
height and reset the locking pin.
Reverse the above instructions to
replace the seat and re-tighten the hand
knob.
Mirror Fitment
The scooter is supplied with two side mirrors which
need to be fitted. Take the 17mm nyloc nut and
washer off the mirror stem, open the door and put
the threaded end through the side window from the
outside. Re-apply the washer and nut and gently
tighten until the mirror is steady. Make any final
adjustments and gently tighten ‘hand tight’.
Caution: DO NOT overtighten the inner nut
against the window as this may cause damage.
5

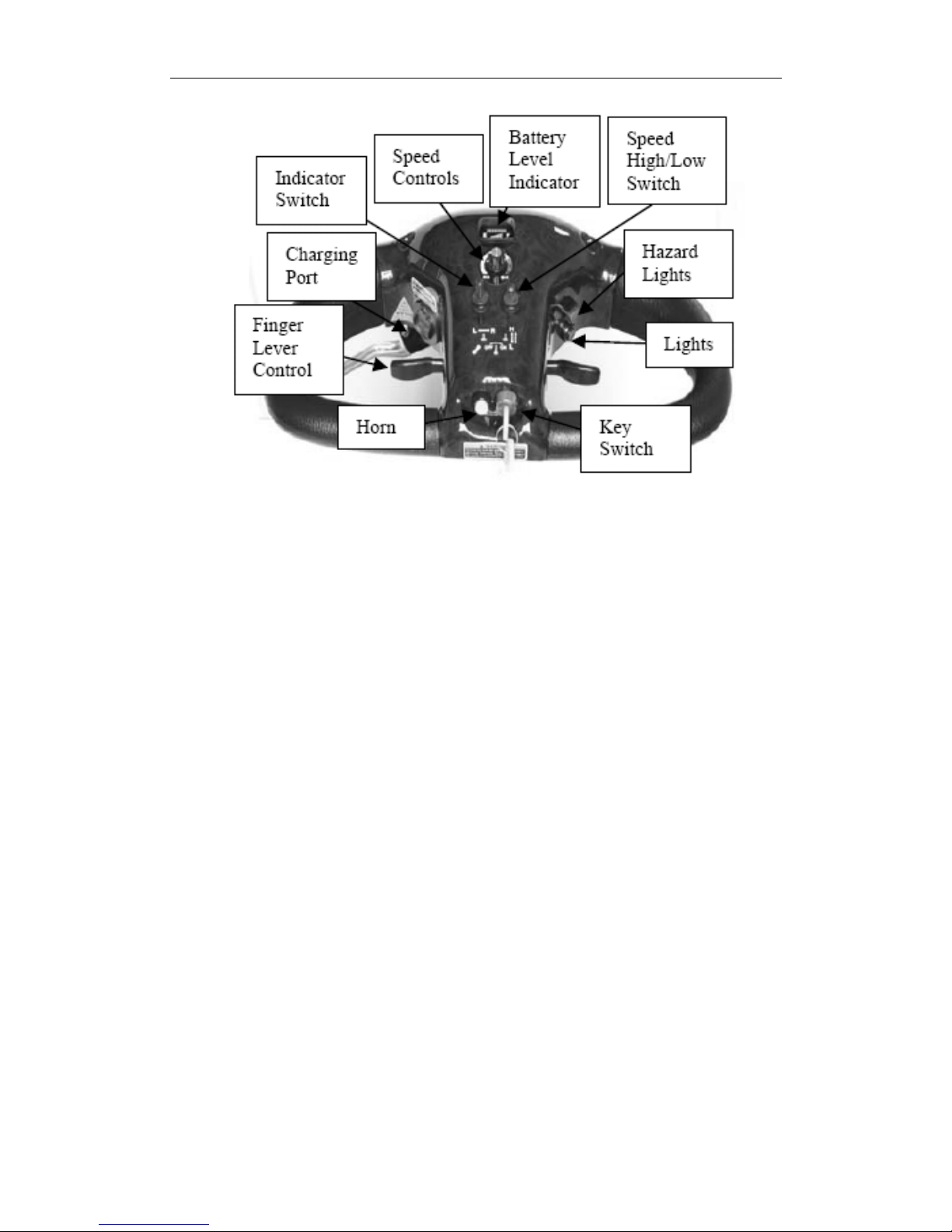

Tiller Controls
Speed Control:
This allows the user to set the maximum speed of the scooter between 1
(minimum) and 10 (maximum).
Battery Level Indicator:
The number of LED bars lit gives an indication to the amount of charge
remaining in the batteries. The amount of charge will only show it’s true level
when the scooter is being driven. Do not allow the LED bars to go out
completely as complete discharge of the batteries could cause
permanent damage to your scooter.
High/Low Speed Switch:
This sets the maximum high speed for the scooter. This MUST be set to low
when used in pedestrian areas. The ‘HIGH’ setting should only be selected
when used on the road.
Hazard Lights:
This red button operates all of the indicators simultaneously.
Lights:
This blue button operates the main front and rear lights.
Key Switch:
The key switch operates the main power for the scooter. When turned
clockwise the battery level indicator should light up indicating that the scooter
is on. There is a small delay before the thumb lever controls operate as the
controller checks the main circuits. Do not turn off the power whist moving,
this will cause the scooter to stop abruptly.
6

Continued…..
Horn:
This yellow button operates the scooter’s horn. The horn should only be used
to warn others of your presence and not as any form of rebuke.
Thumb / Finger Lever Control:
The finger / thumb lever controls the motion of the scooter as below:-
Push right lever – reverse motion
Pull right lever – forward motion
Push left lever – forward motion
Pull left lever – reverse motion
Simply release the lever to bring the scooter to a safe stop.
Charging Port:
Please refer to page 9 & 10 ‘Batteries and Battery Charger’
Indicator Switch:
This switch operates the indicator lights of the scooter. Please use the
indicators at all times when making manoeuvres on roads.

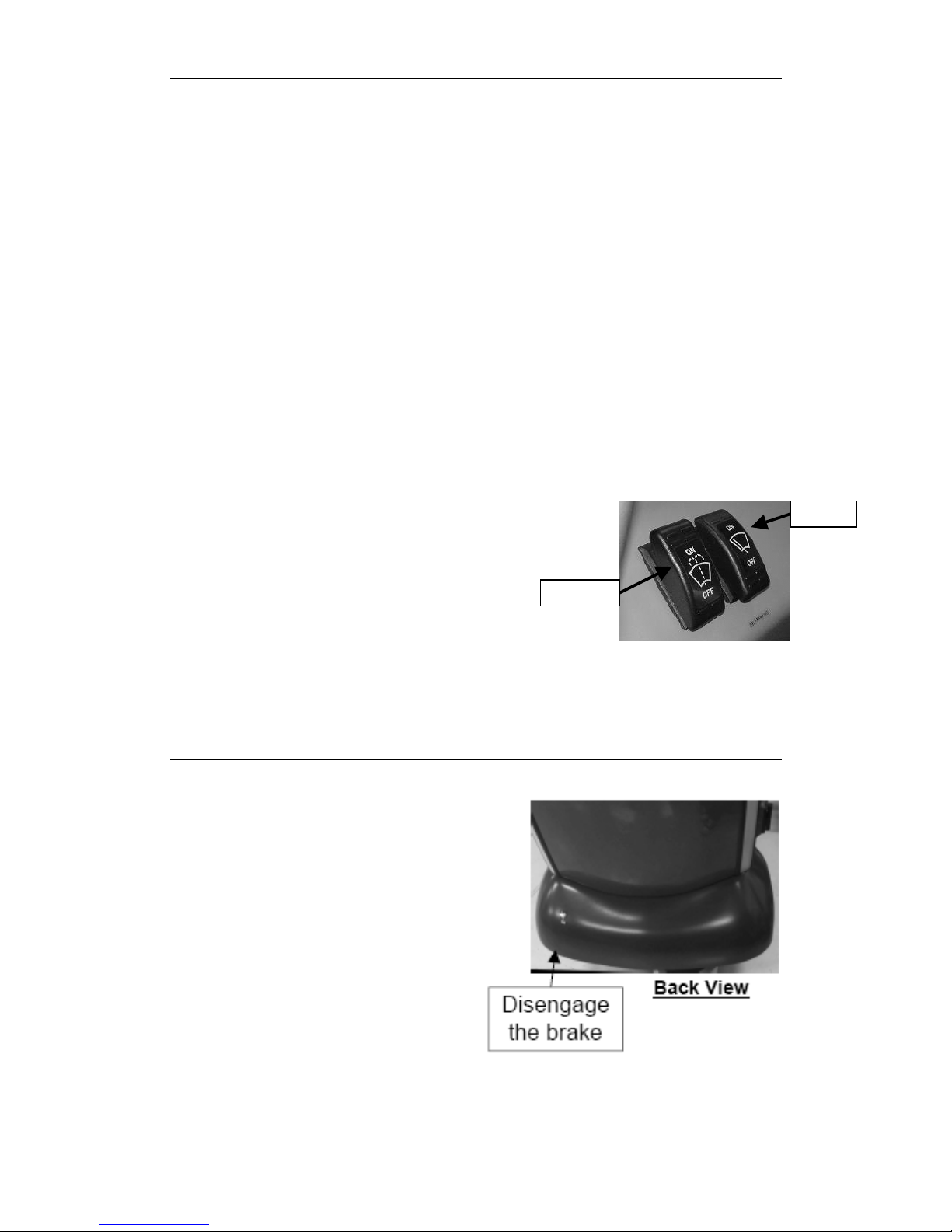

Windscreen Wiper and Washers:
The scooter is equipped with a windscreen wiper and
washer system. The controls for these are on the left
side of the dashboard. To operate them simply press
the switch to either ‘ON’ or ‘OFF’.
Brake Release / Freewheel Operation
The release lever for the electro-
magnetic brake is situated under the
rear left of the scooter. Ensure that
the power is switched off.
In the event of power failure or the
need to mover the scooter without
driving, the electro-magnetic brake
can be disengaged by a pulling the
red lever upwards – this will then put
the scooter in ‘freewheel’ mode. To
re-engage the brakes push the lever
down fully and ensure that the brake
is engaged before entering the
scooter.
Washer
Wi
p
er
7

Continued…..
Caution! NEVER leave the scooter unattended whilst in freewheel mode
as it will roll away down an incline. ‘Freewheel’ mode should only be
used in an emergency to move the scooter due to power failure. NEVER
move the scooter in this mode whilst it is occupied. Your scooter will
continually bleep if it is switched on when in this mode.
Starting to Drive
Getting Started
Select a level area with plenty of space.
Enter the scooter and adjust the tiller and seat as previously described to the
desired driving position.
Moving Off
Turn the key clockwise to turn on the power.
Ensure your batteries are fully charged.
Initially set the speed to 1 or 2
Pull your right finger lever, the scooter should move forward slowly. The
harder you press the lever the faster the scooter will travel up to it’s preset
maximum speed. Releasing the lever will bring the scooter to a safe stop and
the electro-magnetic brakes will be applied automatically.
Steering
Steering the scooter is light and easy. Ensure when starting off you give a
wide clearance when turning so that the rear wheels can clear any obstacle
that you are passing. When steering through limited spaces such as doorways
or when turning around, turn the tiller handle in the direction you want to go
and gently apply the power. NEVER turn sharply when travelling at high
speed as this may affect stability.
Reversing
Before reversing ensure that the area behind the scooter is free from any
hazards or obstructions. Adjust the speed setting low before you reverse.
Press the left thumb lever and steer wide of all corners and obstacles.
Caution! Do not reverse onto a main thoroughfare. Take care, objects in
the rear view mirrors will appear to be further away from the back of the
scooter than they actually are.
Gradients and Kerbs
We recommend that wherever possible that a suitable access point such
as a drop kerb or ramp be used. The necessity to climb a kerb directly
should be as a last resort.
If negotiating a gradient or kerb (up to 10cm), always address the situation at
an angle of 90° to ensure stability of the scooter. Do not hit a kerb at speed,
drive slowly until you reach the kerb then apply more power to travel over the
obstacle. Do not turn sharply on any slope moving forwards or
backwards.
8

Continued…..
Caution! Always ensure that the power is turned off when entering or
dismounting the scooter. Take plenty of time to become familiar with the
way that the scooter behaves. DO NOT drive on public roads until you
have the confidence and ability to do so.
Vision
Before driving, always ensure that all windows and mirrors are clean and
thoroughly clear of dirt or condensation. Prolonged use in damp or cold
conditions may lead to fogging or misting of the windows as in a motor
vehicle. Slightly open the windows to allow air to circulate to alleviate any
such problems. If necessary, keep a dry cloth or chamois in the cabin to clear
the windows when needed.
Technical Specification
The scooter is classified as:
Class 1 Medical Device
Invalid Carriage
Overall Size Seat Dimensions
Length 1600mm Width 500mm
Width 730mm Depth 440mm
Height 1620mm Height to floor 660-730mm
Max. Speed 12km/h
(8mph) Backrest height to lowest seat 680-800mm
Height Total 1620mm Battery charger (off board) 8 amp
Maximum user weight 160kg / 25st Ground Clearance 70mm
Safe Working Slope 8º (degrees)
9

Batteries and Battery Charger
Batteries
The scooter is supplied with two, maintenance free, sealed lead acid AGM
batteries. These are fitted under the seat on the scooter.
Battery performance can be affected by low temperatures, rough terrain and
the weight of the user. Your battery gauge is a guide only on the level of
charge remaining in the batteries.
An active user can use 30% of the battery capacity or more per day.
An inactive user may only use 50% of the battery capacity in a week.
Battery Charger
Charge the batteries completely (8-12 hours) prior to first use.
Batteries supplied with your scooter are
specially designed for use on powerchairs and
scooters and require an automatic battery
charger. These chargers have an electronic
switch that terminates the charge when the
batteries are full.
The battery charger is an 8-amp switch mode
type off board. The charger is able to read the
level of charge in the batteries and will switch off when the batteries are fully
charged.
To charge the batteries connect the plug lead into the charging socket (page
7) on the tiller or under the lid (page 3) and the 3-pin plug into the wall socket
and switch on.
The battery charger has two lights. A constant red light will show when the
battery charger is connected (this will flash if there is a break in the
connection). The orange light indicates that the batteries are receiving charge,
this will change to green when the charging cycle is complete.
Caution: Always charge the batteries in a well-ventilated indoor area.
You must still maintain charging the batteries even if the scooter is not
to be used for a prolonged period of time (2 to 3 weeks). Failure to do so
could result in permanent damage and render the batteries unusable.
Wherever possible do not interrupt the charge cycle until the batteries
are fully charged. Continual interruption can permanently damage the
batteries. If the charging lead should become damaged discontinue use
immediately and seek a replacement from your dealer.
Disposing and recycling of used batteries
Batteries must always be recycled correctly. Do not dispose of them with your
domestic refuge.
For further information regarding your nearest recycling facility please contact
your local authority.

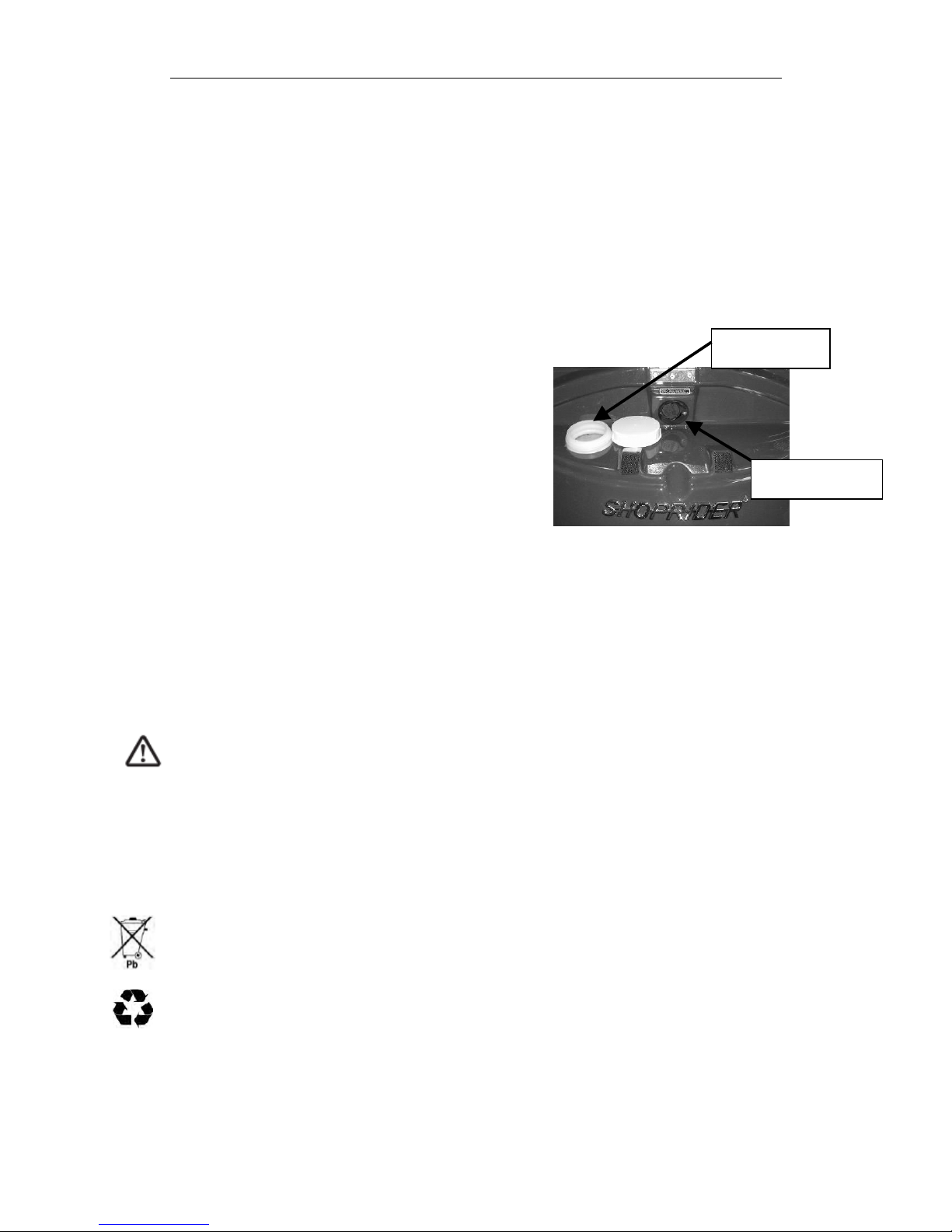

Charge Socket
Washer Refill
10

Maintenance
Cleaning the Scooter
When cleaning the scooter please pay attention to the following points:
 Only use a damp cloth and gentle detergent.
 DO NOT use any abrasive products.
 DO NOT use a hose or pressure washing equipment.
 AVOID water contact with any electrical components.
 DO NOT put the scooter through an automated car wash or similar.
Routine Maintenance
We recommend that the following checks be carried out on a periodical basis
by a qualified person:
Scooters
Maintenance and Inspection
Daily
Weekly
Monthly
Annually
Check / Charge Batteries    
Check removable parts are secure    
Check electrical connections are secure   
Check tyre pressures (30 psi rear, 25 psi front)   
Check tyre wear (minimum 2mm tread depth)   
Lubricate wheel / castor bearings with a light oil 
Complete inspection by an authorised Dealer  
The transaxle/gearbox is a sealed unit and does not need lubricating.
Wheels and Tyres
The wheels of your scooter have split rims. This allows any punctures to be
repaired easily.
To change the wheels, remove the centre bolt and slide the wheel off its axle.
Ensure that when refitting the wheel the retaining nut is fitted with a locking
washer or the screw threads are treated with ‘Loc-tite’ or a similar thread
locking compound. When changing a tyre the inner tube must be deflated.
Remove the four bolts from the wheel and slit the rim. Tyre pressure is
recommended to be kept at 30psi on the rear and 25psi on the front tyres.
Note: Regularly check and maintain these tyre pressures, as low tyre
pressure can reduce the range of your scooter.
11

Circuit Breake
r
Rese
t
Continued…..
Product Life Expectancy
Your scooter has been designed to provide the user with a long, reliable life
provided it is correctly maintained and regularly serviced by an authorised
dealer. However, due to inevitable wear and tear and technological
improvements it is recommended that the average usable life of this scooter is
five years.
Note: Should any parts need replacing during routine maintenance
please consult your local Dealer for approved spare parts for your
scooter. Failure to do so may damage the scooter and void your
warranty.
Troubleshooting
Circuit Breaker
Your scooter is fitted with the latest in electronic controls
that are programmed to protect the electrical system from
abnormal overloads. Fitted for extra protection is a circuit
breaker. Should there be a situation where your scooter
stops for no apparent reason please check that the circuit
breaker has not tripped. The circuit breaker is located
through a slot in the shroud underneath the seat behind
the seat post. It is marked with an ‘ON / OFF’ label. Flick
the switch over to reset the circuit breaker.
Note: Should the circuit breaker continue to trip turn off the scooter
immediately and consult your dealer.
Fuses
Inline 100 amp blade type fuses from the batteries protect any
overload, and a 15 amp fuse is located in the battery charger as extra
protection.
Note: Should the fuses need replacing please contact your dealer
to ensure the correct sizes are fitted. Failure to do so could result
in permanent damage to the scooter’s electronics and possibly
cause a fire hazard. Failure to do this will void your warranty.
12

Continued…..
Check List
If you scooter fails to operate, please check the following:
 The unit is switched on.
 All plugs and connectors are firmly fixed.
 Battery level shows full charge.
 Freewheeling device is in the drive position (lever down).
 Circuit breaker has not tripped
If the freewheel device has been operated with the scooter left switched on,
the scooter will bleep continually and not operate until the ignition key has
been switched off then on again.
Please consult your dealer if your scooter does not run after checking these
points.
Further Information
Safety Information Regarding Electromagnetic Interference (EMI)
Scooters and powerchairs are designed to operate under certain conditions.
However, radio waves or electromagnetic fields may affect the operation of
the scooter. The source of EMI could be radio or television transmitters or
portable devices such as mobile phones, portable CB radios etc.
Should any unintentional movement occur turn the scooter off as soon as
safely possible.
Solar Energy
During periods of sunny weather, it is possible that surfaces of your scooter
may reach high temperatures (as with motor vehicles). Please take
precautions if leaving the scooter in direct sunlight for any period of time.
Seek shade or cover the seat and hand controls to keep any temperature
increases to a minimum.
Health Factors
Suitability for this product has been assessed on the user’s current state of
health. It is essential that the user regularly monitor their ability to use the
scooter safely.
Please read and adhere to the guidelines set out in this manual and in the
‘Code of practice for Class 3/C vehicle users’
Sleep Mode
Your scooter has a digital battery status indicator, which displays the current
charge status of the batteries in your scooter.
The circuitry also detects changes in power draw from the batteries.
If you scooter is left switched on without use for about five minutes the
electronics will go into ‘sleep’ mode to conserve power. You will see one bar
on the battery status indicator oscillate from side to side. Simply switching the
scooter off and back on will enable the scooter to operate as normal.
13

Continued…..
General Use
Take heed of the information given in this manual regarding safety and the
maintenance of your scooter. If adhered to, your scooter should give you
years of reliable mobility.
The scooter is intended for year round use and is therefore designed to
withstand inclement weather. However, DO NOT use the scooter in electrical
storms, high winds or prolonged downpours. Care must also be taken during
cold weather due to icy surfaces.
In warm weather the side doors can be removed without the use of tools to
enable the scooter to be used conventionally.
Storage and General Care
We recommend that the scooter is always stored in a dry environment such
as a garage or shed to protect the chassis and other components from
corrosion or water damage. Do not leave the scooter outside during
rainstorms. If the scooter is wet, wipe with a dry cloth to ensure there is no
ingress of water into the internal components of the scooter (If the scooter
needs to be cleaned, use a mild detergent and warm water with a damp
sponge or cloth. DO NOT throw water over the scooter).
Product Stability
Scooters and powered wheelchairs are designed to allow the user flexibility of
movement in restricted areas. Driving at maximum speed and attempting
sharp turns can create a situation where the product becomes unstable.
Therefore it is essential that the user pay attention the guidance set out in this
manual.
For maximum stability the speed setti ng should be set up to 50% of the
maximum available (halfw ay between the tortoise and the hare or just
entering the red sector on the speed indicator depending on the model).
The main factors affecting stability are:
 Maximum speed setting
 Seat height
 User movement
 User’s manoeuvres
 Gradients or slopes
Please keep your speed to a level where you can safely stop without having
to make any erratic turns.
Do not load bags etc. on the back of the seat as this will affect the centre of
gravity and could increase instability.
Do not lean outside of the ‘footprint’ of the product, especially whilst moving.
Avoid making turns on gradients or slopes.
Emergency Procedures
Should your scooter behave erratically or become unresponsive whilst driving,
release the wig-wag lever so it may return to it’s neutral position and switch off
the power at the key / switch. These procedures will stop the scooter and
activate the braking system, preventing any further uncontrolled manoeuvres.
Note: Switching the power off at the key / switch can cause the scooter to stop
abruptly and should only be used to stop the scooter during an emergency.
14

Warranty Terms and Conditions
This is to certify that your Shopriderproduct is warranted for a period of 12
months from the date of original purchase. This warranty is not transferable.
Should a defect or operating fault arise within this period the Dealer from
where the product was originally purchased should be notified
immediately. Failure to register the fault may invalidate the warranty.
The Dealer from where the product was purchased is responsible for any
warranty repairs.
If a fault occurs within this period due to faulty workmanship or materials that
the product will be repaired (or replaced at the Companys discretion) free of
charge.
Any unauthorised modifications will invalidate the warranty.
Parts which are subjected to normal wear and tear, accidental damage, neglect
or misuse are excluded from this warranty. Normal wear and tear includes tyres,
chassis covers, bulbs, seat coverings etc.
Component parts replaced outside this period carry a six-month warranty.
(Standard terms and conditions apply for this period).
Model:
Serial No:
Purchase Date:
Distributed by:-
Roma Medical Aids Ltds
York Road, Bridgend Industrial Estate,
Bridgend
CF31 3TB
Tel: [phone] Fax: [phone]
Email: [email protected]
www.romamedical.co.uk
Shoprider reserve the right to change specifications without prior notice
Dealer Stamp
Manufactured by:
Phisiang Machinery MFG. CO. LTD
No. 108 Hsin-He Rd, Hsin-Feng Hsiang, Hsinchu County, Taiwan
