SHOR-LINE Blue-Line 903.1530.04 User manual

A guide for:
Blue-Line Fold-Up Wall Mount Table
{Save This Guide For Future Reference}
PN: 006.1530.01
Updated: 10.03.2014
;
BLUE
-
LINE
pure innovation
To reduce the risk of injury, the user must read and understand this guide before installation of this product.
This product is for animal use only. We do not condone this product for other uses.

{2}
;
{Shor-Line}
Schroer Manufacturing Company
511 Osage Ave.
Kansas City, Kansas 66105, USA
phone [phone] fax [phone]
email [email protected]
www.shor-line.com
{Shor-Line Limited}
Vale Business Park
Llandow,
Vale of Glamorgan CF71 7PF
United Kingdom
phone [phone] fax [phone]
email [email protected]
www.shor-line.co.uk
Introduction
Thank you for purchasing Shor-Line products. As a leader in animal care equipment, our commitment to you is
exactly the same as it was in 1927.
We hope this guide answers any questions you might have in regards to use, care or installation. If you can’t nd the
answers to your questions, have further questions or would like to purchase additional products, please contact us at
800.444.1579 or 913.281.1500. If in Europe phone [phone].
Consider keeping this guide in a safe and convenient place for future assistance.
IMPORTANT: DO NOT ATTEMPT TO DISASSEMBLE TABLE WITHOUT CONTACTING SHOR-LINE.
For your safety, please follow the instructions on these labels:
This product is for animal use only. We do not condone this product for other uses.
To reduce the risk of injury, the user must read and understand this guide before installation of this product.
Do not mount this table to walls with
metal studs unless sufcient wall
reinforcement has been installed by
a qualied mechanical contractor. For
assistance, contact Shor-Line with
details of your installation.
Shor-Line products are designed
for animal use only. Never allow a
person on your Blue-Line Fold-Up
Wall Mount Table.
The Blue-Line Fold-Up Wall Mount
Table is spring loaded to counterbalance
the table from the horizontal position
to the full up position. Mount table to
wall fully assembled. Do not attempt to
disassemble table without consulting
Shor-Line.

{3}
Shor-Line | 800.444.1579 | www.shor-line.com
;
{Contents}
Section 1: Unpacking & Inspecting Shipment
Unpacking & Inspecting Steps ...................................................................................................................4
Features of the Blue-Line Fold-Up Wall Mount Table, Lateral....................................................................5
Features of the Blue-Line Fold-Up Wall Mount Table, Peninsula...............................................................6
Section 2: Replacement Parts
Replacement Parts ....................................................................................................................................7
Section 3: Installing the Blue-Line Fold-Up Wall Mount Table
Before Starting ...........................................................................................................................................8
Mounting Instructions.................................................................................................................................8
Section 3: Leveling Your Blue-Line Fold-Up Wall Mount Table
Adjustment Instructions............................................................................................................................11
Section 4: Blue-Line Polyurethane Edge Clean & Care
Appearance & Life of the Polyurethane Edge .........................................................................................12
Polyurethane Edge Care & Cleaning Best Practices ...............................................................................12
Section 5: Stainless Steel Care & Cleaning
Quality & Life of Your Product ..................................................................................................................13
Care & Cleaning Best Practices...............................................................................................................13
Protecting Against Disease & Infection ....................................................................................................14
Section 6: Services, Terms & Conditions, Warranty
Terms & Conditions ..................................................................................................................................15
Order & Acceptance.................................................................................................................................15
Entire Agreement .....................................................................................................................................15
Terms Of Payment ...................................................................................................................................15
Prices & Quotes .......................................................................................................................................15
Taxes........................................................................................................................................................15
Deliveries .................................................................................................................................................15
Inspection.................................................................................................................................................15
Product Satisfaction .................................................................................................................................16
Limited Warranty ......................................................................................................................................16
Return Policy............................................................................................................................................17
Indemnity..................................................................................................................................................17
Unlawful Use............................................................................................................................................17
Regulations And Codes............................................................................................................................17
Seller's Remedies ....................................................................................................................................17
Miscellaneous ..........................................................................................................................................17
• Blue-Line Fold-Up Wall Mount Table, Lateral - Standard Blue Item # 903.1530.04
• Blue-Line Fold-Up Wall Mount Table, Lateral - Jade Item # 903.1530.05
• Blue-Line Fold-Up Wall Mount Table, Lateral - Taupe Gray Item # 903.1530.06
• Blue-Line Fold-Up Wall Mount Table, Lateral - Black Item # 903.1530.07
• Blue-Line Fold-Up Wall Mount Table, Peninsula - Standard Blue Item # 903.1531.04
• Blue-Line Fold-Up Wall Mount Table, Peninsula - Jade Item # 903.1531.05
• Blue-Line Fold-Up Wall Mount Table, Peninsula - Taupe Gray Item # 903.1531.06
• Blue-Line Fold-Up Wall Mount Table, Peninsula - Black Item # 903.1531.07

{4}
;
Section 1: Unpacking & Inspecting Shipment
{Unpacking & Inspecting Steps}
Step 1
Locate the Packing Slip that describes the parts and quantities shipped. Your Blue-Line Fold-Up Wall Mount Table
should be carefully examined upon arrival for possible damage in shipment. If any damage is found, notify Shor-Line
immediately.
Your Blue-Line Fold-Up Wall Mount Table comes fully assembled.
Step 2
Unpack and place in desired position in facility. This location must have reimbraced wooden studs in the walls.
Step 3
Review Section 6: Shor-Line’s Warranty Information. For more information visit: www.shor-line.com/warranty. Then
click the Damages/Returns/Repairs link on the left.
Step 4
Be sure that all parts are contained for your Blue-Line Fold-Up Wall Mount Table.
Step 5
Check content for concealed damage.
If Concealed Damage:
Follow instructions within Section 6: Shor-Line’s Warranty Information. For more information visit:
www.shor-line.com/warranty. Then click the Damages/Returns/Repairs link on the left.
Call Shor-Line immediately so we can expedite replacements or repairs.
IMPORTANT: After fteen (15) calendar days of receipt of merchandise, this policy becomes void.

{5}
Shor-Line | 800.444.1579 | www.shor-line.com
;
{Features of the Blue-Line Fold-Up Wall Mount Table, Lateral}
Blue-Line Fold-Up Wall Mount Table, Lateral
Items: 903.1530.04 - .07
Stainless Steel Blue-Line Table Top is 44”L x 22”W x 1”H.
From wall to end of table is 24". Actual table is 22".
Blue-Line Table Top with radius corners and laminated polyurethane edging holds up to one liter of uid.
New torsion spring technology allows you to easily and safely raise and lower the table.
Leveling adjustment with lock.
Weight capacity–200 lbs. when installed based on manufacturers recommendations.
5.5" from the wall when folded up.
Table is easily mounted to any standard 2" x 4" reinforced wooden stud wall with 16” stud centers. Also compatible with our
Stainless Steel Utility Chase.
Table mounting template included (not shown). 006.1130.04.01
End

{6}
;

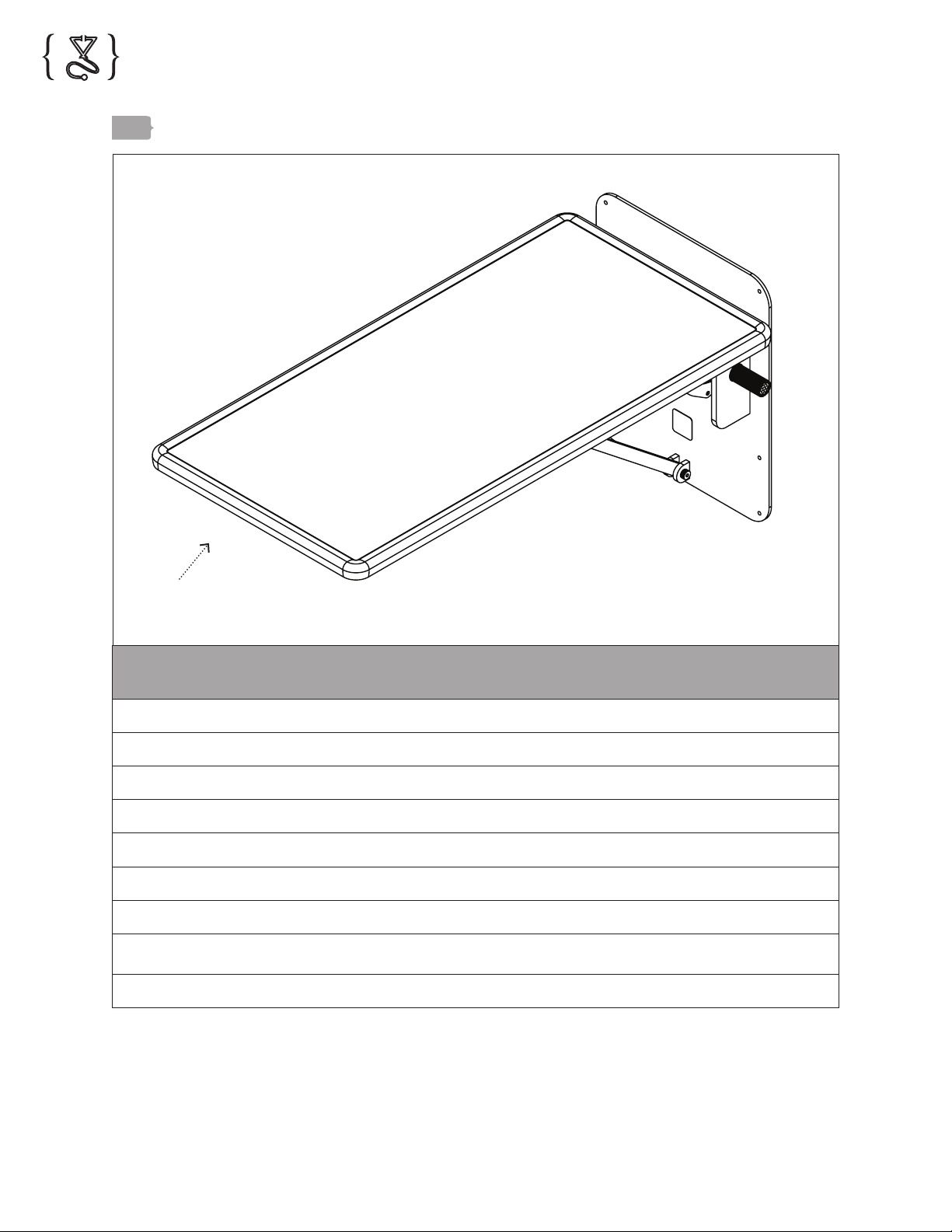

{Features of the Blue-Line Fold-Up Wall Mount Table, Peninsula}
Blue-Line Fold-Up Wall Mount Table, Peninsula
Items: 903.1531.04 - .07
Stainless Steel Blue-Line Table Top is 44”L x 22”W x 1”H.
From wall to end of table is 46". Actual table is 44".
Blue-Line Table Top with radius corners and laminated polyurethane edging holds up to one liter of uid.
New torsion spring technology allows you to easily and safely raise and lower the table.
Leveling adjustment with lock.
Weight capacity–200 lbs. when installed based on manufacturers recommendations.
5.5" from the wall when folded up.
Table is easily mounted to any standard 2" x 4" reinforced wooden stud wall with 16” stud centers. Also
compatible with our Stainless Steel Utility Chase.
Table mounting template included (not shown). 006.1130.04.01
End

{7}
Shor-Line | 800.444.1579 | www.shor-line.com
;
Section 2: Replacement Parts
Quantity Needed Description Part Number
1
Trimmed Top, Blue 300.1701.01
Trimmed Top, Black 300.1701.02
Trimmed Top, Jade 300.1701.03
Trimmed Top, Taupe Gray 300.1701.04
1 Bottom Cover 181.1530.00
2 Cam Right & Left, Peninsula 193.1531.02
2 Cam Right & Left, Lateral 193.1530.02

{8}
;
Section 3: Installing the Blue-Line Fold-Up Wall Mount Table
{Before Starting}
IMPORTANT: This table is spring loaded to counterbalance table from horizontal position to the full up position. The
table is shipped fully assembled and tested. Mount table to wall completely assembled. DO NOT ATTEMPT TO
DISASSEMBLE TABLE WITHOUT CONSULTING SHOR-LINE.
{Mounting Instructions}
Step 1
Select a location for table installation. This location must have a suitable reinforced frame or wooden studs.
DO NOT MOUNT THIS TABLE TO WALLS WITH METAL STUDS UNLESS SUFFICIENT WALL
REINFORCEMENT HAS BEEN INSTALLED BY A QUALIFIED MECHANICAL CONTRACTOR. For assistance, contact
Shor-Line with details of your installation.
Step 2
Have a qualied technician locate the reinforced wooden wall studs using a stud nder. The table has mounting holes
for 16" stud centers.
Step 3
Using the mounting template provided, carefully line up stud center lines and set the table working height at the
desired level. Once height is established, use a carpenter's level to make sure the line on the template labeled "Table
Working Height" is level. Attach template to the wall using tape, mark screw mounting locations on the wall and drill
1/8" diameter pilot hole 2" deep into the wall at each screw location. (For reference, see Fig. 3A for Peninsula mode
and Fig. 3B for Lateral mode.)
Step 4
Lift table into position.
THIS TABLE REQUIRES A TWO PERSON LIFT; DO NOT ATTEMPT A ONE PERSON LIFT.
Step 5
Mount table level and secure to wall using the 8 lag screws provided. Ensure that all screws hit the studs and are
tightened completely.
Step 6
Test the table by raising and lowering the table. The table is factory balanced before shipment and should be close to
weightless in all positions. If the table is not balanced correctly, contact Technical Services at 800-444-1579.

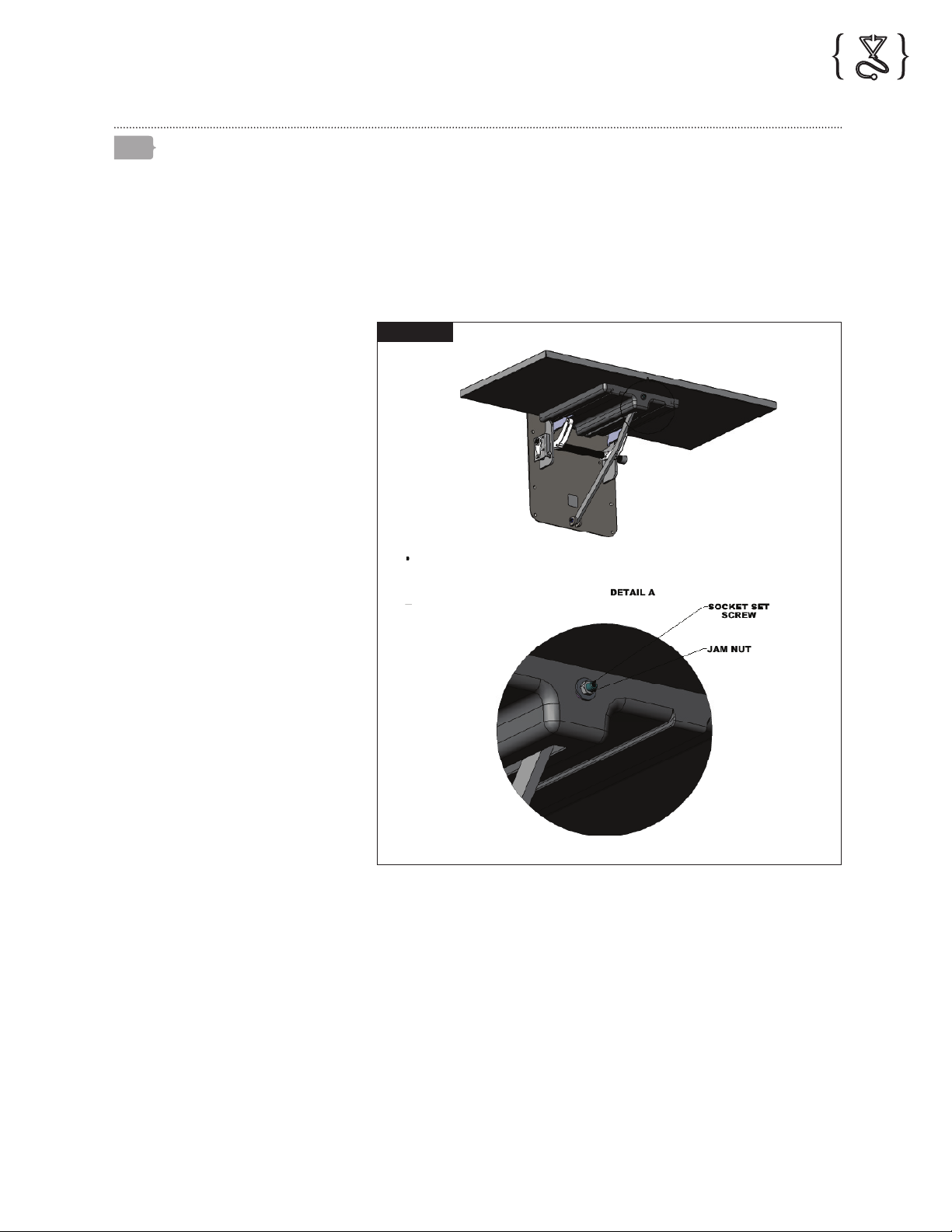

Section 3: Leveling Your Fold-Up Wall Mount Exam Table

{9}
Shor-Line | 800.444.1579 | www.shor-line.com
;
22.0
18.0
16.0
21.0
16.0
6.0
1.0
8.0
44.8
15.3
SHOWN @
35.0
IN
HEIGHT TO SUIT
WALL
FLOOR
VIEW FOLDED DOWN
TABLE TOP
VIEW FOLDED UP
BLUE LINE FOLDING WALL MOUNT TABLE,PENINSULA
44.0
18.0
60.0
22.0 5.0
5.5
MAX
NOTE:
CUSTOMER IS SUPPLIED WITH A FULL SCALE
TEMPLATE TO ASSIST IN MOUNTING TABLE. TABLE
CAN MOUNT TO 16" STUD CENTER WALLS.
EIGHT LAG SCREWS (06.1425.02 #14 X 2-1/2") ARE PROVIDED
WEIGHT CAPACITY = 200 LBS
903.1531.04 STANDARD BLUE
903.1531.05 JADE
903.1531.06 TAUPE GRAY
903.1531.07 BLACK
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
__________
