Show Tec 50446 User manual

TED Pack
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Product code: 50446
USER MANUAL
ENGLISH
V1

1
TED Pack
Product code: 50446
Preface
Thank you for purchasing this Showtec product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
●Safety instructions
●Intended and non-intended use of the device
●Installation and operation of the device
●Maintenance procedures
●Troubleshooting
●Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2022 Showtec. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document or other language versions, please visit our website
www.highlite.com or contact us at [e-mail].
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.

2
TED Pack
Product code: 50446
Table of contents
1. Introduction..........................................................................................................................................................4
Before Using the Product ..................................................................................................................................4
Intended Use .......................................................................................................................................................4
Text Conventions ................................................................................................................................................4
Acronyms and Abbreviations ..........................................................................................................................4
Symbols and Signal Words................................................................................................................................5
Symbols on the Information Label ..................................................................................................................5
2. Safety ....................................................................................................................................................................6
Warnings and Safety Instructions ....................................................................................................................6
Requirements for the User.................................................................................................................................8
3. Description of the Device ...................................................................................................................................9
Front View ............................................................................................................................................................9
Bottom View........................................................................................................................................................9
Back View ..........................................................................................................................................................10
Top View ............................................................................................................................................................10
Product Specifications ....................................................................................................................................11
Dimensions.........................................................................................................................................................12
4. Installation ..........................................................................................................................................................12
Safety Instructions for Installation ..................................................................................................................12
Personal Protective Equipment .....................................................................................................................12
Installation Site Requirements ........................................................................................................................12
Rigging ...............................................................................................................................................................13
Connecting to Power Supply.........................................................................................................................14
Power Linking of Multiple Devices.................................................................................................................14
5. Setup ...................................................................................................................................................................15
Warnings and Precautions .............................................................................................................................15
DMX Connection..............................................................................................................................................15
DMX-512 Protocol .......................................................................................................................................15
DMX Cables .................................................................................................................................................15
DMX Linking..................................................................................................................................................16
Connecting Fixtures .........................................................................................................................................16
Setup Example ..................................................................................................................................................17
6. Operation ...........................................................................................................................................................18
Safety Instructions for Operation...................................................................................................................18
Trailing-edge Dimming vs. Leading-edge Dimming..................................................................................18
Trailing-edge Dimming ..............................................................................................................................18
Leading-edge Dimming............................................................................................................................19
Operation Modes.............................................................................................................................................19
Dimmer Mode .............................................................................................................................................19
Switch Mode................................................................................................................................................19
FX Mode .......................................................................................................................................................20
Auto Mode...................................................................................................................................................20
Control Panel ....................................................................................................................................................21
Start-up...............................................................................................................................................................21
Menu Overview ................................................................................................................................................22
Main Menu Options .........................................................................................................................................24
DMX Address ...............................................................................................................................................24
DMX Person..................................................................................................................................................24
Information...................................................................................................................................................25
Status.............................................................................................................................................................25
Dimming Mode ...........................................................................................................................................25
Minimum Output.........................................................................................................................................26
Maximum Output .......................................................................................................................................26

3
TED Pack
Product code: 50446
Curve ............................................................................................................................................................26
Manual..........................................................................................................................................................27
Chase .......................................................................................................................................................27
DMX Fail....................................................................................................................................................28
Dimmer Speed ........................................................................................................................................28
Display OFF ..............................................................................................................................................28
Display Invert ...........................................................................................................................................28
Factory Reset...........................................................................................................................................28
DMX Channels ..................................................................................................................................................29
RDM Information...............................................................................................................................................29
RDM Details..................................................................................................................................................29
Supported RDM PIDs for the Device .......................................................................................................30
Supported RDM PIDs for the SubDevices...............................................................................................30
7. Troubleshooting .................................................................................................................................................31
8. Maintenance .....................................................................................................................................................32
Safety Instructions for Maintenance.............................................................................................................32
Preventive Maintenance................................................................................................................................32
Basic Cleaning Instructions .......................................................................................................................32
Corrective Maintenance................................................................................................................................33
Replacing the Fuse.....................................................................................................................................33
9. Deinstallation, Transportation and Storage ....................................................................................................34
Instructions for Deinstallation..........................................................................................................................34
Instructions for Transportation ........................................................................................................................34
Storage...............................................................................................................................................................34
10. Disposal ..............................................................................................................................................................34
11. Approval.............................................................................................................................................................34

4
TED Pack
Product code: 50446
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.

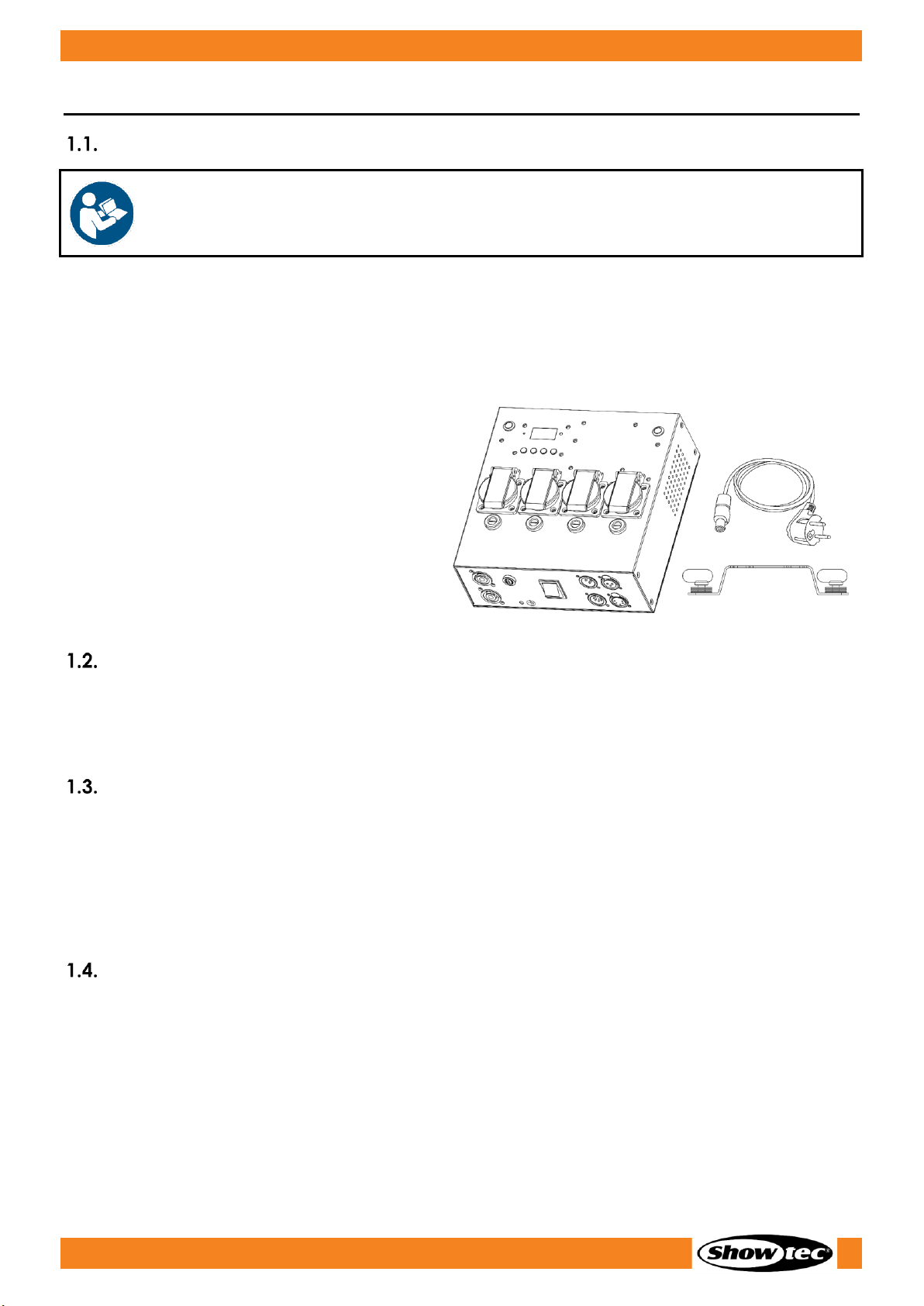

Your shipment includes:
●Showtec TED Pack
●Quick lock bracket
●Schuko to Seetronic power cable (1,5 m)
●User manual
Fig. 01
Intended Use
This device is intended for professional use as a trailing-edge dimmer. It is suitable only for indoor
installation. It is not suitable for households.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Text Conventions
Throughout the user manual the following text conventions are used:
●Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
●References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment screw (02)”
●0–255: Defines a range of values
●Notes: Note: (in bold lettering) is followed by useful information or tips
Acronyms and Abbreviations
AC
Alternating current
LTP
Latest takes precedence
DMX
Digital multiplex
MOSFET
Metal–oxide–semiconductor field-effect
EMI
Electromagnetic interference
transistor
HTP
Highest takes precedence
OLED
Organic light-emitting diode
ID
Identification
PID
Parameter Identification
IEC
International Electrical Committee
RDM
Remote Device Management
IGBT
Insulated-gate bipolar transistor
SCR
Semiconductor controlled rectifier
IP
(technology) Ingress protection
TRIAC
Triode for alternating current
LED
Light-emitting diode
UID
Unique Identification
XLR
External line return

5
TED Pack
Product code: 50446
Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Electrical hazard
Provides important information about the disposal of this product.
Symbols on the Information Label
This product is provided with an information label. The information label is located on the backside of the
device.
The information label contains the following symbols:
This device shall not be treated as household waste.
This device is designed for indoor use.
Read and follow the instructions in the user manual before installing, operating or
servicing the device.
This device falls under IEC protection class I.
Caution: Risk of electric shock. Do not open.
Caution: To reduce the risk of electrical shock, do not remove cover. No user
serviceable parts inside. Refer servicing to qualified personnel.

6
TED Pack
Product code: 50446
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
●Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage may be present.
●Do not open the device or remove any covers.
●Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
●Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER
Electric shock caused by short-circuit
This device falls under IEC protection class I.
●Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
●Do not cover the ground (earth) connection.
●Do not bypass the thermostatic switch or fuses.
●For replacement use fuses of the same type and rating only.
●Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
●Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
●Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
●Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
●Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.

7
TED Pack
Product code: 50446
Attention
Power supply
●Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the
device.
●Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention
General safety
●Do not block the ventilation openings. Without proper heat dissipation and air circulation, the
internal components may overheat. This can result in product damage.
●Do not shake the device. Avoid brute force when installing or operating the device.
●If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
●If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
●If the device fails to work properly, discontinue the use immediately.
Attention
For professional use only
This device shall be used only for the purposes it is designed for.
This device is designed to be used as a trailing-edge dimmer. Any incorrect use may lead to hazardous
situations and result in injuries and material damage.
●This device is not suitable for households.
●This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Attention
Before use, examine the device visually for any defects.
Make sure that:
●All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
●There are no deformations on housings, fixations and installation points.
●The power cables are not damaged and do not show any material fatigue.

8
TED Pack
Product code: 50446
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater
than 12 mm, such as fingers, and no protection against harmful ingress of water.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.

9
TED Pack
Product code: 50446
3. Description of the Device
The TED Pack is a trailing-edge 4-channel dimmer for indoor use. It can be operated in dimmer, switch
and FX modes. The device is compatible with LED and incandescent lights of up to 2 A (500 W) per
output channel. The TED Pack uses MOSFETs to dim the output and can be switched between leading-
edge and trailing-edge dimming. The FX mode offers a safety channel that prevents unintentional
activation of the 4 output channels. It can be used for controlling shooters, canons, drops, and similar
devices.
Front View
FX mode LED indicator
Control panel: OLED display, control buttons,
LED indicator
FX mode LED indicator
4 x Schuko sockets (Outputs 1–4)
4 x Fuses F3 A, 250 V, 5 x 20 mm (Outputs 1–4)
Fig. 02
Bottom View
Pro-power connector IN
Pro-power connector OUT
Ground (earth) connection
Fuse 13 A, 250 V, 6,3 x 30 mm
Power switch
3-pin DMX connector IN
5-pin DMX connector IN
5-pin DMX connector OUT
3-pin DMX connector OUT
Fig. 03

10
TED Pack
Product code: 50446

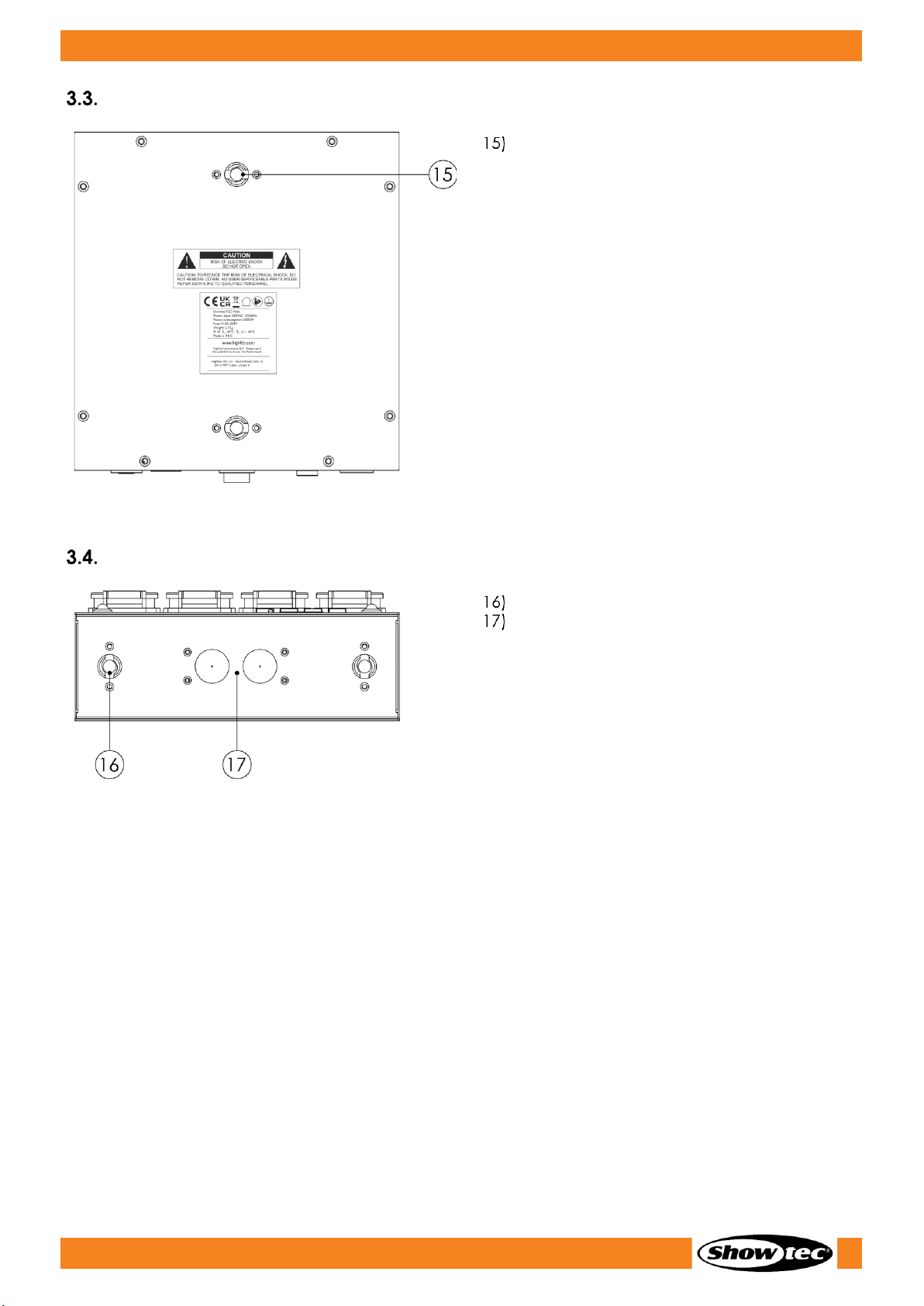

Back View
2 x Mounting holes for quick lock bracket
Fig. 04
Top View
2 x Mounting holes for quick lock bracket
Safety eye
Fig. 05

11
TED Pack
Product code: 50446
Product Specifications
Model:
TED Pack
Electrical:
Input voltage:
220–240 V AC, 50 Hz
Power consumption:
3 W
Fuse:
4 x F3 A, 250 V, 5 x 20 mm (for each channel)
1 x 13 A, 250 V, 6,3 x 30 mm
Output wattage (per channel):
500 W max
Output current (per channel):
2 A
Physical:
Dimensions:
240 x 230 x 92 mm (L x W x H)
Weight:
2,7 kg
Operation and control:
Channels:
4 output channels and 1 safety channel
Control:
Manual, DMX-512, RDM
DMX personalities:
Dimmer (4 channels), Switch (4 channels), FX (5 channels)
Control panel:
OLED display, buttons and LED indicators
Connections:
Power connections:
Pro-power connectors IN/OUT
4 x Schuko sockets
Data connections:
3-pin DMX connectors IN/OUT
5-pin DMX connectors IN/OUT
Signal pinouts:
3-pin: pin 1 (ground), pin 2 (-), pin 3 (+)
5-pin: pin 1 (ground), pin 2 (-), pin 3 (+), pin 4 (N/C), pin 5 (N/C)
Construction:
Housing:
Metal
Color:
Black
IP rating:
IP20
Cooling:
Natural heat dissipation
Thermal:
Maximum ambient temperature ta:
40 °C
Minimum ambient temperature:
-5 °C

12
TED Pack
Product code: 50446
Dimensions
Fig. 06
Fig. 07
4. Installation
Safety Instructions for Installation
WARNING
Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.
Personal Protective Equipment
During installation and rigging wear personal protective equipment in compliance with the national and
site-specific regulations.
Installation Site Requirements
●The device can be used only indoors.
●The device can be be positioned on a flat surface or mounted to a truss or other rigging structure in
any orientation.
●The ambient temperature must be in the range -5 and 40 °C.
●The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.

13
TED Pack
Product code: 50446
Rigging
The device can be positioned on a flat surface or mounted to a truss or other rigging structure in
horizontal or vertical orientation. Make sure that all loads are within the pre-determined limits of the
supporting structure.
CAUTION
Restrict the access under the work area during rigging and/or derigging.
To mount the device, follow the steps below:
Fasten the quick lock bracket, supplied with the device, on the mounting holes for quick lock
bracket (15) or (16). You can position the quick lock bracket on the top plate of the device or on the
back plate of the device, as shown in Fig. 08.
Install the clamp, as shown in Fig. 09. Make sure that you use a clamp suitable for attaching the
device to a truss.
Fig. 08
Fig. 09
Attach the device to the supporting structure. Make sure that the device cannot move freely.
Secure the device with a secondary suspension, for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary
suspension should be attached to a supporting structure independent of the primary suspension. Put
the safety cable through the safety eye (17), as shown in Fig. 09.

14
TED Pack
Product code: 50446
Connecting to Power Supply
DANGER
Electric shock caused by short-circuit
The device accepts AC mains power at 220–240 V and 50 Hz. Do not supply power at any other voltage
or frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected
to the ground (earth).
Before connecting the device to the socket-outlet:
●Make sure that the power supply matches the input voltage specified on the information label on
the device.
●Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with the power plug.
Power Linking of Multiple Devices
This device supports power linking. Power can be relayed to another device via the power OUT
connector. Note that the input and the output connectors have different designs: one type cannot be
connected to the other.
Power linking of multiple devices must be carried out only by instructed or skilled persons.
WARNING
Incorrect power linking may lead to overload of the electrical circuit and result in serious
injuries and damage of property.
To prevent overload of the electrical circuit, when power linking multiple devices:
●Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not
suitable for power linking of multiple device.
●Make sure that the total current draw of the device and all connected devices does not exceed the
rated capacity of the power cables and the circuit breaker.
●Do not link more devices on one power link than the maximum recommended number.
The maximum recommended number of devices depends on the total load of all connected fixtures and
TED Pack devices. The total load shall not exceed 3500 W.

15
TED Pack
Product code: 50446
5. Setup
Warnings and Precautions
Attention
Connect all data cables before supplying power.
Disconnect power supply before connecting or disconnecting data cables.
DMX Connection
DMX-512 Protocol
The TED Pack has 3-pin and 5-pin DMX signal IN and OUT connectors.
The pin assignment is as follows:
●3-pin: pin 1 (ground), pin 2 (-), pin 3 (+)
●5-pin: pin 1 (ground), pin 2 (-), pin 3 (+), pin 4 (N/C), pin 5 (N/C)
Devices on a serial data link must be daisy-chained in a single line. The number of devices that you can
control on one data link is limited by the combined number of the DMX channels of the connected
devices and the 512 channels available in one DMX universe.
To comply with the TIA-485 standard, no more than 32 devices should be connected on one data link.
In order to connect more than 32 devices on one data link, you must use a DMX optically isolated
splitter/booster, otherwise this may result in deterioration of the DMX signal.
Note:
●Maximum recommended DMX data link distance: 300 m
●Maximum recommended number of devices on a DMX data link: 32 devices
DMX Cables
Shielded twisted-pair cables with 3-pin/5-pin XLR connectors must be used for reliable DMX connection.
You can purchase DMX cables directly from your Highlite International dealer or make your own cables.
If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable
operation of the DMX network.
When you make your own DMX cables, make sure that you connect the pins and wires correctly as
shown in Fig. 10.
Fig. 10

16
TED Pack
Product code: 50446
DMX Linking
To connect multiple devices on one DMX data link, follow the steps below:
Use a 3-pin/5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the
DMX IN connector of the first device. The DMX LED indicator (A) on the control panel (02) lights up.
Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
3-pin/5-pin DMX cable.
Repeat step 2 to connect all devices in a daisy-chain as shown in Fig. 11.
Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data
link.
Fig. 11
Connecting Fixtures
The TED Pack is compatible with both LED and incandescent lighting fixtures. It can be also used for
controlling shooters, canons, drops, and similar fixtures.
Make sure that the total load per output does not exceed the maximum wattage (500 W) and the
maximum current (2 A).
Connect the fixtures to the Schuko sockets (04).

17
TED Pack
Product code: 50446
Setup Example
Fig. 12 and Fig. 13 show a typical setup with TED Pack used as a trailing-edge dimmer. Make sure that:
●The total load per output does not exceed the maximum wattage (500 W) and current (2 A).
●The total load of all connected fixtures and the device does not exceed 3500 W.
Fig. 12
Fig. 13

18
TED Pack
Product code: 50446
6. Operation
Safety Instructions for Operation
Attention
This device must be used only for the purposes it is designed for.
This device is intended for professional use as a trailing-edge dimmer. It is suitable only for indoor
installation. It is not suitable for households.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Attention
Power supply
Before connecting the device to the power supply, make sure that the current, voltage and frequency
match the input voltage, current and frequency specified on the information label on the device.
Trailing-edge Dimming vs. Leading-edge Dimming
The TED Pack is a trailing-edge dimmer that supports also leading-edge dimming. You can set the
dimming mode for each connected fixture separately. See 6.7.5. Dimming Mode on page 25 for more
information.
Trailing-edge Dimming
Trailing-edge dimming is a reverse-phase dimming with a phase-cut at the end of each wave’s half cycle
before the zero crossing (see Fig. 14). This makes trailing-edge dimming suitable for conductive loads and
for lower wattage lamps, for example LED lamps. Trailing-edge dimming does not produce high inrush of
current.
Trailing-edge dimmers use MOSFET or IGBT circuits to dim. This technology produces less EMI radiations,
current surges and AC distortions. This results in less interference and noise compared to traditional
leading-edge dimmers. Trailing-edge dimmers can support also leading-edge dimming.
Fig. 14

19
TED Pack
Product code: 50446
Leading-edge Dimming
Leading-edge dimming is a forward-phase dimming with a phase-cut at the beginning of each wave’s
half cycle after the zero crossing (see Fig. 15).
The leading-edge dimmers were originally developed to dim incandescent and halogen lamps. As they
have a high minimum load, they are not suitable for low wattage LED lamps.
Traditional leading-edge dimmers use a TRIAC or an SCR to dim. This technology produces more EMI
radiations, which results in unwanted interference and buzzing noise. These dimmers do not support
trailing-edge dimming.
Fig. 15
Operation Modes
The TED Pack can be operated in dimmer mode, switch mode, FX mode, and auto mode.
Dimmer Mode
In dimmer mode the device functions as a dimmer and you can control the intensity of the light output of
the connected fixtures.
The device is compatible with LED and incandescent lights of up to 2 A (500 W) per output channel.
Make sure that you select the correct dimming mode. See 6.2. Trailing-edge Dimming vs. Leading-edge
Dimming on pages 18–19 for more information.
You can operate the device in dimmer mode via the control panel (02) and via DMX.
Switch Mode
In switch mode you can switch on and off the connected fixtures.
You can operate the device in switch mode via the control panel (02) and via DMX.
Note:
In switch mode you cannot adjust the following parameters: minimum output, maximum output, and
dimming curve.
