Shure SBC450 User manual

SBC450 SBC850
4- and 8-Bay Networked Docking Stations
Complete user guide for SBC450 and SBC850 networked docking stations.
Version: 3.2 (2021-E)

Shure Incorporated
2/12
Table of Contents
SBC450 SBC850 4- and 8-Bay Networked Docking Sta-
tions 3
IMPORTANT SAFETY INSTRUCTIONS 3
General Description 4
Features 4
Included Components 4
More Information Available Online 4
Controls and Connectors 4
Power Connections 6
Connecting Transmitters 6
Connecting Shure Devices to Wireless Workbench 7
Configuration Tips 7
Monitoring Batteries with Wireless Workbench 7
Controlling Transmitters with Networked Docking Sta-
tions 8
Connecting to an External Control System 9
Firmware Updates 9
Updating Transmitter Firmware with Docking Station 10
Model Variations 10
Specifications 10
Certifications 11
Information to the user 12
LICENSING INFORMATION 12
WARNING 12

Shure Incorporated
3/12
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
SBC450 SBC850 
4- and 8-Bay Networked Docking Stations
IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
withthemanufacturer’sinstructions.
DONOTinstallnearanyheatsourcessuchasopenflames,radiators,heatregisters,stoves,orotherapparatus(in
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prongareprovidedforyoursafety.Iftheprovidedplugdoesnotfitintoyouroutlet,consultanelectricianforreplace
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
The MAINS plug or an appliance coupler shall remain readily operable.
The airborne noise of the Apparatus does not exceed 70dB (A).
ApparatuswithCLASSIconstructionshallbeconnectedtoaMAINSsocketoutletwithaprotectiveearthingconnec
tion.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
Operate this product within its specified operating temperature range.
Explanation of Symbols
Caution: risk of electric shock

Shure Incorporated
4/12
•
•
•
•
•
Caution: risk of danger (See note.)
Direct current
Alternating current
On (Supply)
Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION
Stand-by
Equipment should not be disposed of in the normal waste stream
WARNING: Voltagesinthisequipmentarehazardoustolife.Nouserserviceablepartsinside.Referallservicingtoqualifiedservicepersonnel.Thesafetycer
tifications do not apply when the operating voltage is changed from the factory setting.
General Description
SBC450 and SBC850 networked docking stations provide monitoring, control, and power to charge 4 or 8 ULXD6 and ULXD8
transmitters with Shure rechargeable batteries. Connect to a network to adjust transmitter settings and monitor rechargeable
batteries using Shure Wireless Workbench or SystemOn software, or through a third-party room control system.
Features
Compatible with ULXD6 and ULXD8 transmitters using Shure rechargeable batteries
Easily adjust transmitter settings using Shure control software such as Wireless Workbench and external control systems
such as AMX or Crestron
Monitor rechargeable battery information such as health, temperature, charge, and cycle using control software
Update transmitter and docking station firmware using Shure Update Utility
Included Components
PS60 power supply (some models available without power supply)
More Information Available Online
A comprehensive online user guide is available at pubs.shure.com.
®

Shure Incorporated
5/12
◦
◦
◦
◦
Controls and Connectors
①Power Button
Press to turn on; press and hold to turn off.
②Reset Button
Docking station reset:Pressandholdresetbuttonwhilesimultaneouslypoweringonthedockingstationtorestorefacto
ry settings. IP addressing will be reset to Automatic. LEDs = solid green.
Transmitter reset:Placetransmittersindocks.Pressandholdresetbuttonfor5secondstorestoretransmitterfactoryset
tings. Transmitter mute LEDs = flashing.
③Power LED
On = Docking station is on
Off = Docking station is off
④Ethernet Port
Connect to an Ethernet network to enable remote device control and monitoring using Wireless Workbench or other control
software.
⑤Power Input
Connect to power supply.
⑥Battery Status LEDs
Each slot has 5 LEDs that illuminate to show the battery's charge level:
LED % Battery Charge
1Flashing: <10%

Shure Incorporated

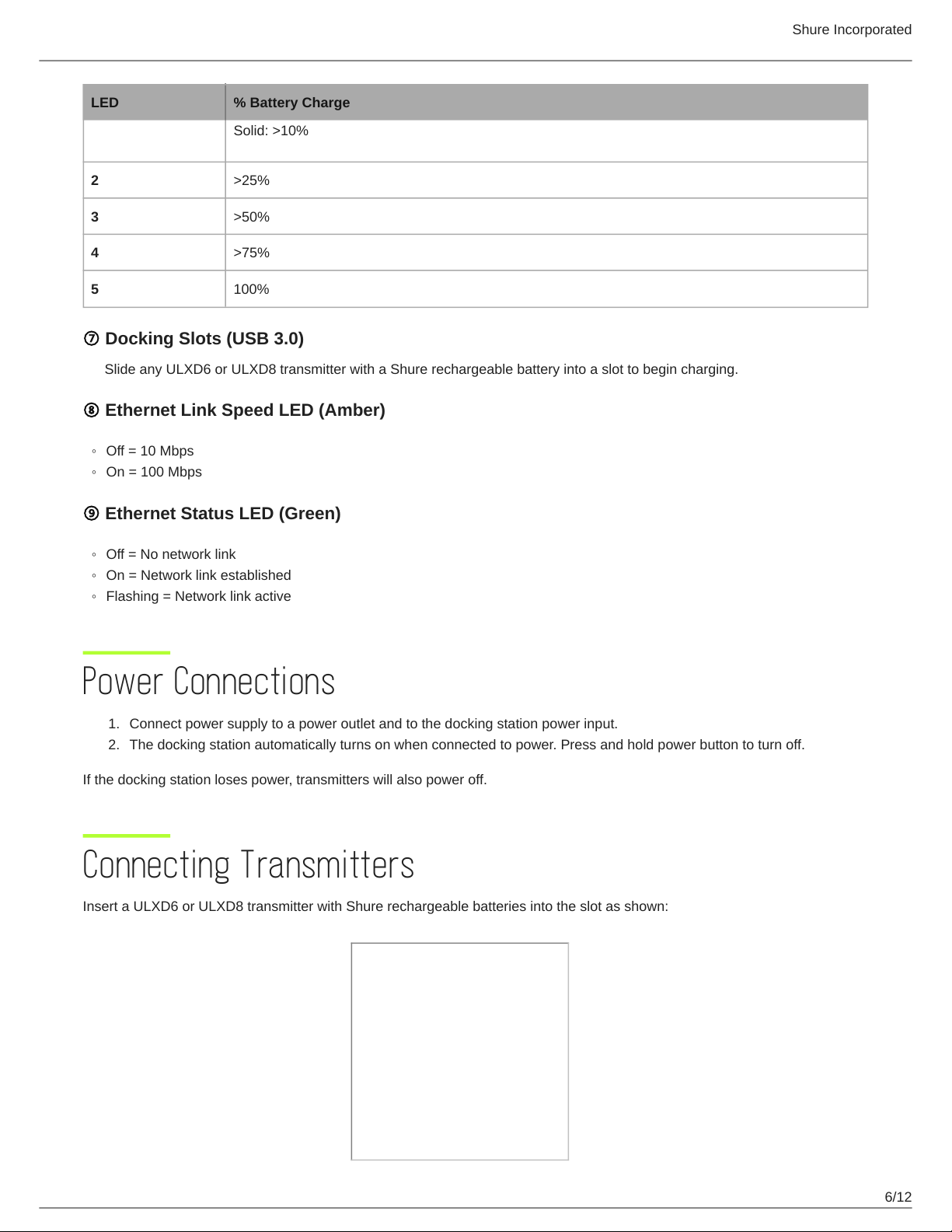

6/12
◦
◦
◦
◦
◦
1.
2.
LED % Battery Charge
Solid: >10%
2>25%
3>50%
4>75%
5100%
⑦Docking Slots (USB 3.0)
Slide any ULXD6 or ULXD8 transmitter with a Shure rechargeable battery into a slot to begin charging.
⑧Ethernet Link Speed LED (Amber)
Off = 10 Mbps
On = 100 Mbps
⑨Ethernet Status LED (Green)
Off = No network link
On = Network link established
Flashing = Network link active
Power Connections
Connect power supply to a power outlet and to the docking station power input.
The docking station automatically turns on when connected to power. Press and hold power button to turn off.
If the docking station loses power, transmitters will also power off.
Connecting Transmitters
Insert a ULXD6 or ULXD8 transmitter with Shure rechargeable batteries into the slot as shown:

Shure Incorporated
7/12
•
•
•
1.
2.
3.
4.
5.
•
•
The docking station provides power to charge transmitter batteries:
15 minutes = 1 hour of use
1 hour = 50% charged
3 hours = 100% charged
Note: If the docking station loses power, transmitters will also power off. Batteries will resume charging when power is restored.
Connecting Shure Devices to Wireless Workbench
Wireless Workbench lets you control and monitor devices over the network. To get started, visit http://www.shure.com/wwb and
download Wireless Workbench software. Wireless Workbench communicates with connected devices over a standard Ethernet
network.
Required equipment: Shure device, computer with Wireless Workbench installed, Cat 5 (or better) Ethernet cable, and router
or network switch
ConnectthedevicetoyourcomputerwithashieldedCat5(orbetter)Ethernetcabletoensurereliablenetworkperfor
mance. If you have multiple devices to manage, connect each device to a router or network switch. The Ethernet port
LEDs on your device will illuminate to indicate network connectivity. Verify that Shure devices can see each other by
looking for the network connectivity icon on the front panel (location varies).
For most applications, use the Automatic mode (default) to let your switch or router assign an IP address using DHCP
addressing. If no DHCP server is present, your devices will fall back to a link-local address in the 169.254.xxx.xxx
range. If you need to assign specific IP addresses, set the IP mode to Manual in the Network menu.
Open Wireless Workbench software.
Select a Network Interface in the pop-up window. Choose the network that most closely matches the Ethernet port
where your devices are connected.
Your device will appear in the Inventory tab when the connection is successful.
Configuration Tips
Check your firewall settings to make sure Wireless Workbench has access to your network
Use multiple Ethernet switches to extend the network for larger installations
For more help, visit the Help menu in Wireless Workbench or http://www.shure.com/wwb.

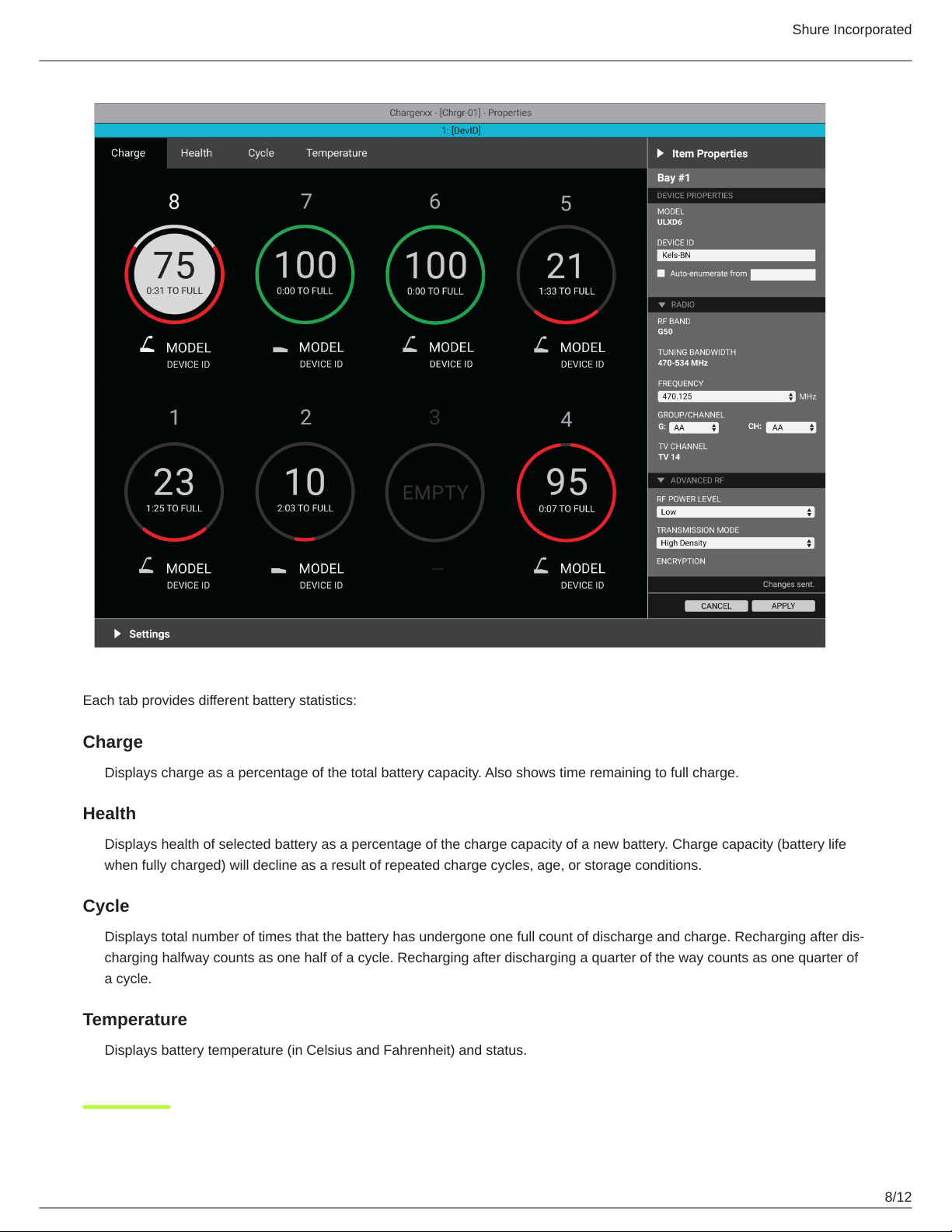

Monitoring Batteries with Wireless Workbench
Wireless Workbench provides detailed battery information for each transmitter.
Click the Inventory tab to view the networked docking station in Wireless Workbench.

Shure Incorporated
8/12
Each tab provides different battery statistics:
Charge
Displays charge as a percentage of the total battery capacity. Also shows time remaining to full charge.
Health
Displays health of selected battery as a percentage of the charge capacity of a new battery. Charge capacity (battery life
when fully charged) will decline as a result of repeated charge cycles, age, or storage conditions.
Cycle
Displaystotalnumberoftimesthatthebatteryhasundergoneonefullcountofdischargeandcharge.Rechargingafterdis
charging halfway counts as one half of a cycle. Recharging after discharging a quarter of the way counts as one quarter of
a cycle.
Temperature
Displays battery temperature (in Celsius and Fahrenheit) and status.

Shure Incorporated
9/12
•
•
•
•
•
•
•
•
•
•
•
1.
2.
3.
4.
•
•
Controlling Transmitters with Networked Docking Stations
Quickly review and control many transmitter settings using Wireless Workbench or other external control systems.
You can adjust the following settings:
Mute button and mute LED behavior or brightness
High-pass filter
RF power
Power lock
Initial state from charger
Battery type
Device name
Channel name
Frequency (WWB only)
Normal or High-Density Mode
Boundary and gooseneck offset
Place transmitters on the docking station. Check that the docking station is connected to the network and to Wireless
Workbench.
Find the docking station in the inventory and right-click to select Properties.
Select one or multiple transmitters.
Make changes to transmitter settings and select Apply. Transmitters are now ready to use.
Connecting to an External Control System
SBC450andSBC850networkeddockingstationsconnecttoexternalcontrolsystemssuchasAMXorCrestronviatheEther
net. Use only one controller per system to avoid messaging conflicts. For a comprehensive list of command strings, visit the
ULX-D product page at https://www.shure.com.
Connection: Ethernet (TCP/IP; SBC450 or SBC850 is the client)
Port: 2202

Shure Incorporated
10/12
1.
2.
3.
Firmware Updates
Firmwareisembeddedsoftwareineachcomponentthatcontrolsfunctionality.Periodically,newversionsoffirmwarearedevel
opedtoincorporateadditionalfeaturesandenhancements.Totakeadvantageofdesignimprovements,downloadnewver
sions of the firmware using the Shure Update Utility tool.
Download Shure Update Utility at http://www.shure.com/suu.
Updating Transmitter Firmware with Docking Station
Place transmitters on the docking station and check that docking station is connected to the network.
Launch Shure Update Utility to find firmware updates.
Download updates and click Send Updates.
Model Variations
All include power supply unless otherwise noted.
Region Model
United States SBC450-US or SBC850-US
Argentina SBC450-AR or SBC850-AR
Brazil SBC450-BR or SBC850-BR
Europe SBC450-E or SBC850-E
United Kingdom SBC450-UK or SBC850-UK
Japan SBC450-J or SBC850-J
China SBC450-CN or SBC850-CN
Korea SBC450-K or SBC850-K
Taiwan SBC450-TW or SBC850-TW
Australia SBC450-AZ or SBC850-AZ
India SBC450-IN or SBC850-IN
Global SBC450 (no power supply)
Global SBC850 (no power supply)

Shure Incorporated
11/12

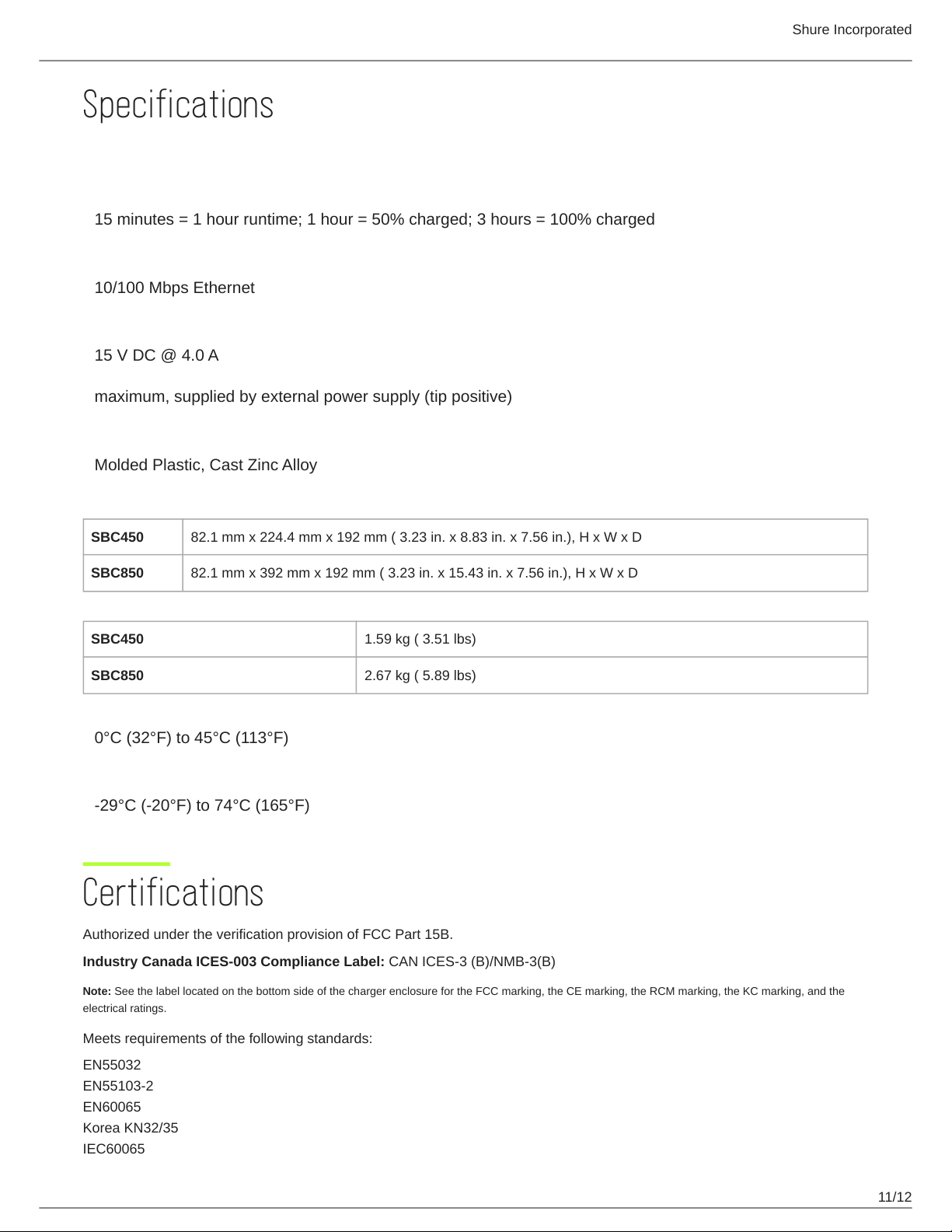

Specifications
SBC450/SBC850
ULXD6 and ULXD8 Charge Time
15minutes=1hourruntime;1hour=50%charged;3hours=100%charged
Network Interface
10/100 Mbps Ethernet
Power Requirement
15VDC@4.0A
maximum, supplied by external power supply (tip positive)
Housing
Molded Plastic, Cast Zinc Alloy
Dimensions
SBC450 82.1mmx224.4mmx192mm(3.23in.x8.83in.x7.56in.),HxWxD
SBC850 82.1mmx392mmx192mm(3.23in.x15.43in.x7.56in.),HxWxD
Weight
SBC450 1.59kg(3.51lbs)
SBC850 2.67kg(5.89lbs)
Operating Temperature Range
0°C (32°F) to 45°C (113°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Certifications
Authorized under the verification provision of FCC Part 15B.
Industry Canada ICES-003 Compliance Label: CAN ICES-3 (B)/NMB-3(B)
Note: See the label located on the bottom side of the charger enclosure for the FCC marking, the CE marking, the RCM marking, the KC marking, and the
electrical ratings.
Meets requirements of the following standards:
EN55032
EN55103-2
EN60065
Korea KN32/35
IEC60065

Shure Incorporated
12/12
1.
2.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Information to the user
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
theFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstalla
tion. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for
possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to
operatetheequipment.LicensingofShurewirelessmicrophoneequipmentistheuser’sresponsibility,andlicensabilityde
pendsontheuser’sclassificationandapplication,andontheselectedfrequency.Shurestronglyurgestheusertocontactthe
appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
WARNING: Danger of explosion if incorrect battery replaced. Operate only with AA batteries.
WARNING
Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat
above 140°F (60°C), or incinerate.
Follow instructions from manufacturer
Only use Shure charger to recharge Shure rechargeable batteries
WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
Never put batteries in mouth. If swallowed, contact your physician or local poison control center
Do not short circuit; may cause burns or catch fire
Do not charge or use battery packs other than Shure rechargeable batteries
Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
Do not immerse the battery in liquid such as water, beverages, or other fluids.
Do not attach or insert battery with polarity reversed.
Keep away from small children.
Do not use abnormal batteries.
Pack the battery securely for transport.
Please follow your regional recycling scheme for batteries, packaging, and electronic waste.
