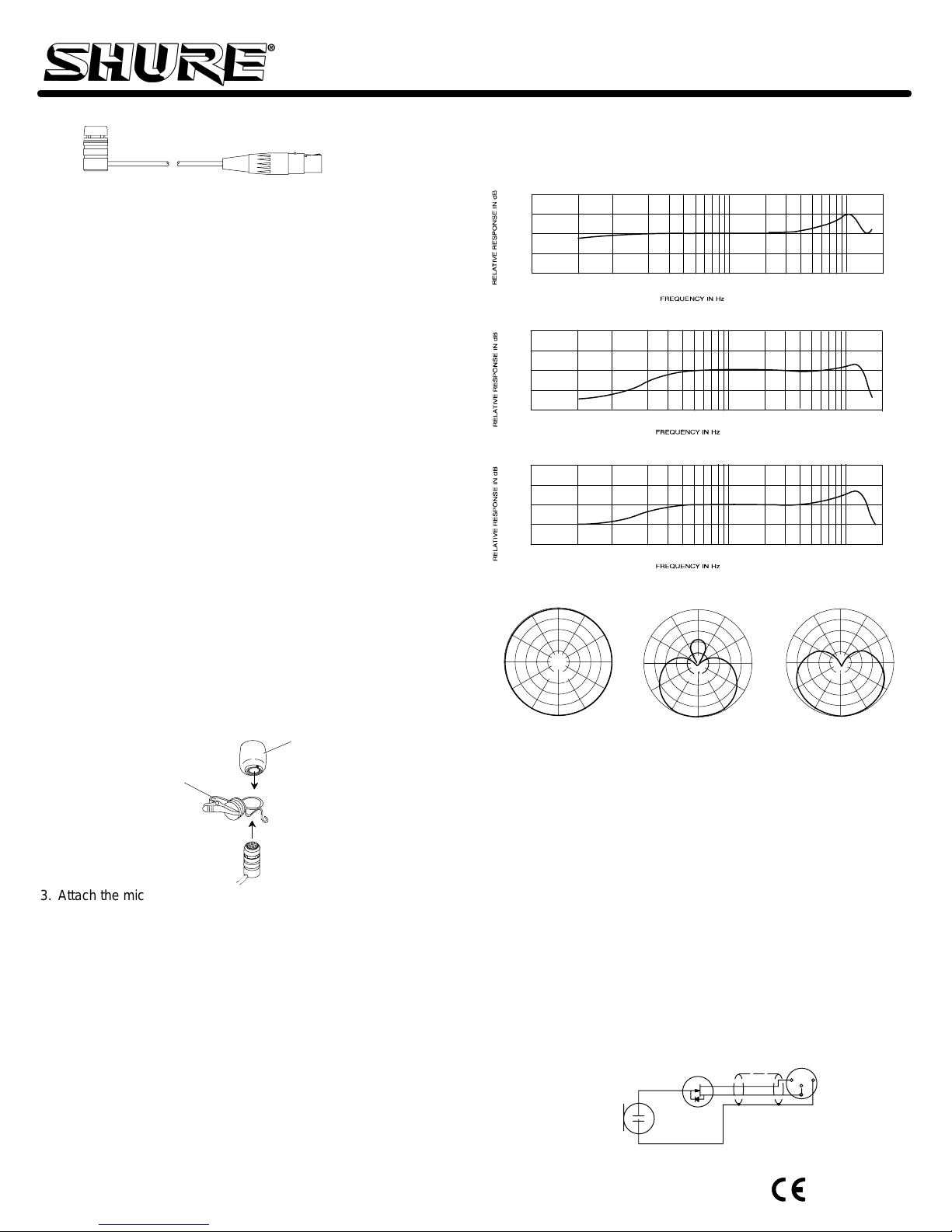

Shure WL183 User manual

Wireless Lavalier Microphone User Guide
WL183, WL184, AND WL185 LAVALIER MICROPHONES
GENERAL
Models WL183, WL184 and WL185 are lavalier electret condenser
microphones designed for use with a wireless bodypack transmitter. Each
microphone has a 1.2 meter (4 ft.) cable terminated with a miniature
Switchcraft TA4F connector. The furnished tie clip can be rotated in 90°
intervals for placement flexibility.
APPLICATIONS
WL183 (Omnidirectional): Recommended for general purpose
sound reinforcement, recording, or remote monitoring applications.
Low handling noise. Pickup angle is 360°.
WL184 (Supercardioid): Recommended for sound reinforcement ap-
plications requiring high rejection of ambient noise and narrow pickup
angle. Use of windscreen highly recommended. Pickup angle is 115°.
WL185 (Cardioid): Recommended for general purpose sound rein-
forcement applications requiring good rejection of ambient noise. Use
of windscreen highly recommended. Pickup angle is 130°.
INSTALLATION
1. Insert the top of the microphone through tie clip loop from below until
tie clip loop snaps into place over the lower groove on the micro-
phone. Refer to the following illustration.
2. To install the snap–fit windscreen, press it down on the microphone
until it clicks into place inside the upper groove on the microphone.
The snap–fit windscreen provides 30 dB of pop protection.
NOTE: The snap–fit windscreen can be removed by spreading the
slot in the plastic snap–fit ring. OR
To install the smaller foam windscreen, slip the windscreen over the
top of the microphone so that it covers the side slots.The foam wind-
screen provides 5 to 10 dB of pop protection.
TIE CLIP
WINDSCREEN
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
3. Attach the microphone approximately 76 mm to 152 mm (3 to 6 in.)
below the neckline.
NOTE: Do not cover the microphone with your hand or clothing.
CHANGING CARTRIDGES
The WL183, WL184, and WL185 microphones use interchangeable
cartridges.To remove the cartridge, unscrew the tip of the microphone
and remove it. Install the replacement cartridge by screwing it onto the
microphone base.
REPLACEMENT PARTS AND ACCESSORIES
Omnidirectional Cartridge R183B. . . . . . . . . . . . . . . . . . . . . . . . . .
Supercardioid Cartridge R184B. . . . . . . . . . . . . . . . . . . . . . . . . . .
Cardioid Cartridge R185B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Snap–fit Windscreens (4) RK183BWS. . . . . . . . . . . . . . . . . . . . .
Foam Windscreen (4) RK261WS. . . . . . . . . . . . . . . . . . . . . . . . . .
Tie clips (2) RK183T1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Miniature 4-pin connector WA330. . . . . . . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS
Type: Condenser (electret bias)
Frequency Response: 50 to 17,000 Hz
500 1,000 2,000 5,000 10,00050 100 20020
0
+10
–10 20,000
500 1,000 2,000 5,000 10,000 20,000 50 100 20020
0
+10
–10
500 1,000 2,000 5,000 10,000 20,000 50 100 20020
0
+10
–10
WL183 FREQUENCY RESPONSE
WL184 FREQUENCY RESPONSE
WL185 FREQUENCY RESPONSE
Polar Patterns (at 1 kHz):
–10 dB
–15 dB
–5 dB
–20 dB
–10 dB
–15 dB
–5 dB
–20 dB
–10 dB
–15 dB
–5 dB
–20 dB
CARDIOID
(WL185)
OMNIDIRECTIONAL
(WL183)
150o
120o
150o
120o
180o
30o
60o
90o
30o
60o
0
90o
150o
120o
150o
120o
180o
30o
60o
90o
30o
60o
0
90o
SUPERCARDIOID
(WL184)
150o
120o
150o
120o
180o
30o
60o
90o
30o
60o
0
90o
Output Impedance : 1800 Ω
Sensitivity (1 Pa = 94 dB SPL): WL183: –40.0 dBV/Pa
WL184: –44.5 dBV/Pa
WL185: –45.5 dBV/Pa
Maximum Sound Pressure Level: WL183: 125.0 dB SPL
WL184: 129.5 dB SPL
WL185: 130.5 dB SPL
Output Noise (A–weighted): WL183: 22.5 dB SPL
WL184: 27.0 dB SPL
WL185: 28.0 dB SPL
Dynamic Range: 102.5 dB
Polarity: Positive pressure on diaphragm produces positive voltage on
pins 3 and 4 relative to pin 1.
Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc)
provided at microphone connector pin 2 relative to pin 1 of a Shure
wireless microphone transmitter.
NOTE: For additional technical assistance, phone Shure at (847)
866-2200. In Europe, phone [phone].
1
3
2
CONDENSER
CARTRIDGE
IMPEDANCE CONVERTER
G
SHIELD
BLK
RED
S
D+ 4
MICROPHONE WIRING DIAGRAM
1 GROUND
2 BIAS
3,4 AUDIO
27B2833(AA)
2001, Shure Incorporated Printed in U.S.A

Wireless Lavalier Microphone User Guide
Ñ
Ñ
Ñ
Ñ
ÑÑ
ÑÑ
Ñ
Ñ
Ñ
ÑÑ
Ñ
Ñ
Ñ
Ñ
ÑÑ
Ñ
Ñ
Ñ
ÑÑ
ÑÑ
ÑÑ
Ñ
ÑÑ
Ñ
Ñ
Ñ
Ñ
Ñ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
ÑÑ
Ñ
Ñ
Ñ
Ñ
ÑÑ
Ñ
Ñ
Ñ
ÑÑ
ÑÑ
ÑÑ
ÑÑÑ
ÑÑ
ÑÑ
Ñ
Ñ
Ñ
ÑÑÑÑ
ÑÑÑÑ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
ÑÑ
Ñ
Ñ
Ñ
Ñ
ÑÑ
WL93, WL93T, WL93–6, WL93–6T LAVALIER MICROPHONES
GENERAL
Model WL93 Microphones are omnidirectional, subminiature, lavalier
electret condenser microphones designed for use in TV broadcasting,
theater, and sound reinforcement applications where a visually unob-
trusive microphone is desirable.
All WL93 models are supplied with a mounting block with attached tie
bar, a sew-on mounting bracket, and an acoustic windscreen to mini-
mize wind noise in outdoor applications. All WL93 models include a 1.2
m (4 ft.) cable terminated with a miniature 4-pin connector (Switchcraft
TA4F type) which connects directly to a Shure wireless body-pack
transmitter.
VARIATIONS
WL93: Black finish; includes 1.2 m (4 ft. cable)
WL93T: Tan finish; includes 1.2 m (4 ft. cable)
WL93–6: Black finish; includes 1.9 m (6 ft. cable)
WL93–6T: Tan finish; includes 1.9 m (6 ft. cable)
INSTALLATION
1. To mount a WL93 to the tie clip, snap the microphone into the
mounting bracket and attach the clip to an article of clothing.
2. To install the foam windscreen, slip the it over the top of the micro-
phone. The foam windscreen provides 5 to 10 dB of pop protection.
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
ÑÑ
Ñ
Ñ
Ñ
Ñ
ÑÑ
ÑÑ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
Ñ
ÑÑ
Ñ
WL93 MOUNTING
TIE CLIP
FOAM WINDSCREEN
REPLACEMENT PARTS AND ACCESSORIES
Windscreen, Charcoal Gray RK355WS. . . . . . . . . . . . . . . . . . . . . . . . .
Tie Clip, Black (2 each) RK354SB. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tan Windscreen RK304T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Double Tie Clip RK307DB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tan Tie Clip Assembly 90B4327. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Black Sew-on Mounting Bracket 65B1733. . . . . . . . . . . . . . . . . . . . . .
Tan Sew-on Mounting Bracket 65B1733A. . . . . . . . . . . . . . . . . . . . . .
Zippered Carrying Bag 26A13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS
Type: Condenser (electret bias)
Frequency Response: 50 to 20,000 Hz
500 1,000 2,000 5,000 10,000 20,00050 100 20020
0
+10
–10
WL93 FREQUENCY RESPONSE
FREQUENCY IN Hz
RELATIVE RESPONSE IN dB
Polar Pattern: Omnidirectional, uniform with frequency
Output Impedance: 3000 Ω
Sensitivity (1 Pa = 94 dB SPL): –38 dBV/Pa
Maximum Sound Pressure Level: 120 dB SPL
Dynamic Range: 102 dB
Output Noise (A–weighted): 18 dB SPL
Polarity: Positive pressure on microphone diaphragm produces posi-
tive voltage on pin 3 with respect to pin 1 (ground)
Power Requirements: Regulated nominal +5 Vdc (2 Vdc to 10 Vdc)
source provided at microphone connector pin 2 relative to pin 1 of a
Shure wireless body-pack transmitter.
NOTE: For additional technical assistance, phone Shure at
1-800-516-2525. In Europe, phone [phone].
MICROPHONE WIRING DIAGRAM
1
3
2
CONDENSER
CARTRIDGE
IMPEDANCE
CONVERTER
G
SHIELD
BLK
RED
S
D+ 4
27B2833(AA)
2001, Shure Incorporated Printed in U.S.A
