Shure Hi-TRACK M91 Series User manual

222 HARTREY AVE.. EVANSTON. IL. 60204 U.S.A.
--
AREA CODE 312j328.9000 CABLE: SWUREMICRO
MODEL M91G

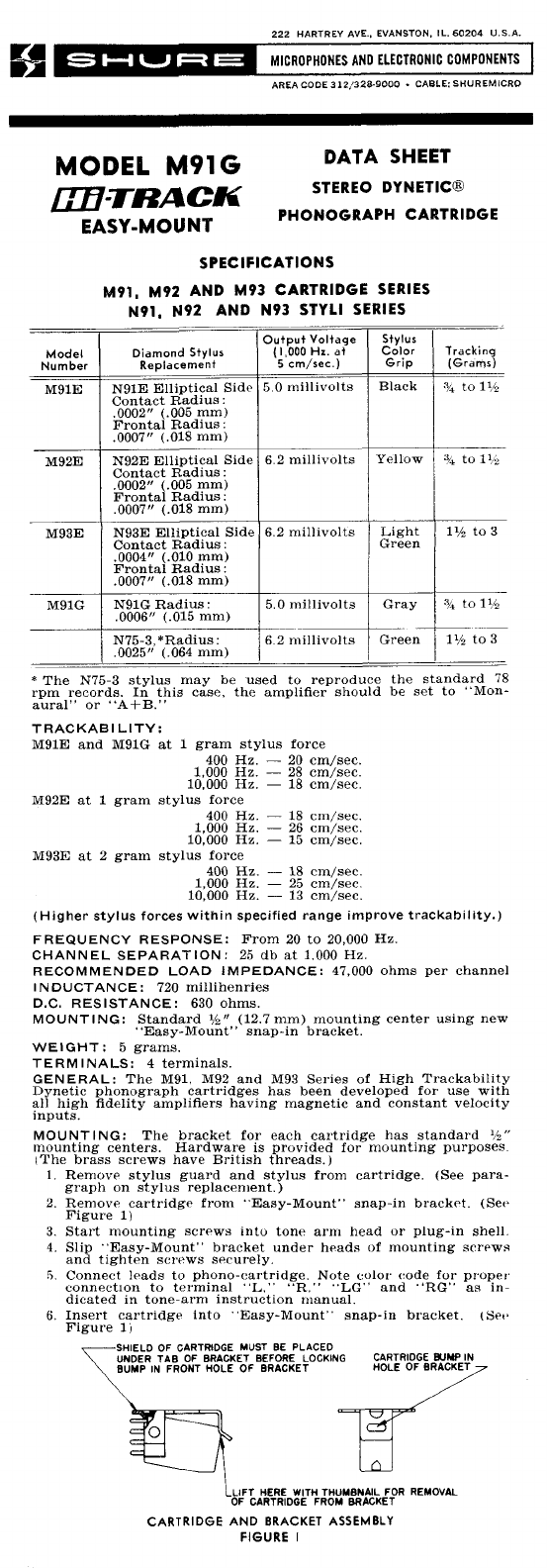

DATA SHEET
m-TRACK
STEREO DYNETIC@
EASY-MOUNT
PHONOGRAPH CARTRIDGE
SPECIFICATIONS
M91, M92 AND M93 CARTRIDGE SERIES
N91, N92 AND N93 STYLI SERIES
TRACKABILITY:
M91E and M91G at 1 gram stvlus force
-
400 Hz. - 20 crn/sec.
1,000 Hz. - 28 cm/sec.
10,000 Hz. - 18 cm/sec.
M92E at 1 gram stylus force
400 Hz.
- 18 cm/sec.
1,000 Hz.
- 26 cm/sec.
10,000 Hz. - 15 cm/sec.
M93E at 2 gram stylus force
* The N75-3 stylus may be used to reproduce the standard 78
rpm records. In this case, the amplifier should be set to "Mon-
aural" or
"A+ B."
Stylus
Color
Grip
-
Black
Yellow
Light
Green
Gray
Green
---
Output Voltage
(1,000
Hz. at
5 cm/sec.)
5 0 millivolts
6.2millivolts
6.2 millivolts
5.0 millivolts
-- -
6.2 millivolts
Model
Number
M91E
M92E
M93E
M91G
400 Hz.
- 18 cm/sec.
1,000 Hz.
- 25 cm/sec.
10,000 Hz.
- 13 cm/sec.
..
Tracking
(Grams)
.?/, to 1?h
"k to l?,2
I
1% to 3
z? to 1?h
- ~. -
1% to 3
Diamond Stylus
Replacement
N91E Elliptical Sidc
Contact Rad~us :
,0002~(.005 mm)
Frontal Radlus :
.0007" (.018 mm)
N92E Elliptical Side
Contact Radius
:
.0002" (.005 mm)
Frontal Radlus :
.0007" (.018 mm)
N93E Elliptical Side
Contact Radius
:
.00041f (.010 mm)
Frontal Radius :
.0007" (.018 mm)
N91G Radius :
.0006" (.015 mm)
N75-3, *Radius :
.0025" (.064 mm)
(Higher stylus foroes within specified range improve trackahility.)
FREQUENCY RESPONSE: From 20 to 20,000
Hz.
CHANNEL SEPARATION: 25 db at 1,000 Hz.
RECOMMENDED LOAD IMPEDANCE: 47,000 ohms per channel
INDUCTANCE: 720 millihenries
D.C. RESISTANCE: 630 ohms.
MOUNTING: Standard
f/z" (12.7mm) mounting center using new
"Easy-Mount" snap-in bracket.
WEIGHT: 5 grams.
TERMINALS: 4 terminals.
GENERAL: The M91, M92 and M93 Series of High Trackability
Dynetic phonograph cartridges has been developed for use with
all high fidelity amplifiers having magnetic and constant velocity
inputs.
MOUNTING: The bracket for each cartridge has standard
'/z"
mounting centers. Hardware is provided for mounting purposes
(The brass screws have British threads.)
1. Remove stylus guard and stylus from cartridge. (See para-
graph on stylus replacenlent.)
2. Remove cartridge from "Easy-Mount" snap-in bracket. (See
Figure
1)
3. Start mounting screws into tone arrn head or plug-in shell.
4. Slip "Easy-Mount" bracket under heads
of mounting screws
and tighten screws securely.
5. Connect leads to phono-cartridge. Note color code for proper.
connection to terminal "L." "R." "LG" and "RG" as In-
dicated in tone-arm instruction rnanual.
6. Insert cartridge into "Easy-Mount" snap-in bracket. (Set.
Figure 11
SHIELD OF CARTRIDGE MUST BE PLACED
UNDER TAB OF BRACKET BEFORE LOCKING CARTRIDGE BUhW IN
BUMP IN FRONT HOLE OF BRACKET
MOLE OF 0°F
LLIFT HERE WITH THUMBNAIL FOR REMOVAL
OF CARTRIDGE FROM BRACKET
CARTRIDGE AND BRACKET ASSEMBLY
FIGURE
I

Model 92E
Users Guide
Specications
Stylus Stylus Grip Color Output (1 kHz at 5 cm peak recorded velocity) † Frequency Response Channel Bal- ance Channel Separation Tracking Force*
M92E
Biradial (elliptical),
.4 x .7 mil
Red 5.0 mV 20 to
18,000 Hz
Within
2 dB
20 dB
at 1
kHz
0.75 to 1.5
grams
(1.25 grams
optimum)
N78S
78 rpm , spherical, Green 4.0 mV 20 to 17,000 Hz Mono Mono 1.5 to 3 grams
†Output voltages given for stereo cut record; for MONO cut record, output voltage
at both left channel and right channel cartridge terminals will be 71% of gure above.
*Do not exceed maximum indicated tracking force.
Optimum Load: 47,000 ohms resistance in parallel with 200 to 300 picofarads capacitance
per channel. Load resistance can be up to 70,000 ohms with almost no audible change in
frequency response. Total capacitance includes both tone arm wiring and amplier input
circuit.
Certication: Conforms to European Union directives, eligible to bear CE marking; meets
European Union EMC Immunity Requirements: EN 50 082-1, 1992.
Net Weight: 7.3 grams including standard 1/2 in. mounting adapter. Without adapter,
cartridge is compatible with pre-set P-Mount arm.
THIS CARTRIDGE FEATURES THE SHURE BIRADIAL NUDE DIAMOND TIP
Its contact area is longer and narrower
than the traditional spherical tip-groove
contact area. This results in dramatic
reduction of both harmonic distortion
and inter modulation distortion.
To clean the stylus, use a soft brush
with alcohol or an alcohol-distilled
water solution. Brush only from back to
front as shown. Commercial cleaning
solutions may cause stylus damage.
©2005, Shure Incorporated
27B2172 (Rev. 2) Printed in U.S. A.
Stylus Cleaning
A
VIEW IN DIRECTION A
27B2172_M92E.indd 1 8/22/2006 3:34:37 PM

Mounting
Tracking Force in a P-Mount Arm
After installing the cartridge, it is not usually necessary to adjust the tracking force in a
pre-set arm.
Skating Compensation (where applicable)
Set the skating compensation mechanism according to the tone arm manufacturer’s
instructions.
To Preserve Stylus Life
Protect stylus with stylus guard when dusting turntable
Regulate tone arm set-down to prevent stylus from striking edge of turntable or record.
Do not handle tone arm while record is being played. Use cuing device if available.
If manual set-down is necessary, release arm as soon as stylus engages groove
Do not activate arm without record on turntable.
Do not use damaged records.
Make certain cartridge is correctly mounted in tone arm and stylus is properly inserted in
cartridge.
Use appropriate vertical tracking force for each cartridge and stylus.

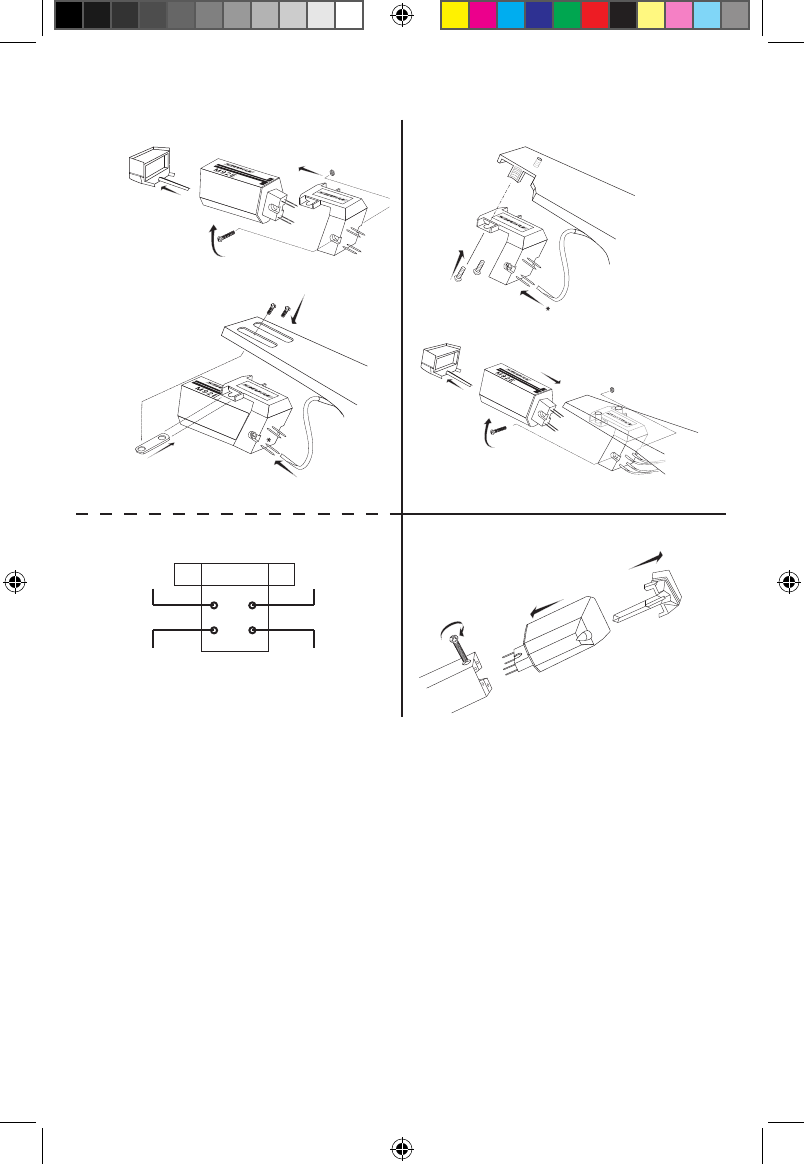

1.
2.
3.
4.
5.
6.
7.
8.
red
rouge
rot
rojo
white
blanc
blanco
weiss
green
vert
grün
verde
blue
bleu
blau
azul
RL
RG LG
A B
C
*














27B2172_M92E.indd 2 8/22/2006 3:34:38 PM

Special Note
To maintain the original performance standards of your cartridge, be certain that any
replacement stylus you buy bears the following certication on the package: “This Stereo
DYNETIC® stylus is precision manufactured by Shure Incorporated.” AVOID INFERIOR
IMITATIONS. THEY WILL SERIOUSLY DEGRADE THE PERFORMANCE OF YOUR
CARTRIDGE. ALL GENUINE “DYNETIC®” STYLI ARE MANUFACTURED BY SHURE
INCORPORATED. LOOK FOR THE NAME SHURE ON THE STYLUS GRIP.
Certication: Eligible to bear CE marking. Conforms to European EMC Directive 89/336/
EEC. Meets applicable tests and performance criteria in European Standard EN 55103
(1996) Parts 1 and 2, for residential (E1) and light industrial (E2) environments.
Warranty
Shure warrants this product to be free in normal use of any defects in workmanship and
materials for two (2) years from the date of purchase. If your Shure product fails within
this period, call 1-800-516-2525 in the United States for details on repair, replacement, or
refund. In Europe, contact Shure Incorporated Europe GMBH at [phone] or +49
(7131) 7214-30 (service hotline) or contact your authorized Shure distributor. This warranty
does not cover abuse or misuse of the product, use contrary to Shure’s instruction, ordinary
wear and tear, an act of God or unauthorized repair.
Patent Notice
Manufactured under one or more of the following U.S. Patents: 3,463,889; 4,194,744;
4,270,758; 4,275,888; D230,741; D230,995; D235,070; D235,351; D235,352; D235,658;
D235,661; D245,022; D245,433; D252,;628; D254,004; D257,676; D255,898; D258,586;
D274,810; D274,811; D274,812; D274,813; 4,441,177; 4,473,897; 4,514,836.
FORCE D’APPUI: Avec un bras recevant directement le brochage “P-Mount” , après le montage
de la cellule, ii n’est pas nécessaire de réajuster la force d’appui d’un bras pré-réglé.
COMPENSATION DE POUSSÉE LATÉRALE: (lorsqu’elle est appliquée) : Suivez les instructions
du fabricant du bras de lecture.
CERTIFICATION: conforme aux directives de l’Union Européenne, qualiée pour les marques
CE; conforme aux exigences CEM de l’Union Européenne EN 50 082-1, 1992.
NETTOYAGE DE LA POINTE DE LECTURE: Utiliser une brosse douce, humectée d’alcool pur
ou dilue. Les liquides de nettoyage vendus dans le commerce peuvent endommager ou corroder
la pointe. II faut toujours brosser de I’arrière vers I’avant, jamais de I’avant vers I’arrière ou d’un
côté à I’autre.
REMARQUE: Assurez-vous que tout diamant de remplacement que vous achetez porte la
garantie suivante sur son emballage: “This Stereo Dynetic Stylus is precision manufactured
by Shure Brothers Inc.” ÉVITEZ LES IMITATIONS DE QUALITÉ INFÉRIEURE ELLES
DETRUIRONT LE RENDEMENT DE VOTRE CELLULE. CHERCHEZ LE NOM DE SHURE SUR
LE SUPPORT DE POINTE EN PLASTIQUE.
Garantie totale de deux ans:
Shure garantit que, pour un usage normal, ce produit sera exempt de tout défaut de fabrication
et de matériaux pour une période de deux (2) ans à compter de la date d’achat. Si ce produit
Shure tombe en panne pendant cette période, appeler le 1-800-516-2525 aux États-Unis pour
obtenir des renseignements sur les réparations, les remplacements ou les remboursements. En
Europe, appeler Shure Incorporated Europe GMBH au [phone] ou [phone]
(téléphone rouge du service d’entretien) ou contacter le centre de réparations Shure agréé. Cette
garantie n’est pas applicable en cas d’utilisation abusive ou incorrecte du produit, d’utilisation
contraire aux instructions de Shure, d’usure normale, de catastrophe naturelle ou de réparation
non autorisée.
AUFLAGEKRAFT: In einem vorjustierten P-Mount Arm, nach einbau des Tonabnehmers in einem
P-mount Arm ist eine nachträgliche Korrektur der Auagekraft normalerweise nicht erforderlich.
SKATING KOMPENSATION (falls erforderlich): Die Einstellung der Antiskatingkraft erfolgt nach
den Empfehlungen des Tonarm-Herstellers.
27B2172_M92E.indd 3 8/22/2006 3:34:38 PM

ZERTIFIKATION: Entspricht den Vorschriften der Europäischen Gemeinschaft; darf
das CE Zeichen tragen und entspricht den EMC Störsicherheits bestimmungen der
EG: EN 50 082-1, 1992.
REINIGEN DES ABTASTSTIFTES: Benutzen Sie bitte eine weiche Bürste, die vorher in Alkohol
oder Spiritus getaucht wurde. Handelsübliche Reinigungsmittel können Korrosion verursachen
oder sogar zur Zerstörung des Abtaststifteinschubs führen. Von hinten nach vorn bürsten, niemals
umgekehrt oder mit seitlicher Bewegung.
BESONDERER HINWEIS: Um die gewohnt gute Wiedergabe ihres Systems nicht zu vermindern,
sollten Sie bei der Nachbestückung des System-Einschubs unbedingt auf einen Original SHURE-
Abtaststift bestehen. Achten Sie auf die Aufschrift “This Stereo Dyneticg Stylus is precision
manufactured by Shure Brothers Inc.” auf der Verpackung. LEHNEN SIE MINDERWERTIGE
IMITATIONEN AB! ERHEBLICHE KLANGMINDERUNG! ODER BESCHÄDIGUNG DER
SCHALLPLATTEN KÖNNEN DIE FOLGE SEIN. ACHTEN SIE AUF DEN NAMEN SHURE AN
DEM KUNSTOFFTEIL DES SYSTEM-EINSCHUBS.
Unbeschränkte zweijährige Gewährleistung:
Shure garantiert, dass dieses Produkt bei normalem Gebrauch für einen Zeitraum von zwei (2)
Jahren ab dem Kaufdatum keine Material- oder Verarbeitungsfehler aufweist. Falls Ihr Shure
Produkt innerhalb dieses Zeitraums ausfällt, ist die Kundendienstabteilung in den USA unter
der Nummer 1-800-516-2525 zu verständigen, um Informationen über Reparatur, Umtausch
oder Rü#kerstattung zu erhalten. Kunden in Europa wenden sich bitte an Shure Incorporated
Europe GmbH unter der Nummer [phone] bzw. [phone] (Service-Hotline)
oder an den zuständigen Shure-Vertragshändler. Diese Garantie gilt nicht bei unsachgemäßer
Verwendung oder Zweckentfremdung des Produkts, Einsatz entgegen der Anweisungen von
Shure, normalem Verschleiß, Schäden durch höhere Gewalt oder nicht berechtigter Reparatur.
FUERZA DE APOYO: En un brazo liste para montaje tipo “P”, después de instalar la cápsula no
es necesario ajustar la fuerza de apoyo en un brazo preajustado.
COMPENSACIÓN CONTRA PATINAJE (donde sea necesaria): Siga las instrucciones del
fabricante del brazo y utilice una fuerza “antiskating” correspondiente a la fuerza de arrastre
CERTIFICACIONES: Cumple con las directrices de la Unión Europea, calica para llevar las
marcas CE; cumple con las directrices de compatibilidad electromagnética de la Unión Europea
EN 50 082-1, 1992.
LIMPIEZA DE LA PUNTA DE LA AGUJA: Usar una brocha dulce, humedecido en alcohol etilico
o en una mezcla de alcohol y agua. Evitar el uso de liquidos que se venden en los comercios
para la limpieza de agujas y discos. Pueden dañar o corroer la aguja. Cepillar siempre de atrás
hacia adelante, nunca a la inversa o de costado a costado.
NOTA ESPECIAL: Para que la calidad original de la cápsula se conserve, asegurarse al
comprar una nueva aguja que ésta lleve la siguiente certicación en su estuche: “This Stereo
Dynetic®Stylus is precision manufactured by Shure Brothers Inc.” EVITE IMITACIONES,
PUEDEN REDUCIR SERIAMENTE LA CALIDAD DE LA CÁPSULA. TODAS LAS AGUJAS
“DYNETIC®” AUTÉNTICAS ESTÁN FABRICADAS POR SHURE INCORPORATED. BUSQUE
POR EL NOMBRE SHURE EN EL MANGO DE LA AGUJA.
Garantía completa de dos años: Shure garantiza que si este producto se usa de modo normal,
estará libre de defectos por un período de dos (2) años a partir de la fecha de compra. Si el
producto Shure muestra defectos durante este período, llame al 1-800-516-2525 (en los EE.UU.)
para obtener información acerca de la reparación o reemplazo del mismo, o de la devolución
de su dinero. En Europa, llame a Shure Incorporated Europe GMBH al teléfono +49 (7131)
7214-0 ó [phone] (línea de servicio) o comuníquese con el distribuidor autorizado de
productos Shure. Esta garantía no cubre el abuso o uso indebido del producto, uso contrario a
las instrucciones dadas por Shure, desgaste normal, actos de fuerza mayor o reparaciones por
entidades no autorizadas para ello.
SHURE Incorporated http://www.shure.com
United States, Canada, Latin America, Caribbean:
5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.
Phone: [phone] U.S. Fax: [phone] Int’l Fax: [phone]
Europe, Middle East, Africa:
Shure Europe GmbH, Phone: [phone] Fax: [phone]
Asia, Pacic:
Shure Asia Limited, Phone: [phone] Fax: [phone]
27B2172_M92E.indd 4 8/22/2006 3:34:38 PM

7. The top of the "Easy-Mount" bracket should be flush
against the top of the tone arm head for proper playing posi-
tion, unless other mounting instructions are supplied by the
record changer/tone arm manufacturer.
8. Reinsert stylus.
SHURE-SME MOUNTING INSTRUCTIONS: To mount the car-
tr~dgein the Shure-SME Precision Pickup Arm, Model 3009 and
3012, refer to the paragraphs on Cartridge Installation and Balanc-
ing in the instruction Manual supplied with the pickup arms.
OPERATION: Recommended needle forces for optimum results
are listed under "Specifications." Forces greater than the indi-
cated "nraxinrum" should not be used.
CONNECTIONS
4-LEAD STEREO CONNECTION: Connect "hot" lead of right
rhannel to terminal "R" and shield or ground lead of right chan-
nel to terminal
"RG." Connect "hot" lead of left channel to ter;;
111inal "L" and shield or ground lead of left channel to "LG.
To prevent "ground loops" and hum, no common connection
should be used at cartridge terminals.
MONAURAL CONNECTION: For single channel reproduction of
Monaural or Stereo recordings, connect "hot" lead to both "R"
and
"L" terminals and connect ground or shield lead to both
gr,ound terminals marked "RG" and "LG.
Suggestions for Cleaning Your Stylus
To clean the stylus, use a camel's-hair brush (No. 2 size or
sr~lallt.r) dipped lightly in alcohol. The alcohol will remove any
sludge dcxposits which may have coated the stylus tip. The brush
1)r~istlesshould be trimmed to a length no longer than 1/4 inch.
Always
brush the stylus with a forward movement from the rear
(tr~,~ninalend of the cartridge) to the front.
Never brush or wipe
tl~estylus from front to back or side to side.
CAUTION: Do not make solder
( onnectlons to cartr~dgete~ml-
nals Make all sc~lderconni.ctrons
to terminal jacks provided before
slin~inethem over the terminals.
TERMINAL DIAGRAM
FIGURE
2
STYLUS REPLACEMENT
FIGURE
3
EASY STYLUS REPLACEMENT
Grasp molded housing of stylus between thumb and forefinger.
Gently withdraw stylus by pulling forward out of cartridge. Grasp
1.epIacerrlent stylus bi.tween thurr~band forefinger and insert into
stylus sockrt. Press stylus into socket until the molded housing
of the stylus mates with the cartridge case. Care must be taken
not to allow the fingel. to slip off the molded housing of the
stylus, resulting in damage to the stylus tip or shank.
SPECIAL NOTE: The Dvni,tic stvlus assemblv used in these car-
GIGS Is the Gost cr~t~Ealcomgonent To mkntaln the orlgmal
pe~torrnancilstandards of your cartridge, be certaln that any re-
placrment stylus you buy hears the following certlficatlon on the
backace. "This Stereo ljvnetic stylus is recision manufactured
by SKure Brothers Inc." '
Avoid inferior inlitations. They will seriously degrade the per-
formance of your cartridge. All genuine "Dynetic" styli arc
manufactured by Shure Brothers Inc.
LABORATORY TEST FINDINGS: (Note: The following stylus
test findlugs of the Shure N3D stylus are an example of the close
scrutlny Shure pays to all Imitation Shure Dynetic Styli.) Shure
laboratorv tests show that the imitation stvlus assemblies labeled
as renlac6rnents for. the Shnre Morlel NRT)-S~~
9.0 grams to track a record v
grams w~tha high compliance stylus. The high compliance stylus
retracted at
4 crams needle force. allowine the cartridge case to
verv little Eonsistencv in verformance characteristics of the imita-
tiui Dvnetic Stvli
111 each of the categories shown above, the results ranged from
good tu poor. As a matter of fact, only 10% of the samples met the
Shure performance standards for the Shure N3D Stereo Dynetic
Stylus. In addition to our test findings, our Service Department
rrc )rds show that an lncreaslng number of Dvnetlc Phono Car-
tl.idges are being returned becazse of poor performance-and our
(.saniination has disclosed that most of these returned cartridges
are using inlitation Dynetic Styli.
CONCLUSION: Obviuusly, if any imitation Dynetic Stylus is used,
we ~anrrutguarantee that the performance of Shure Dynetic
(.al.t~.idgt.swill r116~c.tthrs published Shure specifications. Accept no
5llt~stitllte
GUARANTEE: This Shure product is guaranteed in normal use
to be free from electr.ica1 and mechanical defects for a period of
onc. year from the date of purchase. Please retain proof of
purchase date. This guarantee includes all parts and labor.
This guarantee does not include stylus wear.
SHIPPING INSTRUCTIONS: Carefully repack the unit and
return it to the factory. If outside the United States, return the
unit to your dealer or authorized Shure Service Center for repair.
The unit will be returned to you prepaid.
PATENT NOTICE: Cartridge and stylus manufactured under one
or more of the following U. S. Patents 3,055,988, 3,077,521, 3,077,522
and 3.463.889.
Copyright 1970, Shure Brothers Inc. Printed in U.S.A.
278820
(KI)
