SHURflo Lilie Classic Series User manual

LILIE GmbH & Co. KG Heinrich-Hertz Straße-30 D-74354 Besigheim Germany
Tel. [phone] Fax [phone] [e-mail] www.lilie.com Seite 1
Stand 16.01.2019 / # E-6103_A-en / 11 / 04.2019 © LILIE GmbH & Co. KG Subject technical changes

Successful use of water pressure diaphragm pumps
CLASSICSERIE™  SOFTSERIE®
GENERAL INFORMATION
Enjoy your LILIE water pump for years to come!
For us at LILIE, the most important thing is customer satisfaction.
With this product you have acquired a great pump that we have developed in over 30 years. It is made of special materials which comply
with the drinking water ordinance according to DIN 2001-2.
Please use your new pump only corresponding to this manual! If you do so, you will be able to reliably enjoy our products long-term, like
the other hundreds of thousands of satised customers.
Please note:
Caravaning pumps are developed for application in the dry interior of a motor home. They are not splash-proof or acid-resistant. The
pumps have no splashguard according to IP . Our Boat pumps are constructed for use in seawater environments. However, that does not
mean they can be used standing or submerged in water. No warranty shall be accepted for damage caused by inappropriate or improper
use or operation, or faulty installation. This includes continuous operation. These pumps are not suitable for continuous or permanent use
but have been specially developed for intermittent operation.
The power-on time and interval lengths of the pump in use depend according to the specications in our current catalogue. A caravanning-
pump, e.g., may run smoothly for up to 20 minutes, aer which a longer pause is necessary. (Generally, the fresh-water tank of your motor
home would already be empty.)
It is very important to tighten the screws, which may have become loose by cause of vibrations and movements, from time to time. Check
the screw ttings regularly; many problems can be solved or avoided this way.
INSTALLING THE PUMP
The aim of the installation is to achieve the most silent pump operation, with ecient conveying behavior, the lowest possible pressure load,
and easy access to maintenance work. By following the instructions below, these results can be achieved.
The pump should be installed on a stable surface with sucient accessibility, for easy access to the coarse lter during maintenance.
• Use suitable flexible pressure-resistant hoses in the input and output of the pump, e.g. our LILIE Native.
• No rigid, plastic or metal piping should be used for the pump input and output, as well as the coarse lter.
• Otherwise, the operating vibrations of the pump can be amplied, which can lead to loud operating noise as well as cavitation, leaks,
or even defects on other components.
• Use only original grommets (e.g. LILIE 12mm: #8042, #8044; 10mm: #8040, #8043) without further use of Teflon tape or another sea-
lant. The use of these means, as well as the use of other connections, can lead to leaks or damage to the pump. Such damage is not
covered by the warranty of the pump.
• On the input side, the pump should be protected by a suitable coarse lter (50-mesh, mesh size approximately 0.25mm, e.g., LILIE #
LS200162) to prevent particles from entering.
• Mount the pump on a stable surface to avoid vibration and noise.
• Hose lines should have an inner diameter of ideally at least 12 mm. We recommend our LILIE Native Drinking Water Hose #88112 or
#98112. Smaller pipe diameters can lead to cavitation, increased pressure resistance, reduced flow and an increase in operating
noise.
• Please avoid restrictions on the diameter of the plumbing at the inlet and outlet side of the pump as much as possible.
• This also applies to shut-o and drain valves, as well as angle connectors with smaller inner diameter.
• You don’t need a pressure compensation tank when using a pump of the SOFTSERIE®or SMARTSERIE™.
• This pump is designed for intermittent use only. Don’t use the pump for a reverse osmosis system. High pressure and non-stop opera-
tion shorten the life cycle of the pump. Such use is not covered by the warranty.
• The diameter of the cables should be 1.5mm² at minimum; we recommend 2.5mm² or 4.0mm². (See respective diagram in section
“Electrical Connection”)
• If your motor home has any control device (such as LILIE article #18501) installed, it has to be designed to meet the pump’s maximum
power consumption.
• In order to achieve best the possible performance and operational lifetime of the pump, mount it within a distance of maximum 2m
from the fresh water tank.
• In order to properly ventilate and protect against overheating, the pump should be mounted at a location with 20l (0.02 m3) or more of
free space.
• The pump can be mounted in a vertical or horizontal position. If mounted in a vertical position the pump-head must be pointed down-
wards.
• The installation site should be easily accessible to facilitate maintenance work such as emptying the coarse lter.
by

LILIE GmbH & Co. KG Heinrich-Hertz Straße-30 D-74354 Besigheim Germany
Tel. [phone] Fax [phone] [e-mail] www.lilie.com Seite 2
Stand 16.01.2019 / # E-6103_A-en / 11 / 04.2019 © LILIE GmbH & Co. KG Subject technical changes
ELECTRICAL CONNECTION
• Ideally, the pump should be connected to its own electric circuit, with a respective circuit breaker and a fuse which meets the require-
ments specied on the type label.
• A 15-Ampere-switch is recommended, for the (positive current-carrying) wire.
• Adequately sized cables are required for proper operation of the pump. Too small of cable size leads to low voltage and impairment of
the pump function.
• SWITCH OFF THE POWER OF THE PUMP WHEN YOU LEAVE THE MOTOR HOME OR WHEN IT IS UNSUPERVISED!
Data concerning wire cross section
at 10% voltage drop for connection
with 12VDC/ 10 Amps.
The length is the total length from
the power source to the pump and
to the ground.
Operation
The pumps are designed for intermittent use and operation. The pump usually operates until the preset pressure of the internal bypass.
Here, a spring loaded pressure valve opens, whereby the output-side volume flow of the pump is fed back into the input side. This allows
the pump to operate very smoothly and evenly, without „stuttering“, across nearly the entire flow range of the pump. When opening a
water faucet, the pressure drops, the internal bypass closes, and the maximum flow rate is achieved. This always allows for the best
possible flow, even with today‘s conventional water saving nozzles for shower heads, faucets, as well as shower mixer valves. The flow
rate naturally changes depending on the voltage (lower voltage = lower flow rate, higher voltage = higher flow rate). Please be careful
and always follow general electrical safety rules. When leaving your motorhome or when it’s unattended, we recommend switching o the
power supply to the pump.

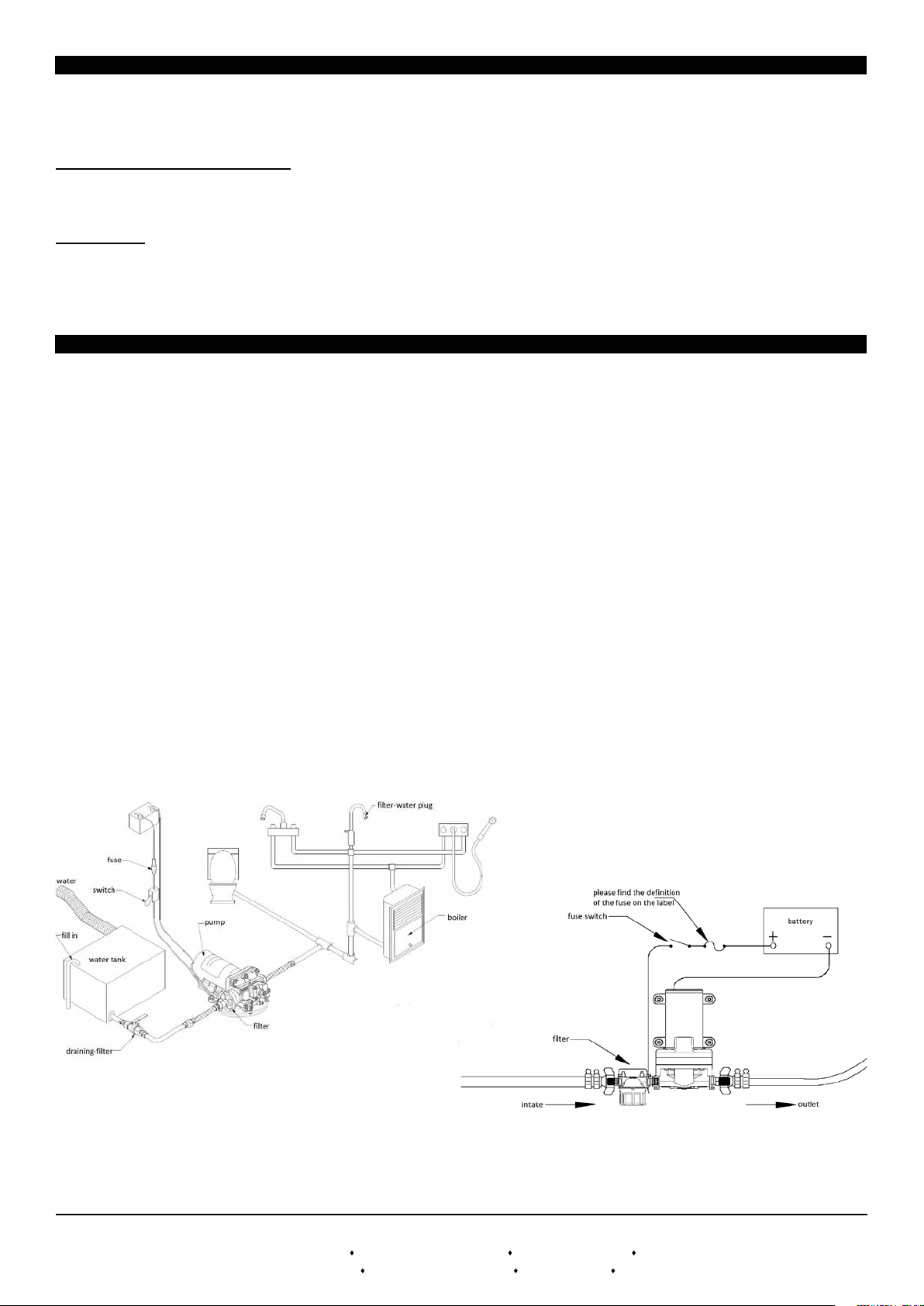

TUBE SYSTEM AND CONNECTION
• To prevent the intrusion of particles, a suitable coarse lter should be connected to the input side of the pump. Particles can damage
the pump. Such damages are not covered by the existing warranty when a suitable course lter is not installed.
• In order to minimize vibration and noise, a suitable pressure hose with an inside diameter of at least 12 mm (1/2") and a length of
least 50 cm should be used at the inlet and outlet of the pump. To reduce vibrations and their transmission, this tubing should have a
support at the junction to rigid tubing. The pump and coarse lter should not be rigidly tubed.
ADJUSTING THE PRESSURE SWITCH
The Pressure switch and Bypass are factory-preset. In general, no adjustment should be required. If your specic operating conditions
require this, please proceed as follows:
SOFTSERIE®
BYPASS
The internal bypass is a spring-loaded diaphragm, which opens when the pressure increases, thereby returning a portion of the exit-side
flow rate back to the input side. For pump models with a pressure switch value of 2.80 bar [40 psi], the internal bypass is set to start to
open at a pressure of approximately 1.75 bar (25 psi) and is completely open at a pressure of approximately 3.1 bar (45 psi). The pressure
switch begins to switch o the pump at a pressure of 2.8 bar (40 psi).
For pumps with a lower pressure switch value, the bypass valves are correspondingly lower. The switch-o pressure is dependent on the
model of the pump and is set to the value specied on the label. This value lies below the maximum pressure that is reached through the
bypass. If the pressure switch is set too high, it may cause it to not switch o.
Turn the screw in the center of the pump head clockwise, to increase the switching value.
To decrease the switch-o point, turn counterclockwise. Turning the screw on the bypass increases the value at which the bypass begins
to work. Turning the screw counterclockwise will decrease the pressure range at which the Bypass is operating. The bypass should be set
so that the maximum pressure reached is approximately 0.3 bar [5 psi] above the switch-o point of the pressure switch.
If the bypass value is too low, the switch point of the pressure switch can no longer be attained and the pump will not be able to switch o.
The bypass/pressure switch combination allows the pump to adapt very well to specic conditions of the installation and no additional
pressure compensation vessel is required.
CLASSICSERIE™
PRESSURE SWITCH
The cut-o pressure can be increased or decreased to a limited degree (0.5 bar / 14 psi). Slowly turn the central adjustment screw on the
housing switch clockwise (to increase pressure) or counterclockwise (to decrease pressure). Start with minor changes (max 1/2 turn).
Avoid excessive changes (fully screwing it in/out). This can permanently damage the pump.
Meter mm² [AWG]
0-7.5 1.5 [16]
7.5-20.0 2.5 [14]
20.0-30.0 4.0 [12]

LILIE GmbH & Co. KG Heinrich-Hertz Straße-30 D-74354 Besigheim Germany
Tel. [phone] Fax [phone] [e-mail] www.lilie.com Seite 3
Stand 16.01.2019 / # E-6103_A-en / 11 / 04.2019 © LILIE GmbH & Co. KG Subject technical changes
DESINFECTION AND MAINTENANCE
DISINFECTION
It is recommended to disinfect the entire drinking water system with LILIE-drinking water-disinfectant once a year, more frequently by intensive
use. The LILIE-drinking water -disinfectant is approved in Germany according to §11 of the Drinking Water Ordinance for drinking water treatment.
We recommend the following method, especially for the determination of the required quantity:
1. Add the appropriate amount of LILIE-drinking water -disinfectant (1 bottle #56200 = 1 liter for 100 liters of water) to the tank and ll up
with fresh water.
2. Open all taps.
3. Turn on the pump with the main switch.
4. Close all taps when water is running out of all water taps. The pump shuts o automatically.
5. For sucient disinfection, the solution should remain in the system / tank for 6 hours
6. Aer the contact time is up drain the tank by opening the water taps.
7. Rell the system with fresh water and rinse the disinfectant solution from the entire piping system.
NOTE:
The disinfection method described here complies with the German Drinking Water Ordinance, in accordance with DIN-2001-2, which is also
valid for the entire EU.
MAINTENANCE
Drinking water systems require regular maintenance to ensure a steady flow of drinking water. The following measures should be carried out
regularly:
• Checking and cleaning the coarse lter.
• Occasional cleaning / disinfecting of pipes.
• Checking screw and bolt ttings for leaks or cracks.
If there is a risk of frost, the pump and the pipes should be protected against freezing. (i.e., by draining or lling with suitable antifreeze, e.g.,
LILIE article # 56601 Winter Ban.) Lack of maintenance is one of the most common causes of power loss and premature failure of the pump. Debris
on valves and diaphragms can lead to pressure loss or internal leakage over time. (I.e., recognizable by random short startup of the pump, even
though no load is active.)
To take relevant measures regarding this matter please refer to your RV or Motorhome manufacturer for more information!
WINTERIZING THE PUMP
If water freezes in the hose- or pipelines, the pump and the pipes can be damaged. Failures of this kind shall release us from any warranty ser-
vices and/or coverage. The best protection against such frost damage is to make sure to drain the water completely. However, non-toxic antifree-
ze for fresh water, may also be used (e.g., LILIE article # 56601 winter ban). This is obtainable at any mobile home store or department.
Winter break with antifreeze requires special protections, because at temperatures below 0 degrees the water system freezes and is damaged if it
still contains water.
1. Open all taps and empty the tank completely.
2. Close all taps.
3. Add at least 10 liters of winter ban/water mixture to the tank.
4. Then open the water taps until colored liquid emerges.
5. Close all water taps and turn o the pump main switch.
CAUTION:
Don’t use automotive antifreeze to stabilize drinking water pipelines in winter. These solutions are highly toxic. If such a solution is swallowed, it
can lead to injury or death.
Antifreeze Winter Ban 3.78l
# 56601 Mixing ratio (3.8l each)
Protects against frost damage, corrosion,
deposits and algae growth at outdoor tem-
peratures of up to -°C and also lubricates
pumps and valves. For pipes and devices
made of brass and plastics. Nontoxic, taste-
less and odorless. Market leader in the US,
EU-compliant with UBA approval. Trilingual
label with detailed instructions.
Winter
Ban
Water Protec-
tion up
to
total
quantity
1 x -° C . l
1 x -° C . l
1 x . -° C . l
1 x -° C . l
1 x . -° C . l
1 x -° C . l
water tank water tank
pipes
without
Winter Ban
pipes with
Winter Ban
LILIE-drinking water-disinfectant
# 56200
Suitable for containers, hose- and pipe systems
Easy to dose and to apply.
works on basis of a stabilized hydrogen peroxide solution and
complies with the processing materials approved by the
Federal Environment Agency for the disinfection of drinking water
and corresponds with the dosage recommendation.
residue-free and quickly biodegradable
Protects the used drinking water approved materials
Colorless, odorless and tasteless.
The content of 1 liter is enough to disinfect 100 liters of drinking water with a mini-
mum exposure time of 6 hours. For smaller tanks the exposure time can be propor-
tionally reduced, for larger tanks use 2 or more bottles.
Content:  ml, for  liters of drinking water
Stabilized hydrogen peroxide solution %, bottle: H x W x D mm,  g
Water LILIE-drinking water-
disinfectant
minimum
exposure time
100 liters 1 bottle 6 hours
200 liters 1 bottle 12 hours
250 liters 1 bottle 15 hours
100 liters 2 bottles 3 hours

LILIE GmbH & Co. KG Heinrich-Hertz Straße-30 D-74354 Besigheim Germany
Tel. [phone] Fax [phone] [e-mail] www.lilie.com Seite 4
Stand 16.01.2019 / # E-6103_A-en / 11 / 04.2019 © LILIE GmbH & Co. KG Subject technical changes
TROUBLESHOOTING
Shocks and vibrations or transportation can loosen the piping system and parts of the pump. Check for loose system components. Various
symptoms can be xed without diculties through tightening of small parts. Check the following items along with other details of the
system.
THE PUMP DOESN’T START / TRIGGERS OVERLOAD SWITCH:
• Check the circuit connections, fuse or overload switch, power switch, and the ground line.
• Is the motor hot? The thermo-switch might have been triggered. It will reset aer cooling.
• Is there voltage on the switch? Bypass the pressure switch. Does the pump work?
• Check charging system for correct voltage (+/- 10%) and proper grounding.
• Check for an open or grounded circuit, motor or wires with incorrect thickness.
• Check for blocked or stuck diaphragm/component (ice formation?).
THE PUMP DOESN’T SUCK / STUTTERS:
(No drainage/motor runs)
• Is the screen lter blocked?
• Is the tank lled with water or are there air bubbles enclosed in the continuous-flow water heater?
• Does the inlet tube/the piping system suck up air at the pipe connections (vacuum leak)?
• Is the inlet/outlet pipe constricted signicantly or kinked?
• Correct voltage while the pump is operating (+/- 10%).
• Check for solids in the inlet/outlet valves or connecting valves.
• Check the pump housing for cracks or loose screws in the input unit.
PUMP DOESN’T SWITCH OFF / KEEPS RUNNING WITH CLOSED FAUCET:
• Check the pipes on the output side (pressure) for leaks. Also, check for leaky valves and the toilet.
• Check if air bubbles are enclosed in the output side (continuous-flow water heater) or in the pump head.
• Ensure that the voltage (+/-10%) to the pump is correct.
• Check for loose screws in the drive assembly or pump head.
• Are the valves or integrated check valves held in place by solids or is the rubber macerated?
• Conrmation of the pressure switch/wrong setting => refer to the section „Setting the pressure switch“.
• SOFTSERIES®/ Bypass Pumps: Check bypass / Pressure switch settings.
LOUD OR IRREGULAR OPERATION:
• Check if the hoses and pipeline have become loose.
• Is the pump connected to pipes/wires through which noises could be transmitted?
• Are the noises enhanced by the installation surface (flexible)?
• Check if the mounting feet are compressed too tightly or have become loose.
• Check for loose screws at the connection between the pump head and the motor (3 long screws).
• Does the noise originate from the engine or the pump head? (The engine with pump head taken o ).
• Flow-rate in the system is not 100%? Is the pump stuttering? If necessary, use a pressure equalization tank or a pump of the
SOFTSERIE®or SMARTSERIE™.
RAPIDLY SWITCHING ON AND OFF
• Check the settings of the pressure switch.
• Water lter/water purier should be connected to separate supply lines.
• Check for hoses or pipelines with constrictions. Check the flow restrictor in the faucets and in the shower heads.
• Flow-rate in the system is not 100%? Is the pump stuttering? If necessary, use a pressure equalization tank or a pump of the
SOFTSERIE®or SMARTSERIE™.
LEAKY SPOTS ON PUMP HEAD OR SWITCH
• Check for loose screws on the switch and pump head.
• Switch diaphragm ruptured or pierced?
• Check for ruptured or punctured diaphragm in case there is water inside the drive assembly.

LILIE GmbH & Co. KG Heinrich-Hertz Straße-30 D-74354 Besigheim Germany
Tel. [phone] Fax [phone] [e-mail] www.lilie.com Seite 5
Stand 16.01.2019 / # E-6103_A-en / 11 / 04.2019 © LILIE GmbH & Co. KG Subject technical changes
LIMITED WARRANTY
We guarantee that under normal conditions of use, our motorhome and boat pumps are free from defects in materials and manufacturing
errors for a period of two years from the date of purchase. This warranty does not cover products which are applied or installed improperly
or modied outside the factory.
ACCESSORIES AND CONNECTION PARTS
We guarantee that (under normal use) our accessory parts and connection parts are free from defects in manufacture and material error
for a period of 1 year from the date of purchase. This warranty does not cover products that have been improperly used and/or installed.
ALL PRODUCTS
We assume no responsibility for operations necessary for the removal and reinstallation of a pump and/or connection parts and accessory
parts. Likewise, we do not reimburse labor costs if it turns out that the pump or the connection parts and accessory parts are defective.
Our obligation under this warranty is limited to the replacement or repair of the part (whichever is more appropriate), which will be retur-
ned to our factory free of charge and which, aer a thorough examination by us, is found to be defective provided under this warranty.
WARRANTY
We don’t assume any warranty if, for example, a caravanning pump is used outdoors. The pumps do not prove to protect against water
according to IP . Solely pumps for boats are designed for the application in seawater environments. However, this does not mean that can
be used standing vertically or horizontally “in water”. We assume no guarantee for defects resulting from an unsuitable or improper appli-
cation or operation. This accounts especially for dry running and continuous running. The pumps are not suited for continuous operation
but were developed specically for intermittent operation. This means that they can run for 20 minutes straight, and then a longer pause
has to follow. Additionally, no warranty shall be accepted for damages due to the following reasons:
Incorrect installation by the purchaser (contract party) or third parties; natural wear and tear; incorrect or negligent handling, particularly
frost damages; unsuitable equipment or means of operation; substitute materials; chemical, electro-chemical or electrical influences
(provided we are not responsible for them); improper modications or corrective maintenance work by a purchaser or third parties, carried
out without our prior consent.
Unfortunately, we cannot accept any warranty for pumps that have been already opened. If you have any complaints please contact your
vendor. Returns without our clearance or freight collect returns will not be accepted.
Our goal is that you enjoy our products and solutions for a long time. If you have a request or suggestion, we look forward to hearing it!
Water Pump Installation Diagram at a glance
Water Pump Installation Diagram: Detailed view
with Upstream Filter

LILIE GmbH & Co. KG Heinrich-Hertz Straße-30 D-74354 Besigheim Germany
Tel. [phone] Fax [phone] [e-mail] www.lilie.com Seite 6
Stand 16.01.2019 / # E-6103_A-en / 11 / 04.2019 © LILIE GmbH & Co. KG Subject technical changes

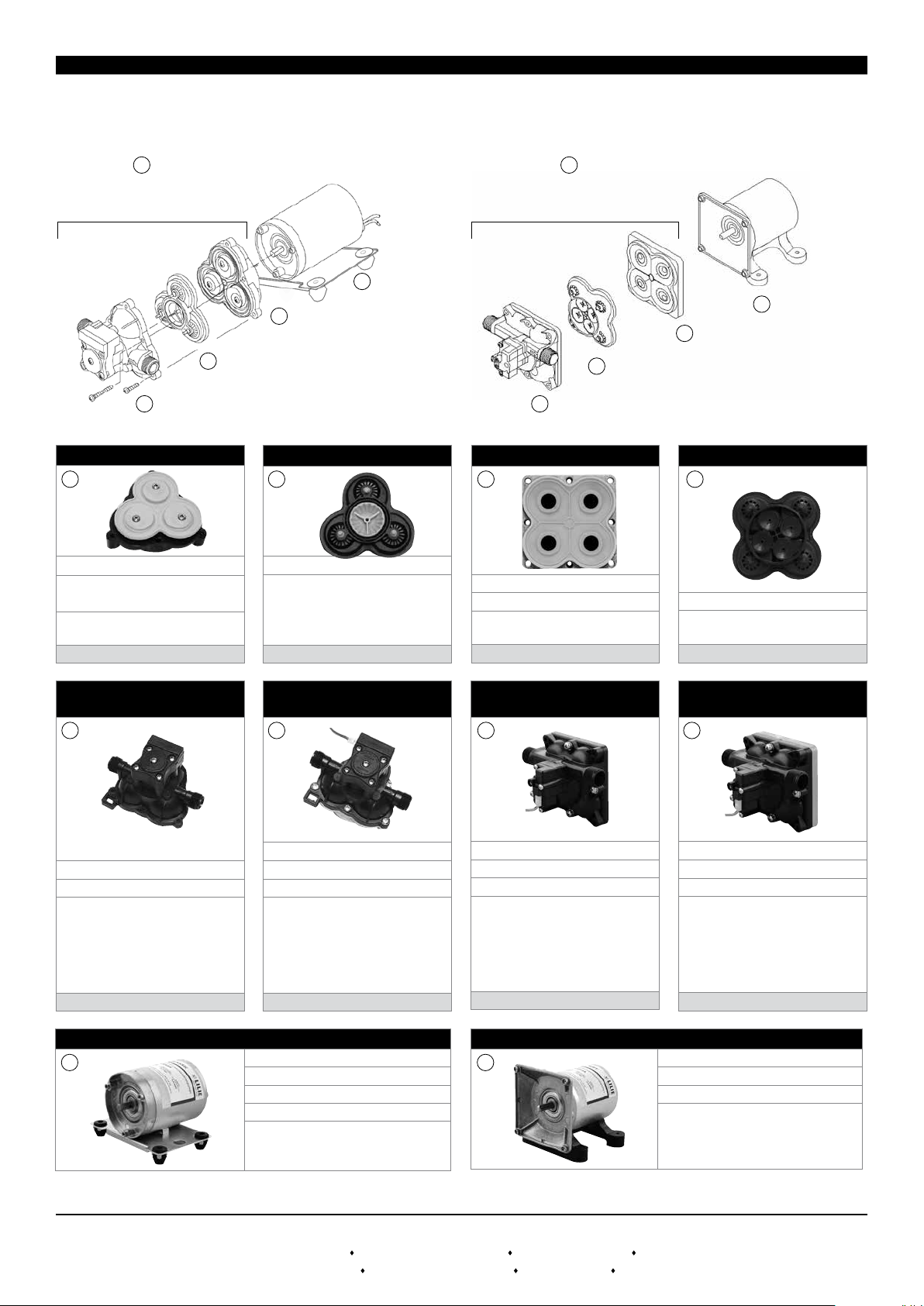

REPLACEMENT PARTS
To ensure that you receive the correct spare parts, please specify the defect component, the complete model number, date of manufacture
and the indications on the nameplate, when placing the order. Parts kits contain comprehensive repair instructions.
SOFTSERIE®-
Pump Head complete
# 11231 for LS
# 11221 for LS, LS
# 11251 for LS
Pressure Switch with pump housing
upper part and integrated bypass,
diaphragm kit and valve kit. The shut-o
pressure is adjustable: # from
. to . bar, # from . to
. bar, # from . to . bar
LM T (PP), LM T (TPE), LM T (EPDM)
SOFTSERIE®- Diaphragm kit
# 11205
for LS, LS, LS, LS
Diaphragm kit complete with pump
housing base and motor mount.
LM T (TPE), LM T (PP)
SOFTSERIE®-Valve kit
# 11204
for LS, LS, LS,
LS
LM T (EPDM), LM T (PP)
SOFTSERIE®-
Pressure Switch
# 11239 for LS, LS
# 11229 for LS, LS, LS
# 11209 for LS
Pressure Switch with pump housing
upper part with integrated bypass. The
shut-o pressure is adjustable: #
from . to . bar, # from . to
. bar, # from . to . bar
LM T (PP), LM T (TPE)
SOFTSERIE®-Motor complete
# 11232 for LS, LS
# 11202 for LS, LS, LS
# 11212 for LS
Ready-to-connect complete motor with
-point base plate and connection cables
+ and -.
CLASSICSERIE™-
Pressure Switch
# 11139 for LS, LS
# 11109 for LS, LS
Pressure Switch with pump housing
upper part. The shut-o pressure is ad-
justable: # from . to . bar,
# from  to . bar
LM T (PP), LM T (TPE)
CLASSICSERIE™-
Pump Head complete
# 11131 for LS, LS
# 11121 for LS
# 11101 for LS
Pressure Switch with pump housing
upper part, diaphragm kit and valve
kit. The shut-o pressure is adjustable:
# from . to . bar, #
from . to . bar, # from  to
. bar
LM T (PP), LM T (TPE), LM T (EPDM)
CLASSICSERIE™-Diaphragm kit
# 11105
for LS, LS, LS, LS, LS,
LS, LS, LS, LS, LS
Diaphragm kit complete with pump
housing base and motor mount.
LM T (PP), LM  (TPE)
CLASSICSERIE™-Valve kit
# 11104
for Models LS, LS, LS,
LS und für LS, LS, LS,
LS, LS, LS up to year of
construction .
LM T (PP), LM T (EPDM)
CLASSICSERIE™-Motor complete
# 11132 for LS
# 11142 for LS
# 11102 for LS
# 11112 for LS
Ready-to-connect complete motor with
-point base plate and connection cables
+ and -.
SOFTSERIE®:
1Pressure switch
with pump housing upper part and integrated bypass
2Valve kit
3Diaphragm kit
with pump housing base
5Motor (-group)
Complete pump-head assembly
(consisting of parts-no.: 1,2 and 3)
CLASSICSERIE™:
2Valve kit
3
Diaphragm kit
with pump housing base
Complete pump-head assembly
(consisting of parts-no.: 1,2 and 3)
1Pressure switch
with pump housing upper part
5Motor (-group)
1 1
3 3
2 2
4 4
5 5
4 4
