Siem Nova 1001 NEB User manual

Rev. 00. 2017 A.E.E. n: IT08030000004406
SIEM-NOVA cares about the environment, using materials that are easily recyclable and eco-friendly;
reserves the right to make technical changes and improvements to its machines at any time and without notice, in compliance with safety and quality.
Pag.1
Siem-Nova S.r.l. - Singly held company - VAT: IT-11578000157 - Street Claudio Varalli n° 1 - 20089 ROZZANO (Mi) Italy
[phone] [phone] [e-mail] - http://www.siemnova.com
Operating conditions:
continuous operation
Rated voltage: 220 –230 V
Rated frequency: 50 Hz
Rated power / current: 92 VA
Protection against electric shoc : class I
Degree of protection against electric shoc : type B
Degree of protection against ingress of liquids:
standard
Card SN-E70947
Power 48 V.a.c.
Absorption 30 ± 5
Frequency from 1, 35 to 1,75
Fog produced g/h 575 ± 125
Portable Inox bogie Weight 10 Kg.
W 2 D.2 H.30cm
Width 42 cm Depth 42 cm H 70 cm
Automatic stop built-in sensor
in case of lac of liquids
Fog flux manual regulator 0 ÷ 8 cc / min
Distribution power regulator 0 ÷ 8 cc / min
Corrugated tube and heater flexible bar support
Corrugated tube and container rigid bar support
Operation noise level: lower than 45 dB
The unit is under warranty
from the dealer that sold you the unit
in conformity with operating and maintenance manual
**) 5 wheels trolley, 2 with bra e
**) Produced fog Heater at 34° C12 V - 4 A
[ **) on request ]
Medical device suitable for nebulizing medical hydrosoluble substances for therapy and care of
respiratory organs. The equipment is suitable for producing produce a big volume of substances
monodispersed in a short time. Particles’ dimensions are in the range of 2 or 3 µ. This use is
suitable for the care of patients needing a massive medical hydration of respiratory organs.

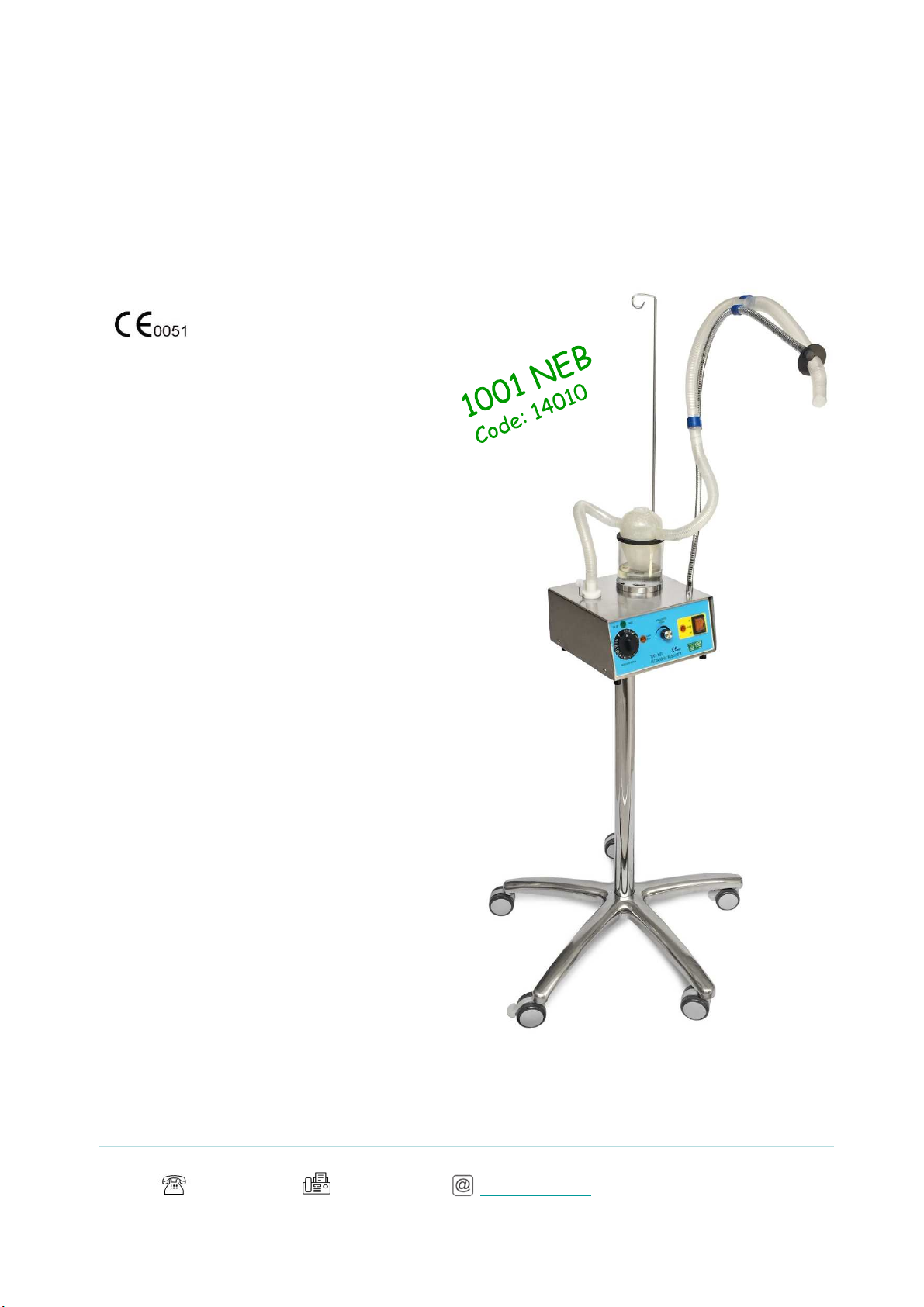

ULTRASONIC AEROSOL THERAPY 1001 NEB
In compliance with all standards and
Medical Device Directives:
ISO 9001:2015 - ISO 13485:2016
93/42/CEE: Classe II a
CEI EN 60601-1 (CEI 62-5)
D.lg.151 del. 25/07/05 - 2003/108

Rev. 00. 2017 A.E.E. n: IT08030000004406
SIEM-NOVA cares about the environment, using materials that are easily recyclable and eco-friendly;
reserves the right to make technical changes and improvements to its machines at any time and without notice, in compliance with safety and quality.
Pag.2
Siem-Nova S.r.l. - Singly held company - VAT: IT-11578000157 - Street Claudio Varalli n° 1 - 20089 ROZZANO (Mi) Italy
[phone] [phone] [e-mail] - http://www.siemnova.com
ULTRASONIC AEROSOL THERAPY 1001 NEB
Polyethylene
corrugated tube
Holding arm for
tube and
physiological fluid
Flexible arm with
connection to the
tube
Regulating valve
of air flow
General switch Potentiometer,
power regulator
Cylinder, liquid
container
DISPOSABLE
ATOMISING ROOM
DISPOSABLE
ATOMISING ROOM
It is a medical active portable device fit for atomising medical liquid-soluble matters destined
for respiratory system treatment. If needed there is a device too which heats the out coming
flow of the atomised product.
