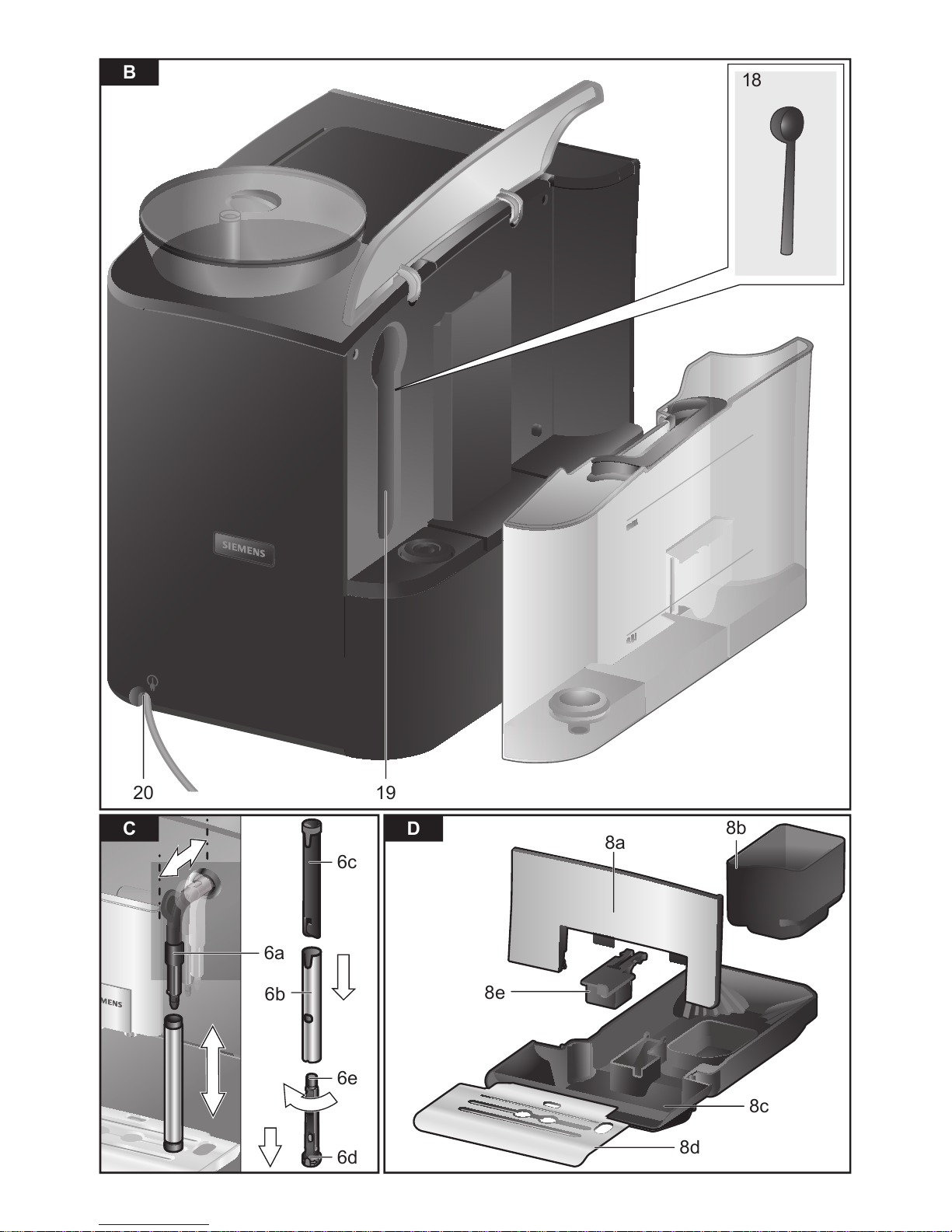

Overview
Figures A, B, C, D and E
1 Bean container
2 Aroma cover

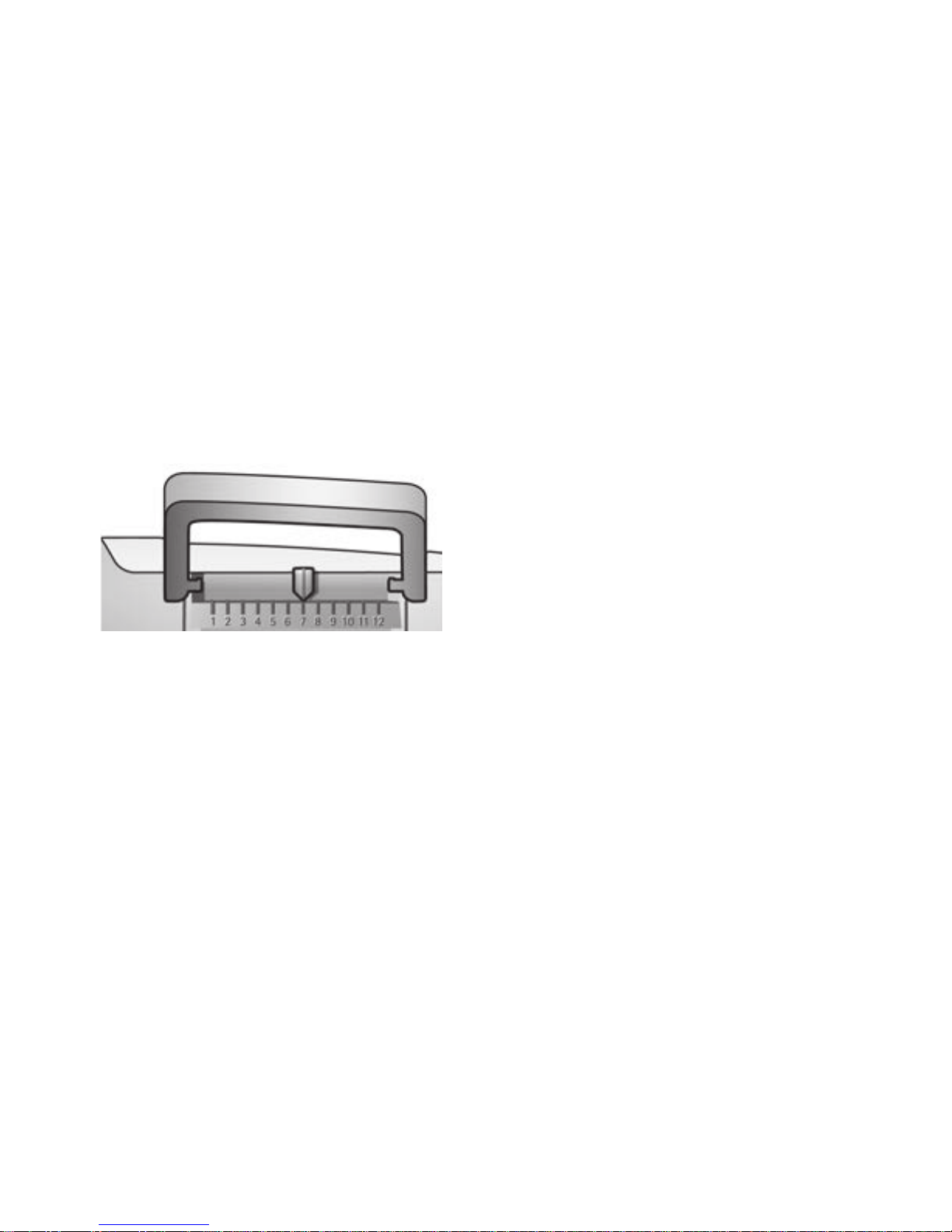

3 Selector for grind setting
4 Drawer (ground coffee/cleaning tablet)

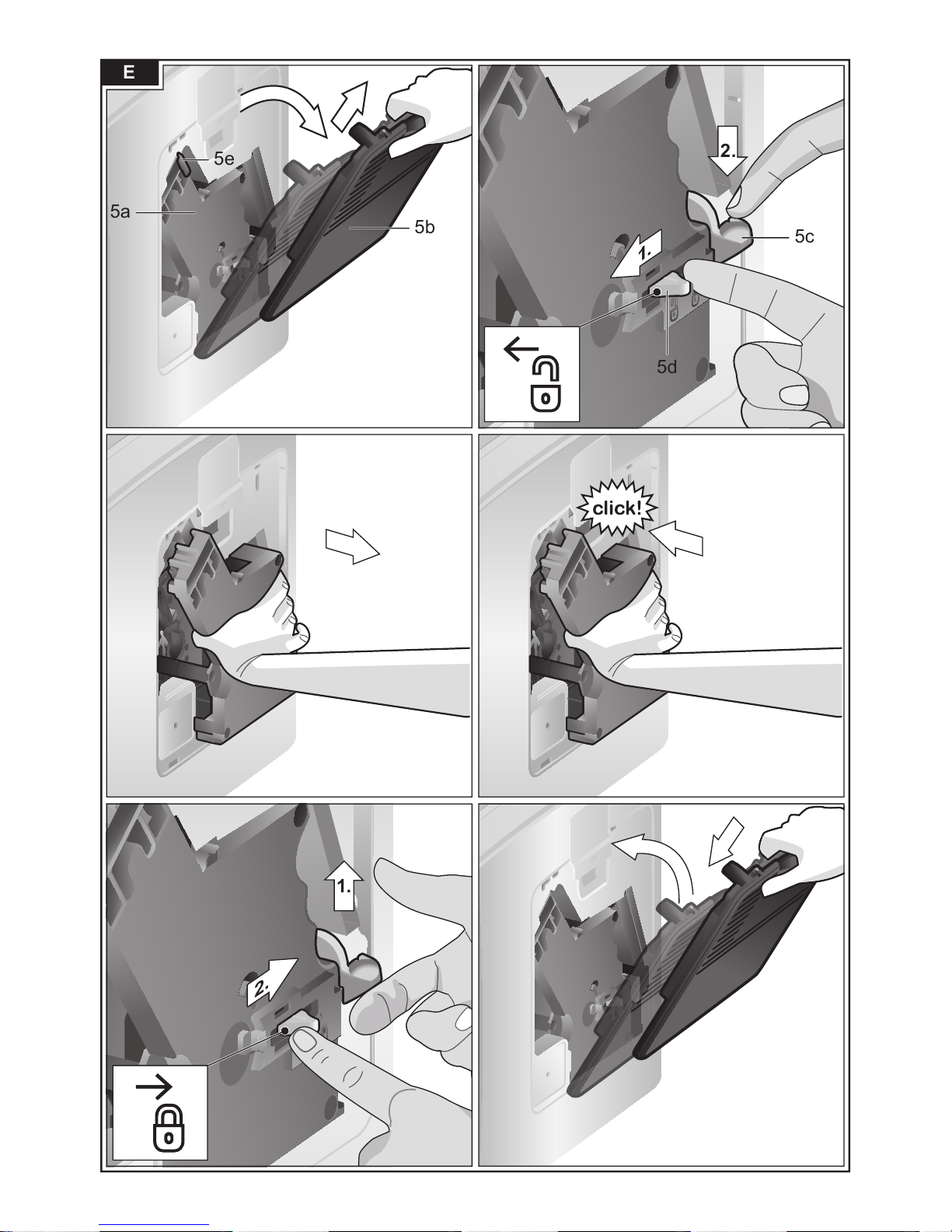

5 Brewing unit (Fig. E)
a) Brewing unit
b) Door
c) Eject lever for brewing unit
d) Lock
e) Cover

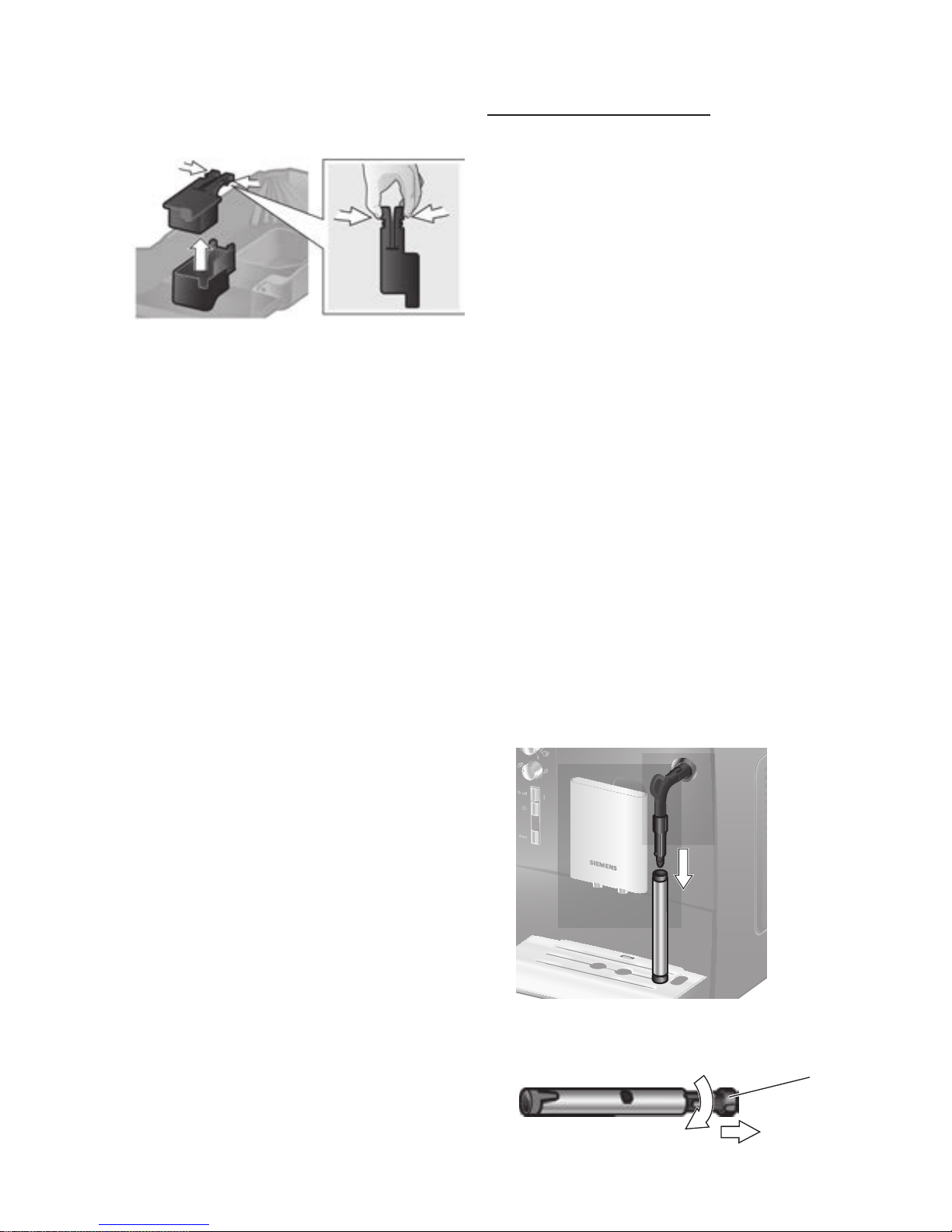

6 Milk frother (Fig. C)
a) Steam valve
b) Metal sleeve
c) Frothing tube
d) Steam nozzle
e) Air hole
7 Coffee outlet, height-adjustable
8 Drip tray (Fig. D)
a) Drip tray panel
b) Coffee grounds container
c) Drip tray for coffee outlet
d) Grate for coffee outlet
e) Float
9 Power on/off switch O / I
10 start button
11 hbutton
12 eoff /jbutton
13 “Coffee strength” rotary knob
14 “Drink selection” rotary knob
15 Display
16 Removable water tank
17 Lid for water tank
18 Measuring spoon
(insertion aid for water lter)
19 Storage compartment for
measuring spoon
20 Power cable with storage compartment
Table of Contents
Included in delivery .....................................2
Overview.....................................................2
Safety instructions ......................................3
Controls ......................................................5
Display messages ......................................6
Before using for the rst time......................6
Water lter ..................................................7
Menu settings .............................................8
Adjusting the grinding unit ..........................9
Preparation using coffee beans ..................9
Preparation using ground coffee .............10
Dispensing hot water ................................10
Preparing milk froth .................................. 11
Maintenance and daily cleaning ............... 11
Tips on energy saving ..............................14
Service Programmes ................................15
Frost protection.........................................18
Accessories ..............................................18
Disposal ....................................................18
Guarantee.................................................18
Simple troubleshooting .............................19
Technical data...........................................21
Dear Coffee Connoisseur.
Congratulations on purchasing this fully
automatic espresso machine from Siemens.

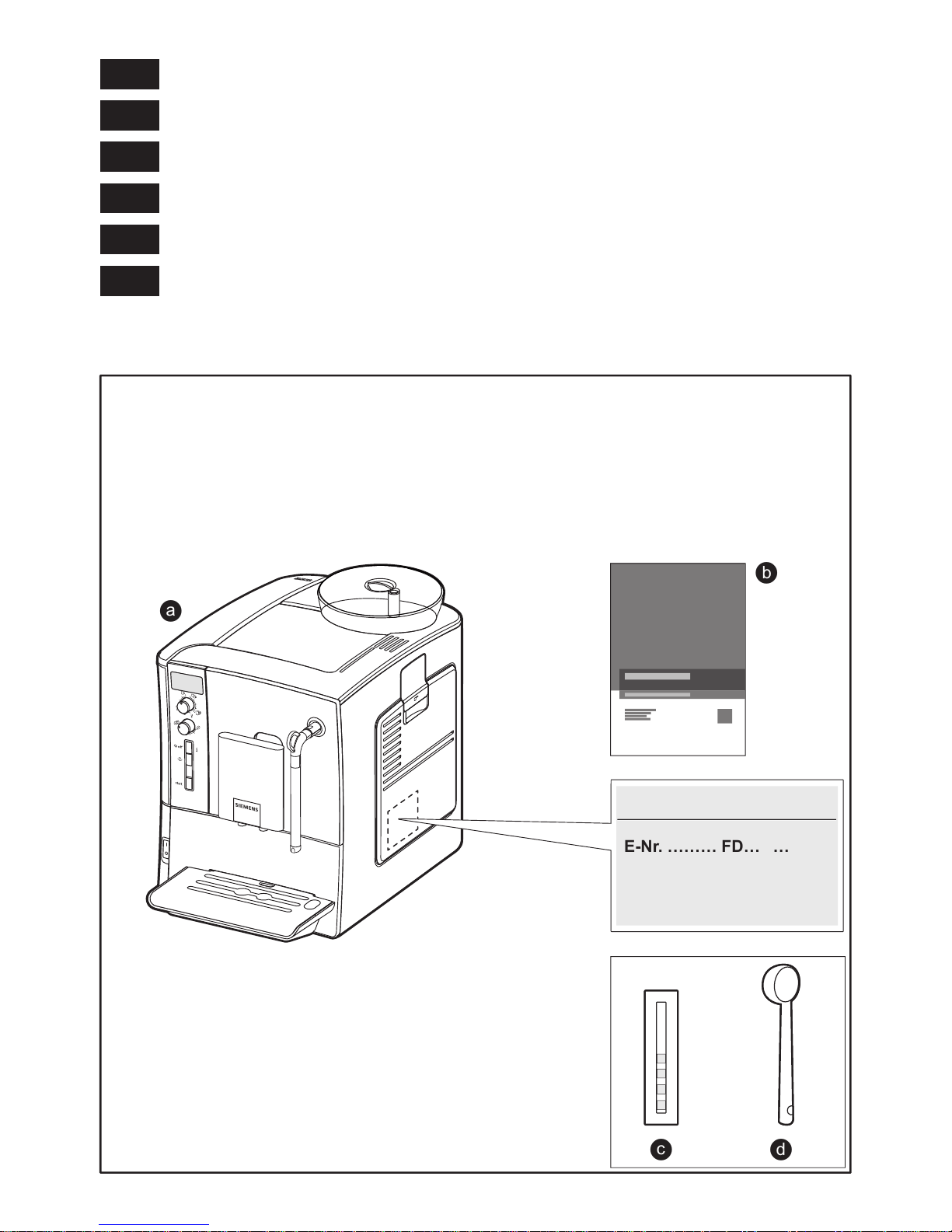

Included in delivery
See the illustration at the beginning of this
instruction manual.
a Fully automatic espresso machine
TE502
b Instruction manual
c Water hardness testing strip
d Measuring spoon

3
en
Safety instructions
Please read and follow the operating instructions carefully and
keep them for later reference. Enclose these instructions when
you give this appliance to someone else. This appliance is
designed for the preparation of normal household quantities in
the home, or in household-like, non-commercial environments.
Household-like environments include staff kitchens in shops,
of ces, agricultural and other small businesses or for use by
guests at bed-and-breakfast establishments, small hotels and
similar residential facilities.
¡Danger of electric shock!
Connect and operate the appliance only according to the type plate
speci cations. To avoid potential hazards, repairs such as replacing
a damaged cable must only be carried out by our customer service
personnel.
This appliance can be used by children aged from 8 years and
above and by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and if they understand the hazards involved. Keep children
under 8 years of age away from the appliance and connecting
cable and do not allow them to use the appliance. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children unless they are older than 8 years and
supervised.
Never immerse the appliance or mains cable in water. Use only if
power cord and appliance show no signs of damage. Should a fault
occur, pull the plug or disconnect from the mains immediately.

4
en
The appliance contains permanent magnets that may in uence
electronic implants such as pacemakers or insulin pumps. Persons
with electronic implants should keep a minimum of 10 cm away from
the front of the appliance.
¡Risk of suffocation!
Do not allow children to play with packaging material.
Store small parts safely as they can be easily swallowed.
¡Risk of injury!
Do not reach into the grinding unit. A misuse of the appliance can
potentially lead to injury.
¡Risk of burns!
The milk frother gets very hot. After use, allow to cool down  rst
before touching. After the use the heating element surfaces and
warming plate can be subjected to residual heat.

5
en

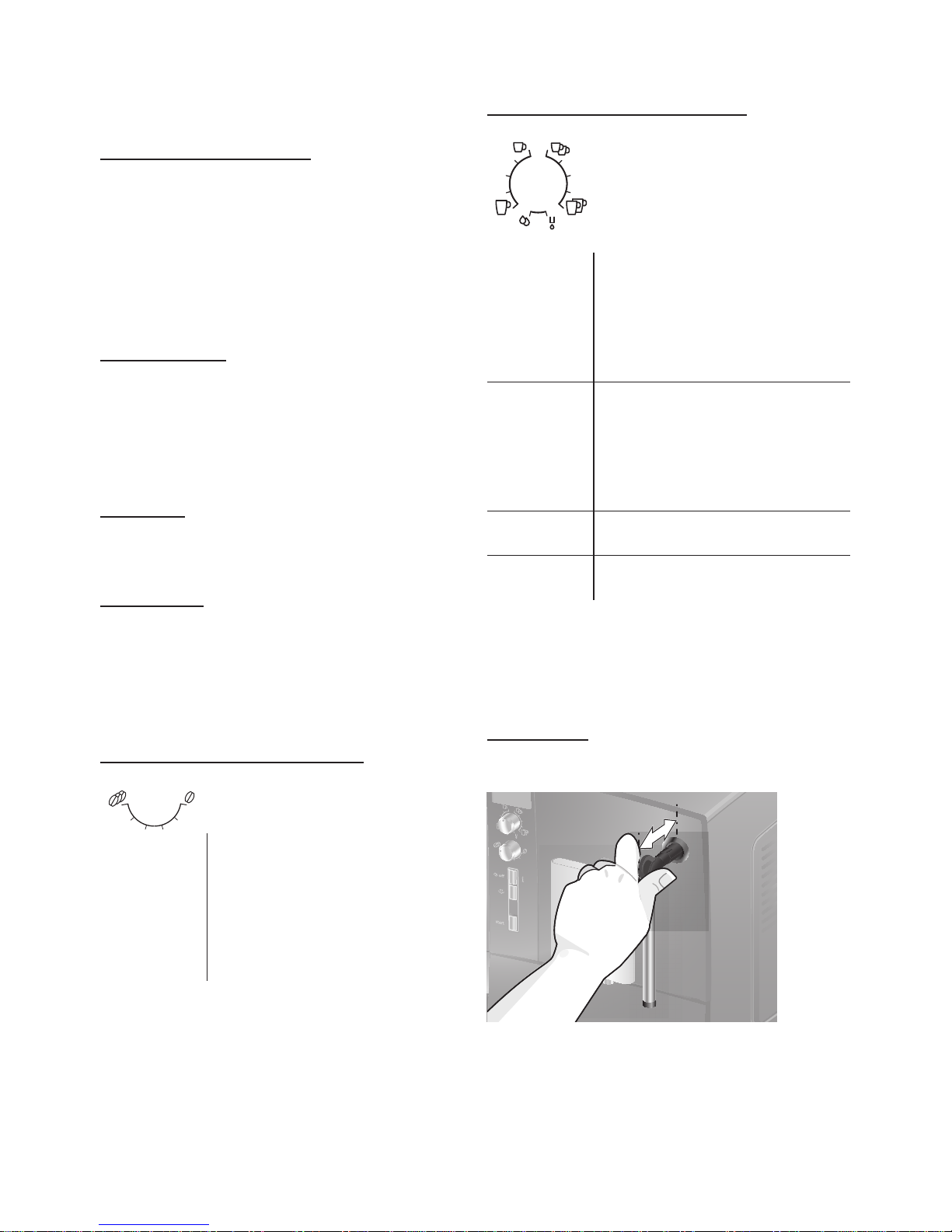

“Drink selection” rotary knob
This rotary knob (14) is used
to select the required drink
and the per-cup quantity. It
is also used to change user
settings.
a
to
c
Small Espresso
Espresso
Small Café Crème
Café Crème
Large Café Crème
b
to
d
2 small Espresso
2 Espresso
2 small Café Crème
2Café Crème
2 large Café Crème
eRinse machine
fRinse milk system
N.B.: If a drink is selected that cannot be
prepared, Invalid combination appears in
the display. Change the coffee strength or
the selected drink.
Milk frother
Pull the milk frother (6) out to open it and
push it back in to close it.
Controls
Power on/off switch O /I
The power switch O / I (9) is used to switch
the appliance on or to switch it off fully
(power supply off).
Important: Before switching off, run the
cleaning programme or use the eoff / j
button (12) to switch off.
eoff / jbutton
When the eoff / j button (12) is pressed
briey, the appliance rinses and switches
off. Pressing and holding down the eoff / j
button (12) displays the user settings or
starts the descaling and cleaning function.
hbutton
Press the h button (11) to generate steam
for preparing milk froth.
start button
Press the start button (10) to begin drink
preparation or to start a service programme.
Press the start button (10) again during
drink preparation to cut the dispensing
process short.
“Coffee strength” rotary knob
This rotary knob (13) is used
to set the coffee strength.
h
to
g
Very mild
Mild
Mild +
Normal
Normal +
Strong

6
en
Display messages
The display (15) shows not only the current
operating status, but also various messages
that give you status information or let you
know when you need to take action. As
soon as you have taken the necessary
action, the message disappears and the
menu for drink selection is displayed again.
Before using for the
rst time
General
Fill the appropriate container using only
pure, cold, uncarbonated water and only
roasted beans (preferably espresso or
coffee bean blends for fully automatic coffee
machines). Do not use coffee beans that
have been glazed, caramelised or treated
with other additives containing sugar, since
they will block the brewing unit.
The water hardness setting can be adjusted
on this appliance. The factory default setting
for the water hardness is 4. Check the
water hardness with the enclosed test strip.
If the check reveals a value other than 4,
change the setting on the appliance accord-
ingly after switching on (see “Menu settings”
Water hardness).
Switching on the appliance
1. Place the fully automatic espresso
machine on a at, water-resistant
surface that can take its weight. Make
sure that the machine’s ventilation slots
remain unobstructured.
Important: Only use the appliance in
frost-free rooms. If the appliance has been
transported or stored at temperatures below
0° C, wait at least 3 hours before operation.
2. Pull the power cord out of the storage
compartment (20) and plug in. Adjust
the length of the cable by pushing it
back in or pulling it out. The easiest way
to do this is to place the appliance so
that its back is ush with the edge of the
counter and either pull the cable down-
ward or push it upward.

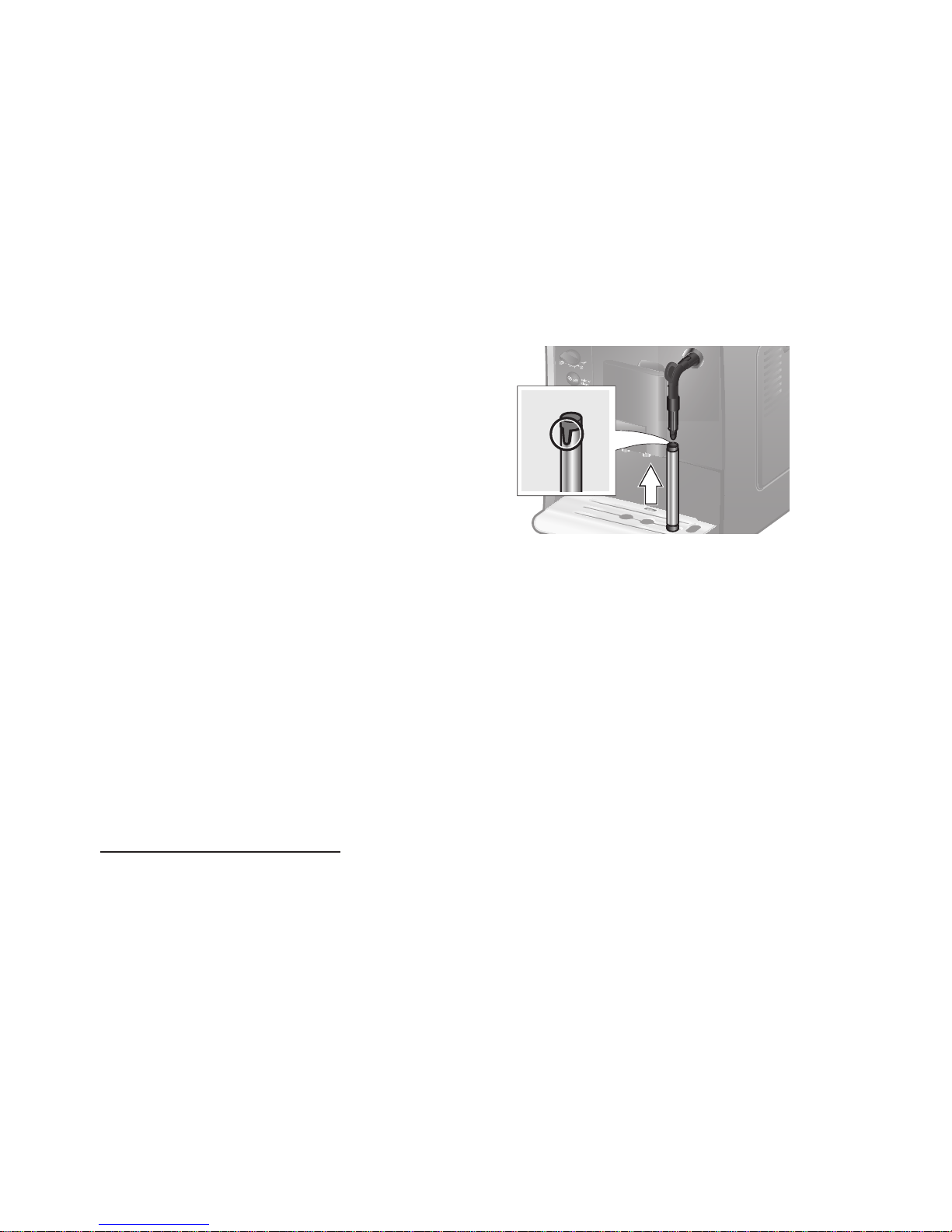

3. Install the milk frother. Operate the
machine only after the milk frother (6)
has been fully assembled and installed.
4. Lift the lid of the water tank (17).

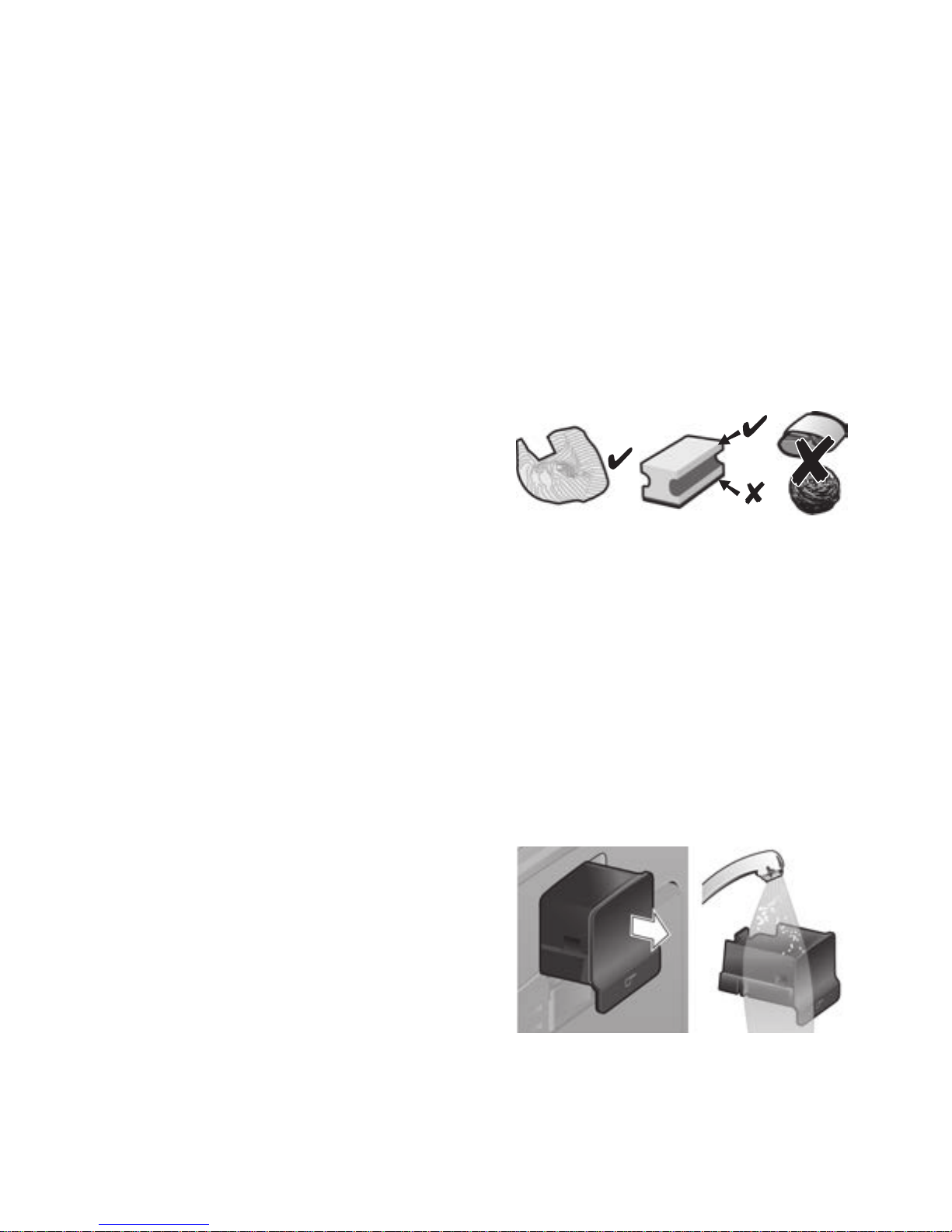

5. Remove and rinse the water tank (16)
and ll it with fresh cold water.
Do not ll above the max mark.
6. Replace the water tank (16) and push it
rmly downward into place.
7. Close the lid of the water tank (17)
again.
8. Fill the bean container (1) with
coffee beans. (For preparation using
ground coffee, see “Preparation using
ground coffee”)
9. Press the power switch O / I (9). The
display (15) shows the menu for setting
the display language.
10. Select the required display language
with the upper rotary knob (14). The
following languages are available:
English Nederlands
Français Italiano
Svenska Español
Polski Magyar
Türkçe Dansk
Norsk Suomi
Português Čeština
ελληνικα български
русский
