Wall-mounted sensors and room operator units for KNX PL-Link
QMX2.P33 / QMX2.P43
Communicative sensors and room operator units with KNX PL
-
Link (for Desigo™ T
o-
tal Room Automation).
●Room temperature and humidity measurement (depending on types)
●LCD display of room temperature, operating modes, etc.
●Operation with 8 push buttons
●Interface KNX PL-Link (for TRA, with plug and play functionality)
●Powered over KNX PL-Link

2
Siemens
A6V10733768_en
--
_a
2017-07-28
Use
●Measure and display the room temperature and humidity (depending on types)
●Operate room functions such as fan control and room operating modes
●Indicate open windows, room air quality, outdoor temperature, and outdoor humidity
Functions
Function of the display elements and push buttons
Elements Functions
/ ●A visible arrow Indicates an operable element
15.5 °C ●Temperature display in °C or °F / humidity in % r.h.
/ air quality in text, symbol, or ppm of CO₂
/ ●Toggling (button 1) between indoor and outdoor
measurement (temperature, humidity and CO₂)
●Indicates that a window is open (connected window
contact is active)
/ ●Display of plant state (heating or cooling / inactive)
Note: No manual switchover！
25.0 °C ●Display of relative or absolute setpoint for
temperature
●Adjust setpoint using buttons 2 and 6
●Display of present fan speed (when automatic)
●Adjust fan speed using button 3 (or buttons 3 and 7
if room operating mode operation is disabled)
/ / / / ●Display of room operating modes (when automatic)
●Adjust room operating mode using button 7
/ / ●Navigation: Toggle display/setpoint setting between
temperature/humidity/CO₂using button 4
/ ●Operation of occupancy state (presence switch,
Comfort extension)
●Activate Comfort extension using button 8 (only
available if enabled)
/ / ●Engineering functions (press buttons 1 and 8
simultaneously for 5s
- Programming mode (button 2), same function as
programming pin (service pin) on the rear of
device)
- Connection test (button 3) (not supported by ETS
and ACS)
- Reset device to factory settings (button 4)
Note: This operation is irreversible!
●Indicates that the room operator unit is locked by
the system.
- Operation disabled
- Display in line 1 shows the temperature from bus

3
Siemens
A6V10733768_en
--
_a
2017-07-28

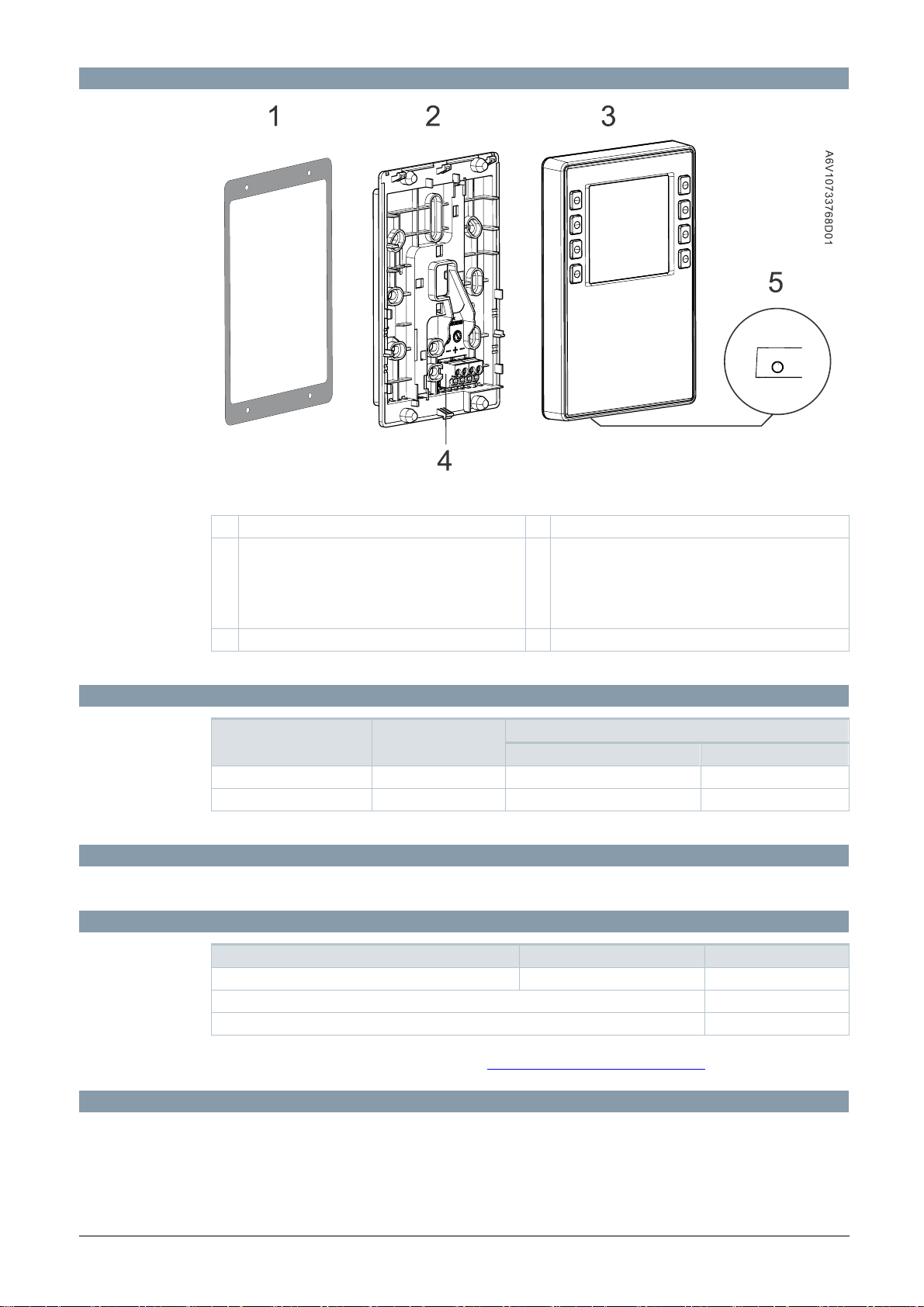

Mechanical design
1 Frame for panel mounting 4 KNX PL-Link bus connector
2 Base plate
●With screw holes for all common conduit
boxes in regions such as EU, UK, etc.
●With guide channels for wiring from center,
up, or bottom
5 Jack connector for tool connection
3 Room operator unit
Type summary
Product number Stock number Feature
Temperature sensor Humidity sensor
QMX2.P33 S55624-H118 Yes No
QMX2.P43 S55624-H117 Yes Yes
Equipment combinations
All controllers from Desigo TRA.
Product documentation
Topic Title Document ID:
Installation, cable length, topology Mounting instructions A6V10733759
CE declaration A5W90002237
Product environmental declaration A5W90002450
All documents can be downloaded from http://siemens.com/bt/download.
Notes
The subsections include important information for sale or that is essential for engineering.

4
Siemens
A6V10733768_en
--
_a
2017-07-28
Security
CAUTION
National safety regulations
Failure to comply with national safety regulations may result in personal injury and property
damage
●
Observe national provisions and comply with the appropriate safety regulations.
Engineering
●The device offers plug & play functionality.
●The device receives its power from the connected room automation station via the KNX
PL-Link interface, or from the jack connector.
●Engineering and commissioning using the ABT (Automation Building Tool) tool and SSA
(Setup & Service Assistant) tool.
Mounting

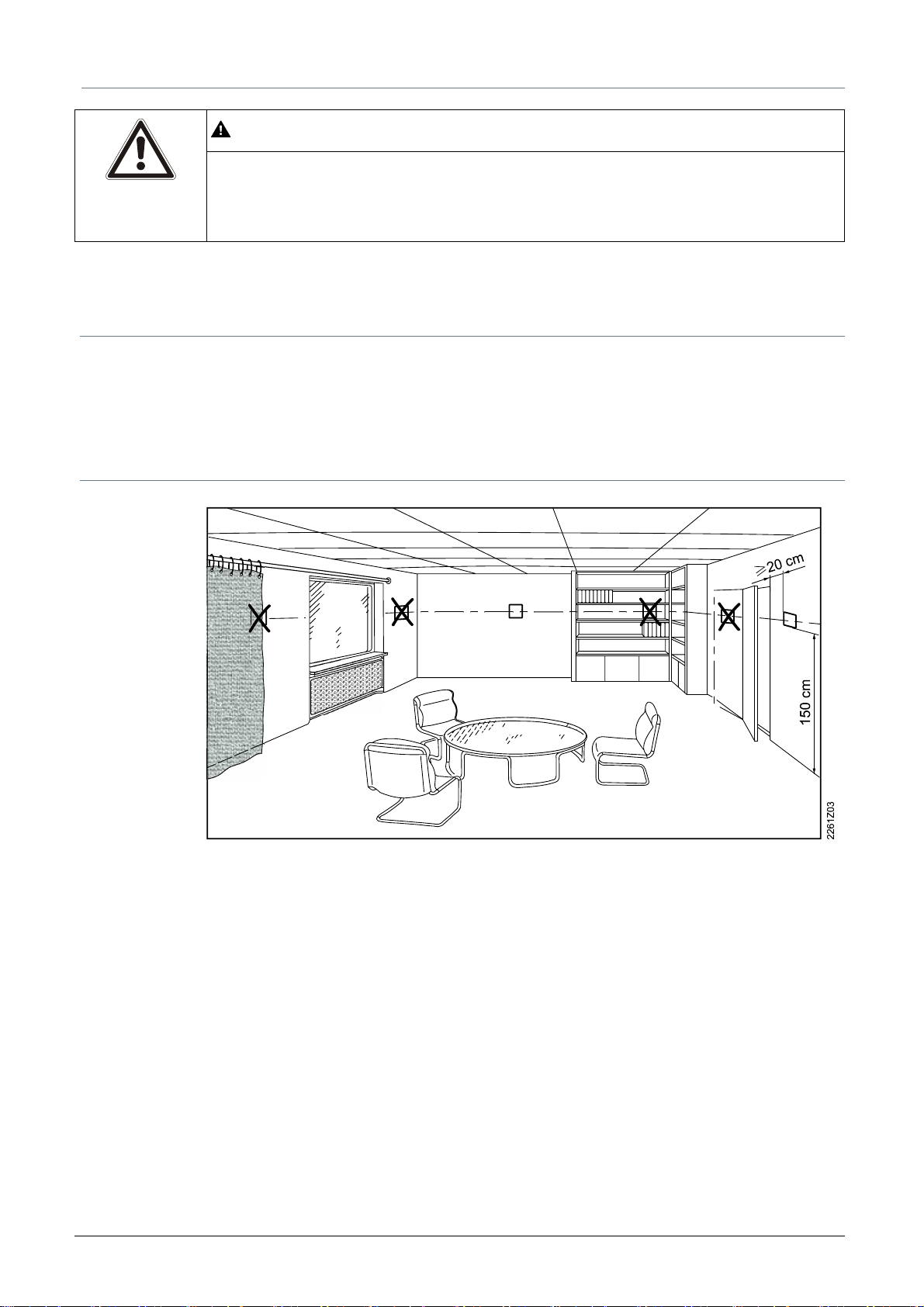

●The devices are suitable for wall mounting and panel mounting.
●Recommended height: 1.50 m above the floor.
●Do not mount the devices in recesses, shelves, behind curtains or doors, or above or
near heat sources.
●Avoid direct solar radiation and drafts.
●Seal the conduit box or the installation tube if any, as air currents can affect sensor
readings.
●Adhere to allowed ambient conditions.

5
Siemens
A6V10733768_en
--
_a
2017-07-28
Installation
CAUTION
The devices are not protected against accidental connection to AC 230 V.
●Use the correct cables for the KNX PL-Link bus.
●Do not interchange the wires of the KNX PL-Link cable.
●Observe all local installation regulations.
Commissioning
Prerequisites
Before commissioning the device, make sure an application is downloaded into the
connected controller, from where the functions are downloaded in the device.
Download the application using SSA-DNT (Pack & Go) or ABT.
For this purpose (or for service), connect ABT to the controller via USB or Ethernet.
Automatic commissioning
When connected to the KNX PL-Link bus, the device automatically communicates with the
connected controller. The following routine is executed.
Step With display Description
1Build number and version of the device are displayed.
2The individual address (IA) is downloaded into the
device via KNX PL-Link.
This step is skipped if the device is already configured.
Note: The configuration file can be downloaded any
time; as a result, these characters are displayed every
time the controller initializes download.
3After startup, the device displays a normal operation
page.
(The operation page displayed on the left side is a
sample view; the view depends on the application
selected on the controller.)
3b When the configuration is faulty, "Unconfigured" is
displayed along with the temperature measured by the
local temperature sensor.
In this case, manual commissioning must be performed
(see below).

6
Siemens
A6V10733768_en
--
_a
2017-07-28
Manual commissioning
When automatic commissioning fails or when multiple devices are connected, manually
commission the device as follows:
Addressing
1. Connect SSA-DNT or ABT to the controller and activate the online commissioning
function.
2. Load web page "KNX PL-Link identification".
Activate the identification function.
aThe controller now waits for a signal from the device.

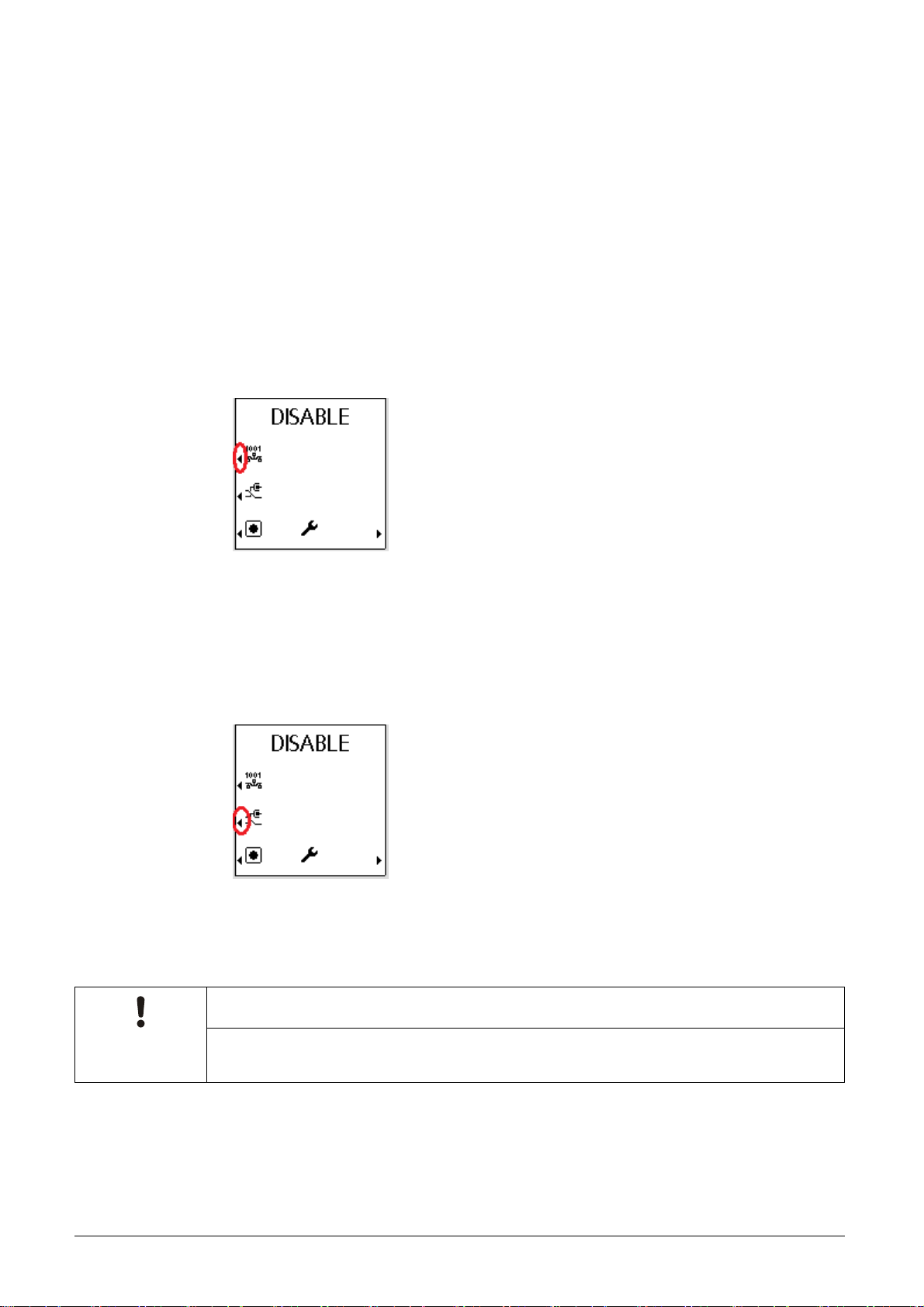

3. On the device, simultaneously press buttons 1 and 8 for at least 5 seconds.
aThe "Engineering" page is displayed.
4. Press button 2.
aThe display changes from "DISABLE" to "ENABLE".
aThe tool identifies the currently active-device and assigns it.
5. After the device is commissioned, change from programming mode to “DISABLE” by
pressing button 2.
Connection test
1. Press button 3 to test the KNX PL-Link connection.
aThe display shows the result of the connection test ("DONE" or "FAIL").
2. Press button 8 to return to the engineering page.
Reset to factory settings
NOTICE
This operation resets all user
-
defined data and configuration settings to factory default
This operation is irreversible.

7
Siemens
A6V10733768_en
--
_a
2017-07-28
Press button 4. The device is locked and reboots within 10 seconds. The controller removes
the device from its device list. During this time, the device can safely be removed from the
network.
If the bus plug remains connected, the device acts like a newly inserted device requiring
automated or manual configuration.
Programming pin and service LED
The devices come with a programming pin and a red service LED on the rear.
Addressing
1. Briefly press the programming pin (<0.5 s).
aThe device enters the programming mode; the service LED is continuously on. The
tool identifies the currently active device and assigns it.
2. After the device is commissioned, deactivate programming mode by shortly pressing the
programming pin (0.5 s). The service LED goes off.
Note: Programming mode returns to “disabled” each time the device restarts.
Connection test
1. Press the programming pin (>2s and <20s) to test the KNX PL-Link connection. After
releasing the programming pin, testing of the KNX PL-Link connection starts; the service
LED flashes (1/4s on, 7/4s off).
After approximately 10s, the test result is displayed:
- If the test is positive, the LED is lit continuously.
- If the test fails, the LED flashes (1s on, 1s off).
2. Briefly press the programming pin (<0.5s) to stop displaying the result of the connection
test. The service LED goes off.

8
Siemens
A6V10733768_en
--
_a
2017-07-28
Reset to factory setting
Press the programming pin (> 20s). The device is locked and reboots within 10 seconds. The
room automation station removes it from its device list. During this time, the device can
safely be removed from the network.
NOTICE! The LED is off during this procedure.
If the bus plug remains connected, the device acts like a newly inserted device requiring
automated or manual configuration.
NOTICE
This operation resets all user
-
defined data and configuration settings to factory default.
This operation is irreversible.
Operation
The button response is defined as follows:
●Pressing a button: 0.05 s ≤t ≤1 s
●Extended pressure: 3 s ≤t ≤5 s
●Constant pressure: 7 s ≤t
●Button combination: Press multiple buttons simultaneously
Maintenance
The device can be cleaned with commercial, solvent-free cleaning agents.
Do not use mechanical aids (rough sponge or similar materials) – only a soft, damp cloth.
Disposal
The device is considered an electronics device for disposal in terms of European
Directive 2012/19/EU and may not be disposed of as domestic garbage.
●Dispose of the device through channels provided for this purpose.
●Comply with all local and currently applicable laws and regulations.
Warranty
Technical data on specific applications is valid only together with Siemens products listed in
"Equipment combinations". Siemens rejects any and all warranties in the event that third-
party products are used.

9
Siemens
A6V10733768_en
--
_a
2017-07-28
Technical data
Power supply
Operating voltage KNX / PL-Link DC 21...30 V
Max power consumption 7...10 mA
Interfaces
Type of port between room automation station
and room operator unit
KNX / PL-Link
Baud rate 9.6 kbps
Protocol KNX PL-LINK
Standard KNX connector Wire diameter 0.8 mm, max. 1.0 mm (solid conductor only)
Cable type 2-core twisted pair, stranded, solid
Single cable length (from room automation station
to room operator unit)
<1000 m
Section 0.5…1.5 mm²
Bus line polarity PL+,PL-
Bus terminating resister Not required
Sensor data
Temperature sensor Measuring element NTC resistance sensor
Measuring range 0..50 °C
Measuring accuracy (5...30 °C) ±0.8 °C
Measuring accuracy (25 °C) ±0.5 °C
Humidity sensor Measuring range 10%...95% r.h.
Accuracy (r.h. 20%...80%) ±4% at 25 °C
Accuracy (r.h. 0%...20%, 80%...95%) ±6% at 25 °C
Ambient conditions and protection classification
Housing protection
Protection standard as per EN 60529
●IP30
●IP33 for surface parts
Insulation protection class Class III
Climatic ambient conditions
●Normal operation
●Transport
●Environmental conditions: Class 3K5
Temperature 0...50 °C (0... 122 °F)
Air humidity <85% rh.
●Environmental conditions: Class 2K3
Temperature -25...70 °C (-4... 158 °F)
Air humidity <95% rh.
Mechanical ambient conditions
Normal operation
Transport
Class 3M2
Class 2M2
Standards, directives and approvals
EU conformity (CE) A5W90002237 *)
RCM conformity to EMC emission standard A5W90002243 *)
IC compliance CAN ICE-3(B)/NMB-3(B)

10
Siemens
A6V10733768_en
--
_a
2017-07-28
Standards, directives and approvals
UL compliance UL916
FCC compliance Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1) this device may not cause
harmful interference, and 2) this device must accept any
interference received, including interference that may
cause undesired operation.
Environmental compatibility The product environmental declaration
(A5W90002450*) contains data on environmentally
compatible product design and assessments (RoHS
compliance, materials composition, packaging,
environmental benefit, disposal).
*) Documents can be downloaded at the following address:
http://siemens.com/bt/download
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
●
Consult the dealer or an experienced radio/TV technician for help.
General data
Color Signal white (RAL9003)
Weight 146g
Diagrams
Connection terminals
KNX PL-Link plug
Connector Pin Description
+KNX PL-Link (positive)
-KNX PL-Link (negative)

11
Siemens
A6V10733768_en
--
_a
2017-07-28
To locate the KNX PL-Link plug, see Mechanical design [➙3]
Note: Users can select either pair of pins for connection.
NOTICE
Wires are not interchangeable!
The device is protected against faulty wiring, but communications does not work on
interchanged wires. Do not connect the KNX / KNX PL-Link bus to the tool plug, only the
tool.
Tool plug
Connector Pin Description
+KNX PL-Link (positive)
-KNX PL-Link (negative)
RJ45 plug of the tool cable
Connector Pin Description Pin Description
1CE+, KNX 5 Voltage 16 V
2CE-, KNX 6 Unused
3 Unused 7 Identification pin
4Unused 8 Ground
Connection diagrams
Operation
R1 The device - room operator unit
N1 The controller - room automation station
Twisted pair

12
Siemens
A6V10733768_en
--
_a
2017-07-28
Service tool
Connect ABT to load the application in the controller, or for service purposes:
●Directly to the controller
●To the device using the tool cable and the OCI702 service interface (see data sheet
A6V10438951)
Dimensions

13
Siemens
A6V10733768_en
--
_a
2017-07-28
Issued by
Siemens Switzerland Ltd
Building Technologies Division
International Headquarters
Gubelstrasse 22
CH-6301 Zug
Tel. [phone]
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd, 2017
Technical specifications and availability subject to change without notice.
Document ID A6V10733768_en--_a
Edition 2017-07-28
