  9. Siemens RDG200KN User manual

Siemens RDG200KN User manual

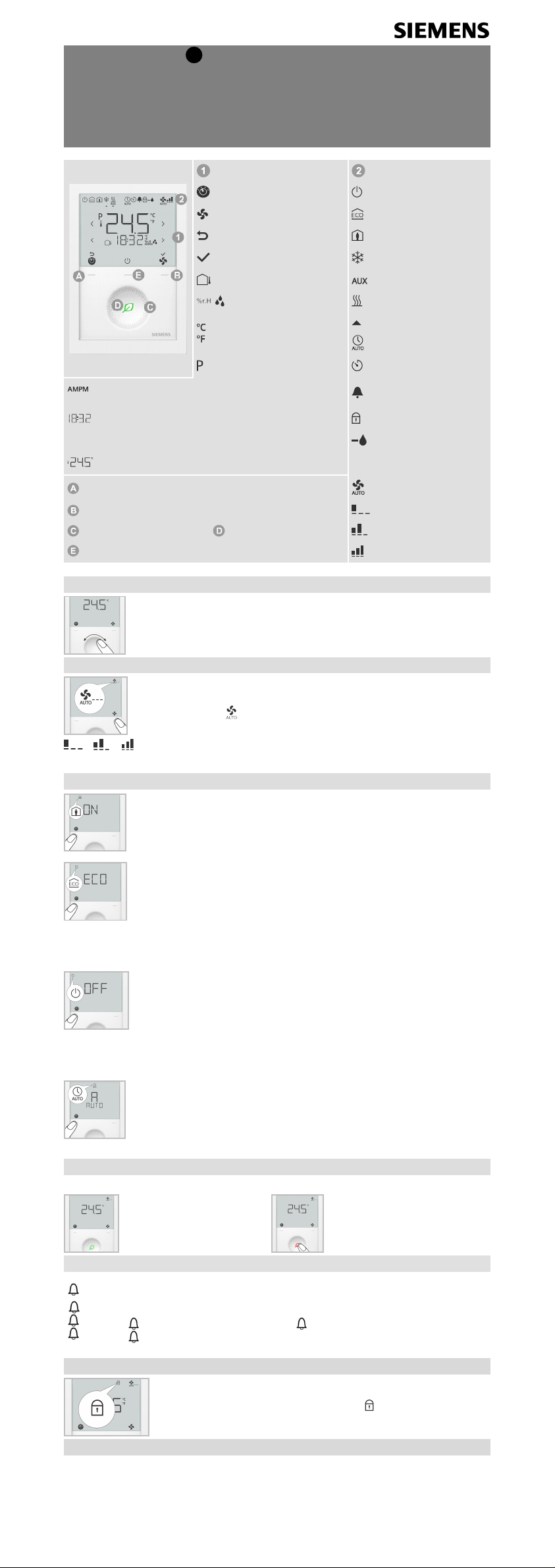

Operating Instructions en RDG200KN
RDG260KN
RDG2..KN – Room thermostat with KNX communications allowing users to set both ideal temperature
and relative humidity. The thermostat offers the operating modes Comfort, Economy and Protection.
In addition, it can operate in Auto mode as per a schedule via KNX bus.
The fan operates either in Auto mode or at the selected speed in Manual mode.
Users can either use the factory settings or adjust settings as desired.
Main display Operating mode
Operating mode selection Protection mode
Fan speed selection Economy mode
Escape Comfort mode
Confirm parameters Cooling mode
Outside temperature Electric heater active
Relative humidity Heating mode
Degrees Celsius or Fahrenheit
Manual changeover
Auto mode
Parameter Temporary timer
Morning: 12-hour format (via bus);
Afternoon: 12-hour format (via bus) Fault
Additional user information, such as outside
temperature, time of day from KNX bus, relative
humidity
Button lock
Condensation in room
(dewpoint sensor active) or
humidity control active
Digits for room temperature and setpoint display
Operating mode button Automatic fan
Fan mode button Fan speed I
Rotary knob Green leaf Fan Speed II
Protection hospitality mode button Fan Speed III
Changing the room temperature
Turn the rotary knob clockwise to increase, or counterclockwise to decrease the
current room temperature setpoint.
Note: The setting range is 5...40 °C; it can be limited by parameters P013 and P016.
(for parameter settings, see Control parameters on page 2).
Adjusting the fan speed
·Press the right button repeatedly until the desired fan mode is reached.
·In Auto mode , the fan speed is automatically selected by the thermostat
depending on setpoint and current room temperature.
·In Manual mode, the fan operates independently and runs at the speed set by
the user: speed I / speed II / speed III.
Speed
I
Speed
II
Speed
III
Changing the operating mode
1. Comfort mode
·In Comfort mode, the thermostat maintains the room temperature at the setpoint
which can be adjusted with the rotary knob.
2. Economy mode
·In Economy mode, the thermostat maintains the room temperature at a lower or
higher setpoint, thus saving energy and money.
·The thermostat can be set to Economy mode either by pressing the operating
mode button if enabled (P002 = 2), or via an external signal (switch or KNX bus
command) such as keycard.
·The Economy setpoints are factory-set to 15 °C for heating and 30 °C for cooling.
They can be adjusted via parameters P019 and P020 (for parameter settings, see
Control parameters on page 2).
3. Protection mode
·In Protection mode, the thermostat stops operating. However, if the room
temperature drops below 8 °C, heating is switched on to protect the room against
frost.
·The thermostat switches to Protection mode when the window contact (local or on
KNX) is activated.
The setpoints for Protection mode can be changed by your HVAC installer if desired:
Changes made by installer: !Frost protection: _________ ˚C
Heating protection: __________ ˚C
4. Auto mode
·In Auto mode, the thermostat automatically switches over between Comfort and
Economy mode as per the KNX bus.
If no schedule is available, Comfort replaces Auto.
Important: If setpoints are set to Off, there is no protective heating or cooling function. Risk of frost!
Green leaf indication
The green leaf indication is an energy-efficient setting and indicates the end user settings.
Green leaf: Settings are within the
preset energy-efficient range.
Red leaf: Settings exceed the preset
energy-efficient range.
End users can press the red leaf and
return to the energy-efficient range.
Reminder to clean filter, display of external faults
FIL *
AL1 *
AL2 *
AL3 *
This message reminds you to clean the filter on your HVAC equipment.
It appears after !_______ "fan operating hours" and disappears when the thermostat is
set to Protection.
These fault messages tell you an external fault has occurred *:
AL1 :!_______________________ AL2 :!__________________________
AL3 :!_______________________
* Needs to be configured by HVAC installer
Button lock
·If the button lock function is enabled (parameter P028 = 2), pressing the right
button for 3 seconds locks or unlocks the buttons respectively.
Locked buttons are indicated by the key symbol .
·If “Auto lock” is configured (P028 = 1), the thermostat automatically locks the
buttons 10 seconds after the last adjustment.
Commissioning (by qualified HVAC installer)
To adapt the thermostat to your system and optimize control performance, a number of control
parameters can be adjusted. This can be done during operation, either via the buttons on the
thermostat or via a commissioning tool.
Control parameters
To change control parameters, proceed as follows:
1. Press left and right buttons simultaneously for 3 seconds or until device beeps if buzzer function is
enabled (P030).
2. Service level: Release and within 0.5…4 seconds, press the right button again until “P001” is
displayed.
Expert level: Release and within 0.5…4 seconds, press the left button again until the temperature
disappears. Turn the rotary knob counterclockwise minimum ½ rotation. P050 displays.
3. Select the required parameter by turning the rotary knob.
4. Press button (OK). The current value of the selected parameter flashes and can be changed by
turning the rotary knob.
5. Press button (OK) to confirm the adjusted value, or (Esc) to cancel the change.
To adjust additional parameters, repeat steps 3 through 5, or press (Esc) to quit parameter setting
mode.
Note: If password protection (needs to be done by HVAC installer) is enabled, users must enter the password to open
parameter setting mode. If the password is mistyped 5 times, the thermostat is locked and the password cannot be
entered for 5 minutes. Symbols and are displayed.
Parameter list
No. Description Factory setting Setting range Adj.
!
P001 Control sequence
2-pipe:
1 = Cooling only
4-pipe:
4 = Heating and
cooling
0 = Heating only
1 = Cooling only
2 = H/C changeover auto
3 = H/C changeover manual
4 = Heating and cooling
P002 Operation via room operating mode
selector 1
1 = Auto ** (Comfort) – Protection
2 = Auto ** - Comfort - Economy - Protection
3 = Auto ** (Comfort) - Protection Hospitality
P003 Operation via fan operating selector 0
0 = Auto - Manual
1 = Manual
2 = Auto - Manual - Protection
3 = Auto – Protection
P004 Unit 00 = °C (parameter in °C)
1 = °F (parameter in °F)
P006 Measured value correction 0 K -5…5 K
P007 Humidity value correction 0 -10…0…10 %
P008 Standard display 00 = Room temperature
1 = Setpoint
P009 Additional display information 0
0 = --- (No display)
1 = °C and °F
2 = Outside temperature (via bus)
3 = Time of day (12 h) (via bus)
4 = Time of day (24 h) (via bus)
5 = Humidity
P010 Setpoint concept 11 = Comfort concept
2 = Energy saving concept
P011 Comfort basic setpoint 21 °C (70 °F) 5…40 °C (41…104 °F)
P013 Comfort setpoint minimum 5 °C (41 °F) (P010 = 1): 5 °C (41 °F)...P016-1 K
(P010 = 2): 5 °C (41 °F)...P014-1 K
P014 Comfort setpoint maximum heating 21 °C (70 °F) P013+1 K…P015-1 K
P015 Comfort setpoint minimum cooling 25 °C (77 °F) P014+1 K…P016-1 K
P016 Comfort setpoint maximum 35 °C (95 °F) (P010 = 1): P013+1 K...40 °C (104 °F)
(P010 = 2): P015+1 K...40 °C (104 °F)
P019 Economy heating setpoint 15 °C (59 °F) OFF (0), 5 °C…P020 (41 °F…P020)
P020 = 40 °C max. (P020 = 104 °F max.)
P020 Economy cooling setpoint 30 °C (86 °F) OFF (0), P019…40 °C (P019…104 °F)
P019 = 5 °C min. (P019 = 41 °F min.)
P024 Humidity setpoint high 50 OFF (0), P026 or 20…90 %
P026 Humidity setpoint low OFF OFF (0), 20…90 % or P024
P0
27
*** Electric heater when cooling ON ON = Enabled
OFF = Disabled
P028 Keypad 0
0 = Unlocked
1 = Auto lock
2 = Manual lock
3 = Lock the operating mode
4 = Lock the Setpoint shift
5 = Lock fan speed
6 = Lock operating mode and setpoint shift
7 = Lock operating mode and fan speed
8 = Lock setpoint shift and fan speed
P029 Fan: Dead zone Comfort mode 0
0 = Fan disable
1 = Low speed (Heat and Cool)
2 = Low speed (Cooling only)
3 = Fan disable Auto & Manual
4 = Low speed (Heat and Cool) Auto &
Manual
5 = Low speed (Cooling only) Auto & Manual
P030 Buzzer function ON ON = Enabled
OFF = Disabled
** When no time schedule via KNX exists, Auto equals Comfort.
*** Parameter P027 is displayed only for application 2-pipe with electric heater.
All temperature settings are in increments of 0.5 °C.
!Remember to record all changes!
Issued by
Siemens Switzerland Ltd
Smart Infrastructure
Global Headquarters
Theilerstrasse 1a
CH-6300 Zug
Tel. +41 58 724 2424
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd, 2020
Technical specifications and availability subject to change without notice.
A6V11545973_en--_a A5W00031435A_AA 2020-09-07 Siemens Smart Infrastructure
