Siemens SIMATIC IFP1200 Basic User manual

IFP Basic
SIMATIC HMI
Industrial Flat Panels Basic
I
FP Basic
Operating Instructions
06/2023
A5E46178354
- AD
Preface
Overview
1
Safety information
2
Installing and connecting
the device
3
Commissioning the device
4
Operating the device
5
Maintaining and servicing
your device
6
Technical information
7
Technical Support
A
Markings and symbols
B
List of abbreviations
C

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
Ⓟ
06/2023 Subject to change
Copyright © Siemens AG 2023.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 3
Preface
These operating instructions contain all the information you need for commissioning and
operation of the SIMATIC Industrial Flat Panels (IFP) Basic and SIMATIC IFP1200 Basic C.
It is intended both for programming and testing personnel who commission the device and
connect it with other units (automation systems, programming devices), as well as for service
and maintenance personnel who install add-ons or carry out fault/error analyses.
Basic knowledge required
A solid background in personal computers and Microsoft operating systems are required to
understand this manual. General knowledge in the field automation control engineering is
recommended.
Scope of the operating instructions
These operating instructions apply to the following Industrial Flat Panels:
Product name
MLFB
SIMATIC IFP1200 Basic
6AV7862-2BC00-0AA0
SIMATIC IFP1500 Basic
6AV7862-2BD00-0AA0
SIMATIC IFP1900 Basic
6AV7862-2BE00-0AA0
SIMATIC IFP2200 Basic
6AV7862-2BF00-0AA0
SIMATIC IFP1200 Basic C
6AV7862-2BC10-0AA0
Scope of this documentation
The SIMATIC IFP Basic and SIMATIC IFP1200 Basic C are supplied with the following
documents:
•In printed form: Quick Install Guide which includes the device description, installation and
commissioning Instructions.
•Electronically as PDF that can be downloaded from Product Support in SIOS. The updates
of the document will be published in SIOS.
Conventions
In these operating instructions, SIMATIC IFP Basic is also referred to as "IFP Basic" or "device",
and SIMATIC IFP1200 Basic C is also referred to as "IFP1200 Basic C" or "device".
A touch device generally refers to a device with a touch screen, as opposed to a pure "display
device". Touch screen is the general term for a capacitive multi-touch screen and resistive
single touch screen.

Preface
IFP Basic
4Operating Instructions, 06/2023, A5E46178354 - AD
At some places in these operating instructions, the general term "Windows Embedded
Standard" is used to refer to "Windows Embedded Standard 7" . "Windows 7" is used as an
abbreviation for "Windows 7 Ultimate".
Figures
This manual contains figures of the described devices. The supplied device may differ in some
details from the figures. Within some of the figures, one device is used to represent all
SIMATIC IFP Basic.
History
Edition
Comment
03/2019
First Edition
08/2022 Second Edition
Description of the device SIMATIC IFP1200 Basic C is added.
06/2023
Third Edition
Description of ID link (Page 65) for the digital nameplate is added, and description
of printed document and DVD is deleted.

IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 5
Table of contents
Preface ................................................................................................................................................... 3
1 Overview................................................................................................................................................ 7
1.1 Product description.............................................................................................................. 7
1.2 Scope of delivery ................................................................................................................. 8
1.3 Exterior design..................................................................................................................... 9
1.3.1 IFP Basic .............................................................................................................................. 9
1.3.2 SIMATIC IFP1200 Basic C .................................................................................................... 10
1.4 Interfaces .......................................................................................................................... 11
1.5 Accessories........................................................................................................................ 12
2 Safety information............................................................................................................................... 13
2.1 General safety instructions................................................................................................. 13
2.2 Data protection.................................................................................................................. 15
2.3 Notes about usage............................................................................................................. 15
3 Installing and connecting the device .................................................................................................. 19
3.1 Preparing for installation.................................................................................................... 19
3.1.1 Checking the delivery package ........................................................................................... 19
3.1.2 Identification data of the device......................................................................................... 20
3.1.3 Permitted mounting positions ............................................................................................ 21
3.1.4 Preparing the mounting cutout .......................................................................................... 23
3.1.5 Checking clearances .......................................................................................................... 24
3.2 Installing the IFP Basic and IFP1200 Basic C ........................................................................ 26
3.2.1 Notes on installation for IFP Basic....................................................................................... 26
3.2.2 Notes on installation for IFP1200 Basic C............................................................................ 26
3.2.3 Secure with mounting clips................................................................................................ 27
3.2.4 Fastening a device using a VESA adapter............................................................................ 29
3.3 Connecting the device ....................................................................................................... 32
3.3.1 Notes on connection.......................................................................................................... 32
3.3.2 Earthing the device............................................................................................................ 33
3.3.3 Connecting devices with 24V DC 2-pin ............................................................................... 36
3.3.4 Connecting IFP Basic to a PC............................................................................................... 39
3.3.5 Connecting IFP1200 Basic C to a PC.................................................................................... 40
3.3.6 Connecting a USB device.................................................................................................... 41
3.4 Installing the tool and driver .............................................................................................. 41
4 Commissioning the device .................................................................................................................. 44
5 Operating the device ........................................................................................................................... 45
5.1 Operator input options ...................................................................................................... 45
5.2 Operating a device with resistive single touch screen ......................................................... 46

Table of contents
IFP Basic
6Operating Instructions, 06/2023, A5E46178354 - AD
5.3 Using the Brightness Adjustment Tool................................................................................ 47
5.4 Using the touch driver ....................................................................................................... 48
6 Maintaining and servicing your device ............................................................................................... 52
6.1 General information on maintenance and servicing............................................................ 52
6.2 Cleaning the screen ........................................................................................................... 52
6.3 Spare parts and repairs ...................................................................................................... 53
6.4 Recycling and disposal ....................................................................................................... 53
7 Technical information ......................................................................................................................... 54
7.1 Certificates and approvals.................................................................................................. 54
7.2 Directives and declarations ................................................................................................ 57
7.2.1 ESD guideline .................................................................................................................... 57
7.3 Dimension drawings .......................................................................................................... 60
7.3.1 Dimension drawing of the IFP1200 Basic............................................................................ 60
7.3.2 Dimension drawing of the IFP1500 Basic............................................................................ 61
7.3.3 Dimension drawing of the IFP1900 Basic............................................................................ 62
7.3.4 Dimension drawing of the IFP2200 Basic............................................................................ 63
7.3.5 Dimension drawing of the IFP1200 Basic C......................................................................... 64
7.4 Rating plate ....................................................................................................................... 65
7.5 Technical specifications ..................................................................................................... 67
7.5.1 General technical specifications ......................................................................................... 67
7.5.2 Ambient conditions ........................................................................................................... 69
7.5.2.1 Transport and storage conditions ....................................................................................... 69
7.5.2.2 Operating conditions ......................................................................................................... 70
7.5.2.3 Electromagnetic compatibility............................................................................................ 72
7.5.2.4 Information on protection class and degree of protection................................................... 73
7.6 Interface description.......................................................................................................... 74
7.6.1 VGA interface .................................................................................................................... 74
7.6.2 24 VDC Power Supply ........................................................................................................ 74
7.6.3 DisplayPort ........................................................................................................................ 75
7.6.4 USB interface, Type B......................................................................................................... 75
7.6.5 USB interface, Type A......................................................................................................... 76
A Technical Support ................................................................................................................................ 77
A.1 Service and support ........................................................................................................... 77
A.2 Troubleshooting ................................................................................................................ 78
B Markings and symbols......................................................................................................................... 79
B.1 Safety-relevant symbols..................................................................................................... 79
CList of abbreviations ............................................................................................................................ 81
Glossary ............................................................................................................................................... 82
Index.................................................................................................................................................... 83

IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 7
Overview
1
1.1 Product description

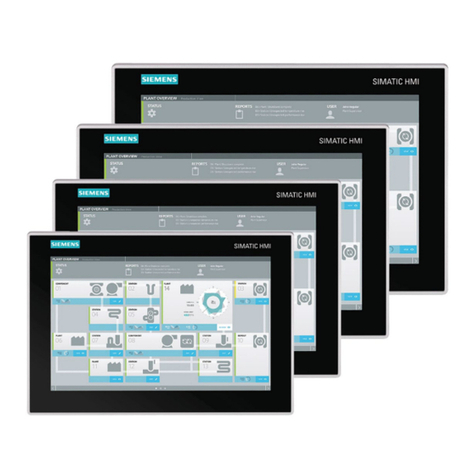

SIMATIC IFP Basic are touch monitors suitable for industrial use with a brilliant TFT (Thin Film
Transistor) display which can be connected to all SIMATIC IPCs as well as almost all generally
available PCs.
Features of SIMATIC IFP1200/1500/1900/2200 Basic
•Rugged front
•Brilliant TFT display with a wide reading angle;
Resistive single touch screen in sizes 12", 15", 19" and 22"
•Can be placed up to 5 m from the IPC
•VGA and DisplayPort V1.2 interface
•Backlighting can be dimmed through software
•24 V DC power supply
•Degree of protection IP65 for cabinet installation
•Up to 16 million colors

Overview
1.2 Scope of delivery
IFP Basic
8Operating Instructions, 06/2023, A5E46178354 - AD
Features of SIMATIC IFP1200 Basic C
The SIMATIC IFP Basic C devices have the following features as compared to SIMATIC
IFP1200/1500/1900/2200 Basic devices.
•Degree of protection IP65 for both front panel and rear
•Enhanced robustness with higher vibration and shock
1.2 Scope of delivery
The product package includes the following components:
Name
Figure
Number
SIMATIC IFP Basic/
SIMATIC IFP1200 Basic C
1
Installation instructions
(Quick Install Guide)
SIMATIC IFP1200
Basic C
1
Accessory kit
"Mounting clips
and
power supply connect-
or"
SIMATIC IFP Basic/
SIMATIC IFP1200
Basic C
12
SIMATIC IFP Basic
1
SIMATIC IFP1200
Basic C

Overview
1.3 Exterior design
IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 9
1.3 Exterior design
1.3.1 IFP Basic
This section describes the design of the monitor and touch devices, using the IFP1500 Basic
as an example.
Front view and side view
①
Display/touch screen
②
Interfaces
③
Recesses for mounting clips

Overview
1.3 Exterior design
IFP Basic
10 Operating Instructions, 06/2023, A5E46178354 - AD
Rear view
①
Rating plate
②
Holes for VESA mounting
③
Recesses for mounting clips
1.3.2 SIMATIC IFP1200 Basic C
This section describes the structure of the device SIMATIC IFP1200 Basic C.
Front view and side view
①
Display and touch screen
②
Recesses for mounting clips
③
Mounting seal

Overview
1.4 Interfaces
IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 11
Rear view
①
Rating plate
②
Terminal compartment cover
③
Recesses for mounting clips
1.4 Interfaces
SIMATIC IFP1200/1500/1900/2200 Basic
①
X80 connector for 24 VDC power supply
②
X72 VGA interface
③
X71 DisplayPort interface
④
X61, X62 USB 2.0 Type A
⑤
X60 USB 2.0 Type B

Overview
1.5 Accessories
IFP Basic
12 Operating Instructions, 06/2023, A5E46178354 - AD
SIMATIC IFP1200 Basic C
①
X80 connector for 24V DC Power supply
②
X71 DisplayPort interface
③
X61 USB 2.0 Type A
④
X60 USB 2.0 Type B
1.5 Accessories
This section contains the number of accessories available at the time of publication of the
operating instructions. You will find additional accessories on the Internet at: Industry Mall
(https://mall.industry.siemens.com/)
Name
Specification
Article number
DisplayPort line
3 m long
6AV7860-0DH30-0AA0
5 m long
6AV7860-0DH50-0AA0
USB line
3 m long
6AV7860-0CH30-0AA0
5 m long
6AV7860-0CH50-0AA0

IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 13
Safety information
2
2.1 General safety instructions
The device is designed for use in the industrial sector for operating and monitoring plant
processes.
Machinery Directive
WARNING
The device may only be used in machines which comply with the Machinery Directive
The Machinery Directive specifies precautions to be taken when commissioning and
operating machinery within the European Economic Area.
Failure to follow these precautions is a breach of the Machinery Directive. Such failure may
also cause personal injury and damage depending on the machine operated.
The machine in which the HMI device is to be operated must conform to Directive
2006/42/EC.
Observe the safety and accident prevention instructions applicable to your application in
addition to the safety information given in the device documentation.
Strong high-frequency radiation
NOTICE
Observe immunity to high-frequency radiation
The device has an increased immunity to high frequency radiation according to the
specifications on electromagnetic compatibility in the technical specifications.
Radiation exposure in excess of the specified immunity limits can impair device functions
and result in malfunctions and therefore injuries or damage.
Read the information on immunity to high frequency radiation in the technical
specifications.

Safety information
2.1 General safety instructions
IFP Basic
14 Operating Instructions, 06/2023, A5E46178354 - AD
Additional notes for built-in units of IFP Basic
NOTICE
The rear of the device IFP Basic constitutes open equipment.
The rear of the device constitutes open equipment. This means that the device may only be
installed in an enclosure or cabinet which provides front access for operating the device.
The enclosure, the cabinet or the electrical operating rooms must provide protection against
electric shock and the spread of fire. The requirements regarding the mechanical strength
must also be taken into account.
Access to the enclosure or cabinet in which the device is installed should only be possible by
means of a key or tool and for trained and authorized personnel.
Electrocution risk when control cabinet is open
When you open the control cabinet, there may be a dangerous voltage at certain areas or
components.
If you touch these areas or components, you may get injured by electric shock.
Always disconnect the control cabinet from the mains before opening it. Do not plug in or
pull out the system component during operation.
ESD
An electrostatically sensitive device is equipped with electronic components. Due to their
design, electronic components are sensitive to overvoltage and thus to the discharge of static
electricity. Note the corresponding regulations when handling ESD.
Industrial Security
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be connected
to an enterprise network or the internet if and to the extent such a connection is necessary
and only when appropriate security measures (e.g. use of firewalls and network
segmentation) are in place.
For additional information on industrial security measures that may be implemented,please
visit (http://www.siemens.com/industrialsecurity).
Siemens’ products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply latest updates may increase customer’s exposure to
cyber threats.

Safety information
2.2 Data protection
IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 15
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under (http://www.siemens.com/industrialsecurity).
Disclaimer for third-party software updates
This product includes third-party software. Siemens AG only provides a warranty for
updates/patches of the third-party software, if these have been distributed as part of a
Siemens software update service contract or officially released by Siemens AG. Otherwise,
updates/patches are undertaken at your own risk. You can find more information about our
Software Update Service offer on the Internet at Software Update Service
((http://www.automation.siemens.com/mcms/automation-software/en/software-update-
service).
Notes on protecting administrator accounts
A user with administrator privileges has extensive access and manipulation options in the
system.
Therefore, ensure there are adequate safeguards for protecting the administrator accounts to
prevent unauthorized changes. To do this, use secure passwords and a standard user account
for normal operation. Other measures, such as the use of security policies, should be applied
as needed.
2.2 Data protection
Siemens observes the data protection guidelines, especially the requirements regarding data
minimization (privacy by design). This means the following for this SIMATIC product: The
product does not process / save any personal information, but only technical functional data
(e.g. time stamps). If the user links this data to other data (e.g. shift plans) or if the user saves
personal information on the same medium (e.g. hard disk) and therefore creates a personal
reference in the process, the user has to ensure meeting the guidelines regarding data
protection.
2.3 Notes about usage
Note
Operate the device only in a normal atmospheric environment
The technical characteristics of the device described in the operating instructions are
guaranteed if you operate the device in norma
l ambient air conditions with usual air
composition.

Safety information
2.3 Notes about usage
IFP Basic
16 Operating Instructions, 06/2023, A5E46178354 - AD
CAUTION
Danger of burns for the device IFP1200 Basic C
The surface of the device IFP1200 Basic C can reach temperatures of over 65 °C. Any
unprotected contact may cause burns.
Avoid direct contact during operation of the device. Touch the device only with appropriate
protective gloves.
Industrial applications
The device is designed for industrial applications. It conforms to the following standards:
•Requirements for emissions EN/IEC 61000-6-4
•Requirements for interference immunity EN/IEC 61000-6-2
Use in mixed-use zone
Under certain circumstances you can use the device in a mixed-use zone. A mixed-use zone is
used for housing and commercial operations that do not have a significant impact on
residents.
When you use the device in a mixed-use zone, you must ensure that the limits of the generic
standard EN/IEC 61000-6-3 regarding emission of radio frequency interference are observed.
Suitable measures for achieving these limits for use in a mixed-use zone include:
•Installation of the device in grounded control cabinets
•Use of filters in electrical supply lines
Individual acceptance is required.
Note
IFP Basic is not intended for use in residential area
The device is not intended for use in residential areas. Op
eration of a device in residential
areas can have a negative influence on radio or TV reception.
Use with additional measures
The device should not be used at the following locations unless additional measures are
taken:
In locations with a high degree of ionizing radiation
•In locations with severe operating conditions, for example, due to:
–Corrosive vapors, gases, oils or chemicals
–Strong electrical or magnetic fields of high intensity
•In systems that require special monitoring, for example, in:
–Elevators
–Systems in especially hazardous rooms

Safety information
2.3 Notes about usage
IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 17
Reducing vibrations
If the device is subjected to greater shocks or vibrations, you must take appropriate measures
to reduce acceleration or amplitudes.
We recommend mounting the device on damping materials, such as rubber-metal vibration
dampers.
Risk analysis and measures
WARNING
Hazards emanating from unprotected machines or plants
The results of a risk analysis can reveal any hazards emanating from unprotected machinery.
Such hazards may pose a risk of personal injury.
You can prevent personal injury caused by hazards as specified in the risk analysis by taking
the following measures:
•Installing additional protective devices on machinery and plants. In particular, it must
also be ensured that the programming, configuration and wiring of all I/Os used takes
place in accordance with the safety performance (SIL, PL or Cat.) identified by the
requisite risk analysis.
•Use of the device in accordance with its intended purpose, which can be verified by
means of a system function test. This test can detect programming, configuration and
wiring errors.
•Documentation of the test results, which must be entered in the relevant safety reports if
required.

Safety information
2.3 Notes about usage
IFP Basic
18 Operating Instructions, 06/2023, A5E46178354 - AD
Environment
NOTICE
Ambient conditions and chemical resistance
Ambient conditions not suited for the device can adversely affect operation. Chemical
agents, such as detergents or operating material, can change the color, shape and structure
of the device surface. The device may be damaged. This may lead to malfunctions.
For this reason, the following precautionary measures should be taken:
•Only operate the device in closed rooms. Failure to comply with these instructions will
render the warranty null and void.
•Only operate the device in the ambient conditions specified in the technical
specifications.
•Protect the device against dust, moisture and heat.
•The device may not be used in harsh operating environments, such as areas subject to
acidic vapors or gases, without additional protective measures (for example. a clean air
supply).
•Only use suitable detergents. Read the information about Chemical resistance of the HMI
devices and industrial PCs
(https://support.automation.siemens.com/WW/view/en/39718396) on the Internet.

IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD 19
Installing and connecting the device
3
3.1 Preparing for installation
3.1.1 Checking the delivery package
Procedure
1. When accepting a delivery, please check the packaging for visible transport damage.
2. If any transport damage is present at the time of delivery, lodge a complaint at the shipping
company in charge. Have the shipper confirm the transport damage immediately.
3. Unpack the device at its installation location.
4. Keep the original packaging in case you have to transport the unit again.
Note
Damage to the device during transport and storage
If a device is transported or stored without packaging, shocks, vibrations, pressure and
moisture may impact the unprotected unit. Damaged packaging indicates that ambient
conditions have already had a massive impact on the device and it may be damaged.
Th
is may cause the device, machine or plant to malfunction.
•
Keep the original packaging.
•
Pack the device in the original packaging for transportation and storage.
5. Check the contents of the packaging and any accessories you may have ordered for
completeness and damage.

Installing and connecting the device
3.1 Preparing for installation
IFP Basic
20 Operating Instructions, 06/2023, A5E46178354 - AD
6. Please inform the delivery service immediately if the package contents are incomplete or
damaged or do not correspond with your order.
WARNING
Electric shock and fire hazard due to damaged device
A damaged device can be under hazardous voltage and trigger a fire in the machine or
plant. A damaged device has unpredictable properties and states.
Serious injury could occur.
Make sure that the damaged device is not inadvertently installed and put into operation.
Label the damaged device and keep it locked away. Send off the device for immediate
repair.
NOTICE
Damage from condensation
If the device is subjected to low temperatures or extreme fluctuations in temperature
during transportation, as is the case in cold weather, for example, moisture can build up
on or inside the device (condensation).
Moisture causes a short circuit in electrical circuits and damages the device.
In order to prevent damage to the device, proceed as follows:
•Store the device in a dry place.
•Bring the device to room temperature before starting it up.
•Do not expose the device to direct heat radiation from a heating device.
•If condensation develops, wait until the device is completely dry before switching it
on.
7. Keep the enclosed documentation in a safe place. You need the documentation when you
commission the device for the first time.
8. Write down the identification data of the device.
3.1.2 Identification data of the device
The device can be clearly identified with the help of this identification data in case of repairs
or theft.
Enter the identification data in the following table:
Order number
6AV...
Serial number
S V
Product version
FS
