Sierra Flame INS-FM-30 Original instructions

1
malfunction and result in serious injury and/or property damage.
WARNING: All electric heaters have hot or sparking parts inside.Do not use it in areaswhere
gasoline, paint or flammable liquids are stored.
and/or result in a safety hazard.
Read these instructions completely before beginning installation. Failure to follow them could
cause a heater
WARNING: This heater is tested and listed for use onlywiththe optional accessories listed in
these instructions. Use of optional accessories not specifically tested for this heater could void
the heaterwarranty
ELECTRIC FIREPLACES
INS-FM-30
INS-FM-34
ZC-FM-37
SAFETY INFORMATION AND INSTALLATION MANUAL
ZC-FM-45

TABLE OF CONTENTS
CONGRATULATIONS!
In selecting this Sierra Flame Wall Mount OR Built-in electric fireplace, you have chosen the finest and
most dependable fireplace on the market today. A beautiful and functional addition to the finest homes.
Welcome to the family of satisfied Sierra Flame electric fireplace owners.
Please read and carefully follow all of the instructions found in this manual. Please pay special attention
to the safety instructions provided in this manual. The instructions included here will assure that you
have many years of dependable and enjoyable service from your Sierra Flame product.
Safety Information
INS-FM-30
INS-FM-34
ZC-FM-37
ZC-FM-45
Locating The Fireplace Insert
Clearances When Built-In
Unpacking And Testing The Fireplace Insert
Installation
Installation Overview-Masonry Fireplaces
Operating Instructions

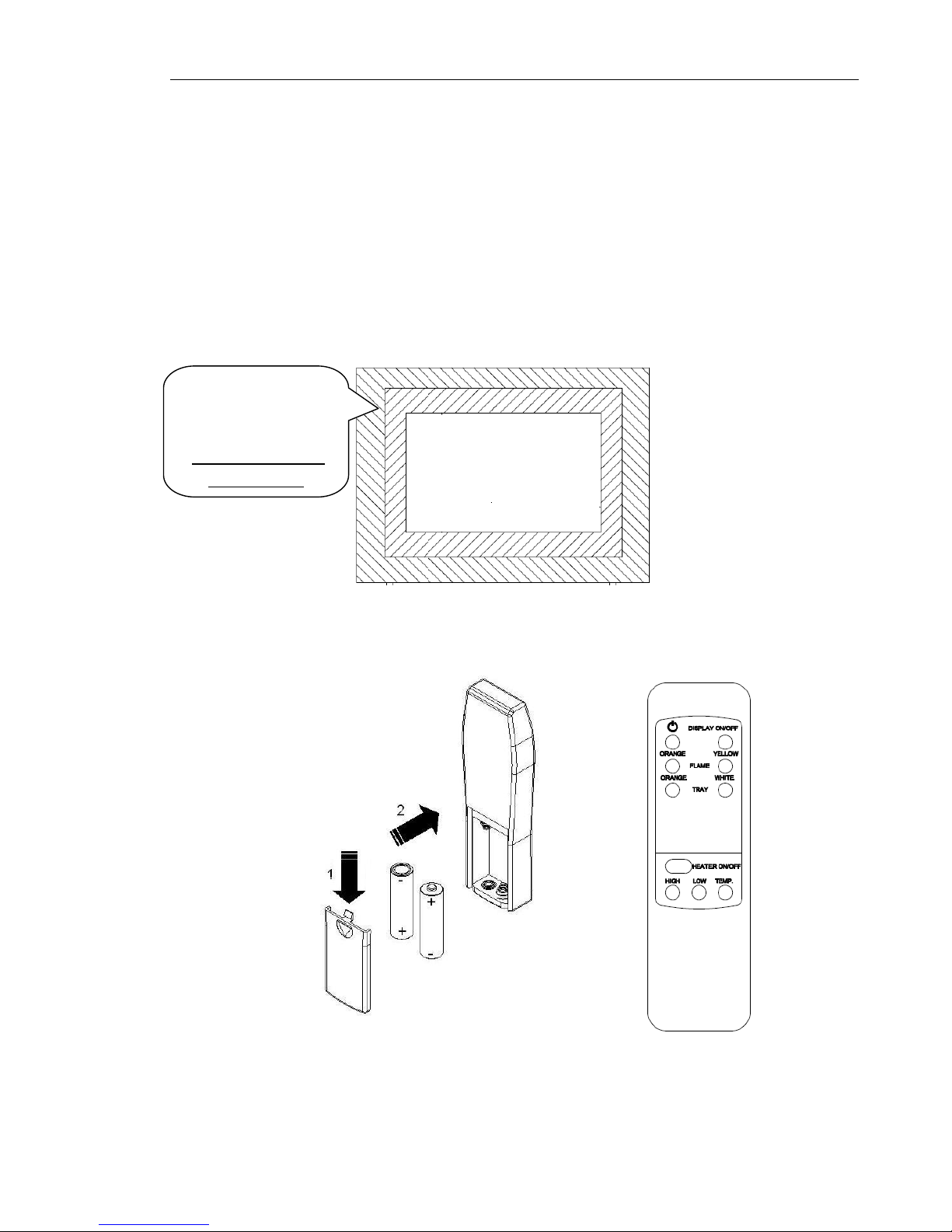

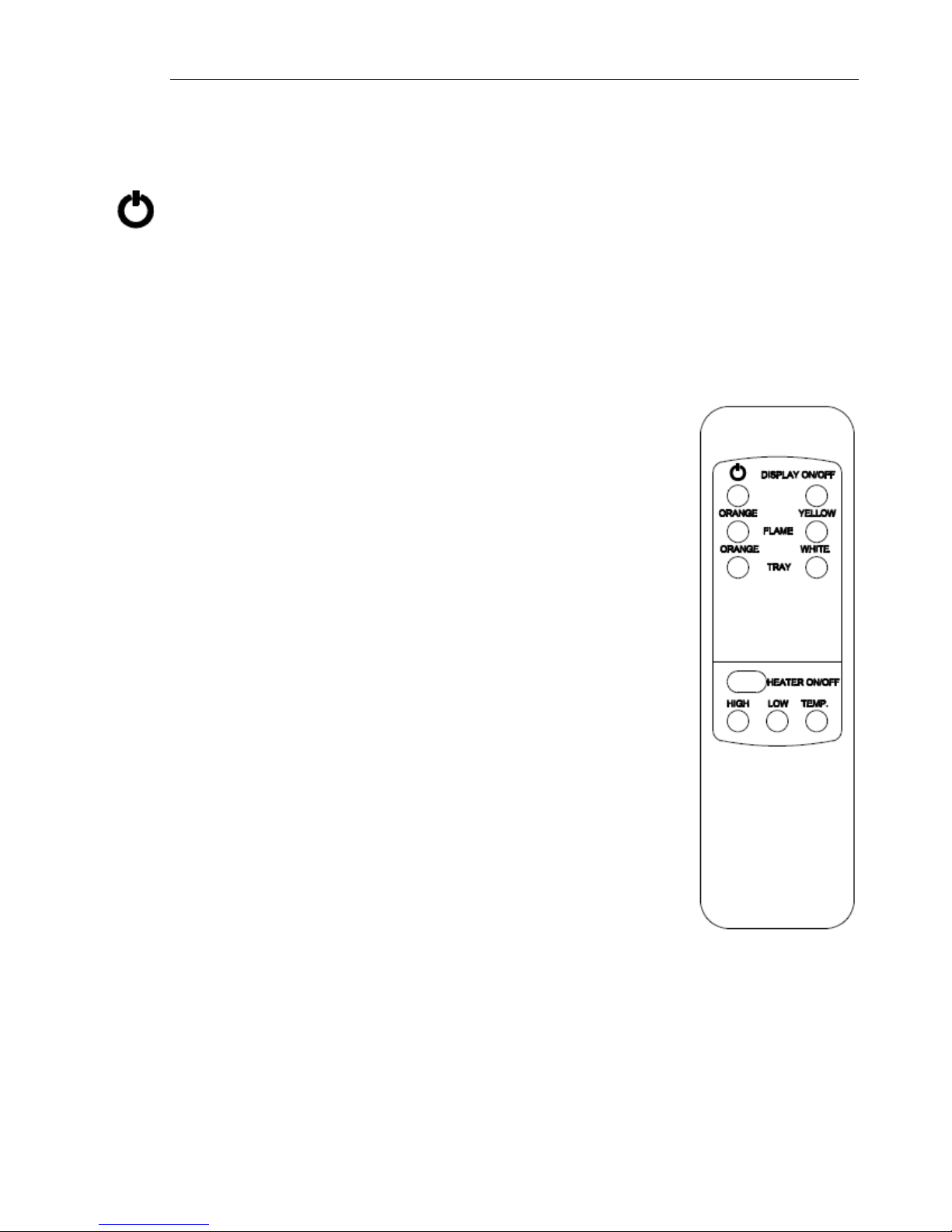

Remoter Control Operation

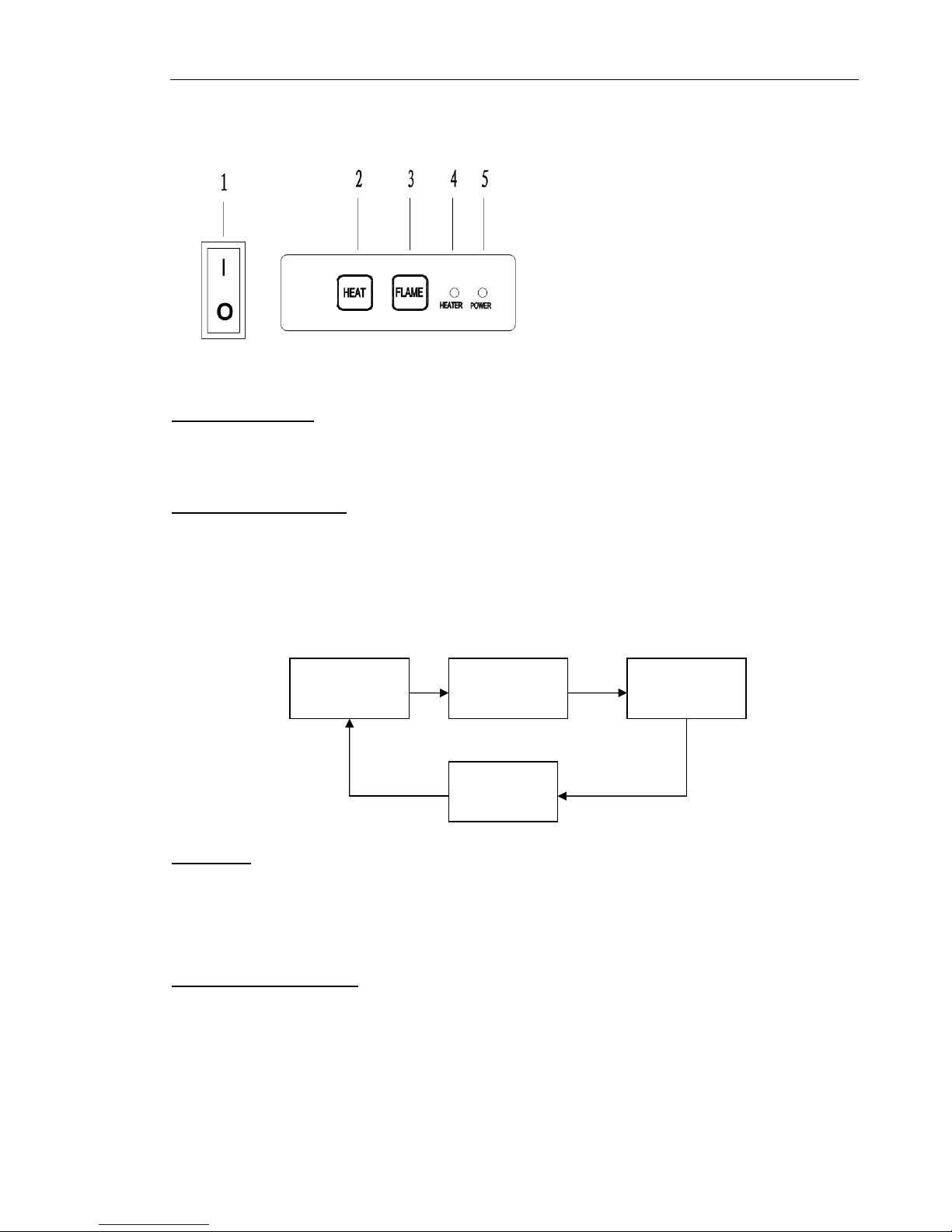

Direct Operation

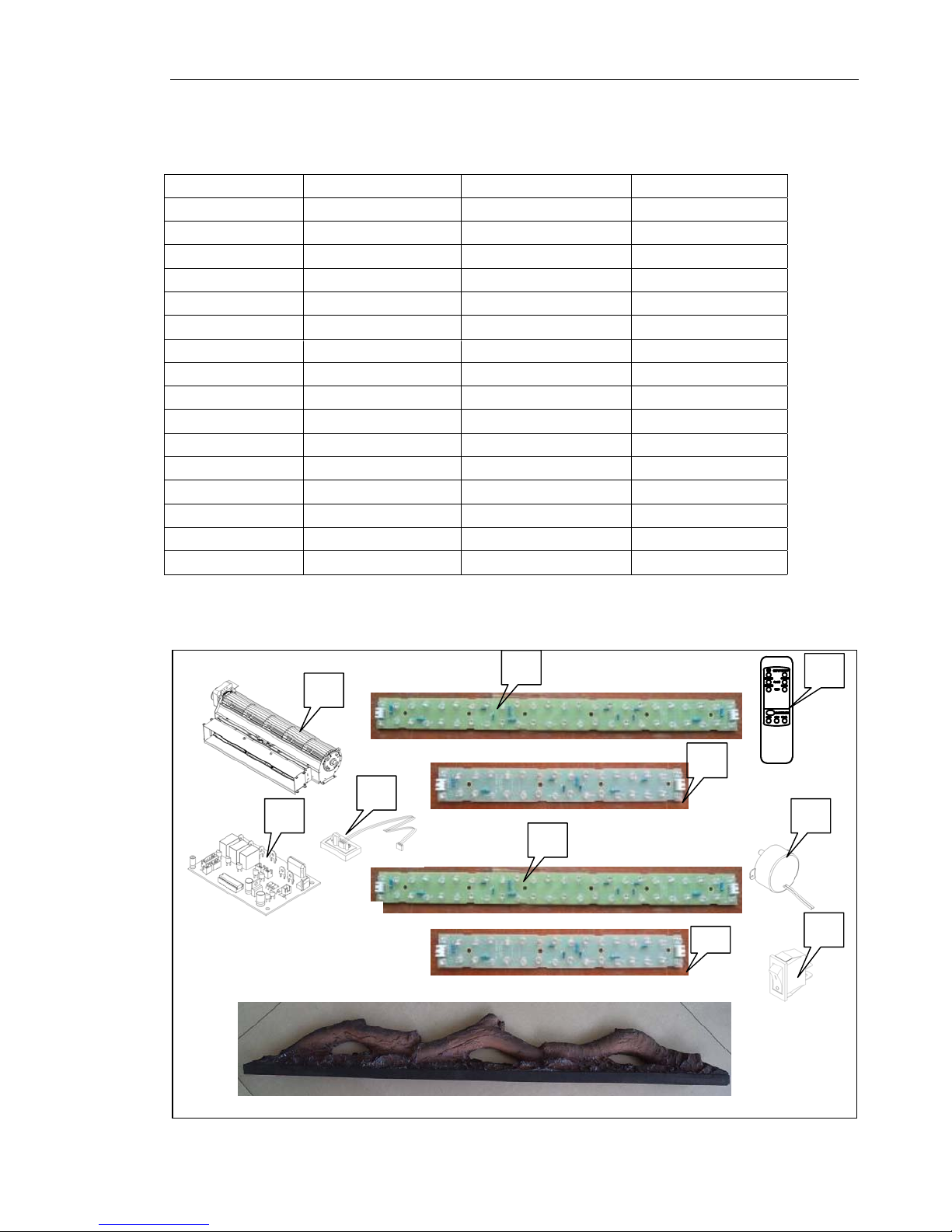

Replacement Parts
Trouble Shooting
Page 2
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
18
Clearing And Maintenance
Page 17
1
Installation Overview-Zero-Clearance(Mental) Fireplaces
Warranty
Dealer Contact Information
Page 20
Back Page
Service History
Page 21
Page
Exploded View 19
Page

2
Keep this manual for future reference.
SAFETY INFORMATION
When using electrical heaters, basic precautions, like the ones listed below, should always be followed in order to
reduce the risk of fire, electric shock and injury.
1. Read all instructions before using this heater.
2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the
front of the heater; keep them away from sides and rear as well.
3. Always unplug heater when it’s not in use.
4. Do not operate the fireplace insert if it has a damaged cord or plug, after it has malfunctioned, or if the unit has been
dropped or damaged in any way.
5. Do not use the heater outdoors.
6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never place the heater
where it may fall into a bathtub or other water containers.
7. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or anything else. Arrange the
cord away from traffic areas where it could be tripped over.
8. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.
9. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric
shock, fire or damage to the heater.
10. To prevent a possible fire, do not block air intakes in any manner.
11. A heater has hot or sparking parts inside. Do not use it in areas where gasoline, paint or flammable
liquids are used or stored.
Due to high temperatures, the insert should be located out of
traffic and away from furniture and draperies.
The insert can become very hot when running. Keep children and
adults away from hot surfaces to avoid burns or clothing ignition. The
insert will remain hot for a time after shutdown. Allow surfaces to cool
before touching.
Do not place clothing or other flammable material on or near the
insert. Never place any objects on the insert.

3
12. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause
fire, electric shock or injury to persons.
13. Avoid the use of an extension cord because the extension cord may overheat and cause a fire. If you have to use
an extension cord, the cord should be No. 14 AWG minimum size and rated not less than 1875 WATTS.
14. Always use a properly grounded, protected (fuse or circuit breaker), and polarized outlet.
15. Always use ground fault protection where it is required by electrical codes.
16. Always disconnect the power before performing any cleaning, maintenance or relocation of the heater.
17. To prevent a possible fire, do not burn wood or other materials in this heater.
18 To prevent electric shock or fire, always use a certified electrician, should new circuits or outlets
be required.
19. When transporting or storing the heater, keep it in a dry place, free from excessive vibration.
LISTING APPROVALS
This heater has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room
heaters in the United States. All components are UL or CSA safety certified.
Voltage: 120 AC,
Hz: 60
Watts: 1500
Amps: 15
Note:This heater must be electrically wired and grounded in accordance with local codes or, in the absence of local
codes, with National Electric Code.

4
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-
W(") D(") H(")
INS-FM-30 31 1/4 9 3/4 19 5/8
The rough wall opening size of the fireplace.
W
D
H
INS-FM-30
Built-inAppliance
120VAC, 60 Hz
12A
1500 W
HIGH 1500W
LOW 750W
18W
30W
4W
38" or 96.5 cm
24 7/8" or 63.3cm
81/2"or21.58 cm
63.93 Lbs or 29 Kg
Left side
74 3/4"or190 cm
31 1/4"x19 5/8" or 79.5 cmx49.8 cm
Description
Voltage
Amps
Watts
HEATER
No HEATER
MotorHEATER
MotorFlame
ApplianceWidth
CordLength
Rough Wall Opening Size
ApplianceHeight
ApplianceDepth
Gross Weight
Plug Location
INS-FM-3

5
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-

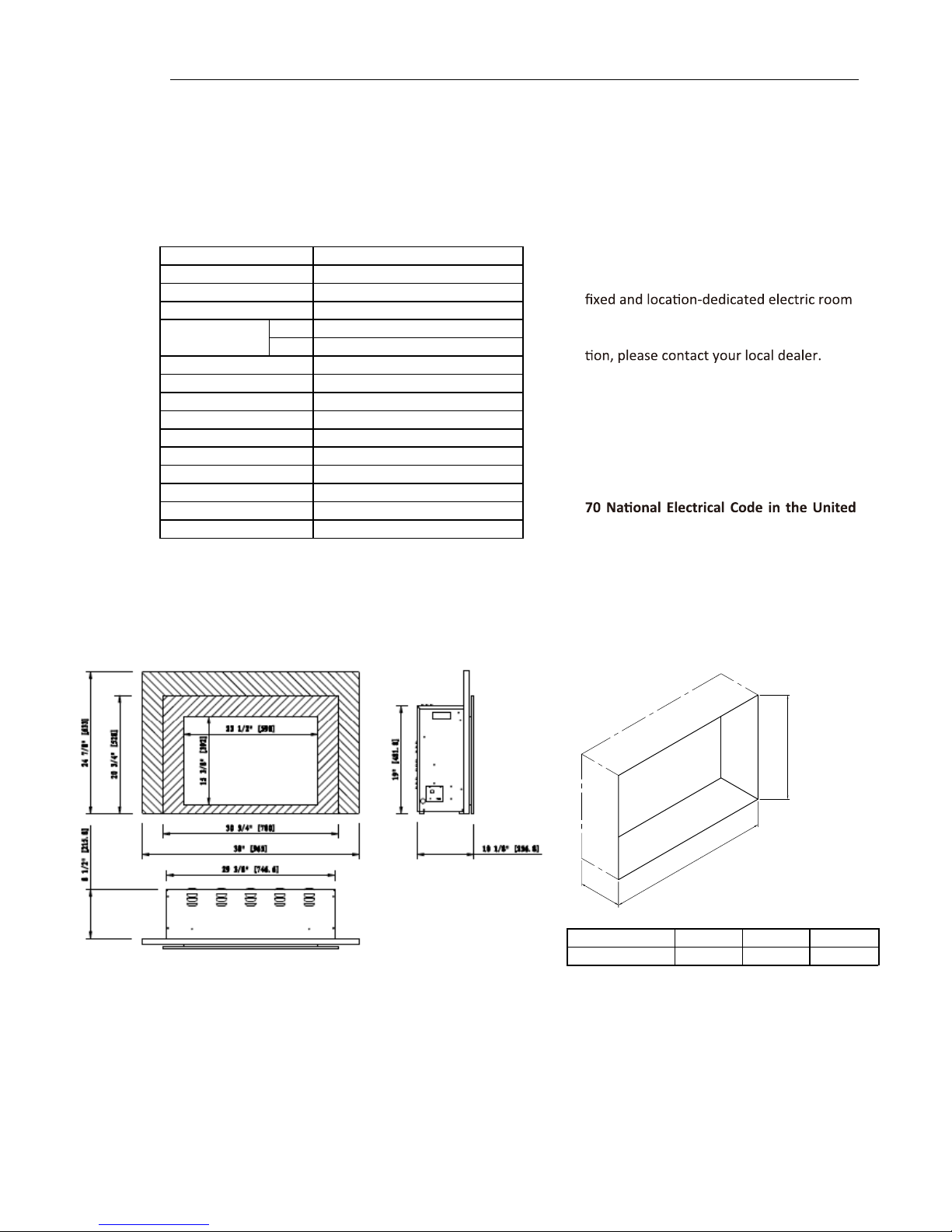

W(") D(") H(")
ZECL-30-3226 32 7/8 9 23 5/8
The rough wall opening size of the fireplace.
W
D
H
INS-FM-34
Built-inAppliance
120VAC, 60 Hz
12A
1500 W
HIGH 1500W
LOW 750W
18.5W
30W
4W
42" or 106.8 cm
30" or 76.2 cm
8 1/2" or 21.58 cm
72.75 Lbs or 33 Kg
Left side
74 3/4"or190 cm
32 7/8" x 23 5/8" or 83.5 cm x 60 cm
Plug Location
CordLength
Rough Wall Opening Size
ApplianceWidth
ApplianceHeight
ApplianceDepth
Gross Weight
HEATER
No HEATER
MotorHEATER
MotorFlame
Description
Voltage
Amps
Watts

NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-

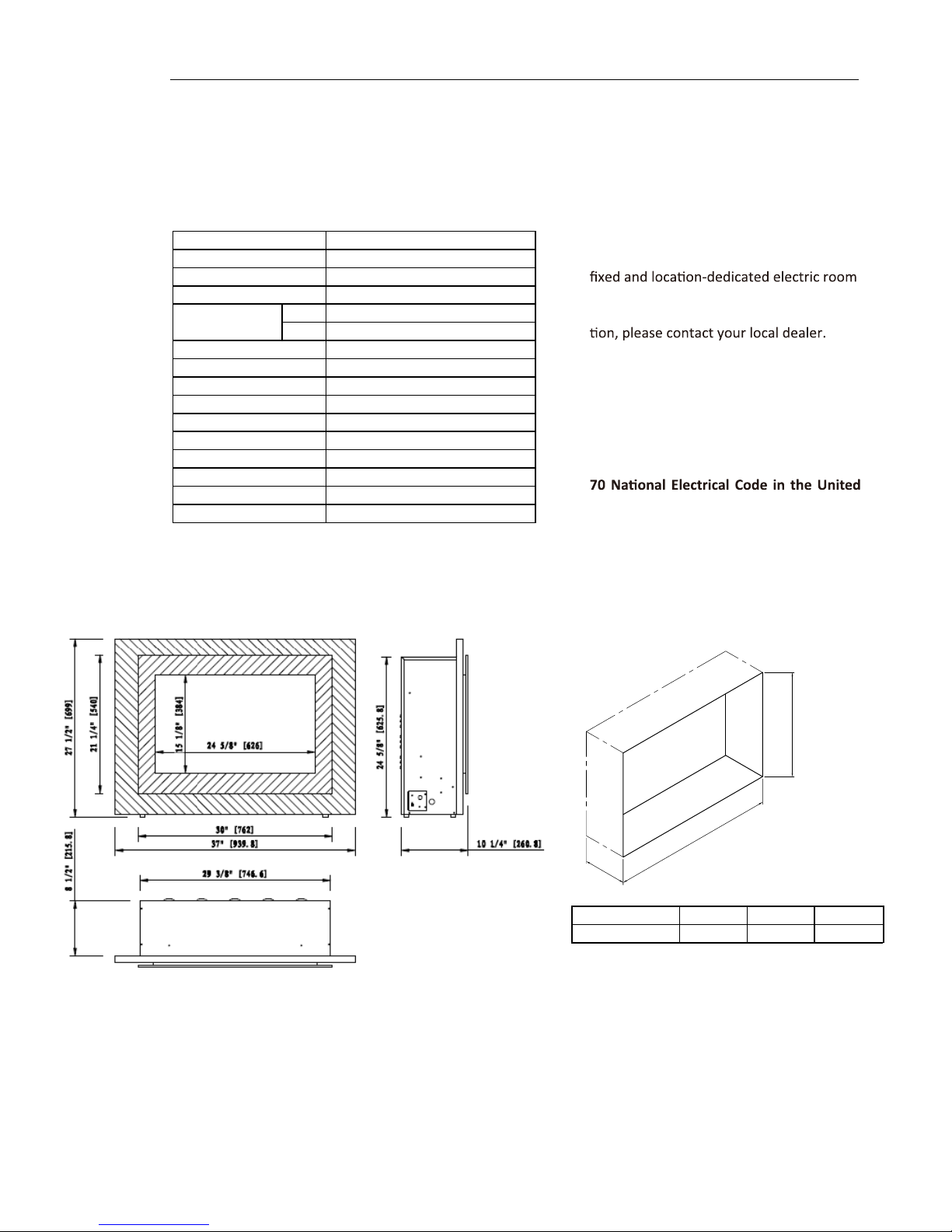

W(") D(") H(")
ZECL-33-3624 31 1/4 9 3/4 25 1/4
The rough wall opening size of the fireplace.
W
D
H
ZC-FM-37
Built-inAppliance
120VAC, 60 Hz
12A
1500 W
HIGH 1500W
LOW 750W
19W
30W
4W
37" or 93.98 cm
27 1/2" or 69.9 cm
8 1/2" or 21.58 cm
66.13 Lbs or 30 Kg
Left side
74 3/4"or190 cm
31 1/4"x25 1/4" or 79.5 cmx64.2 cm
Rough Wall Opening Size
ApplianceDepth
Gross Weight
Plug Location
CordLength
MotorHEATER
MotorFlame
ApplianceWidth
ApplianceHeight
Amps
Watts
HEATER
No HEATER
Description
Voltage
6

NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-
W(") D(") H(")

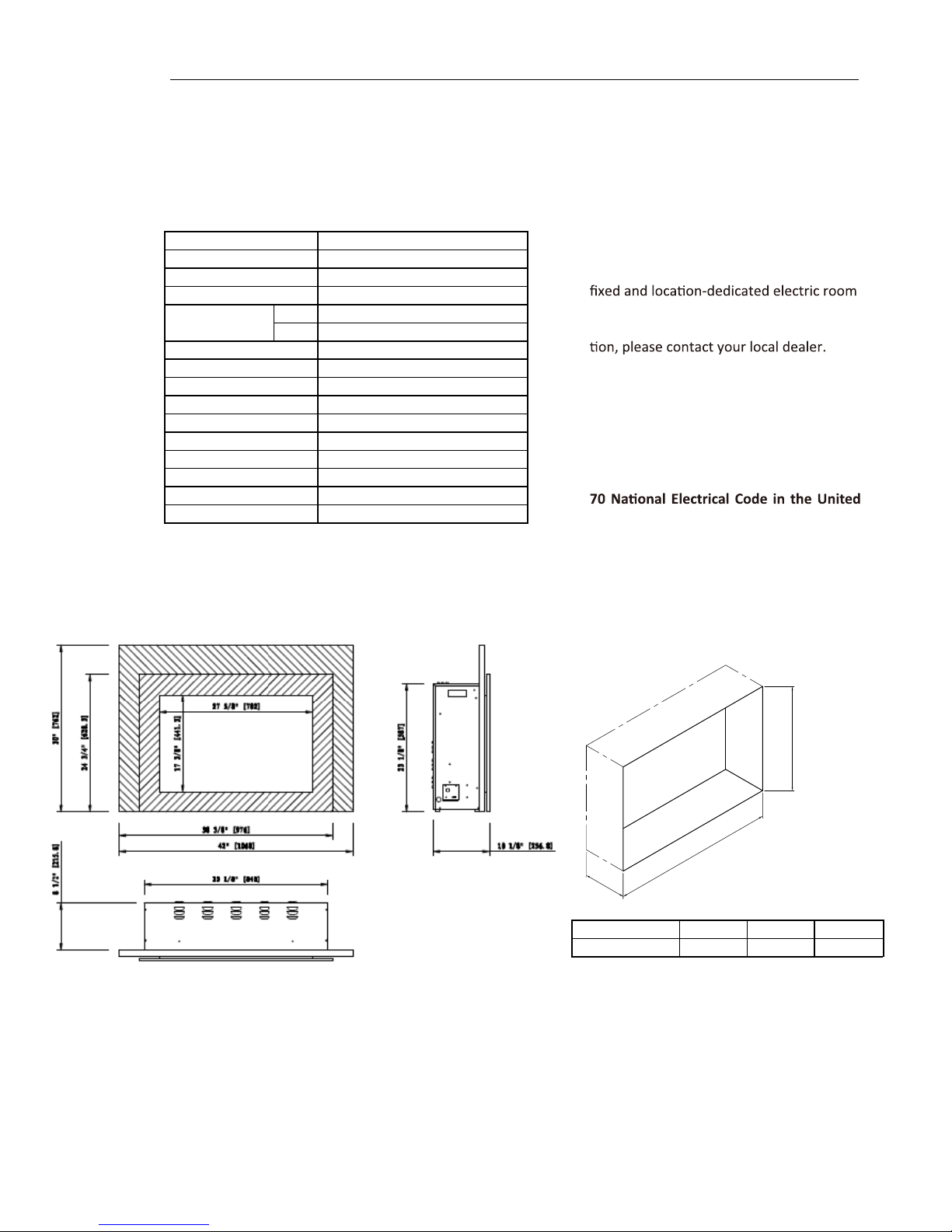

ZC-FM-45 39 1/2 9 3/4 32 3/8
The rough wall opening size of the fireplace.
W
D
H
ZC-FM-45
Built-inAppliance
120VAC, 60 Hz
12A
1500 W
HIGH 1500W
LOW 750W
20W
30W
4W
45" or 114.36 cm
34 5/8" or 87.8 cm
8 1/2" or 21.58 cm
94.8 Lbs or 43 Kg
Left side
74 3/4"or190 cm
39 1/2"x32 3/8" or 100.3 cmx82.1 cm
Plug Location
CordLength
Rough Wall Opening Size
ApplianceWidth
ApplianceHeight
ApplianceDepth
Gross Weight
HEATER
No HEATER
MotorHEATER
MotorFlame
Description
Voltage
Amps
Watts
7

LOCATING THE FIREPLACE INSERT
Heater must be placed so it remains level (use included level to verify). Leveling bolts are provided
on the base of the fireplace insert to insure proper leveling.
WARNING: RISK OF FIRE. MAINTAINALL SPECIFIED CLEARANCES
TO COMBUSTIBLES. FAILURE TO COMPLY WITH THESE
INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSUREALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT
MANTEL, FRONT, ETC.) ARE CLEARLY MAINTAINED.
APPLIANCE GRILLS (VENTS) LOCATED ON THE FRONT AND BACK OF THIS
ELECTRIC APPLIANCE CANNOT IN ANY WAY BE COVERED AS IT MAY
CREATE A FIRE HAZARD.
WHEN USING PAINT OR LACQUER TO FINISH THEAREAABOVE THE INSERT, THE PAINT
OR LACQUER MUST BE HEAT RESISTANT TO PREVENT DISCOLORATION.
NOTICE: All clearances must be maintained to combustibles.
Illustrations throughout these instructions reflect typical installations
and are for design purposes only. Actual installations may vary slightly
due to individual preferences.
WARNING: Never locate this heater where it may fall into a bathtub or
any water container.
8

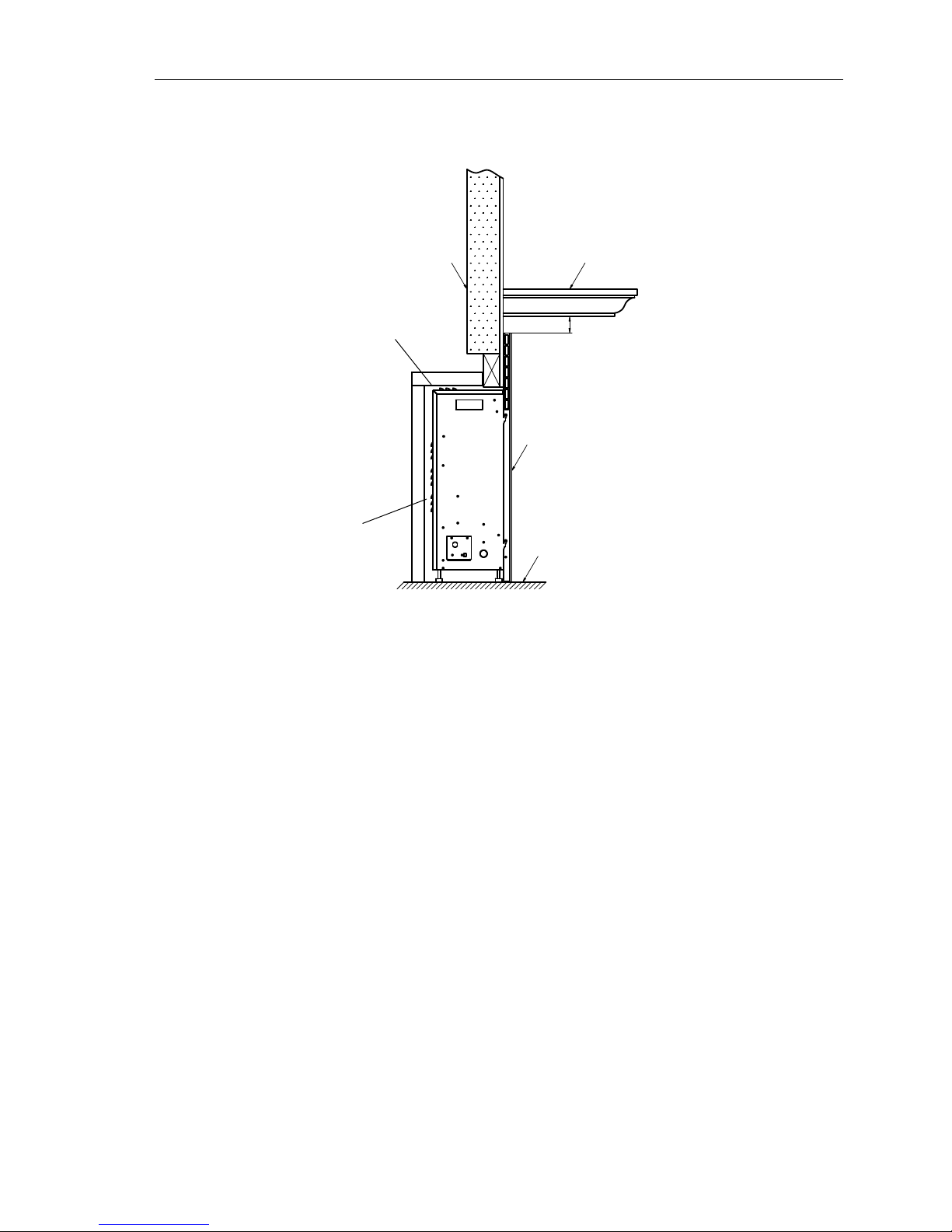

CLEARANCES WHEN BUILT-IN
WALL MANTEL(maximum 12" (305mm) deep
FLOOR
FRONT GLASS
APPLIANCE
SIDE VIEW
2"[50.8 mm]
The fireplace insert may be placed within a framed enclosure that is level, dry, and capable of supporting the weight of the appliance
and front glass. It may be placed directly on wood or a non-combustible surface (not on linoleum or carpet). The minimum clearance
from the top of the appliance to a mantel (combustible or non-combustible) is 2" (50.8mm). The sides and back must maintain 1" (25.4mm)
clearance to any material. The top must maintain a 3/8" (10mm) clearance to any material.
MINIMUM 3/8" (10mm) CLEARANCE TO TOP
OF APPLIANCE( combustible or non-combustible)
MINIMUM 1" (25.4mm) CLEARANCE TO
SIDES AND BACK OF APPLIANCE
(combustible or non-combustible)
9

INSTALLATION
CAUTION: The unit's power supply cord must be connected to a properly
grounded and protected 120-volt outlet. Always use ground fault protection where
required by the electrical code.
WARNING - RISK OF FIRE! To prevent a possible fire, do not block the grills,
louvers, or air openings on the fireplace insert in any manner.
WARNING - RISK OF FIRE! The power cord must not be pinched or placed
against a sharp edge. Secure the cord to avoid tripping or snagging thus reducing
the risk of fire, electric shock or personal injury. Do not run the cord under
carpeting. Do not cover the cord with throw rugs, runners or similar items.
Arrange the cord away from traffic areas where it could be tripped over.

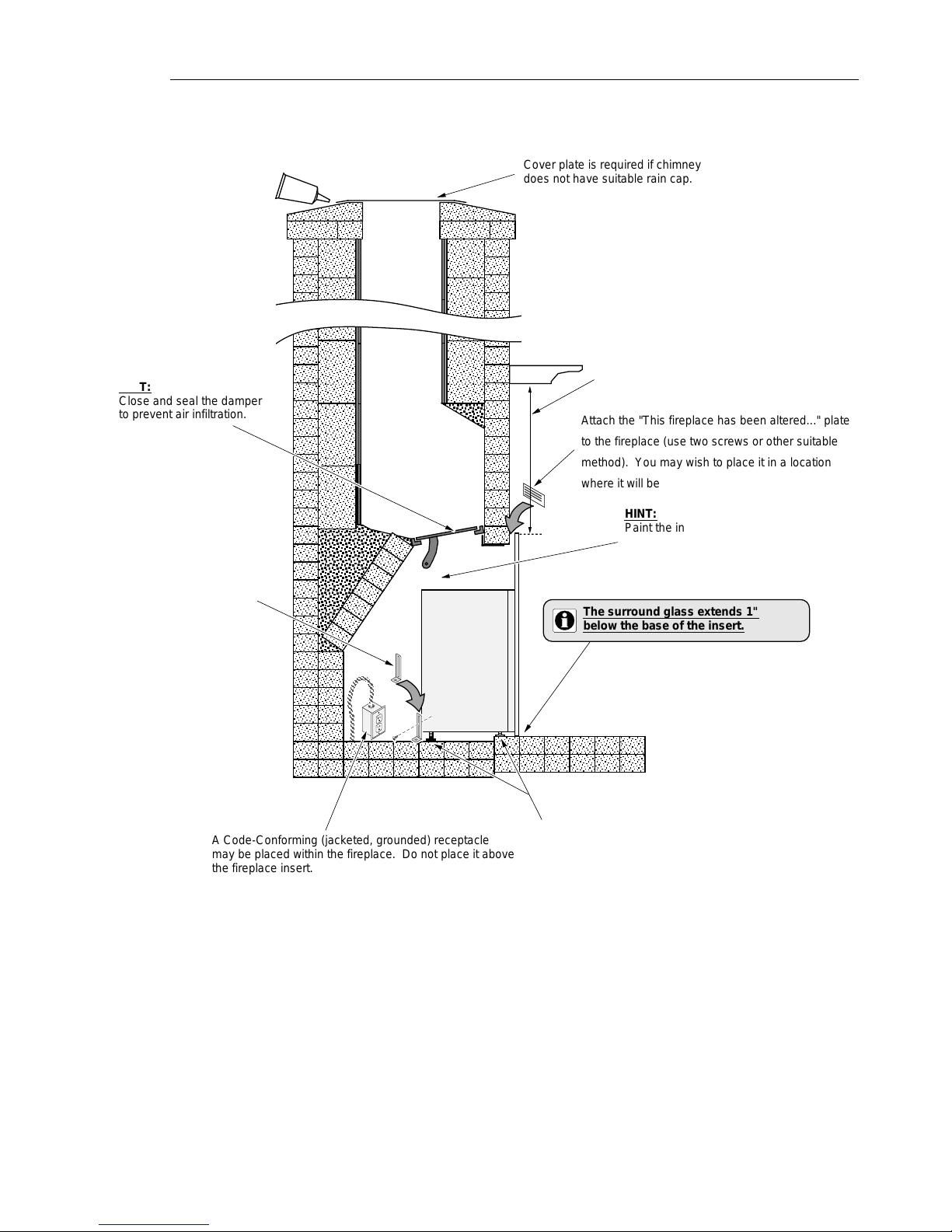

This insert must be installed into an existing masonry or zero-clearance (metal) fireplace.
Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas.
Note: Follow all national and local electrical codes.
10
UNPACKING AND TESTING THE FIREPLACE INSERT
Carefully remove the fireplace insert from the box.

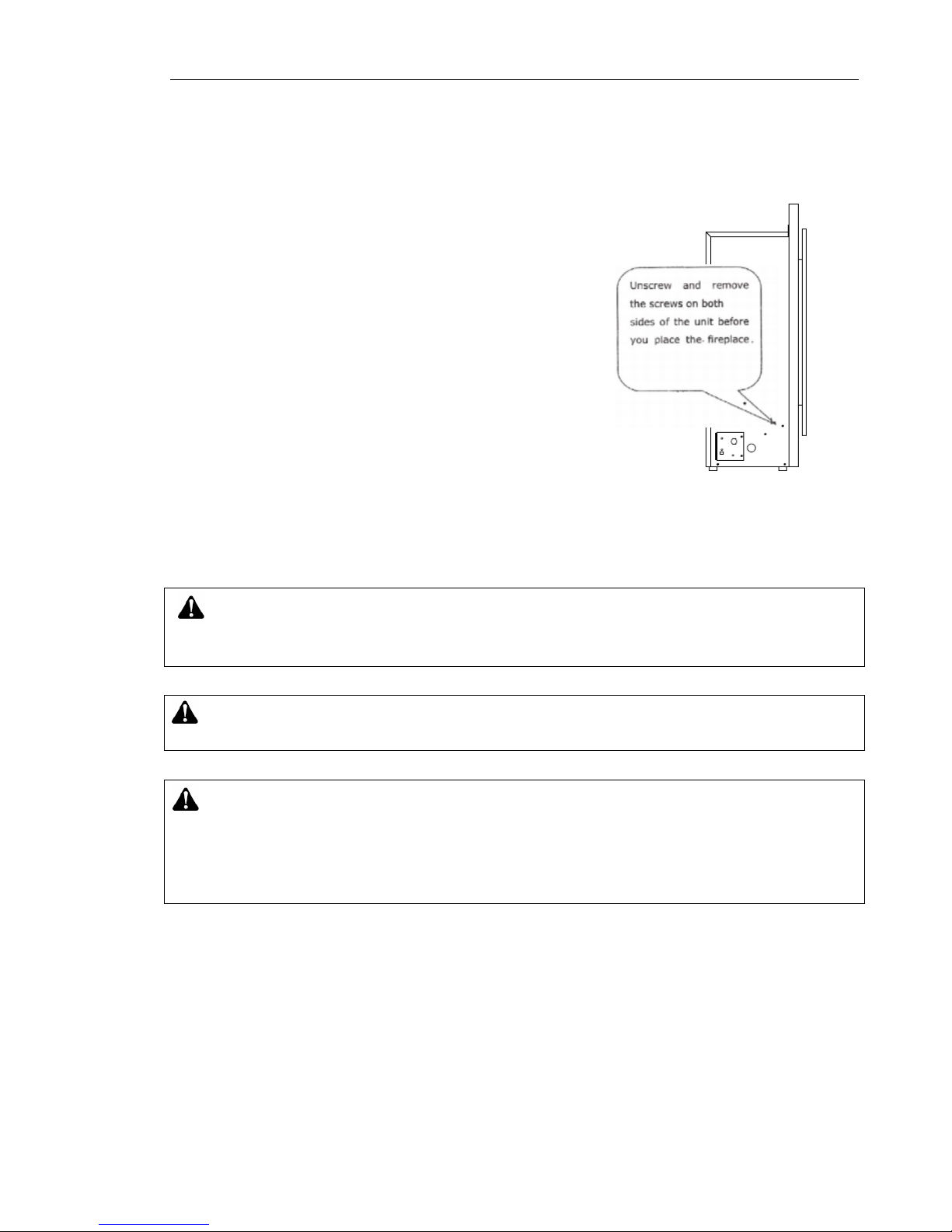

Remove the packing screws from both sides of the insert
(see illustration to the right). Prior to installing the
fireplace insert, plug the unit into a 120-volt grounded
outlet and test operation. Test all aspects of its
operation (manual switches, remote, display
characteristics and heater) to make sure all components
operate correctly.

INSTALLATION OVERVIEW – MASONRY FIREPLACES
2” (50mm) Minimum











HINT:
Paint the interior of the
fireplace with latex paint to
prevent fireplace odors
from entering the home.
Silicone































































































































































































































Leveling Bolts
HINT:
Close and seal the damper
to prevent air infiltration.
Cover plate is required if chimney
does not have suitable rain cap.
A Code-Conforming (jacketed, grounded) receptacle
may be placed within the fireplace. Do not place it above
the fireplace insert.
The surround glass extends 1"
below the base of the insert.
Attach the "This fireplace has been altered..." plate
to the fireplace (use two screws or other suitable
method). You may wish to place it in a location
where it will be covered by the surround glass.
Use one of the rear screws
on the insert to secure the
included tie-down bracket to
the fireplace. Once in place,
secure the bracket to the
fireplace floor to prevent the
insert from tipping. Secure
brackets to both sides.
11

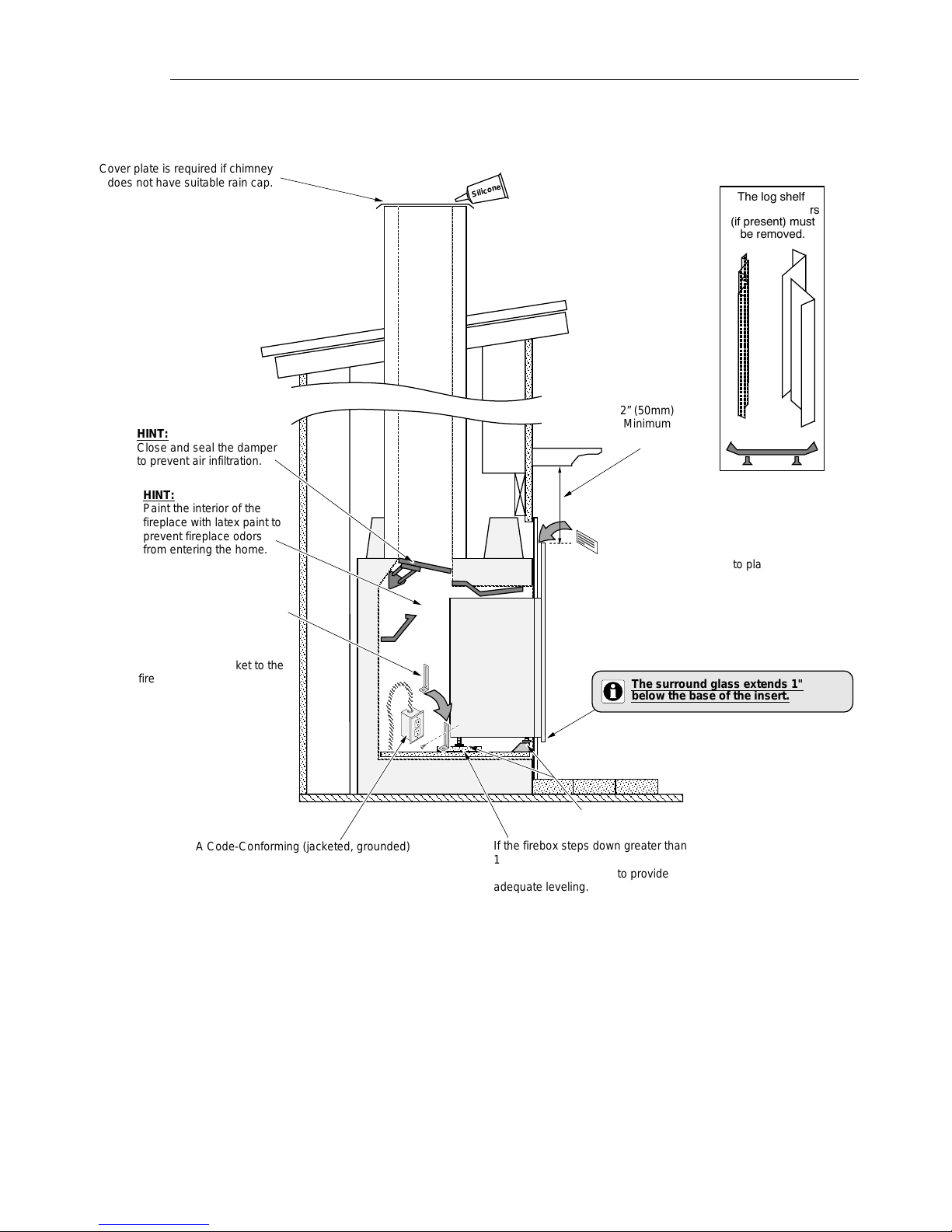

INSTALLATION OVERVIEW – ZERO-CLEARANCE (METAL) FIREPLACES






























2” (50mm)
Minimum















































































































































The log shelf,
screen, and doors
(if present) must
be removed.



















































































HINT:
Paint the interior of the
fireplace with latex paint to
prevent fireplace odors
from entering the home.
HINT:
Close and seal the damper
to prevent air infiltration.
Cover plate is required if chimney
does not have suitable rain cap.


If the firebox steps down greater than
1", place shims (plywood, tile, etc.)
under the leveling bolts to provide
adequate leveling.
Silicone
The surround glass extends 1"
below the base of the insert.













A Code-Conforming (jacketed, grounded)
receptacle may be placed within the fireplace. Do
not place it above the fireplace insert.
Leveling Bolts
Attach the "This fireplace has been
altered..." plate to the fireplace (use
two screws or other suitable
method). You may wish to place it in
a location where it will be covered by
the surround glass.
Use one of the rear screws
on the insert to secure the
included tie-down bracket to
the fireplace. Once in place,
secure the bracket to the
fireplace floor to prevent the
insert from tipping. Secure
brackets to both sides.
12

OPERATING INSTRUCTIONS
REMOVING THE SURROUND GLASS
Before removing the surround glass, make sure to have a suitable location to place the surround glass once it is
removed. Do not place the glass on sharp or uneven areas that may chip or damage the tempered glass. Use both
hands to lift the surround glass directly up. The hooks on the glass will disengage from the pins that protrude from
the side of the insert.
REMOTE CONTROL OPERATION
1. For the remote to function make sure the heater is plugged in andmain power switch is turnedon.
Power switch is
located behind the
surround glass –
MAKE SURE IT IS
TURNED ON.
13

REMOTE CONTROL OPERATION
14
The button located at the top position of the remote control is ON/OFF. Press it, the flame and
ember will be on. The heater will be off. Press again, the fireplace will turn off.
“DISPLAY ON/OFF”: Switching the fireplace flame and tray light ON/OFF. It has functions of setting
memory.
“FLAME ORANGE”: Adjust the orange colour brightness of flame.
“FLAME YELLOW”: Adjust the yellow colour brightness of flame.
“TRAY ORANGE”: Adjust the orange colour brightness of tray.
TRAY WHITE”: Adjust the white colour brightness of tray.
“HEATER ON/OFF”: Switching the fireplace heater ON/OFF. It
has functions of setting memory.
“HIGH”: The heater works at 1500W.
“LOW”: The heater works at 750W.
“TEMP.”: The heater keep working if the room temperature lower
than 22℃. The heater not working if the room temperature
higher than 25℃.
“

DIRECT OPERATION
1. Power ON/OFF switch
2. Heat control button
3. Flame control button
4. HEATER LED
5. POWER LED
Plug the heater into a suitable outlet.
1) “Power ON/OFF”
Set this switch to position Ito turn the product ON. Setting it to Oto turn the product OFF. The
POWER LED will be lit when the fireplace insert is on.
2) “Heat control button”
Press the HEAT button repeatedly to set the heater to the desired heat set. The HEATER LED will
indicate the current setting for the heater as shown below:
HEATER LED = Red = 1500W HEAT OUTPUT
HEATER LED = Blue = 750W HEAT OUTPUT
HEATER LED = Purple = AUTO MODE
Auto Mode
In this mode the heater will automatically turn on and off. When the room temperature drops below
71° F (22° C) the heater will turn on to the high heat setting (1500 watt). When the room temperature
is between 71° and 77° F (22-25° C) the heater output will switch to the low heat setting (750W). When
the room temperature goes above 77° F (25° C) the heater will turn off.
3) “Flame control button”
Press "Flame" button to adjust the flame intensity and ember bed brightness.
Press the "FLAME" control button to cycle through LO, MED, HI and OFF.
HIGH / 1500W
HEATER INDICATOR
LOW / 750W
HEATER INDICATOR
AUTO MODE
HEATER INDICATOR
OFF
15

CLEANING AND MAINTENANCE
FRONT GLASS
1. Remove dust by buffing lightly with a clean dry cloth.
2. To remove fingerprints or other marks, the glass can be cleaned with a damp cloth using a good quality household
glass cleaner. The glass should be completely dried with a lint free cloth or paper towel.
3. In the event of glass breakage, vacuum all remaining glass pieces with a shop vac. DO NOT VACUUM WHILE THE
PIECES ARE HOT. Replace glass only with replacement parts made specifically for this heater. Never substitute
material.
WARNING: Always disconnect the power and allow the heater to cool
before performing any cleaning, maintenance or relocation. Turn the
controls to OFF and remove the plug from the outlet or turn off the circuit
breaker before attempting any cleaning.
16

REPLACEMENT PARTS
17
REF NO PART NO. DESCRIPTION REMARK
1
1
2
3
4
5
6
7
10
9
HEATER ASSEMBLY602030C
CIRCULT BOART601089D
2
REMOTE RECEIVER301506
3
LED STRIP FOR FLAME601140C
4
LED STRIP FOR FLAME601141C
5
6LED STRIP FOR LOG601140D
7LED STRIP FOR LOG601141D
8
9
10
REMOTE10105051
11
FLAME MOTOR
10101201C
12
SWITCH10104010
13
INS LOG
10305517
14
INS LOG
10305516
LOG
10305507B
LED-H20-3 ORANGE/YELLOW
LED-H30-3 ORANGE/YELLOW
LED-H20-4 ORANGE/WHITE
LED-H30-4 ORANGE/WHITE
WITH PLUG
INS-FM-30
INS-FM-34
ZC-FM-37
LOG
10305509B ZC-FM-45
LRC9B
FRT60420
8

TROUBLE SHOOTING
OBSERVED PROBLEM
POSSIBLE CAUSE REMEDY
Fireplace insert turns off and will
not turn on Fireplace insert has overheated and safety device has caused
thermal switch to disconnect or
home circuit breaker has opened
Reset switch by turning main
power switch off and waiting five
minutes, then turning it back on
Log set and/or ember is dark Wiring is loose Inspect wiring for loose
connections and repair or
replace if necessary
Flame motor is defective Call a qualified service
technician
Remote control does not work Low Batteries
Power switch is in OFF position
Replace AA batteries in remote
control
Turn on the main power switch
Heater does not provide heat
when turned on
Thermal switch has been
tripped.
Circuit breaker has been tripped
Turn the unit off and unplug the
unit for five minutes. Plug back in
and turn the unit on. If plug can
not be reached, turn off the circuit
breaker that supplies electricity to
the unit .Wait five minutes then flip
circuit breaker back on.
WARNING: Always disconnect power and allow the heater to cool
before performing any cleaning, maintenance or relocation. Turn the
controls to OFF and remove the plug from the outlet or turn off the circuit
breaker before attempting any cleaning.
Flame effect is not moving or
working abnormally
18

Exploded View
19
