Signature S24001 Mounting instructions

YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
www.signaturebrand.co
17 LITRE
MICROWAVE
MODEL
S24001 S24002 S24003
S24004 S24005 S24006
S24007 S24008 S24009

2
CUSTOMER SUPPORT TEAM: [phone]
TECHNICAL DATA
Description: 17 Litre Microwave
Model: S24001, S24002, S24003, S24004, S24005,
S24006, S24007, S24008, S24009
Rated Voltage: 220-240V ~50Hz
Input power: 1150W
Output power: 700W
Microwave frequency: 2450MHz
DOCUMENTATION
We declare that this product conforms to the following product legislation in accordance with the
following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
1935/2004/EC Materials & Articles in Contact With Food (LFGB section 30 & 31).
2009/125/EC Eco-Design of Energy Related Products.
RK Wholesale LTD Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.

3
www.signaturebrand.co
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the
mains lead of this
appliance may not
correspond with the
coloured markings
identifying the terminals
in your plug, please
proceed as follows:
The wires in the mains lead are coloured in
accordance with the following code:
Blue neutral [N] Brown live [L]
Green/Yellow [EARTH]
Plug Fitting Details (Where Applicable).
The wire coloured blue is the neutral and must
be connected to the terminal marked [N] or
coloured black.
The wire coloured brown is the live wire and
must be connected to the terminal marked [L] or
coloured red.
The wire coloured green/yellow must be
connected to the terminal marked with the letter
[E] or marked .
On no account must either the brown or the blue
wire be connected to the [EARTH] terminal .
Always ensure that the cord grip is fastened
correctly.
The plug must be tted with a fuse of the same
rating already tted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualied electrician who will
be pleased to do this for you.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-
rewireable plug tted to the mains lead and
should the fuse need replacing, you must use an
ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualied electrician who will
be pleased to do this for you.
If you need to remove the plug – disconnect
it from the mains – and then cut it o of the
mains lead and immediately dispose of it in a
safe manner. Never attempt to reuse the plug or
insert it into a socket outlet as there is a danger
of an electric shock.
WARNING:
This Appliance MUST be Earthed
FUSE

4
CUSTOMER SUPPORT TEAM: [phone]
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should always be
followed including the following:
• Check that the voltage of the main
circuit corresponds with the rating
of the appliance before operating.
• Please ensure that the appliance
is used on a stable, level, and heat
resistant surface.
• DO NOT immerse cords, plugs or
any part of the appliance in water
or any other liquid.
• If the supply cord or appliance is
damaged, stop using the appliance
immediately and seek advice from
the manufacturer, its service agent
or a similarly qualied person.
• DO NOT let the cord hang over the
edge of a table or counter, or let
it come into contact with any hot
surfaces.
• The use of accessory attachments
is not recommended by the
appliance manufacturer, apart from
those supplied with this product.
• DO NOT carry the appliance by the
power cord.
• DO NOT use any extension cord
with this appliance.
• DO NOT pull the plug out by the
cord as this may damage the plug
and/or the cable.
• Switch off at the wall socket then
remove the plug from the socket
when not in use or before cleaning.
• Switch off and unplug before tting
or removing tools/attachments,
after use and before cleaning.
• DO NOT leave the appliance
unattended while it is operating.
• Close supervision is necessary
when any appliance is used by or
near children or pets.
• Children should not play with the
appliance.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
• Cleaning and user maintenance
should not be undertaken by
children without supervision.
• Take care when any appliance is
used near pets.
• DO NOT use this product for
anything other than its intended
use.
• This appliance is for household use
only.
CAUTIONS
• DO NOT operate the microwave
with the door open, due to the
safety interlocks built into the door
mechanism. It is important not to
tamper with the safety interlocks
(safety interlocks automatically
switch off any cooking activity
when the door is opened).

5
www.signaturebrand.co
This could result in harmful
exposure to excessive microwave
energy.
• DO NOT place any object (such
as kitchen towels, napkins, etc.)
between the microwave front face
and the door, or allow food or
cleaner residue to accumulate on
sealing surfaces.
• DO NOT operate the microwave
if it is damaged. It is particularly
important that the microwave door
closes properly and that there is no
damage to its door hinges, latches,
door seals and sealing surfaces.
• Please ensure cooking times are
correctly set. Small amounts of
food require shorter cooking or
heating time. Over cooking may
result in the food catching on re
and subsequent damage to the
microwave.
• When heating liquids, e.g. soups,
sauces and beverages in your
microwave, avoid using straight
sided containers with narrow
necks.
• Stir the liquid before placing the
container in the microwave and
again halfway through the heating
time. After heating, let it stand,
stir or shake it again carefully
and check the temperature of it
before consuming to avoid burns
(especially, contents of feeding
bottles and baby food jars).
• An exhaust outlet is located on
the top, bottom or side of the
microwave. Don’t block the outlet.
It could result in damage to your
microwave and poor cooking
results.
• DO NOT operate the microwave
when empty. It is best to leave a
glass of water in the microwave
when not in use. The water will
safely absorb all microwave energy
if the microwave is accidentally
started.
• Improper use could result in
damage to the microwave.
• DO NOT use wooden containers
and ceramic containers that have
metallic (e.g. gold or silver) inlays.
Always remove metal twist ties.
• Check that the utensils are suitable
for use in the microwave before
use. They may heat up and char.
Metal objects in particular may arc
in the microwave, which can cause
serious damage.
• DO NOT rinse the glass turntable
by placing it in water just after
cooking. This may cause breakage
or damage.
• Before cooking pierce the skin of
potatoes, apples or any such fruit
or vegetables. They could burst.

6
CUSTOMER SUPPORT TEAM: [phone]
• DO NOT cook eggs in their shell.
Eggs in their shell and whole hard-
boiled eggs should not be heated
in the microwave since they may
explode, even after microwave
heating has ended.
• Pressure will build up inside the
egg which will burst.
• DO NOT attempt deep fat frying in
your microwave. This could result in
a sudden boil over of hot liquid.
• If smoke is observed, switch off
or disconnect the microwave from
the power supply and keep the
microwave door closed in order
to stifle any flames. It can cause
serious damage, such as re or
electric shock.
• When food is heated or cooked
in disposable containers made of
plastic, paper or other combustible
materials keep an eye on the
microwave and check it frequently.
• The microwave should be cleaned
regularly and any food deposits
should be removed. Failure to
maintain the microwave in a
clean condition could lead to
deterioration of the surface. This
could adversely affect the life of the
appliance and possibly result in a
hazardous situation.
• Follow exact directions given
by each manufacturer for their
popcorn product. DO NOT leave
the oven unattended while corn
is being popped. If corn fails to
pop after the suggested times,
discontinue cooking.
• Never use a brown paper bag for
popping corn. Never attempt to
pop leftover kernels. Overcooking
could result in the corn catching
re.
• DO NOT use harsh abrasives
cleaners or sharp metal scrapers
to clean the microwave door glass.
They can scratch the surface,
which may result in the glass
shattering.
• After cooking, the container is very
hot. Use gloves to take out the
food and avoid steam burns by
directing steam away from the face
and hands.
• This appliance is intended to be
used in household and similar
applications such as: staff kitchen
areas in shops, offices and other
working environments, farm
houses, by clients in hotels, motels
and other residential environments,
bed & breakfast type environments.
• The microwave oven is intended for
heating food and beverages. Drying
of food or clothing and heating of
warming pads, slippers, sponges,
damp cloth and similar may lead to
risk of injury, ignition or re.
• The door or outer surface may
get hot when the appliance is
operating.
• In the unlikely event the appliance
develops a fault, stop using it
immediately and seek advice from
the Customer Support Team.
HIGH VOLTAGE HOT SURFACE

7
www.signaturebrand.co
WHAT’S IN THE BOX
Instruction Manual
1. Set length of cooking
30 mins at a time max
2. Set power level
3. Door Safety Lock System
4. Oven Window
5. Roller Ring
6. Glass Turntable
7. Wave Guide
8. Control Panel
9. Door Release Button
9
2
1
3 4
5 6 7 8
BEFORE YOUR FIRST USE:
1. Remove the parts from the packaging.
2. Wash and dry any parts that will come into contact with food.
3. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.

8
CUSTOMER SUPPORT TEAM: [phone]
USING YOUR APPLIANCE
Before rst use:
Take out all of the packaging, if there is a
safe lm over the oven, tear it o before use.
Check carefully for damage. If any, immediately
notify the dealer or send to the manufacturer’s
Service Centre.
Microwave ovens must be placed under dry
and in non-corrosiveness environments. They
should kept away from heat and humidity, such
as gas burner or water tank.
To ensure sufficient ventilation, the distance
from the back of microwave to the wall should
be at least 10 cm. The side of the microwave
near the wall should be at least 5 cm with free
distance at least 85cm above the top surface
of the appliance of the at least 20 cm. The
distance from the microwave to the ground
should be at least 85 cm.
The microwave should be positioned far away
from TVs, Radios and/or antennas since picture
disturbance or noise may occur.
The appliance must be positioned so that the
plug is accessible, and has a good grounding
in case of leakage. A ground loop can be
formed to avoid electric shock.
The microwave oven must be operated with
the door closed.
Do no place the microwave oven in a cabinet.
The microwave oven must be free-standing
when it is used as intended.
The back of the oven must be placed against
a wall.
During rst use the microwave oven may
omit an odour and slightly smoke. This is due
to manufacturing residue or oil on the heat
element or oven cavity. This is normal and
should not occur after several uses. Keep
your doors and windows open to ensure good
ventilation. It is recommended to place a cup of
water on the glass tray set on high and operate
the microwave oven several times to help clean
the microwave of residue.
The Control Panel:
The control panel consists of two dials for
power and timer settings.
Power Dial:
Use the operator dial to
choose a cooking power
level. It is the rst step to
starting a cooking session.
Setting Power Description
1st 17% Low
2nd 37% Defrost
3rd 40% M.Low
4th 66% Medium
5th 85% M. High
6th 100% High
Timer Dial:
Use the Timer Dial to
choose your desired
cooking time.

9
www.signaturebrand.co
To start a cooking session:
1. Place food in oven and close the door.
2. Turn the Power Selector to select a power
level.
3. Use the Timer dial to set a cooking time.
NOTE: As soon as the timer is turned, the
microwave will start cooking.
When selecting a time for less than 2
minutes, turn the timer past the 2 minute
marker and then return to the correct
required time.
CAUTION: ALWAYS RETURN TIMER BACK
TO ZERO POSITION.
To stop oven during cooking process, push the
door release button or open the door by the
handle.
Utensils guideline:
It is strongly recommended to only use
containers which are suitable and safe for
microwave cooking. Generally speaking,
containers made of heat-resistant ceramic,
glass or plastic are suitable for microwave
cooking. Never use metal containers for
microwave cooking and combination cooking
as sparks are likely to occur and there is a risk
of re or injury.
When cooking microwave meals, always
check the packaging to see which parts
are microwave safe. Use the below table as
reference:
Material Microwave
Safe Notes
Heat
resistant
ceramic
Yes
Never use the
ceramics which are
decorated with a
metal rim or glazed.
Heat
resistant
plastic
Yes
Cannot be used for
extended periods
of time when mi-
crowave cooking.
Heat
resistant
glass
Yes
Plastic lm Yes
Not to be used
when cooking meat
or chops as the
high temperature
may damage the
lm.
Grill rack No
Metal
container No
Never to be used
in the microwave.
Microwaves cannot
penetrate through
metal. Microwav-
ing with a metal
container can result
in re.
Lacquer No
Poor heat-resistant.
Cannot be used for
High-temperature
cooking
Bamboo
wood and
paper
No
Poor heat-resistant.
Cannot be used for
High-temperature
cooking
Cling lm Yes
Cling lm can be
used as long as it is
pierced to let steam
escape, and it not
touching the food.

10
CUSTOMER SUPPORT TEAM: [phone]
Caution!: There are a number of accessories
available on the market. Before you buy, make
sure they are suitable for microwave use.
When you put food into the Microwave, ensure
that the food, food supports and/or covering
do not come in direct contact with any of the
internal walls or the ceiling of the cavity since
discolouration may take place.
Some plastics are heat-proof only to certain
temperatures. Check carefully!
Always remove lids of jars and containers,
including take away food containers, before
you cook using your microwave. If you don’t
remove the lids, then steam and pressure can
build up inside and cause an explosion even
after microwave cooking has stopped.
Do not use straight sided containers with
narrow necks when heating liquid. Use extreme
care when inserting a spoon or other utensils
into the container.
Cooking tips:
The following factors may aect the cooking
result:
Food arrangement
Place thicker foods towards the outside of the
dish with the thinner foods towards the centre.
Spread the food evenly and avoid overlapping,
if possible.
Cooking time length
Begin cooking on a shorter time setting and
evaluate the food after it times out.
Extend the time according to the actual need.
Over cooking may result in burnt food and
smoke.
Piercing
Food such as potatoes, sh, chicken and
sausages all need to be pierced in several
places before cooking, so that steam does not
build up and cause the food to explode.
Cooking food evenly
Food such as chicken, burgers or steak should
be turned once during cooking.
Depending on the type of food, if applicable,
stir from outside to the centre of the dish once
or twice during cooking.
Allow standing time
Once the cooking time has nished, allow food
to stand in the Microwave for a few minutes.
This allows the food to complete its cooking
cycle and to cool down naturally.
If the food is cooked fully:
The colour and rmness of food help to
determine whether it is done.
The following signs show that the food is ready:
• Steam coming out from all parts of food,
not just the edge
• Joints of poultry can be moved easily
• Pork or poultry show no signs of blood
• Fish is opaque and can be sliced easily
with a fork
Browning dish
When using a browning dish or self-heating
container, always place a heat-resistant
insulator such as a porcelain plate under it to
prevent damage to the turntable and rotating
ring.
Microwave safe plastic wrap
When cooking food with high fat content, do
not allow the plastic wrap come into contact
with food as it may melt.
Microwave safe plastic cookware
Some microwave safe plastic cookware might
not be suitable for cooking foods with high
fat and sugar content. The preheating time
specied in the dish instruction manual must
not be exceeded.

11
www.signaturebrand.co
TROUBLESHOOTING
Questions Answers
Is it normal for the turntable
to turn in either direction?
Yes. The turntable can rotate clockwise or anti-clockwise, depending on
the rotation of the motor when the cooking cycle starts.
Can I operate my
microwave whilst it is
empty?
No, never run it empty or with a very small load for a long period of time as
this will damage the microwave.
Can I open the door whilst
the microwave is running?
You can open the door at any point during cooking. The microwave
energy will automatically switch o when the door is opened, and the time
setting will pause until the door is closed.
Why is my microwave
sparking?
If you see sparks in your microwave, turn it o immediately. Sparks can be
caused by:
metal or aluminium foil that touches the interior of the microwave, metal
from a closing strip or tableware with metallic edges; recycled paper
that contains small metal particles and aluminium foil that is not correctly
covering the food.
Remove anything from the Microwave that may contain metal. Refer to
the Utensils Guideline in this manual for reference of what containers are
microwave safe.
I am trying to cook eggs
and they are popping.
What do I do?
When you bake or poach eggs, the yolk can pop due to a build-up of
steam inside the yolk membrane. Pierce the yolk with a toothpick before
cooking. Never cook eggs without rst piercing their shells.
My microwave is taking
longer to cook food than
the cooking guide says.
Variations in the size, shape and weight of your food can aect cooking
times.
Cooking guide times and heat settings should be used as suggestions to
help prevent over-cooking. If you nd the cooking time or temperature is
not suited to your ingredients, adjust accordingly.
Can I operate my
microwave without the
turntable?
No. If you remove the turntable you will get poor cooking results. Ensure
that all dishes used in the Microwave t correctly on to the turntable.
What does standing
time mean and why is it
recommended?
Standing time means that food should be removed from the Microwave
and allowed to ‘stand’ for an additional time to let it nish cooking.
This is important because with microwave cooking, the heat is held in the
food, not in the oven. Many foods build up enough internal heat to allow
the cooking process to continue, even after the food is removed from the
oven. Standing time for joints of meat, large vegetables and cakes is to
allow the inside to cook completely, without overcooking the outside.
Most directions on microwavable food will note how much standing time
is required.

12
CUSTOMER SUPPORT TEAM: [phone]
CLEANING AND CARE
The microwave should be cleaned regularly
and any food deposits removed.
Remove the power cord from the wall outlet
before cleaning. Don’t immerse the appliance
in water or other fluids when cleaning.
Failure to maintain the microwave in a clean
condition could lead to deterioration of the
surface. This could adversely aect the life
of the appliance and possibly result in a
hazardous situation.
Never use hard detergent, gasoline, abrasive
powder or metal brush to clean any part of the
appliance.
Do not remove the waveguide cover.
After lengthy use, it is possible for odors to emit
from the Microwave.
The following 3 points are some methods to
remove odors or unpleasant smells:
1. Place several lemon slices in a cup, then
heat with high Micro Power for 2-3 min.
2. Put some orange peel into the Microwave,
and then heat them with high Micro
Power for 1 minute.
Tips for cleaning
If the seal of the microwave is dirty, it may stop
the door from closing properly. Keep the seal
clean.
Spicy sauces such as ketchup and mustard,
or salty dishes such as salted meat contain
ingredients that can erode the surface. After
use, you should always clean the oven interior.
Residue of food from spillovers or splatters will
attract microwave energy causing it to burn
on. This could reduce the efficiency of the
microwave and may cause bad odours.
Details for cleaning door seals, cavity and
adjacent parts:
• Exterior: Wipe the enclosure with a
dampened soft cloth
• Door: Using a dampened soft cloth, wipe
clean the door and window. Wipe the
door seals and adjacent parts to remove
any spills. Wipe the control panel with a
slightly dampened soft cloth.
• Interior walls: Wipe clean the cavity with
a dampened soft cloth. Wipe clean the
waveguide cover to remove any food
remnants.
• Turntable / Rotation ring / Rotation axis:
Wash with mild soap water. Rinse with
clean water and allow drying thoroughly.
Note: Do not remove the Waveguide cover
during cleaning.
Make sure the Waveguide cover is installed
correctly and has not been damaged during
cooking.
WARNING:
DO NOT IMMERSE ANY ELECTRICAL PART
OF THE APPLIANCE IN WATER SUCH AS
MOTOR UNITS OR PLUGS.
PLEASE SEE CLEANING SECTION FOR
FURTHER INSTRUCTIONS.

13
www.signaturebrand.co
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish.
You are required to dispose of old electrical
and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk
for access to information about the recycling
of electrical items.
Please visit www.weeeireland.ie for access to
information about the recycling of electrical
items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must be
recycled, rather than taken to landll.
Please arrange to take this appliance to your
local Civic Amenity site for recycling, once it
has reached the end of its life.
NOTES

14
CUSTOMER SUPPORT TEAM: [phone]

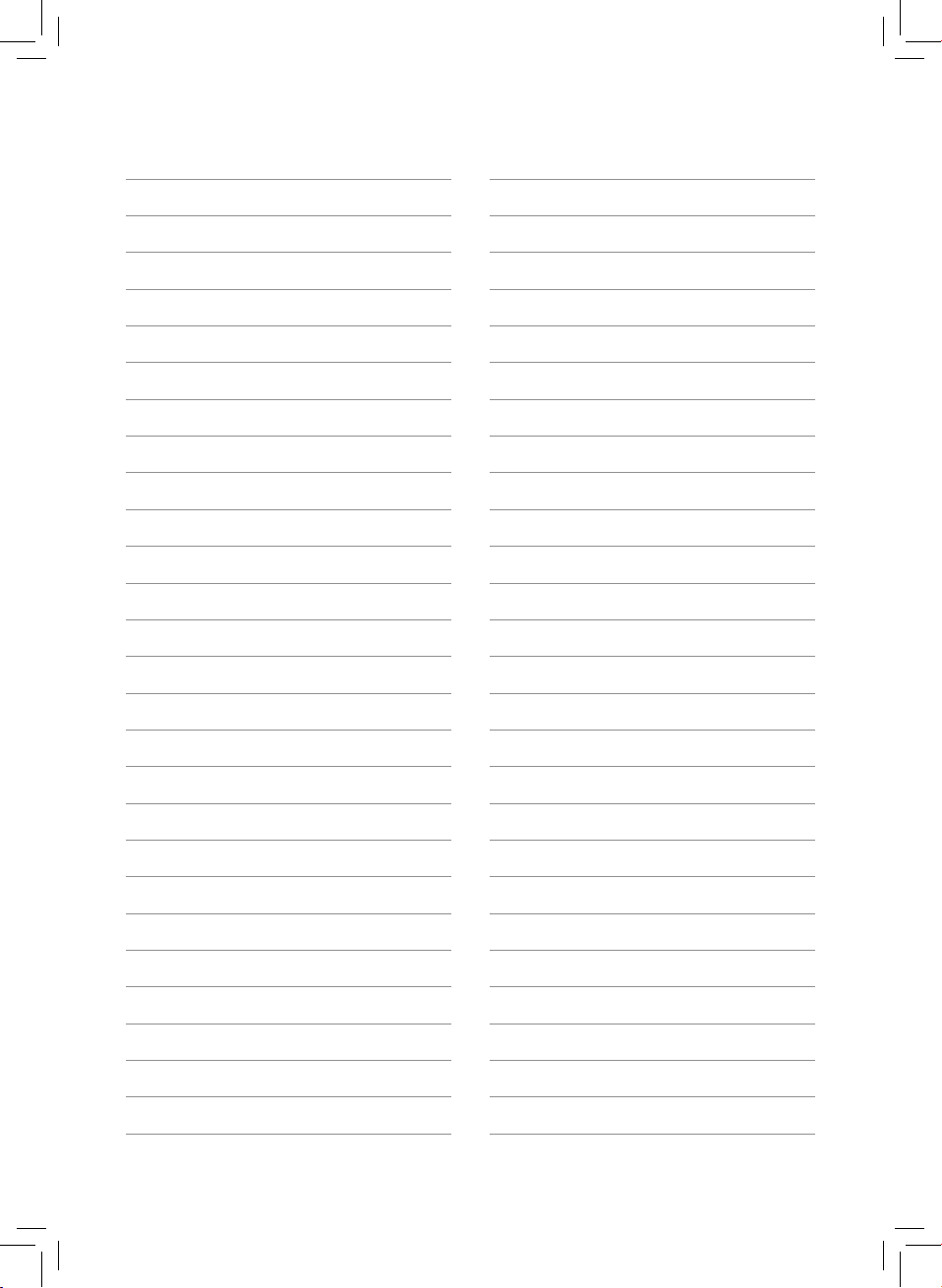

NOTES

15
www.signaturebrand.co
NOTES

We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are oering you an extra 1 year peace of mind.
To receive your extra 1 year guarantee, register your appliance
online within 28 days of purchase by visiting.
www.signaturebrand.co
Should you have a problem
with your appliance or need any spare parts please call our
Customer Support Team on:
[phone]
Distributed throughout the UK by RK Wholesale LTD
1117.V6
