Model SE-48SP

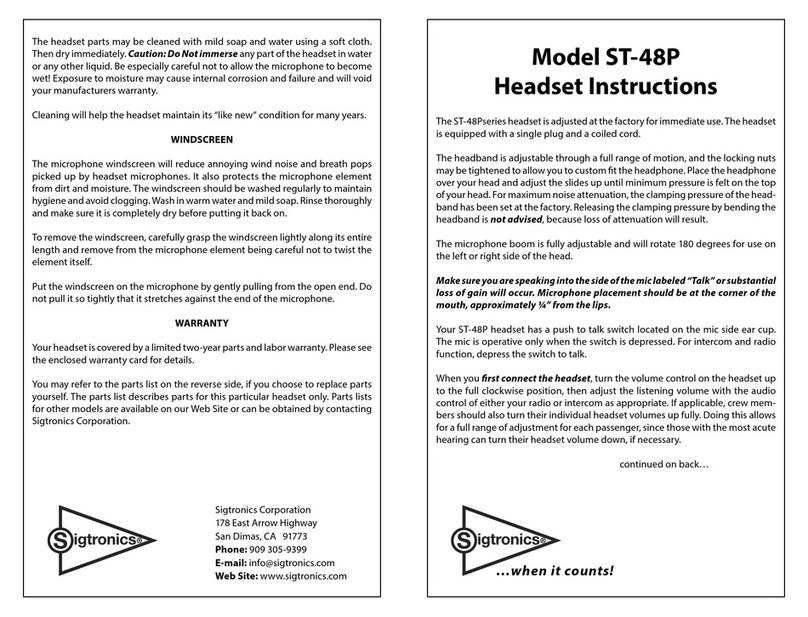

Headset Instructions
The SE-48SP series headset is adjusted at the factory for immediate use. The
headset is equipped with a single plug and a coiled cord.
The headband is adjustable through a full range of motion, and the locking nuts
may be tightened to allow you to custom t the headphone. Place the headphone
over your head and adjust the slides up until minimum pressure is felt on the top
of your head. For maximum noise attenuation, the clamping pressure of the head-
band has been set at the factory. Releasing the clamping pressure by bending the
headband is not advised, because loss of attenuation will result.
The microphone boom is fully adjustable and will rotate 180 degrees for use on
the left or right side of the head.
Make sure you are speaking into the side of the mic labeled “Talk” or substantial
loss of gain will occur. Microphone placement should be at the corner of the
mouth, approximately ¼” from the lips.
Your SE-48SP headset has a push to talk switch located on the mic side ear cup.
The mic is operative only when the switch is depressed. For intercom and radio
function, depress the switch to talk.
When you rst connect the headset, turn the volume control on the headset up
to the full clockwise position, then adjust the listening volume with the audio
control of either your radio or intercom as appropriate. If applicable, crew mem-
bers should also turn their individual headset volumes up fully. Doing this allows
for a full range of adjustment for each passenger, since those with the most acute
hearing can turn their headset volume down, if necessary.
continued on back…
The headset parts may be cleaned with mild soap and water using a soft cloth.
Then dry immediately. Caution: Do Not immerse any part of the headset in water
or any other liquid. Be especially careful not to allow the microphone to become
wet! Exposure to moisture may cause internal corrosion and failure and will void
your manufacturers warranty.
Cleaning will help the headset maintain its “like new” condition for many years.
WINDSCREEN
The microphone windscreen will reduce annoying wind noise and breath pops
picked up by headset microphones. It also protects the microphone element
from dirt and moisture. The windscreen should be washed regularly to maintain
hygiene and avoid clogging. Wash in warm water and mild soap. Rinse thoroughly
and make sure it is completely dry before putting it back on.
To remove the windscreen, carefully grasp the windscreen lightly along its entire
length and remove from the microphone element being careful not to twist the
element itself.
Put the windscreen on the microphone by gently pulling from the open end. Do
not pull it so tightly that it stretches against the end of the microphone.
WARRANTY
Your headset is covered by a limited two-year parts and labor warranty. Please see
the enclosed warranty card for details.
You may refer to the parts list on the reverse side, if you choose to replace parts
yourself. The parts list describes parts for this particular headset only. Parts lists
for other models are available on our Web Site or can be obtained by contacting
Sigtronics Corporation.

SIGTRONICS SE-48SP HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1800197 HEADBAND , WITH CUSHION, SE-48 14 100962 EAR CUP, SLOTTED, PRINTED, NON-MIC SIDE 27 100935 WIRE, #22, JUMPER, HEADSET, 4 INCH
2100383 HEADBAND, METAL, STANDARD 15 800193 MICROPHONE & FLEX BOOM ASSEMBLY 28 100568 STRAIN RELIEF, CABLE
3100367 YOKE, EAR CUP MOUNT, METAL 16 100597 NUT, HEX, 3/8-24, FLEX BOOM ADAPTER 29 100063 KNOB, 3/8 INCH, BLACK
4100384 BRACKET, YOKE SUPPORT WITH TANG 17 10 0611 WINDSCREEN, MICROPHONE, FOAM, BULK 30 100077 POTENTIOMETER
5100373 SLIDE, YOKE BRACKET, LONG, NYLON 18 90 0111 WINDSCREEN, MICROPHONE, FOAM, PACKAGED 31 100858 RECEIVER AND MOUNT, 300 OHM, MONO
6100258 CLIP, HEADBAND GUIDE, PLASTIC 19 100612 O-RING, WINDSCREEN RETAINER, SE-48 32 100232 SWITCH, SPDT, MOMENTARY
7100393 CLIP, ANTI-ROTATION, YOKE, PLASTIC 20 800192 PREAMP 33 100625 O-RING, PTT, HEADSET
8100363 SCREW, 8-32 X 1/2, PHILLIPS HEAD 21 100369 EAR SEAL, FOAM FILLED 34 100428 SWITCHGUARD, PTT, BLACK
9100364 SCREW, 8-32 X 3/8, PHILLIPS HEAD 22 100684 FOAM, SOUND ATTENUATING, FOR SLOTTED EAR CUP ONLY 35 10 0317 BUTTON, SWITCH, PTT, RED
10 100108 SCREW, 4-40 X 1/4, THREAD FORMING 23 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 36 100257 OPTIONAL – HEADBAND, METAL, LARGE
11 100251 E-RING, EAR CUP TO YOKE RETAINER 24 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 37 100402 OPTIONAL – EAR SEAL, GEL FILLED
12 100252 NUT, HEX, 8-32, LOCKING 25 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH
13 100952 EAR CUP, PRINTED AND DRILLED, MICROPHONE SIDE 26 800035 CABLE, HEADSET, STEREO, COILED











 


























